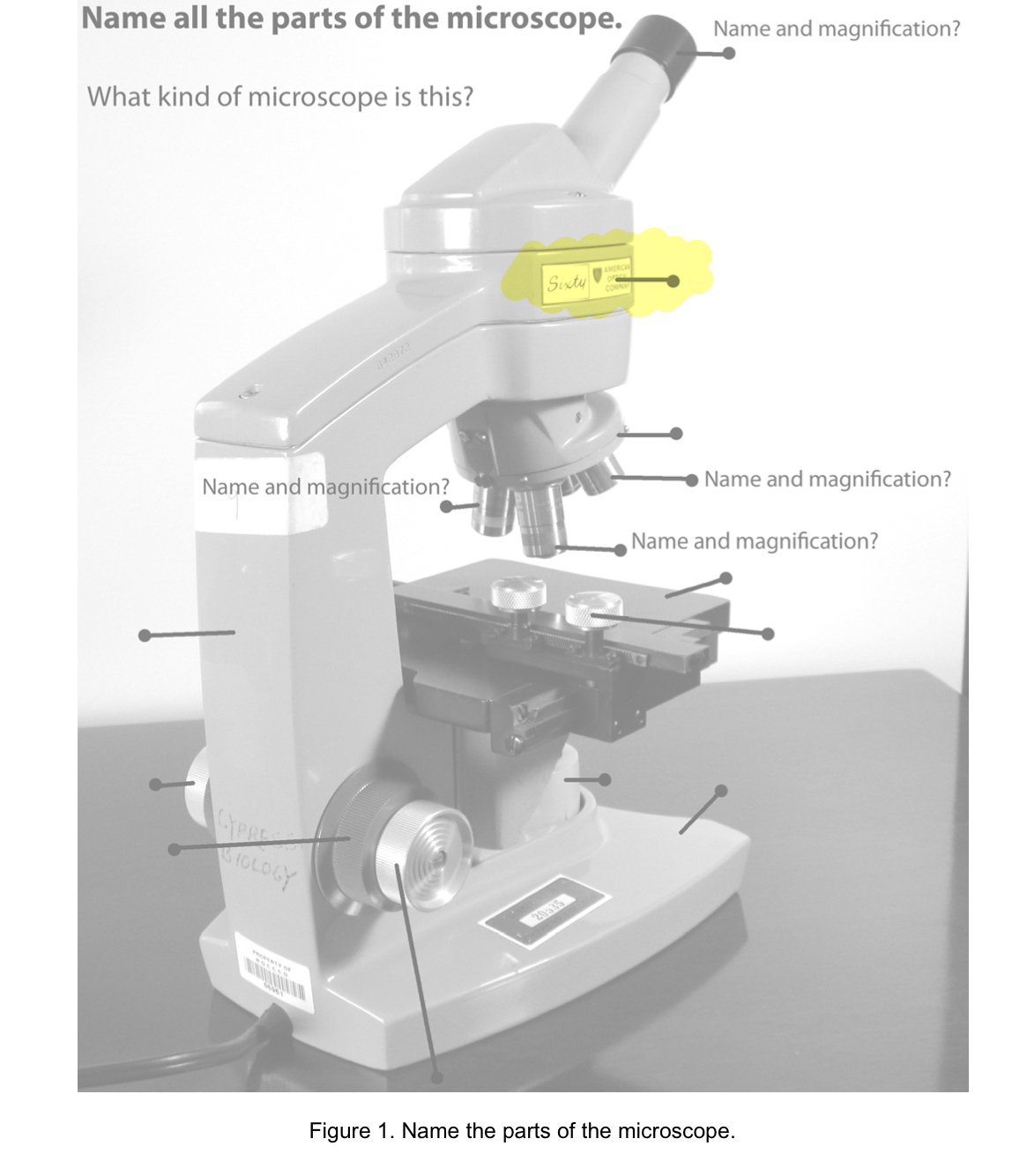

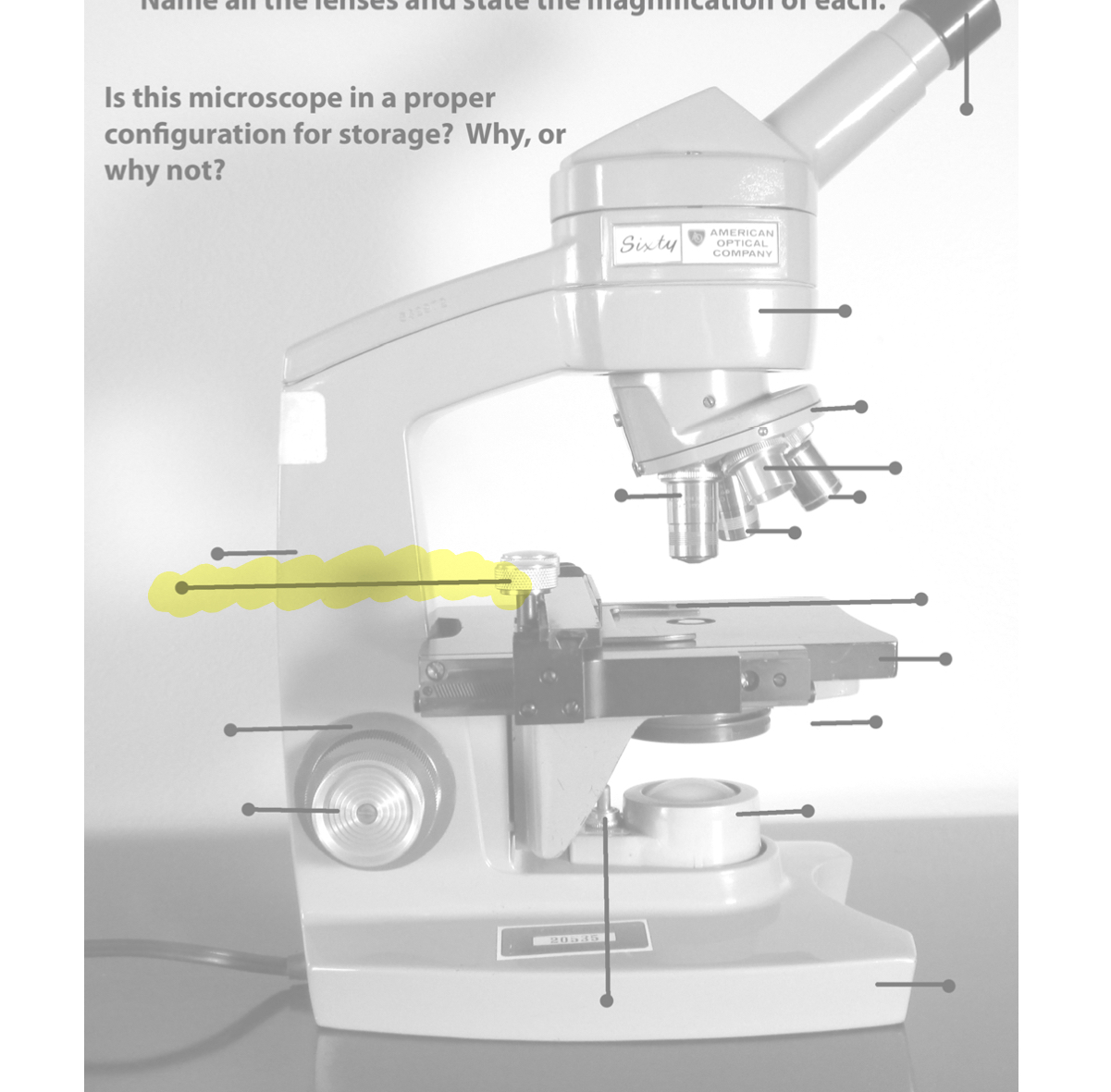

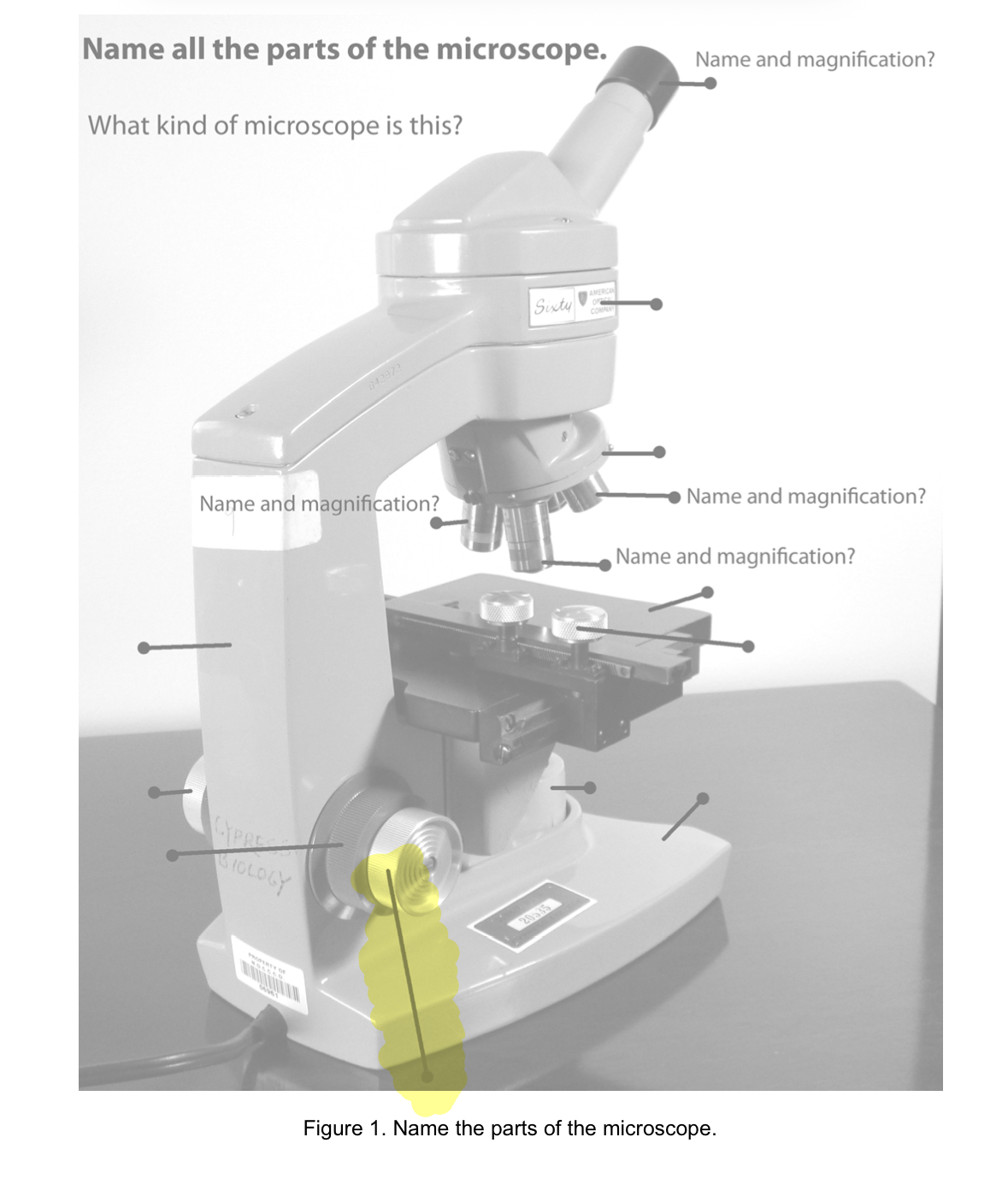

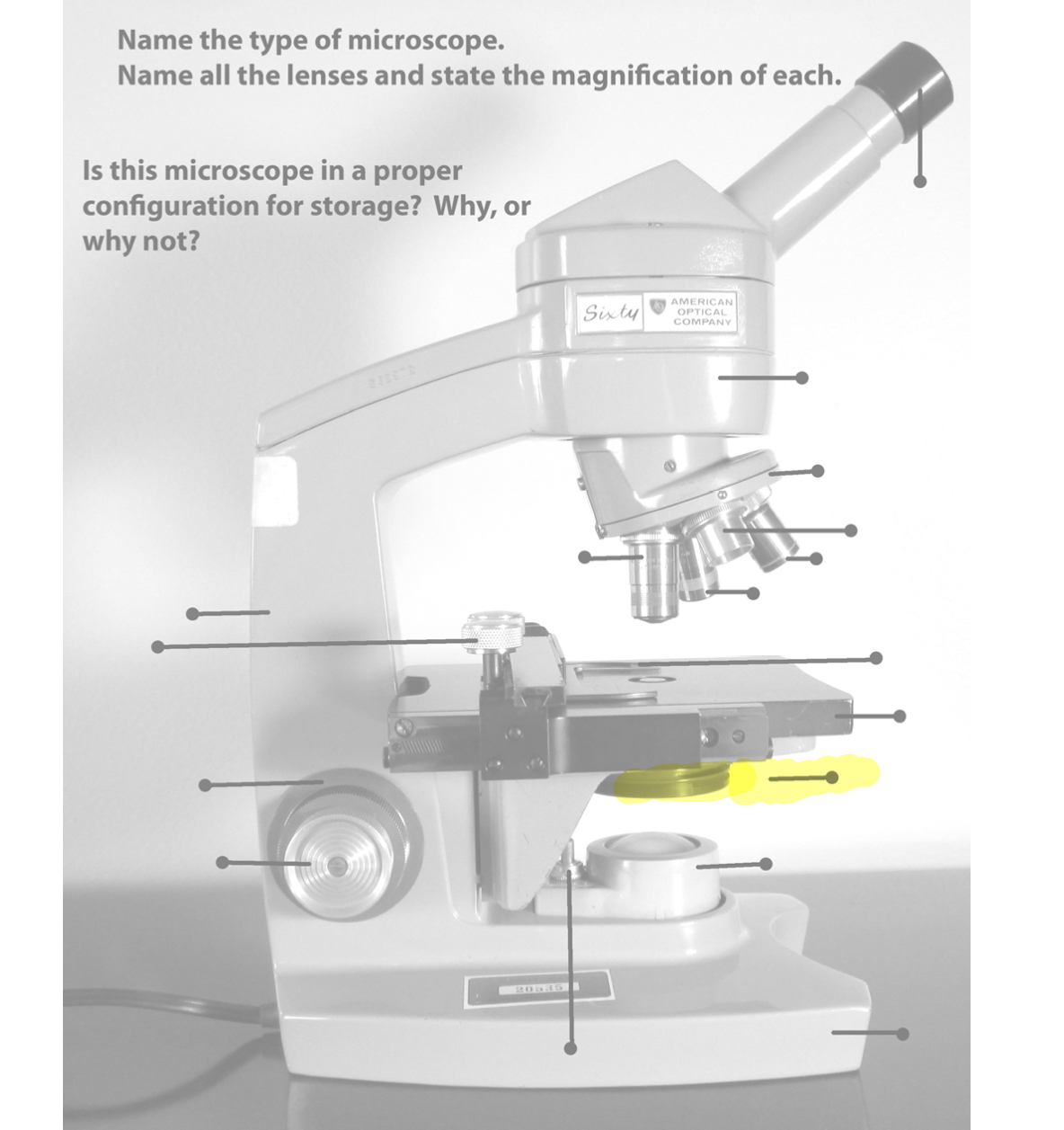

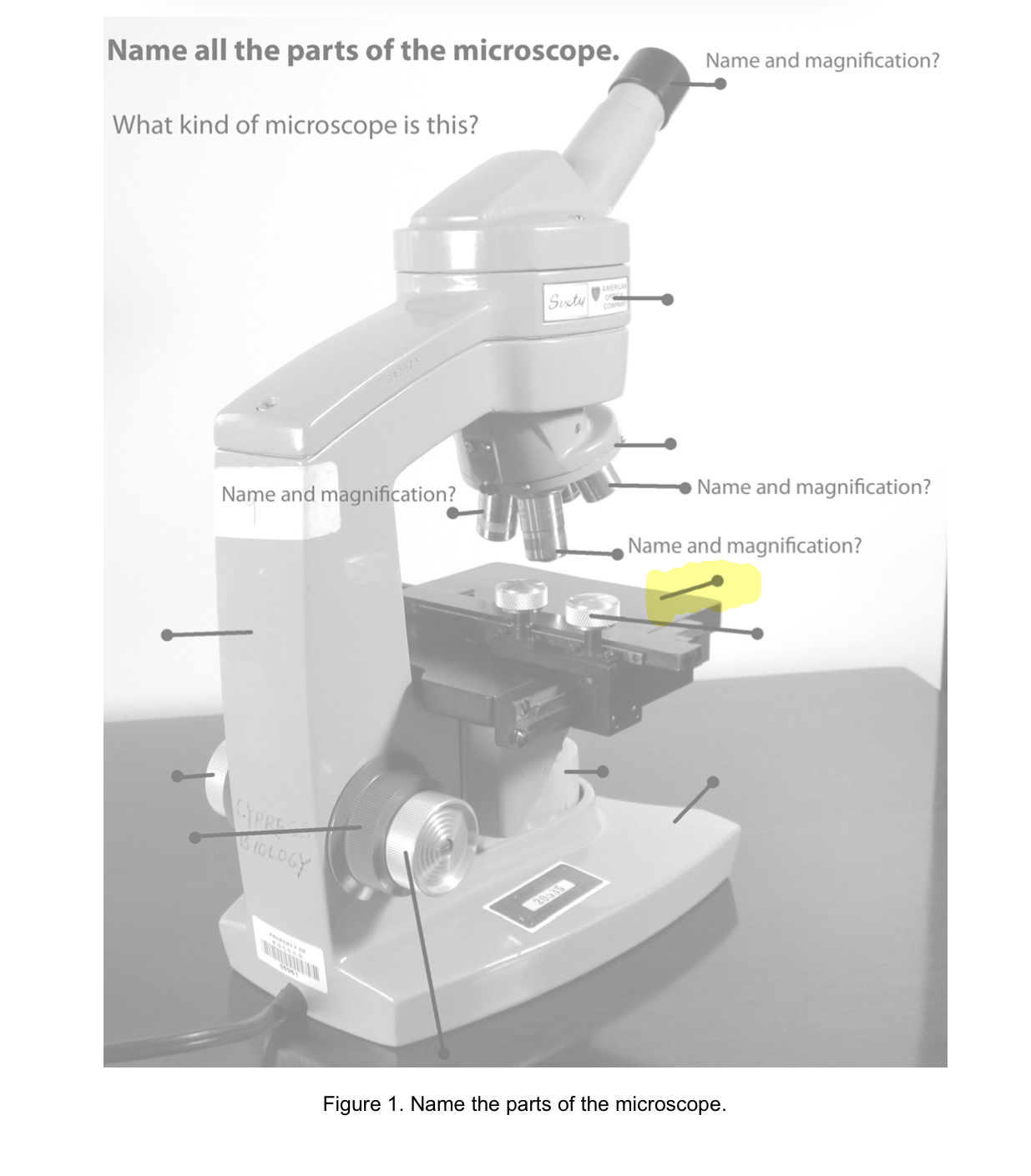

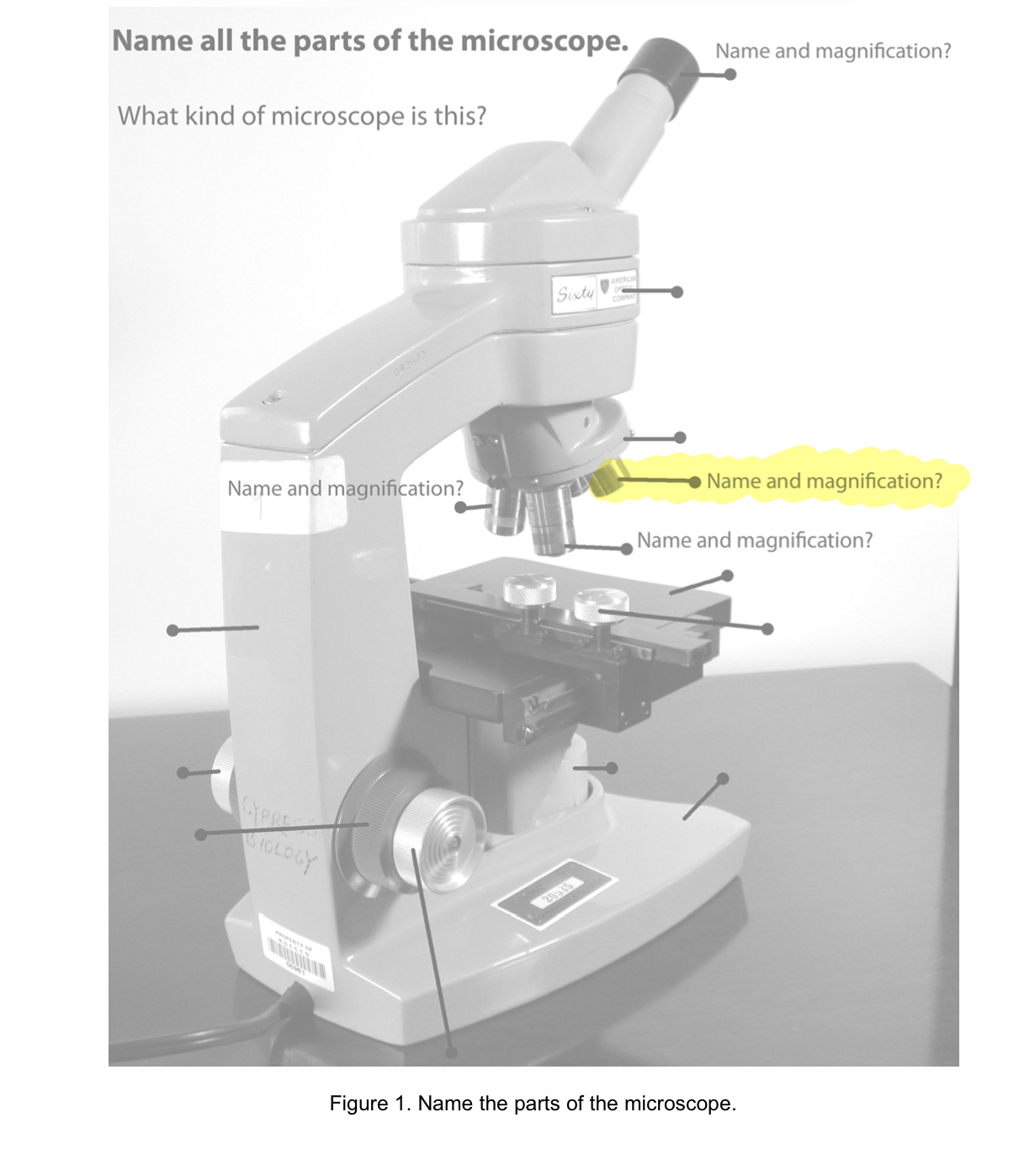

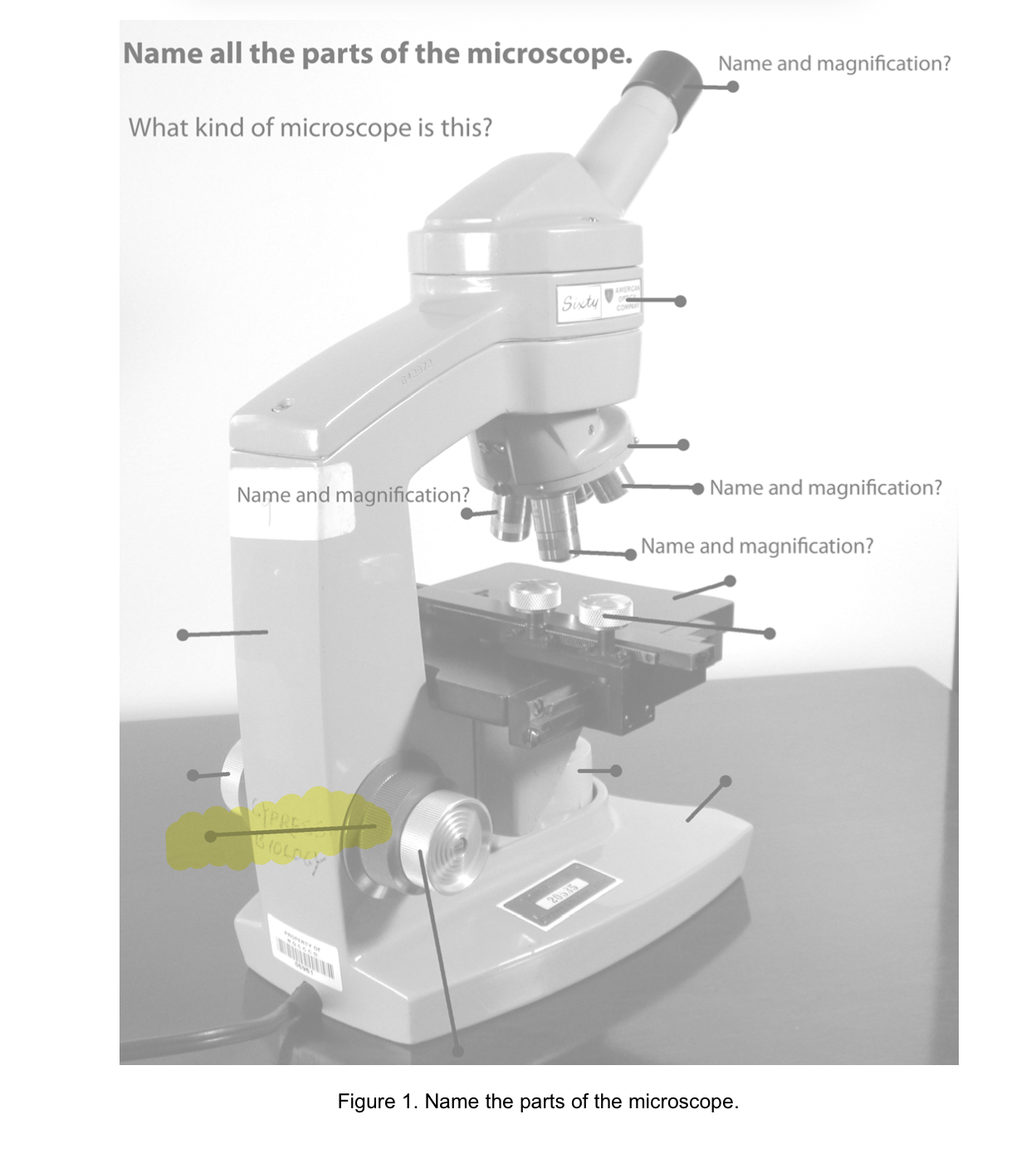

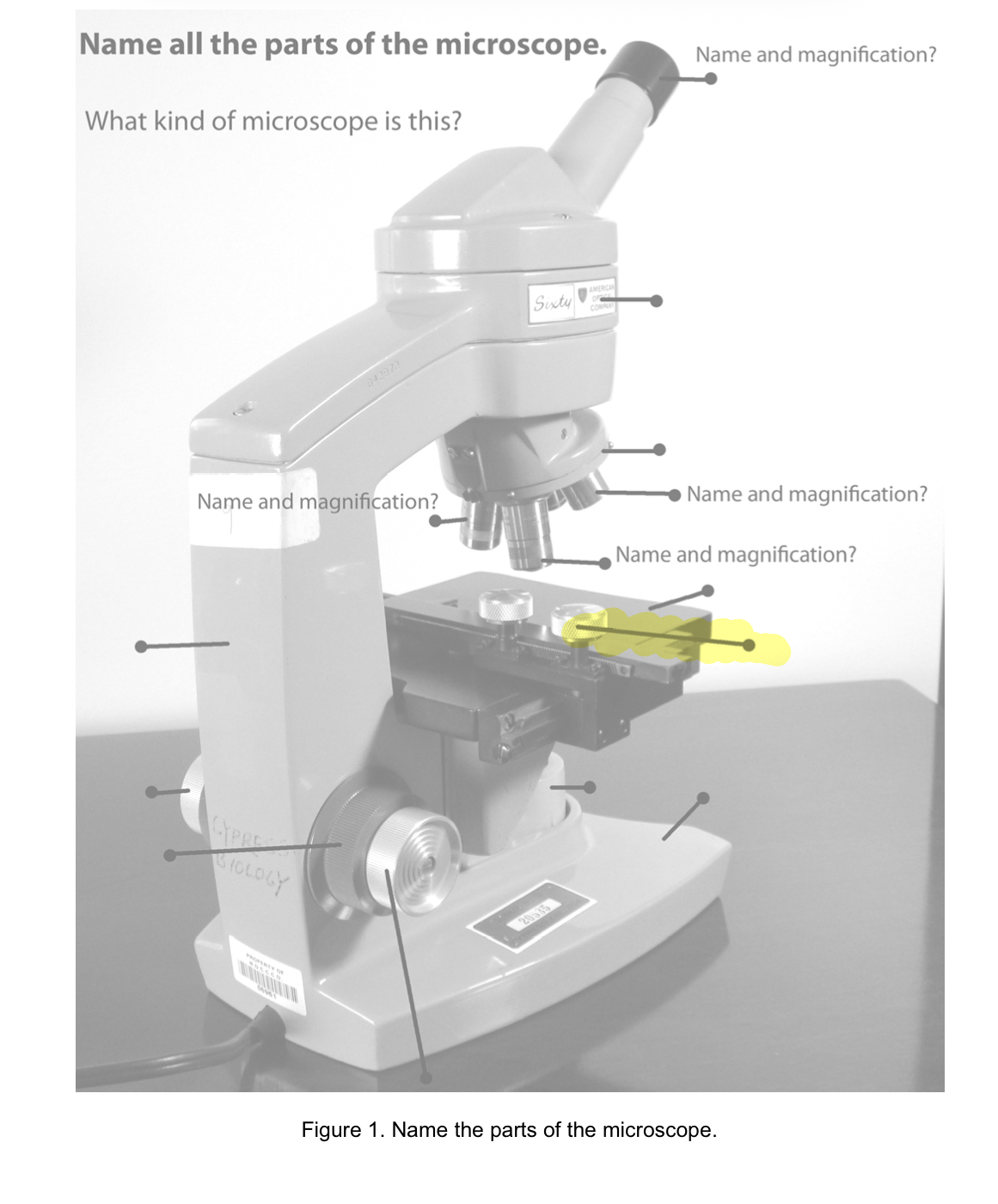

Microscope

Lab #1

Ocular lens

10x

How many objective lens are there

four

scanning power (SP) objective lens

4X

lower power (LP) objective lens

10x

high power (HP) objective lens

40X

oil immersion (OI) objective lens

100X

body tube

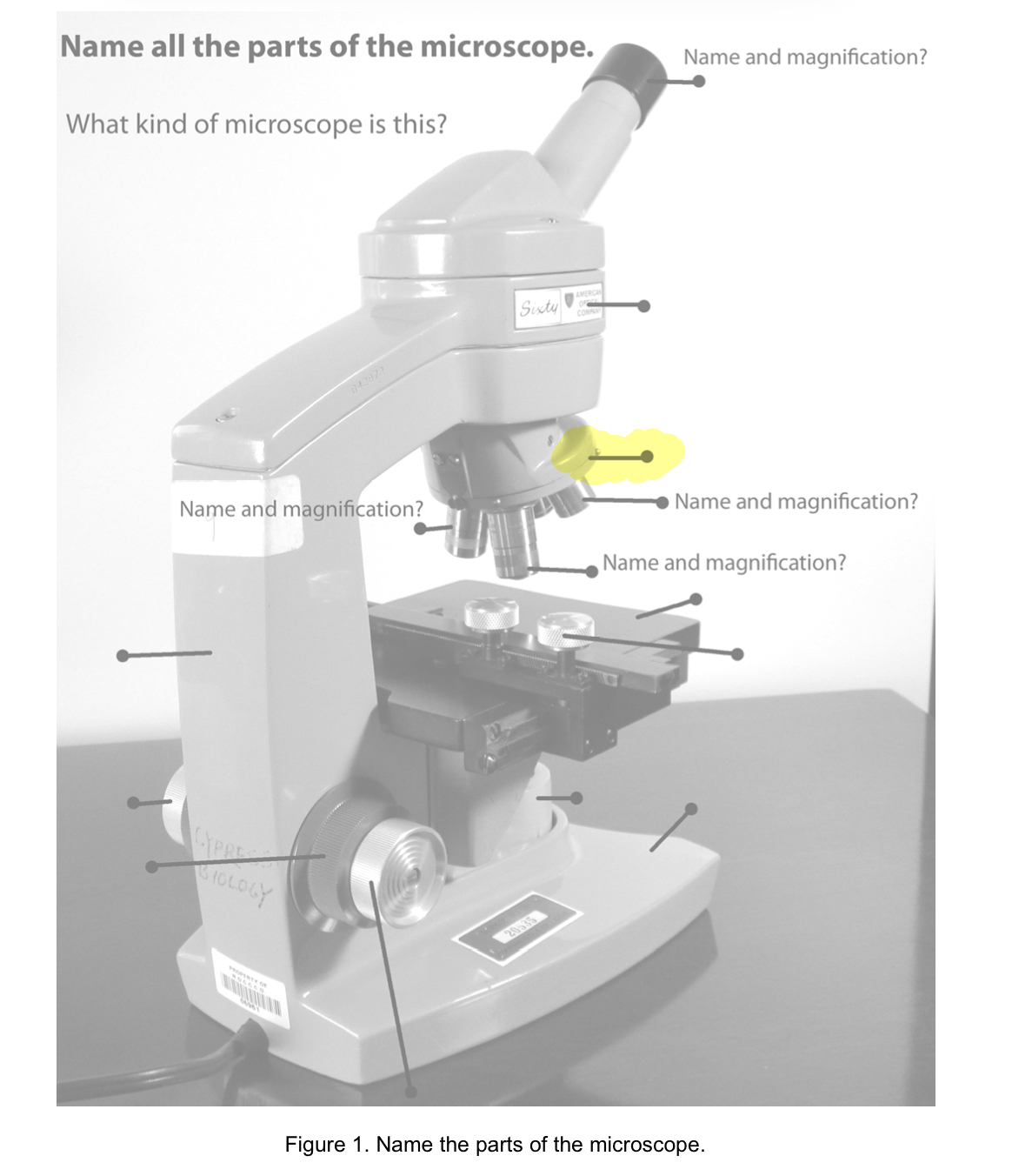

rotating nosepiece

scanning objective lense 4X

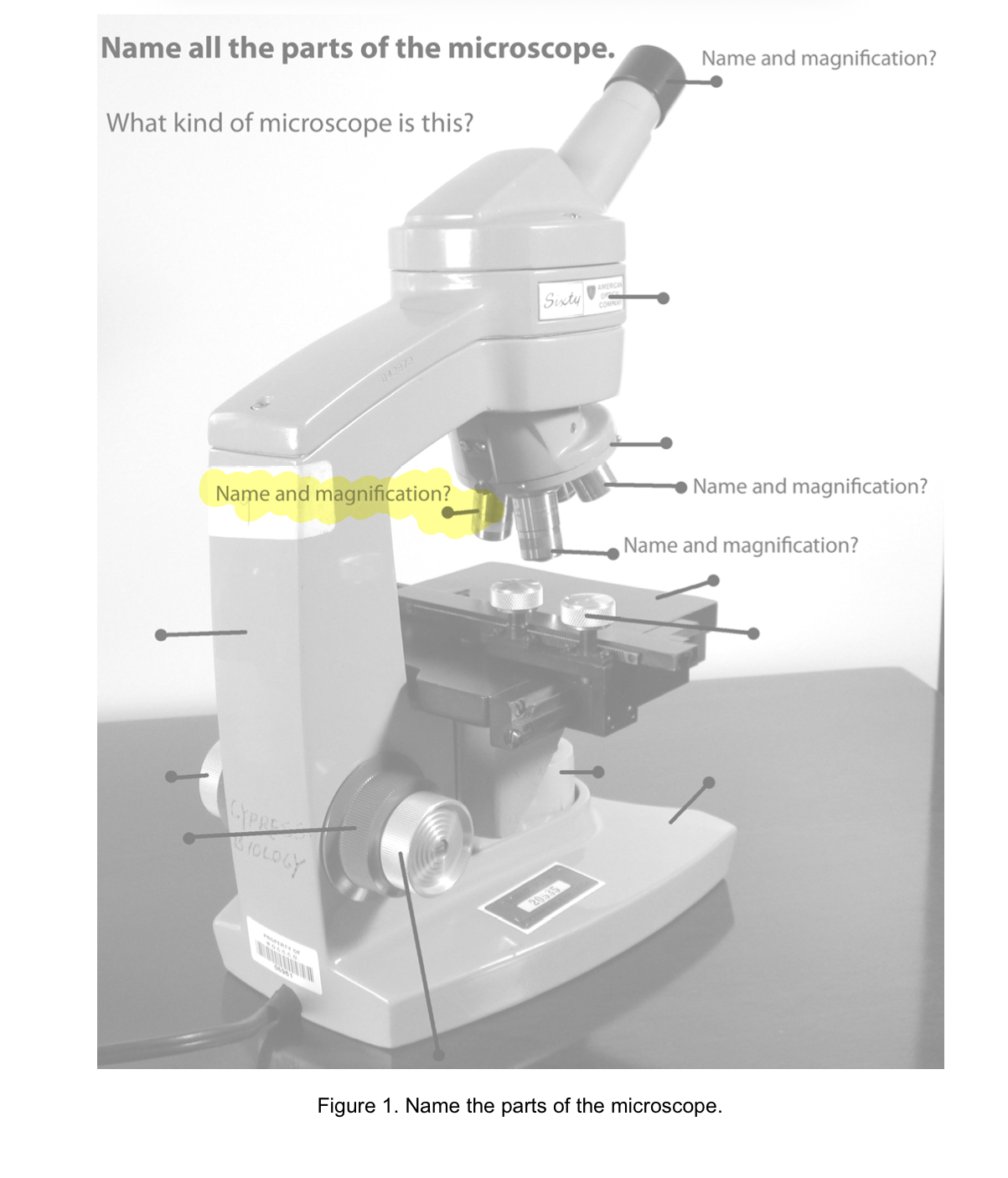

oil immersion objective lens 100X

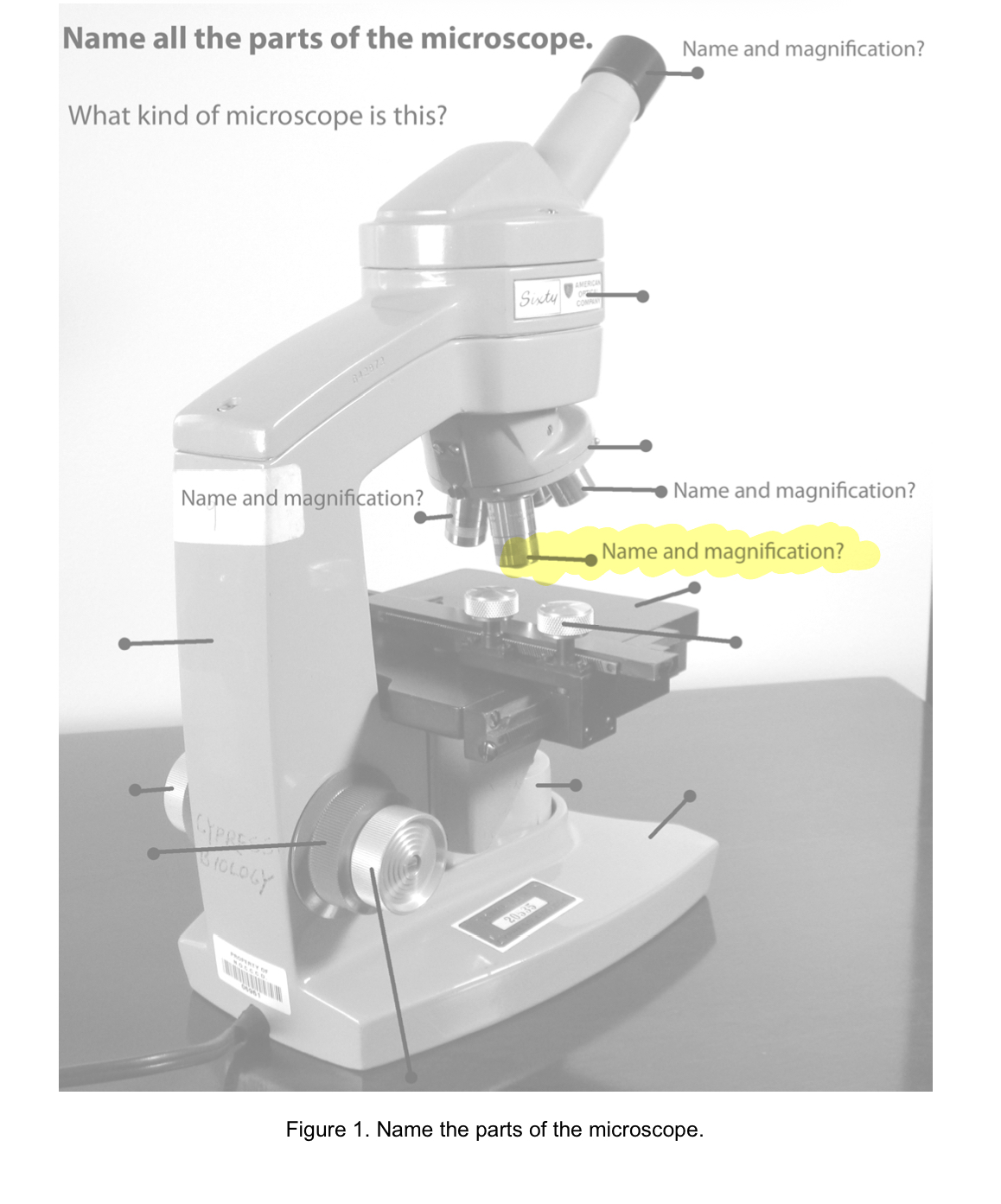

high power objective 45X

stage

stage clips

Illuminator

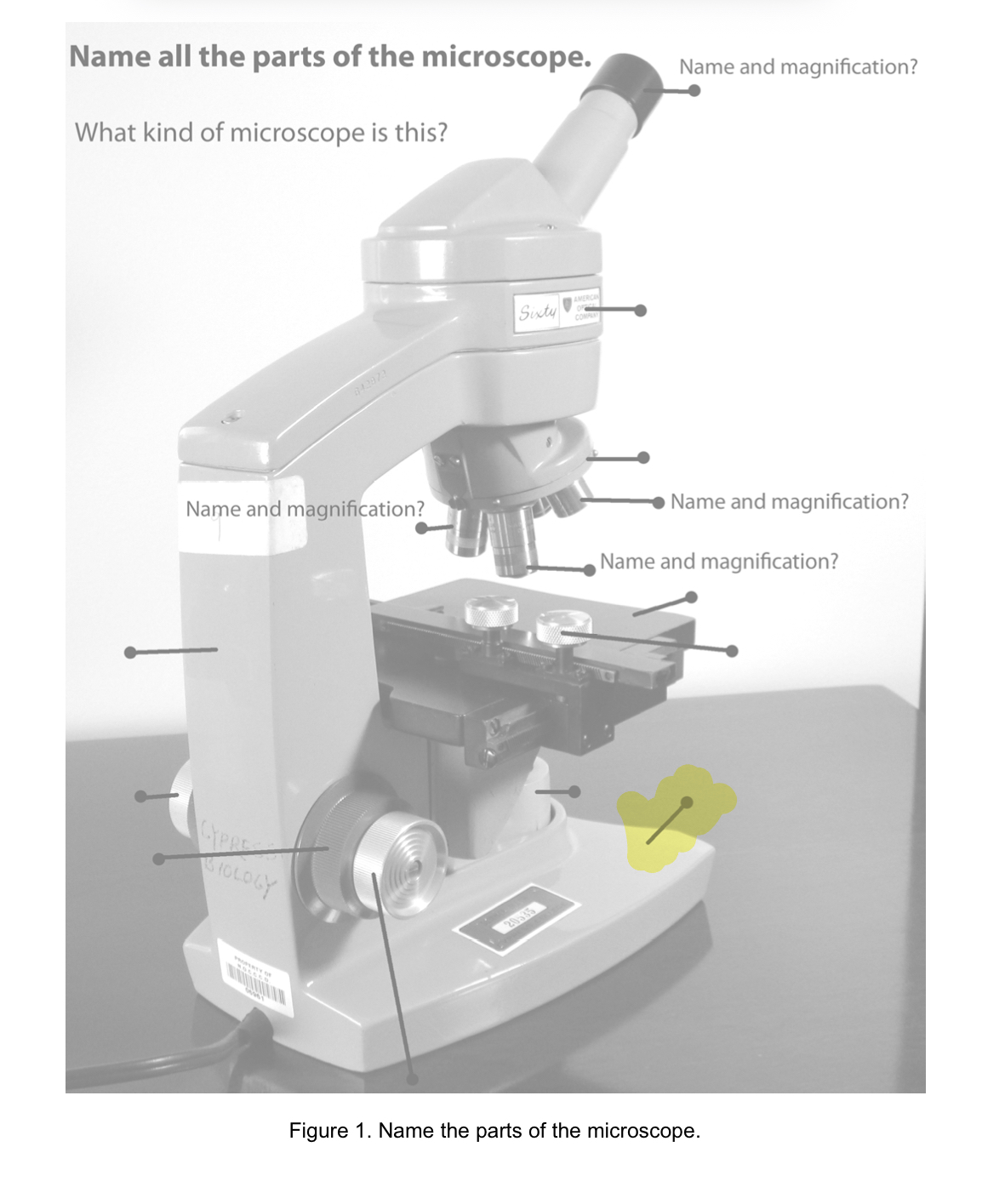

base

fine focus knob

coarse focus knob

Fine focus knob

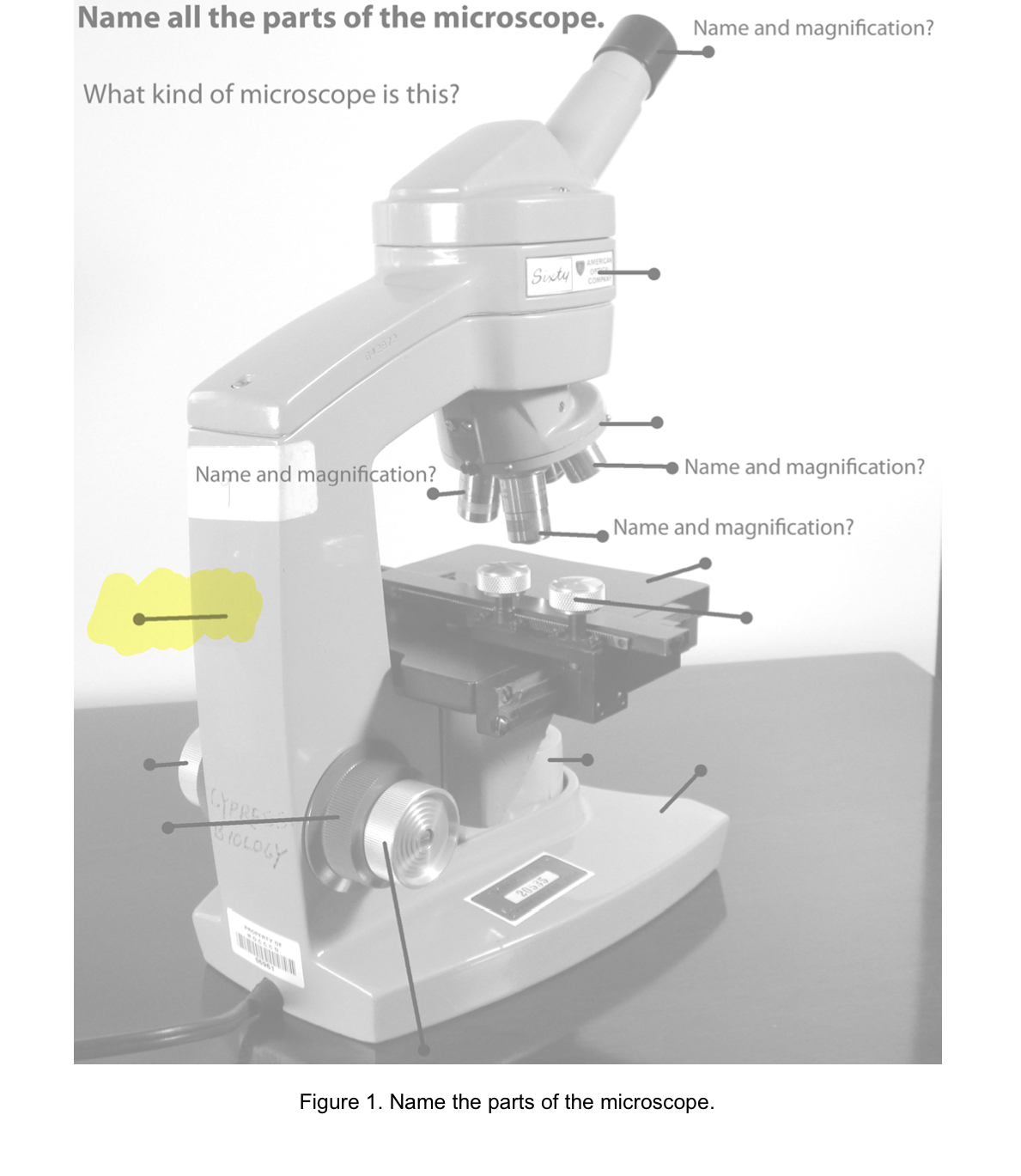

arm

manipulator

iris diaphragm

Saftey rules for practicum

1. Always carry microscope with one hand on the arm and the other on the base

2. Make sure it is set on the scanning power (Red line)

3. Make sure stage is lowered all the way

4. Secure piece with stage clips

5. Always use rotating nosepiece to switch between objective lens

6. Never use the course focus knob with the high power (blue line) or oil immersion objective lenses (white line) — you will only use the fine focus knob for those

Which lens has a red tube?

scanning power

Which lens has the yellow tube?

lower power

Which lens has the blue tube?

high power

Which lens has the white tube?

oil immersion
