Lab practical 1

1

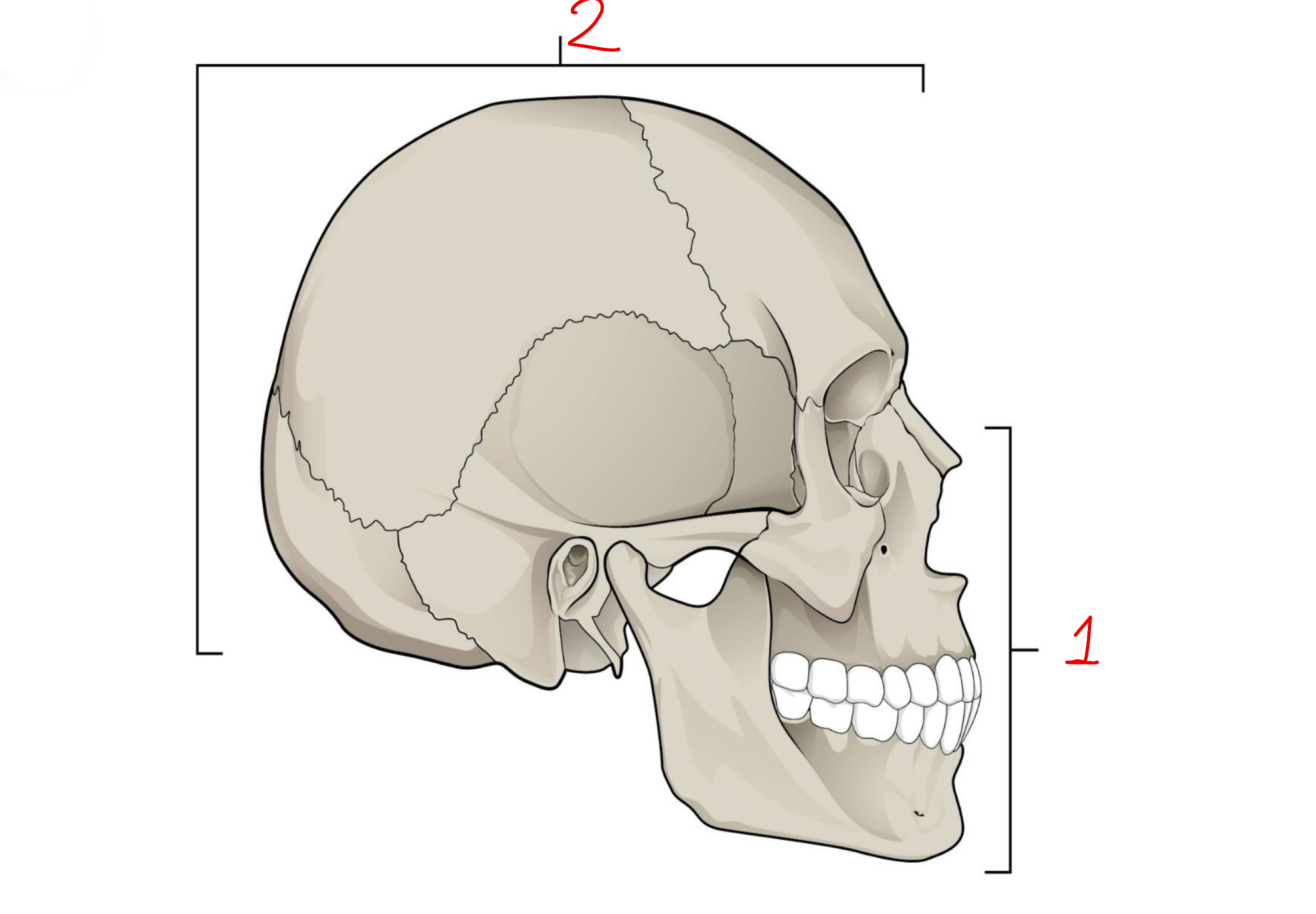

Brain case

2

Facial bones

1

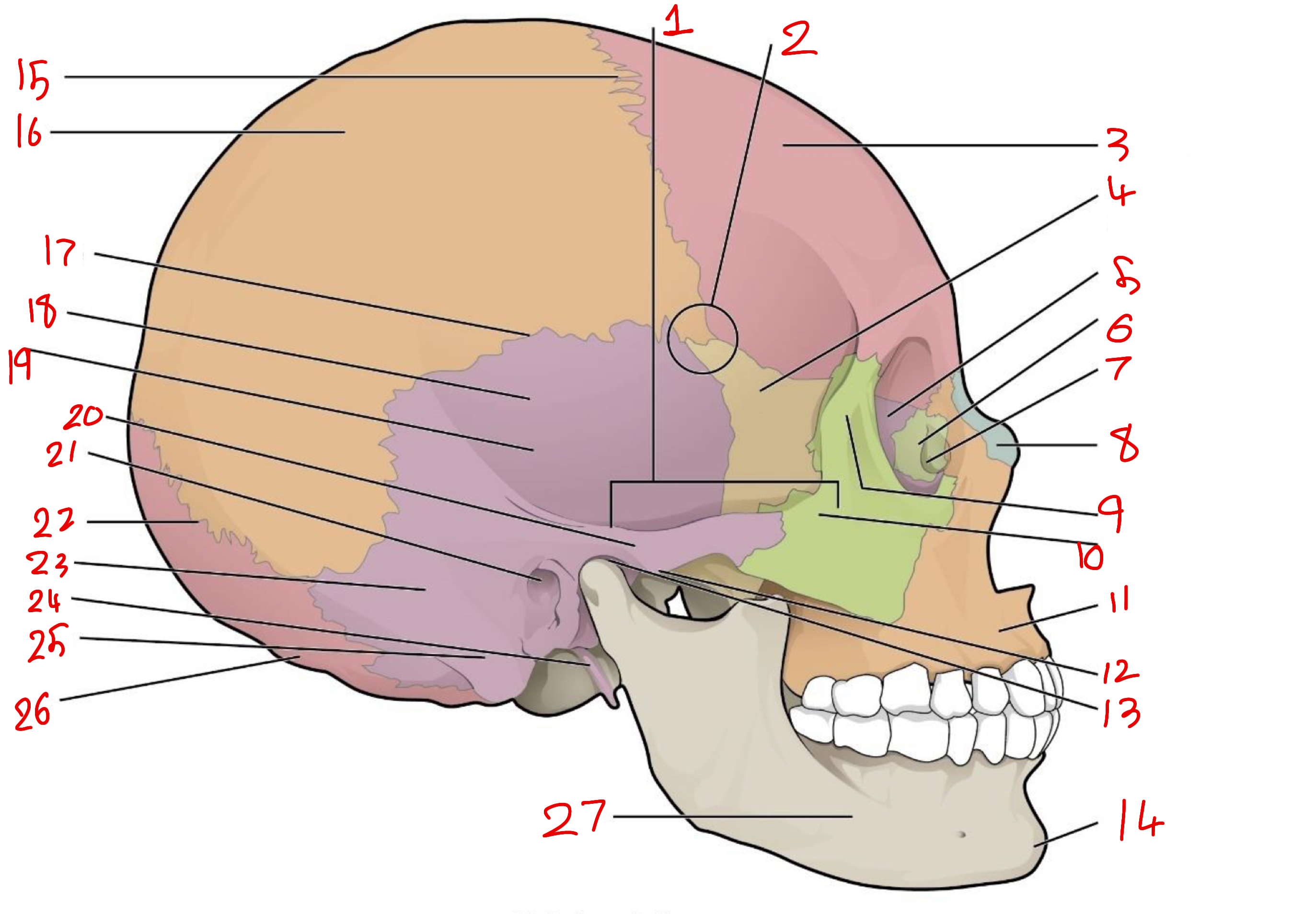

Zygomatic Arch

2

Pterion

3

Frontal bone

4

Greater wing of sphenoid bone

5

Ethmoid bone

6

Lacrimal bone

7

Lacrimal fossa

8

Nasal bone

9

Zygomatic bone

10

Temporal process

11

Maxilla

12

Articular tubercle

13

Mandibular fossa

14

Mental protuberance of mandible

15

Coronal suture

16

Parietal bone

17

Squamous suture

18

Temporal bone

19

Squamous temporal

20

Zygomatic process

21

External acoustic meatus

22

Lambdoid suture

23

mastoid portion

24

Styloid process

25

Mastoid process

26

Occipital bone

27

Mandible

1

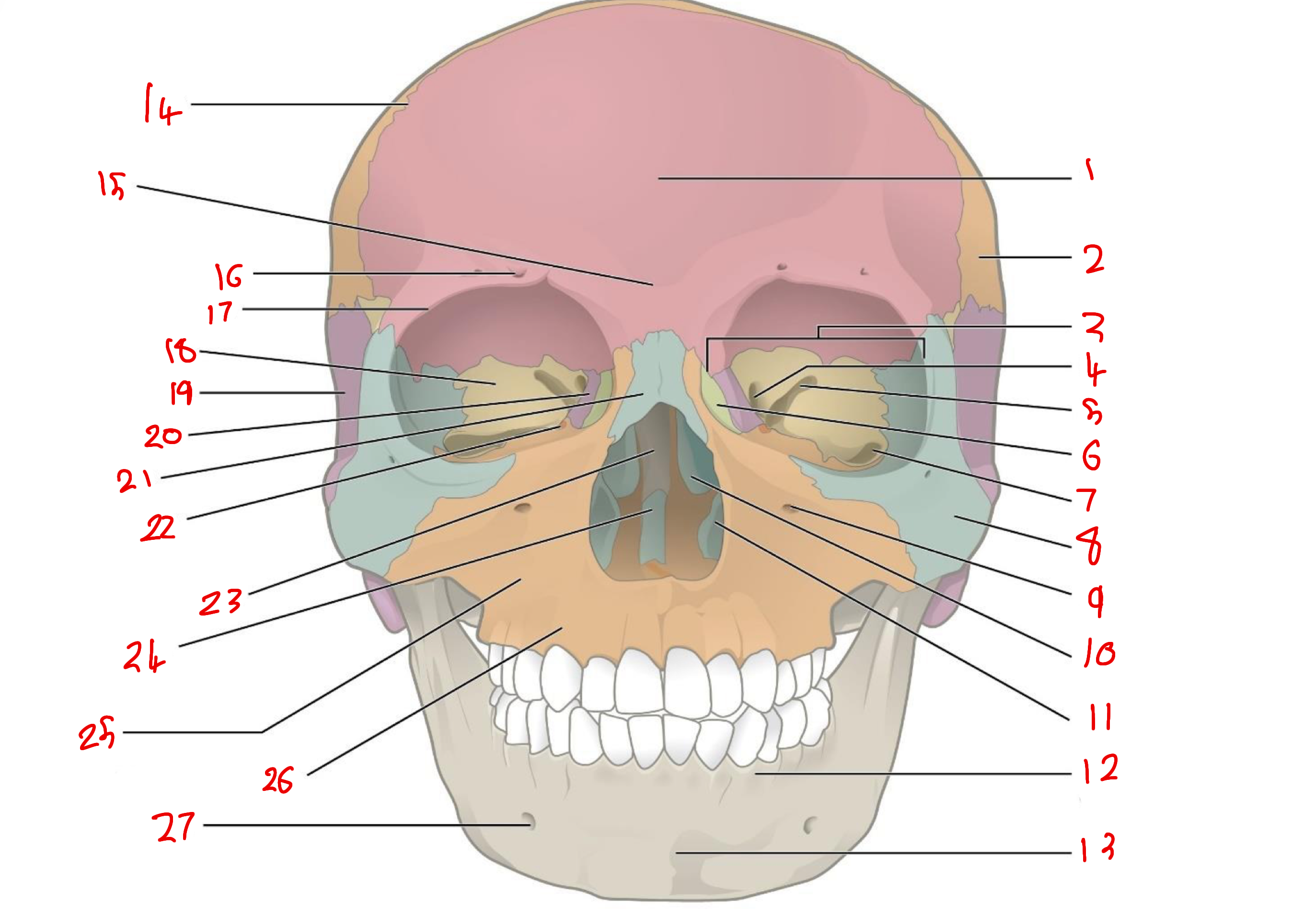

Frontal bone

2

Parietal bone

3

Orbit

4

Optic canal

5

Superior orbital fissure

6

Lacrimal bone

7

Inferior orbital fissure

8

Zygomatic bone

9

Infraorbital foremen

10

Middle nasal concha

11

Inferior nasal concha

12

Alveolar process of mandible

13

Mandible

14

Coronal suture

15

Glabella

16

Supraorbital foremen

17

Supraorbital margin

18

Sphenoid bone

19

Temporal bone

20

Ethmoid bone

21

Nasal bone

22

Palatine bone

23

Perpendicular plate of ethmoid bone

24

Vomer bone

25

Maxilla

26

Alveolar process of maxilla

27

Mental foramen

1

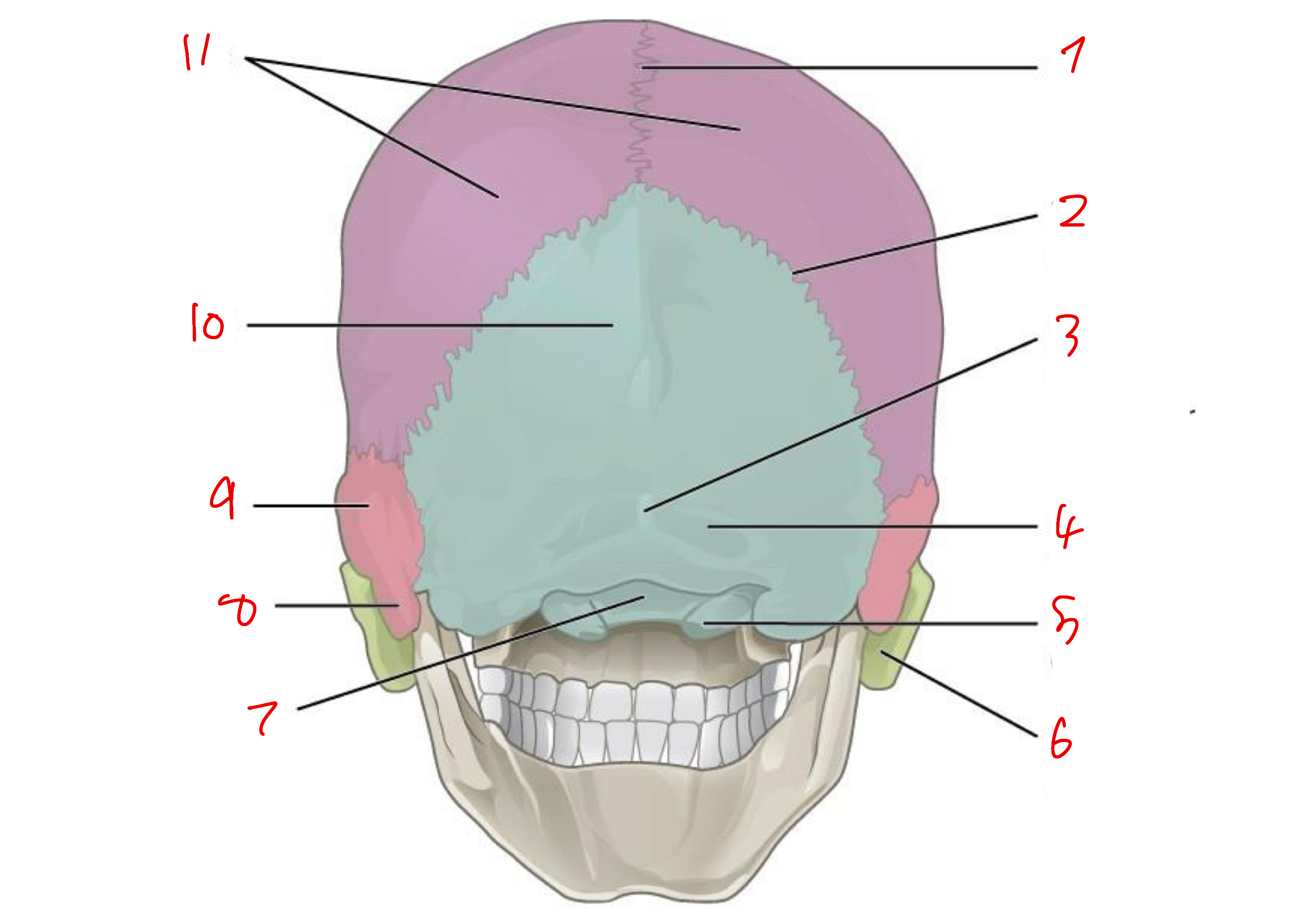

Sagittal suture

2

Lambdoid suture

3

External occipital protuberance

4

Superior nuchal line

5

Occipital condyle

6

Zygomatic bone

7

Foramen magnum

8

Mastoid process

9

Temporal bone

10

Occipital bone

11

Parietal bone

1

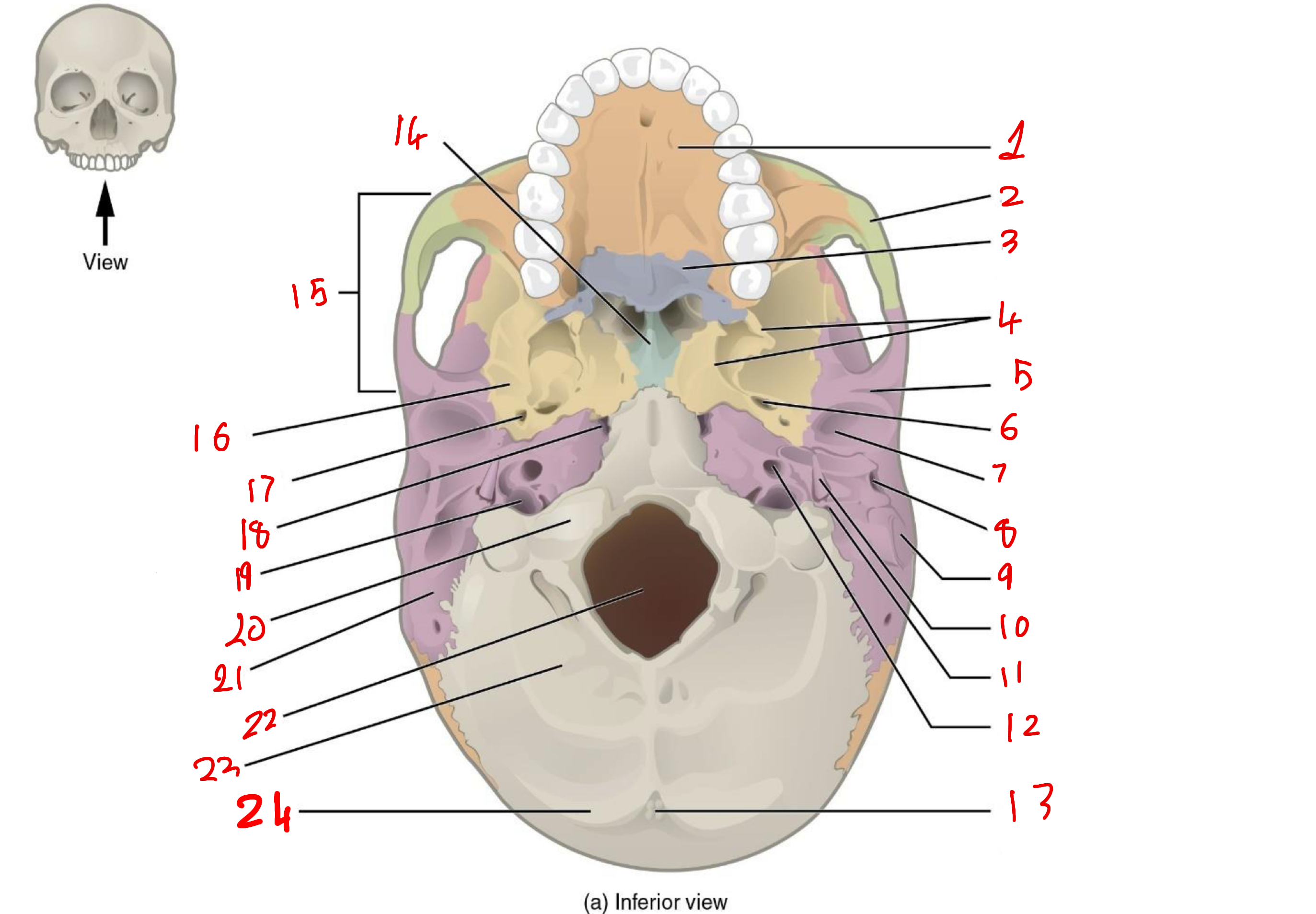

Palatine process

2

Zygomatic bone

3

Palatine bone (horizontal plate)

4

Medial and lateral pterygoid plates

5

Articular tubercle

6

Foramen ovale

7

Mandibular fossa

8

External auditory meatus

9

Mastoid process

10

Styloid process

11

Stylomastoid foramen

12

Entrance to carotid canal

13

Extrnal occipital protuberance

14

Vomer

15

Zygomatic arch

16

Sphenoid bone

17

Foramen spinosum

18

Foramen lacerum

19

Jugular foramen

20

Occipital condyle

21

Temporal bone

22

Foramen magnum

23

Occipital bone

24

Superior nuchal line

1

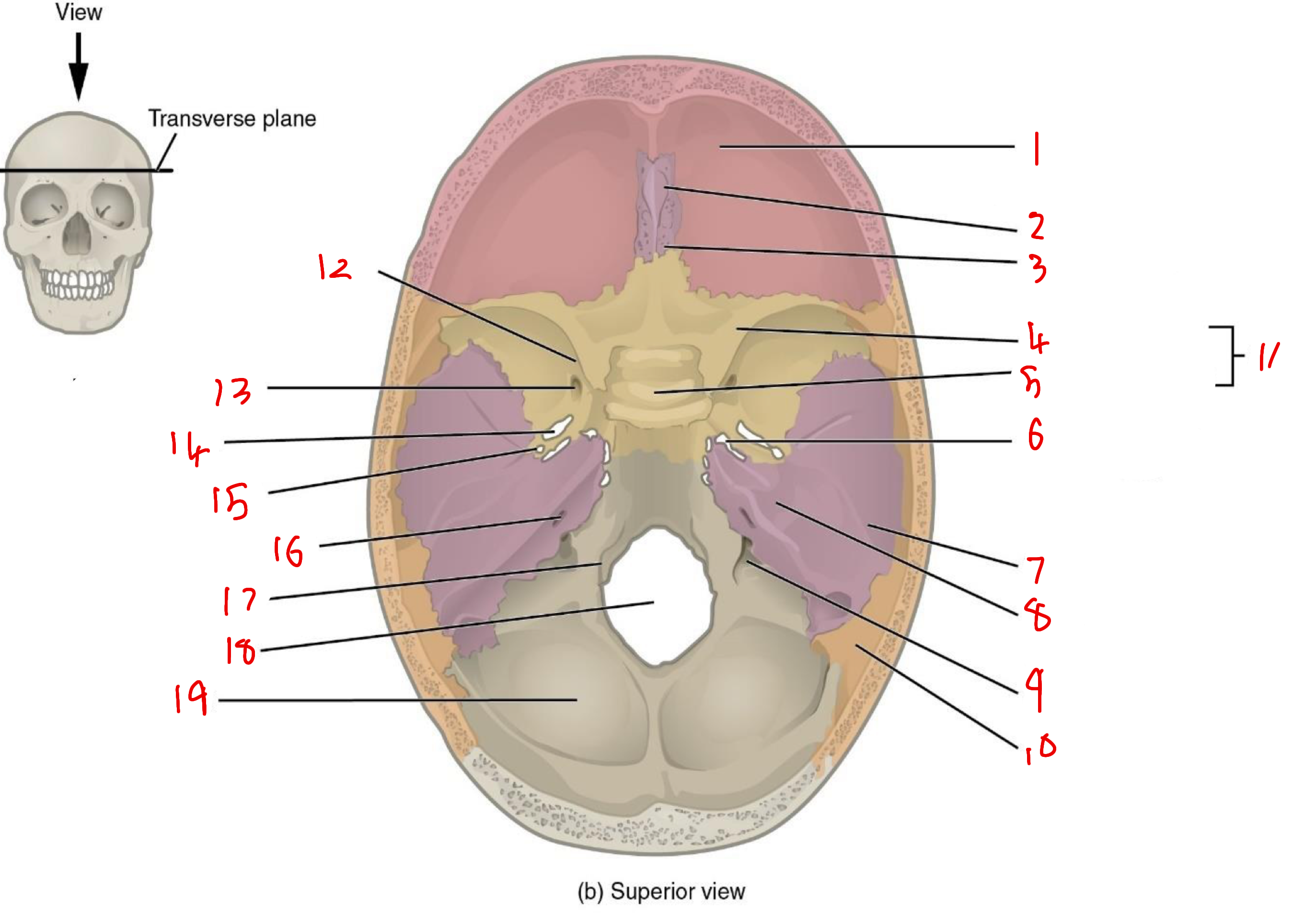

Frontal bone

2

Ethmoid bone crista galli

3

Ethmoid bone of cribriform plate

4

Sphenoid bone lesser wing

5

Hypophyseal fossa

6

Foramen lacerum and exit of carotid canal

7

Temporal bone

8

Petrous portion

9

Jugular foramen
