Organic Chemistry Exam 1

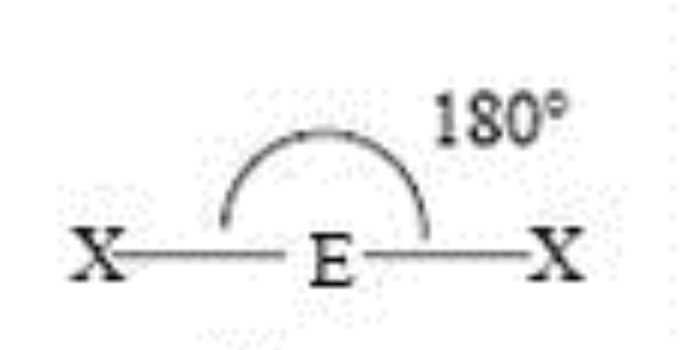

linear - 2 domains, 0 lone pairs, 180°

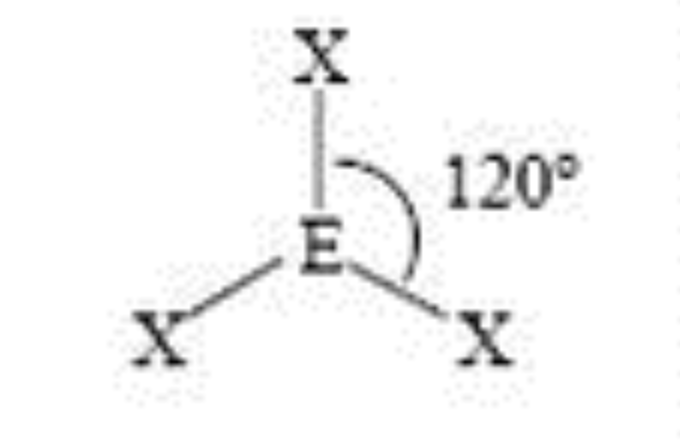

trigonal planar - 3 domains, 0 lone pairs, 120°

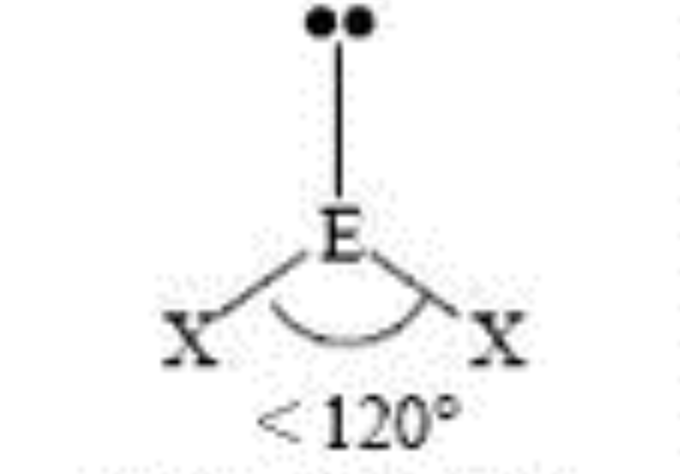

bent or angular - 3 domains, 1 lone pair, <120°

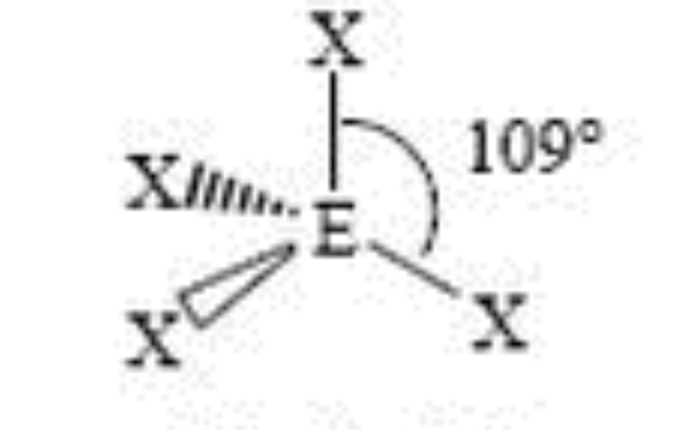

tetrahedral - 4 domains, 0 lone pairs, 109°

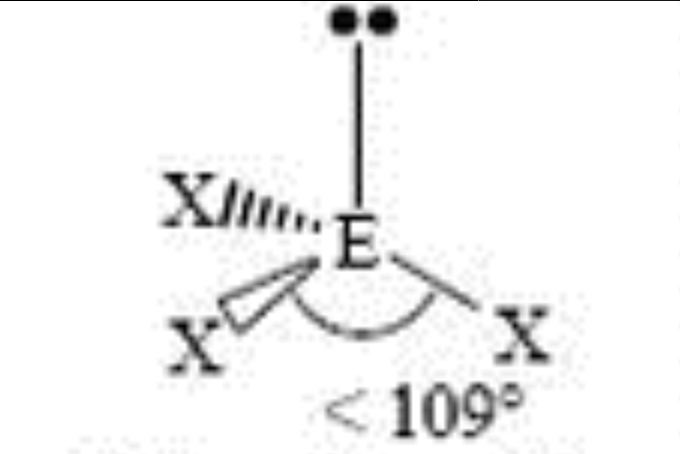

trigonal pyramid - 4 domains, 1 lone pair, <109°

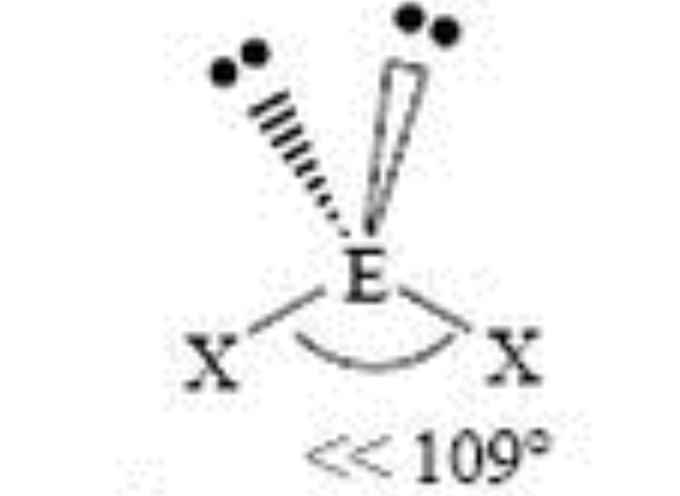

bent or angular - 4 domains, 2 lone pairs, «109°

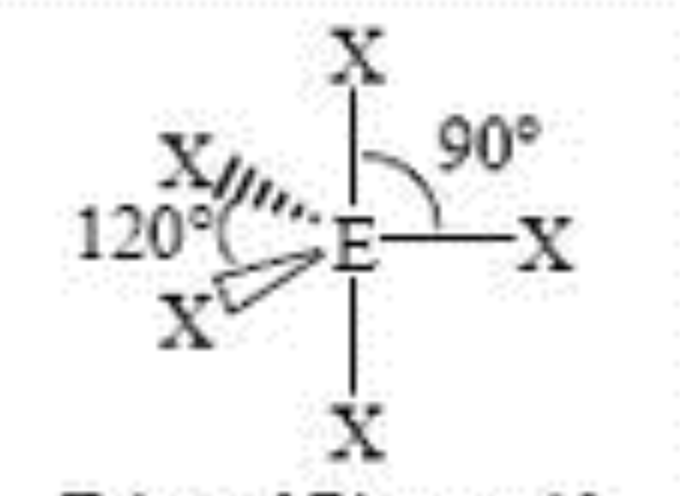

trigonal bipyramid - 5 domains, 0 lone pairs, 120°, 90°

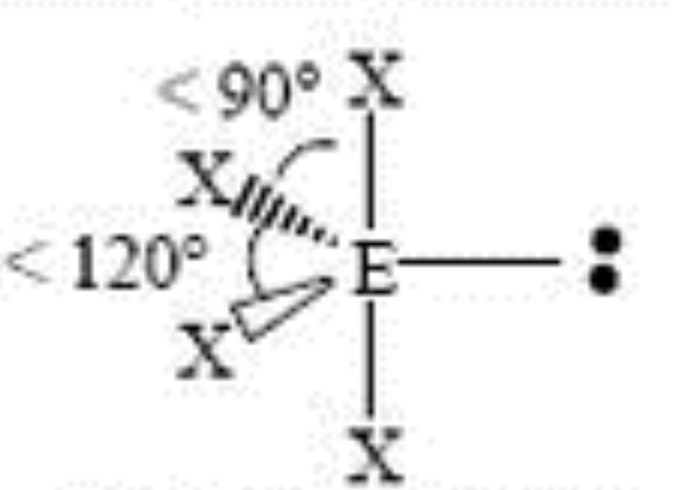

sawhorse or seesaw - 5 domains, 1 lone pair, <120°, <90°

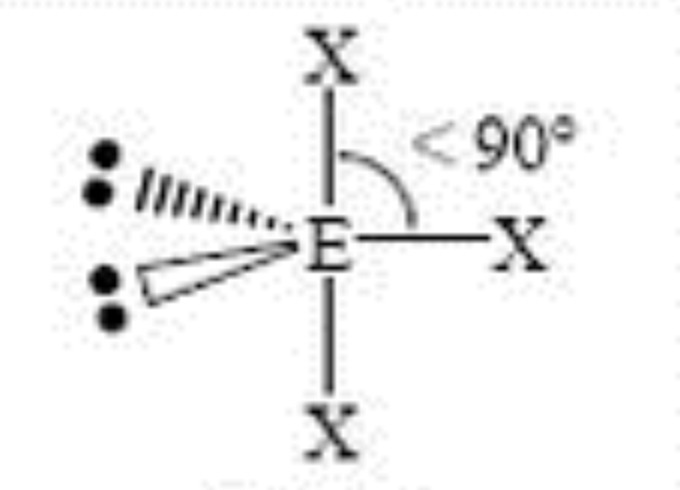

T-shape - 5 domains, 2 lone pairs, <90°

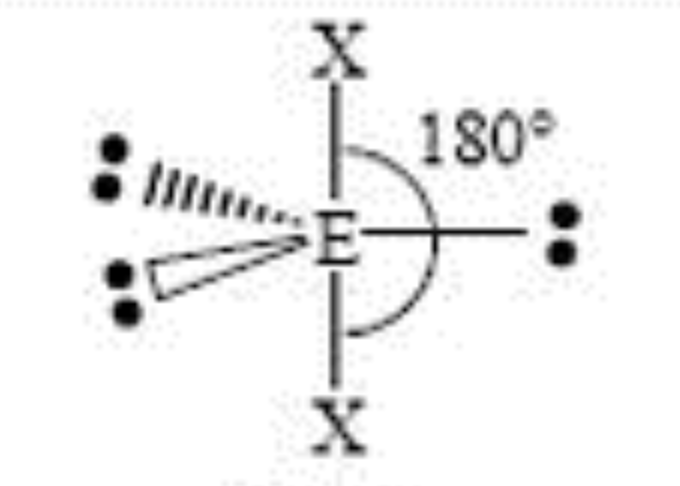

linear - 5 domains, 3 lone pairs, 180°

octahedral - 6 domains, 0 lone pairs, 90°

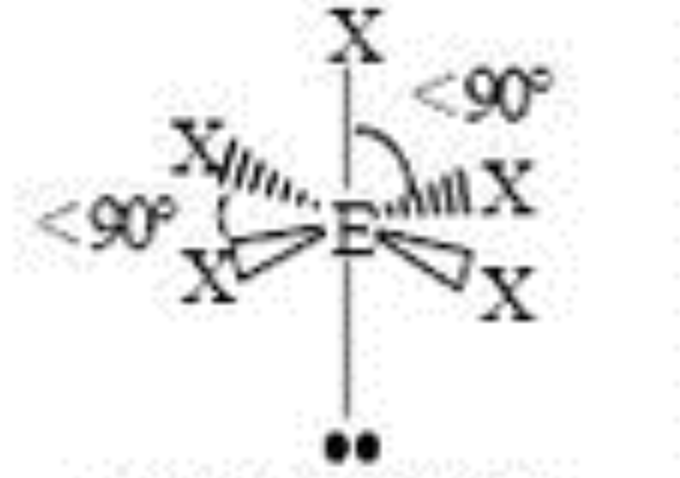

square pyramid - 6 domains, 1 lone pair, <90°

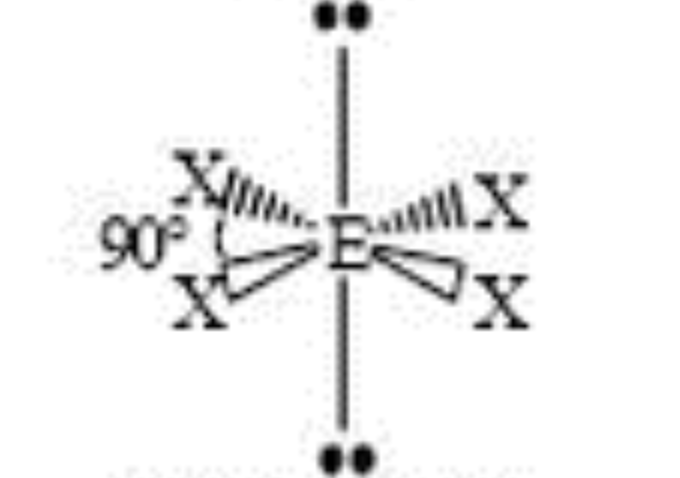

square planar - 6 domains, 2 lone pairs, 90°

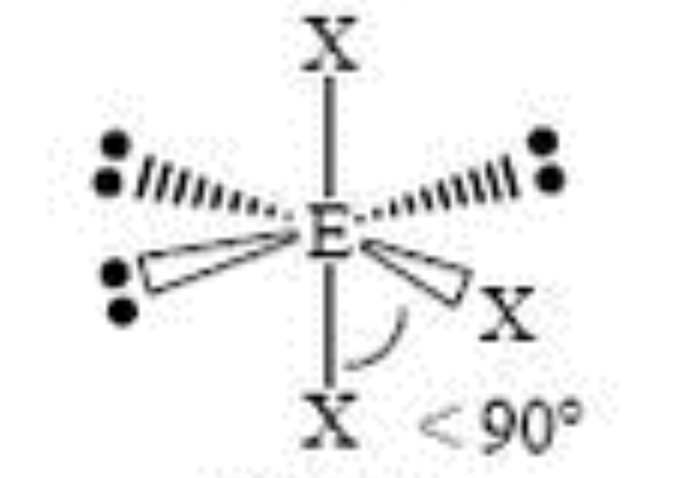

T-shape - 6 domains, 3 lone pairs, <90°

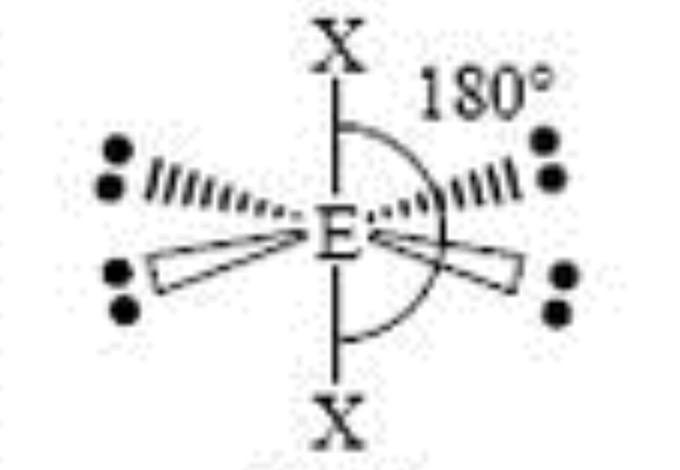

linear - 6 domains, 4 lone pairs, 180°
