62 Terms

1
New cards
GRD (OG)
On Ground/On Grade
2
New cards
TS
Top of Slope
3
New cards
TOE
Toe of Slope
4
New cards
BC
Back of Curb
5
New cards
BCCOR
Back of Curb Corner
6
New cards
BCPOC
Back of Curb Point on Curve
7
New cards
BCBR
Back of Curb Begin Radius
8
New cards
BCER
Back of Curb End Radius
9
New cards
EP
Edge of Pavement
10
New cards
EPCOR
Edge of Pavement Corner
11
New cards
EPBR
Edge of Pavement Begin Radius
12
New cards
EPER
Edge of Pavement End Radius
13
New cards
EPPOC
Edge of Pavement Point on Curve
14
New cards
G (GUT)
Gutter
15
New cards
PAV (OP)
On Pavement
16
New cards
CL
Center Line
17
New cards
SW
Sidewalk
18
New cards
SWCOR
Sidewalk Corner
19
New cards
FH
Fire Hydrant
20
New cards
ADR
Asphalt Driveway
21
New cards
CDR
Concrete Driveway
22
New cards
GRAV
Gravel
23
New cards
GDR
Gravel Driveway
24
New cards
FL
Fence Line
25
New cards
FC
Fence Corner
26
New cards
DL
Ditch Line
27
New cards
MH
Man Hole
28
New cards
WV
Water Valve
29
New cards
WM
Water Main/Water Meter
30
New cards
BM
Bench Mark
31
New cards
GV
Gas Valve
32
New cards
CB
Catch Basin
33
New cards
BLDG
Building
34
New cards
DS
Downspout
35
New cards
PP
Power Pole
36
New cards
LP
Light Pole
37
New cards
GUY
Guywire
38
New cards
SS
Stop Sign
39
New cards
HW
Headwall
40
New cards
MB##
Mailbox (address #)
41
New cards
TR##
Tree (diameter in inches)
42
New cards
CMP##
Corrugated Metal Pipe (diameter in inches)
43
New cards
RCP##
Reinforced Concrete Pipe (diameter in inches)
44
New cards

What is required for a road profile?

edge of pavement, gutter, back of curb, centerline

45
New cards

What is required for a hill profile?

on ground/on grade (x2? — 5 points must be labled), top of slope, toe of slope

46
New cards

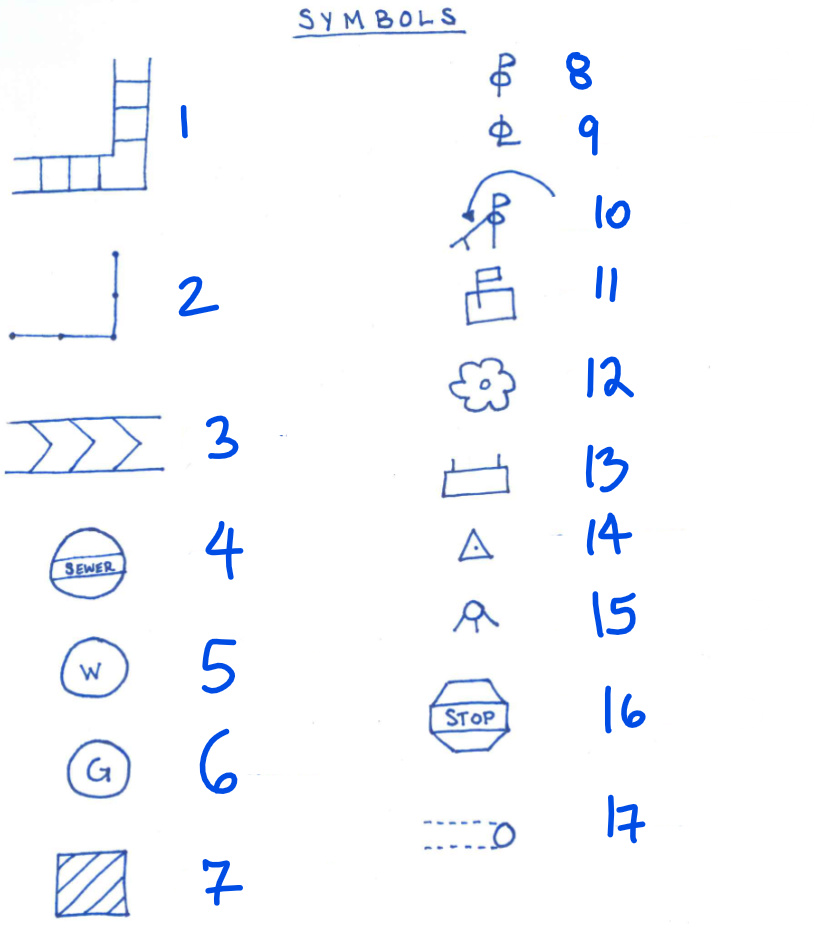

draw sidewalk

1

<p>1</p>
47
New cards

draw fenceline

2

<p>2</p>
48
New cards

draw ditchline

3

<p>3</p>
49
New cards

draw manhole

4

<p>4</p>
50
New cards

draw water valve

5

<p>5</p>
51
New cards

draw gas valve

6

52
New cards

draw catch basin

7

<p>7</p>
53
New cards

draw power pole

8

<p>8</p>
54
New cards

draw light pole

9

<p>9</p>
55
New cards

draw guy wire

10

<p>10</p>
56
New cards

draw mailbox

11

<p>11</p>
57
New cards

draw tree

12

<p>12</p>
58
New cards

draw headwall

13

<p>13</p>
59
New cards

draw benchmark

14

<p>14</p>
60
New cards

draw fire hydrant

15

<p>15</p>
61
New cards

draw stop sign

16

<p>16</p>
62
New cards

draw downspout

17

<p>17</p>
