Heart Structure & Blood Flow Review

what type of blood is in the right atrium

deoxygenated

what type of blood is in the vena cavas?

deoxygenated blood

which blood vessel is attached to the right ventricle?

pulmonary trunk

what type of blood is in the left ventricle?

oxygenated

what is the function of the atria?

receive blood from either the lungs or body

what structure comes before AND after the aorta?

left ventricle, body capillaries

Which blood vessel is attached to the left atrium?

pulmonary veins

What structure comes before AND after the pulmonary arteries?

Pulmonary trunk, lung capillaries

what type of blood is in the pulmonary veins?

oxygenated

Where in the pathway of blood flow is oxygen dropped off and carbon dioxide is picked up?

body capillaries

what structure comes before AND after the vena cavas

body capillaries, right atrium

Which blood vessel is attached to the left ventricle?

aorta

What type of blood is in the pulmonary trunk?

deoxygenated

Where does the blood on the right side of the heart get pumped to?

lung capillaries

What blood vessels deliver oxygen rich blood to the left atrium?

pulmonary veins

What type of blood is in the body capillaries?

both oxygenated & deoxygenated

What is structure #2

Interventicular sulcus

what type of view is this anterior or posterior?

anterior

Identify the right ventricle

1

Identify #3

left ventricle

Identify the coronary sulcus

#4

Identify #5

Right atrium

Identify the following:  #2

Bicuspid AV Valve

Identify the following:  interventricular septum

4

Identify the following:  left ventricle

3

Identify the following:  myocardium

4

What is structure #3

left ventricle

which structure is the right atrium?

4

Which structure(s) contains oxygenated blood? Choose all that apply

1 & 3

Identify the following: Aorta

1

Identify the following: Pulmonary trunk

2

Identify the following: Pulmonary artery

3

Identify the following: Left Pulmonary artery

4

Identify the following: Pulmonary veins

5

Identify the following: Right atrium

6

Identify the following: Left atrium

7

Identify the following: inferior vena cava

8

Identify the following: Right ventricle

9

Identify the following: Left ventricle

10

Identify the following:Coronary vessels

11

The valve in this picture is the bicuspid valve.  Therefore, what type of blood would be found in this side of the heart?

oxygenated blood

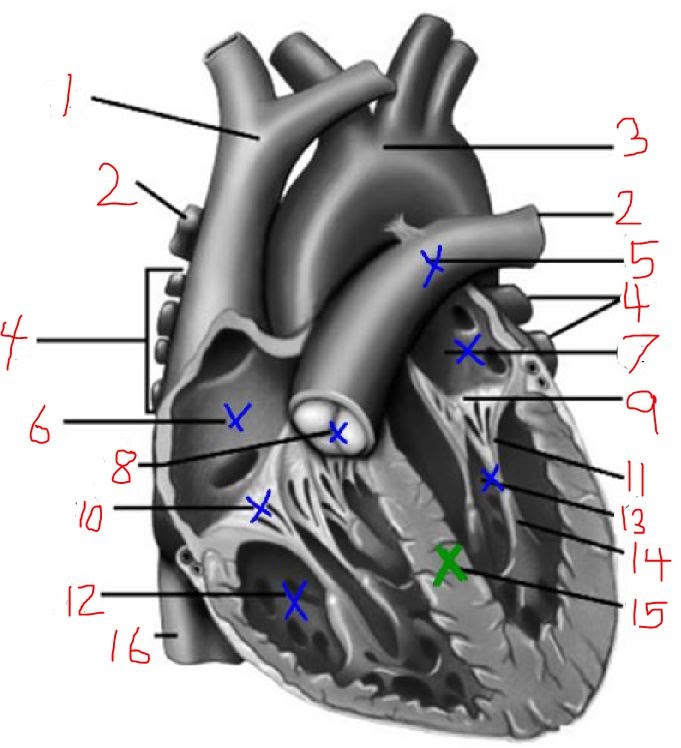

Identify #1

Superior vena cava

Identify #2

Right pulmonary artery

Identify #3

Aorta

Identify #4

Pulmonary veins

Identify #5

Pulmonary trunk

Identify #6

Right atrium

identify #7

Left atrium

Identify #9

Bicupsid (mitral) Valve

Identify #10

Tricuspid valve

Identify #11

papillary muscle

Identify #12

Right Ventricle

Identify #13

Chordae tendineae

Identify #14

interventricular septum

Identify #15

Left Ventricle

Identify #16

Inferior Vena Cava

Which vessel is this?  It delivers oxygen rich blood to the systemic body cells.

aorta

Which vessels are these?  They deliver oxygen poor blood to the right atrium

vena cavas
