An Experiment to investigate the relationship between voltage + Current for a filament bulb

0.0(0)
studied byStudied by 0 people
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
Card Sorting

1/7

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

8 Terms

1
New cards

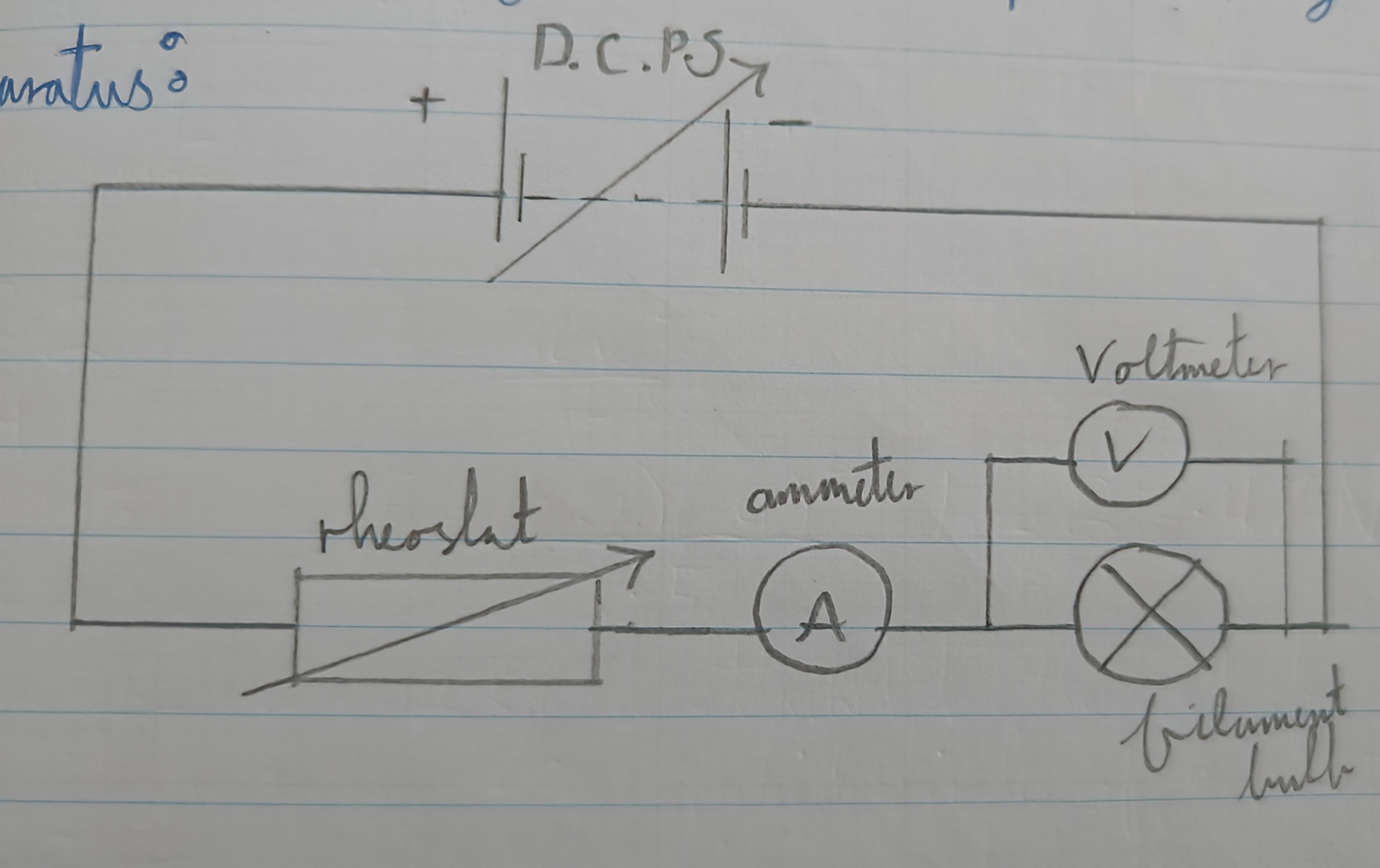

Draw a diagram of this experiment

knowt flashcard image
2
New cards

Step 1

Set up apparatus as shown and turn on power

3
New cards

Step 2

Measure and record the current and voltage

4
New cards

Step 3

Adjust the rheostat and repeat step 2

5
New cards

Step 4

Repeat step 3 four more times

6
New cards

Step 5

Plot a graph of current Vs. voltage

7
New cards

What is on the y-axis?

Current

8
New cards

What is on the x-axis?

Voltage
