Refraction

• the bending of light as it passes obliquely from one optical medium to another of different refractive index.

PRE-REQUISITES FOR REFRACTION

• There must be light.

• The light must strike the surface obliquely.

• There must be at least 2 optical media.

• The optical media must have different refractive indices.

REFRACTIVE INDEX or INDEX OF REFRACTION

The ratio of the velocity of light in a given pair of media

Absolute Refractive Index

Relative Refractive Index

2 TYPES OF REFRACTIVE INDEX

ABSOLUTE REFRACTIVE INDEX

• The ratio of the velocity of light in vacuum to the velocity of light in another medium.

• The refractive index of a medium with respect to vacuum.

RELATIVE REFRACTIVE INDEX

• The ratio of the velocity of light in the first medium to the velocity of light in the second medium.

• The ratio of the absolute refractive index of the 2nd medium to that of the 1st.

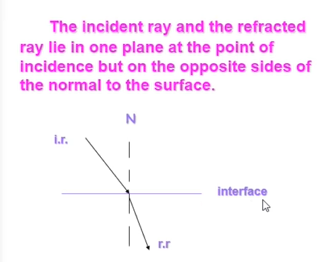

LAW 1 (REFRACTION)

LAW 2 (REFRACTION)

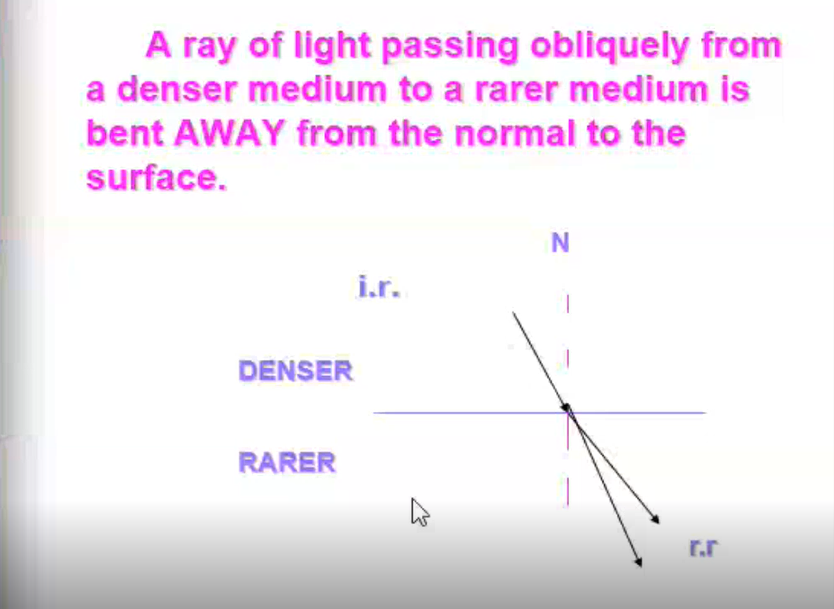

LAW 3 (REFRACTION)

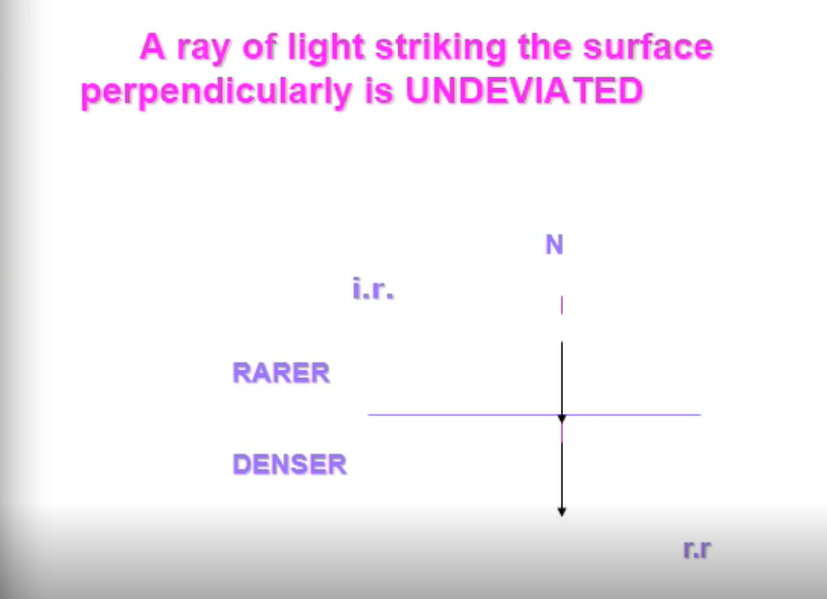

LAW 4 (REFRACTION)

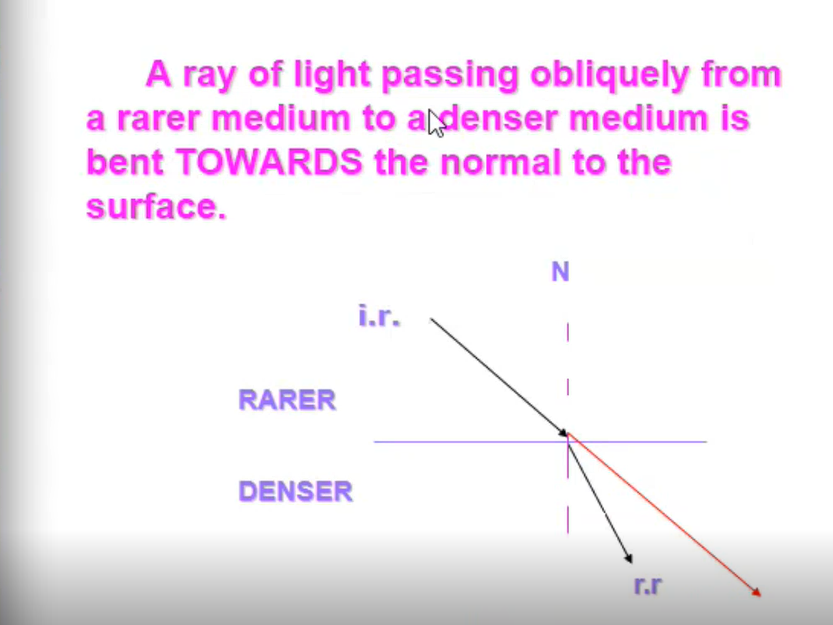

LAW 5 (REFRACTION)
