10 Terms

1
New cards

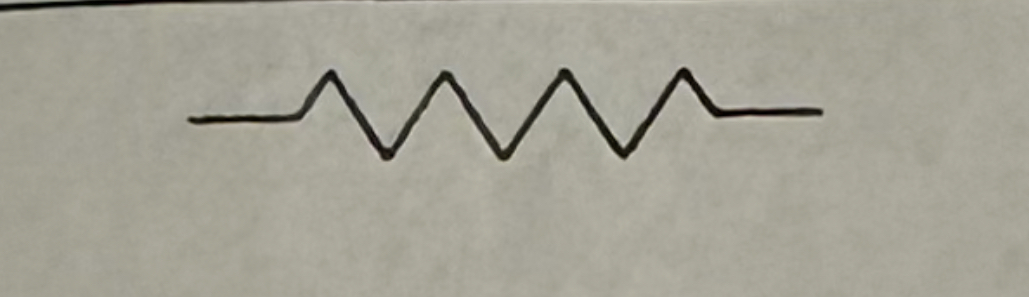

Resistor

  • inhibits flow of electrons

2
New cards

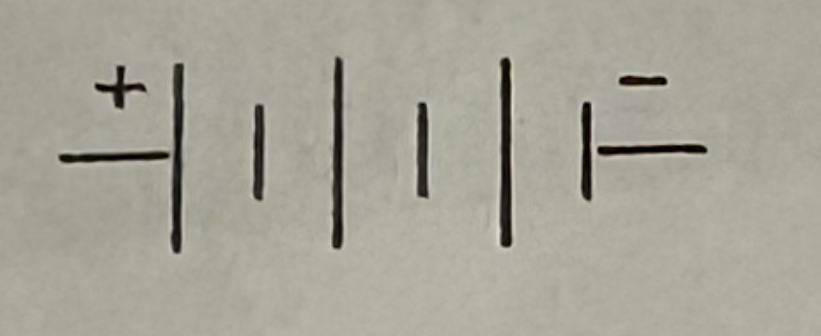

Battery

  • provides electric potential

3
New cards

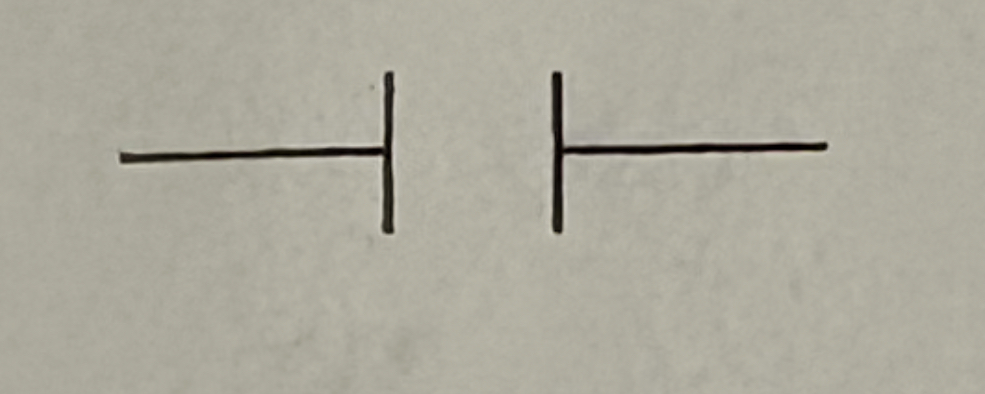

Capacitor

  • momentarily stores electric charge

4
New cards

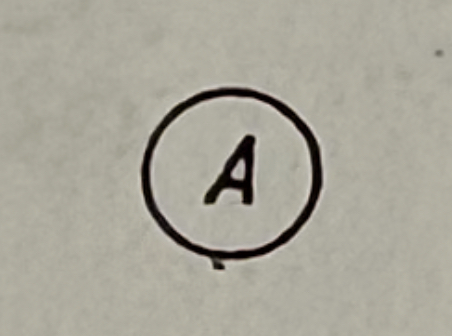

Ammeter

  • measures electric current

5
New cards

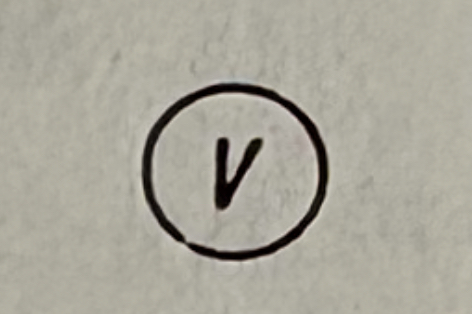

Voltmeter

  • measure electric potential

6
New cards

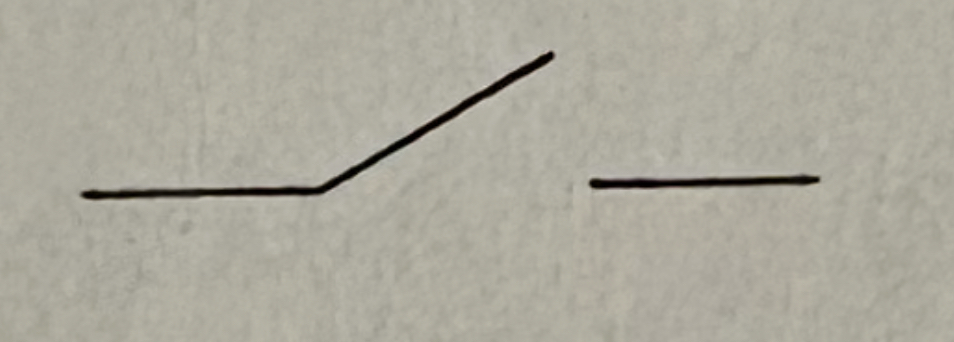

Switch

  • turns circuit on or off by providing infinite resistance

7
New cards

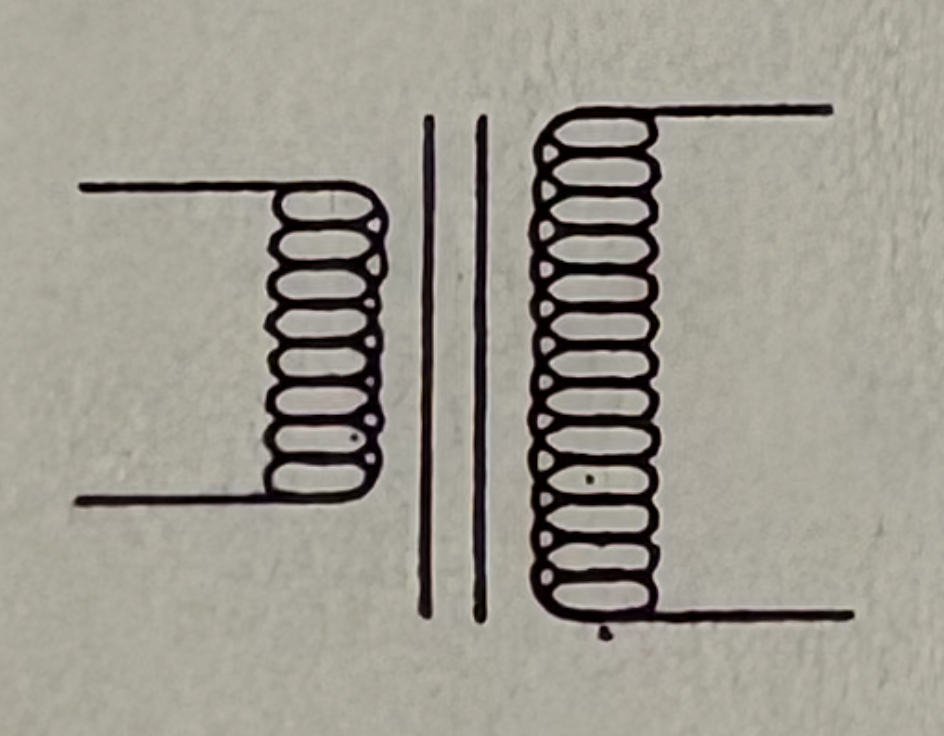

Transformer

  • increases or decreases voltage by fixed amount (AC only)

8
New cards

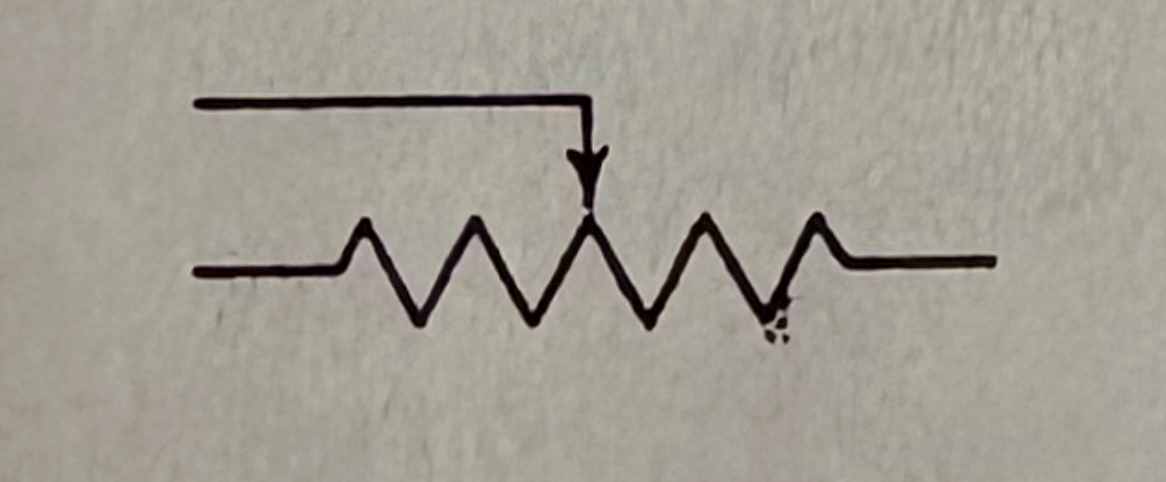

Rheostat

  • Variable resistor

9
New cards

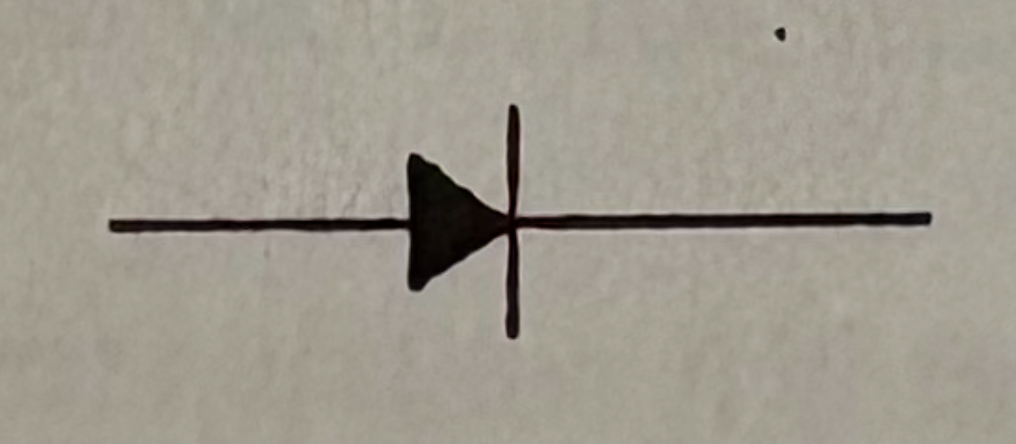

Diode

  • allows electrons to flow in only one direction

10
New cards

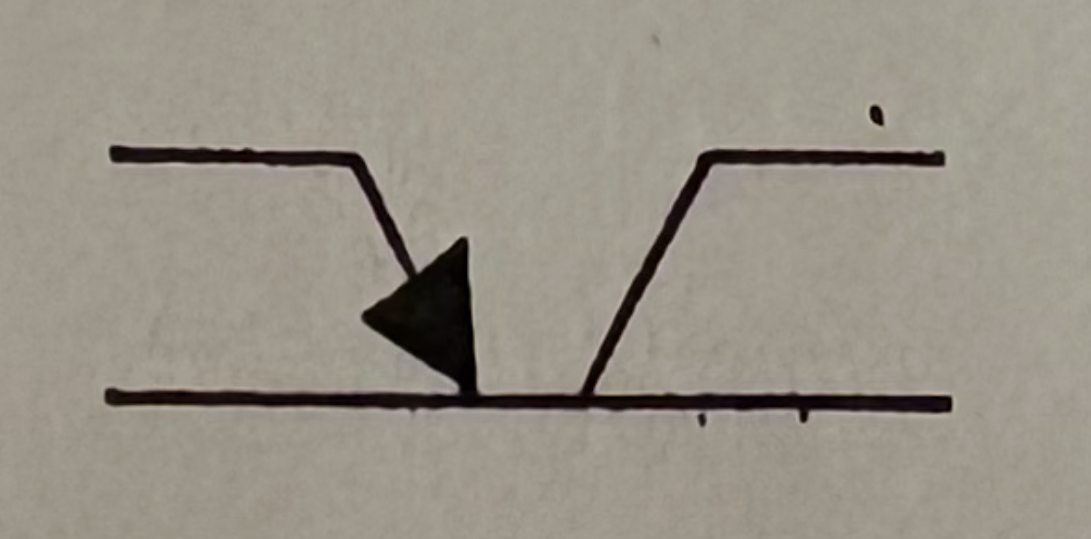

Transistor

  • electronic switch that can also amplify signals
