SURVEYING 4
0.0(0)
Studied by 0 people
Call Kai
Learn
Practice Test
Spaced Repetition
Match
Flashcards
Knowt PlayCard Sorting
1/4
There's no tags or description
Looks like no tags are added yet.
Last updated 11:47 AM on 2/4/26
Name | Mastery | Learn | Test | Matching | Spaced | Call with Kai |
|---|
No analytics yet
Send a link to your students to track their progress
5 Terms
1
New cards

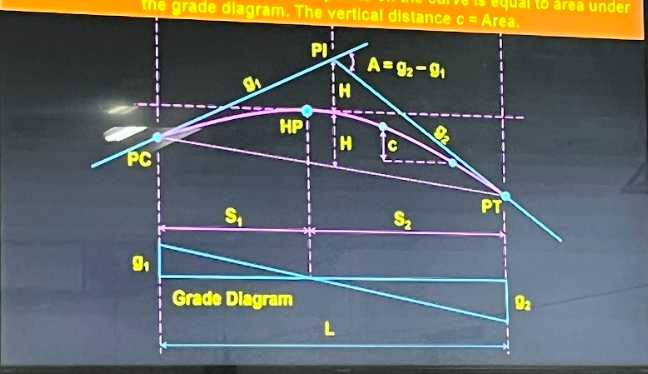

Parts of Symmetrical Parabolic Curve
2
New cards

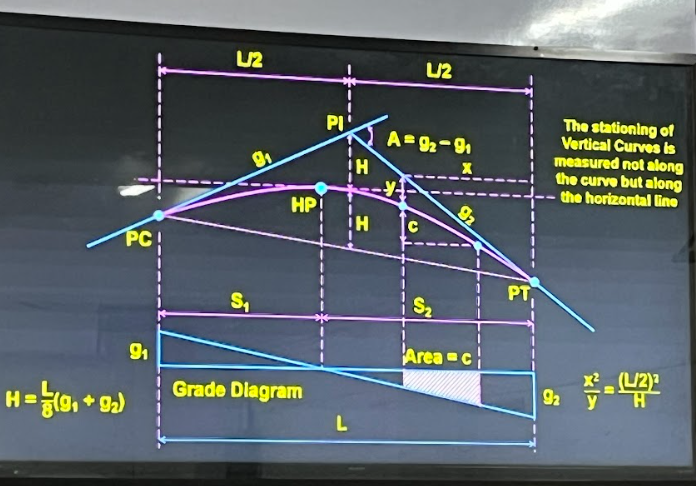

Formulas in Symmetrical Parabolic Curve
3
New cards

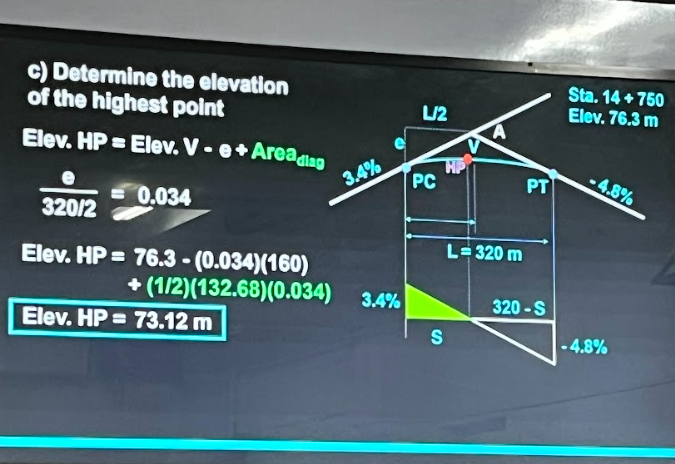

Elevation on a Parabolic Curve
Change in Elevation is equal to change in area of grade diagram
4
New cards
if given max change per grade
assume per 20 meters if length is not given
5
New cards

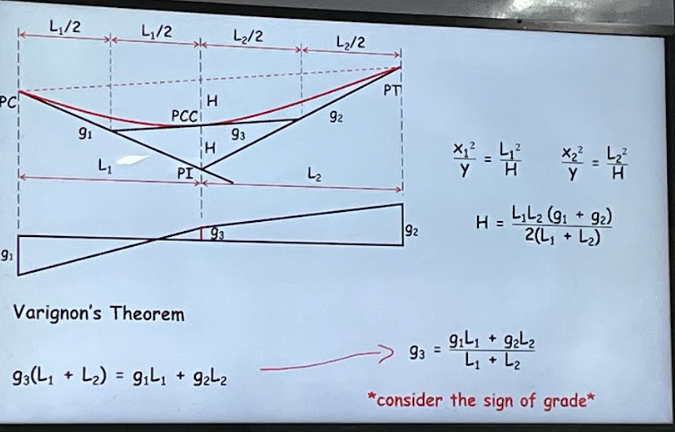

Unsymmetrical Parabolic Curve Formulas
get g3 first to know where is the change in grade
Note
Flashcards (85)
