6 Terms

1
New cards

Vertical water pressure per ft?

.433 psi

2
New cards

What is the pressure at radiator 1?

10.28 psig

<p><span>10.28 psig</span></p>
3
New cards

What is the pressure at the centerline of the pump?

13.72 psig

<p><span>13.72 psig</span></p>
4
New cards

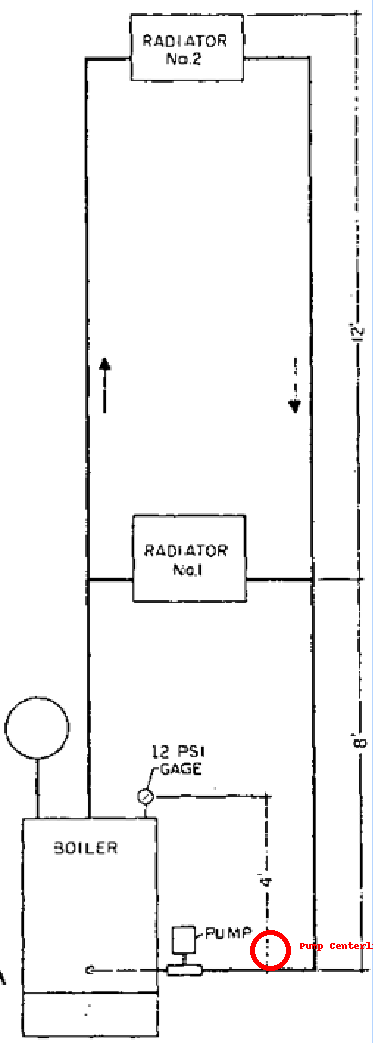

This diagram is showing 12 psig for total of 12 vf. (vertical feet) system. What is the first step in calculating the water pressure at the first floor radiator?

Remove 4 vf. to get to 8 vf. at first floor. (.433 × 4 vf. = 1.732 vf. psi)

<p>Remove 4 vf. to get to 8 vf. at first floor. (.433 × 4 vf. = 1.732 vf. psi)</p>
5
New cards

This diagram is showing 12 psig for total of 12 vf. (vertical feet) system. Once you know that the first floor vf. psig is 1.732, whats the next step?

Subtract vf. psi from total psig. (12 psig - 1.732 vf. psi = 10.26 vf. psi at first floor radiator)

<p>Subtract vf. psi from total psig. (12 psig - 1.732 vf. psi = 10.26 vf. psi at first floor radiator)</p>
6
New cards

How do you calculate hydrostatic pressure?

psig + vf. = hydrostatic pressure
