Anatomy of Skull, Vertebrae, and Cranial Foramina: Identification and Location

superorbital foramen of frontal bone

Identify this picture and it's location

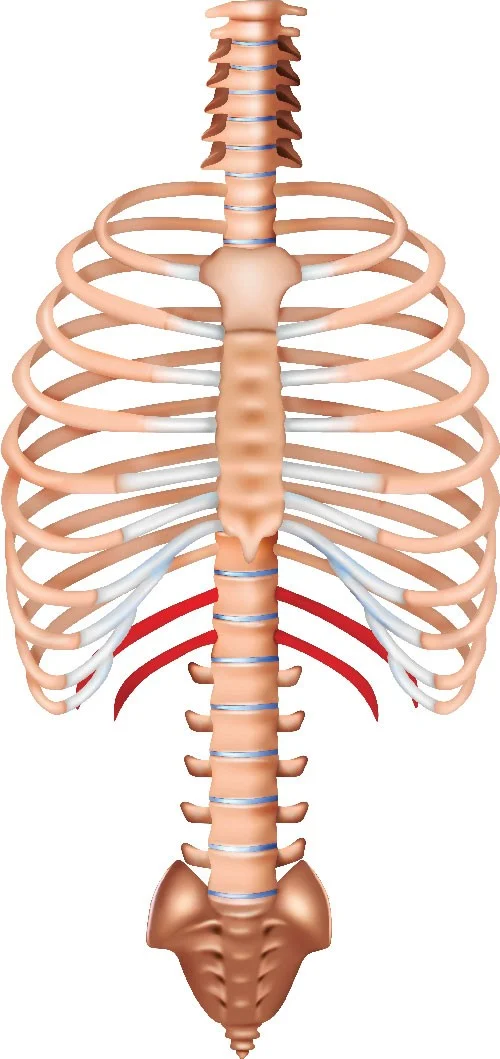

floating ribs

Identify this picture and it's location (red)

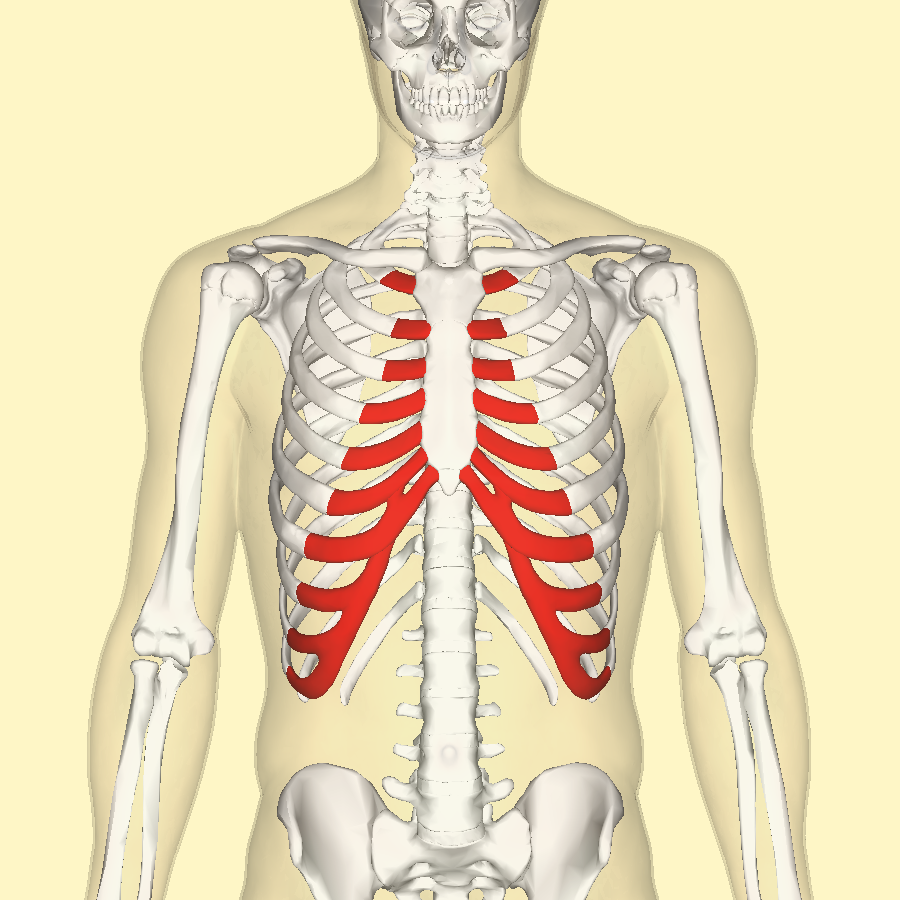

costal cartilage

Identify this picture and it's location

Pubic symphasis

Identify this picture and it's location

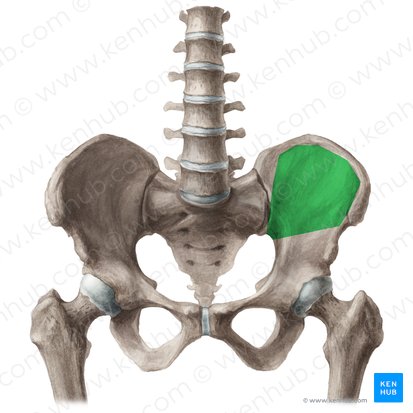

iliac fossa

Identify this picture and it's location

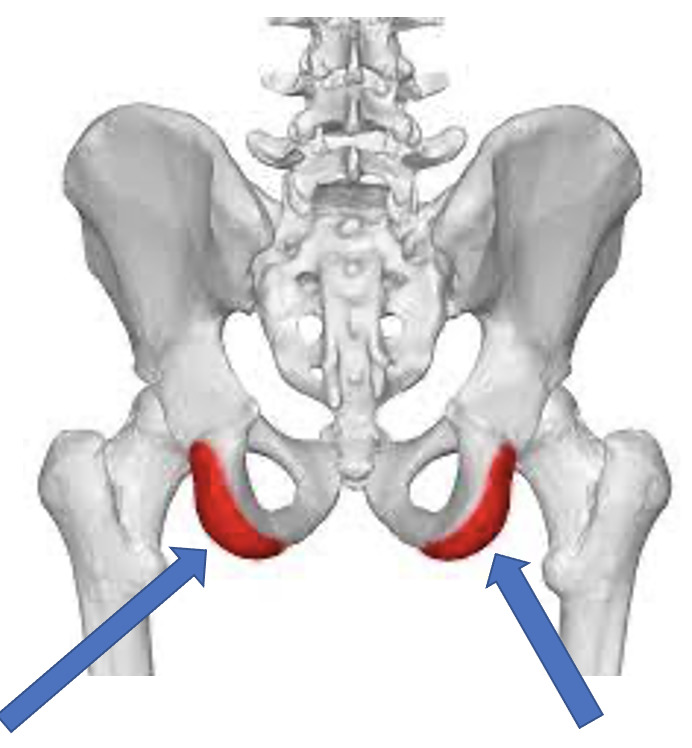

ischial tuberosity

Identify this picture and it's location

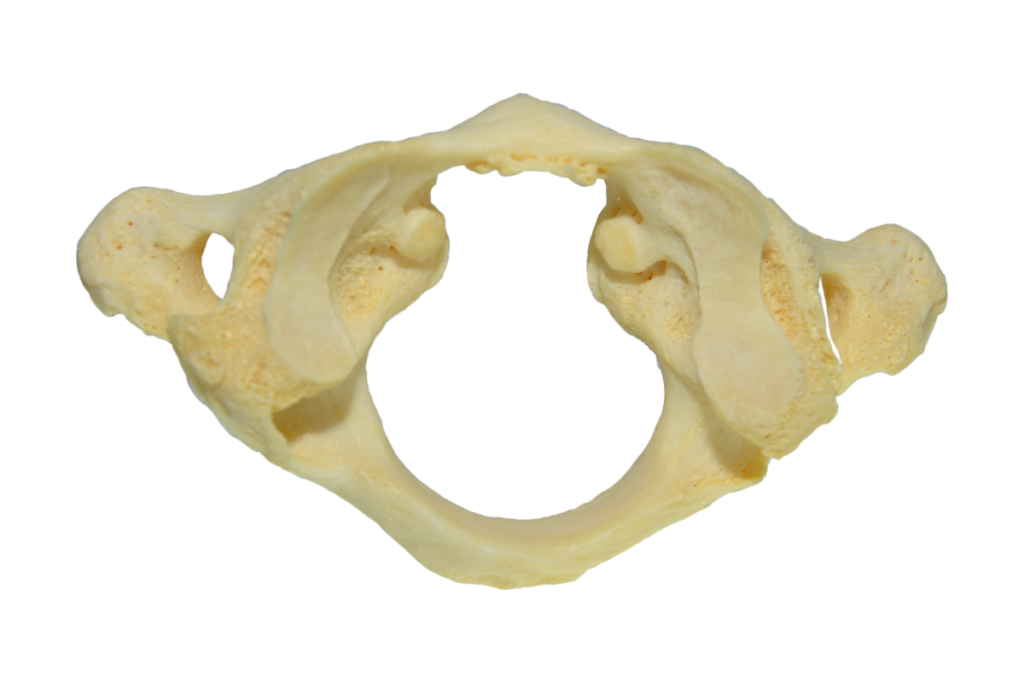

Atlas C1

Which vertebra is this and is it C1 or C2?

paranasal sinuses

What is the name of the air filled cavities within the skull bones surrounding the nasal cavities? They lighten the skull and resonate for sound production when speaking

fontanelle

flexible dense regular connective tissues that connect infant cranial bones

hallux

big toe

mastoid, shenoid, posterior, anterior

the four fontanelles

pollex

thumb

hip: ishium, illium, pubis, sacrum, coccyx

what are the bones of the pelvic girdle?

clavicles and scapula (x2)

What are the bones of the pectoral girdle?

incus, malleus, stapes

What are the three auditory ossicles (bones) of the ear?

Axis C2

Which vertebra is this and is it C1 or C2?

carotoid canal of temporal bone

Identify this picture and it's location

parietal bone of skull (x2)

Identify this picture and it's location

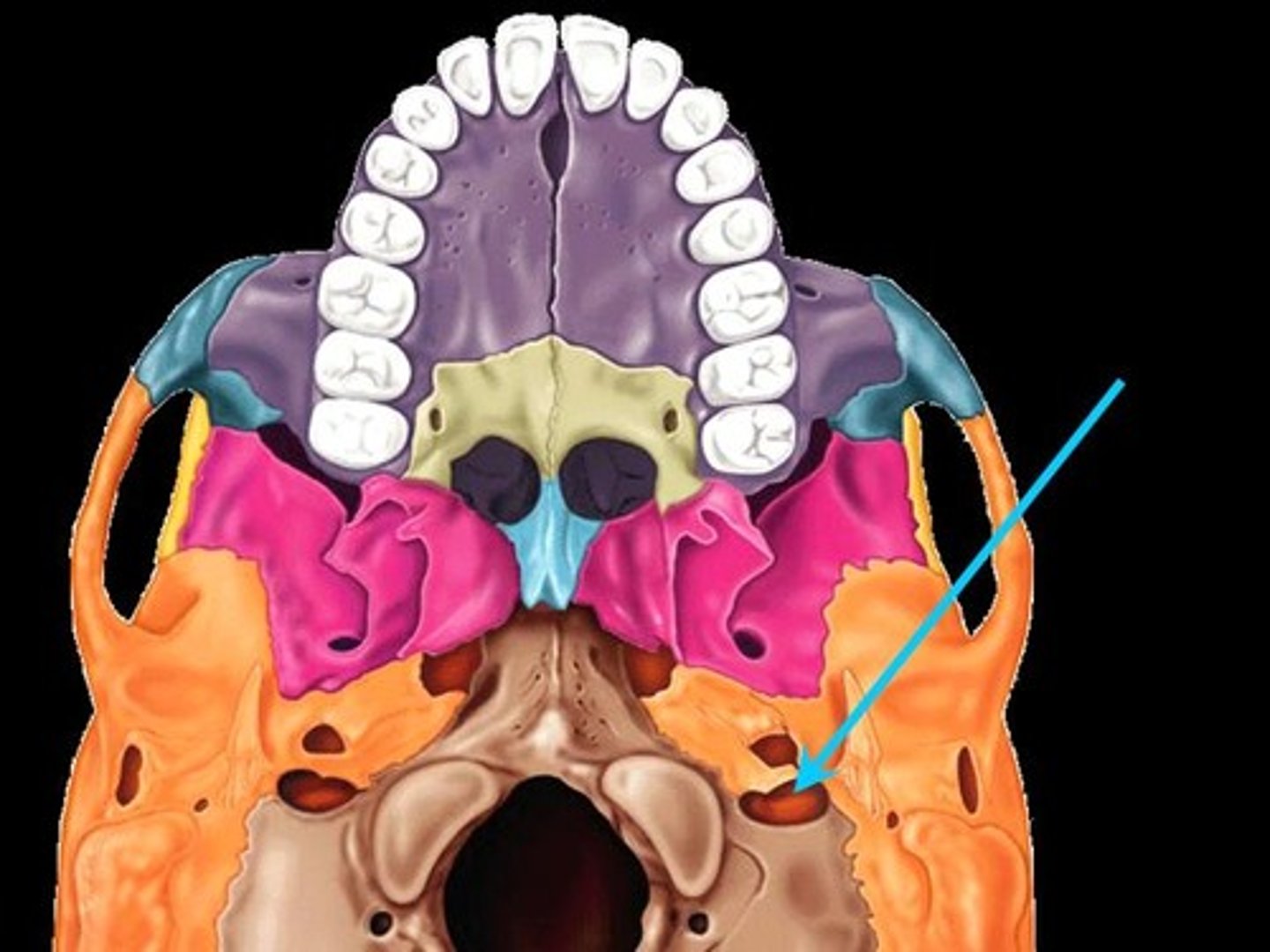

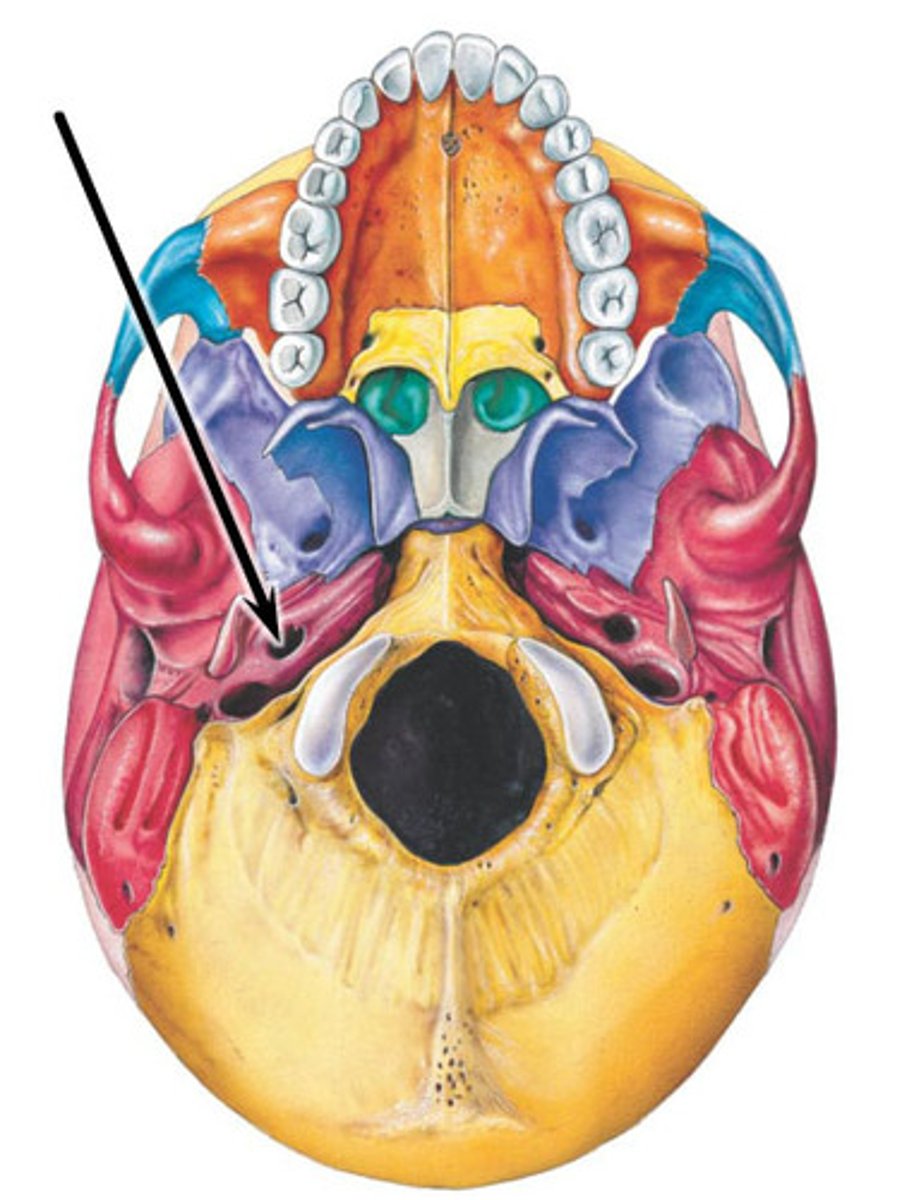

jugular foramen of temporal bone

Identify this picture and it's location

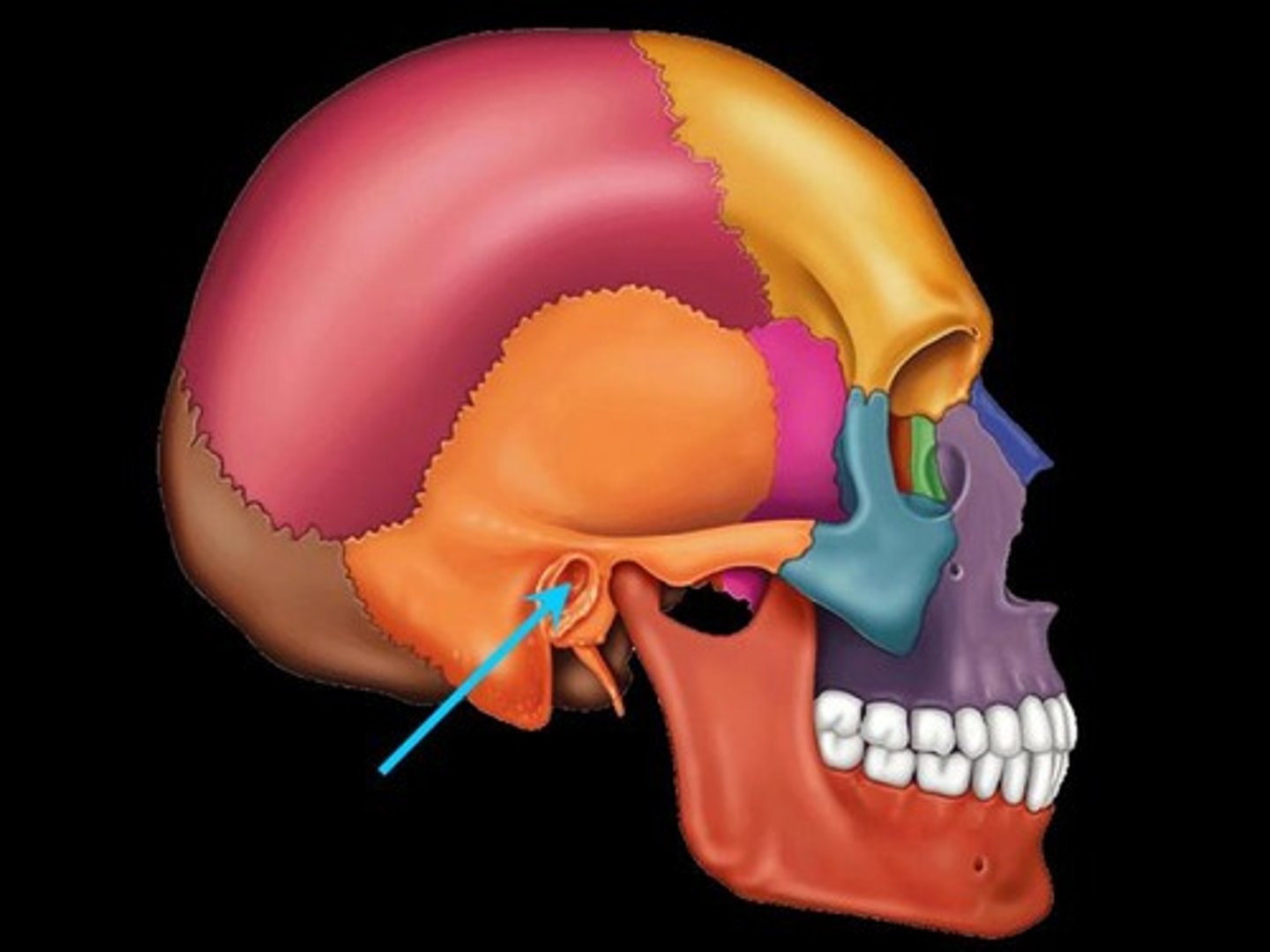

external acoustic meatus of temporal bone

Identify this picture and it's location

internal acoustic meatus of temporal bone

Identify this picture and it's location

mastoid process of temporal bone

Identify this picture and it's location

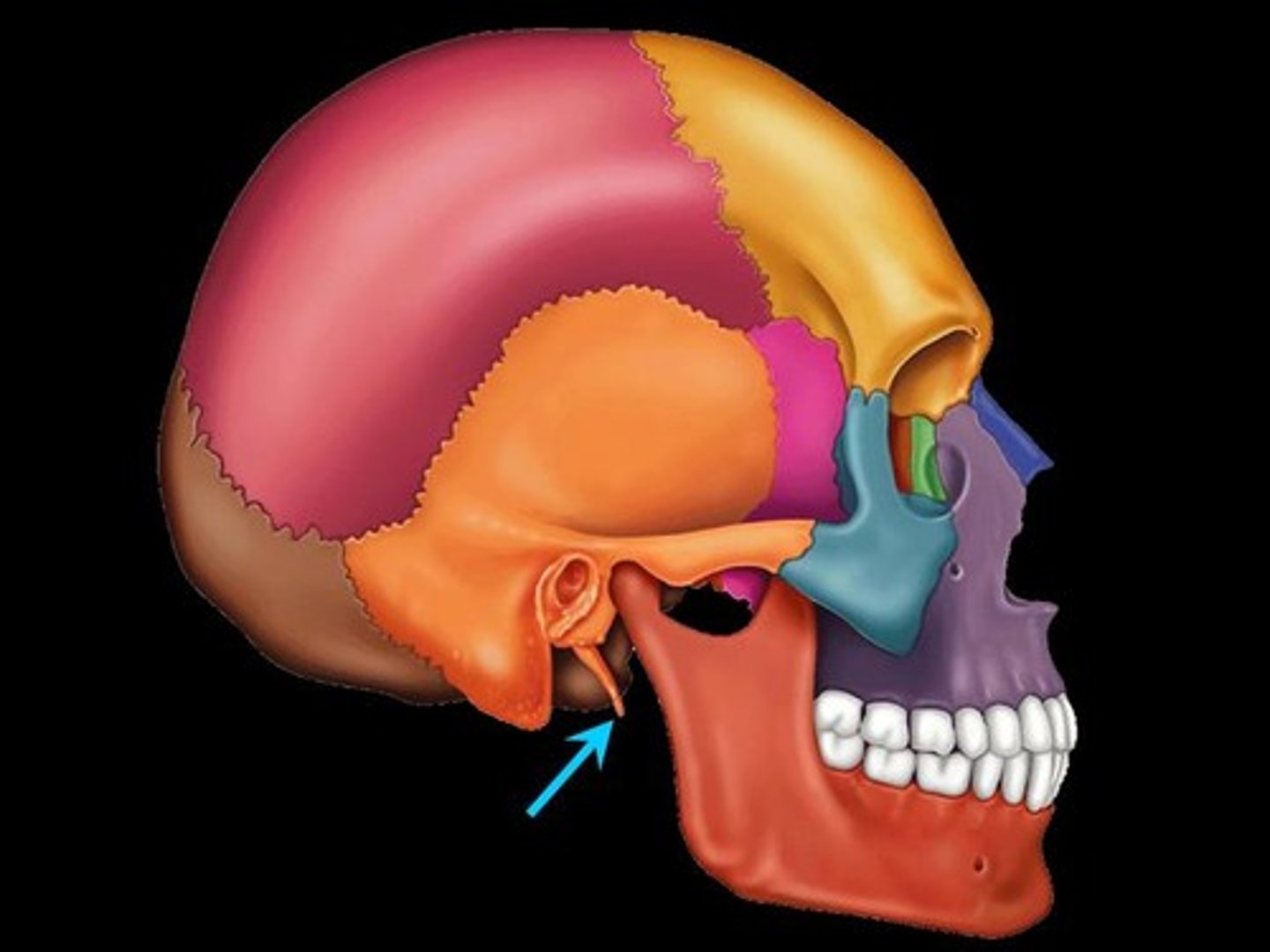

styloid process of temporal bone

Identify this picture and it's location

mandibular fossa of temporal bone

Identify this picture and it's location

frontal bone of skull

Identify this picture and it's location

temporal bone of skull (x2)

Identify this picture and it's location

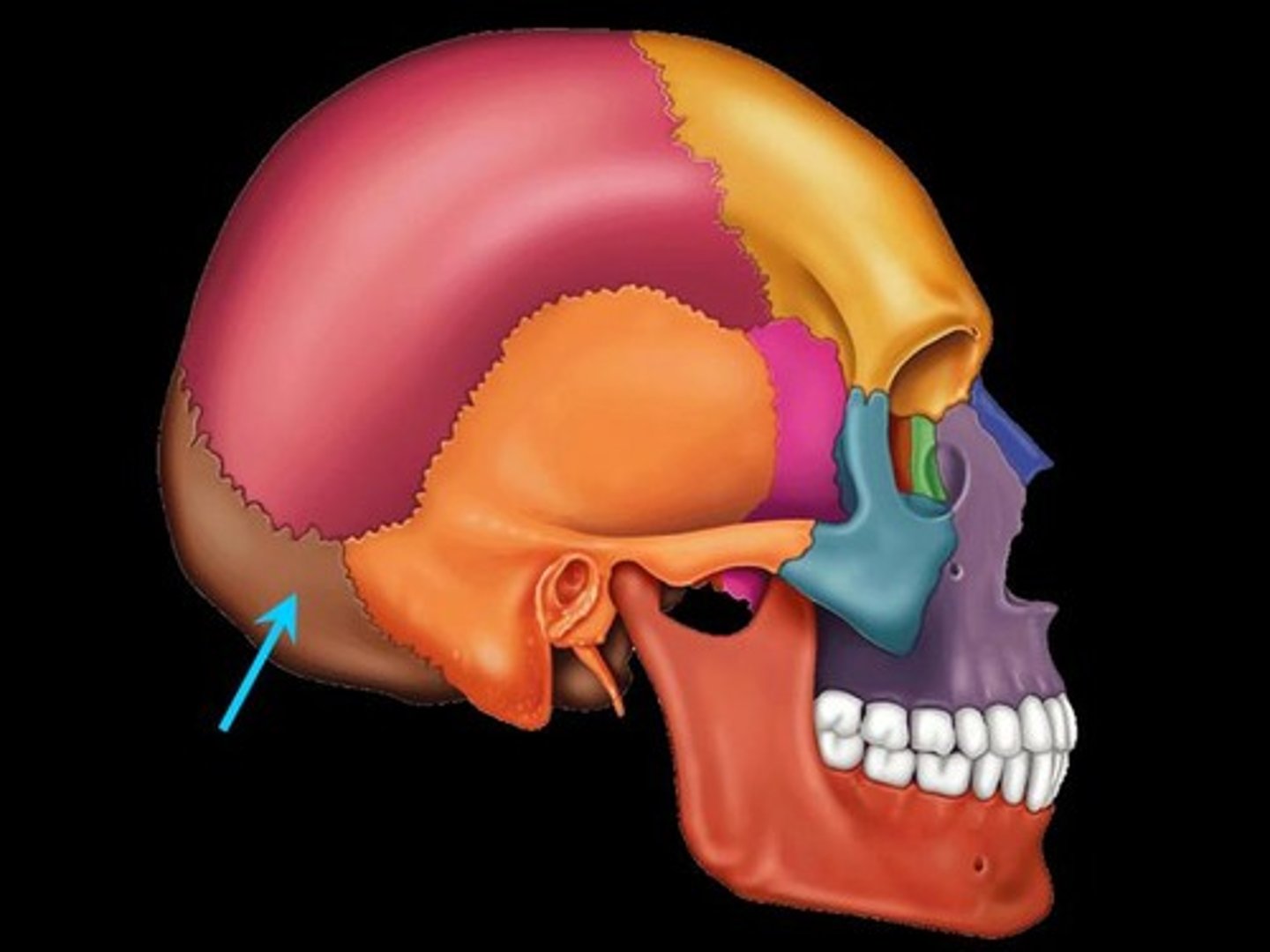

Occipital bone of skull

Identify this picture and it's location

Occipital condyles of occipital bone

Identify this picture and it's location

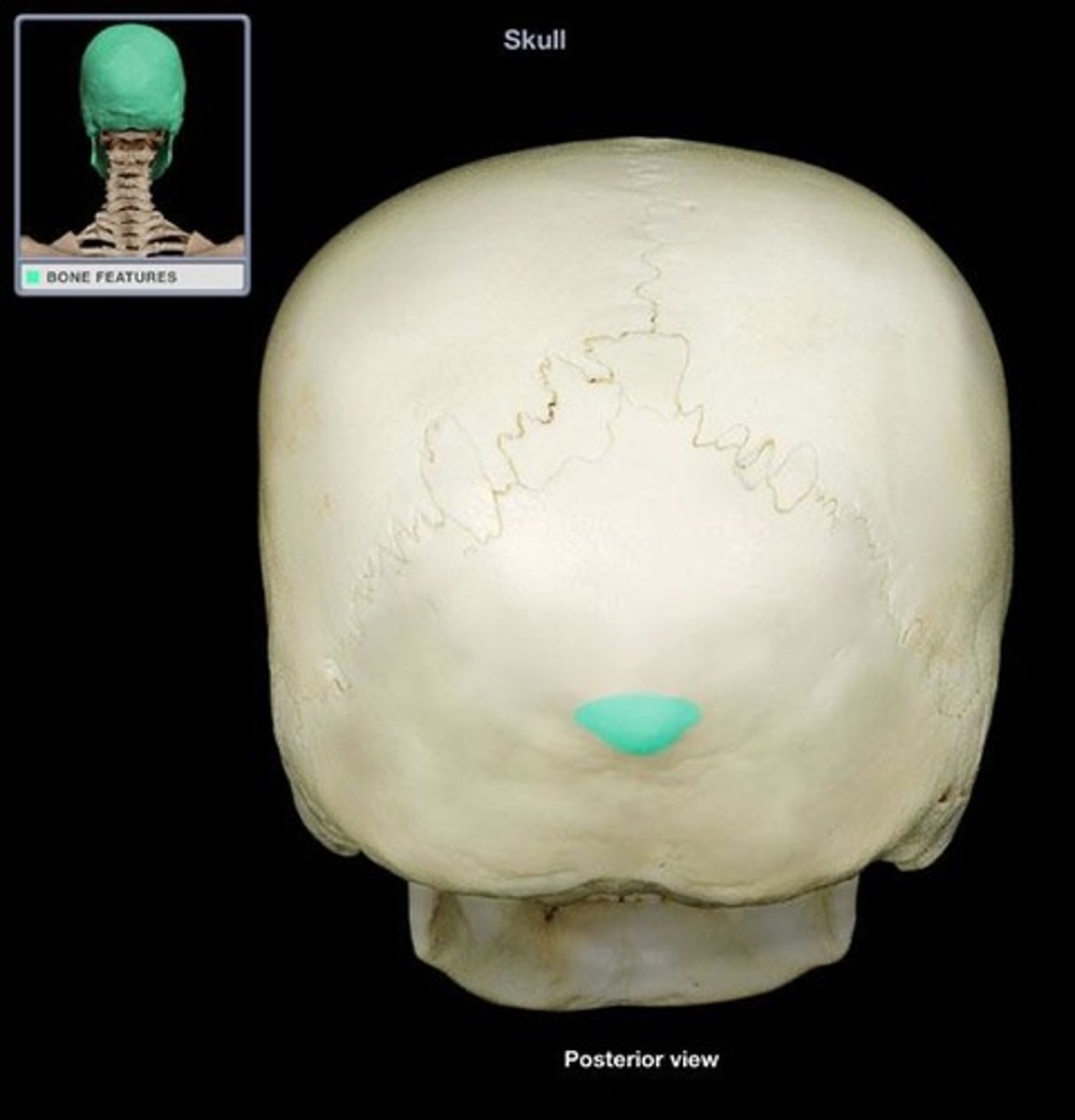

external acoustic protuberance of occipital bone

Identify this picture and it's location

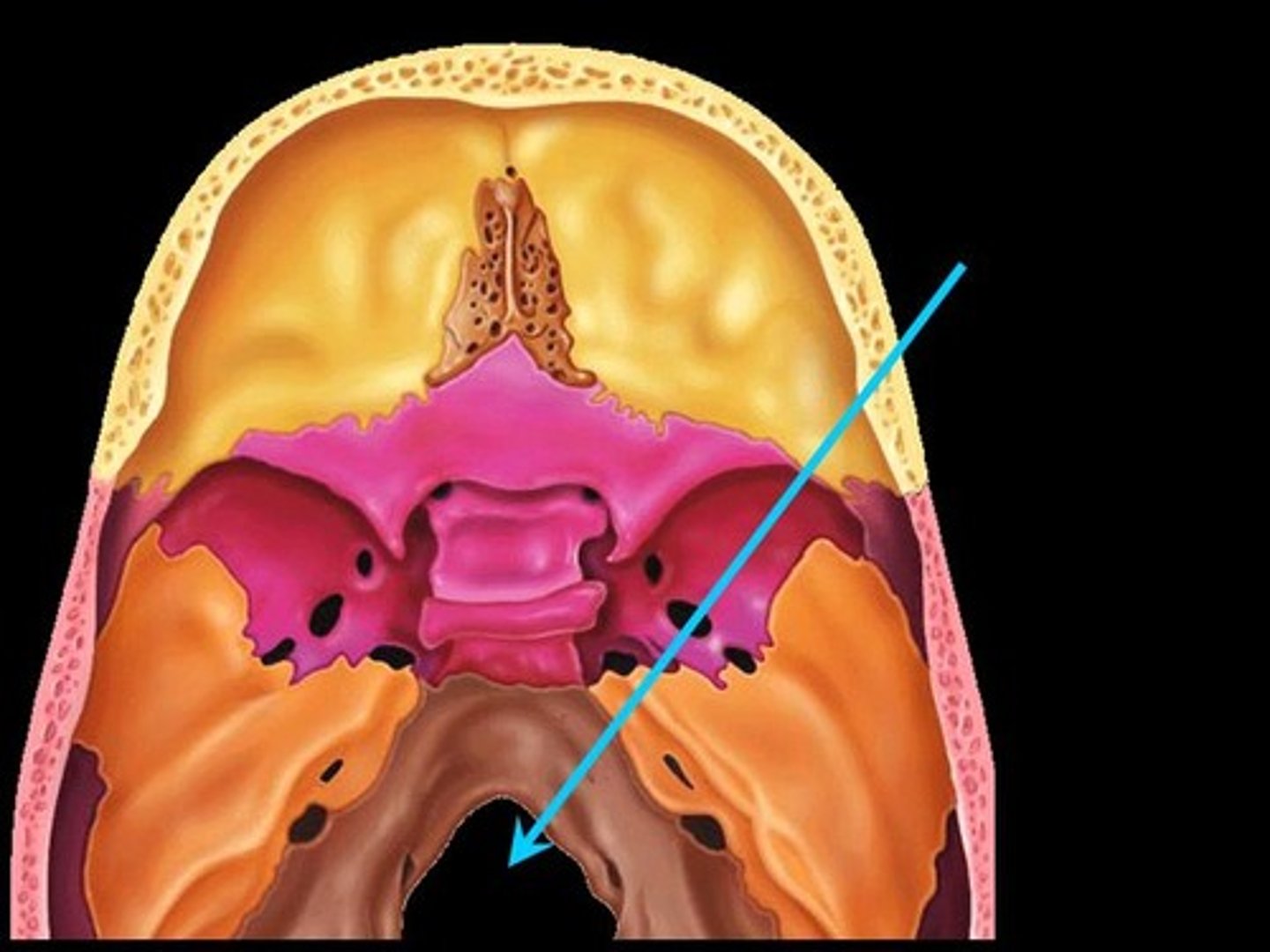

foramen magnum

Identify this picture and it's location

sphenoid bone of skull

Identify this picture and it's location

sella turica of sphenoid bone

Identify this picture and it's location

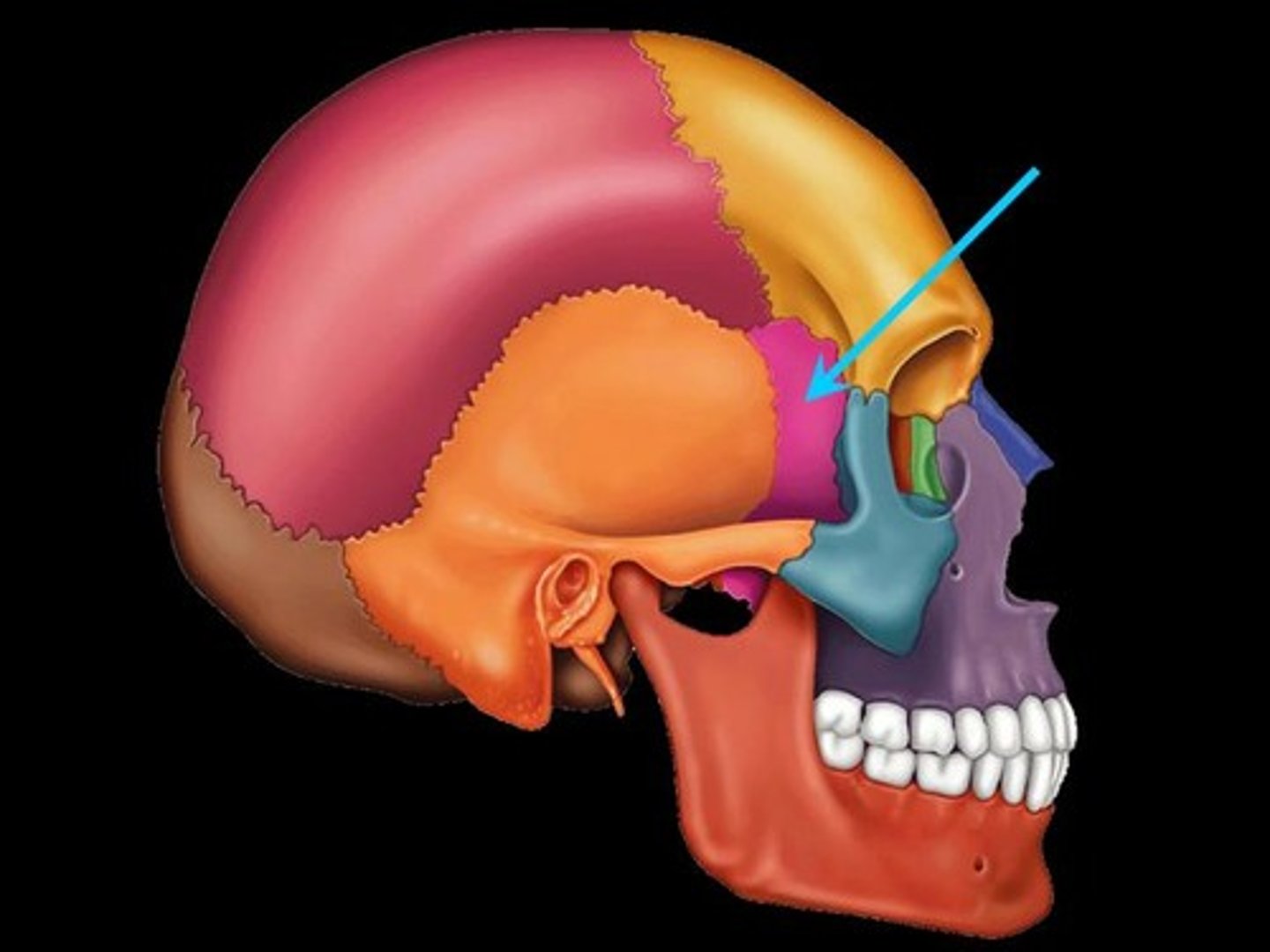

greater wing of sphenoid bone

Identify this picture and it's location

lesser wing of sphenoid bone

Identify this picture and it's location

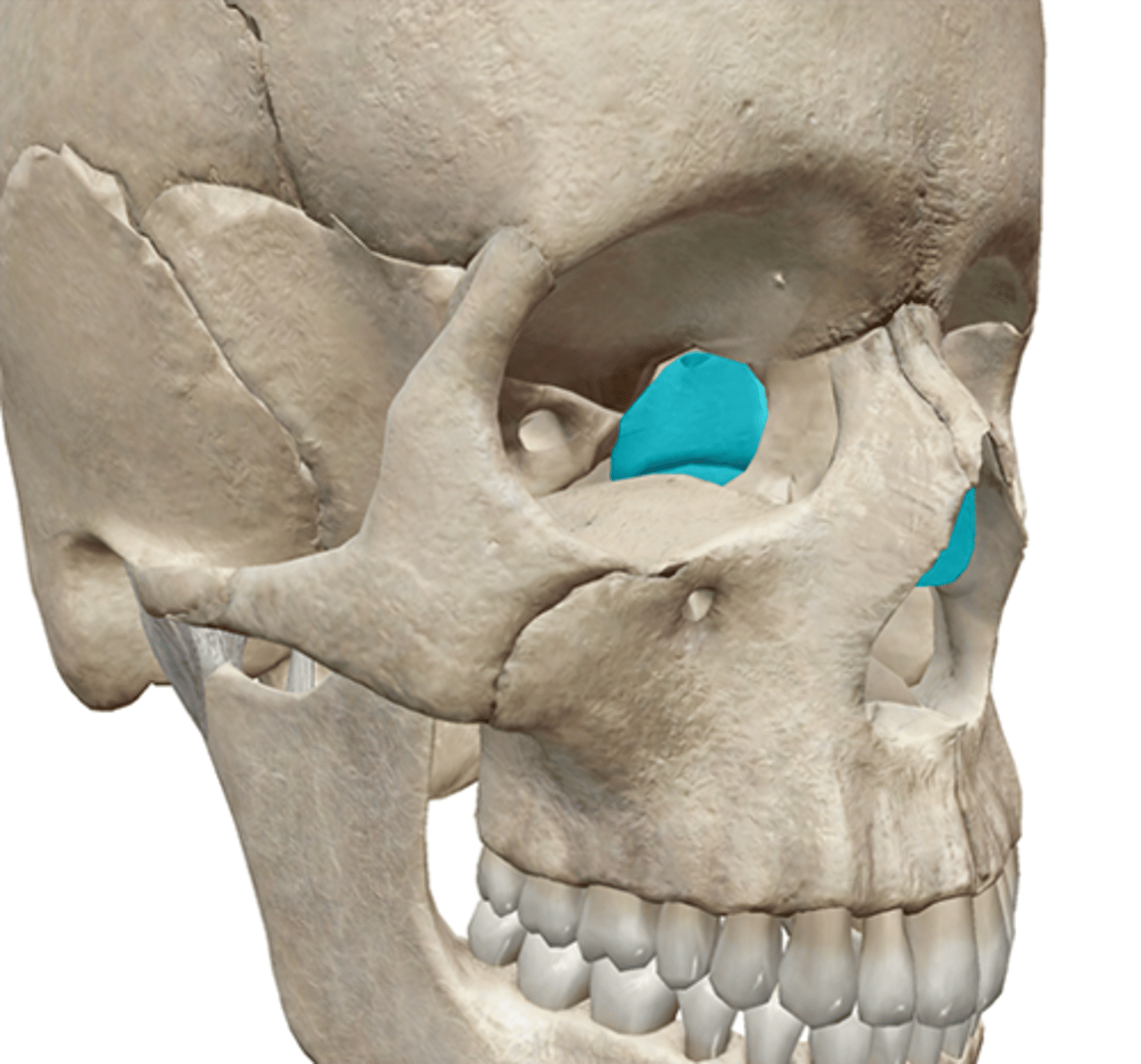

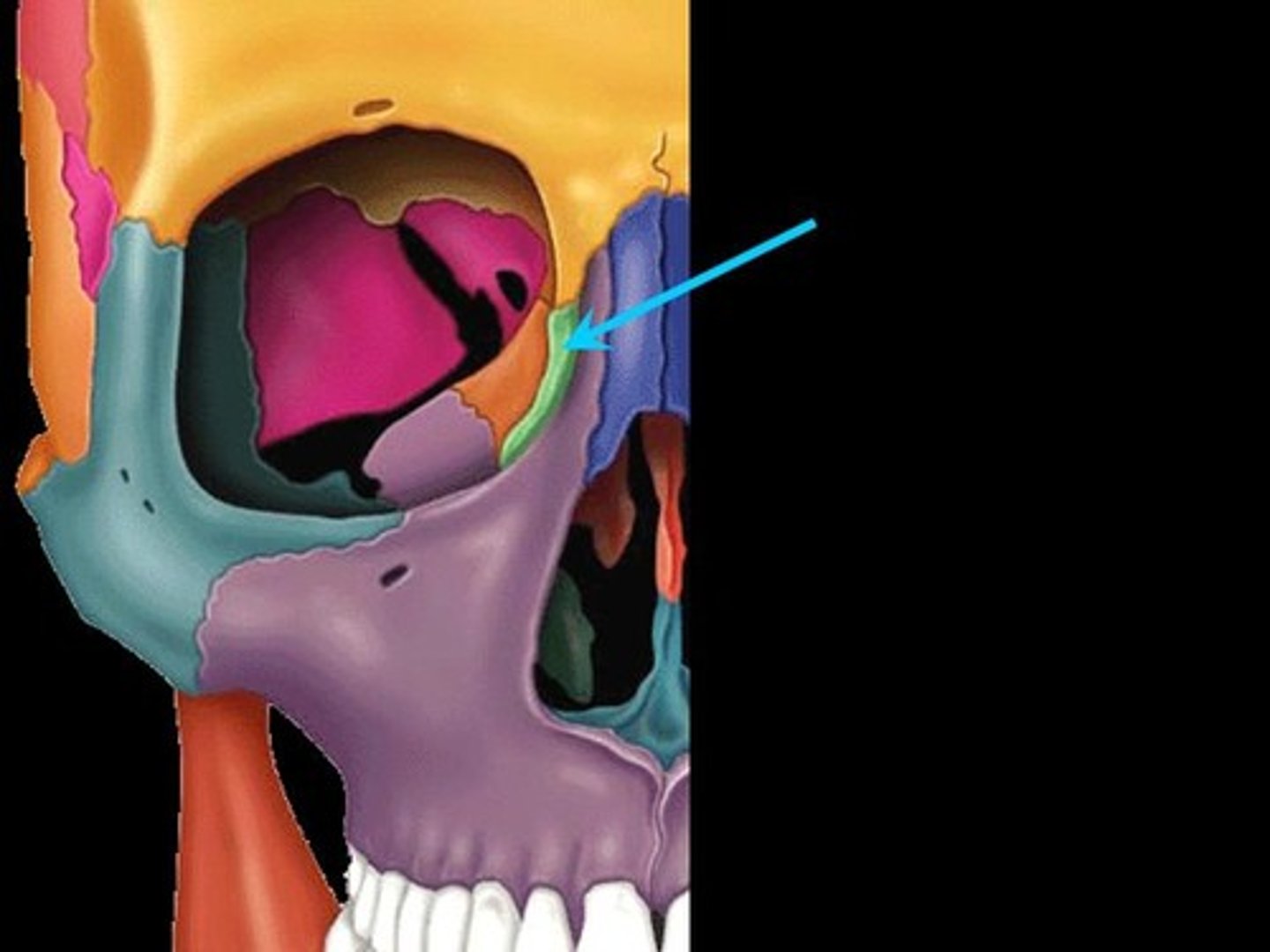

lacrimal bone of skull (x2)

Identify this picture and it's location

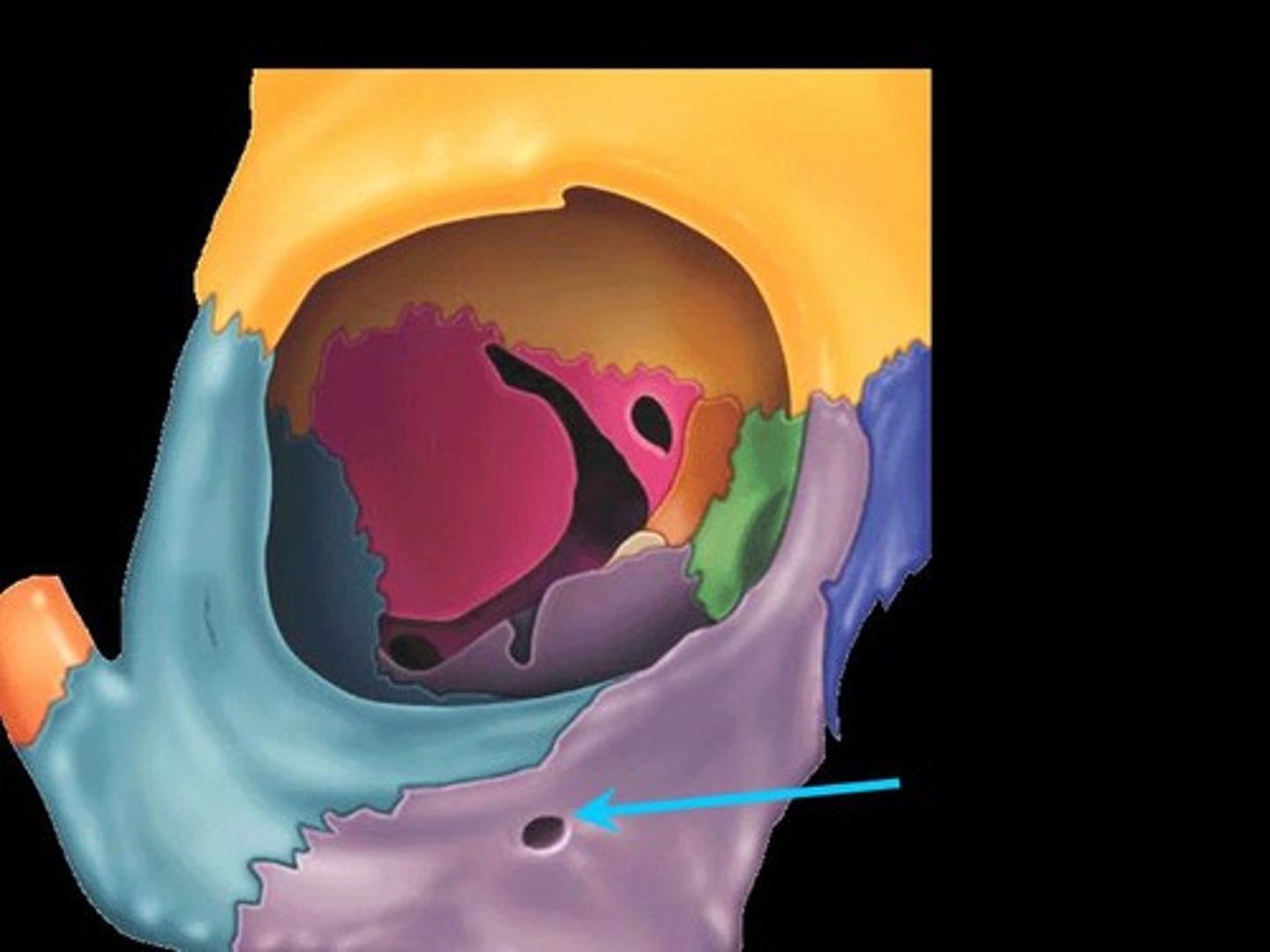

infraorbital foramen of maxilla

Identify this picture and it's location

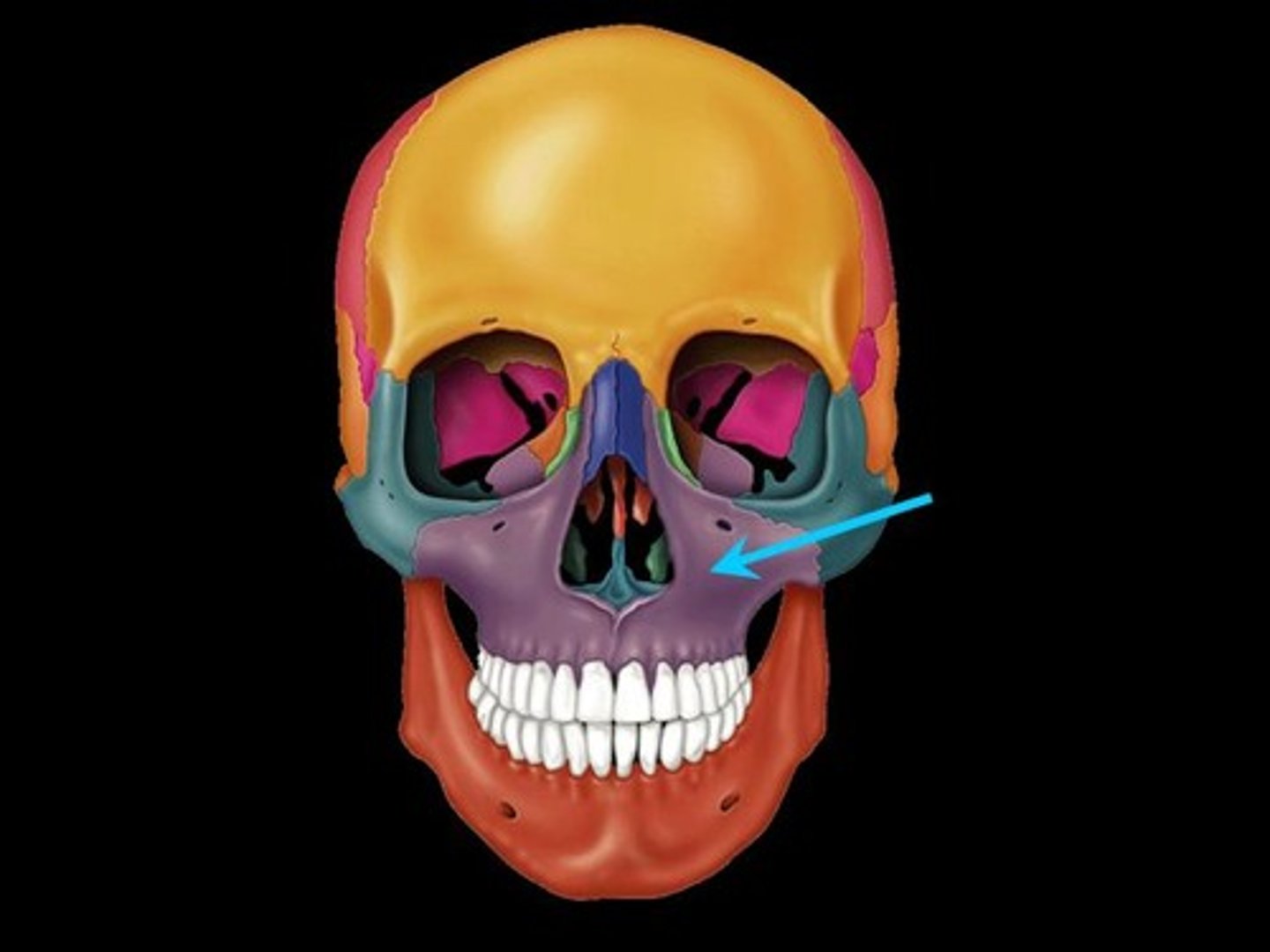

maxilla bone of skull (x2)

Identify this picture and it's location

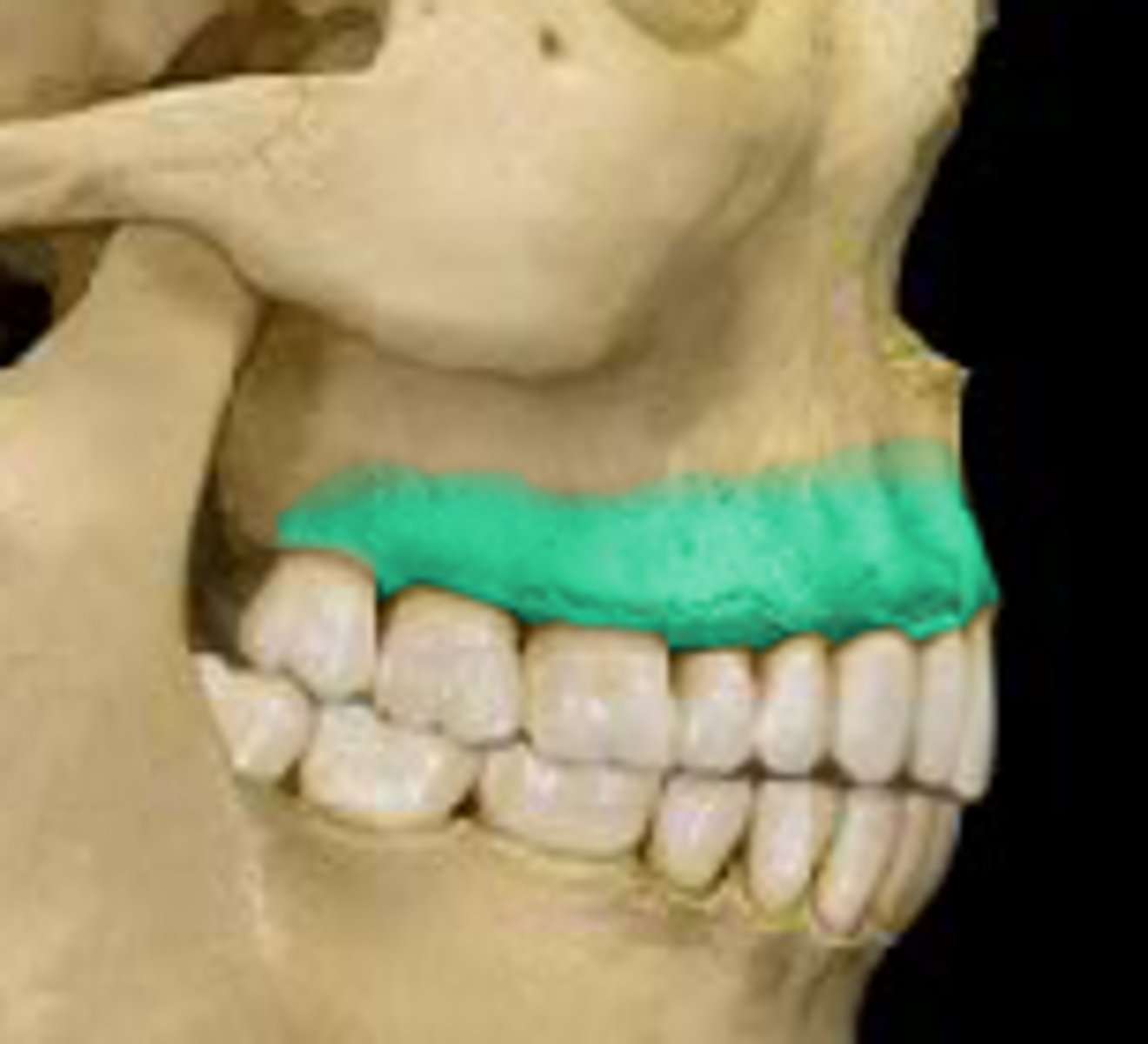

alveolar process of maxilla

Identify this picture and it's location

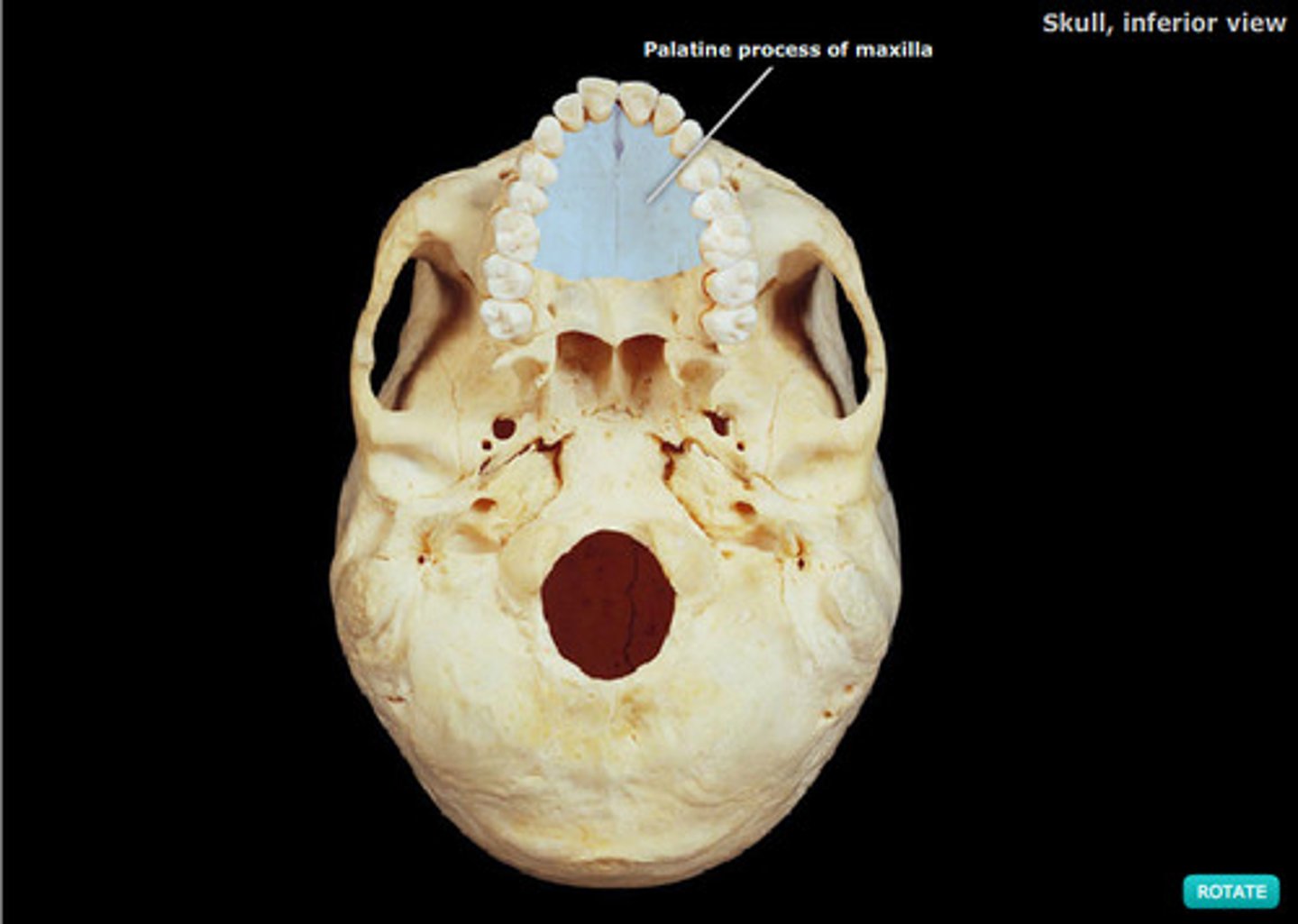

palatine process of maxilla

Identify this picture and it's location

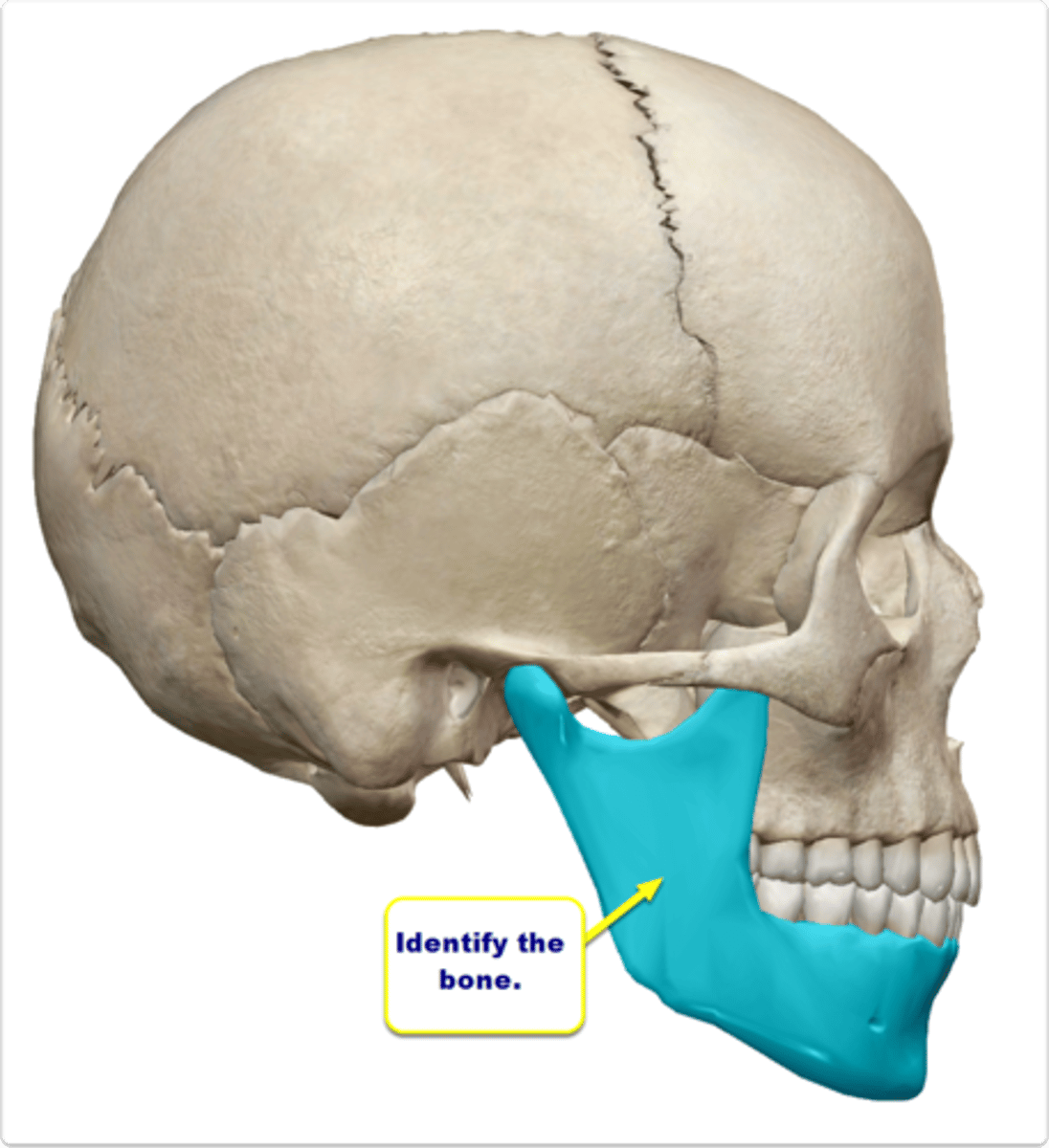

mandible of skull

Identify this picture and it's location

coronoid process of mandible

Identify this picture and it's location

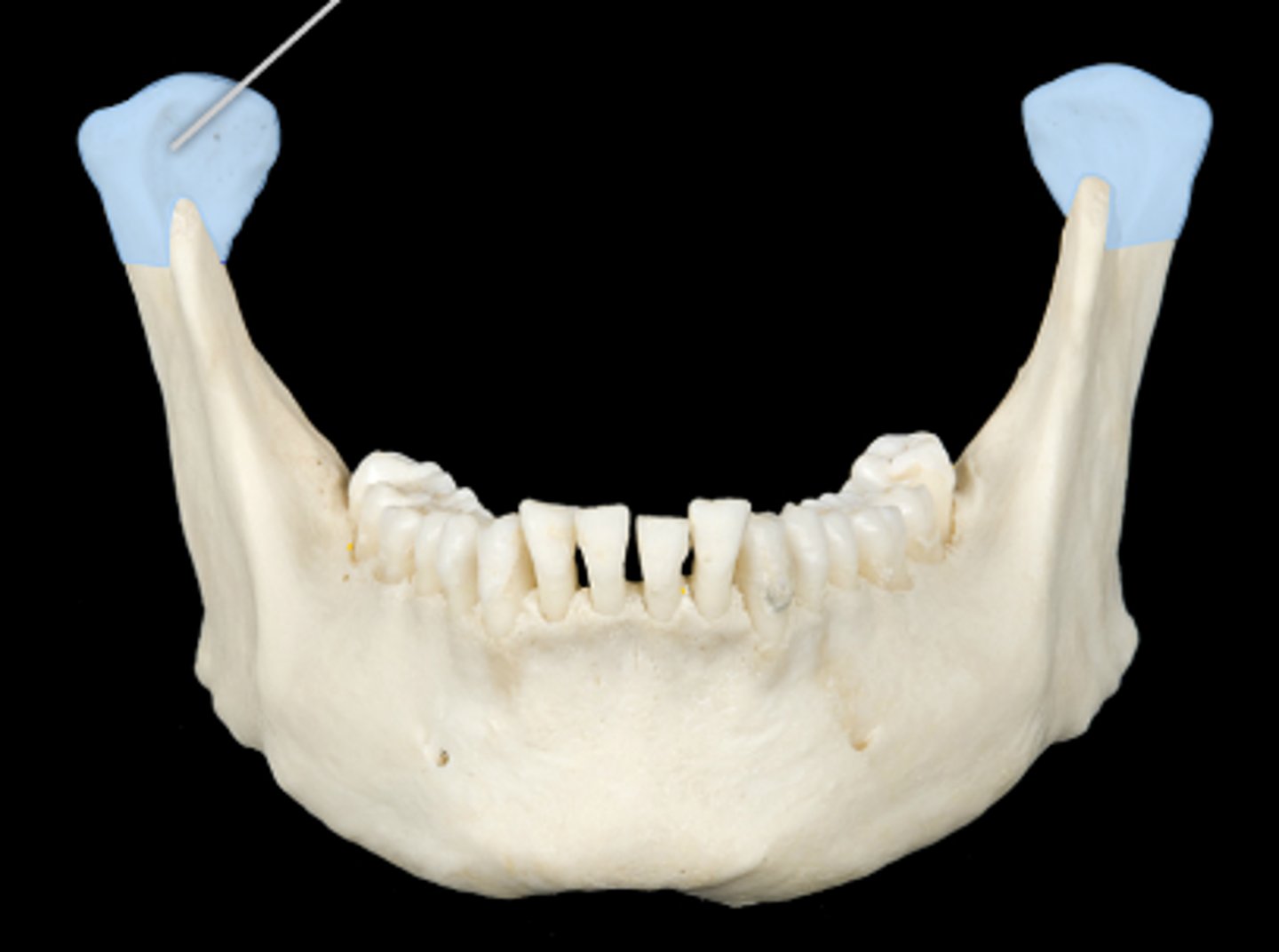

mandibular condyle of mandible

Identify this picture and it's location

mental foramen of mandible

Identify this picture and it's location

ramus of mandible

Identify this picture and it's location

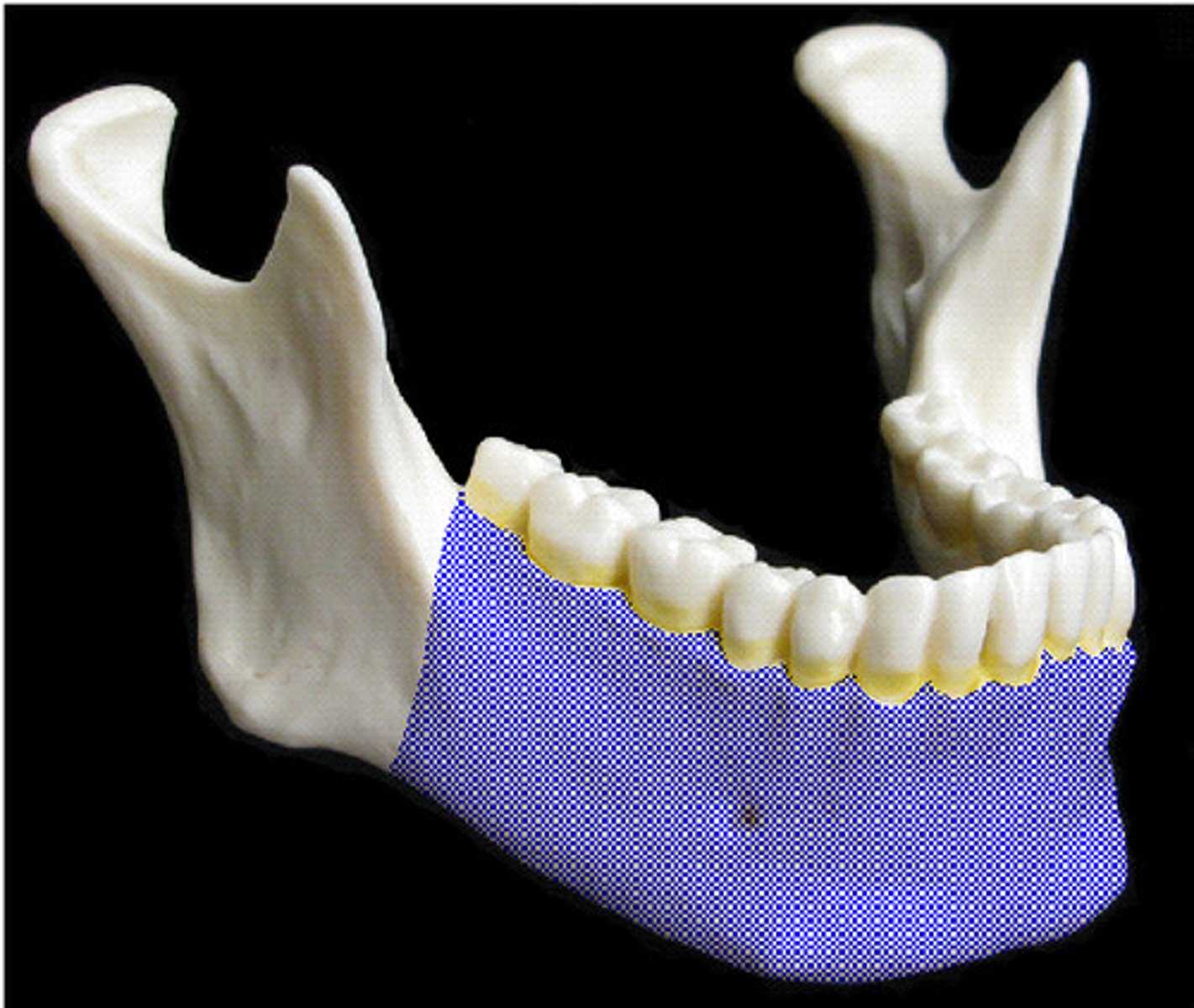

body of mandible

Identify this picture and it's location

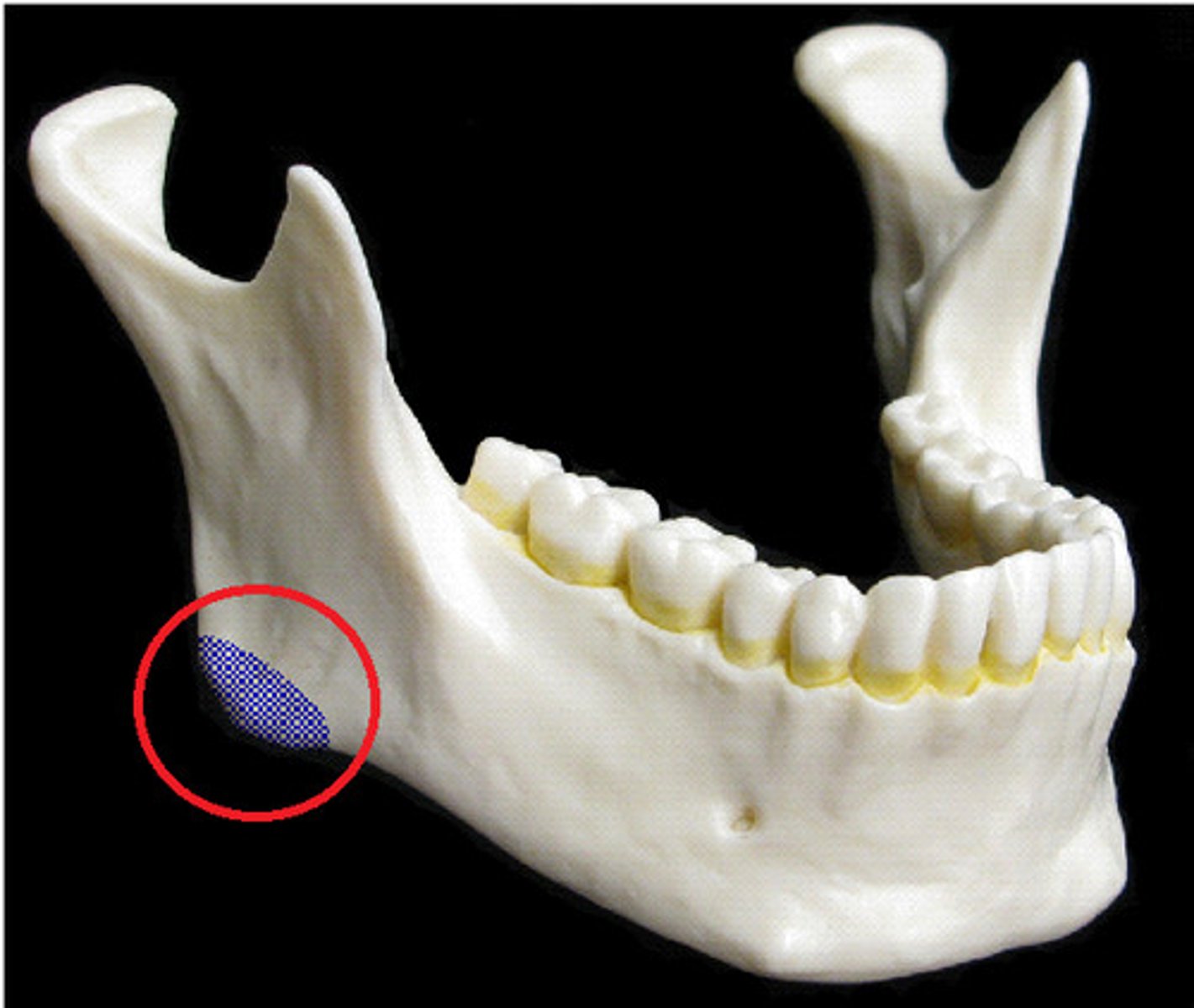

angle of mandible

Identify this picture and it's location

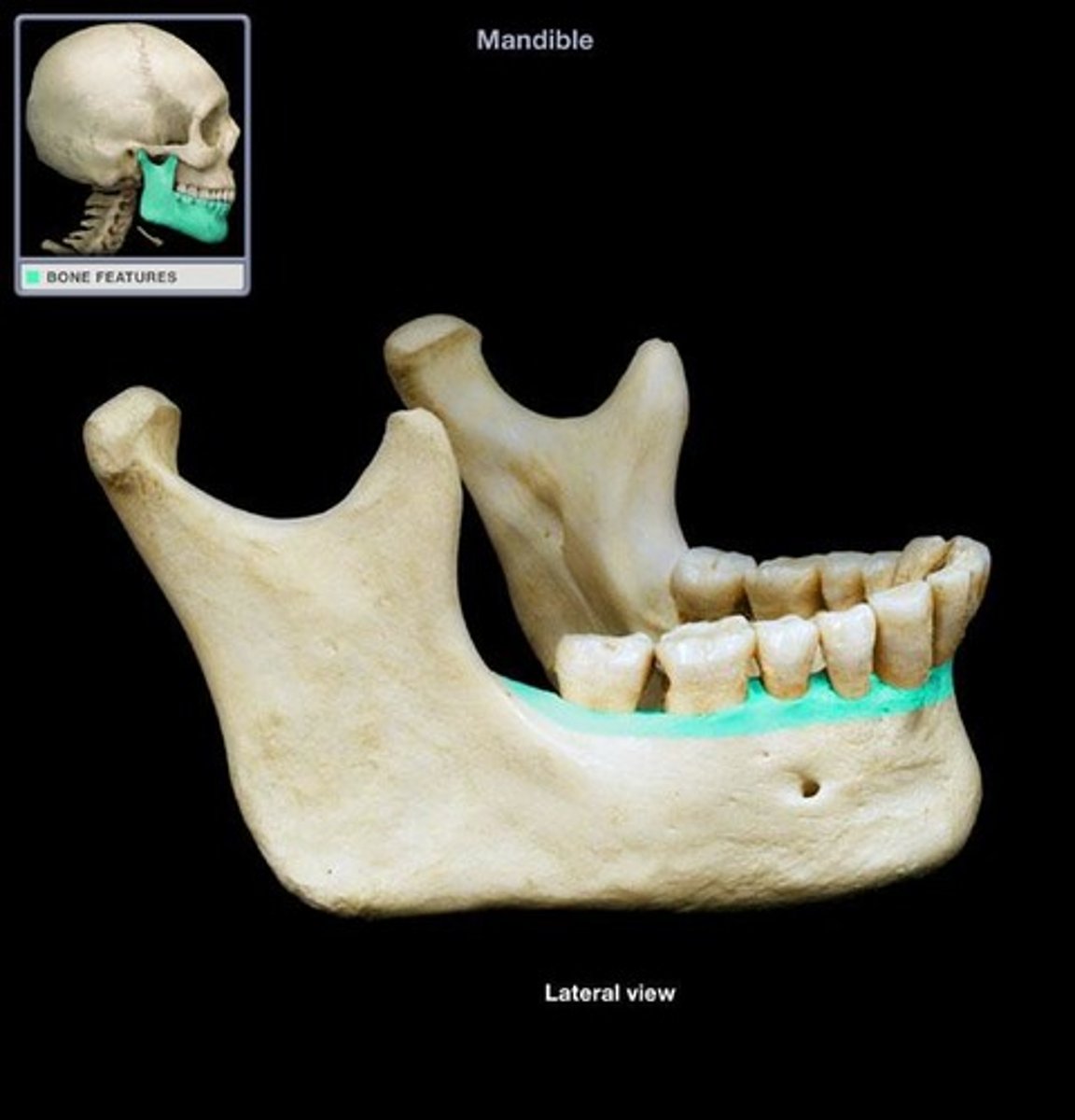

alveolar process of mandible

Identify this picture and it's location

Ethmoid bone of skull

Identify this picture and it's location

cribiform plate of ethmoid bone

Identify this picture and it's location

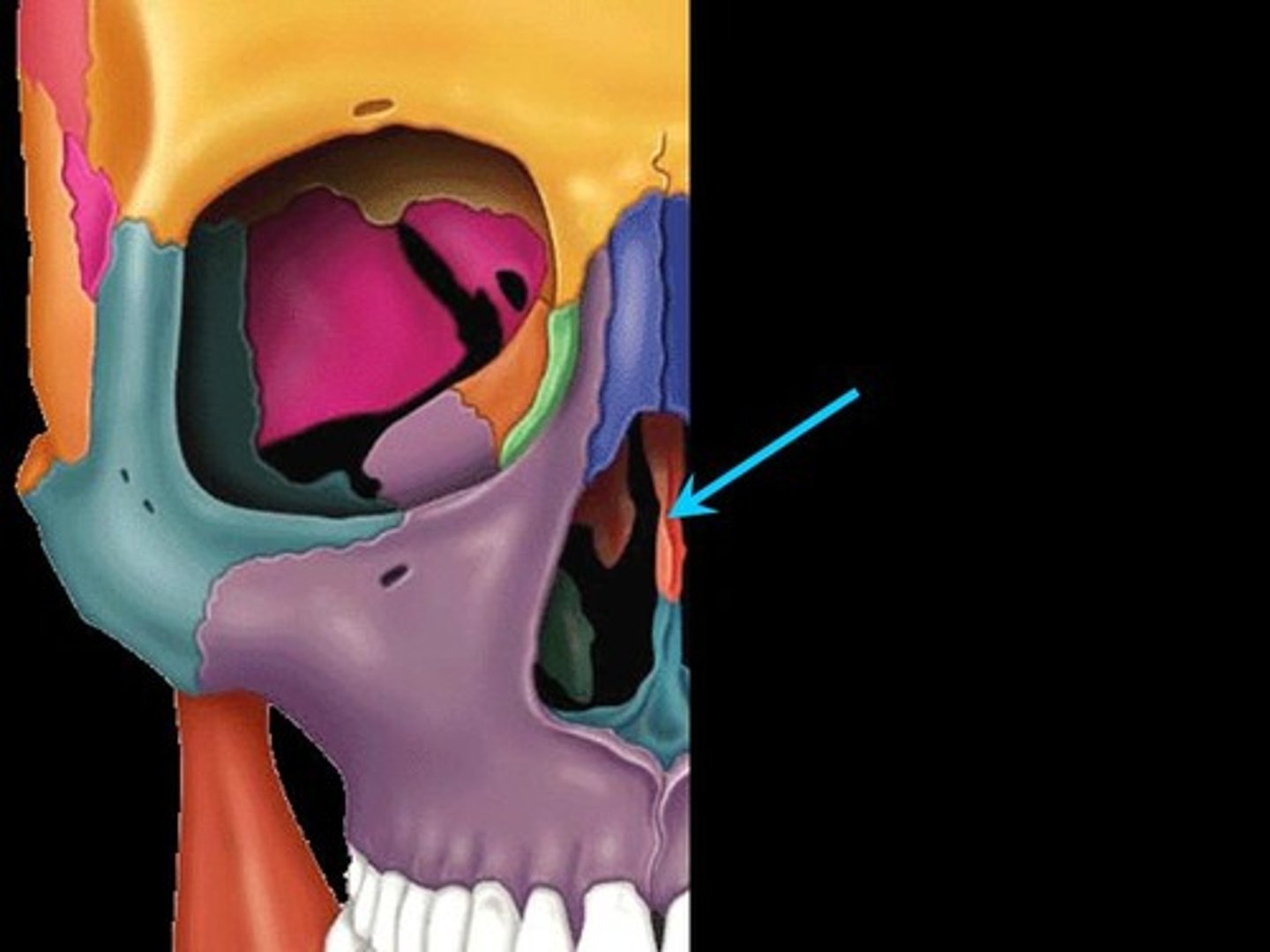

superior/middle nasal concha of ethmoid bone

Identify this picture and it's location

perpendicular plate of ethmoid bone

Identify this picture and it's location

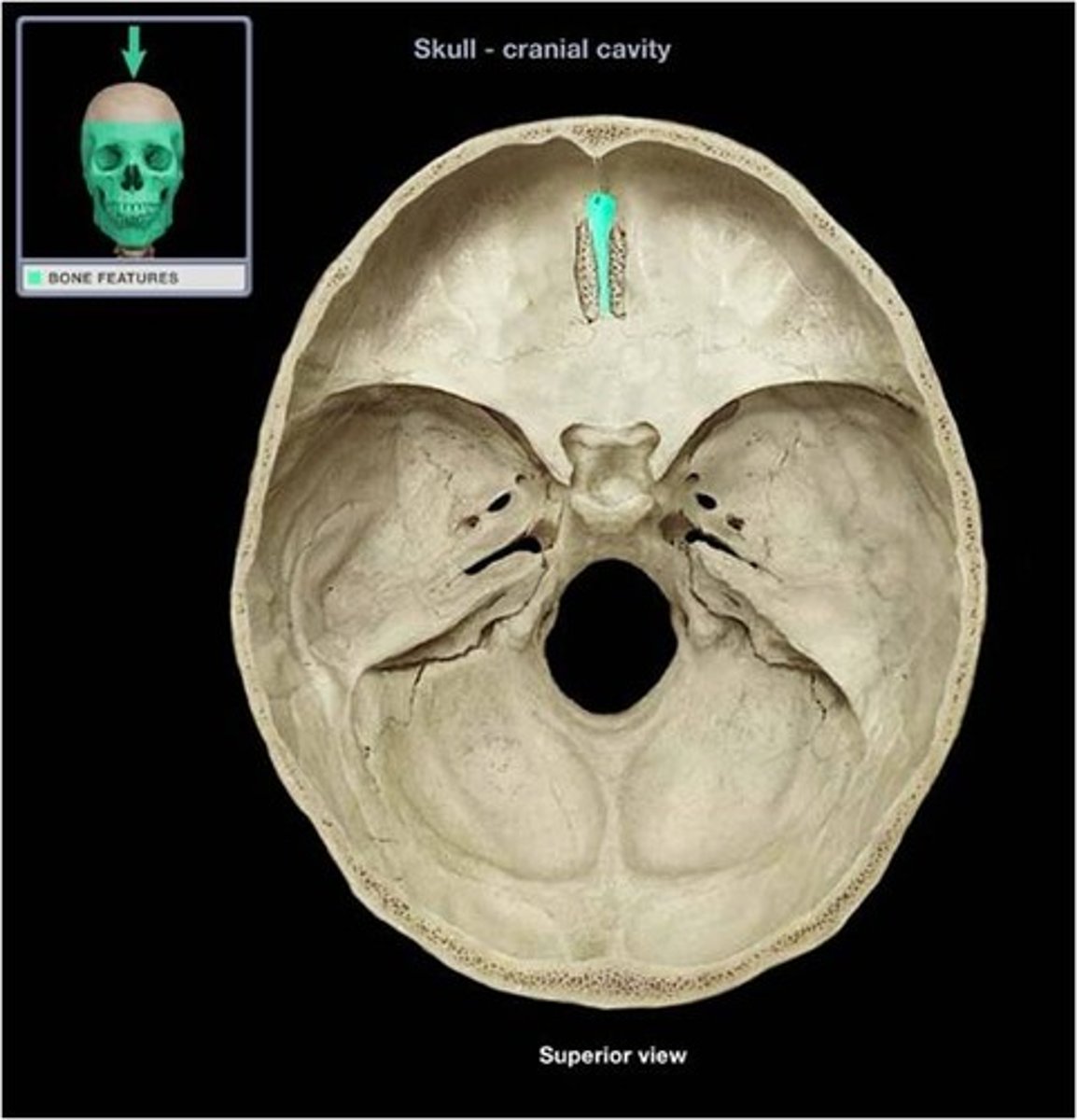

crista galli of ethmoid bone

Identify this picture and it's location

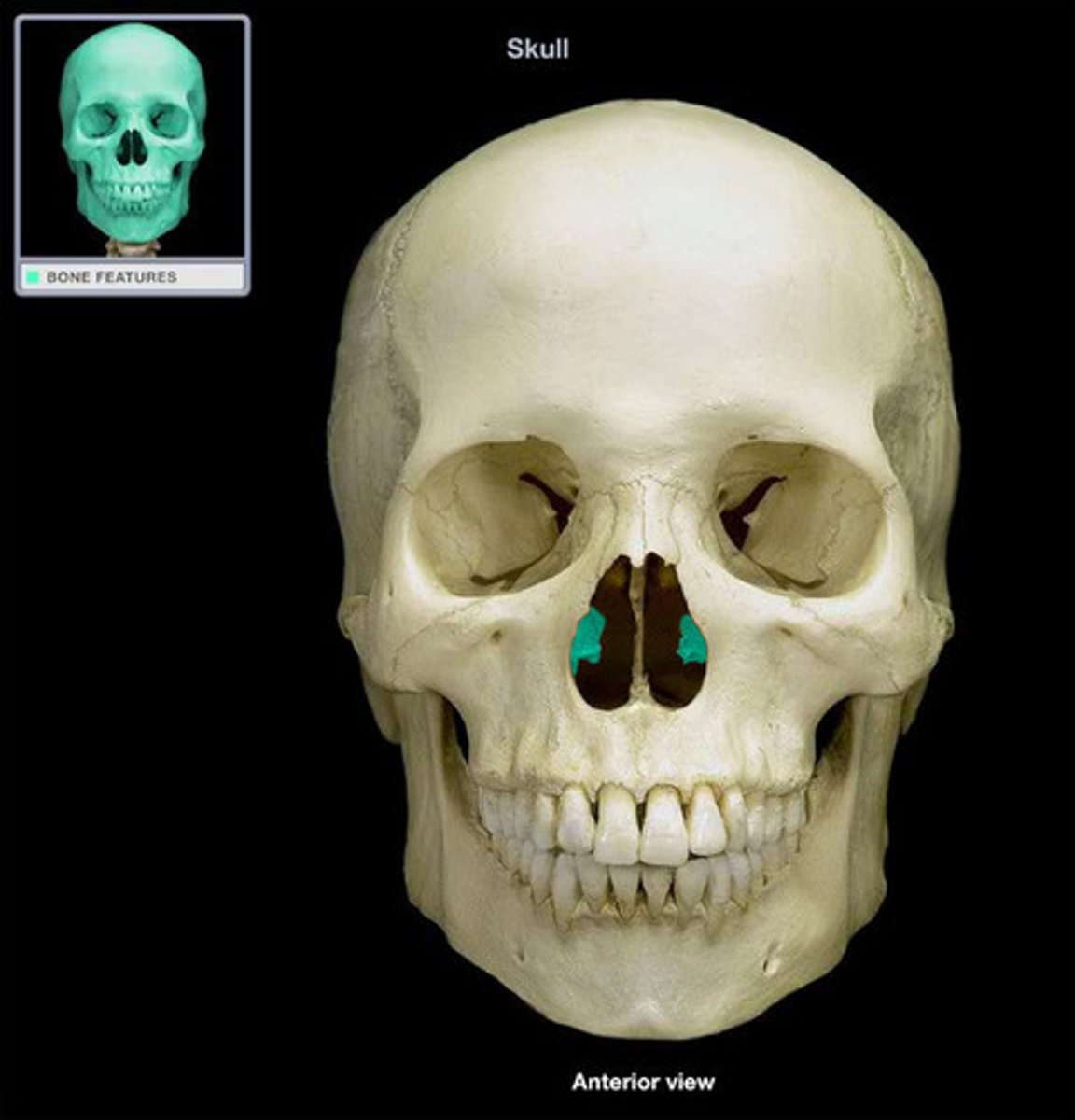

inferior nasal conchae

Identify this picture and it's location

vomer of ethmoid bone

Identify this picture and it's location

nasal bone of skull (x2)

Identify this picture and it's location

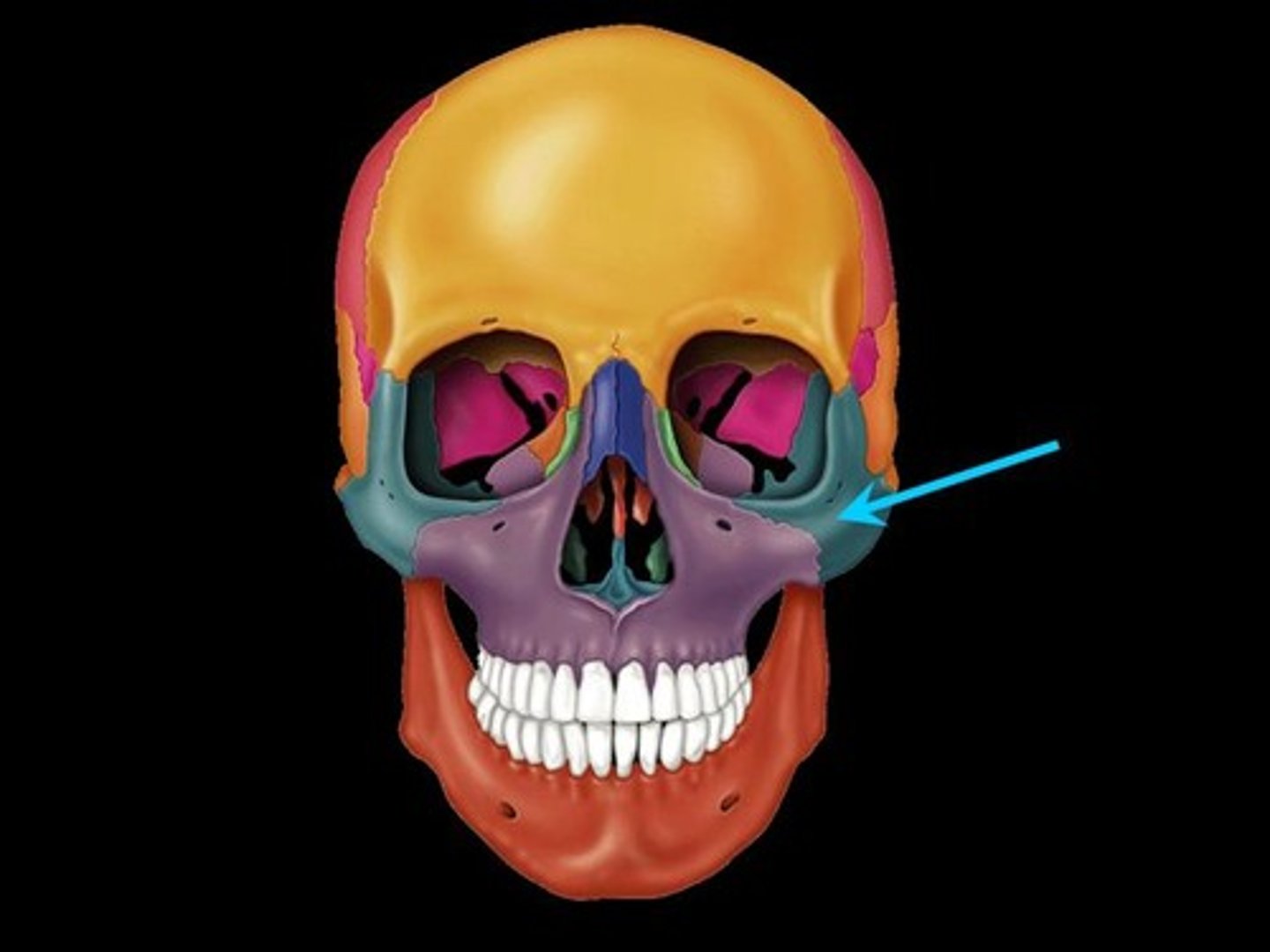

zygomatic bone (x2) of skull

Identify this picture and it's location

zygomatic arch of zygomatic bone

Identify this picture and it's location

vertabrae of spinal column

Identify this picture and it's location

palatine bone (x2)

Identify this picture and it's location

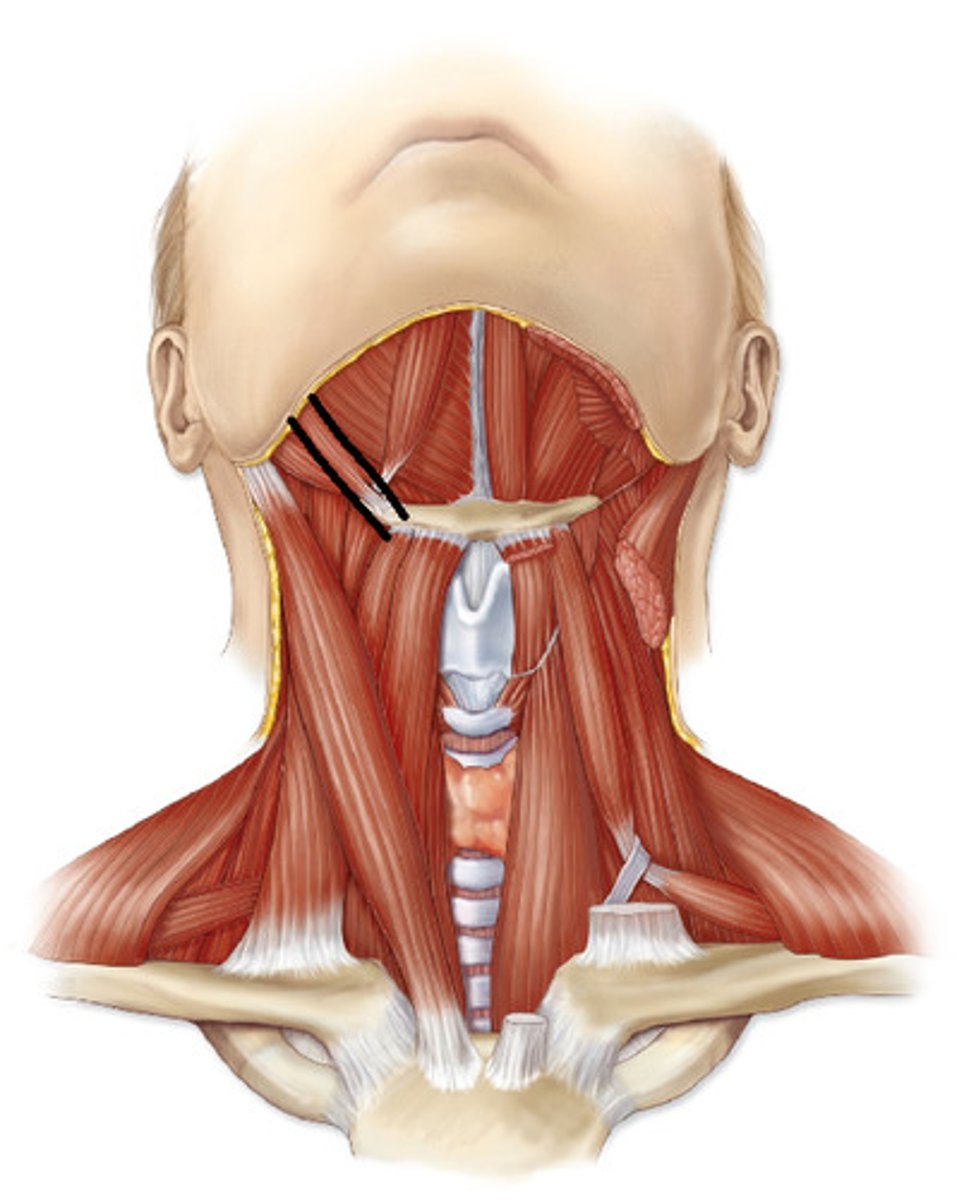

hyoid bone (x2)

Identify this picture and it's location

cervical vertebrae of spinal column (x7)

- have transverse foramina

Identify this picture and it's location

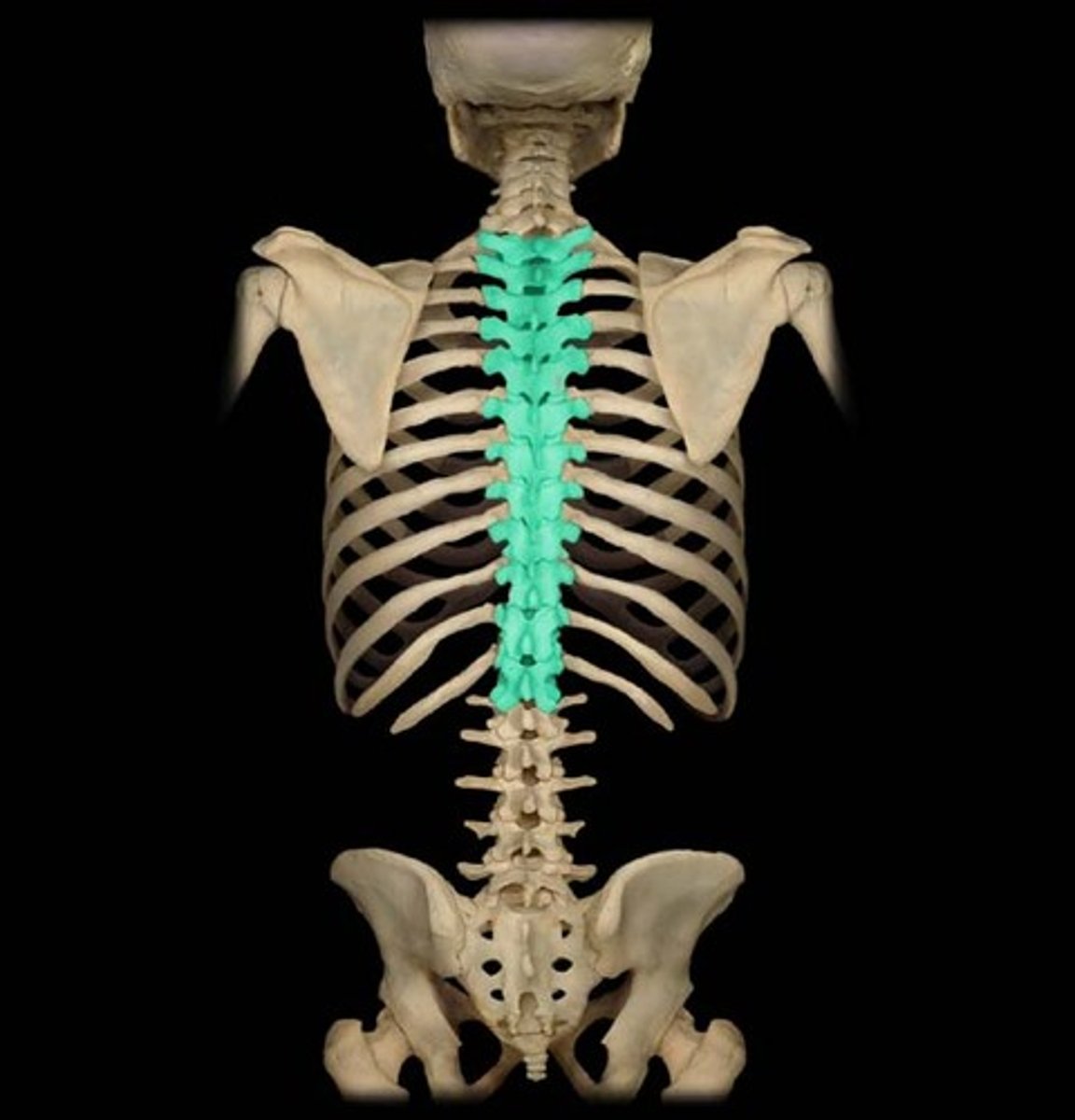

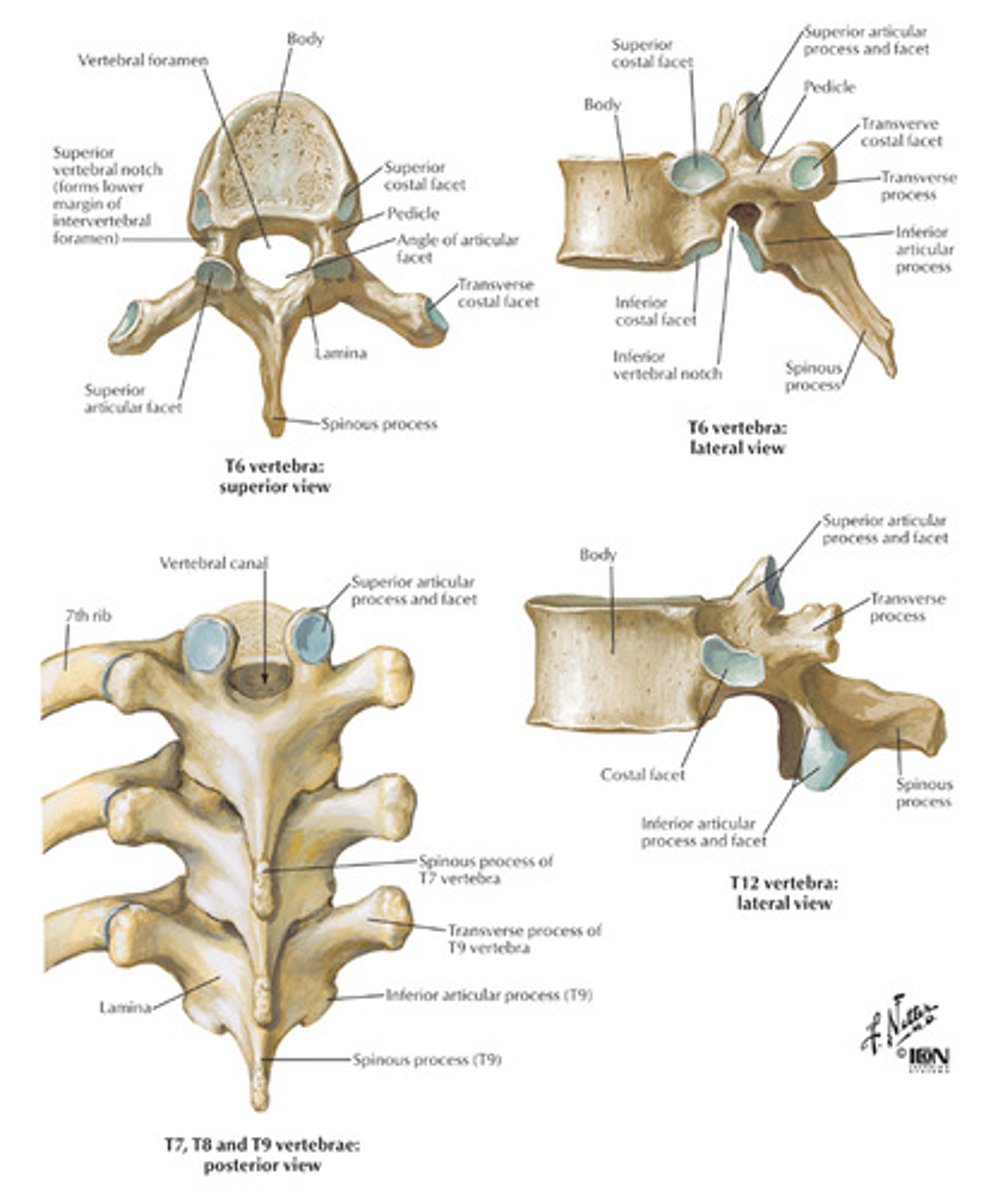

thoracic vertebrae of spinal column (x12)

- have costal facets

Identify this picture and it's location

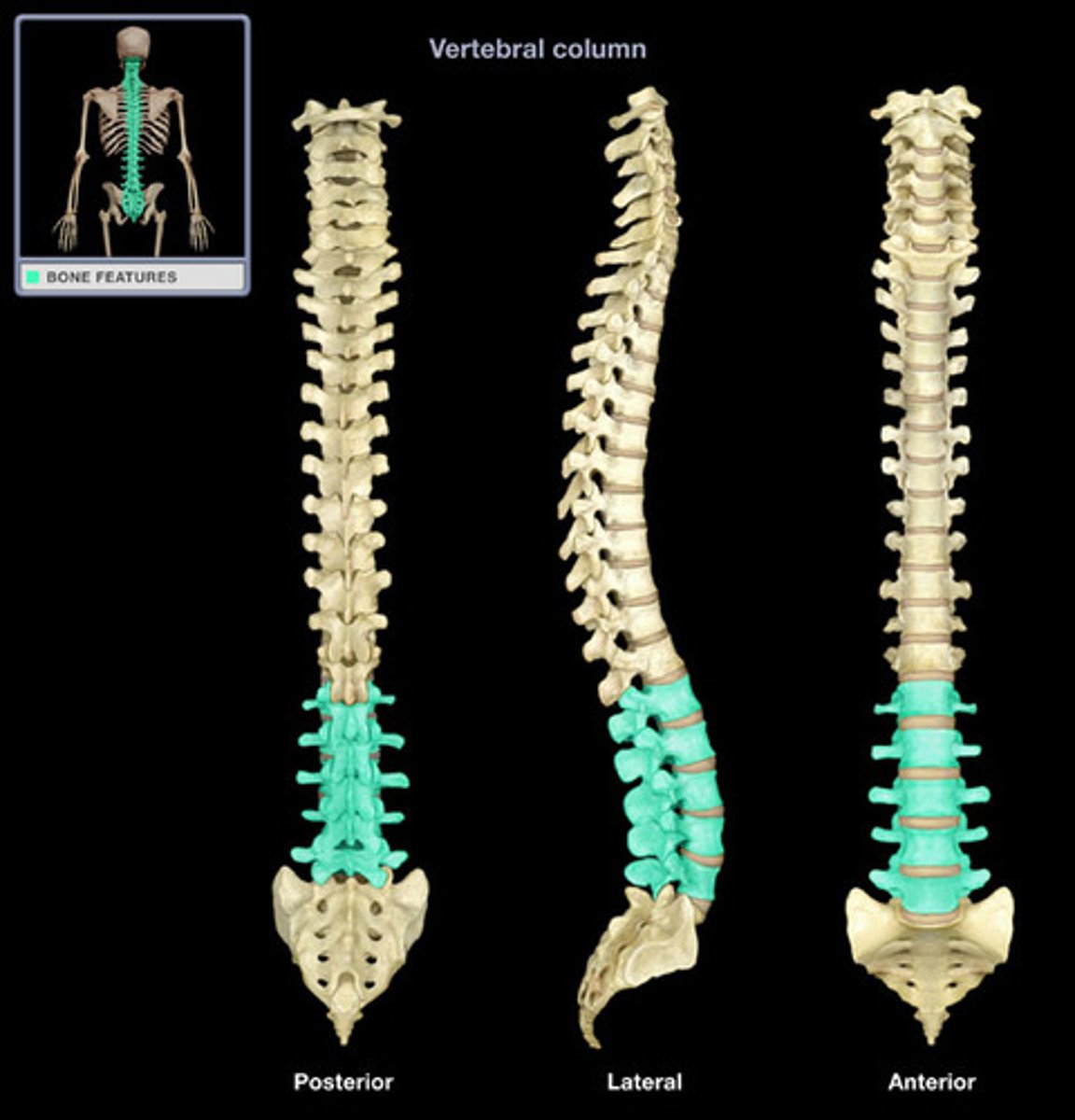

lumbar vertebrae of spinal column (x5)

-no transverse foramina nor costal facets

Identify this picture and it's location

vertebral body of spine

Identify this picture and it's location

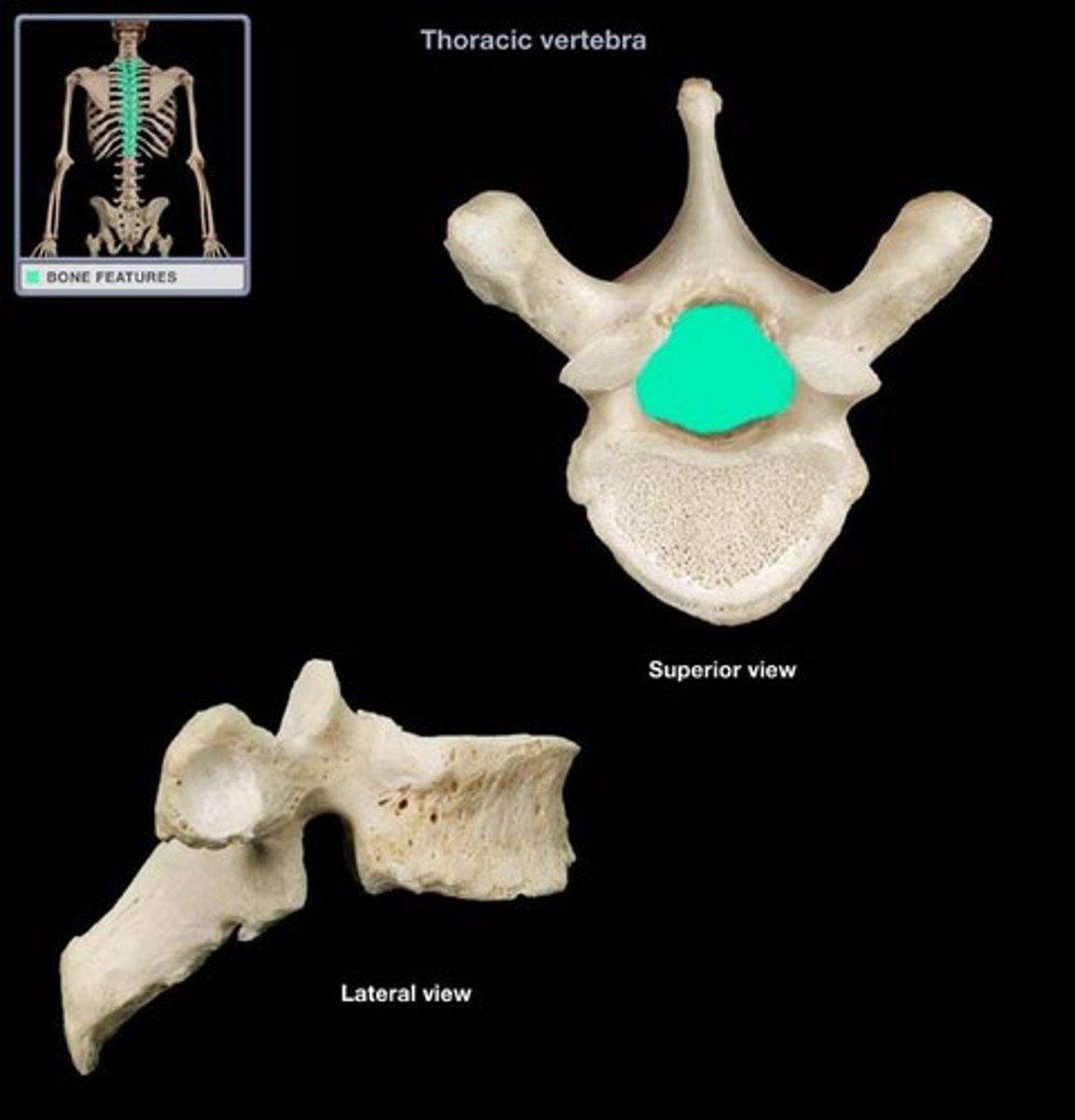

vertebral foramen of spine

Identify this picture and it's location

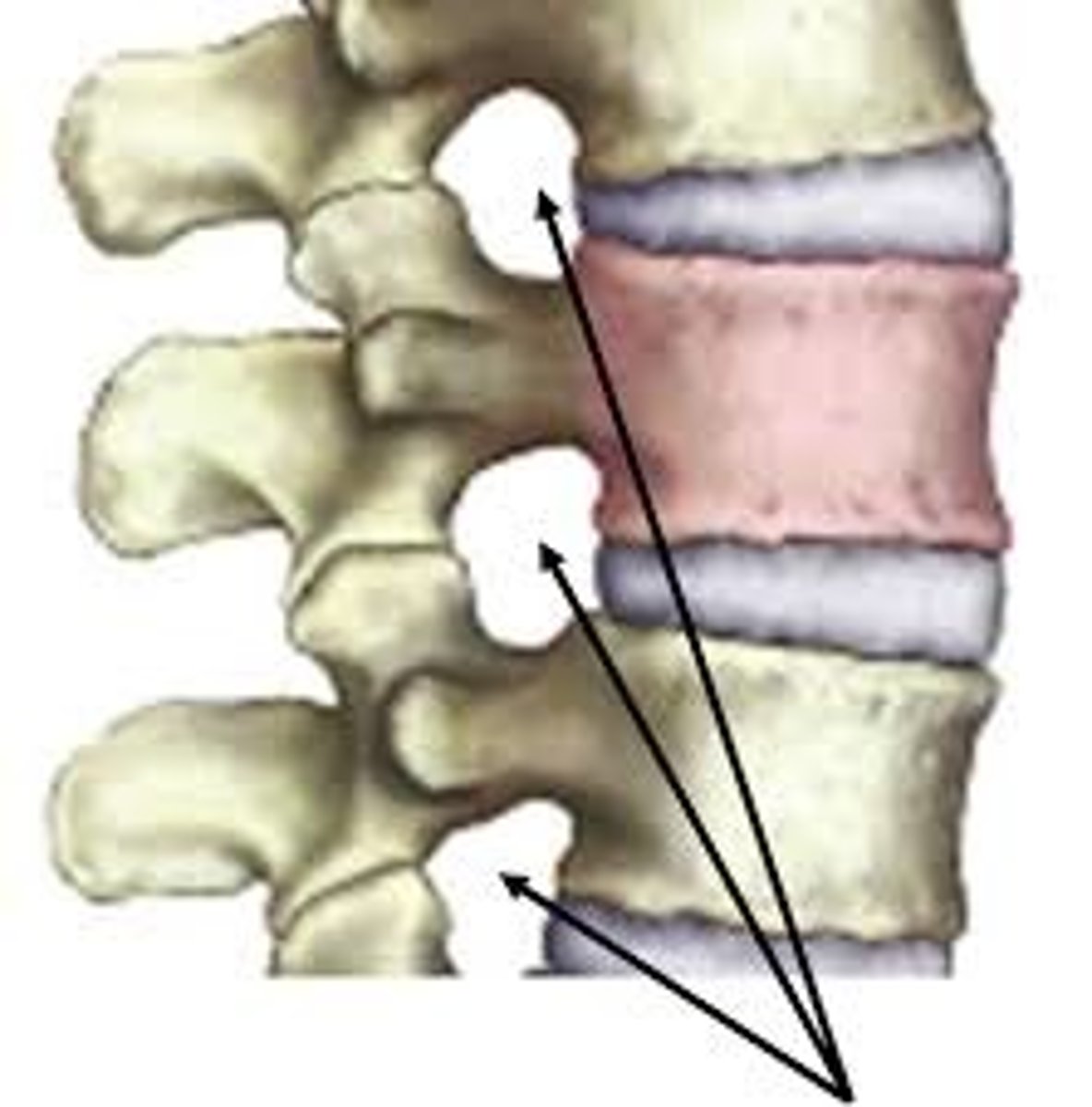

intervertebral foramen of spine

Identify this picture and it's location

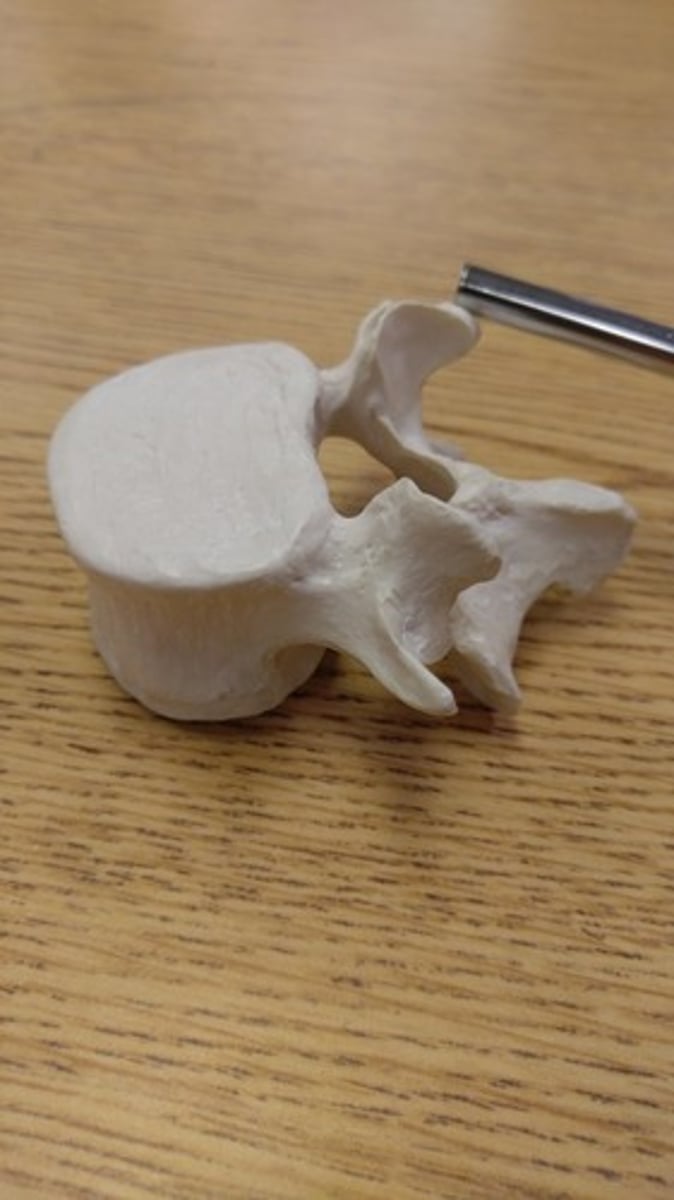

lamina of vertebra

Identify this picture and it's location

pedicle of vertebra

Identify this picture and it's location

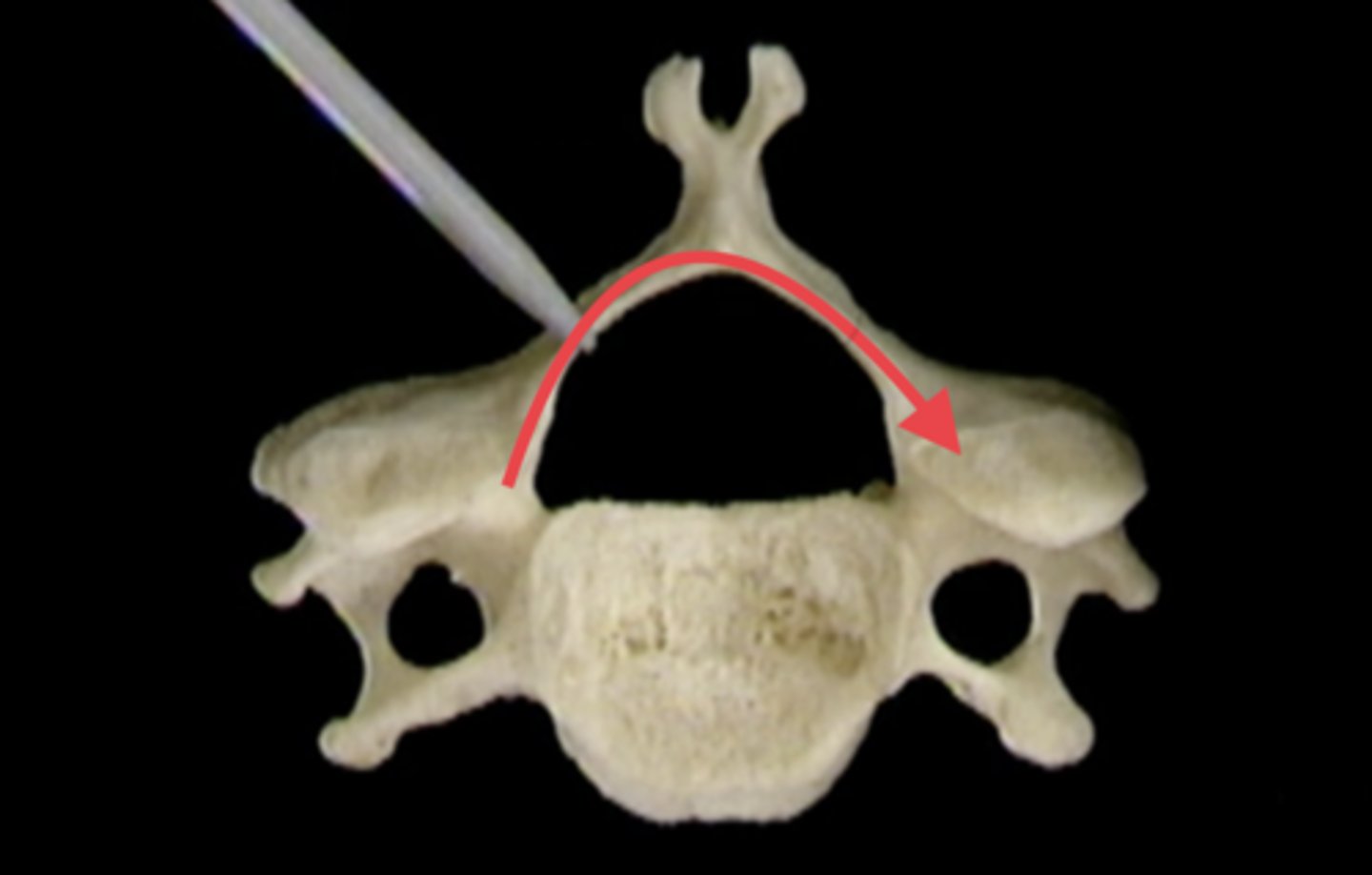

vertebral arch of vertebra

Identify this picture and it's location

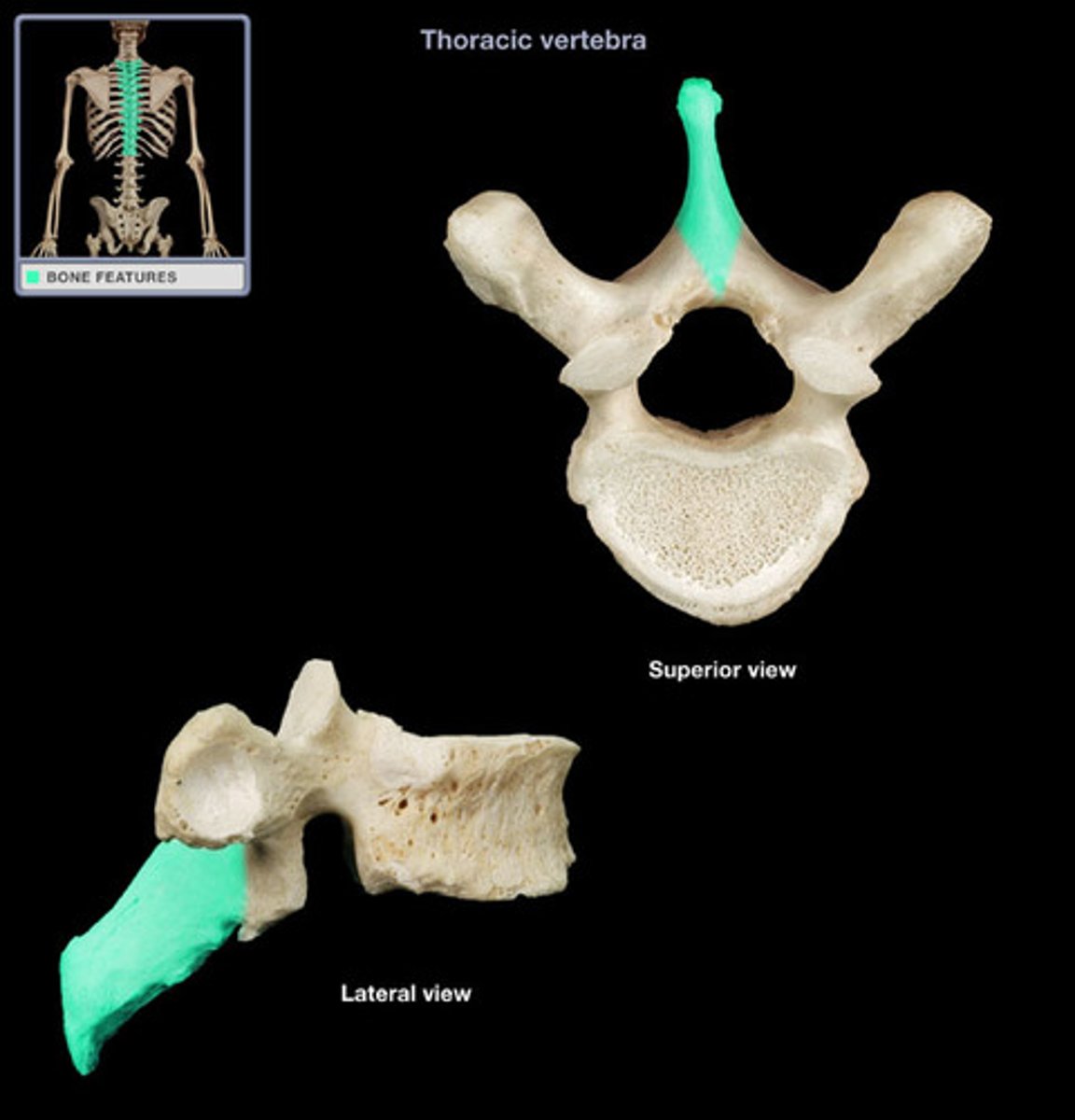

spinous process of vertebra

Identify this picture and it's location

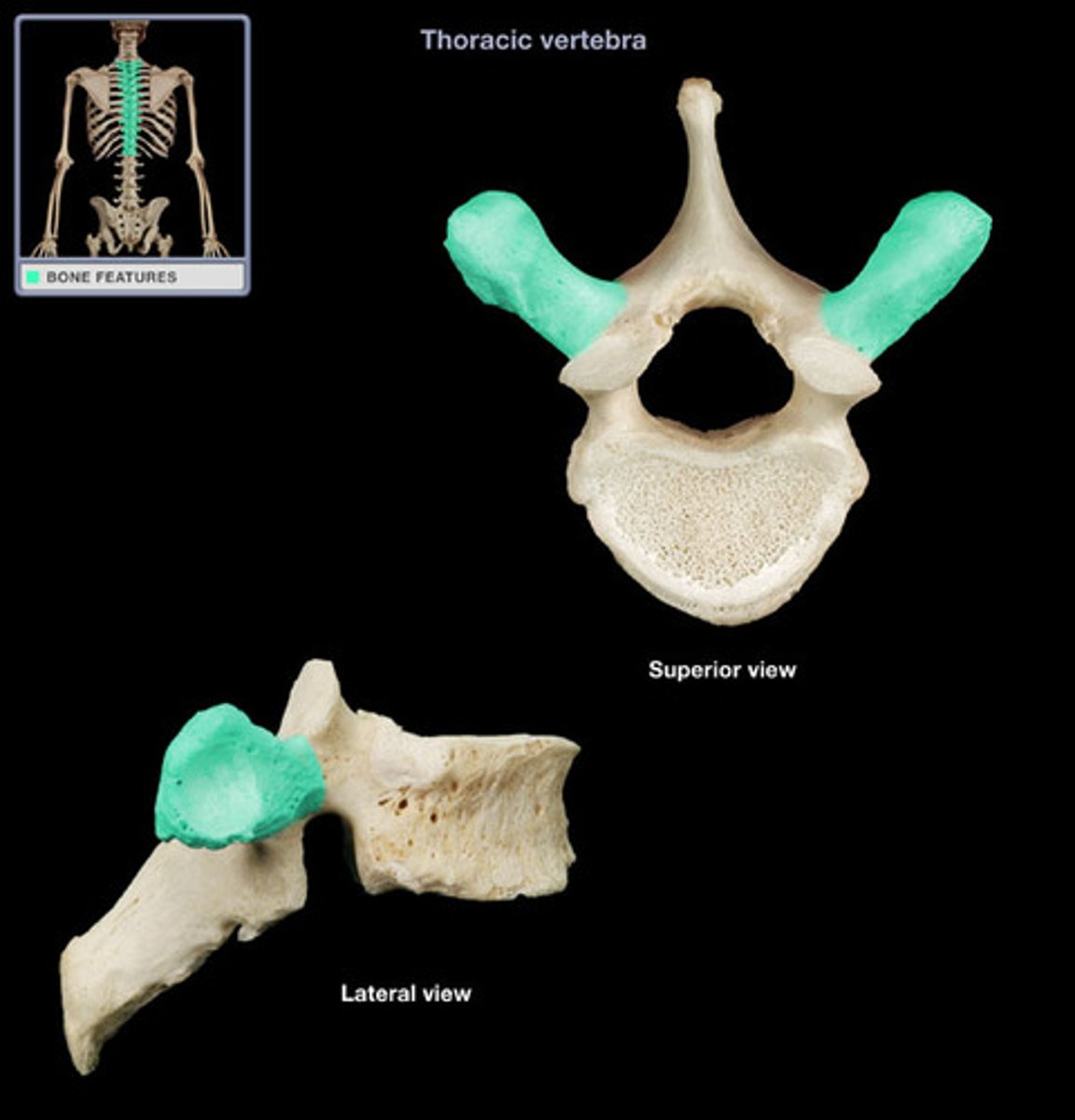

transverse process of vertebra

Identify this picture and it's location

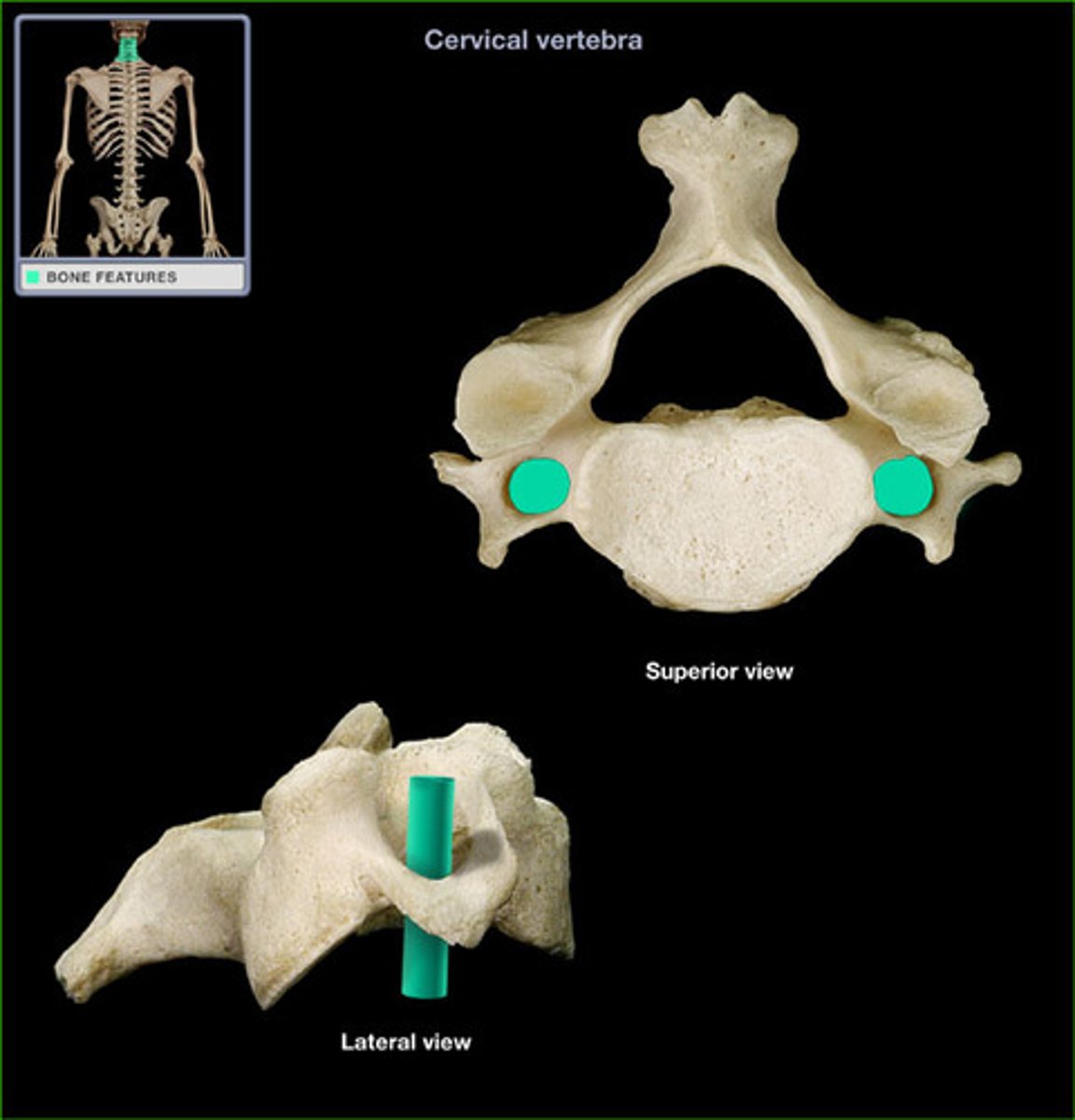

transverse foramen of vertebra

Identify this picture and it's location

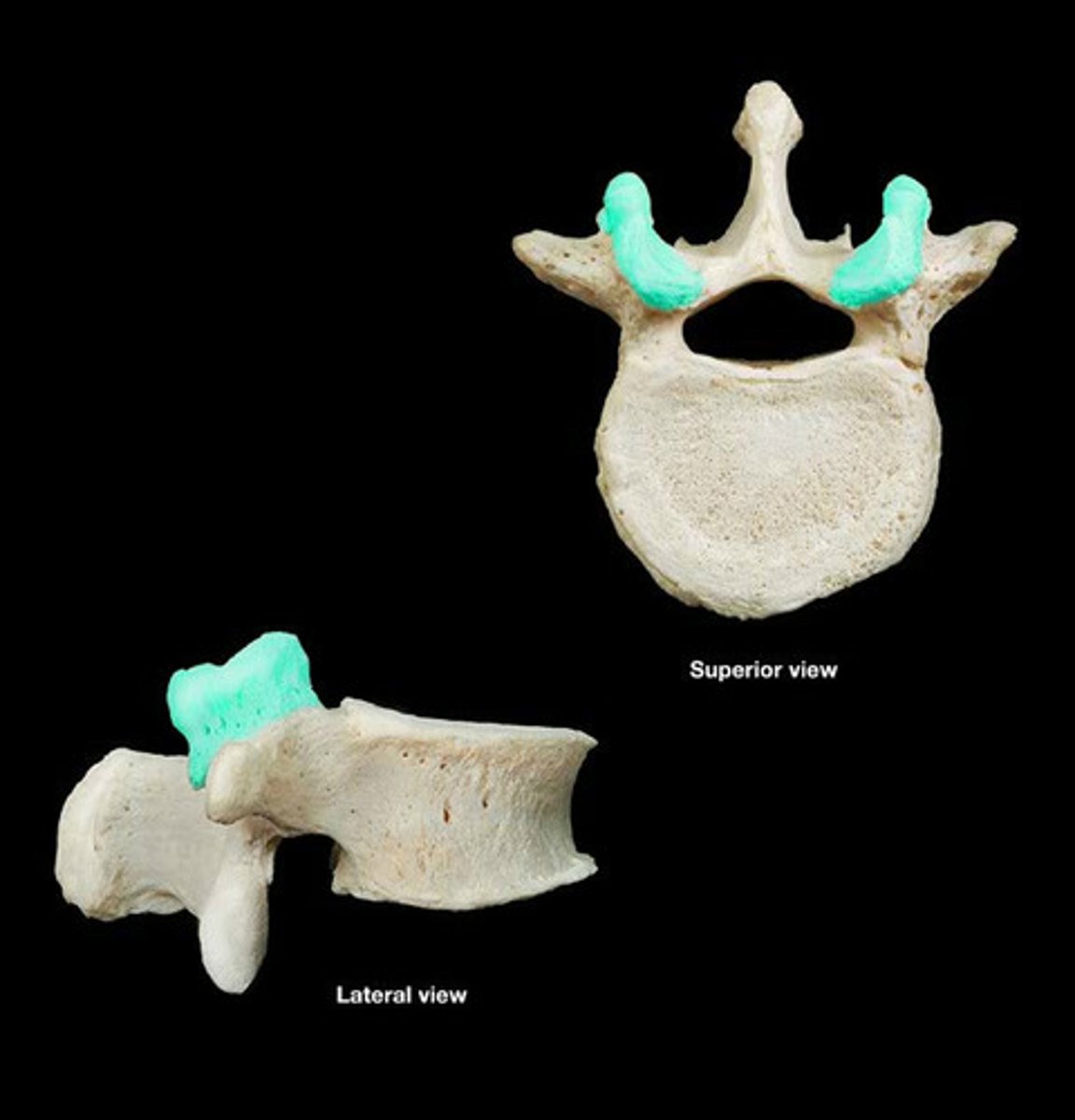

super/infer articular process of vertebra

Identify this picture and it's location

super/infer articular facet of vertebra

Identify this picture and it's location

intervertebral disc of spinal column

Identify this picture and it's location

sacrum (5 fused)

Identify this picture and it's location

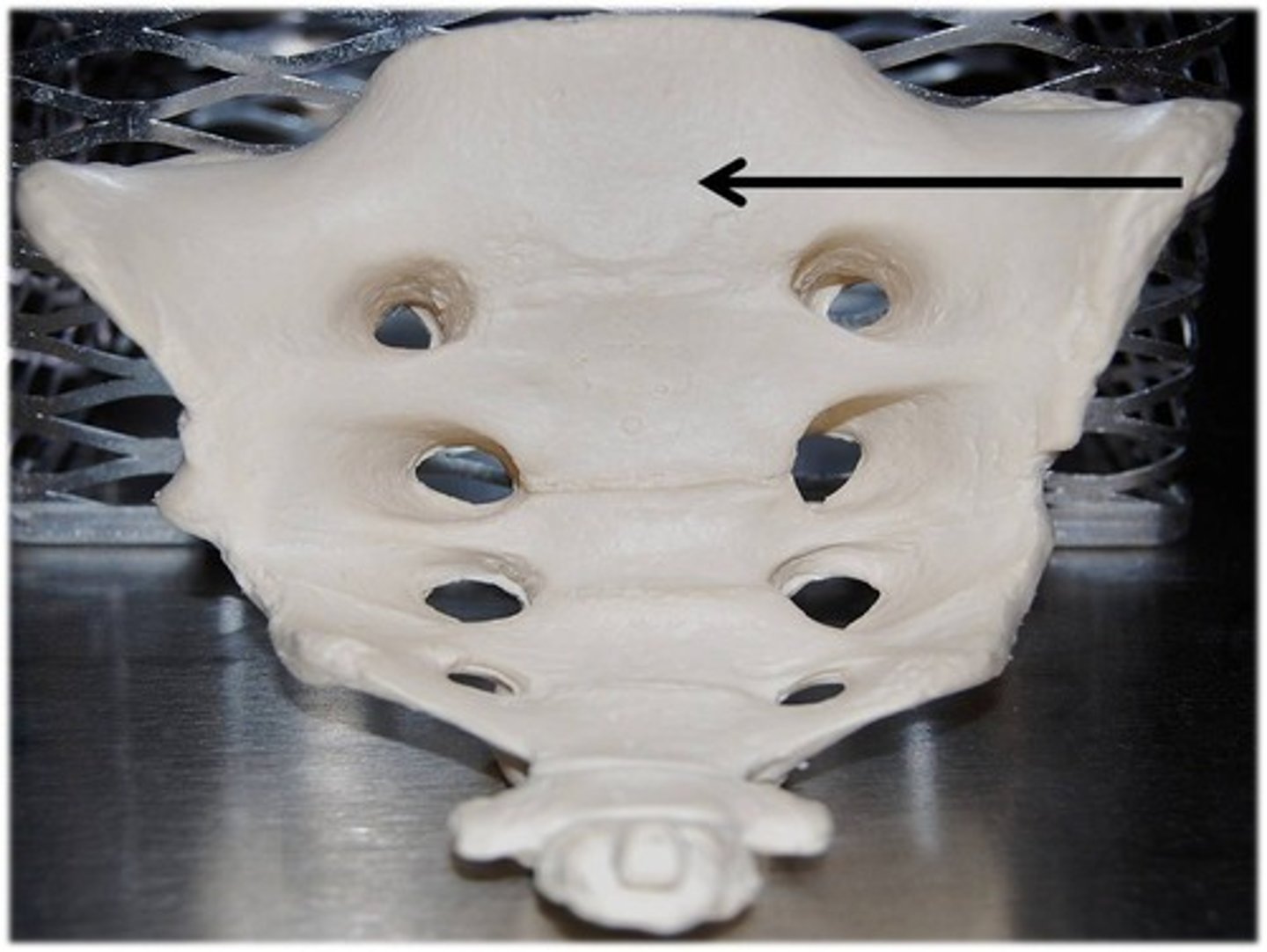

median sacral crest of sacrum

Identify this picture and it's location

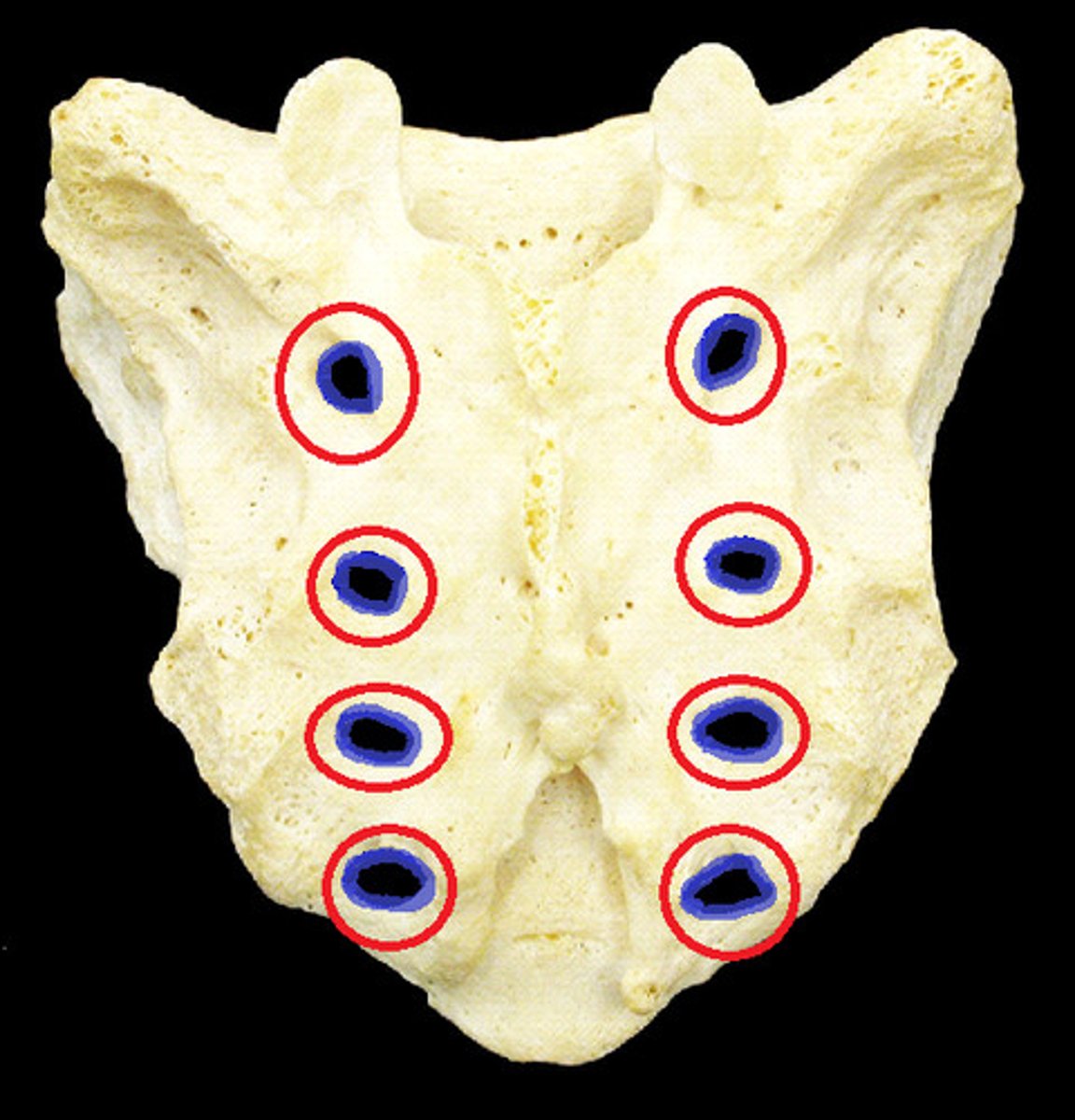

sacral foramina of sacrum

Identify this picture and it's location

Coccyx (2-4 fused)

Identify this picture and it's location

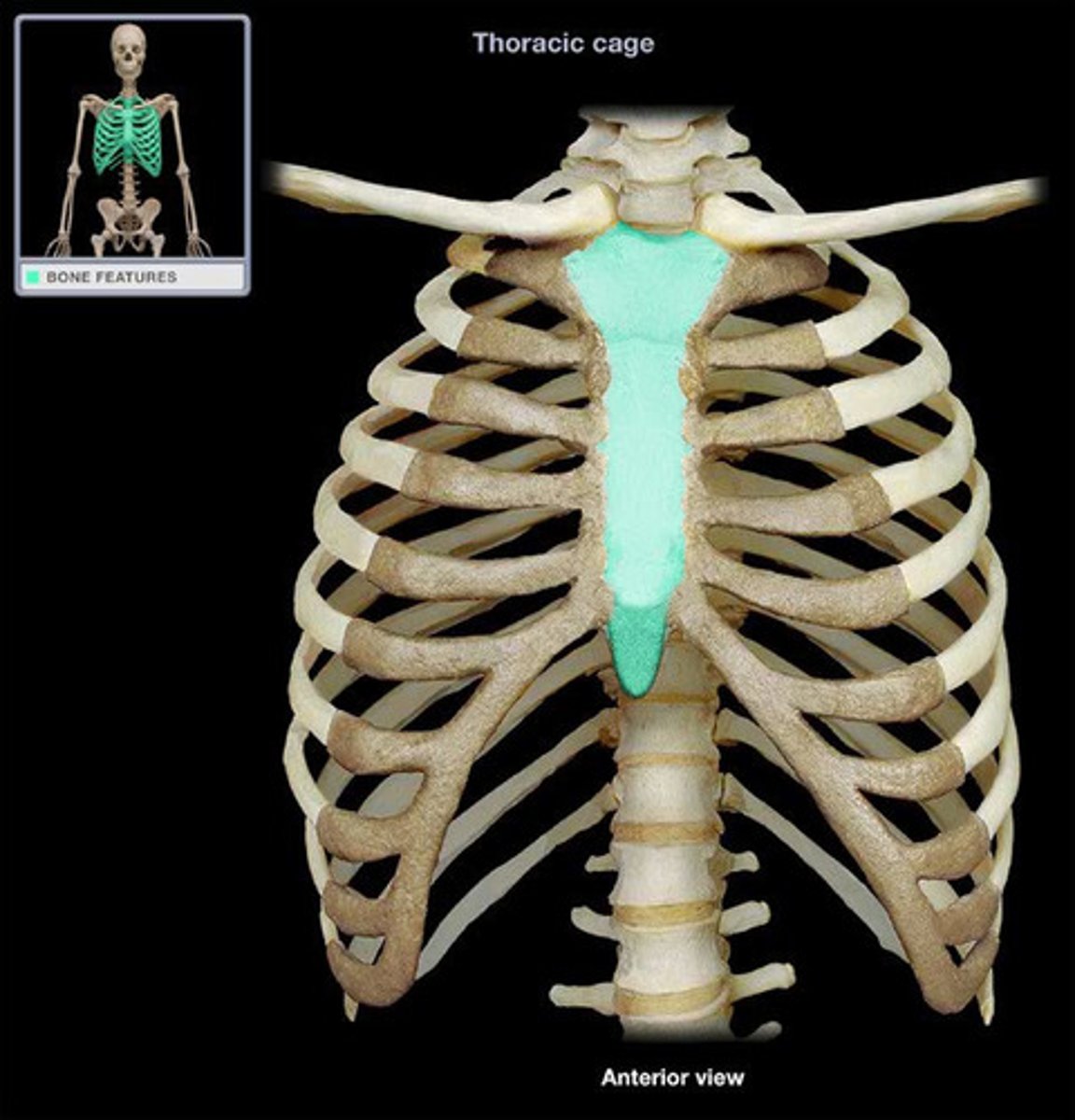

sternum

Identify this picture and it's location

manubrium of sternum

Identify this picture and it's location

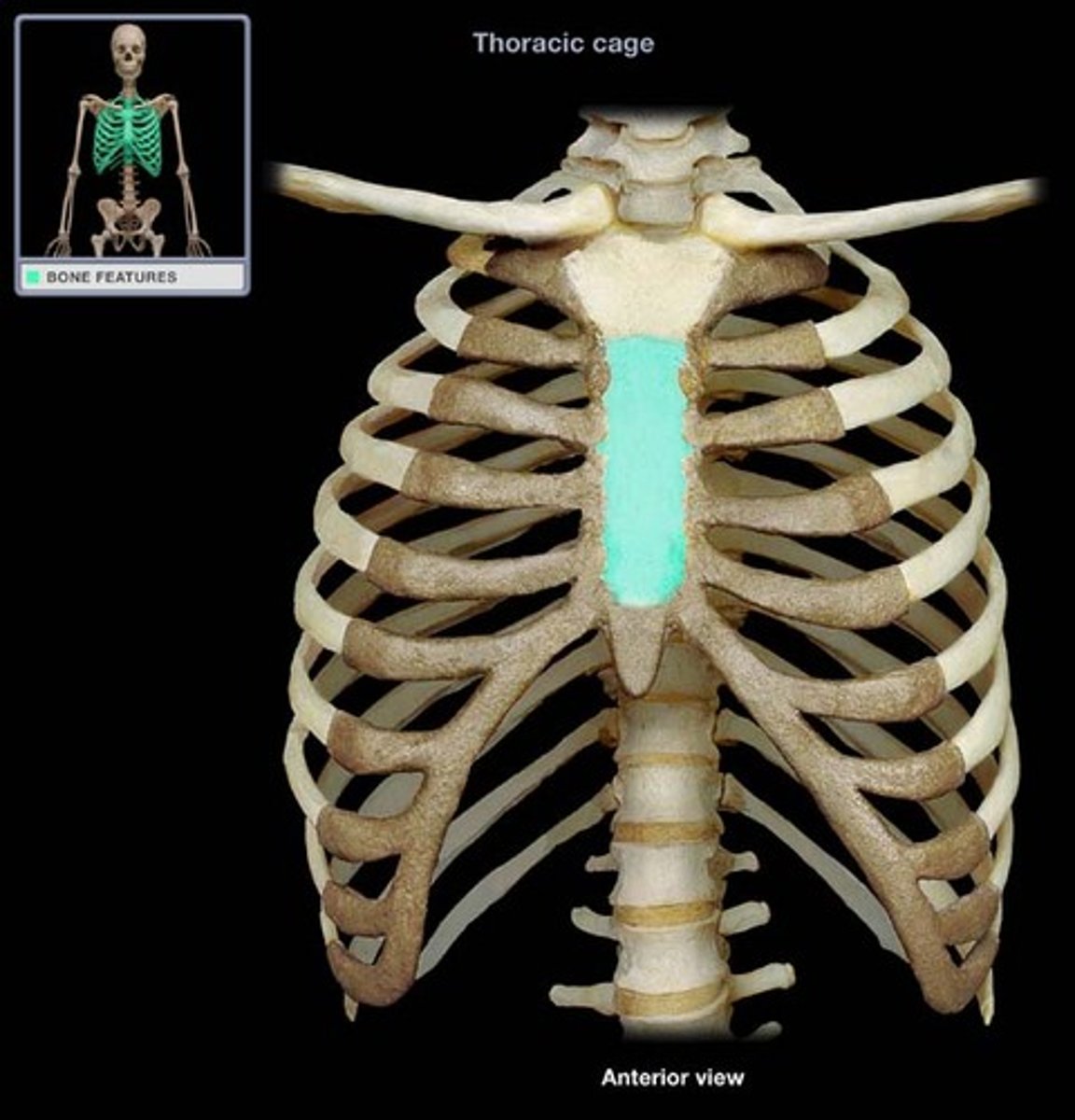

body of sternum

Identify this picture and it's location

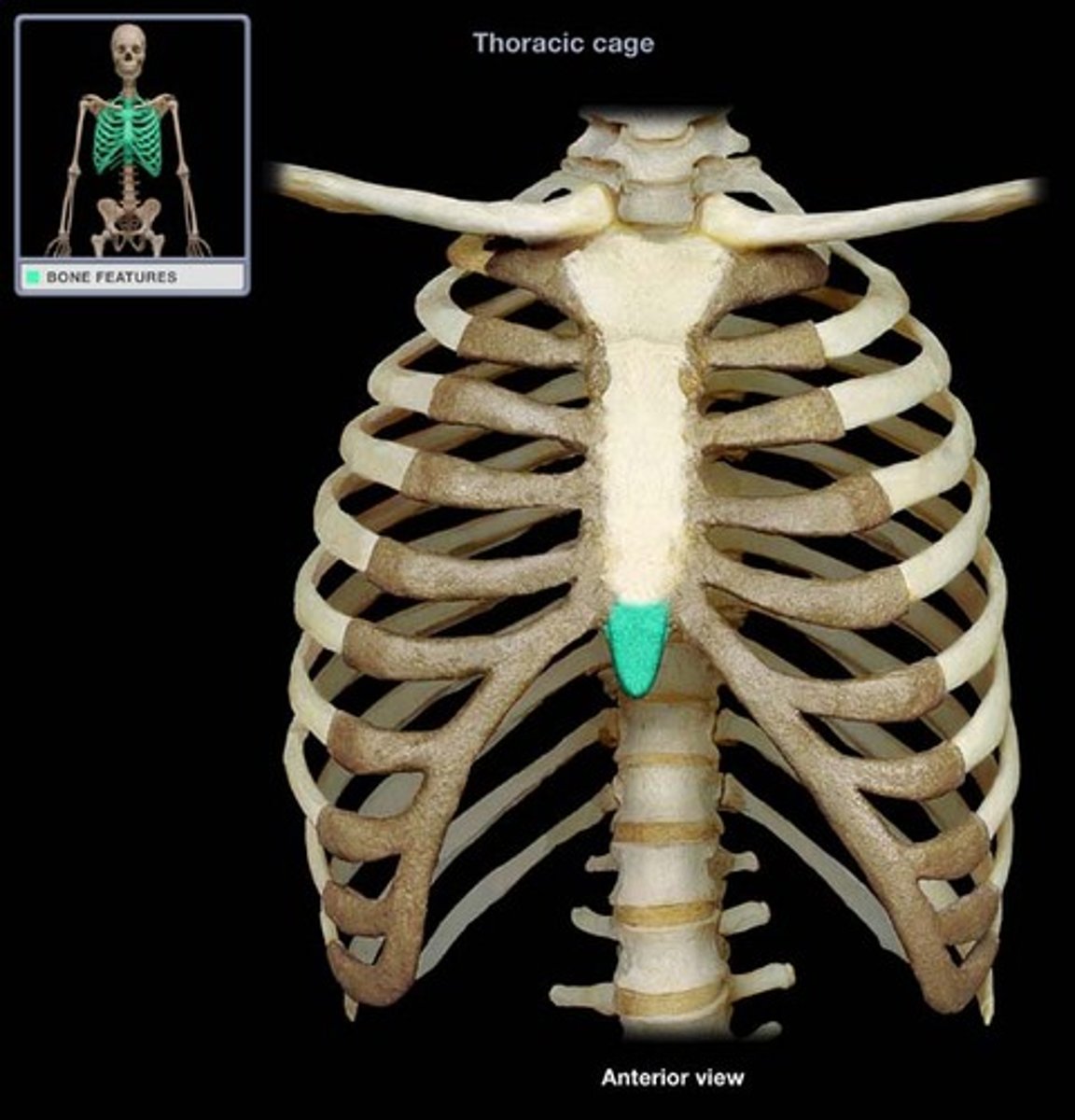

xiphoid process of sternum

Identify this picture and it's location

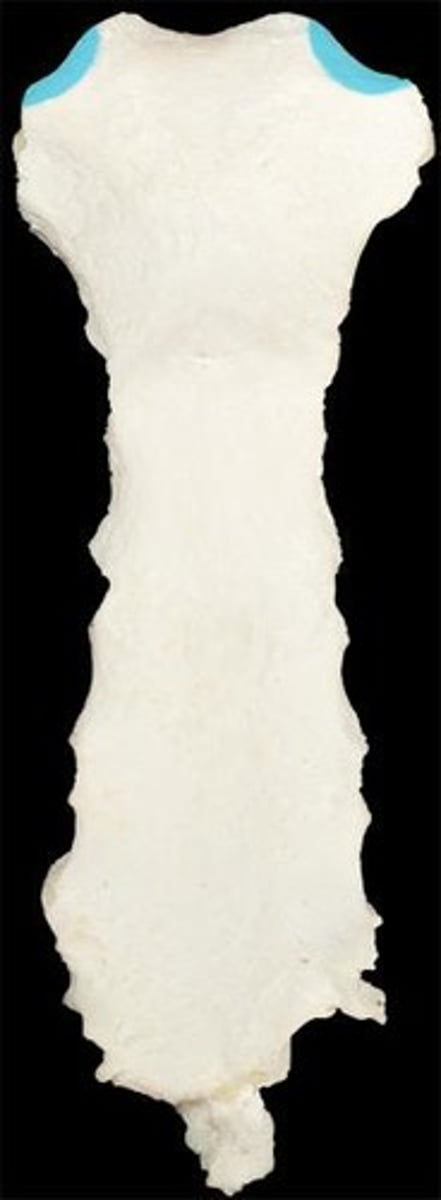

clavicular notch of sternum

Identify this picture and it's location

suprasternal notch of sternum

Identify this picture and it's location

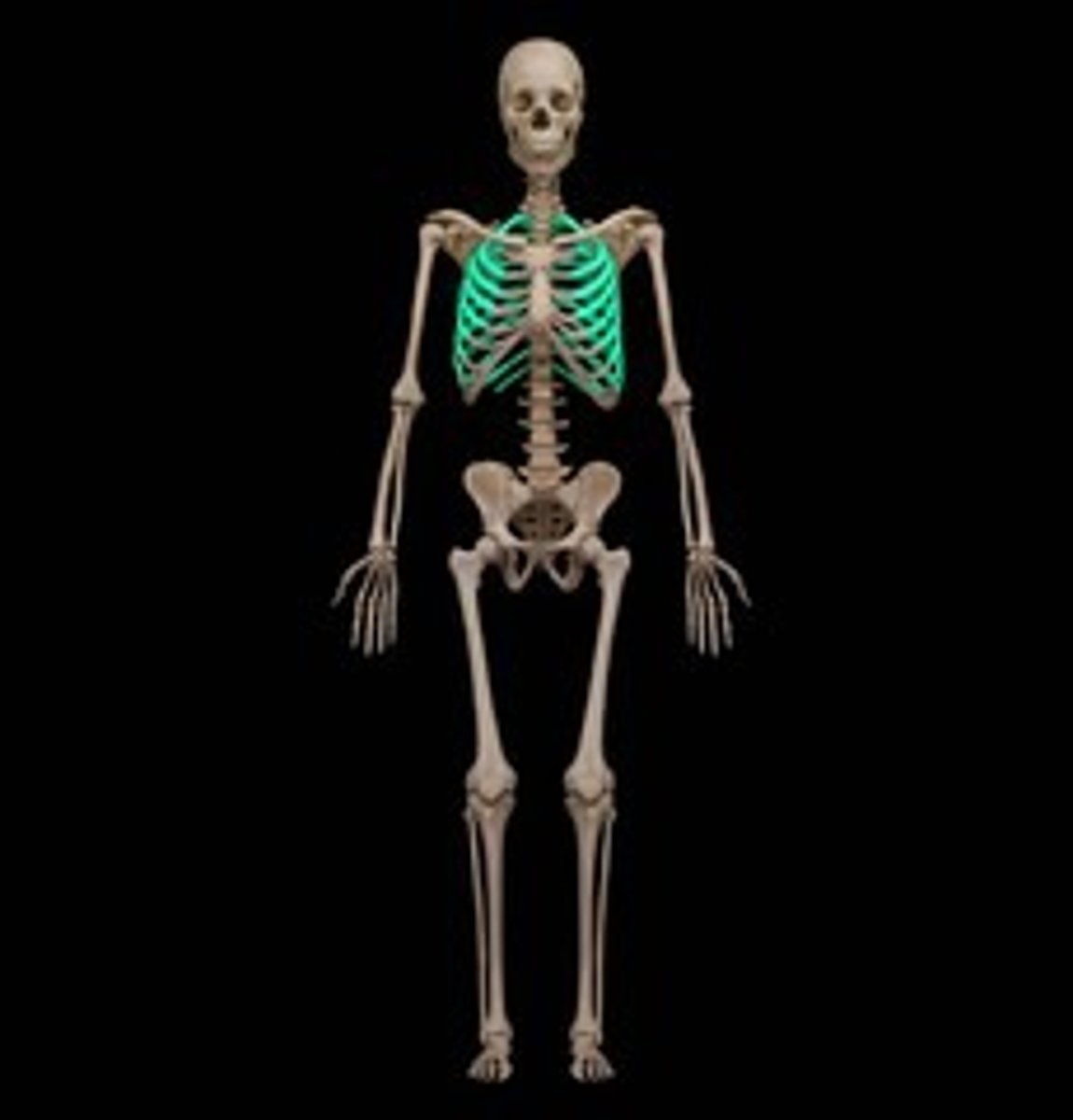

ribs (12 pairs)

Identify this picture and it's location

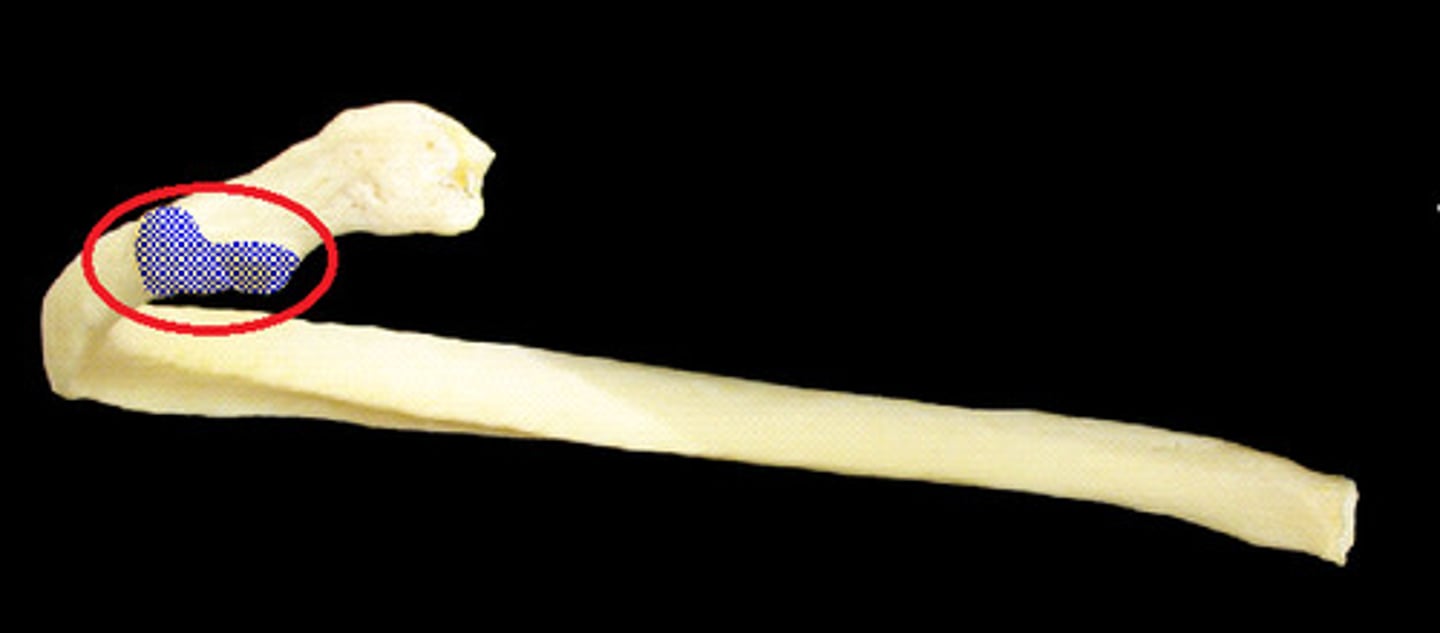

head of rib

Identify this picture and it's location

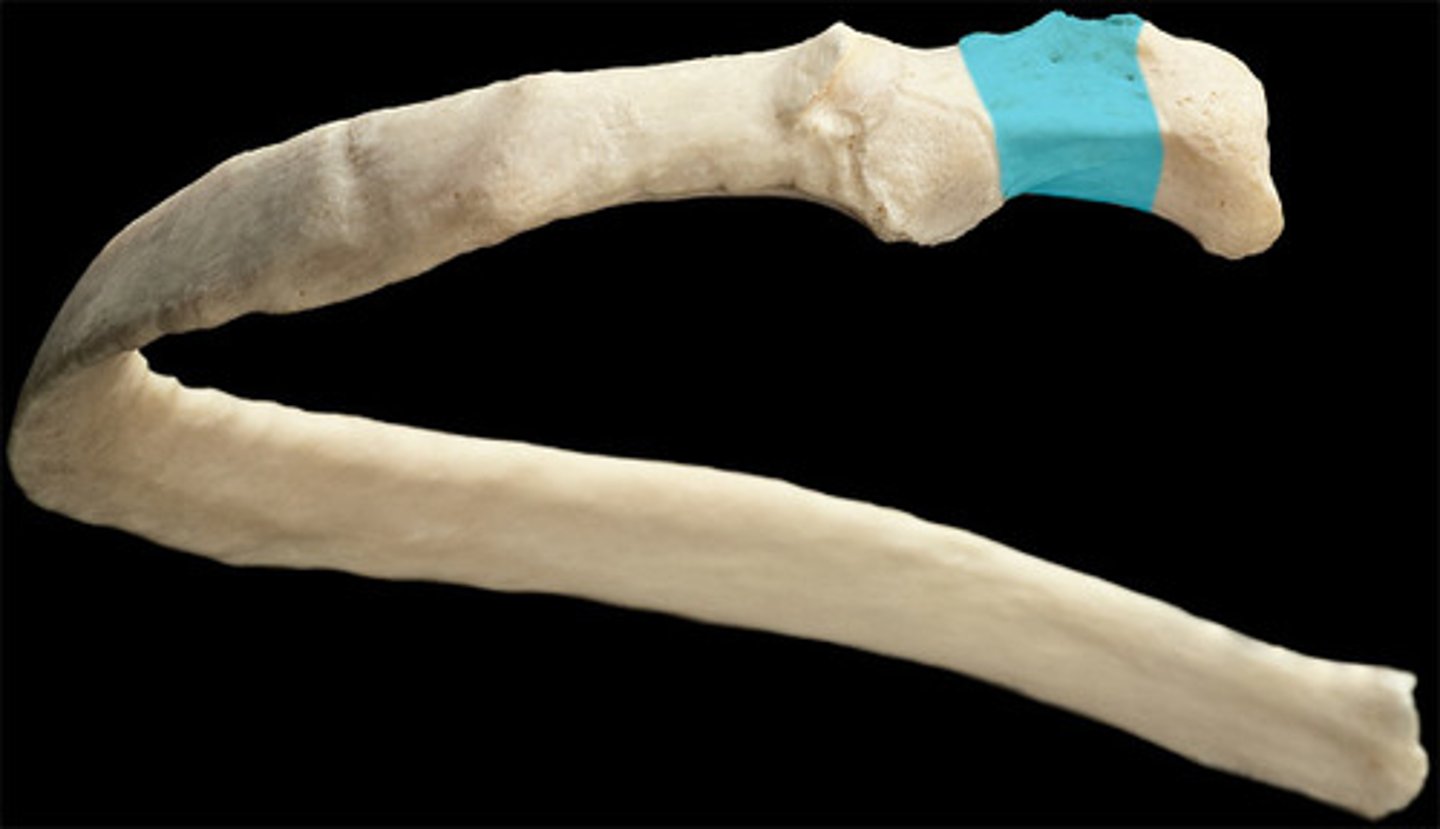

neck of rib

Identify this picture and it's location

shaft of rib

Identify this picture and it's location

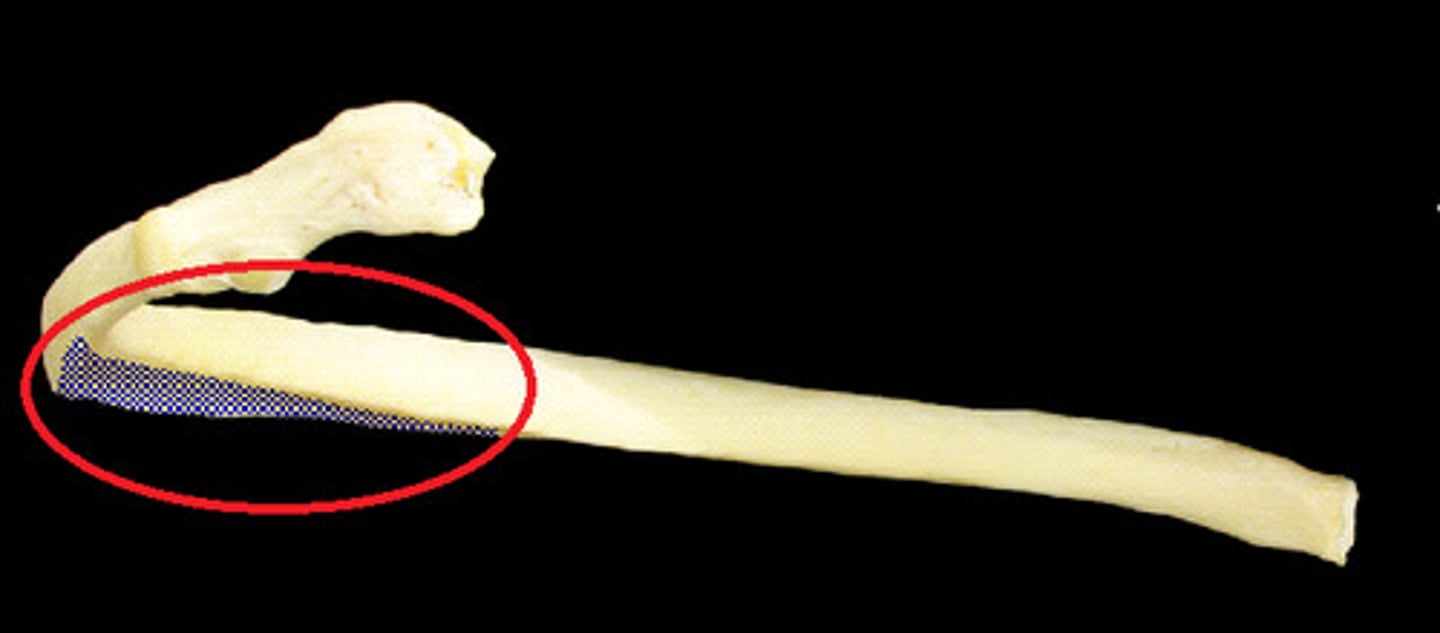

costal groove of rib

Identify this picture and it's location

tubercle of rib

Identify this picture and it's location

costal margin of rib

Identify this picture and it's location

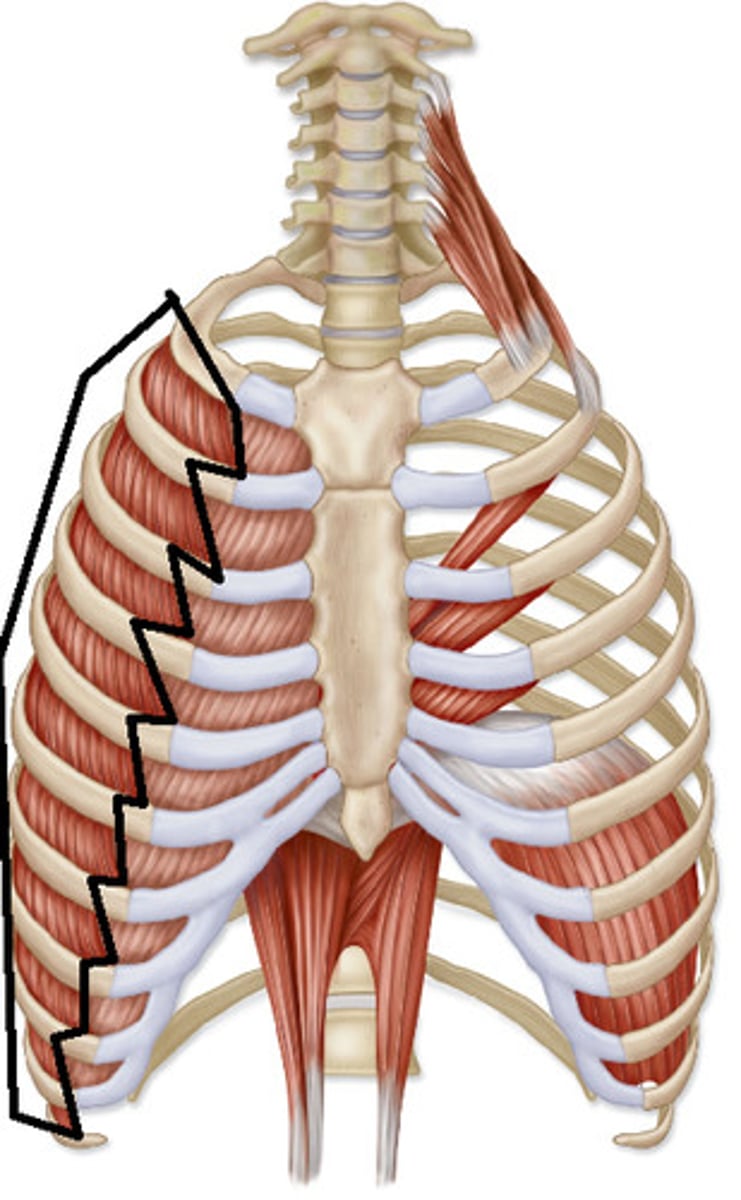

intercostal space of rib

Identify this picture and it's location

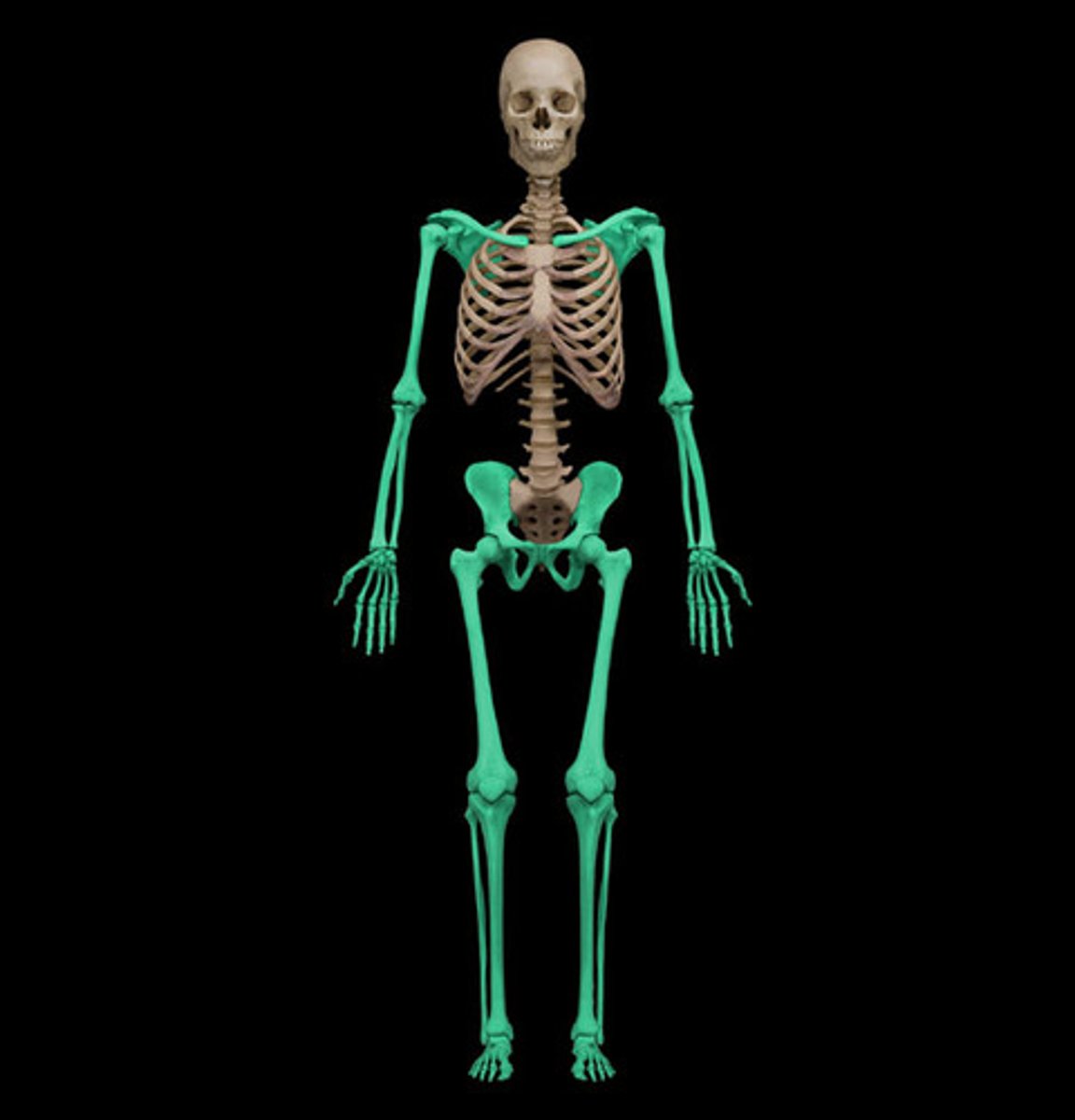

appendicular skeleton (limbs)

Identify this picture and it's location

pectoral girdle

Identify this picture and it's location

upper limbs

Identify this picture and it's location

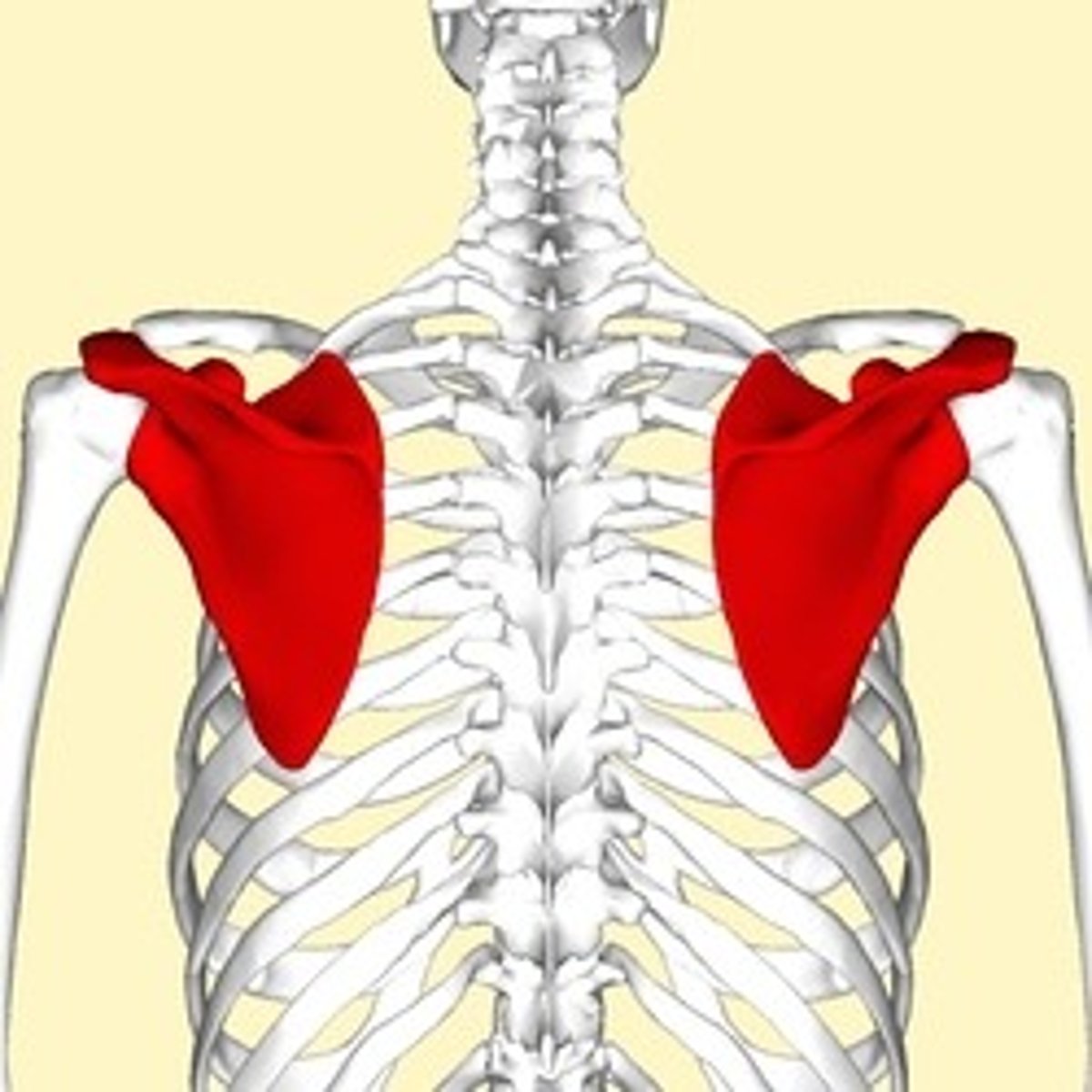

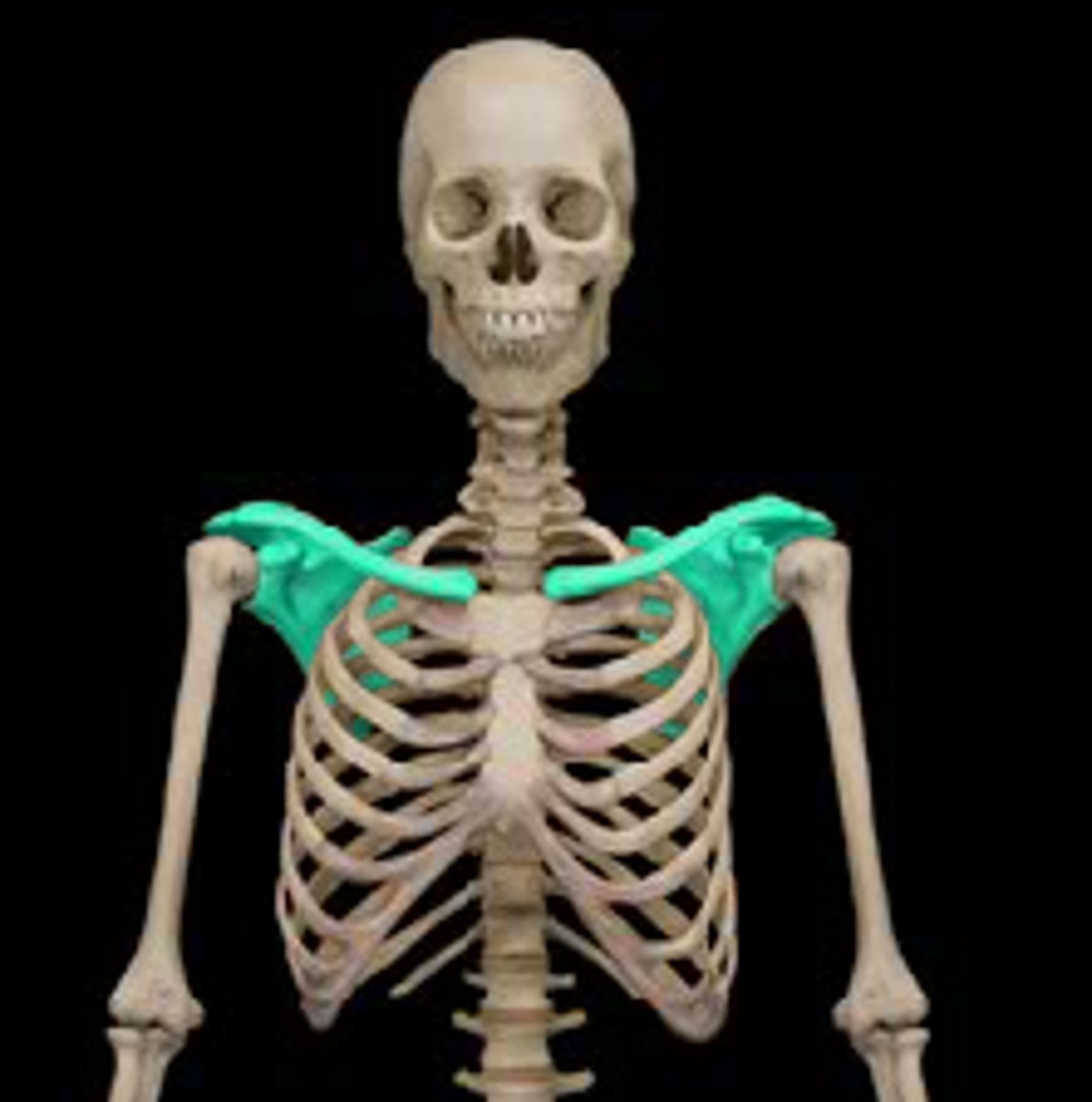

Scapula (x2)

Identify this picture and it's location

acromion of scapula

Identify this picture and it's location

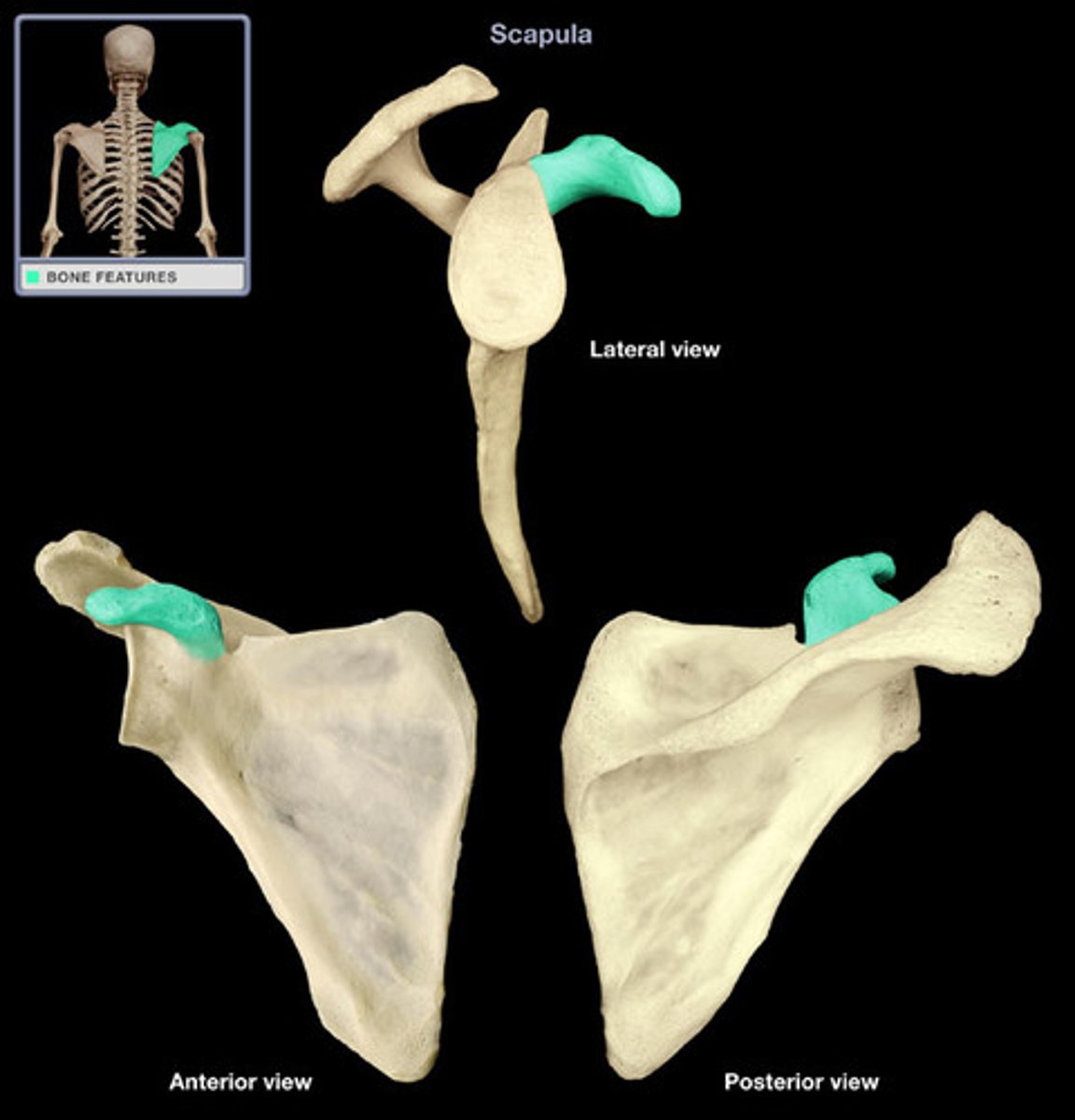

coracoid process of scapula

Identify this picture and it's location

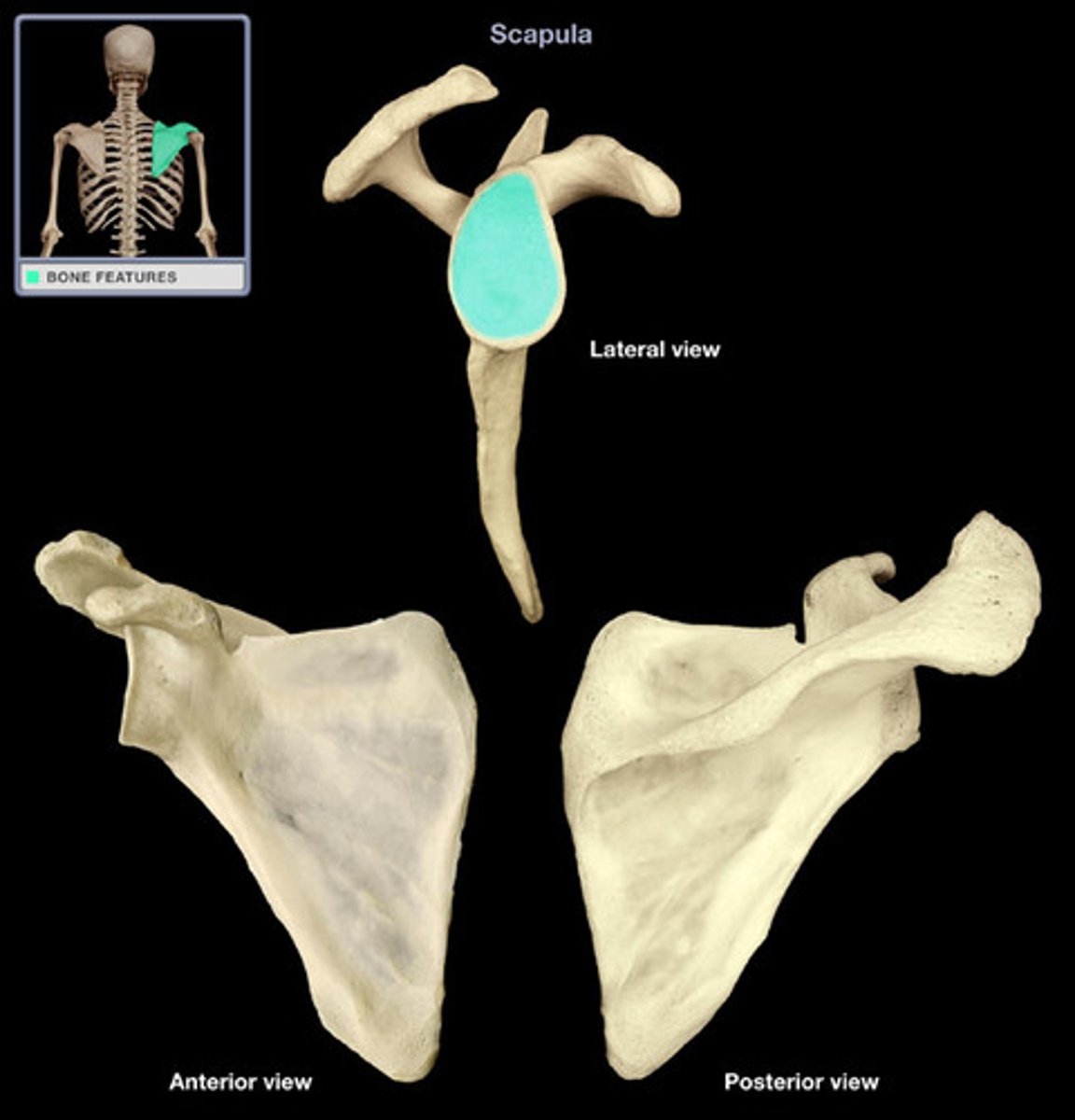

glenoid fossa of scapula

Identify this picture and it's location
