CADS 2550 Heating & Cooling HVAC Test #2 Wakeland

acoustics, thermal comfort, indoor air quality, plumbing systems, waste management

interior designers use the principles of ______________, __________________, ________________, _________________, ________________ in relation to environmental impact & human wellbeing

Section 403

International Mechanical Code (IMC), HVAC is in

Section C303

International Energy Conservation Code (IECC), HVAC is in

Chapter 8

International Green Construction Code (IgCC), HVAC is in

Volatile Organic Compounds (VOC)

generated when chemicals vaporize and form gas. Toxic to humans & environment.

Environmental Protection Agency (EPA)

Regulates VOCs

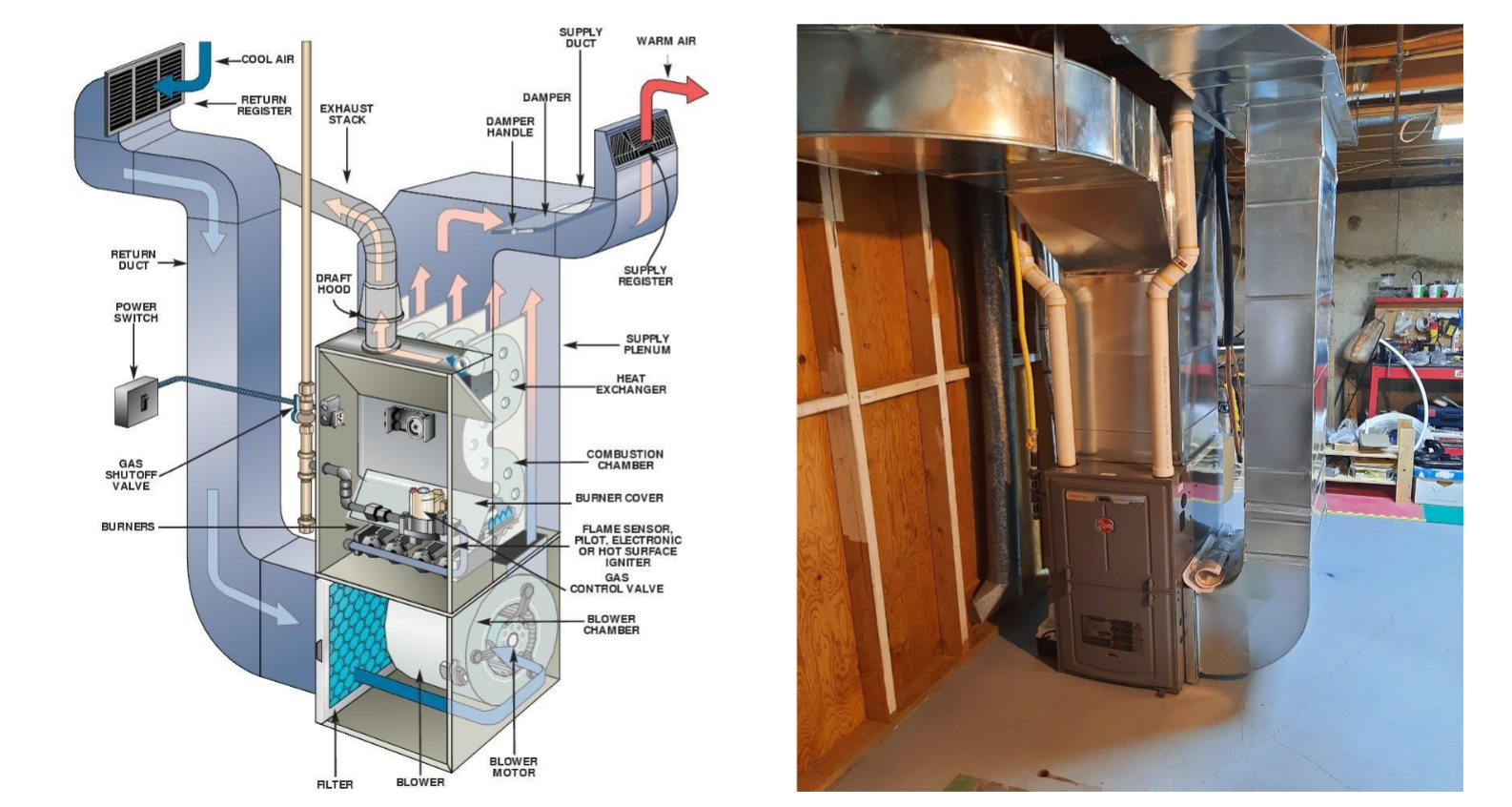

Furnace (heating)

heated air that is distributed throughout the house via a blower motor & the home’s duct system

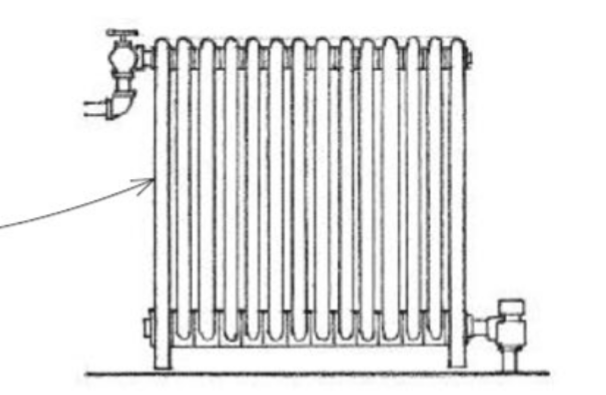

Radiator (heating)

series of coils or pipes through which hot water or steam passes.

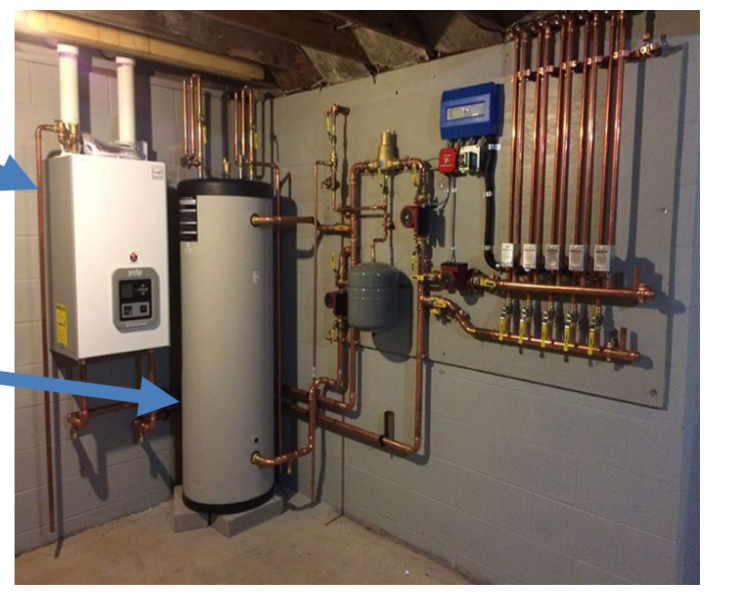

Boiler (heating)

heats water & convert it to steam to offer radiant heating. The steam produced is distributed throughout the home via circuit of pipes connected to radiators.

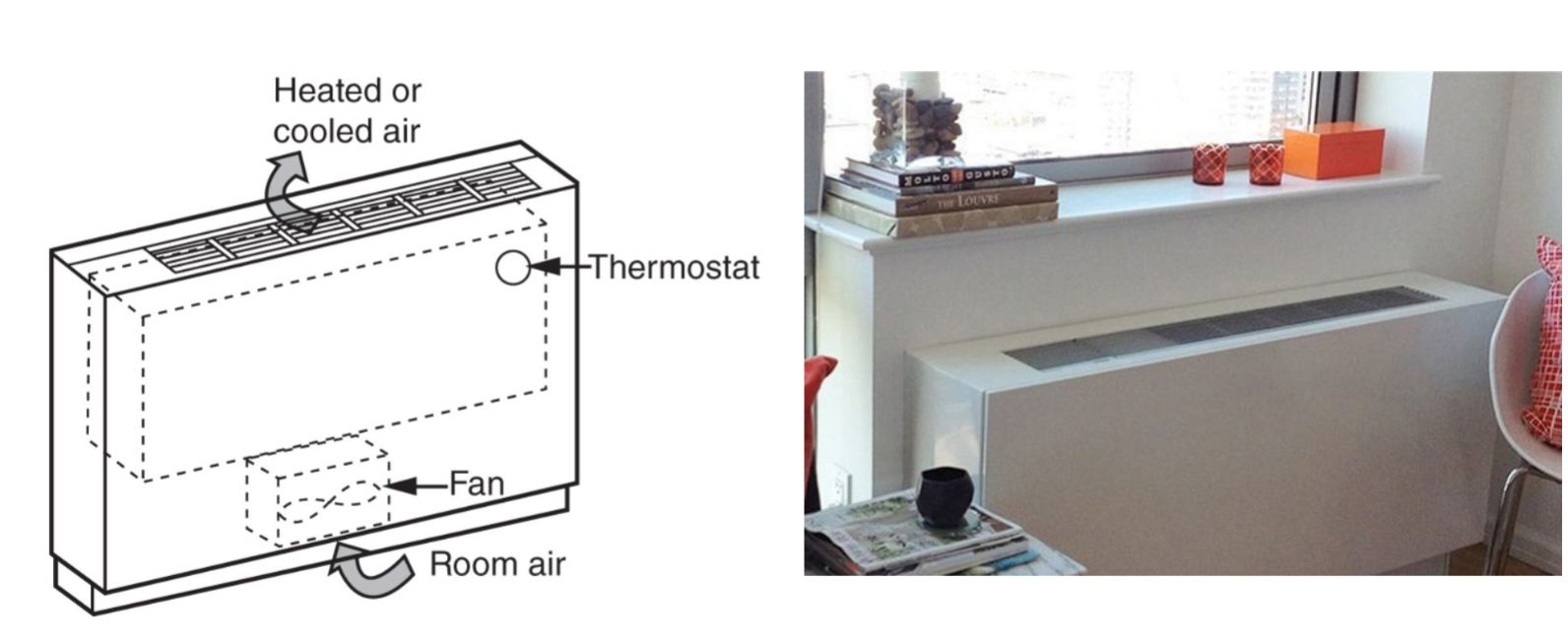

Packaged Terminal Air Conditioning Unit (PTAC) (heating & cooling)

aka fan coil unit

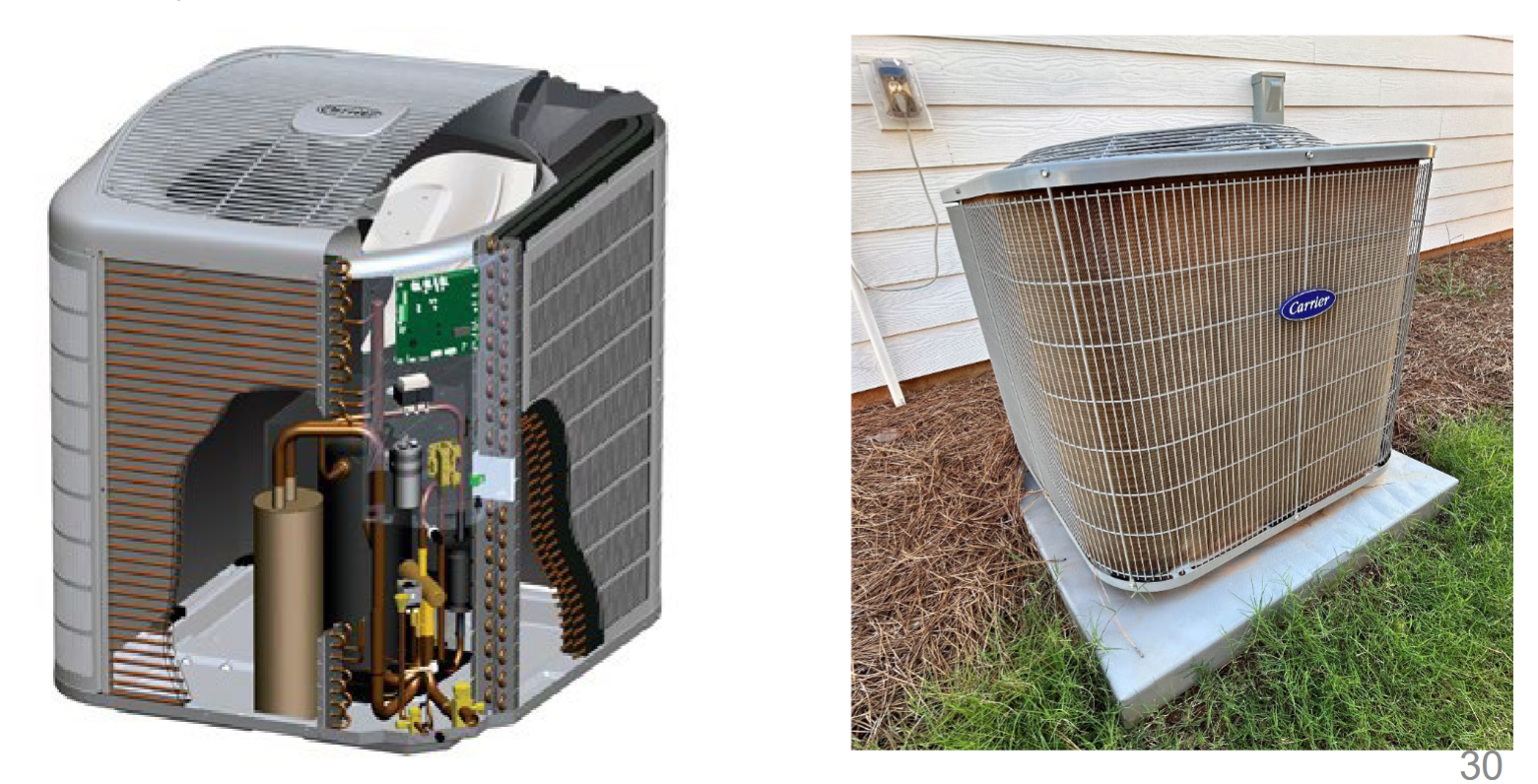

Heat pump (heating & cooling)

takes thermal energy from outside source & pushes it into enclosed space. uses refrigerant which is pumped by a compressor btwn two heat exchanger coils in a constant process of condensation & evaporation.

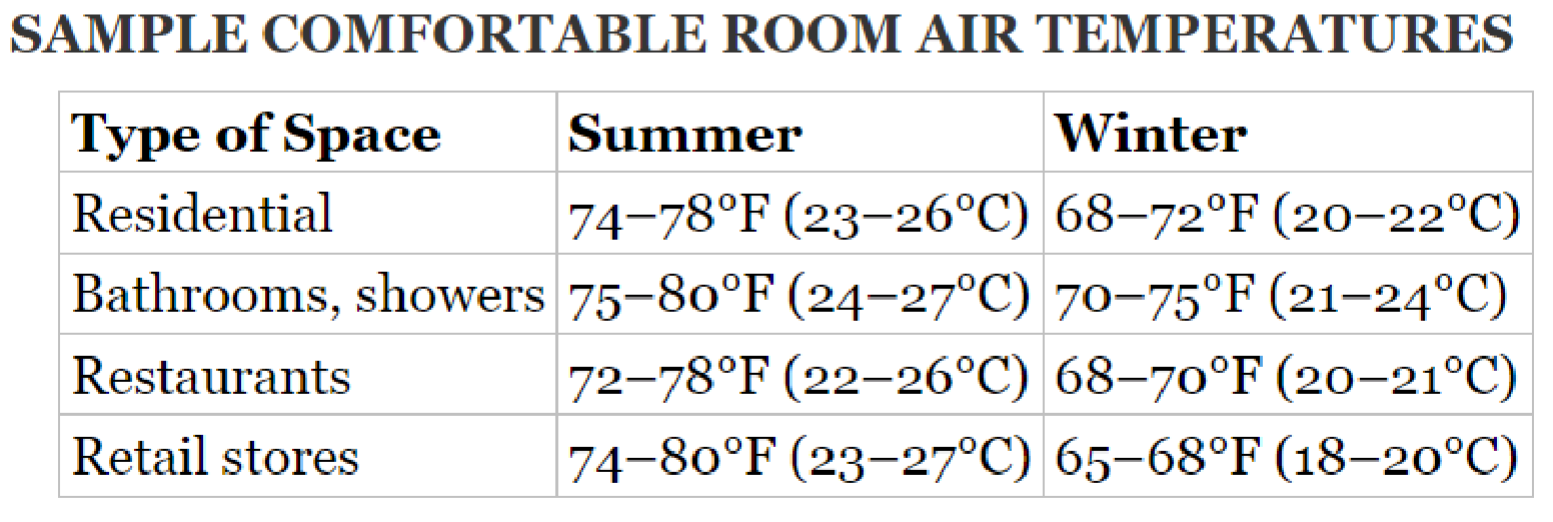

human comfort range

factors that affect this are air temp, humidity, mean radiant temp, air motion

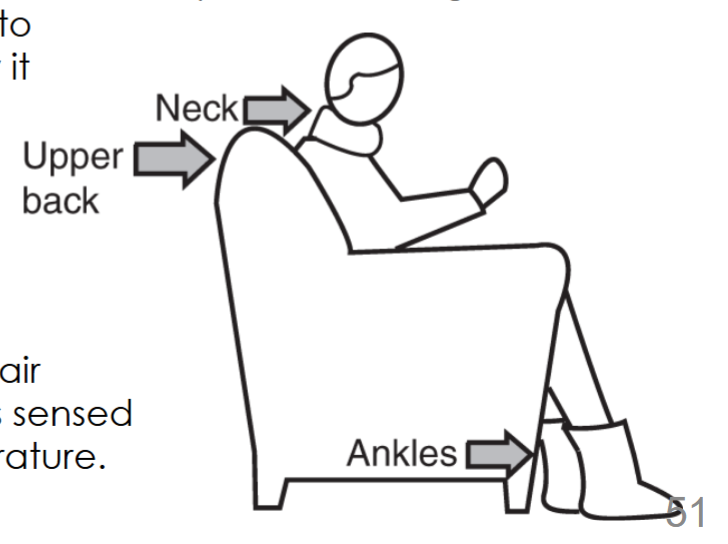

draft sensitivity

the neck, upper back, ankles are most sensitive to drafts

interior design drawings

the _____ _________ _____ may be the source for information in a renovation project where a few supply diffusers or return grilles are being added to an existing system
