10 Terms
1
New cards
AND other notations
A AND B
A.B
A^B
2
New cards
If A and B then Q truth table
1, 1, 1
1, 0, 0
0, 1, 0
0, 0, 0
3
New cards
If A or B then Q
1, 1, 1
1, 0, 1
0, 1, 1
0, 0, 0
4
New cards
OR other notations
A or B
A+B
AvB
5
New cards
If (A and B) or C then Q
0, 0, 0, 0
0, 0, 1, 1
0, 1, 0, 0
0, 1, 1, 1
1, 0, 0, 0
1, 0, 1, 1
1, 1, 0, 1
1, 1, 1, 1
6
New cards
Symbols for AND and OR are known as
gates
7
New cards

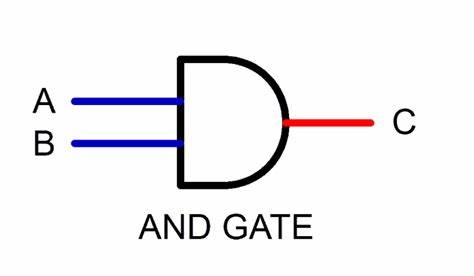

AND gate
8
New cards

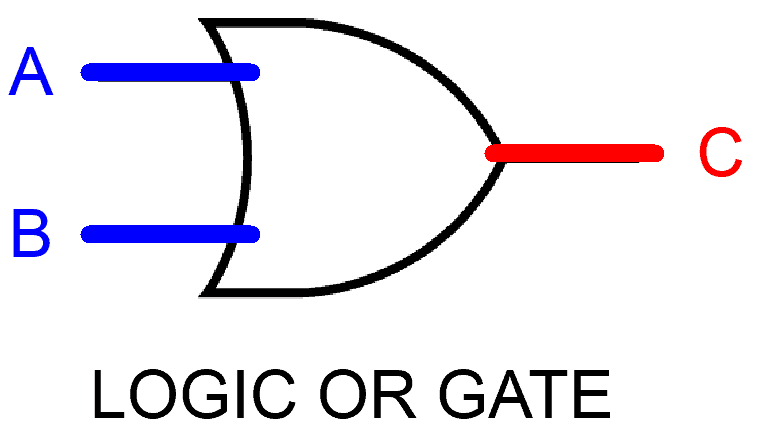

OR gate
9
New cards

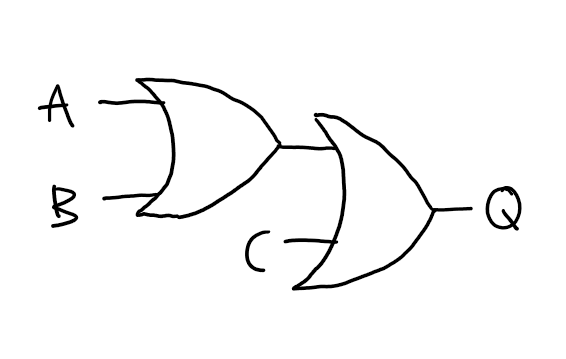

(A OR B) OR C
10
New cards
NOT gate
