total joint arthroplasty (SURG SEM. 4)

definition

procedure in which parts of an arthritic or damaged joint are removed and replaced with a device called a prosthesis

what are they done for?

when medical treatments no longer relieve pain affecting their daily life

hip anatomy

shoulder anatomy

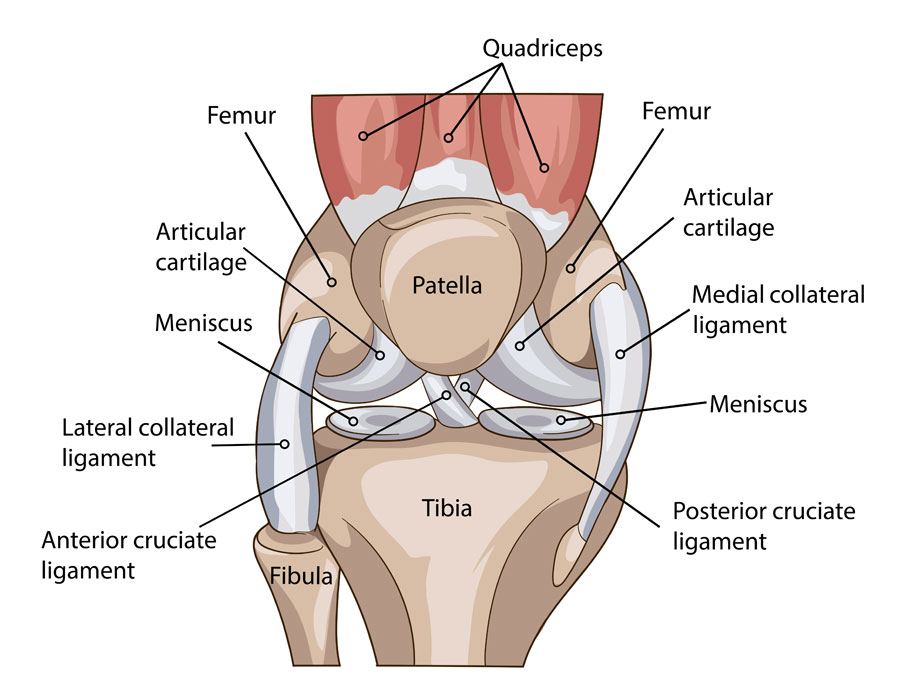

knee anatomy

surgical equiptment used

Mobile unit or C-arm

surgical table

total shoulder arthroplasty procedure

technologist in surgical scrubs and ensure that the mobile/portable machine is functional and clean

IR will be handed in a sterile bag for images

typically AP’s and shoot-thru laterals

surgeon looks at digital images

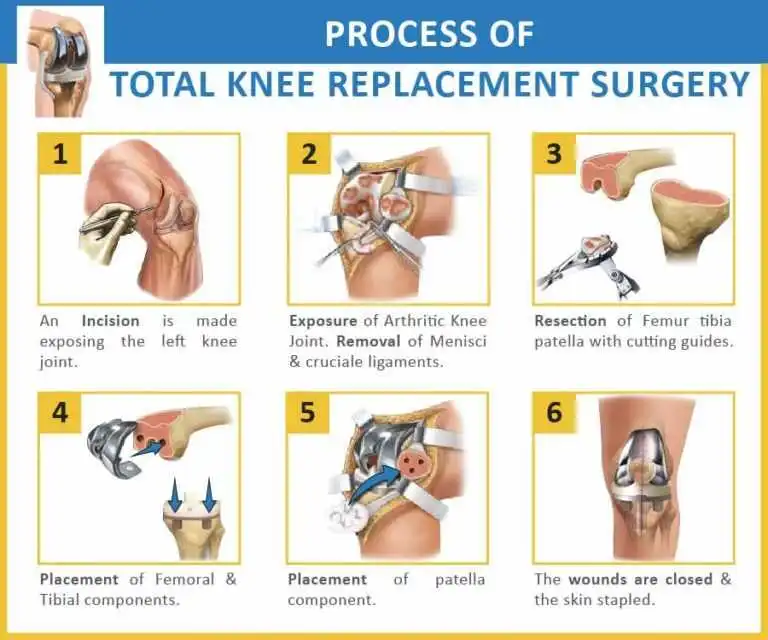

total knee arthroplasty procedure

technologist in surgical scrubs and ensure that the mobile/portable machine is functional and clean

IR will be handed in a sterile bag for images

typically AP’s and shoot-thru laterals

surgeon looks at digital images

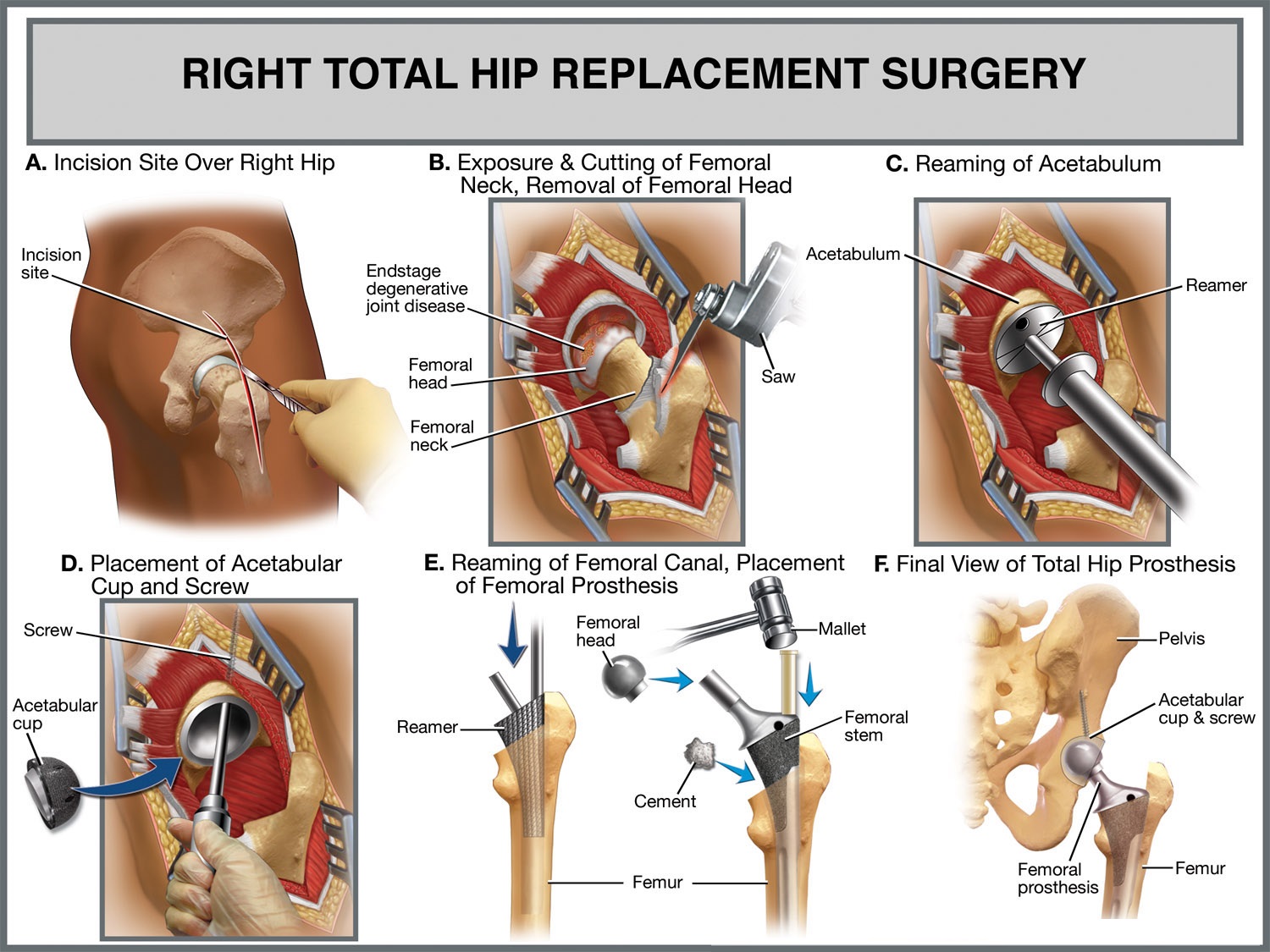

total hip arthroplasty procedure

posterior- the incision is made at back of hip, mobile/portable AP/PA cross table

• technologist in surgical scrubs and ensure that the mobile/portable machine is functional and clean

• surgeon will communicate hip (IR lengthwise to PT) or pelvis

• technologist works with surgeon to position the IR

• technologist takes shoot-thru image

• surgeon will look at picture

anterior- the incision is made at the front of hip, C arm is used throughout, AP

• technologist in surgical scrubs and ensure that the mobile/portable machine is functional and clean

• patient will be supine position

• technologist brings c arm over PT, center for pelvis and AP hip

• technologist used throughout surgery

The C-arm R’s

right hip- backwards R

left hip- push both R’s

role of the technologist

be eyes for surgeon, produce diagnostic images

interoperative imaging

surgeon uses images for Component size, position, and fit

as well as leg length

anterior hip scout pelvis

centered to MSP at level of femoral heads

ensure no rotation, use obturator foramen

acetabulum reaming for hip

centrered over femoral head

after surgeon removes femoral head, they start to clean out acetabulum using power drill and special reamer

limb length hip

MSP level of femoral heads

surgeon uses spot images to confirm height and leg length with lesser trochanters

final lateral hip

center over affected hip

at this point, hip is relocated and final img is taken
