IDFX Programming: Validating & Diagrams

what’s programming?

A process undertaken before design during which all information about a project is collected and analyzed

What type of conceptual plan arrangement could be used as a nondiretional way to divide attention on a space?

A centralized plan arrangement

What type of circulation pattern is generale the most efficient and flexible

Linear layout (dumbbell layout)

What type of volumetric relationship could be used to functionally and perceptually link two spaces

Overlapping relationship

4 types of information included in every programming document

1. Client goals and objectives

2. Required spaces and area requirements

3. Required adjacencies

4. Specific client requirements for things such as budget, schedule, furnishings, equip., and mech./electrical systems

2 things a designer must know about a space before the necessary number of exits can be determined

Floor area measurements and occucpancy group

When there’s a large project with programming on multiple floors, what type of info summary helps summarize and assign spaces?

A spreadsheet duh

What type of workflow diagram is this (wees send screenshot to me)

Departmental workflow

What type of conceptual plan is this (wees send screenshot)

Axial plan

What type of diagram is this (send screenshot)

Adjacency Matrix

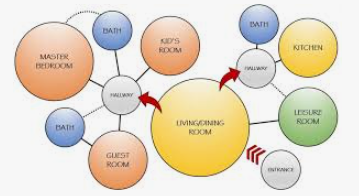

And what’s this (send screenshot)

Bubble diagram!

What kind of drawing is often used as an aid in developing a concept when a proposed project will occupy more than one floor- AND is best for showing assignment of spaces in a multi-floor project

Stacking diagram yuh

Another diagam question

Zoning diagram. (Zoning diagrams are used to identify broad functional areas (zones), while blocking diagrams (or block plans) assign specific square footage to rooms and begin arranging them in a scaled, realistic manner)

During space programming, what is the best type of diagram to show size and position on individual rooms and areas

block plan

what type of diagram is a good way to represent a design concept in the early schematic design process

parti diagram (A quick concept sketch- rough drawing, doodle, or diagram)
