Skeleton of the skull (bones and some sutures) - Descriptions and pictures

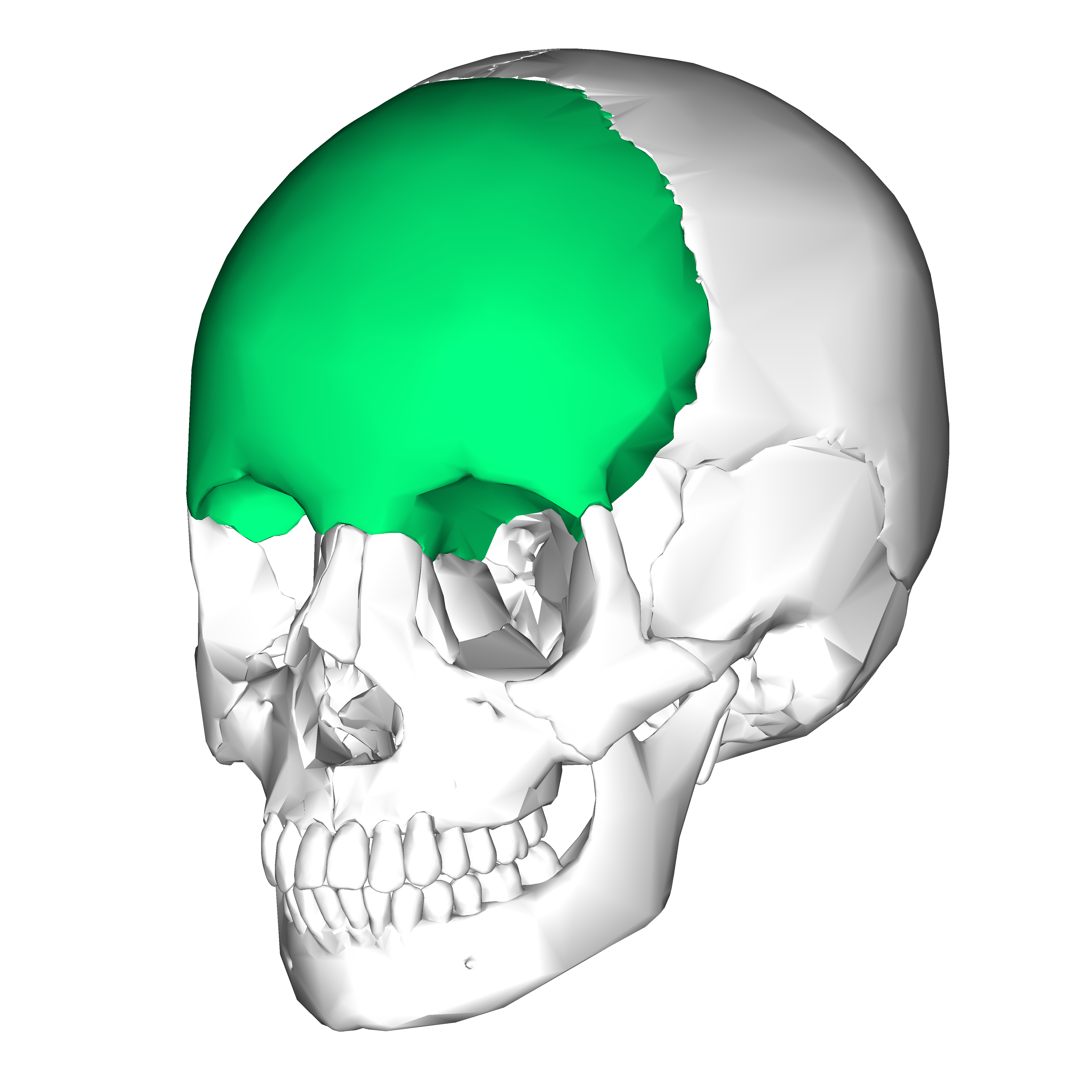

Frontal bone

Forehead; superior orbit

Supraorbital foramen (notch)

Opening above orbit for nerves/vessels

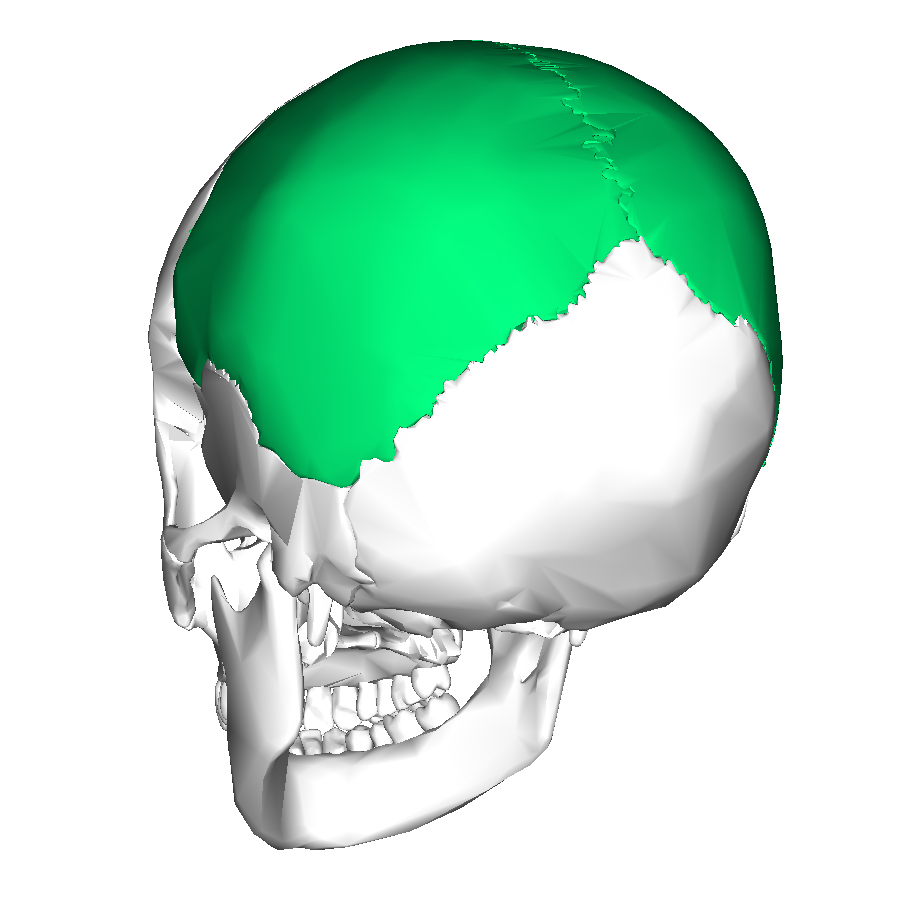

Parietal bone

Superior and lateral skull

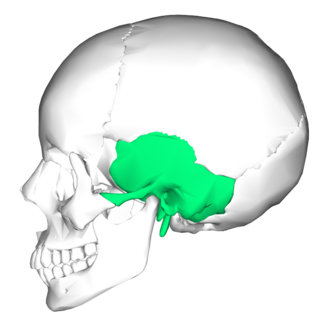

Temporal bone

Side of skull near ear

External acoustic meatus

Ear canal opening

Mastoid process

Posterior projection for muscle attachment

Styloid process

Thin spike for ligaments/muscles

Zygomatic process

Forms cheek arch

Mandibular fossa

Depression for mandible articulation

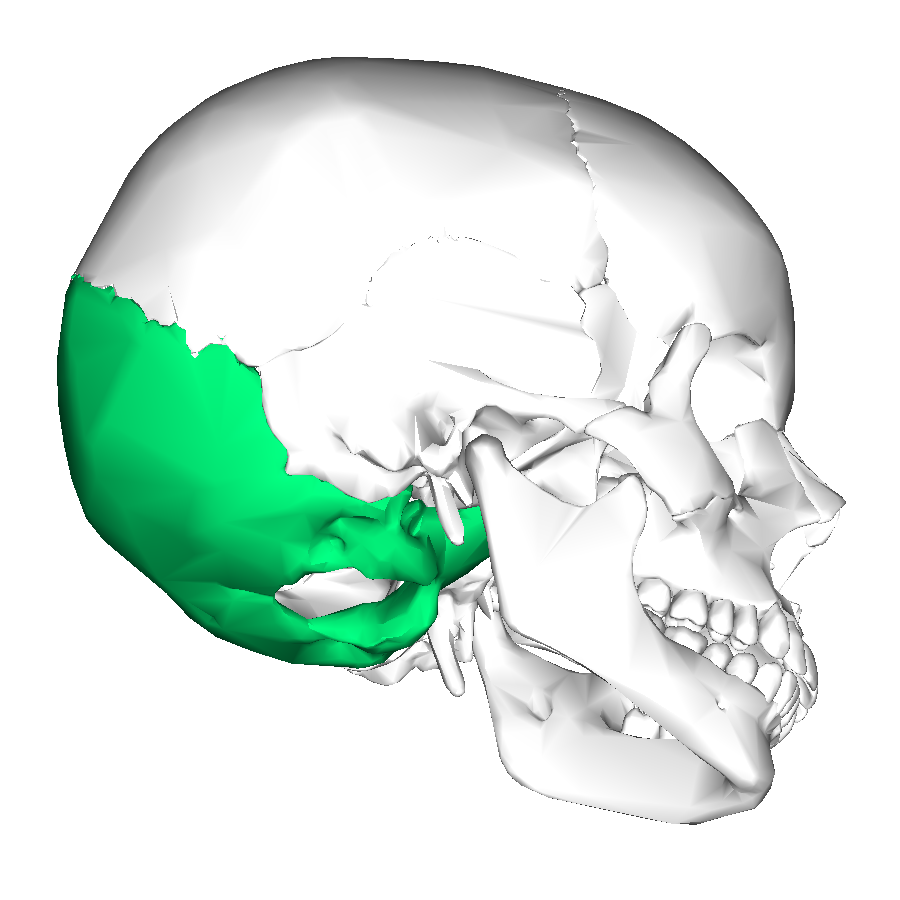

Occipital bone

Posterior/base of skull

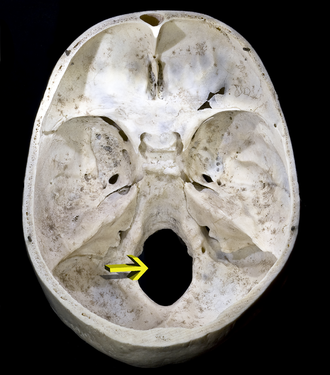

Foramen magnum

Large hole for spinal cord

Occipital condyles

Articulate with atlas (C1)

External occipital protuberance

Posterior skull bump

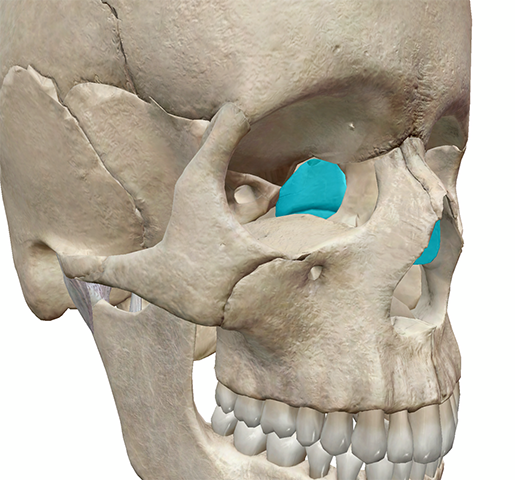

Ethmoid bone

Between eyes; nasal cavity

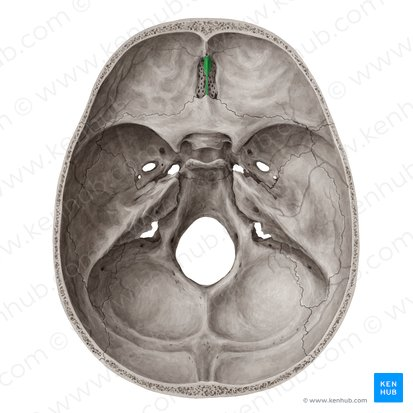

Crista galli

Attachment for meninges

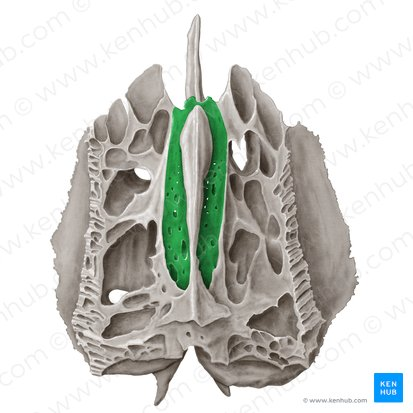

Cribriform plate

Holes for olfactory nerves

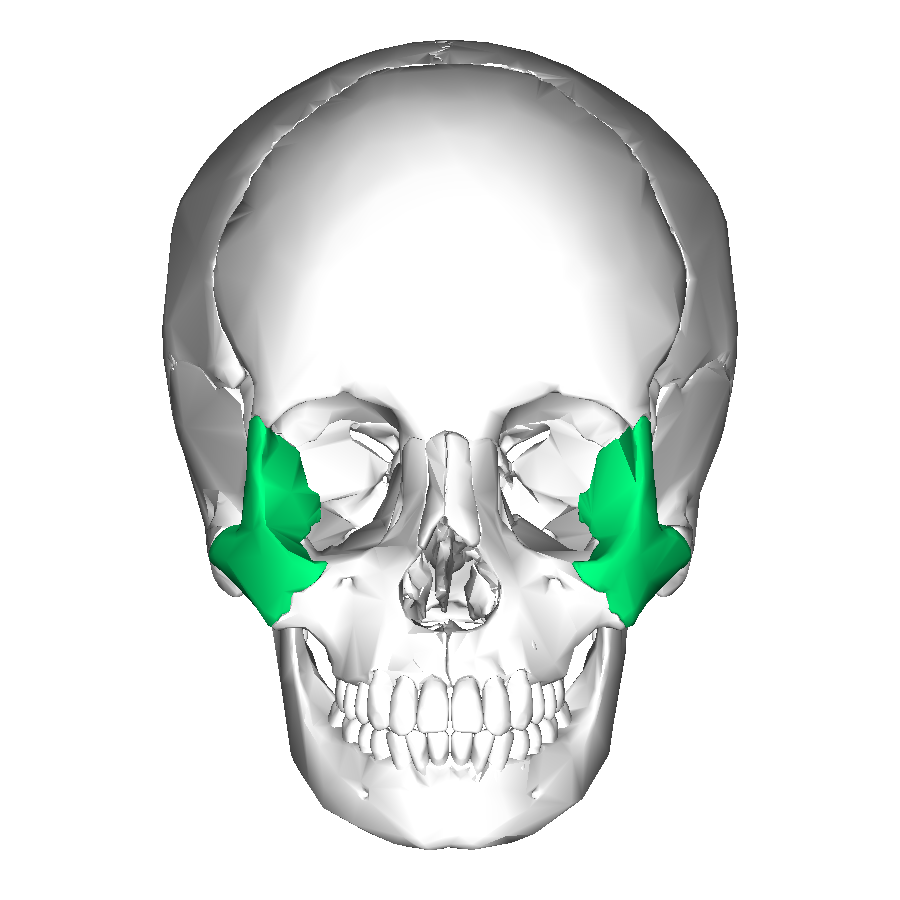

Zygomatic bone

Cheekbone

Temporal process

Projection of zygomatic bone

Sphenoid bone

Butterfly-shaped base bone

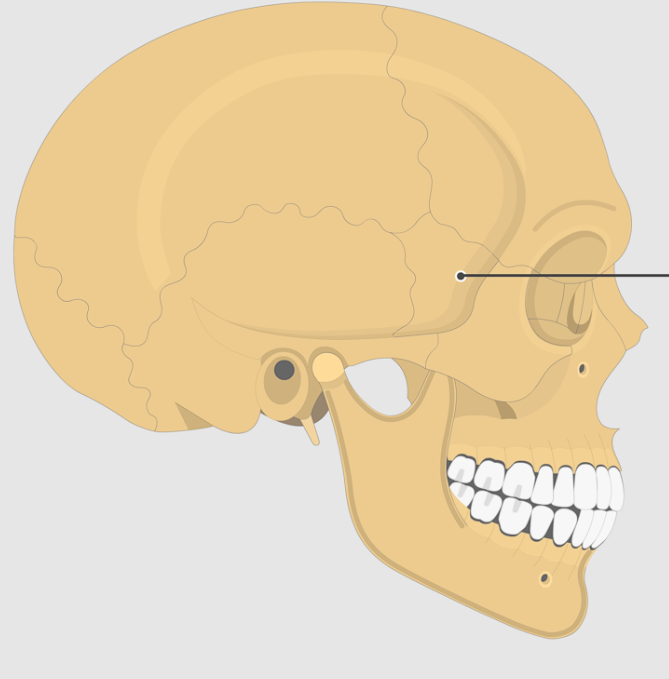

Greater wings

Lateral projections of sphenoid

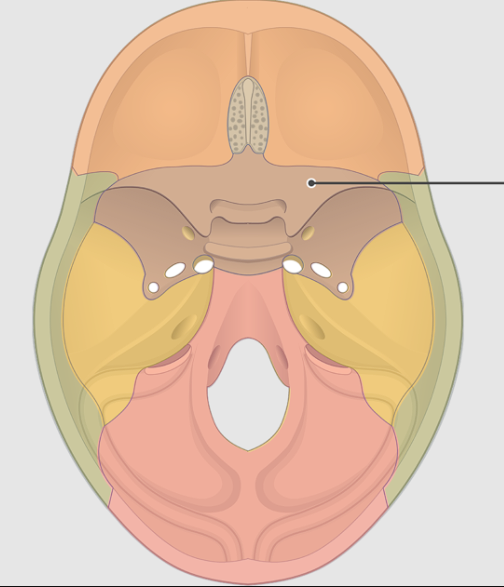

Lesser wings

Superior projections of sphenoid

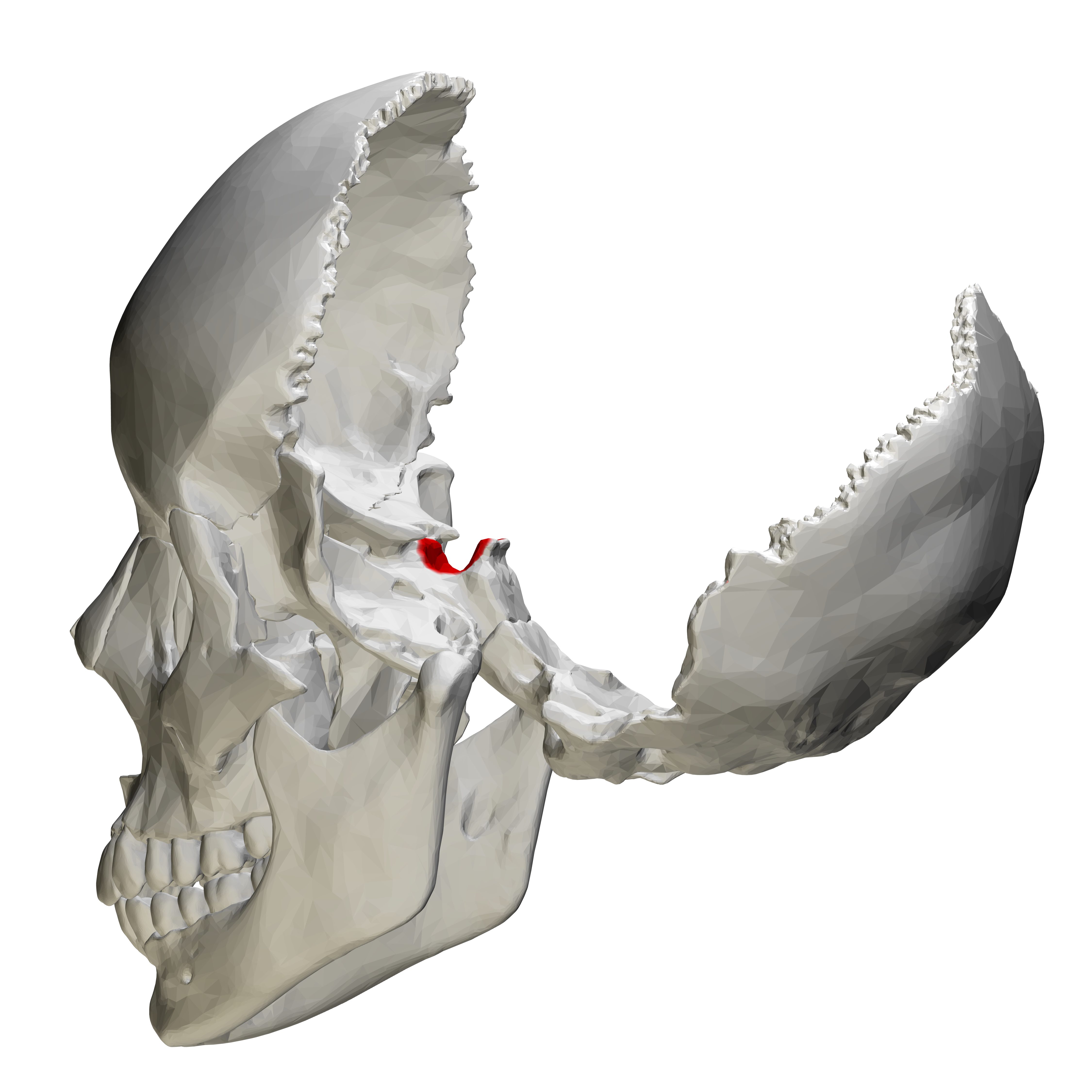

Sella turcica

Houses pituitary gland

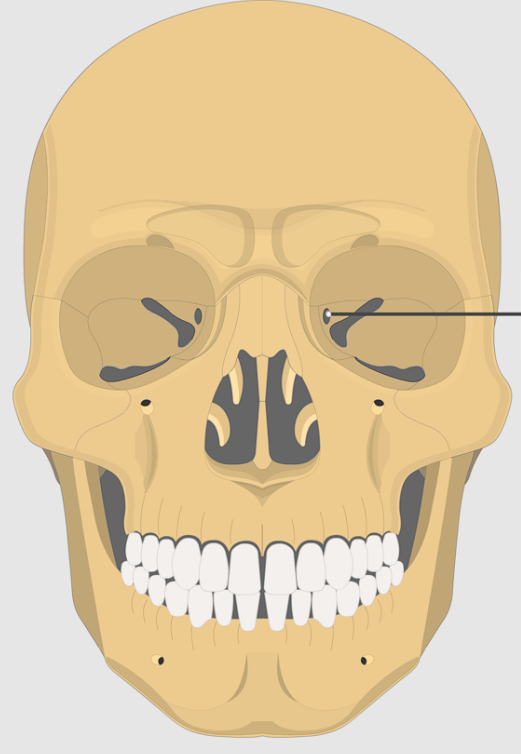

Optic canal

Passage for optic nerve

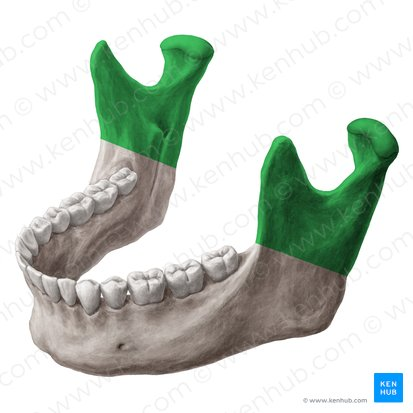

Mandible

Lower jaw

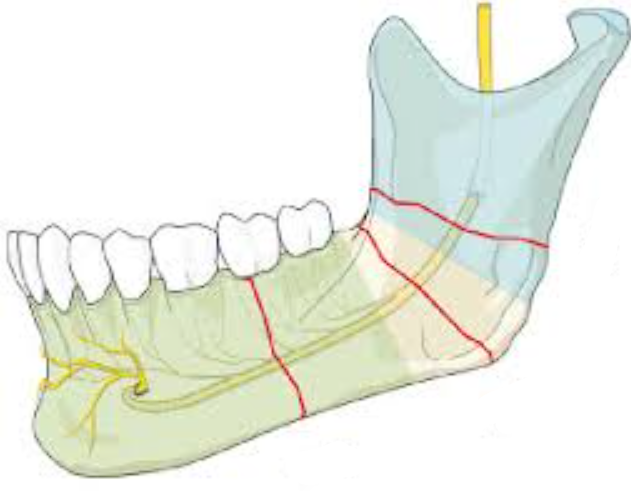

Body / Ramus / Angle

Main regions of mandible

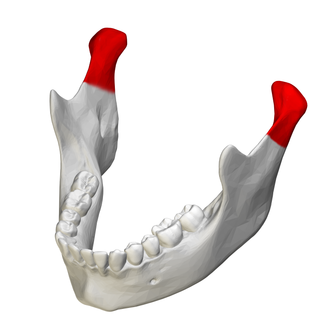

Condylar process

Articulates with temporal bone

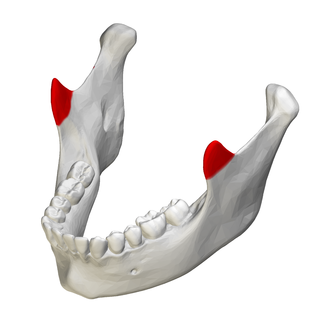

Coronoid process

Muscle attachment (temporalis)

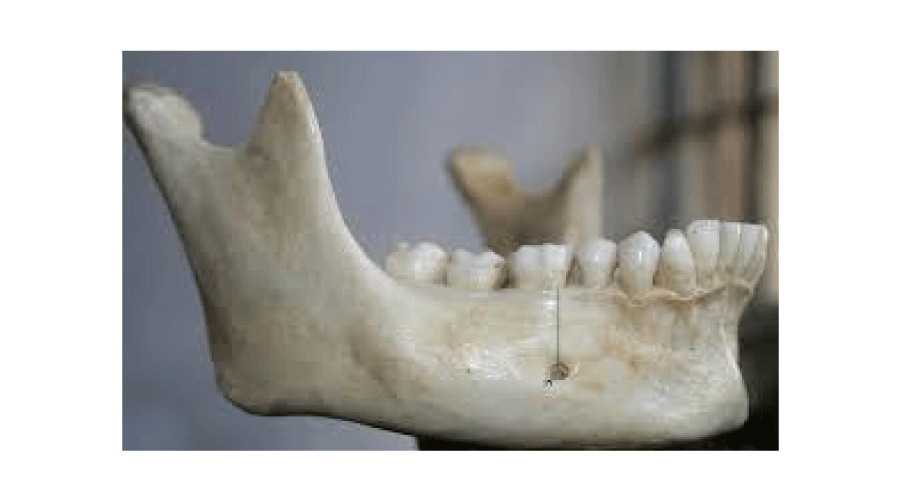

Mental foramen

Opening on mandible

Maxilla

Upper jaw

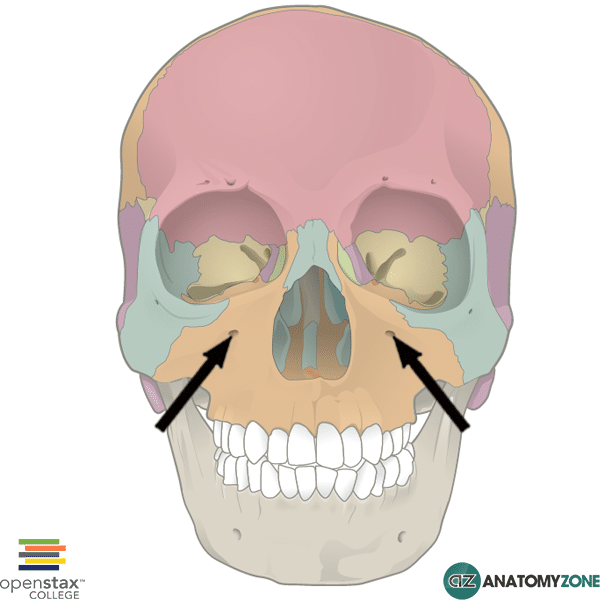

Infraorbital foramen

Below orbit; nerves/vessels

Alveolar process

Holds teeth sockets

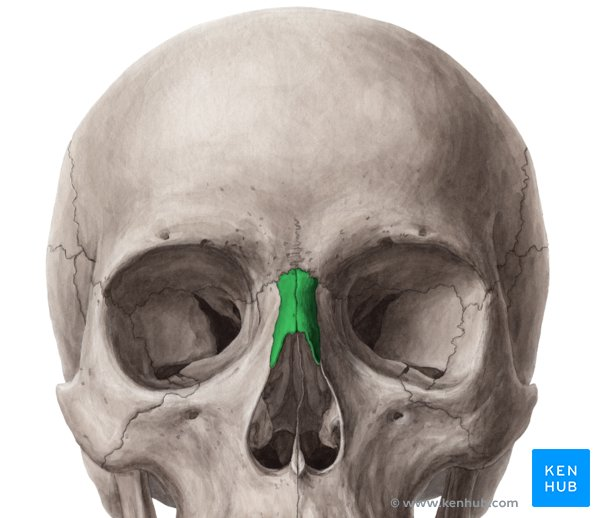

Nasal bone

Bridge of nose

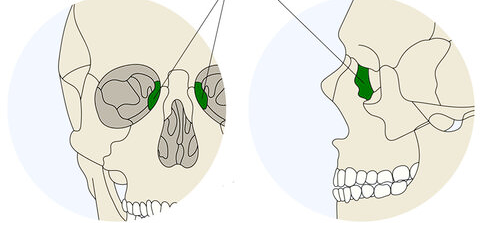

Lacrimal bone

Medial orbit; tear duct

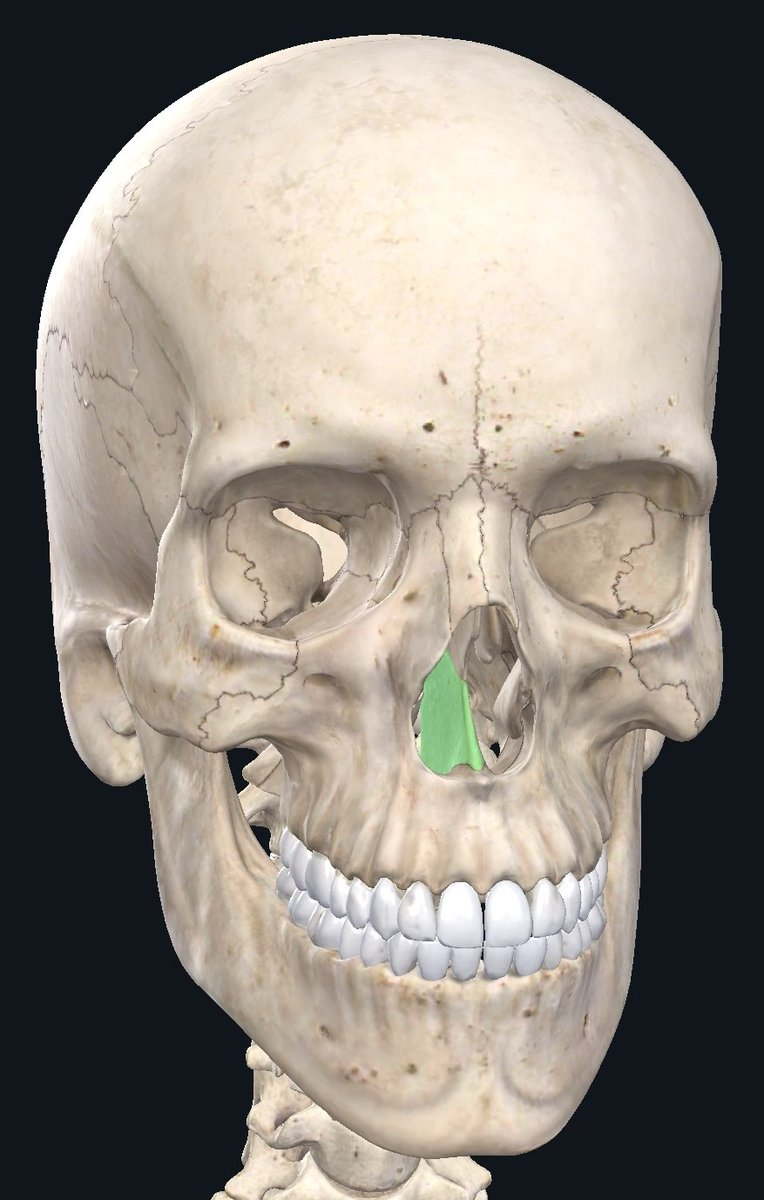

Vomer

Inferior nasal septum

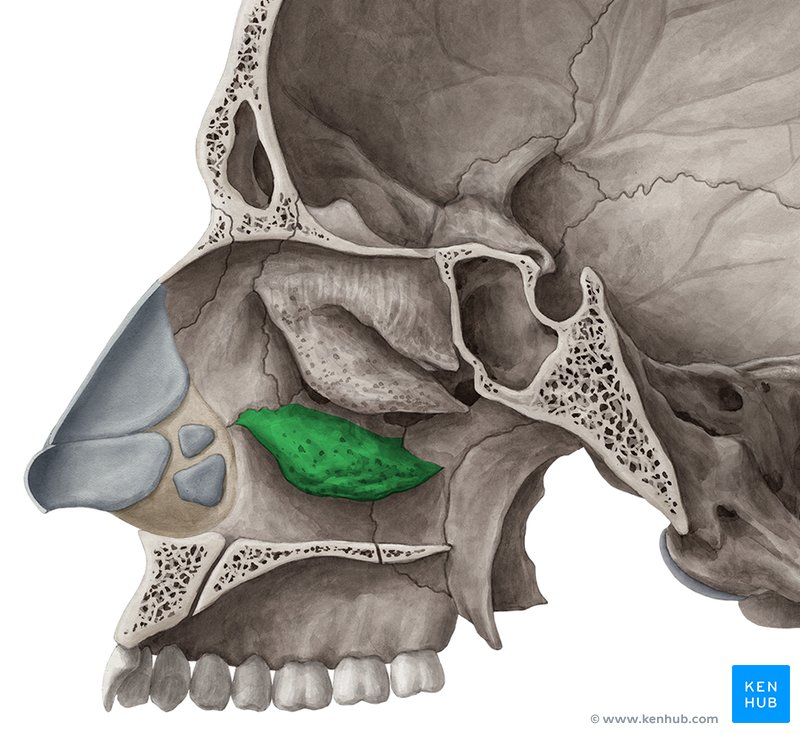

Inferior nasal concha

Lateral nasal cavity bone

Palatine bone

Posterior hard palate

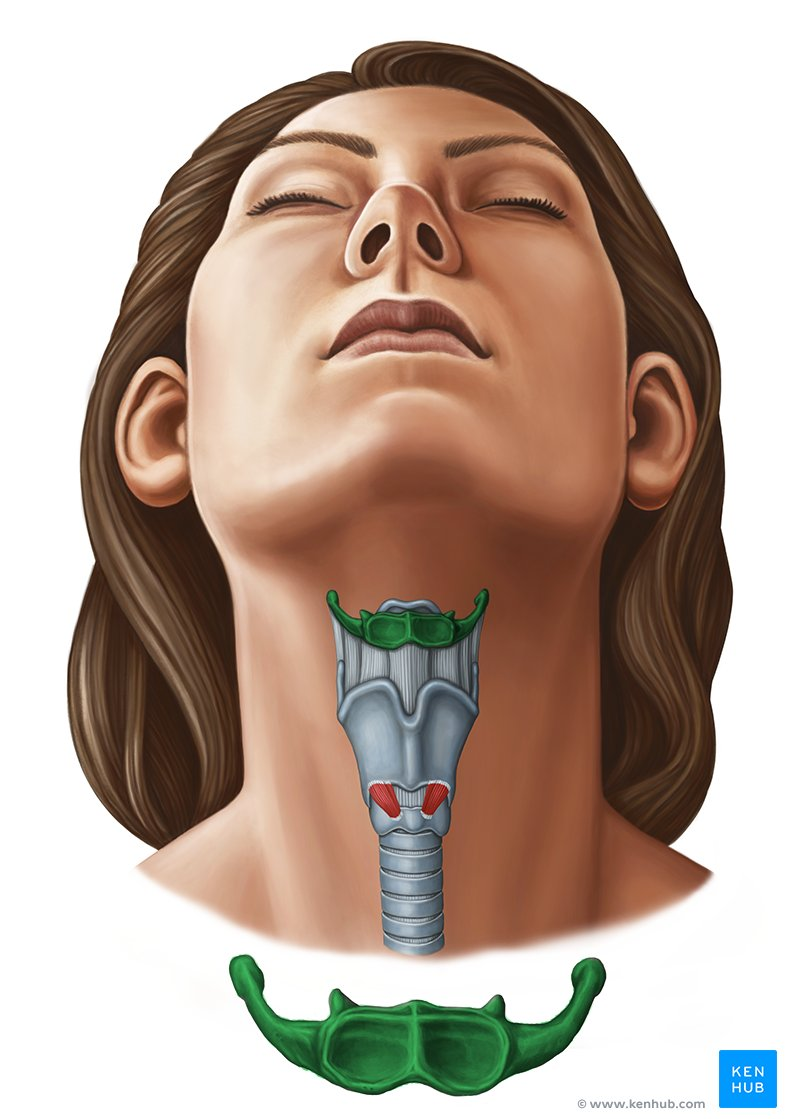

Hyoid

U-shaped; supports tongue

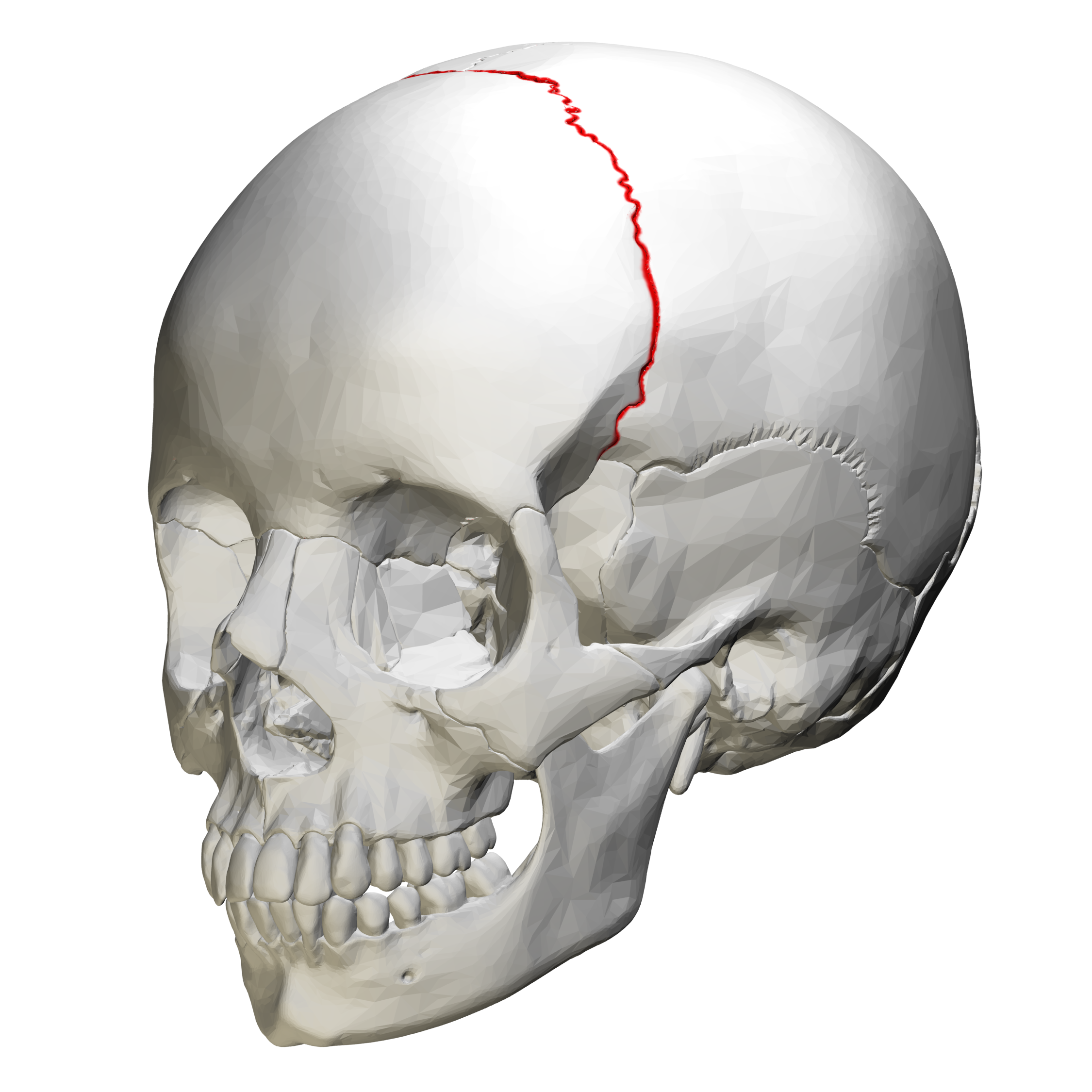

Coronal suture

Between frontal and parietal

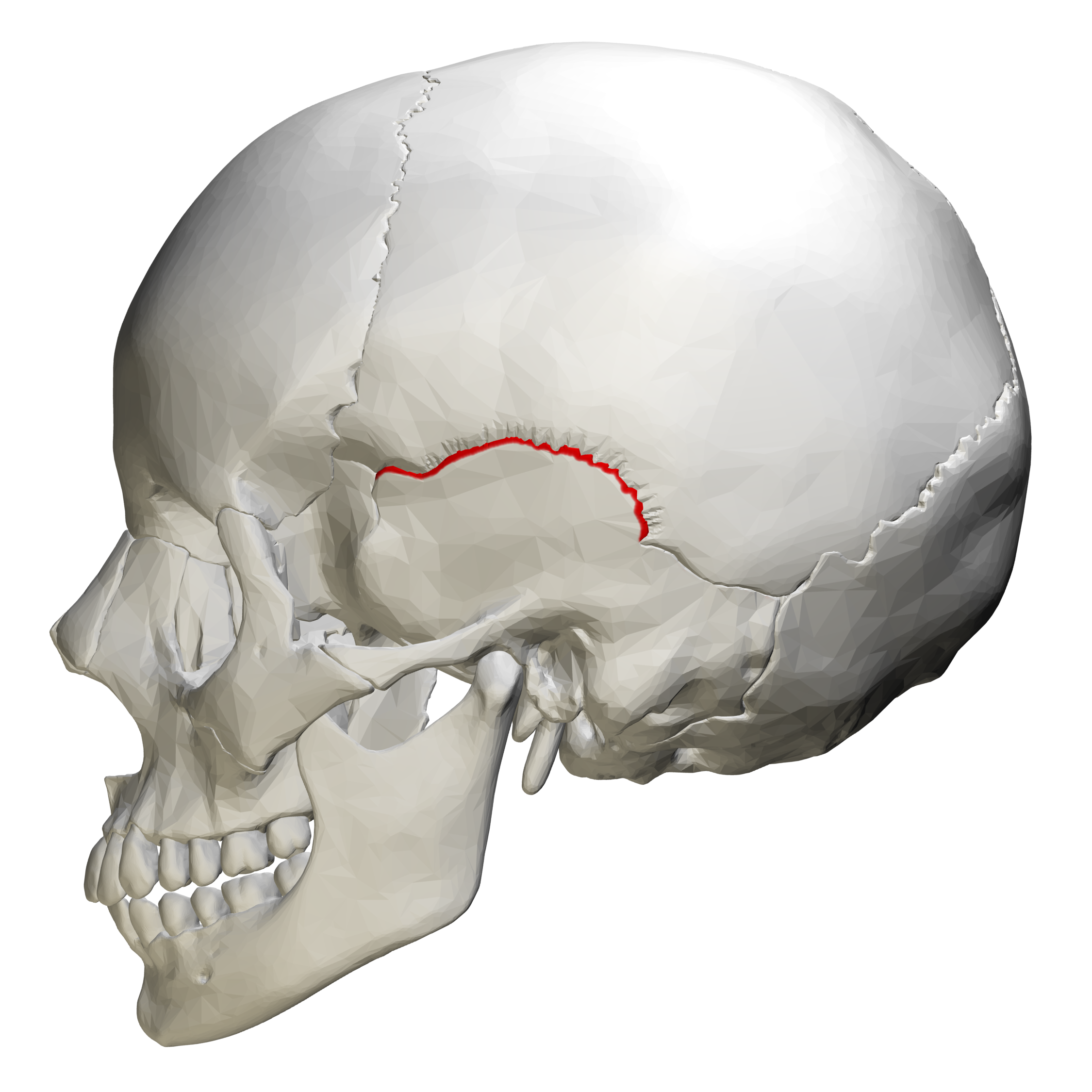

Squamous suture

Between temporal and parietal

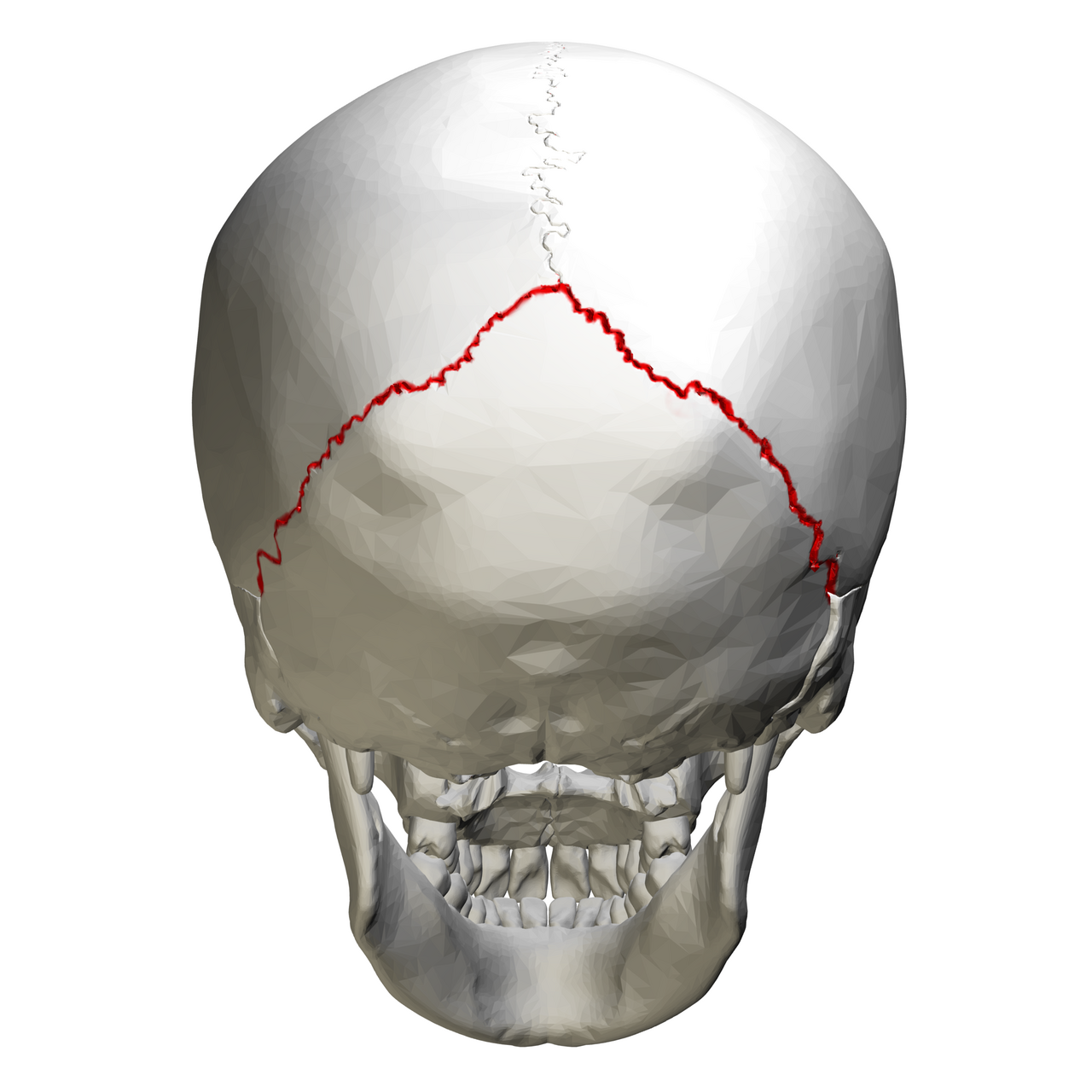

Lambdoid suture

Between parietal and occipital

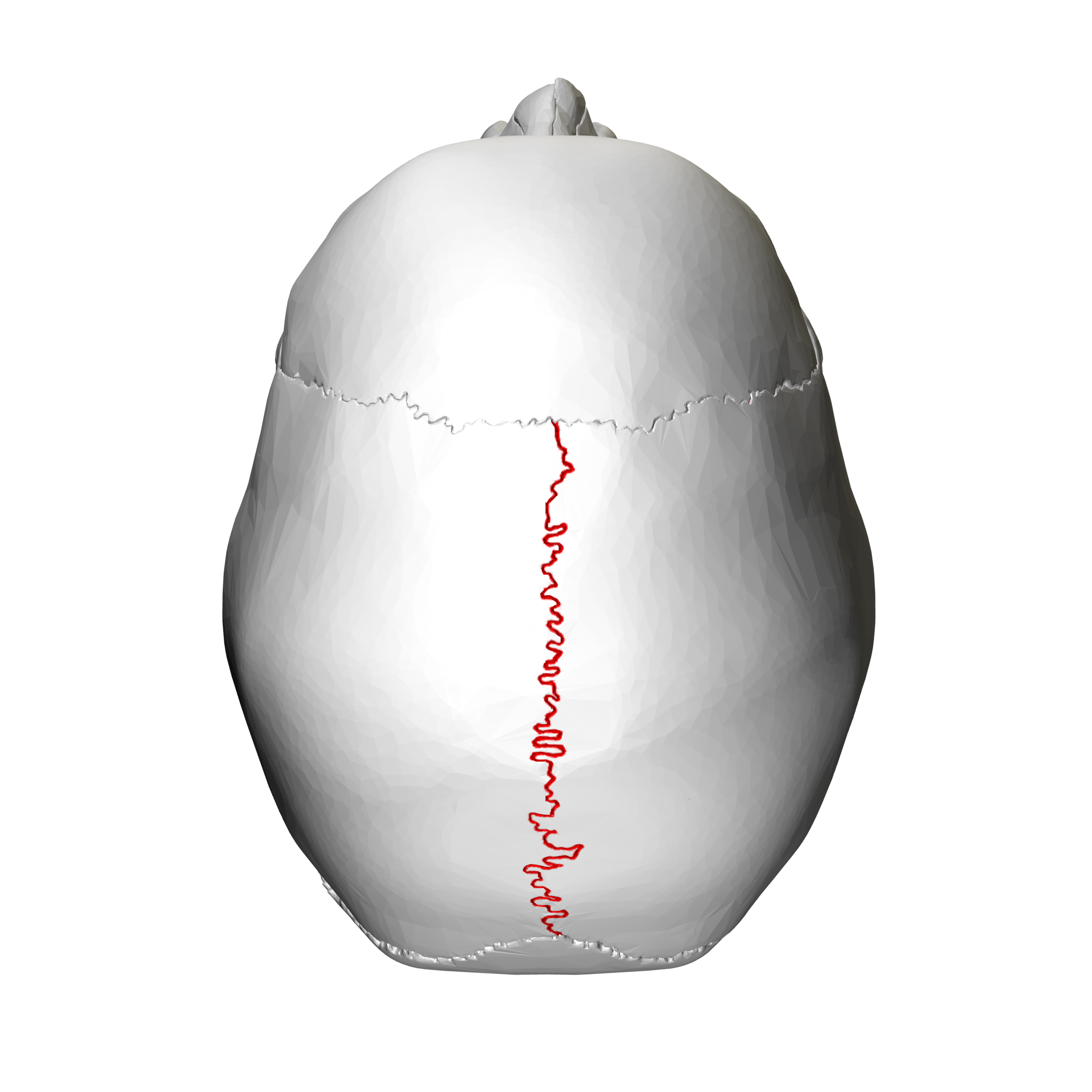

Sagittal suture

Between parietal bones

Occipitomastoid suture

Between occipital and temporal

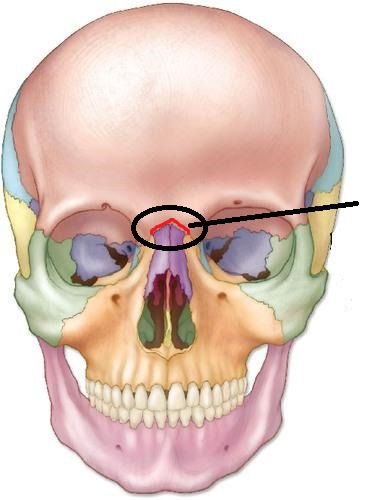

Frontonasal suture

Between frontal and nasal
