BP 344: IRR ILLUSTRATIONS (GENERAL PROVISIONS, PARKING, RAMPS) PART 1

Minimum clear width of 1200 mm

Accessible ramps shall have the following facilities and features:

Gradient not steeper than 1:20. Steeper gradients may be allowed in special cases depending on the length to be covered.

Accessible ramps shall have the following facilities and features:

1:20 and 1:15

What is the max slope for Accessible Ramps?

15m

Interval for Landing (1:20 Max Slope)

10m

Interval for Landing (1:15 Max Slope)

10.50m

Max Length (1:15 Max Slope)

700mm

Max. Rise (1:15 Max Slope)

300mm

Size of Handrail Extension

Plan of Ramp 3000mm Wide or More

double “J-type”

For accessible ramps 3000 mm or more in width, provide intermediate handrails at the center. The use of ________ supports is recommended.

longer than 10.50m

Accessible ramps with a total length __________ shall be provided with intermediate landings with a minimum length of 1800 mm.

minimum length of 1800 mm.

Accessible ramps with a total length longer than 10.50m shall be provided with intermediate landings with a _____________.

not less than 1800 mm

Level area __________ at the upper end and lower end of any ramp.

700 mm and 900 mm

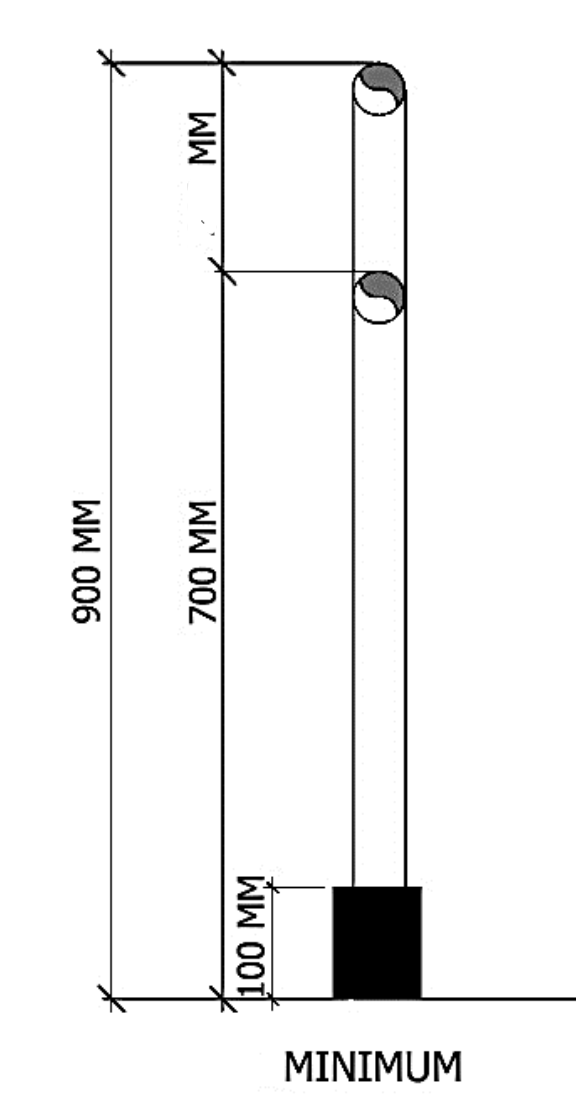

Handrails on both sides of the ramp at ___________ from the finished floor of the ramp to the top of the handrails.

100 mm.

Raised edge on both sides of the ramp with a minimum height of _______.

600 mm

The warning tactile blocks shall have a depth of________.

i. 300 mm from the head and foot of the ramp and,

ii. at the center of each landing

The warning tactile blocks shall have a depth of 600 mm and shall be installed:

greater than 200 mm

Any ramp with a rise _________ and leads down towards an area where vehicular traffic is possible, shall have a railing across the full width of its lower end, not less than 1800 mm from the foot of the ramp.

less than 1800 mm

Any ramp with a rise greater than 200 mm and leads down towards an area where vehicular traffic is possible, shall have a railing across the full width of its lower end, not ________ from the foot of the ramp.

Ramps & Vehicular Traffic

30%

Floor surfaces shall have a minimum luminance contrast of ______ from the adjacent walls. Otherwise, the skirting shall provide a clear distinction between the floor and the wall.

flushed

Covers to channels shall be _______ with the surface of the floor, minimizing any height difference that could pose a tripping hazard.

not exceed 13mm in size.

Holes in the covers shall ___________.

no hazards

There shall be __________ from floor projections or unexpected changes in level along the accessible path

not create tripping hazards

Wiring, outlets, and similar shall _____________ whether dormant or in use and shall be positioned away from the accessible pathways, corridors and the like.

Gratings

_______ shall be slip-resistant during both wet and dry conditions.

surrounding floor.

Gratings shall be level with the ____________.

not exceed 13mm.

Spacing between grates shall _____________.

higher than 170 mm.

Handrails shall be required for accessible ramps for changes in grade ____________.

both sides

Handrails shall be installed on _______ of ramps and stairs.

any crossing

Handrails may be provided at dropped sidewalks but shall not be installed beyond the width of _________ so as not to obstruct pedestrian traffic.

900 mm and 700 mm

Handrails shall be installed at ______________ above ramps and stairs.

900 mm

700 mm

200 mm

100 mm

1100 mm minimum

Railings for protection shall be installed at a height of___________, measured from the top of the rail to the finished floor for stairs, ramps, balconies, landings or porches that are more than 750 mm above adjacent grade.

750 mm above

Railings for protection shall be installed at a height of 1100 mm minimum, measured from the top of the rail to the finished floor for stairs, ramps, balconies, landings or porches that are more than __________ adjacent grade.

300 mm long

A _________ horizontal extension of the handrail shall be provided before the start and after the end of the ramps and stairs, and shall end with a closed-end that turns down or returns fully to the end post or wall face, without projecting into the travel path.

start and after the end

A 300 mm long horizontal extension of the handrail shall be provided before the start and after the end of the ramps and stairs, and shall end with a closed-end that turns down or returns fully to the end post or wall face, without projecting into the travel path.

closed-end

A 300 mm long horizontal extension of the handrail shall be provided before the start and after the end of the ramps and stairs, and shall end with a __________ that turns down or returns fully to the end post or wall face, without projecting into the travel path.

round cross-section

Handrails and grab bars that require full grip shall have a _________ with diameter of 1 3/16” (30 mm) to 1 37/64” (40 mm).

1 3/16” (30 mm) to 1 37/64” (40 mm).

Handrails and grab bars that require full grip shall have a round cross-section with diameter of _________________.

50 mm

Handrails attached to walls shall have a minimum clear distance of ________ from the wall. Handrails on ledges shall have a minimum clear distance of 40 mm.

40 mm

Handrails attached to walls shall have a minimum clear distance of 50 mm from the wall. Handrails on ledges shall have a minimum clear distance of _________.

less than 2100 mm

Handrails shall be continuous throughout the entire length and around landings _________ in length, except where it is intersected by an alternative path of travel or has an entry door leading into it.

slip-resistant material

Handrails shall be made of _________ and shall have a continuous gripping surface without any sharp edges or projections.

continuous gripping surface

Handrails shall be made of slip-resistant material and shall have a ___________ without any sharp edges or projections.

1

Total No. of Parking Slot: 1 - 25. What is required Number of Accessible Parking Slot?

2

Total No. of Parking Slot: 26 - 50. What is required Number of Accessible Parking Slot?

3

Total No. of Parking Slot: 51-75. What is required Number of Accessible Parking Slot?

4

Total No. of Parking Slot: 76 - 100. What is required Number of Accessible Parking Slot?

5

Total No. of Parking Slot: 101 - 150. What is required Number of Accessible Parking Slot?

6

Total No. of Parking Slot:151 - 200 . What is required Number of Accessible Parking Slot?

7

Total No. of Parking Slot:201 - 300. What is required Number of Accessible Parking Slot?

8

Total No. of Parking Slot:301 - 400. What is required Number of Accessible Parking Slot?

9

Total No. of Parking Slot:401 - 500. What is required Number of Accessible Parking Slot?

2% of Total Parking Spaces

Total No. of Parking Slot:501 - 1000 What is required Number of Accessible Parking Slot?

20+ (1 For Each 100 Or A Fraction Thereof Over 1000)

Total No. of Parking Slot:1001 - Over. What is required Number of Accessible Parking Slot?

on board the vehicle

Persons with disabilities shall be ________ to be able to use the reserved parking slot for persons with disabilities (for control use).

control number and PWD ID

Access parking placards with the ___________ shall be conspicuously hung on the rear-view mirror of the vehicle.

perpendicular or to an angle

Whenever and wherever possible, accessible parking slots shall be __________ to the road or circulation aisles.

4000 mm and a length of 5000 mm

A minimum width of ______________. The additional 1500 mm width, in comparison to the average parking slot, is intended to ensure that the adjacent pathway adequately accommodates wheelchair passage.

1500 mm width

A minimum width of 4000 mm and a length of 5000 mm. The additional ____________, in comparison to the average parking slot, is intended to ensure that the adjacent pathway adequately accommodates wheelchair passage.

1200 mm

A walkway with a minimum clear width of _________ provided between the front ends of parked cars.

two (2) or more

Pavement markings and fixed pole mounted signage shall be provided between ___________ adjacent accessible parking slots.

aeration slabs

In parking slot, have a firm, level surface without __________.

located right next to accessible elevators

For multi-story indoor parking structures, accessible parking slots shall be_____________, or as close as possible to accessible pedestrian entrances.

dispersed and located closest

In buildings with multiple accessible entrances with adjacent parking, accessible parking slots shall be _____________ to the accessible entrances.

shortest accessible route

In parking facilities that do not serve a particular building, accessible parking shall be located at the ____________ of travel to an accessible pedestrian entrance of the parking facility

600 mm x 600 mm

Pole mounted parking signage, ___________ in size and mounted at a minimum clear height of 2200 mm from the parking floor.

2200 mm

Pole mounted parking signage, 600 mm x 600 mm in size and mounted at a minimum clear height of ________ from the parking floor.

1000 mm

Pavement sign painted or marked on the designated lot shall comply with the following:

i. a square with dimensions of at least _______ but not more than 1500 mm.

1500 mm.

Pavement sign painted or marked on the designated lot shall comply with the following:

i. a square with dimensions of at least 1000 mm but not more than __________.

center

Pavement sign painted or marked on the designated lot shall comply with the following:

ii. located in the ______ of the accessible parking space.

UN Blue Color

Pavement sign painted or marked on the designated lot shall comply with the following:

iii. The International Symbol of Access shall be composed of a white symbolized figure of a person in a wheelchair with a square background in _______. The symbolized figure shall always face to the right.

face to the right.

Pavement sign painted or marked on the designated lot shall comply with the following:

iii. The International Symbol of Access shall be composed of a white symbolized figure of a person in a wheelchair with a square background in UN Blue Color. The symbolized figure shall always __________.

2200m

Shall a sign protrude into a sidewalk/walkway or route, a minimum vertical clearance of _________ shall be provided.

1500 mm

Graphic, text, and Braille signage on walls and doors shall be installed at a maximum height of ________ from the finished floor to the center of the sign.

200 mm x 200 mm.

The size of door mounted signage for accessible toilets and showers shall be __________.

200mm x 200mm

General note that wall and door mounted signs shall be not less than ________ in size.

600 mm

Tactile floor surfaces shall be situated at a minimum clear width of _______ away from tripping hazards, walls, columns, and other elements that may cause confusion.

2000 mm above

In the absence of suitable protective barriers:

1. Overhead obstructions less than ________ floor level

2. Areas where pedestrian and vehicular traffic intersect.

50%

Tactile floor surfaces shall have a minimum luminance contrast of ____ from adjacent floor finishes.

500 meters

Tactile paths shall be provided on the primary pedestrian route within ________ of and inside the buildings. These paths, shall connect key destinations and can be centrally located to indicate suitability for two-way traffic.

Security Screening Equipment.

• At least 1 tactile path shall be provided from the drop-off to the entrance. The tactile path shall guide through the security screening equipment, with warning tactile blocks placed 300 mm before and after the equipment.

• The path shall be adapted according to the security procedure being implemented.

Ticketing and Information Counters.

• At least 1 tactile path shall lead to a ticketing and/or information counter equipped with Braille fare tables and displays.

• The path branching off shall lead to the ticketing and information counters and be designed in a straightforward manner with minimal distance. Warning tactile blocks shall be installed approximately 300 mm in front of the ticketing and information counter.

Warning tactile blocks

_________ shall also be installed 300 mm before and after the gate.

depth of 600 mm

Warning tactile blocks with a _______ shall be installed 300mm from the start and end of the staircase and across the entire width.

3.00 m

If there is a landing over _______, warning tactile blocks shall be installed 300 mm from the staircase steps.

terminating floor finish

Escalators. Warning tactile blocks shall be installed on the _________ preceding the escalator's metal landing plate. The warning tactile blocks shall have a depth of 600 mm and span the width of the escalator.

Ramps

Warning tactile blocks with a depth of 600 mm shall be installed 300 mm from the start and end of the ramp and across the entire width

Character Proportion

Tactile letters and numbers on signages shall have a width to height ratio between 3:5 and 1:1 and a stroke width to height ratio between 1:5 and 1:10

Raised and Braille Characters and Pictorial Symbol Signages (Pictograms)

• Letters and numerals shall be raised 0.75 mm, upper case, sans serif or simple serif type and shall be accompanied with Grade 2 Braille. Raised characters shall be at least 16 mm high, but no higher than 50 mm.

• Pictograms shall be accompanied by the equivalent verbal description placed directly below the pictogram. The border dimension of the pictogram shall be 150 mm minimum in height

Finish and Contrast

The characters and background of signs shall be eggshell, matt or other non-

glare finish. Signage shall use light characters on a dark background.

150 mm & 300 mm

Uniform risers of ______ (maximum) and treads of ______ (minimum) shall be used.

25mm.

Nosing shall not protrude. All risers shall have a backward tilt of _______.

900 mm and 700mm

Handrails shall be installed at _________ above stair treads.

150 mm back

The stair handrail shall be bent down at a radius of _________ to the newel post.

1.50m

Accessible staircases shall have a clear width of ________. This minimum width allows for two-way traffic.
