Anatomy and Physiology Lab Exam 1 Review

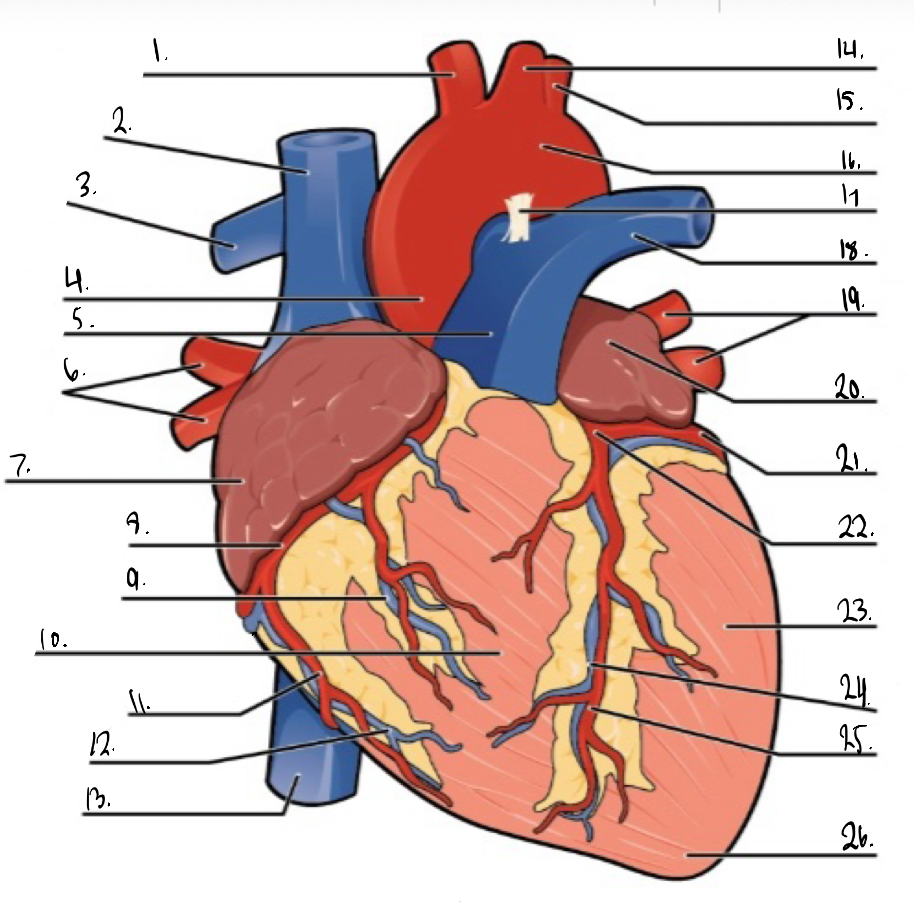

Identity #1 on this image.

Brachiocephalic trunk

Identity #2 on this image.

Superior vena cava

Identity #3 on this image.

Right pulmonary artery

Identity #4 on this image.

Ascending aorta

Identity #5 on this image.

Pulmonary trunk

Identity #6 on this image.

Right pulmonary veins

Identity #7 on this image.

Auricle of right atrium

Identity #8 on this image.

Right coronary artery

Identity #9 on this image.

Anterior Cardiac vein

Identity #10 on this image.

Right ventricle

Identity #11 on this image.

Right marginal artery

Identity #12 on this image.

Small Cardiac vein

Identity #13 on this image.

Inferior vena cava

Identity #14 on this image.

Left common carotid artery

Identity #15 on this image.

Left subclavian artery

Identity #16 on this image.

Aortic arch

Identity #17 on this image.

Ligamentum arteriosum

Identity #18 on this image.

Left pulmonary artery

Identity #19 on this image.

Left pulmonary veins

Identity #20 on this image.

Auricle of left atrium

Identity #21 on this image.

Circumflex artery

Identity #22 on this image.

Left coronary artery

Identity #23 on this image.

Left ventricle

Identity #24 on this image.

Great Cardiac vein

Identity #25 on this image.

Anterior interventricular artery

Identity #26 on this image.

Apex

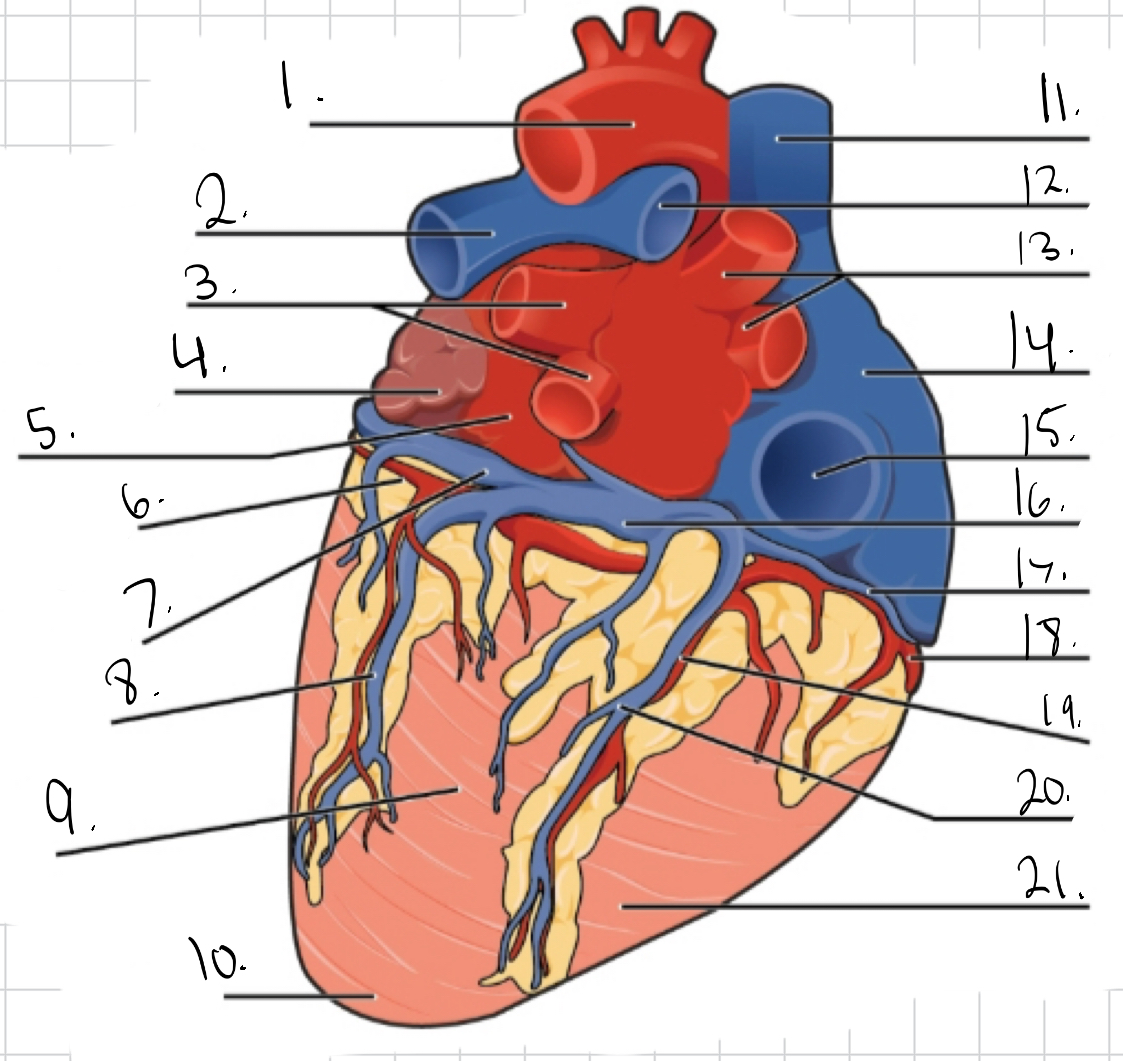

Identity #1 on this image.

Aorta

Identity #2 on this image.

Left pulmonary artery

Identity #3 on this image.

Left pulmonary veins

Identity #4 on this image.

Auricle of left atrium

Identity #5 on this image.

Left atrium

Identity #6 on this image.

Circumflex branch of left coronary artery

Identity #7 on this image.

Great Cardiac vein

Identity #8 on this image.

Posterior vein of left ventricle

Identity #9 on this image.

Left ventricle

Identity #10 on this image.

Apex

Identity #11 on this image.

Superior vena cava

Identity #12 on this image.

Right pulmonary artery

Identity #13 on this image.

Right pulmonary veins

Identity #14 on this image.

Right atrium

Identity #15 on this image.

Inferior vena cava

Identity #16 on this image.

Identity #17 on this image.

Identity #18 on this image.

Identity #19 on this image.

Identity #20 on this image.

Identity #21 on this image.

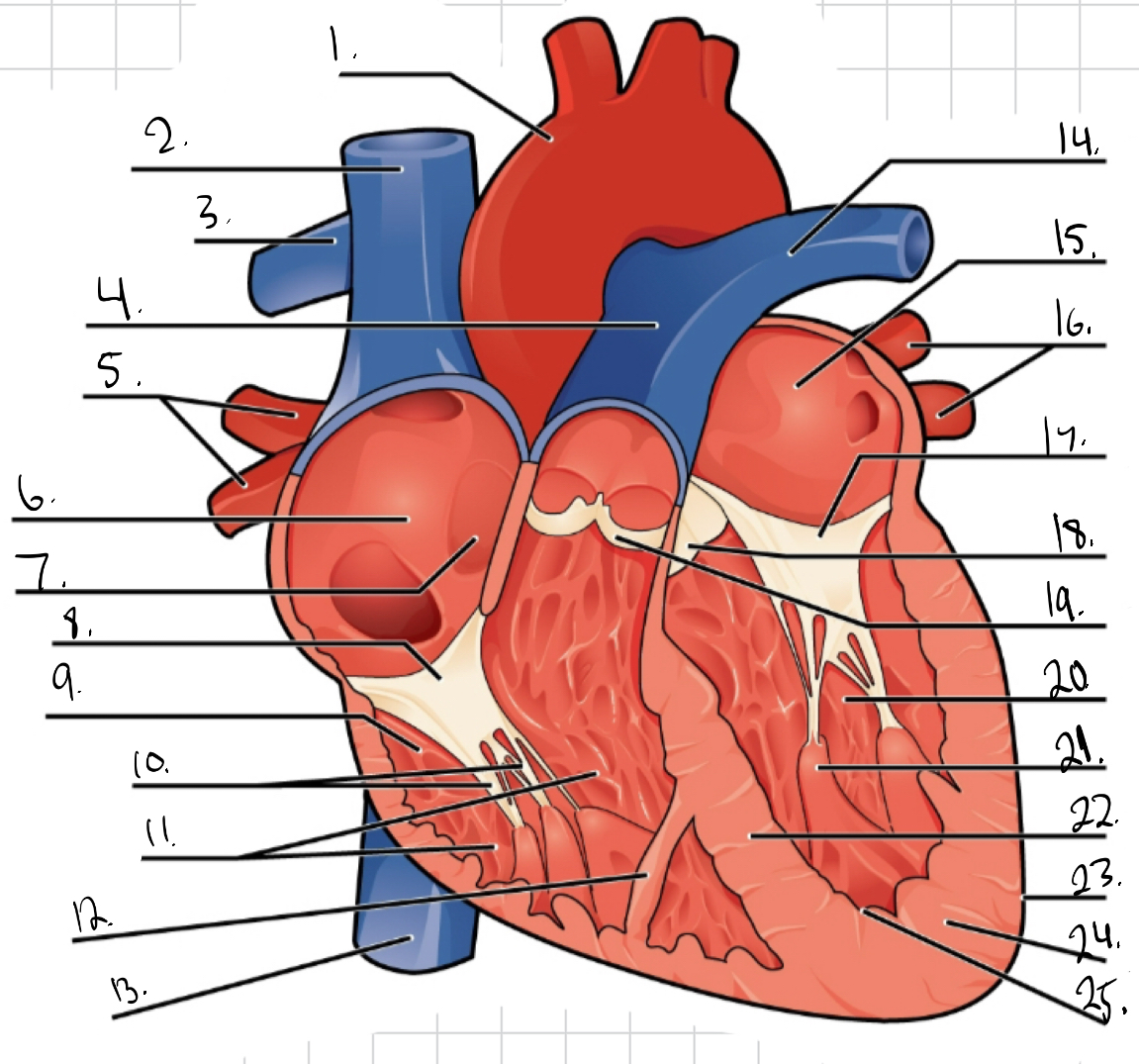

Identity #1 on this image.

Aorta

Identity #2 on this image.

Superior vena cava

Identity #3 on this image.

Right pulmonary artery

Identity #4 on this image.

Pulmonary trunk

Identity #5 on this image.

Right pulmonary veins

Identity #6 on this image.

Right atrium

Identity #7 on this image.

Fossa ovalis

Identity #8 on this image.

Tricuspid valve

Identity #9 on this image.

Right ventricle

Identity #10 on this image.

Chordae tendineae

Identity #11 on this image.

Trabeculae carneae

Identity #12 on this image.

Moderator band

Identity #13 on this image.

Inferior vena cava

Identity #14 on this image.

Left pulmonary artery

Identity #15 on this image.

Left atrium

Identity #16 on this image.

Left pulmonary veins

Identity #17 on this image.

Mitral (bicuspid) valve

Identity #18 on this image.

Aortic valve

Identity #19 on this image.

Pulmonary valve

Identity #20 on this image.

Left ventricle

Identity #21 on this image.

Papillary muscle

Identity #22 on this image.

Interventricular septum

Identity #23 on this image.

Epicardium

Identity #24 on this image.

Myocardium

Identity #25 on this image.

Endocardium

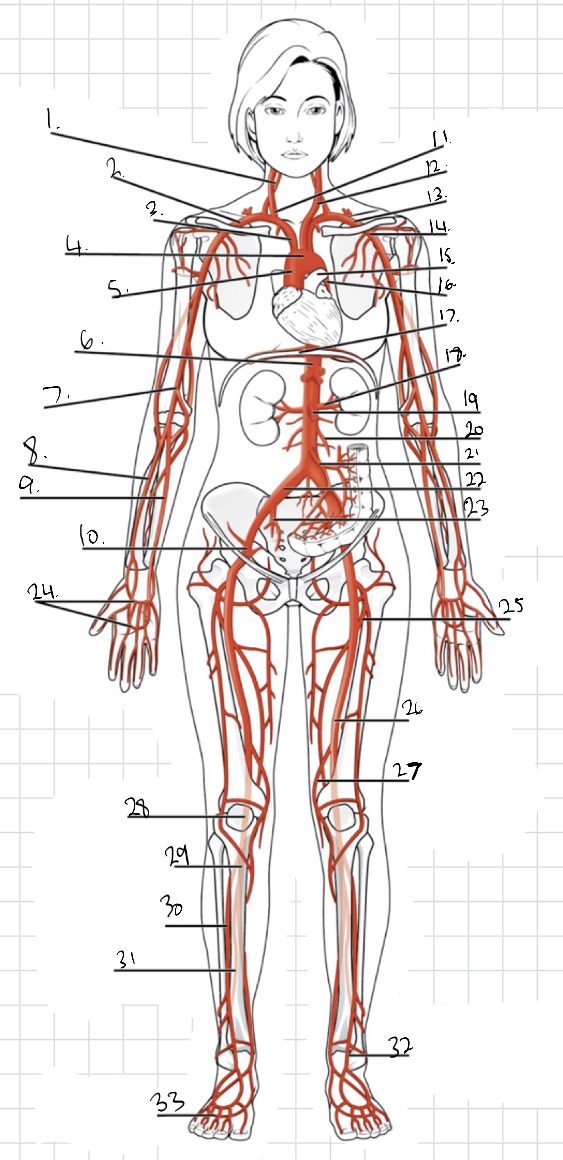

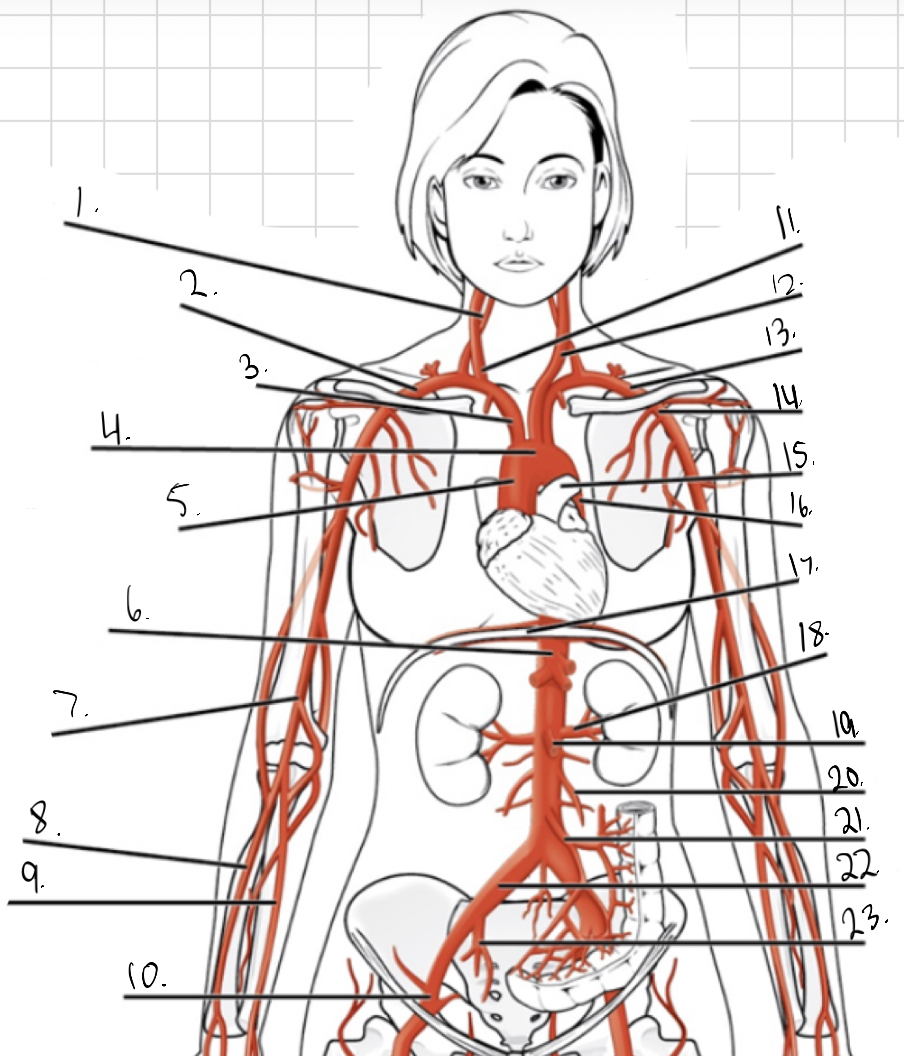

Identity #1 on this image.

Vertebral

Identity #2 on this image.

Right subclavian

Identity #3 on this image.

Brachiocephalic trunk

Identity #4 on this image.

Aortic arch

Identity #5 on this image.

Ascending aorta

Identity #6 on this image.

Celiac trunk

Identity #7 on this image.

Brachial

Identity #8 on this image.

Radial

Identity #9 on this image.

Ulnar

Identity #10 on this image.

External iliac

Identity #11 on this image.

Right common carotid

Identity #12 on this image.

Left common carotid

Identity #13 on this image.

Left subclavian

Identity #14 on this image.

Axillary

Identity #15 on this image.

Pulmonary trunk

Identity #16 this image.

Descending aorta

Identity #17 on this image.

Diaphragm

Identity #18 on this image.

Renal

Identity #19 on this image.

Superior mesenteric

Identity #20 on this image.

Gonadal

Identity #21 on this image.

Inferior mesenteric

Identity #22 on this image.

Common iliac

Identity #23 on this image.

Internal iliac

Identity #24 on this image.

Palmar arches

Identity #25 on this image.

Deep femoral

Identity #26 on this image.

Femoral

Identity #27 on this image.

Descending genicular

Identity #28 on this image.

Popliteal
