D426 - Data Management Foundations

database application

software that helps business users interact with database systems

database administrator

responsible for securing the database system against unauthorized users. A _____ enforces procedures for user access and database system availability.

Authorization

Many database users should have limited access to specific tables, columns, or rows of a database. Database systems authorize individual users to access specific data.

Rules

Database systems ensure data is consistent with structural and business rules

query processor

interprets queries, creates a plan to modify the database or retrieve data, and returns query results to the application.

Storage Manager

translates the query processor instructions into low-level file-system commands that modify or retrieve data. Database sizes range from megabytes to many terabytes, so the _____ uses indexes to quickly locate data.

Transaction Manager

ensures transactions are properly executed. The ______ prevents conflicts between concurrent transactions. The _______ also restores the database to a consistent state in the event of a transaction or system failure.

INSERT

inserts rows into a table.

INSERT INTO table_name (column_name1, column_name2, ...) VALUES (DEFAULT, 'bob', 30, 150);

SELECT

retrieves data from a table

SELECT column1, column2, ... FROM table_name; -- return all data from those columns.

UPDATE

modifies data in a table

UPDATE table_name SET column_name = 2 WHERE column_id = 3;

Delete

deletes rows from a table

DELETE FROM table_name; -- all rows deleted! DELETE FROM table_name WHERE column_name = 'value'; -- delete row

CREATE TABLE

creates a new table by specifying the table and column names.

DDL

Data Type

Each column is assigned a ____ that indicates the format of column values. ____ can be numeric, textual, or complex

INT, DECIMAL, VARCHAR, DATE

stores integer values

stores fractional numeric values

stores textual values

stores year, month, and day

Analysis Phase

specifies database requirements without regard to a specific database system. Requirements are represented as entities, relationships, and attributes.

entity

Is a person, place, activity, or thing. Singular.

relationship

is a link between entities, and an attribute is a descriptive property of an entity.

Analysis alternate names

conceptual design, entity-relationship modeling, and requirements definition.

logical design phase

implements database requirements in a specific database system. For relational database systems, ____ converts entities, relationships, and attributes into tables, keys, and columns.

physical design phase

adds indexes and specifies how tables are organized on storage media. _____ affects query processing speed but never affects the query result. The principle that _____ never affects query results is called data independence.

API

To simplify the use of SQL with a general-purpose language, database programs typically use an application programming interface

MySQL Command-Line Client

text interface included in the MySQL Server download. MySQL Server returns an error code and description when an SQL statement is syntactically incorrect or the database cannot execute the statement.

tuple

s an ordered collection of elements enclosed in parentheses. Ex: (a, b, c) and (c, b, a) are different, since tuples are ordered.

Table Data Structure

has a name, a fixed tuple of columns, and a varying set of rows

Column Data Structure

has a name and a data type

Row Data Structure

an unnamed tuple of values. Each value corresponds to a column and belongs to the column's data type

Data Type Data Structure

is a named set of values, from which column values are drawn

Data Structure Synonyms:

Table, File, Relation

Row, Record, Tuple

Column, Field, Attribute

Business rules

are based on business policy and specific to a particular database

Literals

Explicit values that are string, numeric, or binary.Strings must be surrounded by single quotes or double quotes.Binary values are represented with x'0' where the 0 is any hex value.

EX. 'String' "String" 123 x'0fa2'

Keywords

Words with special meaning

Ex. SELECT, FROM, WHERE

Identifiers

Objects from the database like tables, columns, etc.

Ex. City, Name, Population

Comments

Statement intended only for humans and ignored by the database when parsing an SQL statement.

Ex. -- single line comment. / multi-line Comment /

SQL Sublanguages

Data Definition Language (DDL) defines the structure of the database.

Data Query Language (DQL) retrieves data from the database.

Data Manipulation Language (DML) manipulates data stored in a database.

Data Control Language (DCL) controls database user access.

Data Transaction Language (DTL) manages database transactions

CREATE TABLE statement

creates a new table by specifying the table name, column names, and column data types

INT or INTEGER

integer values

VARCHAR(N)

Values with 0 to N Characters

Date

Date Values YYY-MM-DD

TIME

hh:mm:ss

DATETIME

YYYY-MM-DD HH:MI:SS

Decimal(M,D)

numeric values with M digits, of which D digits follow the decimal point

DROP TABLE

deletes a table, along with all the table's rows, from a database

DDL

ALTER TABLE statement

adds, deletes, or modifies columns on an existing table

DDL

Integer Data Types

Ex. 34 and -739448

TINYINT Signed Range: -128 to 127 Unsigned Range: 0 to 255

SMALLINT Signed Range: -32,768 to 32767 Unsigned Range: 0 to 65535

MEDIUMINT Signed Range: -8,388,608 to 8,388,607 Unsigned Range: 0 to 16,777,215

INT Signed Range: -2,147,483,647 to 2,147,483,647 Unsigned Range: 0 to 4,294,962,95

BIGINT Signed Range: -2^63 to 2^63 -1 Unsigned Range: 0 to 2^64 -1

Arithmetic Operators

+: Adds two numeric values

- (unary): Reverses the sign of one numeric value

-(binary): Subtracts one numeric value from another

*: Multiplies two numeric values

/: Divides one numeric value by another

%(modulo): Divides one numeric value by another and returns the integer remainder. Ex. 5%2 = 1

^: Raises one numeric value to the power of another

Comparison Operators

=: compares two values for equality

!=: compares two values for inequality

<: Compares two values with <

<=: Compares two values with ≤

>: Compares two values with >

UPDATE statement

_____ modifies existing rows in a table. The _____ uses the SET clause to specify the new column values. An optional WHERE clause specifies which rows are updated. Omitting the WHERE clause results in all rows being updated.

DELETE statement

_____ deletes existing rows in a table. The FROM keyword is followed by the table name whose rows are to be deleted. An optional WHERE clause specifies which rows should be deleted. Omitting the WHERE clause results in all rows in the table being deleted.

TRUNCATE statement

deletes all rows from a table. _____ is nearly identical to a DELETE statement with no WHERE clause except for minor differences that depend on the database system.

MERGE statement

selects data from one table, called the source, and inserts the data to another table, called the target.

primary key

is a column, or group of columns, used to identify a row. The _____ is usually the table's first column

simple primary key

consists of a single column

composite primary key

consists of multiple columns.

auto-increment column

is a numeric column that is assigned an automatically incrementing value when a new row is inserted.

Database users occasionally make the following errors when inserting primary keys:

Inserting values for auto-increment primary keys.

Omitting values for primary keys that are not auto-increment columns.

MySQL allows insertion of a specific value to an auto-increment column. However, overriding auto-increment for a primary key is usually a mistake.

foreign key

s a column, or group of columns, that refer to a primary key

FOREIGN KEY constraint

A _____ is added to a CREATE TABLE statement with the FOREIGN KEY and REFERENCES keywords. When a _____ is specified, the database rejects insert, update, and delete statements that violate referential integrity

Referential integrity actions

RESTRICT rejects an insert, update, or delete that violates referential integrity.

SET NULL sets invalid foreign keys to NULL.

SET DEFAULT sets invalid foreign keys to the foreign key default value.

CASCADE propagates primary key changes to foreign keys.

constraint

A _____ is a rule that governs allowable values in a database. ______ are based on relational and business rules,

Adding and dropping constraints

ALTER TABLE TableName followed by an ADD, DROP, or CHANGE clause

BETWEEN operator

Provides an alternative way to determine if a value is between two other values

LIKE operator

When used in a WHERE clause, matches text against a pattern using the two wildcard characters % and _.

% matches any number of characters. Ex: _____ 'L%t' matches "Lt", "Lot", "Lift", and "Lol cat".

ORDER BY clause

orders selected rows by one or more columns in ascending (alphabetic or increasing) order. The DESC keyword with the _____ orders rows in descending order.

Functions:

ABS(n): Returns the abzolute value of n

LOWER(s) Returns the lower case s

TRIM(s): Returns the strong s without leasing and trailing spaces

HOUR(t), MINUTE(t), SECOND(t): Returns the hour, minute or second from time t

Aggregate functions

COUNT() counts the number of rows in the set.

MIN() finds the minimum value in the set.

MAX() finds the maximum value in the set.

SUM() sums all the values in the set.

AVG() computes the arithmetic mean of all the values in the set.

HAVING clause

The _____ is used with the GROUP BY clause to filter group results.

JOIN

is a SELECT statement that combines data from two tables, known as the left table and right table, into a single result. The tables are combined by comparing columns from the left and right tables, usually with the = operator.

Alias

a column name can be replaced with an ____. The _____ follows the column name, separated by an optional AS keyword.

Join

Is a SELECT statement that combines data from two tables, known as the left table and right table, into a single result.

The tables are combined by comparing columns from the left and right tables, usually with the = operator.

INNER JOIN

combine records from two tables whenever there are matching values in a field common to both tables

FULL JOIN

selects all left and right table rows, regardless of match

Equijoins

An _____ compares columns of two tables with the = operator. Most joins are _____.

A _____ compares columns with an operator other than =, such as < and >.

Self-joins

joins a table to itself.

Cross-joins

combines two tables without comparing columns. A _____ uses a ______ clause without an ON clause.

subquery

sometimes called a nested query or inner query, is a query within another SQL query.

materialized view

a view for which data is stored at all times. Whenever a base table changes, the corresponding view tables can also change, so _____ must be refreshed.

WITH CHECK OPTION

When _________ is specified, the database rejects inserts and updates that do not satisfy the view query WHERE clause

entity-relationship model

Is a high-level representation of data requirements, ignoring implementation details

reflexive relationship

A ______ relates an entity to itself

ER diagram

Is a schematic picture of entities, relationships, and attributes. Entities are drawn as rectangles.

Attributes drawn as circles

Relationships drawn as lines

Minimum appears in parentheses

1 required

0 optional

entity type

An _____ is a set of things. Ex: All employees in a company.

Relationship Type

A _____ is a set of related things. Ex: Employee-Manages-Department is a set of (employee, department) pairs, where the employee manages the department

attribute type

An ______ is a set of values. Ex: All employee salaries.

Logical design

_____ converts the entity-relationship model into tables, columns, and keys for a particular database system.

Physical Design

_____ adds indexes and specifies how tables are organized on storage media.

Analysis steps

1. Discover Entities, relationships, and attributes

2. Determine Cardinalality

3. Distinguish strong and weak entities

4. Create supertype and subtype entities

Logical Design Steps (After Analysis Steps)

5. Implement Entities

6. Implement relationships

7. Implement Attributes

8. Apply normal form

cardinality

refers to maxima and minima of relationships and attributes.

Relationship maximum

is the greatest number of instances of one entity that can relate to a single instance of another entity.

Relationship minimum

is the least number of instances of one entity that can relate to a single instance of another entity.

subtype entity, supertype entity

A _____ is a subset of another entity type, called the _____ Ex: Managers are a subset of employees, so Manager is a _____ of the Employee _____. On ER diagrams, _____are drawn within the _____. Vehicle _____ and "car" "truck" "motorcycle" _____

IsA relationship

The identifying relationship

Partitions

A _____ of a supertype entity is a group of mutually exclusive subtype entities

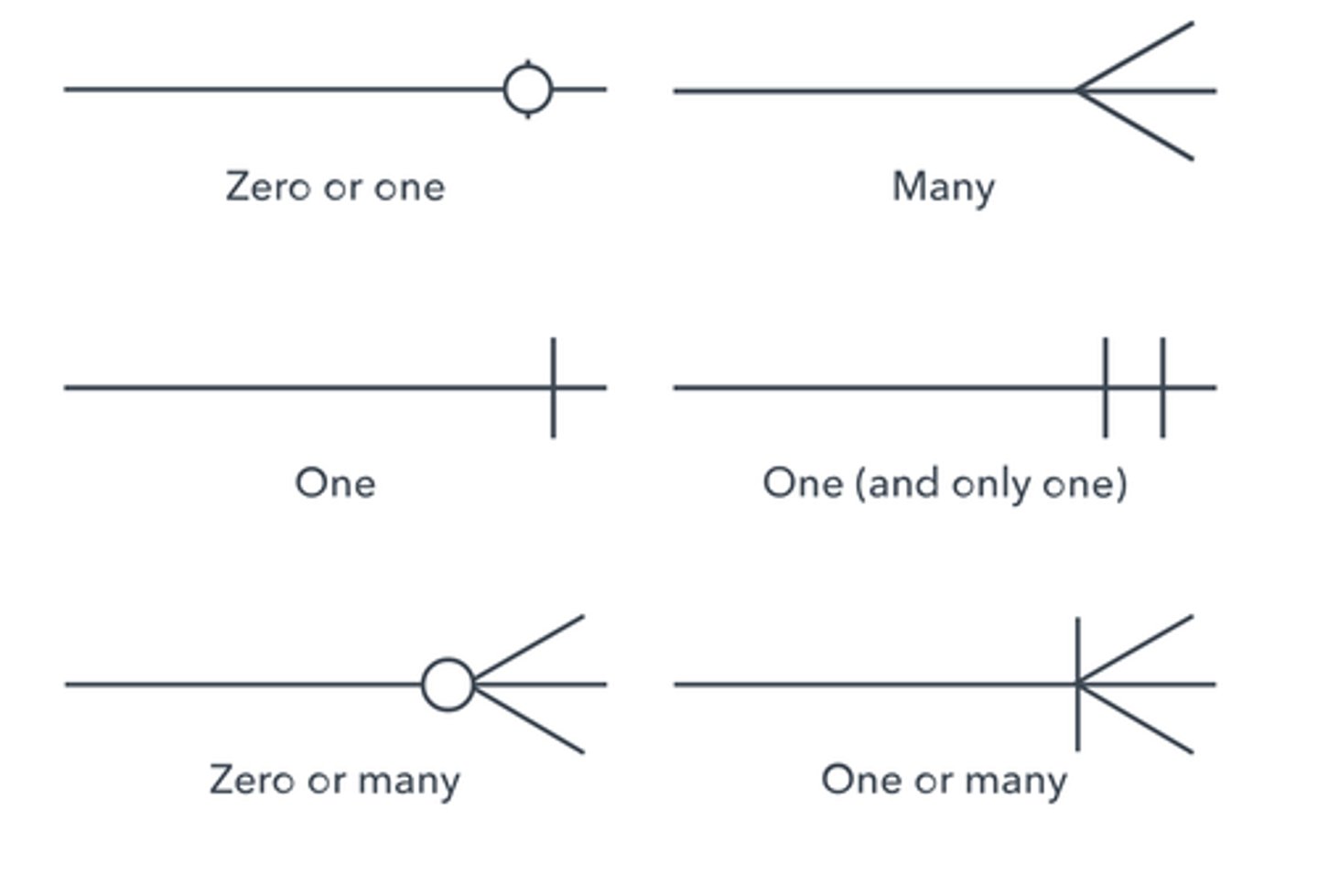

crow's foot notation

depicts cardinality as a circle (zero), a short line (one), or three short lines (many). The three short lines look like a bird's foot, hence the name "_____".

intangible entity

is documented in the data model, but not tracked with data in the database

PRIMARY KEYS SHOULD BE:

Stable. Primary key values should not change. When a primary key value changes, statements that specify the old value must also change. Furthermore, the new primary key value must cascade to matching foreign keys.

Simple. Primary key values should be easy to type and store. Small values are easy to specify in an SQL WHERE clause and speed up query processing. Ex: A 2-byte integer is easier to type and faster to process than a 15-byte character string.

Meaningless. Primary keys should not contain descriptive information. Descriptive information occasionally changes, so primary keys containing descriptive information are unstable.

Artificial Key

An _____ is a single-column primary key created by the database designer when no suitable single-column or composite primary key exists. Usually _____ values are integers, generated automatically by the database as new rows are inserted to the table. _____ are stable, simple, and meaningless.

Functional Dependence

Dependence of one column on another

Redundancy

Is the repetition of related values in a table.

Normal Forms

_____ are rules for designing tables with less redundancy
