Logic Gate (Truth Tables), Logic Gates

AND Gate

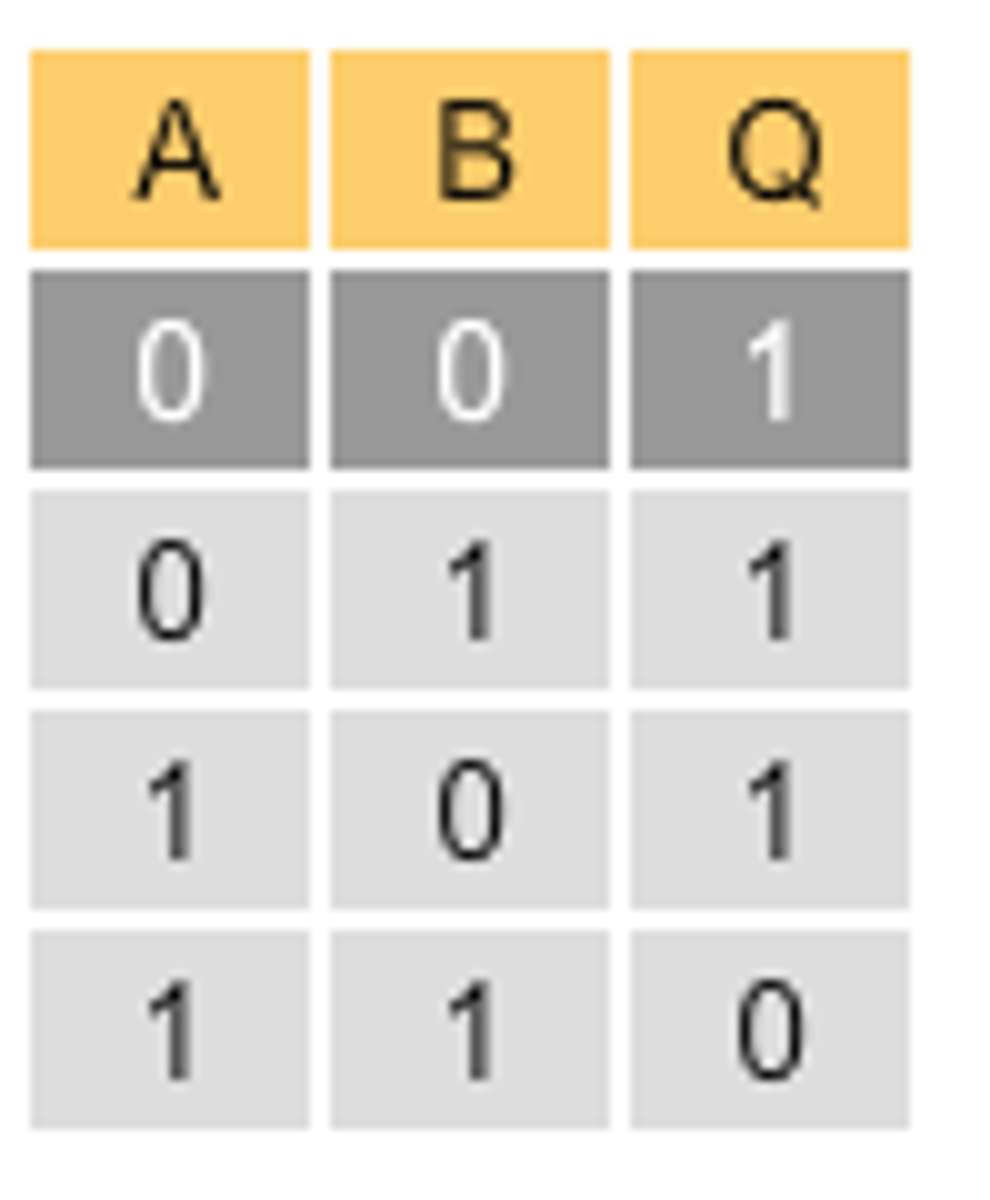

NAND Gate

OR Gate

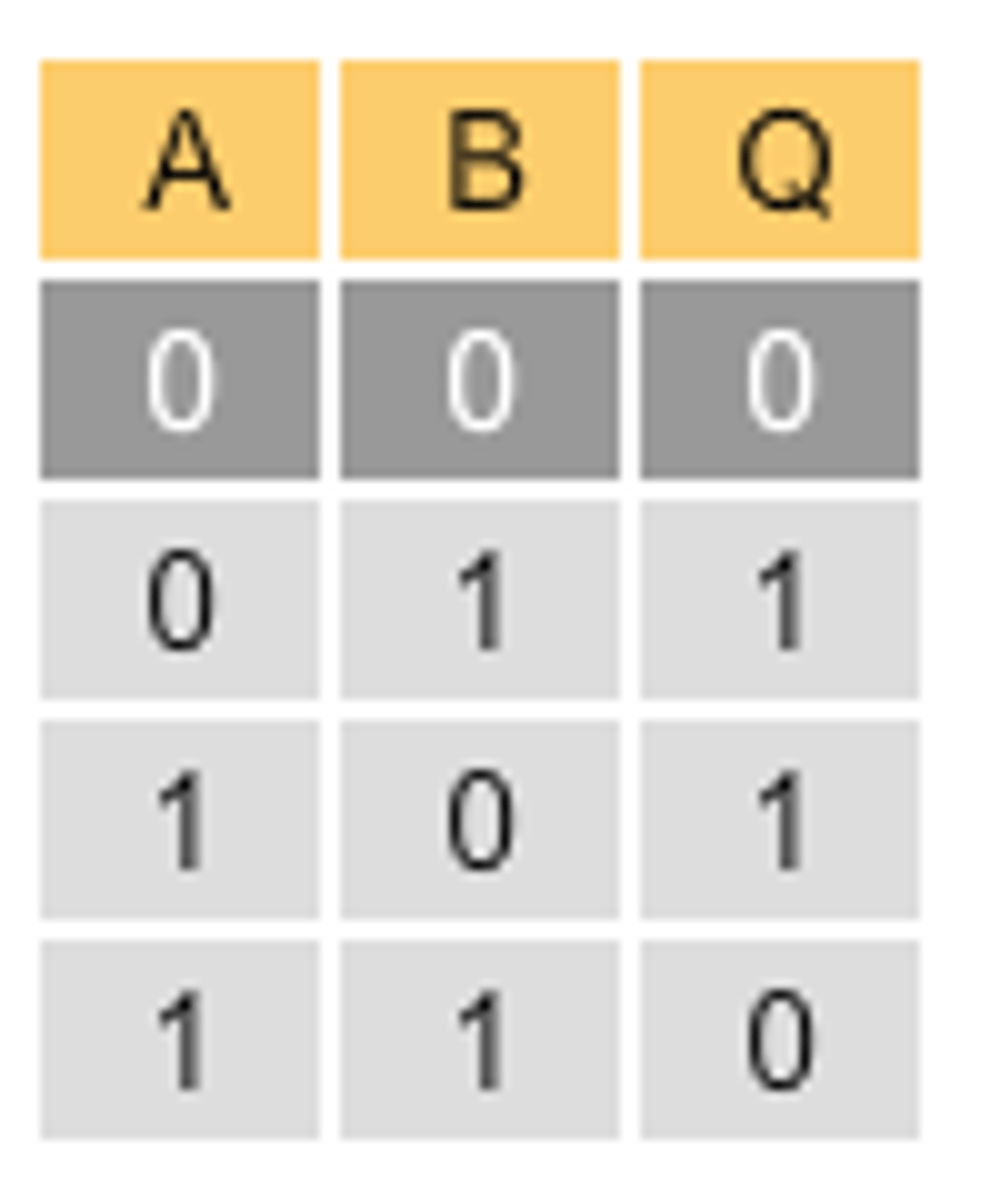

XOR Gate

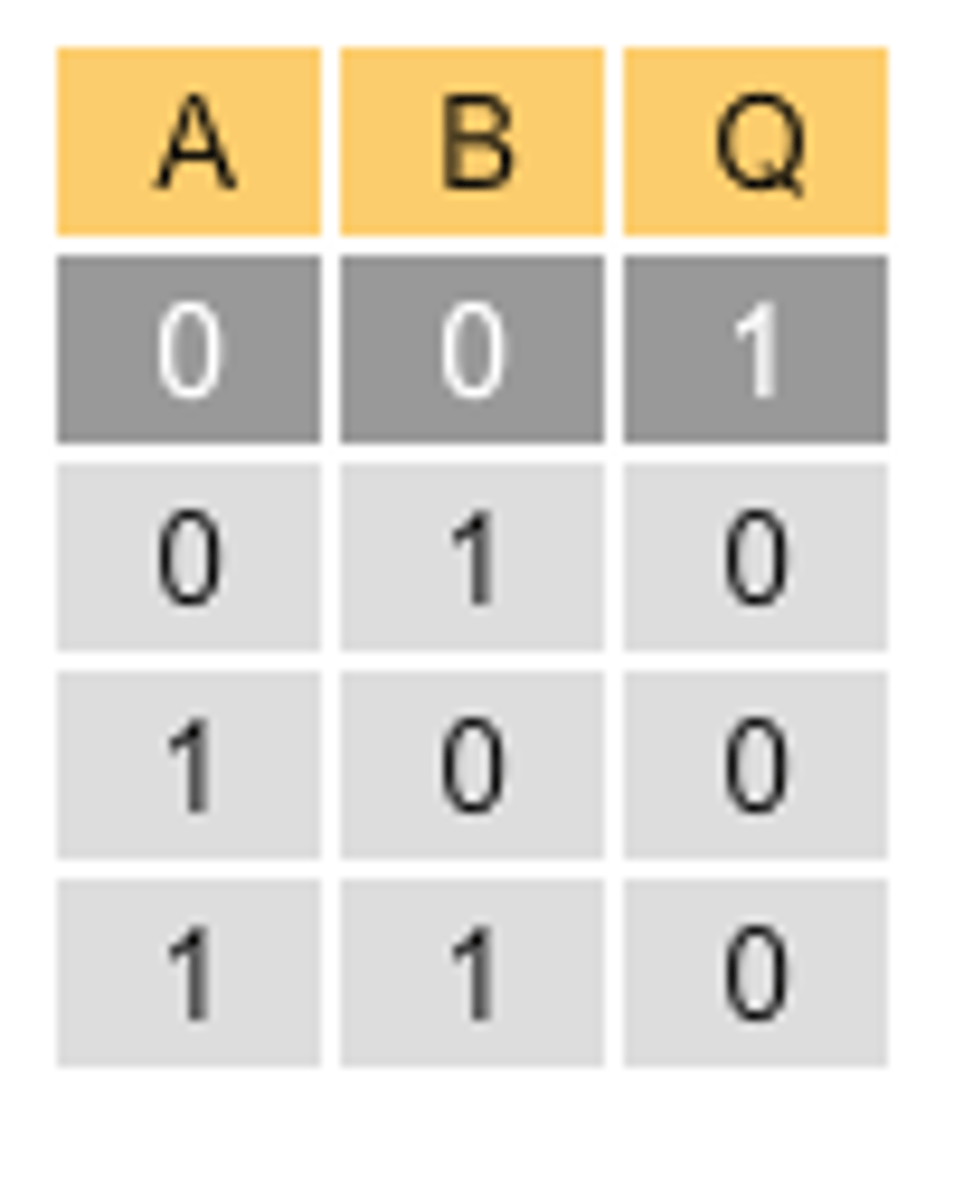

NOR Gate

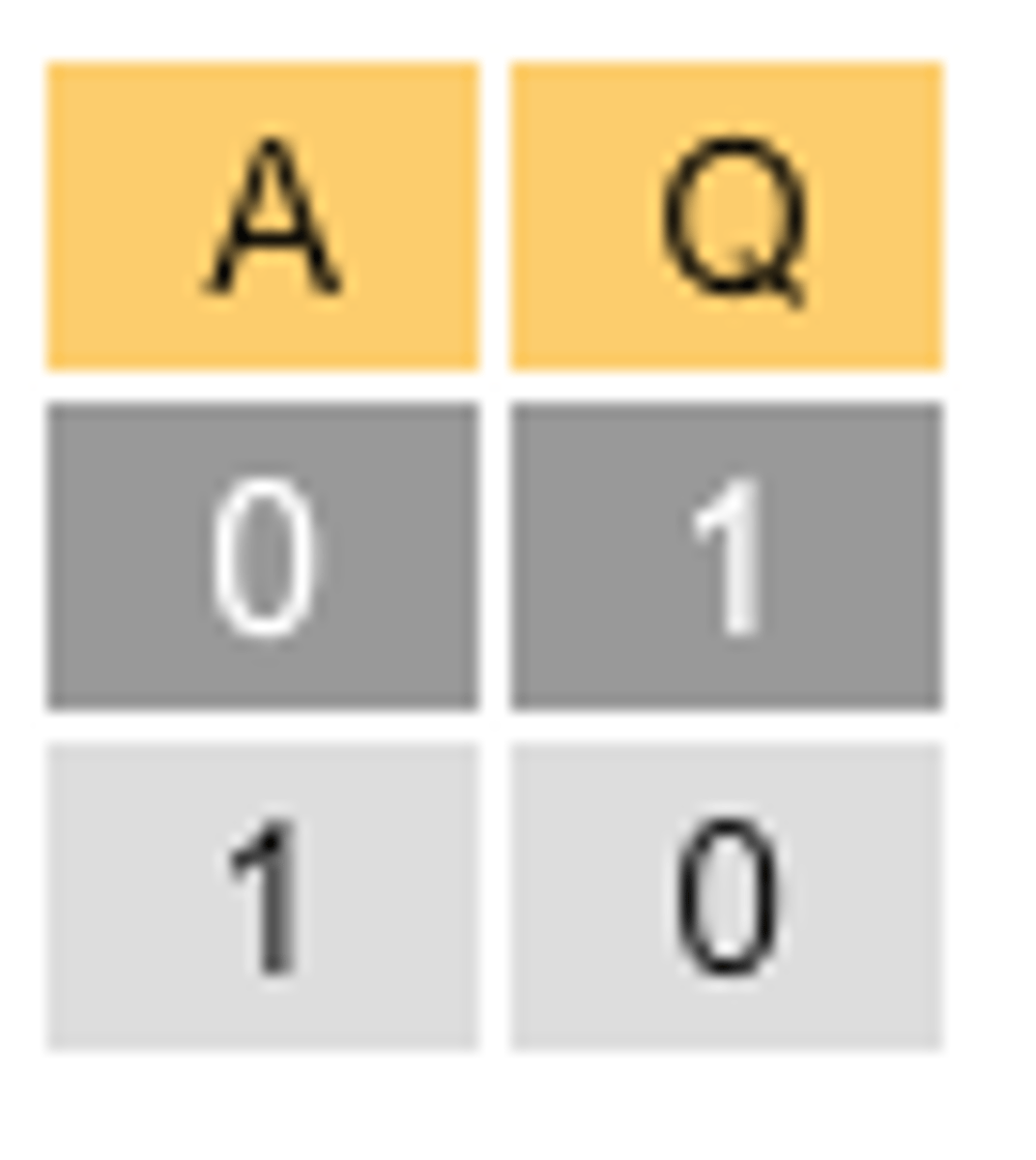

NOT Gate

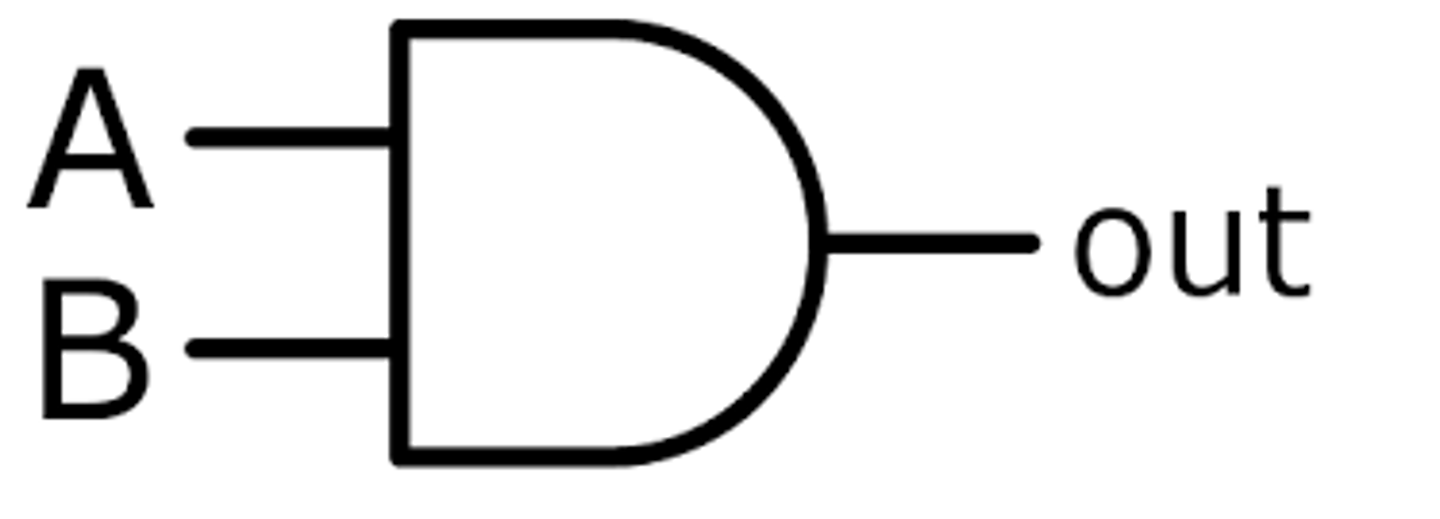

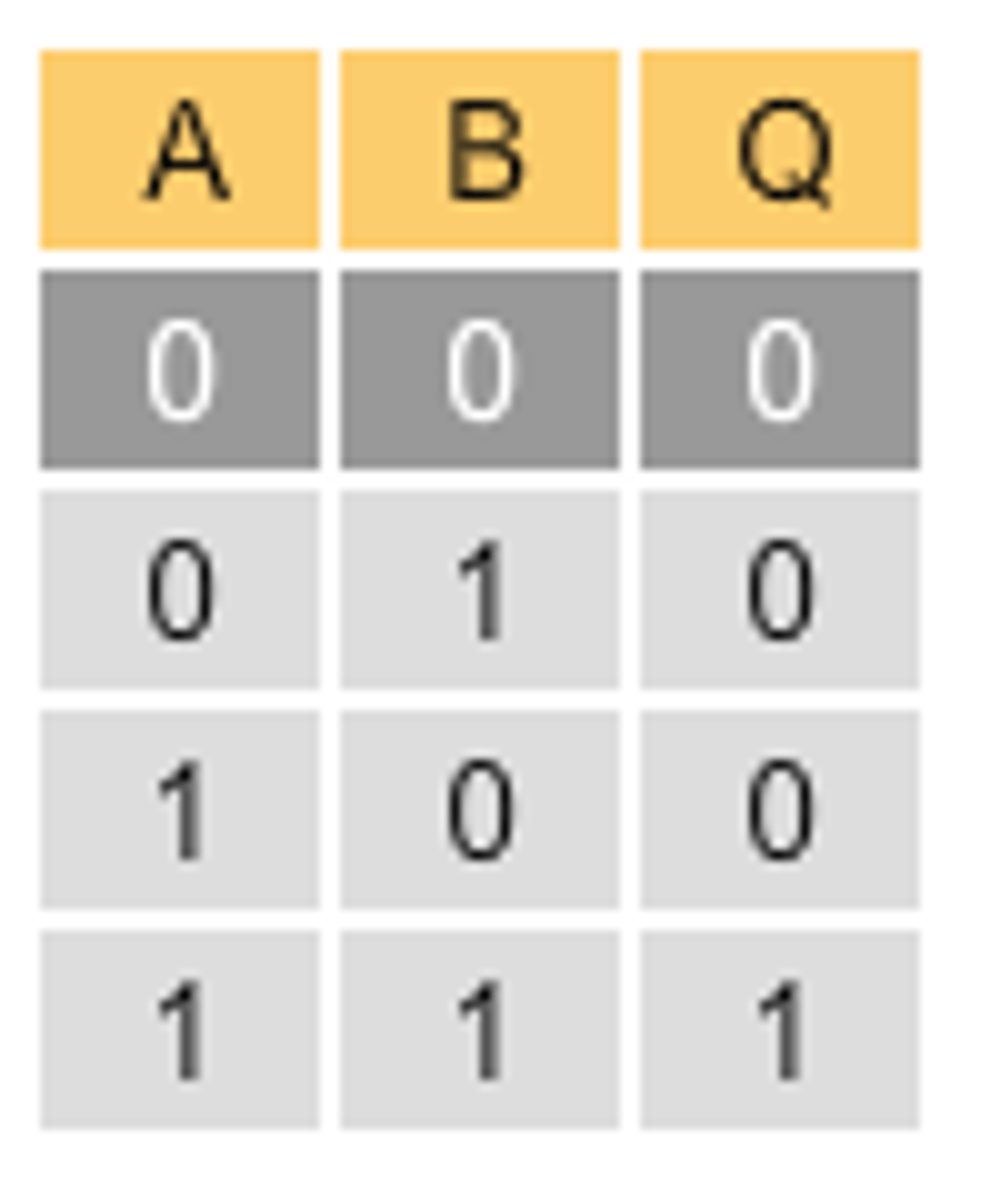

AND Gate Symbol

ALL inputs need to be 1 for the output to be 1

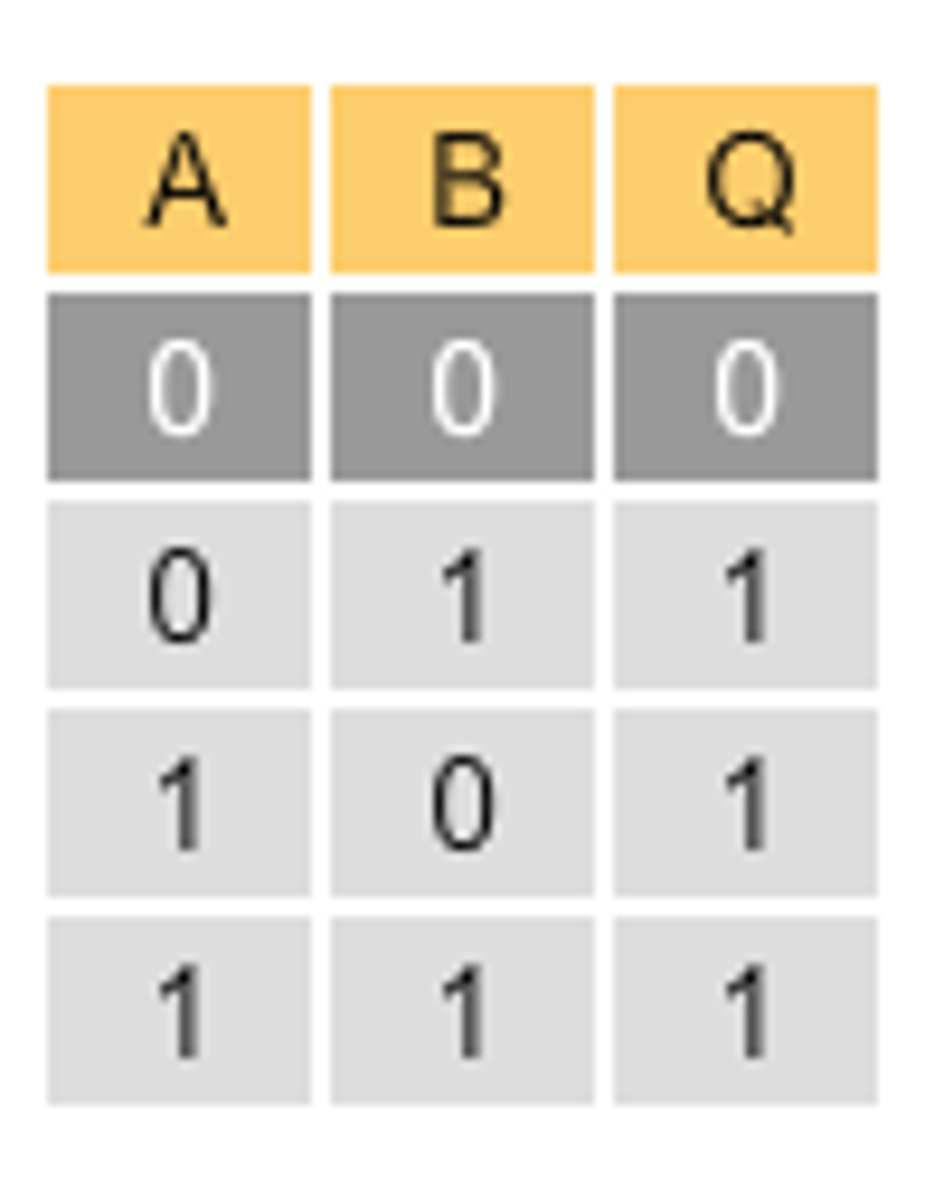

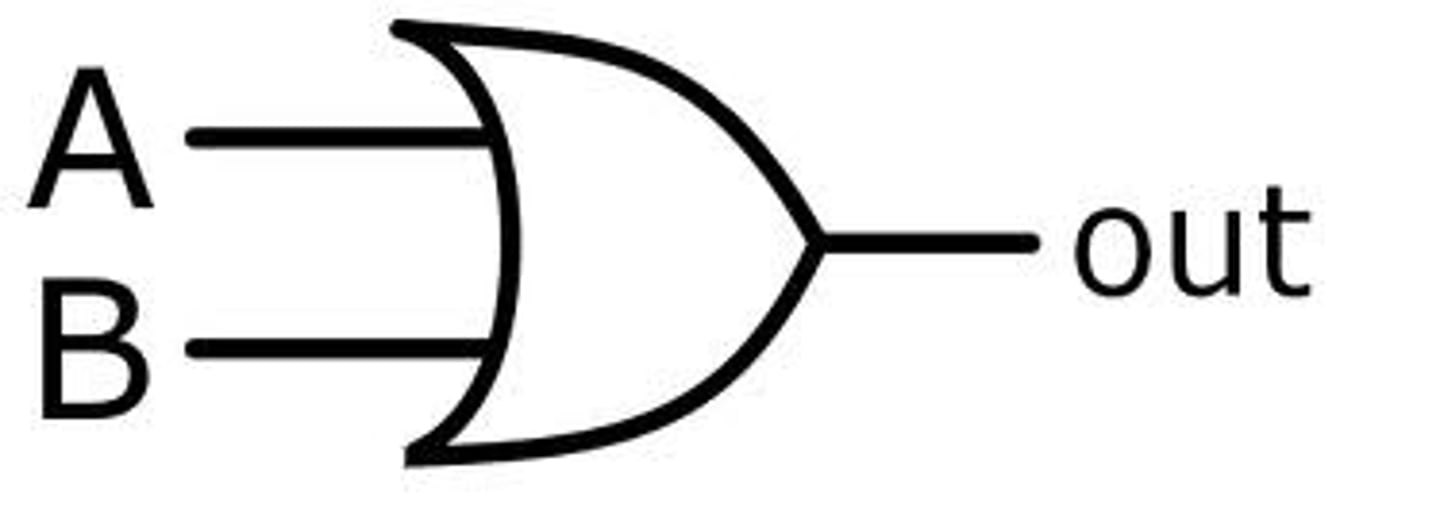

OR Gate Symbol

At least one input needs to be 1 for the output to be 1

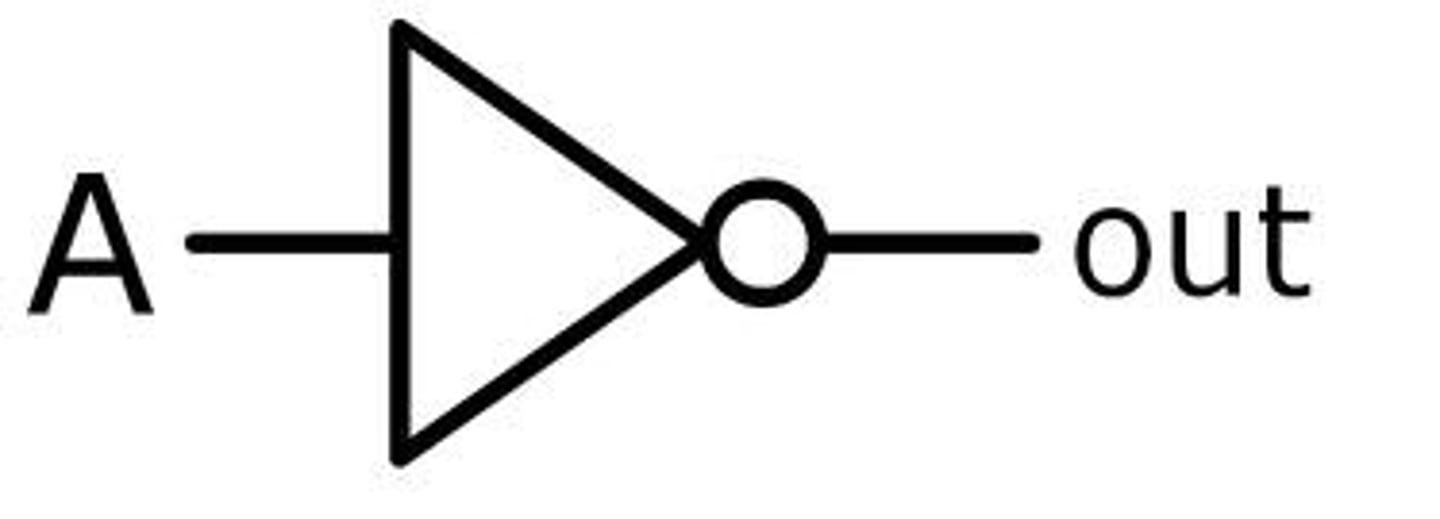

NOT Gate Symbol

Inverses the input

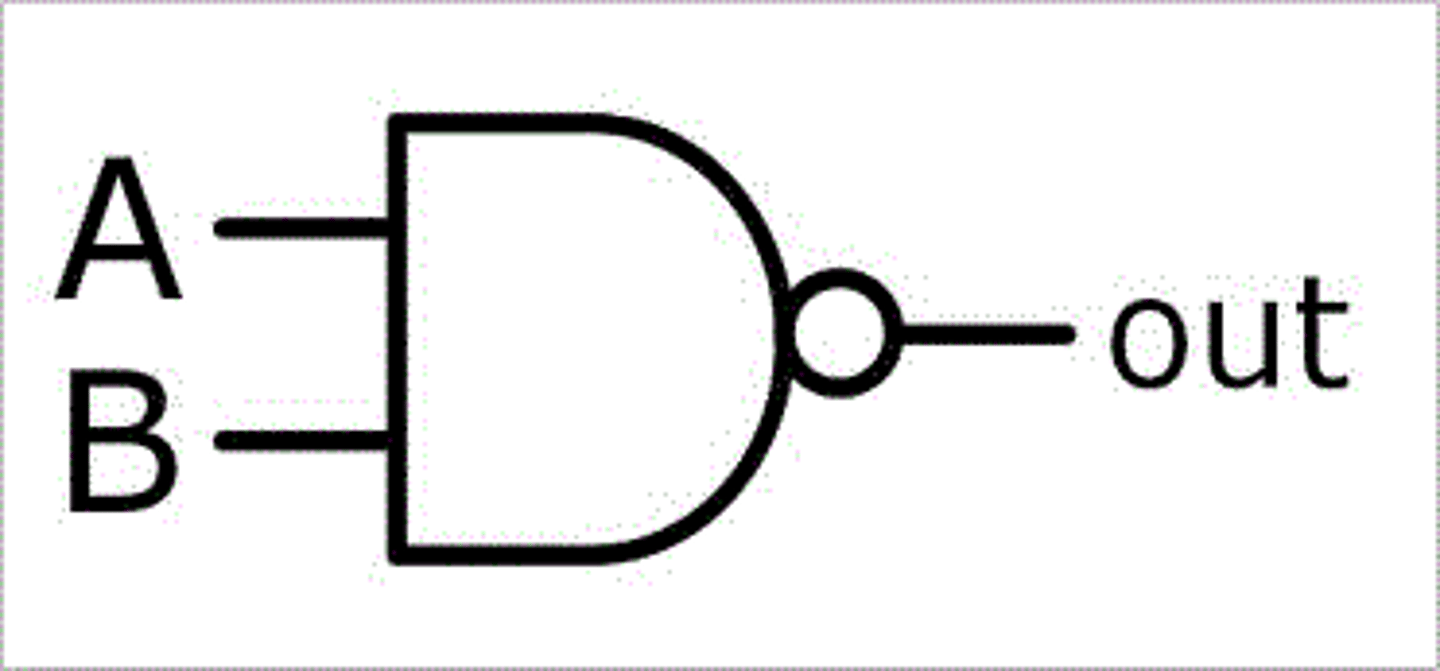

NAND Gate Symbol

The inverse of the AND Gate

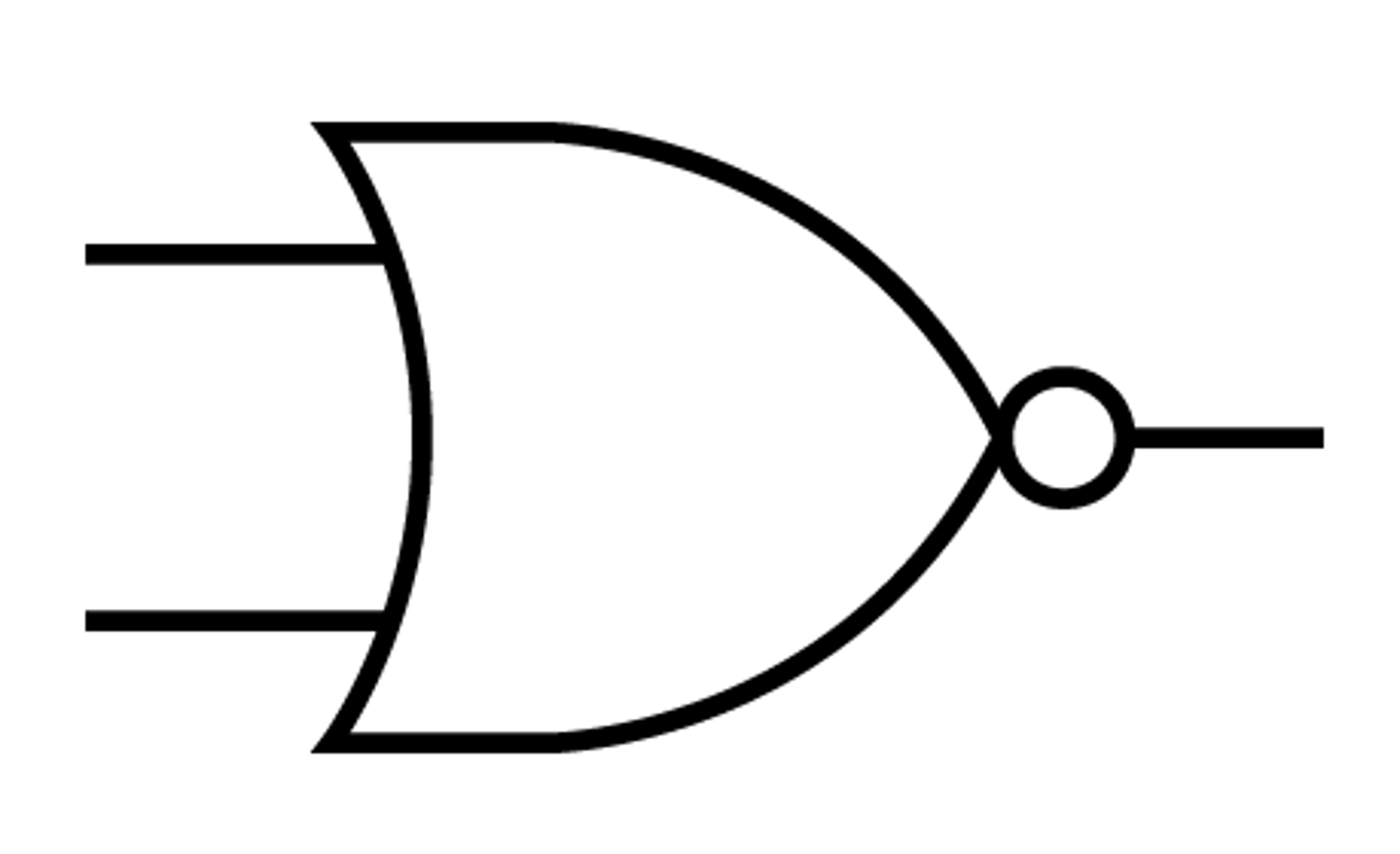

NOR Gate Symbol

The inverse of the OR Gate

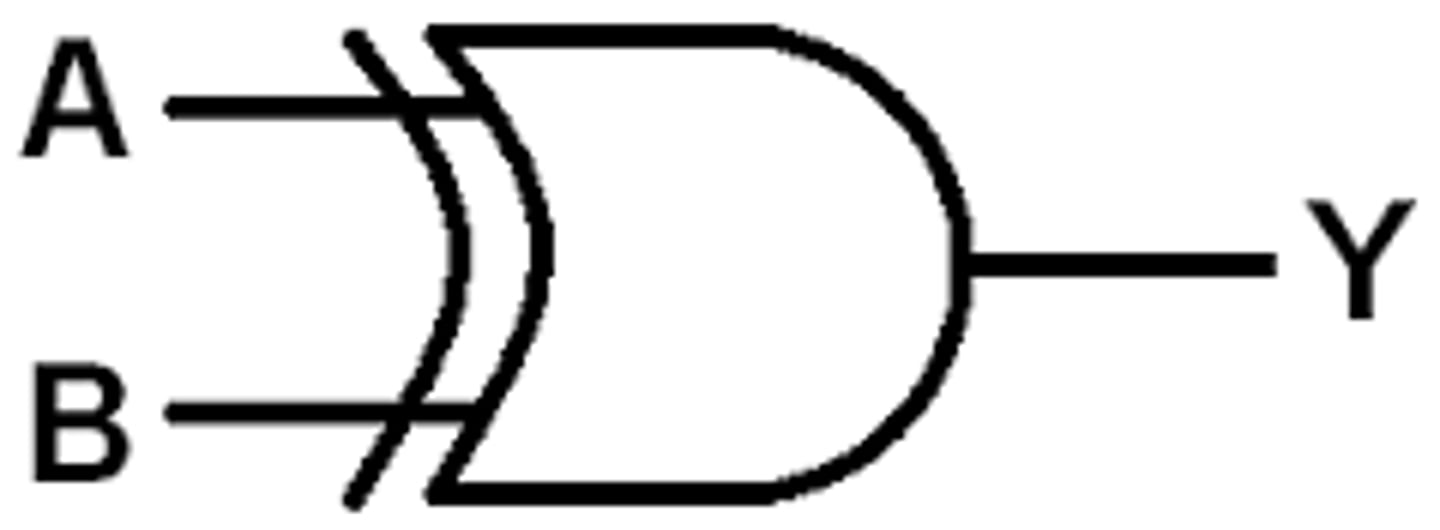

XOR Gate Symbol

Only ONE input can be 1 for the output to be 1
