13 Terms

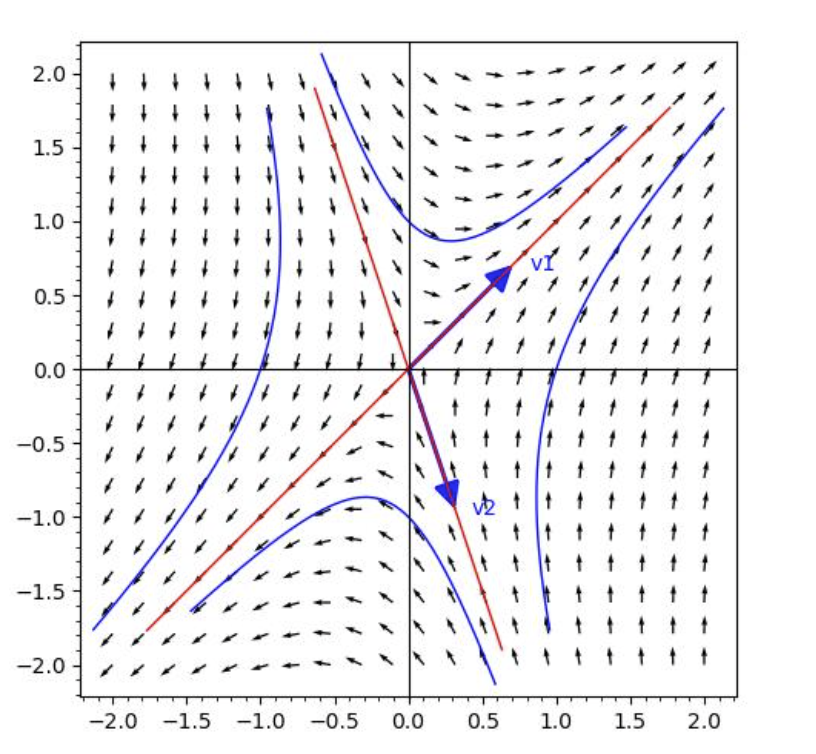

A has two distinct real eigenvalues of opposite signs
saddle point

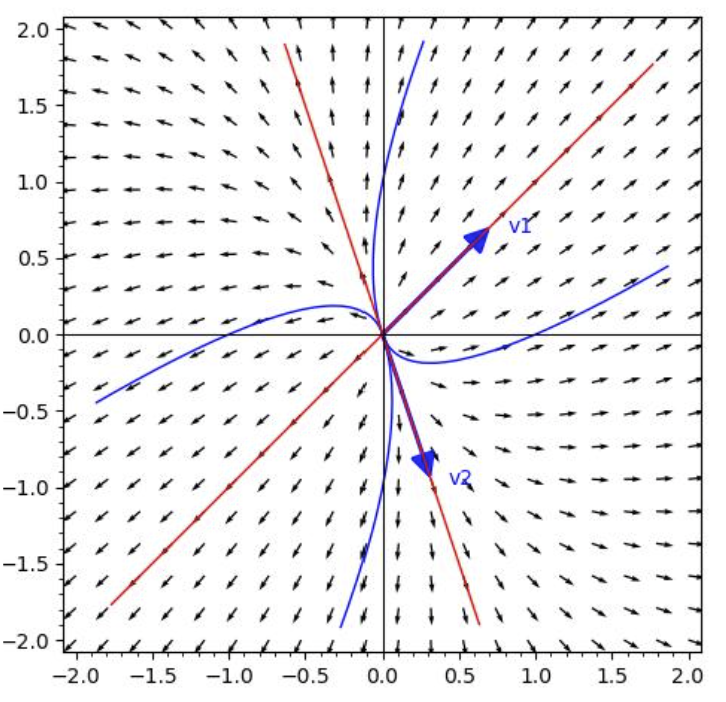

A has two distinct positive eigenvalues
improper nodal source

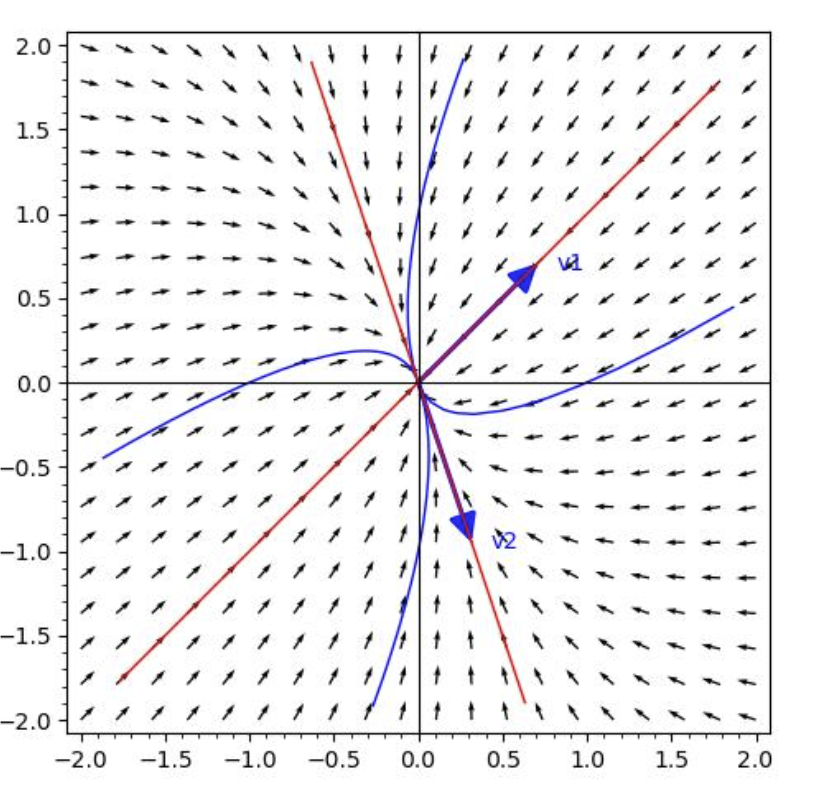

A has two distinct negative eigenvalues
improper nodal sink

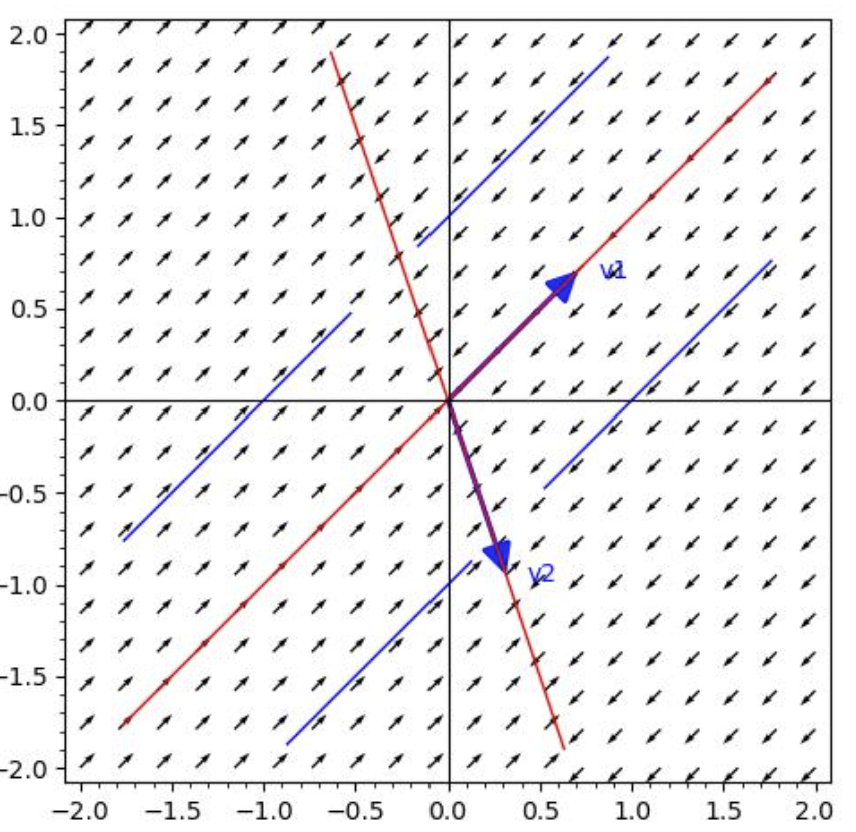

A has a negative eigenvalue and an eigenvalue equal to zero
parallel rays(settles onto line)

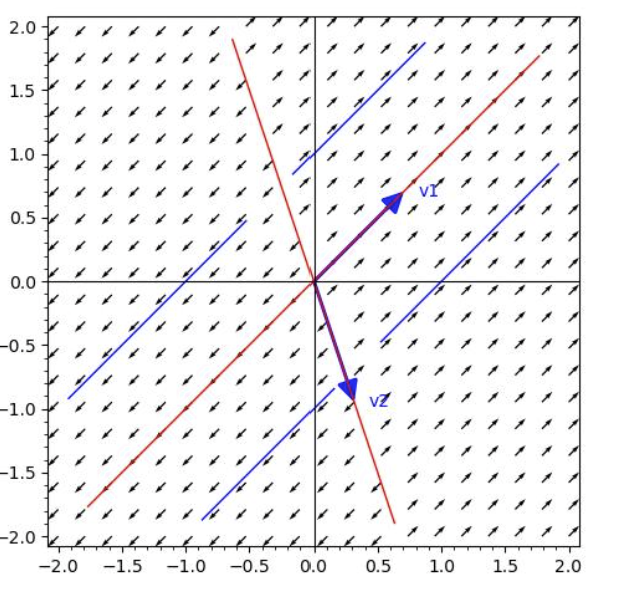

A has a positive eigenvalue and an eigenvalue equal to zero
parallel rays (goes to infinity, away from the line)

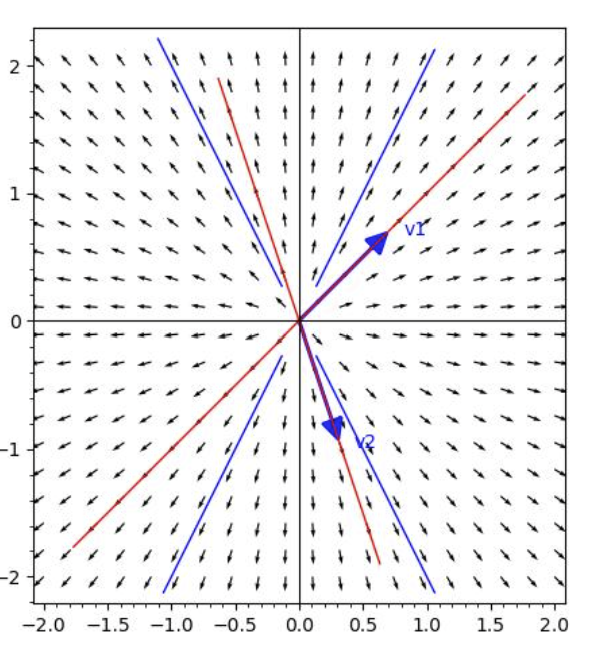

A has a positive eigenvalue of multiplicity 2
proper nodal source

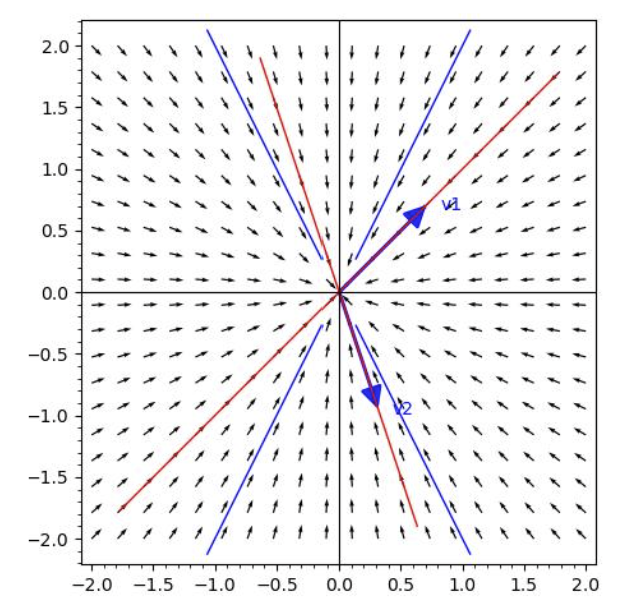

A has a negative eigenvalue of multiplicity 2
proper nodal sink

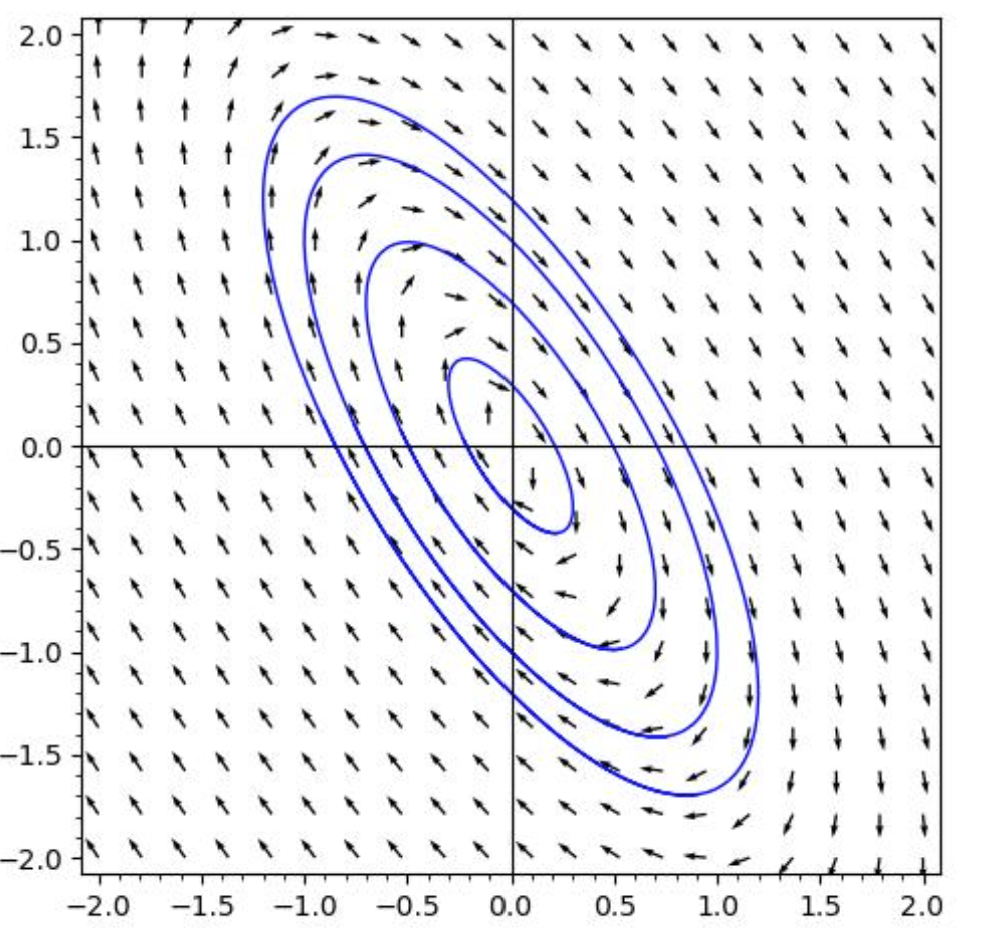

A has PURELY IMAGINARY eigenvalues +-qi
center

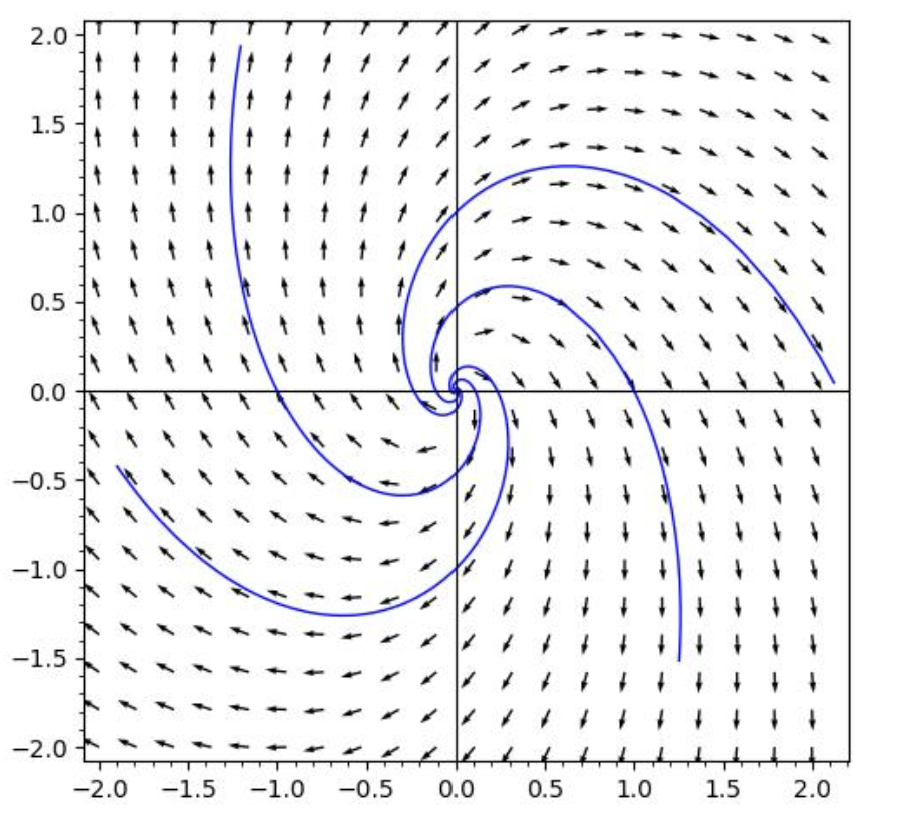

A has COMPLEX eigenvalues (p +- qi) with a positive real part (p > 0)
spiral source

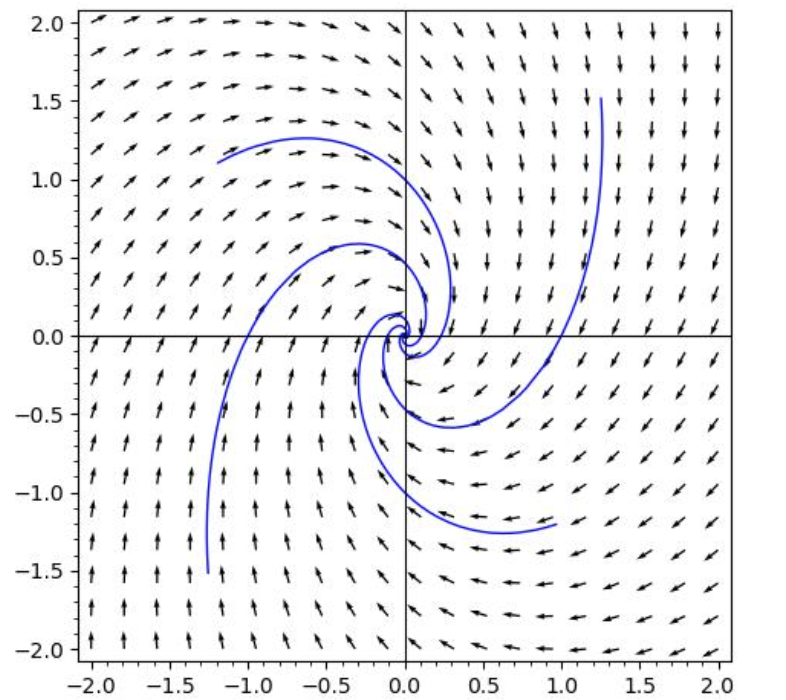

A has COMPLEX eigenvalues (-p +- qi) with a negative real part (p < 0)
spiral sink

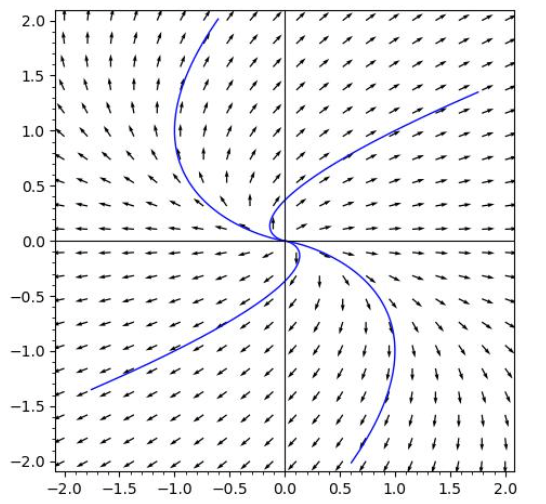

A has a single positive eigenvalue and only one linearly independent eigenvector. in other words, lambda is a defective eigenvalue
improper nodal source

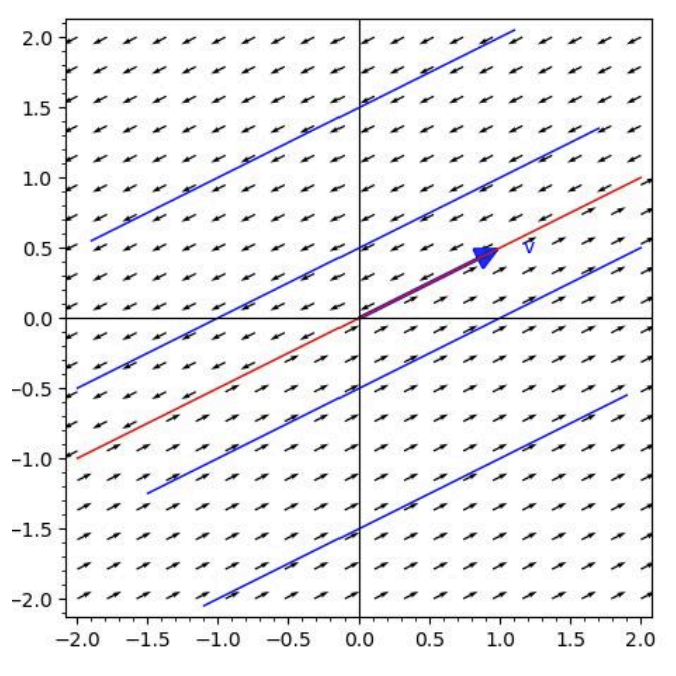

A has a single eigenvalue that equals zero and only one linearly independent eigenvector. In other words, zero is a defective eigenvalue
parallel lines

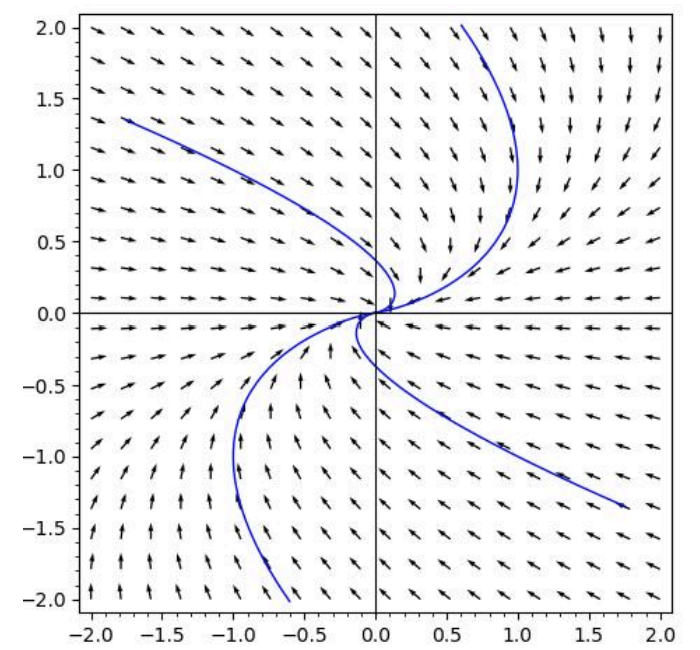

A has a single negative eigenvalue and only one linearly independent eigenvector. In other words, lambda is a defective eigenvalue
Improper nodal sink
