Experiment to measure the speed of sound in air

0.0(0)
studied byStudied by 0 people
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
Card Sorting

1/7

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

8 Terms

1
New cards

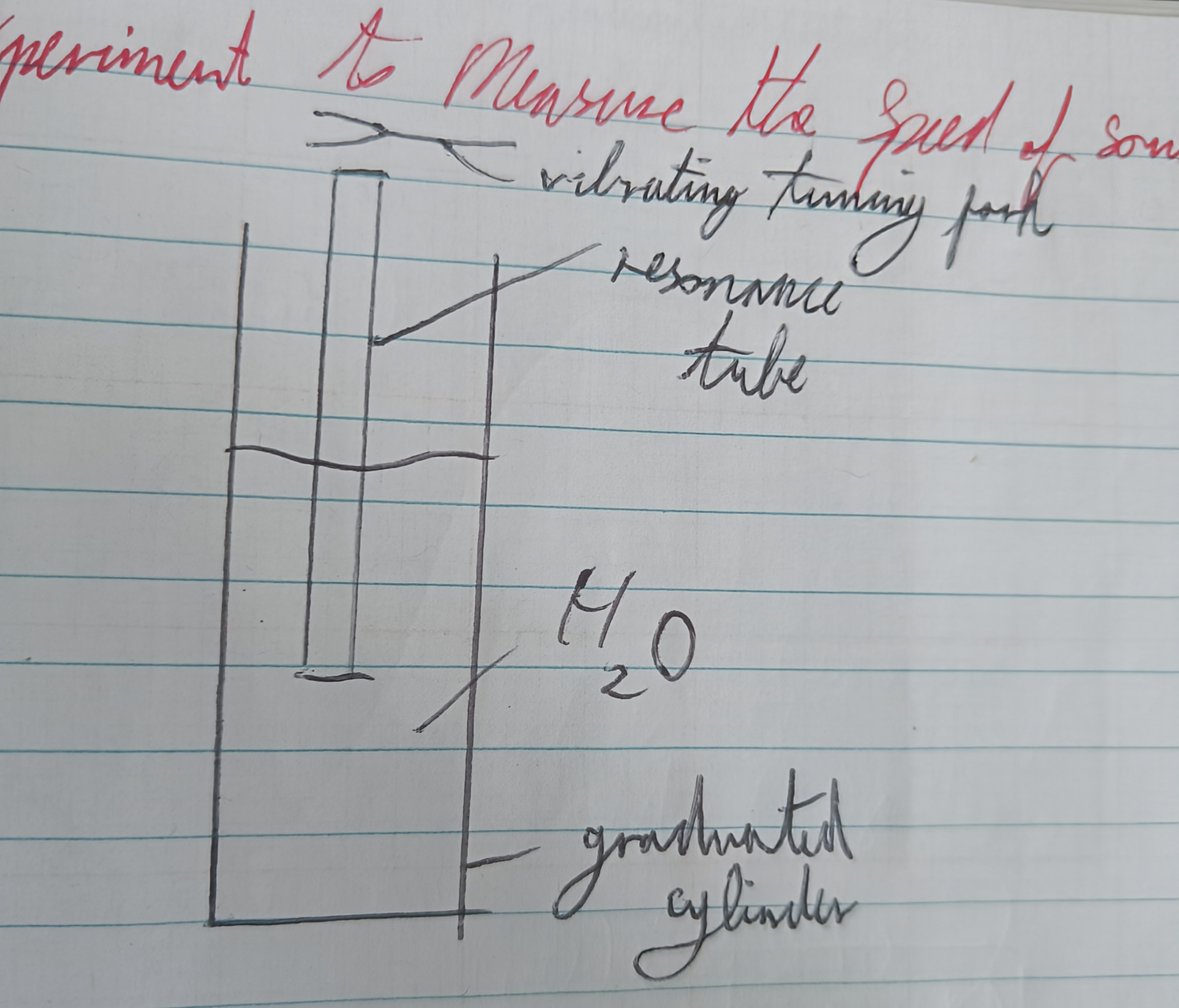

Draw a diagram of this experiment

knowt flashcard image
2
New cards

Step 1

Set up apparatus as shown with the resonance tube resting on the bottom of the graduated cylinder

3
New cards

Step 2

Hold a vibrating tuning fork above the resonance tube and raise it until the first loudest sound is heard

4
New cards

Step 3

Measure l and d and record the frequency stamped on the tuning fork

5
New cards

Step 4

Calculate the speed of sound from C = 4f (l +0.3d)

6
New cards

Step 5

Repeat steps 1-4 with two more different tuning forks

7
New cards

Step 6

Average the C's

8
New cards

What is d in this experiment?

Diameter of the resonance tube
