eyepiece

The part of the microscope you look through - contains the ocular lens 10x

<p>The part of the microscope you look through - contains the ocular lens 10x</p>
2
New cards

coarse adjustment knob

Moves the stage up and down

<p>Moves the stage up and down</p>
3
New cards

fine adjustment knob

A small wheel that sharpens the image or makes the slide more clear

<p>A small wheel that sharpens the image or makes the slide more clear</p>
4
New cards

arm

Used to support the microscope when carried.

<p>Used to support the microscope when carried.</p>
5
New cards

nosepiece

holds the scanning, low, and high-power objectives and can be rotated to change magnification.

<p>holds the scanning, low, and high-power objectives and can be rotated to change magnification.</p>
6
New cards

high power objective

An objective lens- with a magnification of 40x (blue)

<p>An objective lens- with a magnification of 40x (blue)</p>
7
New cards

low power objective lens

An objective lens- with a magnification of 10x (yellow)

<p>An objective lens- with a magnification of 10x (yellow)</p>
8
New cards

diaphragm

A wheel under the stage that regulates the amount of light on the slide

<p>A wheel under the stage that regulates the amount of light on the slide</p>
9
New cards

base

supports the microscope (on bottom)

<p>supports the microscope (on bottom)</p>
10
New cards

stage

supports the slide being viewed (flat part where you put the slide)

<p>supports the slide being viewed (flat part where you put the slide)</p>
11
New cards

stage clip

These metal pieces hold the slide in place

<p>These metal pieces hold the slide in place</p>
12
New cards

Body tube

Separates the eye-piece lens from the objective lens

<p>Separates the eye-piece lens from the objective lens</p>
13
New cards

Light Source

Projects light upwards through the diaphragm

<p>Projects light upwards through the diaphragm</p>
14
New cards

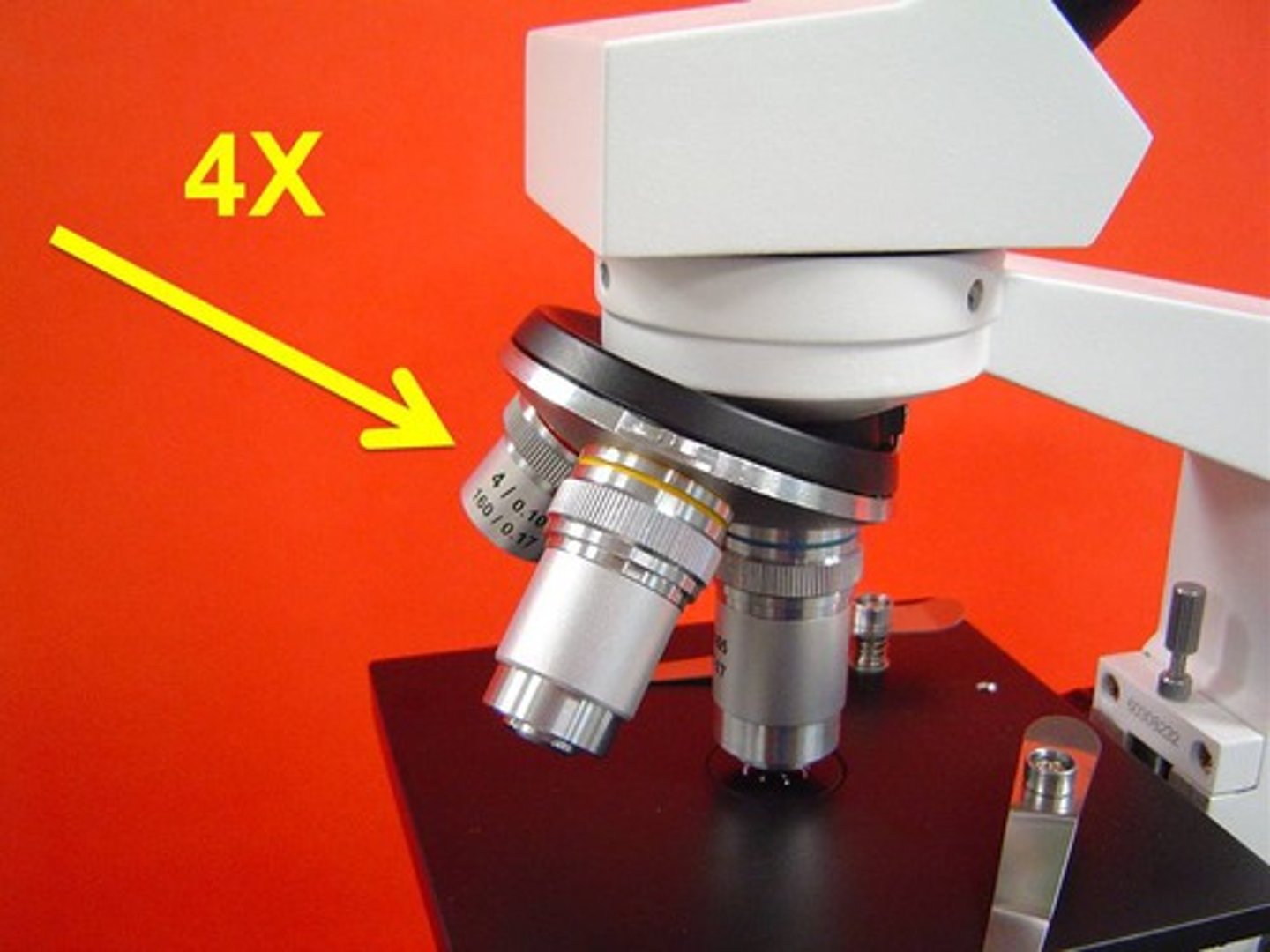

Scanning Objective

A lens- with a magnification of 4x (red)

<p>A lens- with a magnification of 4x (red)</p>
15
New cards

Body Tube

provides space between focal lens and objective lenses for magnification

16
New cards

Eyepiece / Occular lens

The part of the microscope that you look through, contains the occular lens

17
New cards

eyepiece / occular lens magnification

10x

18
New cards

total magnification of scanning & eyepiece

40x

19
New cards

total magnification of low power & eyepiece

100x

20
New cards

total magnification of high power & eyepiece

400x
