Lesson 24 - Radiography of hindlimb SA

What are the views for the ox coxae?

Ventro-dorsal, lateral-lateral view

What are the positions for radiographing the ox coxae?

Dorsal recumbency and frog position

What are the views for the hip

Medio-lateral, Cranio-caudal view

What is another name for the medio-lateral view of the hip?

Acetabular rim view

What are the views for the femur?

Medio-lateral, Cranio-caudal view

What are the views for the stifle

Medio-lateral, cranio-caudal, skyline view

What are the views for the fibula and tibia?

Medio-lateral, cranio-caudal view

What are the views for the tarsus and digits?

Medio-lateral, Dorso-planter and splayed view

What are must dos when imaging the pelvis and femur?

Entire pelvis and femur must be visible and symmetrical, patella superimposed over the midline of femur, proximal femoral diaphyses must superimpose on the ischial tuberosities

What is the radiolucent triangular region immediately caudal to the patellar ligament

Infrapatellar fat pad

What does the fibula articulate with proximally?

Caudolateral aspect of the tibia

What are the fabella like in cats?

Only one fabella may be present

How is the patella different in cats than dogs?

Patella is more flat and asymmetrical in cats

What animal has a more prominent tibial plateau?

Dogs

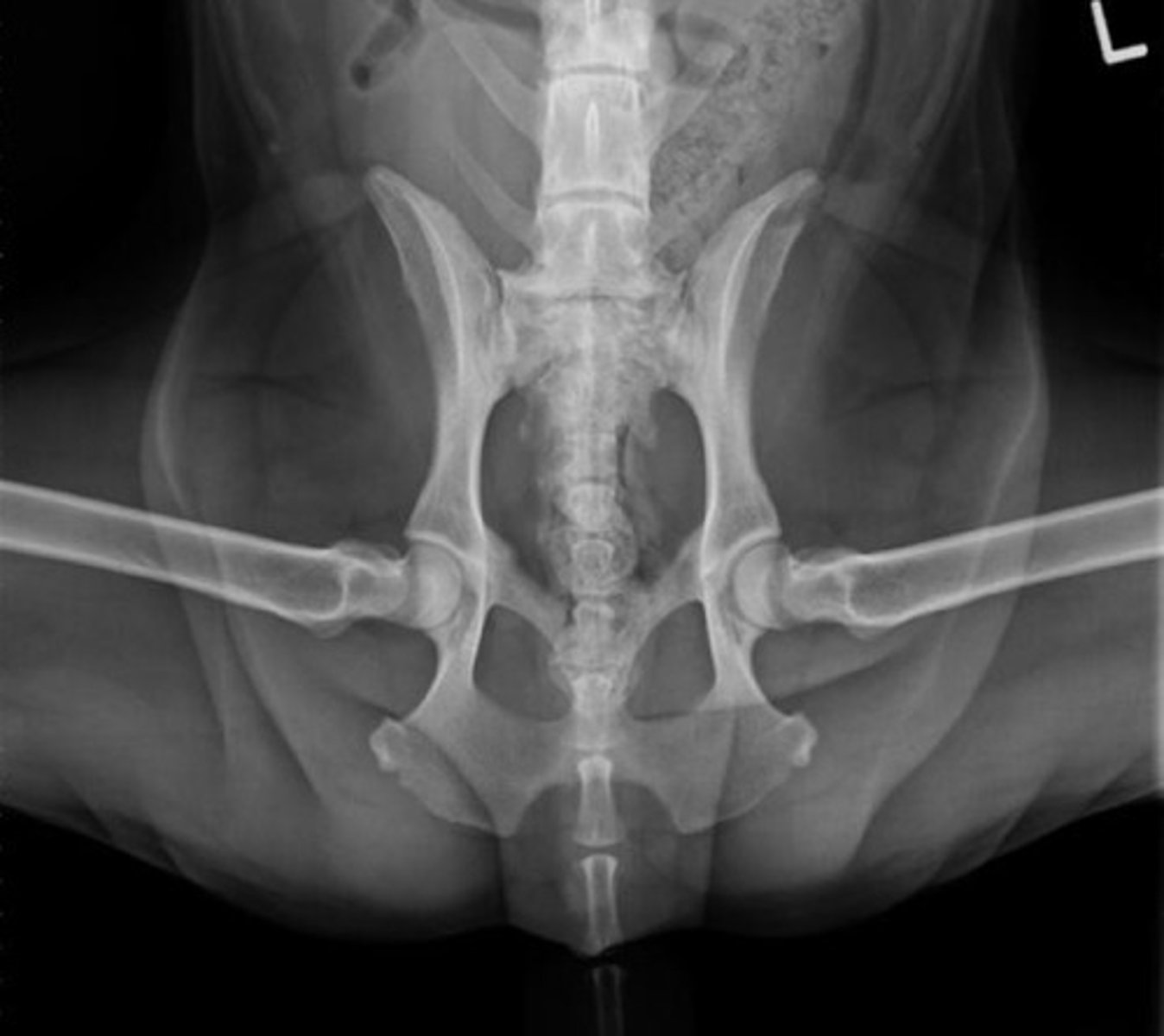

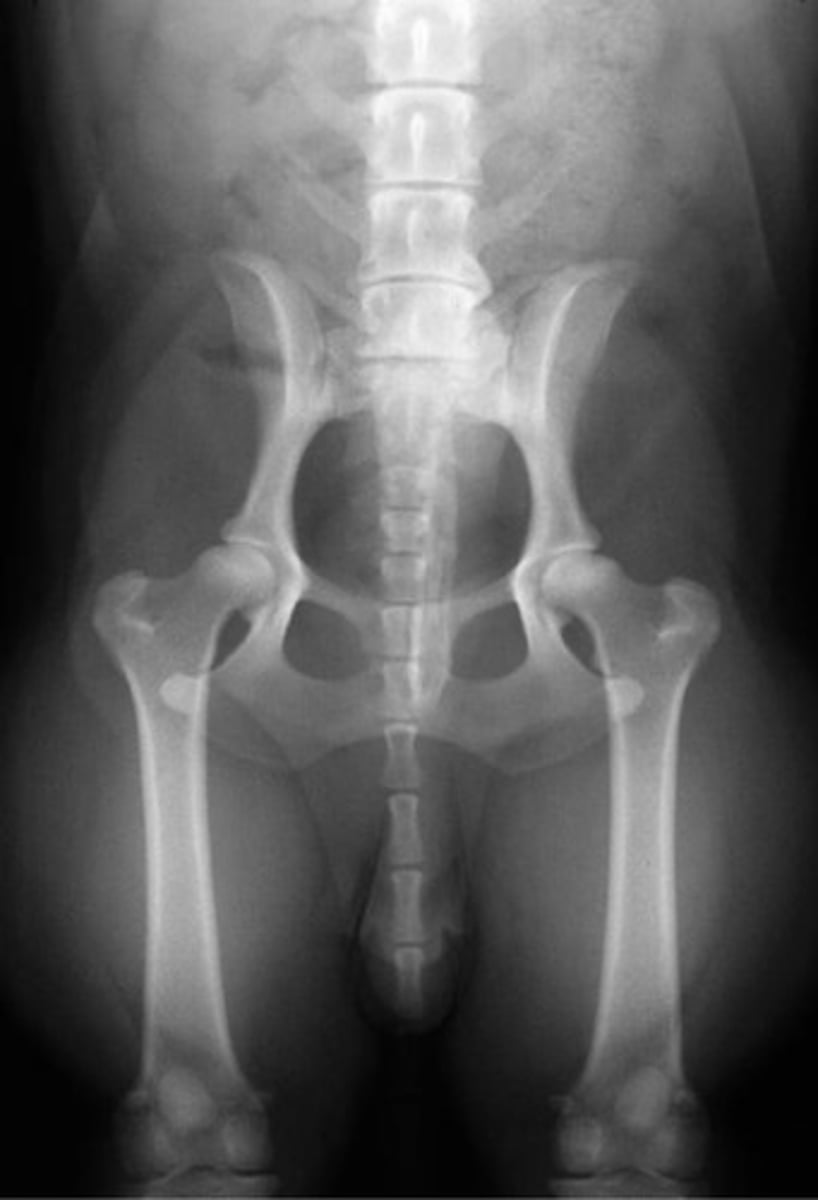

What view is this?

Ventro-dorsal view

What position is this?

Frog position in dorsal recumbency

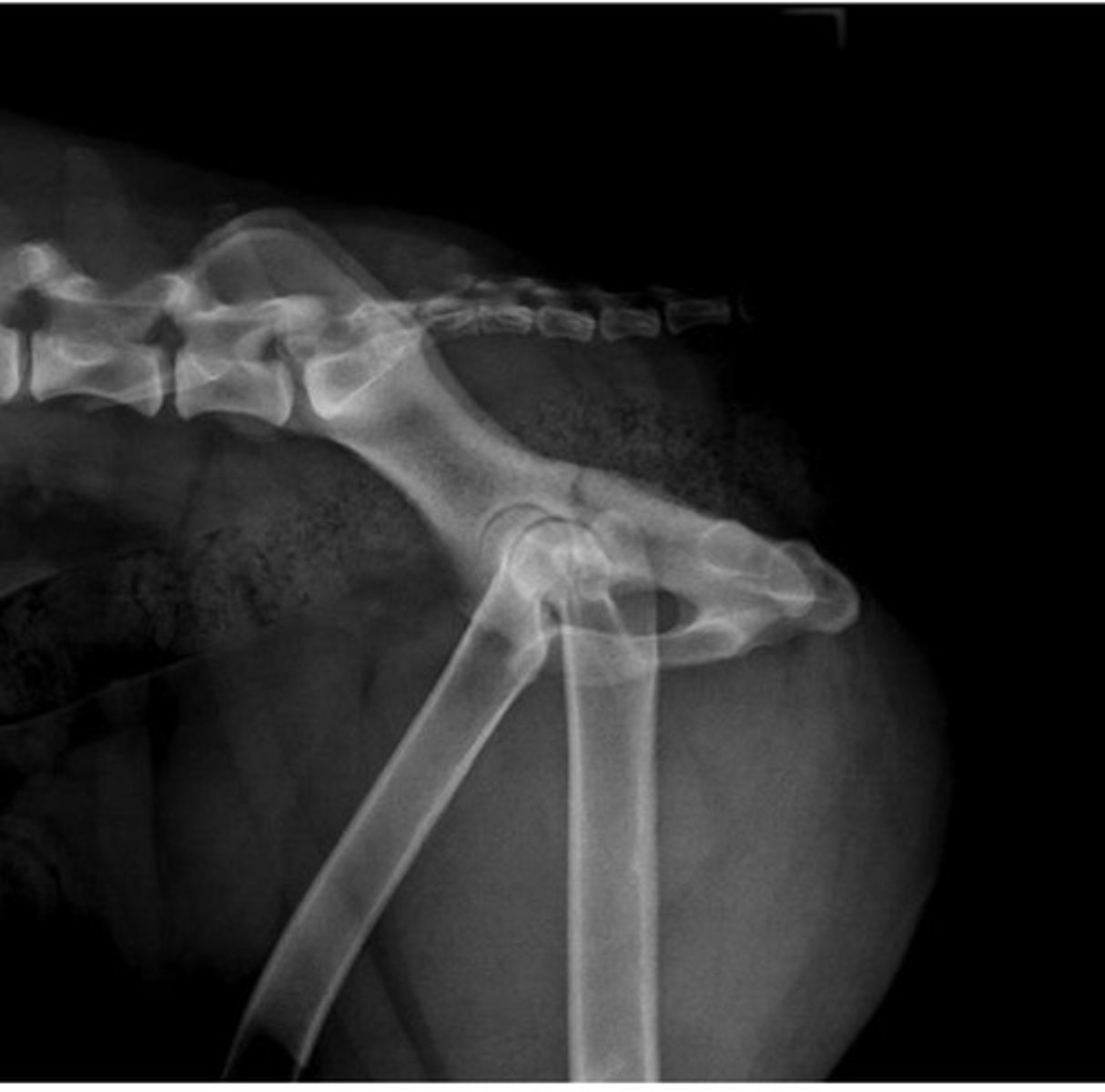

What is this view?

Lateral-lateral view

What is this view?

Acetabular rim view

What is this view?

Cranio-caudal view

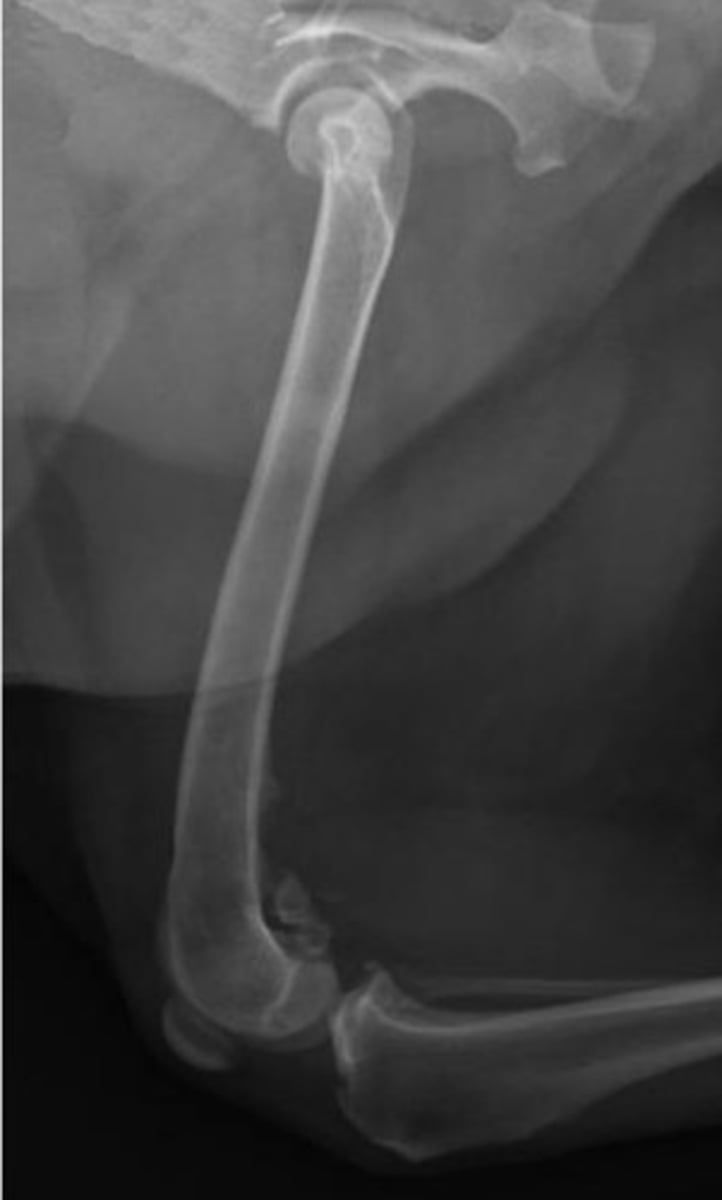

What is this view?

Medio-lateral view

What is this view?

Medio-lateral view

What is this view?

Cranio-caudal view

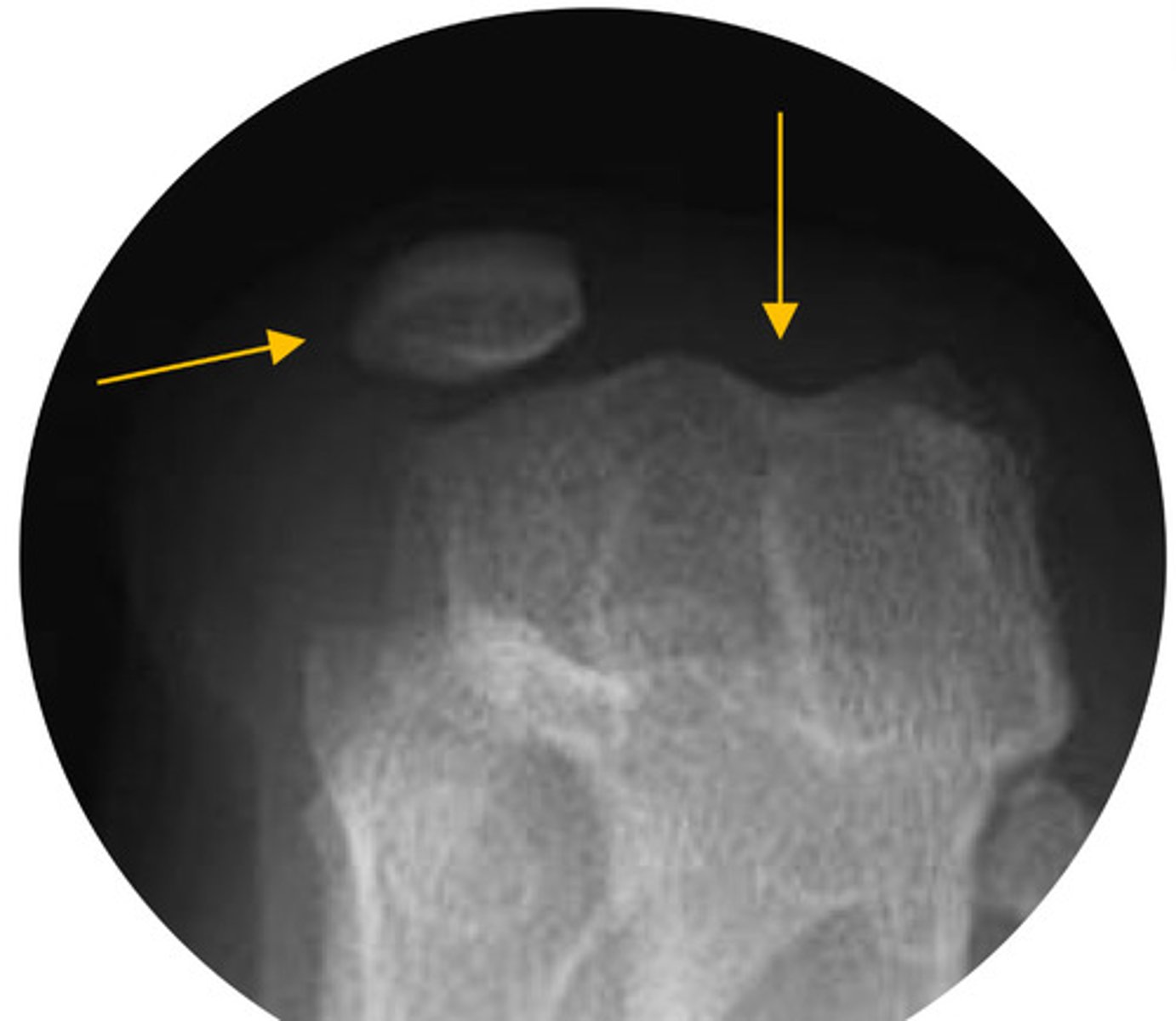

What is this view?

Skyline view

What is another name for the skyline view?

Cranio proximal - cranial distal view

What is the importance of the skyline view in hindlimb?

View patellar luxation

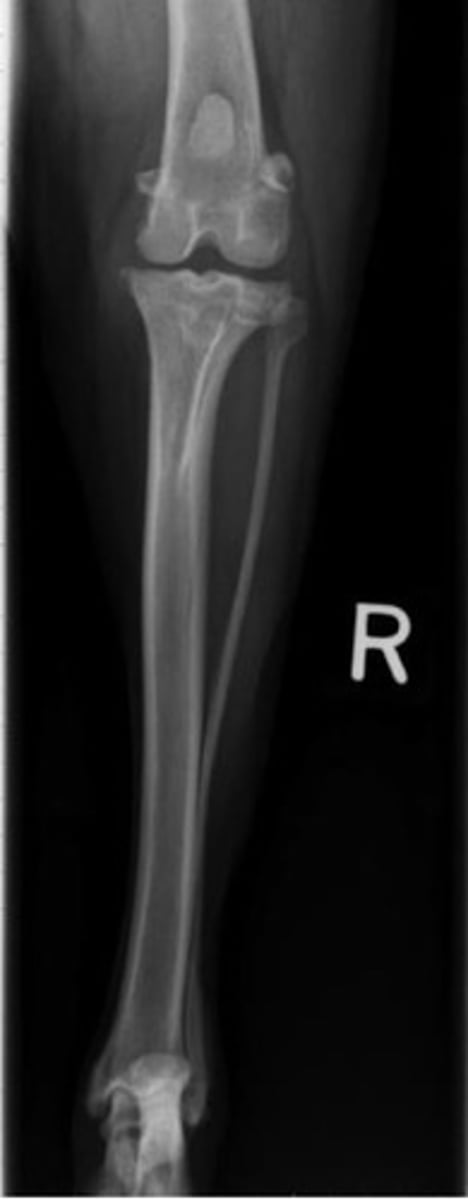

What is this view?

Cranio-caudal view

What is this view?

Medio-lateral view

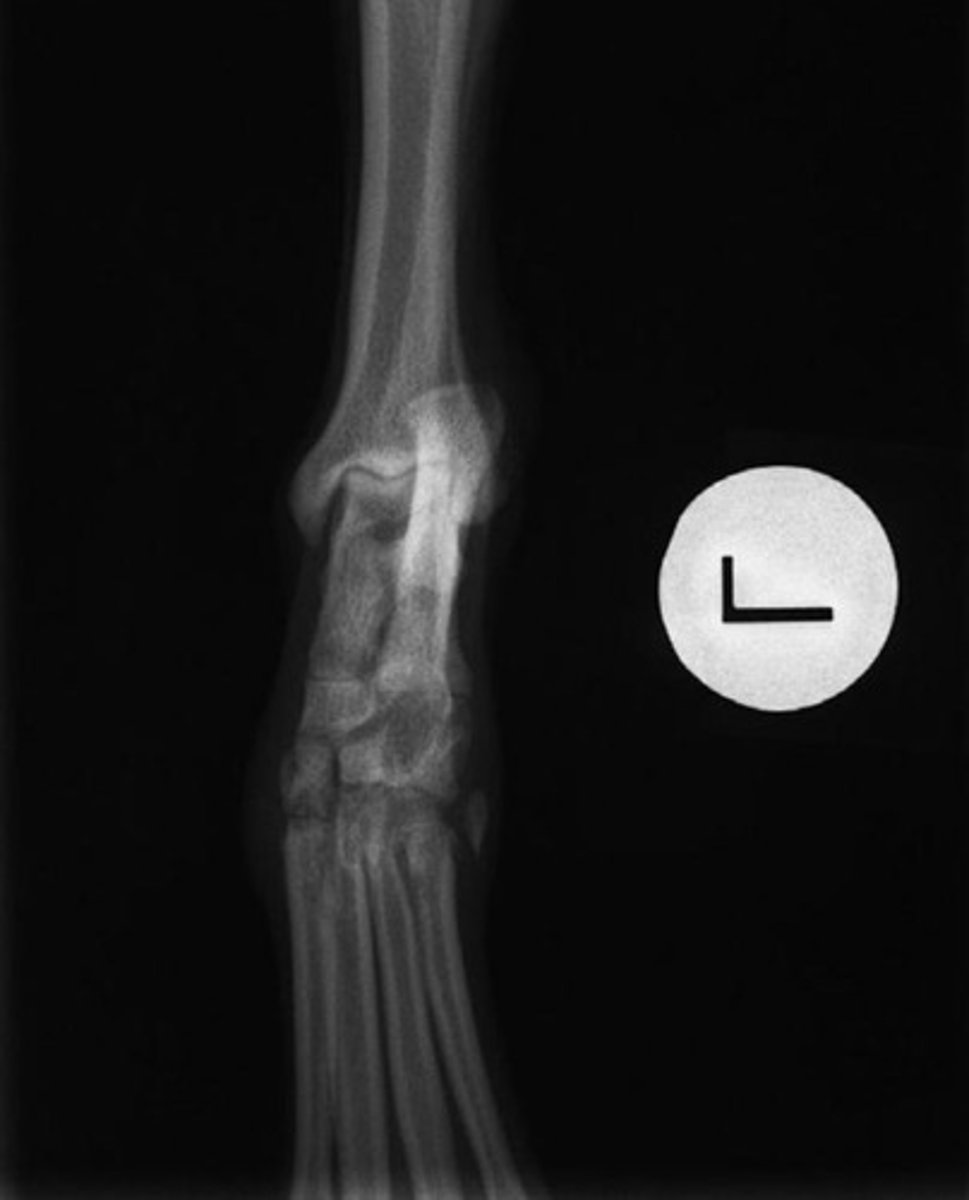

What is this view?

Dorso-plantar view

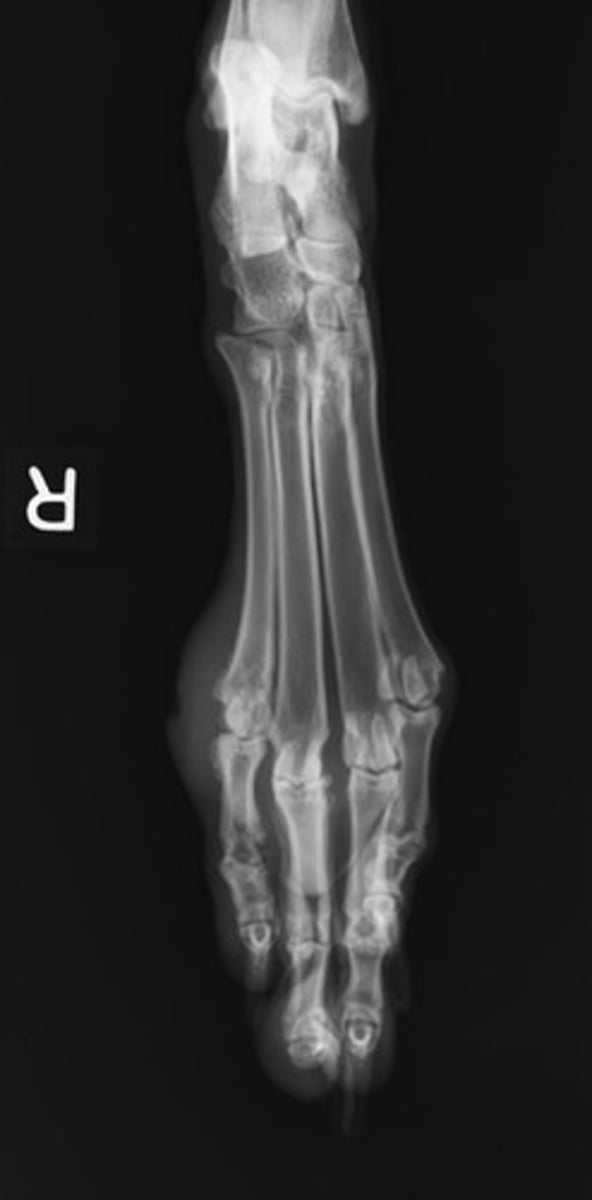

What is this view?

Dorso-plantar view

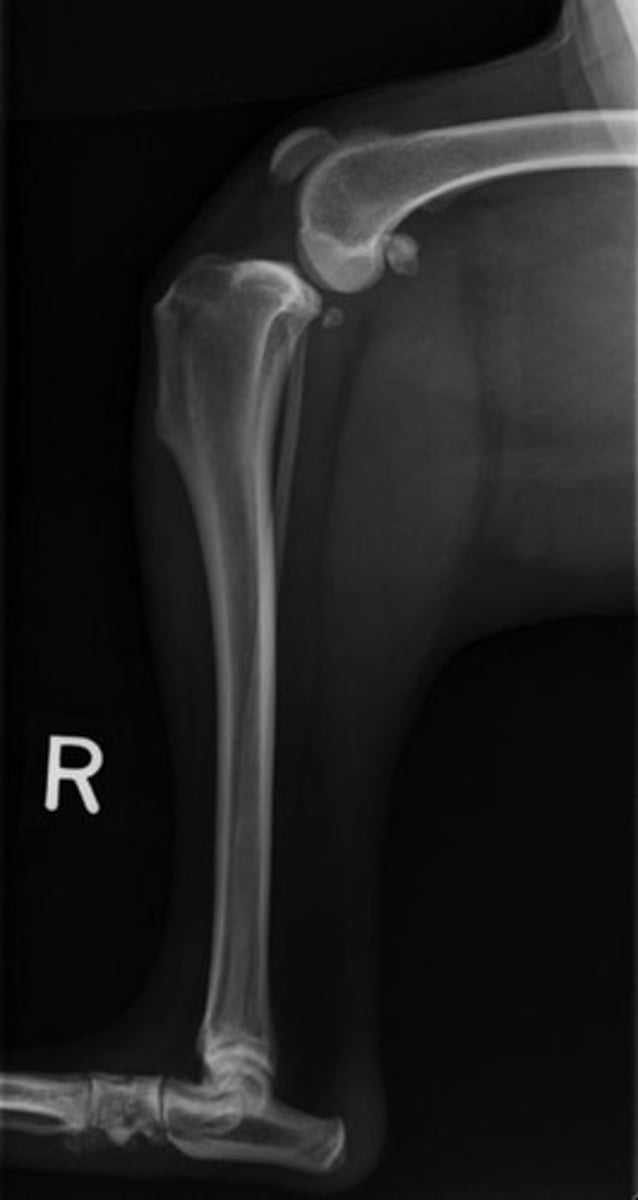

What is this view?

Medio-lateral view

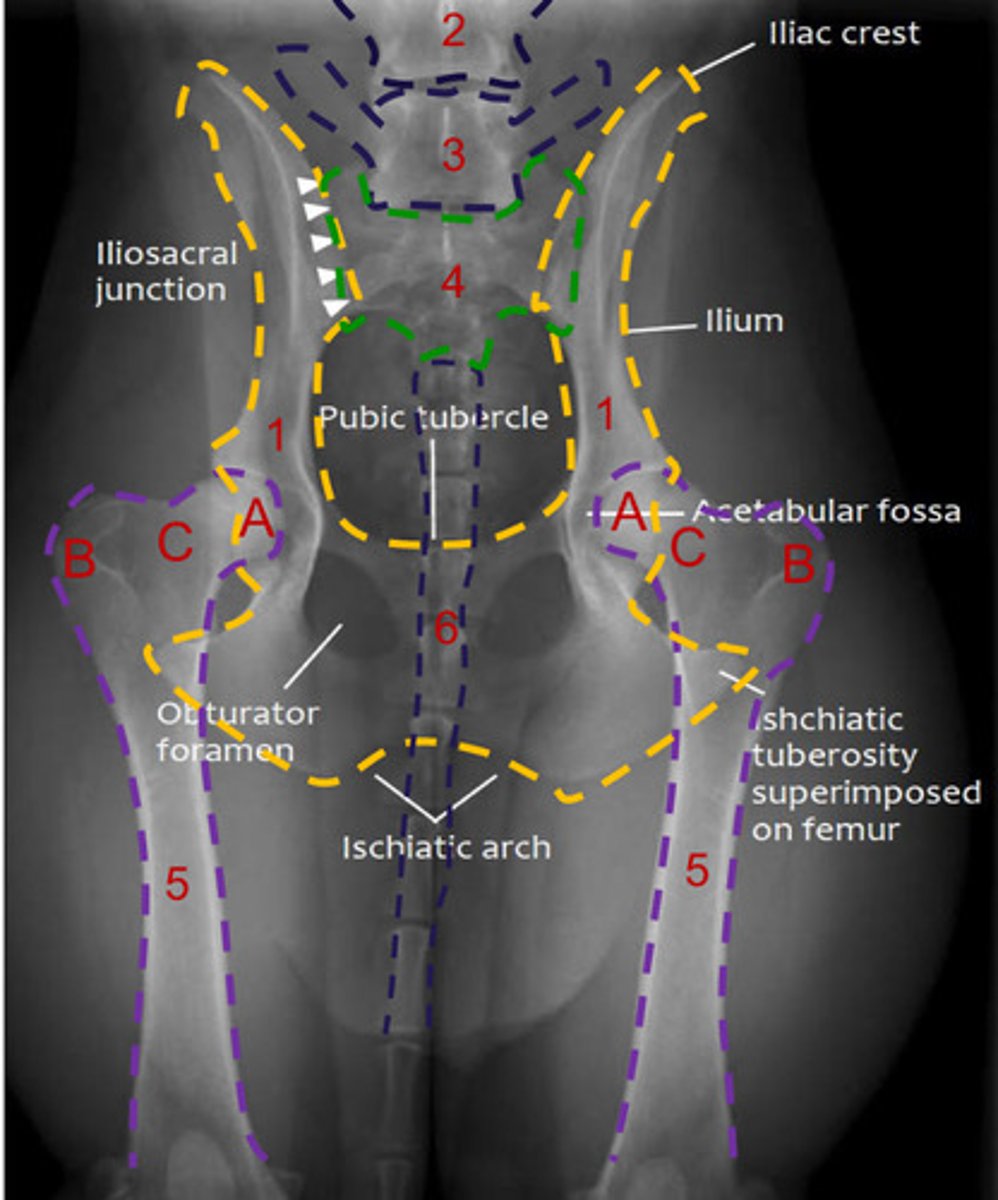

What is number 1?

Pelvis

What is number 2?

L6

What is number 3?

L7

What is number 4?

Sacrum

What is number 5?

Femur

What is letter A?

Head

What is letter B?

Greater trochanter

What is letter C?

Neck

What is number 6?

Coccygeal vertebra

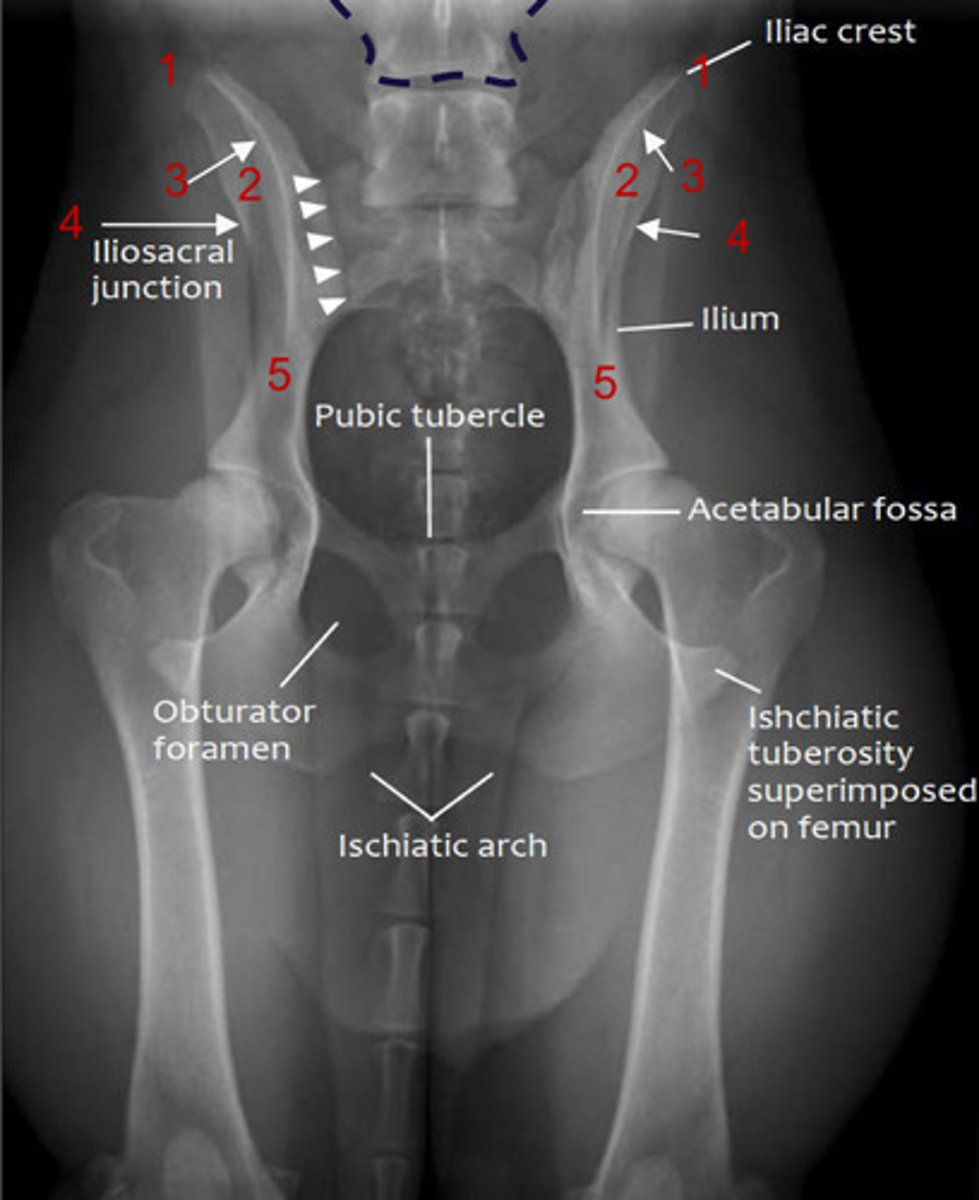

What is number 1?

Crest

What is number 2?

Wing

What is number 3?

Tuber sacrale or dorsal iliac spine

What is number 4?

Tuber coxae or ventral iliac spine

What is number 5?

Body of ilium

What is number 1?

Ischiatic sympysis

What is number 2?

Obturator foramen

What is number 3?

Ischiatic spine

What is number 4?

Ischiatic table

What is number 5?

Ischiatic tuberosity

What is number 6?

Ischiatic arch

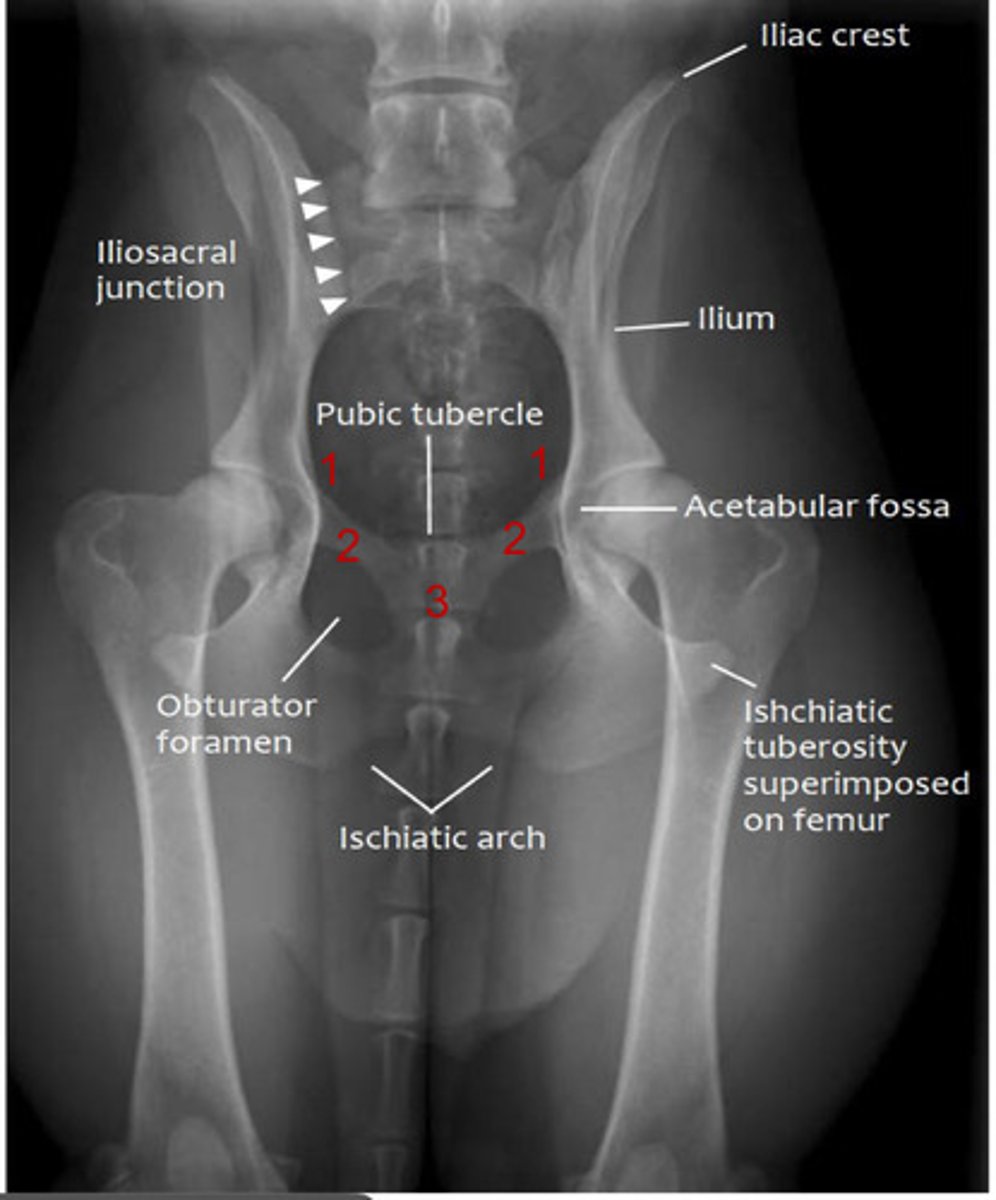

What is number 1?

Position of iliopubic eminence

What is number 2?

Pecten

What is number 3?

Pubic symphysis

What is letter B?

Lesser trochanter

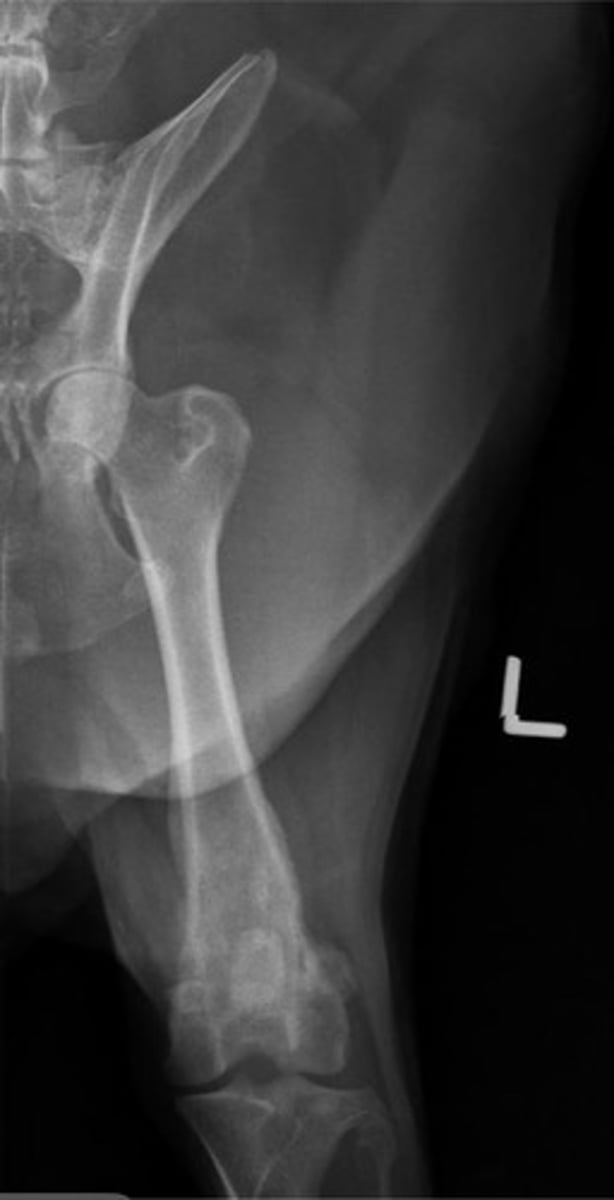

What is wrong in this radiograph?

Femoral head fracture

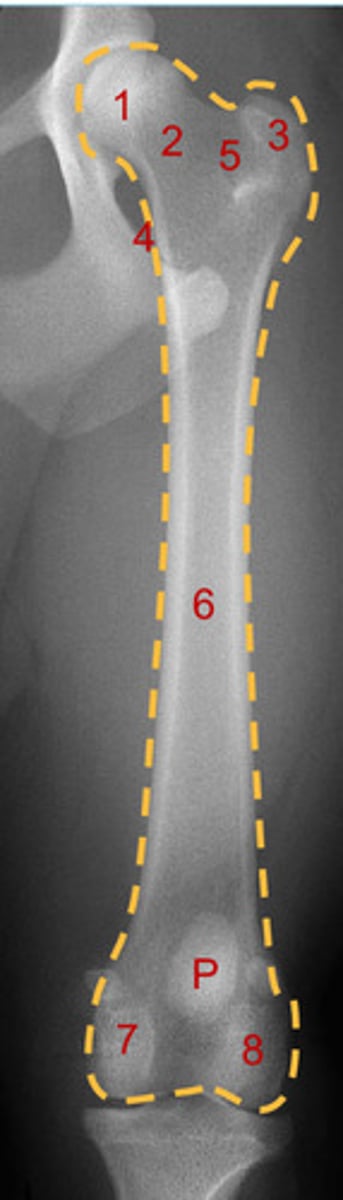

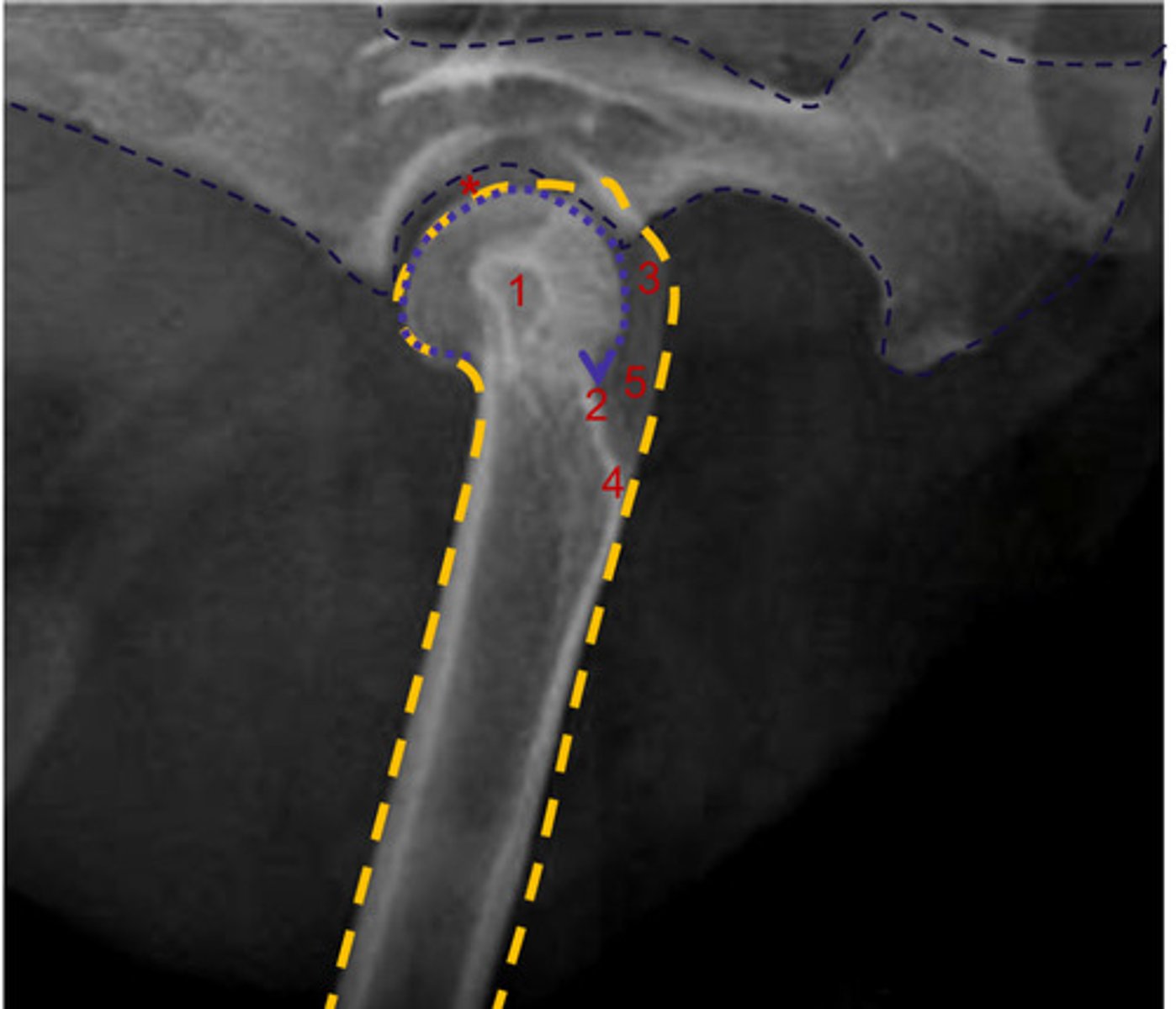

What is number 1?

Head

What is number 2?

Neck

What is number 3?

Greater trochanter

What is number 4?

Lesser trochanter

What is number 5?

Trochanteric fossa

What is the asterick?

Acetabulum

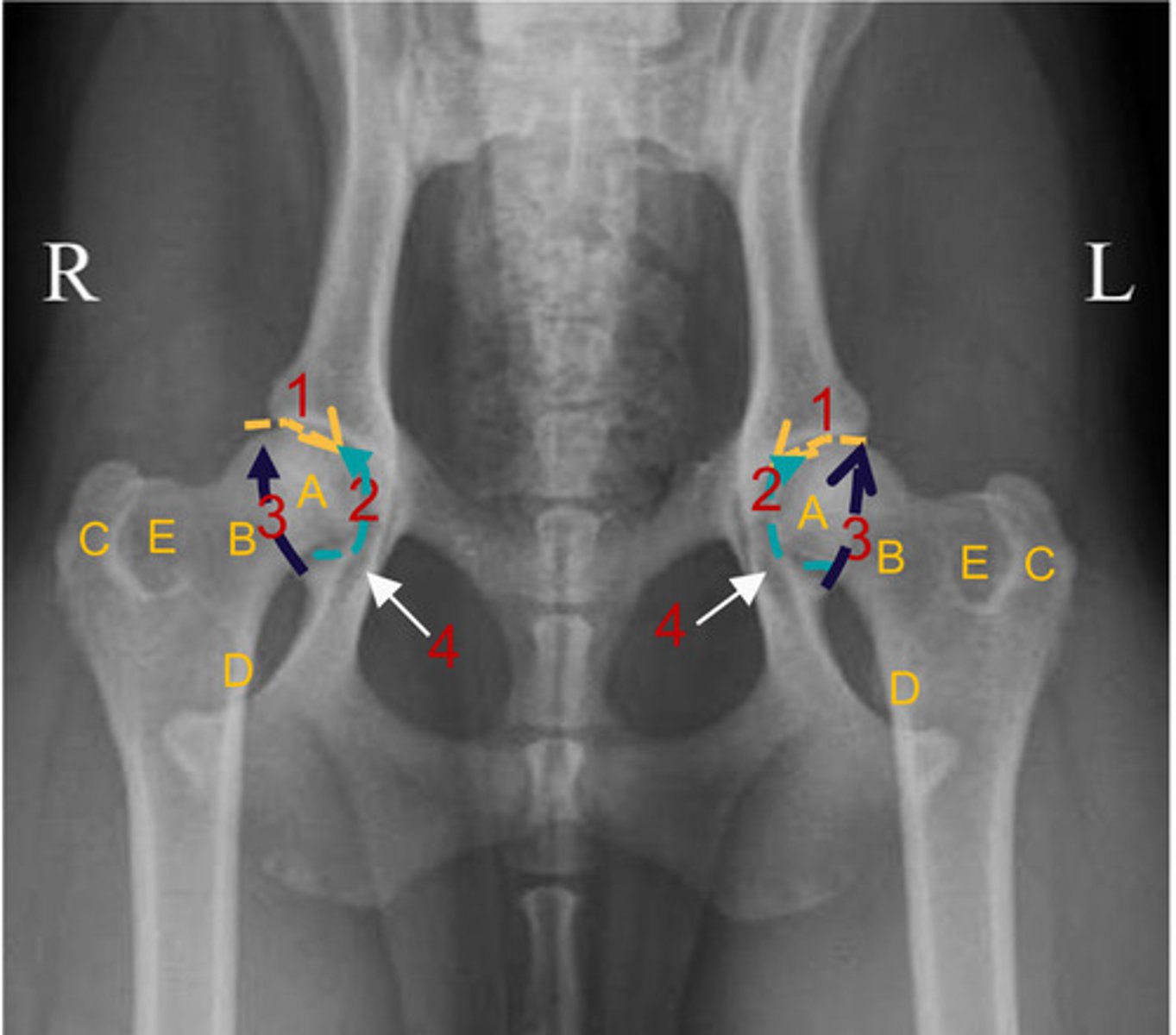

What is number 1?

Cranial acetabular edge

What is number 2?

Ventral acetabular edge

What is number 3?

Dorsal acetabular edge

What is number 4?

Acetabular notch

What is C?

Greater trochanter

What is D?

Lesser trochanter

What is E?

Trochanteric fossa

What is number 7?

Medial condyle

What is number 8?

Lateral condyle

What is P?

Patella

What is number 7?

Nutrient foramen

What is Fa?

Fabellae

What is Ps?

Popliteal sesamoid bone

What is number 9?

Trochlea

What is number 8?

Condyles

What is 1a?

Medial trochlear ridge

What is 1b?

Lateral trochlear ridge

What is number 3?

Base of inter-condyloid fossa

What is number 4?

Lateral condyle

What is number 5?

Medial condyle

What is number 6?

Tibial plateau

What is number 7?

Tibial tuberosity

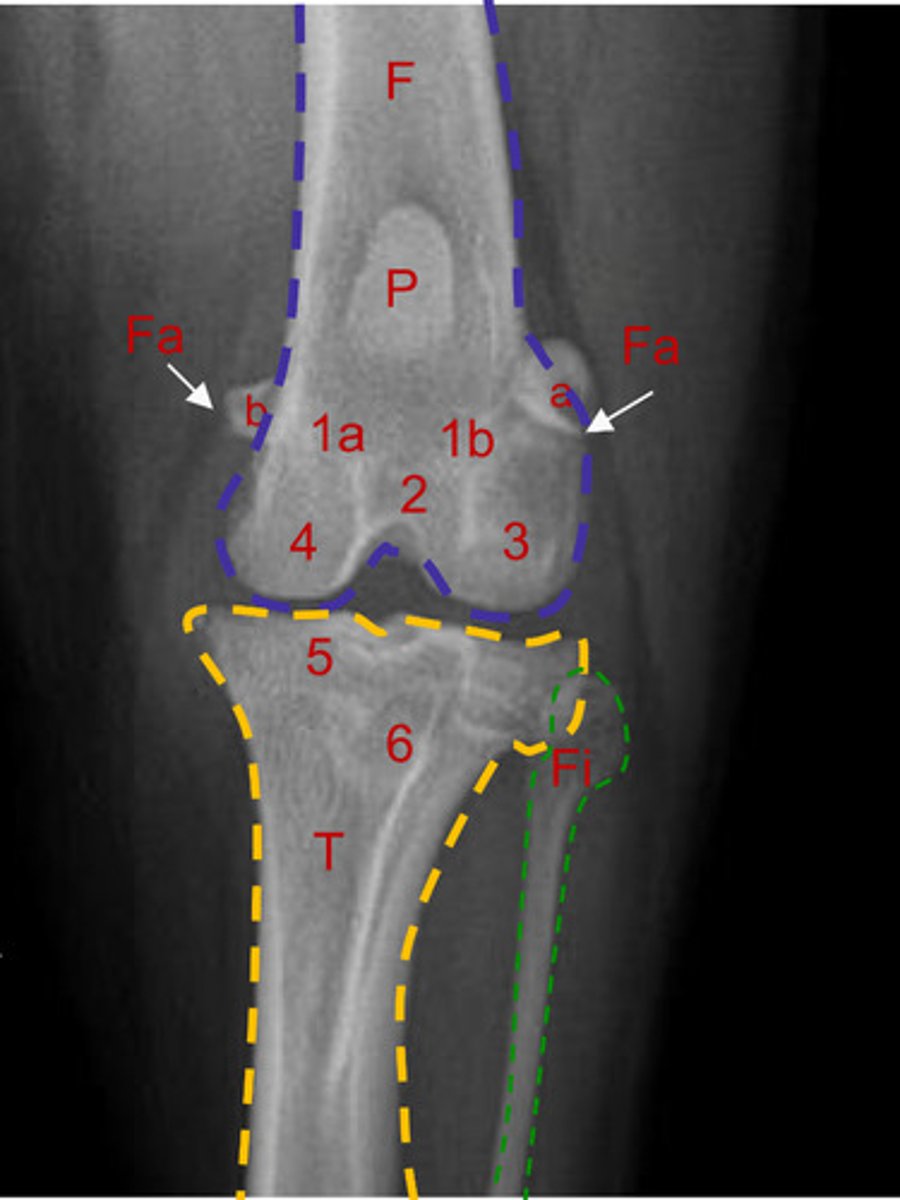

What is number 4?

Medial condyle

What is number 3?

Lateral condyle

What is number 1a?

Medial trochlear ridge

What is number 1b?

Lateral trochlear ridge

What is number 6?

Tibial tuberosity

What is number 5?

Tibial plateau

What is the issue shown in the radiograph?

Patellar luxation

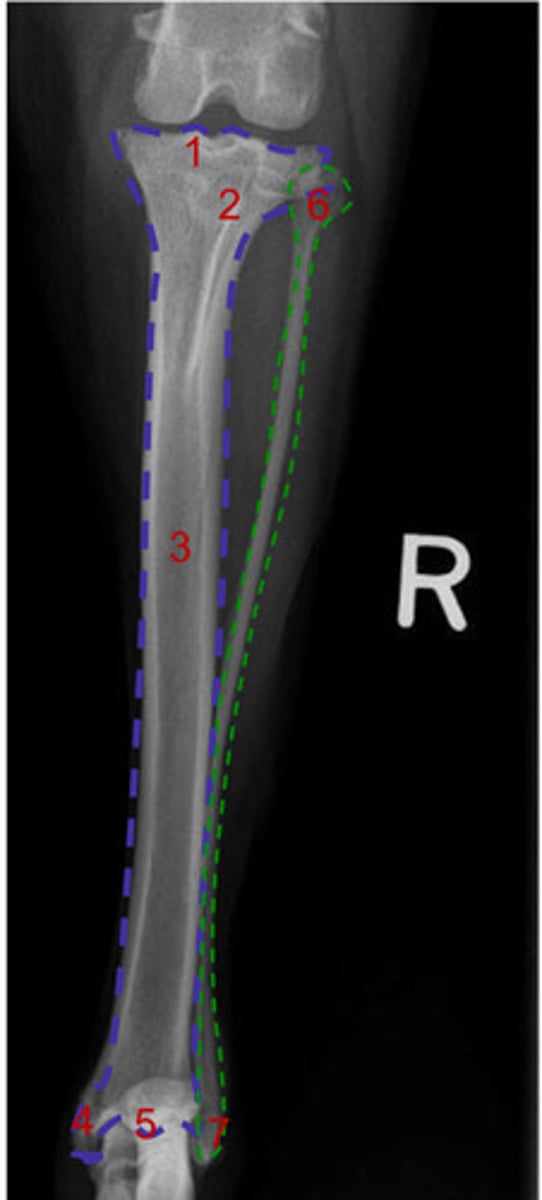

What is number 7?

Lateral malleolus

What is number 4?

Medial malleolus

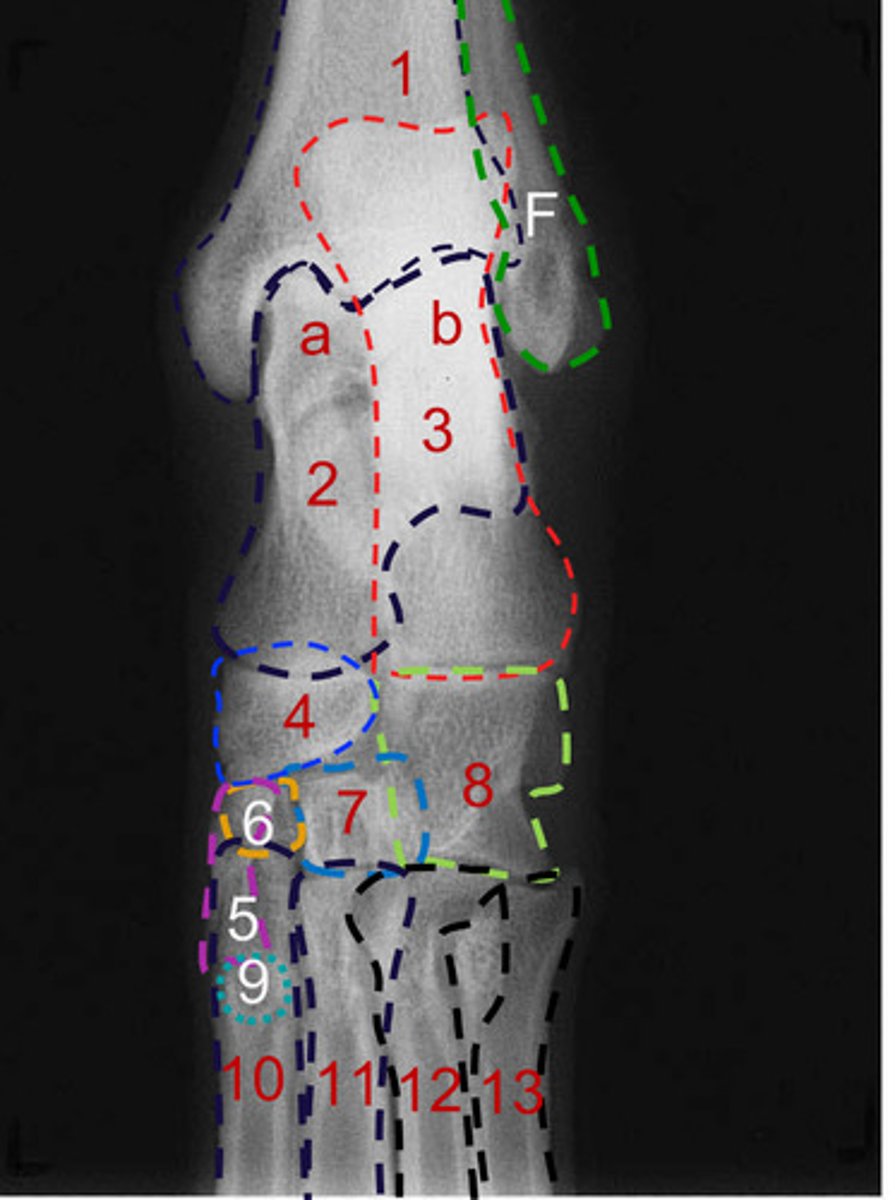

What is number 1?

Tibia

What is number 2?

Talus

What is number 3?

Calcaneus

What is number 4?

Central tarsal bone

What is number 5?

Tarsal bone 1

What is number 6?

Tarsal bone 2

What is number 7?

Tarsal bone 3

What is number 9?

Metatarsal bone 1
