Radiography: Maxillary Anatomy Labeling

Enamel

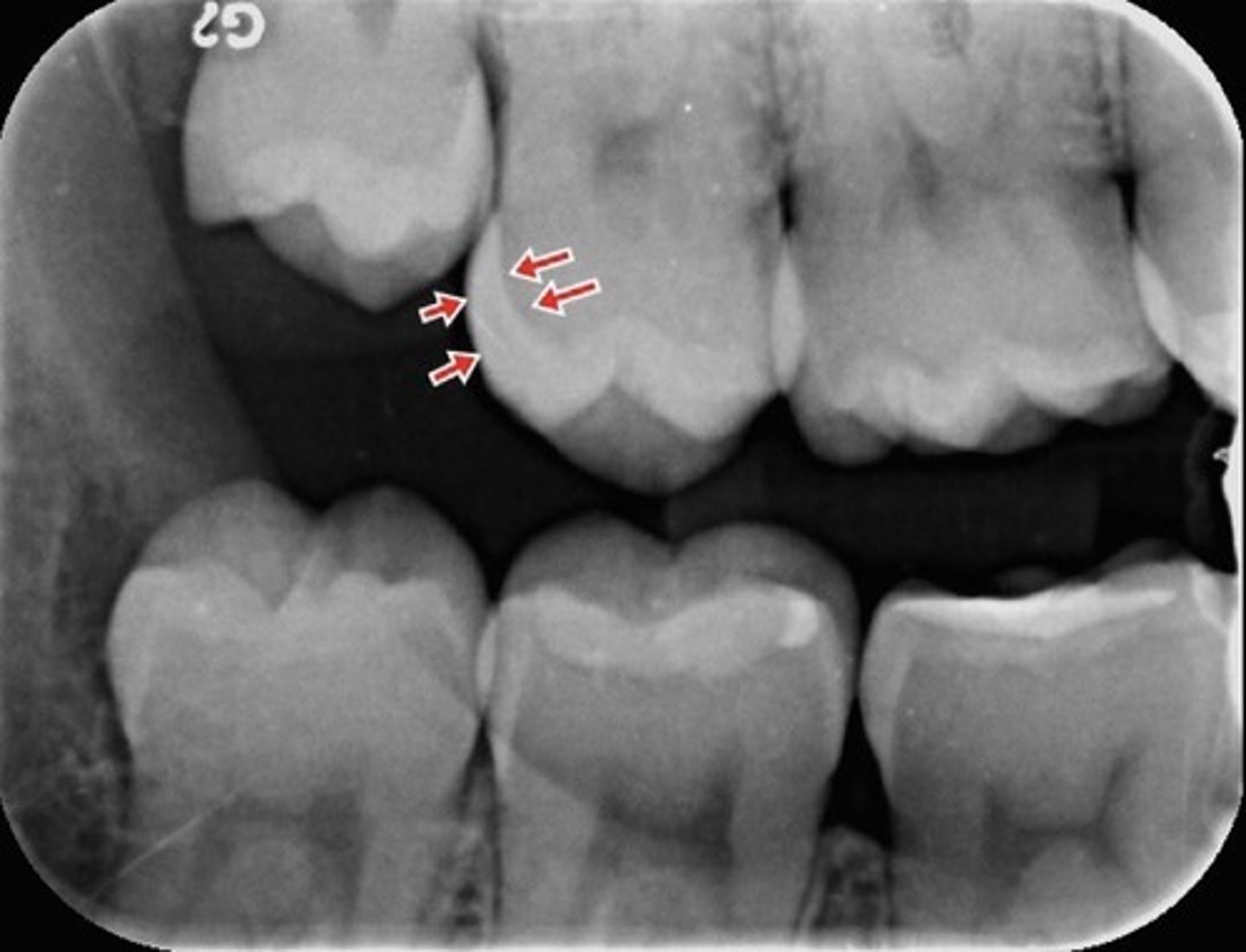

What is the arrow pointing to?

Dentin

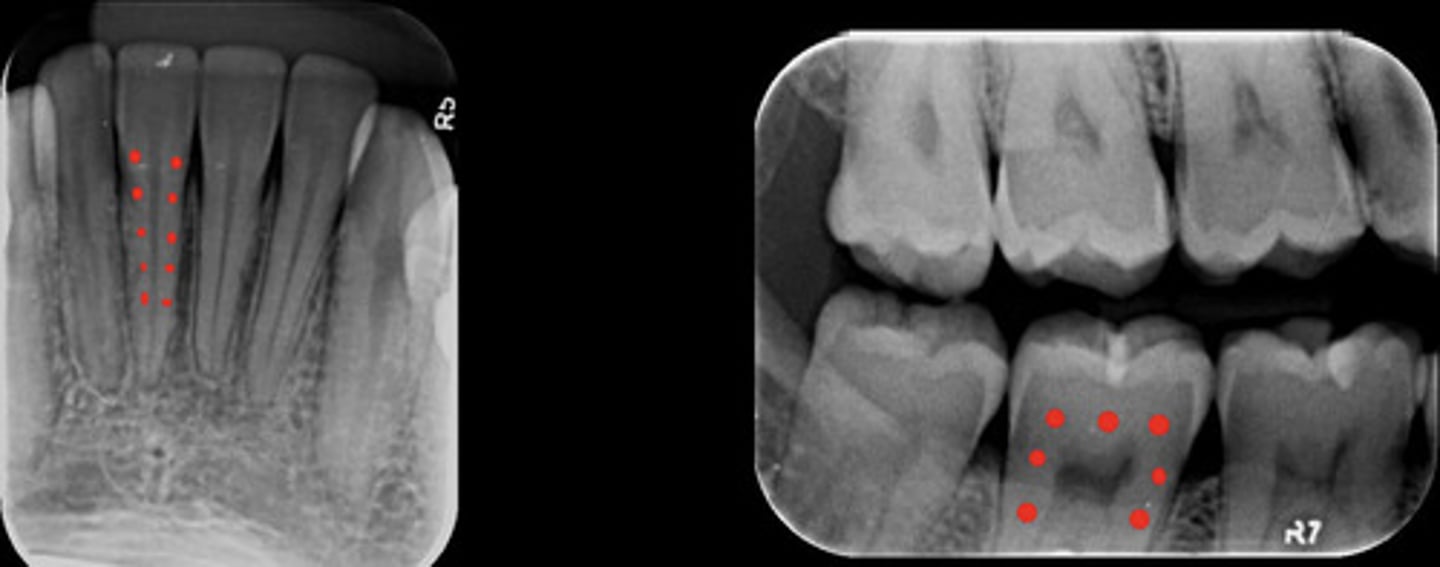

What are the red dots representing?

Hypercementosis

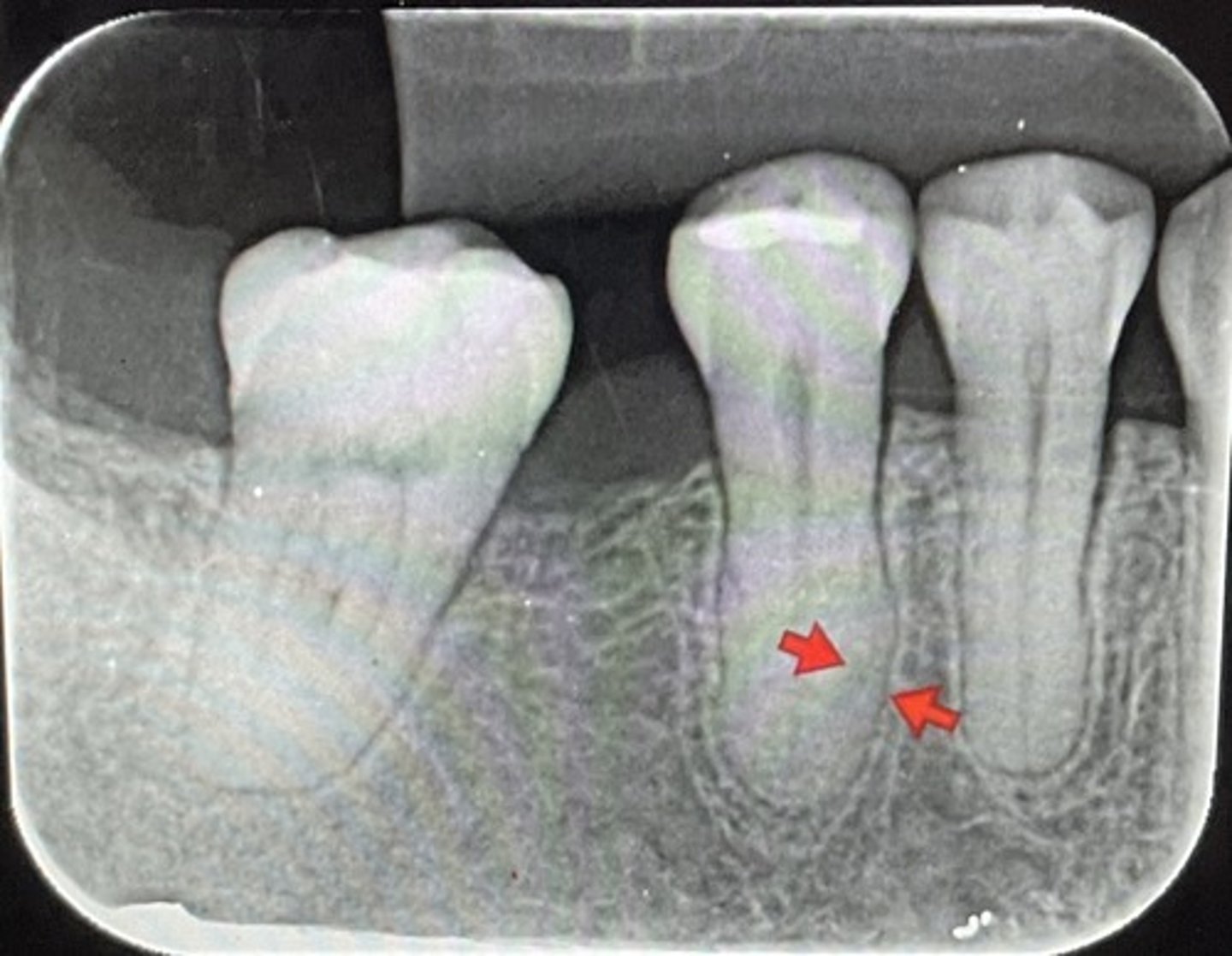

What are the red arrows representing?

Pulp chamber and root canals

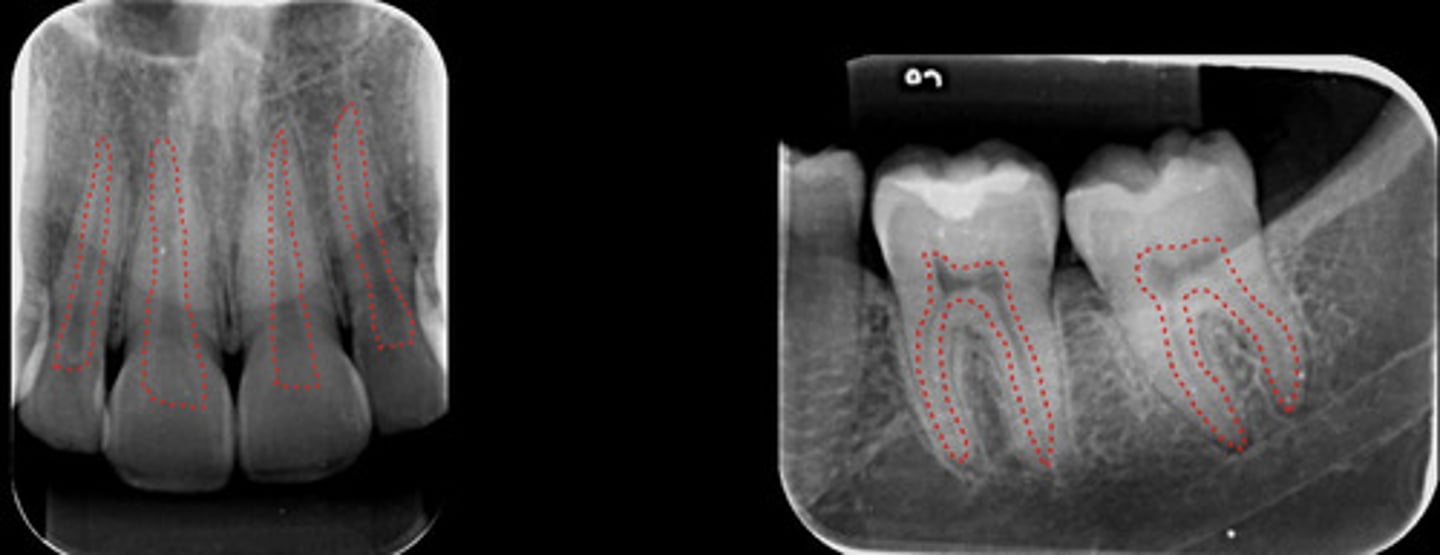

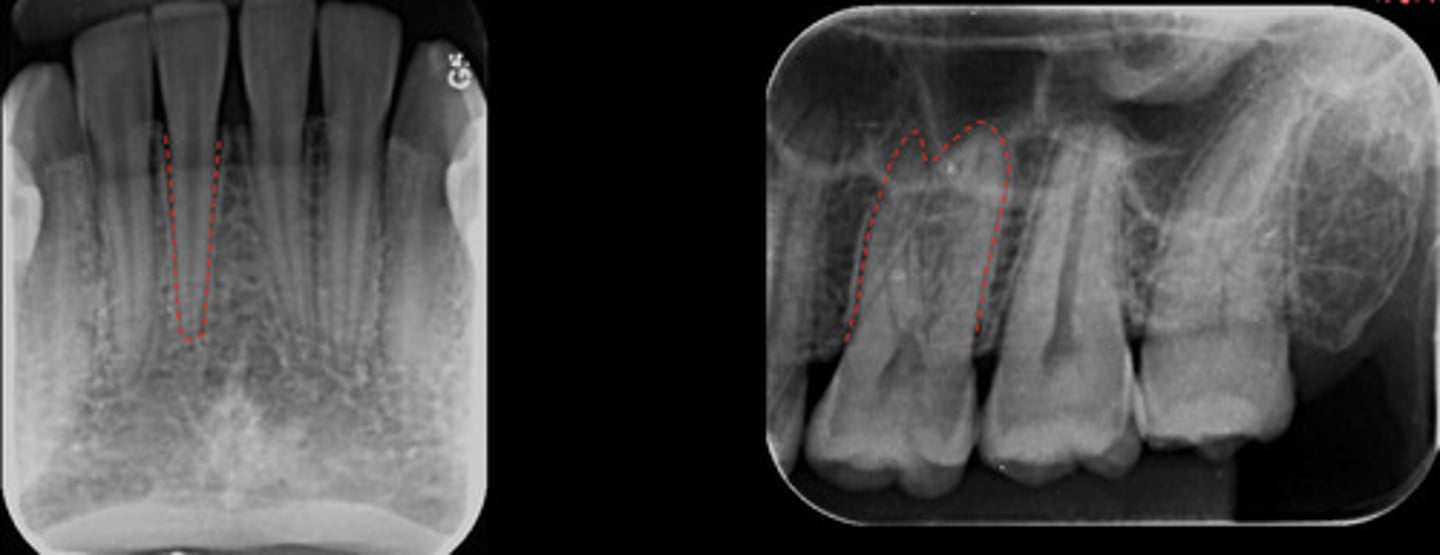

What are the dotted lines representing?

periodontal ligament space

What are the dotted lines representing?

Lamina dura

What are the red arrows pointing to?

Alveolar crest

What are the red arrows pointing to?

Alveolar bone

What are the red dots representing?

Dental papilla space

What are the red dots representing?

Dental follicle space

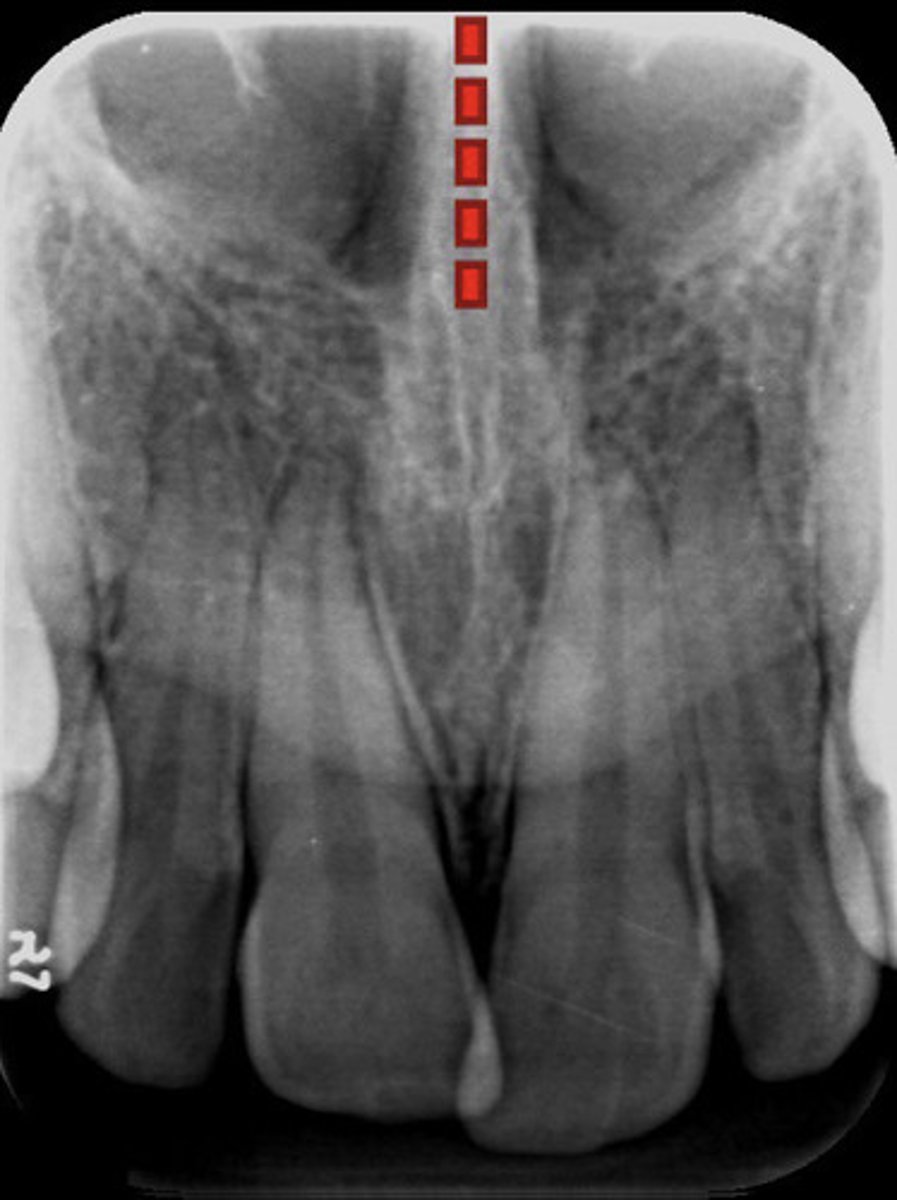

What is the red dotted line representing?

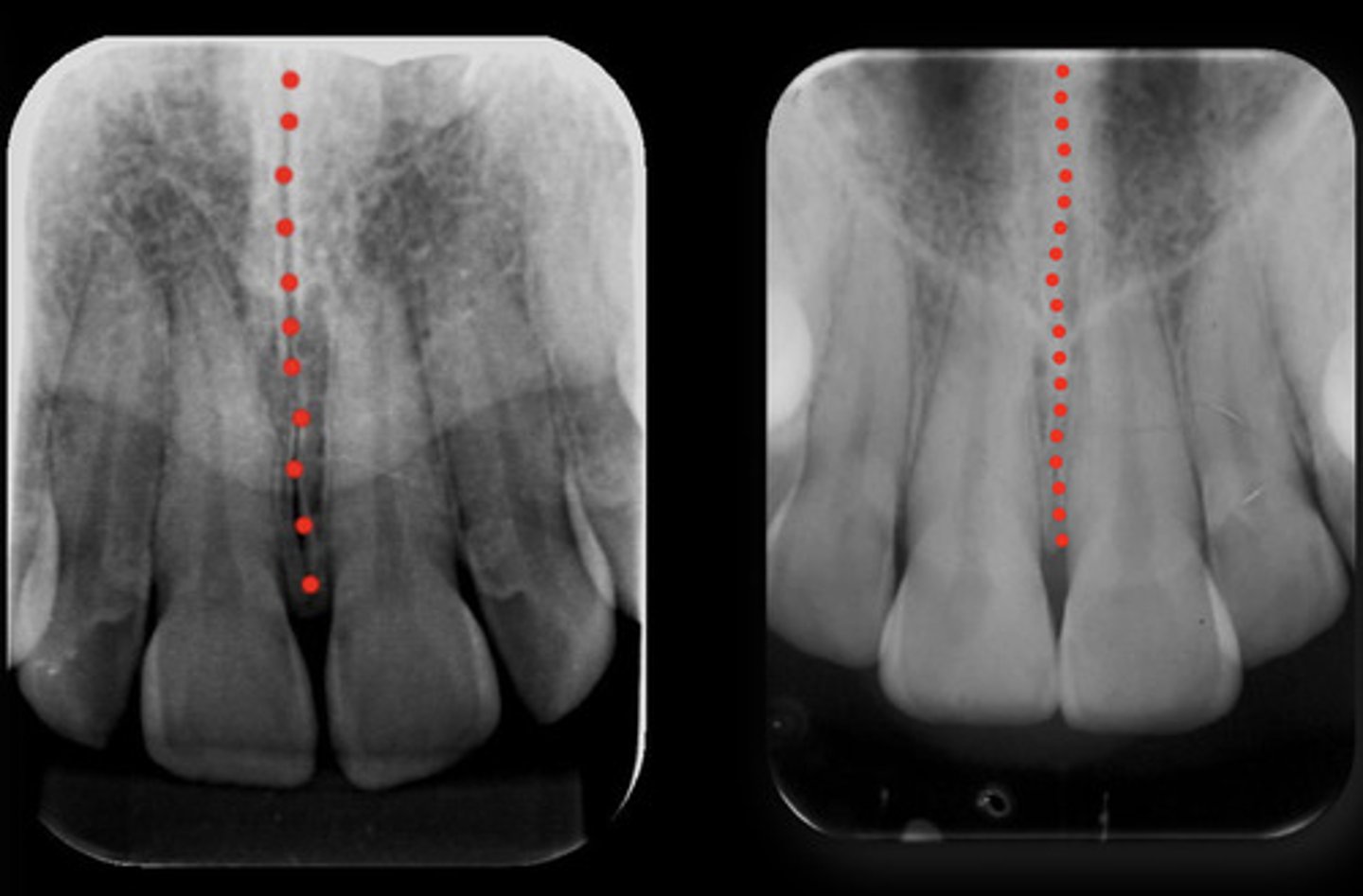

Intermaxillary suture

What is the red dotted line representing?

Incisive foramen

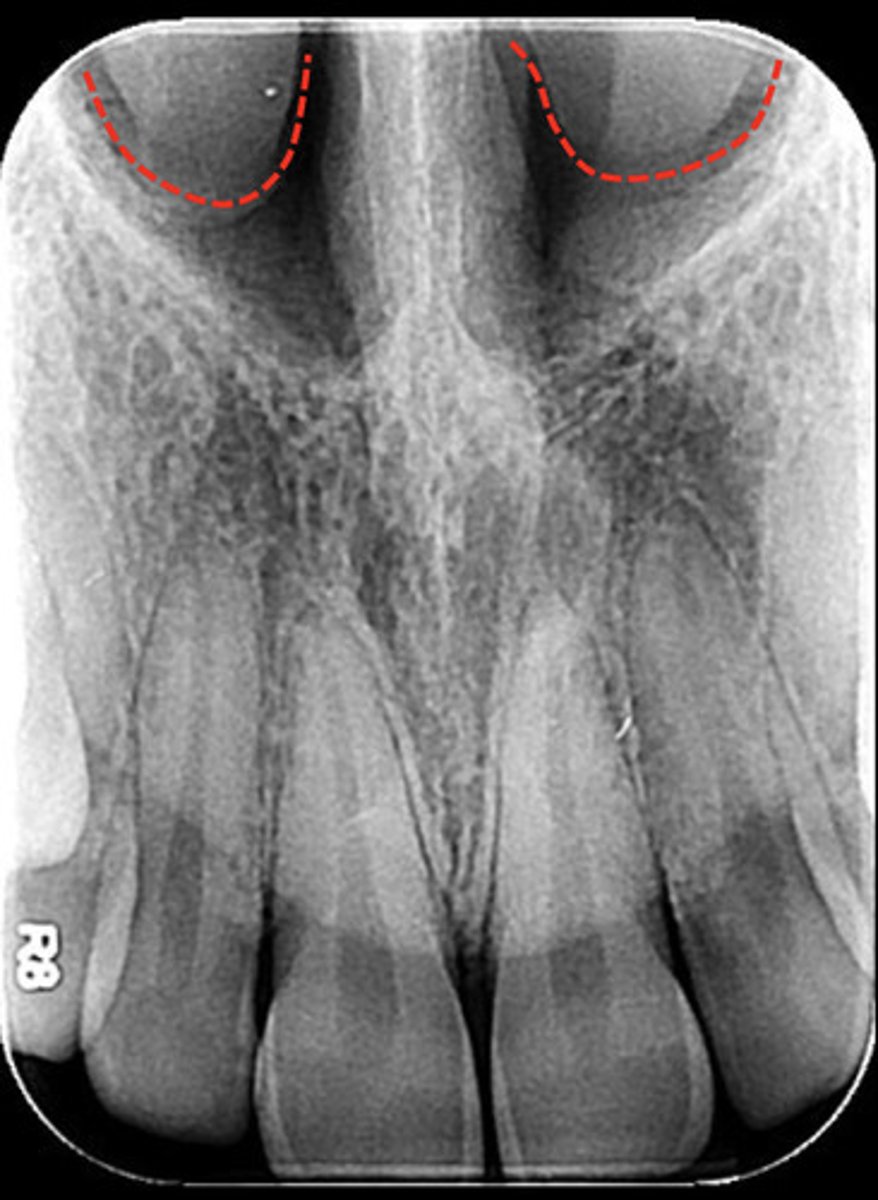

What are the red dotted lines representing?

Nasal cavity - nasal fossae

What are the red dotted lines circling?

inferior nasal conchae

What are the red dotted lines circling?

Nasal septum

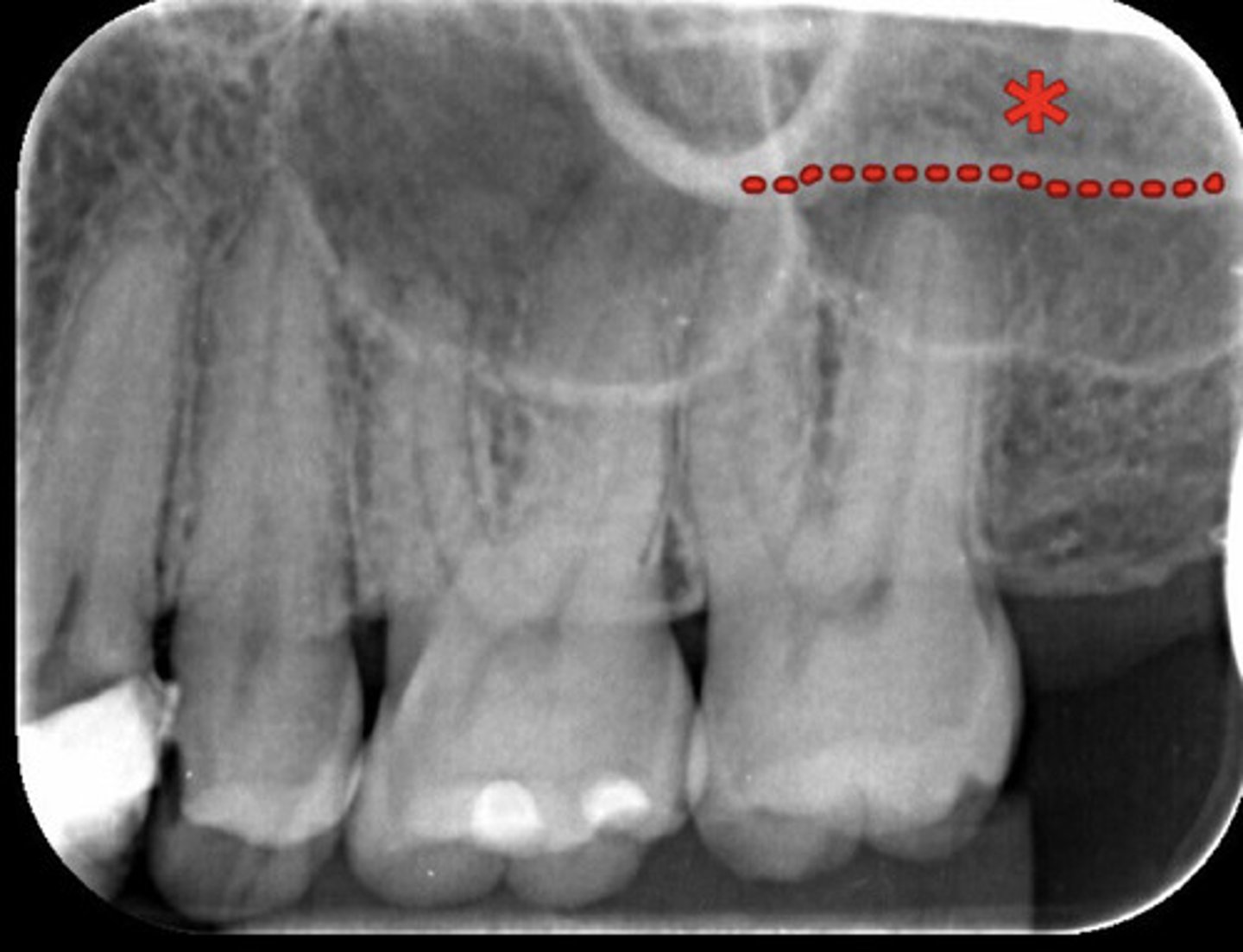

What is the red dotted line representing?

Floor of nasal cavity

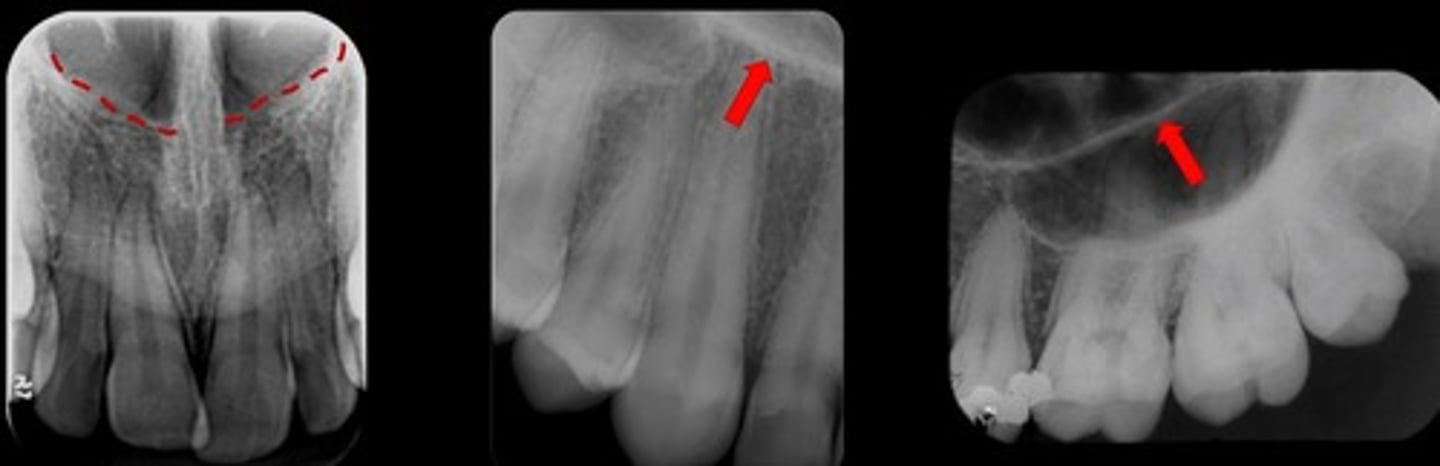

What are the red arrows pointing to?

Anterior nasal spine

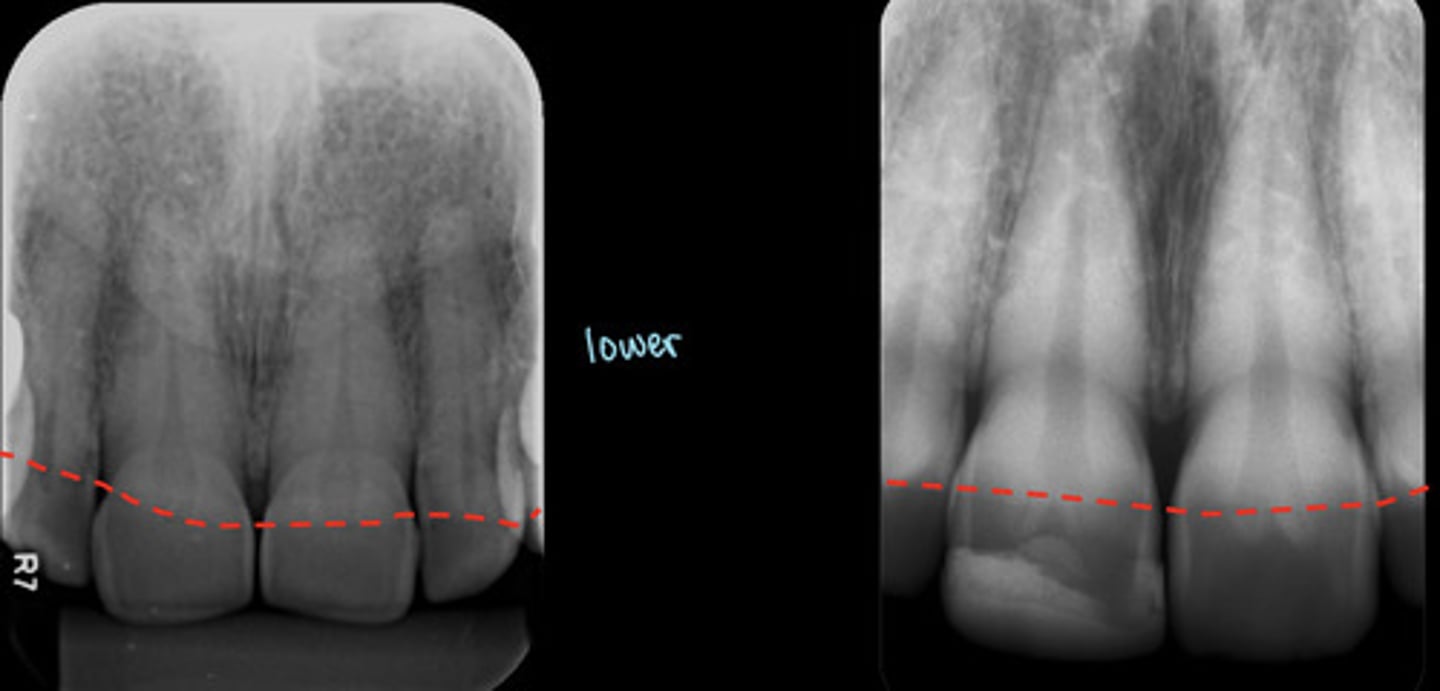

What is the red dotted line representing?

Upper lips

What is the red dotted line representing?

Nasolabial fold

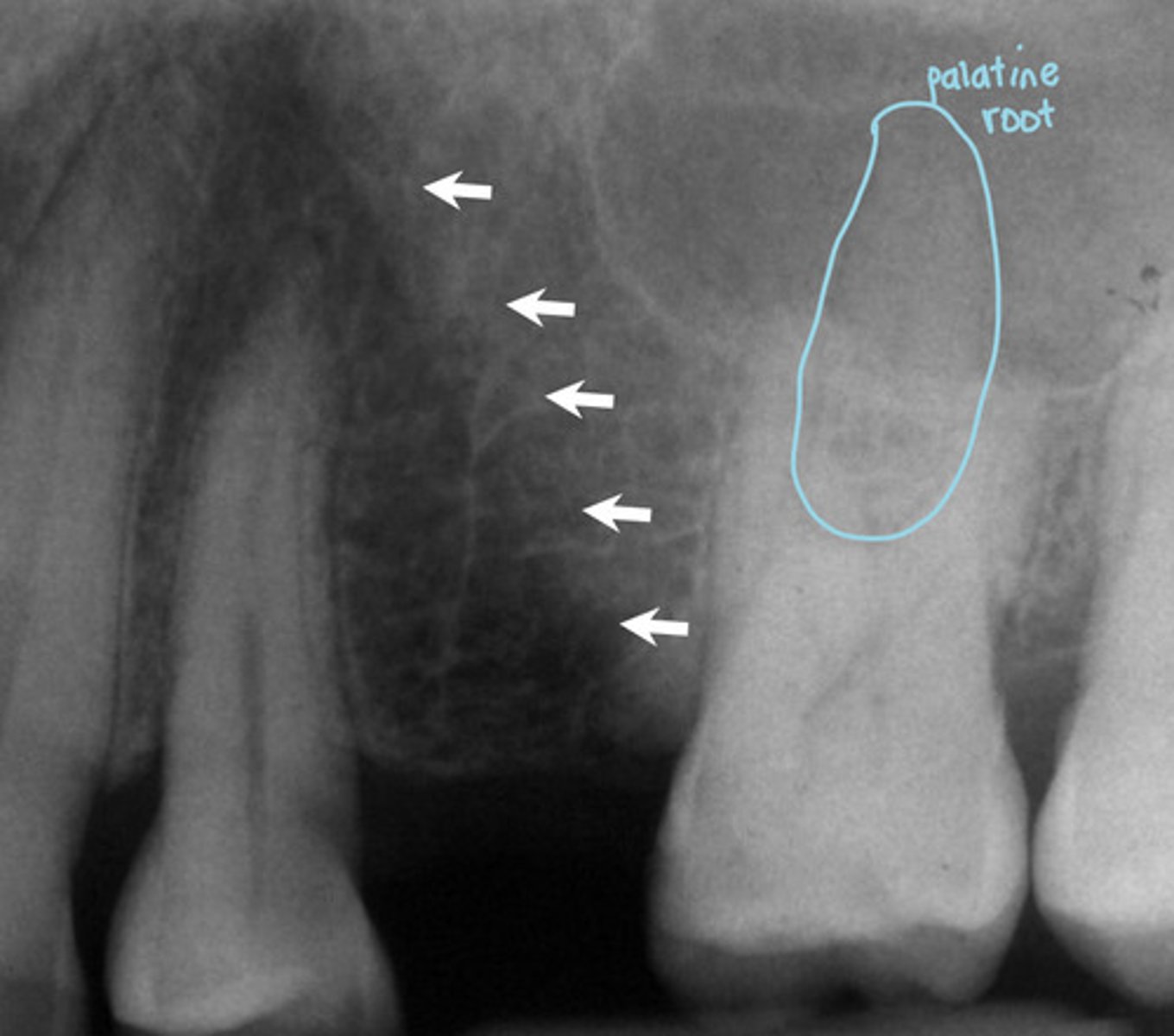

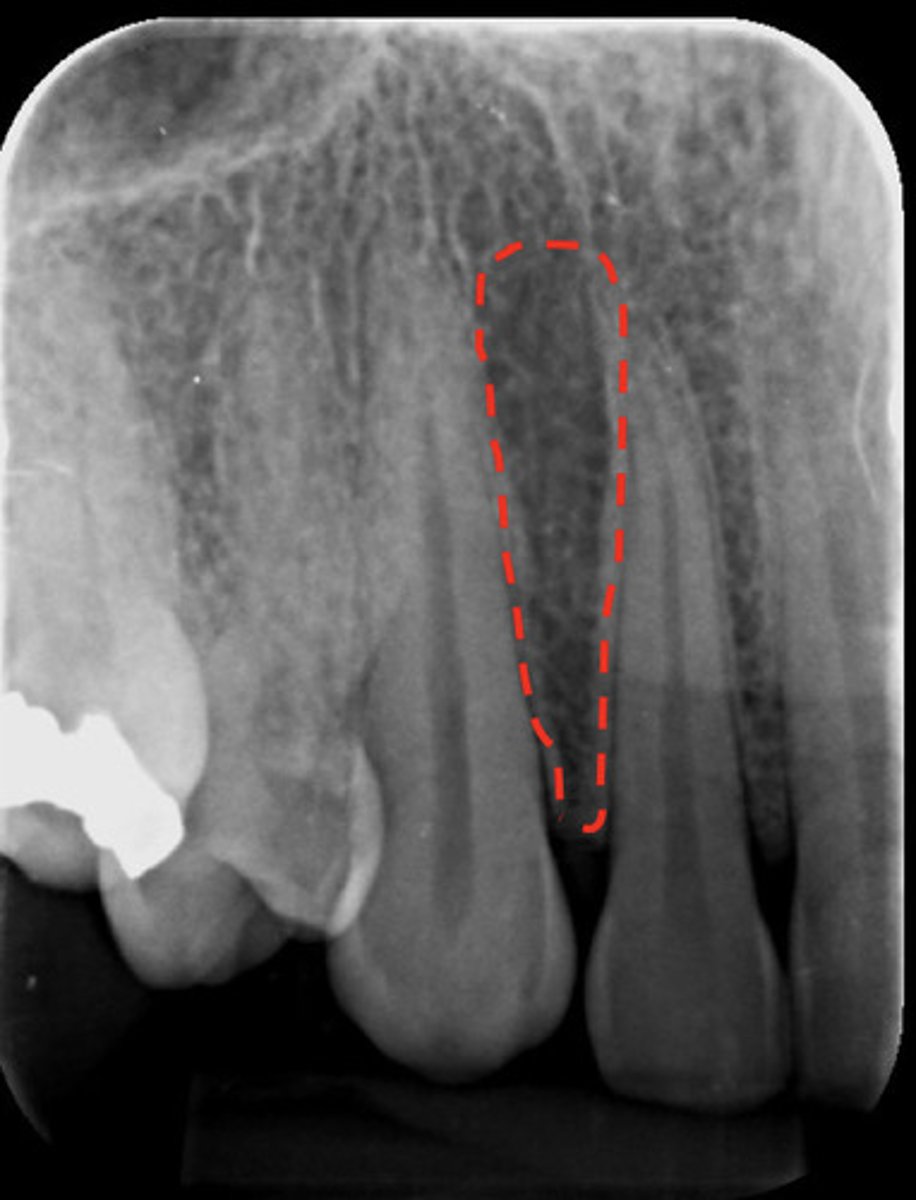

What are the white arrows pointing to?

Lateral fossa

What is the red dotted line representing?

Maxillary tuberosity

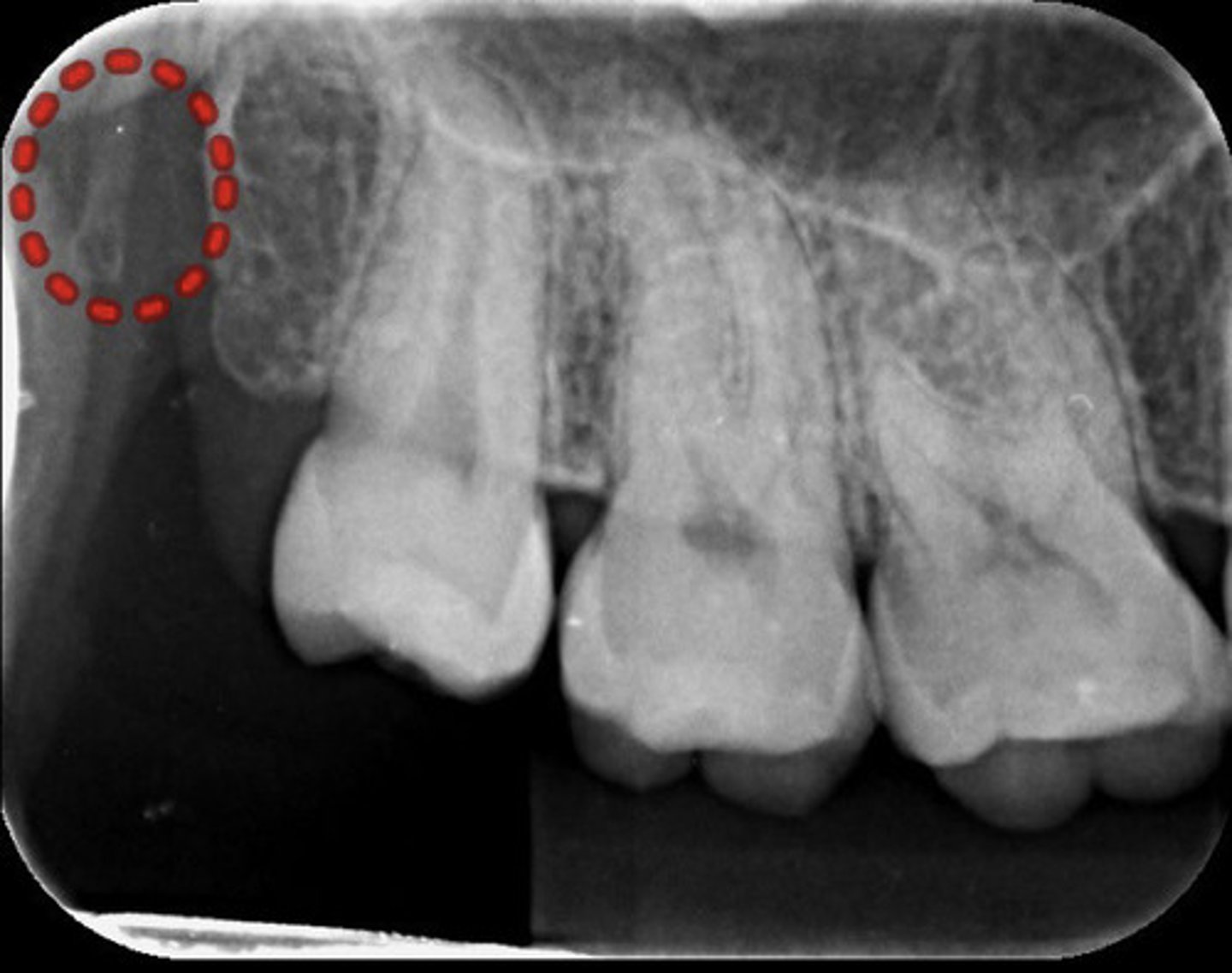

What is the red dotted line representing?

Pterygoid hamulus

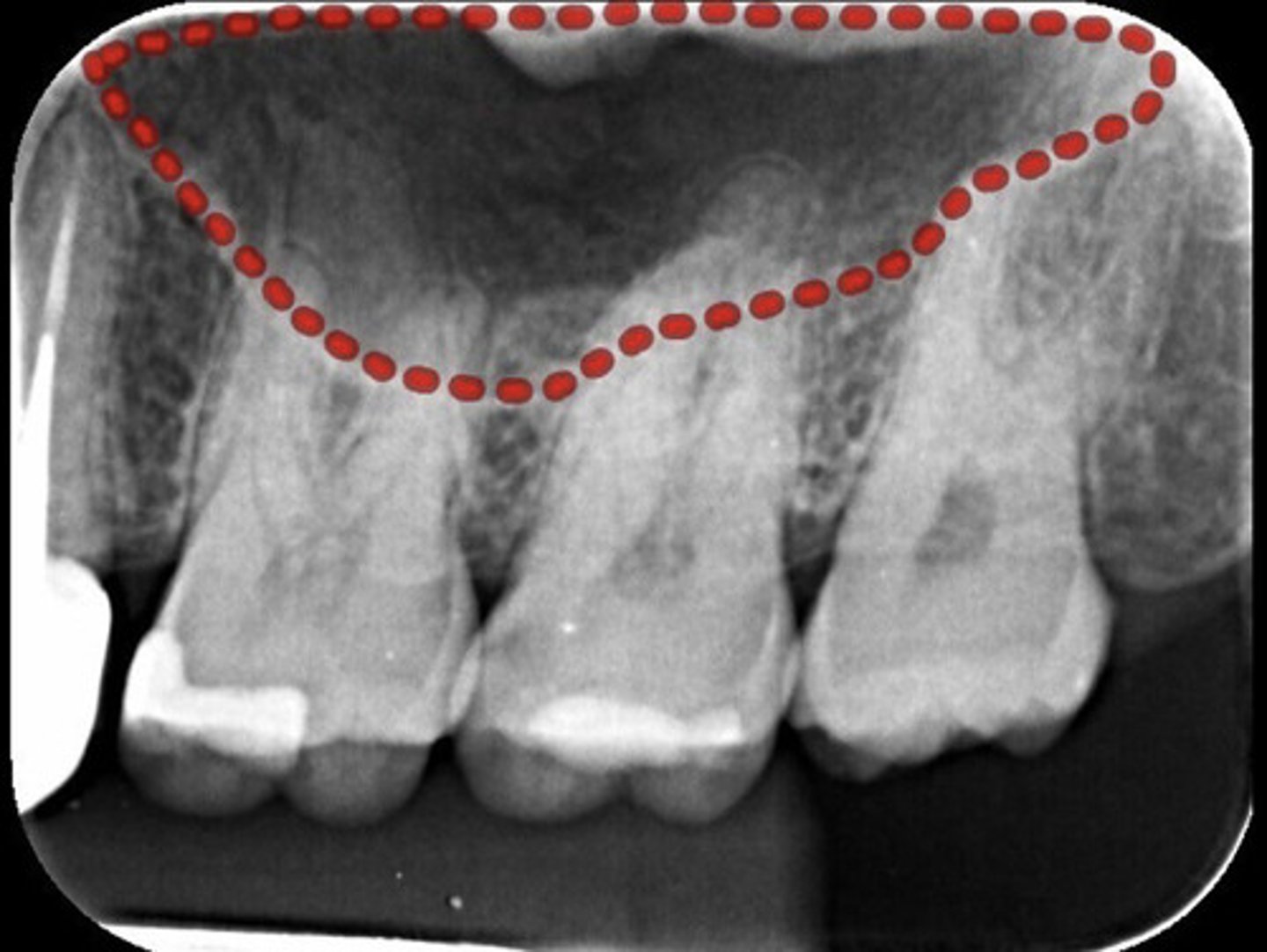

What is the red dotted line circling?

Maxillary sinus

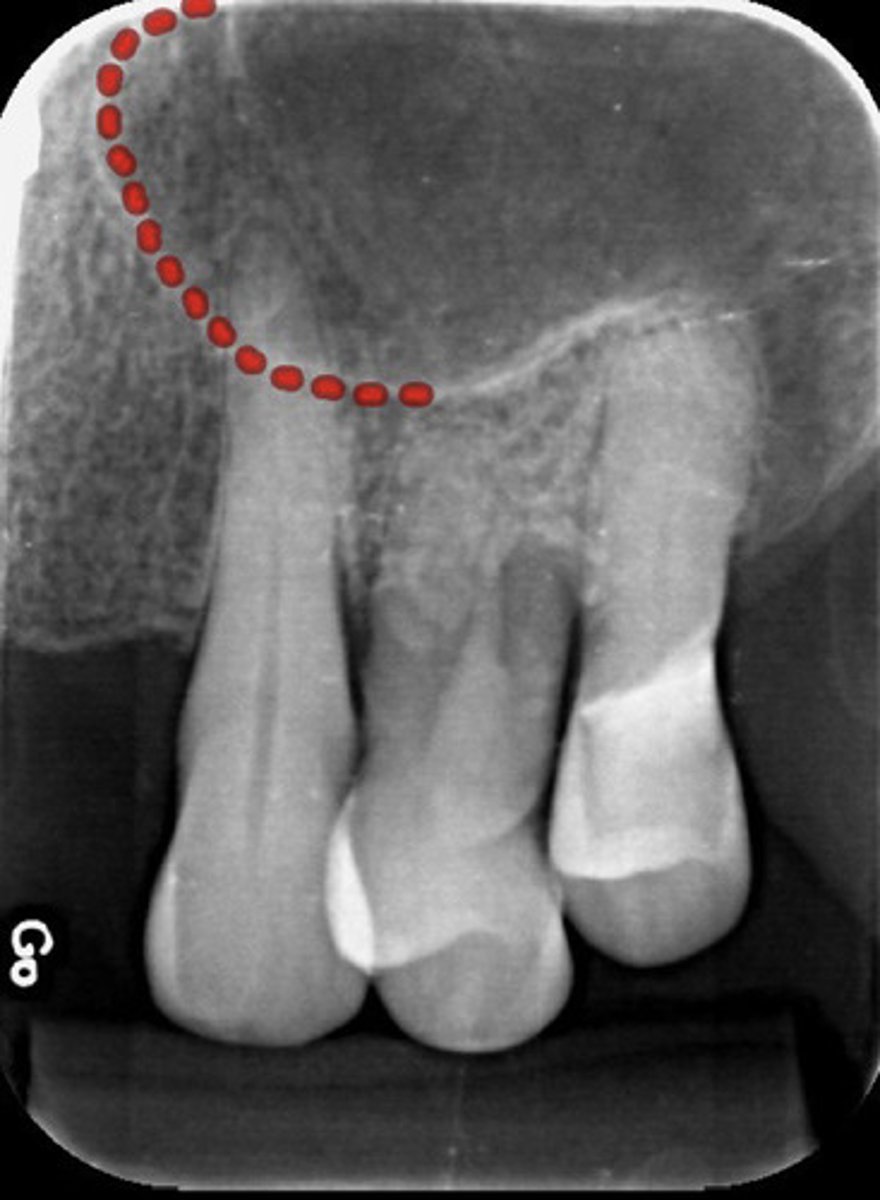

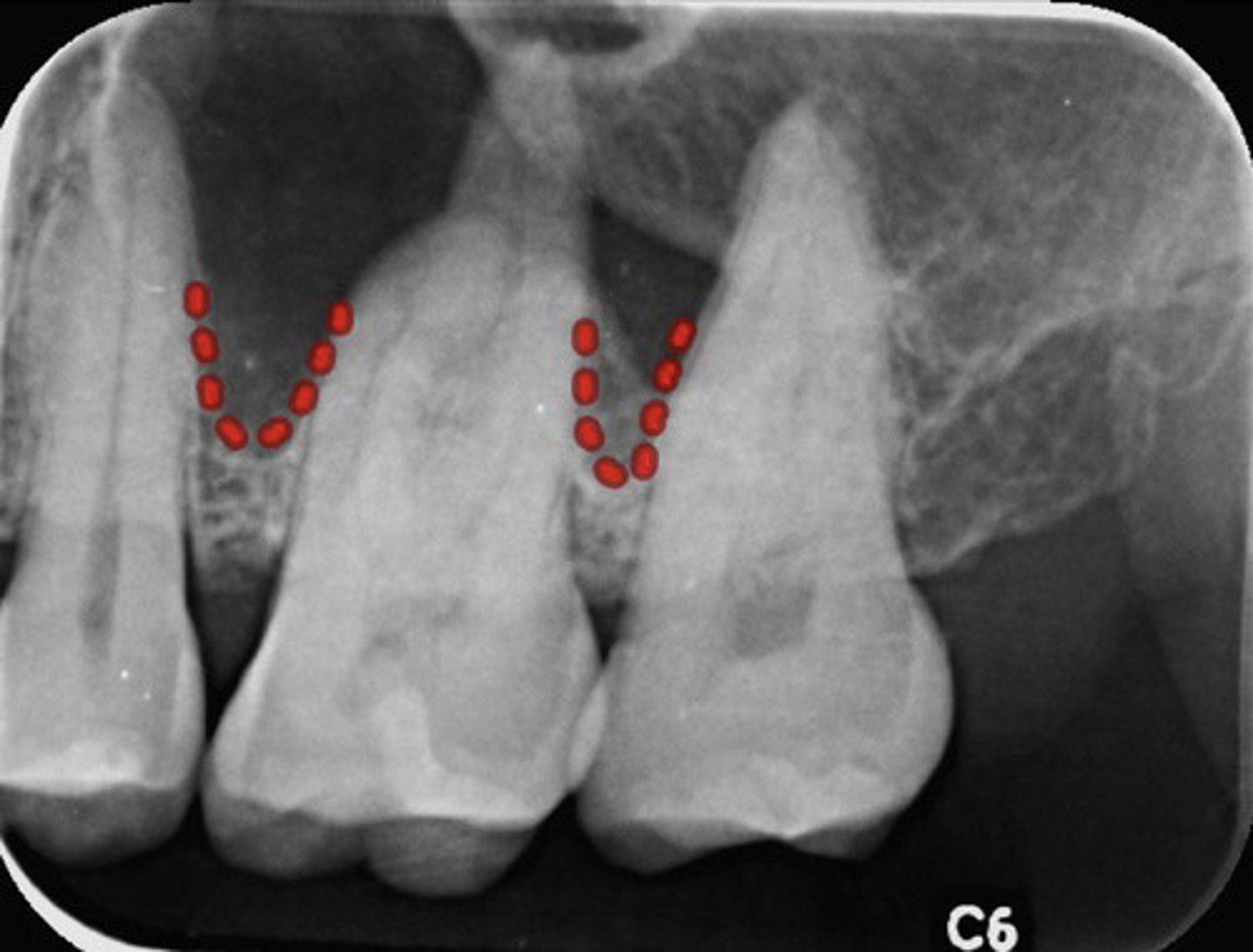

What is the red dotted line representing?

Alveolar extension of the maxillary sinus

-pneumatization

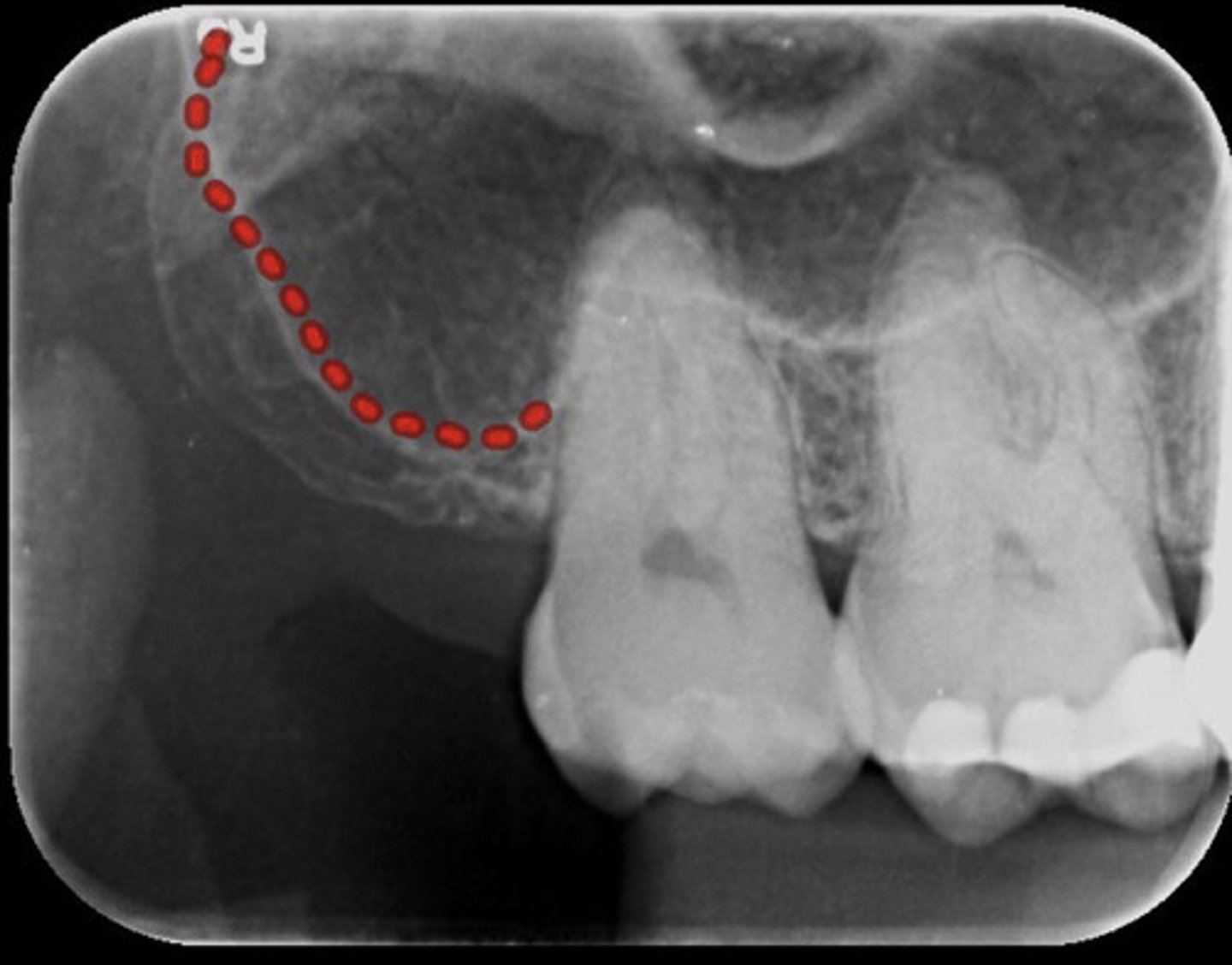

What are the red dotted lines representing?

Tuberosity extension of the maxillary sinus

What is the red dotted line representing?

Anterior extension of the maxillary sinus

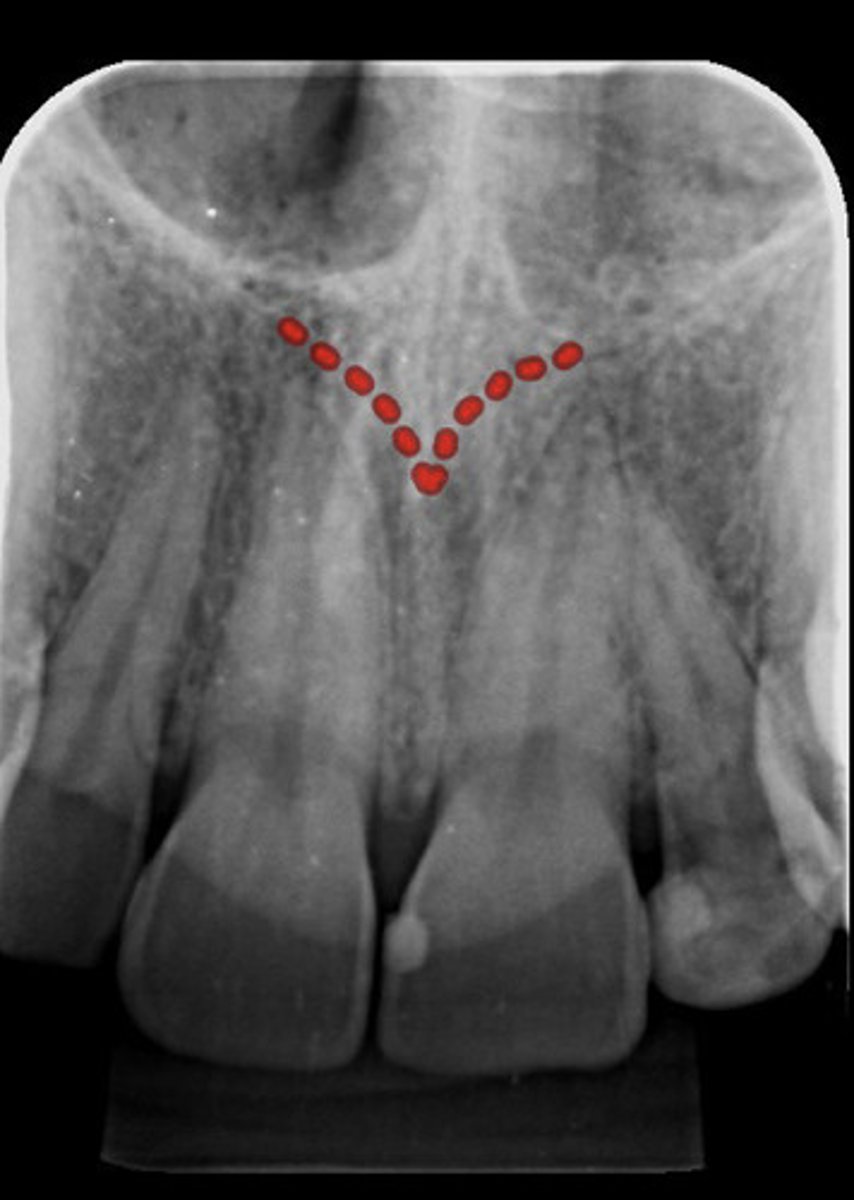

What is the red dotted line representing?

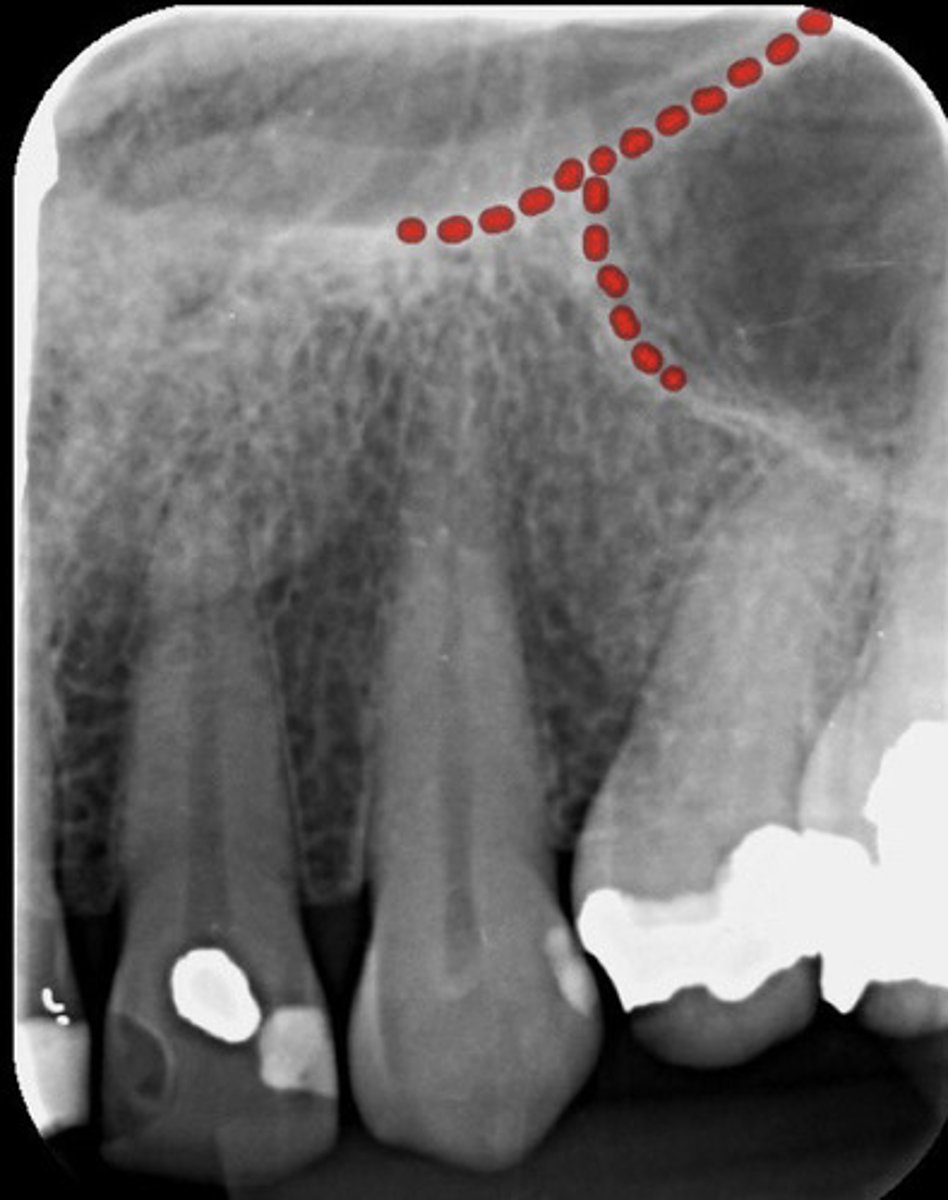

Y Line Of Ennis (Inverted Y)

What is the red dotted line representing?

Nutrient canals

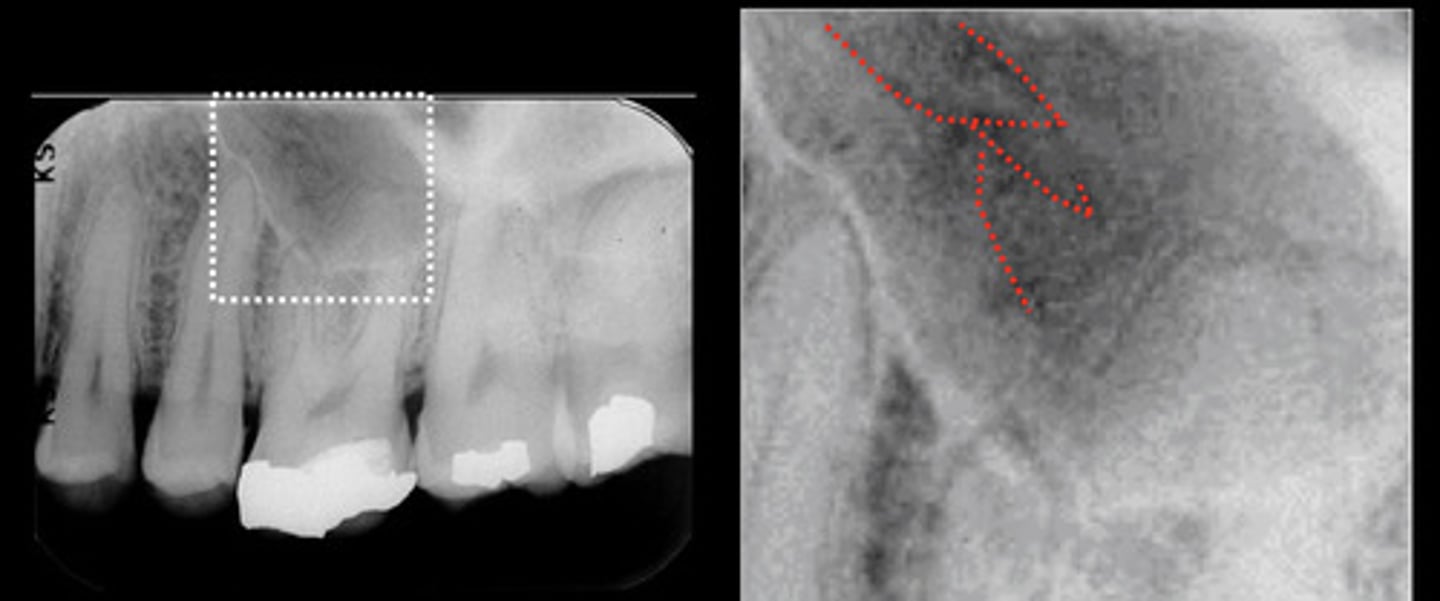

What are the red dotted lines representing?

Zygomatic process of maxilla

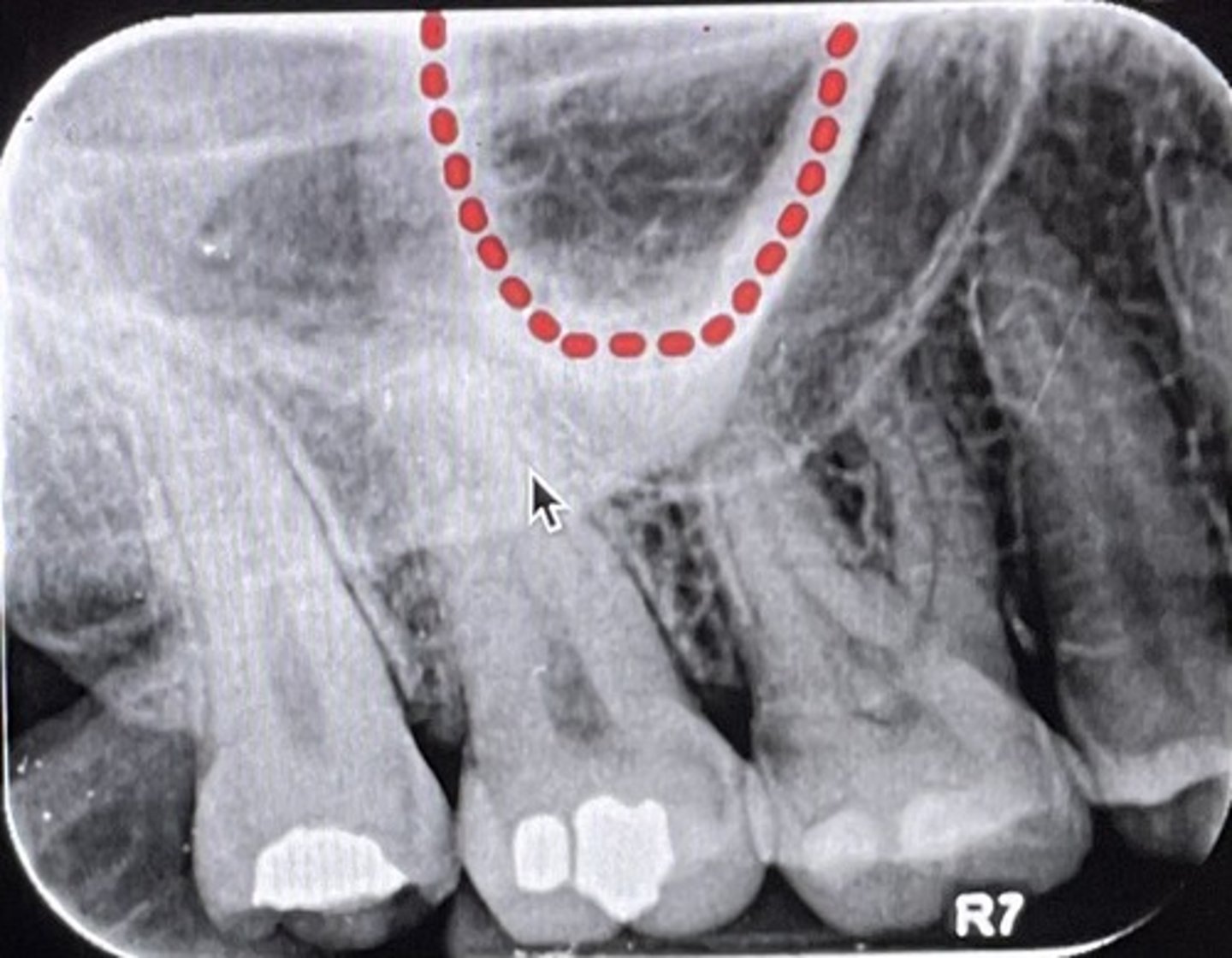

What is the red dotted line circling?

Zygomatic bone

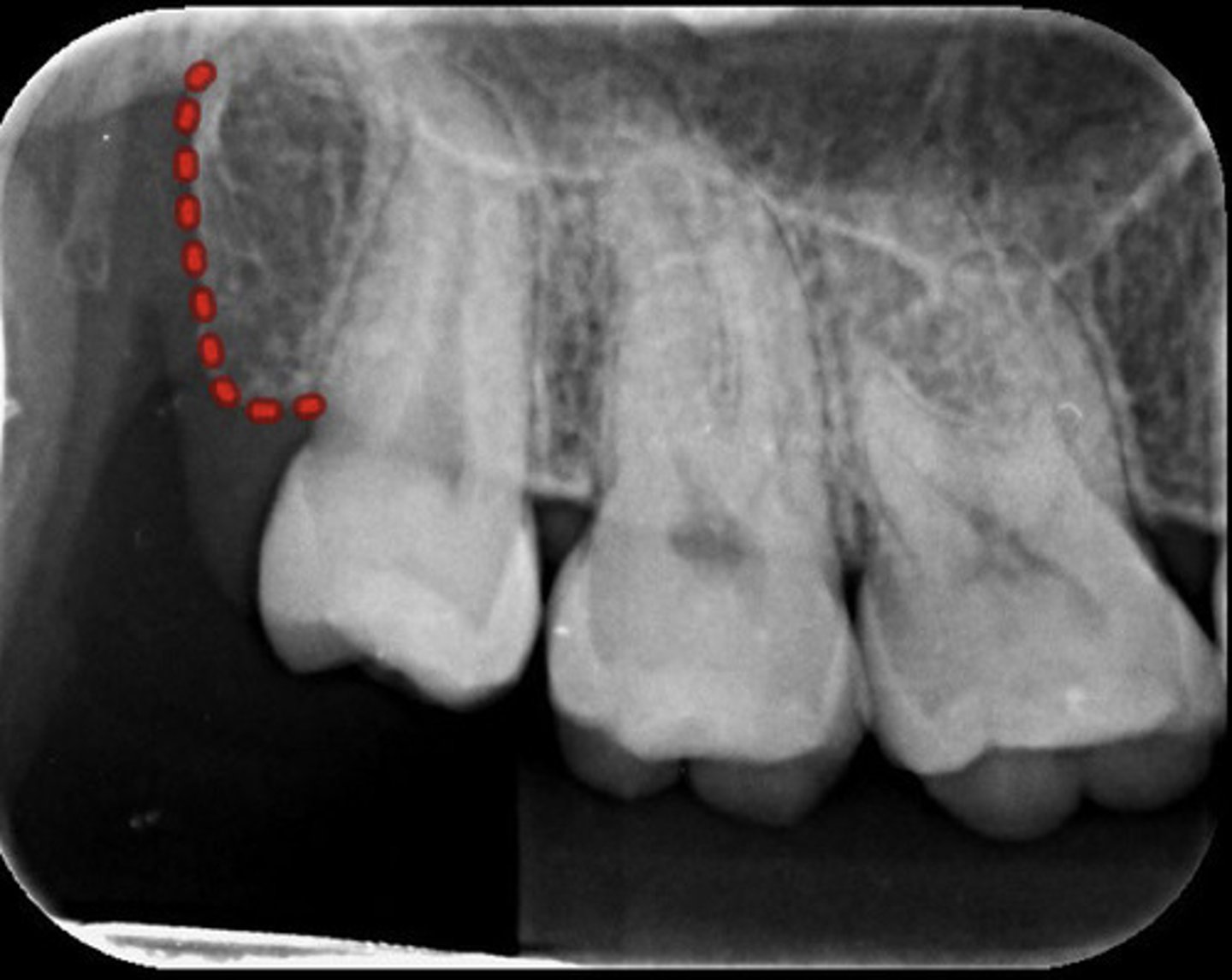

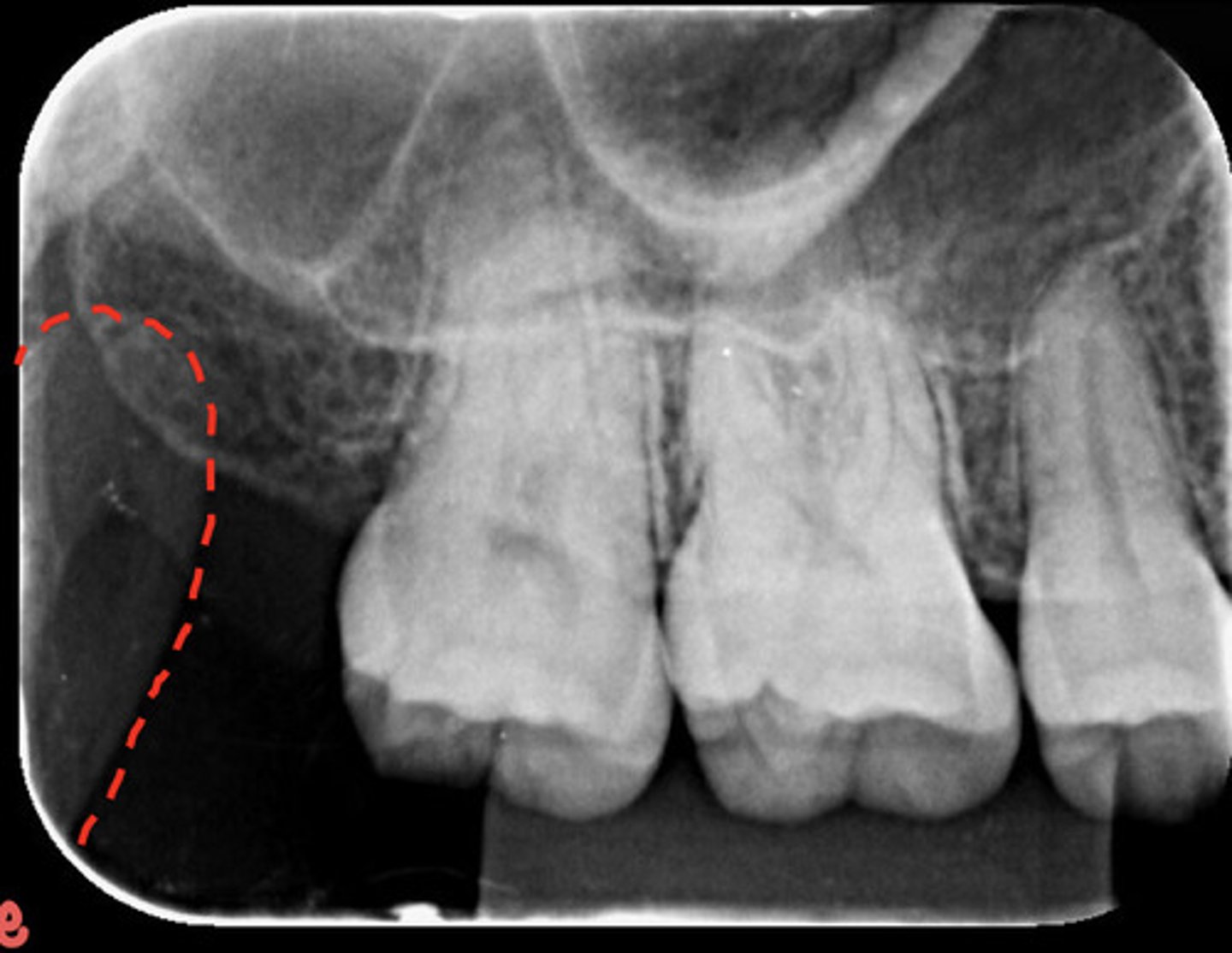

What is the red dotted line representing?

Coronoid process of mandible

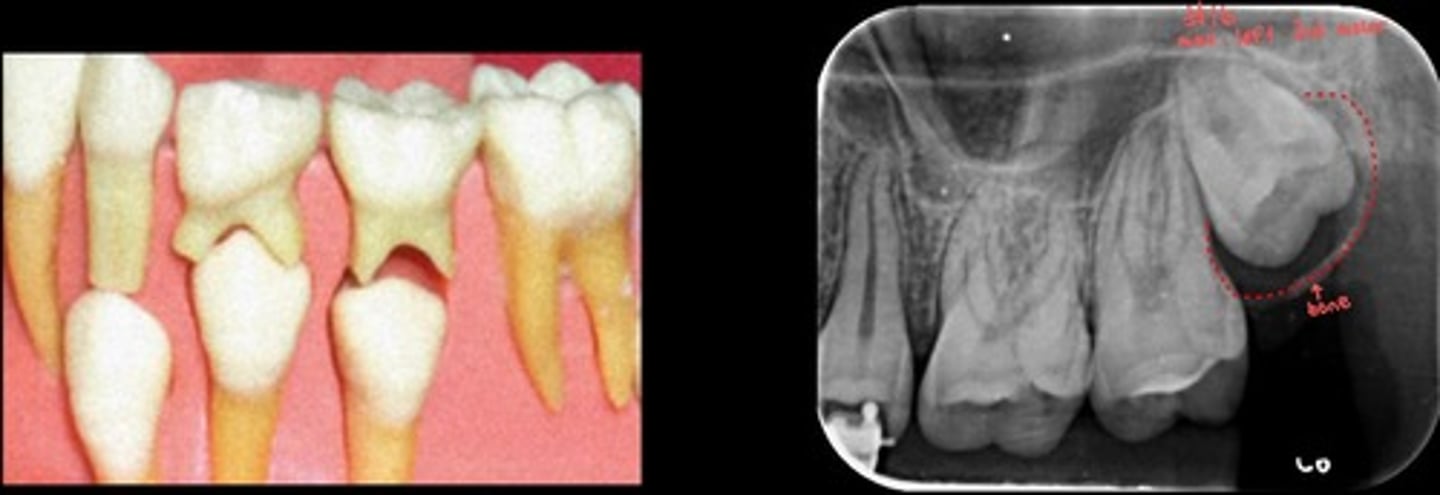

What is the red dotted line representing?
