Switching Issues - CompTIA Network+ N10-009 - 5.3

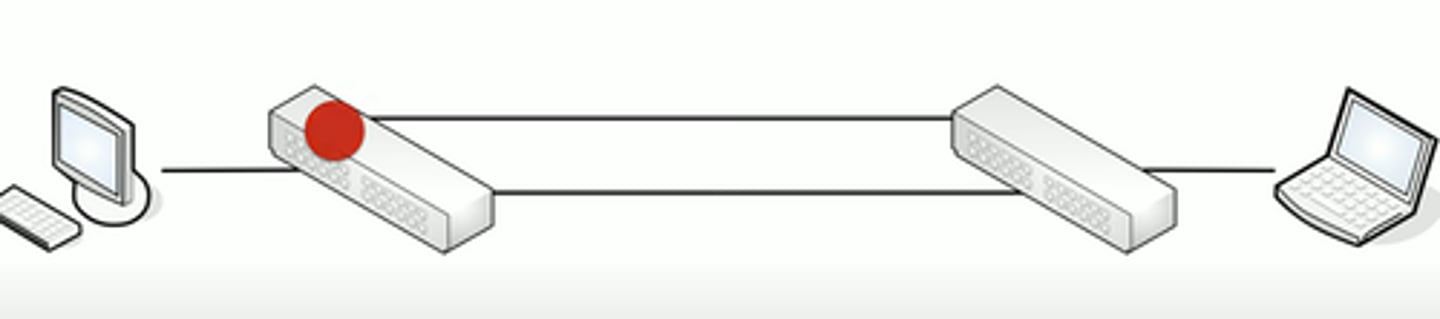

Switching Loops

• A fear of every network administrator

- Spanning Tree Protocol is often configured

• Switches communicate by MAC address

- Every device has it's own address

- Every packet is directed

• Broadcasts and multicasts are sent to all

- Broadcast repeated to all switch ports

• Nothing at the MAC address level to identify loops

- IP has TTL (Time to Live)

Spanning Tree Protocol (STP)

Bridges are alwasy talking to each other

- Uses MAC-layer multicasts (01:80:C2:00:00:00)

- Bridge Protocol Data Unit (BPDU)

- Sends configuration and any topology changes

Default "hello" interval is 2 seconds

- Miss 3 of those, and the link is considered down

- This would is a break in the link of the network, and the network topology would redesign itself to aid in not creating any loops

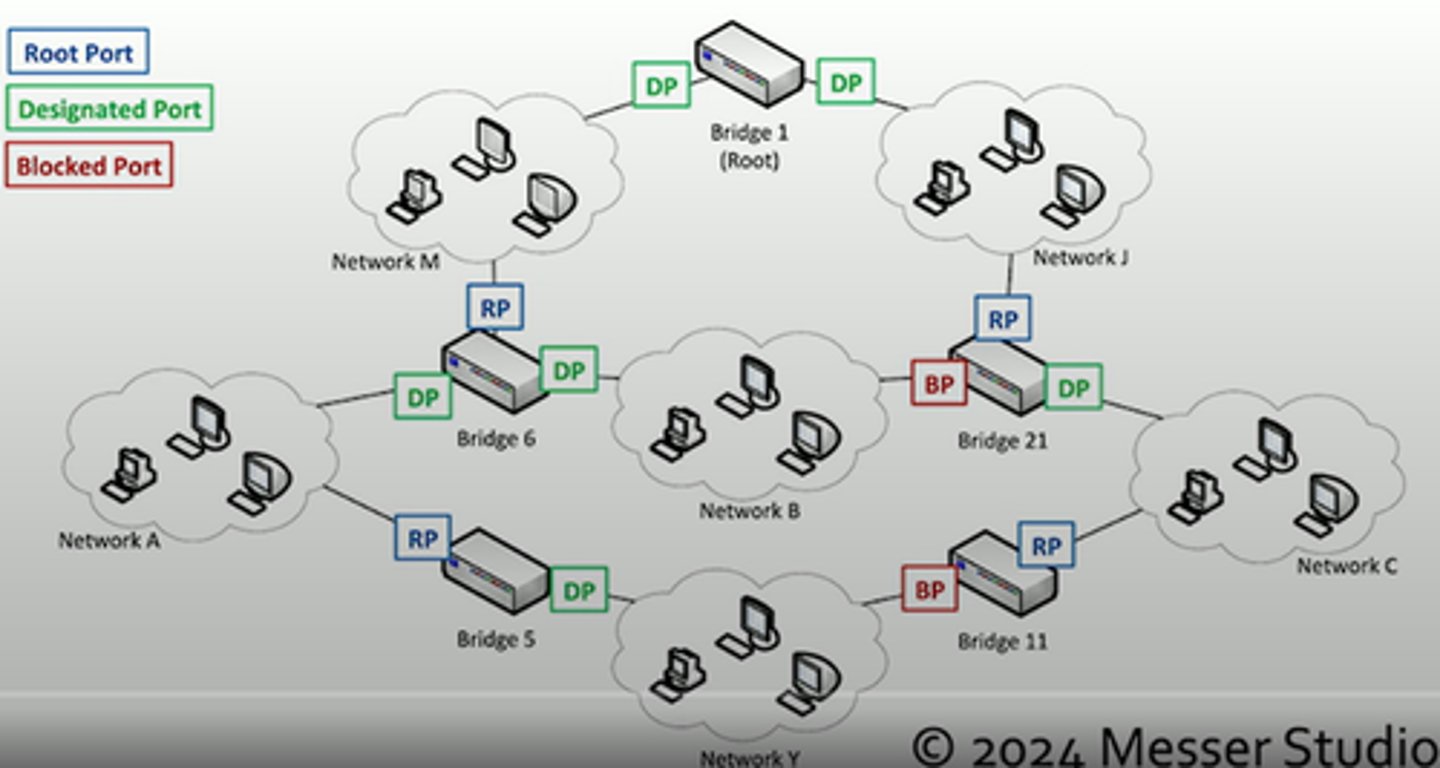

Root brifge selection

When starting, the bridges elect a root bridge

- All other bridges choose the best connection to the root

All bridges/switches are assigned a brifge ID between 0 and 61440

- Lowest ID is the root

- If there's a tie, the lowest MAC address number wins

Each bridge assigns a port to role to each interface

- Root, designated, or blocked

STP Port States

• Blocking - Not forwarding to prevent a loop

• Listening - Not forwarding and cleaning the MAC table

• Learning - Not forwarding and adding to the MAC table

• Forwarding - Data passes through and is fully operational

• Disabled - Administrator has turned off the port

VLAN assignment

Network link is active and IP address is assigned

- No access to resources or limited functionality

Every switch interface is configured as an access port or a trunk port

- Each access port is assigned to a VLAN

Confirm the specific switch interface

- Check the VLAN assignment

This is also a common issue

- Another quick fix

ACLs Break Perfectly Good Networks

Clients are working

- DHCP assigning correct IP address

- Routing tables look correct

Packets are still dropping

Everything could be configured perfectly

- ACL's would still break the traffic flow

Always include an ACL check when troubleshooting

- Save lots of time

ACL Best Practices

More granular rules should be first

- Very similar to a firewall

- The ACL stops evaluating after a match

- Broader rules at the top would prevent more specific rules from firing

Best practice: Before editing an ACL, disable on an interface

- Adding an access list without any rules will filter all traffic

- ** ACLs deny all by default **
