Ancient Architecture and Archaeological Site Terminology: Neolithic to Middle Kingdom Egypt

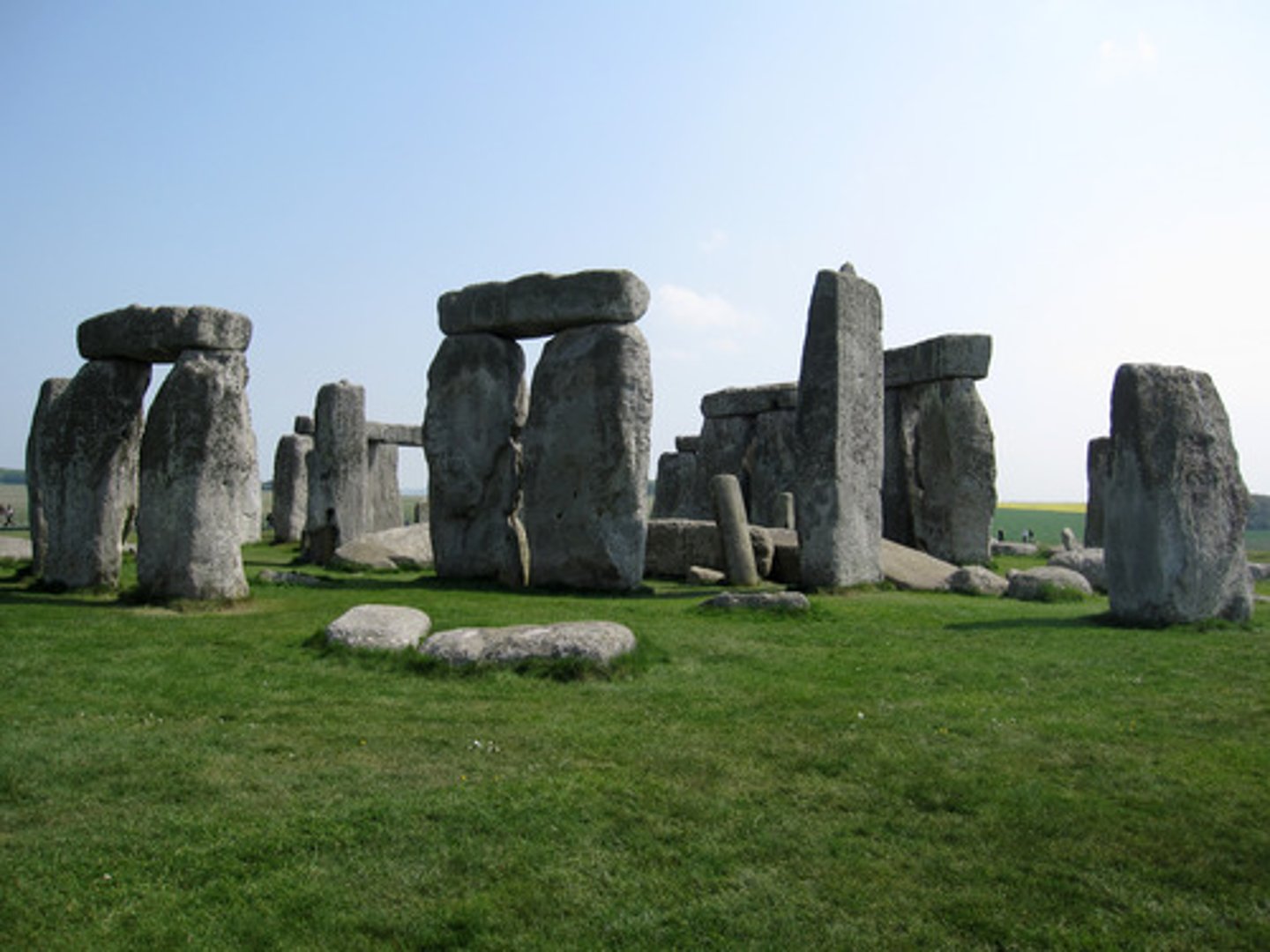

prehistoric

the time or period before recorded or written history

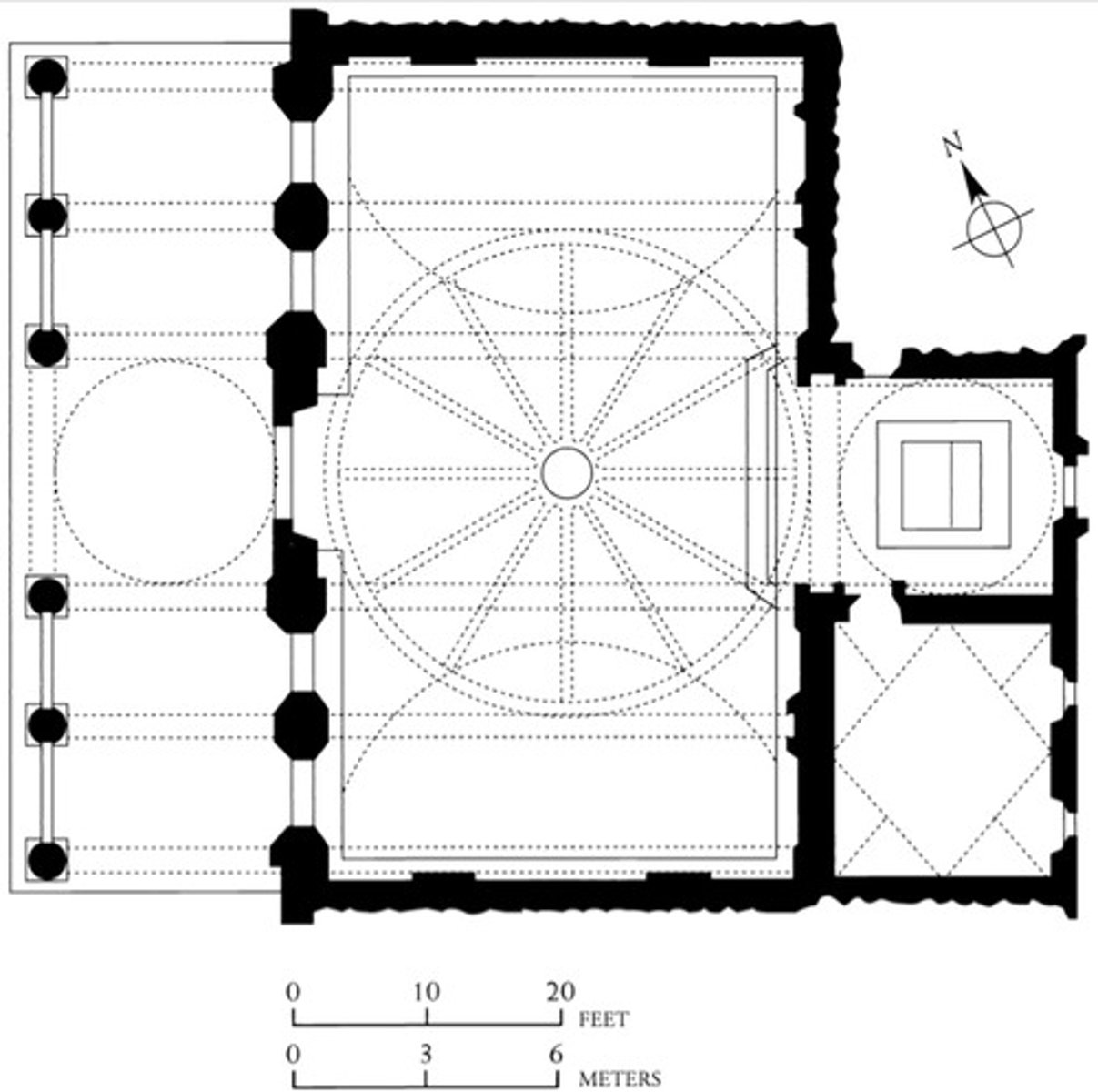

plan

a specific type of drawing representing a building from seem above, displaying walls windows and entrances

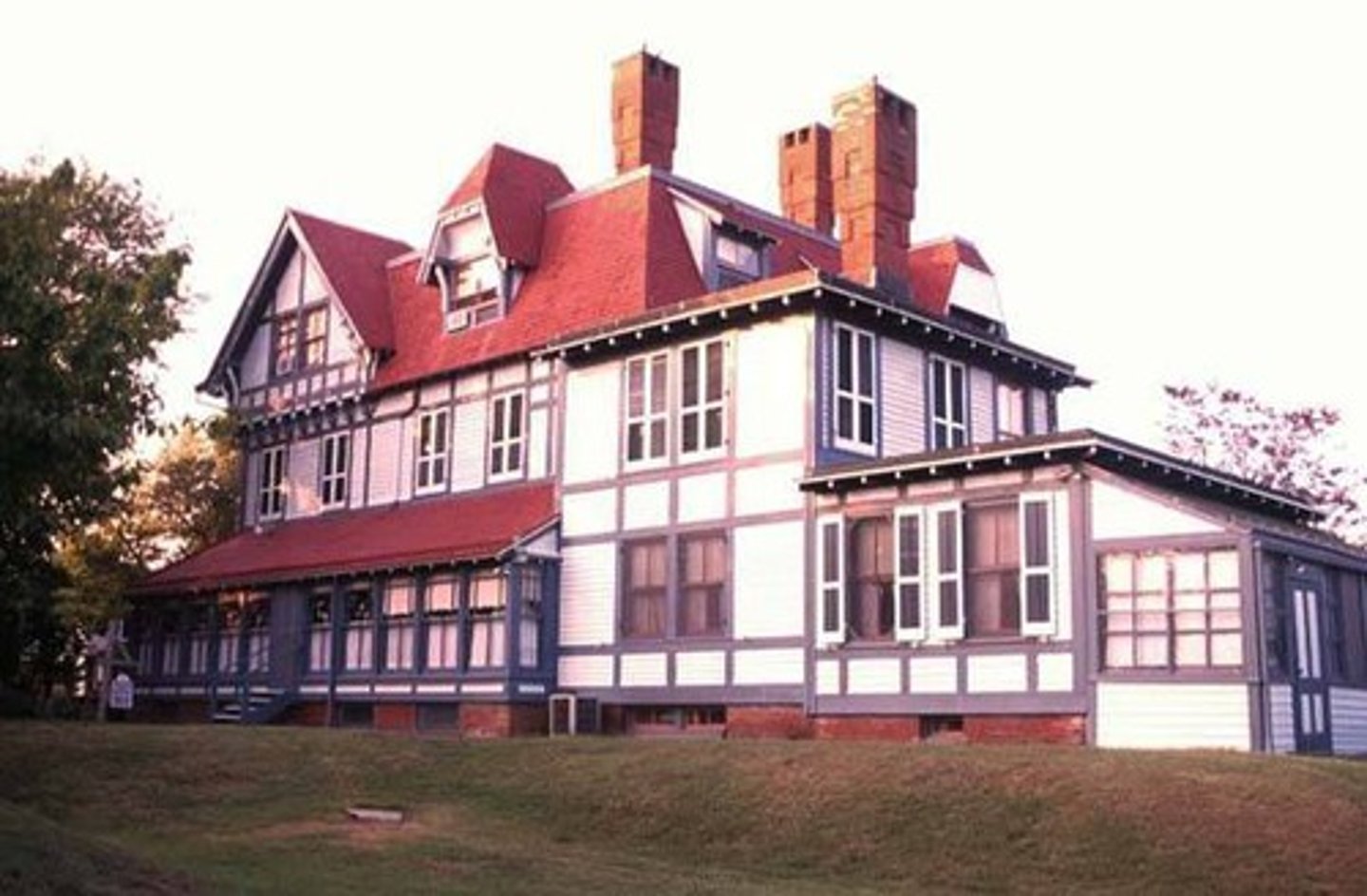

half-timbering

Exposed wood framing with spaces between the wooden timbers is often filled with plaster, brick, or stone

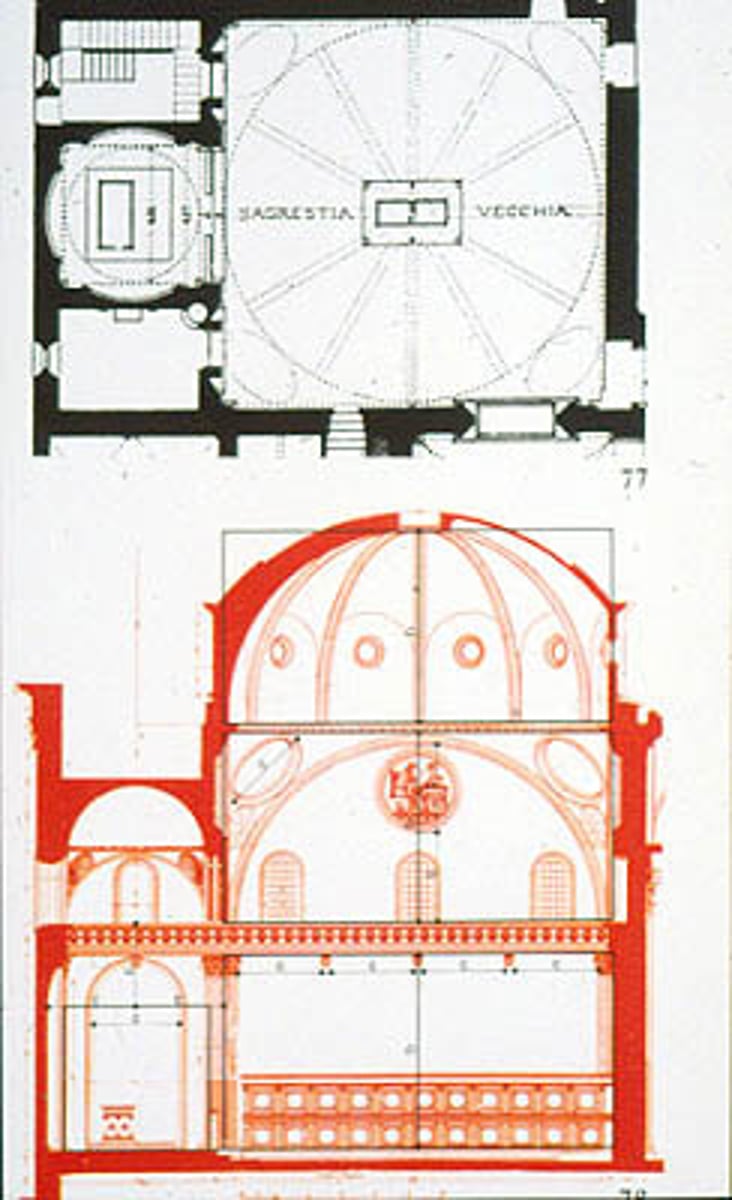

Section Plan

cuts through a model to show a plan and or side view

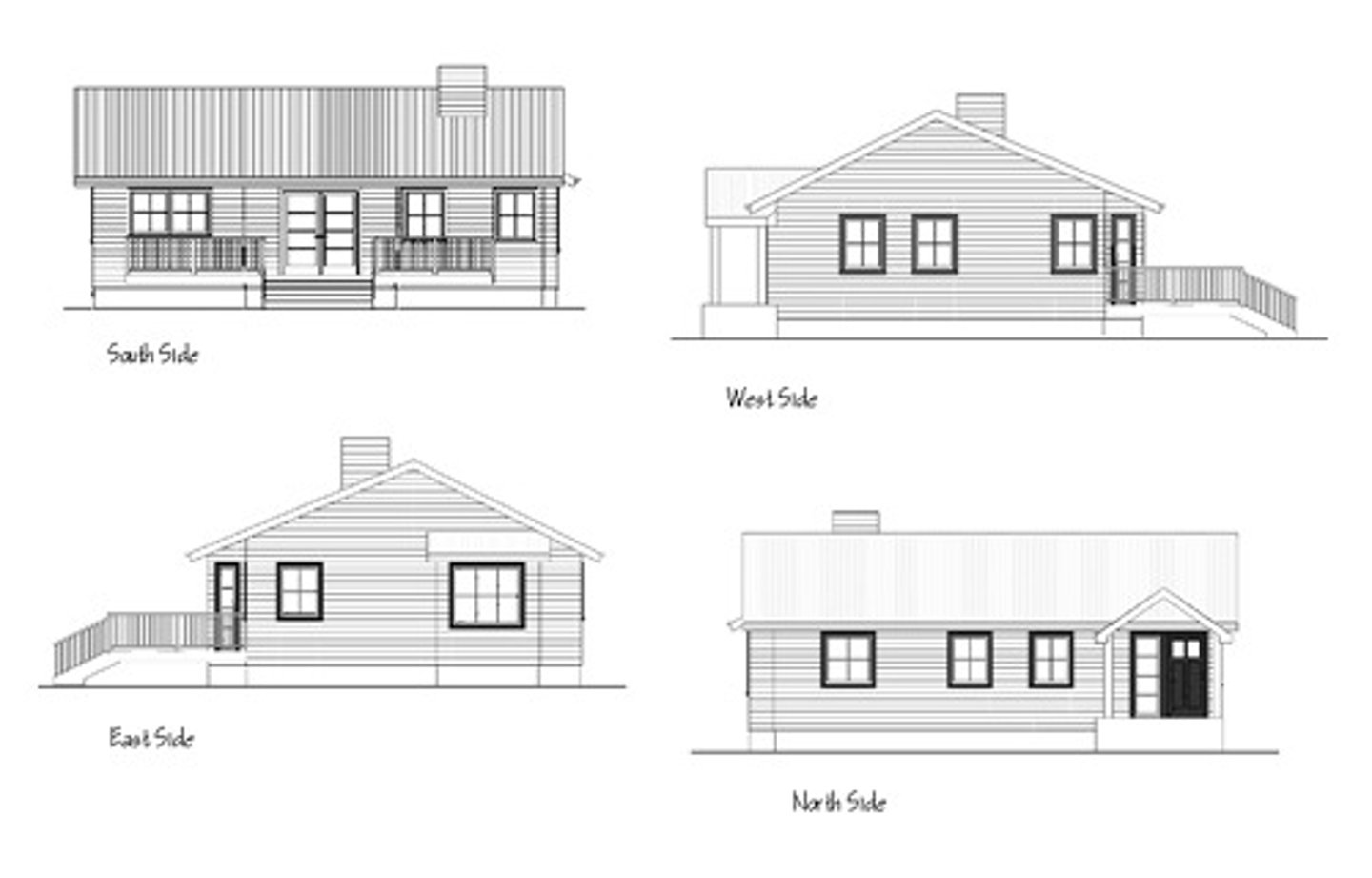

elevation plan

diagram showing the external face of a building showing height at a set scale

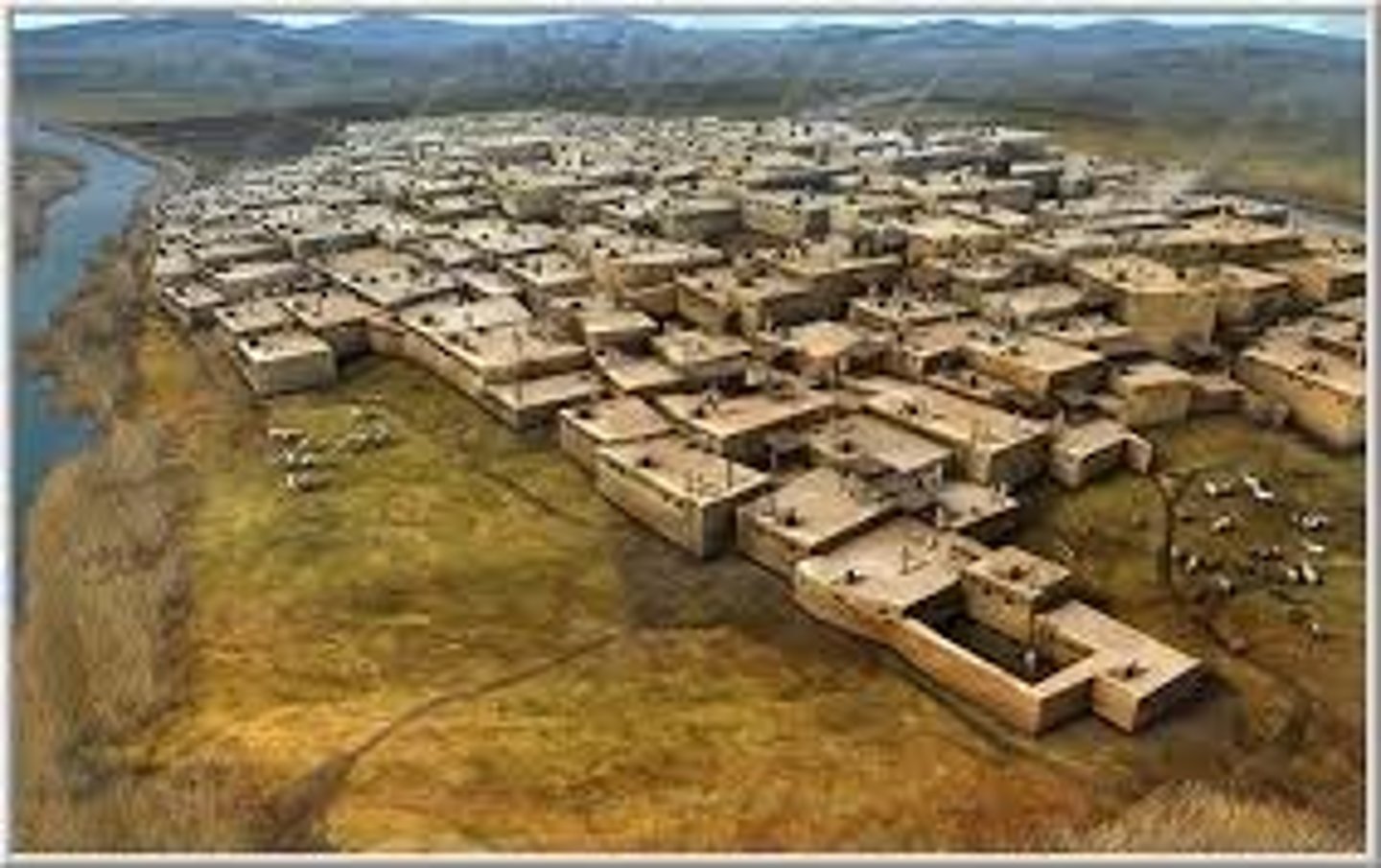

Catal Hoyuk(Turkey) 7,000 BCE Neolithic

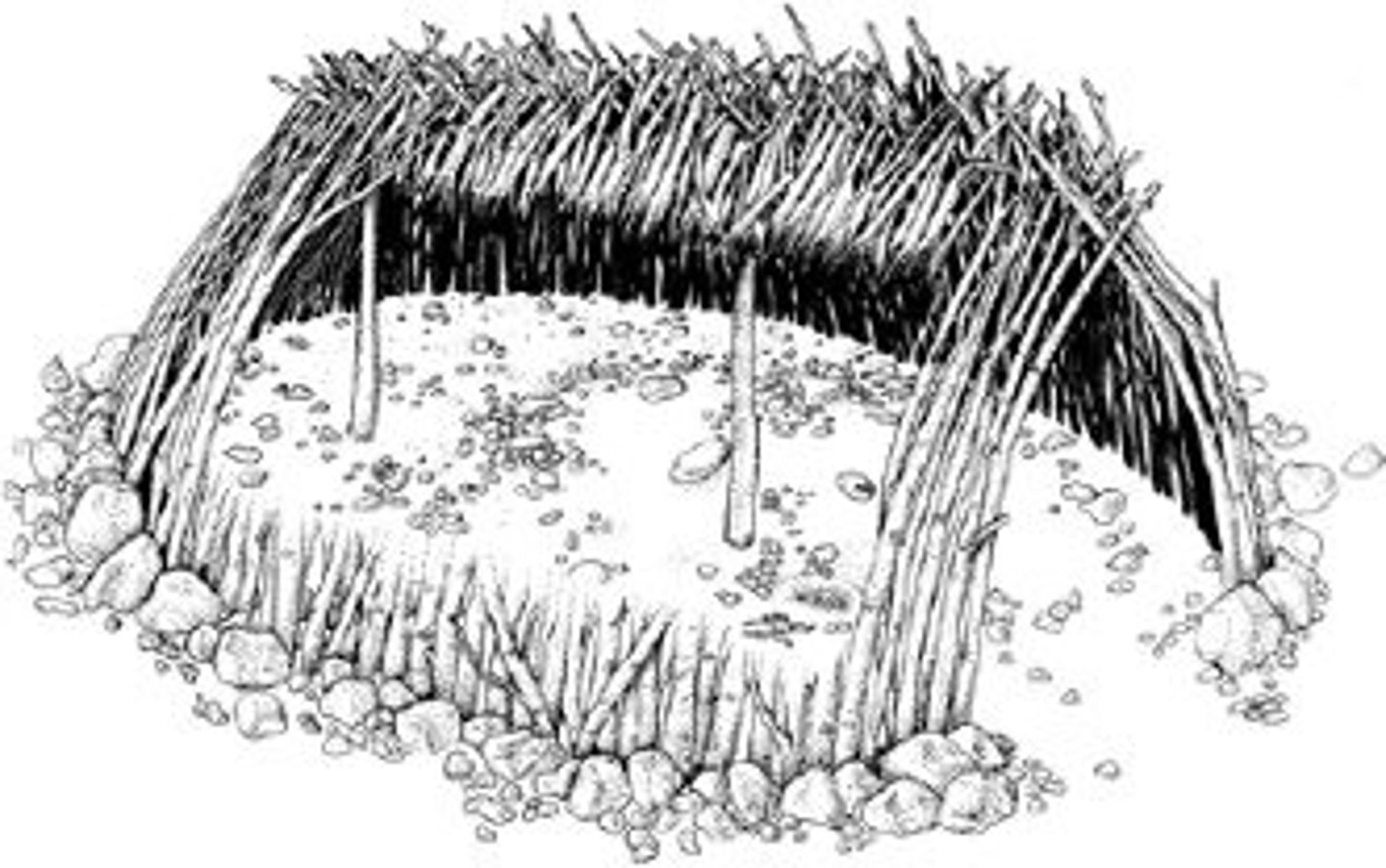

Terra Amata(France) 400,000 BCE Paleolithic

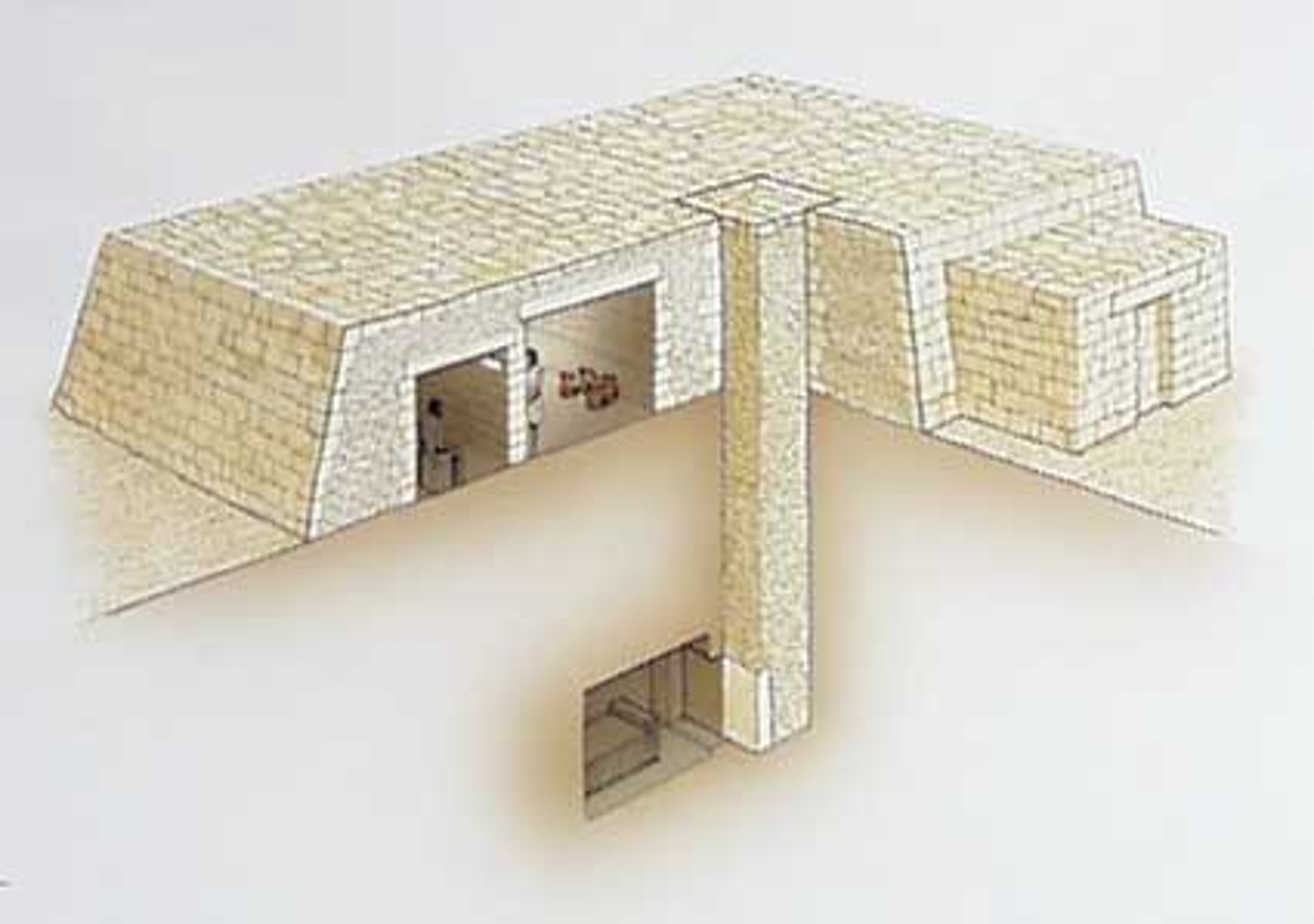

mastaba

an ancient Egyptian mudbrick tomb with a rectangular base and sloping sides and flat roof, typically constructed with mud brick or limestone

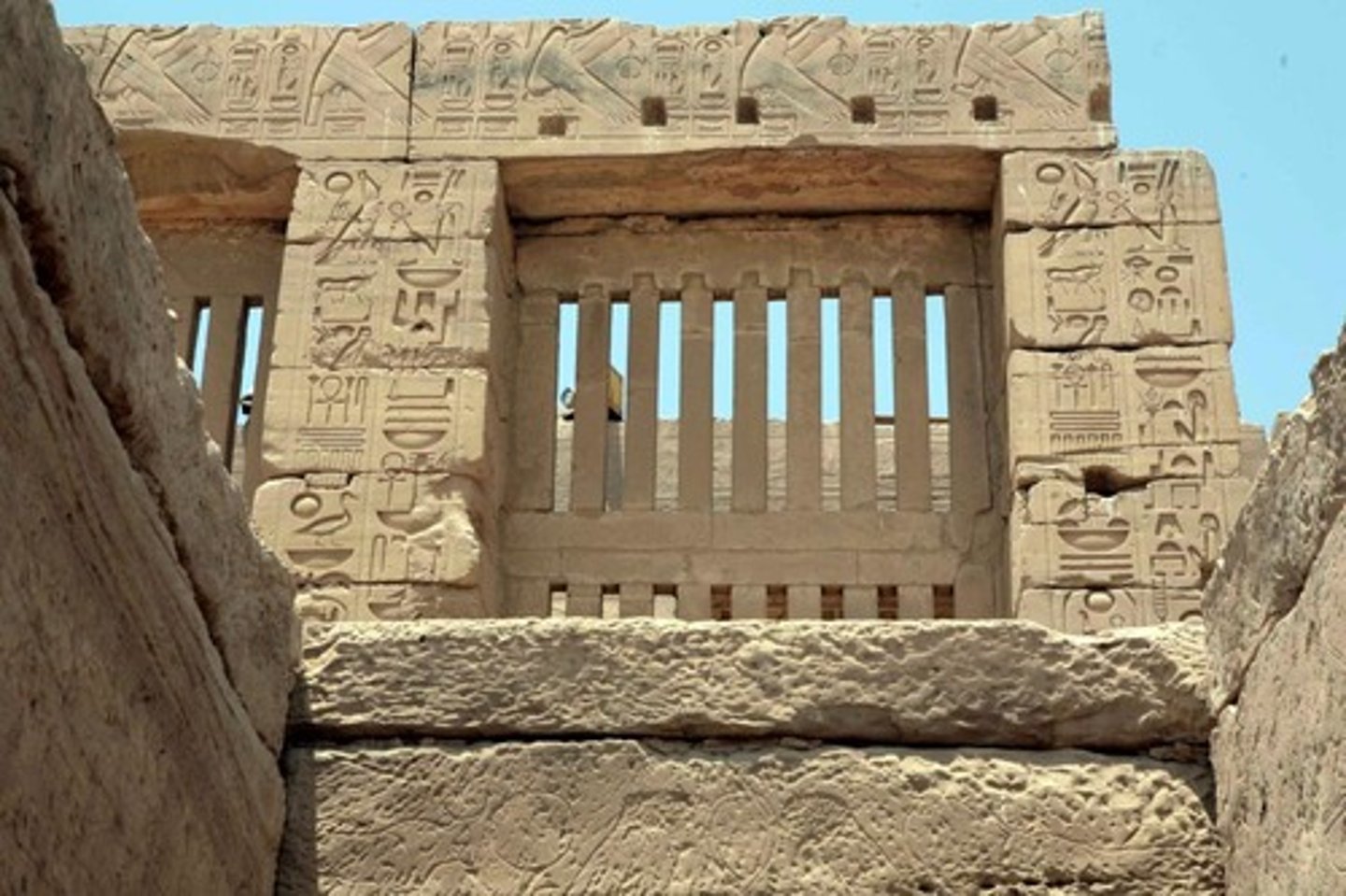

celestory

highest section of a wall that contains rows of windows or open space to allow light and fresh air inside

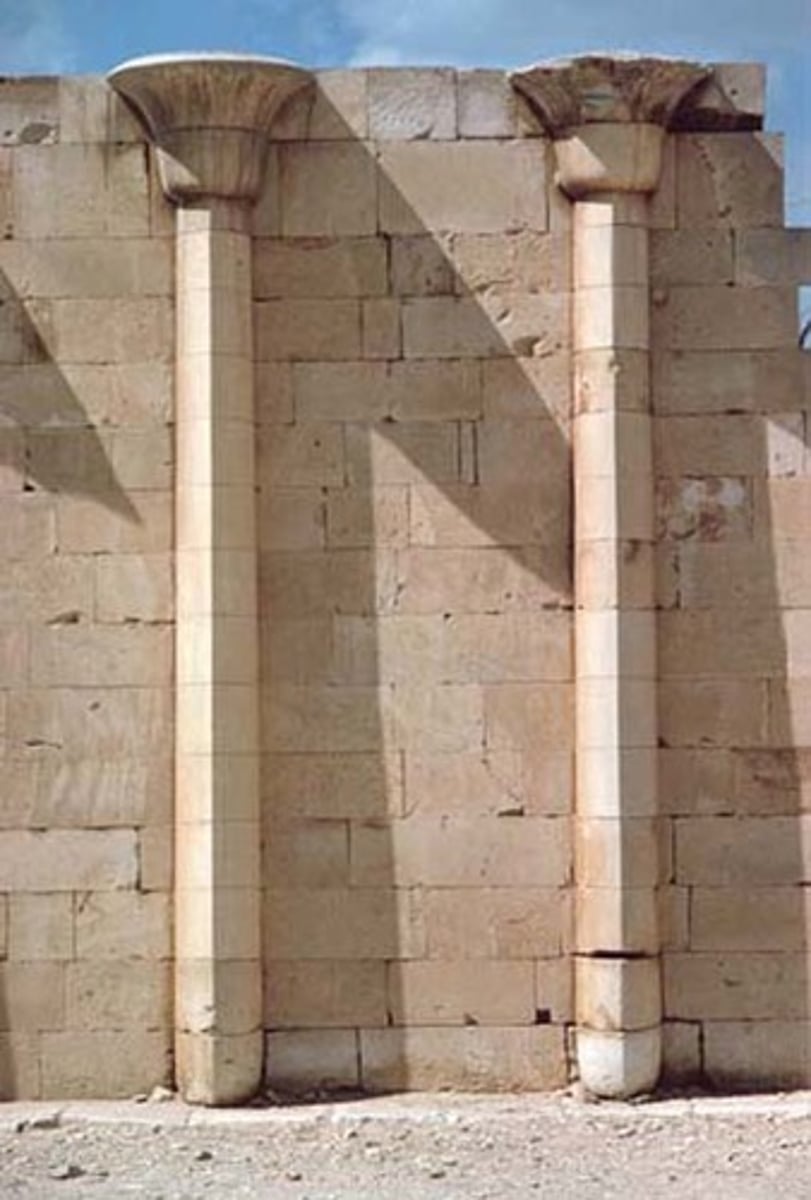

engaged column

a column that is embedded in the wall and is partly projects from the surface of the wall

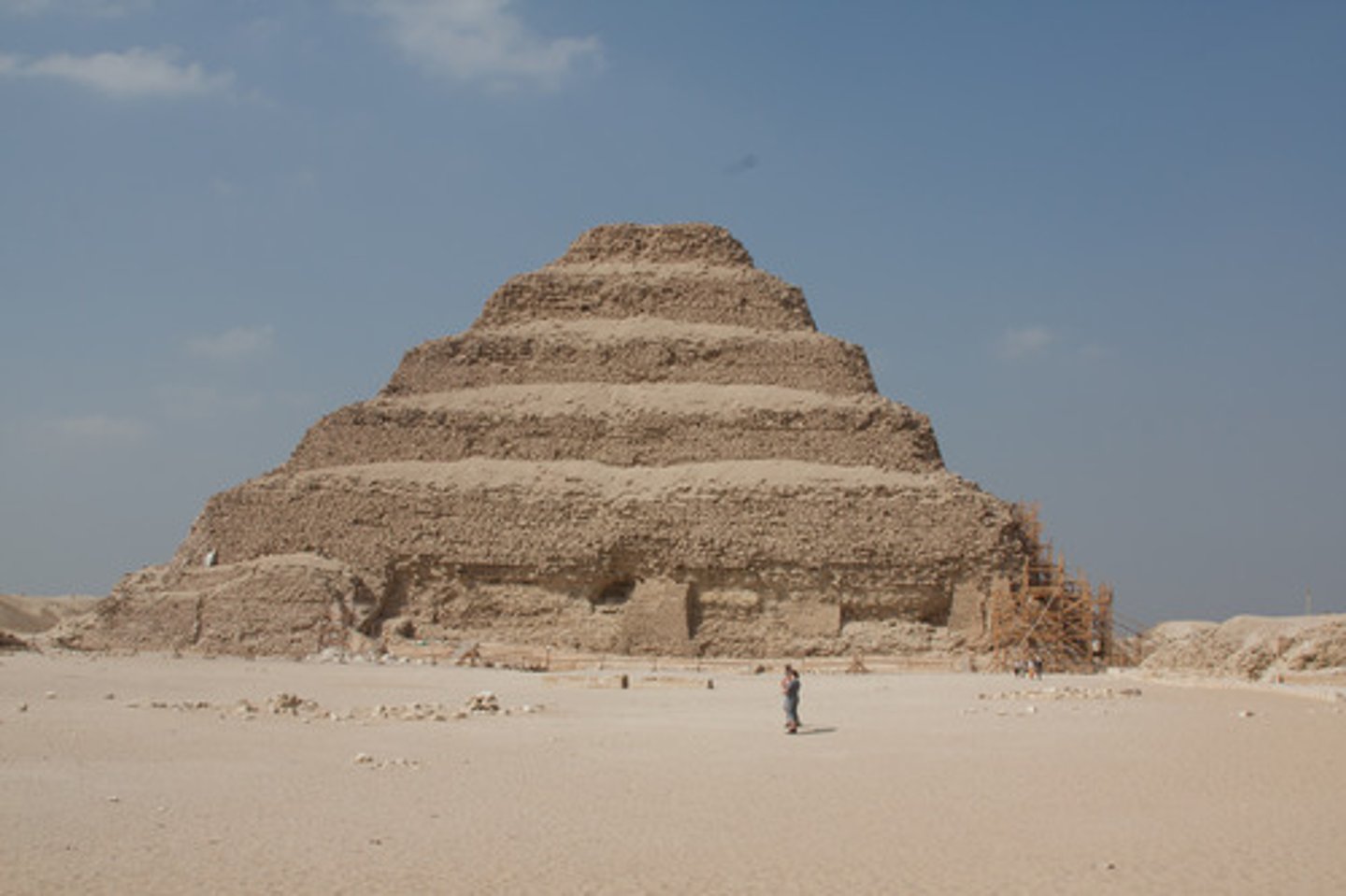

necropolis

an elaborate burial site where the deceased were interred, often located outside city proper.

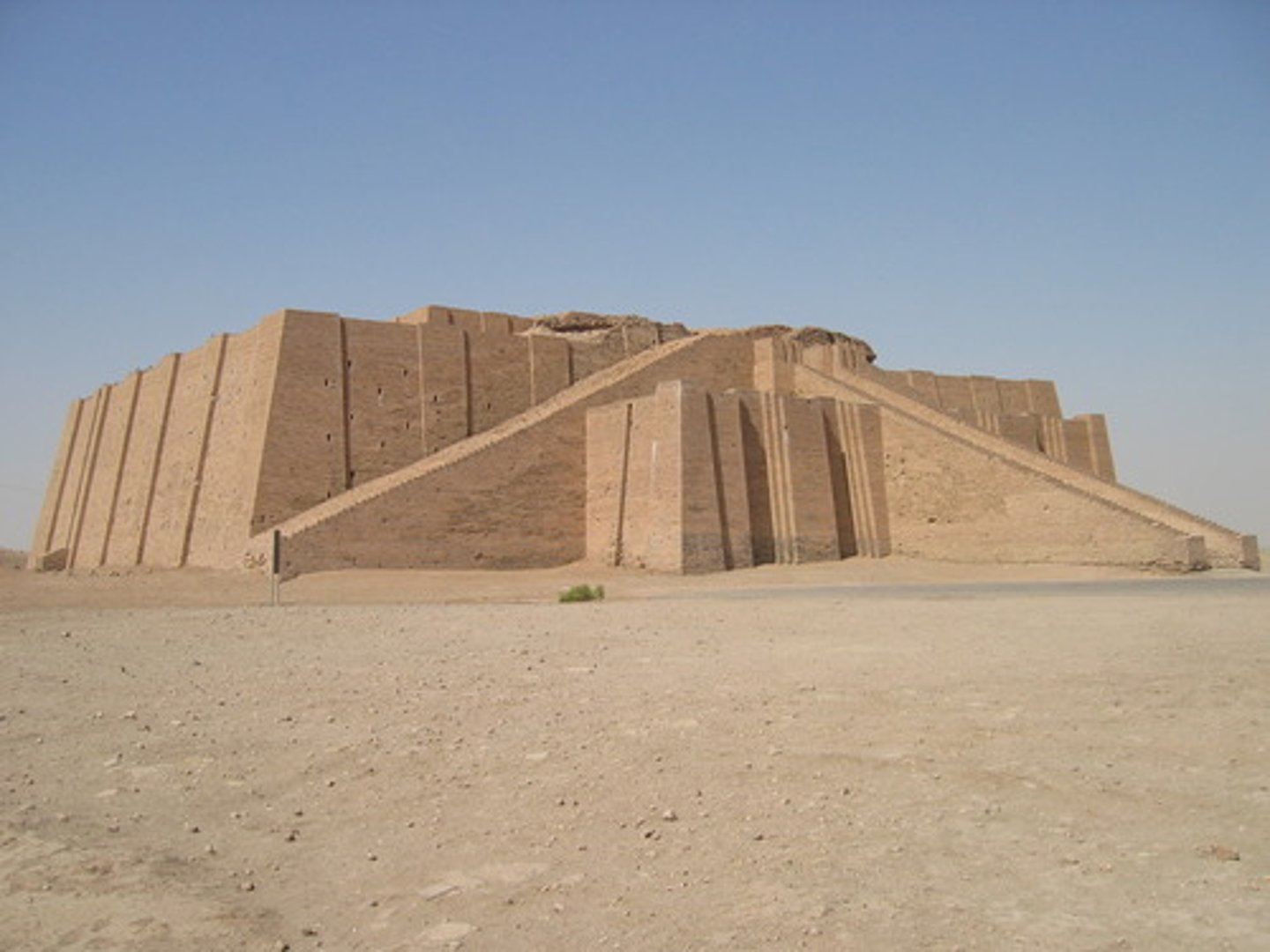

ziggurat

a pyramid stepped temple tower, characterisitcs of ancient Mesopotamian architecture, notable the Ziggurat of ur

temonos

area that is assigned as an official domain, that is dedicated to a god or deity

The Ziggurat at Ur-Nammu(Iraq) 2100 BCE Early Brozens period

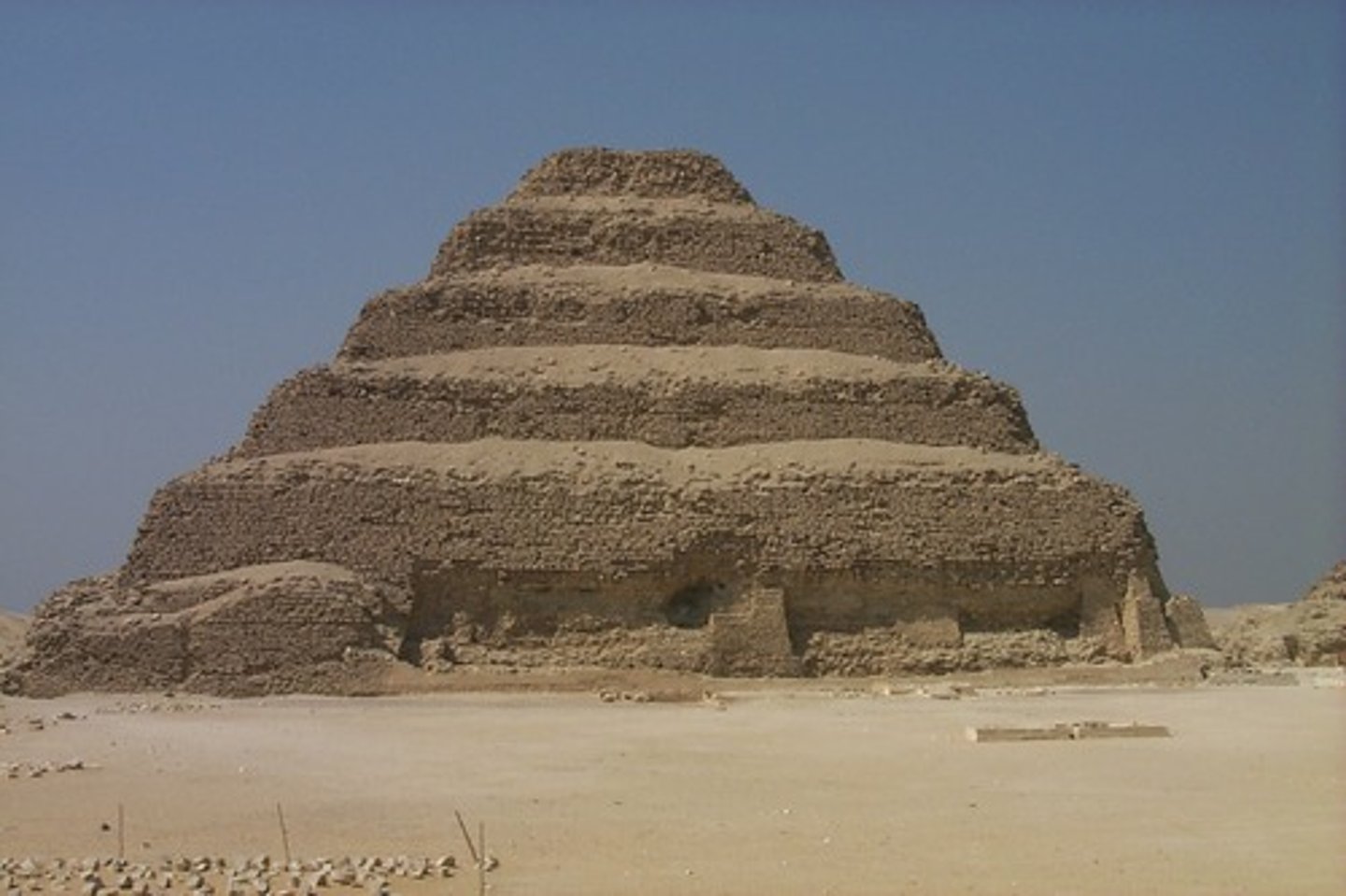

Mortuary Complex of Zoser(egypt) 2600 BCE Old Kingdom Egypt

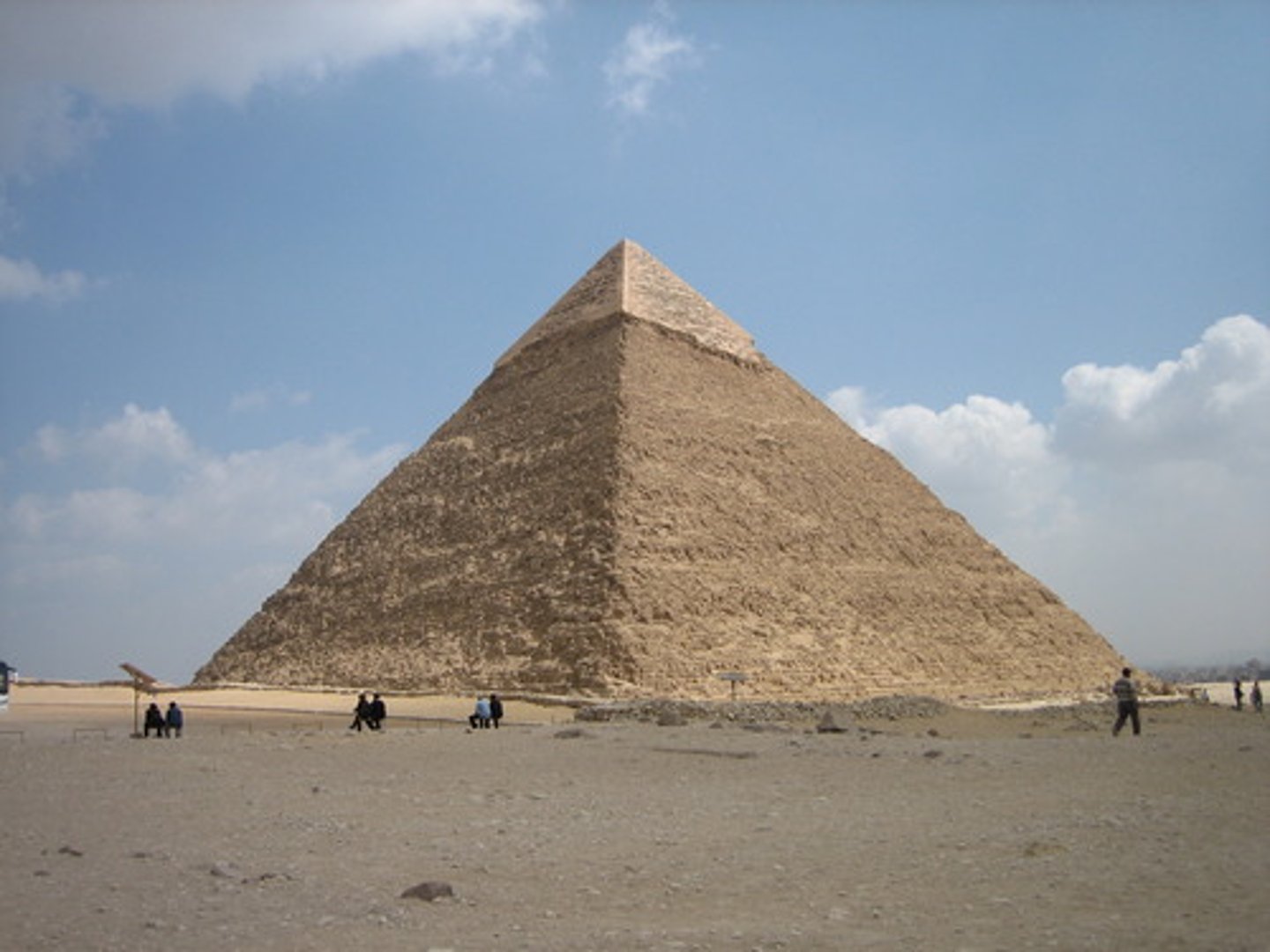

Pyramid of Khufu(egypt) 2500 BCE Old Kingdom Egypt

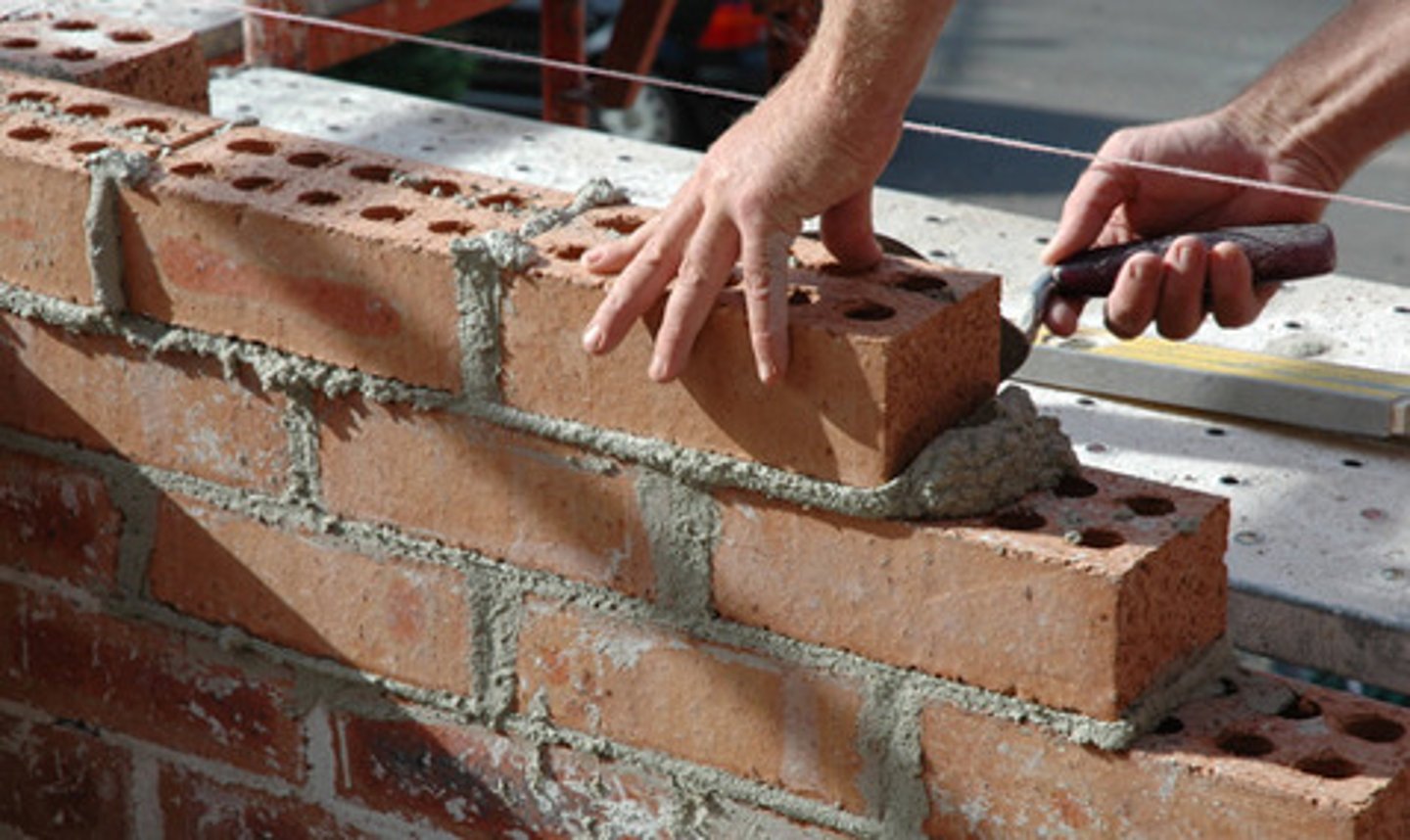

masonry

stonework or brickwork

dry mansonry

Brick or stone construction without use of mortar.

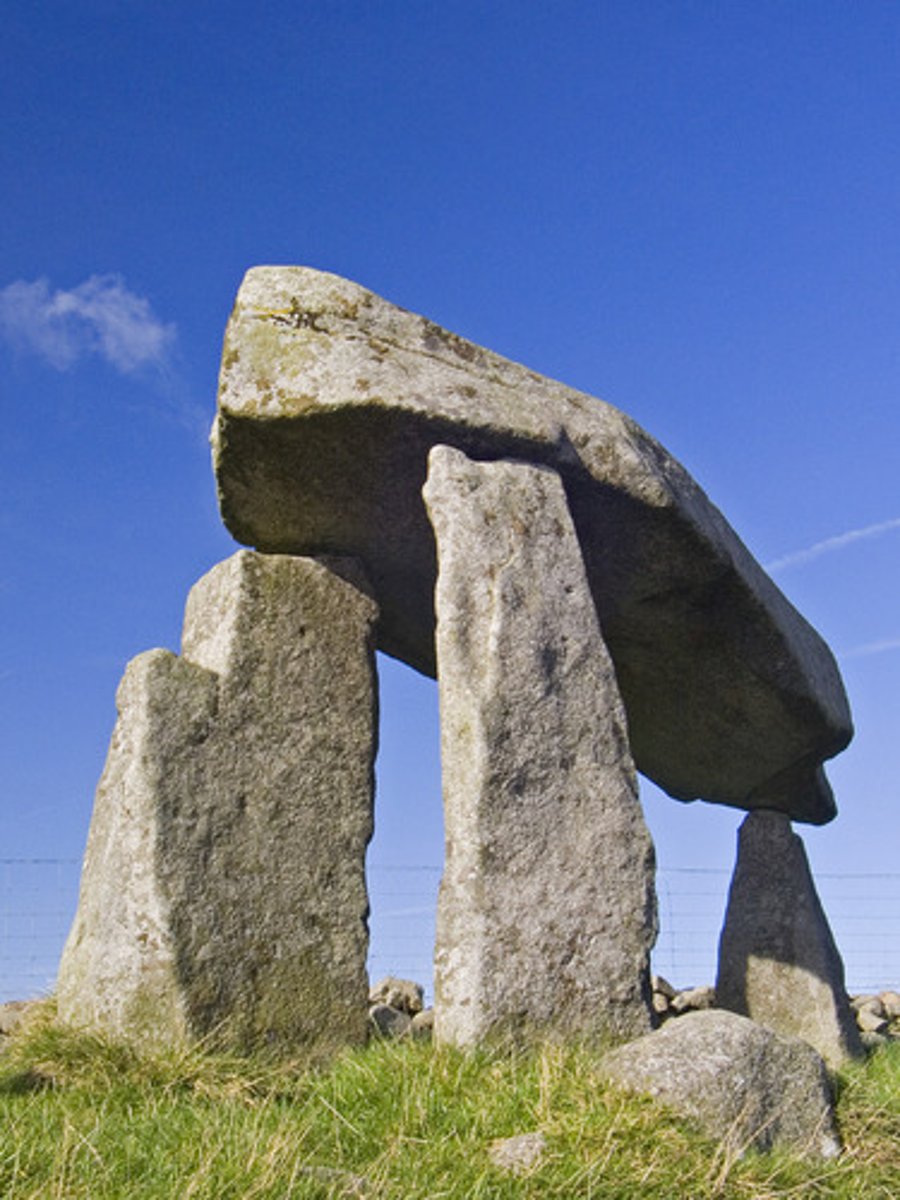

megalith

a large stone that forms a prehistoric monument

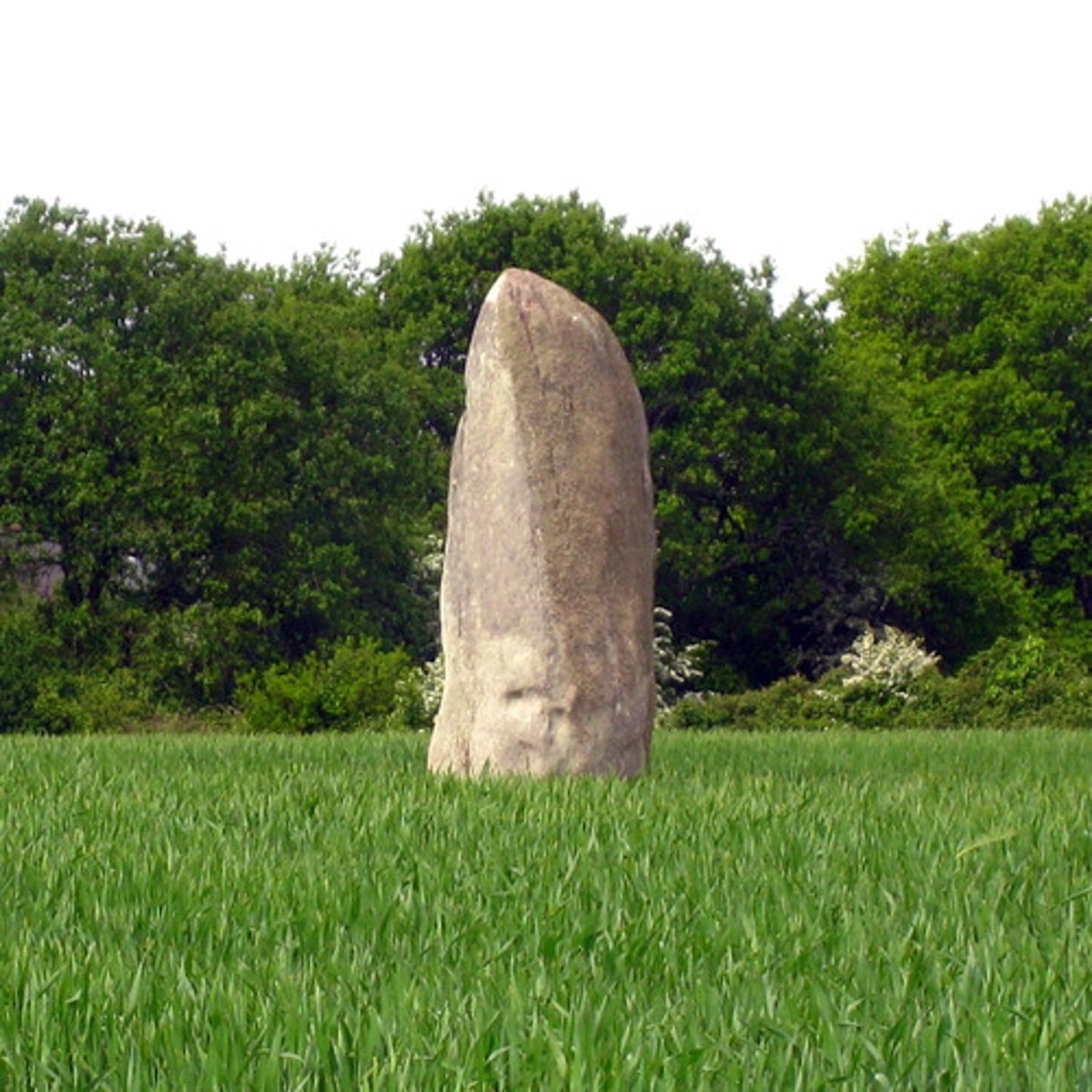

menhir

large, upright standing stone often used in monument in prehistoric times

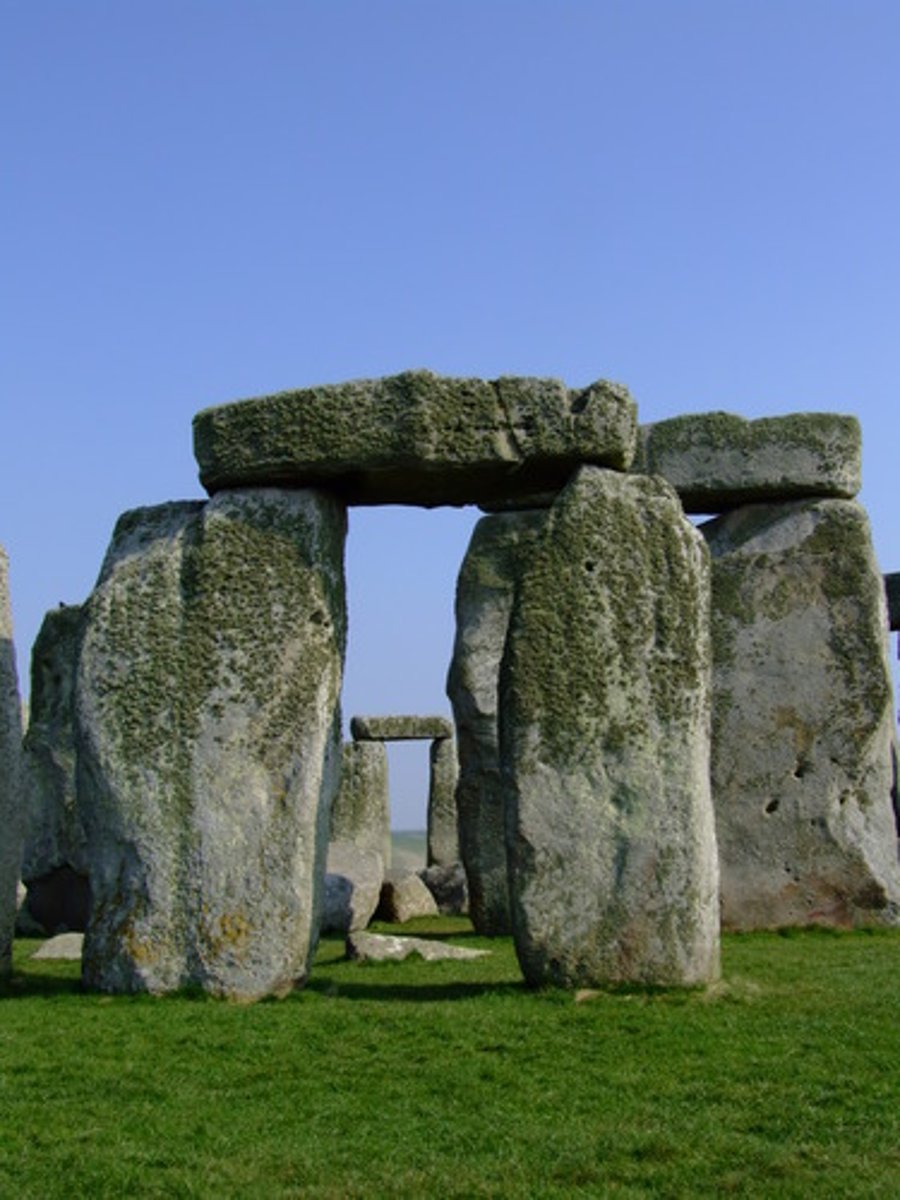

trilithon

a structure consisting of two large vertical stones (posts) supporting a third stone set horizontally across the top (lintel)

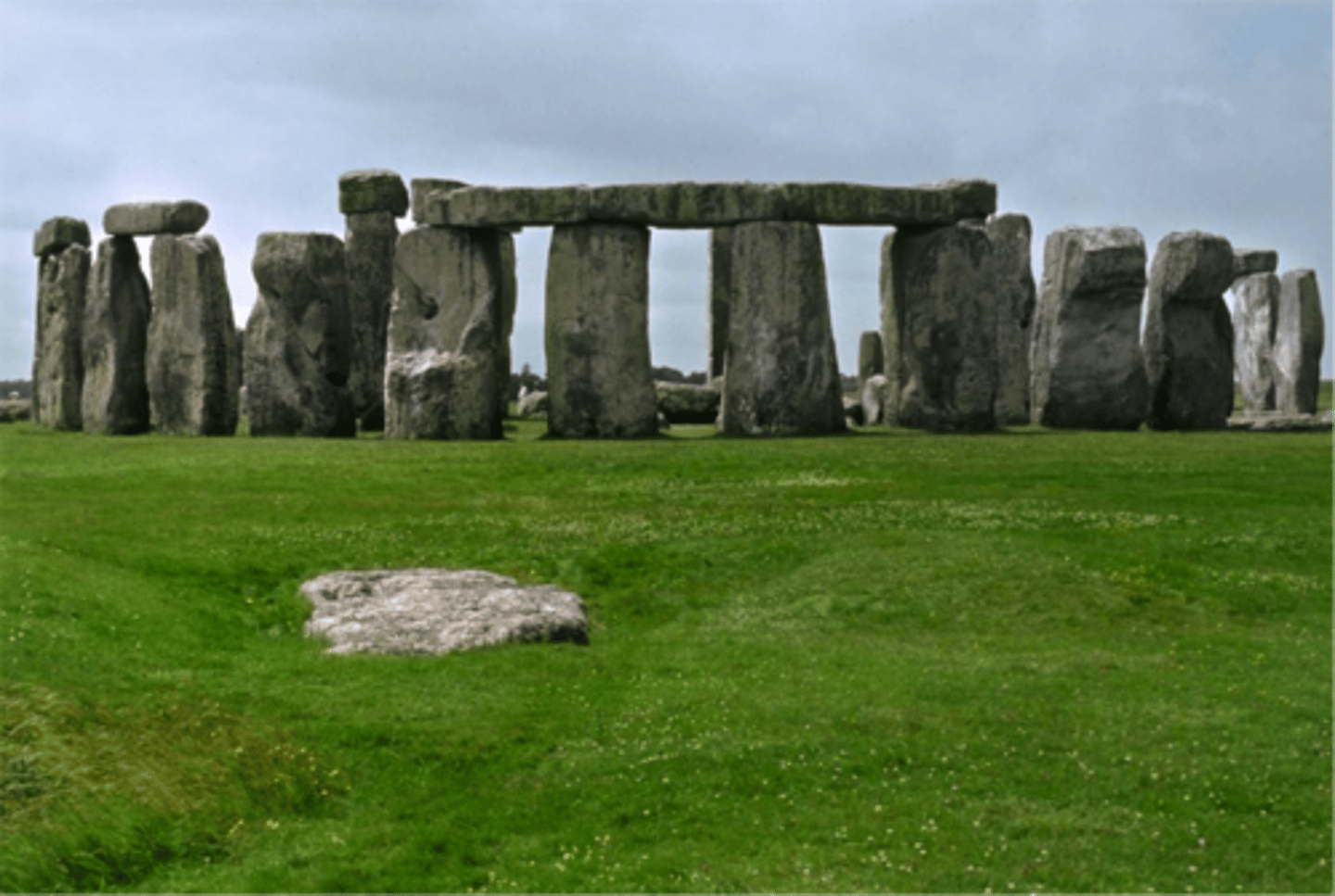

trabeation

use of horizontal stone beams or lintels for the support of vertical post or columns

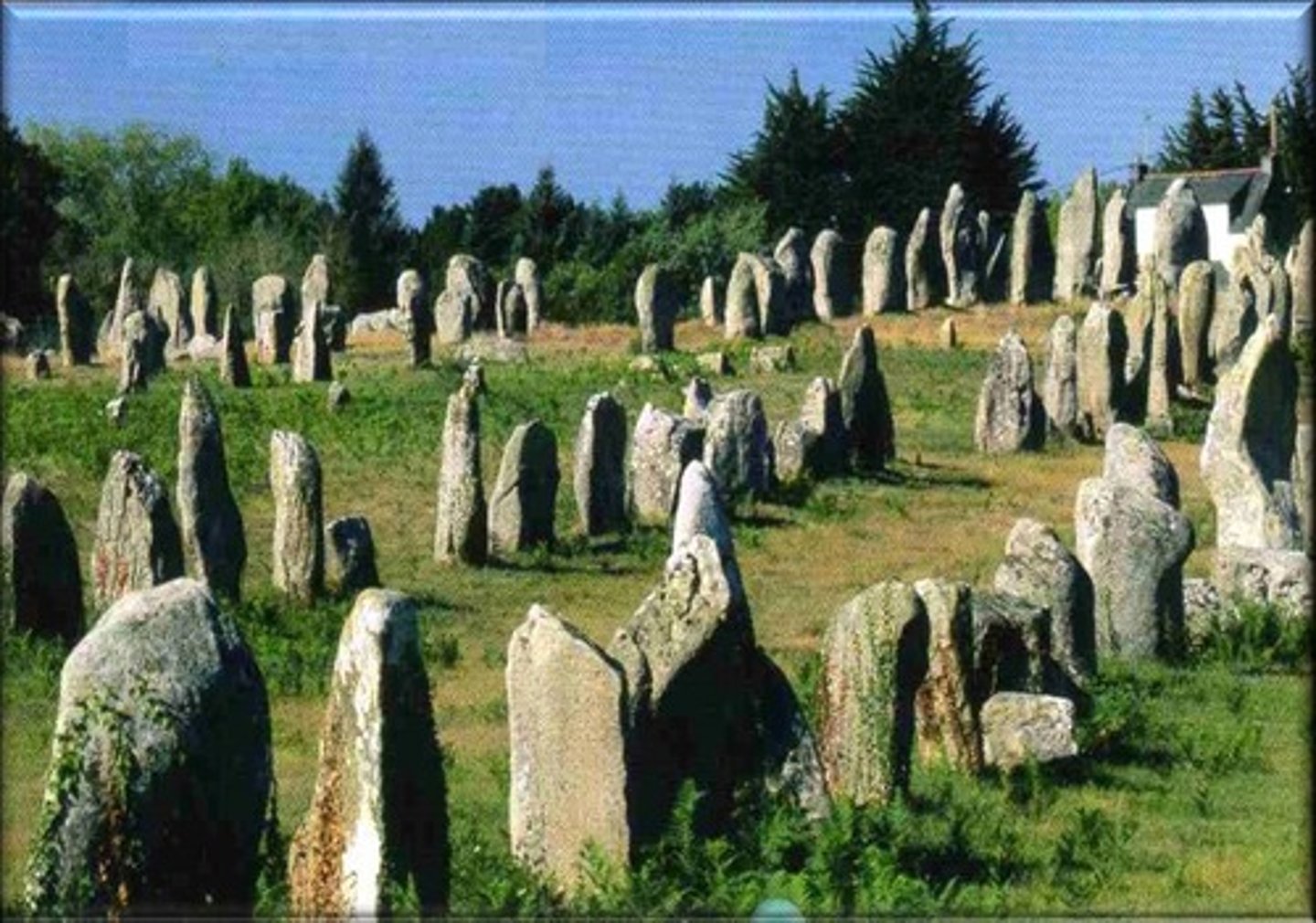

Carnac Stones(France) 3500 BCE Neolithic

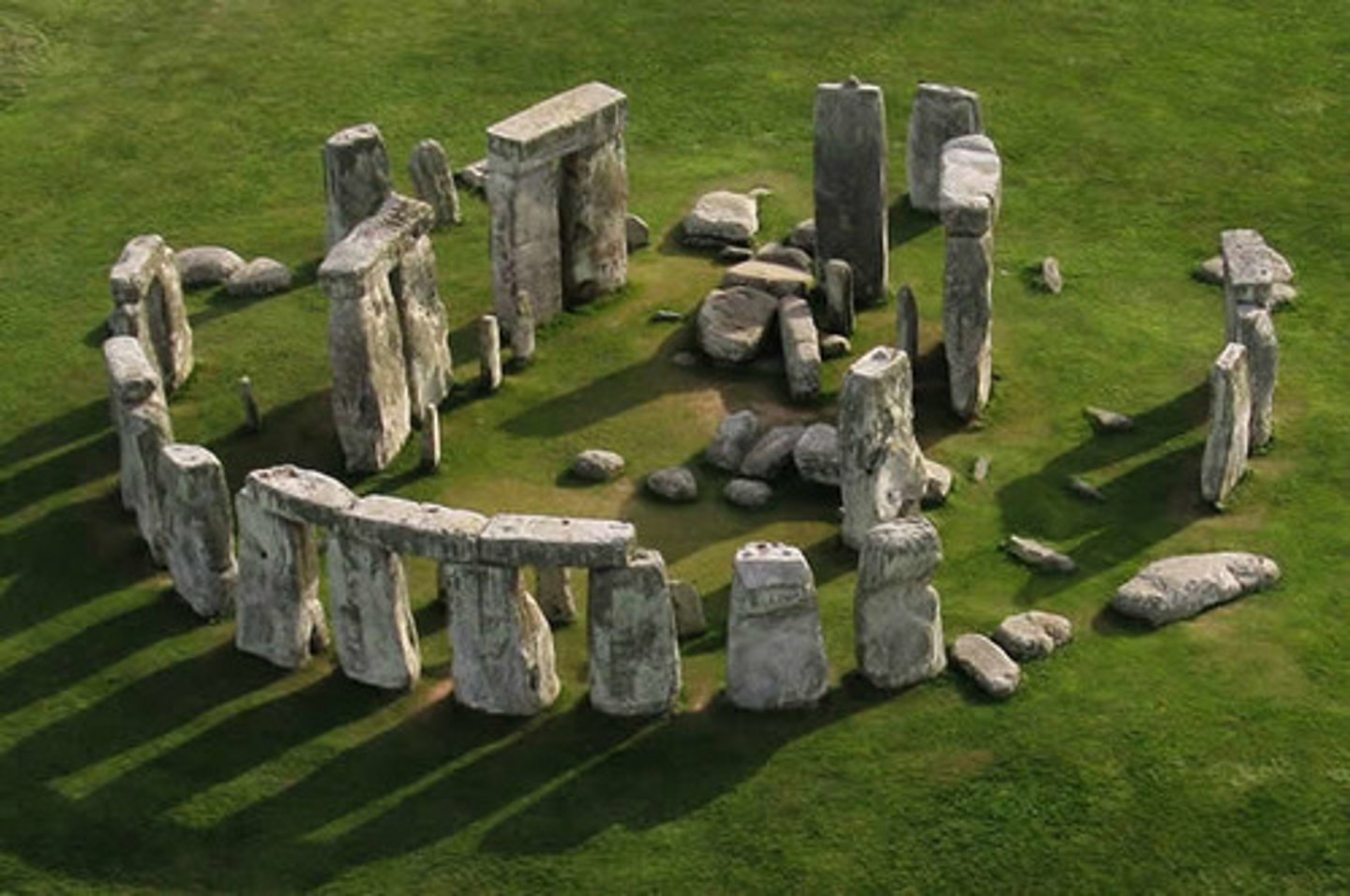

Stonehedge(England) 2500 BCE Neolithic

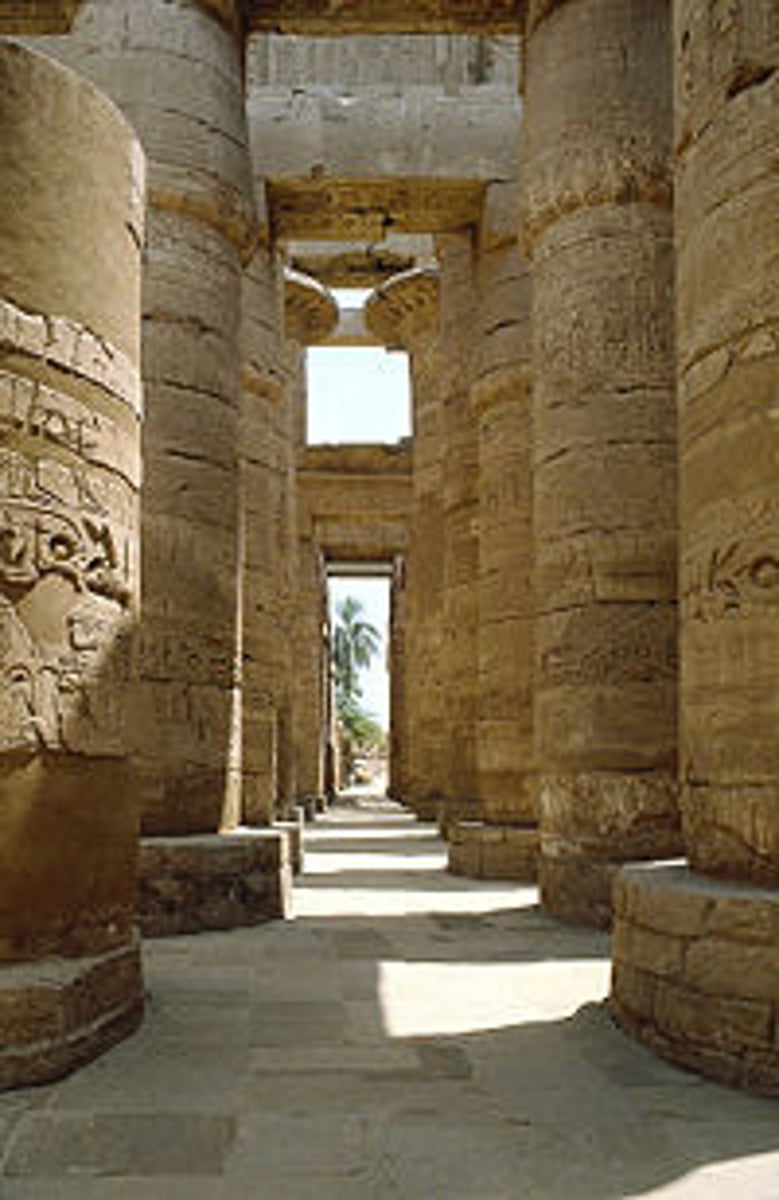

hypostyle hall

a roof supported by rows of columns, to create a vast open interior for temples, palaces, buildings without creating arches

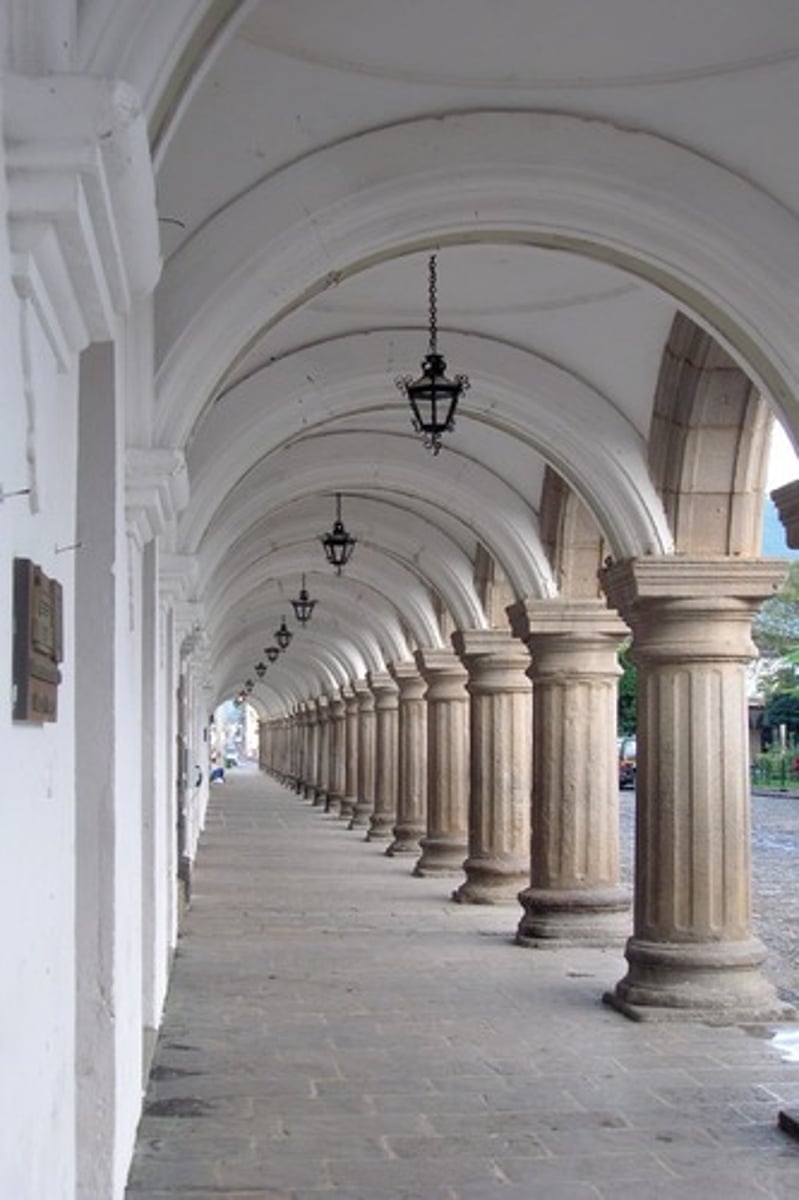

Colonade

a row of regularly spaced columns to support the roof

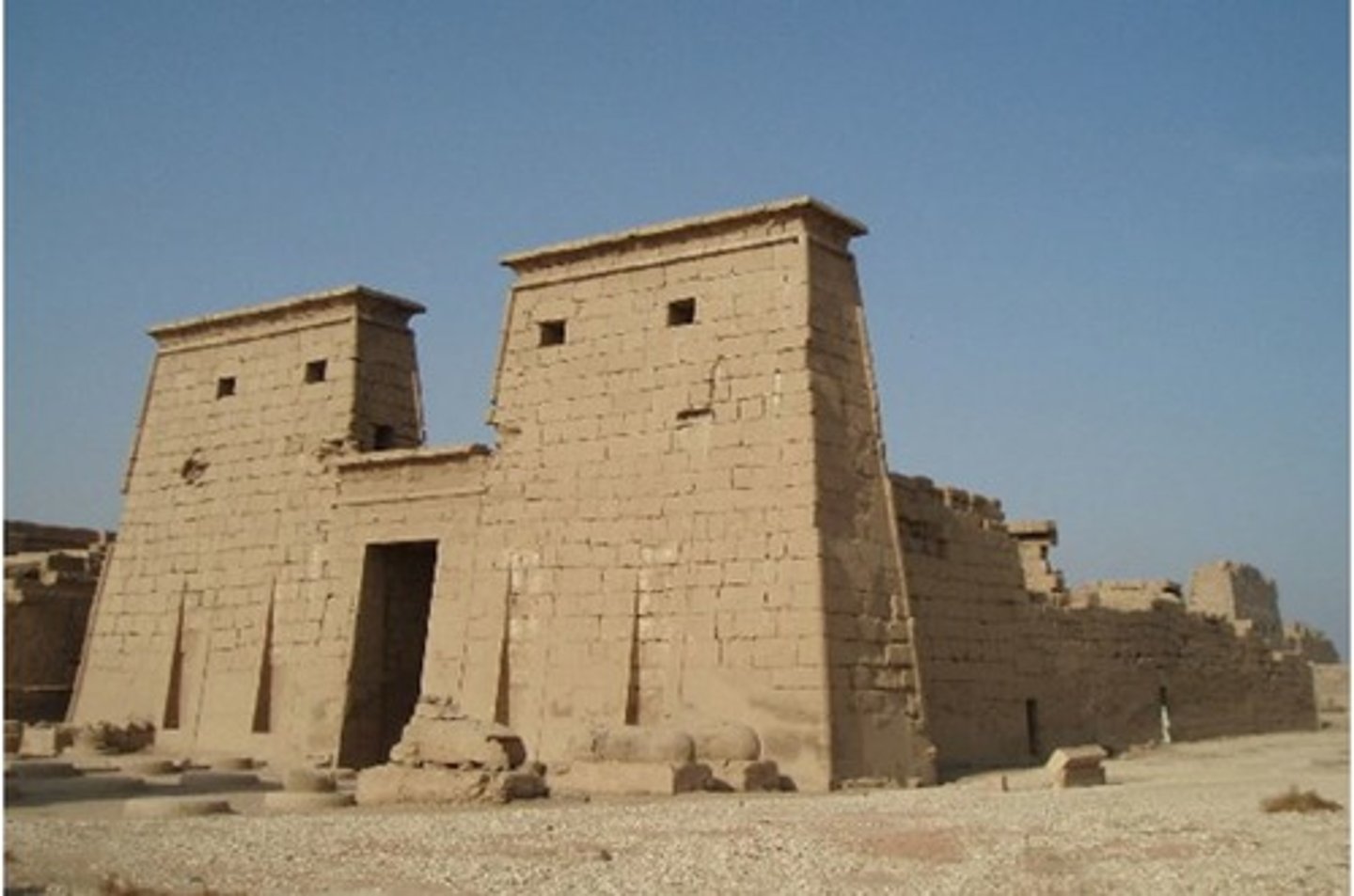

Pylon

momumental gateway of a ancient egyptian temple charateristized by two truncated pyramidal towers

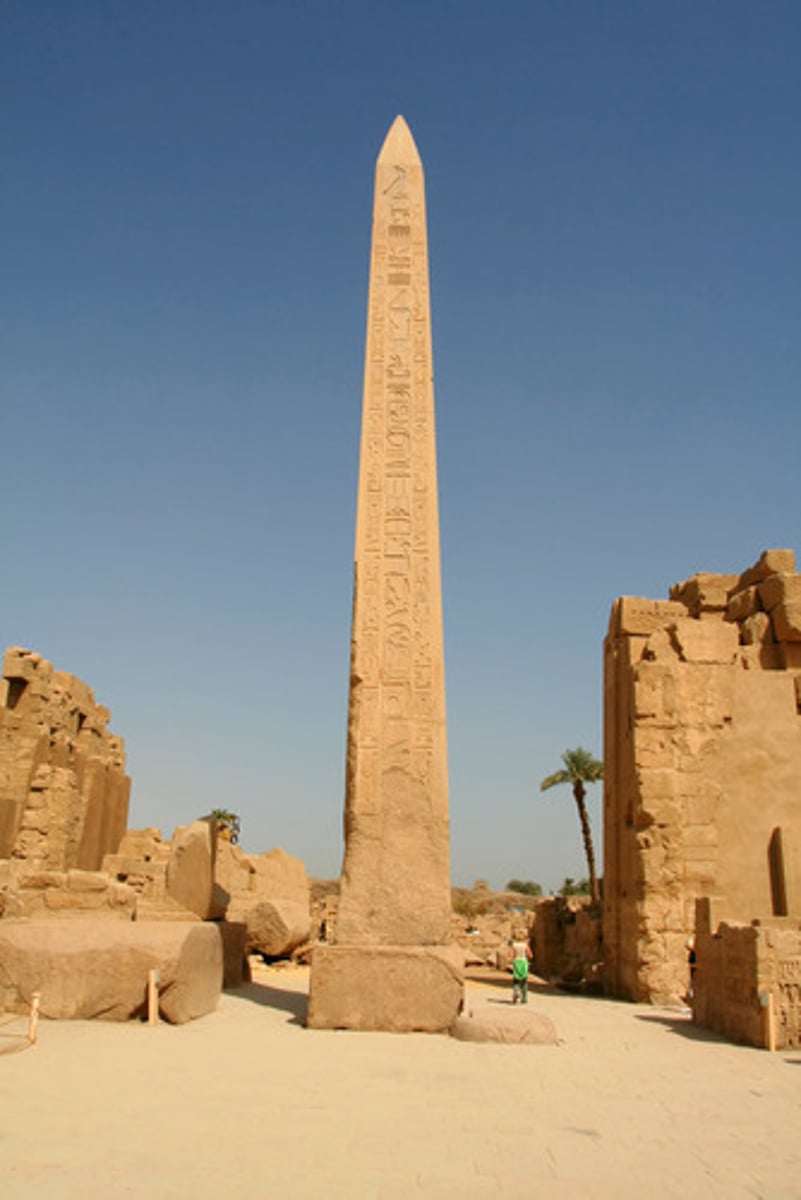

Obelisk

a stone pillar, having a square or rectangular cross section and a pyramidal top, set up as a monument or landmark.

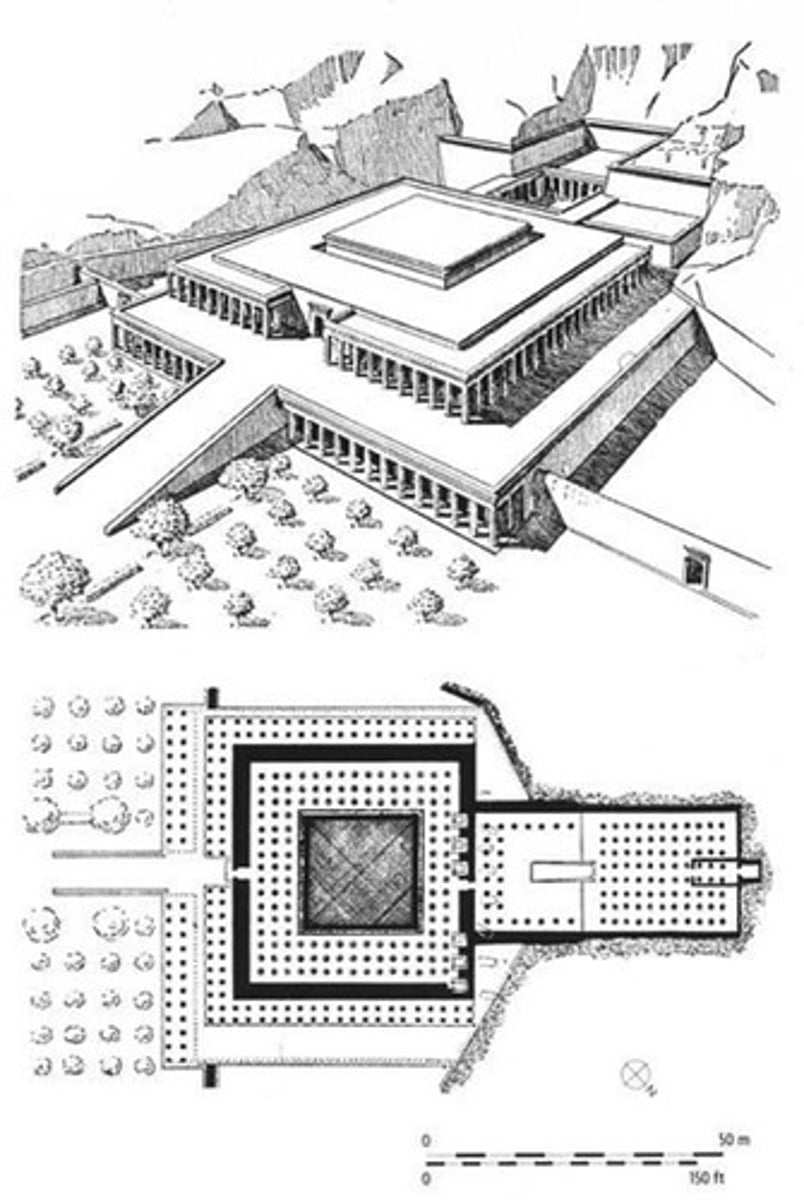

Mortuary temple of Mentuhotep(Egypt) 2050 BCE Middle Kingdom Egypt

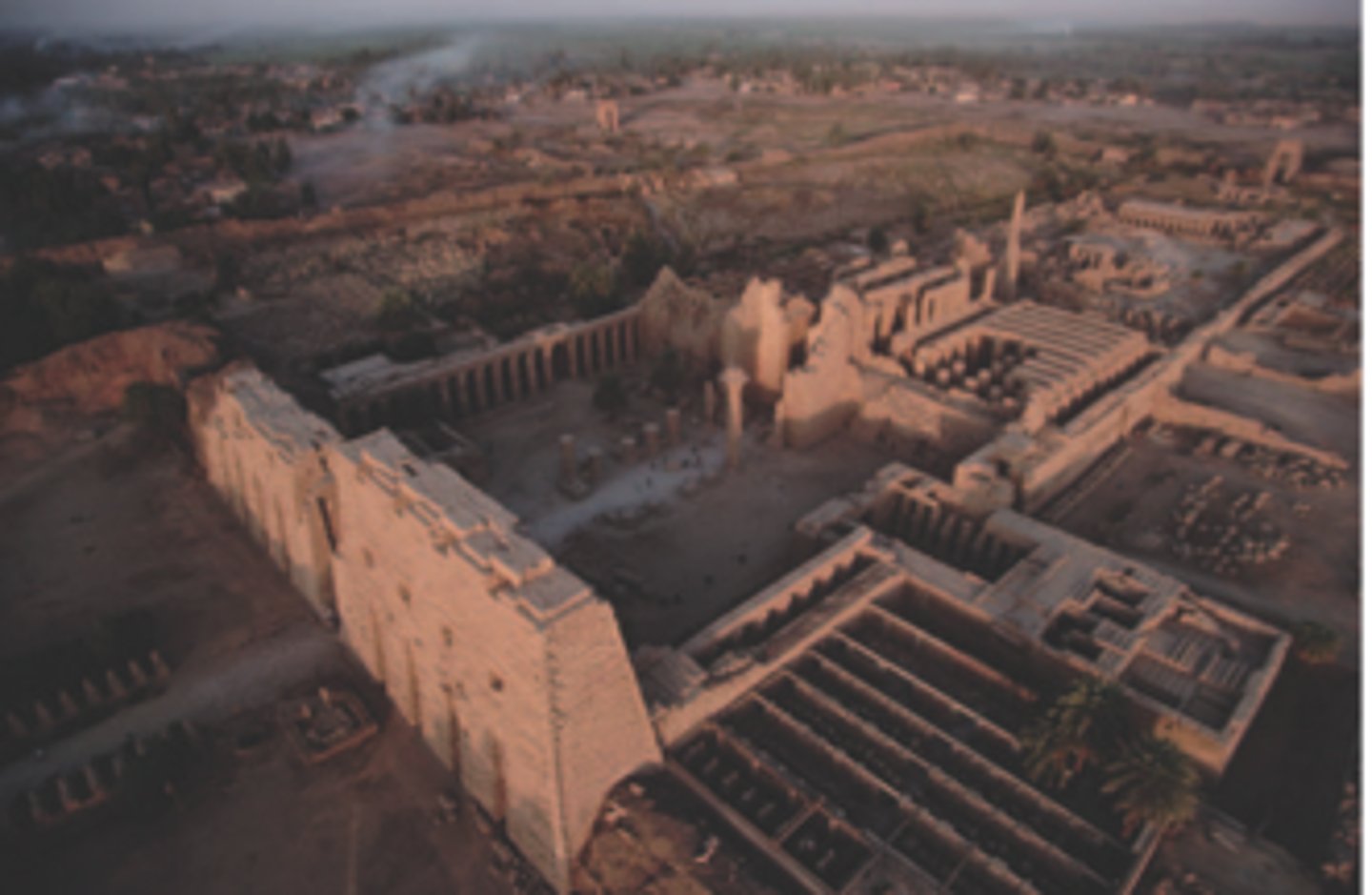

Karnak Temple(Egypt) 1300 BCE Middle Kingdom Egypt

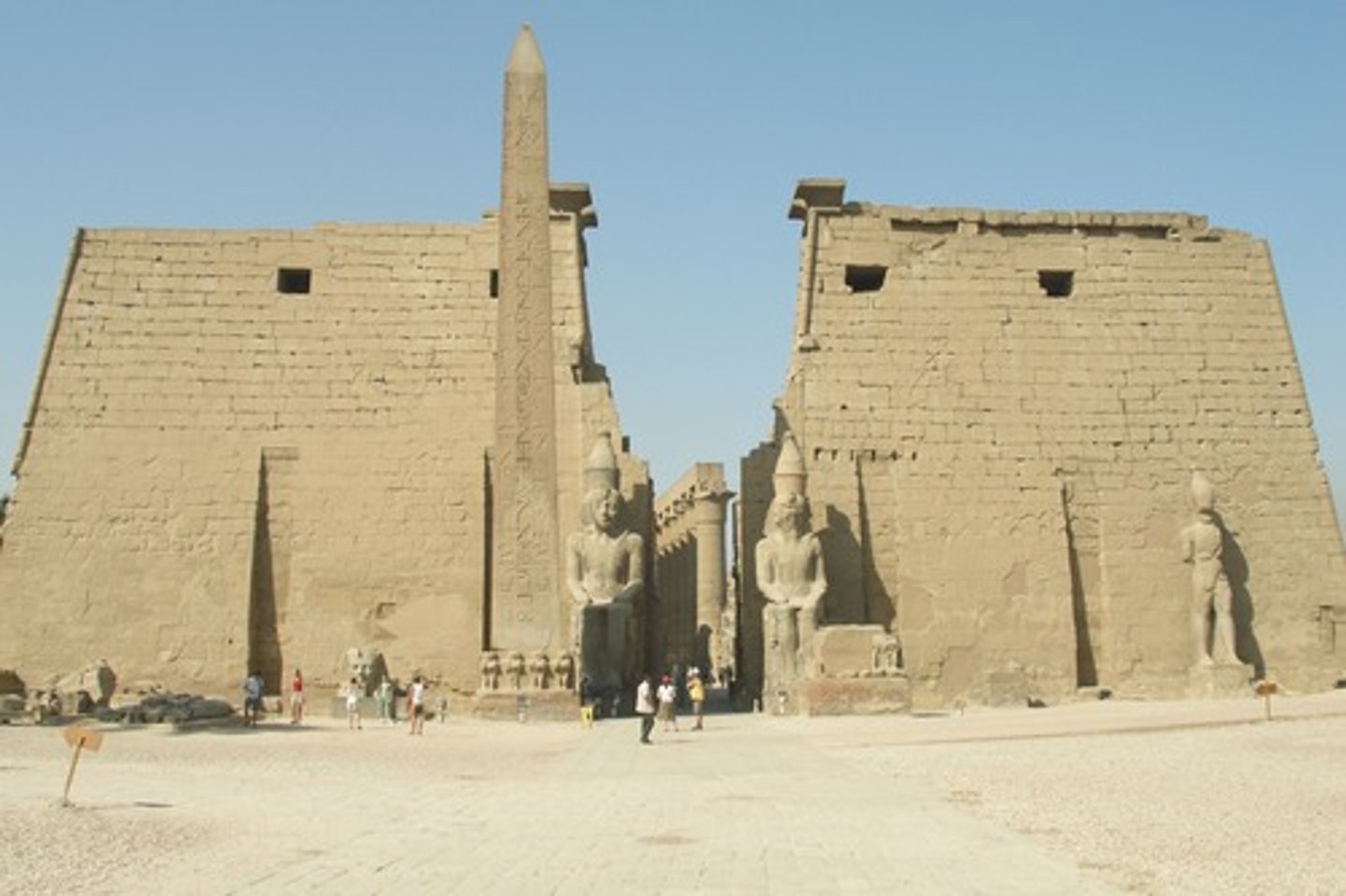

Luxor Temple(Egypt) 1350 BCE Middle Kingdom Egypt

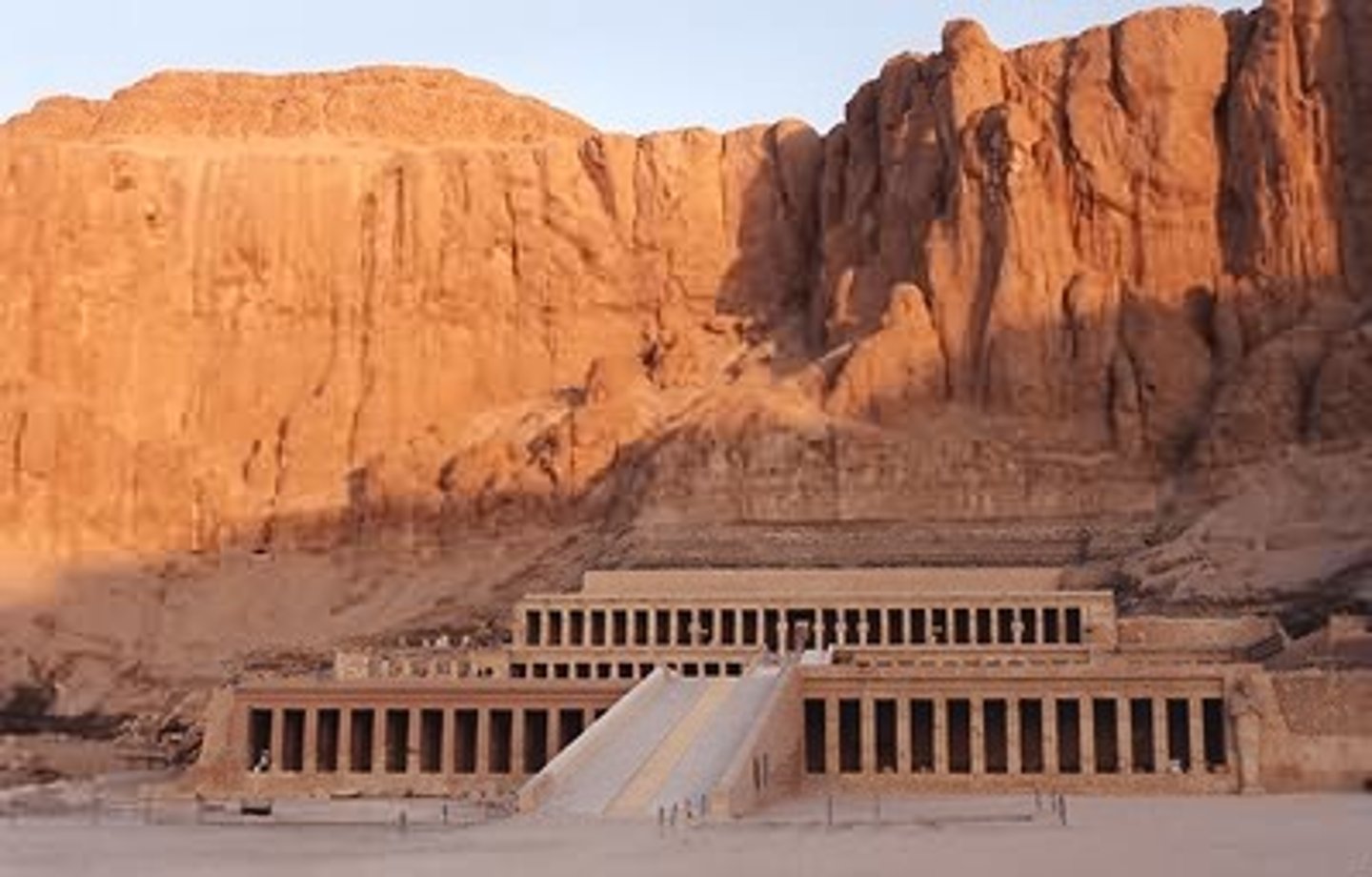

Mortuary Temple of Hatshepsut(Egypt) 1470 BCE Middle Kingdom Egypt
