ULM Brain

Brainstem

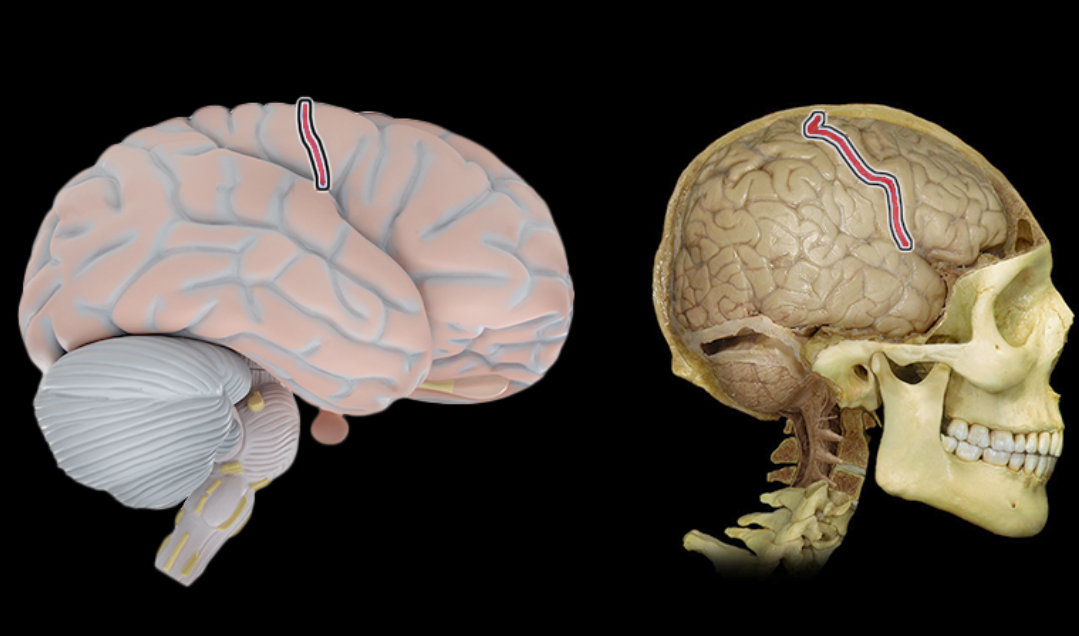

Central Sulcus (between the postcentral and precentral gyrus)

Parietal Lobe

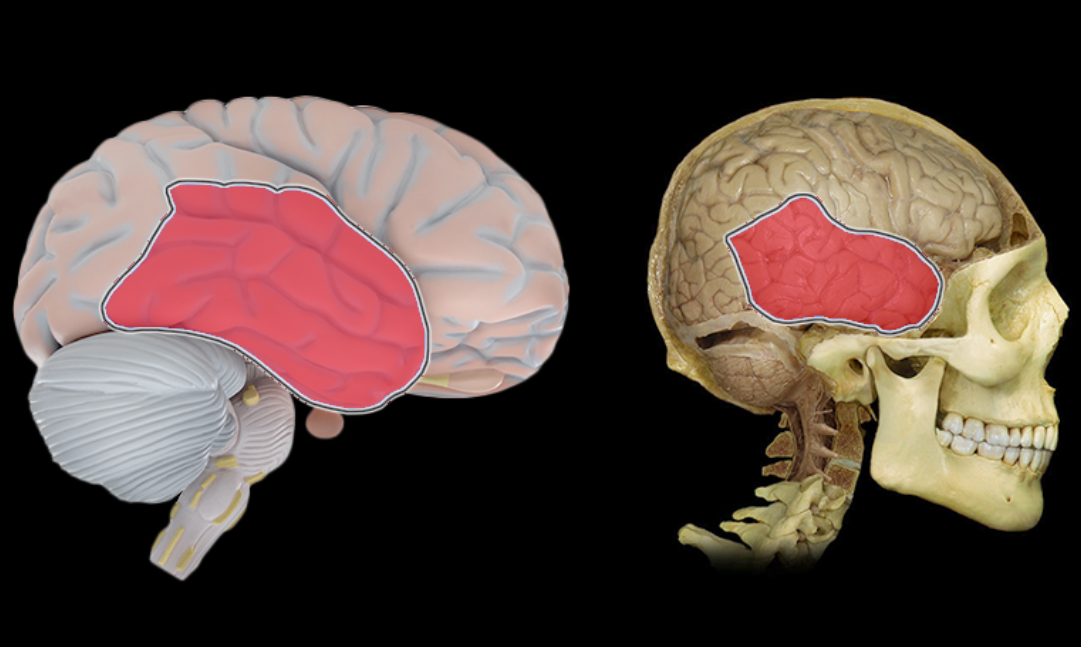

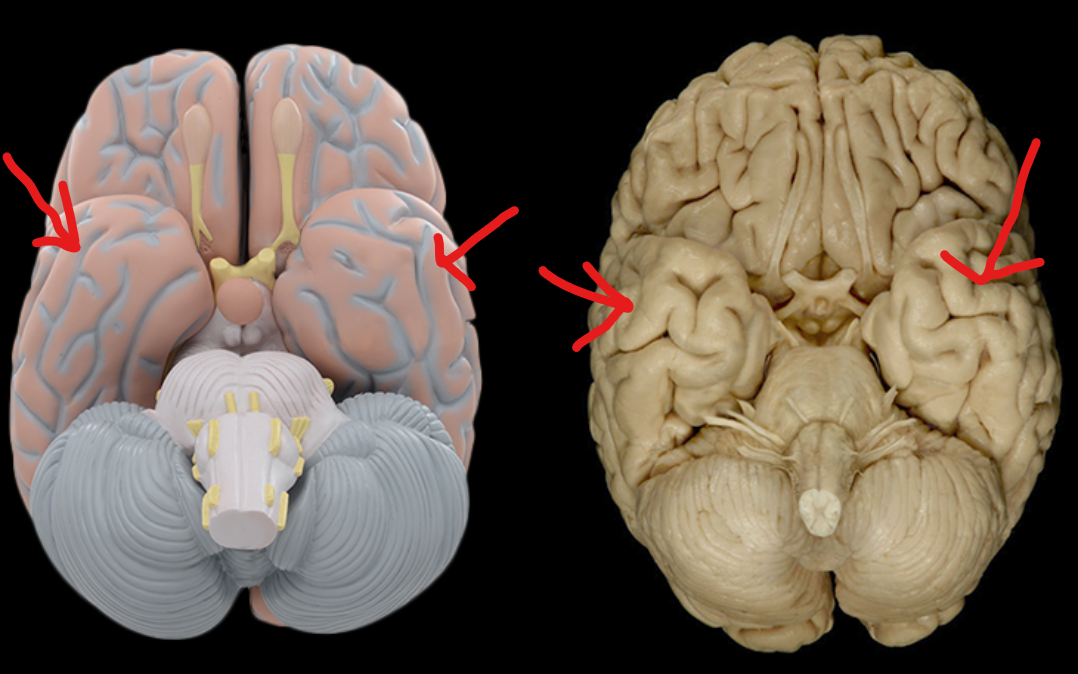

Temporal Lobe

Postcentral Gyrus

Temporal Lobe

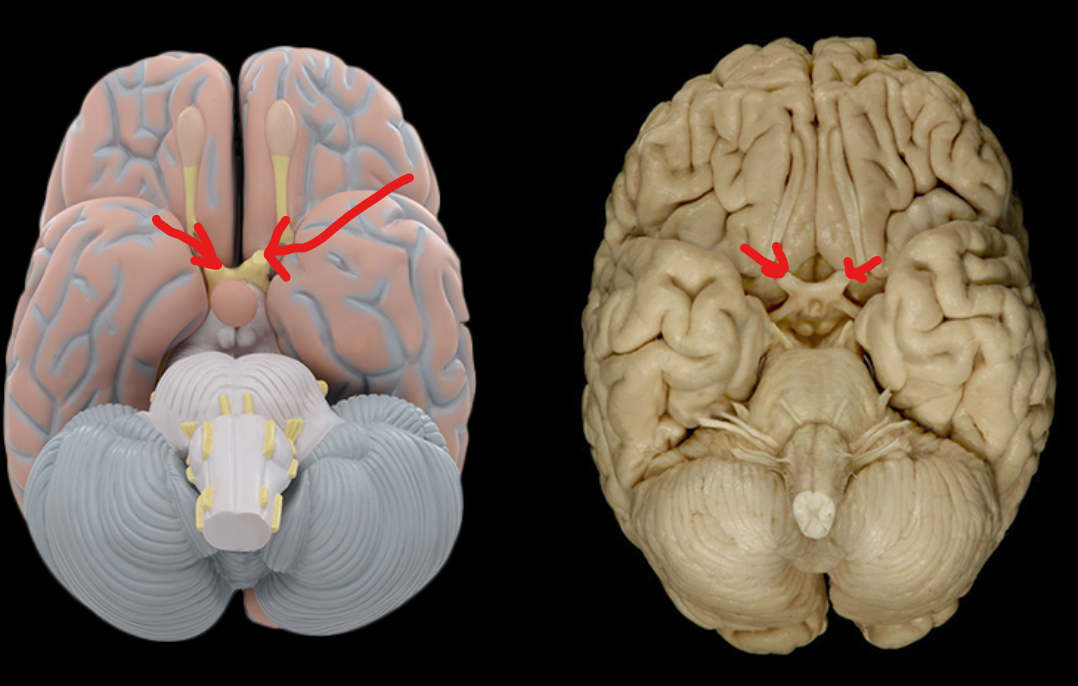

Optic Nerve

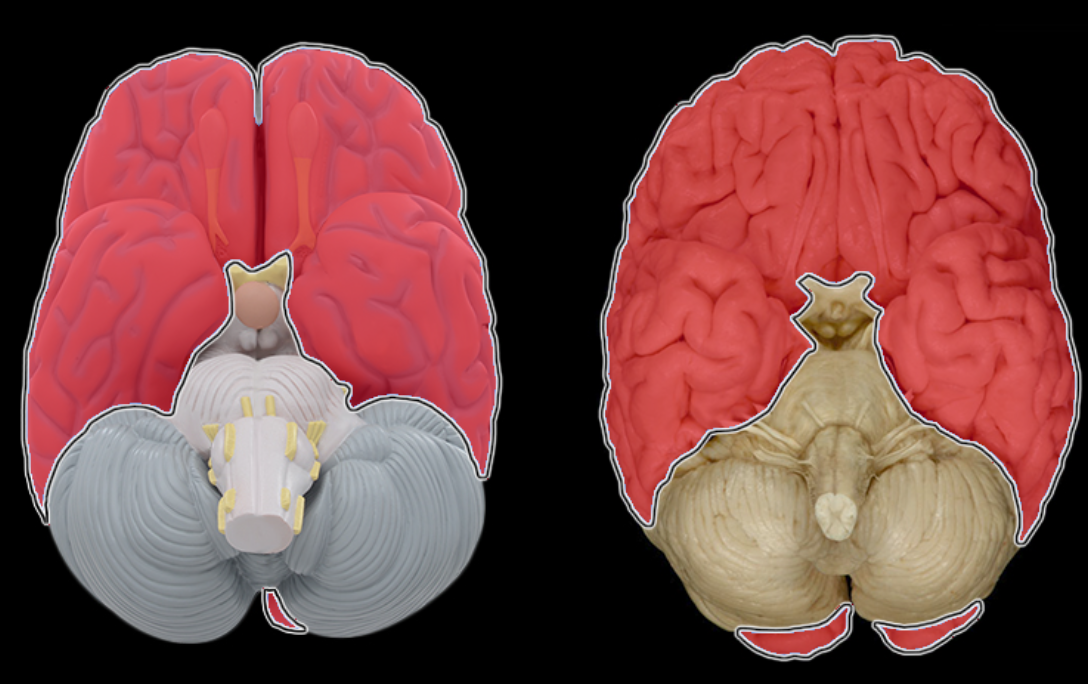

Cerebrum

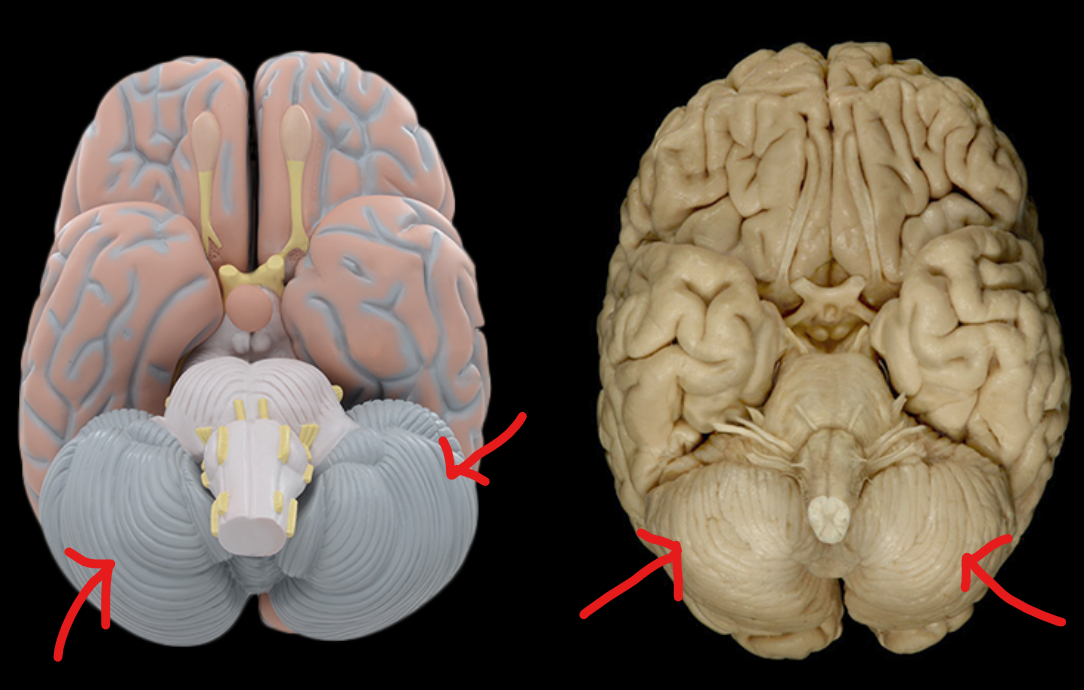

Cerebellum

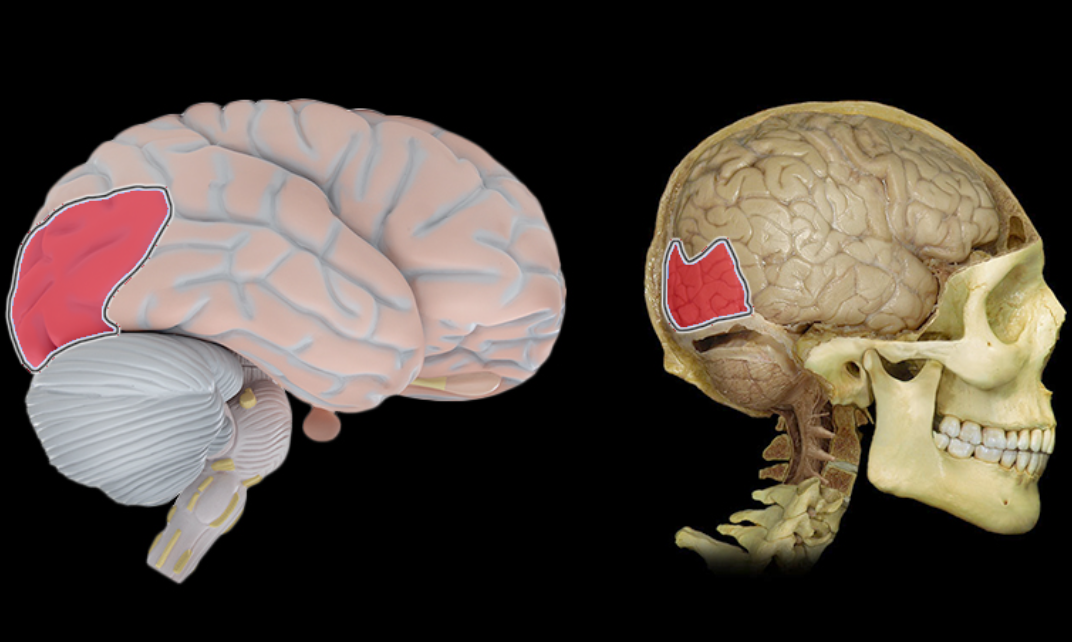

Occipital Lobe

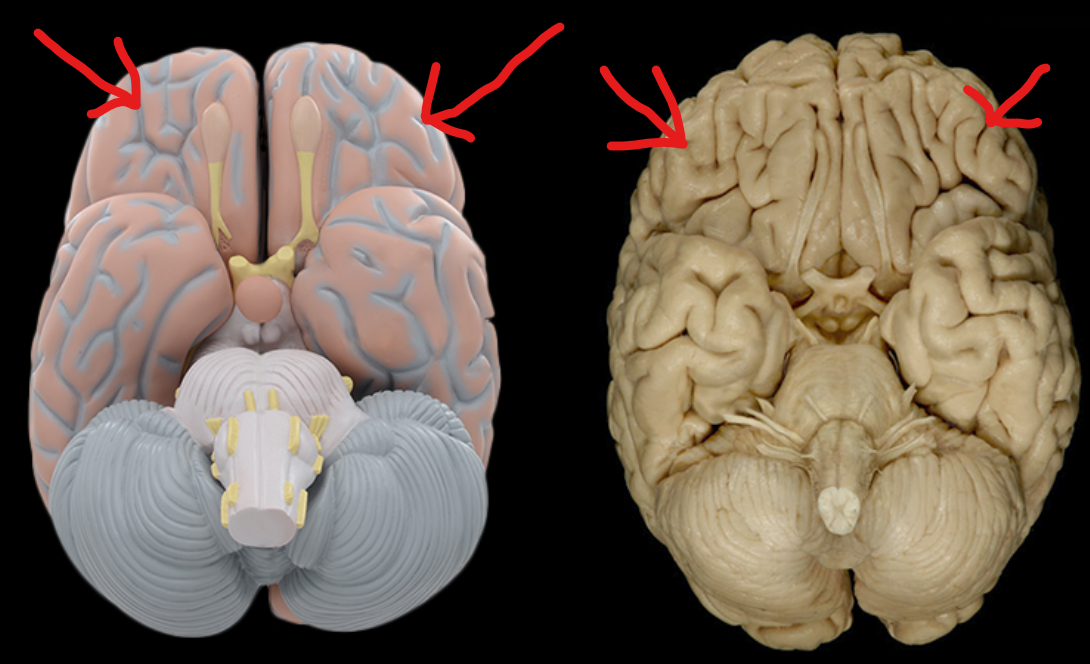

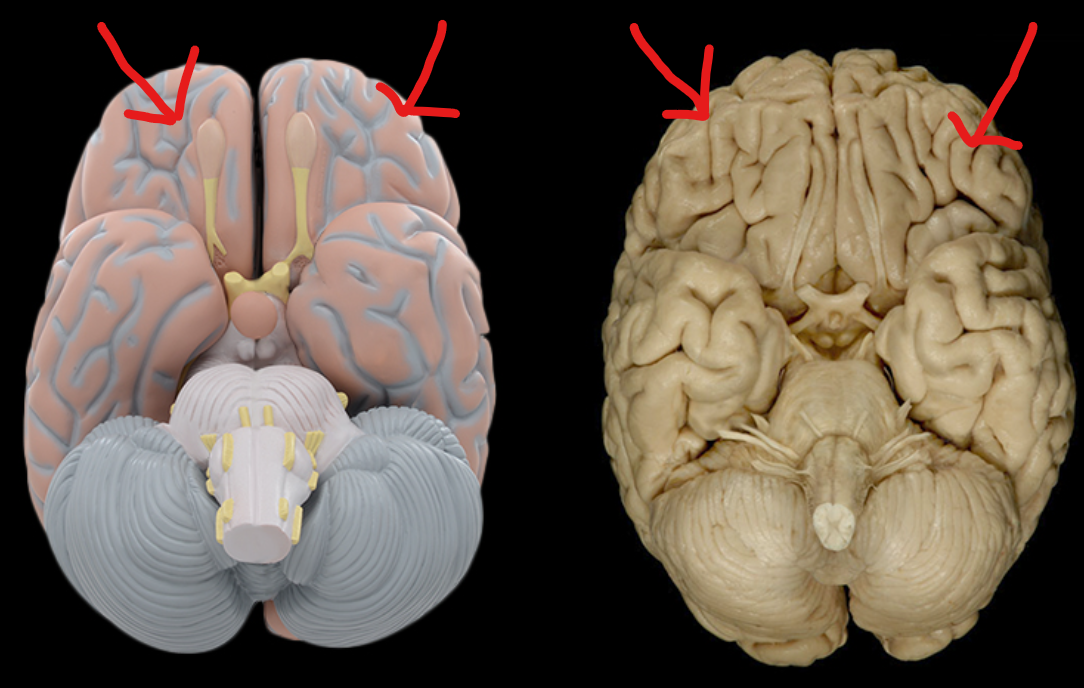

Frontal Lobe

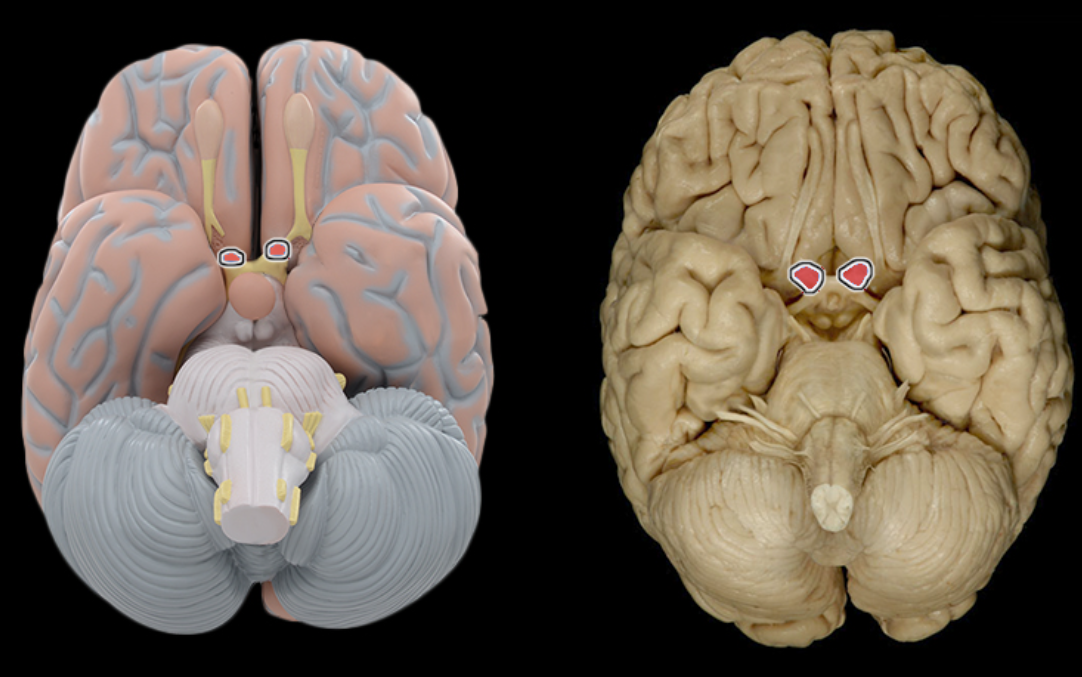

Optic Nerve

Brainstem

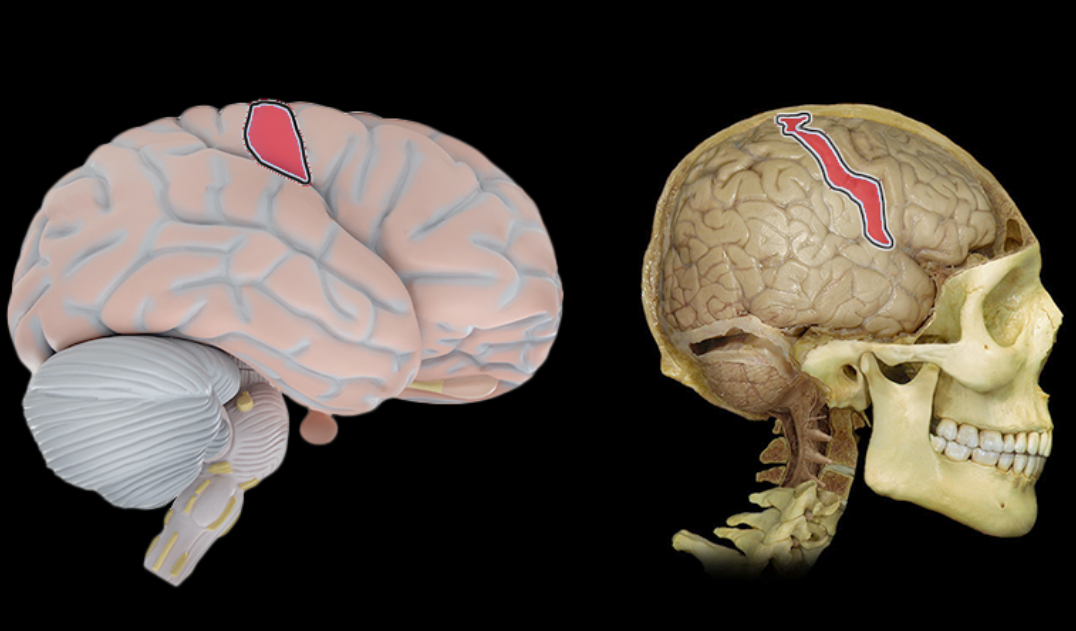

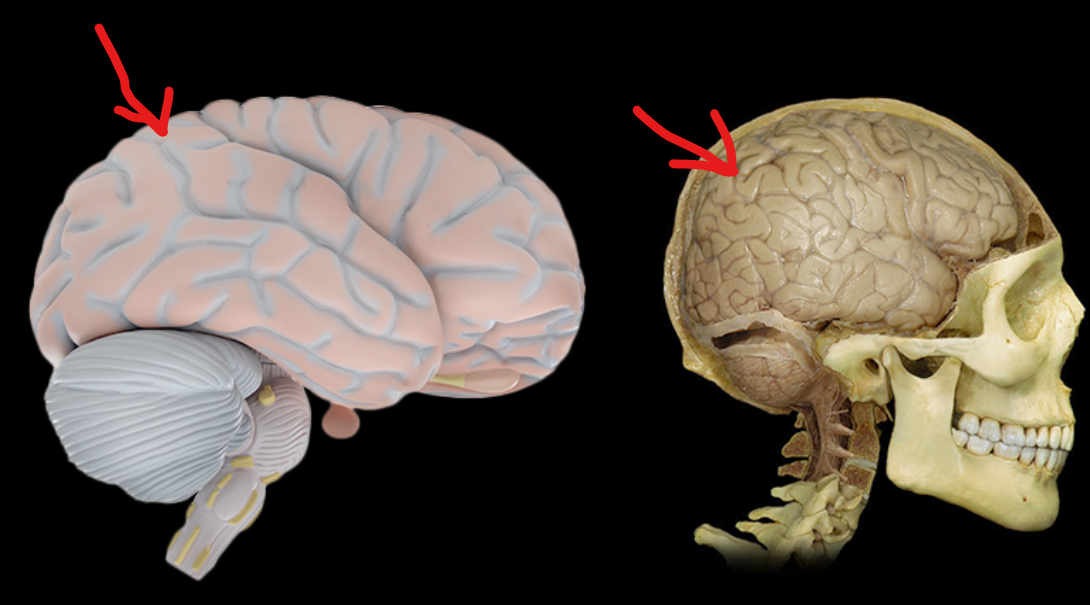

Precentral Gyrus

Cerebrum

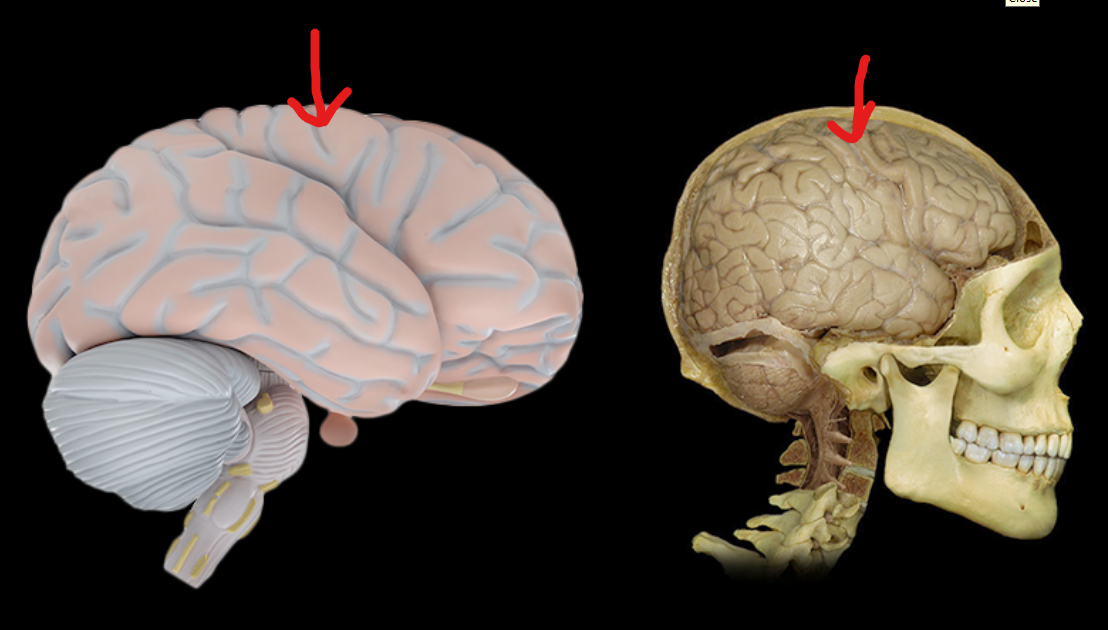

Central Sulcus

What Lobe is this?

Parietal Lobe

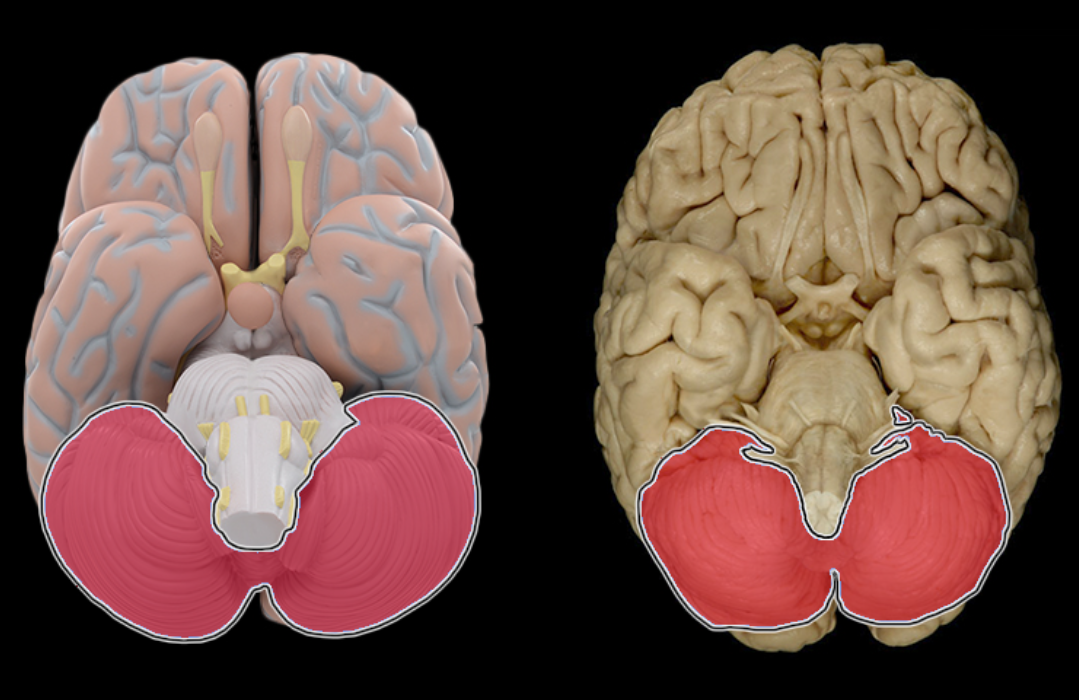

Cerebellum

What Lobe is this?

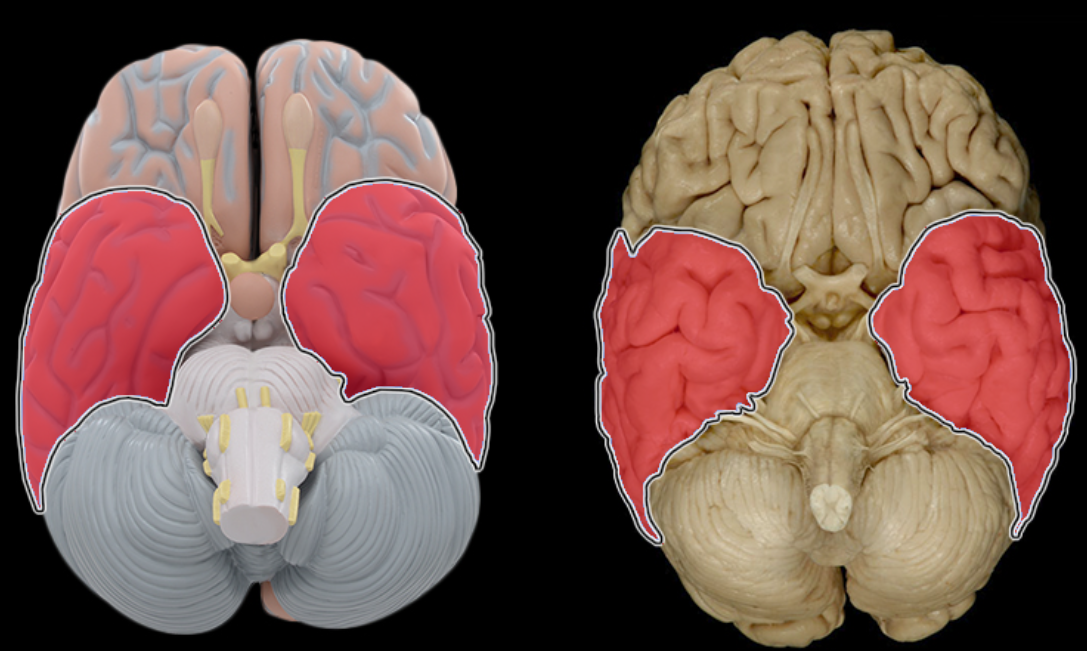

Temporal Lobe

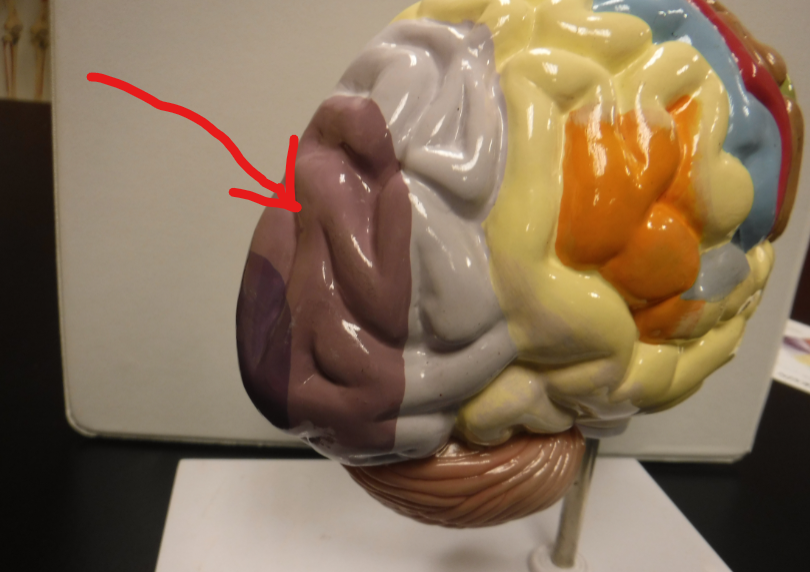

What lobe is this?

Frontal Lobe

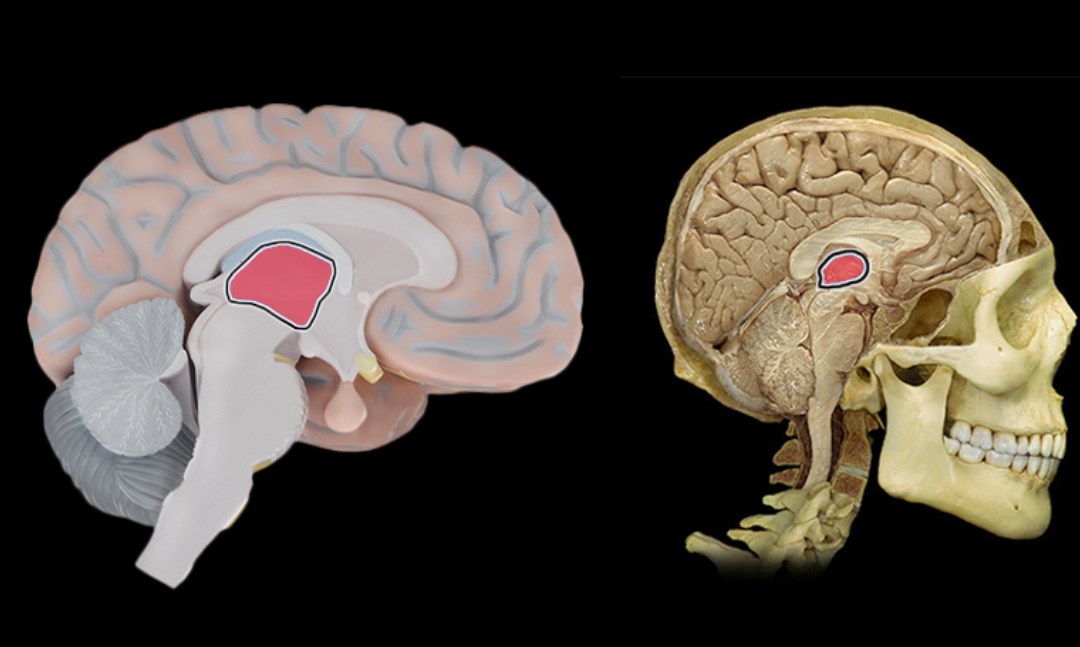

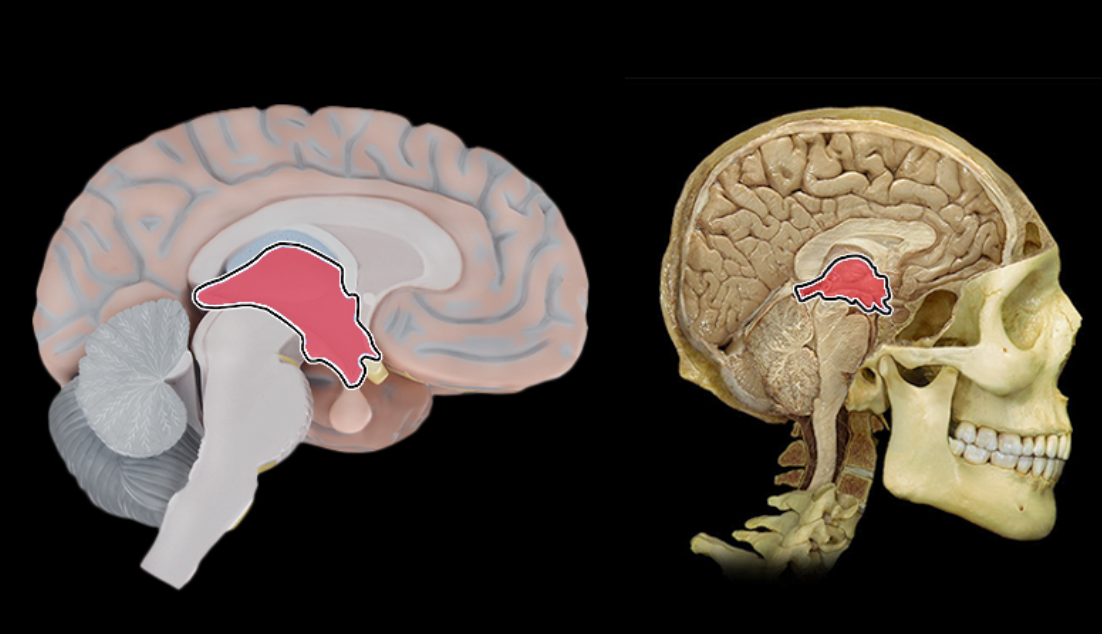

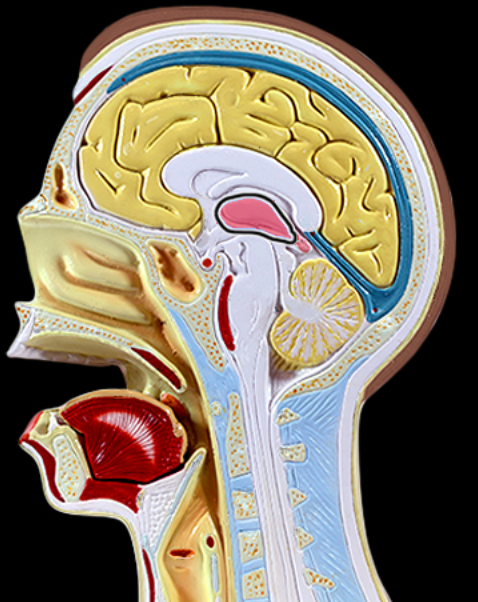

Thalamus

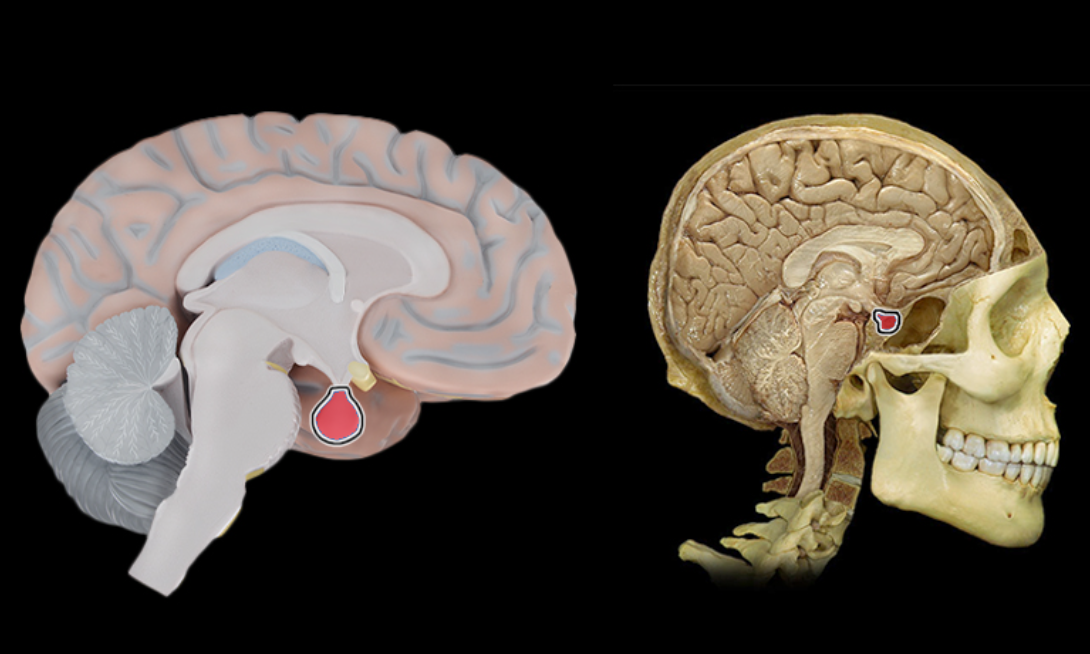

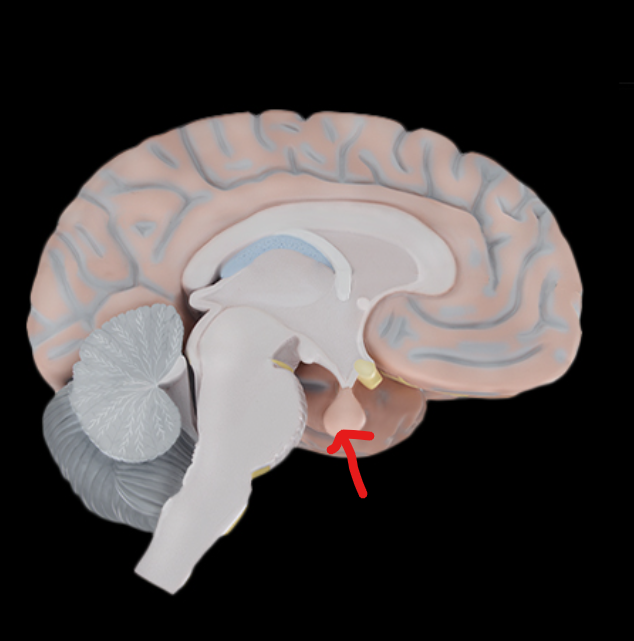

Pituitary Gland

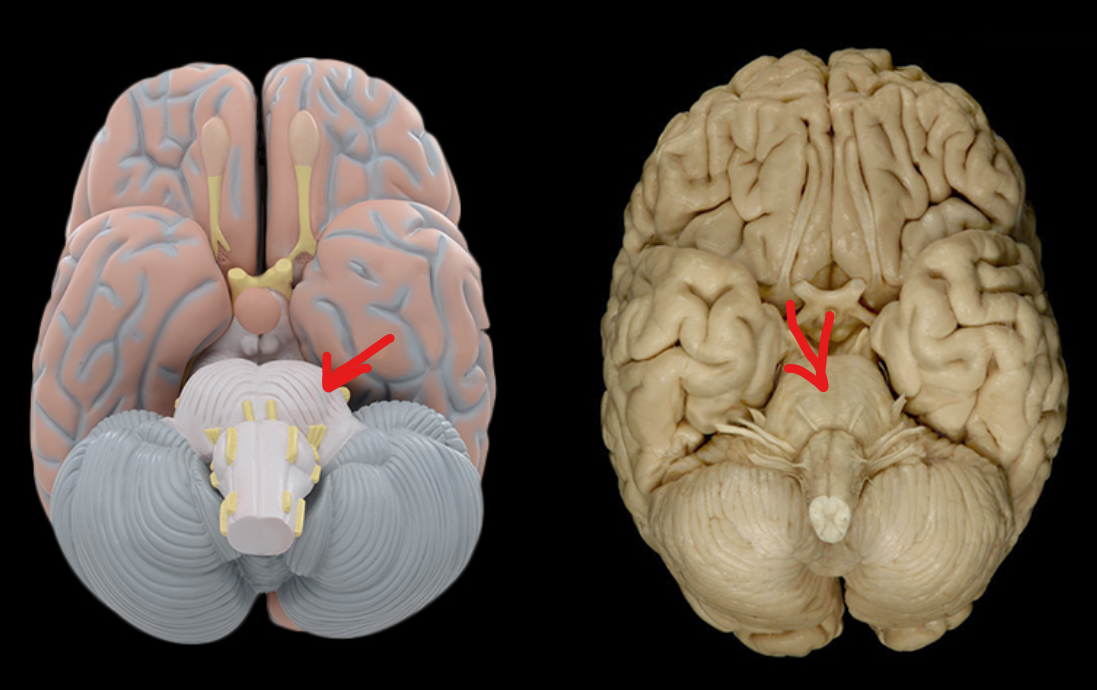

Pons

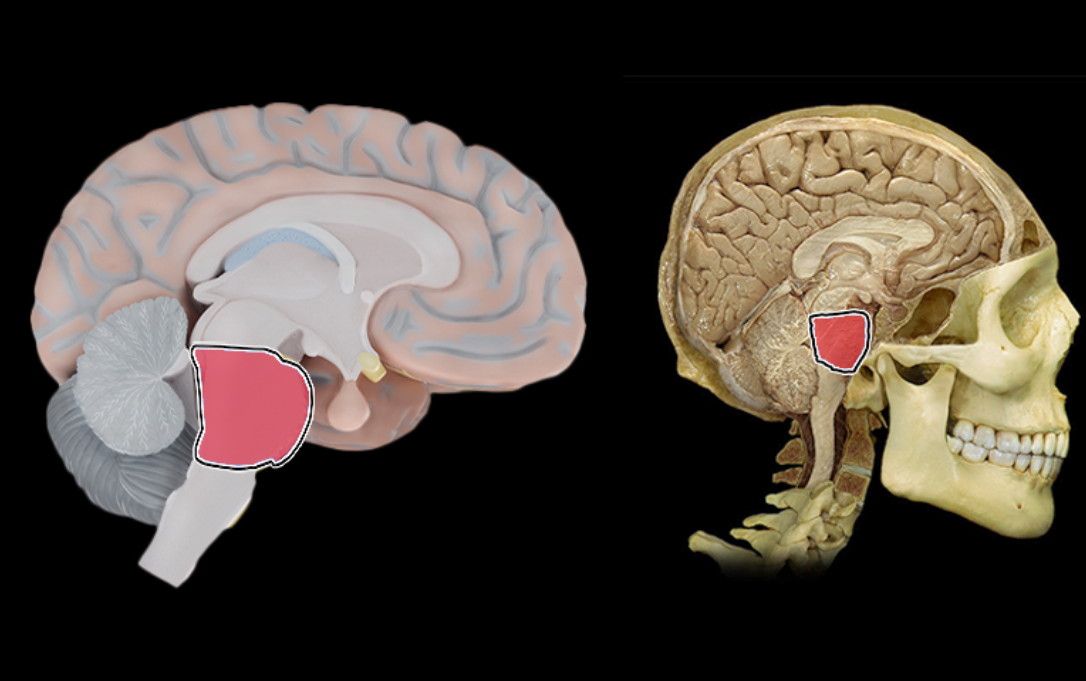

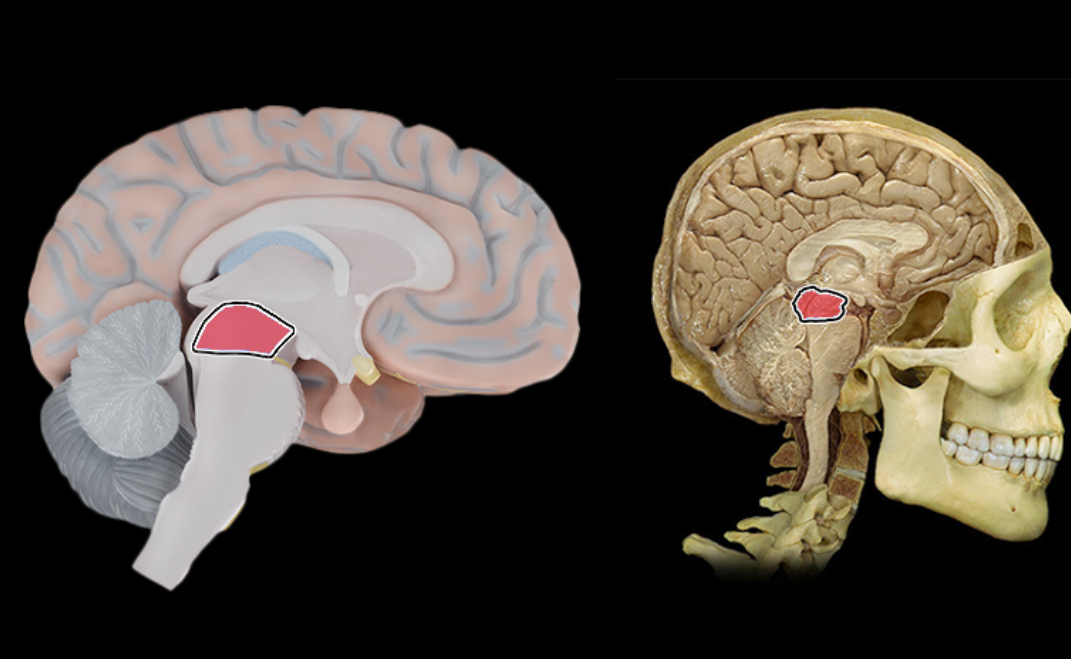

Midbrain

Hypothalamus

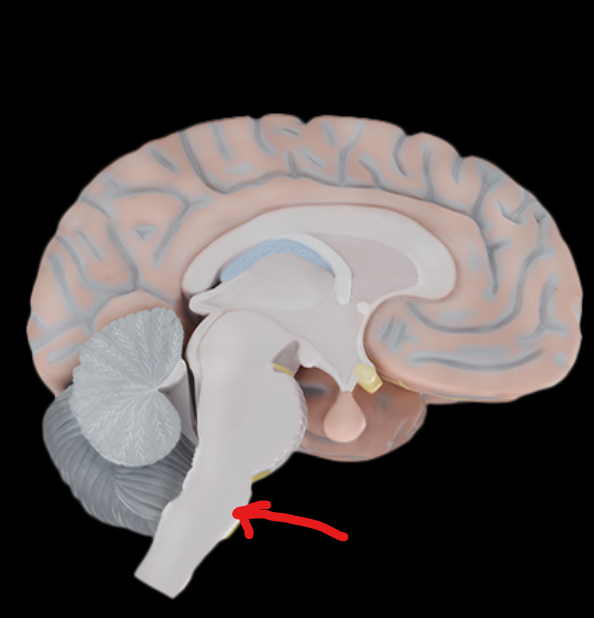

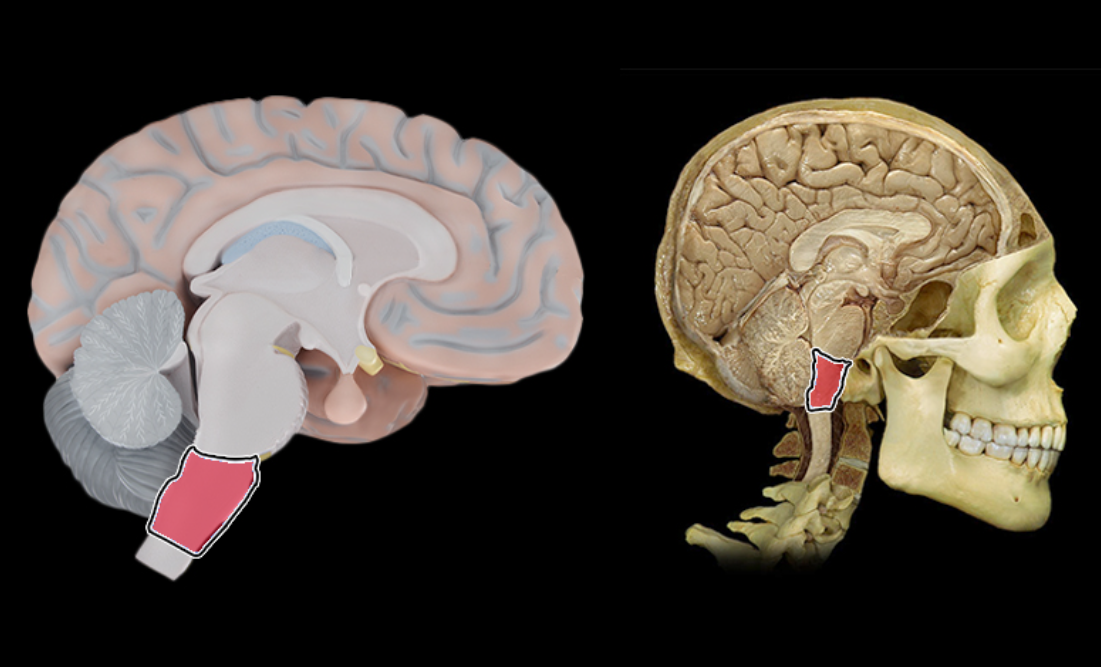

Medulla Oblongata

Infundibulum

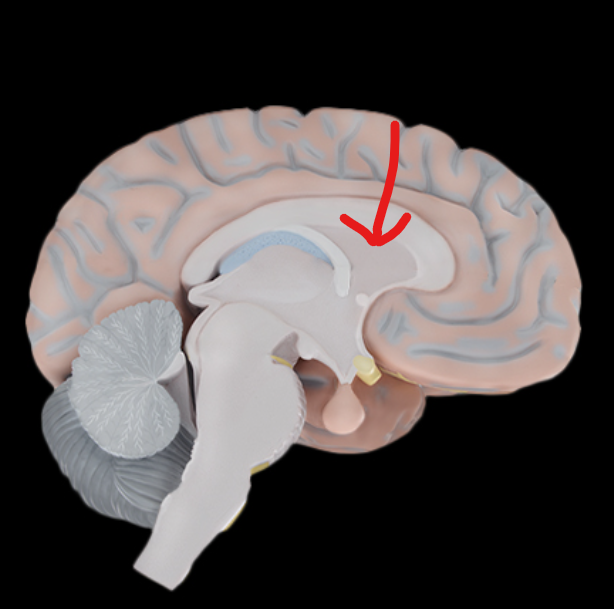

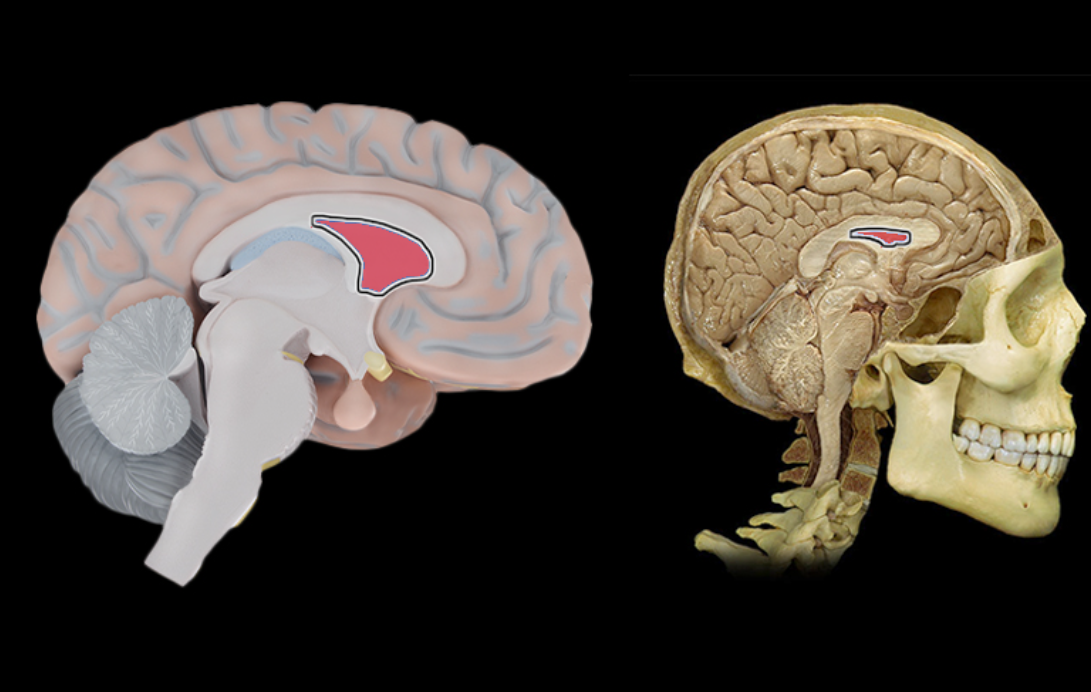

Septum Pellucidum

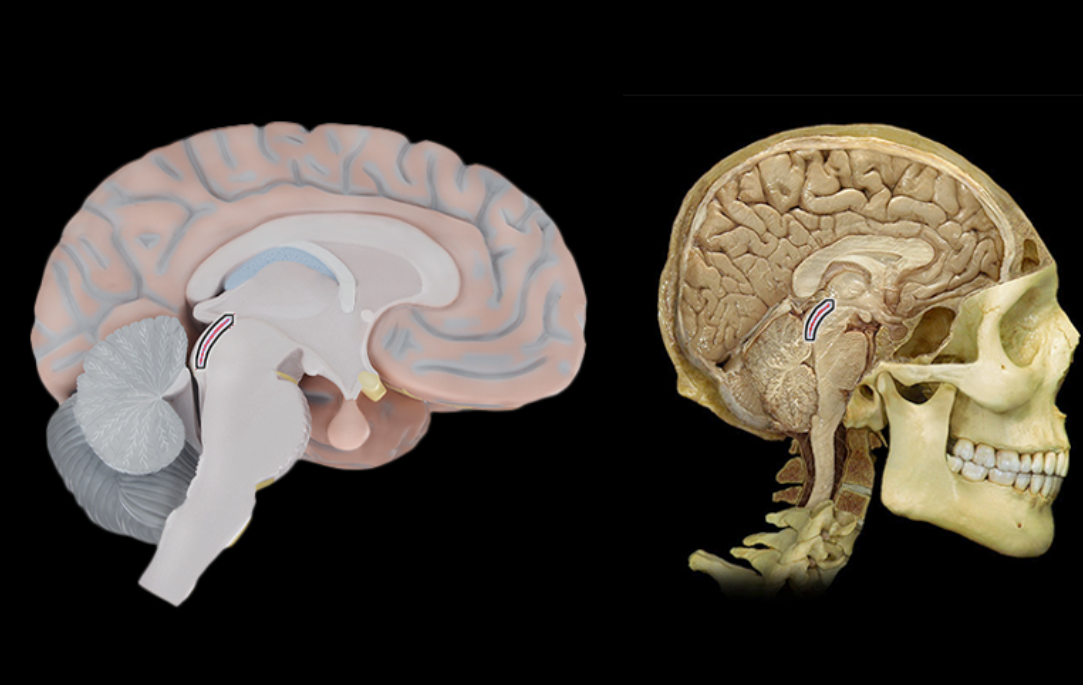

Cerebral Aqueduct

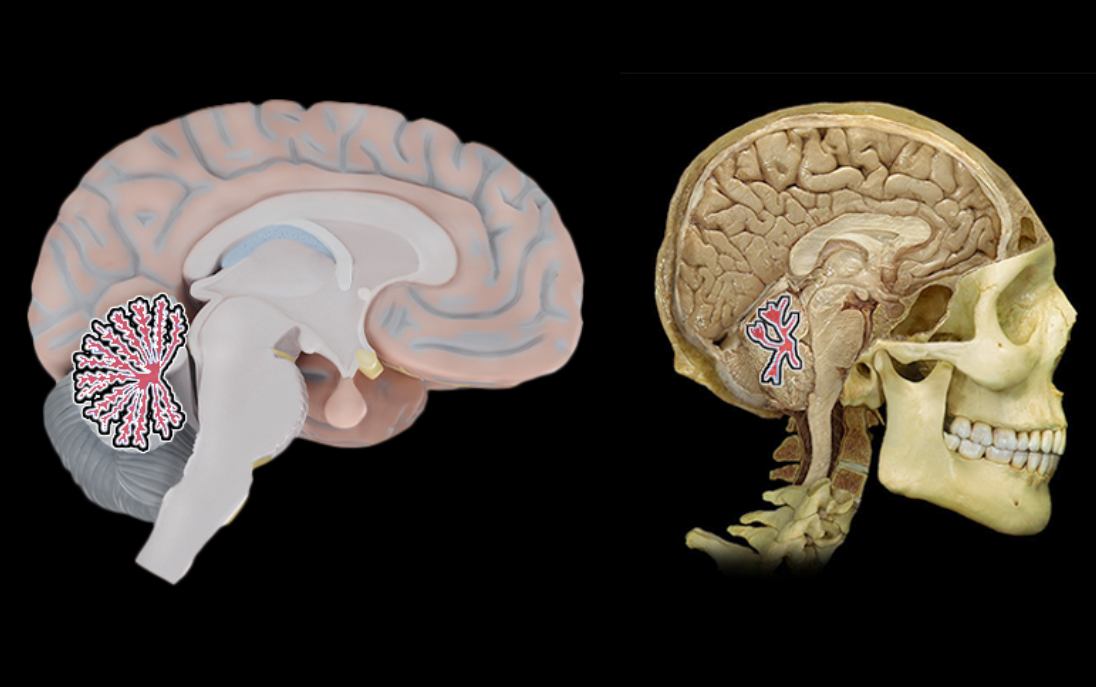

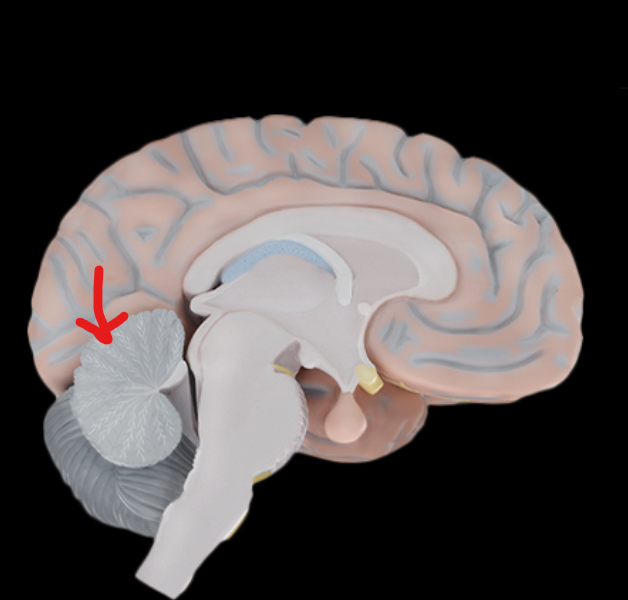

Arbor Vitae

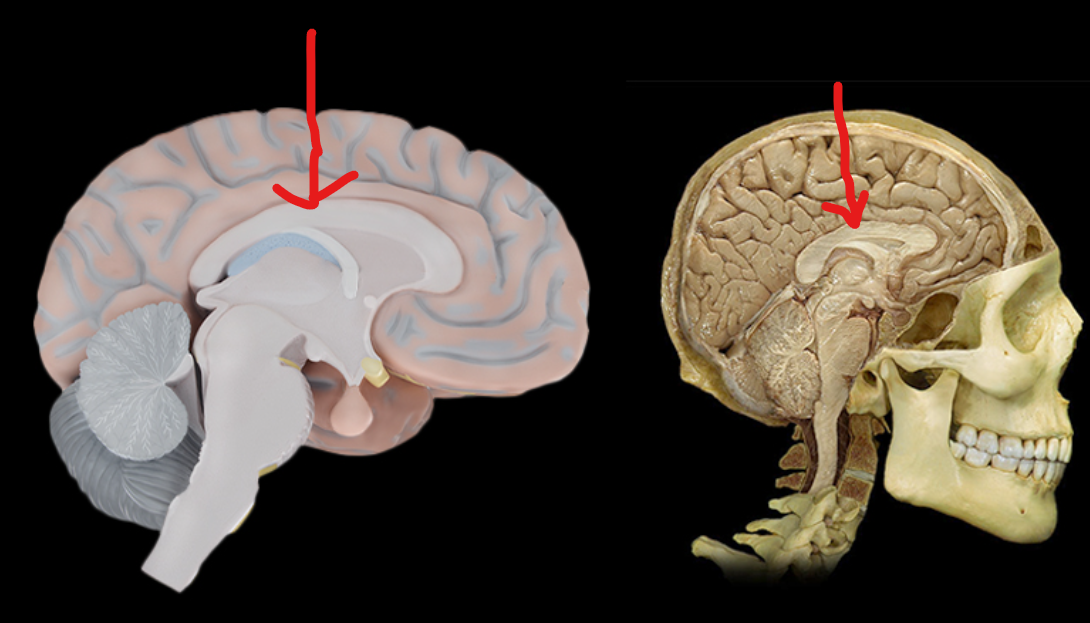

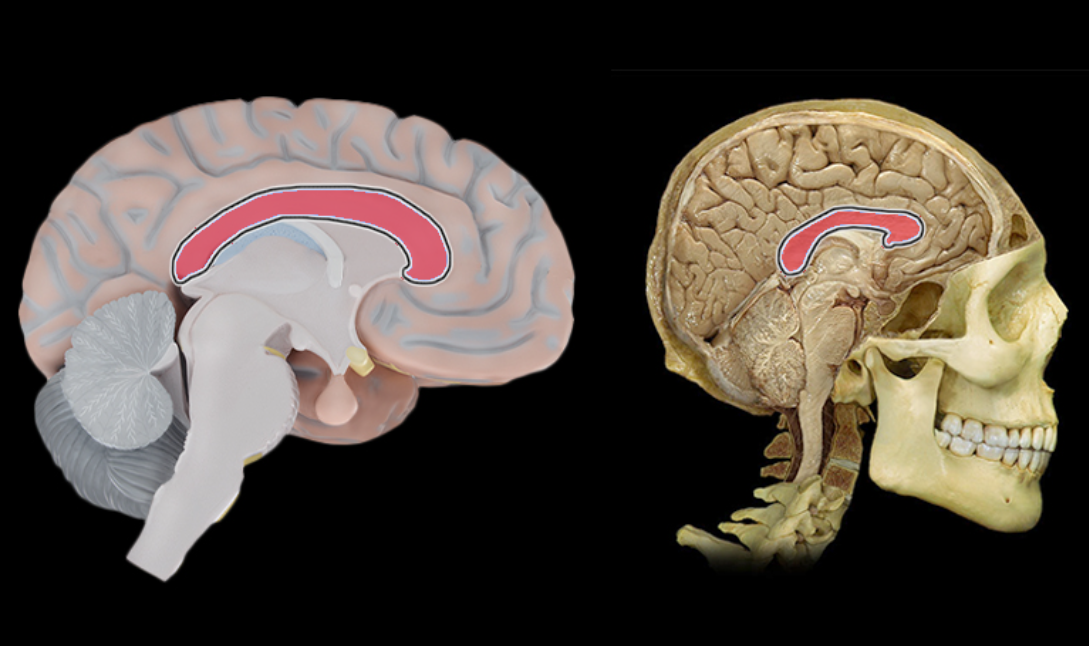

Corpus Callosum

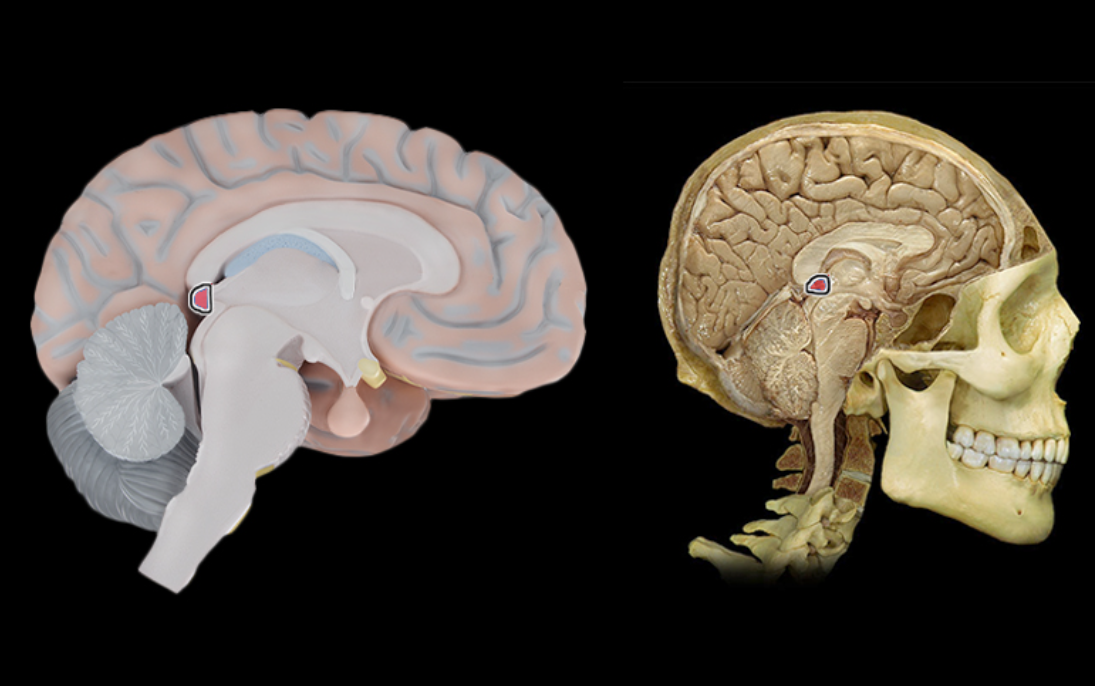

Pineal Gland

Thalamus

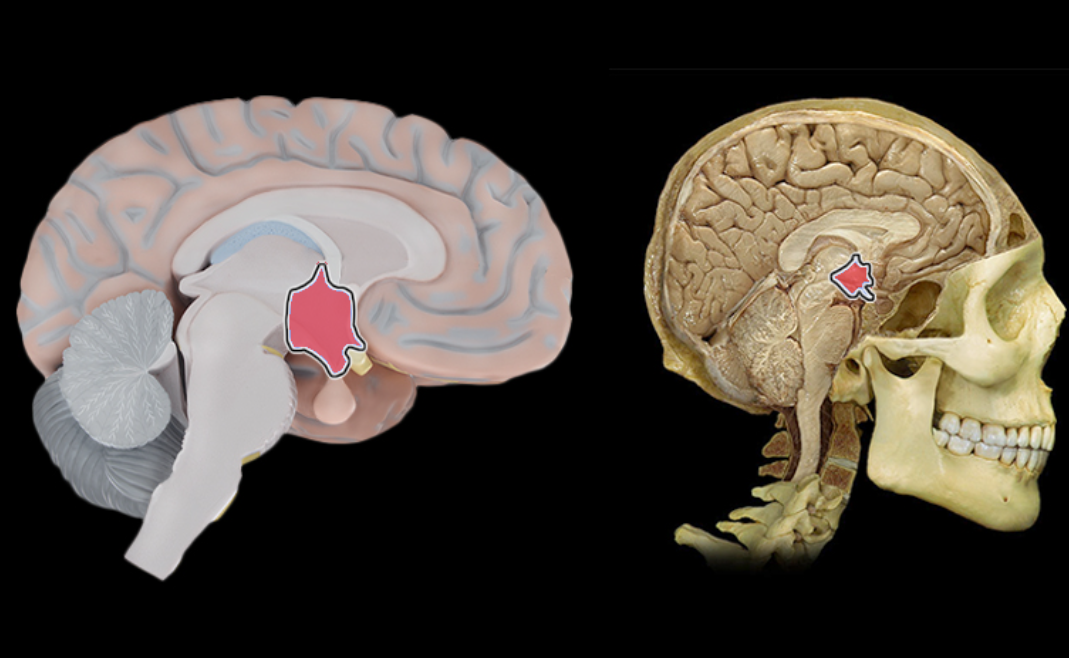

Diencephalon

Pituitary Gland

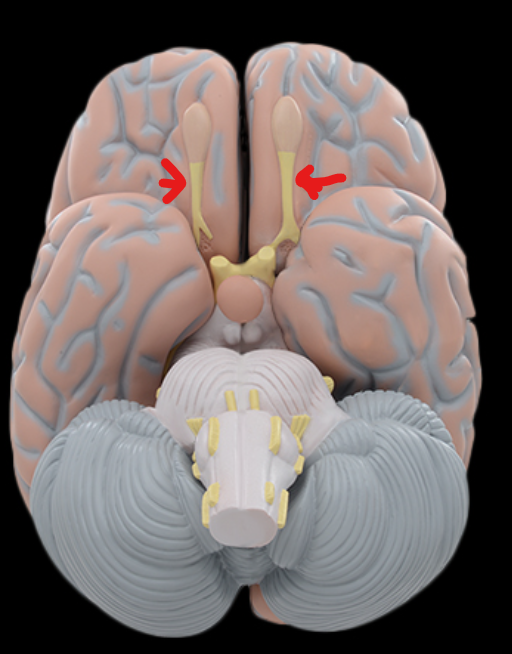

Olfactory Nerve

Midbrain

Septum Pellucidum

Corpus Callosum

Medulla Oblongata

Pineal Gland

Cerebral Aqueduct

Pons

Hypothalamus

Arbor Vitae

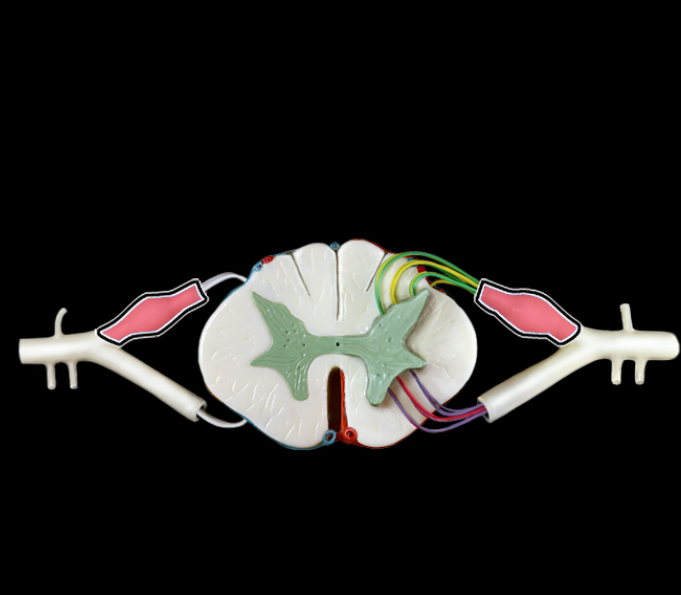

Ventral/Anterior Root

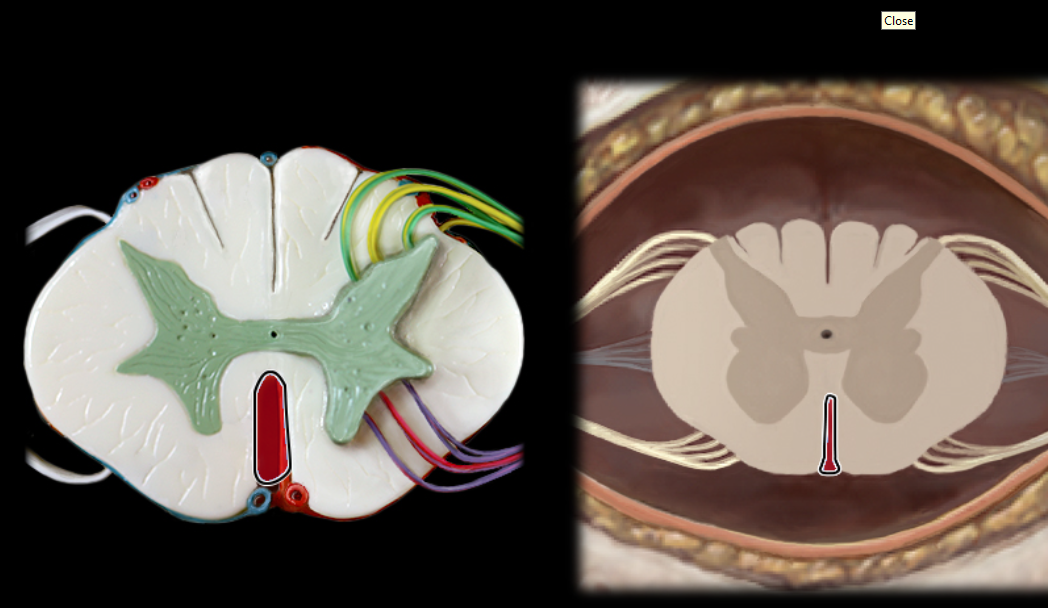

Ventral/Anterior Median Fissure

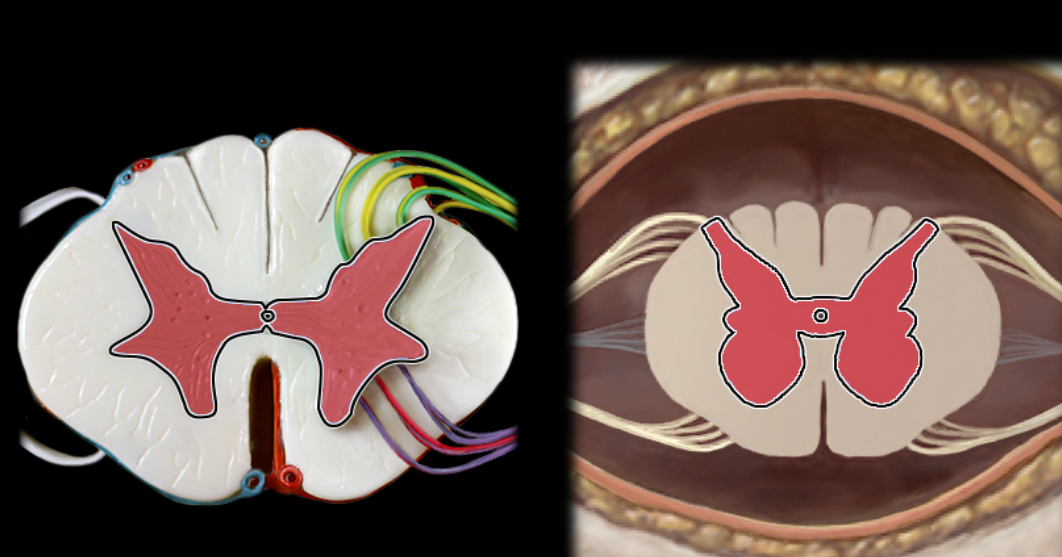

Gray Matter

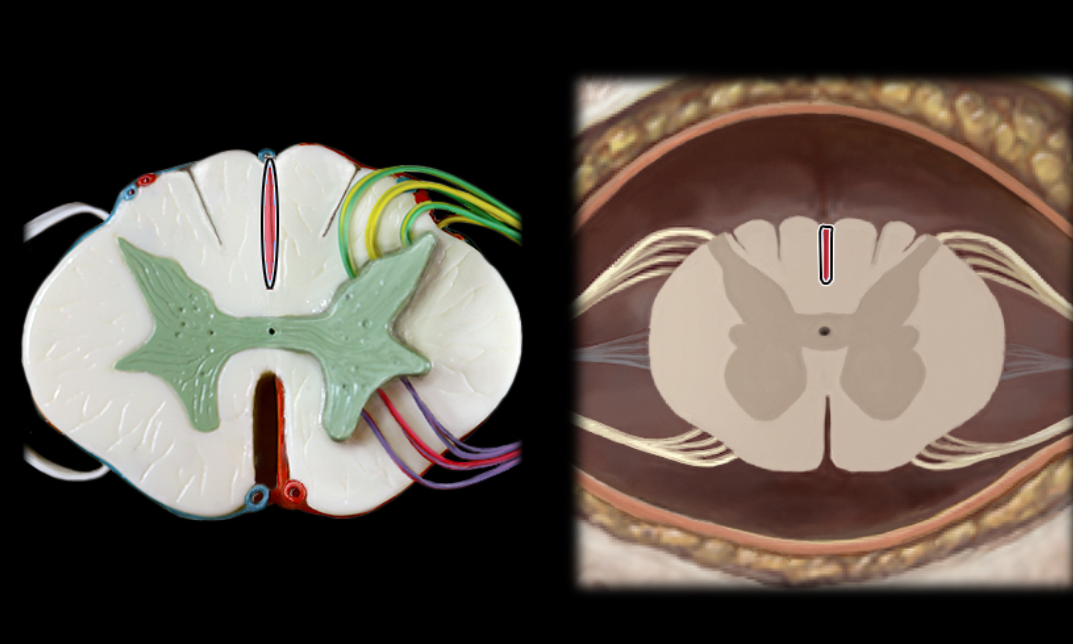

Dorsal/Posterior Median Sulcus

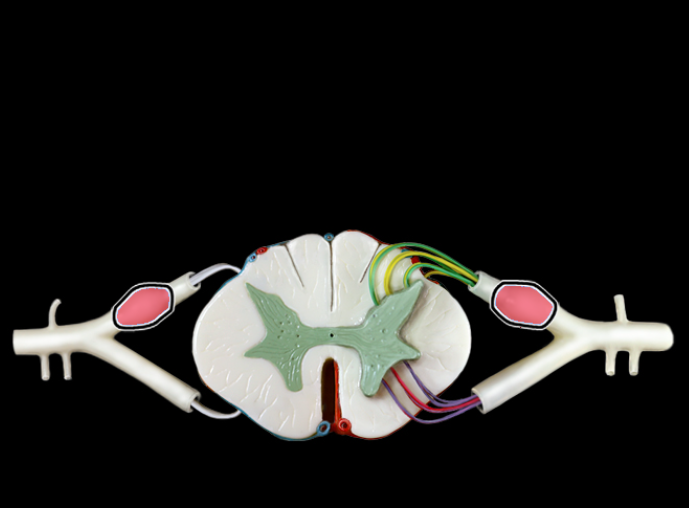

Dorsal Root Ganglion

Central Canal

Dosal Root

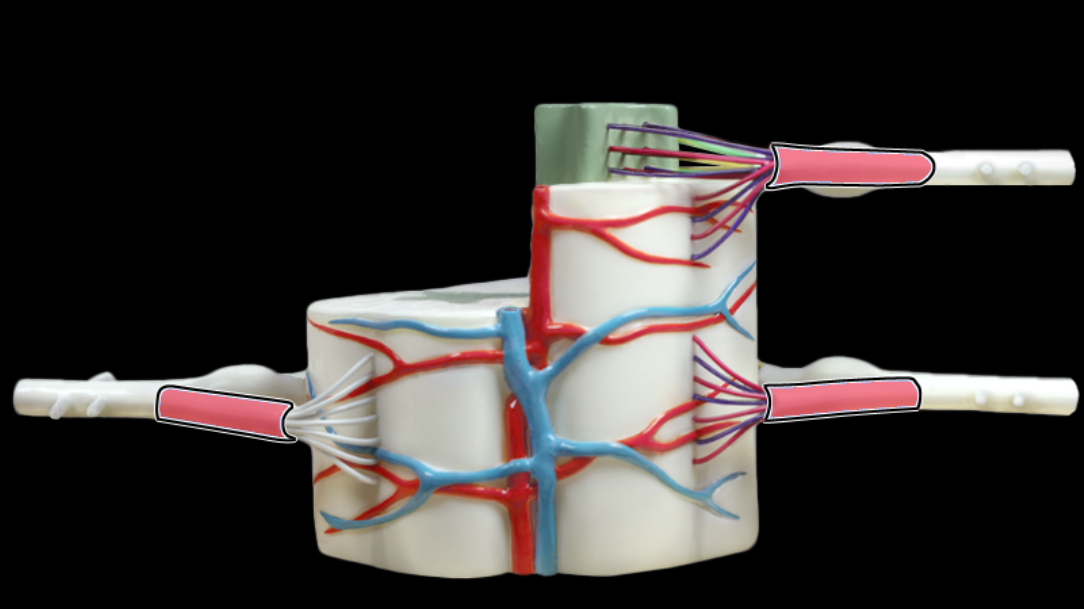

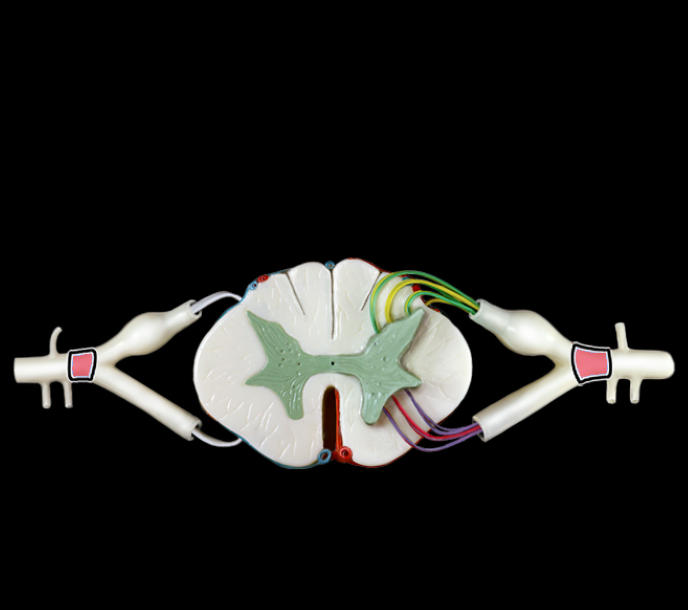

Spinal Root

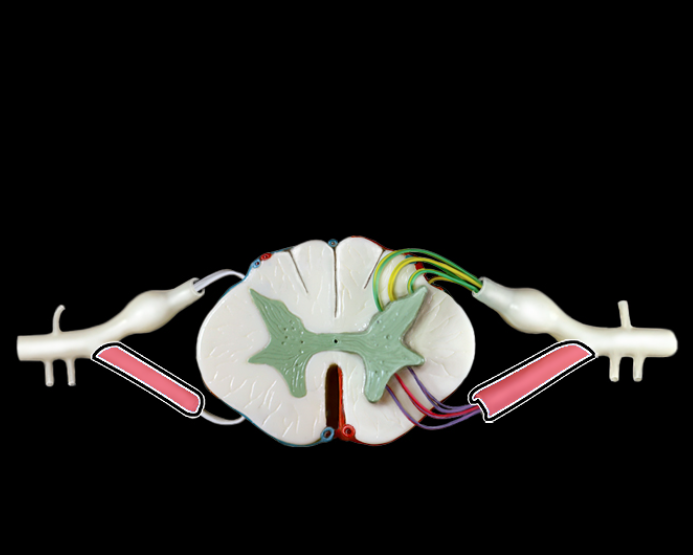

Ventral Root

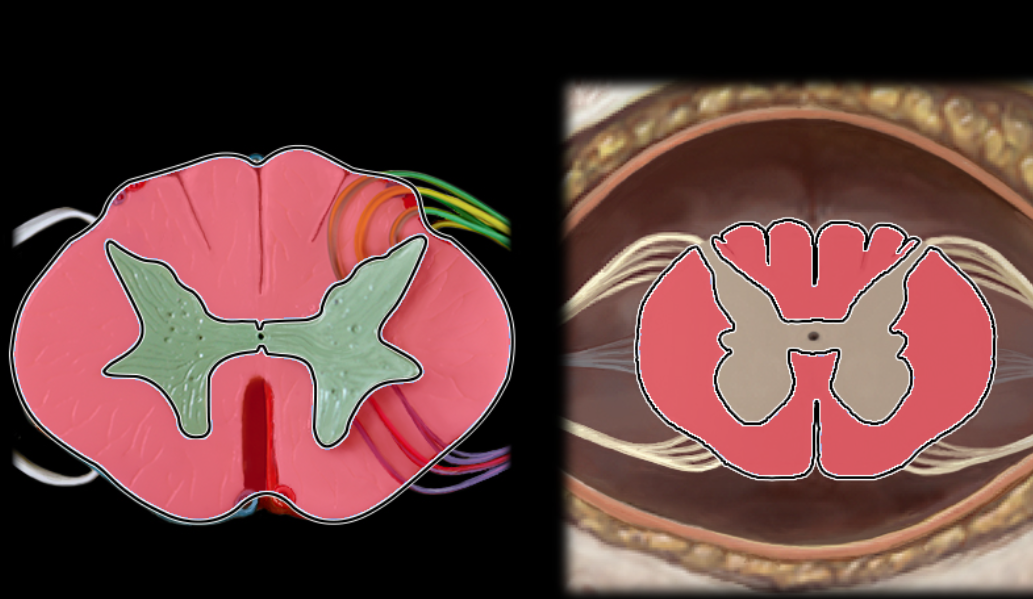

White Matter

What are the meninges from innermost to outermost?

Pia mater, Arachnoid mater, Dura mater

What nerve is I and what type of nerve is it?

Olfactory and Sensory

What nerve is II and what type of nerve is it?

Optic and Sensory

What nerve is III and what type of nerve is it?

Oculomotor and Motor

What nerve is IV and what type of nerve is it?

Trochlear and Motor

What nerve is V and what type of nerve is it?

Trigeminal and Motor and Sensory

What nerve is VI and what type of nerve is it?

Abducens and Motor

What nerve is VII and what type of nerve is it?

Facial and Motor and Sensory

What nerve is VIII and what type of nerve is it?

Vestibulocochlear and Sensory

What nerve is IX and what type of nerve is it?

Glossopharyngeal and Motor and Sensory

What nerve is X and what type of nerve is it?

Vagus and Sensory and Motor

What nerve is XI and what type of nerve is it?

Accessory and Motor

What nerve is XII and what type of nerve is it?

Hypoglossal and Motor

What cells produce cerebral spinal fluid and where are they found?

Ependymal Cells found in the choroid plexus.

What is the flow of Cerebral Spinal Fluid?

Lateral Ventricles—>Interventricular Foramen—>Third Ventricle—>Cerebral Aqueduct—> Fourth Ventricle

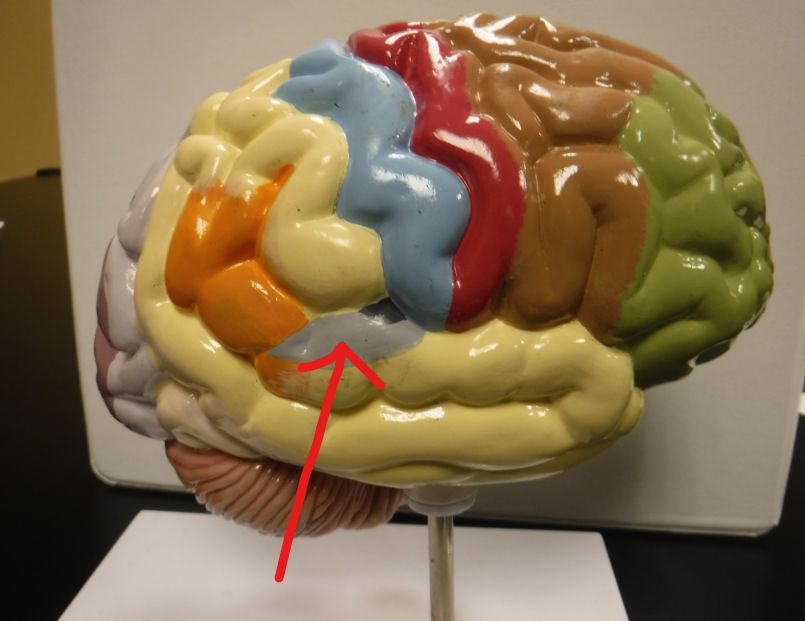

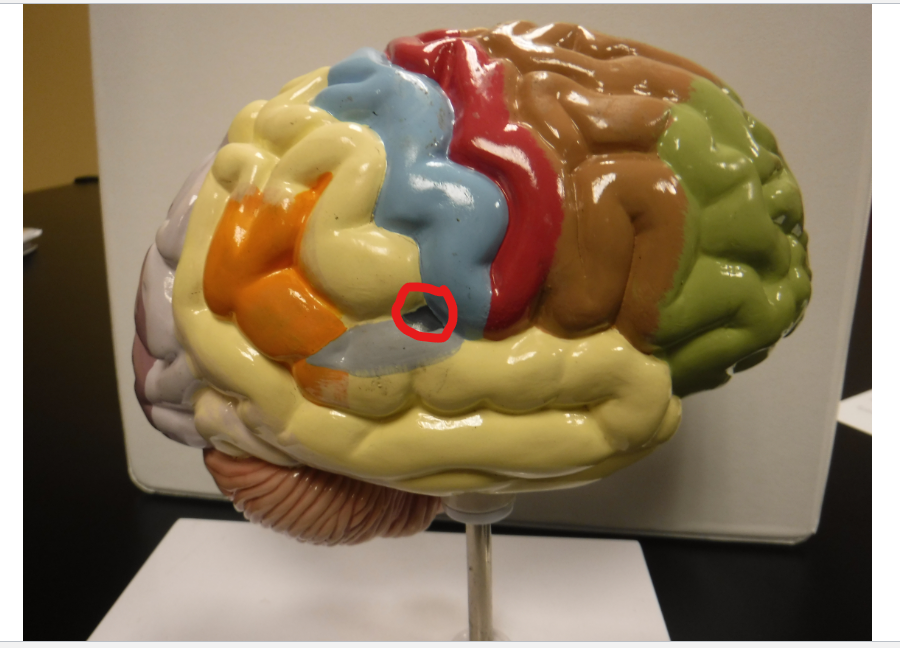

Primary Auditory Cortex

Wernicke’s Area

Visual Association Area

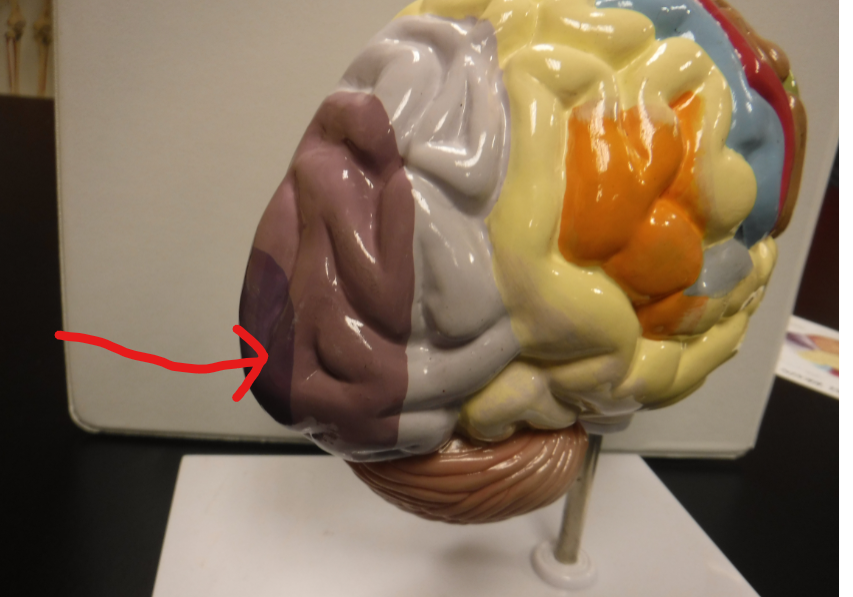

Primary Visual Cortex

Somatosensory Association Cortex

Primary Somatosensory Cortex

Primary Motor Cortex

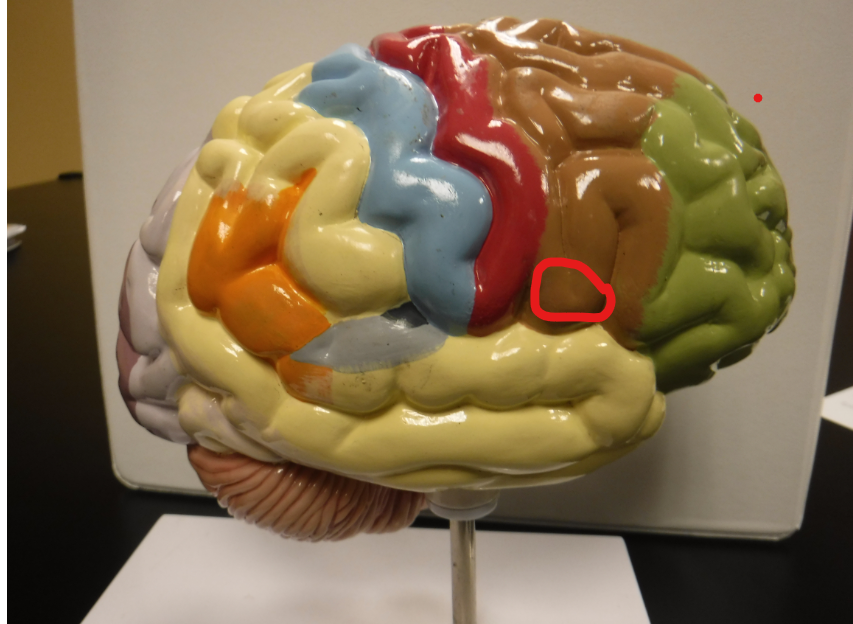

Broca’s Area

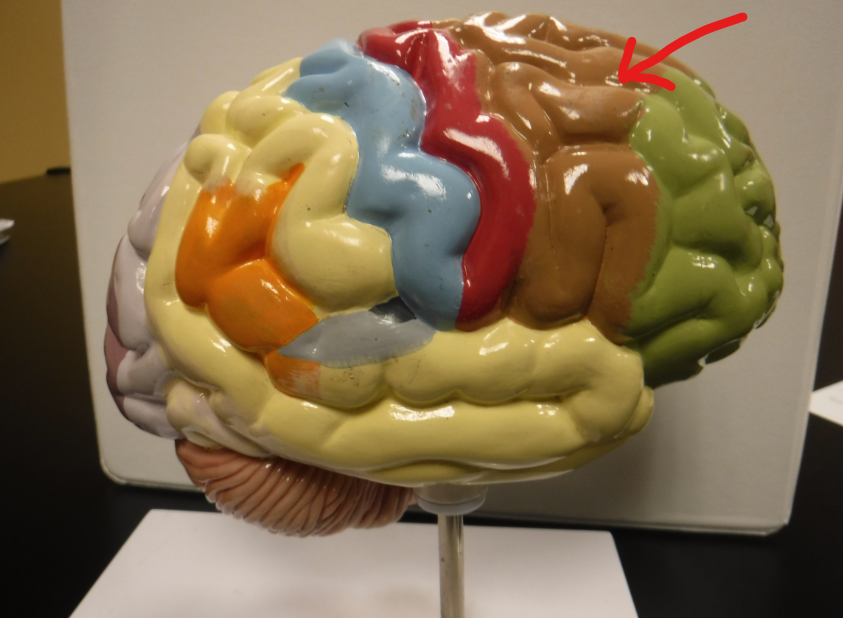

Premotor

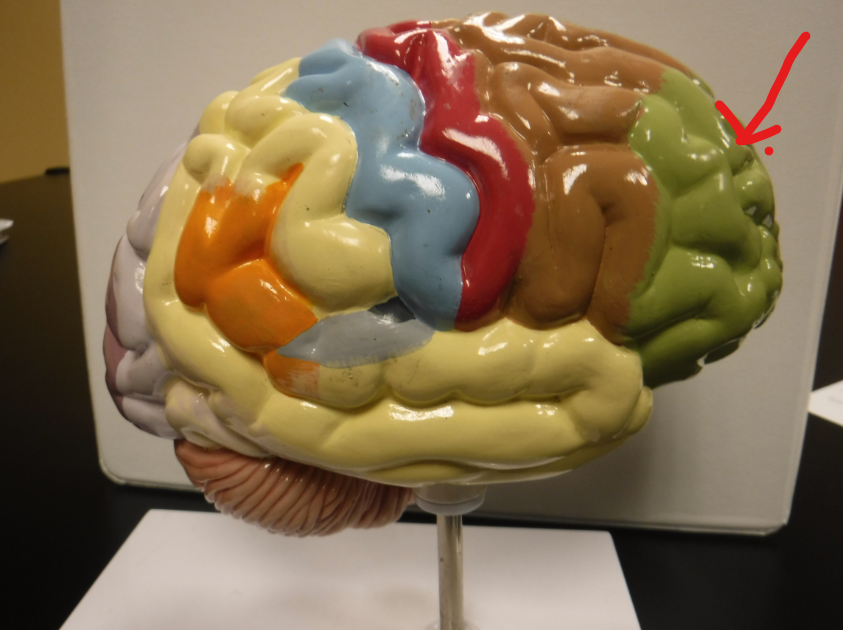

Prefrontal Lobe
