12 Terms
1
New cards

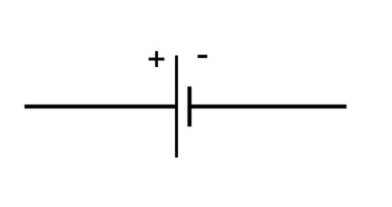

Cell
Provides energy to the circuit
2
New cards

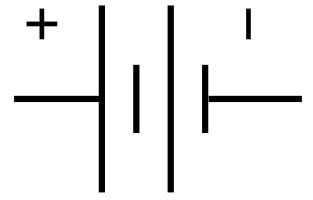

2-Cell Battery
Provides energy to the circuit
3
New cards

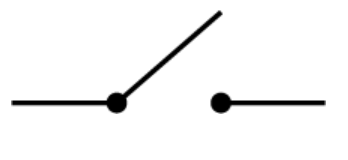

Switch (Open)
Turns the circuit on and off
4
New cards
Switch (Closed)
Turns the circuit on and off
5
New cards

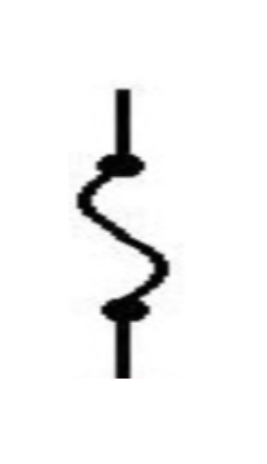

Fuse
Will melt and stop the flow of electrons when heated to high temperatures
6
New cards

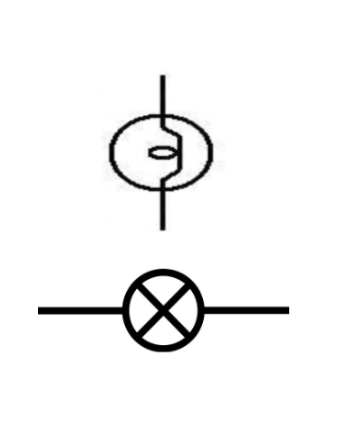

Light bulb
Produces light
7
New cards
Motor
Produces work energy
8
New cards

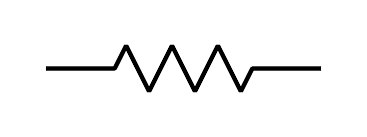

Resistor
Slows down the flow of electrons in a circuit
9
New cards

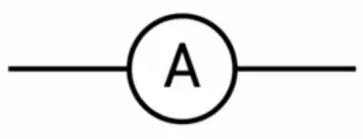

Ammeter
Measures the amount of current
10
New cards

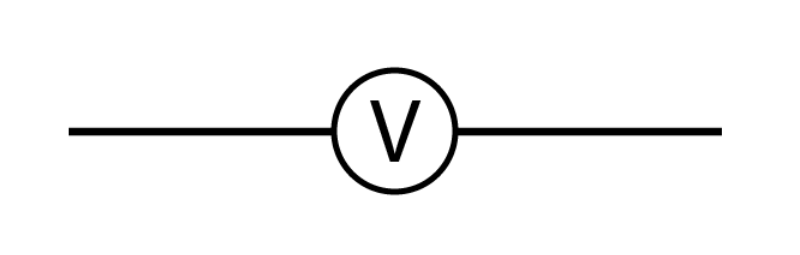

Voltmeter
Measures the amount of electrical potential
11
New cards

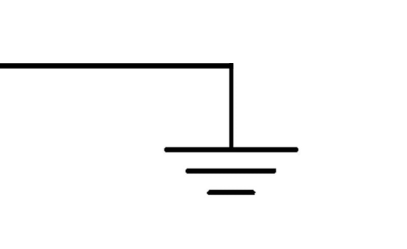

Ground Connection
Connects circuits to the ground to remove excess charge
12
New cards
Connecting Wires
Connects part of the circuit
