For (and me) students to memorise

My flight licence number

ESP.FCL.00087341

Cuales son los documentos especifico para cada vuelo que se deben llevar?

– Plan de vuelo ATC

– Fichas actualizadas de LELL y los aeródromos de destino y alternativos

– Hoja de Plan Operacional de Vuelo completa, en caso de vuelos de travesía

– Hoja de Carga y Centrado completada

– Carta de ruta actualizada de la zona en la que se va a producir el vuelo

– Meteorología y NOTAM del aeródromo de base y alternativos

Se puede llevar la documentación de manera digital?

Si, pero tiene que ser descargada en el dispositivo. No se permite si es en el cloud sin acceso cuando no hay cobertura.

Que se debe hacer inmediatamente antes y después del vuelo

Avisar por mensaje de texto a Carles de la puesta en marche y apago del motor.

Donde esta ubicado el centro de mantenimiento de Dreamair

En R4, al lado de la threshold 31, como los bomberos.

Tipo de plan de vuelo a rellenar para vuelos de escuela

X

LELL runway 31 threshold elevation?

440 ft

LELL runway 13 threshold elevation?

485 ft

LELL Standard VFR departure rwy 13 to East

• Take off following runway heading

• After crossing AP7, turn left heading 069º

• 5 NM OUT when reaching large car park

Heading(s) to remember for LELL ver departure ray 13 to East

069º

LELL Standard VFR departure rwy 13 to West

• Take off following runway heading

• After crossing AP7, turn right heading 218º (towards synchrotron)

• Just before passing Castell de Sant Marçal, turn left heading to Tibidabo

• After overflying the field in the woods, turn right heading 283º

• Keep flying this heading keeping the golf courses to the right.

• 5 NM OUT after crossing C16, when reaching multideportivo and start of Avinguda del Baixador

Heading(s) to remember for LELL ver departure ray 13 to West

218º

then south

then 283º

LELL Standard VFR departure rwy 31 to East

• Take off following runway heading

• Then turn slightly to the right to follow the C58

• Turn right when overflying Mossos station, heading to 038º.

• 5 NM OUT when passing industrial zone south of Castellar del Valles on your left

Heading(s) to remember for LELL ver departure ray 31 to East

038º

LELL Standard VFR departure rwy 31 to West

• Take off following runway heading

• Then turn slightly to the right to follow the C58

• Turn left when overflying Mossos station, heading to 238º. You should head to the south of the industrial zone south of Terrassa

• 5 NM OUT after crossing C16 and reaching the hills

Heading(s) to remember for LELL ver departure ray 31 to West

238º

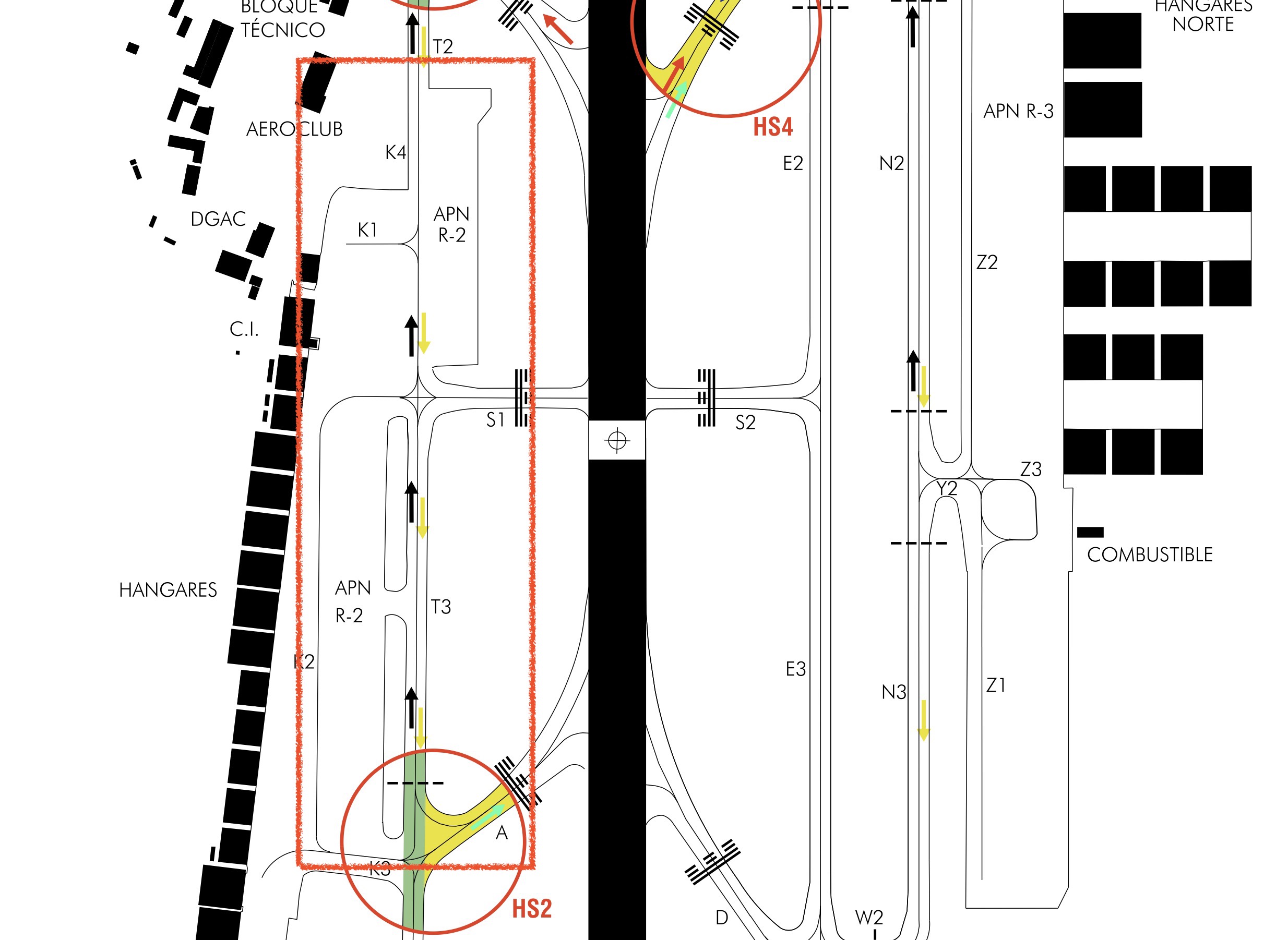

LELL Location apron R2

Parkings for most aeroclubs in LELL

LELL Location apron R1

Parkings north west of airfield

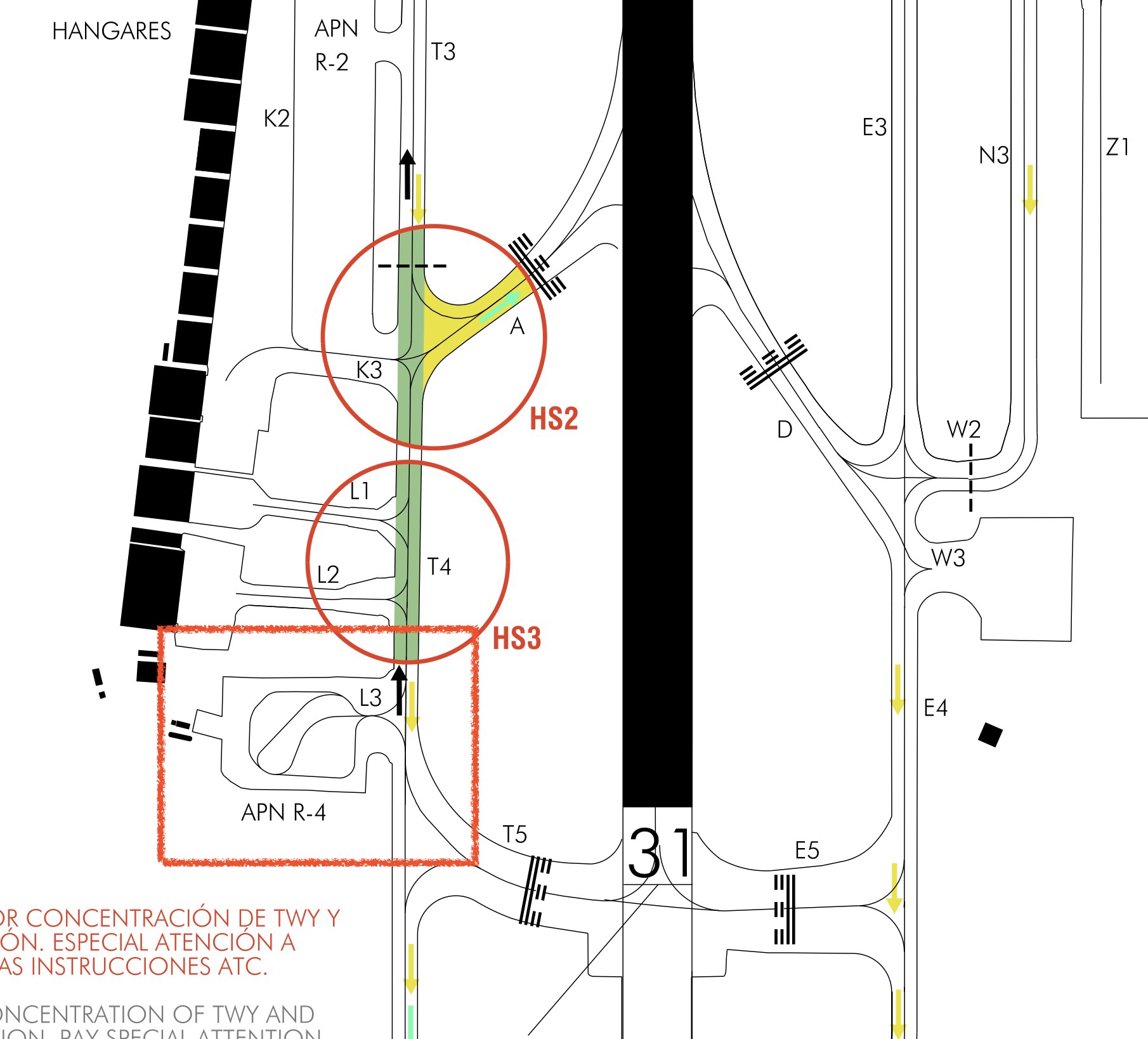

LELL Location apron R4

Parkings bomberos

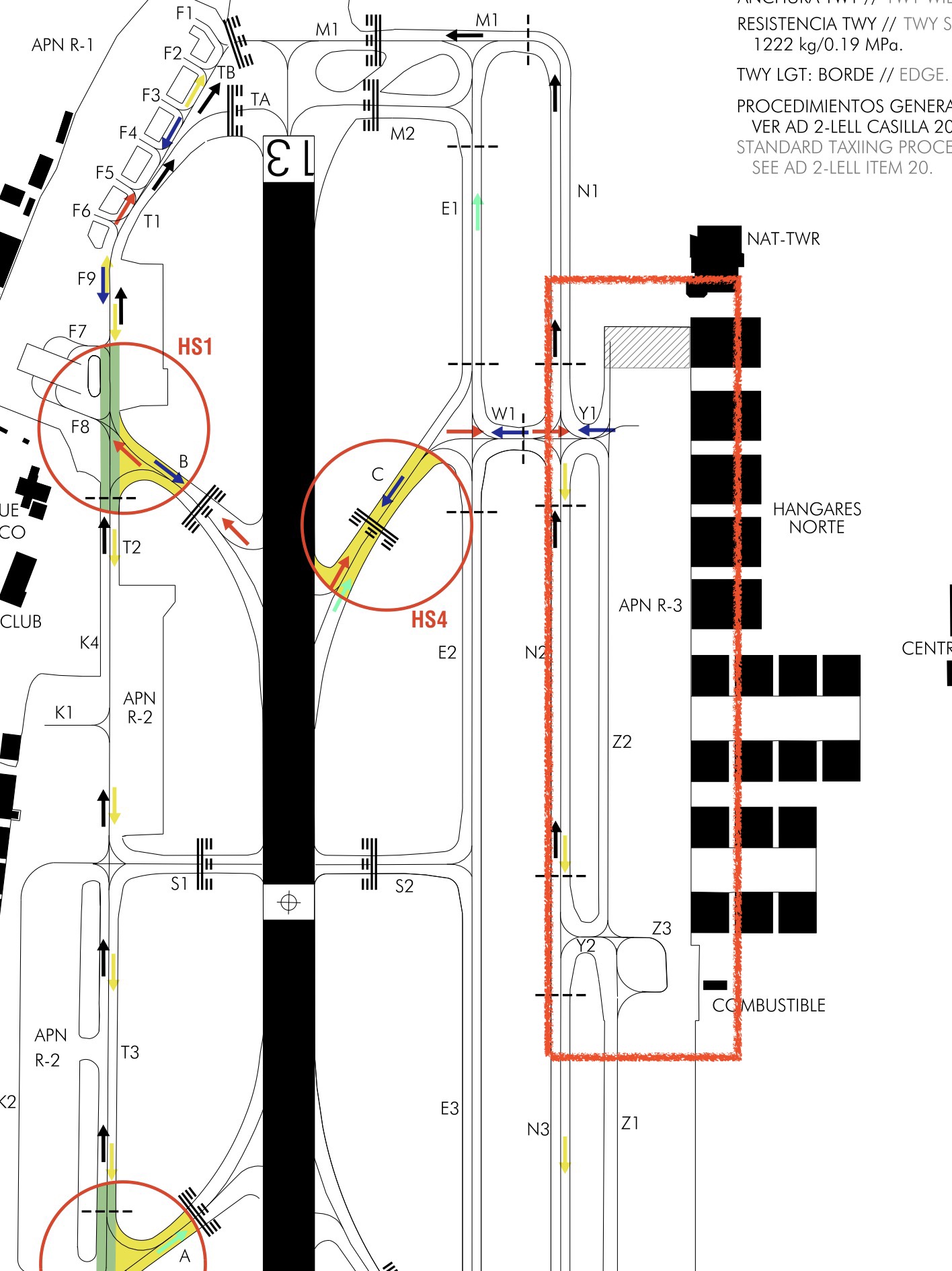

LELL Location apron R3

Parkings east of runway

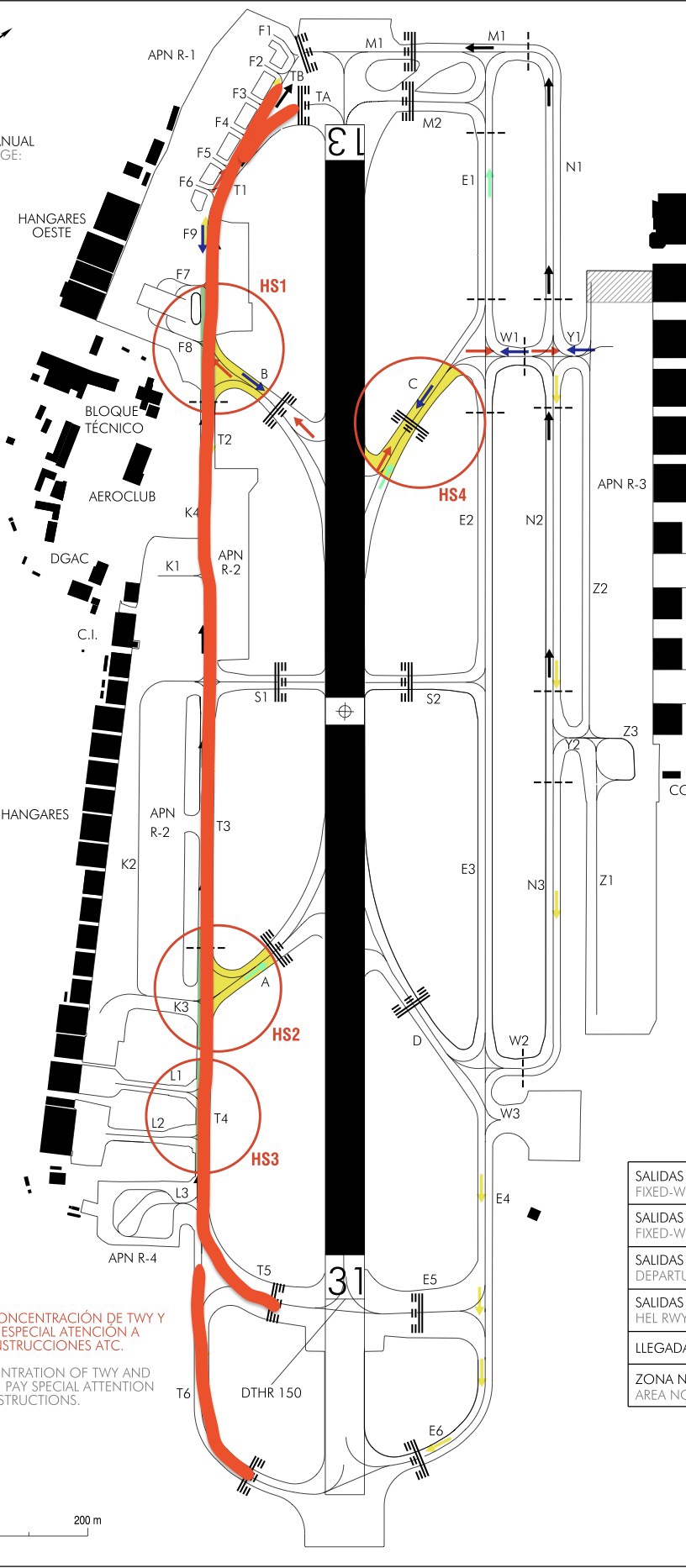

LELL Taxiway T

Taxiway of the aeroclub, parallel of the runway on the west side

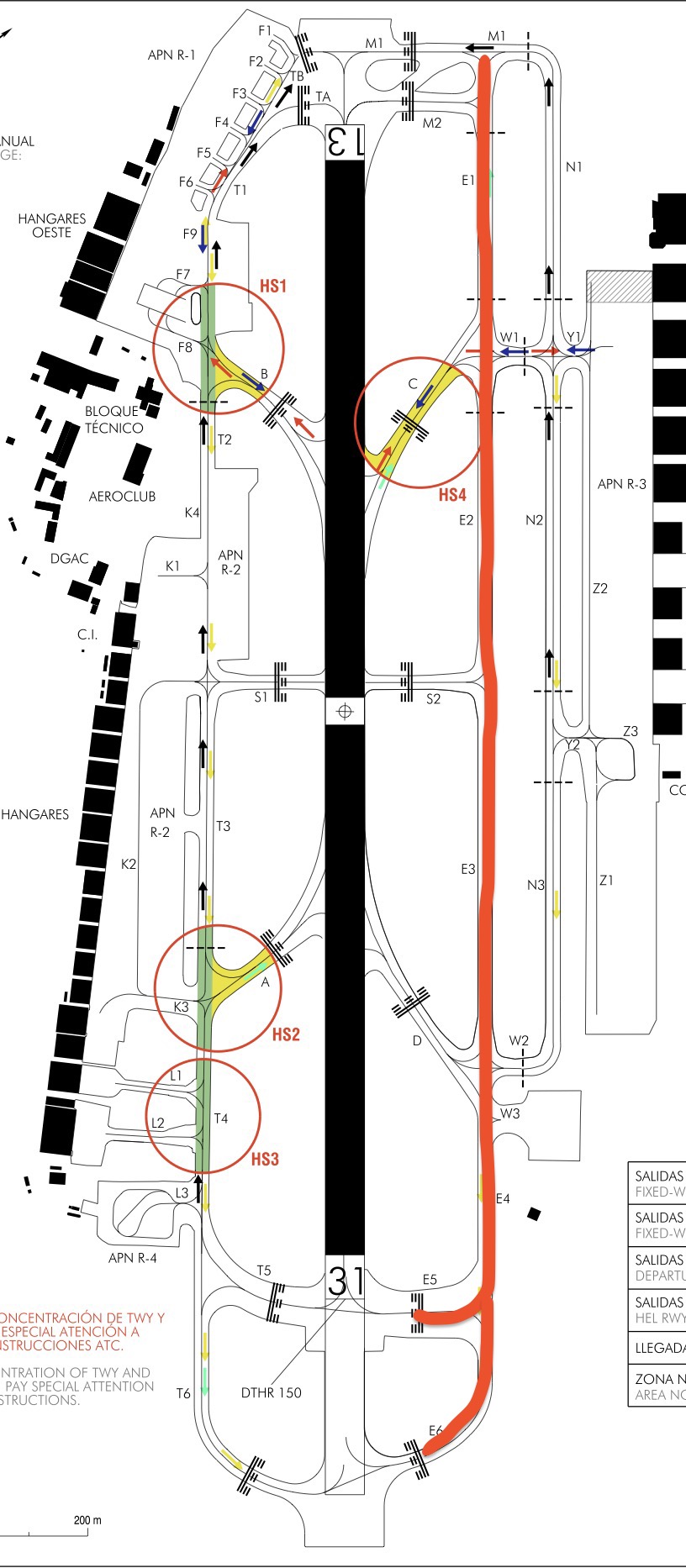

LELL Taxiway E

Taxiway on the east side of the runway

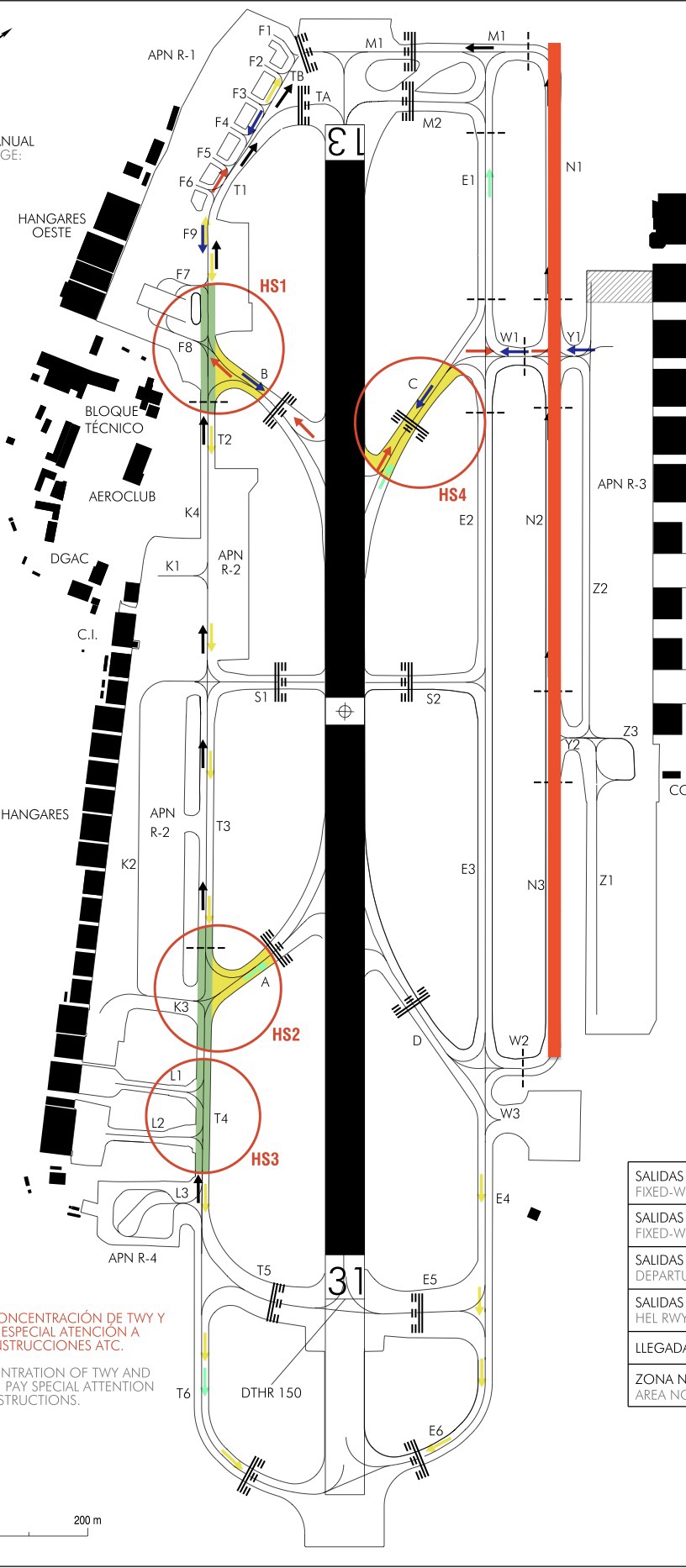

LELL Taxiway N

Taxiway following the hangars on the east side of the runway

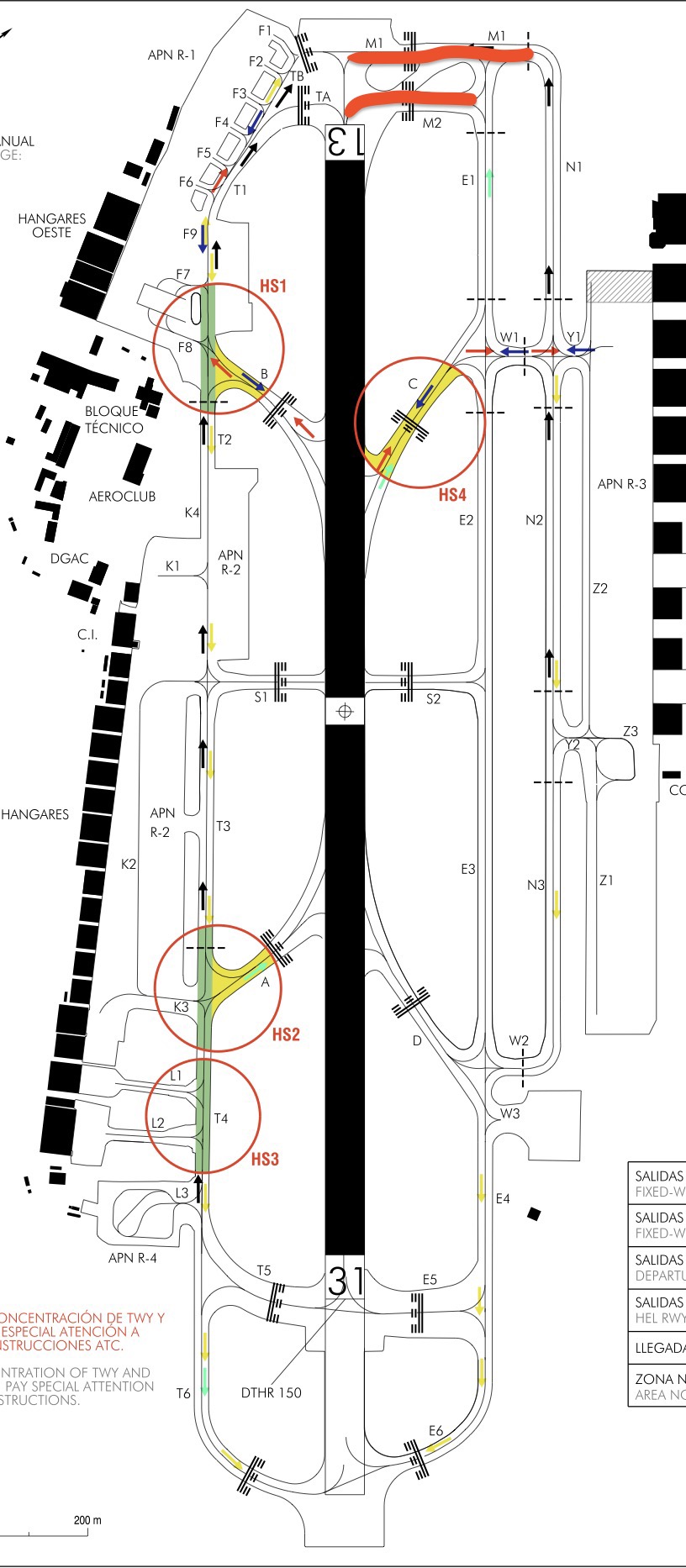

LELL Taxiway W

Taxiway north of the runway joining E and N

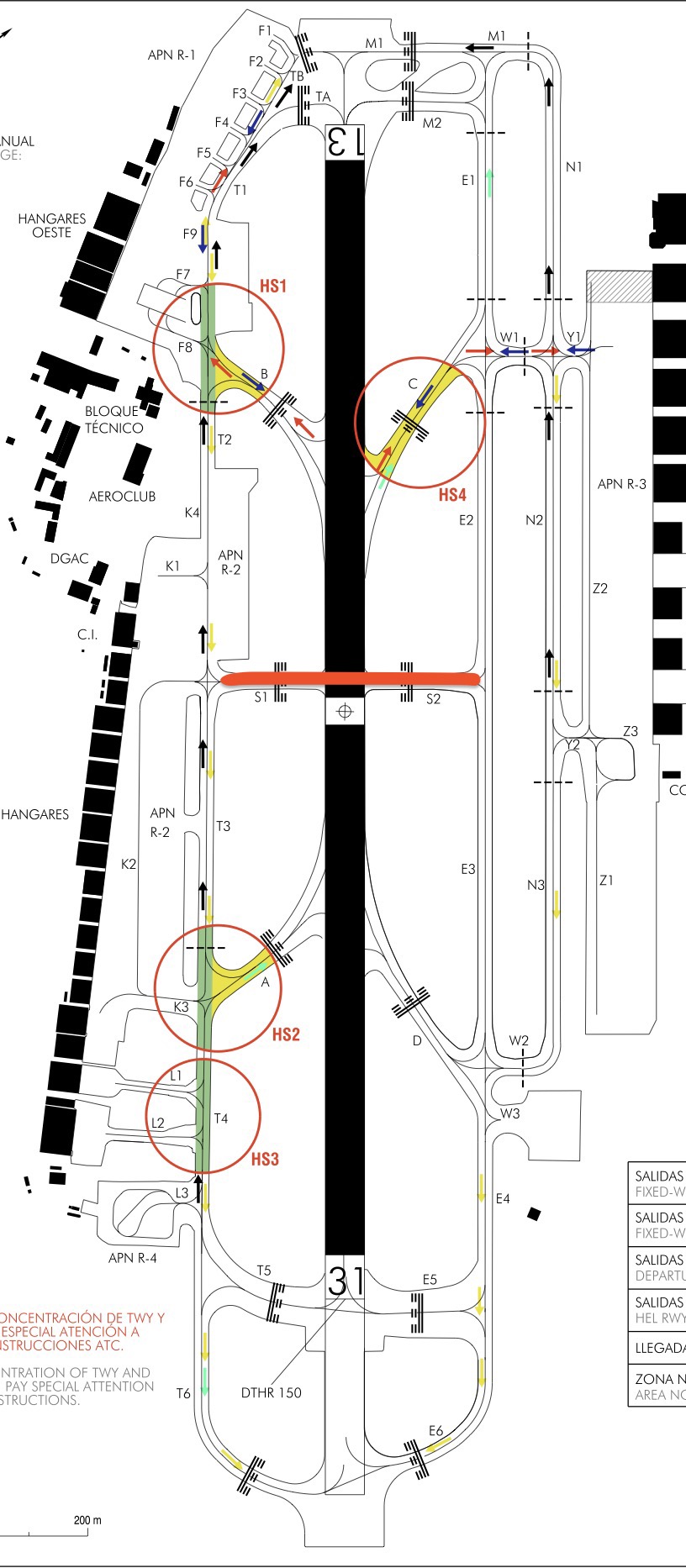

LELL Taxiway S

Taxiway crossing the runway in the center, from T to E

Conditions when to put Carburettor heat

• Temperature <= 17ºC

• High relative humidity (= temperature close of dew point) OR visible humidity (clouds, fog, etc)

• RPM below the green arc

From which altitude it is recommended to adjust the mixture

3000ft and above

Pre-manoeuvres checks

Use the acronym HASELL

What does H stands for in HASELL?

Height:

• minimum 2500ft AGL

What does A stands for in HASELL?

Airframe:

• Flaps UP

• Landing Light ON

What does S stands for in HASELL?

Secure:

• Safety belts fastened

• loose items stowed

What does E stands for in HASELL?

Engine:

• Engine instruments green

• Mixture Rich

• Fuel pump ON (if applicable)

• Prop lever green arc (if applicable)

What does first L stands for in HASELL?

Location:

• Check area is clear

• Check heading is appropriate

What does second L stands for in HASELL?

Lookout:

• Perform clearing turns for traffic

How to perform clearing turns?

• medium cruise speed

• bank angle 30º

• Look for references at the wing tip and at the front of the aircraft before starting

• One 90º turn to one side

• One 180º turn to the other side

• 90º to come back to initial heading

Procedure for communications failure in LELL

1. Head to W point (Rubi) and request the exercise to the tower

2. From W point onward, maintain no more than 1000ft AMSL

3. Fly following the AP7 toward Castell de Marçal without overflying populated areas

4. Head back to old tower and perform circuits staying west of the runway and looking for light signals.

Comms failure - steady green light (luz verde fica) from the tower

Clear to land

Comms failure - steady red light (luz roja fija) from the tower

Give way to other aircraft and continue circling

Comms failure - series of green flashes from the tower

Return for landing

Comms failure - series of red flashes from the tower

Aerodrome unsafe, do not land

Comms failure - series of white flashes from the tower

Land at this aerodrome and proceed to apron

Comms failure - red pyrotechnic from the tower

Notwithstanding any previous instructions do not land for the time being

De que clase es el espacio aero de la ATZ de LELL, y que significa?

Clase D, significa que ATC da información de trafico y separación para pista. Aeronaves están responsables de su separación con el trafico y el terreno.

Una vez en la zone de control de LELL, qué tengo que hacer si pierdo el contacto to visual con el precedente trafico

Informo a la torre

Qué cantidad de combustible mínimo hay que tener en un vuelo de aviación general?

• Trip Fuel: combustible para completar el viaje planificado, teniendo en cuenta la meteorología

+

• Alternate Fuel: combustible para llegar al alternativo desde el aeropuerto de destinación

+

• Final Reserve:

  • si vuelo con aeródromo siempre a la vista: 10 minutos de combustible 1500ft encima del aerodromo

  • si vuelo largo: 30 minutos de combustible 1500ft encima del aeródromo de destino

  • si vuelo de noche y/o IFR: 45 minutos de combustible 1500ft encima del aeródromo de destino

ref NCO.OP.125

What is the semi-circular rule to be used in Spain for VFR flights?

It’s based on North/South headings (and not East/West like in most other countries).

• NORTH headings (270 to 89º) should be flown with EVEN flight levels such as 4500, 6500, 8500, etc.

• SOUTH headings (90 TO 269º) should be flown with ODD flight levels such as 3500, 5500, 7500, etc.

Que llamamos “controles de vuelo primarios”?

• Alerones (eje de alabeo)

• Elevador (eje de cabeceo)

• Timon (eje de guiñada)

Que llamamos “controles de vuelo secundarios”?

• Flaps

• Compensador

CAVOK definition

Visibility > 10km

No significant clouds below 5000ft

No significant weather such as thunderstorms and fog
