Electromagnetic Energy, Electrostatics, Electricity, Magnetism TEST

Which of the following units would measure electrostatic charge?



volt



C/s



amperes



coulomb

coulomb

Which of the following does not cause electrification of an object?



friction



contact



induction



resistance

resistance

When a negatively charged object touches an uncharged object, what charge is then given to the uncharged object?



negative



positive



no charge is transferred



both negative and positive

negative

Which of the following is one of the laws of electrostatics?



electric charge is concentrated more where the curve is sharpest on a conductor



electric charge is through the middle of the conductor



unlike charges repel, like charges attract



electrostatic force is directly proportional to the square of the distance

electric charge is concentrated more where the curve is sharpest on a conductor

According to Coulomb's law, what happens to electrostatic force when the magnitude of the charges increased?



increased by the distance squared



decreased by the distance squared



increased proportionally



decreased proportionally

increased proportionally

What is the voltage in a circuit that has 6 amps and 40 ohms of resistance?



6.7



240



0.15



1440

240

How much power is consumed by a circuit with V = 220, I = 27.5, and a R = 8?



1760 W



1080 W



6050 W



220 W

6050 W

What is the amperage in a circuit that has 110 volts and 6 ohms of resistance?



0.05



660



36



18.3

18.3

Which of the following would define amperage?



1 cycle/second



1 electromotive force per second



1 coulomb/second



1 potential difference

1 coulomb/second

What term describes materials that allow the flow of electrons?



conductor



circuit



dielectric



insulator



conductor

As the length of the conductor increases, how is resistance affected?



decreases



increases by distance squared



stays the same



increases

increases

What unit is used to measure potential difference?



amperage



ohms



resistance



voltage

voltage

What type of circuit meter component must be connected in series for proper operation?



voltmeter



resistor



ammeter



battery

ammeter

What type of current flows in one direction and then in another direction?



steady direct



alternating



pulsating direct



none of the above

alternating

What is the power of a circuit with I = 8 and a R = 9?



72 W



400 W



576 W



648 W

576 W

What material that under some conditions behave as an insulator and in other conditions behaves as a conductor?



dielectric



insulator



superconductor



semiconductor

semiconductor

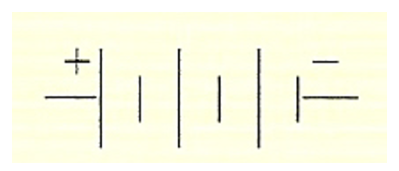

What does the following electrical symbol represent?


capacitor



resistor



battery



voltmeter

battery

To increase the resistance in a wire, which of the following may be done?



decrease the cross sectional area of the conductor



decrease the temperature of the conductor



decrease the length of the conductor



increase the cross sectional area of the conductor

decrease the cross sectional area of the conductor

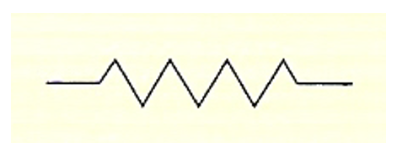

What does this electrical symbol represent?



capacitor



battery



resistor



switch

resistor

What is the unit of magnetism



Watt



Tesla



Newton



Coulomb

Tesla

What is the force between two negative charges with values of 7 C and 3 C at 1 meter?



21 C



12 C



2.3 N



21 N

21 N

As the magnetic field lines increase per area, what happens to magnetic strength?



increases



decreases



increases by the distance squared



decreases by the distance squared

increases

What would happen to the force of attraction between the south pole and north pole of two magnets was increased from 5 to 10 inches?



force is doubled



force is four times the original



1/2 the original force



1/4 the original force

1/4 the original force

Materials that are weakly repelled by either magnetic pole are called                         materials.



paramagnetic



nonmagnetic



ferromagnetic



diamagnetic

diamagnetic

What term describes the ability of a magnet to hold magnetic properties?



retentivity



susceptibility



permability



diamagneticability

retentivity

How are x-ray photons of low energy described?



low velocity and increased wavelengths



decreased frequency and increased wavelengths



high velocity and decreased wavelengths



increased frequency and decreased wavelengths

decreased frequency and increased wavelengths

What is the wavelength of a photon that has a frequency of 2.5x10¹⁸ Hz?



7.5x10^-10 m



1.2x10^-10 m



30x10¹⁰ m



60x10²⁶ m

1.2x10^-10 m

As the frequency decreases, the energy of the photon                   .



increases



decreases



stays the same



none of the above

decreases

The intensity of an x-ray tube is 85 mR at 30". What is the intensity at 15"?



21 mR



85 mR



150 mR



340 mR

340 mR

What term describes anatomical structures that absorb x-rays or that x-rays do not easily penetrate?



radiopaque



translucent



refraction



radiolucent

radiopaque

What is the frequency of a 35 keV x-ray photon? (Planck's Constant 4.15x10^-15)



8.4x10¹⁸



145x10¹⁹



8.4x10^-19



145x10^-18

8.4x10¹⁸

What term described the distance from one crest to another in a sine wave



amplitude



velocity



frequency



wavelength

wavelength

What term describes the reduction in the number of x-rays photons as the beam passes through a patient?



attenuation



transmission



refraction



amplitude

attenuation

What is the wavelength of a 72 keV photon?



893 A



0.25 A



0.17 A



2.5 A

0.17 A

As frequency increases, wavelength                            .



increases



decreases



stays the same



decreases by the square of the distance

decreases
