MSAT - Regional Anaesthesia - Bovine - SP1

Cornual Nerve Block

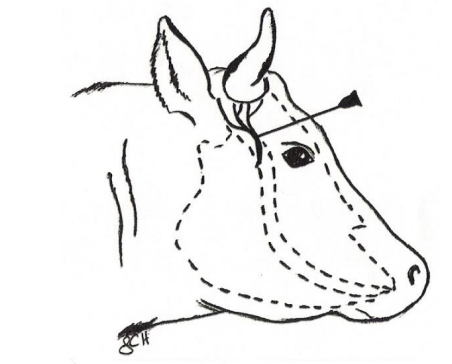

Where is the injection site?

Between the lateral canthus of the eye and the base of the horn along the crest dorsal to the temporal fossa.

The point of injection on this line is halfway between the lateral canthus of the eye and the base of the horn or about 2.5 cm below the base of the horn (bud).

Cornual Nerve Block

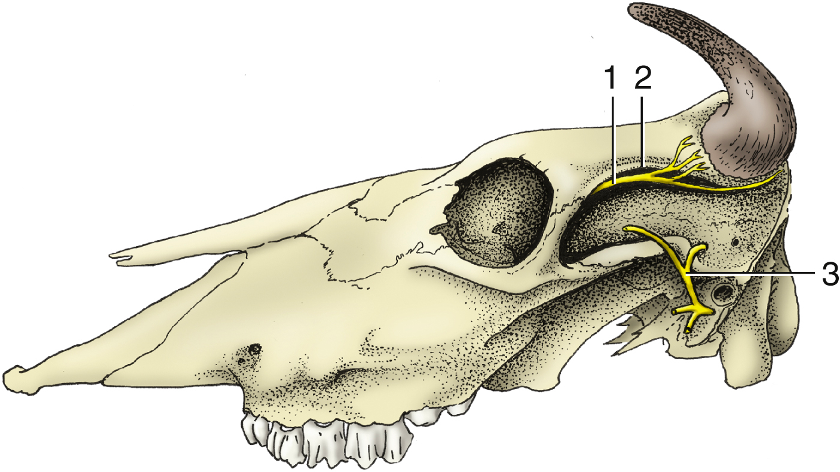

What is 1 and 2?

1 - Cornual Nerve

2 - Frontal Crest

Restraining the Cow Head - How is it done?

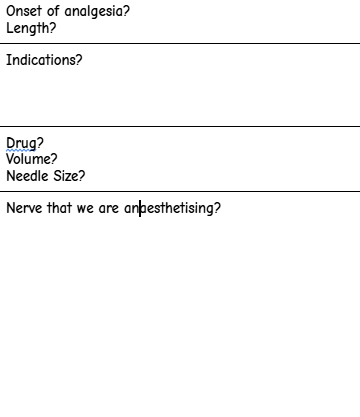

Corneal Nerve Block

Cornual Nerve Block

Finding the nerve?

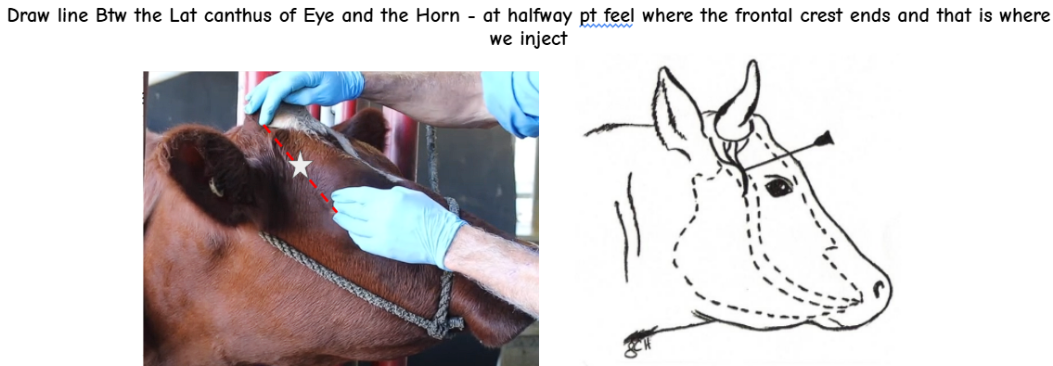

Cornual Nerve Block

Where is our injection site? (Use landmarks)

Cornual Nerve Block - Skin Prep and Inject

Skin prep?

Injection aspects?

What structures are of concern?

How to dispense?

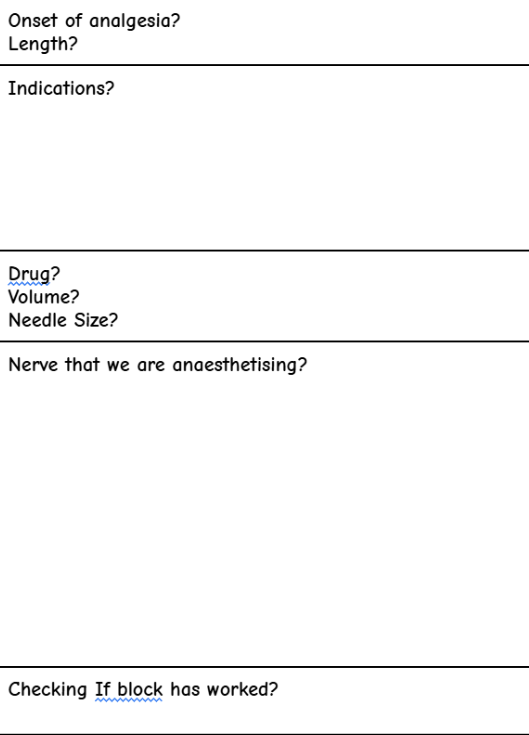

Auriculopalpebral Nerve Block

Auriculopalpebral Nerve Block

Where is the nerve? Use landmarks

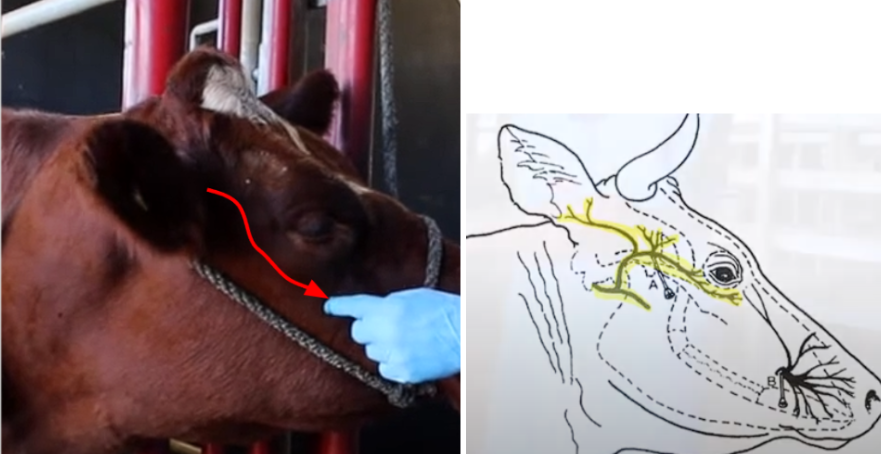

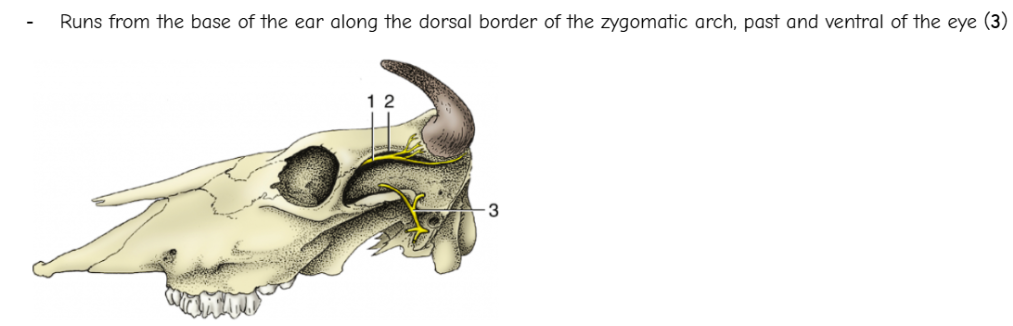

Auriculopalpebral Nerve Block - Location Diagrams

Auriculopalpebral Nerve Block

Skin prep aspect?

Palpation?

How to inject?

Dispersal?

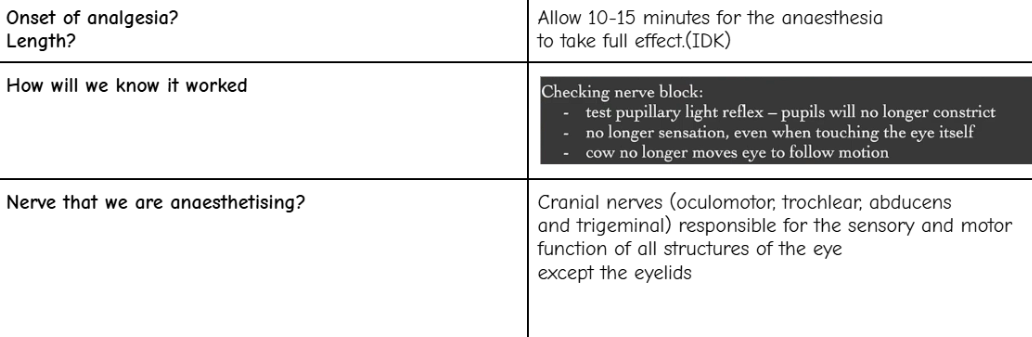

Peterson Eye Block

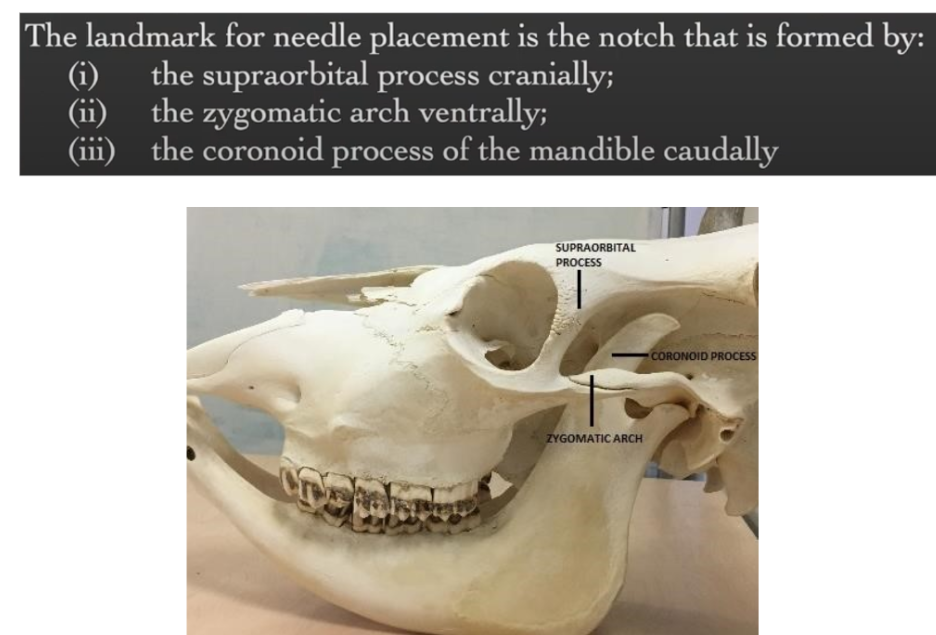

Peterson Eye Block

Where’s the nerve? Use landmarks

Peterson Eye Block - The first part

What is done?

Volume?

Needle?

Peterson Eye Block - Spinal Needle

Insert where?

Angle?

Direction?

Movement?

Peterson Eye Block - Spinal Needle

Advancing?

Injecting?

Restraining the HL - Applying the Sternal Belt Diagram

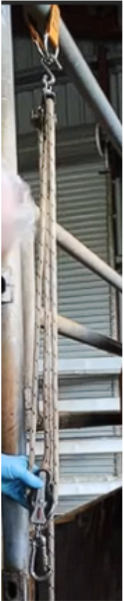

Restraining the HL - Pulley Setup Image

Restraining the HL - Lifting the Leg Steps?

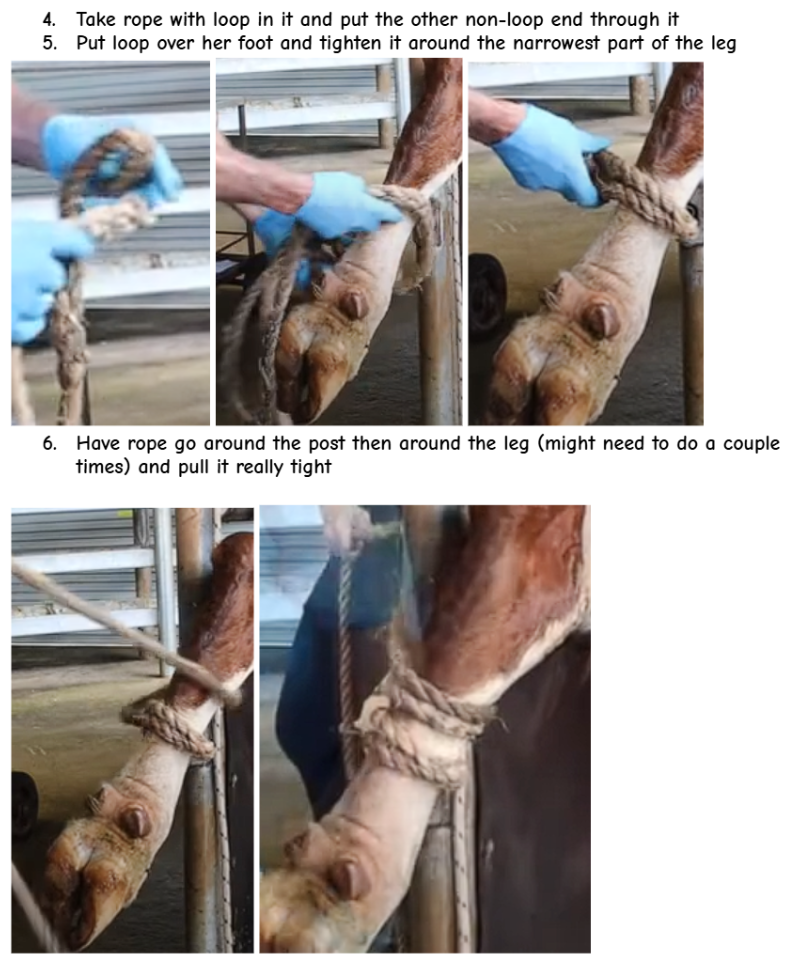

Restraining the HL - Restraining Steps?

Retrograde Intravenous Nerve Block

Volume?

Preparation?

20mls is more than enough to anaesthetise both claws fully

Place tourniquet above injection site (tuck the end under itself)

Retrograde Intravenous Nerve Block

Injection site?

Needle Placement?

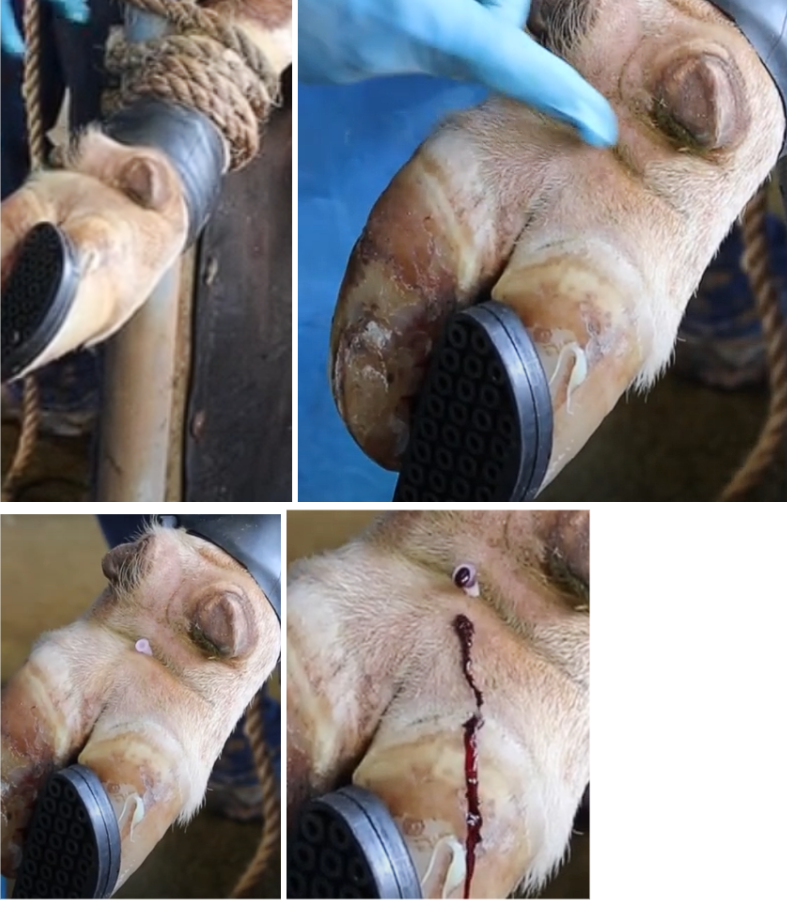

Need to find a venous plexus - look at the groove (Insert exactly in the midline and 2-3cm below fetlock jt) - Full depth needle

Move the needle around gently until we see blood coming out (venous plexus)

Retrograde Intravenous Nerve Block

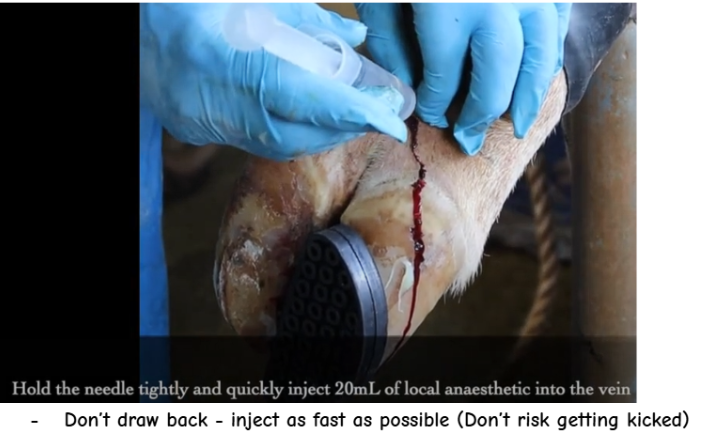

Admin drug method?

Retrograde Intravenous Nerve Block - Second Spot if needed

Where is it?

What do?

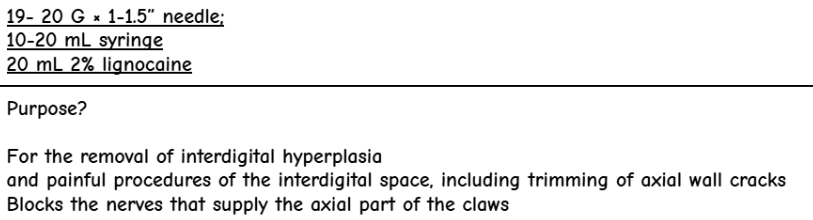

Interdigital Nerve Block

Materials?

Purpose?

Interdigital Nerve Block

Method?

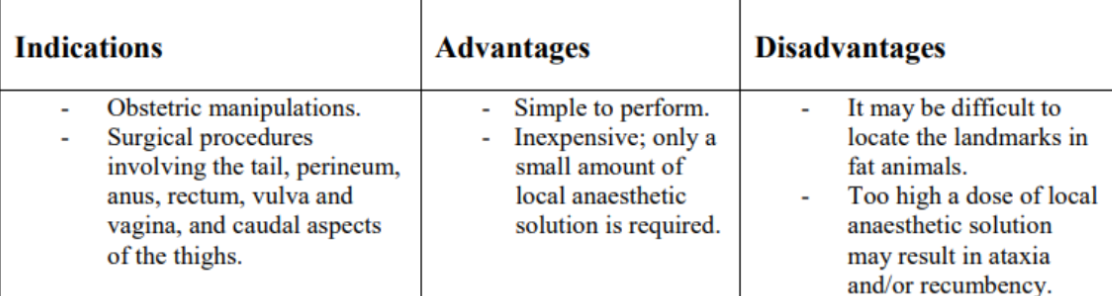

Epidural Nerve Block

Indications?

Advantages?

Disadvantages?

Epidural Nerve Block

Materials?

Paravertebral Block

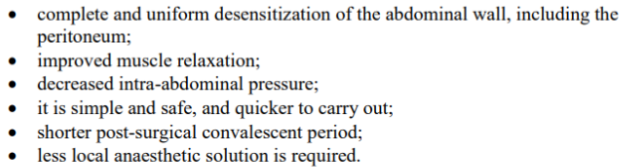

Benefits over Inverted L block?

Paravertebral Block - Nerves that are blocked?

T13, L1, L2

Paravertebral Block - Landmarks

LTP6 aspect?

LT5?

LT6 medial to tuber coxae (can’t be palped)

LT5 is infront of tuber coxae and is the first palpable one

Paravertebral Block - Landmarks

Finding where we need to be?

Find LT5 and count backwards down to LT2 (LT1 might no be felt in fat animals)

Paravertebral Block - Landmarks

Injection sites?

Safety first, what should be done?

Have assistant apply a TAIL JACK

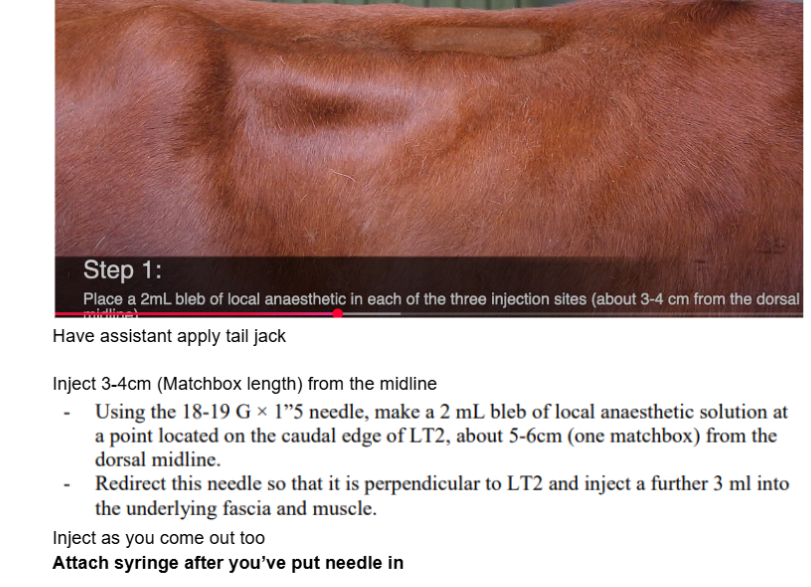

Paravertebral Block - Bleb Injections

Materials?

Volume?

Injection site?

Insertion aspects?

Paravertebral Block - Bleb Injections Image

Paravertebral Block - Spinal Needle Insertion?

Paravertebral Block - Spinal Needle Admin?
