Ohm's Law (V = IR)

The current flowing through a device is directly proportional to the potential difference across the it (providing the temperature remains constant)

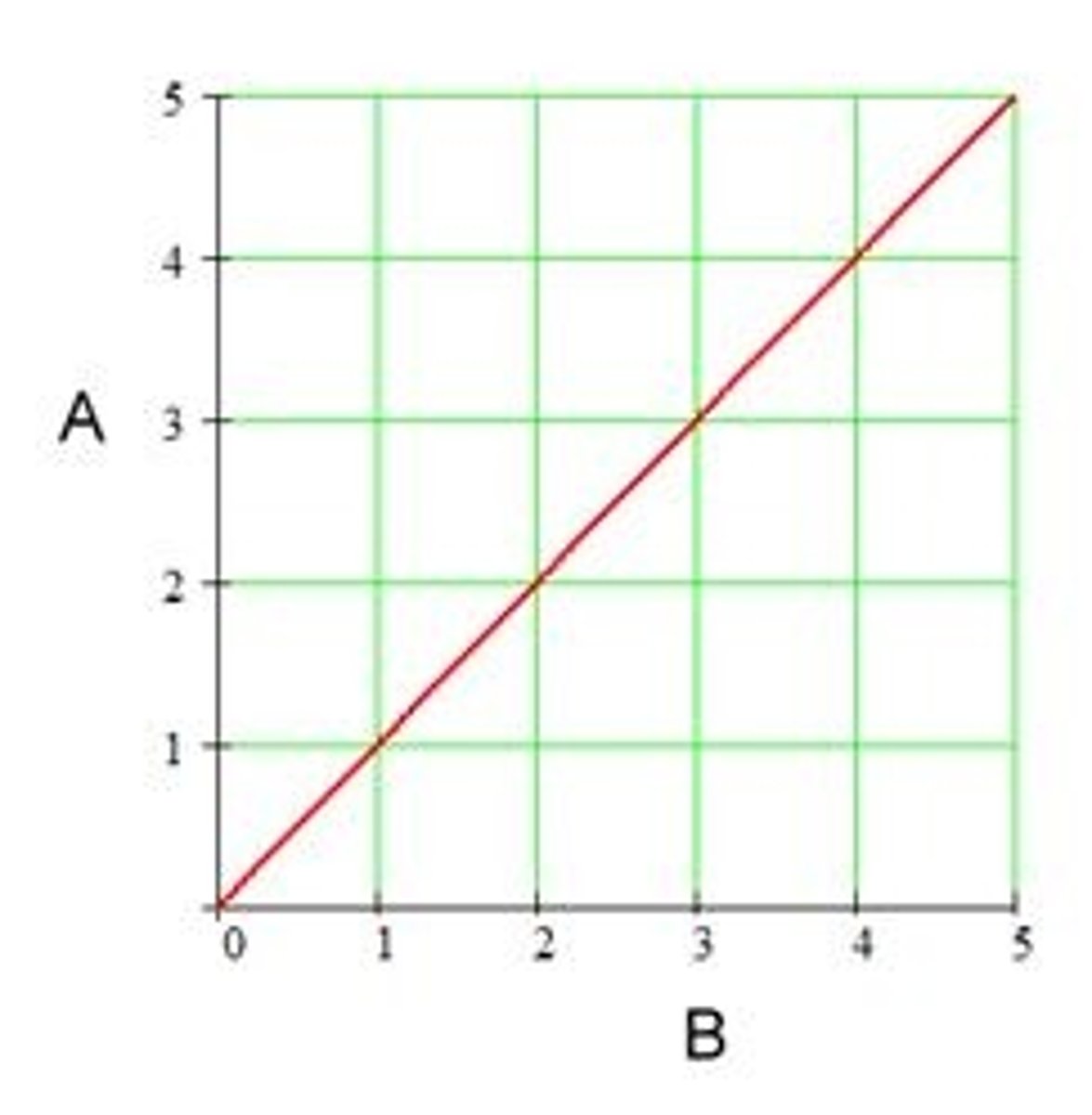

Directly proportional

When a graph of two variables is a straight line that passes through the origin (0,0)

Ohmic conductor

A device that obeys Ohm's Law

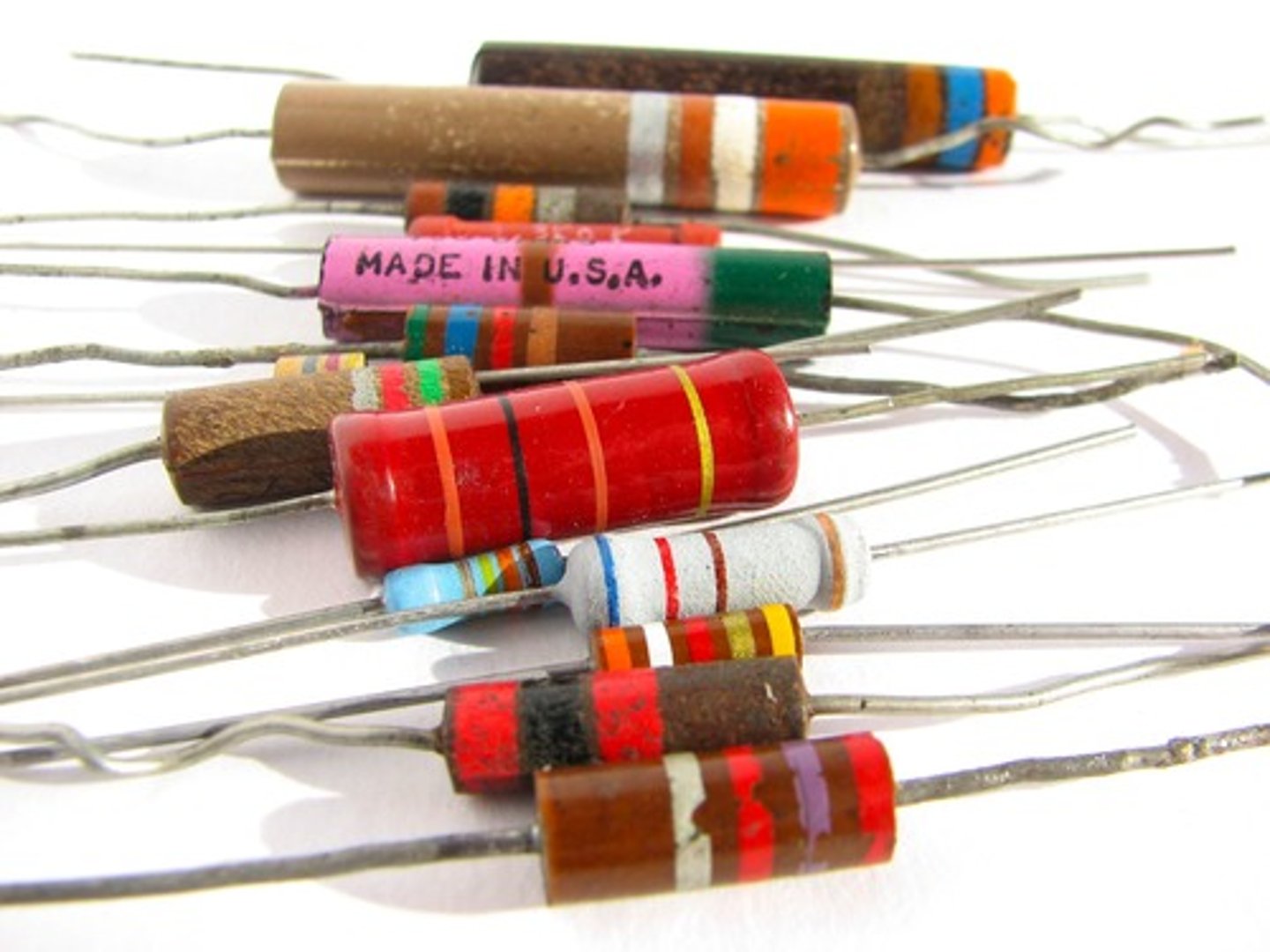

Fixed resistor

An ohmic conductor that obeys Ohm's Law because its resistance is fixed

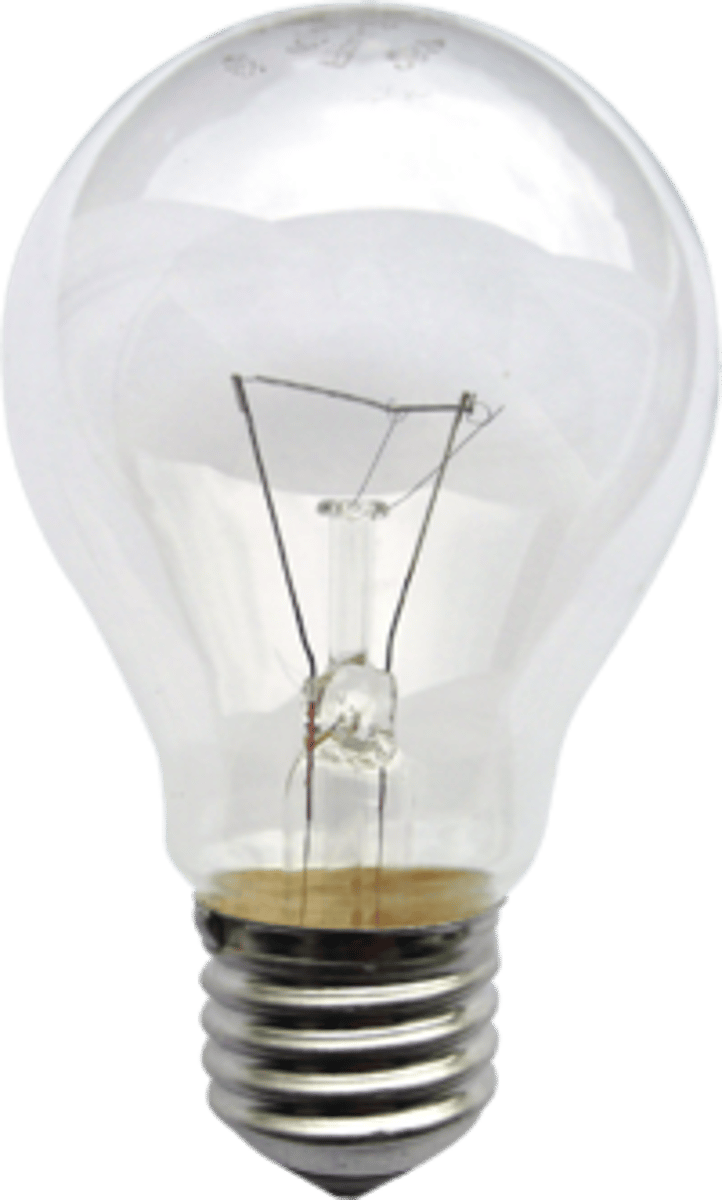

Filament bulb

Not an ohmic conductor because it doesn't obey Ohm's Law

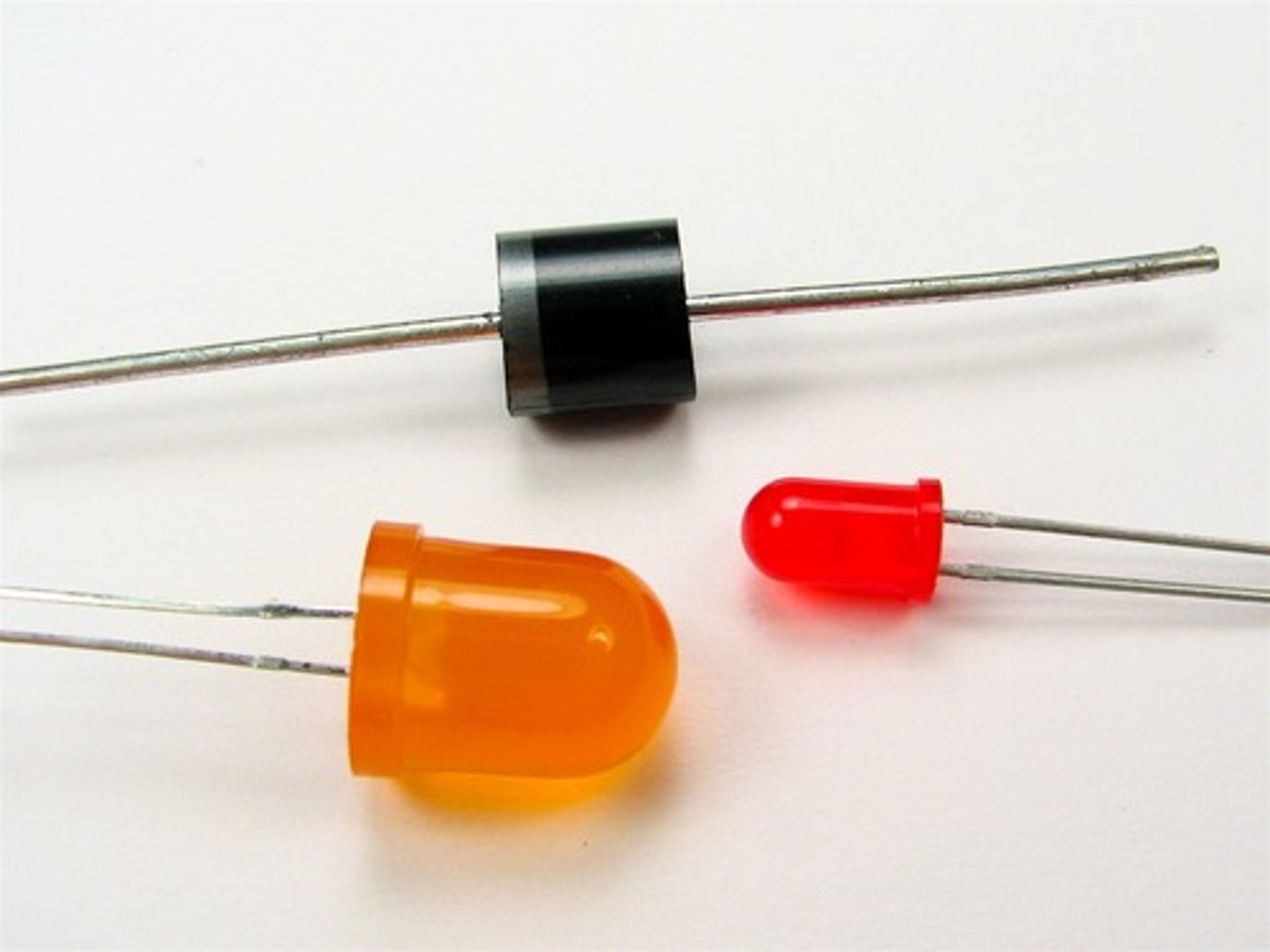

Diode

Not an ohmic conductor because it doesn't obey Ohm's Law

Reason why a filament bulb is not an ohmic conductor

The filament gets hot which causes its resistance to increase

Reason why a diode is not an ohmic conductor

Its resistance changes depending on which direction the current flows through it

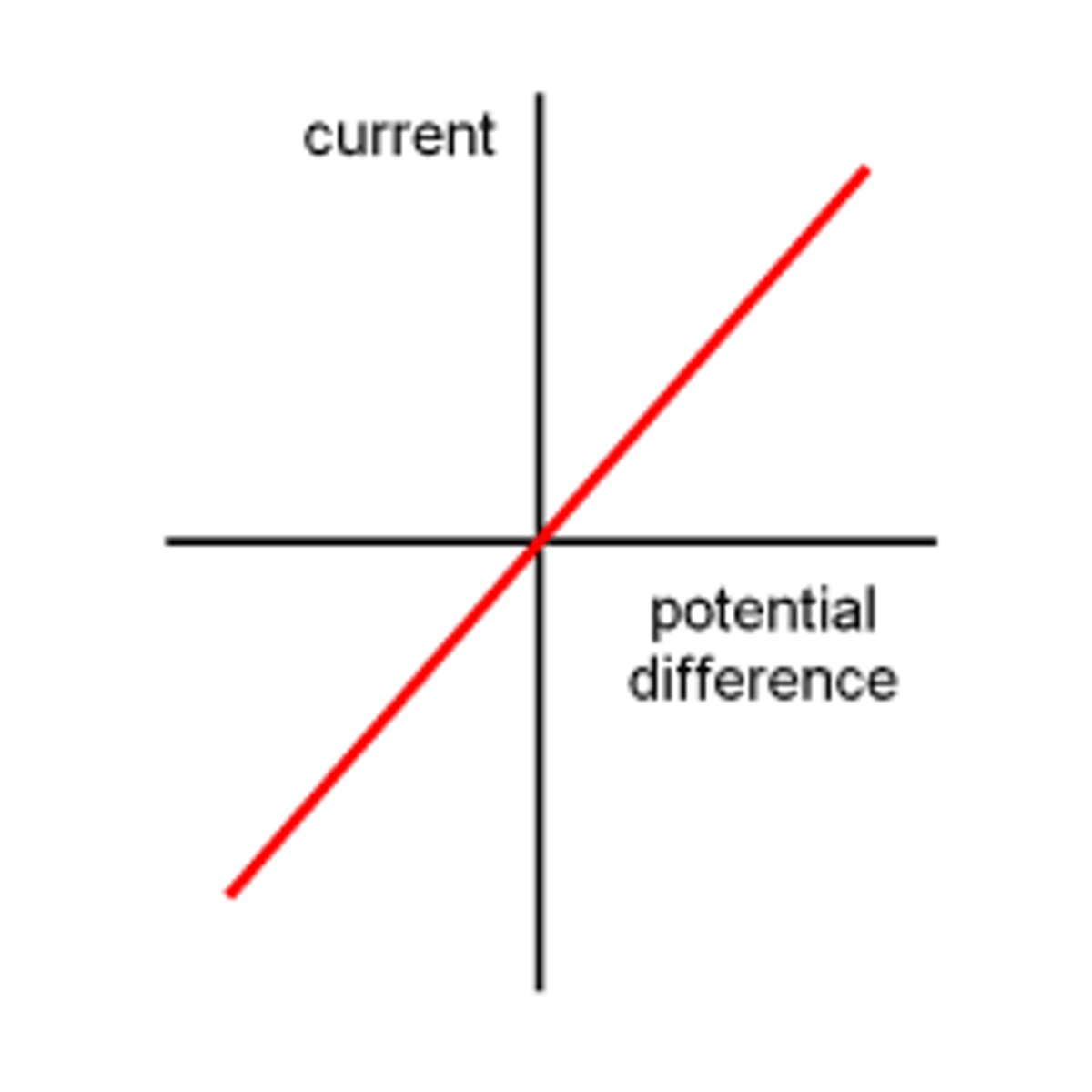

IV (current-potential difference) graph

a graph used to show how the current through a component varies as the potential difference across it changes

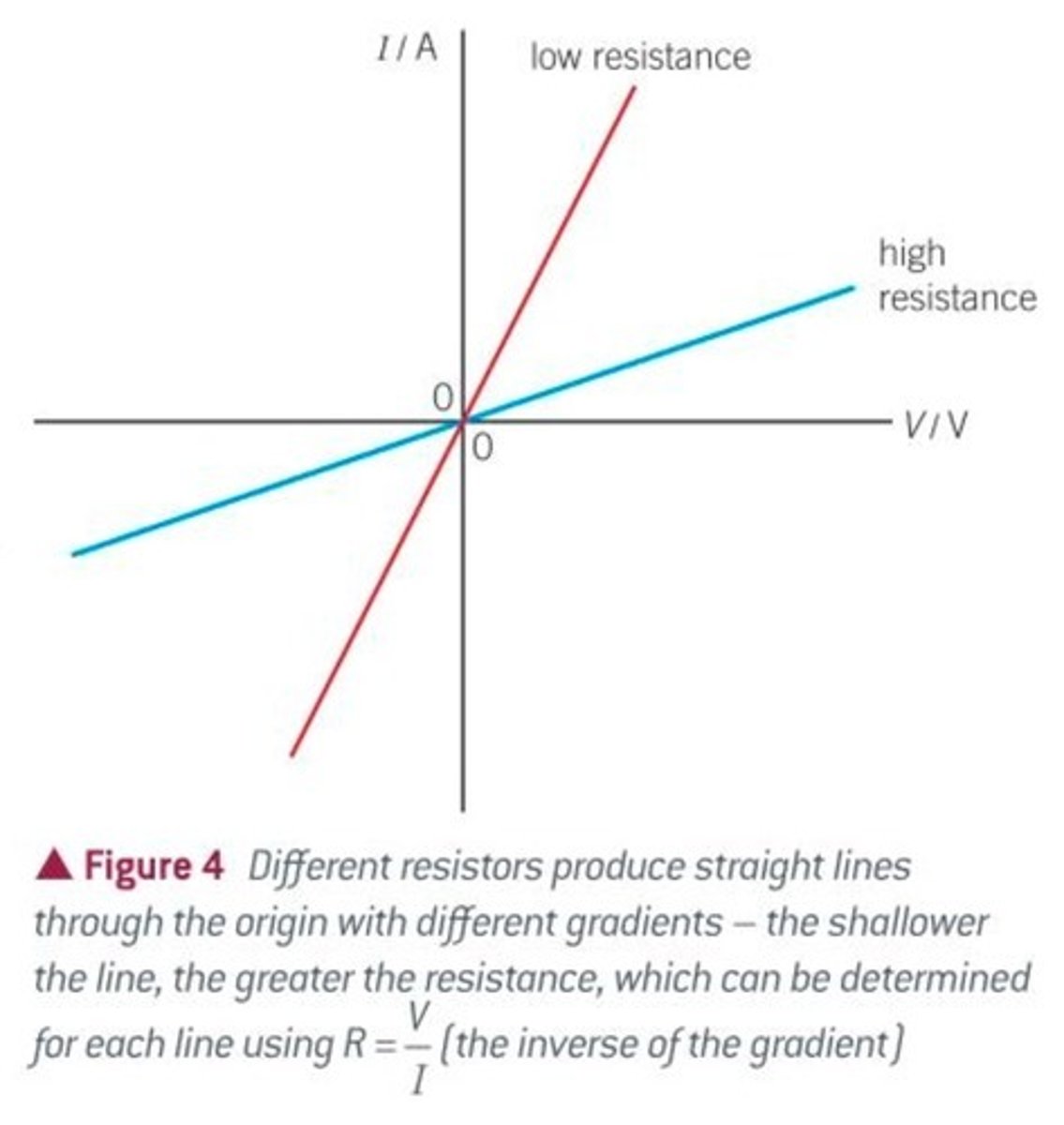

What the gradient of an IV graph represents

The resistance of a component (equal to 1/R)

What a steep line on an IV graph represents

A device with a low resistance because increasing the potential difference by a small amount causes a large increase in current

What a shallow line on an IV graph represents

A device with a high resistance because increasing the potential difference by a small amount causes a small increase in current

IV graph for a fixed resistor

A straight line which passes through the origin

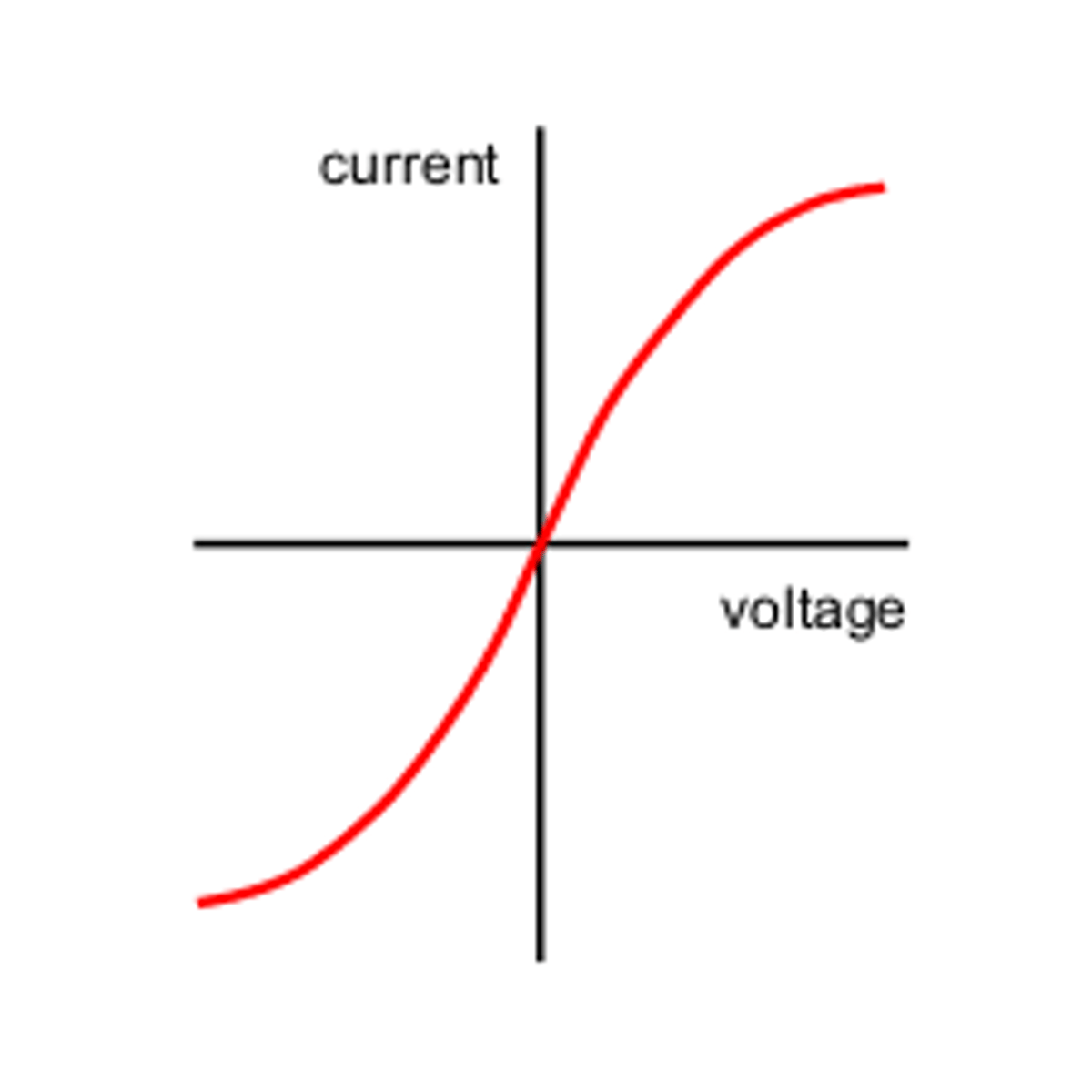

IV graph for a filament lamp

A s-shaped curve which passes through the origin

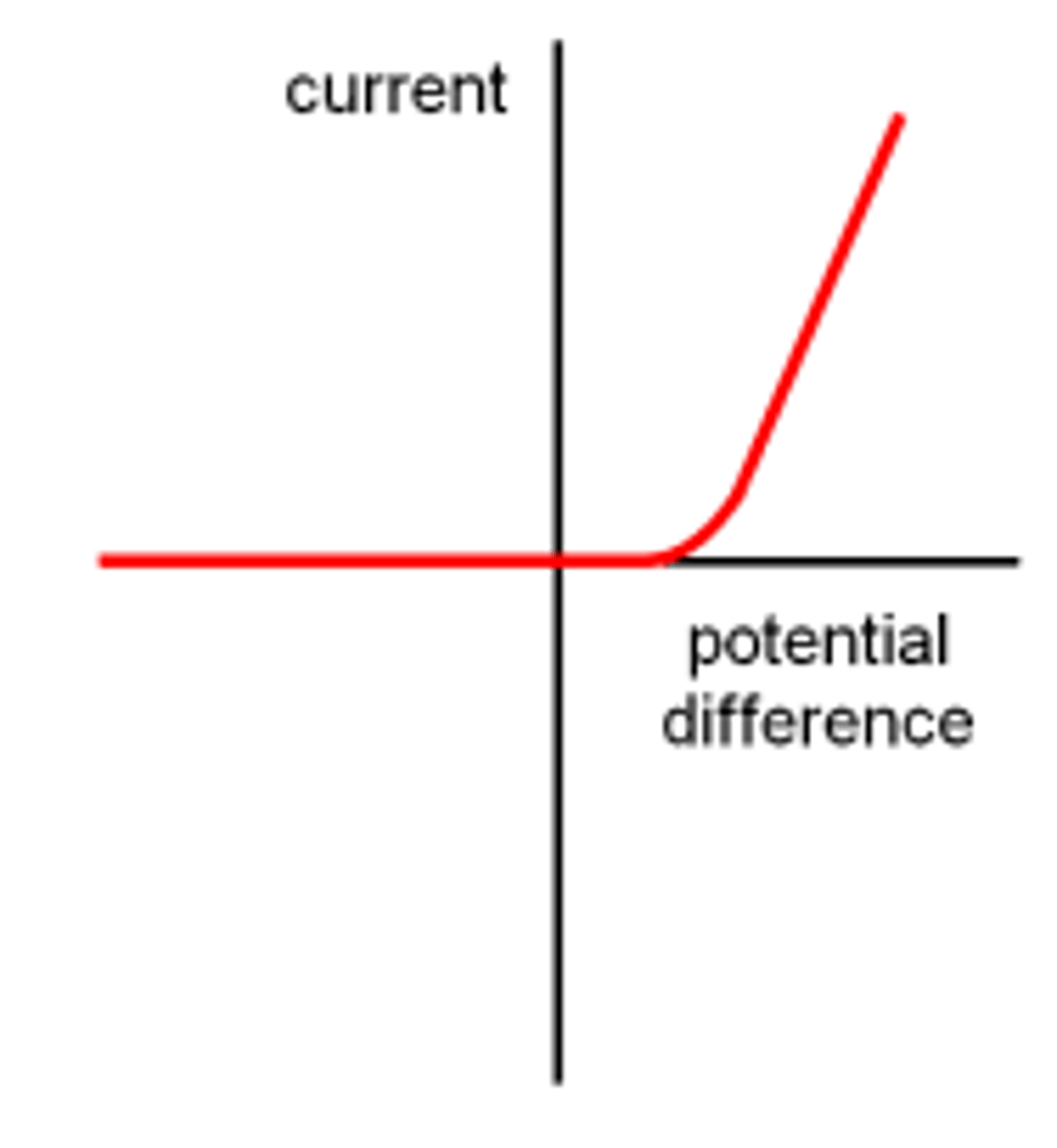

IV graph for a diode

The graph a horizontal line along the x-axis until it reaches around 0.6 V, where it then becomes a straight line with a steep gradient

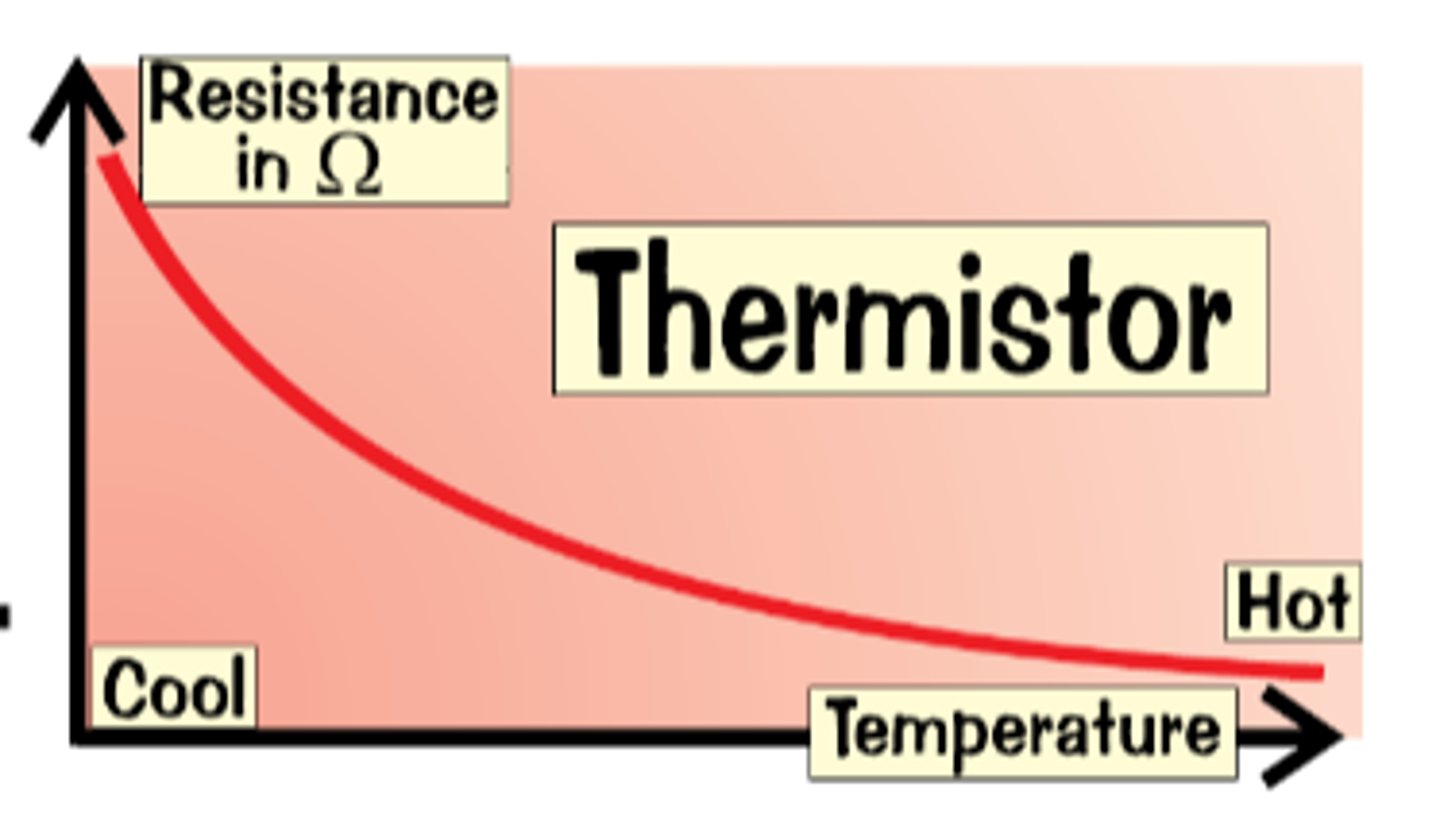

Thermistor

The resistance of a thermistor decreases as the temperature increases

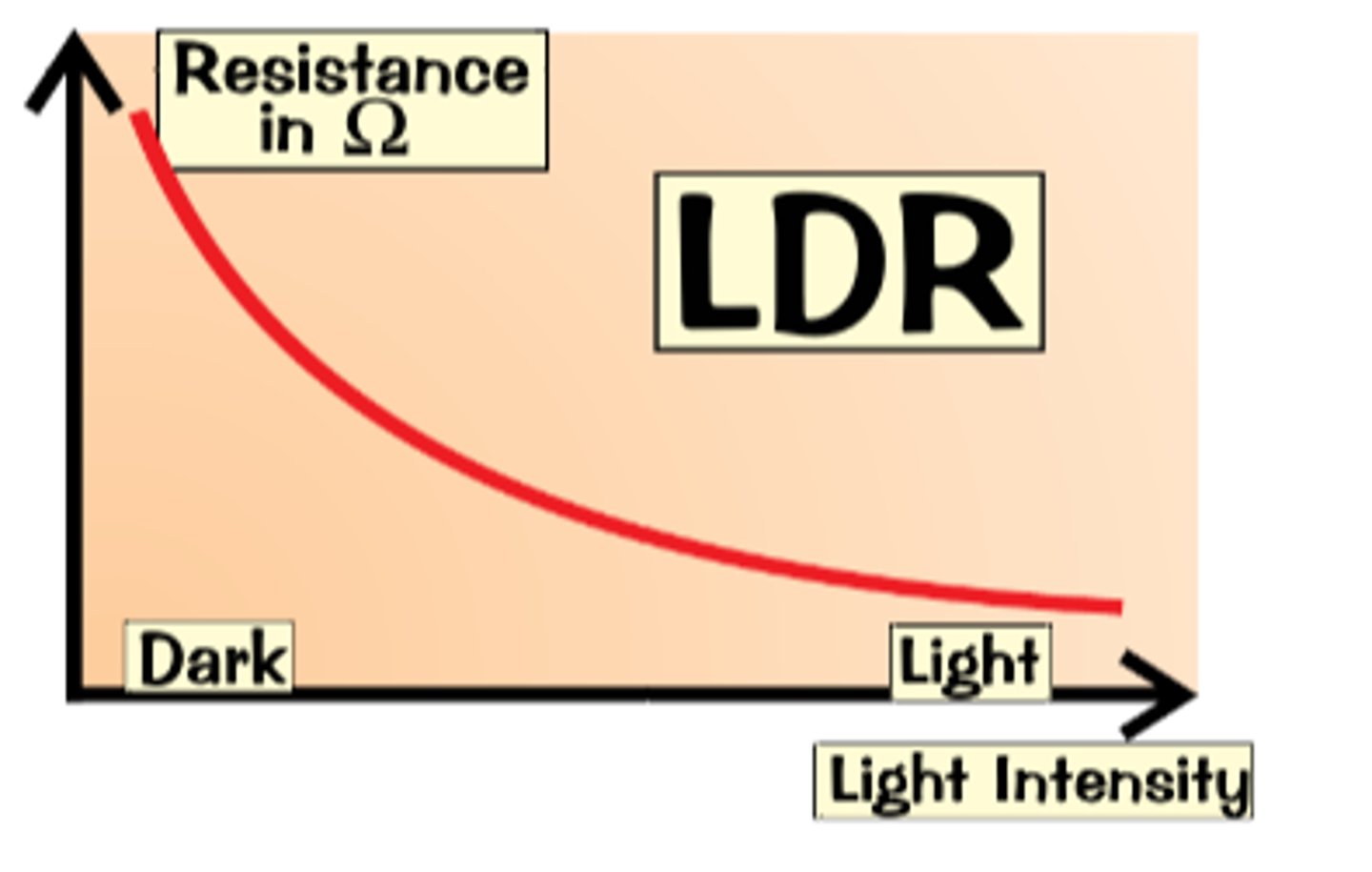

LDR (light dependent resistor)

The resistance of an LDR decreases as light intensity increases
