Cephalic & Vertebral Skeleton

Anatomy

Sutures

Immovable joint that form the boundaries between the cranial bones.

4 Sutures

Coronal, Sagittal, Squamous, Lambdoid

Paranasal Sinuses

Air filled chambers that open into the nasal cavities.

4 Paranasal Sinuses

Frontal, Ethmoidal, Sphenoidal, Maxillary

What do Paranasal Sinuses help do?

Humidify and Warm Air

Fontanelles

“Soft Spots” of the fetal skull

4 Fontanelles

Sphenoidal, Mastoid, Anterior, Posterior

Vertebra prominens (C7)

Vertebra has a much larger and longer spinous

process that can be felt when palpated, and is usually

situated between the shoulder blades

Intervertebral foramen

contains the spinal nerves between two

vertebrae

Supraorbital foramen of the frontal bone

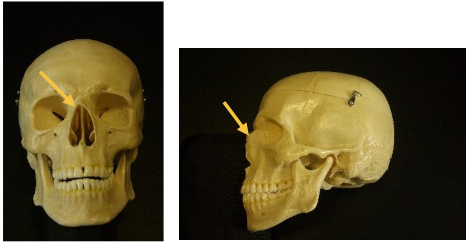

Nasal Bone

Lesser Wing of Sphenoid Bone

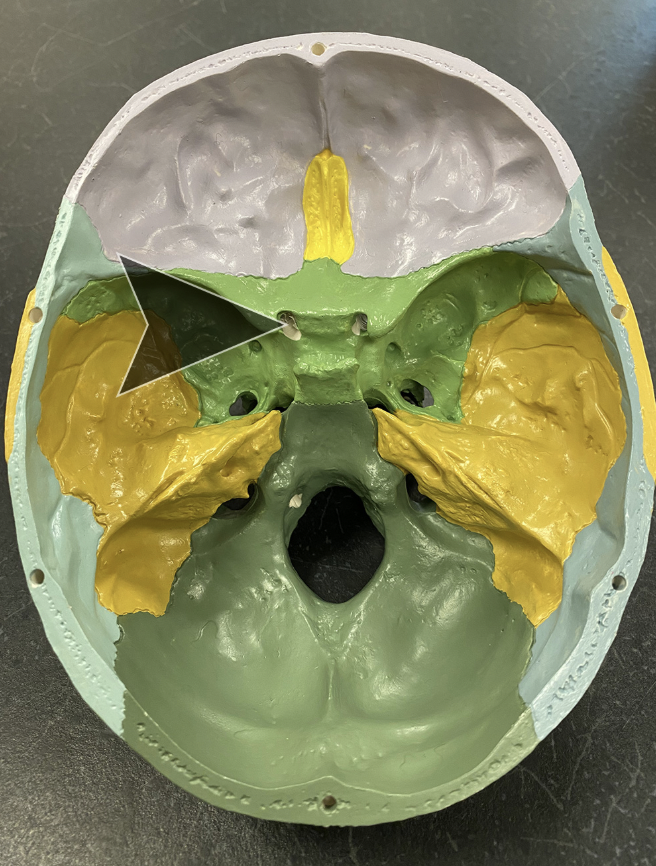

Optic Foramen of the Sphenoid Bone

Foramen Rotundum of the Sphenoid Bone

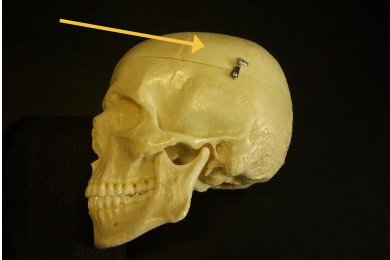

Parietal Bone

Greater Wing of the Sphenoid Bone

Sella Turcica of the Sphenoid Bone

Foramen Ovale of the Sphenoid Bone

Foramen Spinosum of the Sphenoid Bone

Foramen lacerum of the sphenoid bone

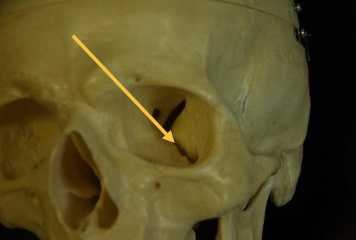

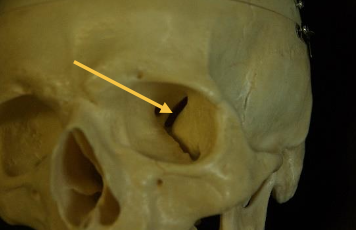

Inferior orbital fissure of the sphenoid bone

Lateral plate of the pterygoid process of the sphenoid

bone

Perpendicular plate of the ethmoid bone

Cribriform plate of the ethmoid bone

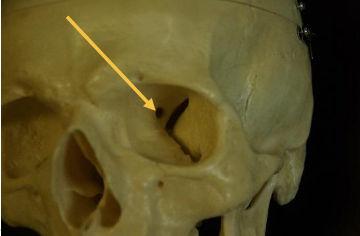

Superior orbital fissure of the sphenoid bone

Pterygoid process of the sphenoid bone

Medial plate of the pterygoid process of the sphenoid

bone

Middle nasal concha of the ethmoid bone

Crista galli of the ethmoid bone

Inferior nasal concha

Temporal process of the zygomatic bone

Alveolar processes of the maxilla bone

Incisive foramen of the maxilla bone

Ramus of the mandible

Lacrimal groove/ nasolacrimal canal

Infraorbital foramen of the maxilla bone

Palatine process of the maxilla bone

Body of mandible bone

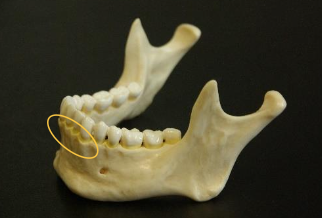

Alveolar processes of the mandible

Angle of the mandible

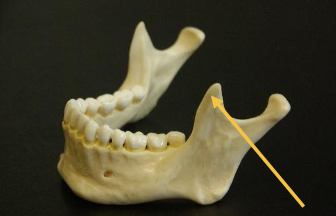

Coronoid process of the mandible

Mandibular notch

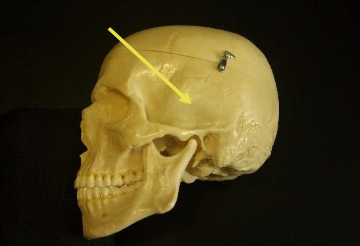

Squamous region of the temporal bone

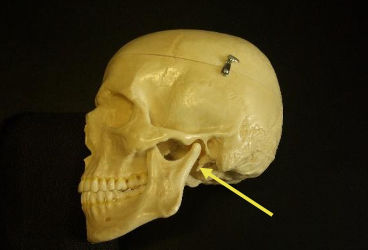

Mastoid process of the temporal bone

Mental foramen of the mandible

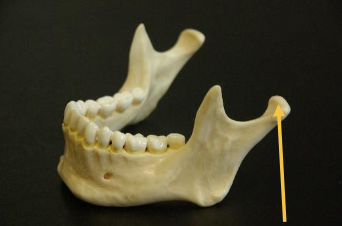

Mandibular condyle/ condylar process of the

mandible

Zygomatic process of the temporal bone

Styloid process of the temporal bone

External acoustic meatus/ auditory meatus of the

temporal bone

Petrous part of the temporal bone

Carotid canal of the temporal bone

Internal acoustic/auditory meatus of the temporal

bone

Hypoglossal canal of the occipital bone

Occipital condyles

Jugular foramen of the temporal bone

Mandibular fossa of the temporal bone

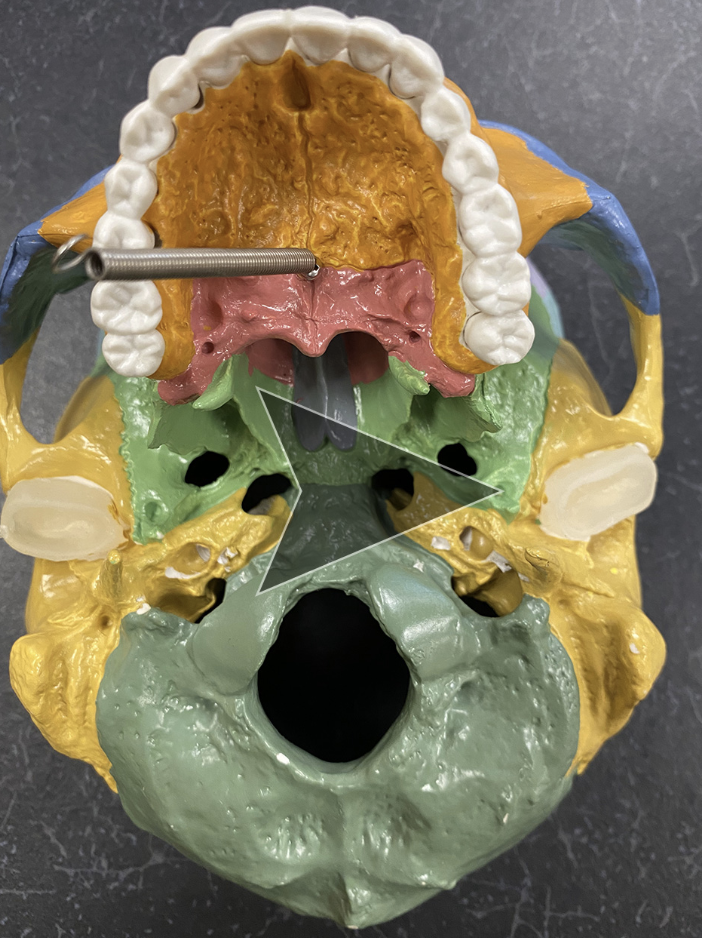

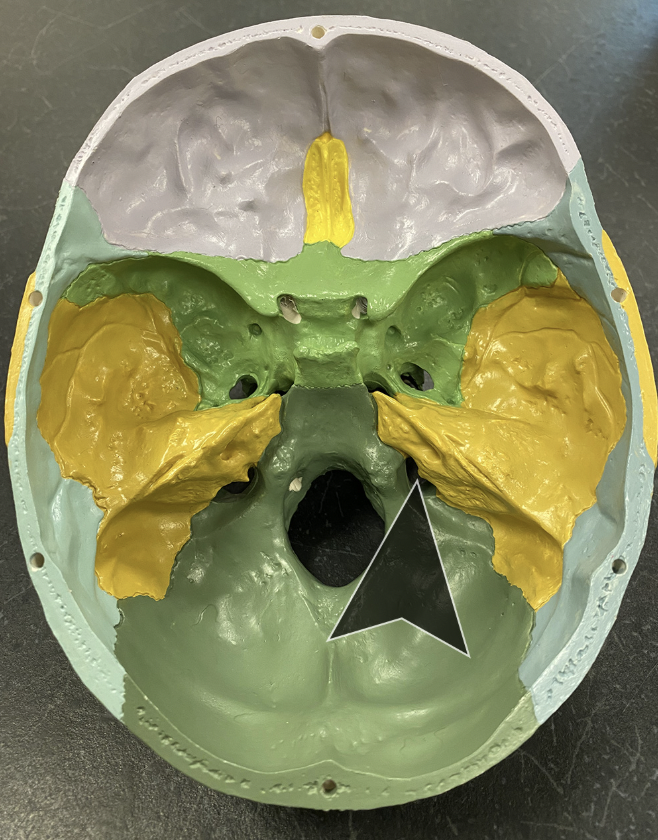

Foramen magnum of the occipital bone

External occipital protuberance and crest

Horizontal plate of the palatine bone

Vomer

Lamina

Transverse process

Articular processes

(superior and inferior)

Body

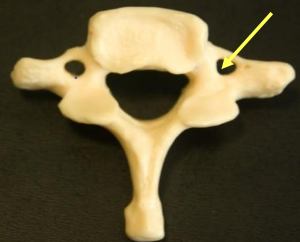

Transverse foramen of cervical vertebra

Pedicle

Spinous process

Vertebral foramen

Cervical vertebra

7 bones

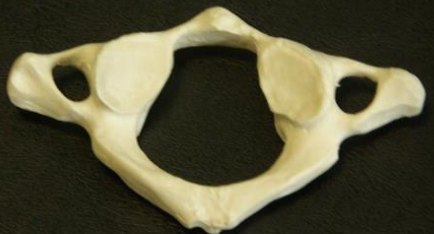

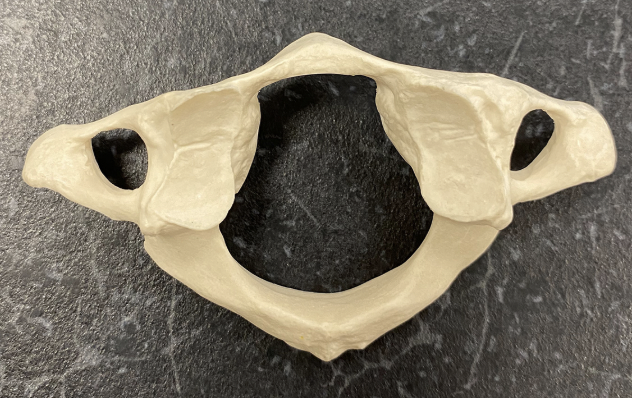

Atlas (C1)

Axis (C2)

Lumbar vertebra

5 bones

Coccyx

2-3 (fused) bones

Odontoid process (dens)

Intervertebral disks

Thoracic vertebra

12 bones

Sacrum

5 (fused) bones

Temporal Process of Zygomatic Bone

Foramen Rotundum of Sphenoid Bone

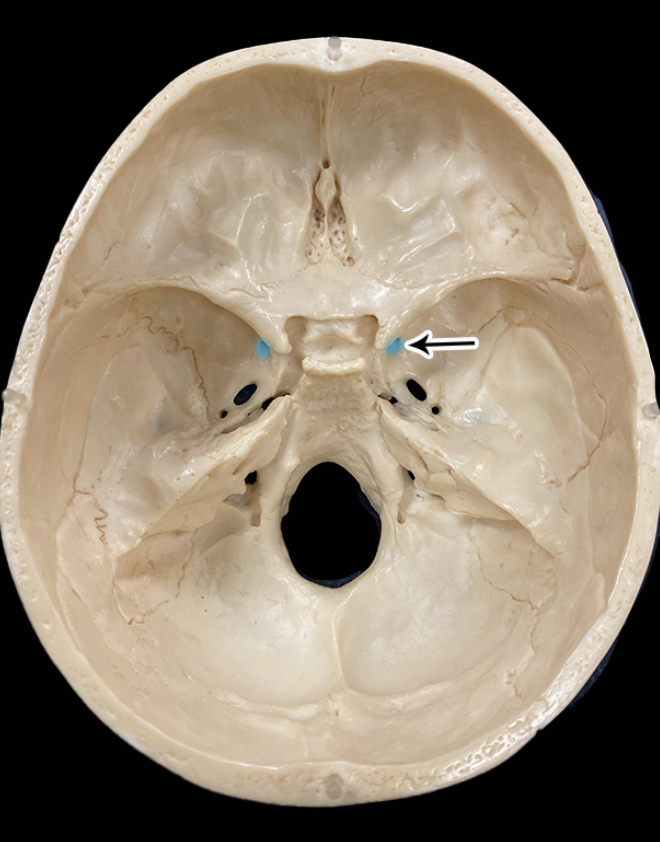

Optic Canal

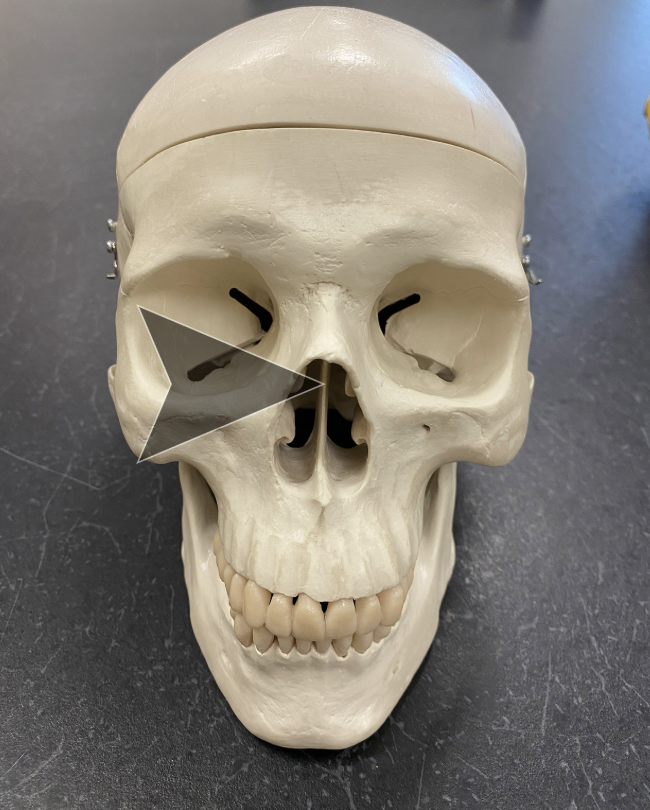

Perpendicular Plate of Ethmoid Bone

Foramen Spinosum of Sphenoid Bone

Petrous Part of Temporal Bone

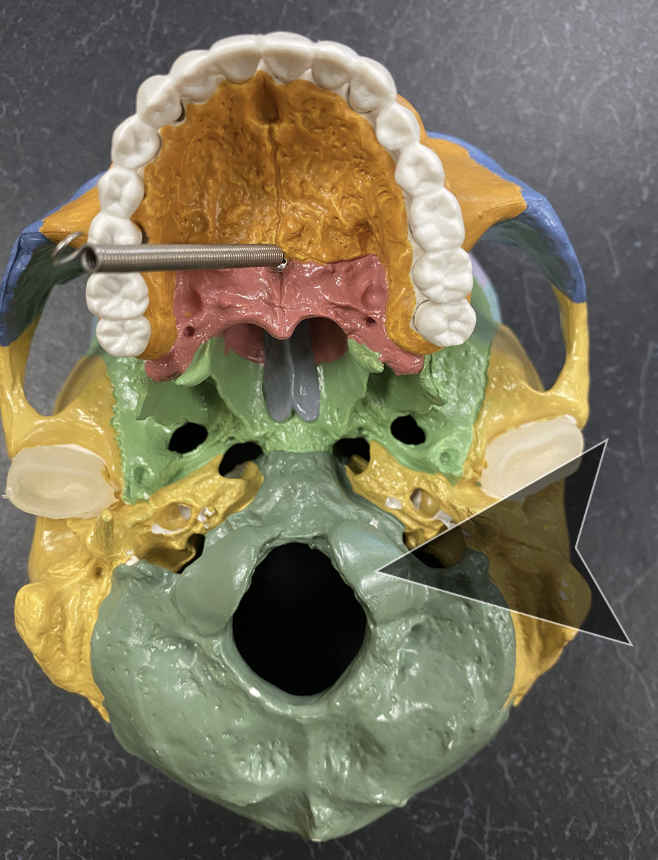

Occipital Condyle of Occipital Bone

Jugular Foramen of Temporal Bone

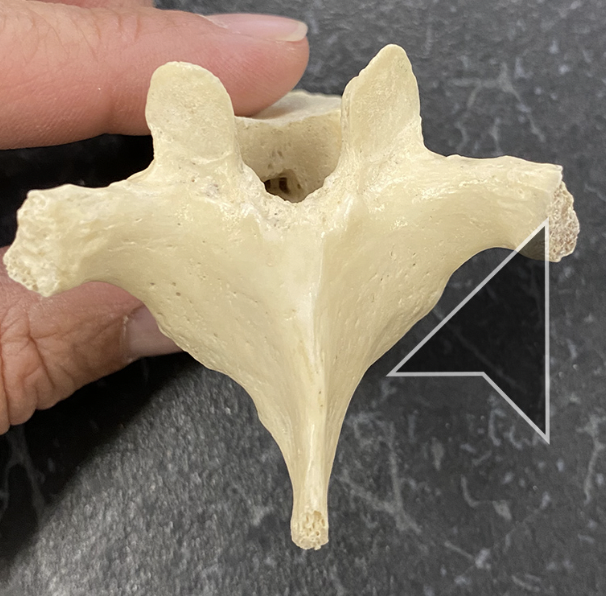

Transverse Process

Spinous Process

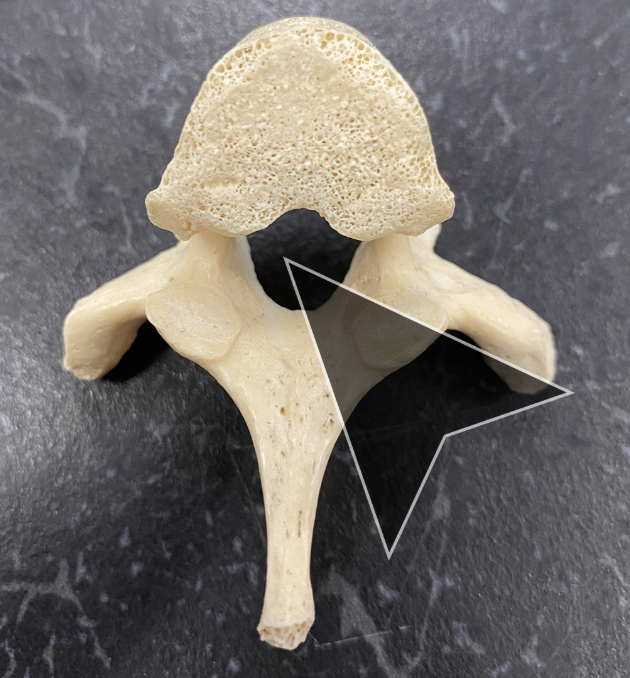

Vertebral Foramen

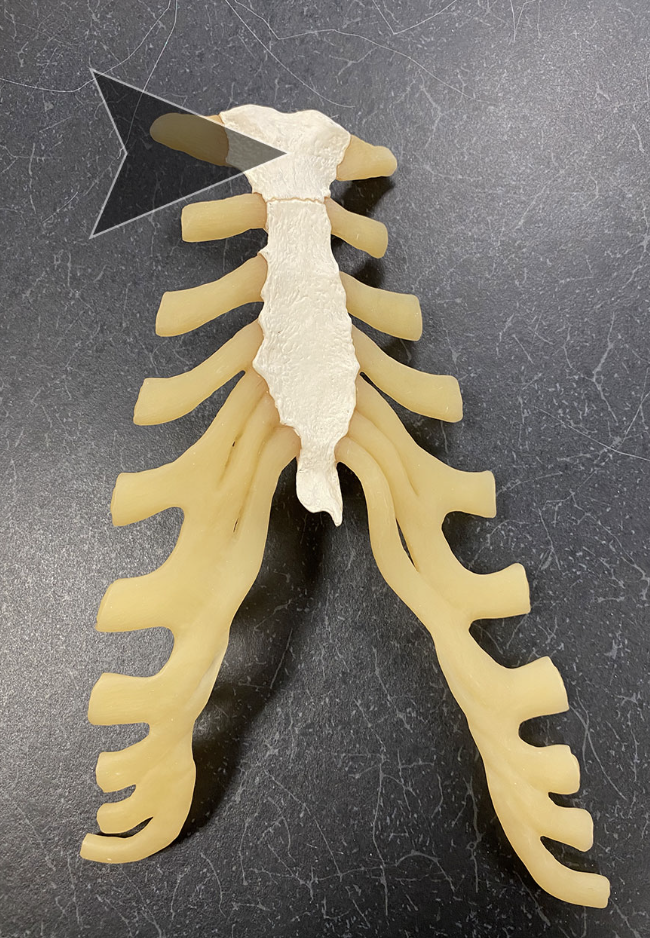

Manubrium

Tubercle of Rib

Cervical Vertebrae

Pedicle

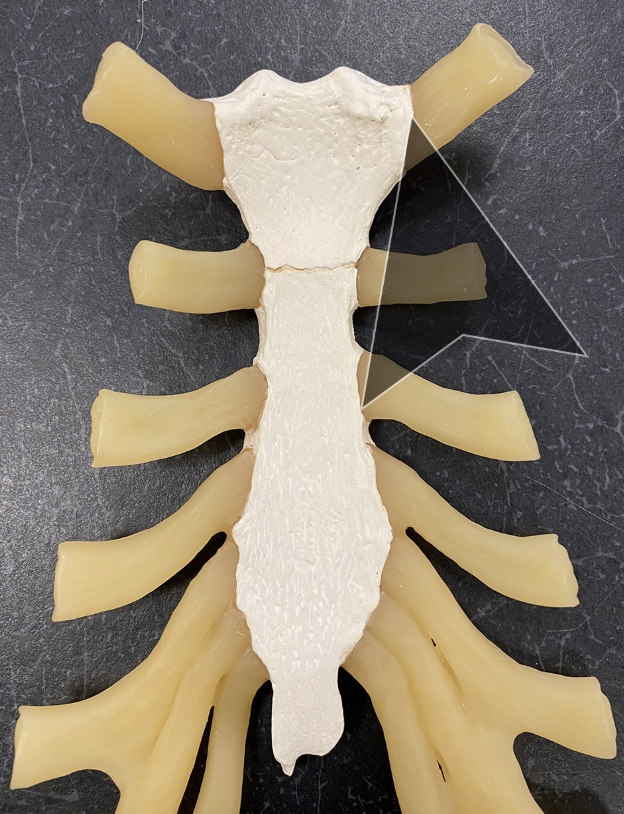

Costal Notch

Thoracic vertebrae

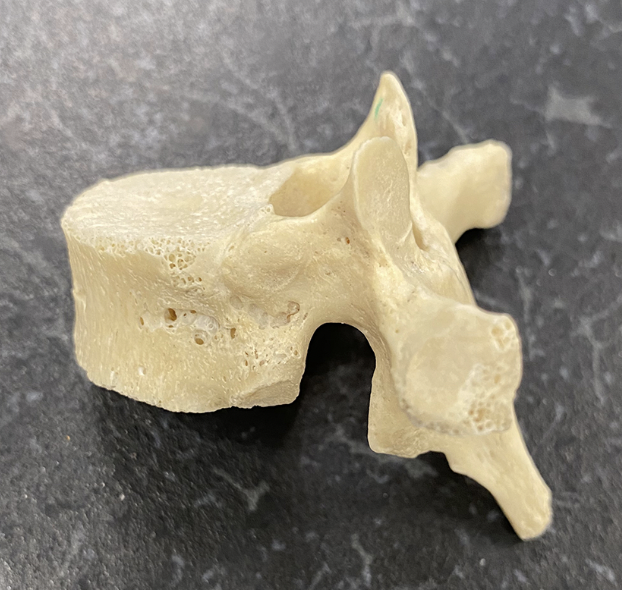

Lumbar Vertebrae
