10 Terms
what does distance time graph show
how far an object has travelled

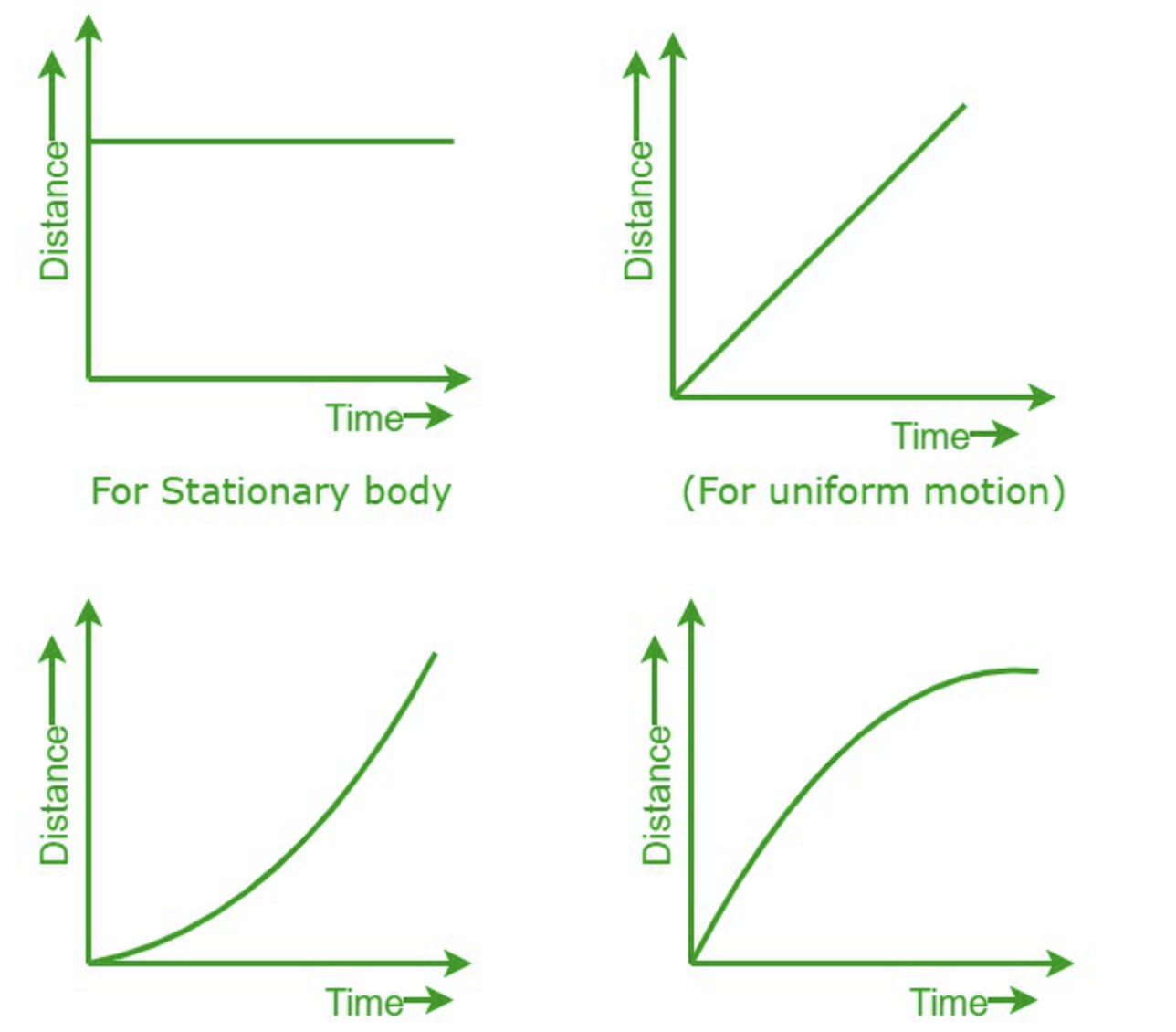

what does these images show and what type of graph does it show
this is a distance time graph
top left is stationary
top right is constant speed
bottom left is accelerating
bottom right is decelerating
how would you find the average speed for a distance time graph
the gradient (vertical / horizontal)
what does a velocity-time graph show
shows how an objects velocity changes over time
what does it show in a velocity time graph when the line is flat
constant speed
what does it show in a velocity time graph when the line is going up (not a curve)
acceleration
what does it show in avelcotiy time graph when the line is going up (it is a curve)
acceleration increasing
how would you find the acceleration in a velocity time graph
the gradient (vertical / horizontal)
what does it show in a velocity time graph when the line is going down (not a curve)
deceleration
how would you find the distance travelled in a velocity time graphs
finding the area of shapes
