HPHY 321 Lab 2: The Cranium

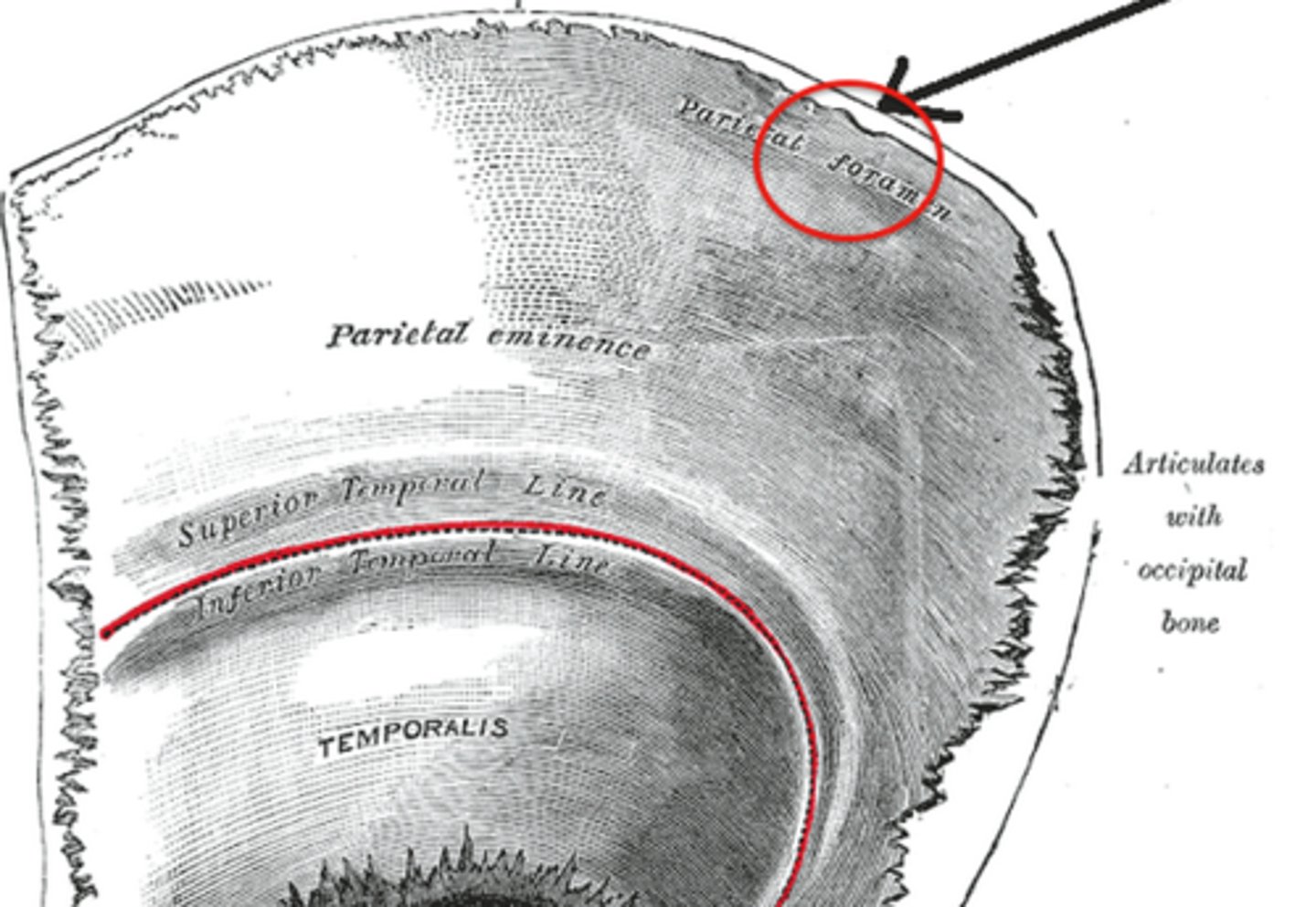

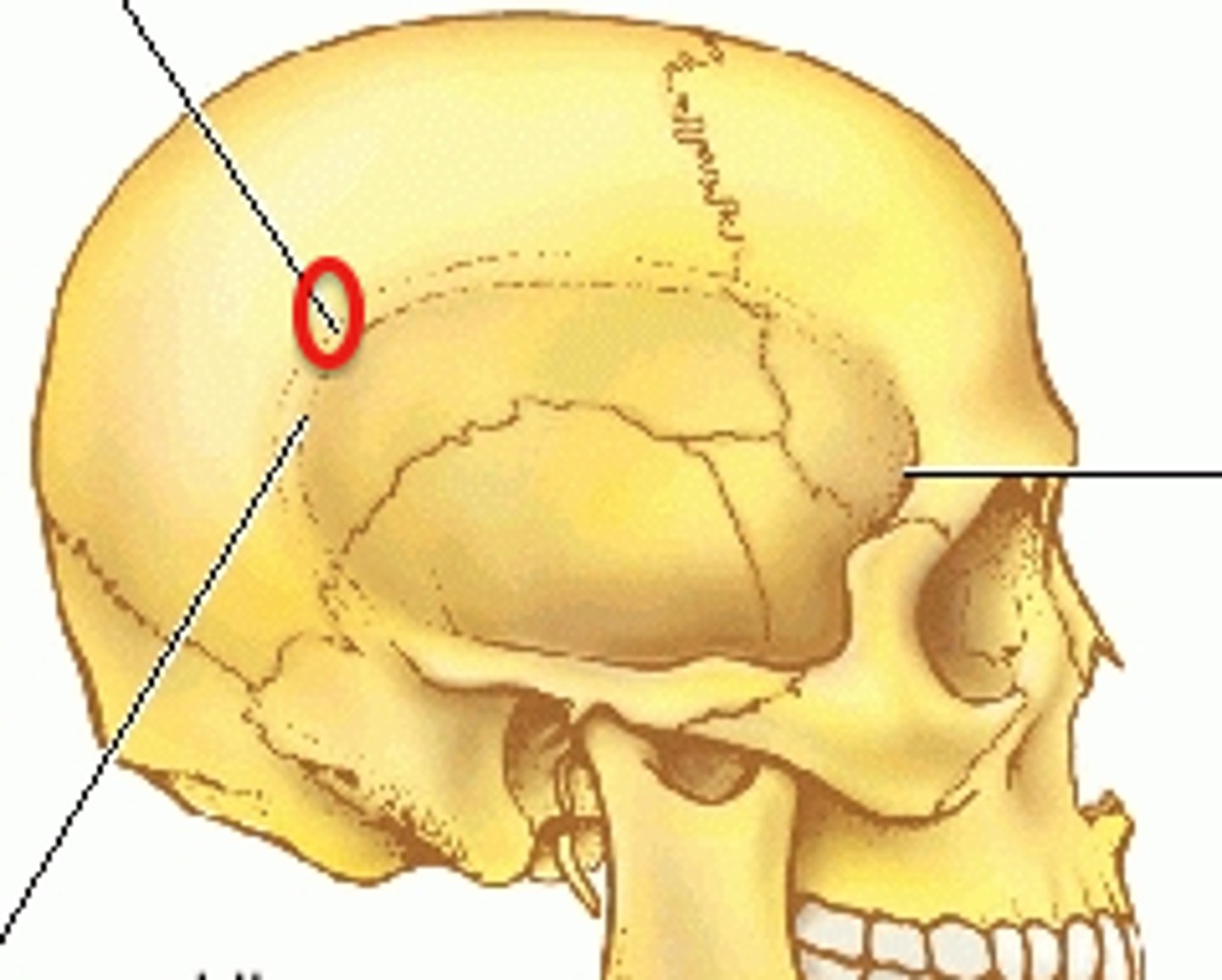

Superior Temporal Line of the Parietal Bone

Inferior Temporal Line of the Parietal bone

Parietal Foramen of the Parietal bone

...

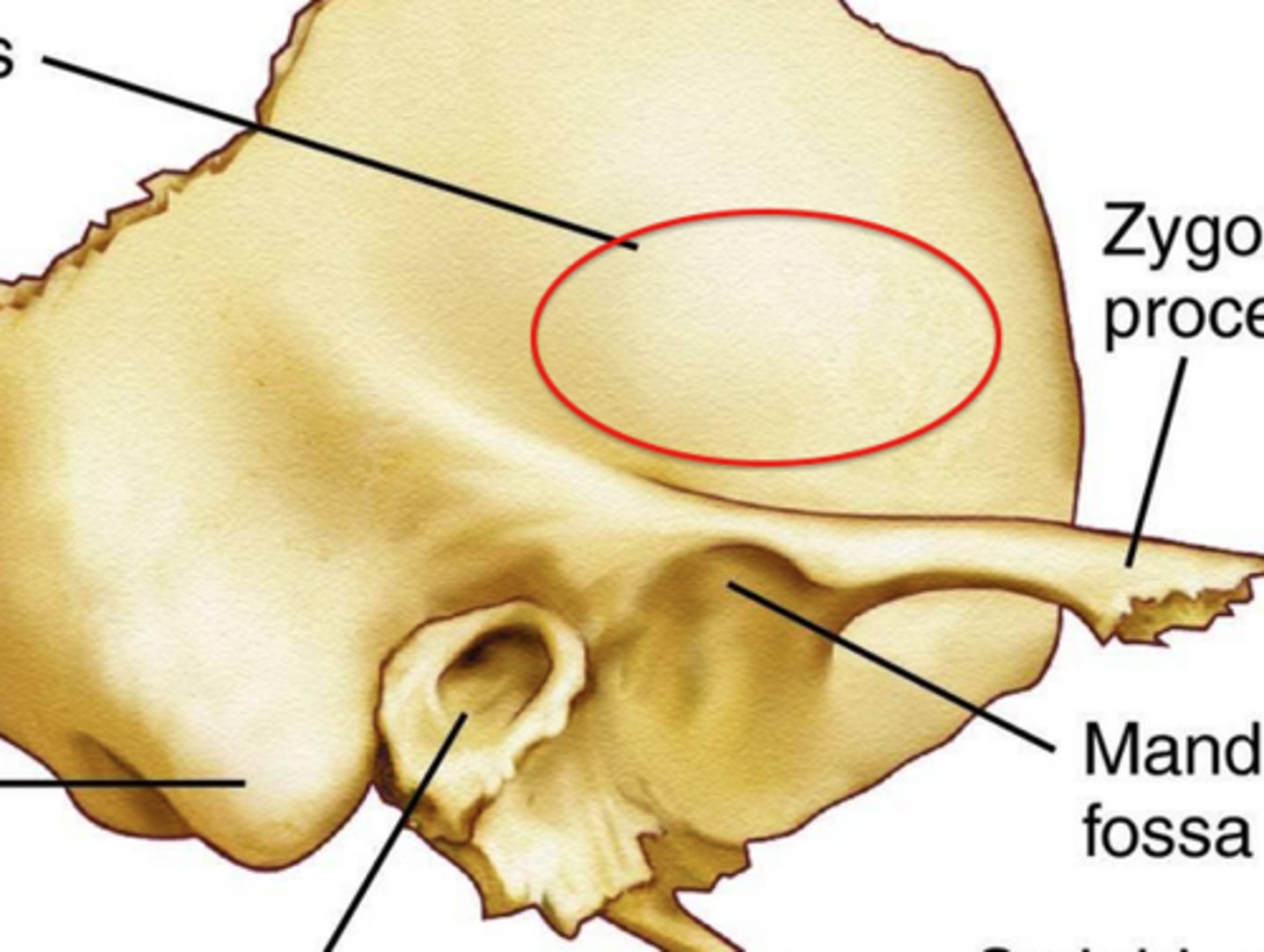

Squamous Part of the Temporal Bone

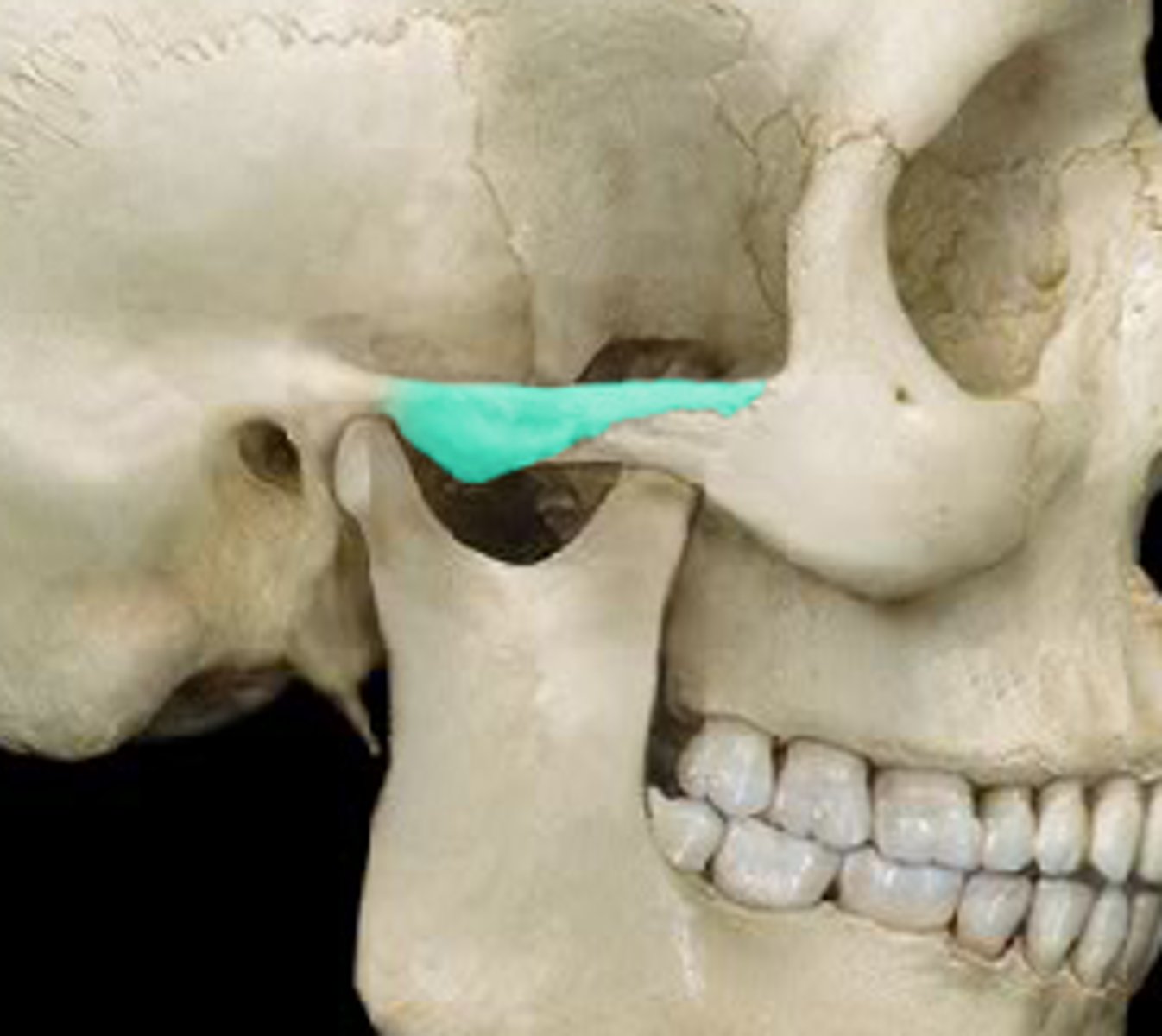

Zygomatic Process of the Temporal Bone

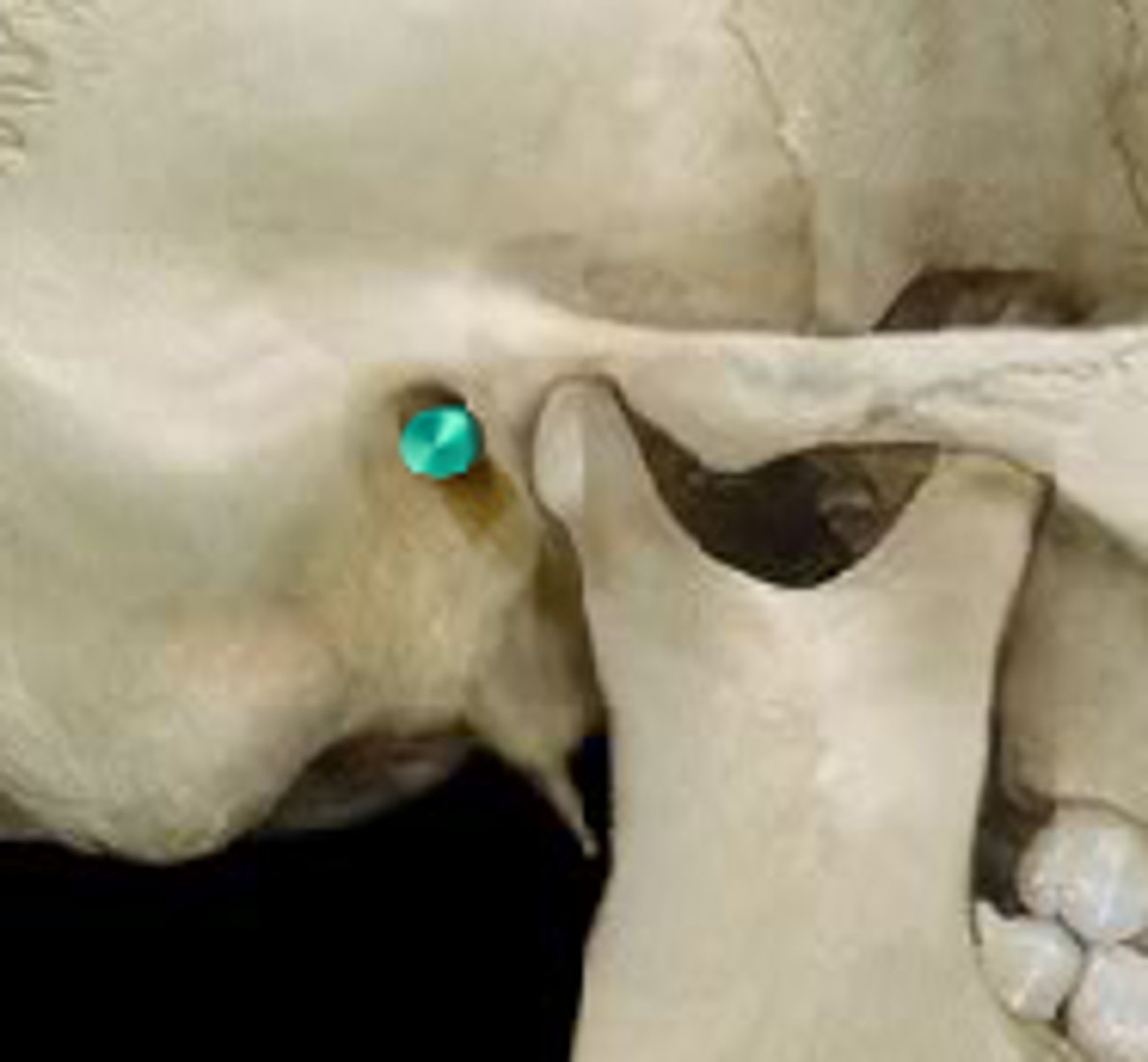

External Auditory Meatus of the Temporal Bone

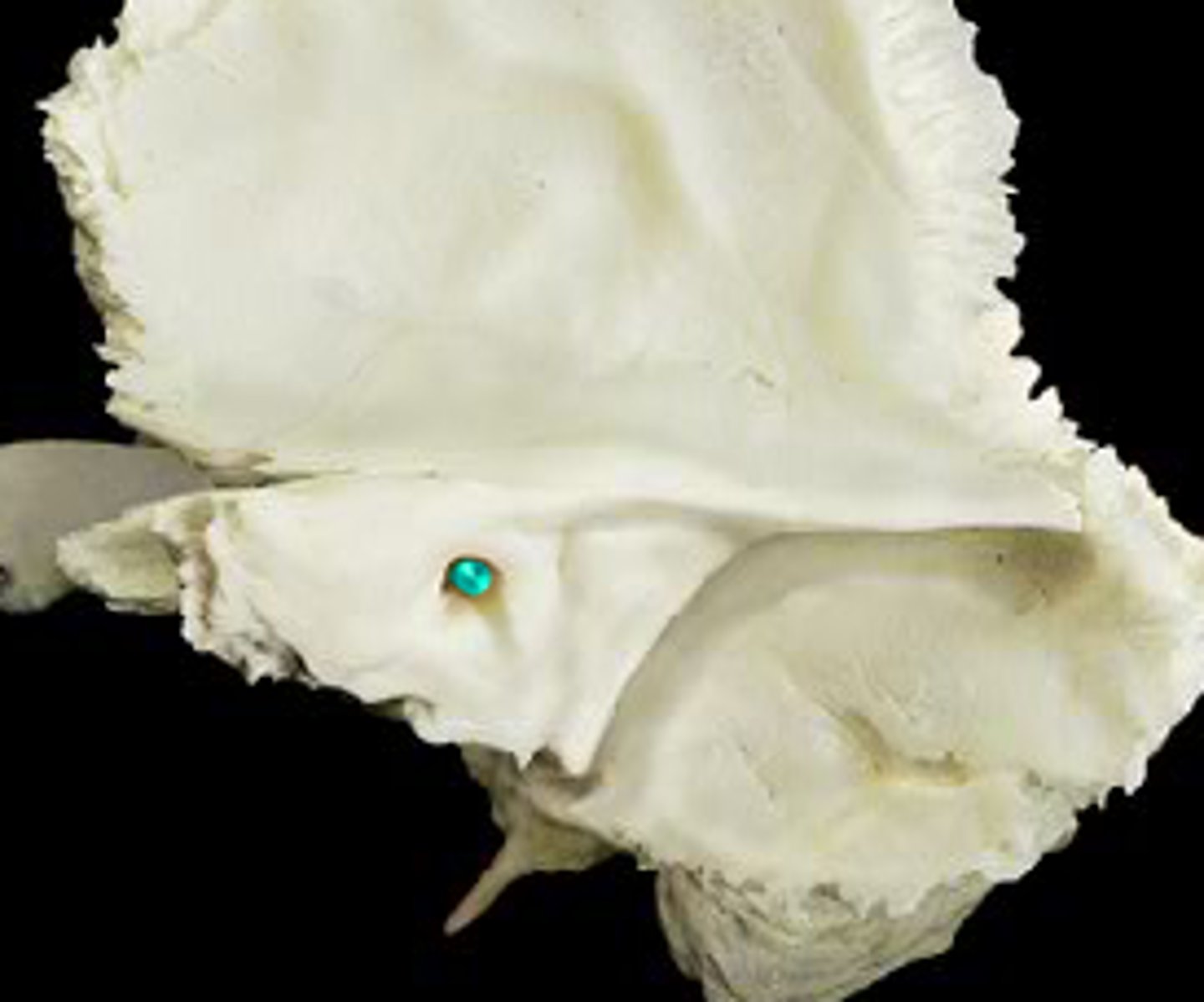

Internal Acoustic Meatus of the Temporal bone

Continuous w/ Stylomastoid Foramen

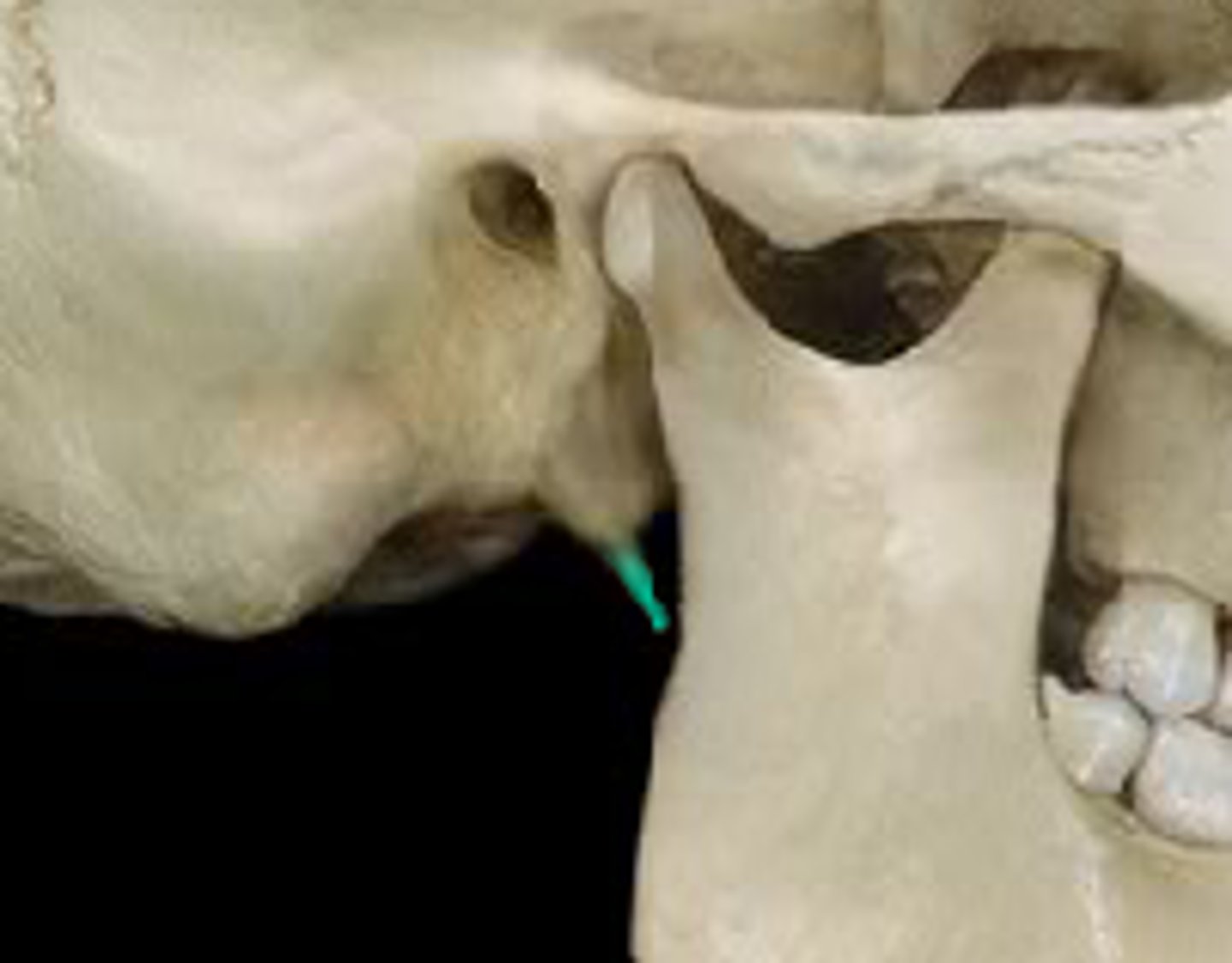

Styloid Process of the Temporal Bone

Mastoid Process of the Temporal Bone

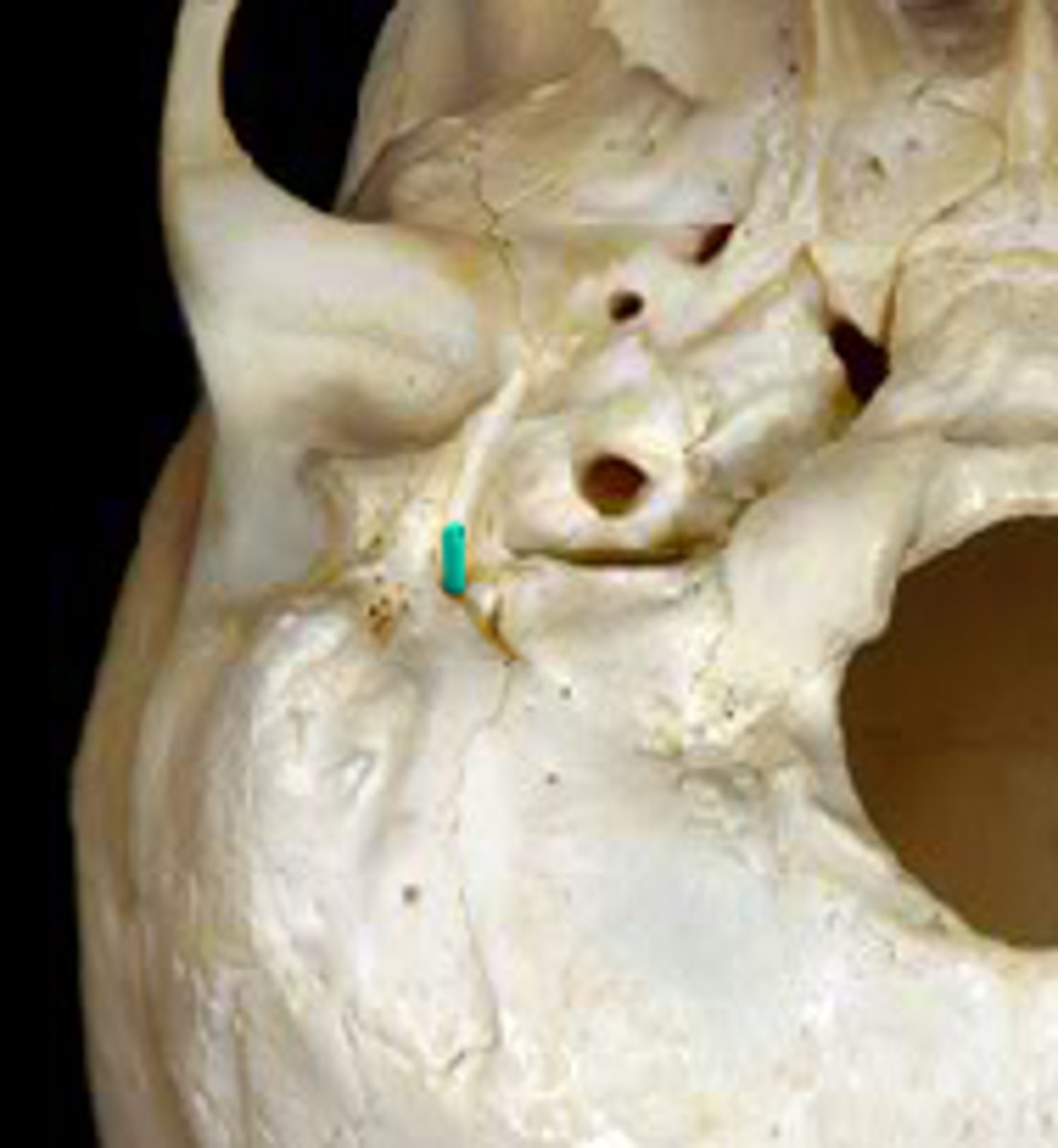

Stylomastoid Foramen of the Temporal Bone

Continuous w/ Internal Acoustic Meatus

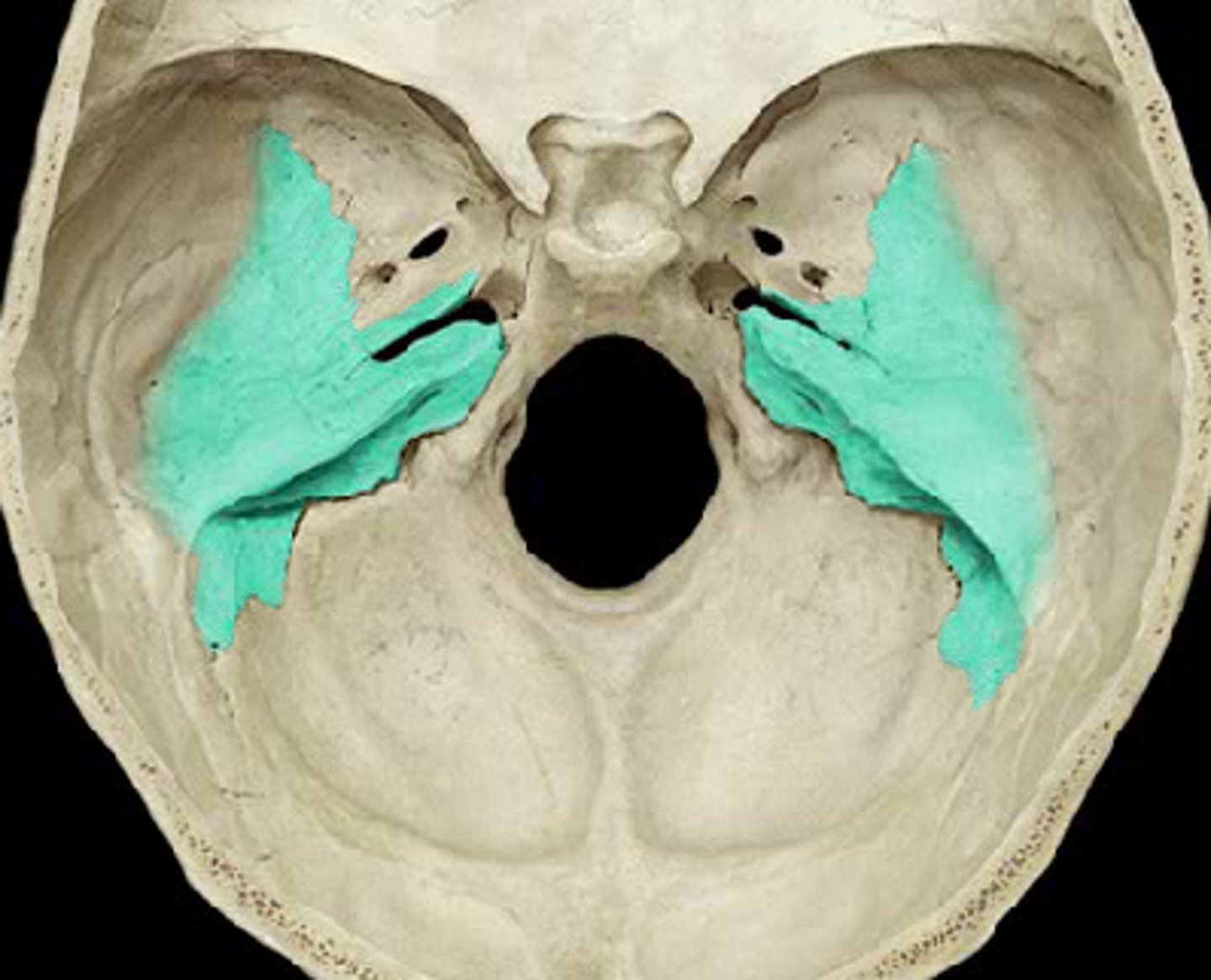

Petrous Part of the Temporal Bone

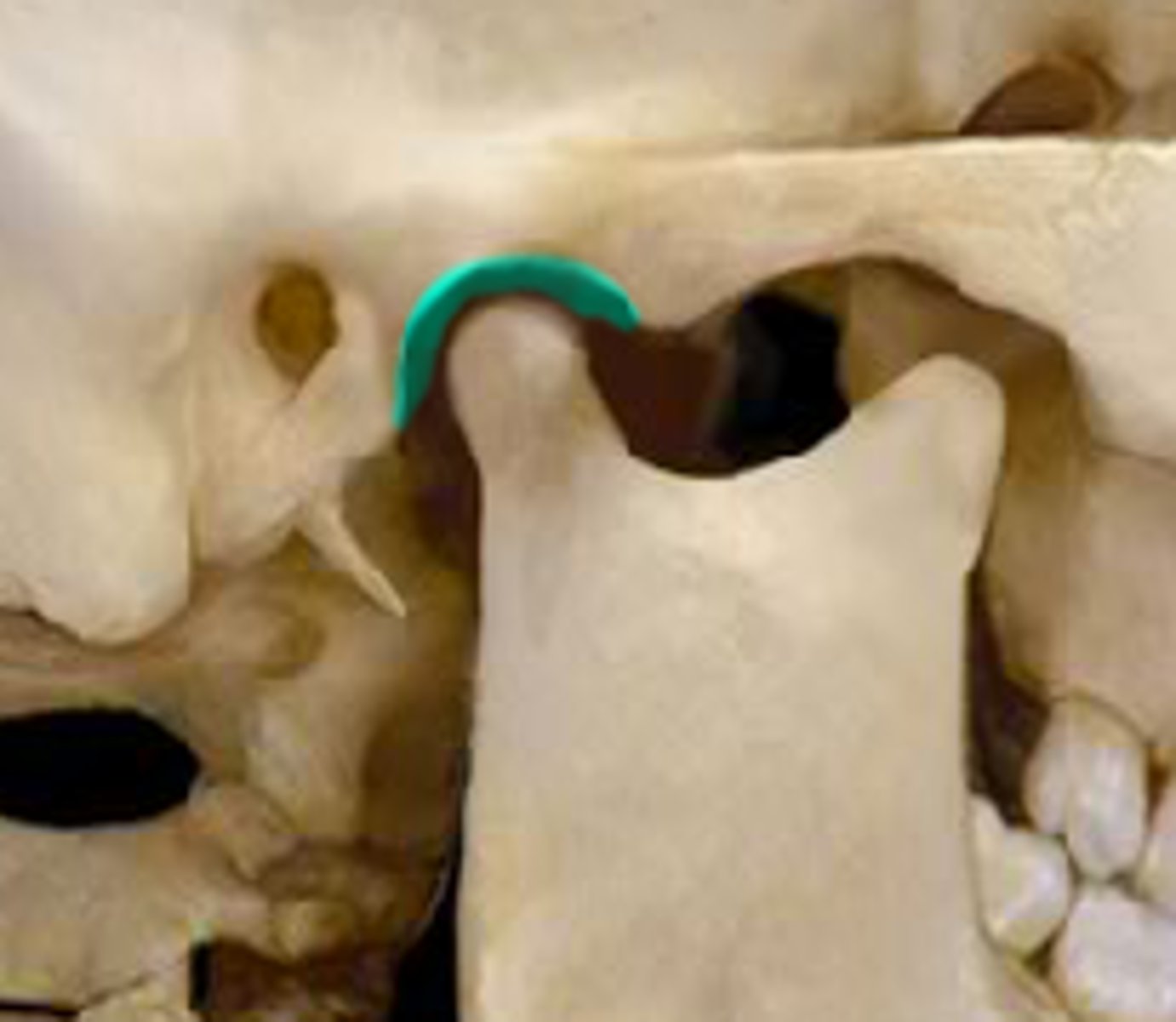

Mandibular Fossa of the Temporal Bone

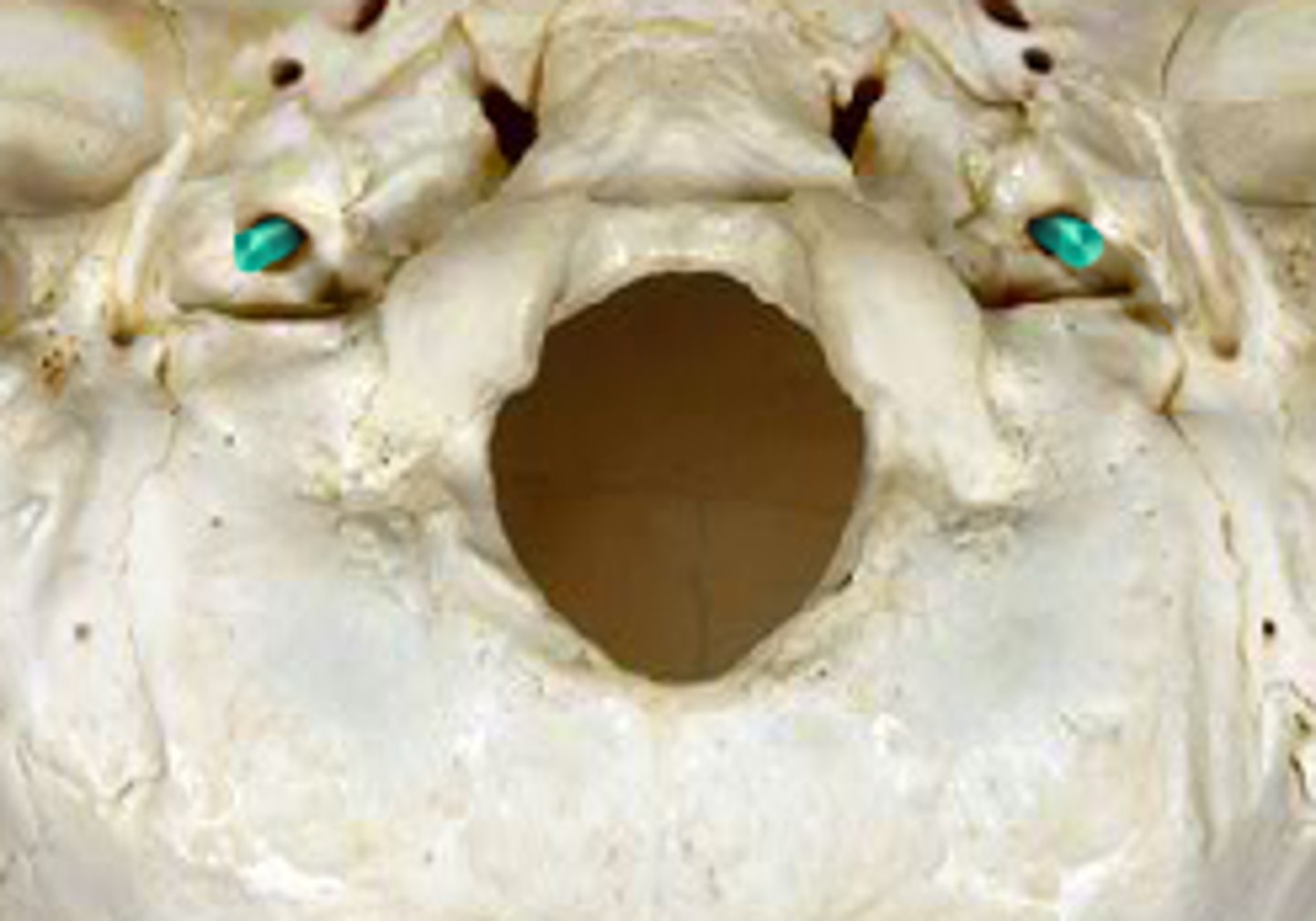

Carotid Canal of the Temporal Bone

Opens into Foramen Lacerum, transmits internal carotid artery

Frontal Crest of the Frontal Bone

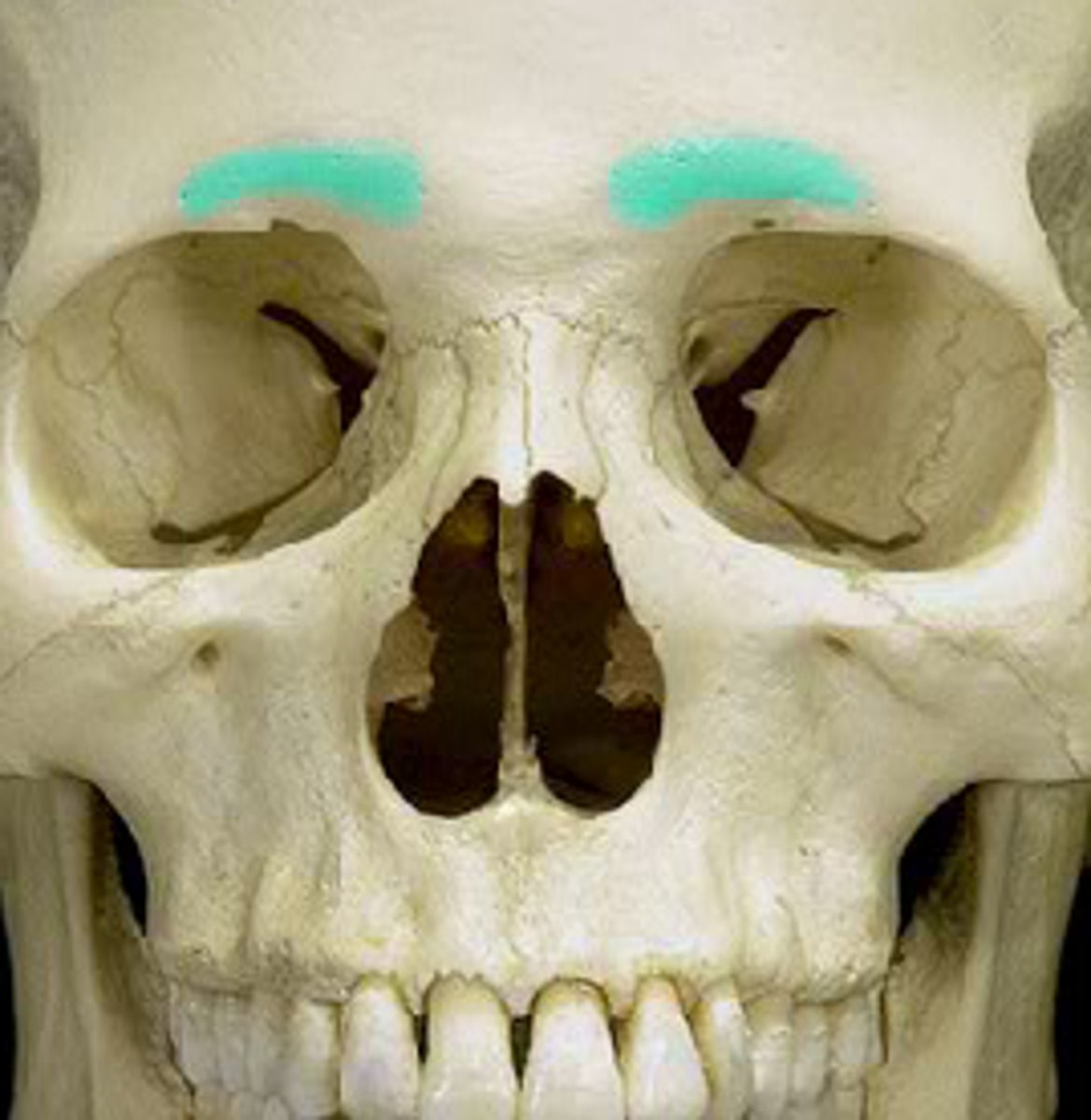

Supraorbital Ridge of the Frontal Bone

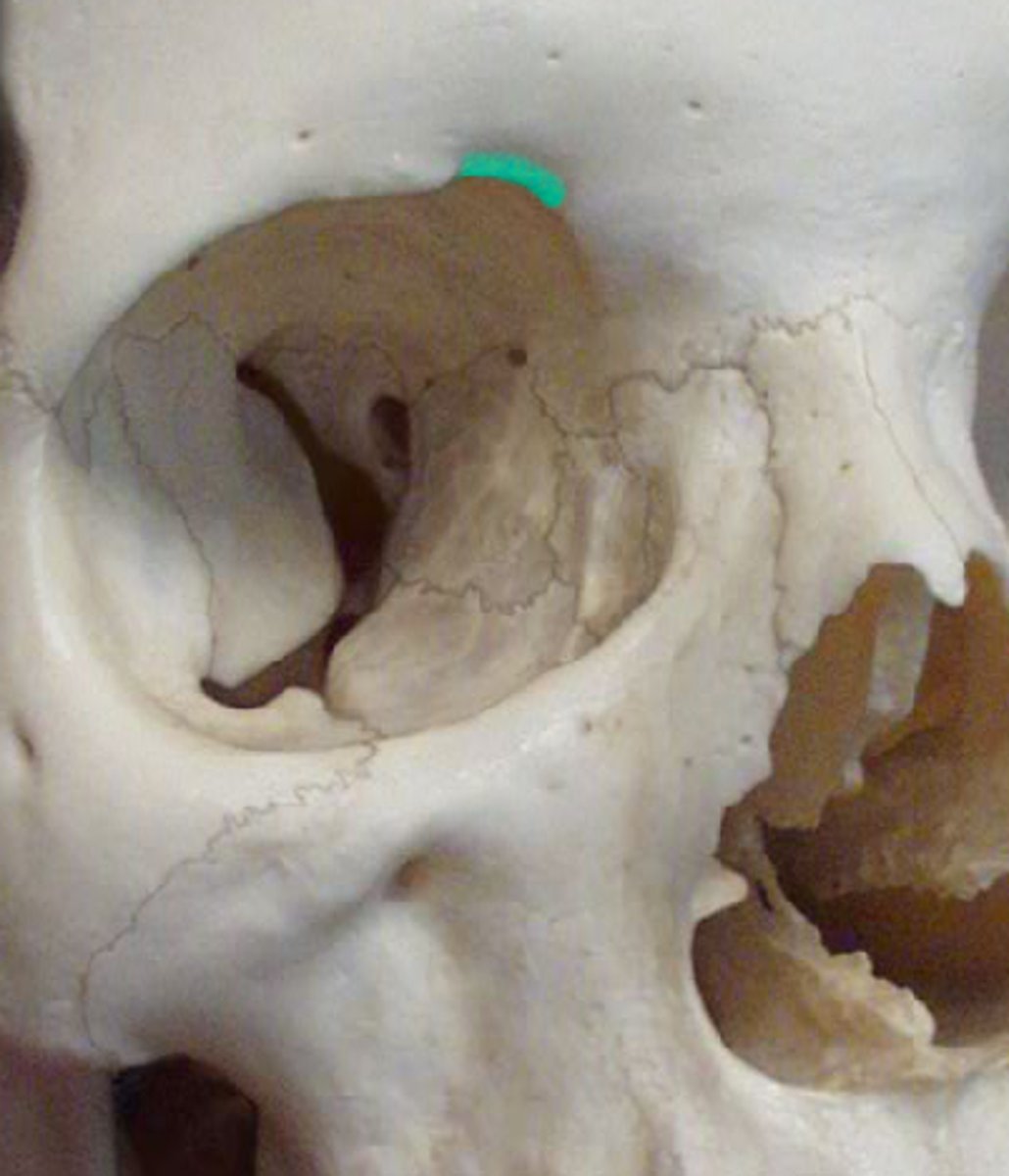

Supraorbital Foramen of the Frontal Bone

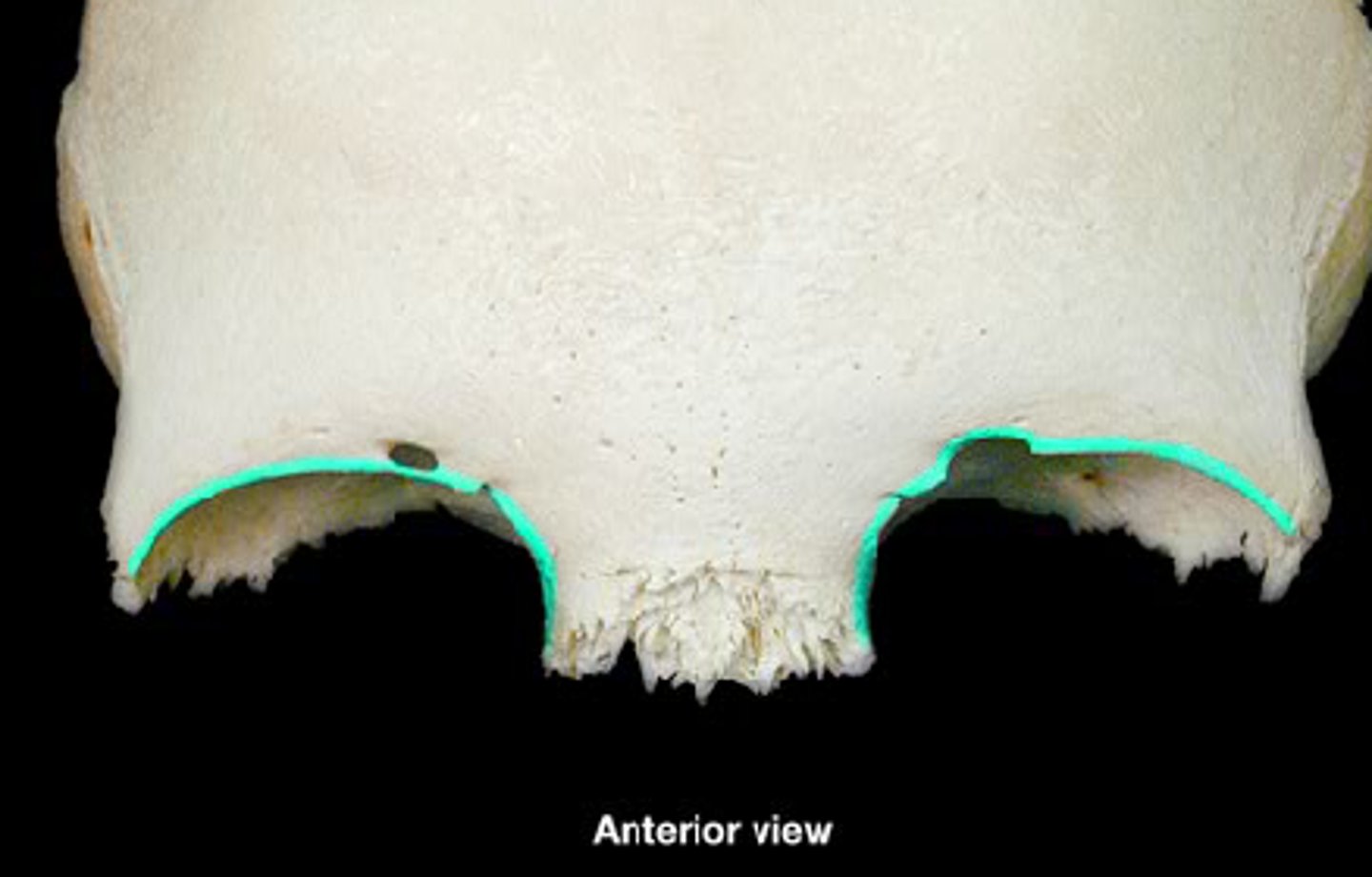

Supraorbital Margin of the Frontal Bone

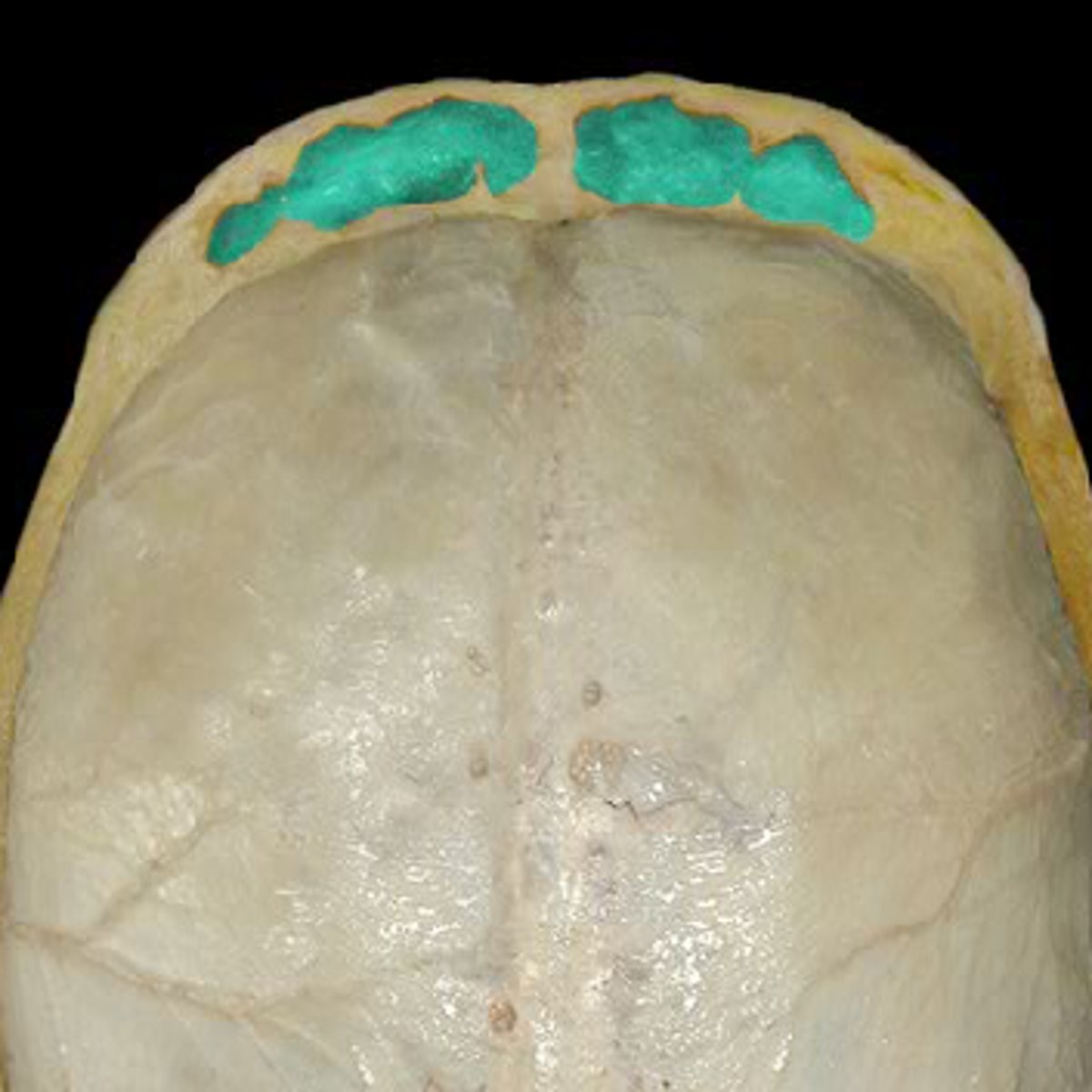

Frontal Sinus of the Frontal Bone

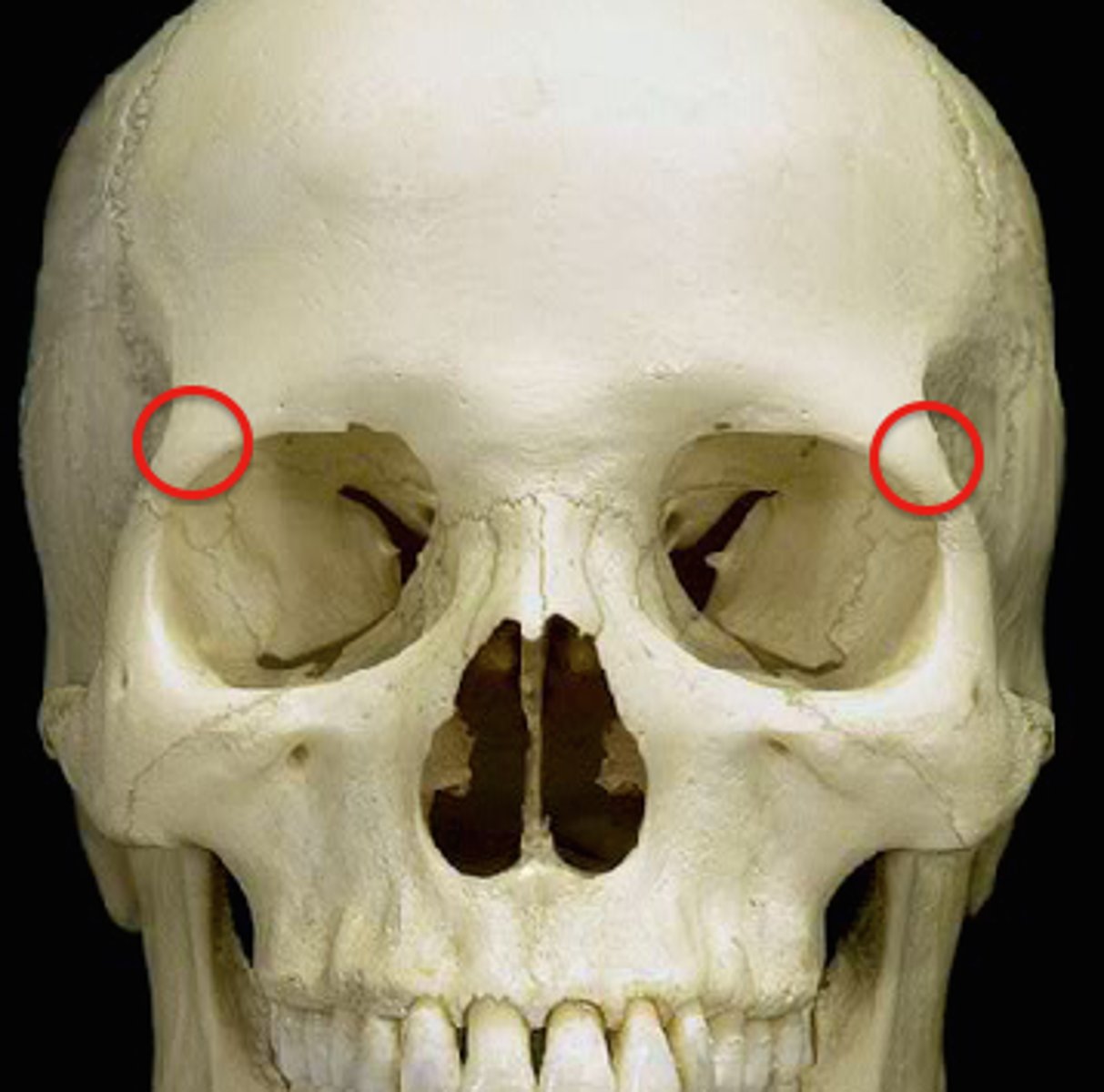

Zygomatic Process of the Frontal Bone

Maxillary Process of the Frontal Bone

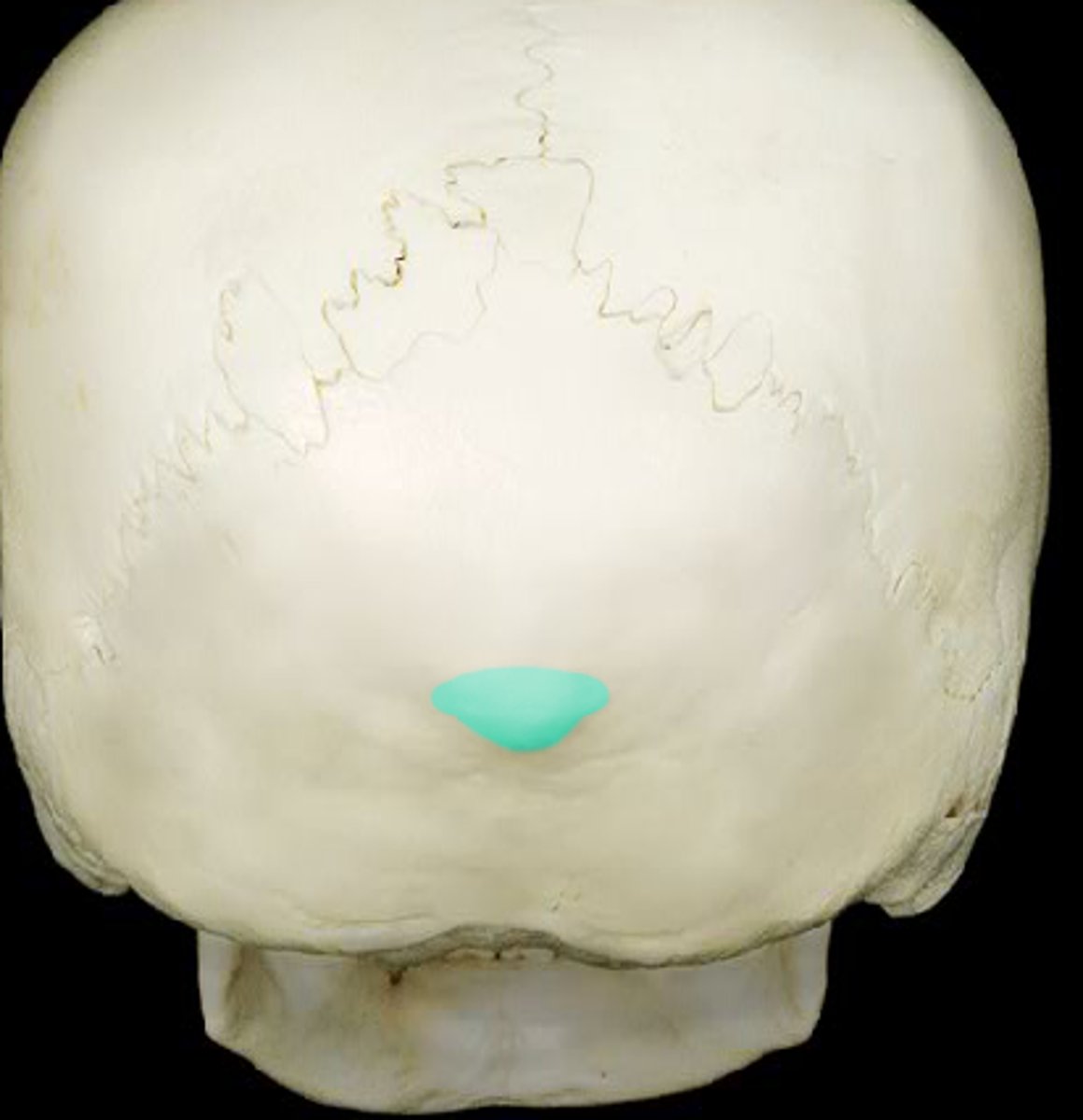

External Occipital Protuberance of the Occipital Bone

Attachment for Nuchal Ligament

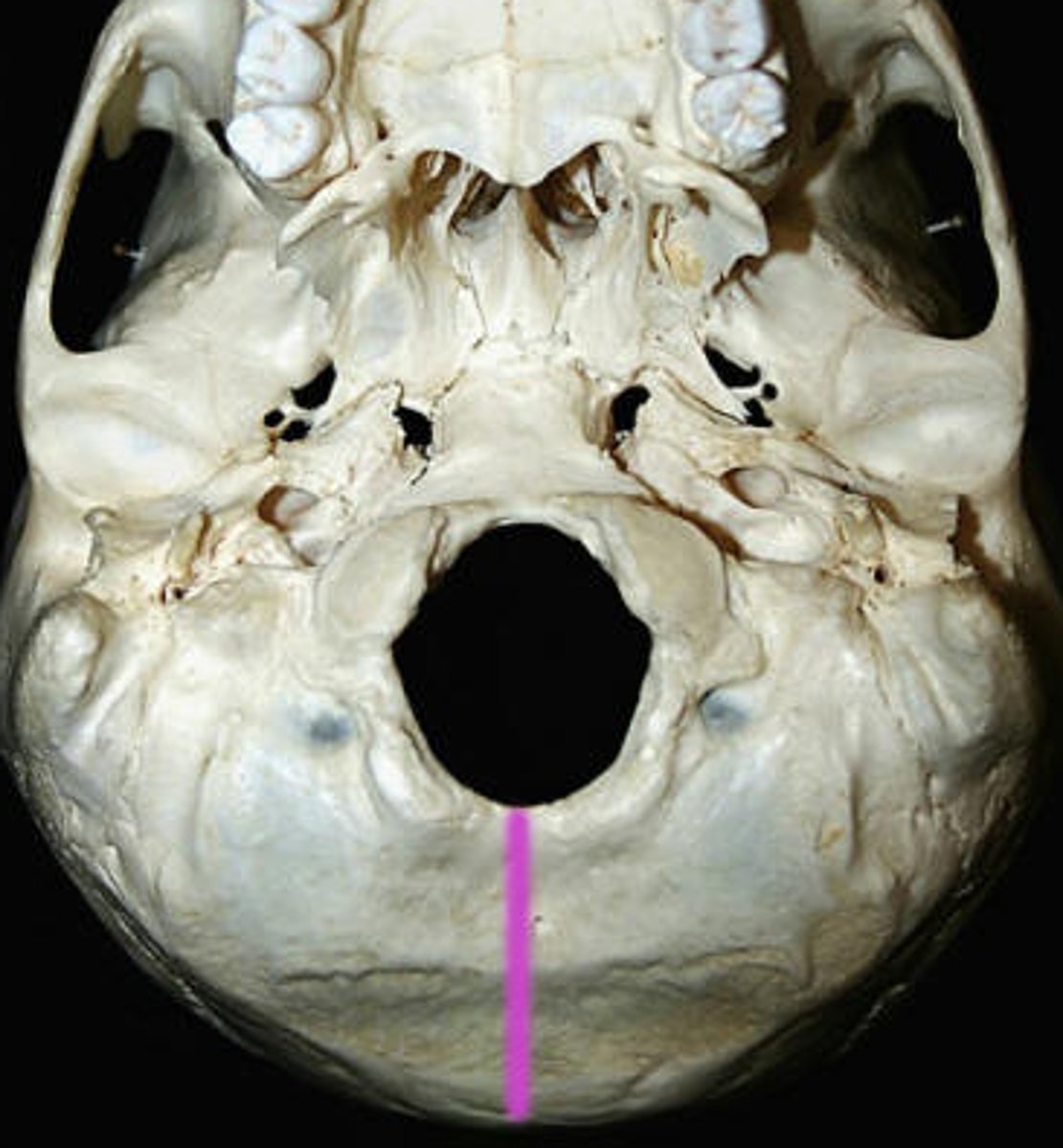

External Occipital Crest of the Occipital Bone

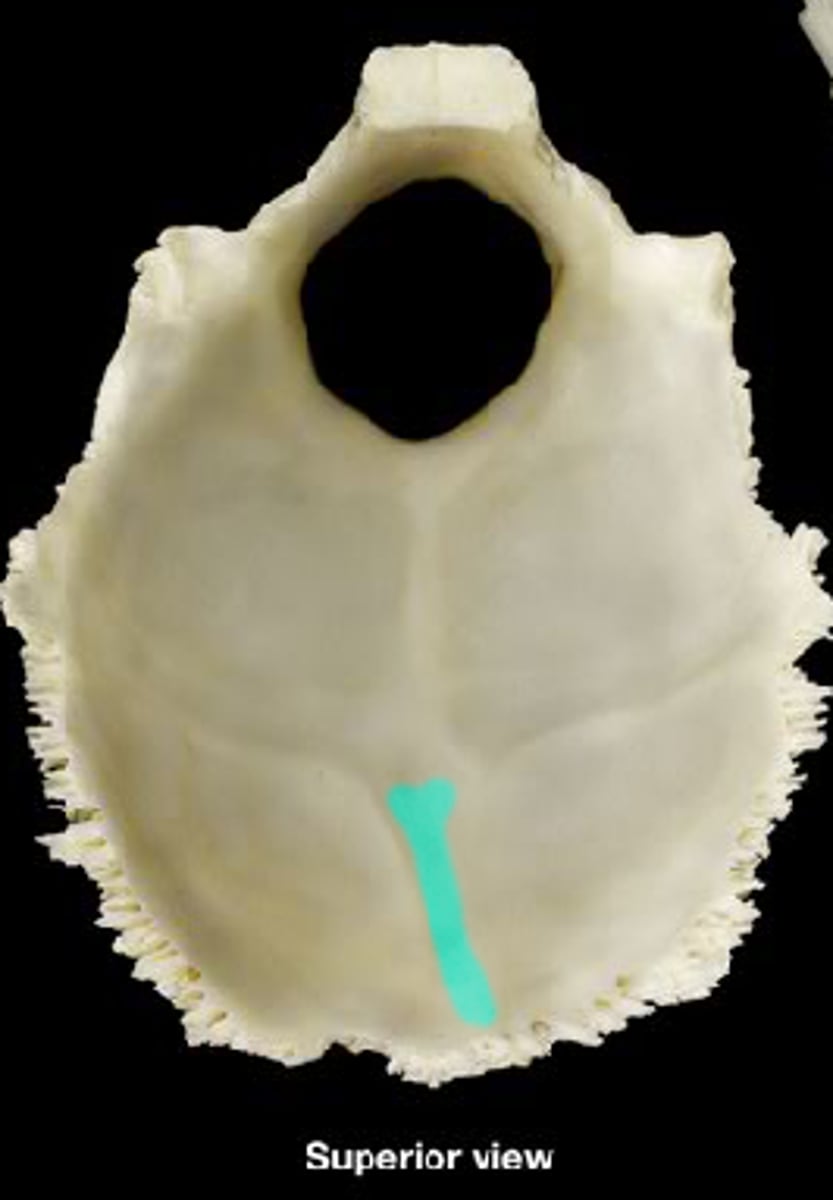

Internal Occipital Protuberance of the Occipital Bone

Occipital Condyle of the Occipital Bone

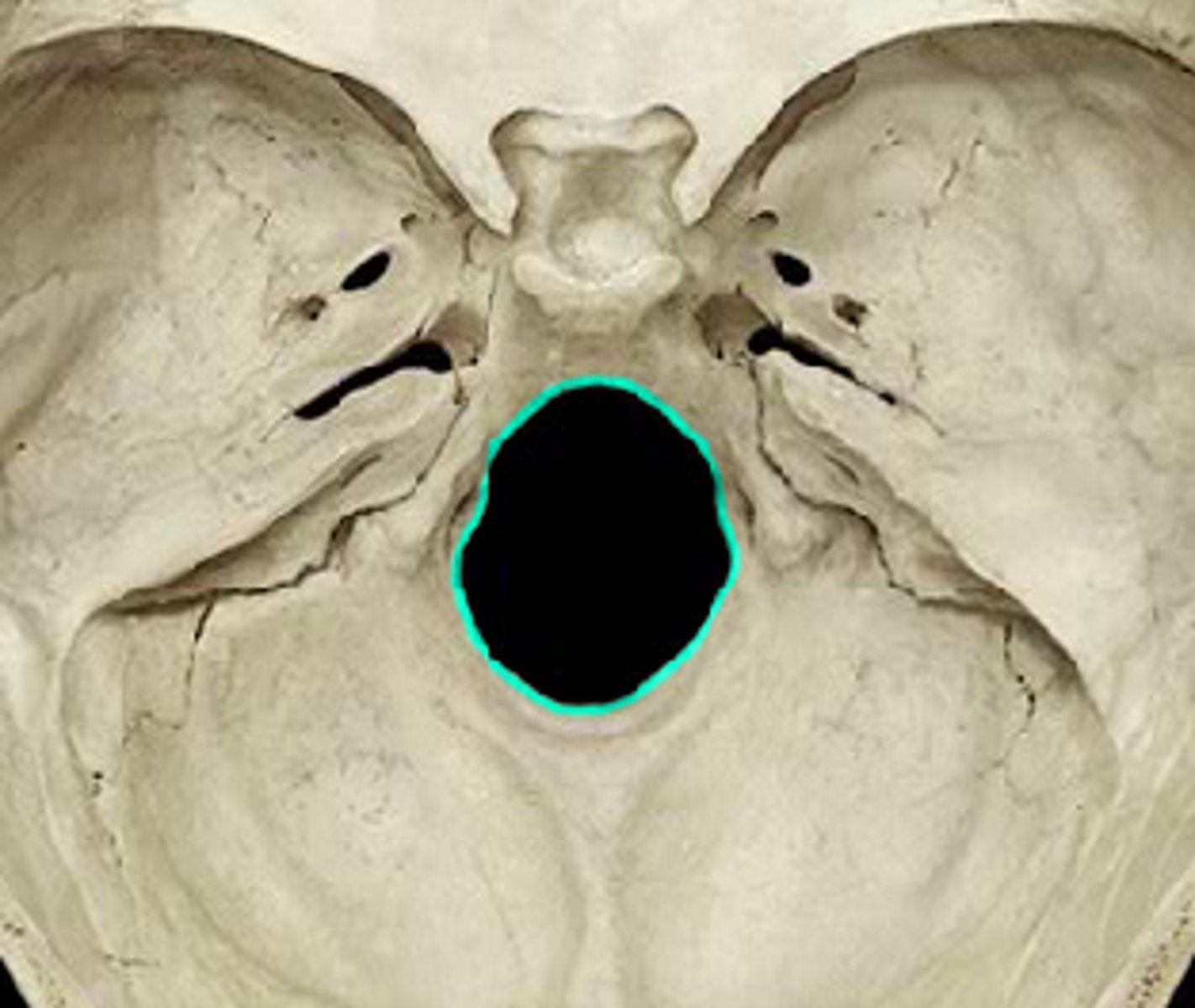

Foramen Magnum of the Occipital Bone

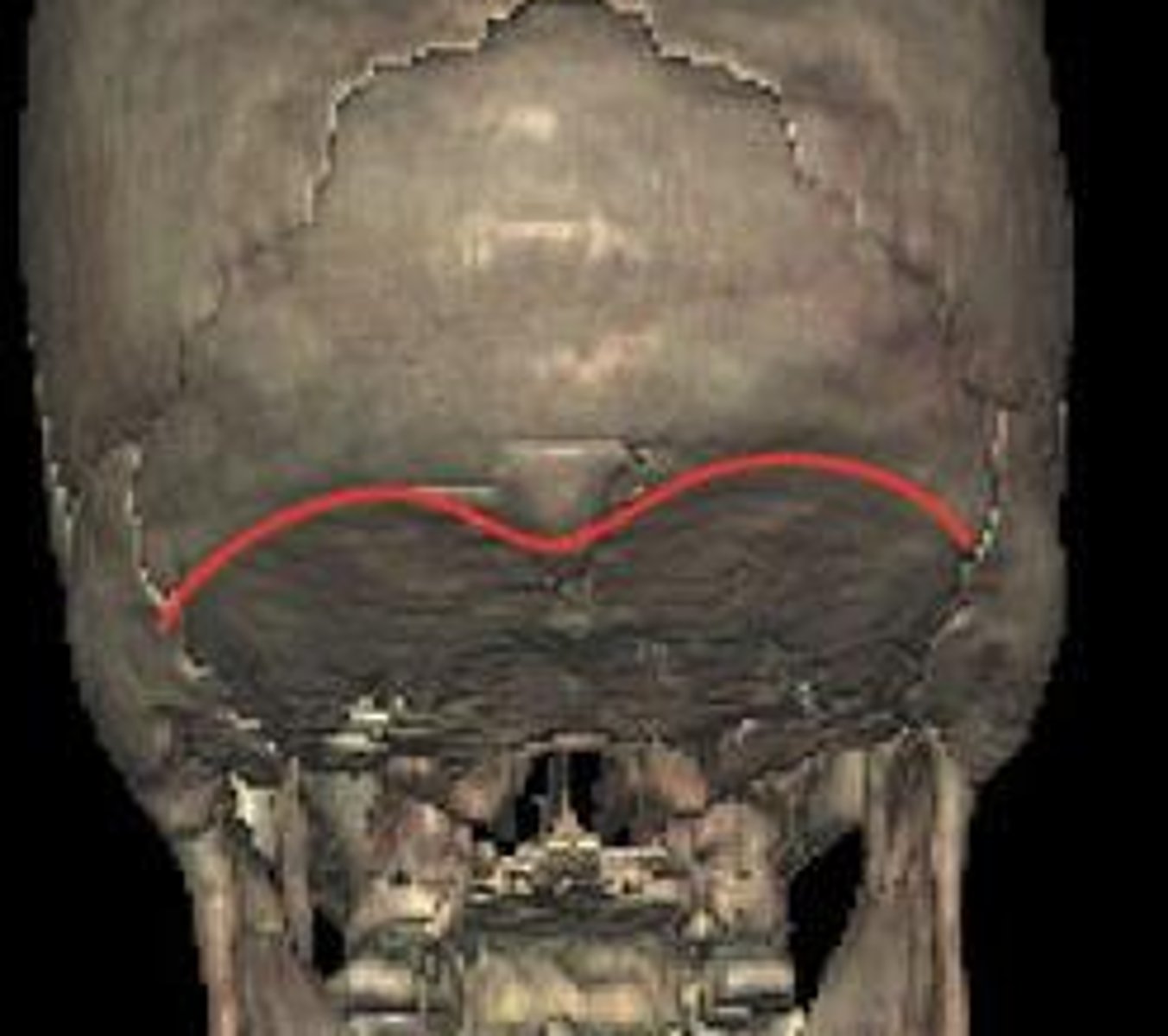

Superior Nuchal Line of the Occipital Bone

Inferior Nuchal Line of the Occipital Bone

Hypoglossal Canal of the Occipital Bone

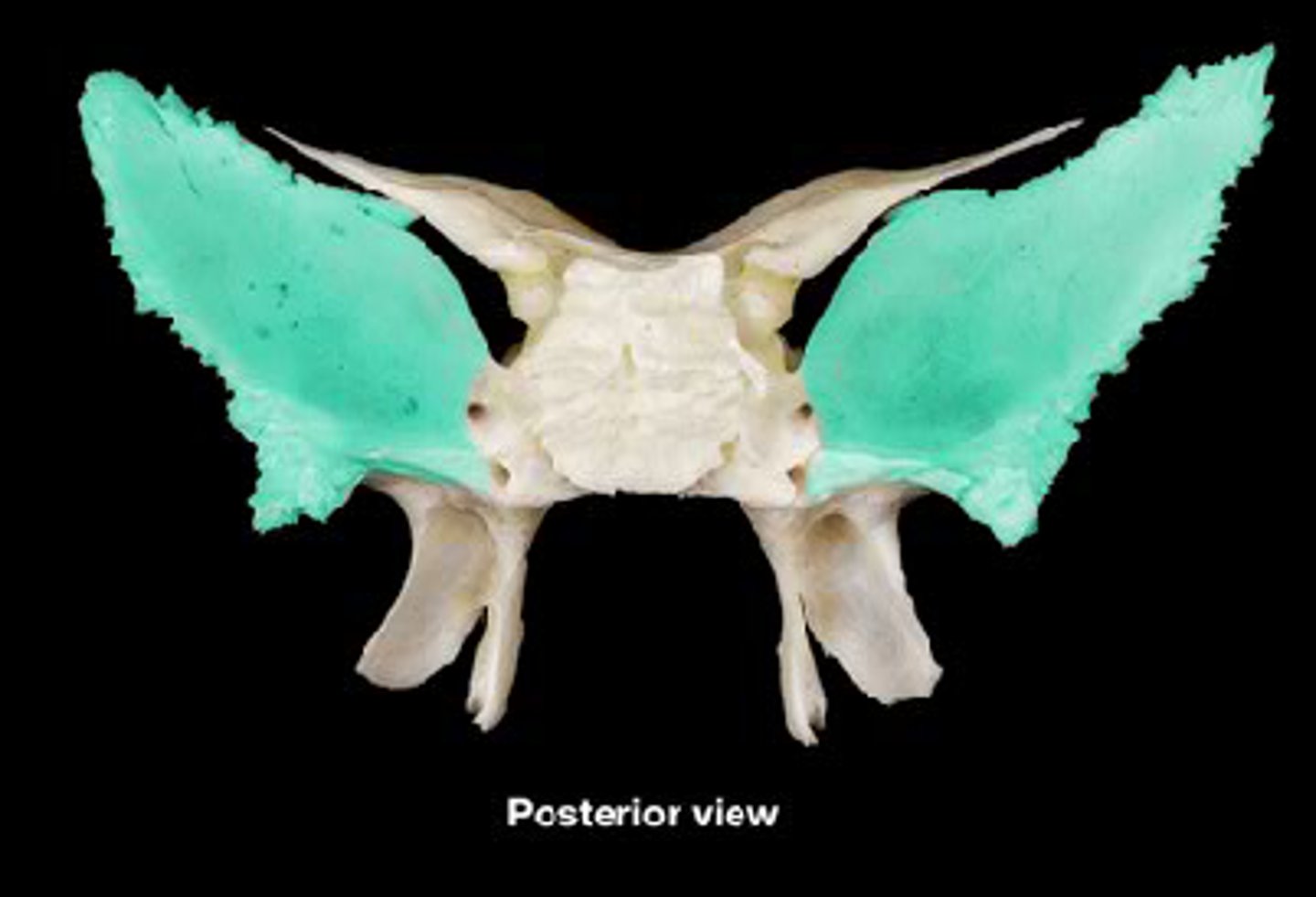

Greater Wing of the Sphenoid bone

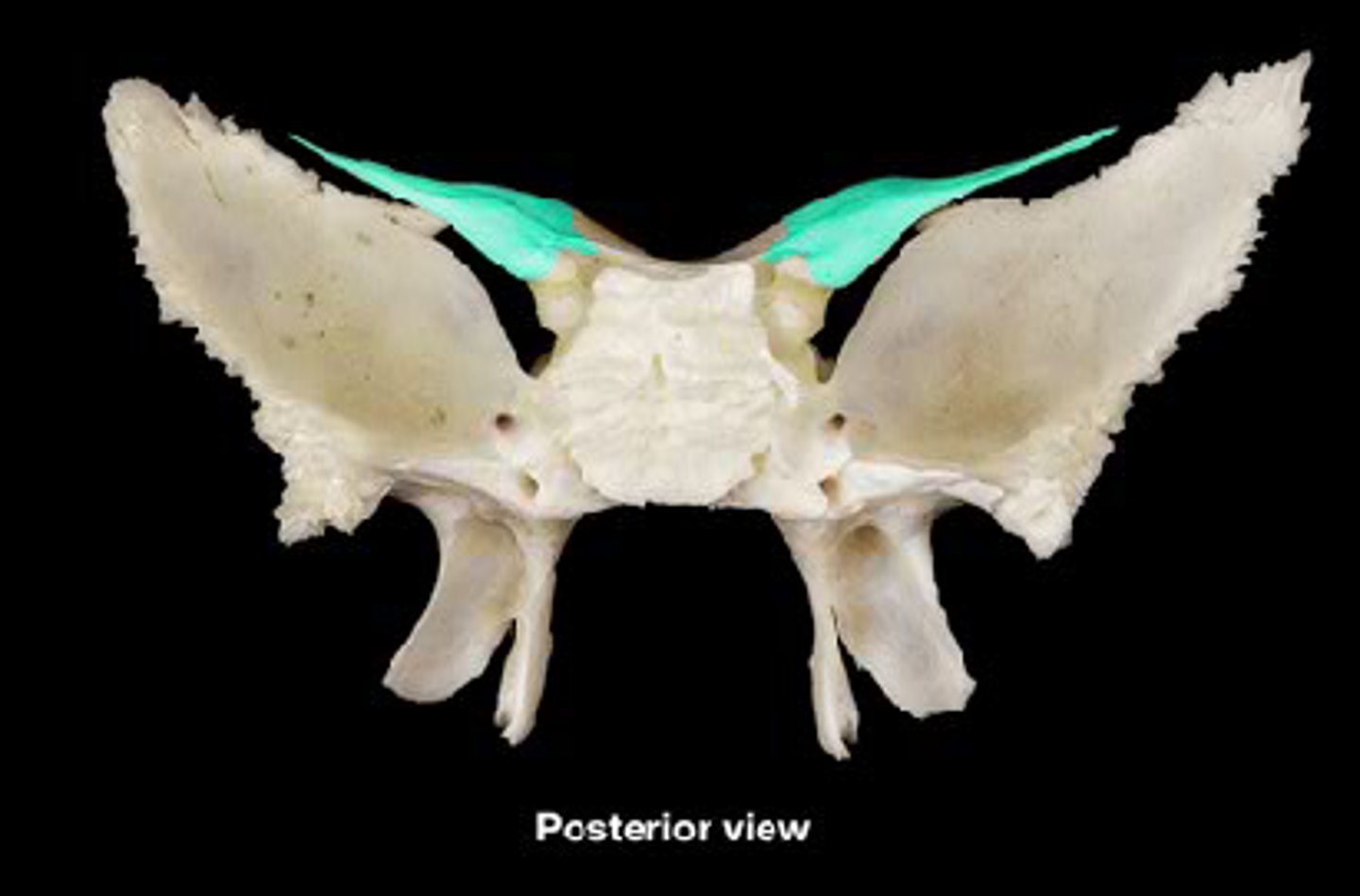

Lesser Wing of the Sphenoid bone

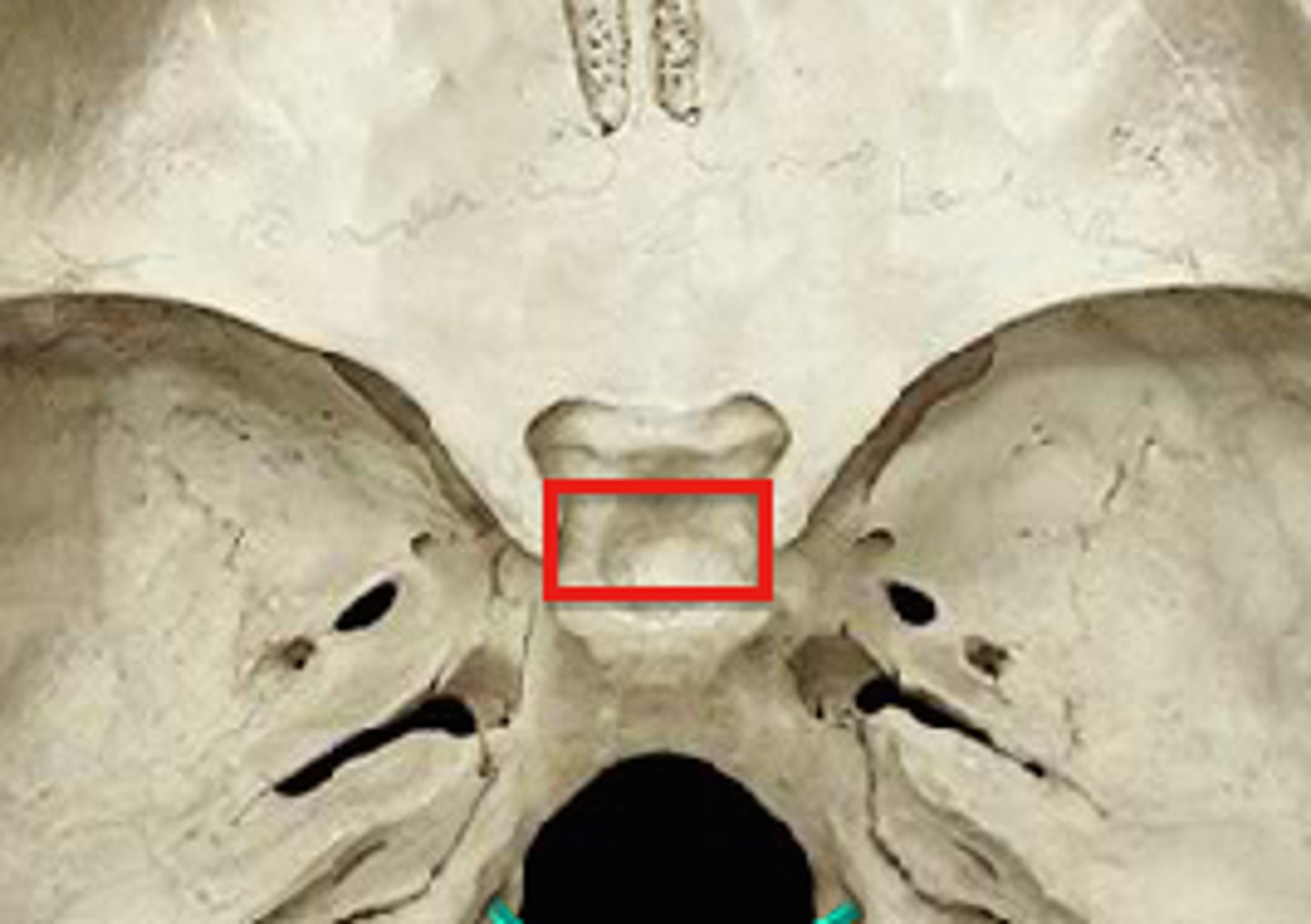

Sella Turcica of the Sphenoid bone

Hypophyseal Fossa of the Sella Turcica

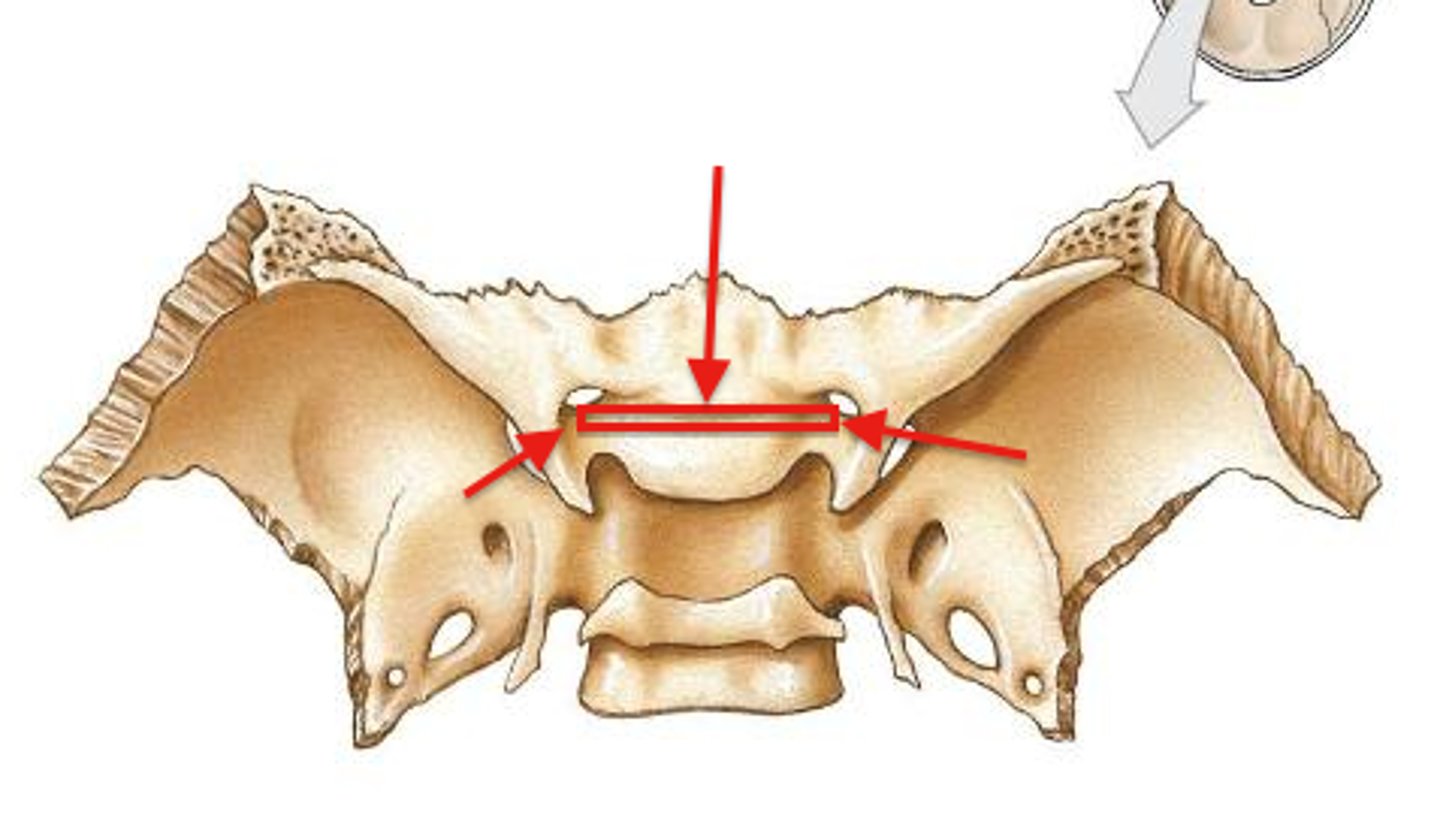

Optic Groove of the Sphenoid bone

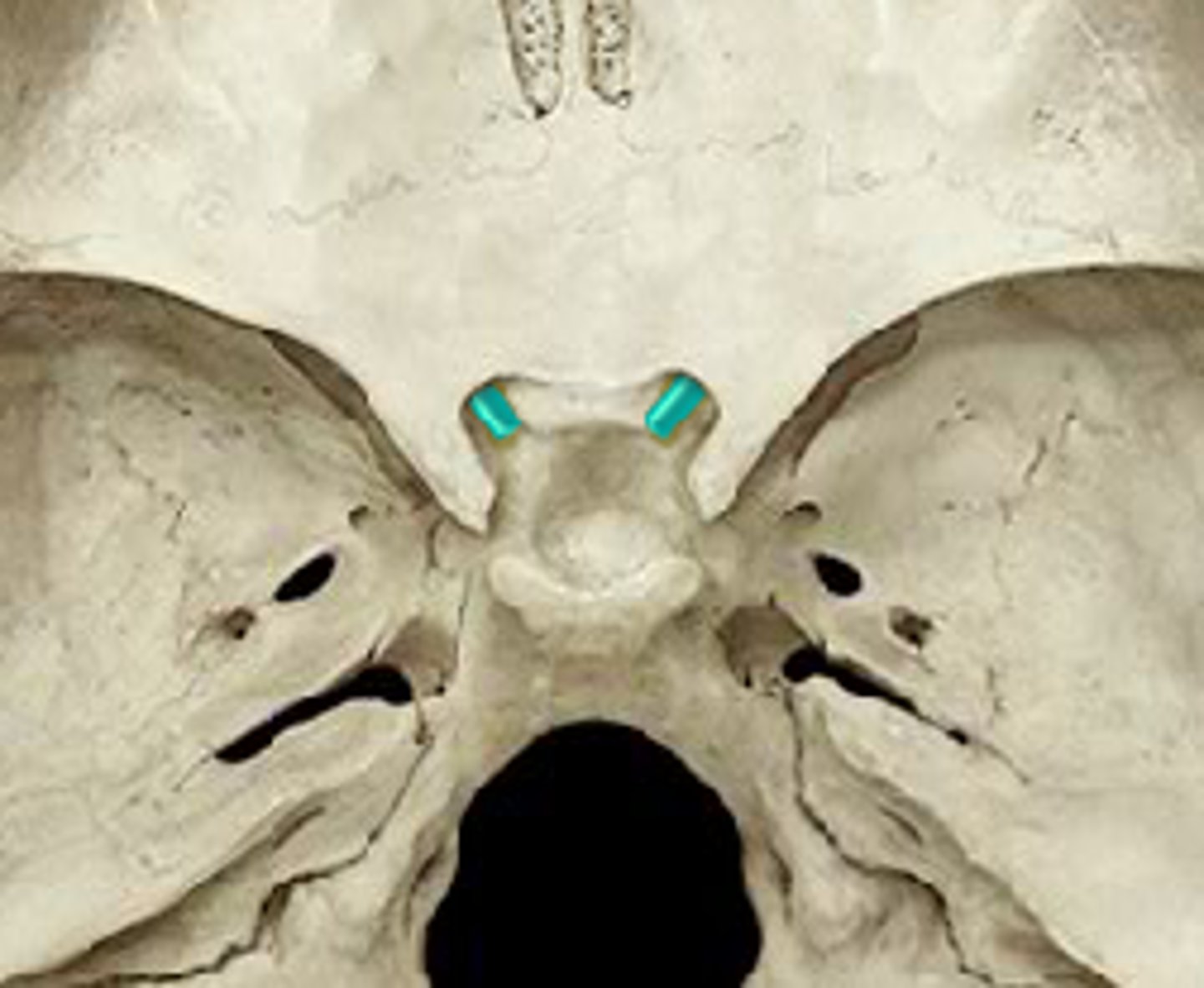

Optic Canal of the Sphenoid bone

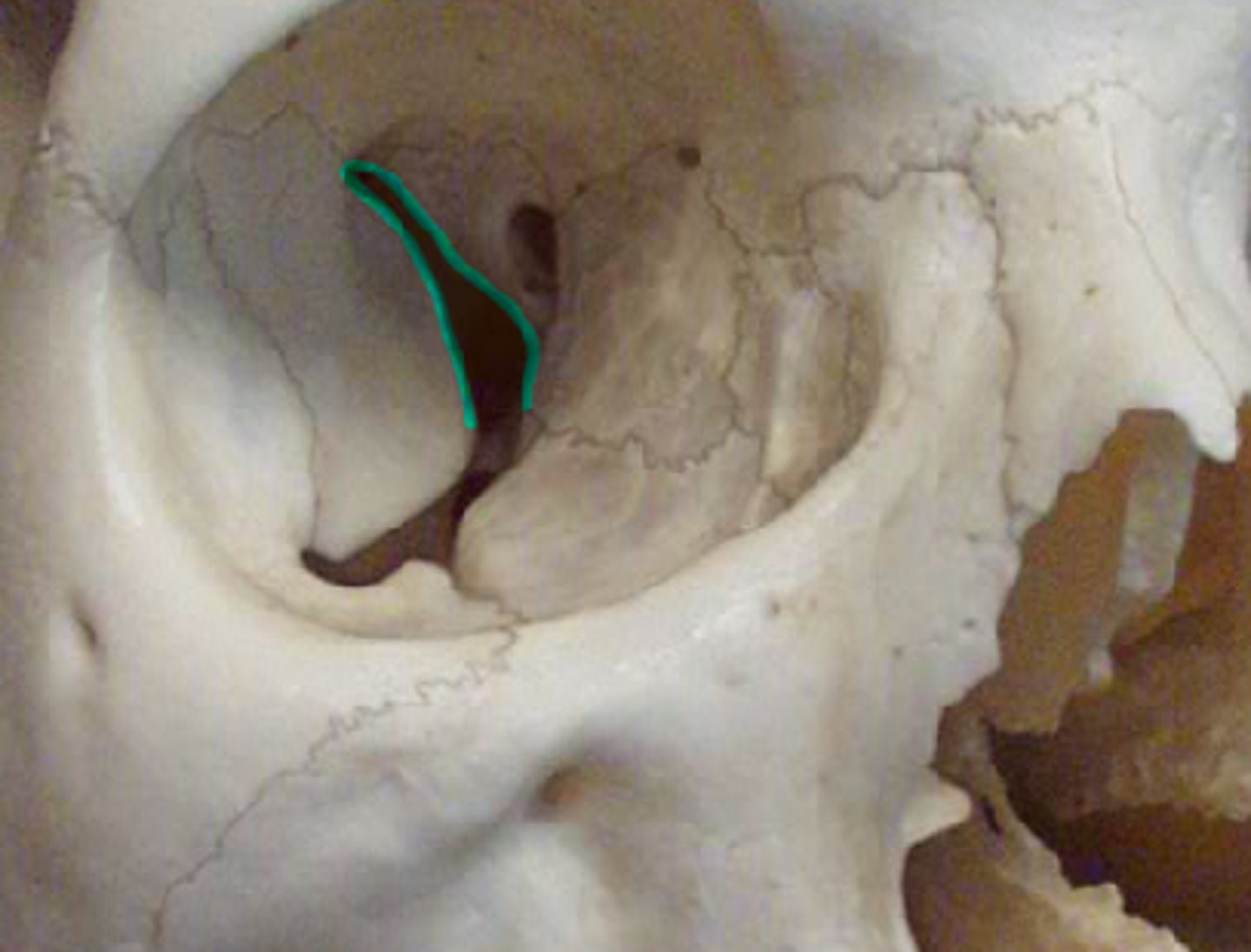

Superior Orbital Fissure of the Sphenoid bone

Between greater and lesser wing on the sphenoid bone, transmits oculomotor, trochlear, and abducens nerves. Also a branch of opthalmic CN V1

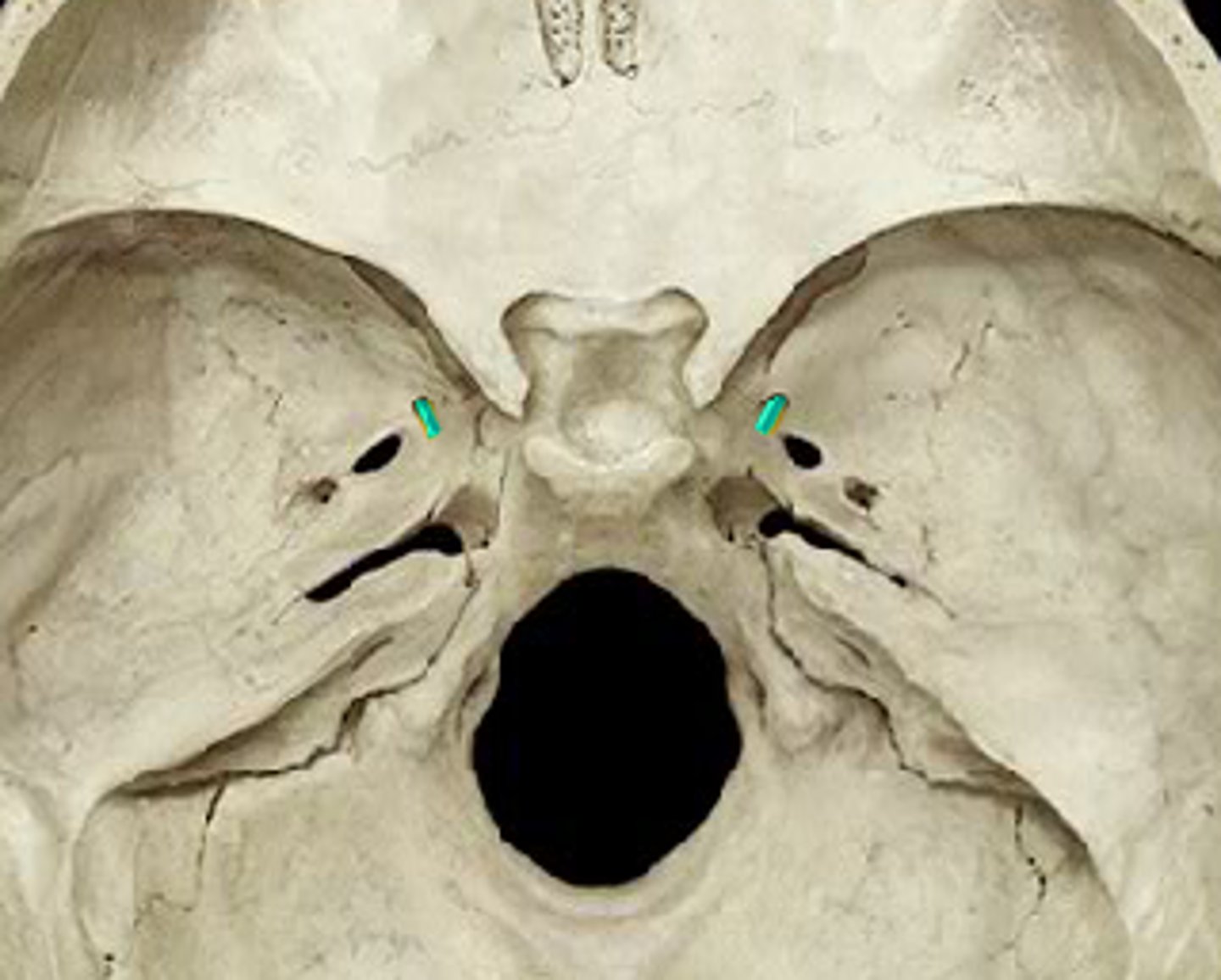

Foramen Rotundum of the Sphenoid bone

First part of Cowboy Ros, transmits maxillary branch CN V2 (part of trigem)

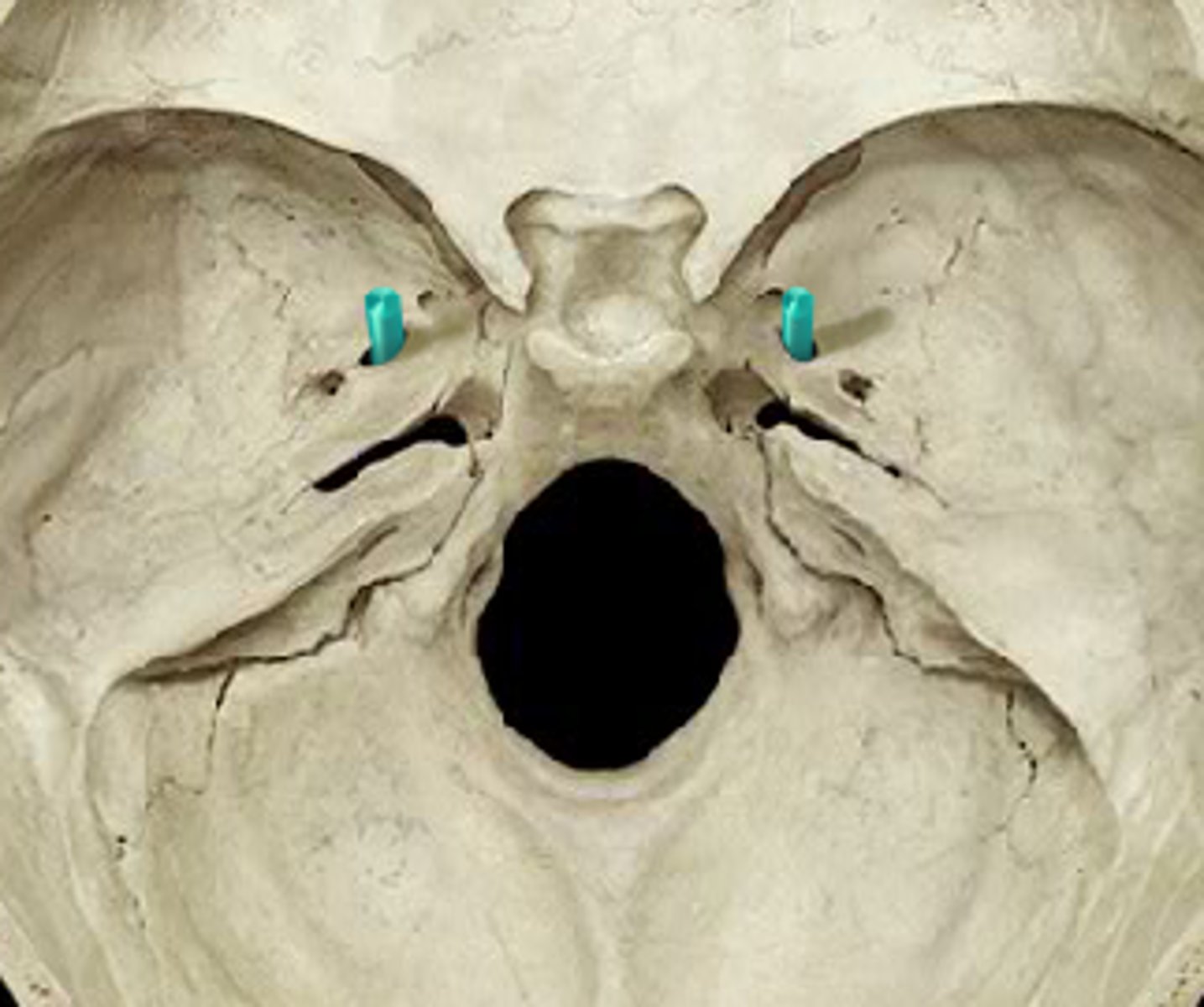

Foramen Ovale of the Sphenoid bone

mandibular branch CN V3 (of trigem)

Foramen Spinosum of the Sphenoid bone

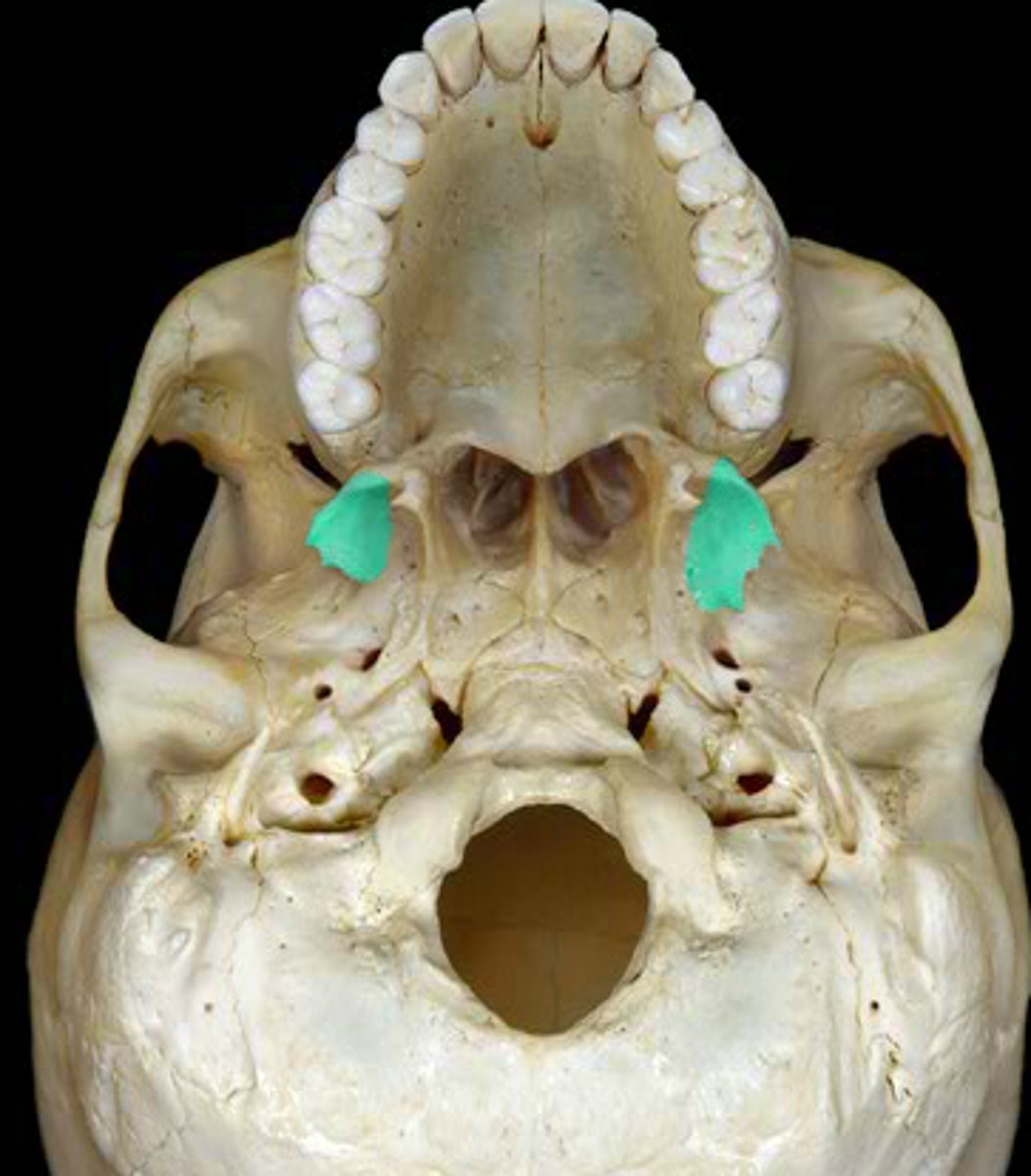

Pterygoid Process of the Sphenoid bone

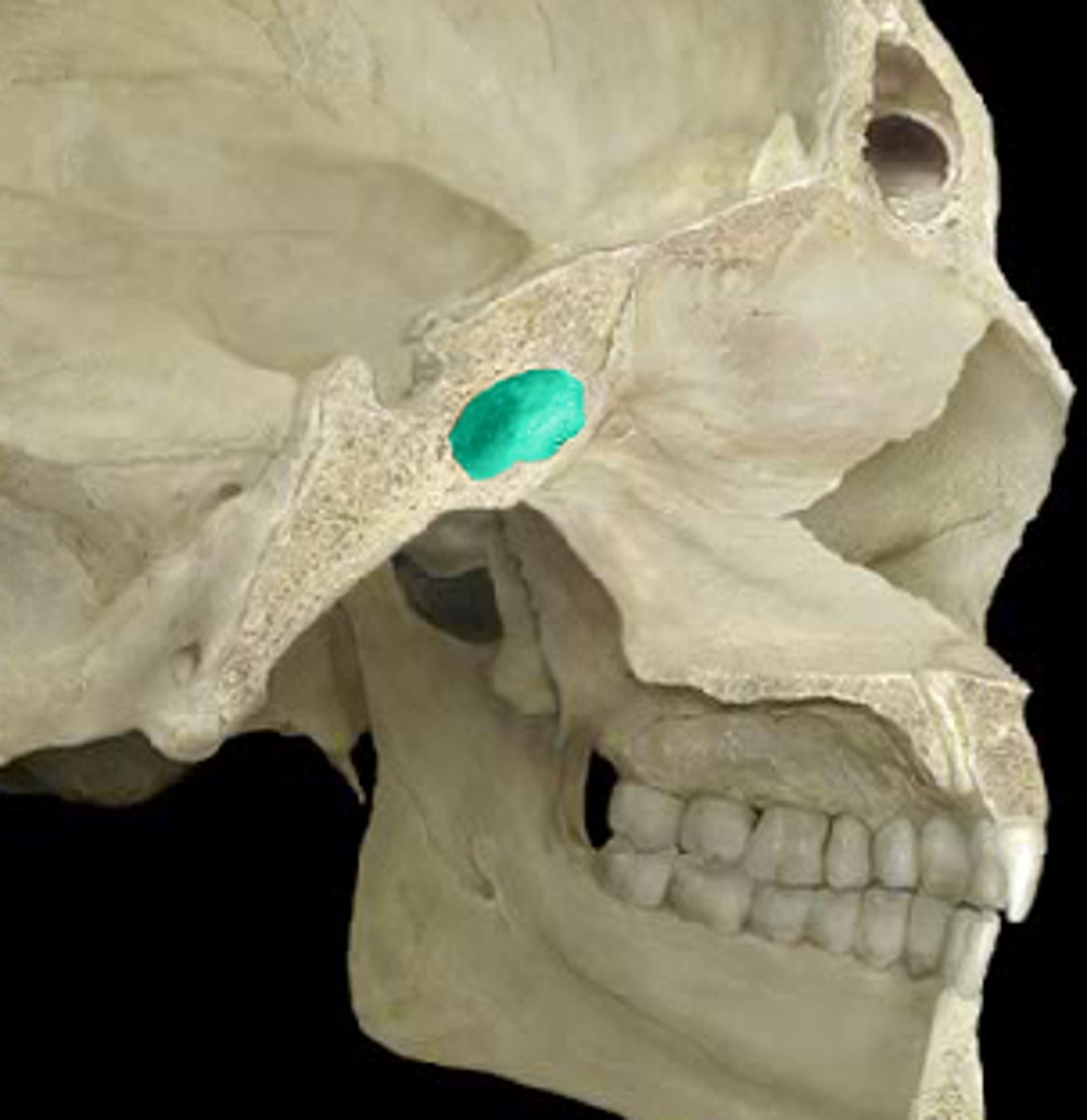

Sphenoid Sinus of the Sphenoid bone

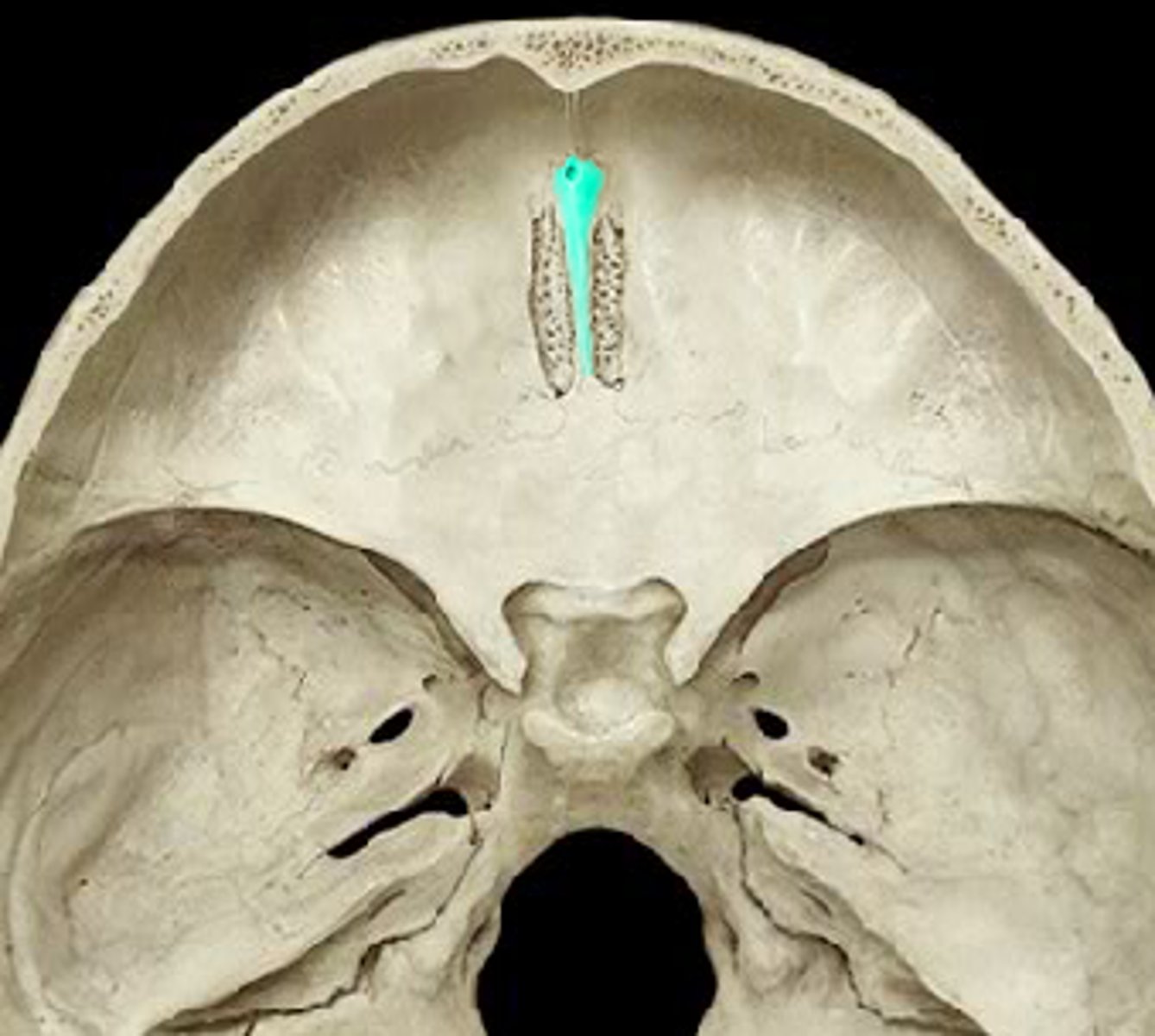

Crista Galli of the Ethmoid Bone

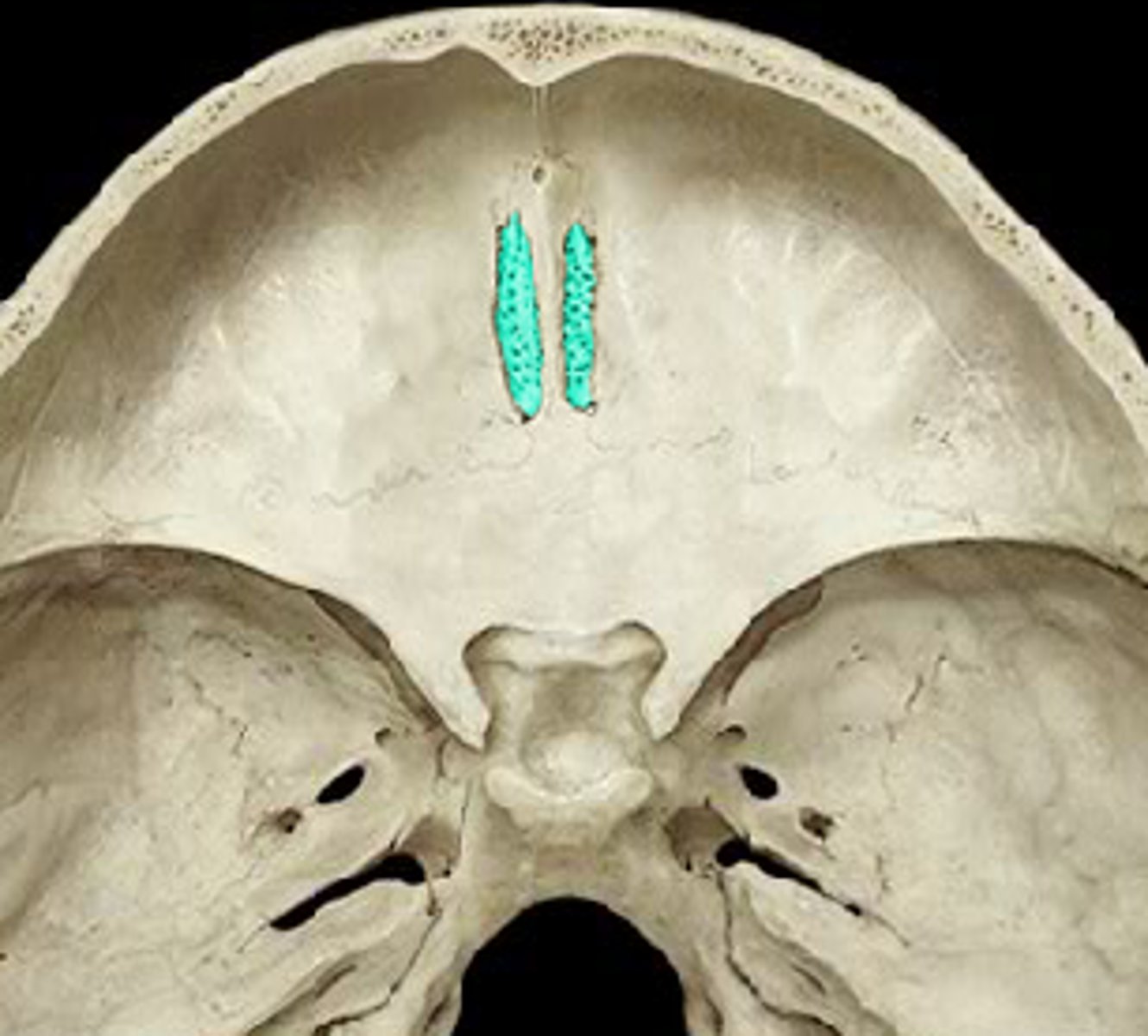

Cribriform plate of the Ethmoid Bone

Transmits Olfactory nerves

Perpendicular plate of the Ethmoid Bone

Ethmoid Sinus of the Ethmoid Bone

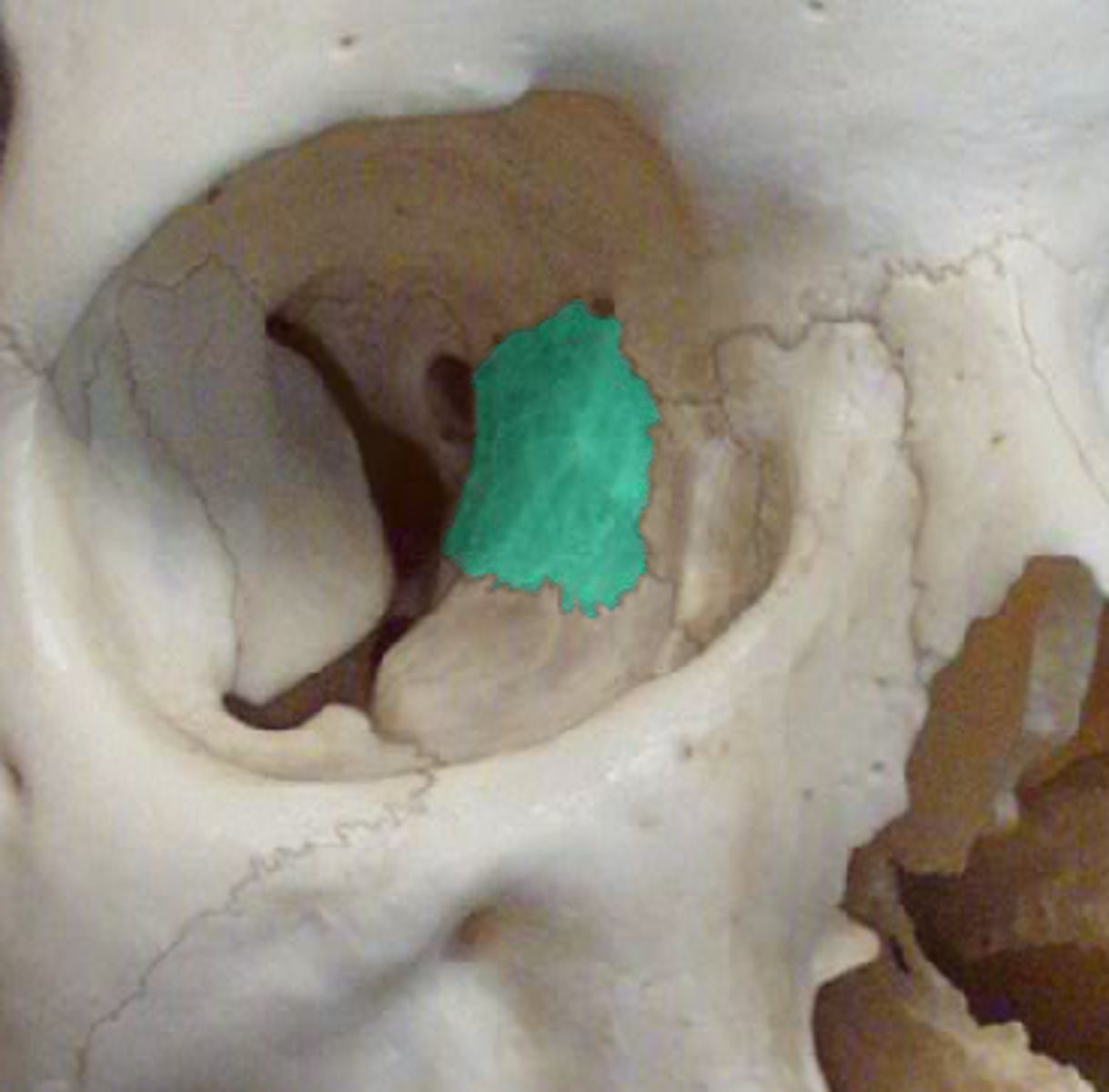

Orbital Plate of the Ethmoid Bone

Superior Nasal Concha of the Ethmoid Bone

Middle Nasal Concha of the Ethmoid Bone

Temporal Process of the Zygomatic Bone

Frontal Process of the Zygomatic Bone

Maxillary Process of the Zygomatic Bone

Lacrimal Foramen of the lacrimal bone

Horizontal plate of the Palatine Bone

Of Palatine Bone

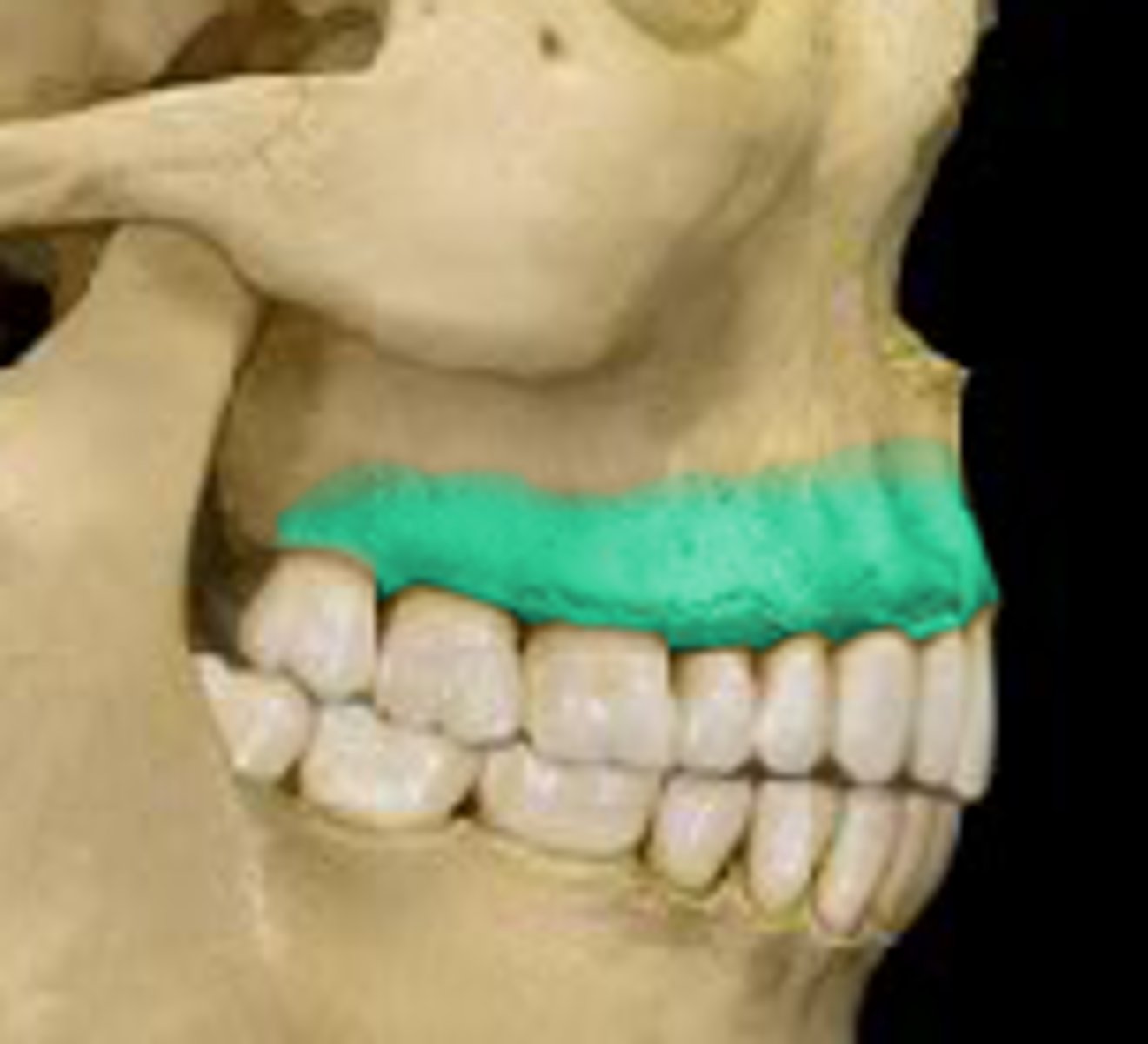

Alveolar Process of the Maxilla Bone

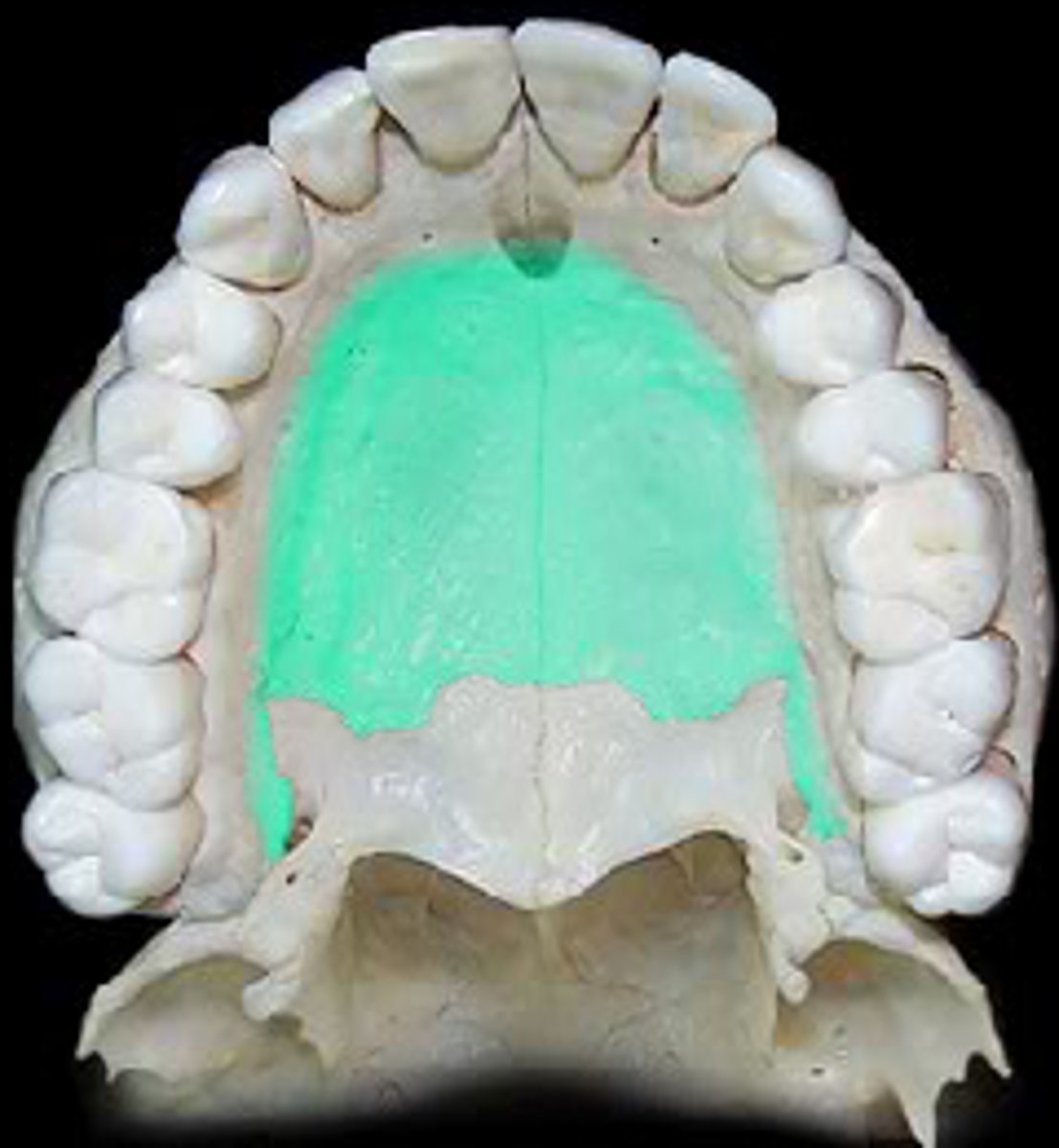

Palatine Process of the Maxilla Bone

of the Maxilla

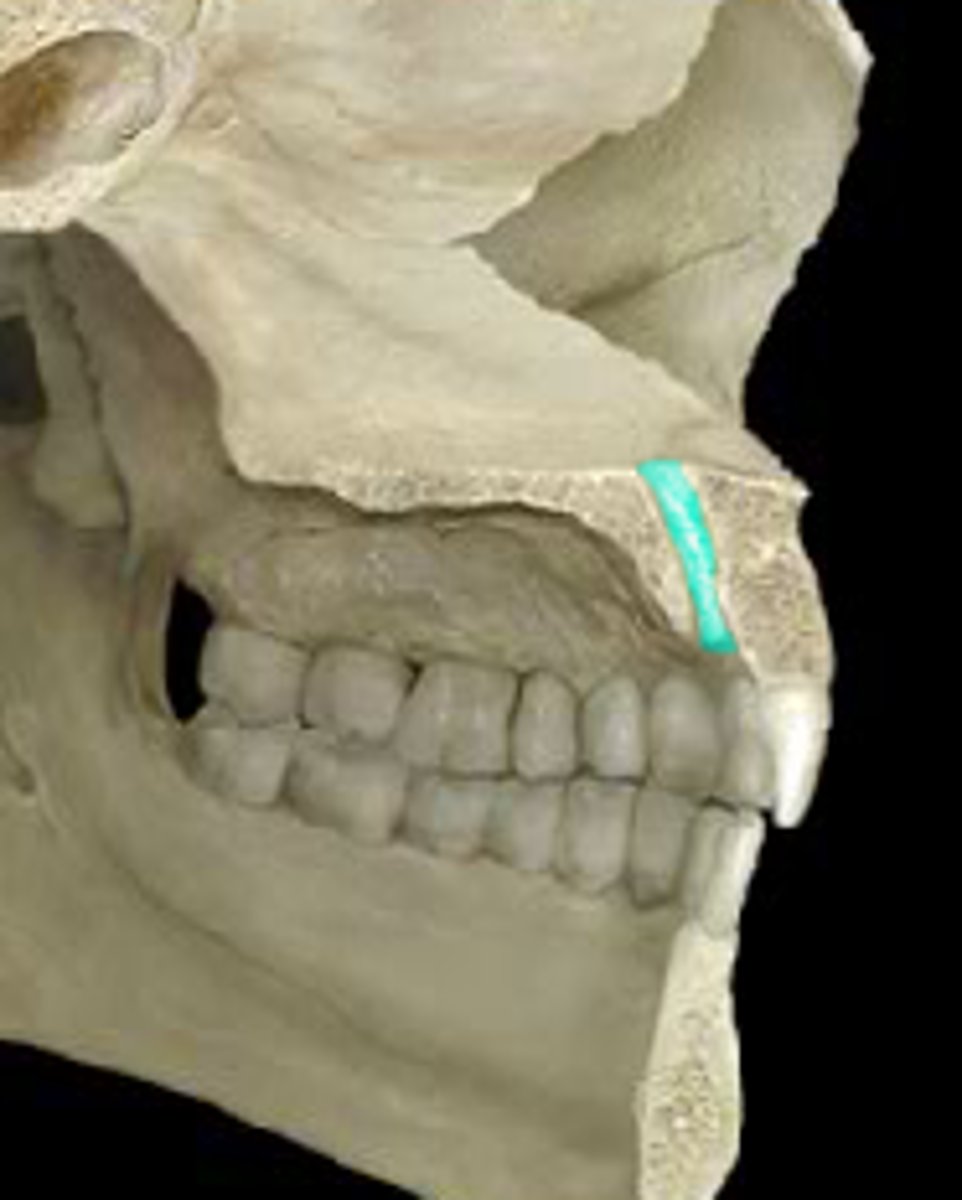

Incisive Canal of the Maxilla Bone

Maxillary Sinus of the Maxilla Bone

Infraorbital Foramen of the Maxilla Bone

Zygomatic Process of the Maxilla

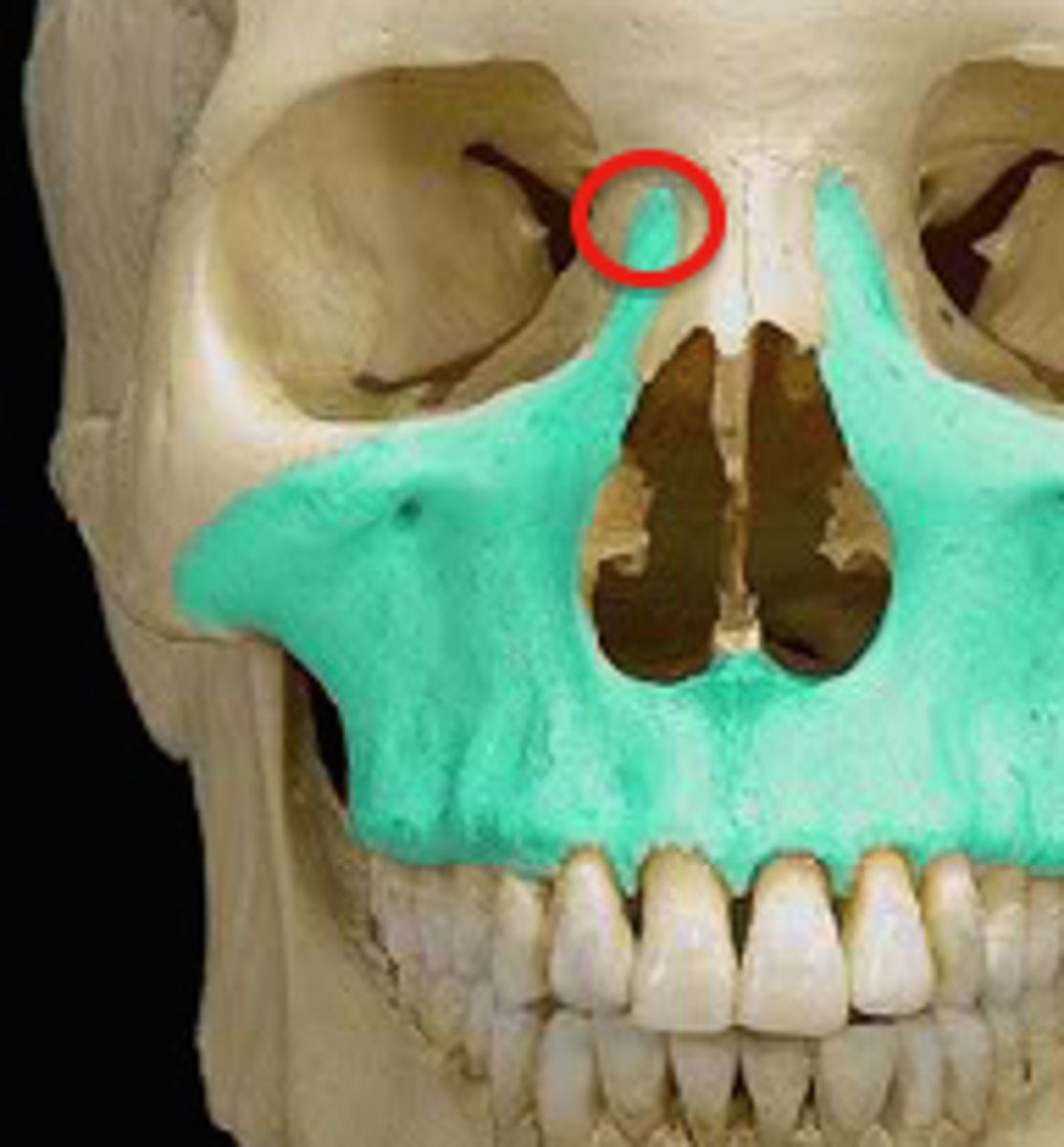

Frontal Process of the Maxilla

Alveolar Process of the Maxilla

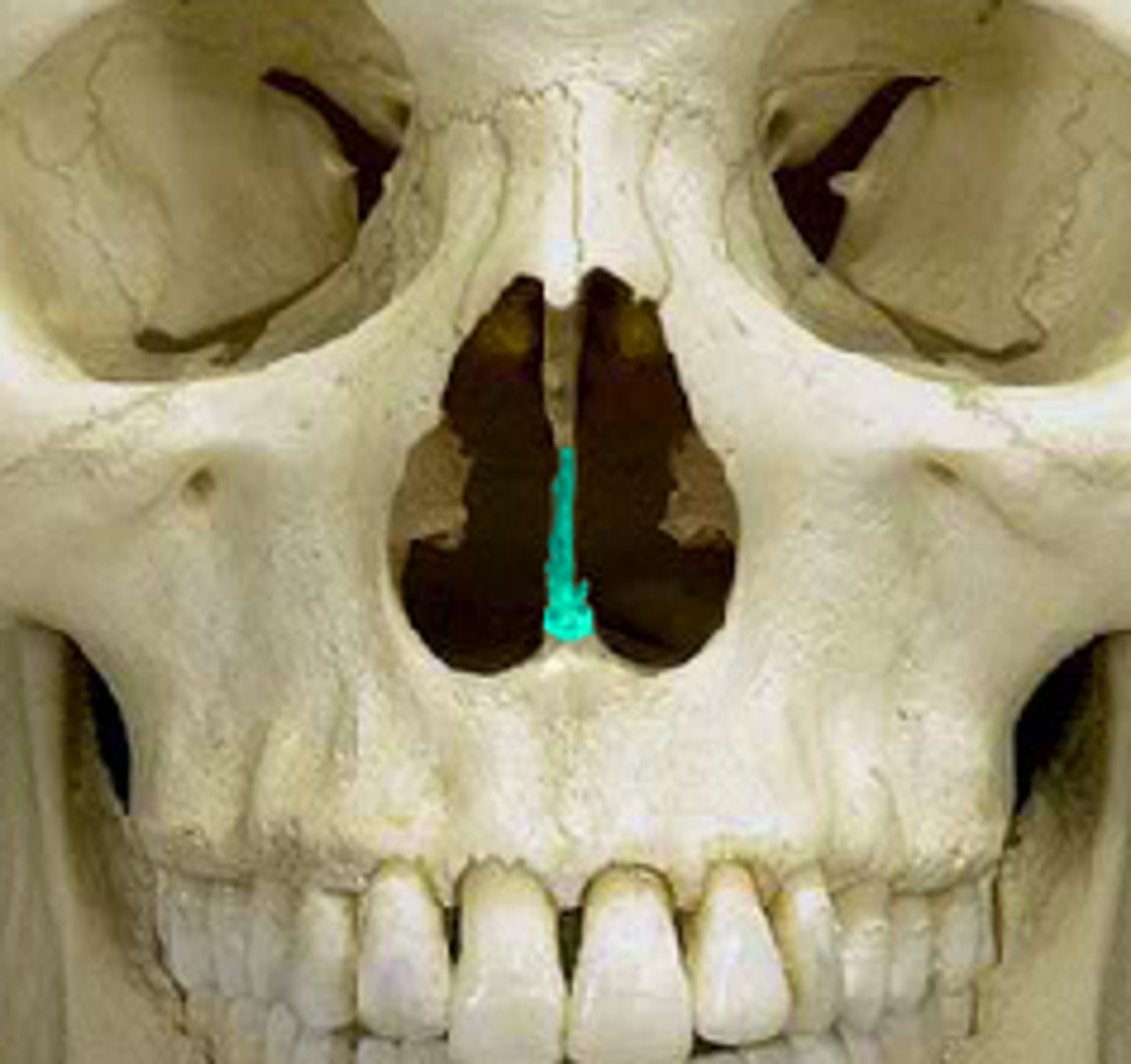

Perpendicular Plate of the Vomer

Inferior to Ethmoid

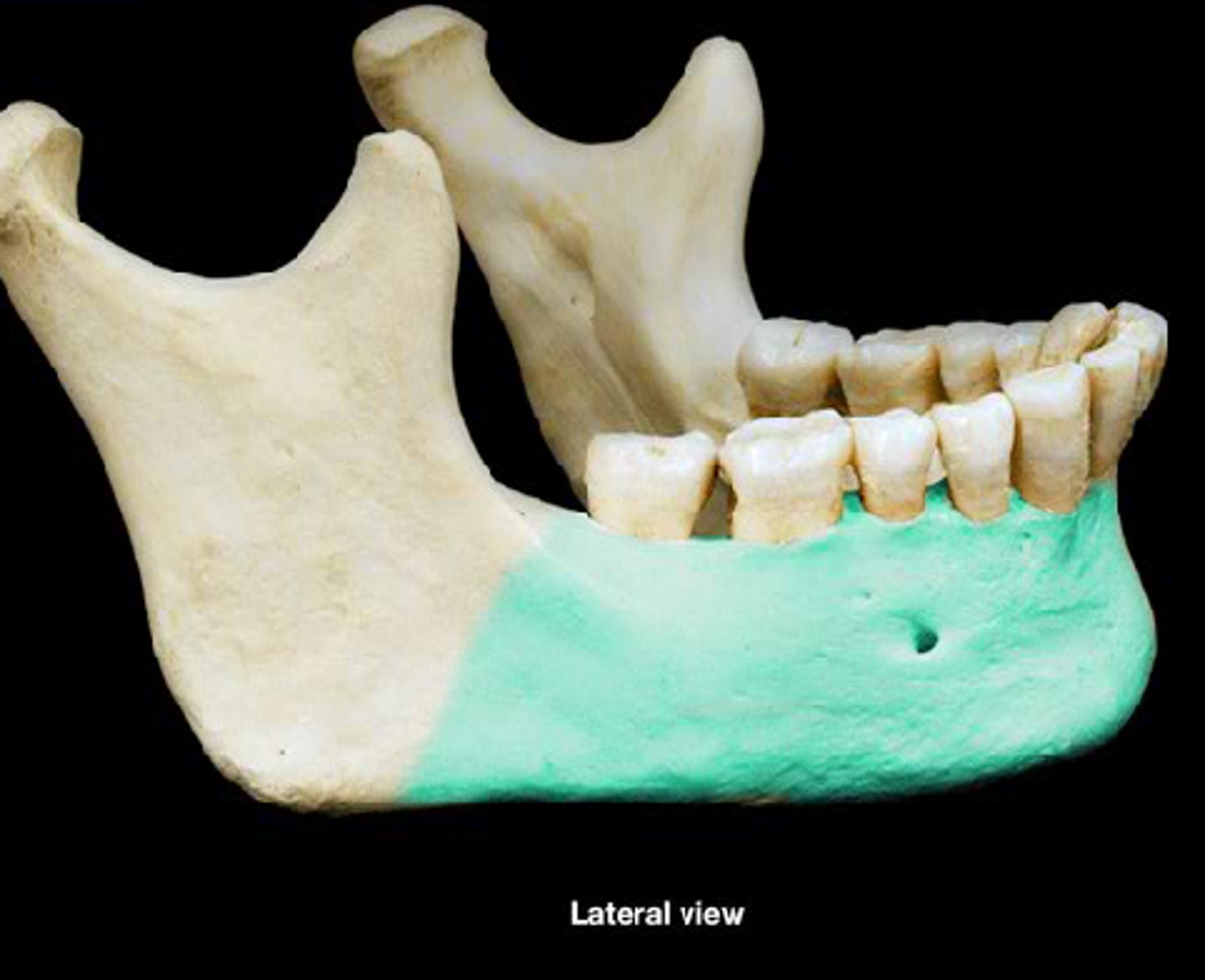

Body of the Mandible

Ramus of the Mandible

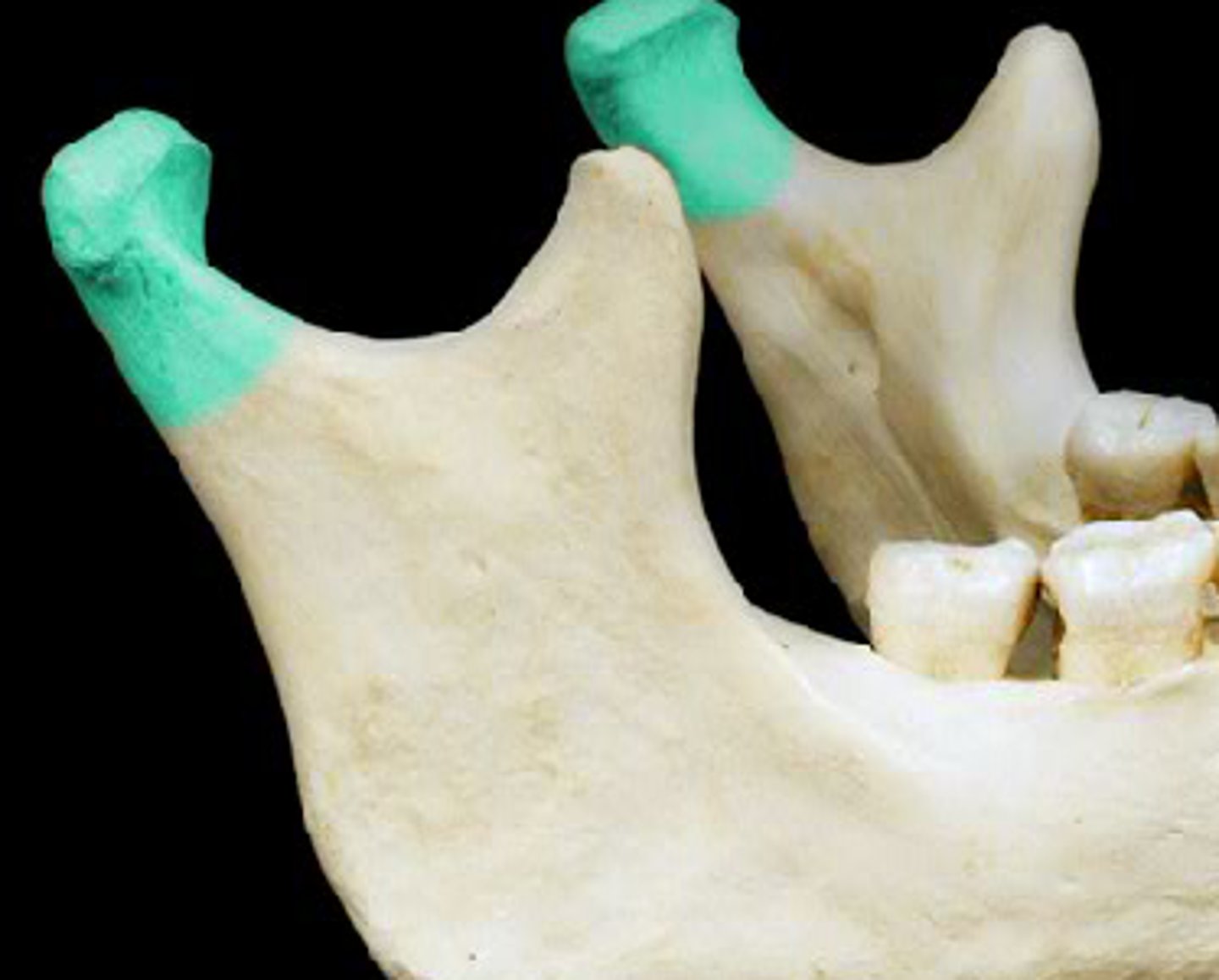

Condylar Process of the Mandible

Coronoid Process of the Mandible

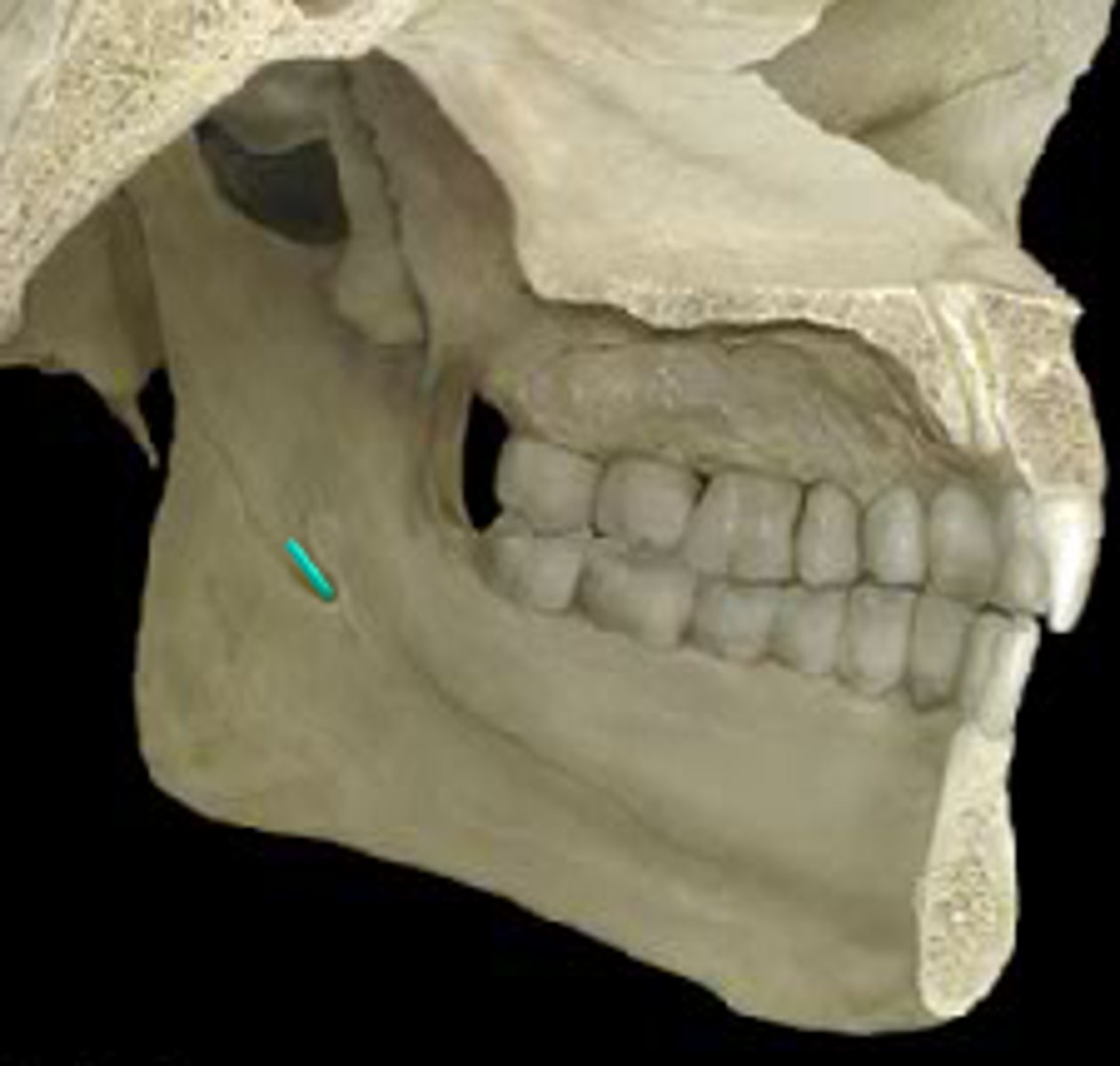

Mandibular Foramen of the Mandible

Mandibular Notch of the Mandible

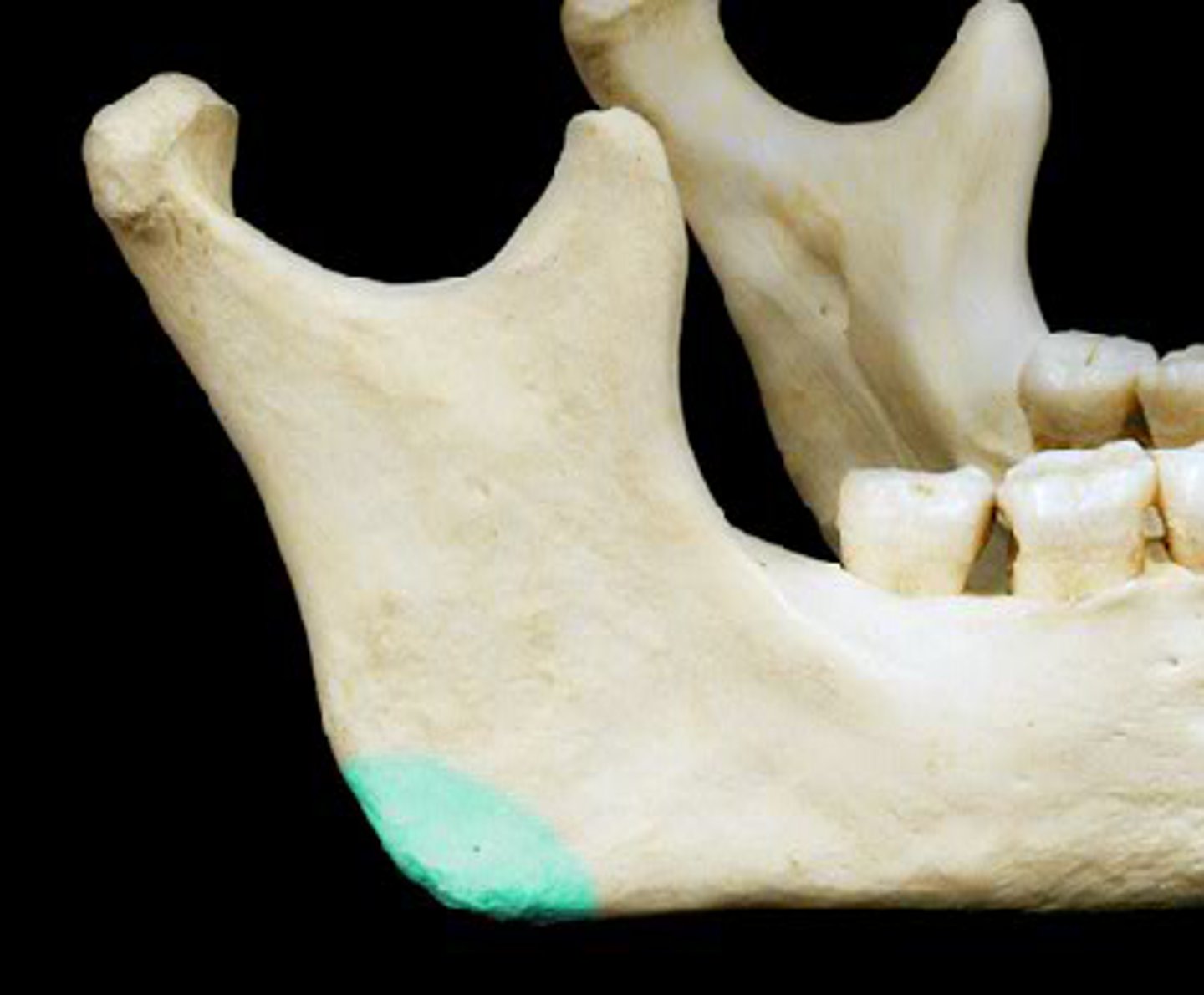

Mandibular Angle of the Mandible

Mental Protuberance of the Mandible

Mental Foramen of the Mandible

Alveolus

Tooth socket

Alveolar Process of the Mandible

Of the Mandible

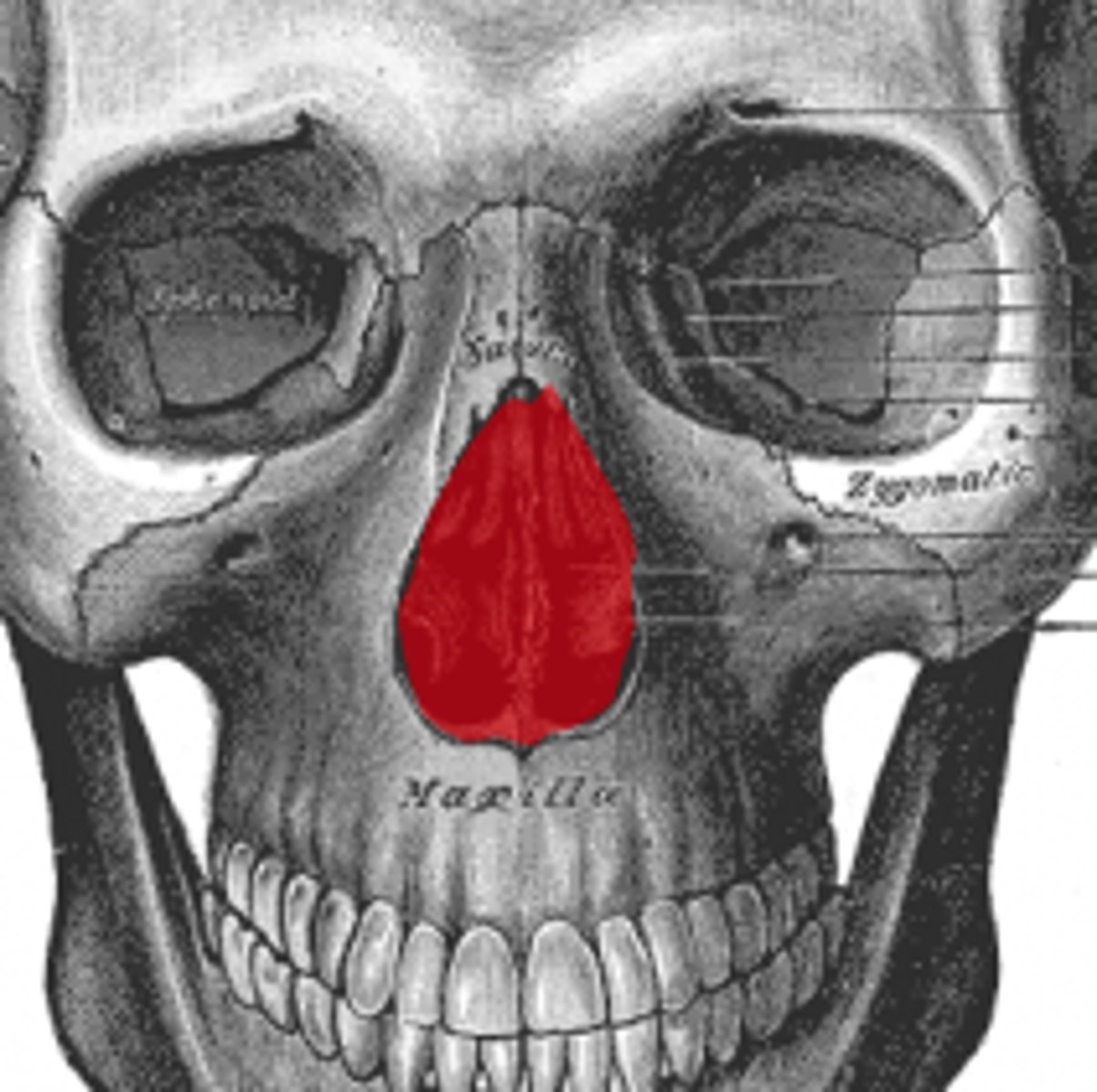

Piriform Aperture

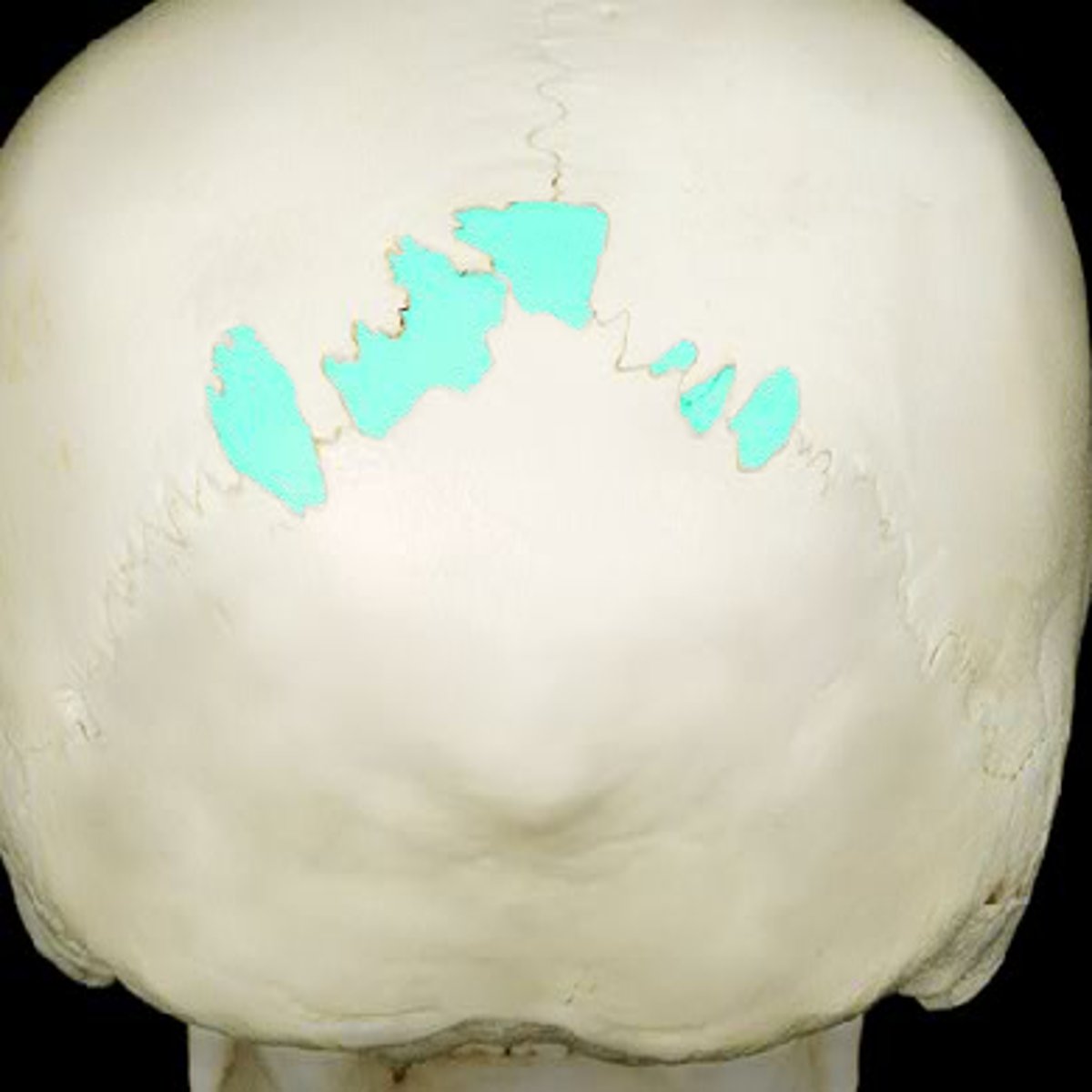

Sutural Bones

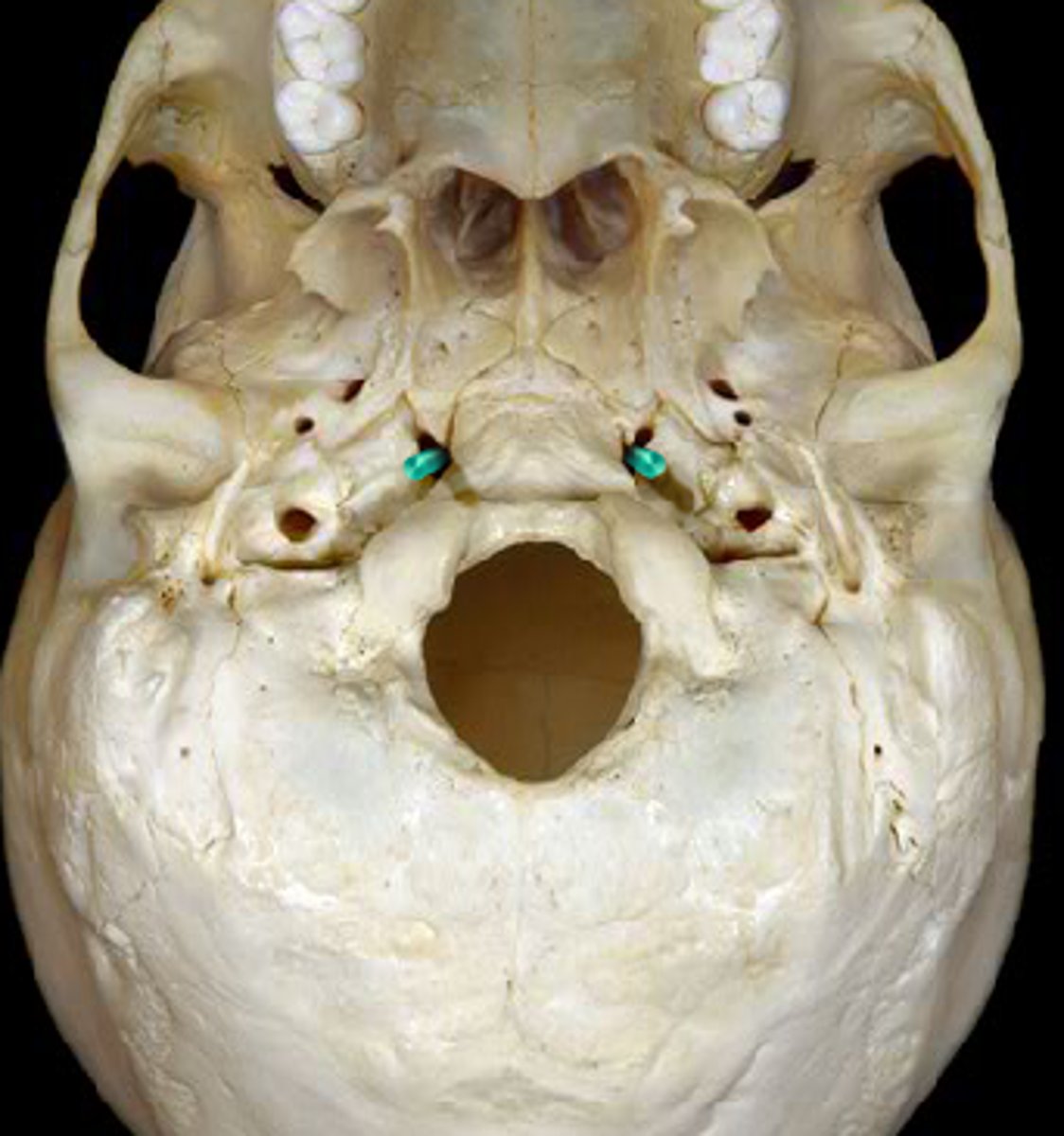

Foramen Lacerum

Formed by Sphenoid, Temporal, and Occipital Bones

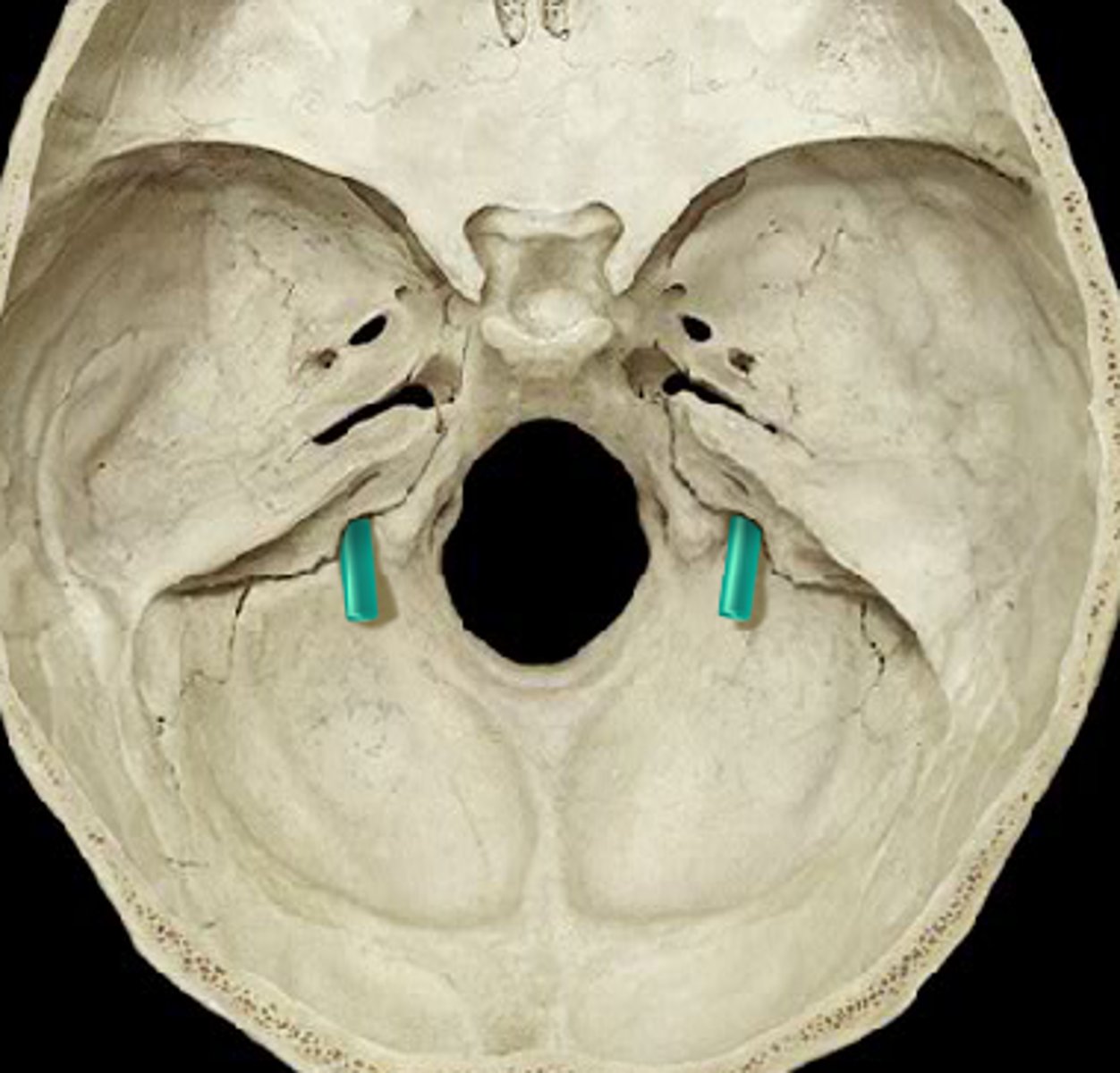

Jugular Foramen

Junction of Temporal and Occipital Bone

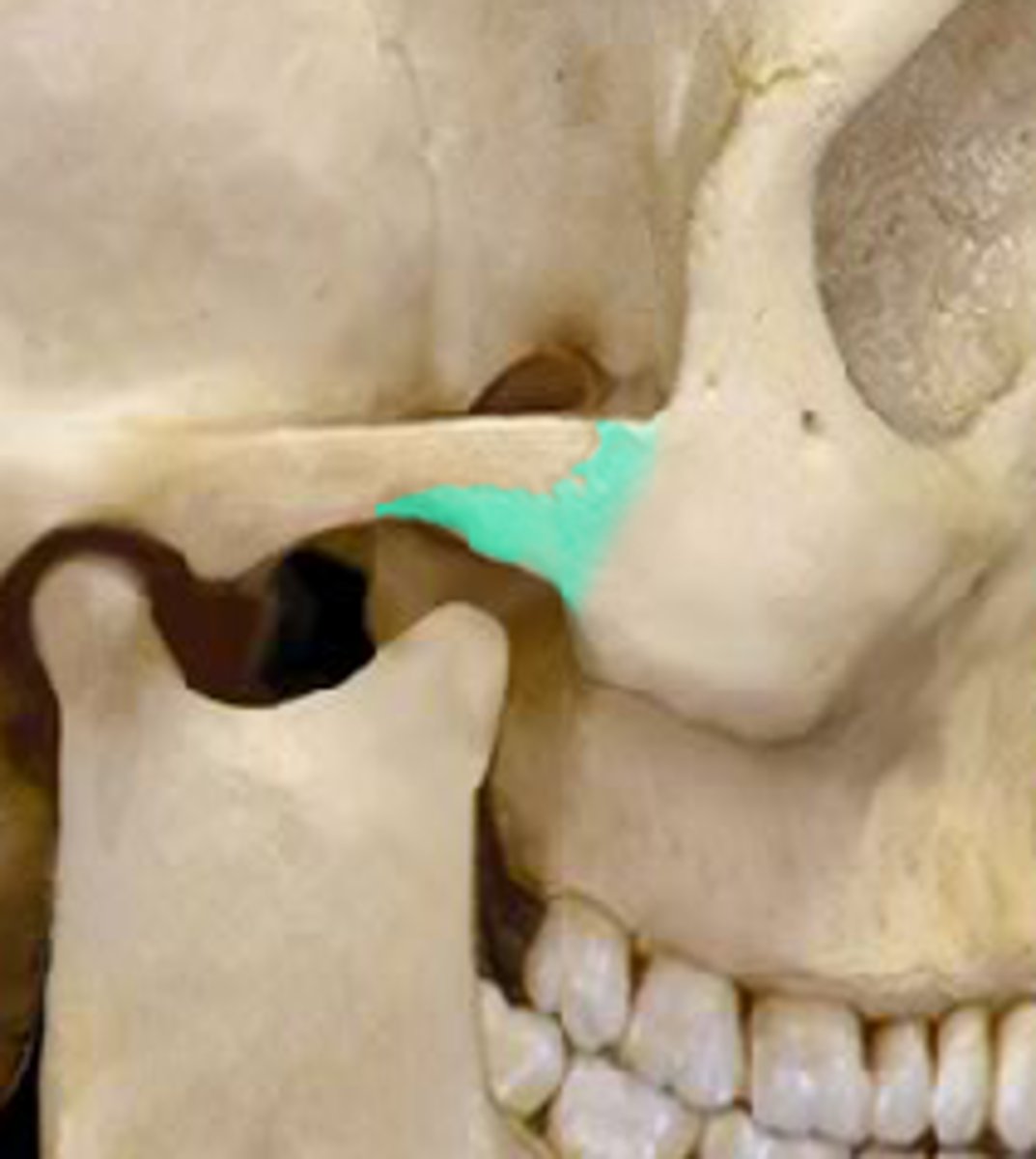

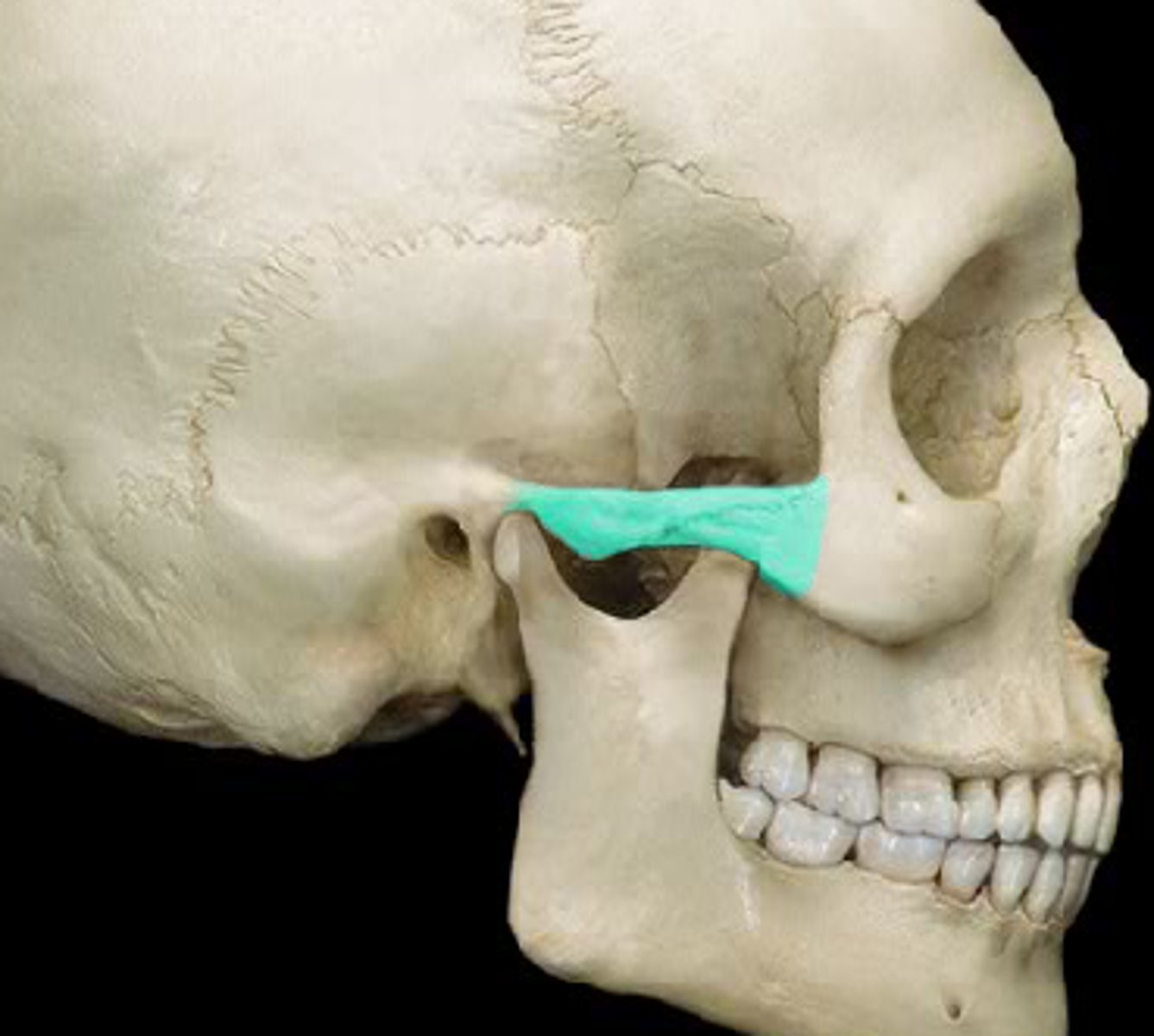

Zygomatic Arch

Process' of both Zyg & Temp bone

Inferior Orbital Fissure

Gap between greater wing of sphenoid, maxilla, and zygomatic bone

Hyoid Bone

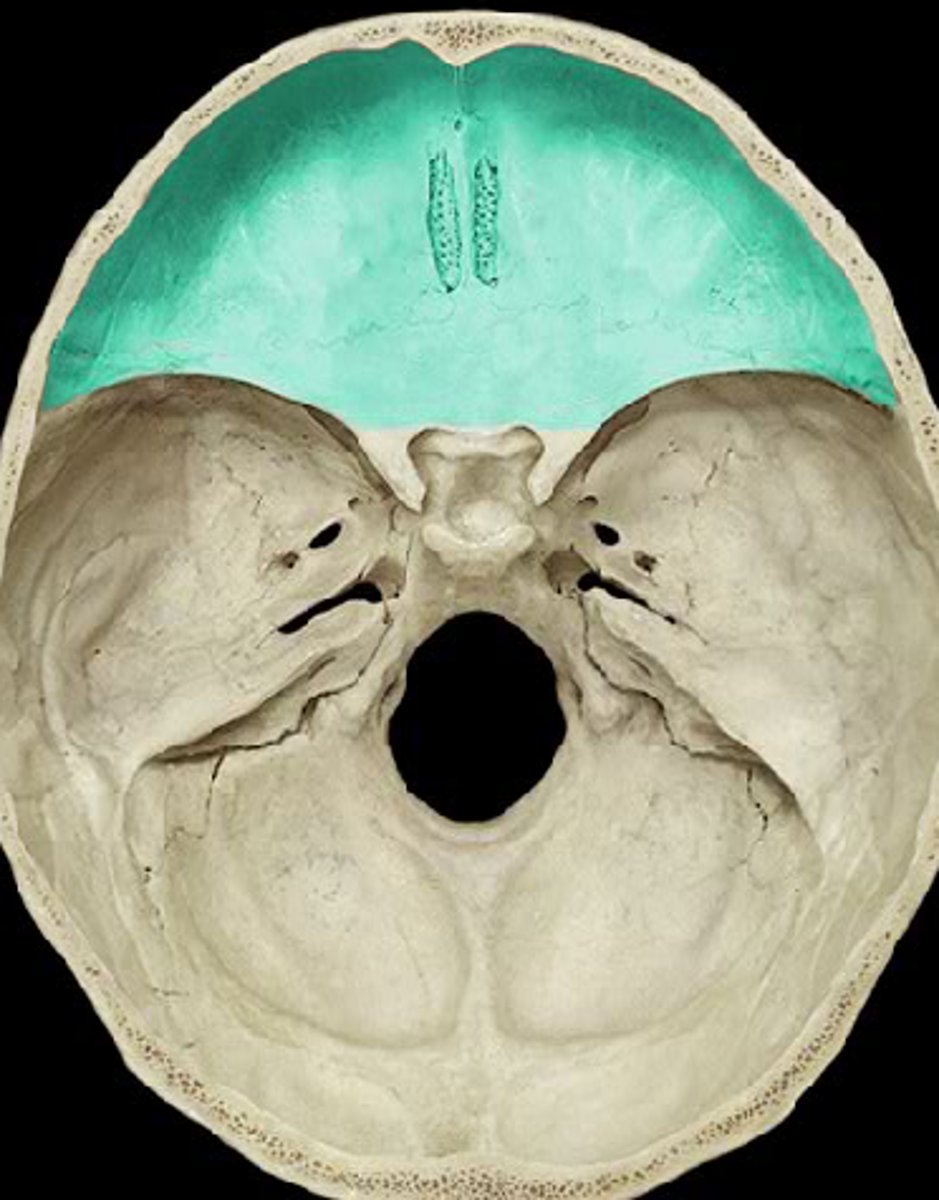

Anterior Cranial Fossa

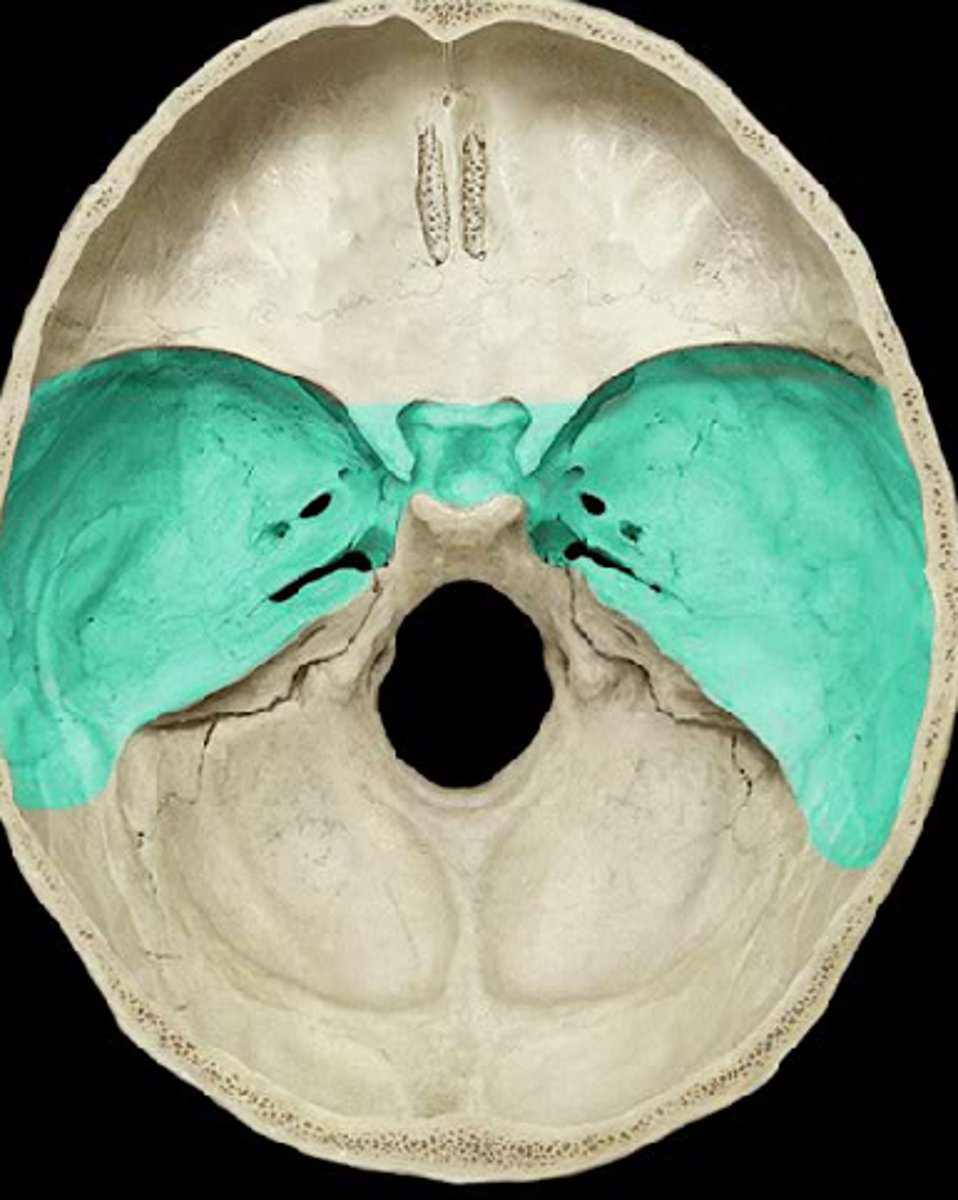

Middle Cranial Fossa

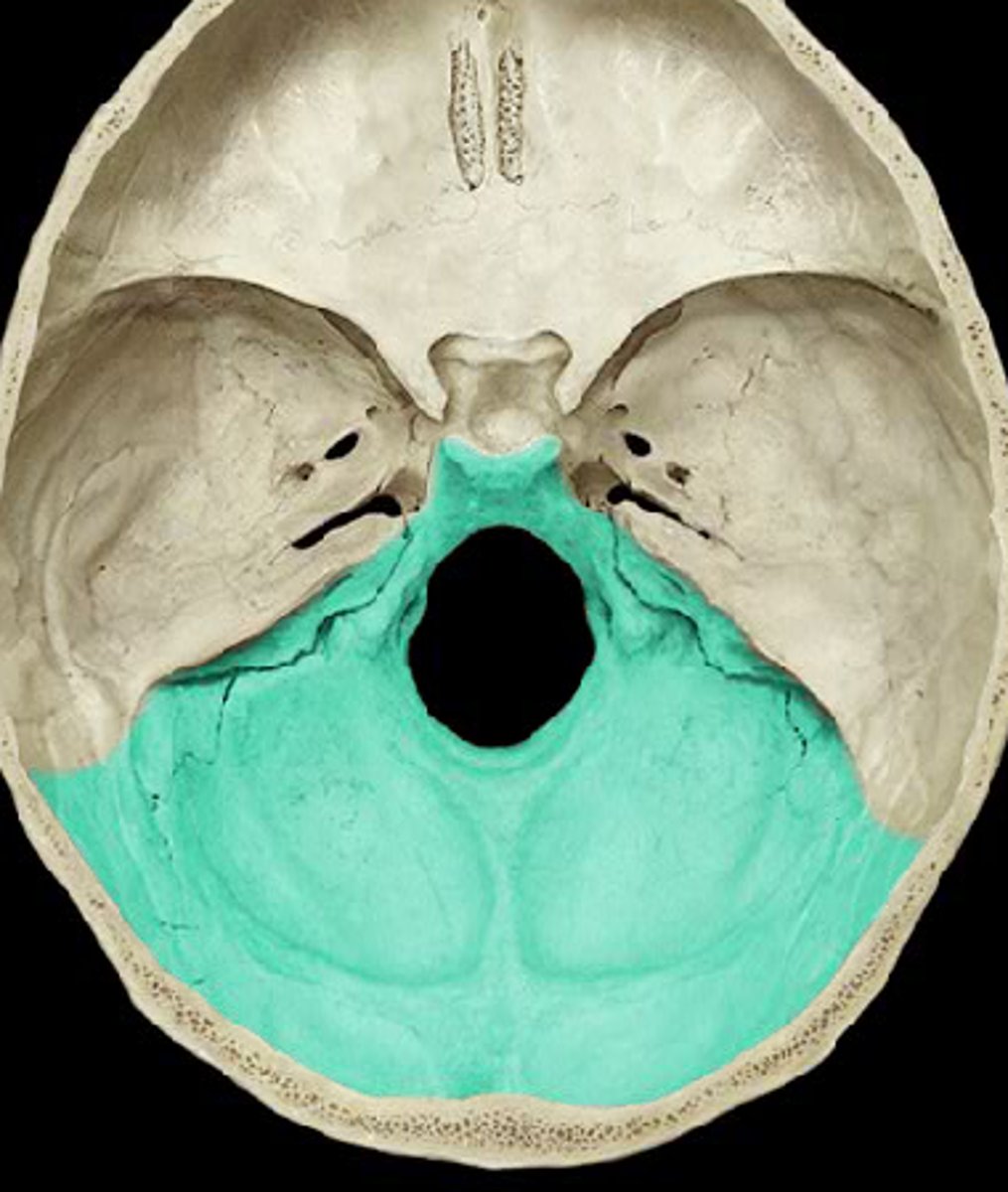

Posterior Cranial Fossa

Superior Sagittal Groove

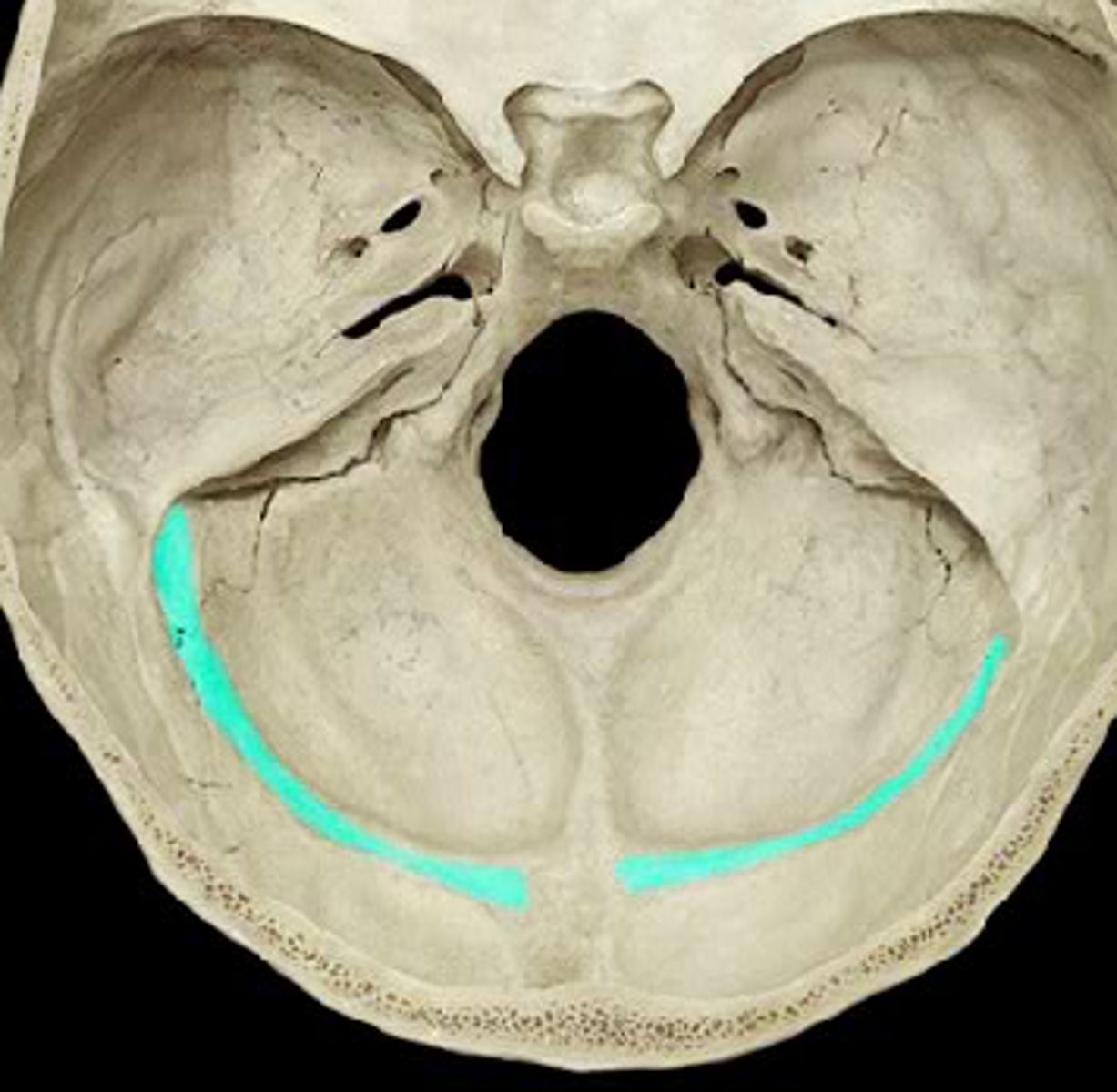

Transverse Groove

Sigmoid Groove

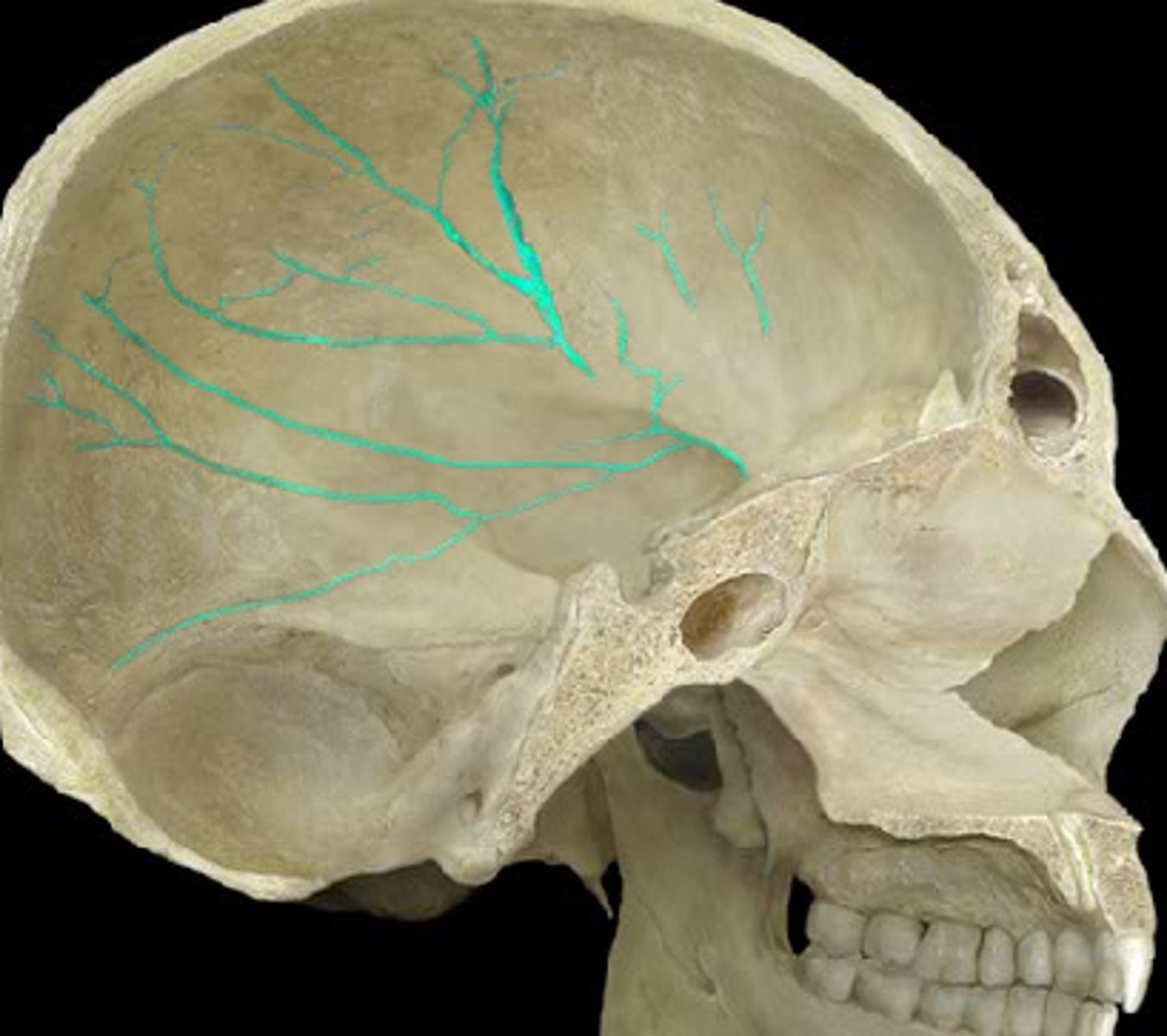

Meningeal Grooves

Coronal Suture

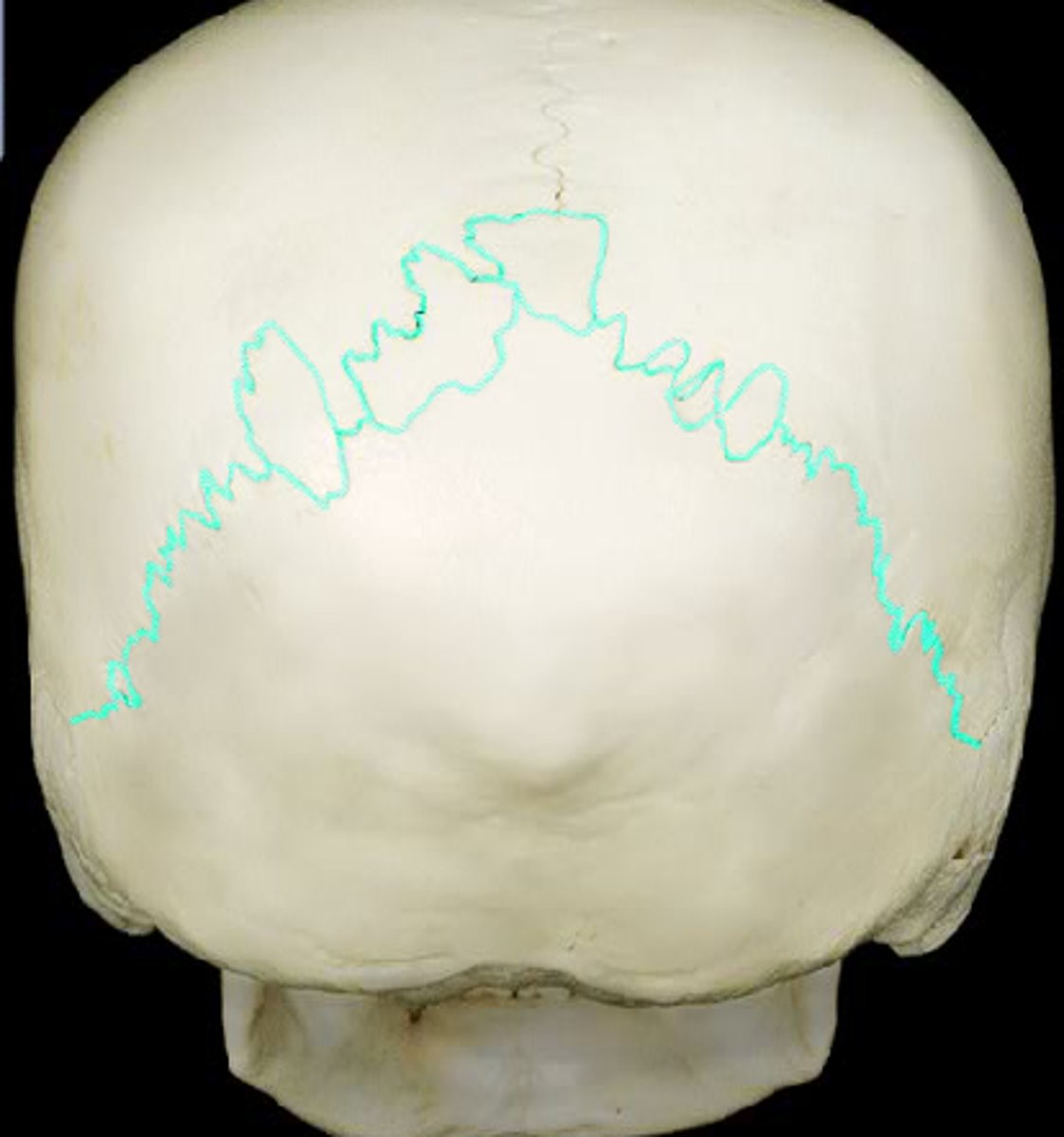

Lambdoidal Suture

Sagittal Suture

Squamosal Suture

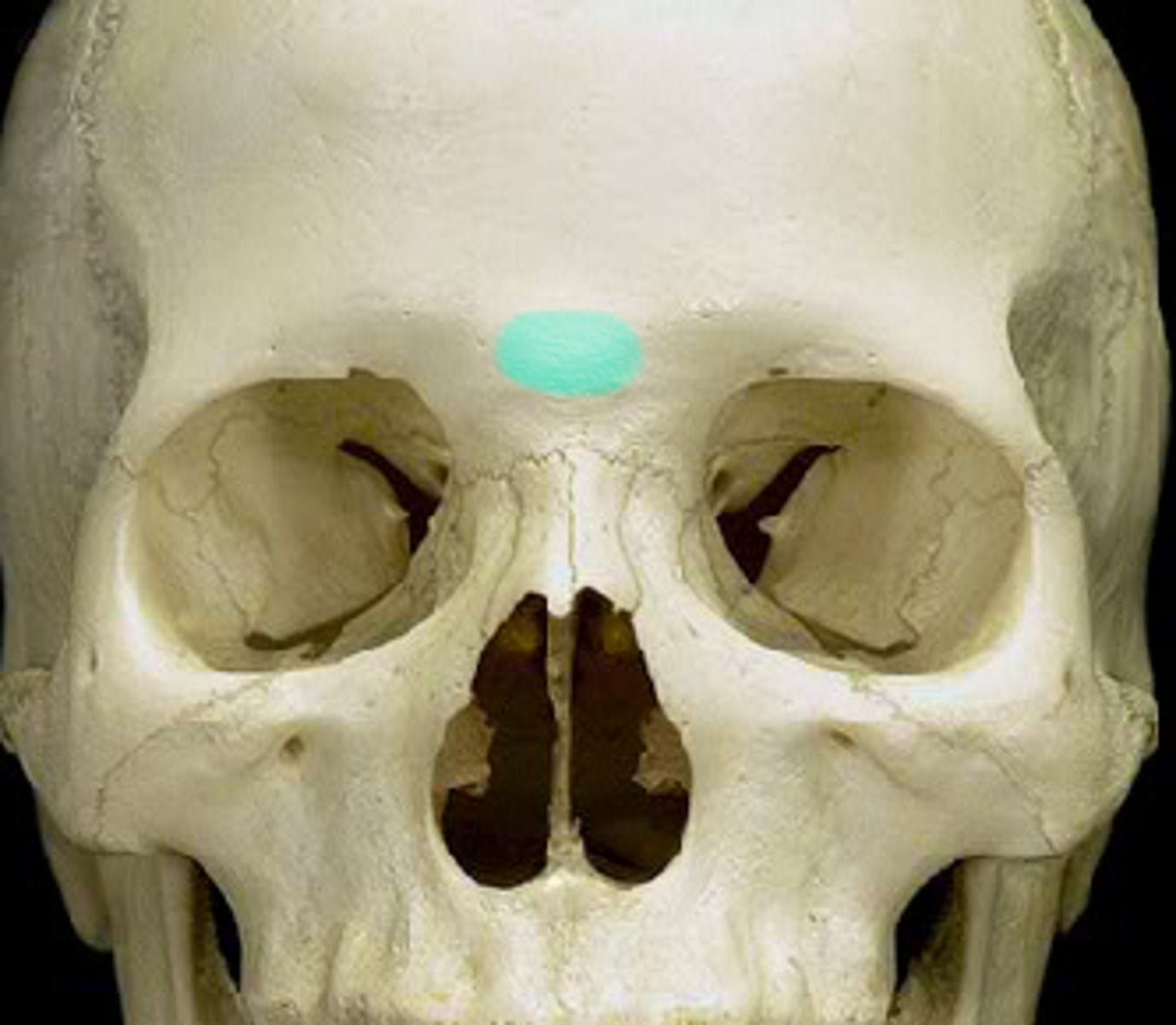

Glabella

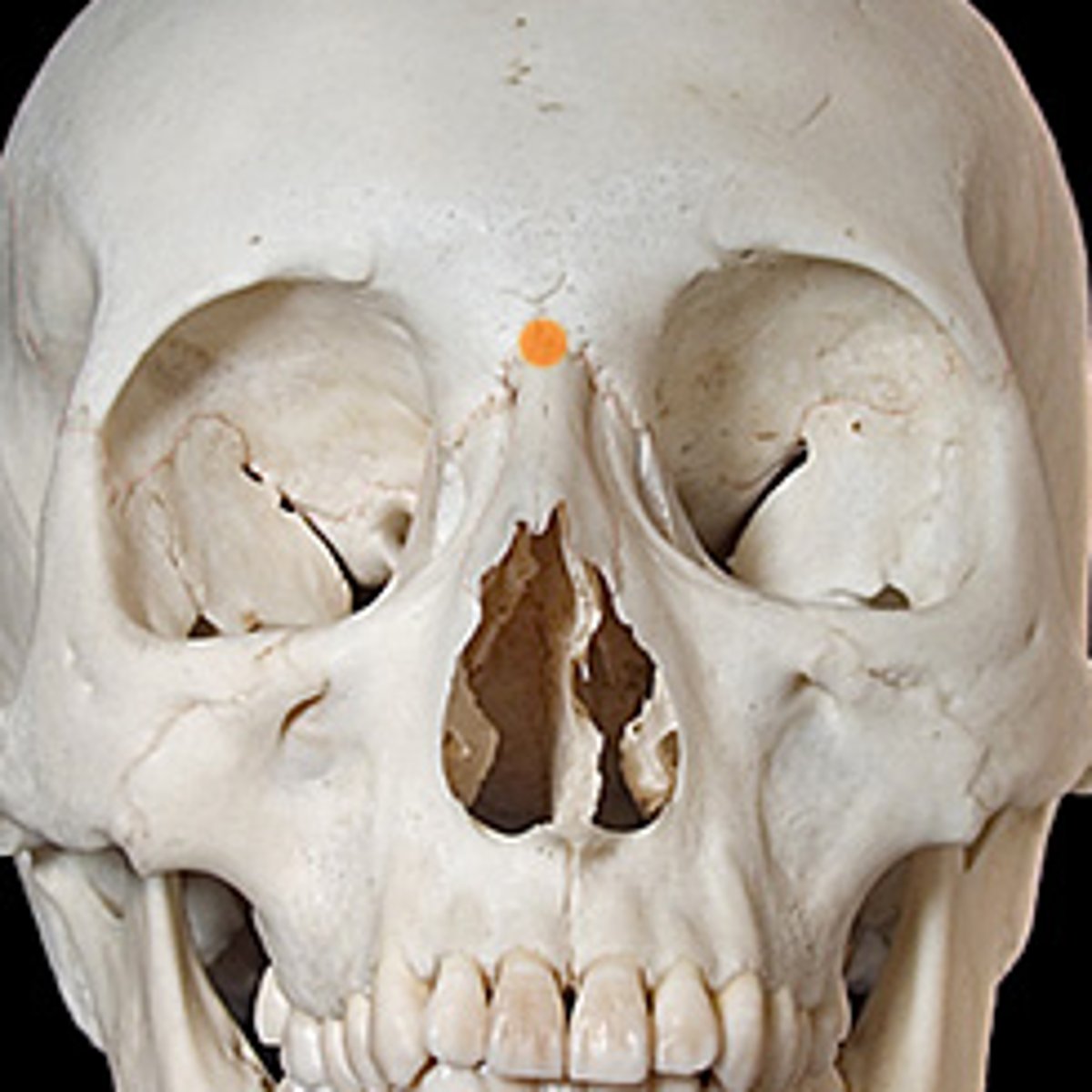

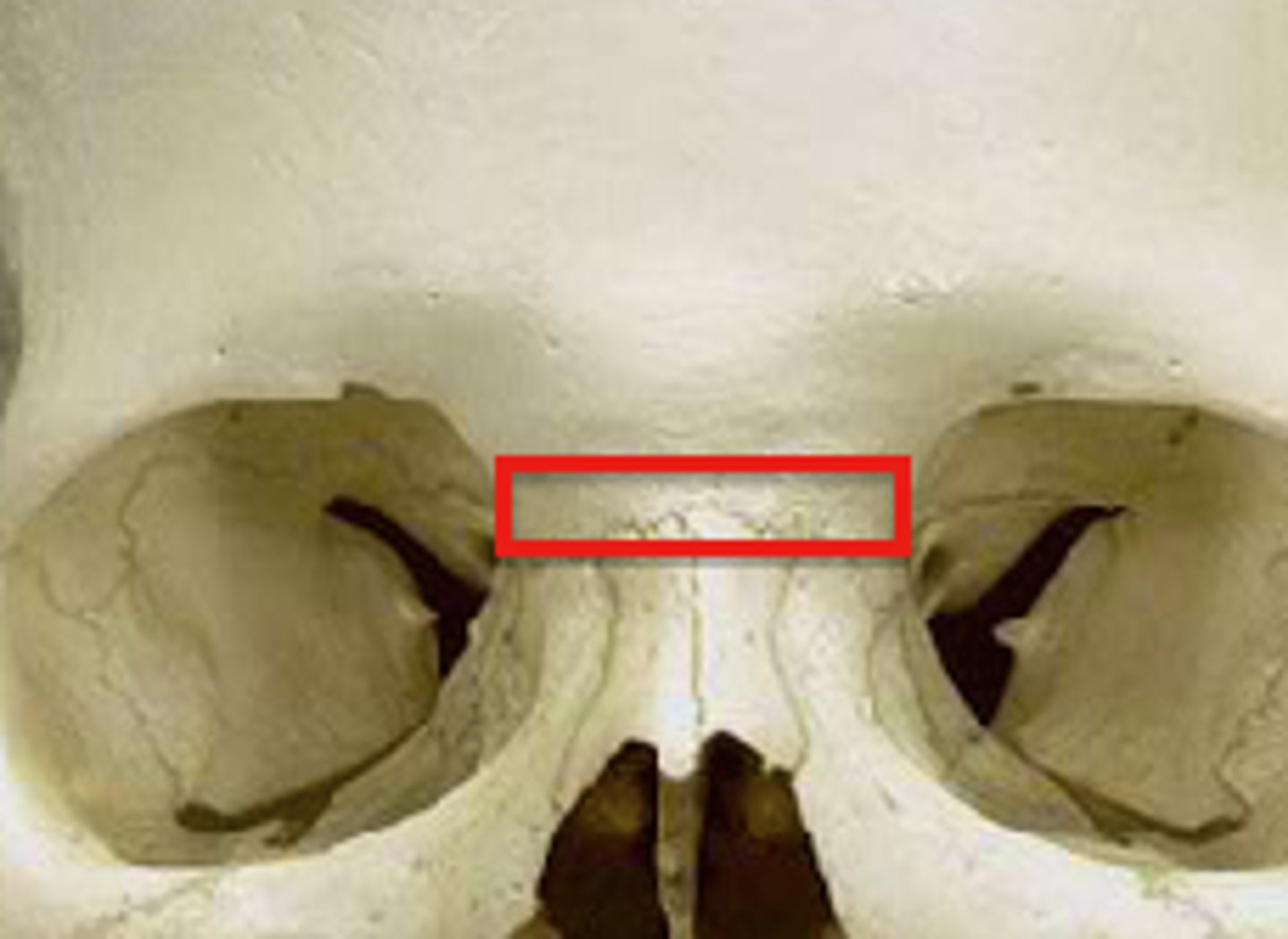

Nasion

Bregma

Intersection of Coronal & Sagittal Sutures

Vertex

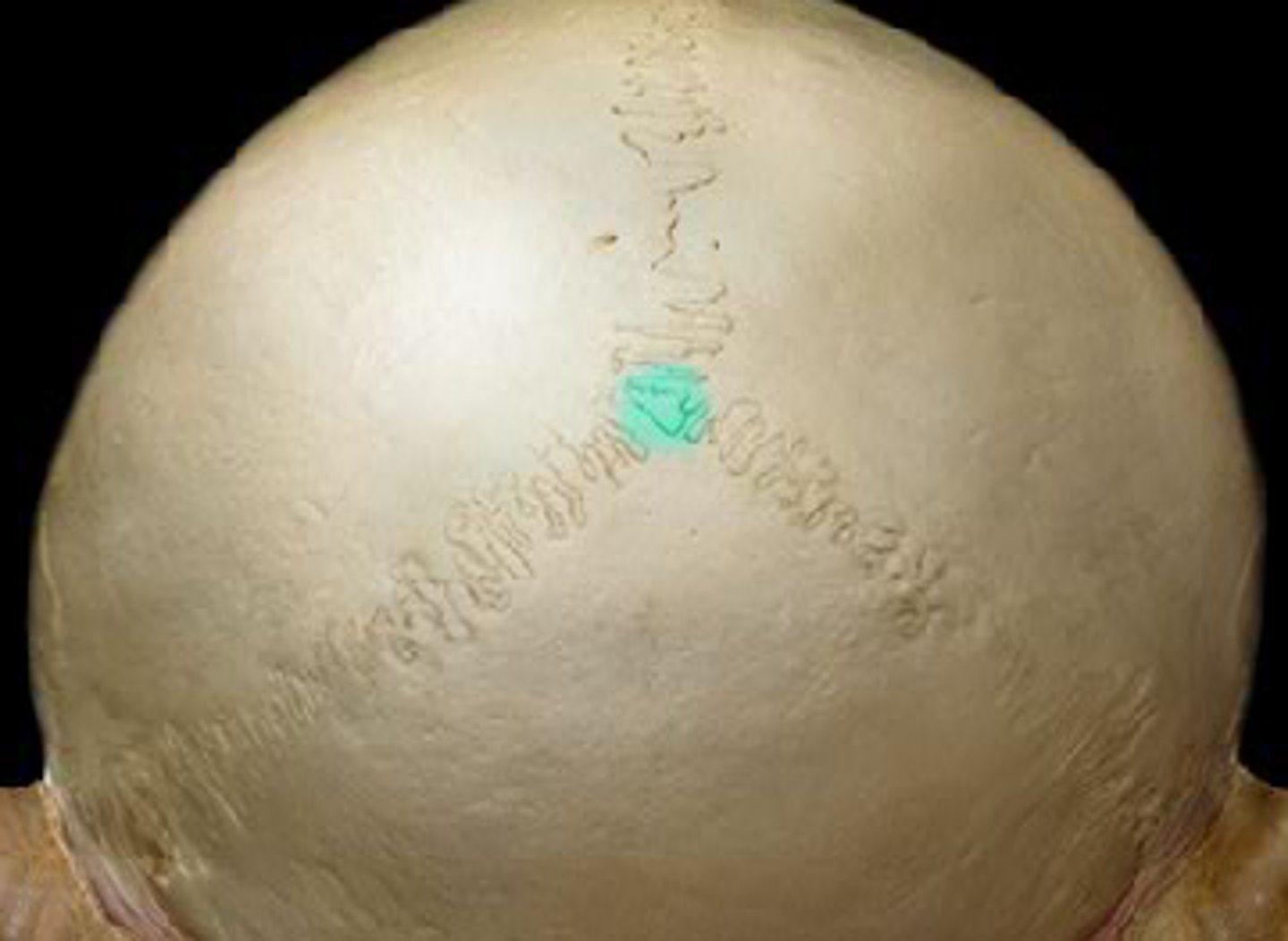

Lambda

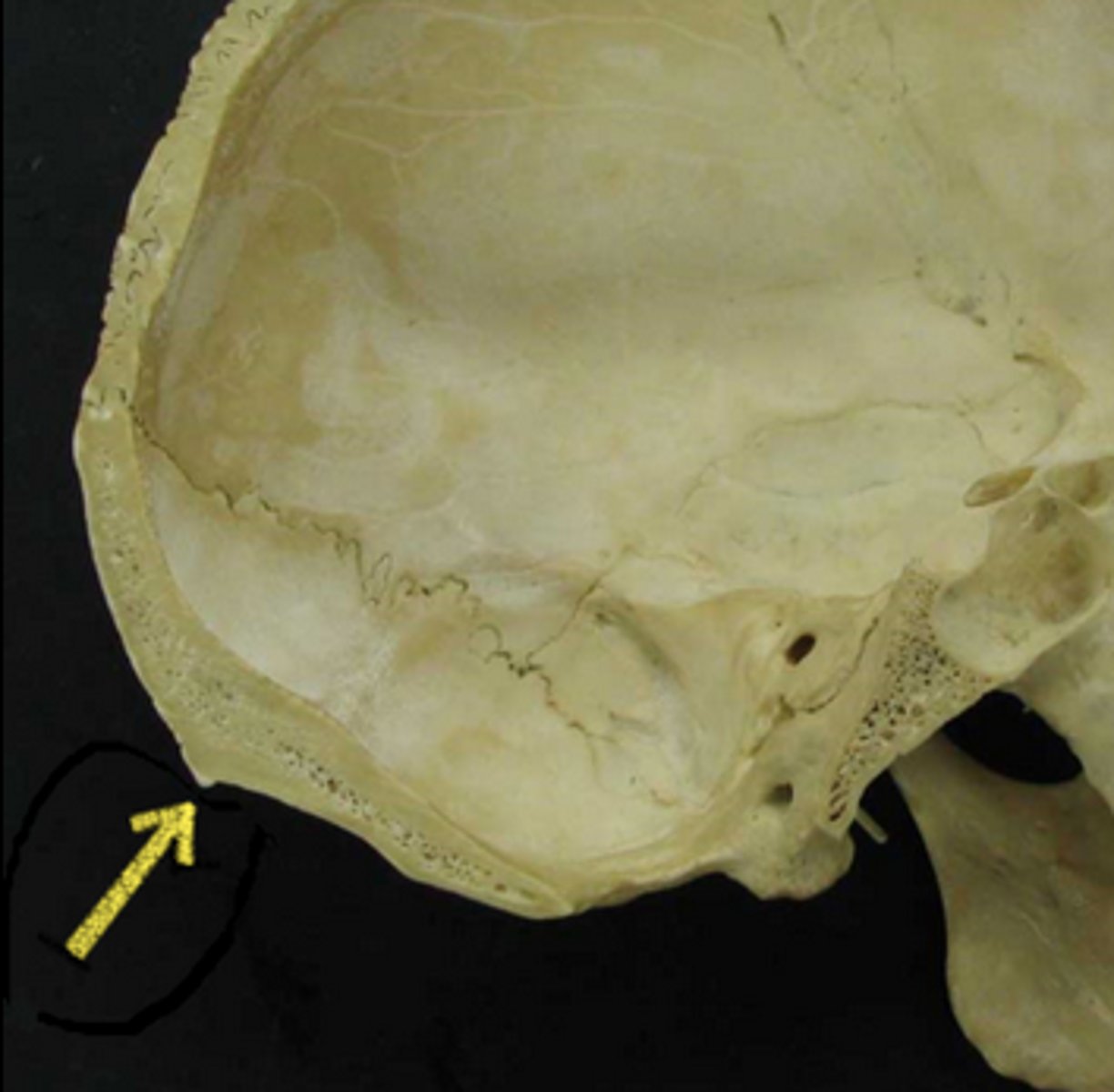

Inion

most prominent projection of the occipital bone at the posterioinferior (lower rear) part of the skull

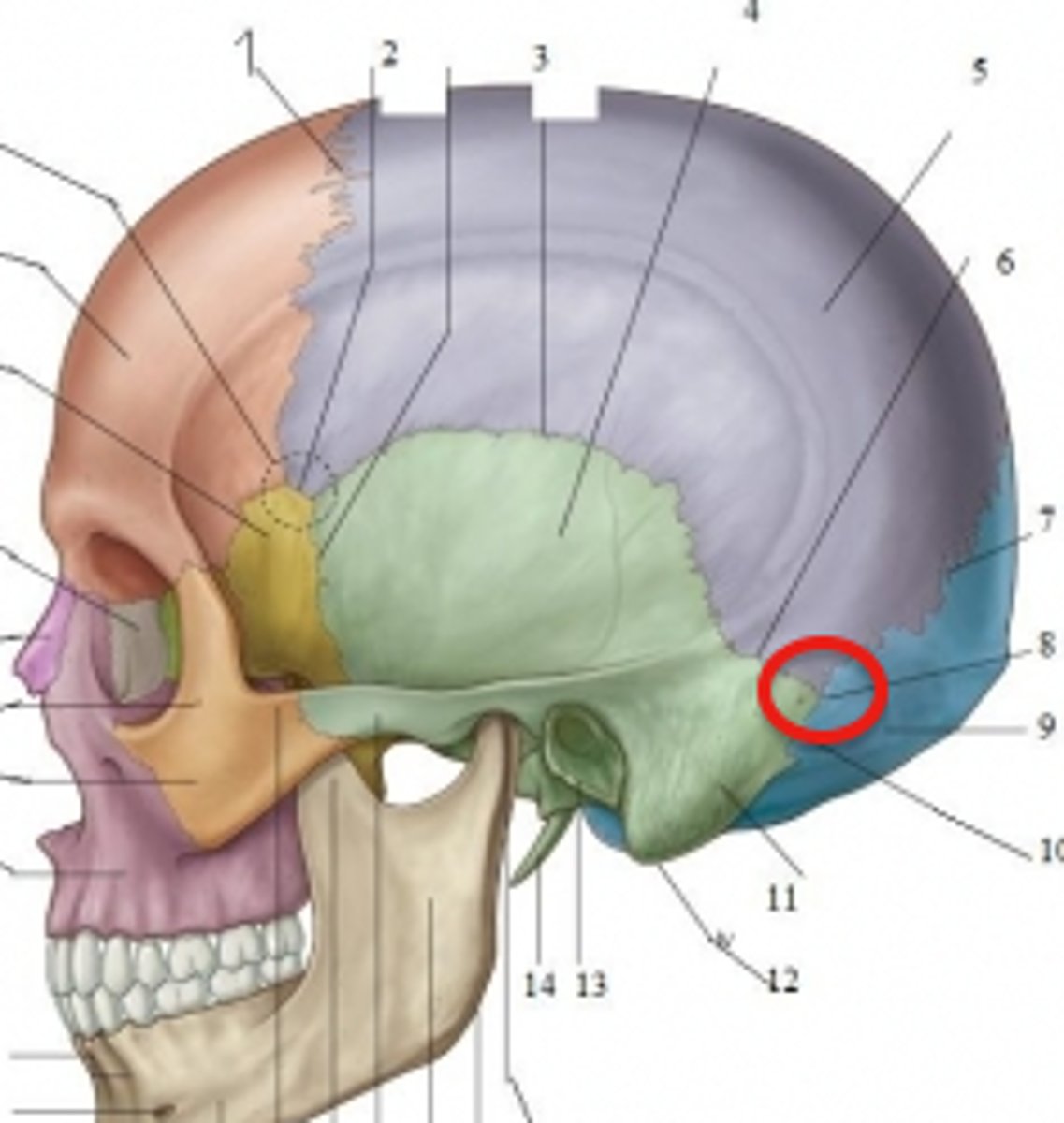

Asterion

Where Parietal, Occipital, and Temporal Bones meet

Pterion

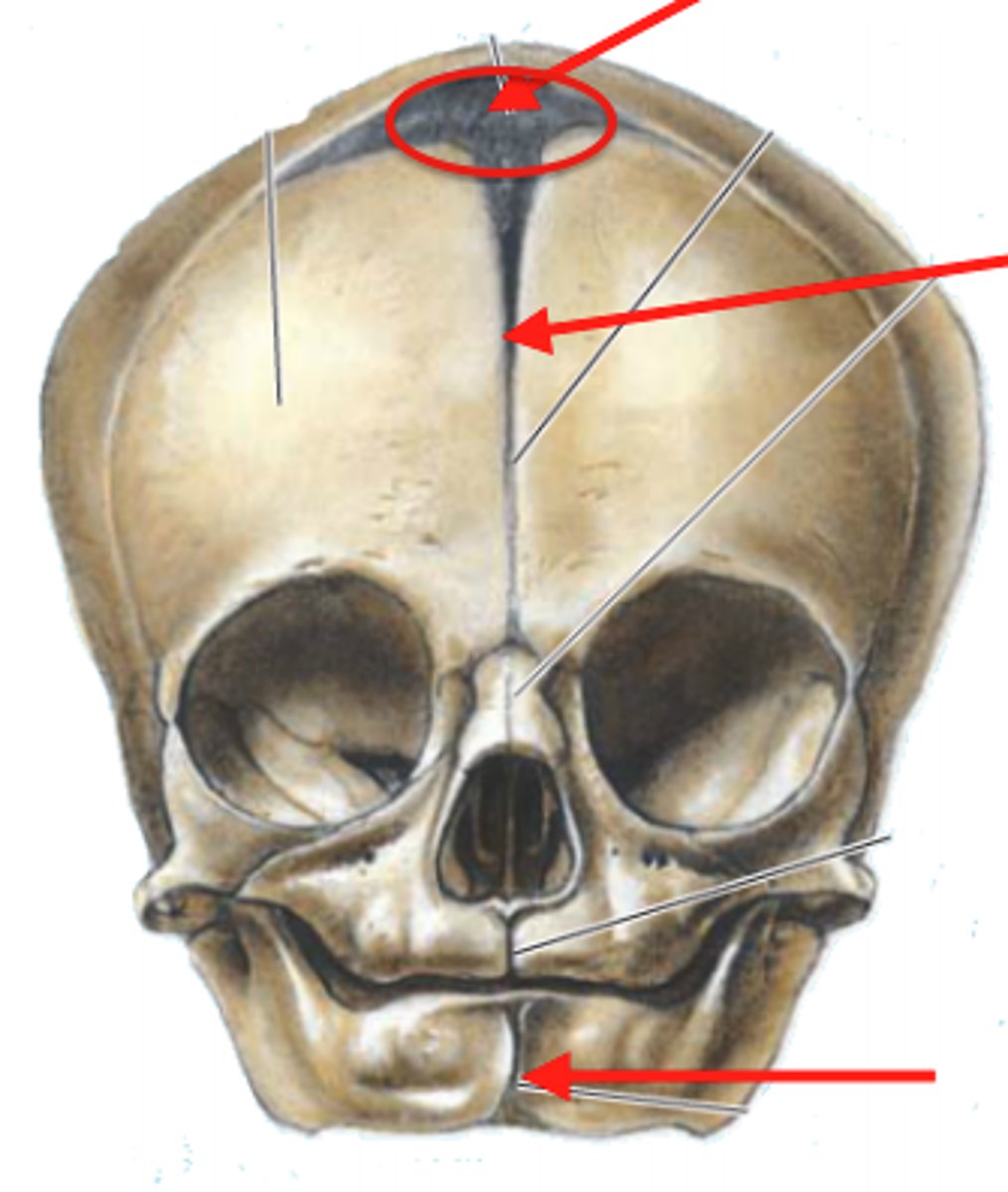

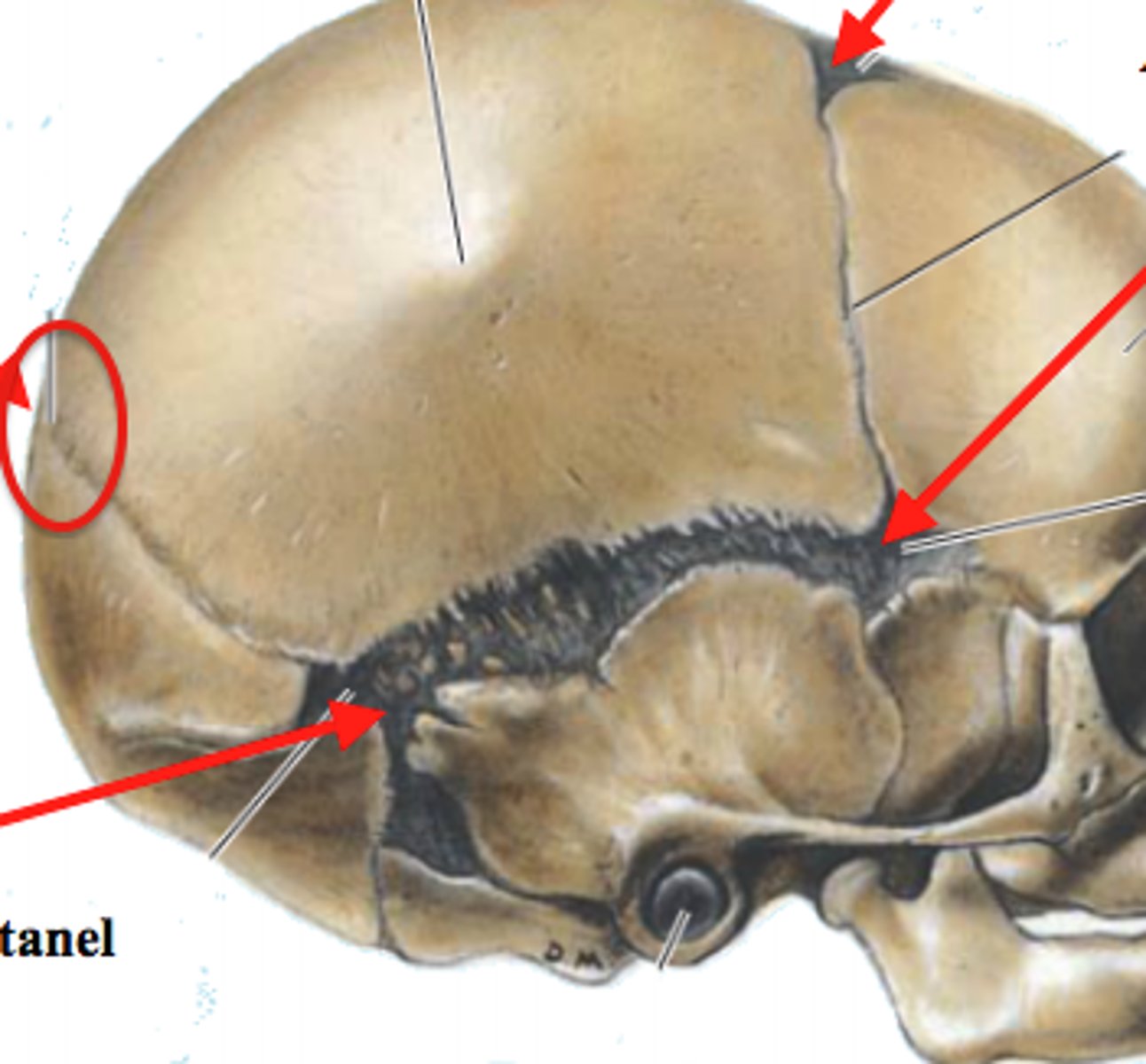

Anterior Fontanel of the Fetal Skull

Posterior Fontanel of the Fetal Skull
