Database Conceptual Modeling

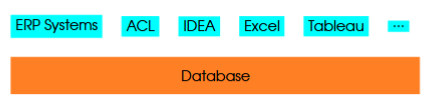

Database

• foundation for most, if not all, software tools we use in accounting

• some examples:

  • ERP systems

  • auditing tools

  • microsoft excel

  • tableau

ERP Systems

• modern systems typically use a kind of 4-tier architecture

• one of the three layers is the database layer

  • this is where data is stored and processed

• everything including “accounting” data (debits and credits) is stored in database

Auditing Tools

• tools such as ACL and IDEA are specifically developed for auditing purposes

• based on database but have different “package” in marketing sense

• many functions such as gap analysis and duplicate detection, can be done by directly using database tools

Microsoft Excel

• powerful tool

• PivotTable function is a good example of how much it is used in accounting firms

• behind the function is database technology

  • must organize the data in some “database” way before we can use the function

• getting external data: you need to know database bc you would need to connect from Excel to databases as a means to collect data

Tableau

• more recent tool built on Excel

• based on database technology

• it will be very easy to learn if you know database

Database Management Systems (DBMS)

• specific systems such as Microsoft Access and Oracle

• different types:

  • desktop

  • workgroup

  • enterprise

Desktop

• type of DBMS is relatively small, usually designed for handling small amount of data

• supported users: single

• usually these systems are installed on desktops for personal use and support small sizes of database

• examples: Microsoft Access and OpenOffice Base

• Access can do most of what you can do on Excel, but the ways the tools are used differ

Workgroup

• type of DBMS more powerful than desktop-based systems

• usually they are supposed to support department-level uses with relative small numbers of users

• examples: Microsoft SQL Server, MySQL, and Postgres

• supported user: many (department level)

Enterprise

• type of DBMS typically used in large ERP systems such as SAP and Oracle

• they support larger number of users (enterprise level)

• the most powerful among database systems

• examples: IMB DB2 and Oracle

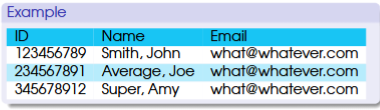

Type of Database Tech: Relational Database

• store data in relations

• relation: two-dimensional structure, list like a table

  • has rows or columns

• relations or tables are used to keep track of “things”

• example: table of students = relation

  • “student” is a type of thing

  • students are people not “things” but from a database perspective, everything is a “thing”

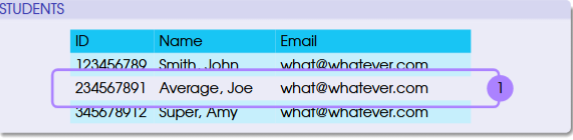

Records

• rows in a table

• each one represents a specific thing (vis-a-vis type of thing represented by a table)

• in this example, each one refers to individual students

• example: one holds info about the student named Joe Average but no one else

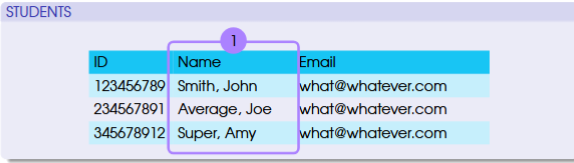

Attributes and Fields

• columns of a table that store those characteristics that we use to describe the ‘thing’ we want to keep track

• each one represents a characteristic of the thing (e.g., Name)

Relational Database: Data Integrity Rules

• entry integrity

  • no two instances of the entity are the same, otherwise we can’t tell who is who

    • in other words, each row in the table must be unique and identifiable

  • enforced by primary key: one column or the combination of multiple columns that can be used to uniquely identify all rows in the table (e.g., student ID number to identify students)

• referential integrity

  • ensure that data can be referenced and tables are properly listed when there are many tables (which is the case for relational database)

  • foreign key in one table is used to link to another table

    • values under foreign key column(s) are matched to those under the primary key of the other or the source table

  • NO “dangling” values under the foreign key that have no matches in the other table

  • referential integrity means all student IDs in the enrollment table must have matches in the student table

Primary Key

• it is the ID, in a student table that stores personal info of students

• ID can be used to uniquely identify the student

• another example: combination of course ID and studentID bc both info found in a student enrollment table tell us who is taking what classes and their grades

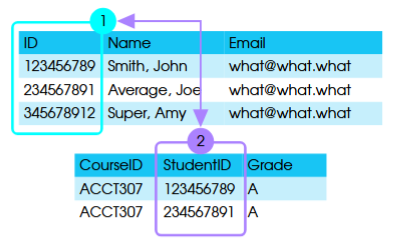

Foreign Key

• it is the Student ID, which is linked to the column ID in the student table

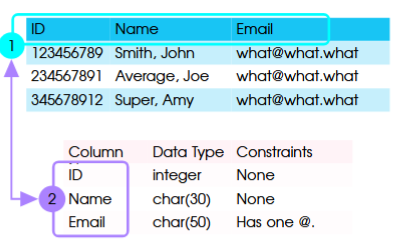

Another concept of relational database: Meta Data

• it means data about data

• about how table and its columns are defined

• also known as data dictional or data definition

• example: one table about the info and a second table about the definitions of the data from the first table (column, data type and constraints)

  • example: email’s constraint → must have one special character “@”

Another concept of relational database: Schema

• refers to the logical structure of a database: how data are defined, organized, and used

• logical structure can be contrasted with physical structure

  • refers to physical storage of data:

    • how much disk space do we need

    • what hardware devices do we use

    • how we attach the database hardware to the computer network so that users can access data

• three types:

  • external

  • internal

  • conceptual

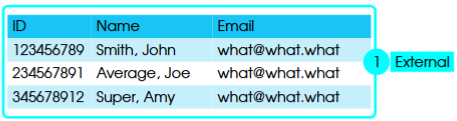

Type of Schema: External

• top level is about what we see and how we use data

• different users may see or use different portions of the data and present the data differently

• example: we may show data in plain tables or fancy reports

• table or report: shows many records together

• form: displays on only one record

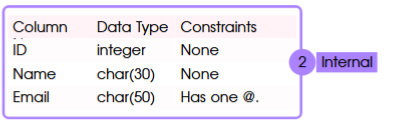

Type of Schema: Internal

• bottom level of schema is about how we define a table and its columns

• definitions on name, length, data type, and constraints

• need to specify primary key

• description: detailed definition and design

• related concepts: data definition

Type of Schema: Conceptual

• somewhere in between

• at this level, we give a high level overview of what data are available in the database

• showing “things” about which we are going to maintain some information and how they are related to each other

• related concepts: entities and relationships

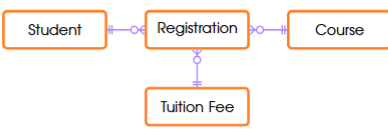

Example of Conceptual Schema

• keeping track of four “things”:

  • student

  • course

  • registration

  • tuition fee

• how are things related to one another?

  • we can tell that students must do their registration, which involves classes and tuition fees are assessed based on the registration

• internal schema will provide more detailed info about students

ER Model

• entity-relationship (ER) model

• systematic method for developing a conceptual schema for database design

• understanding the nature of the data is the very first step of analyzing data

• idea: to show database design in a diagram, which is why we call this ER diagram (ERD)

  • graphical presentation

• consists of a set of concepts and symbols:

  • entity

  • relationship

  • attribute

  • key

  • cardinality

Simple ER Diagram

• two elements:

  • entity: the “thing” we want to keep track of in the database

    • two things: student and course

  • relationship: how things are related

    • example: student takes course

ER Model: Entity

• type of thing we want to keep track of

  • example: using the term student here as an entity = we are talking about the generalized type or class

• generalized, not specific individual things (synonym: “class”)

• examples:

  • student

  • course

  • product

  • purchase order

  • customer

Instance

• specific individual things of the type

  • example: actual individual students such as John Smith

  • example: different types of purchase orders

ER Mode: Attribute

• characteristics of an entity that we want to keep track of

• all instances of the same entity should have the same set of attributes

  • instances may have different “values” for the same attribute, otherwise they would be the same and not identifiable

• example: student entity

  • student entity has four attributes:

    • CWID

    • last name

    • first name

    • GPA

  • thus, all instances (students) should have some information for these four attributes

  • values for each student (instance) may be different

Value

• the attribute of an instance is a specific value

• otherwise known as characteristics of a specific individual thing of the type

ER Model: Identifier

• an attribute or the combination of multiple attributes we use to uniquely identify individual instances

• example: for the entity student, we can use the attribute CWID as the identifier

• in the SAP system, we use material number as the identifier for the material entity

• simple identifier: if only one attribute is used

• composite identifier: multiple attributes used together

  • example: address

    • model address as an entity and use the combination of number, street, city, state/province, and country as the identifier

ER Model: Relationship

• refers to how entities are linked in a database

• example: (student) takes (course)

  • potential attribute for the relationship (“takes”) is a grade

• relationship is not the same as relation

• can have attributes, meaning some characteristics can be used to describe the relationship

  • “describe”: can treat the relationship as an entity and store some data about it

Degree of Relationship

• related to a relationship

• refers to the number of entities involved in the relationship

• typical relationship: two entities involved (binary relationship)

  • example: student-takes-course

• ternary relationship: three entities or, more generally, N-ary relationship

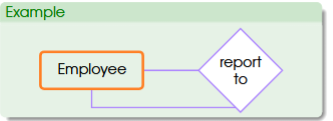

ER Model: Unary Relationship

• the relationship between an entity and itself

• also called a recursive relationship

• recall that an entity is a type of thing, not an individual thing

• example: the relationship between entity employee with itself

  • “employee reports to employee” means the supervisor-subordinate relationship between individual employees

  • of course, all employees are “employee” regardless whether they are supervisors or subordinates

ER Model: Relationship: Cardinality

• simply means “count”: how many are involved in the relationship

• count is about how many “instances”

• given a relationship of two entities A and B:

  • from the perspective (side) of A: an instance of A is linked to how many instances on the other side (cardinality of B = A - B)

  • from the perspective (side) of B: an instance of B is linked to how many instances of A on the other side (cardinality of A = A - B)

• 2 broad categories:

  • maximum cardinality

  • minimum cardinality

Maximum Cardinality

• maximum number of instances of an entity can participate in the relationship

• note: it is the up limit, so any number lower than that is allowed

• three broad types of relationship:

  • one-to-one

  • one-to-many

  • many-to-many

Minimum Cardinality

• minimum number of instances of an entity must participate in the relationship

• it’s a minimum, so it’s a requirement (not optional)

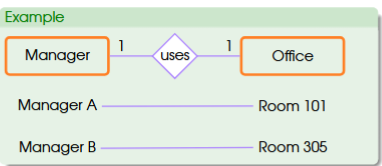

Maximum Cardinality: One-to-One

• basically means that an instance from one side is associated with one instance from the other side

• does not matter which side you look at the relationship

• be careful when you take side for interpretation

• example: manager and office

  • manager: from the side of the manager, one manager can have x office on the other side. (the second “one” (x) is referred to as the cardinality of office. One is one so there is no difference in terms of number)

  • office: from the perspective (side) of office: one office can be occupied by one (y) manager on the other side. (y is referred to as the cardinality of manager)

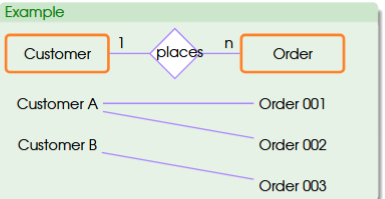

Maximum Cardinality: One-to-Many

• an instance on the one side can have many related instances from the other side (many side)

• an instance on the many side will have a maximum of one related instance on one side

• example: customer and order

  • customer: from the perspective of customer, one customer can have many (n) orders on the other side (many (n) is referred to as the cardinality of order)

  • order: from the perspective of order, one order can be placed by (1) customer on the other side (1 is referred to as the cardinality of customer)

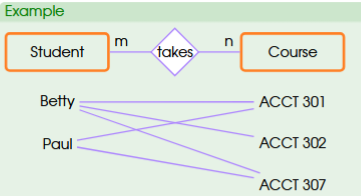

Maximum Cardinality: Many-to-Many

• an instance on either side can have many related instances from the other side

• example: student and course

  • student: a student can take many n courses. this many (n) is the cardinality of course.

  • course: one course can be taken by many (m) students. this many (m) students is the cardinality of student.

Notation 1

• rectangle as entity

  • name of the entity is put as text within the rectangle, usually in boldface font

• attributes

  • list attributes under the entity name within the rectangle

• identifier

  • identifier of an entity is one attribute or the combination of multiple attributes

  • underline the attribute(s) to identify the identifier

• relationship

  • a line that links two entities is used to represent the relationship between the two

  • simple description of relationship is put in a diamond shape

  • note: diamond shape is often omitted to make diagram less crowded

• cardinality

  • numbers and letters are used to represent cardinalities

  • letters (usually m or n) represent “many”

• example: cardinalities

  • customer = 1

  • order = n

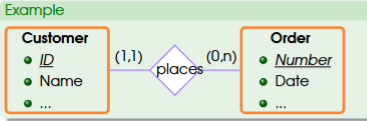

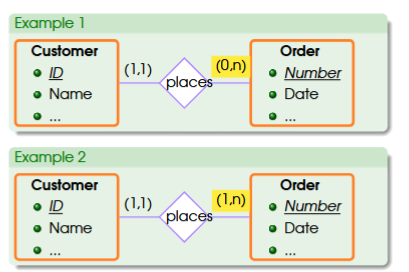

Notation 2

• basically the first notation but we are adding one more thing: minimum cardinality

• in this notion, we can have a bit more info about the relationship between two entities

• minimum cardinality: min number of instances that are required to participate in the relationship

• example: customer places order

  • one customer can have a minimum of 0, maximum many orders. in this case, customer can have no orders at all (0, n)

  • one order can be placed by minimum one, maximum one customer. this means that one order can be associated with one but only one customer

Compare Notations 2

• first example: customer can have many orders or non

  • this means we can create a new customer in our system and then try to sell something

• second example: customer must have at least one order

  • this means that we are not going to put a customer in our system without an order

• additional questions:

  • can two customers have the same name?

  • how many orders can a customer place on the same day?

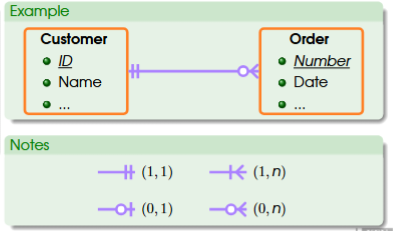

Notation 3

• based on notation 2 except for two differences:

  • symbols are used instead of numbers and letters for cardinalities

  • relationship descriptions are not shown here but keep the line

• circle = 0

• vertical bar = 1

• crow’s foot = three-line claw means many

• minimum-maximum is just a combination of the three base symbols

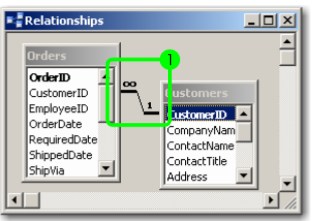

Notation 4: Microsoft Access

• infinity sign means many

General Rules to Develop an ER Model

1. identify entities: what are the “things” we want to keep track in the system? what “things” can be modeled as entities?

   1. method for identifying entities: REA model

2. identify relationships: how are things related?

   1. most common relationship: one that can be described by using verbs

   2. example: student “takes” course; customer “place” orders

3. identify cardinalities: what rules should the relationships follow?

   1. very important step bc it has some impact on how we interpret and verify data

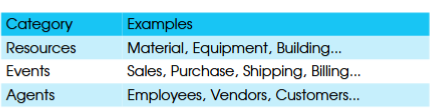

REA Approach

• resources, events, and agents

• idea: if we can identify all resources, events, and agents of a business, we can have a good collection of entities for developing a business database.

• more specifically:

  • resources: things that have economic value for a business (aka economic resources)

  • events: business activities that have some impact on economic resources (e.g., sales, purchases, and production among others)

  • agents: whoever participate in business activities (e.g., employees, customers, suppliers, among others)

REA Approach: Rules to Identify Relationships

• an event involves at least one resource

• an event has at least one participant (agent) in most cases

  • example: sales event usually involves sales people at least

• an event is often paired with another event in terms of impact on resources (duality)

  • in one event, we get something (resource), in the other we give up something else (“get-give” duality).
