Aeronautical Charts

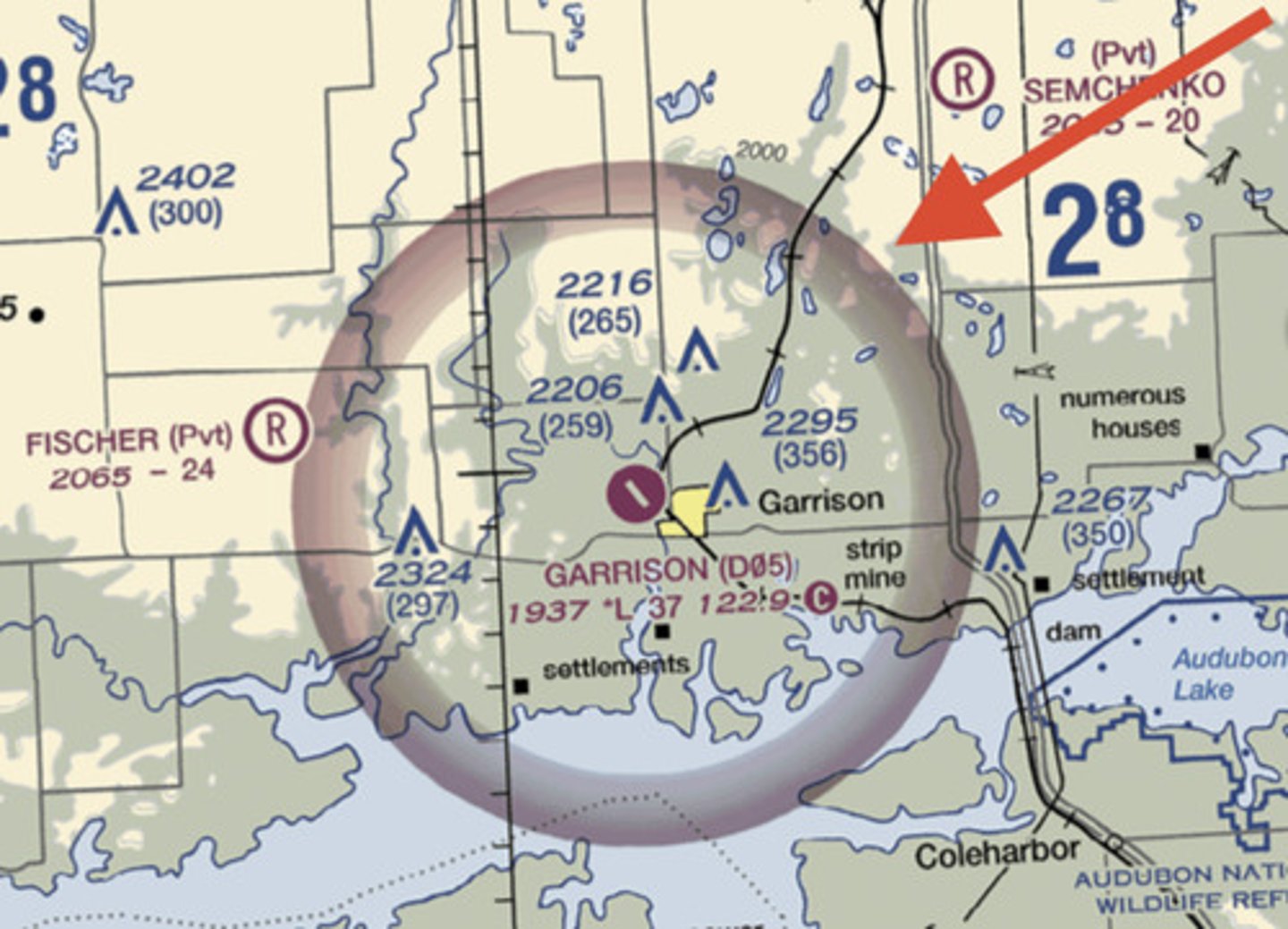

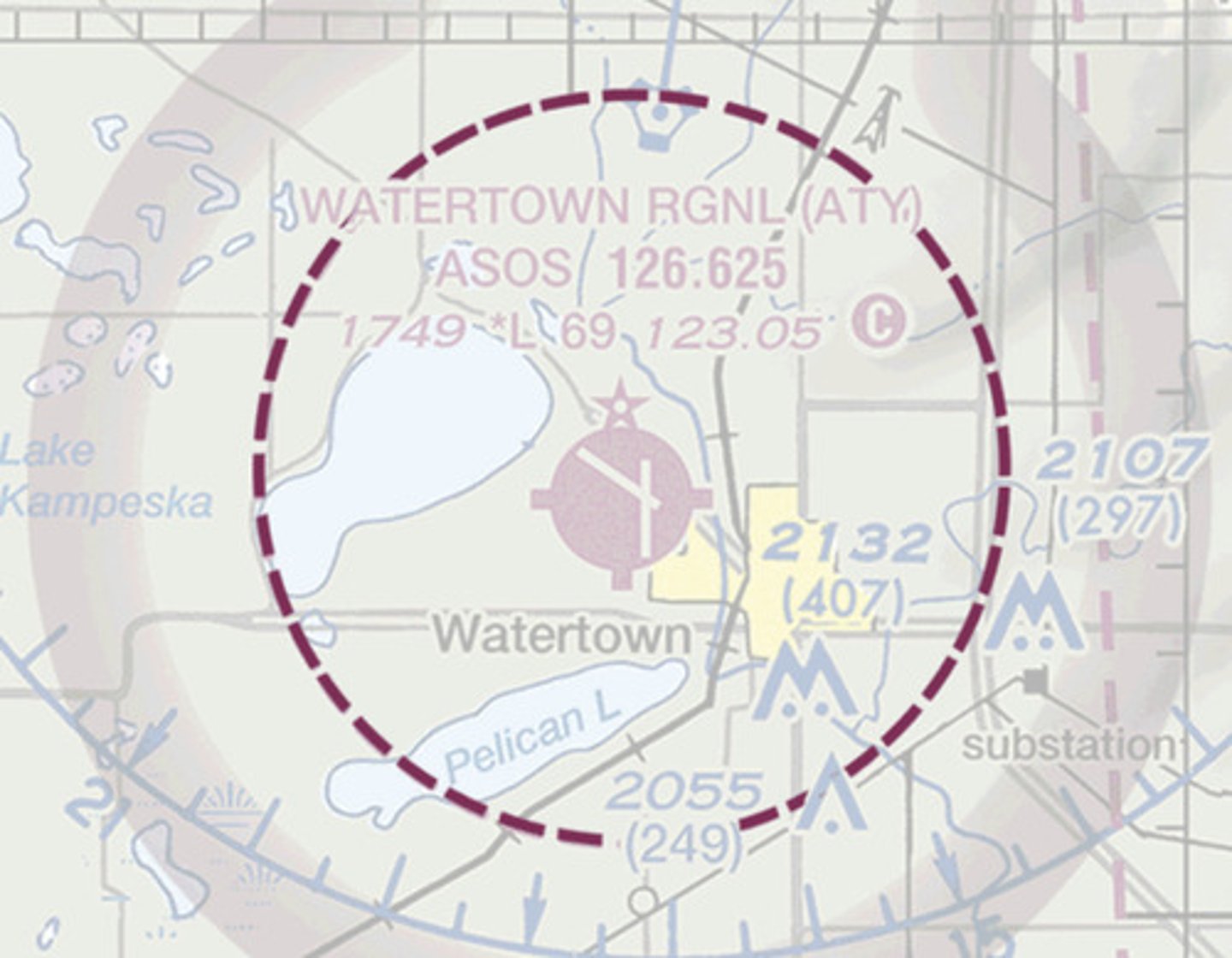

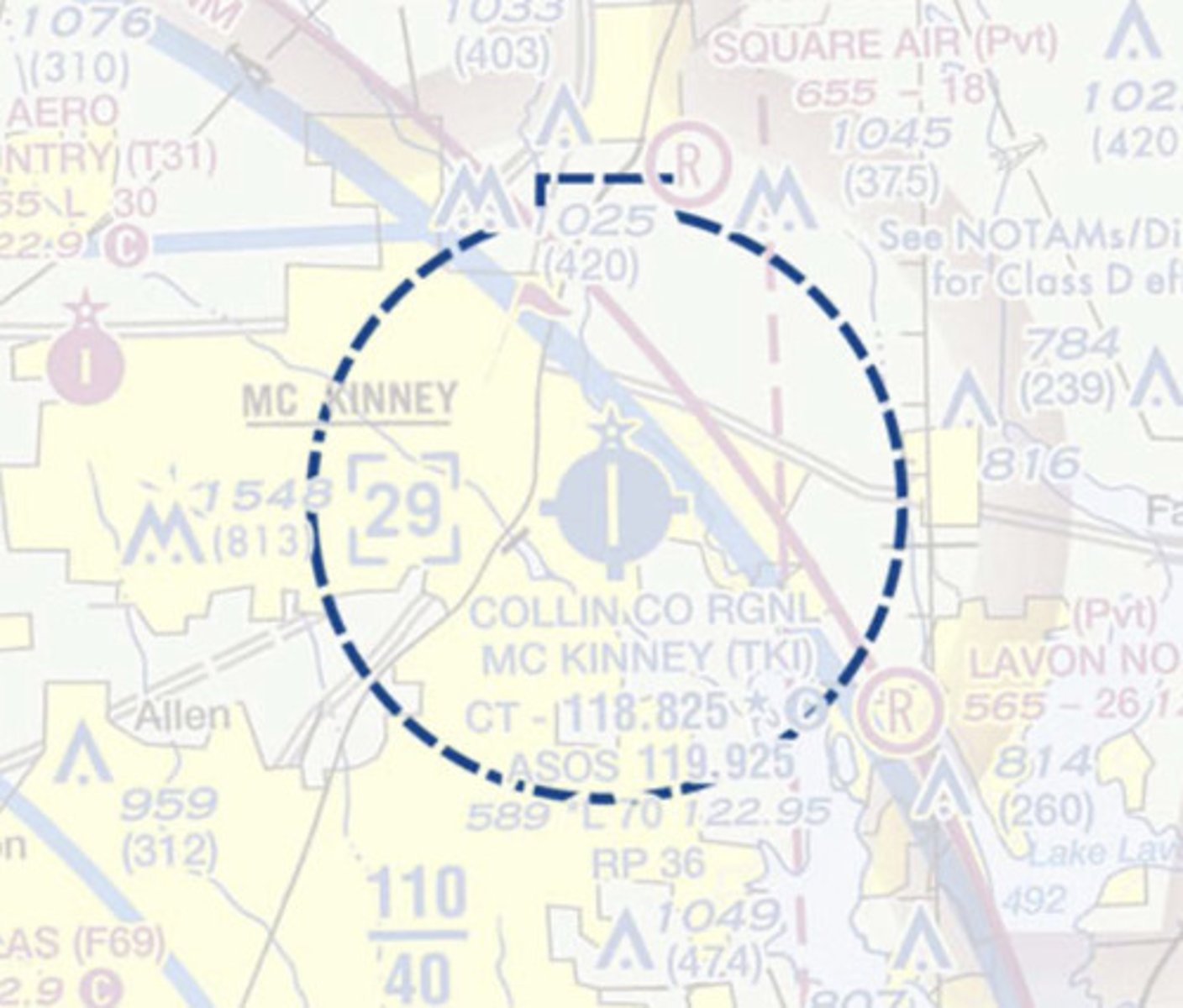

Class D aircraft boundary

Scale 1:1,000,000 - Used for flight planning and by higher flying faster aircraft. Some detail lost.

Word Aeronautical Chart (WAC)

Scale 1:500,000 - Most common VFR chart

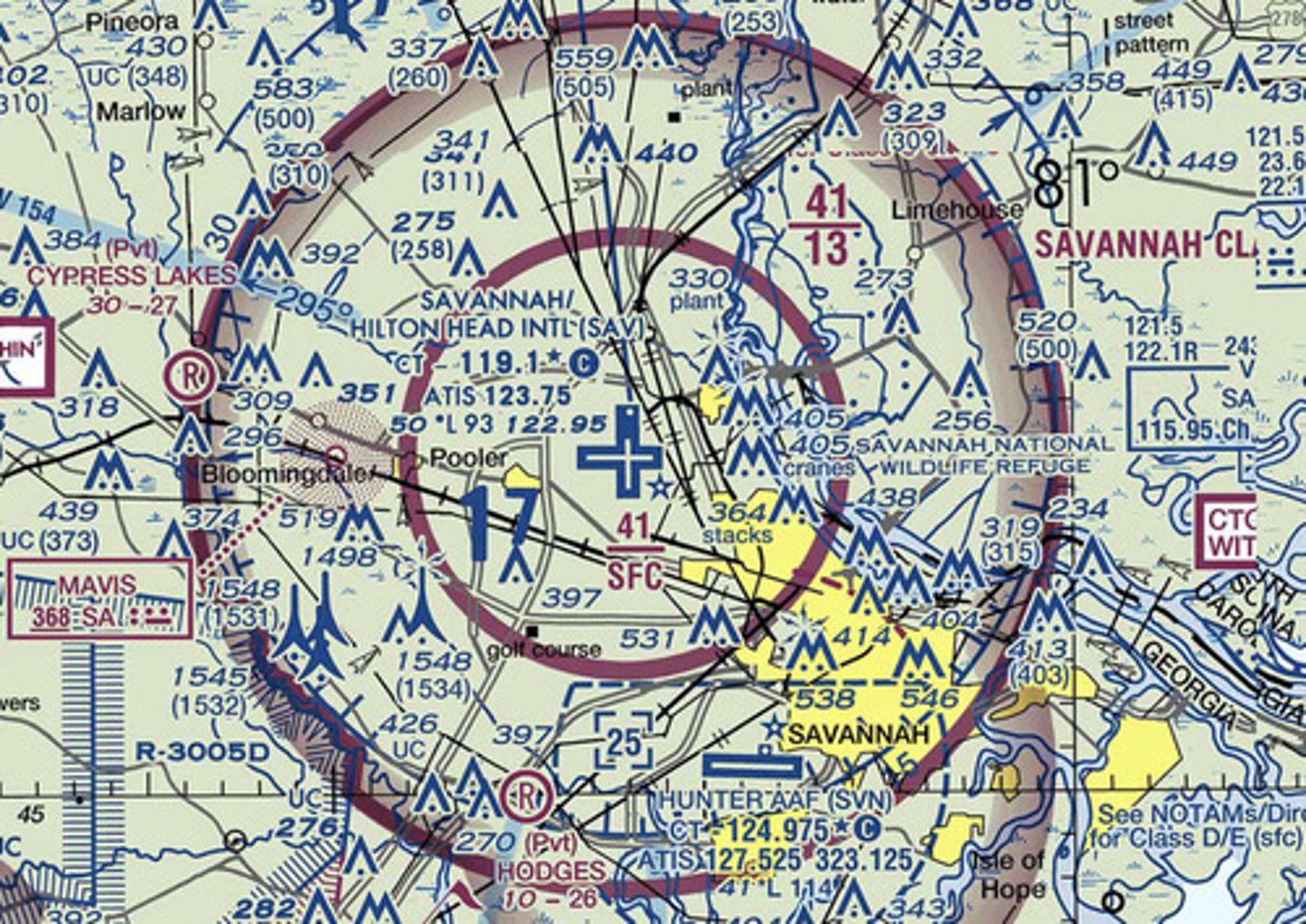

Sectional

scale 1:250,000 - published for select terminal areas where increased detail is necessary

Terminal Area Chart (TAC)

Class C aircraft boundary

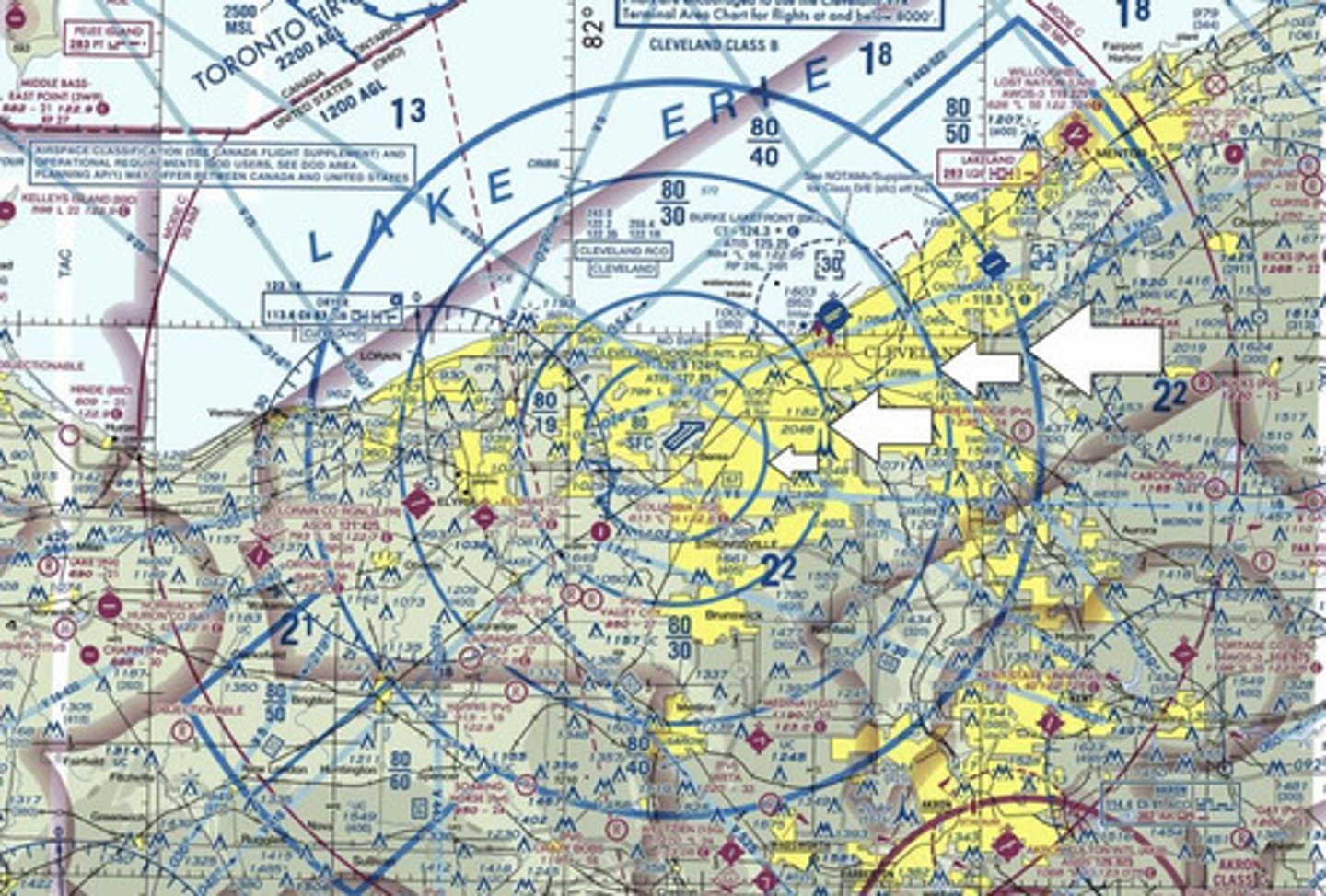

Class B aircraft boundary

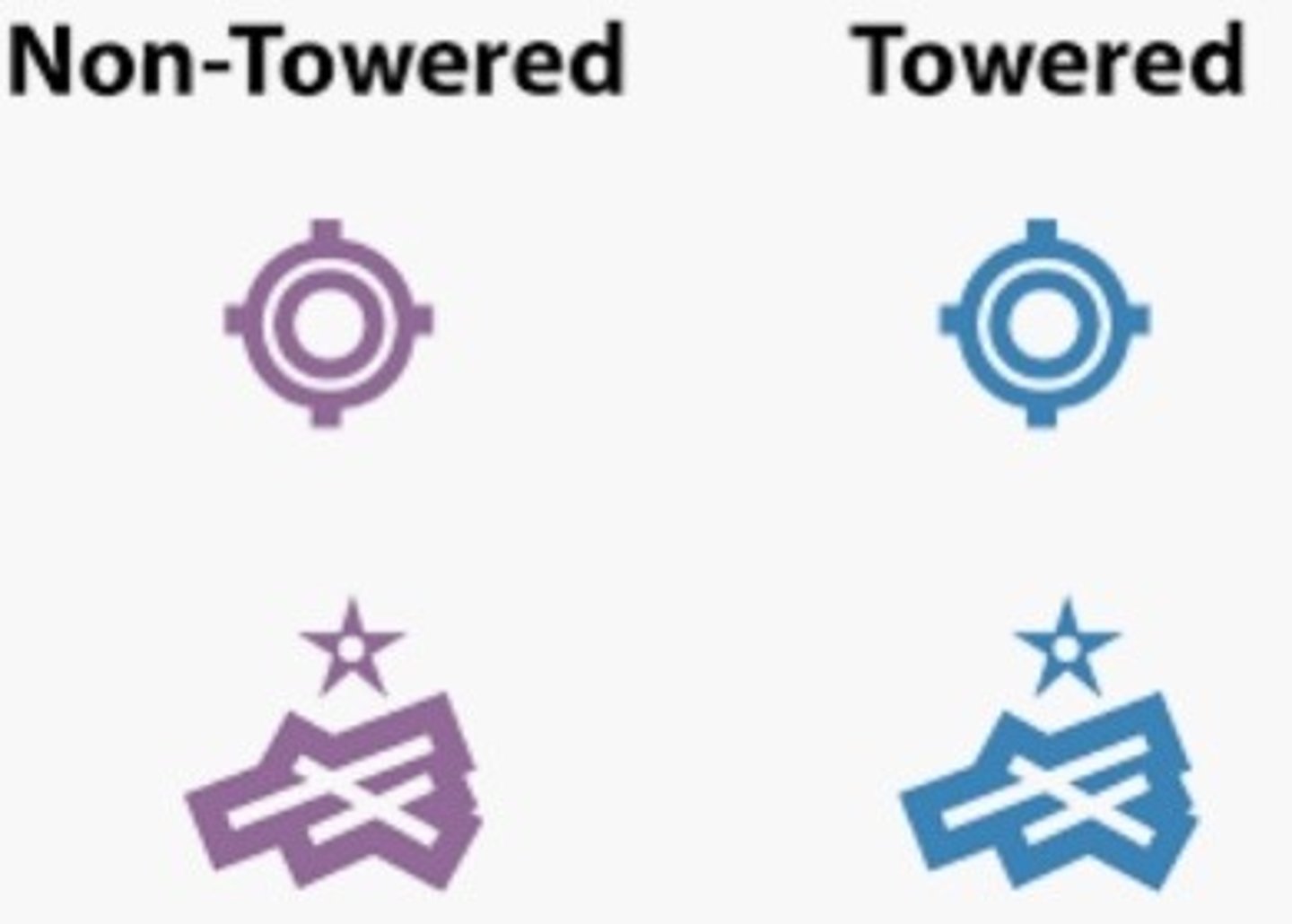

Blue vs. Magenta airports

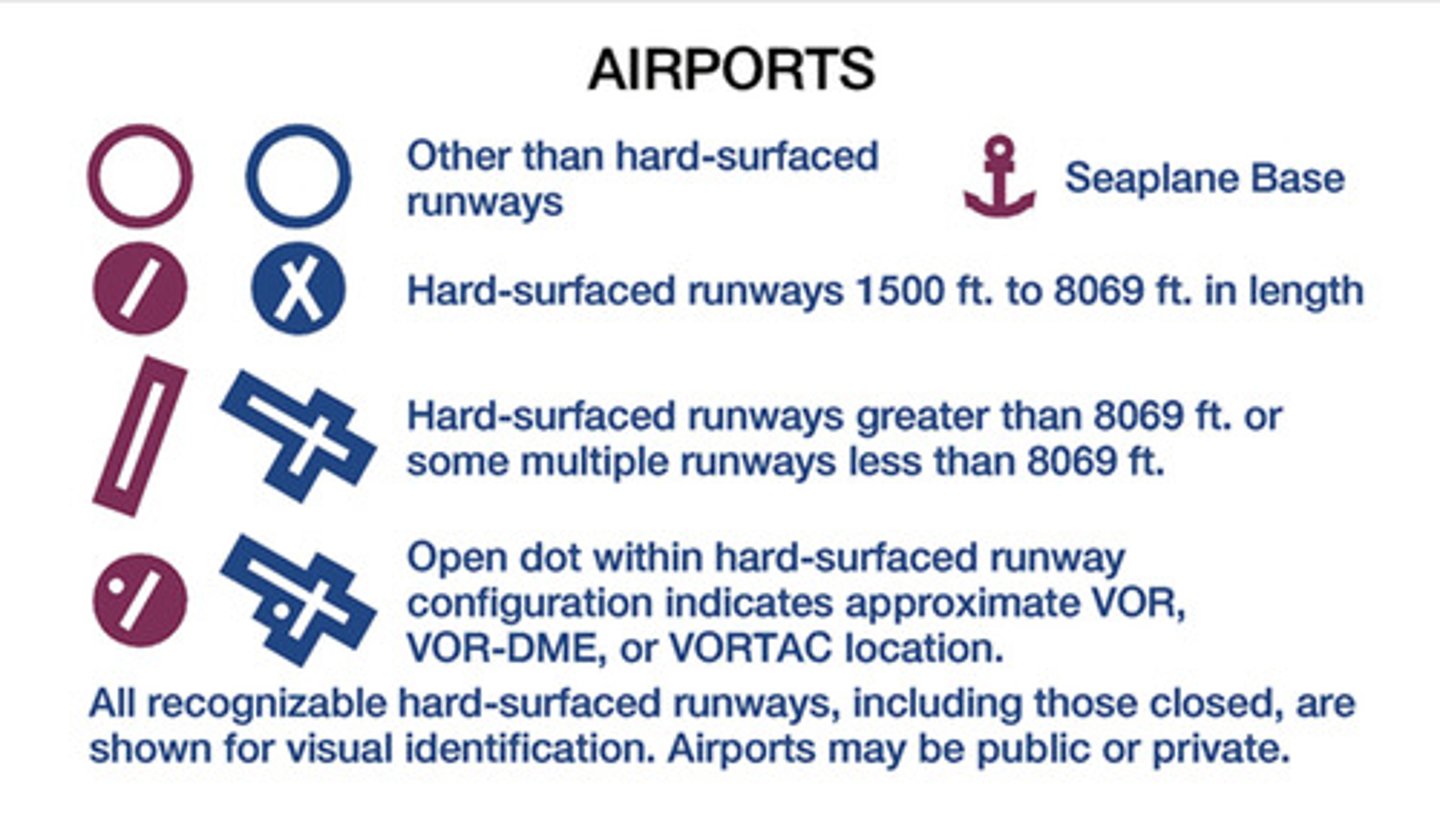

Airport shapes

Class E at 700'

Class E at surface

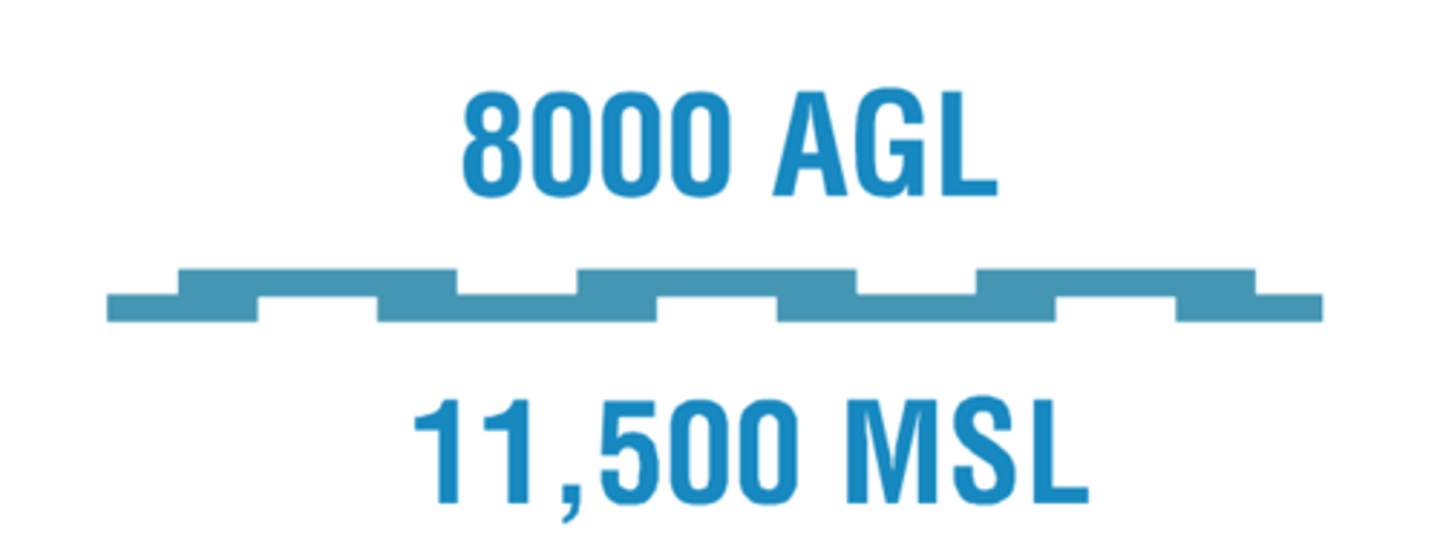

Differentiates floors of airspace greater than 700 feet above the surface

Class G airspace beginning at 1200 feet AGL or greater

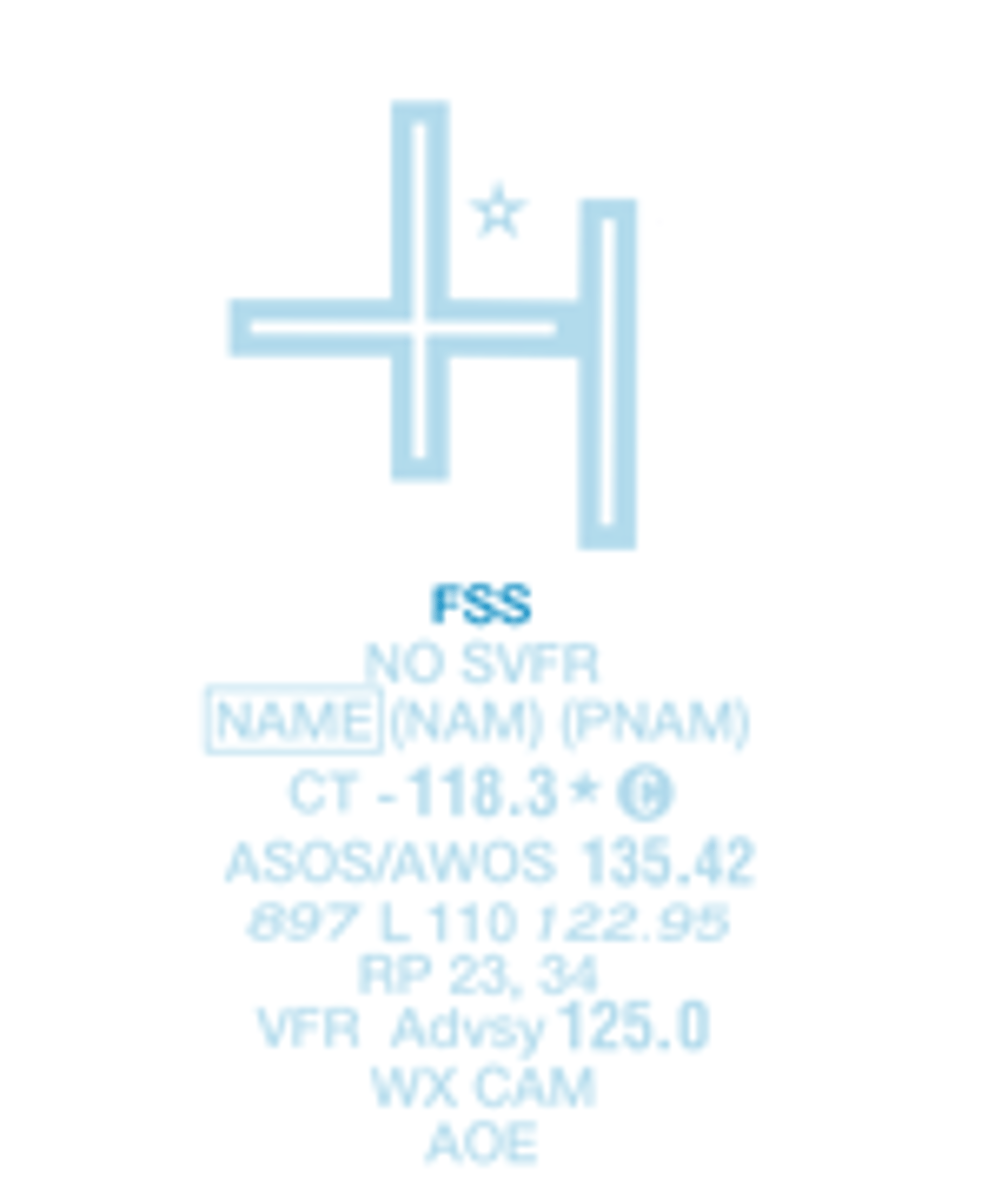

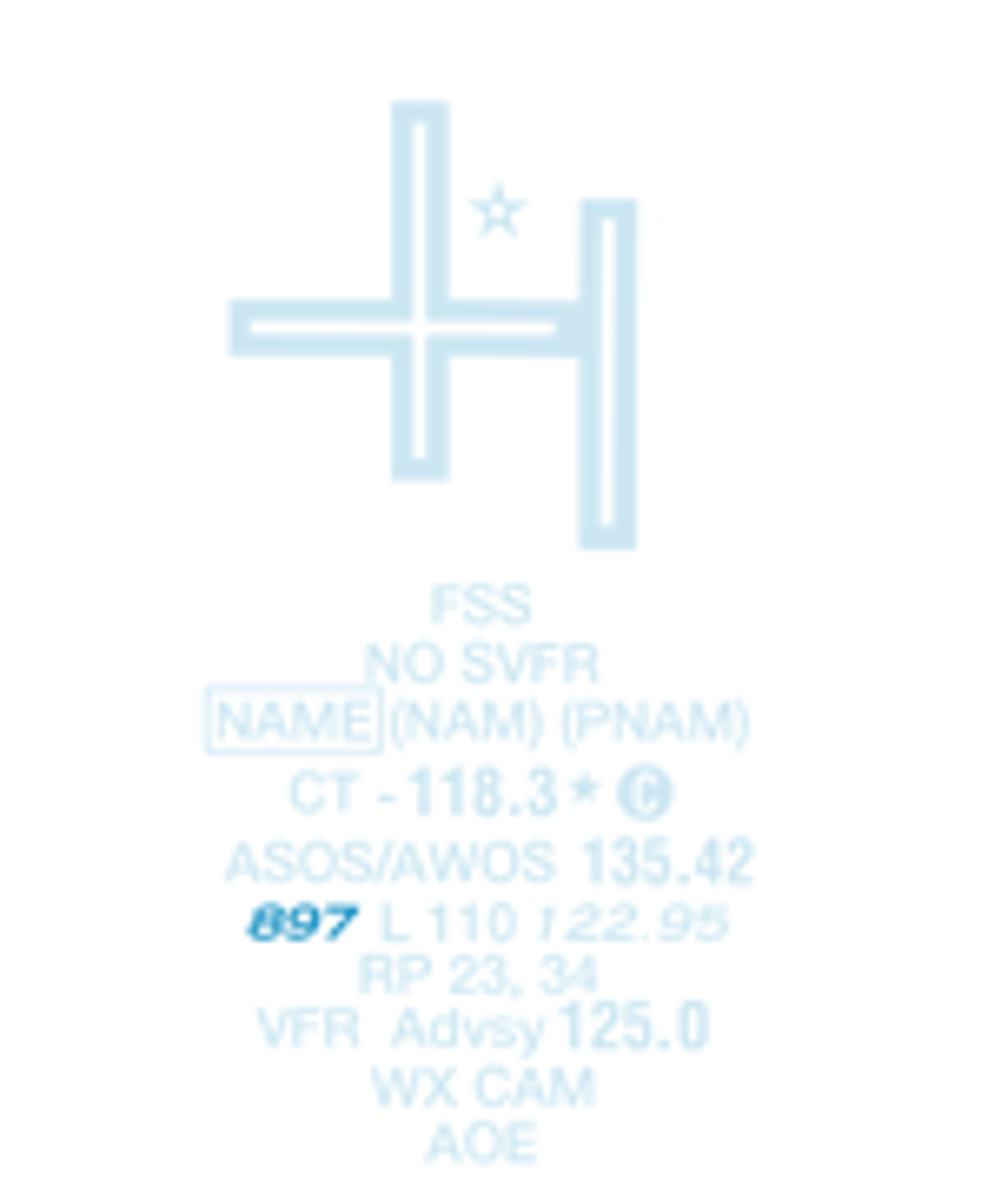

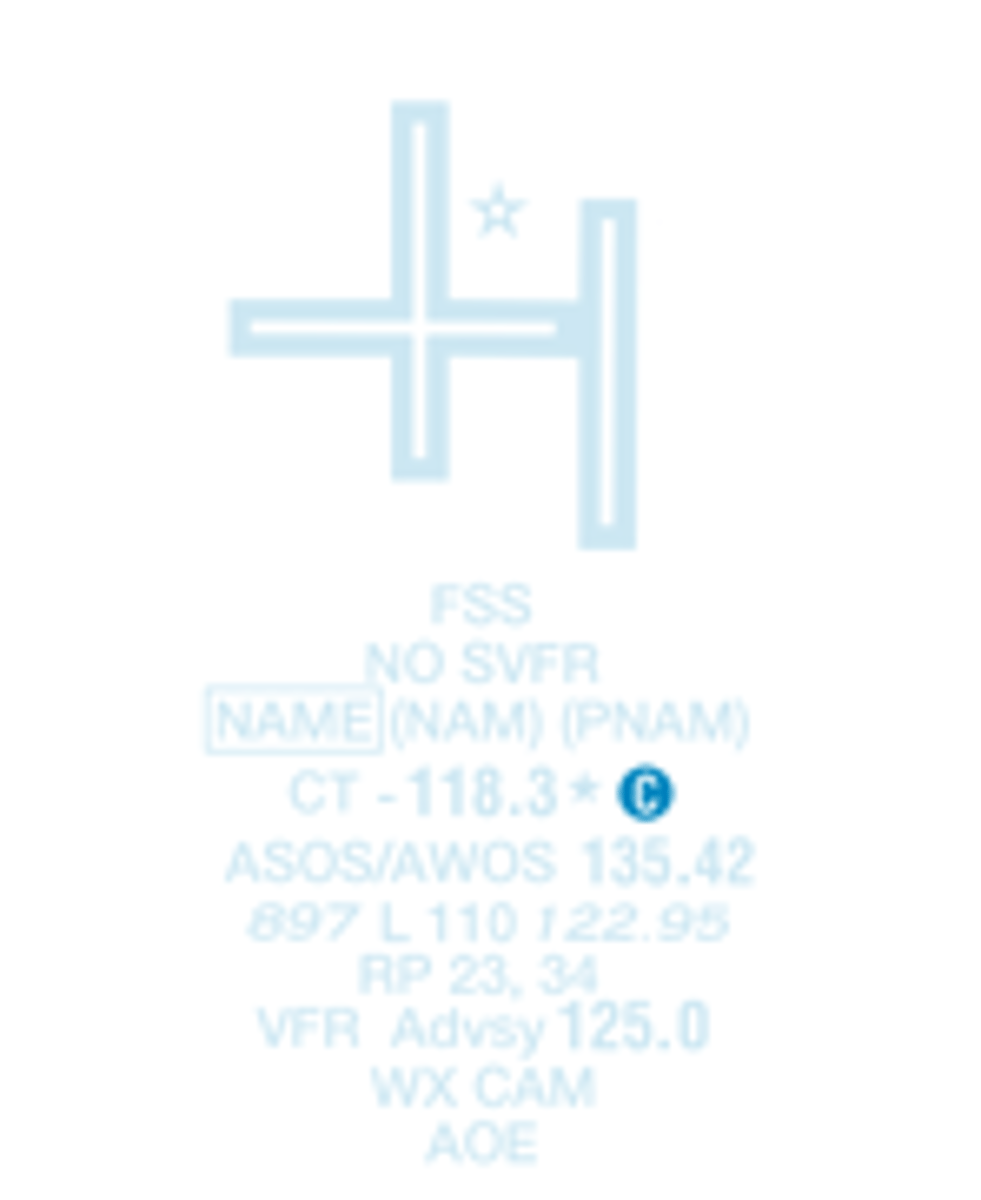

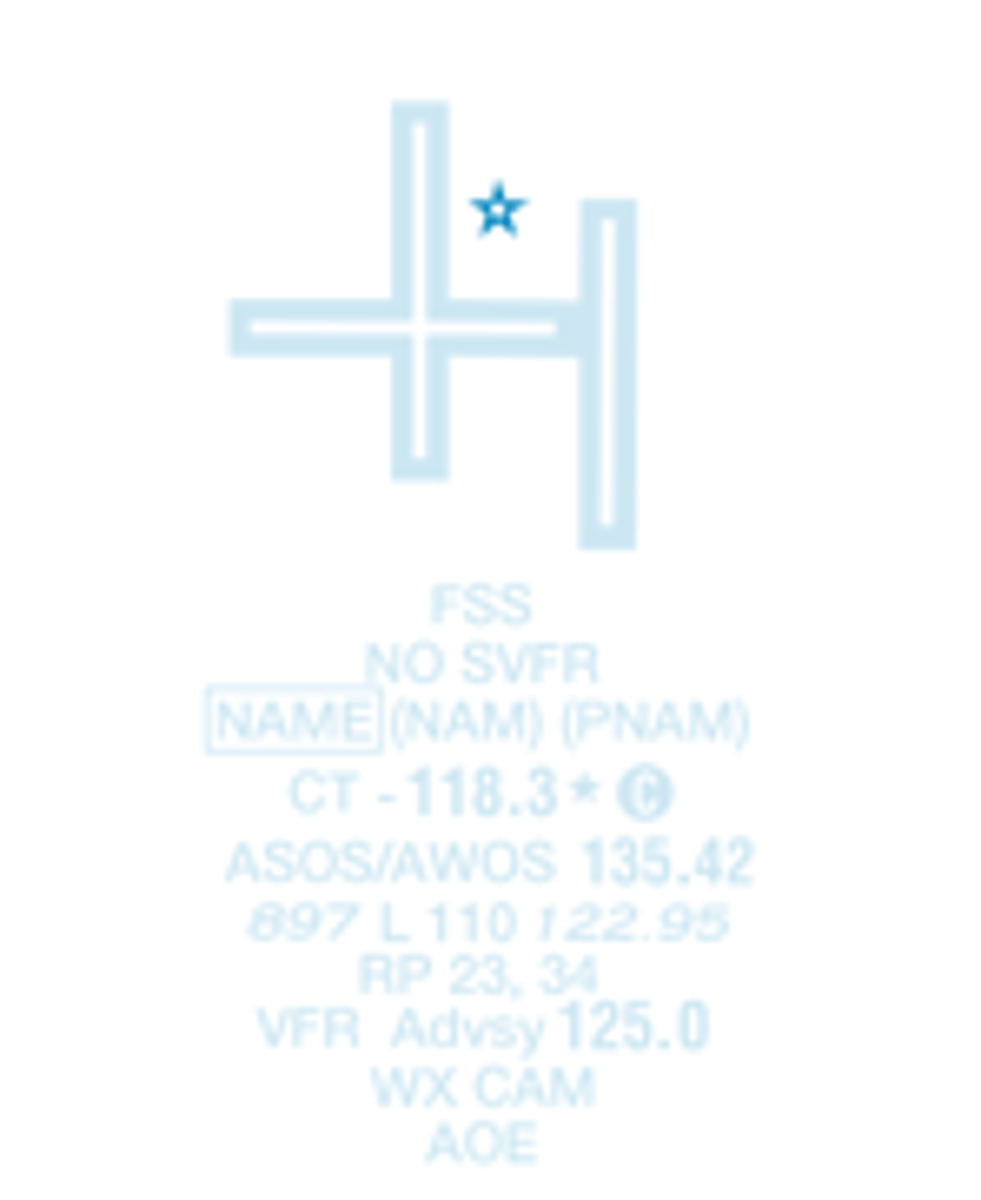

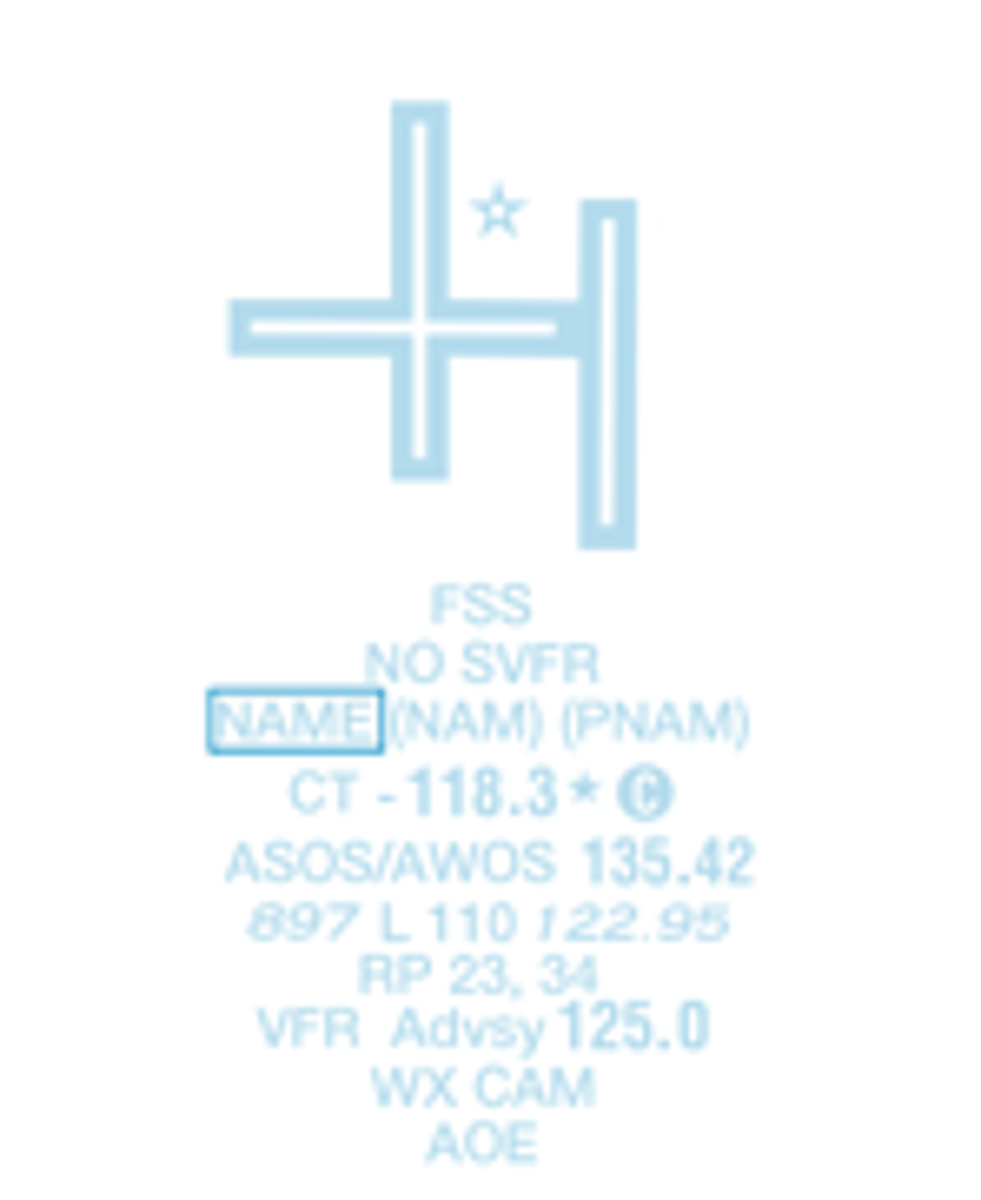

Flight Service Station on field

Indicates FAR 93 Special Air Traffic Rules and Airport Traffic Patterns

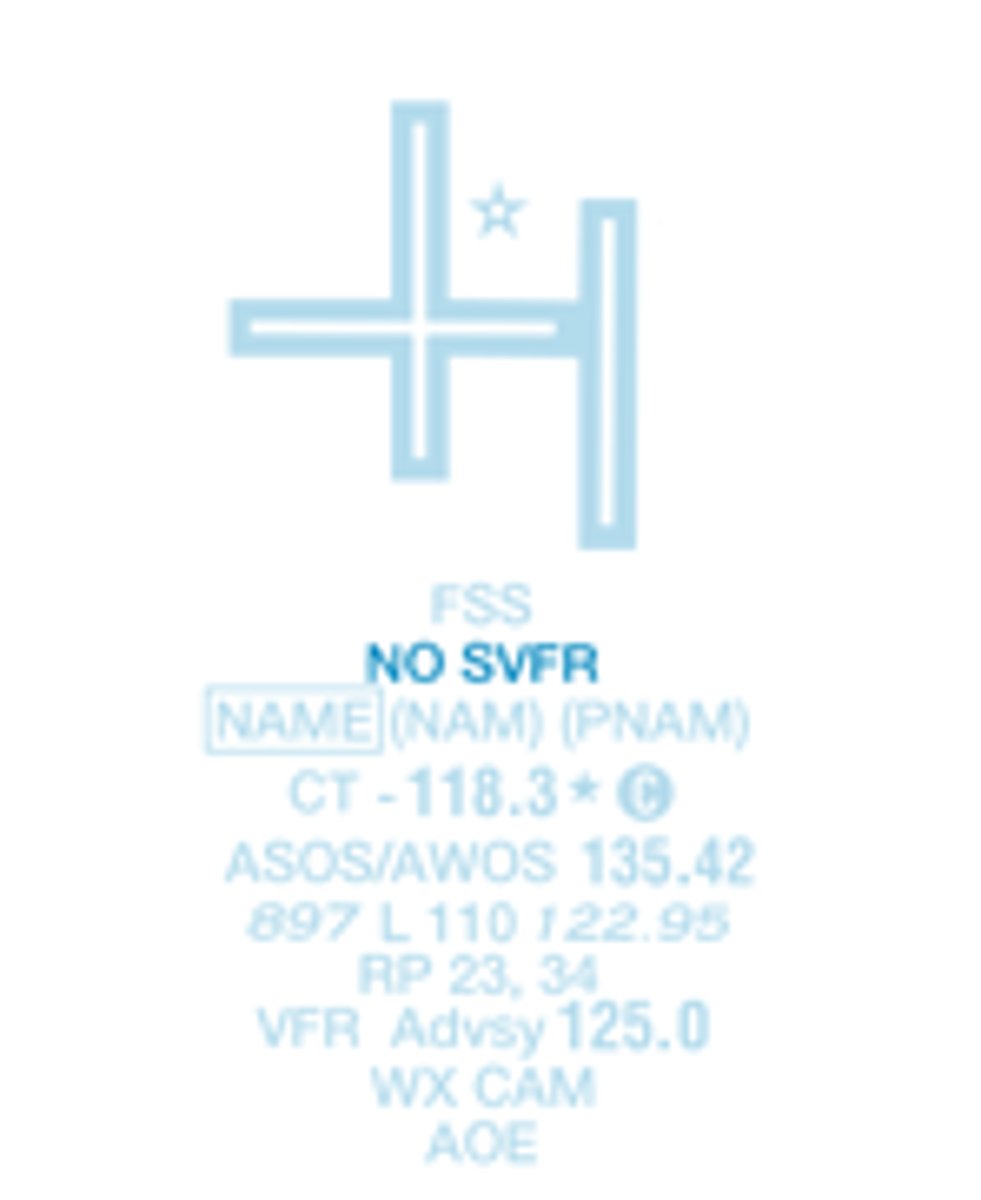

Airports where fixed wing special visual flight rules operations are prohibited by FAR 91 (Shown above airport name)

Location Identifier

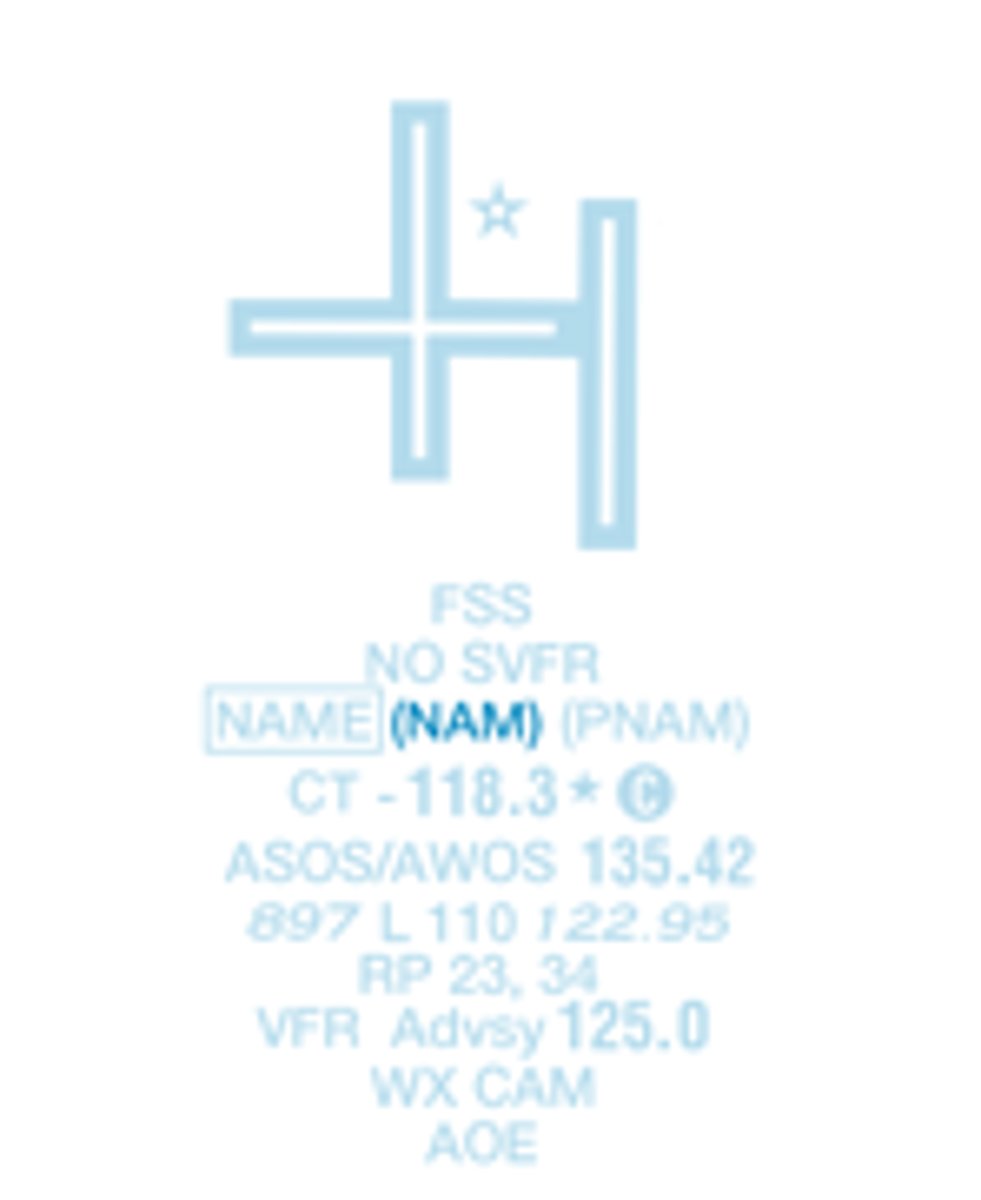

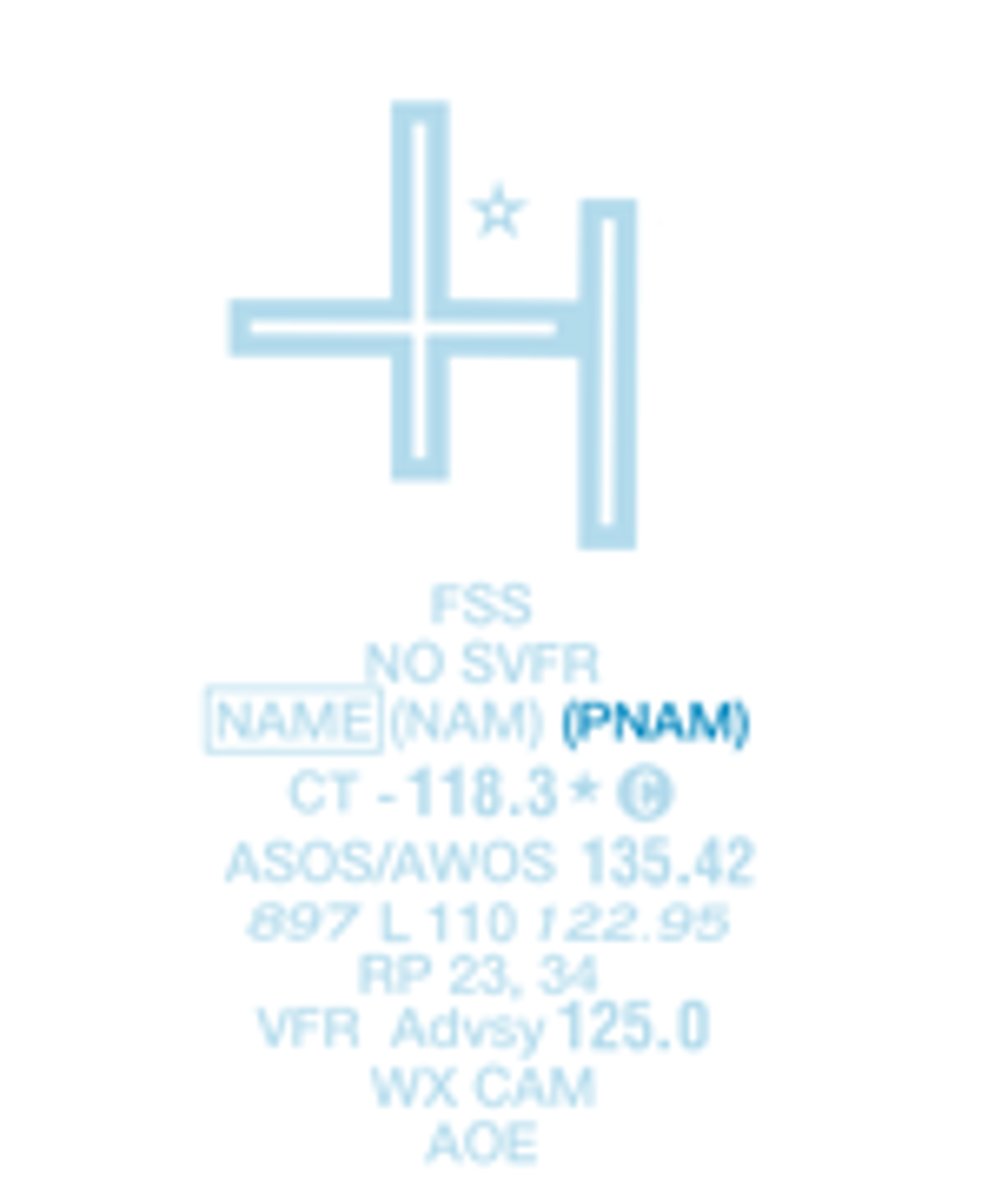

ICAO Location Indicator

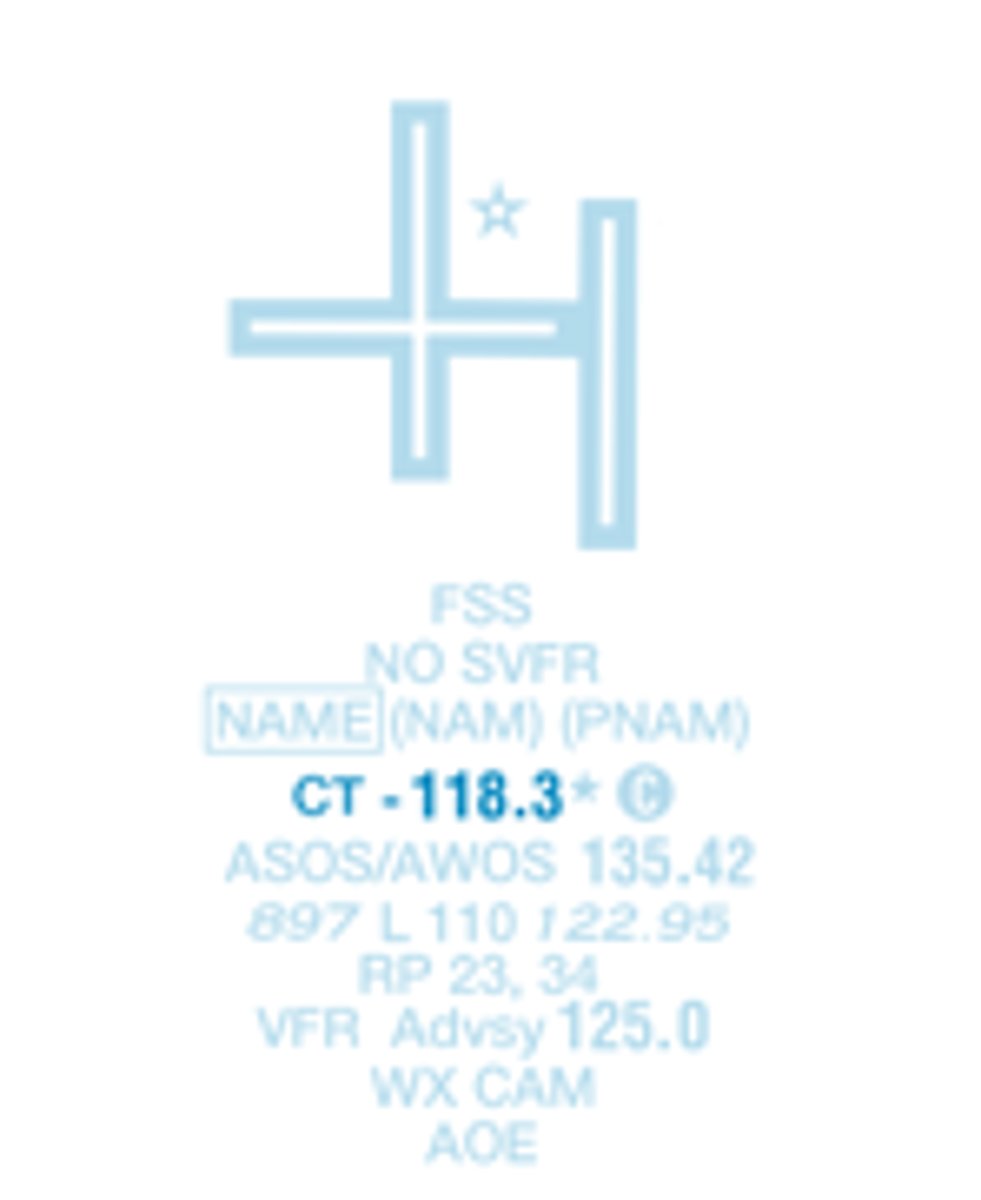

Control Tower (CT) - Primary Frequency

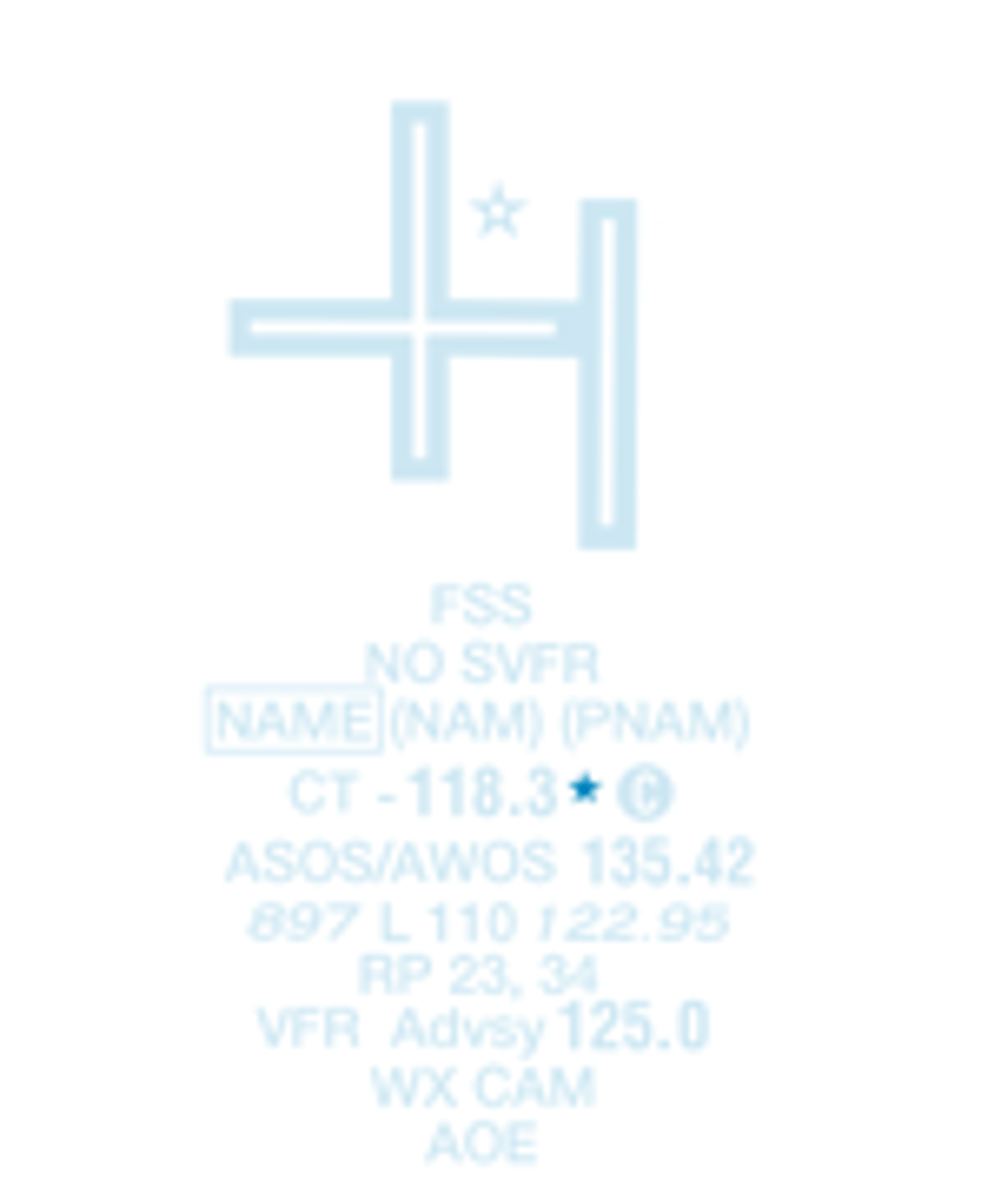

Part-time operation. See tower frequencies tabulation for hours of operation

Follows the Common Traffic Advisory Frequency (CTAF)

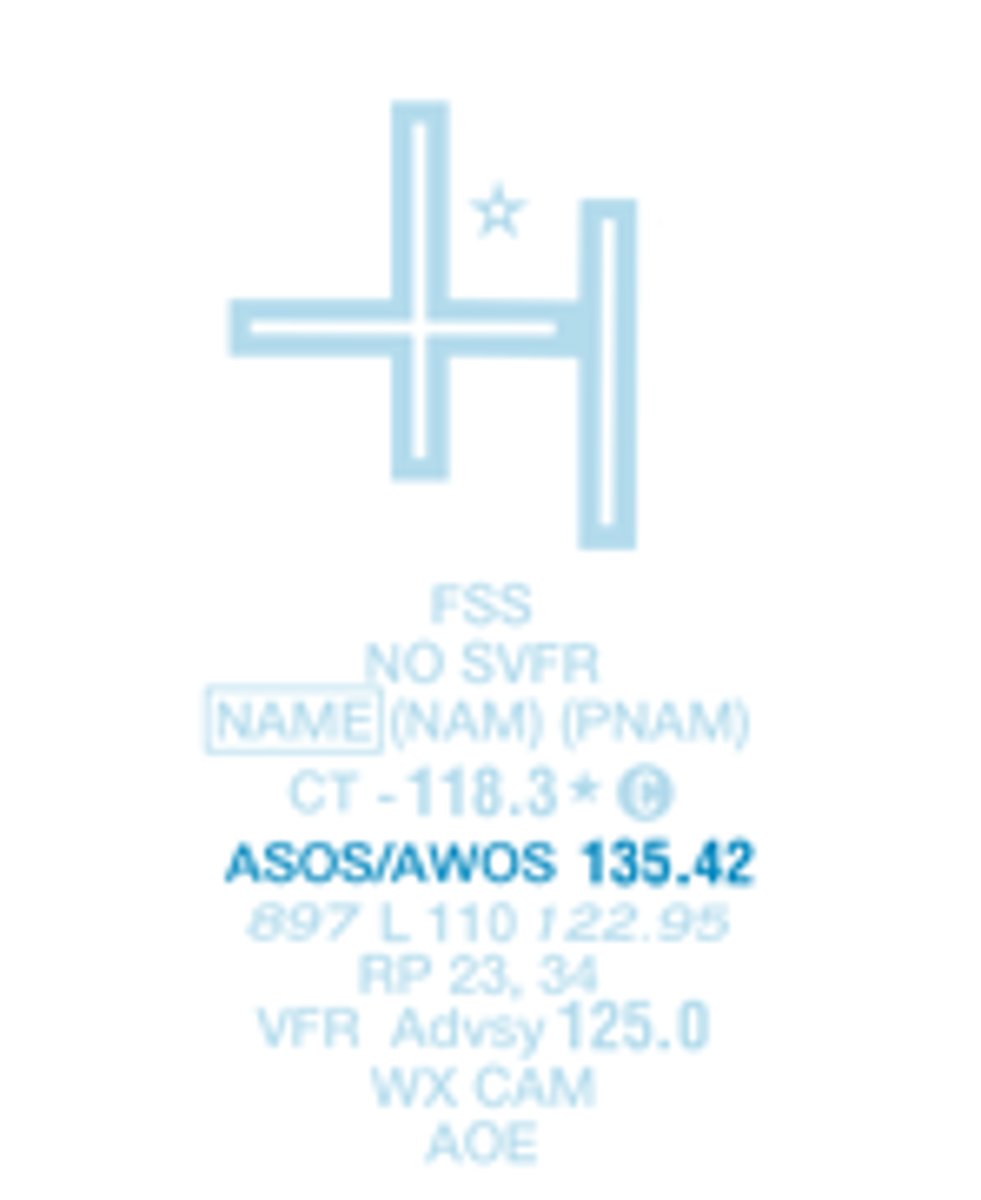

Automatic Terminal Information Service Frequency

Automated Surface/Weather Observing System; Shown when fulltime ATIS is not available. Some ASOS/AWOS facilities may not be located at airport.

Field elevation

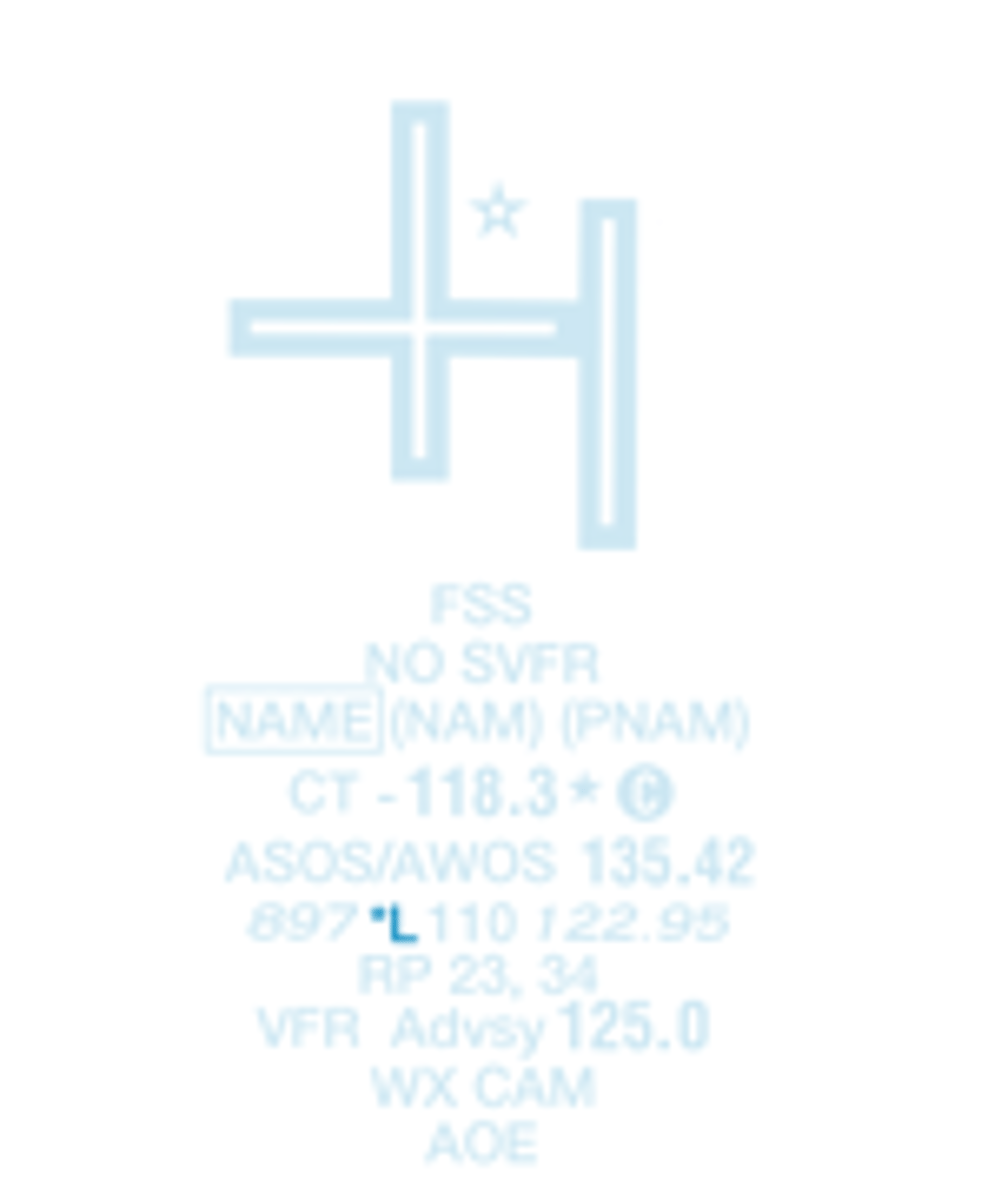

Lighting in operation from sunset to sunrise

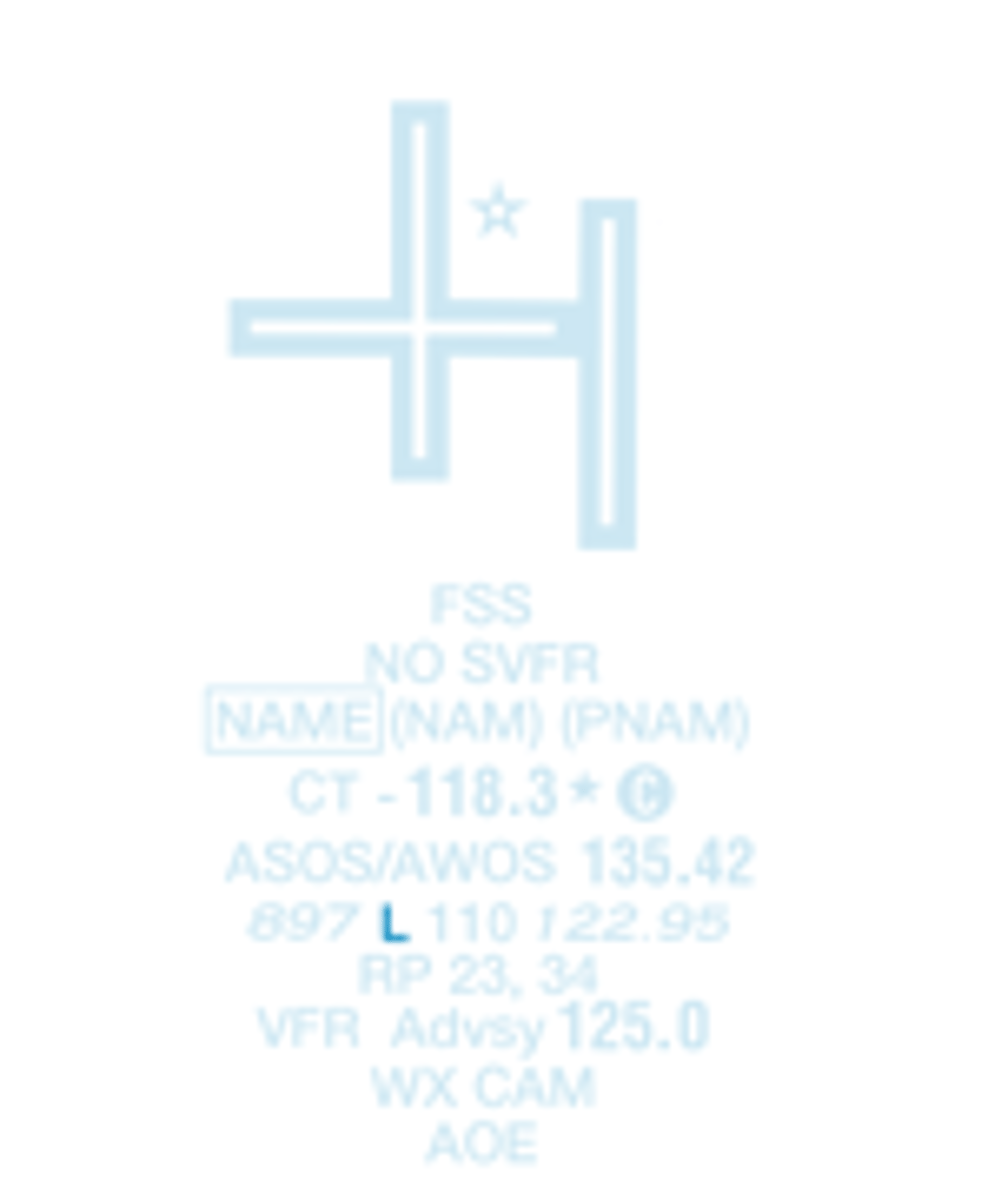

Lighting limitations exist; refer to Chart Supplement

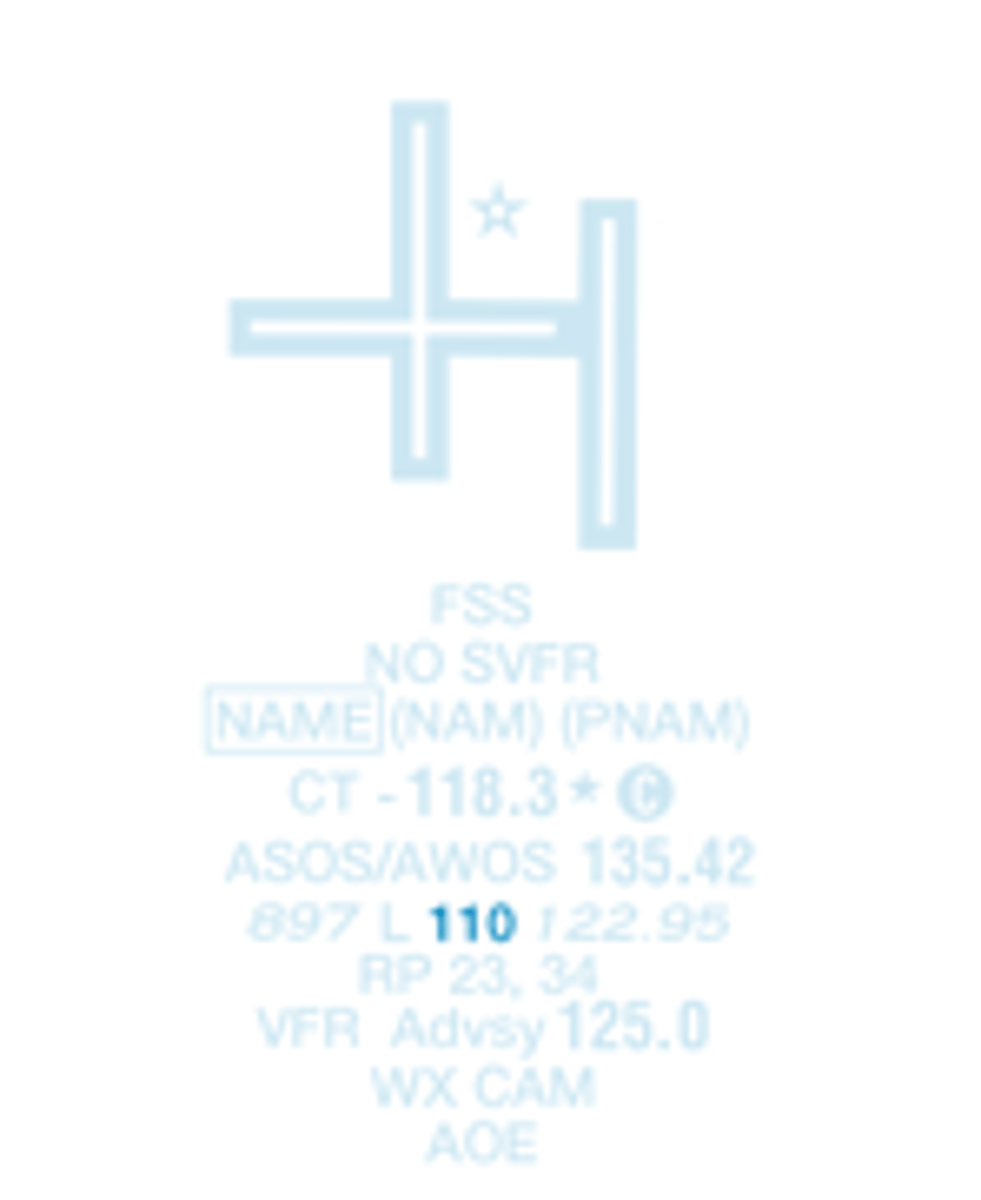

Length of longest runway in hundreds of feet; usable length may be less

UNICOM - Aeronautical advisory station

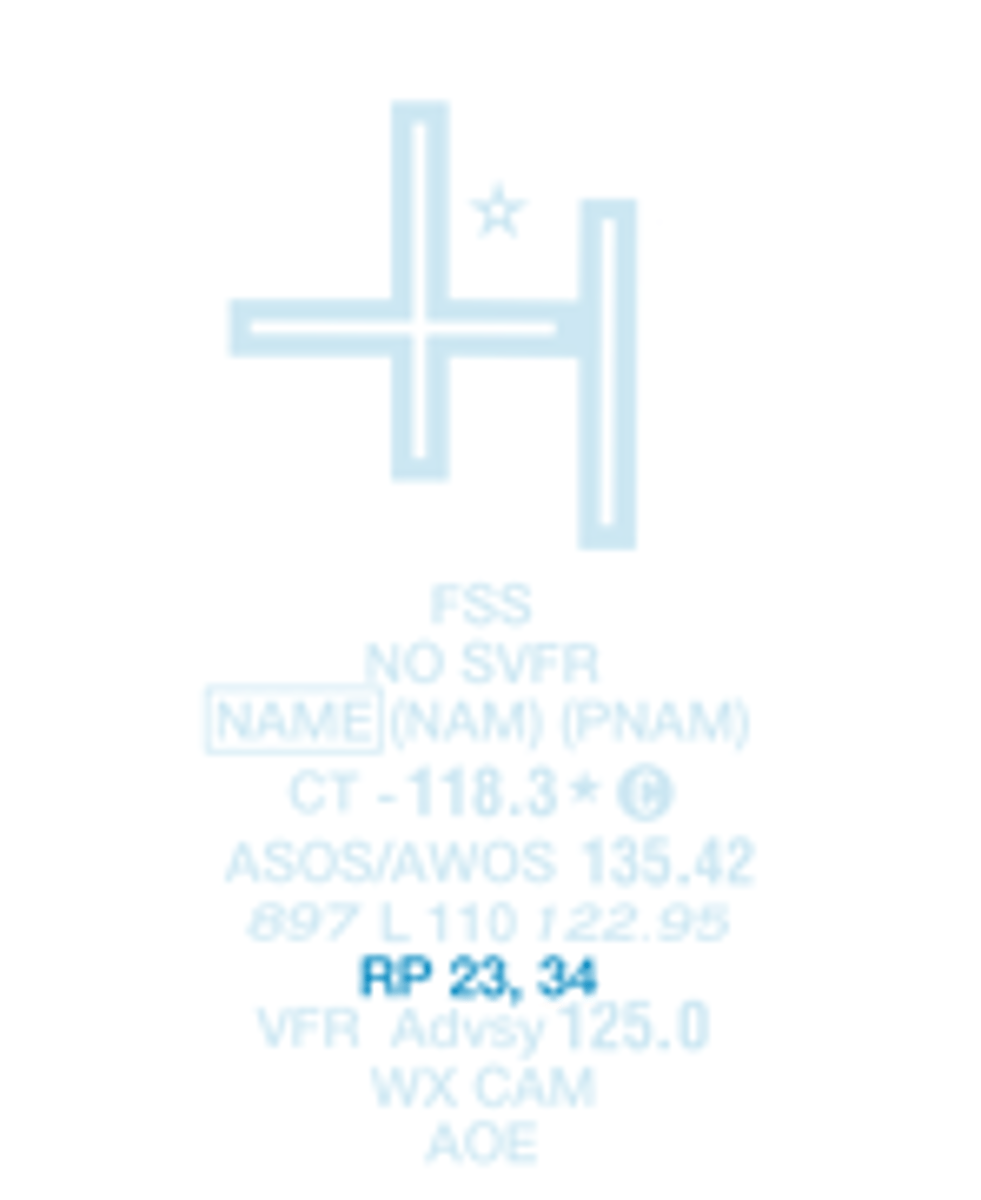

Runways with right traffic patterns (if star exists here see chart supplement for specifics)

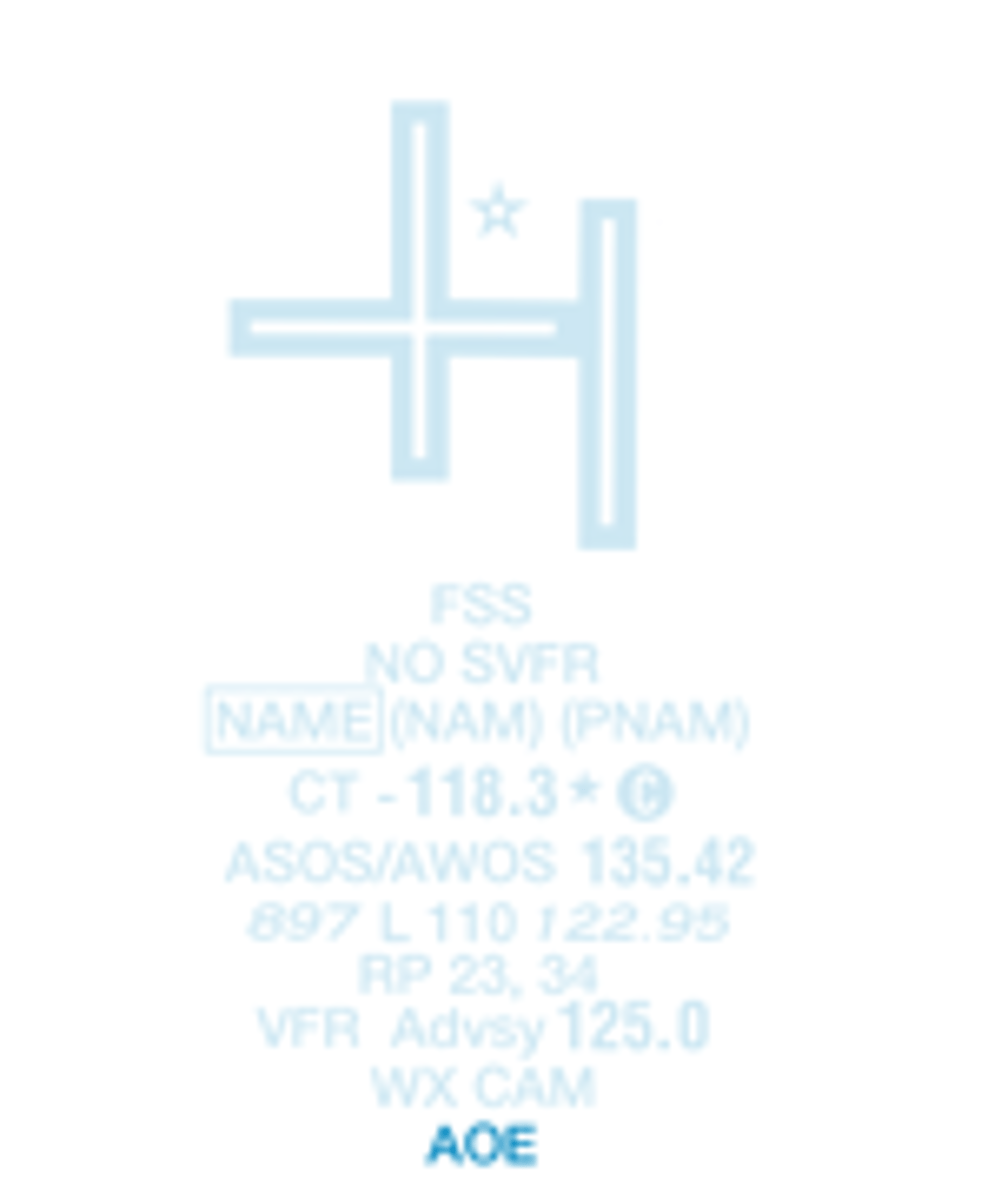

Airport of entry for international flights

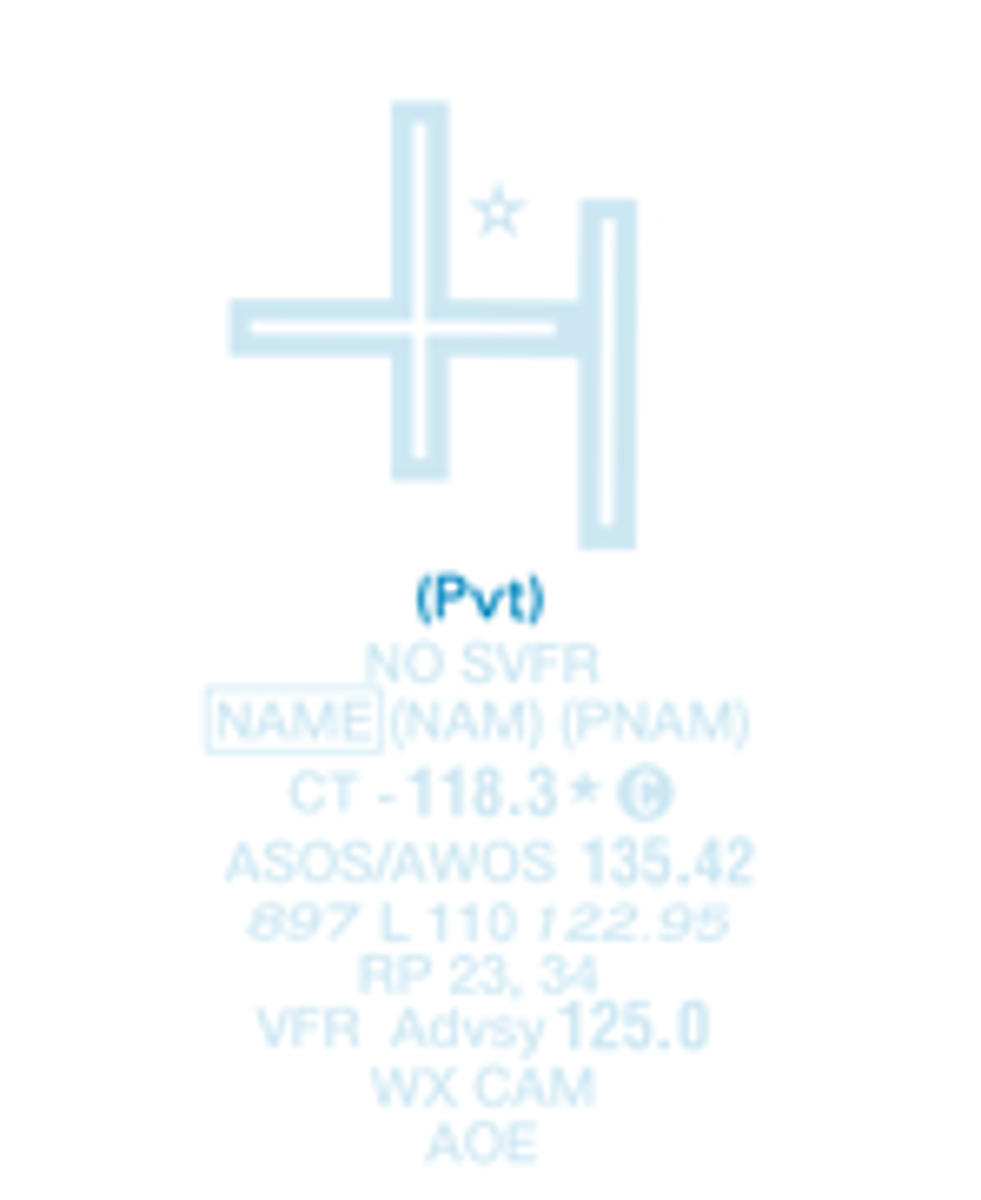

Non-Public use having emergency or landmark value

Rotating beacon

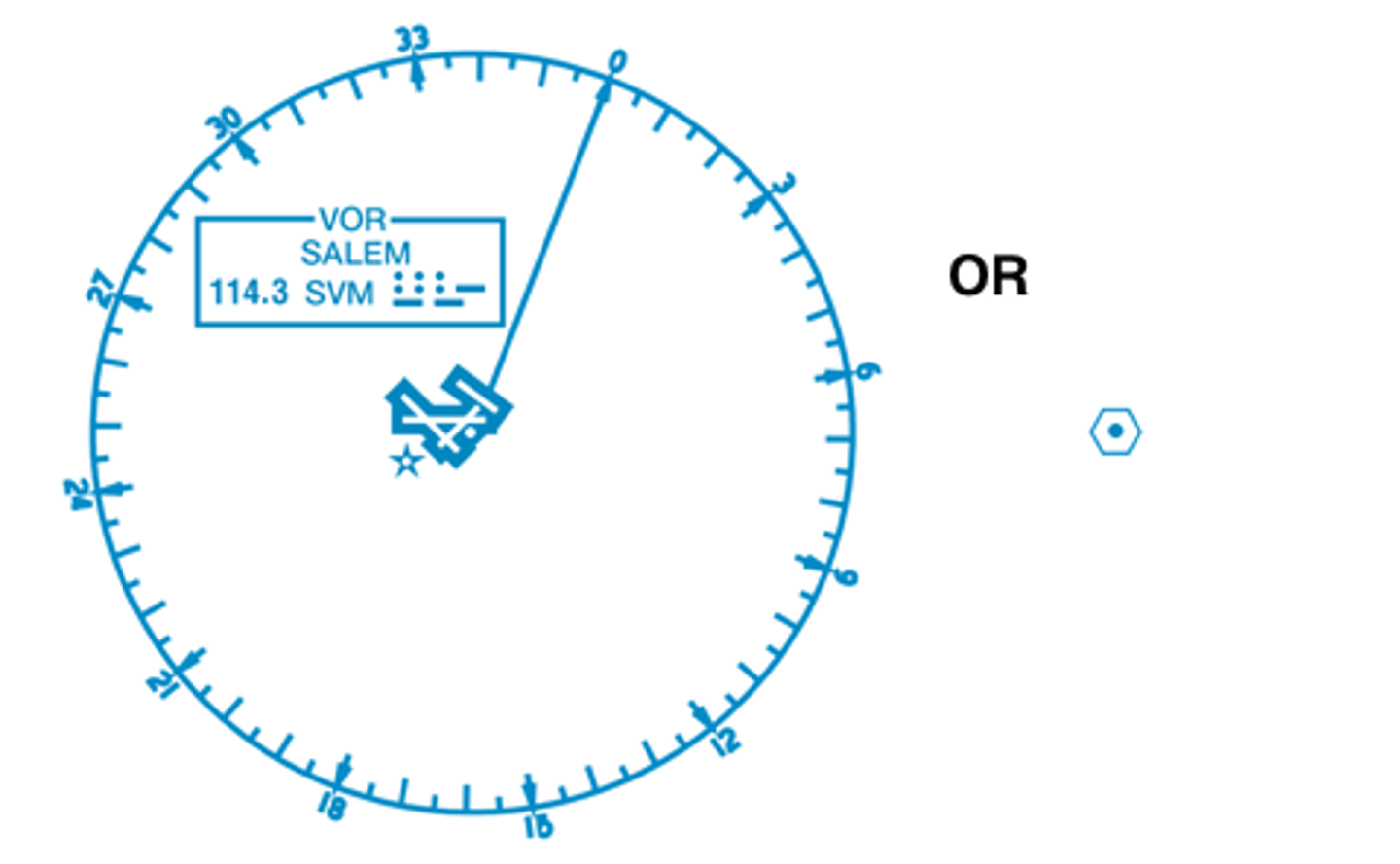

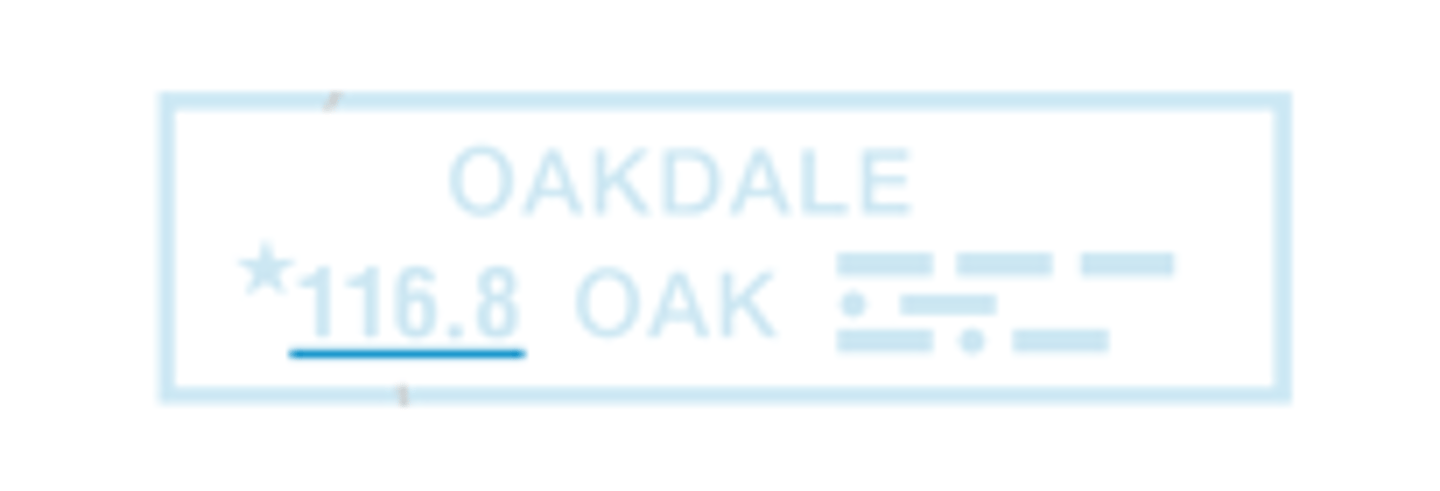

VHF Omni-Directional Radio (VOR) Range

compass rose oriented towards magnetic north

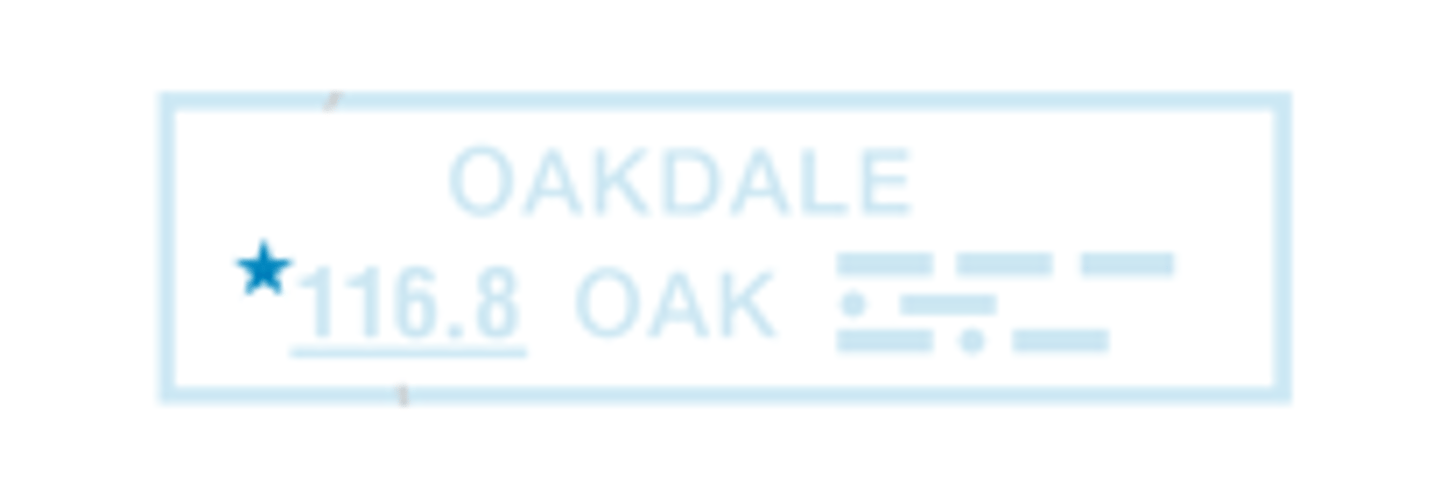

VOR - operates less than continuous or on-request

Underline indicates no voice on this frequency

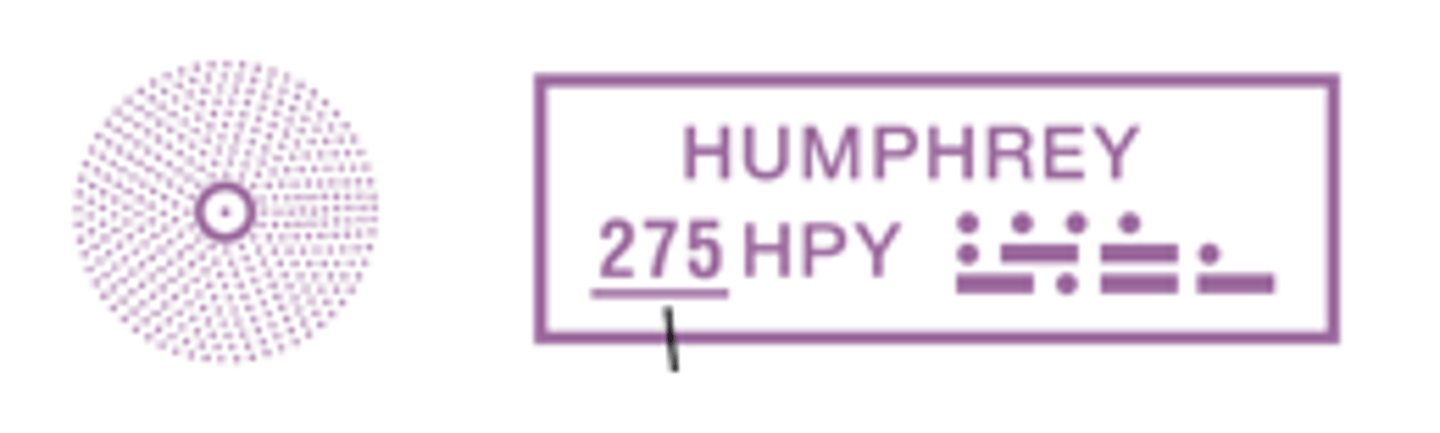

Non-Directional Beacon (NDB)

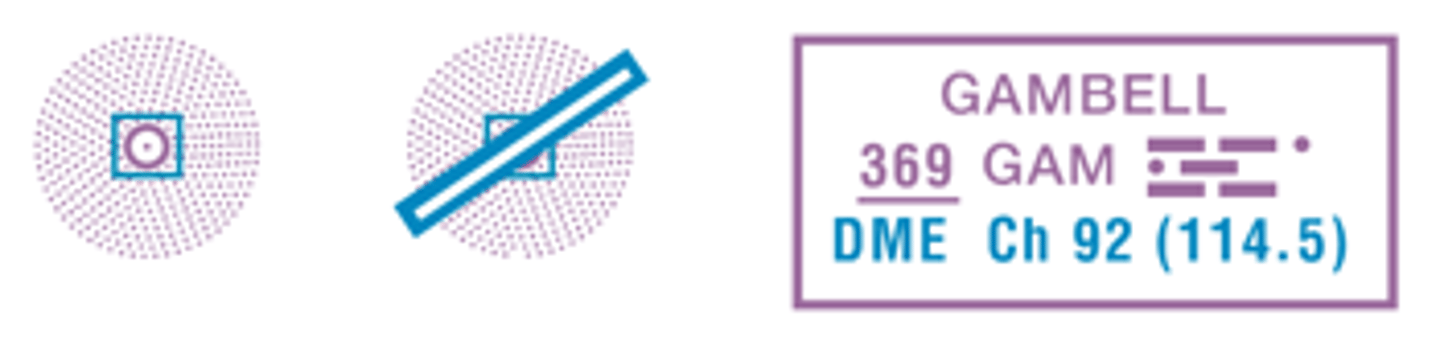

NDB DME

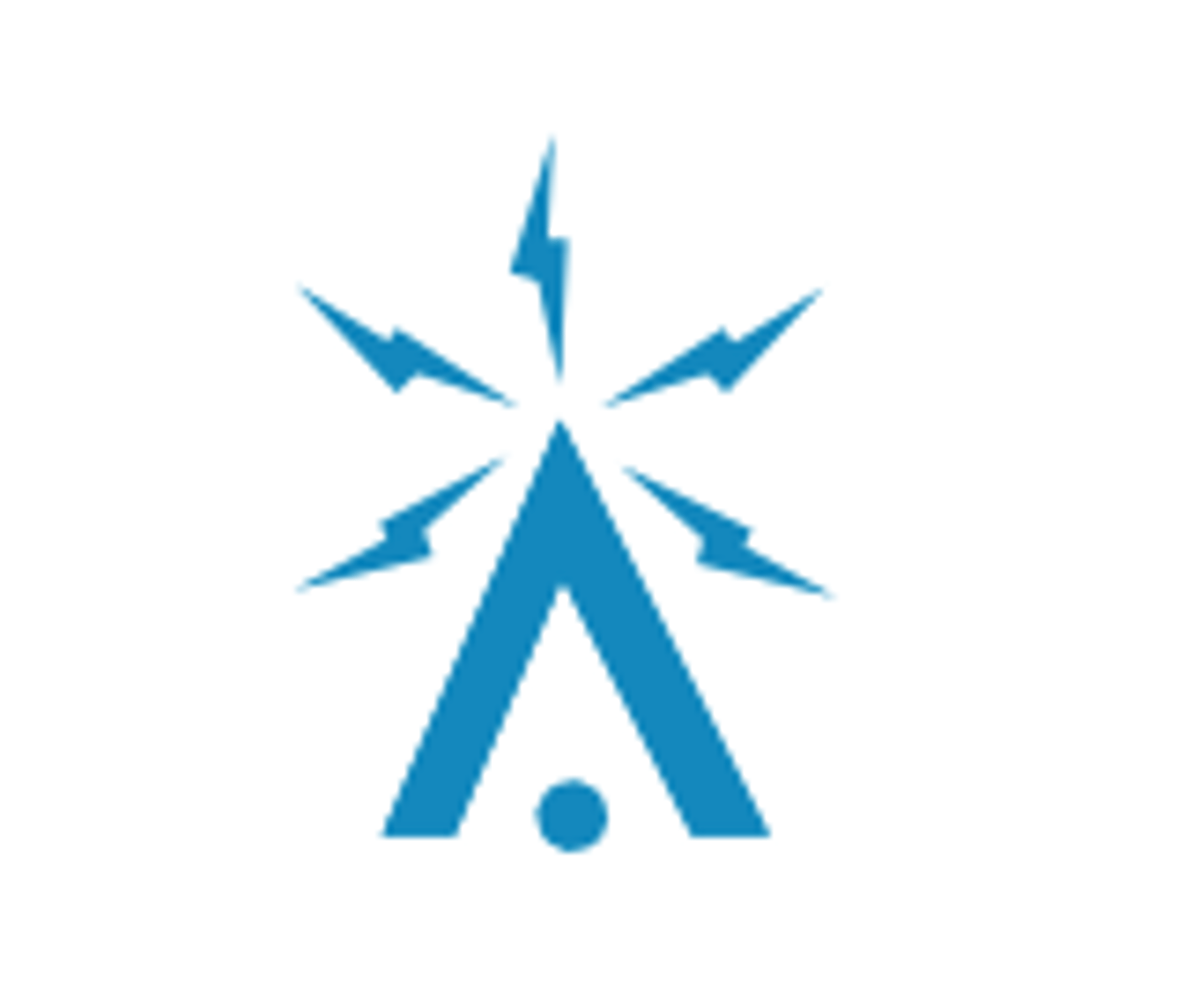

Other radio transmitters

frequency and type of transmission marked on sectional chart

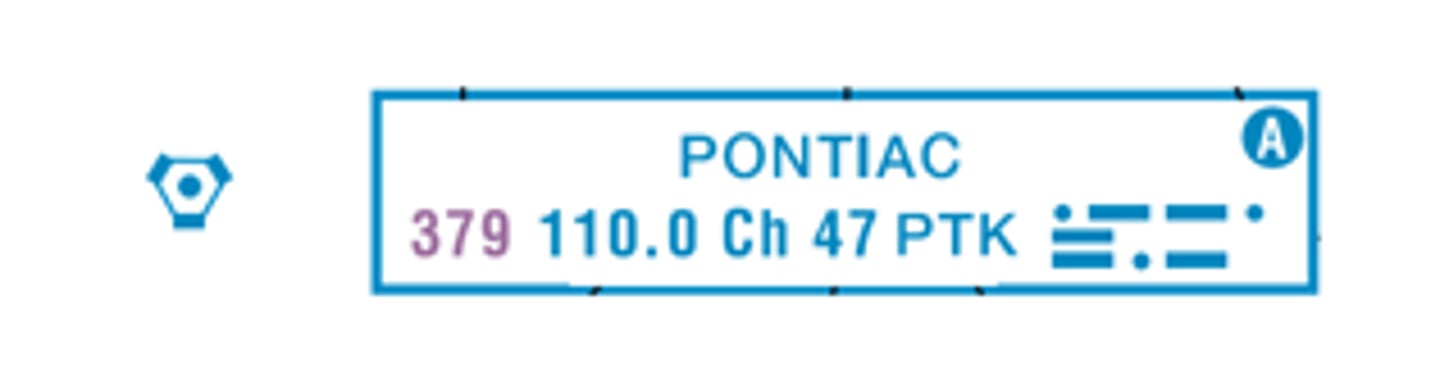

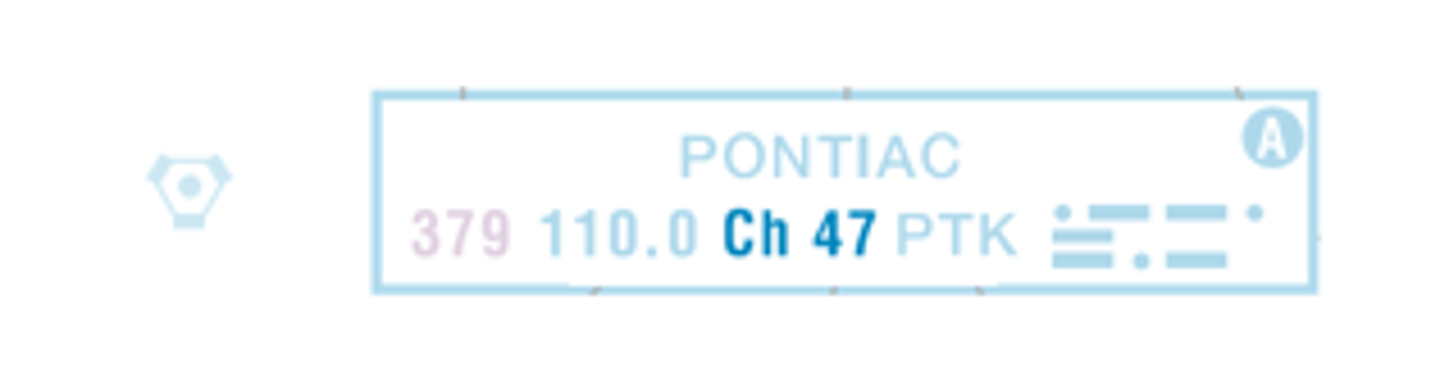

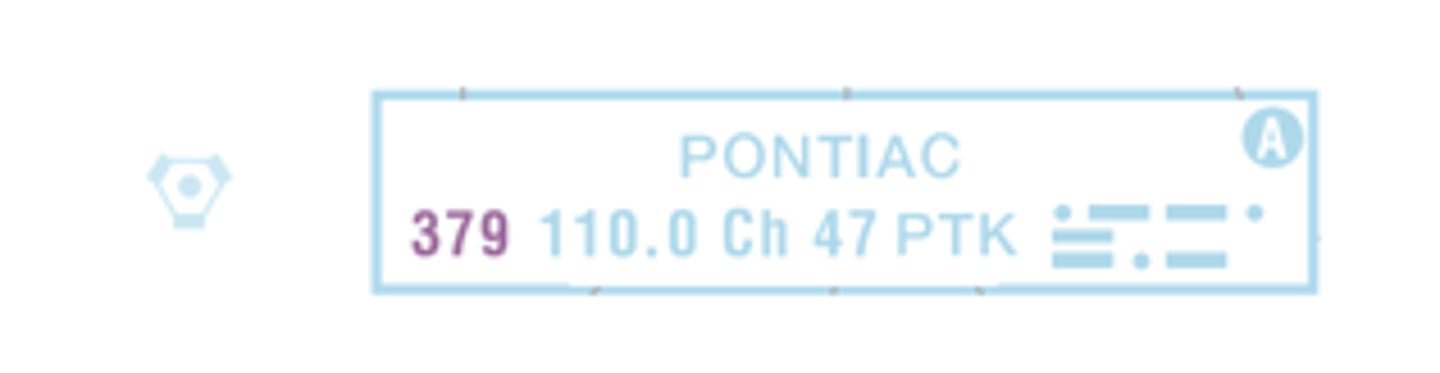

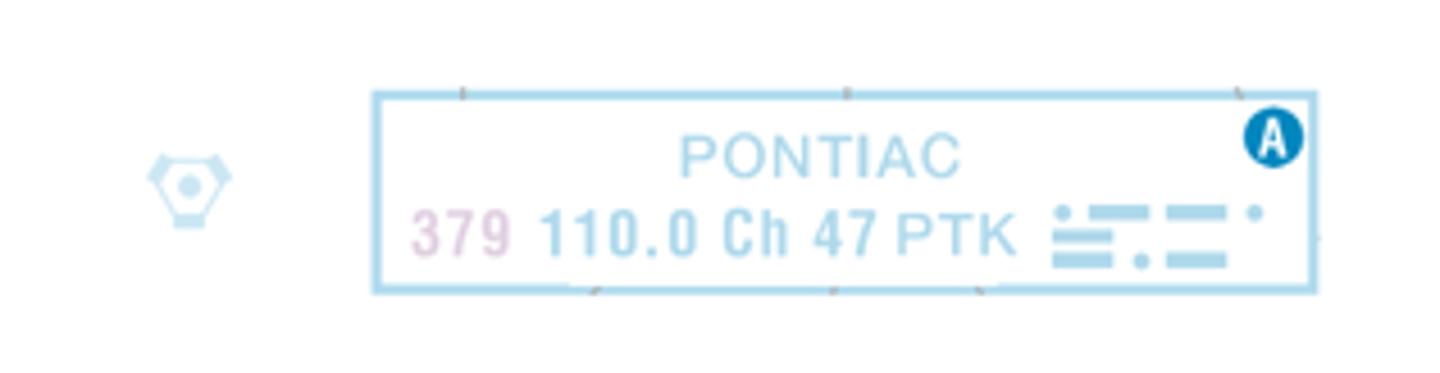

VORTAC

VORTAC - has ASOS/AWOS

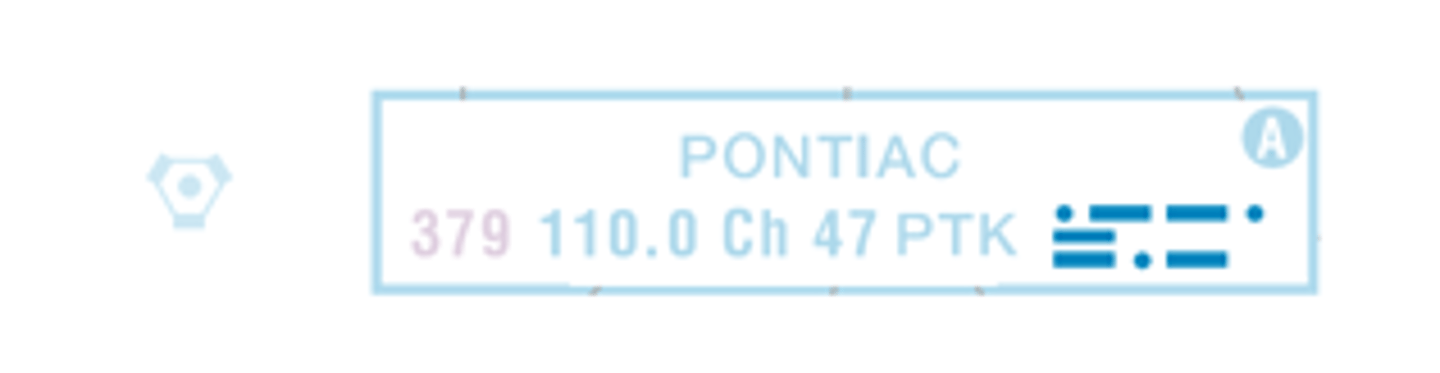

VORTAC - morse code

VORTAC - morse code

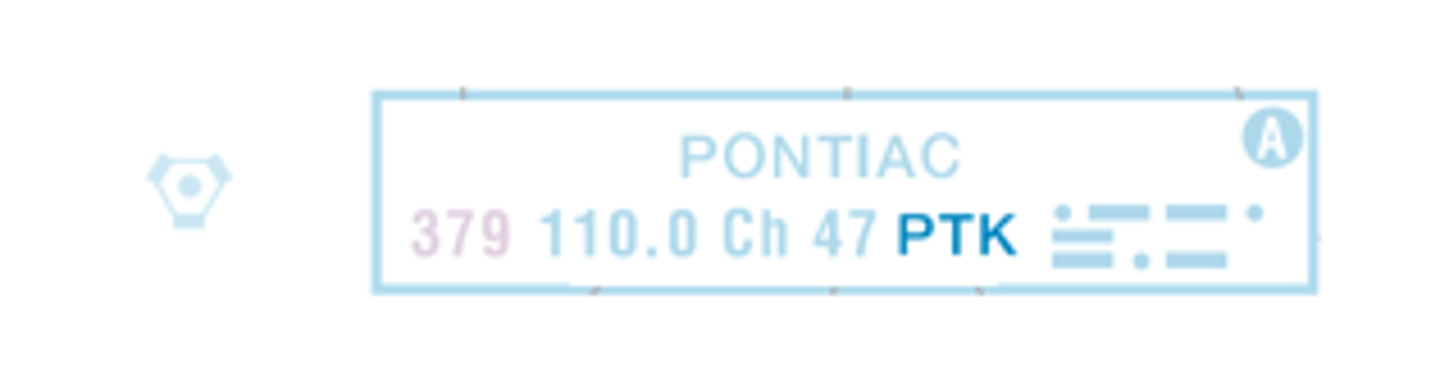

VORTAC - channel

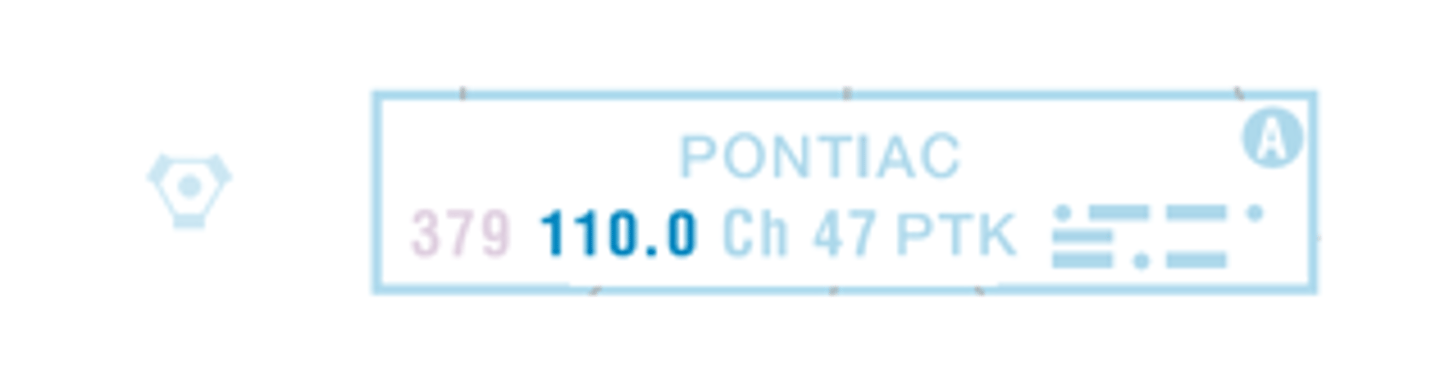

VORTAC - frequency

VORTAC - NDB frequency

VOR DME - Hazardous Inflight Weather Advisory Service (HIWAS)

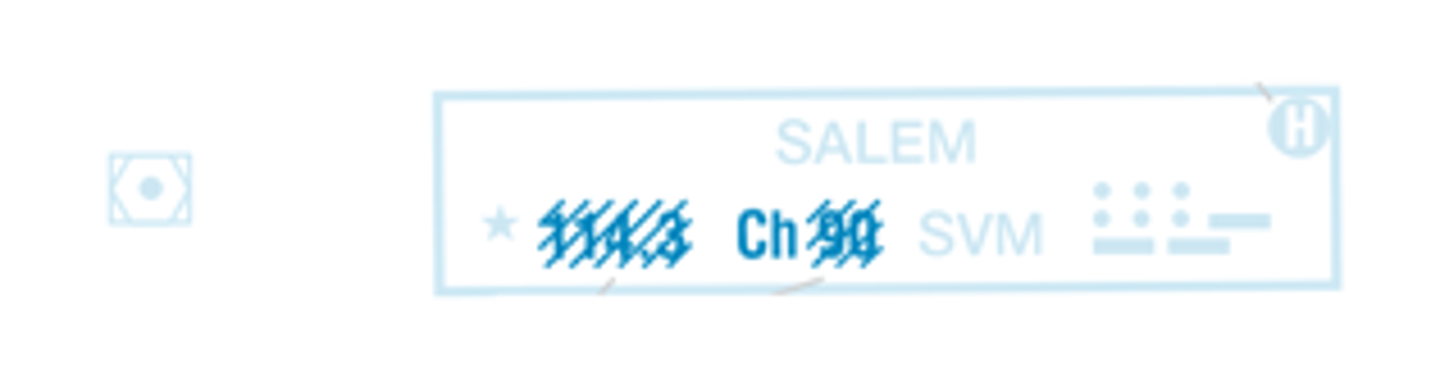

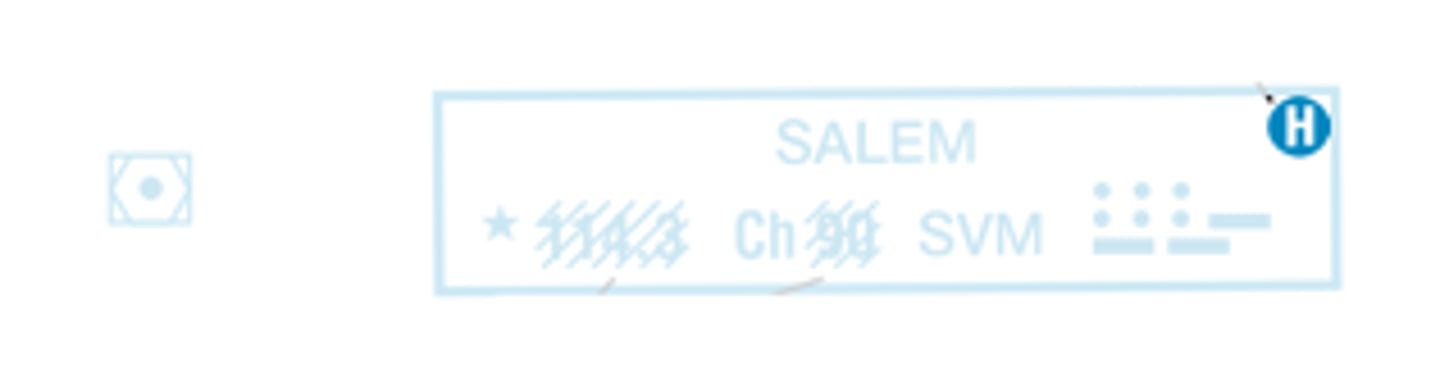

VOR DME - Shut down

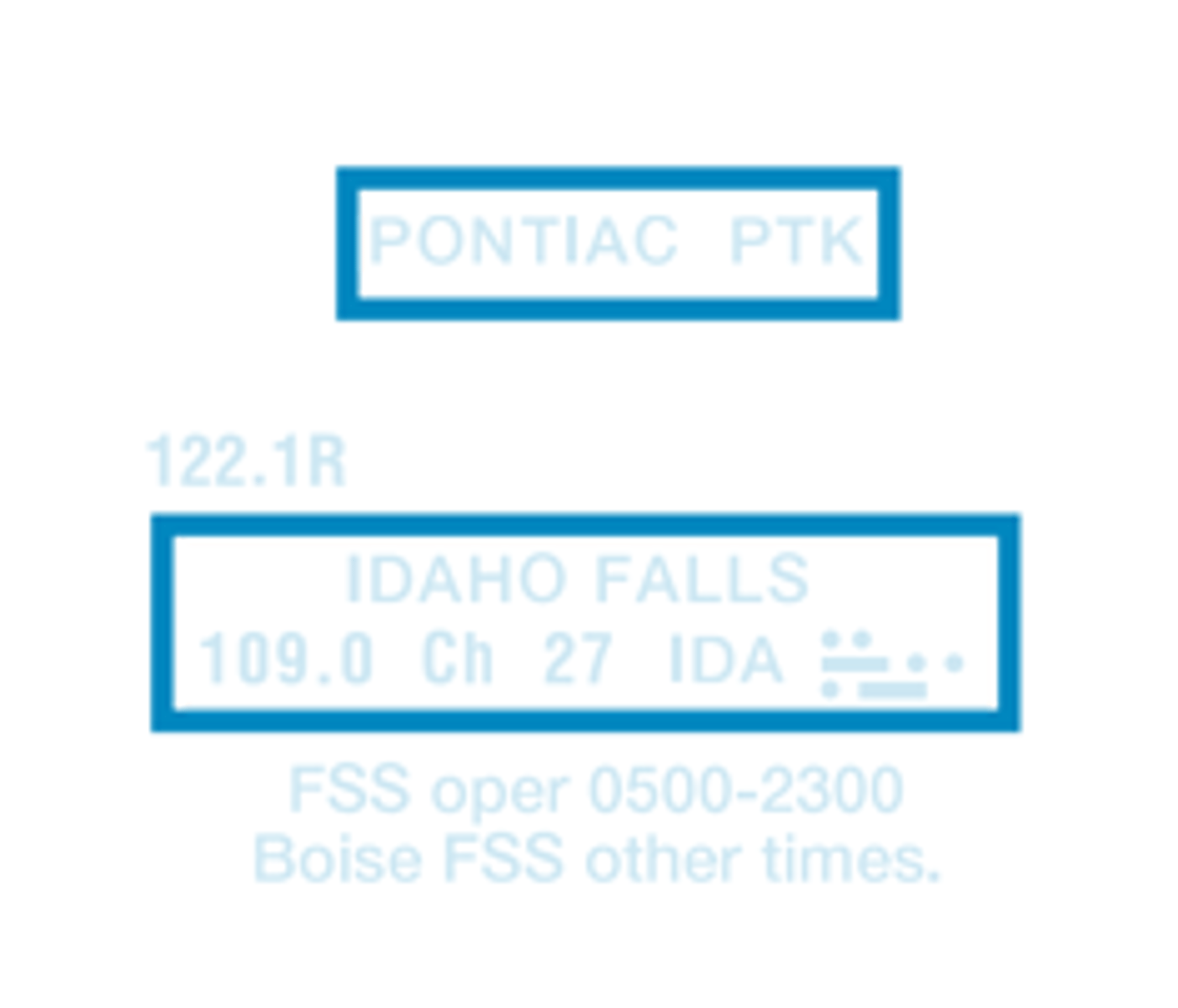

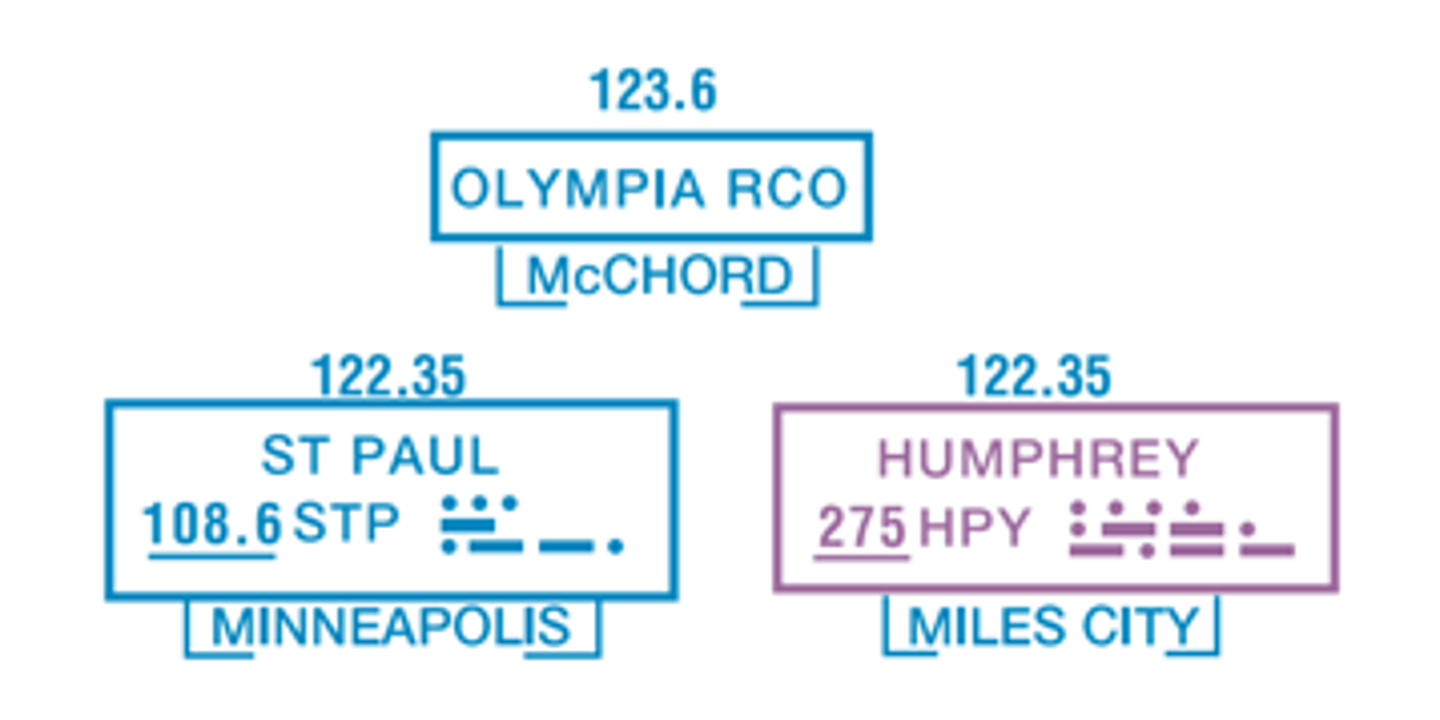

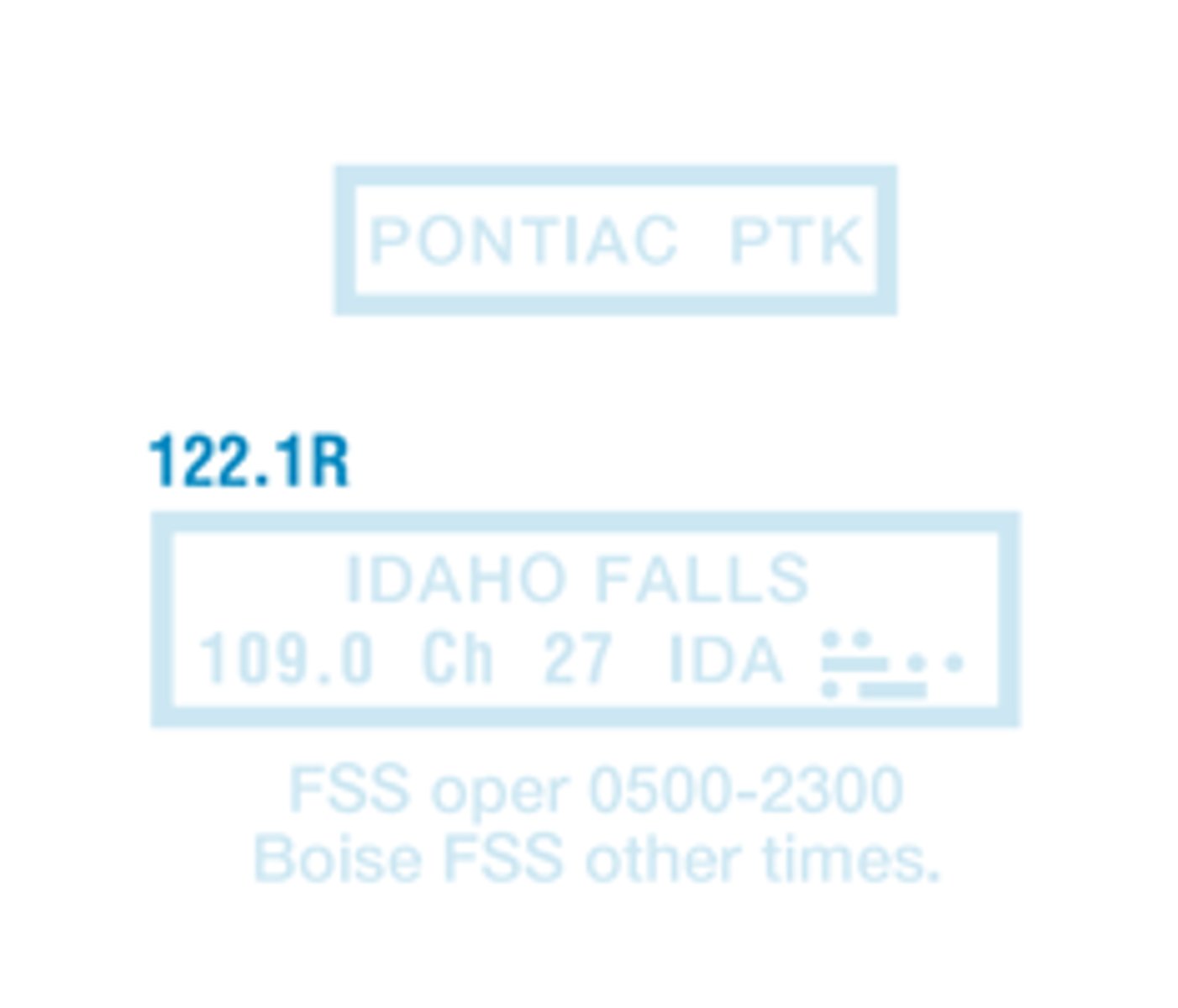

Flight Service Station (heavy line)

FSS - Receive only

Pilot will transmit on this frequency, and FSS will respond via the NAVAID frequency

Remote Communications Outlet (RCO)

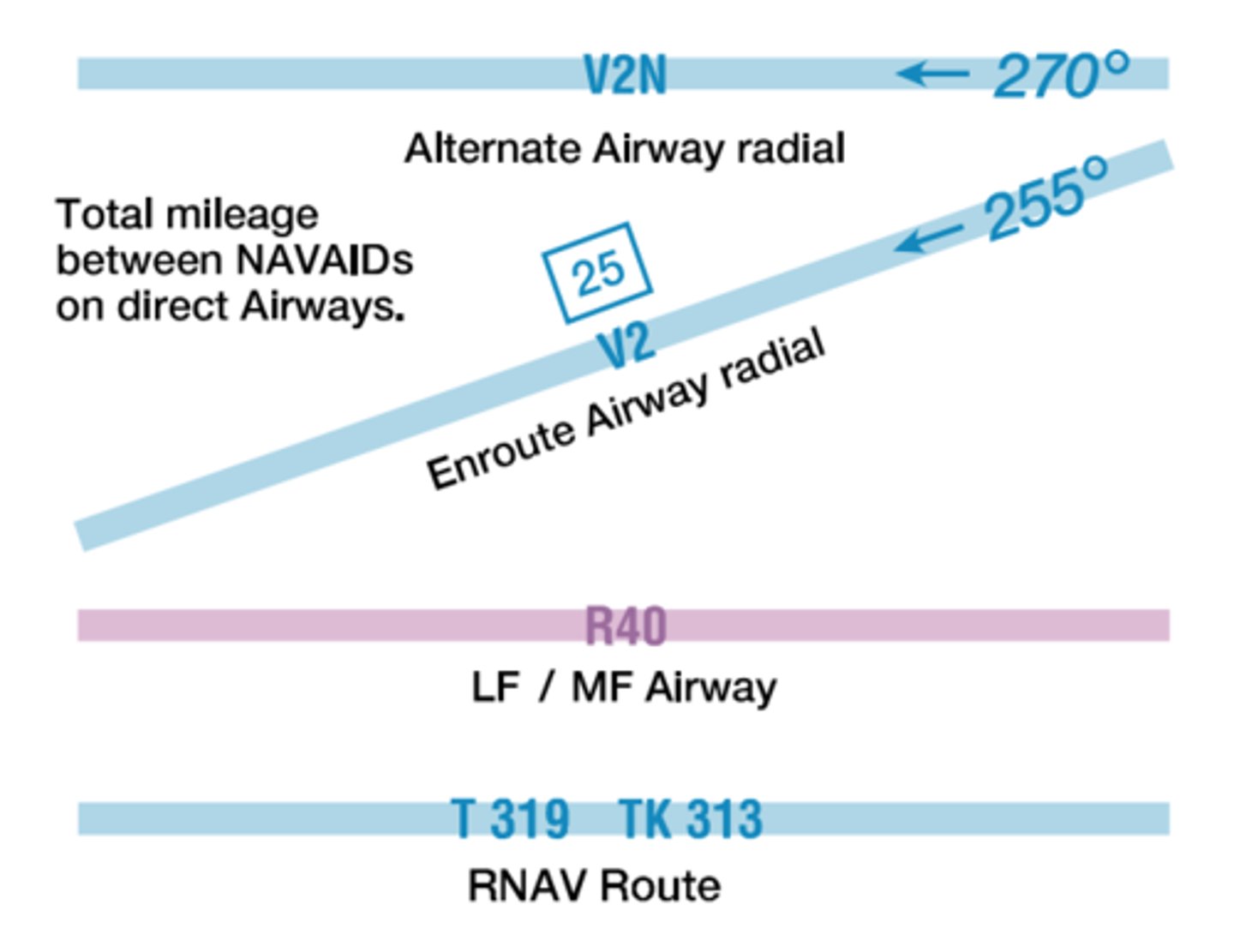

Low Altitude Airways

Terminal Radar Service Area (TRSA)

IFR routes

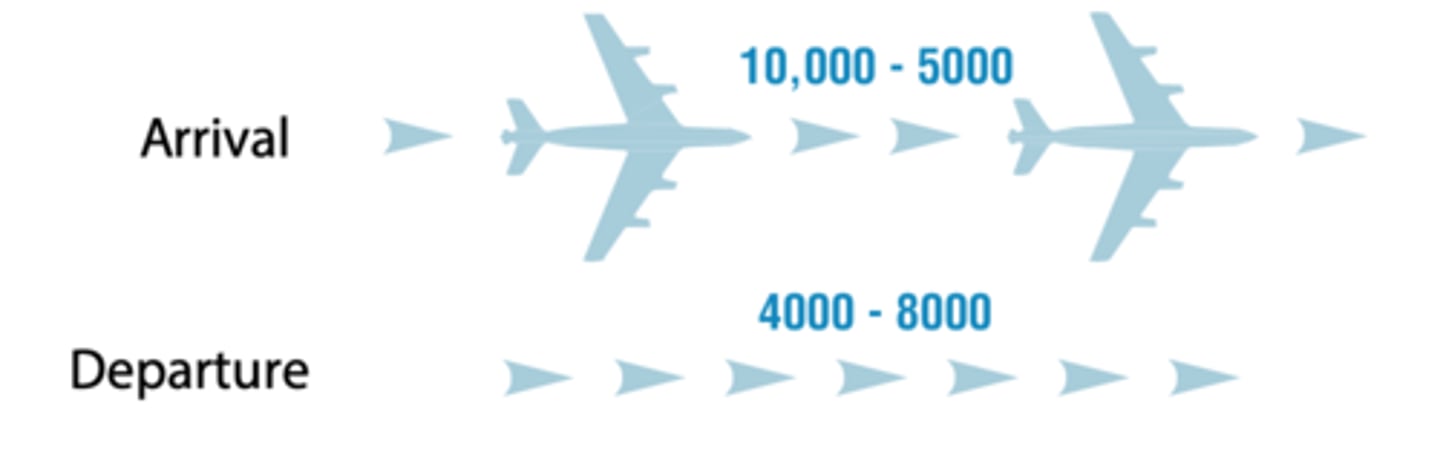

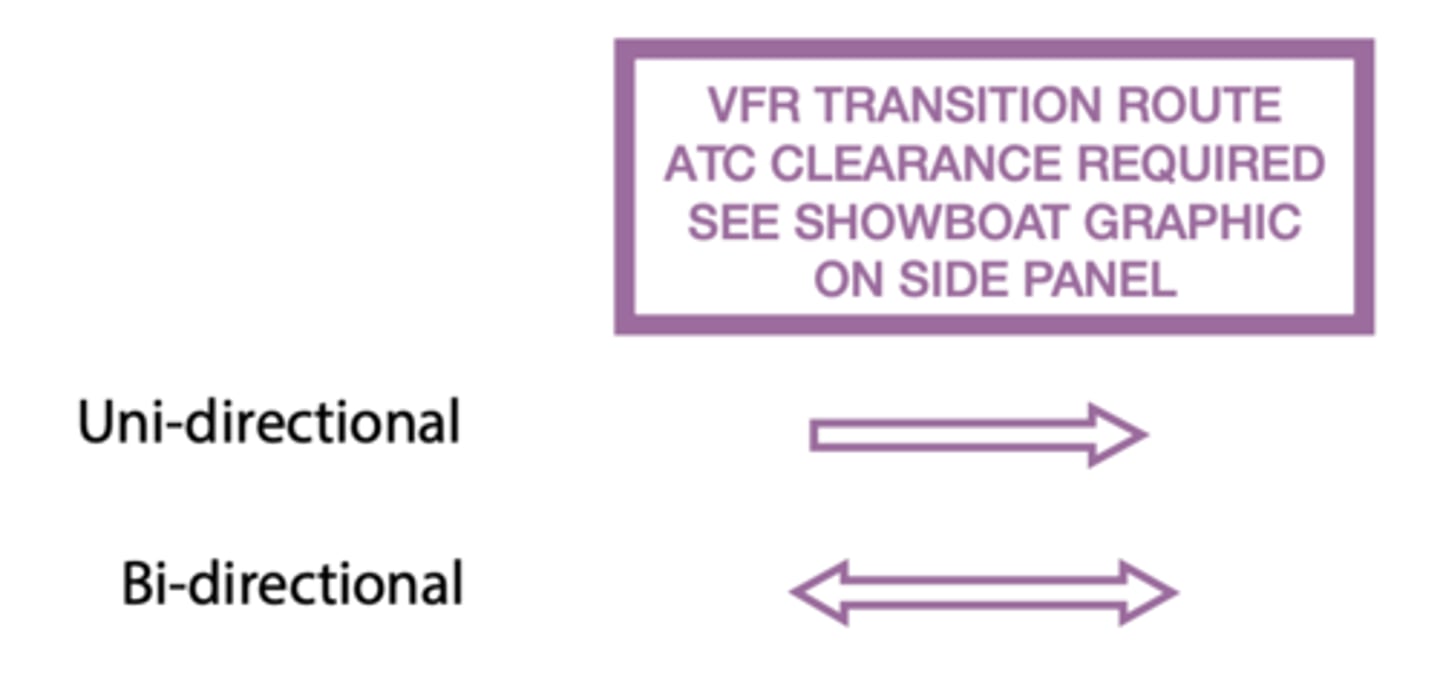

VFR Transition Routes

Prohibited, Restricted or Warning Area

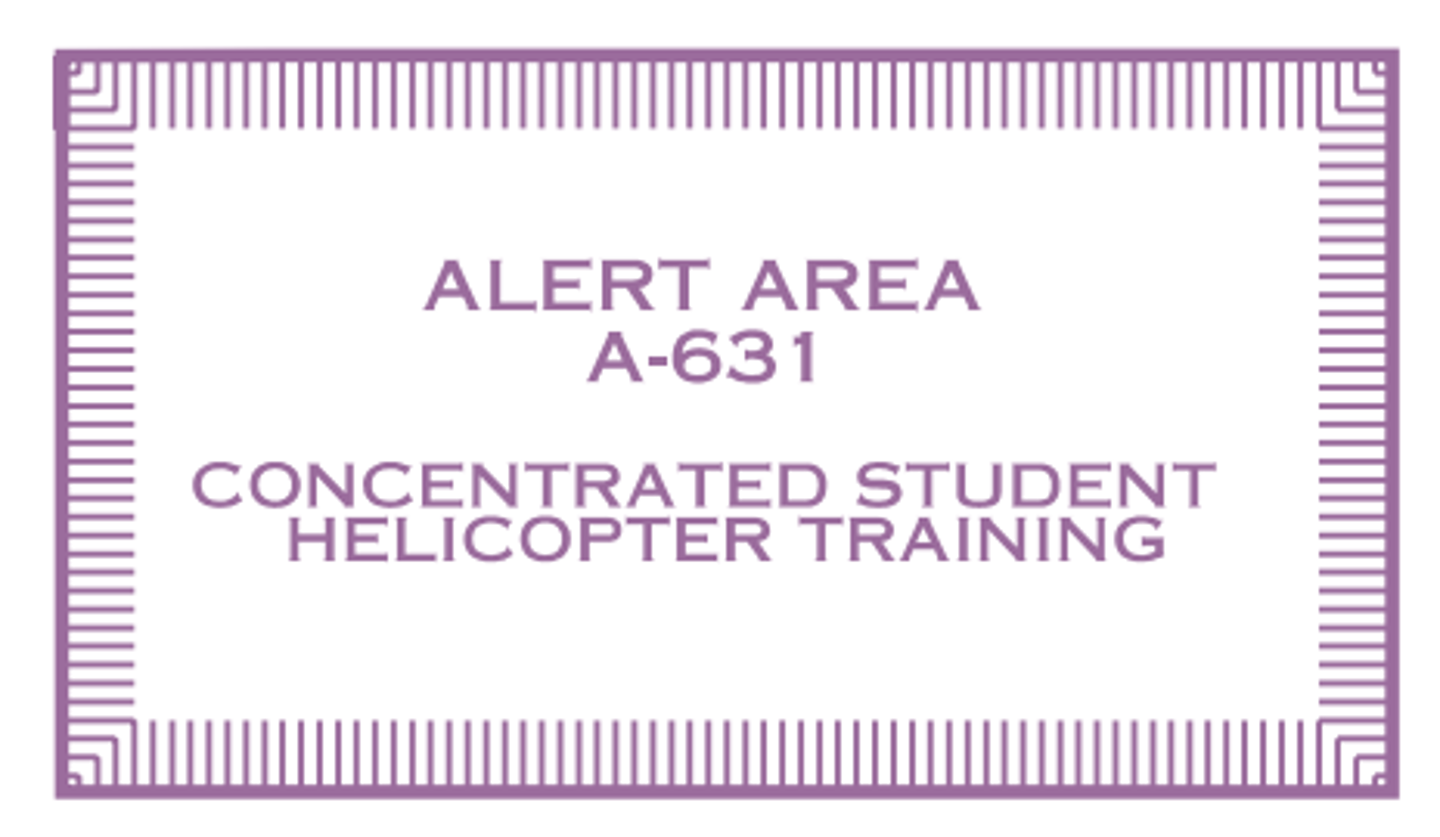

Alert Area

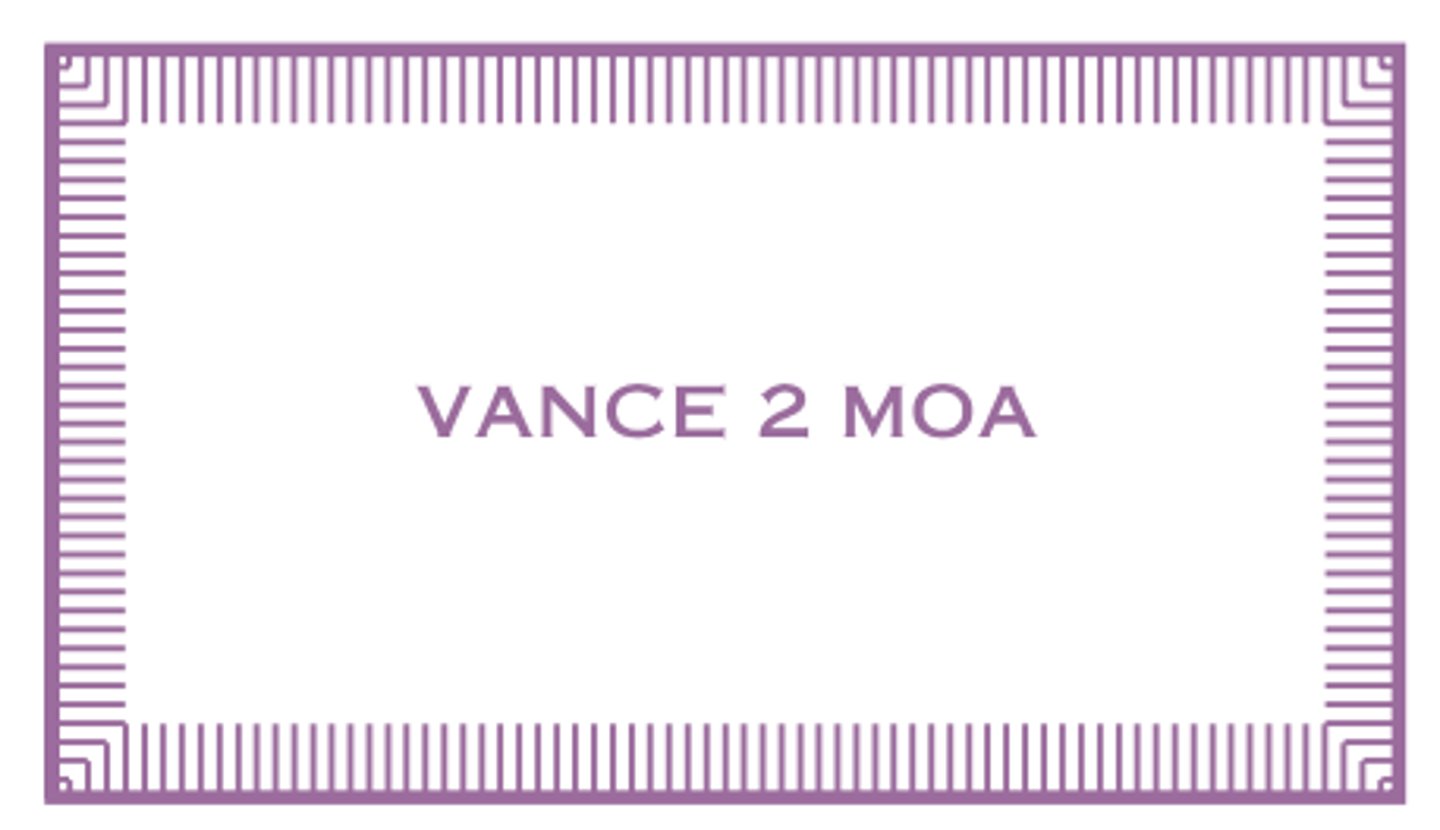

Military Operations Area (MOA)

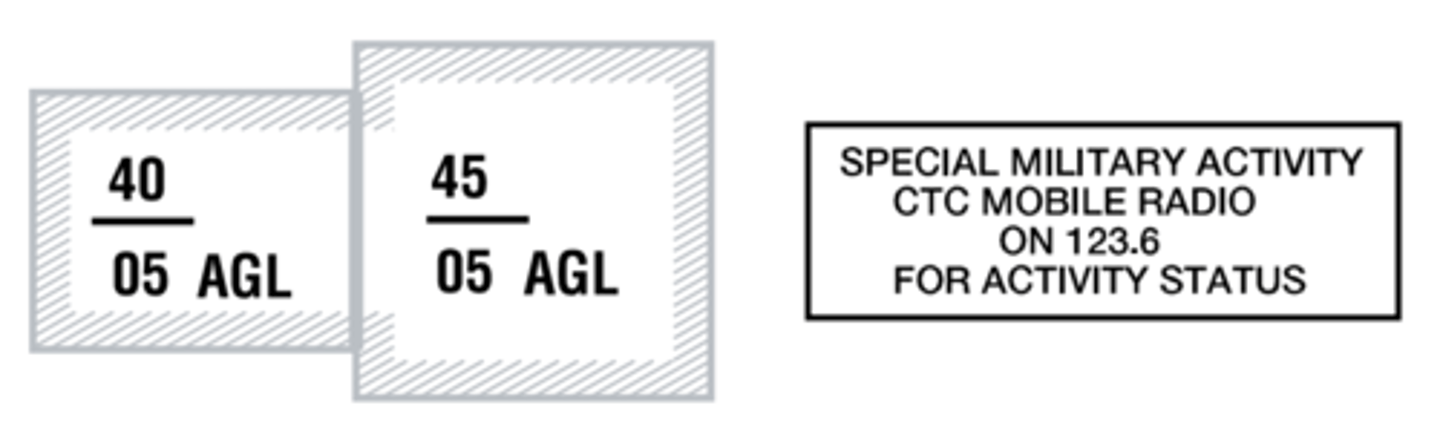

Special Military Activity Routes (SMAR)

Special Air Traffic Rules / Airport Patterns (FAR 93)

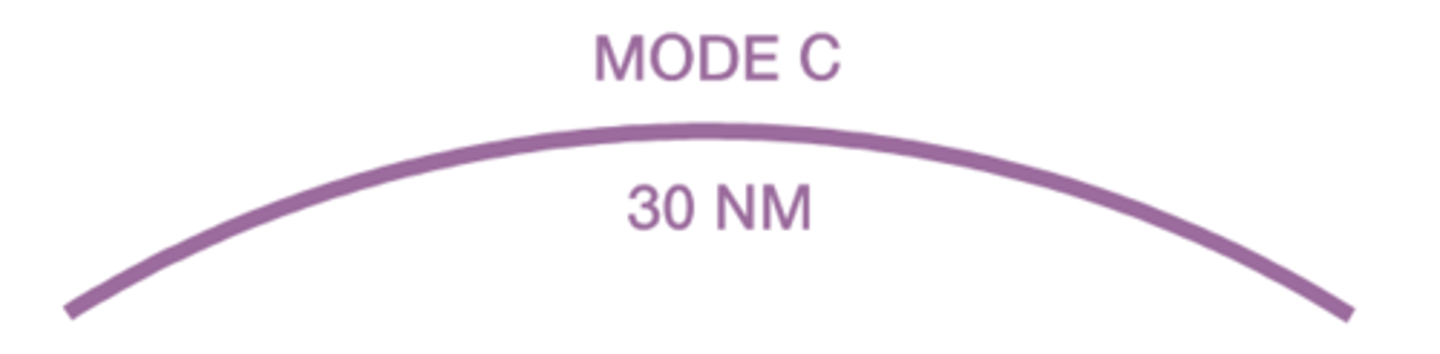

Mode C Veil

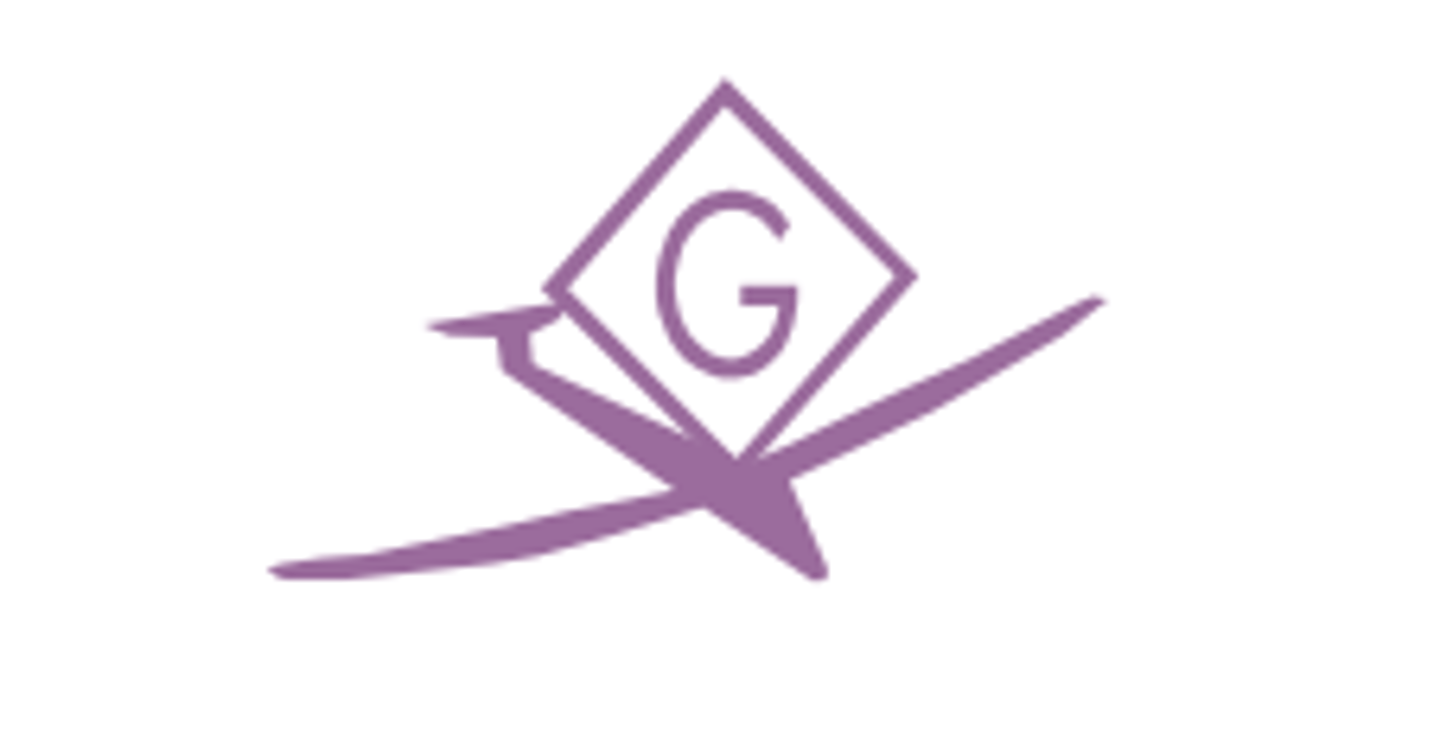

Glider Operating Area

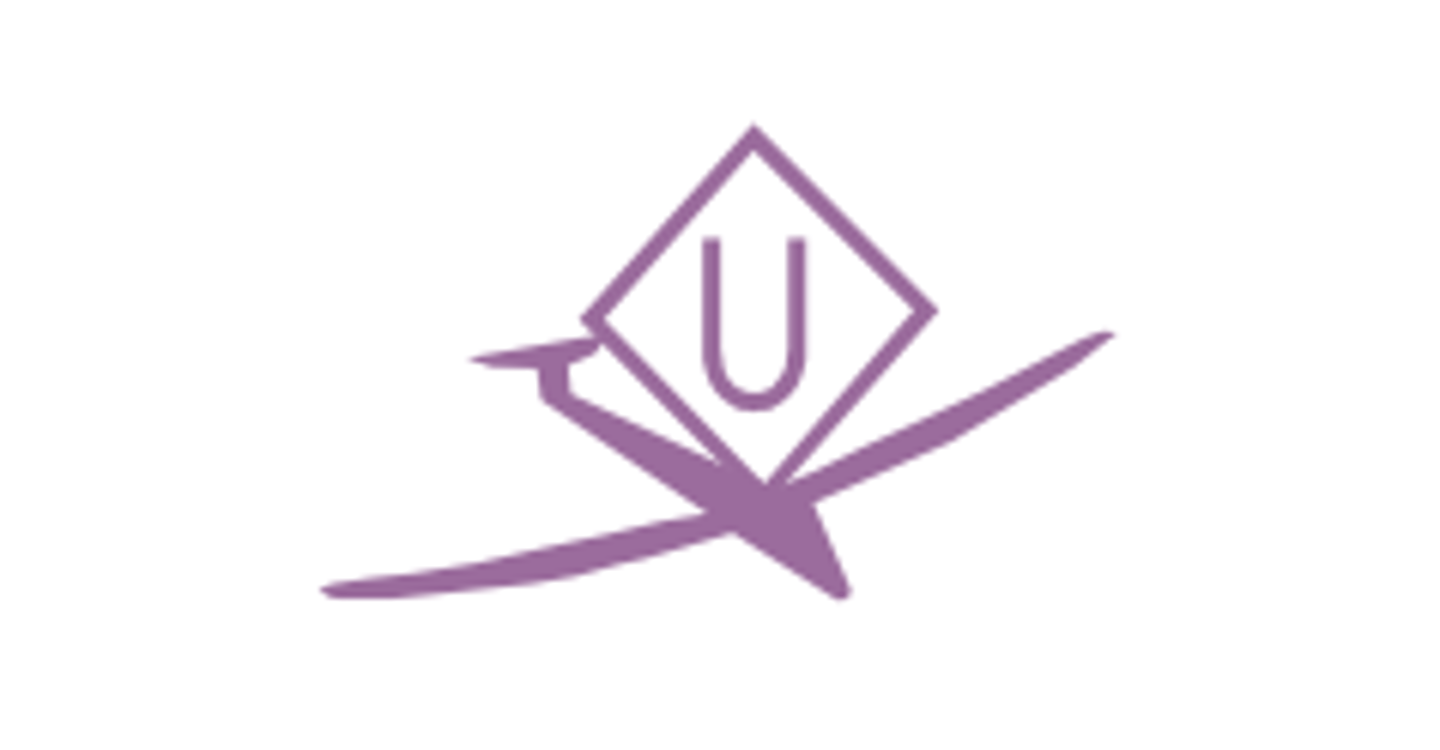

Ultralight Activity

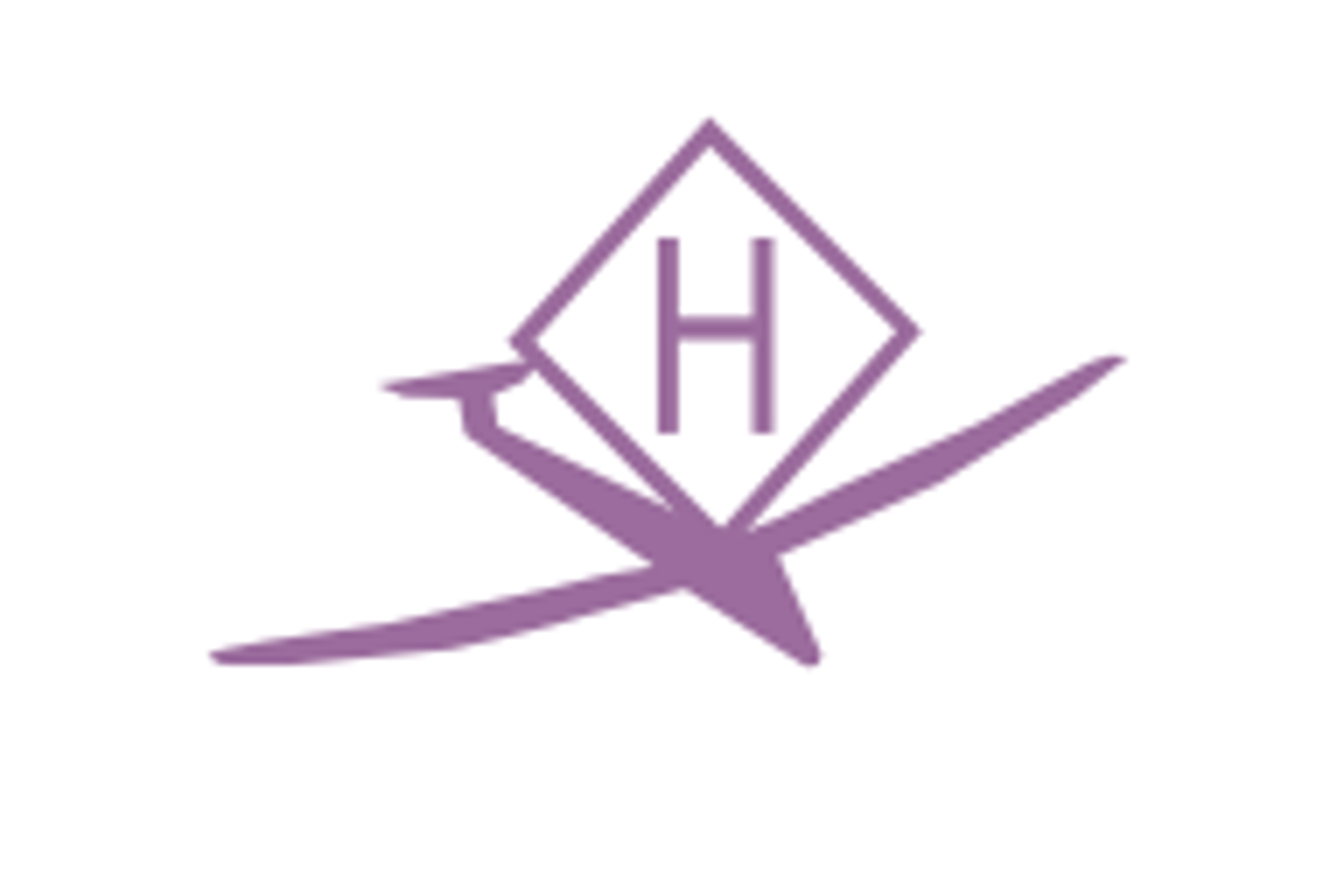

Hang Glider Activity

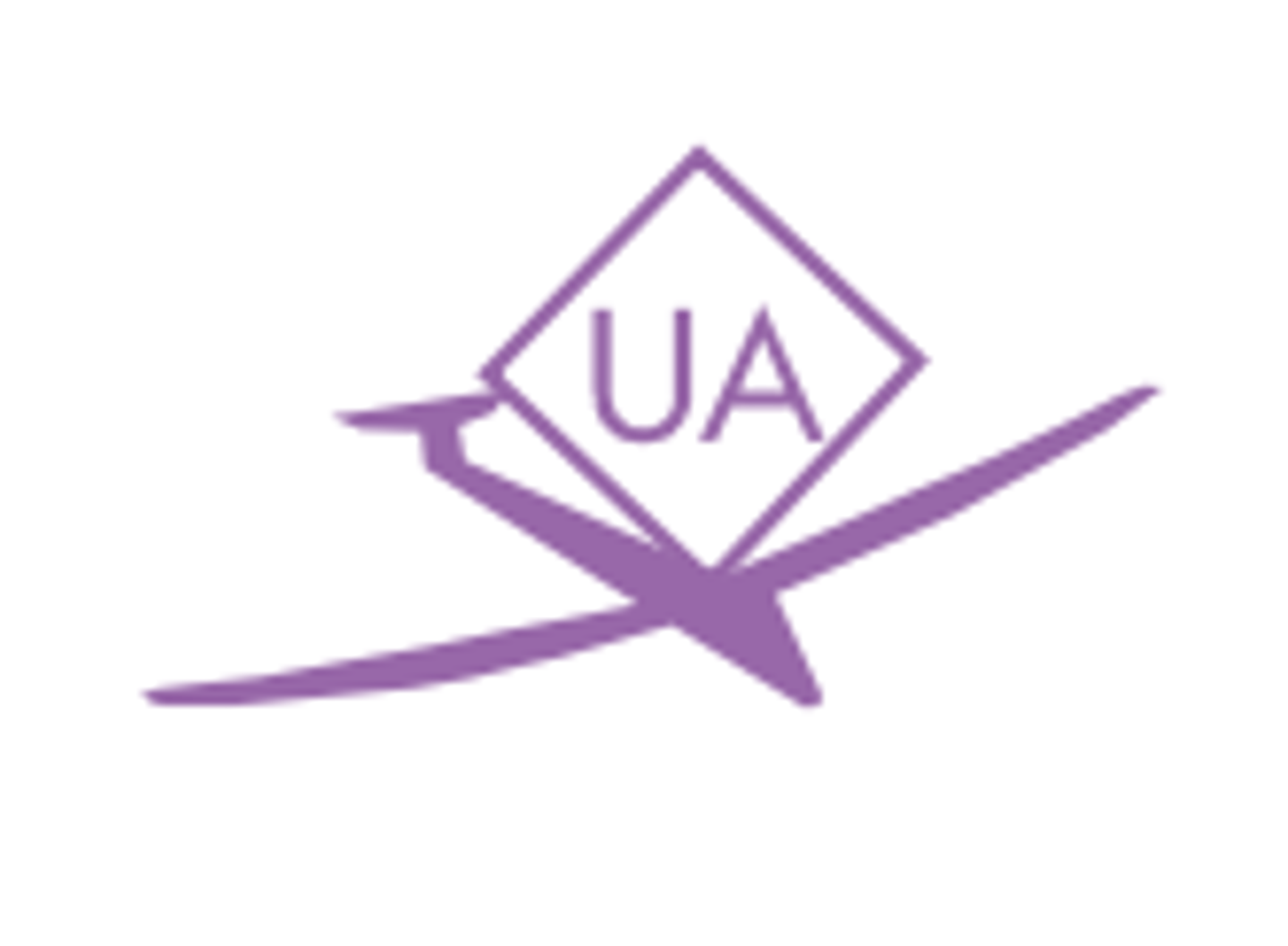

Unmanned Activity Area

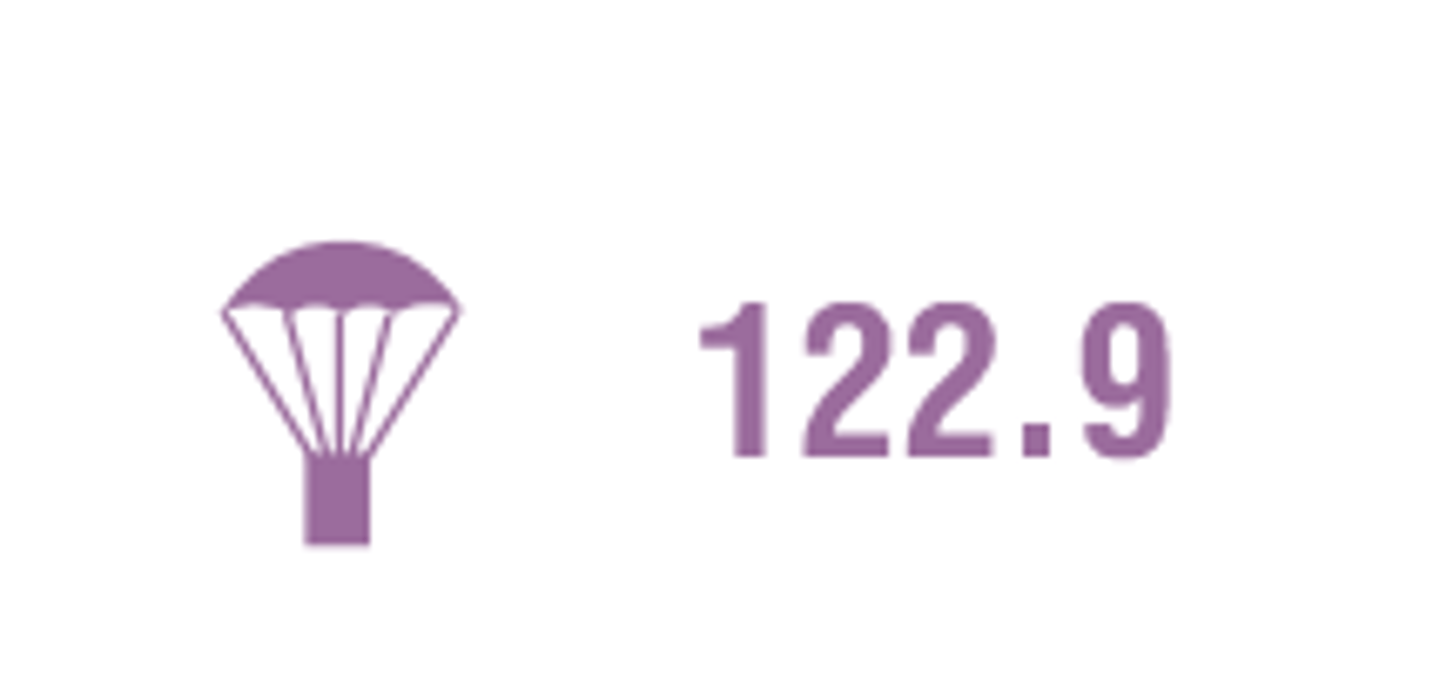

Parachute Jumping Area w/ Frequency

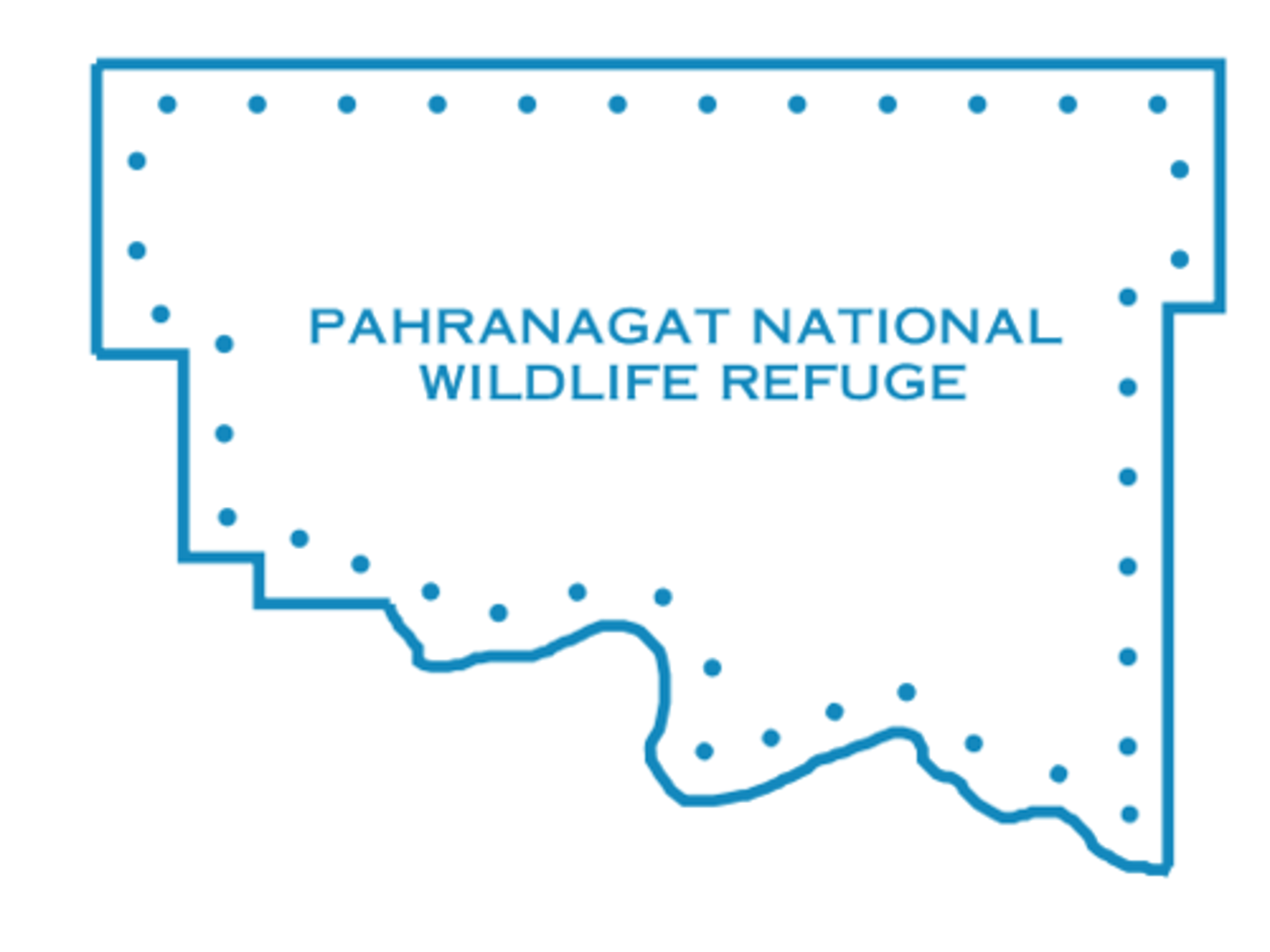

Special Conservation Area

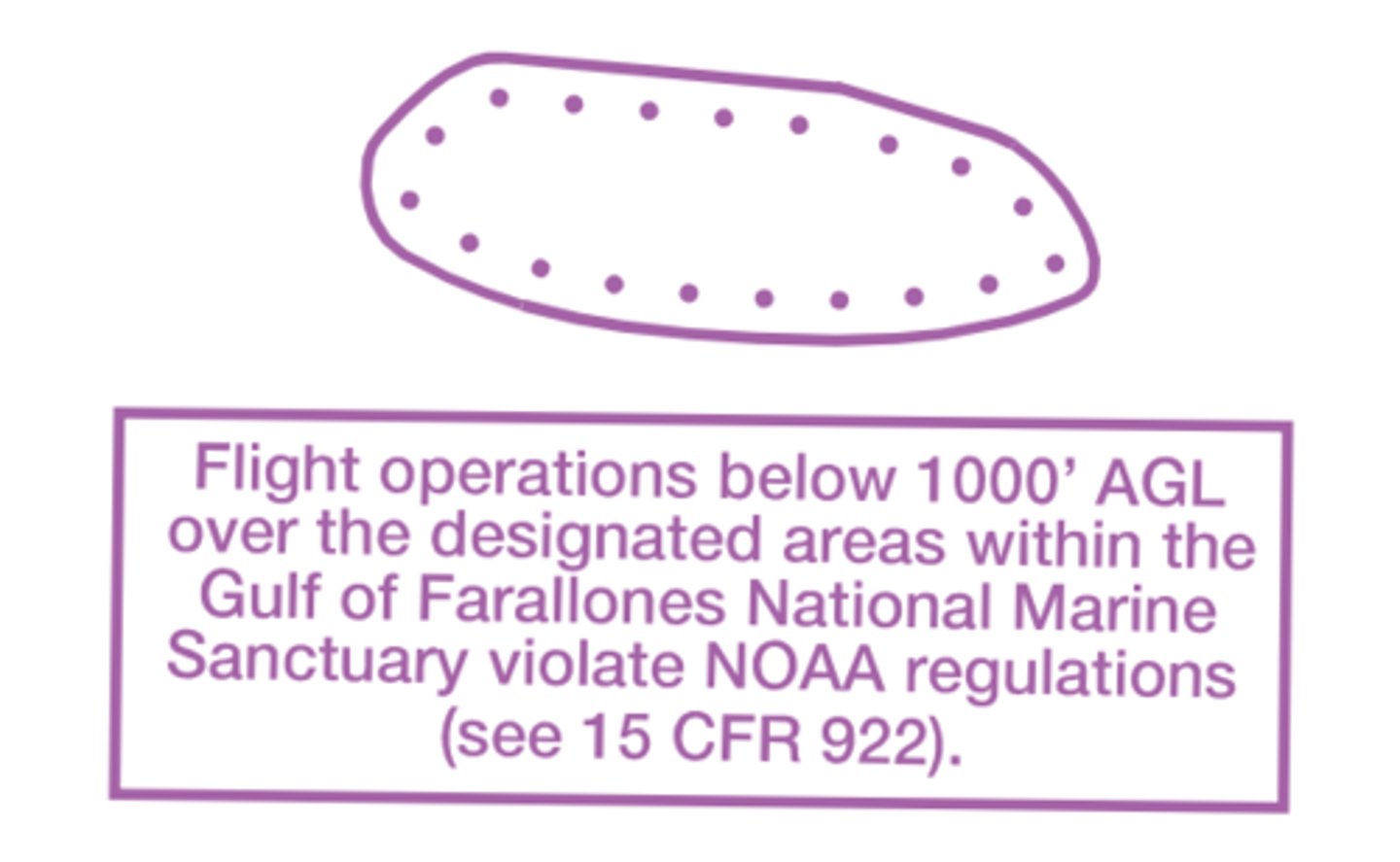

NOAA Regulated National Marine Sanctuary Designated Areas

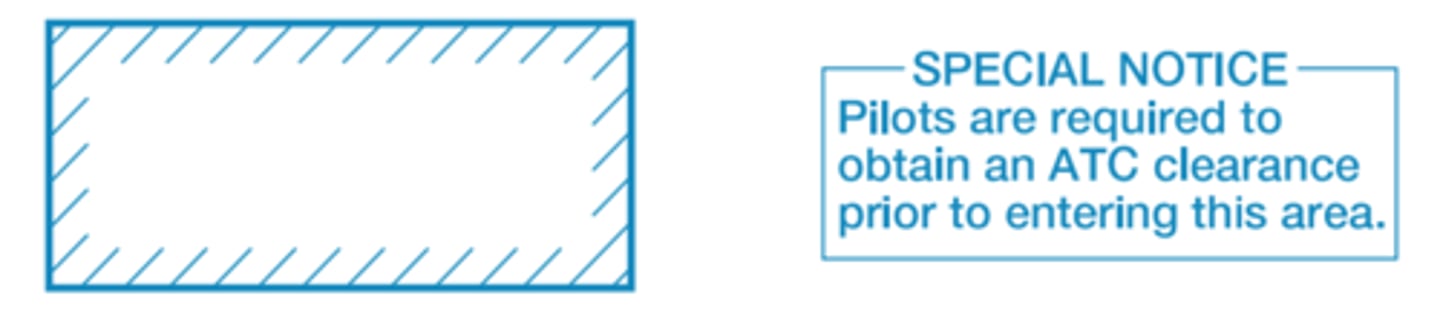

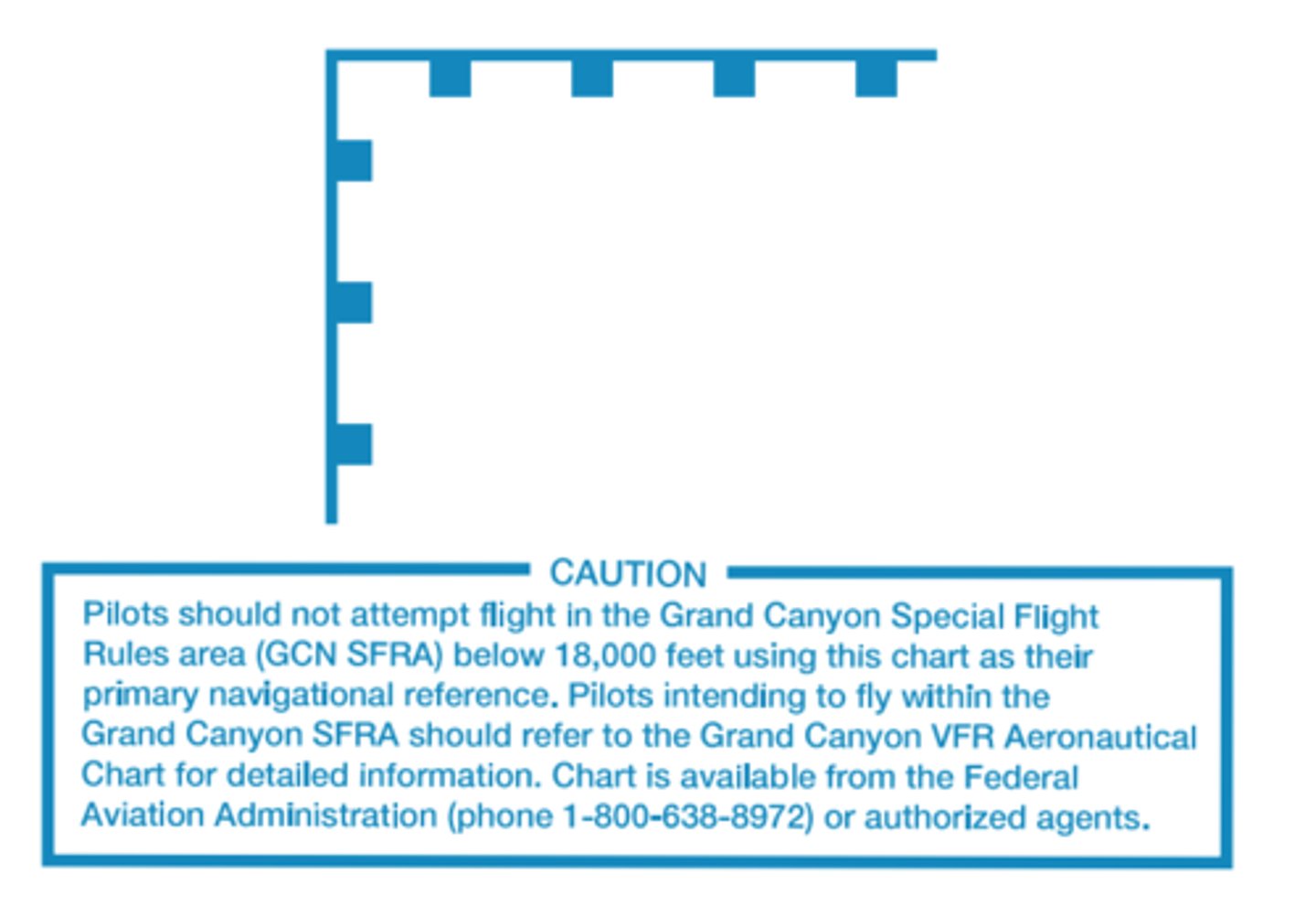

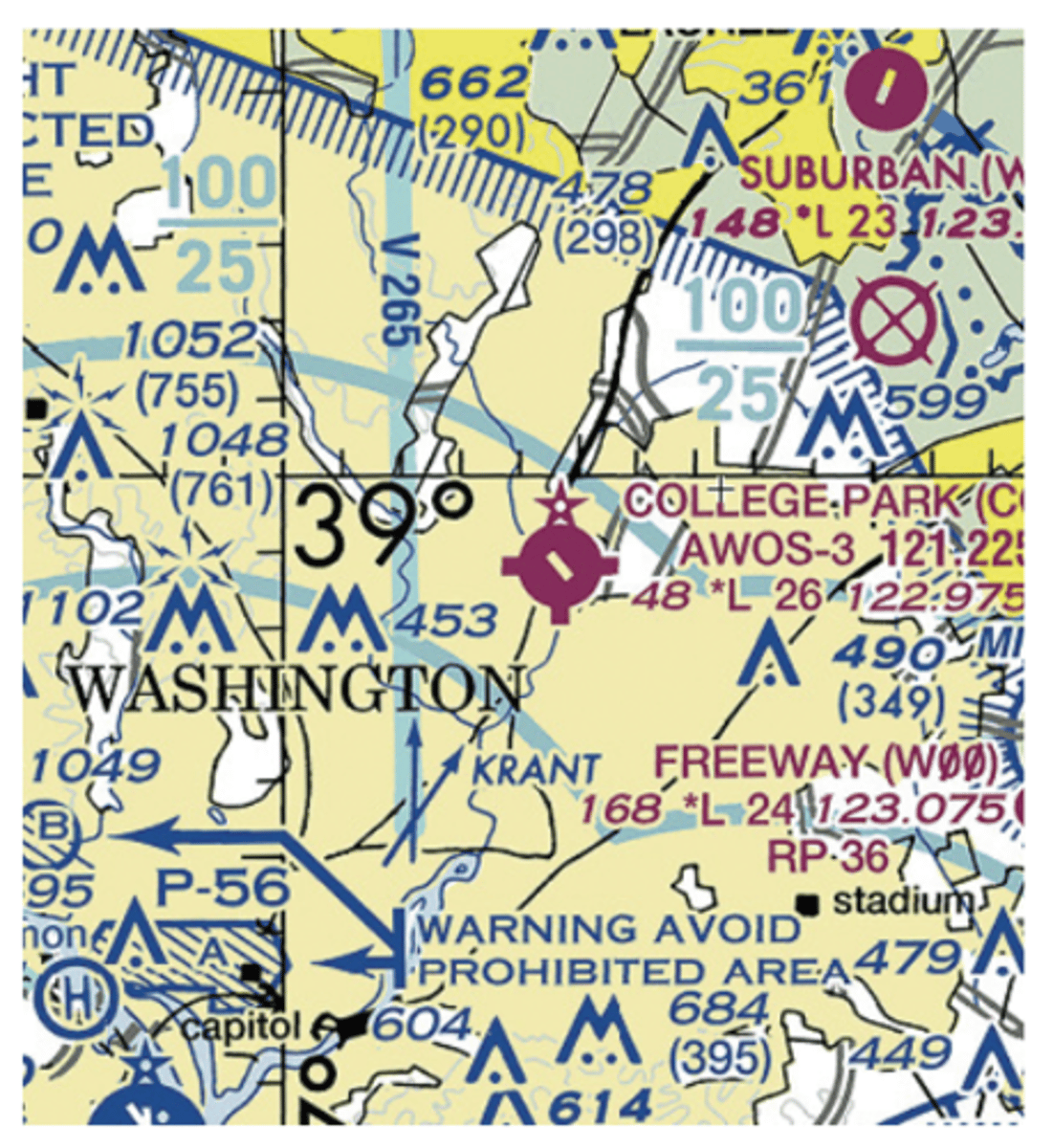

Special Flight Rules Area (SFRA)

Flight Restricted Zone (FRZ)

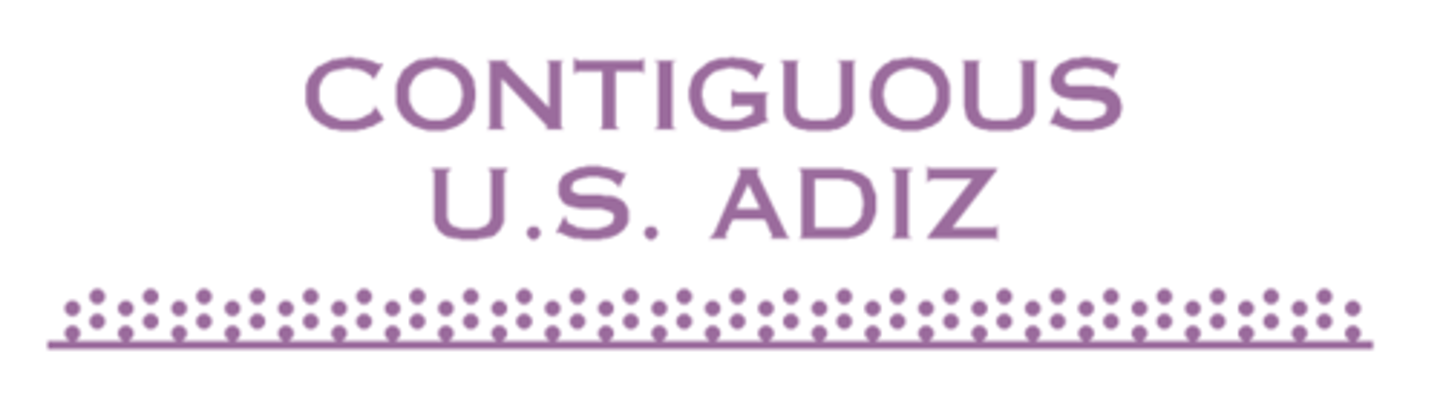

Air Defense Identification Zone (ADIZ)

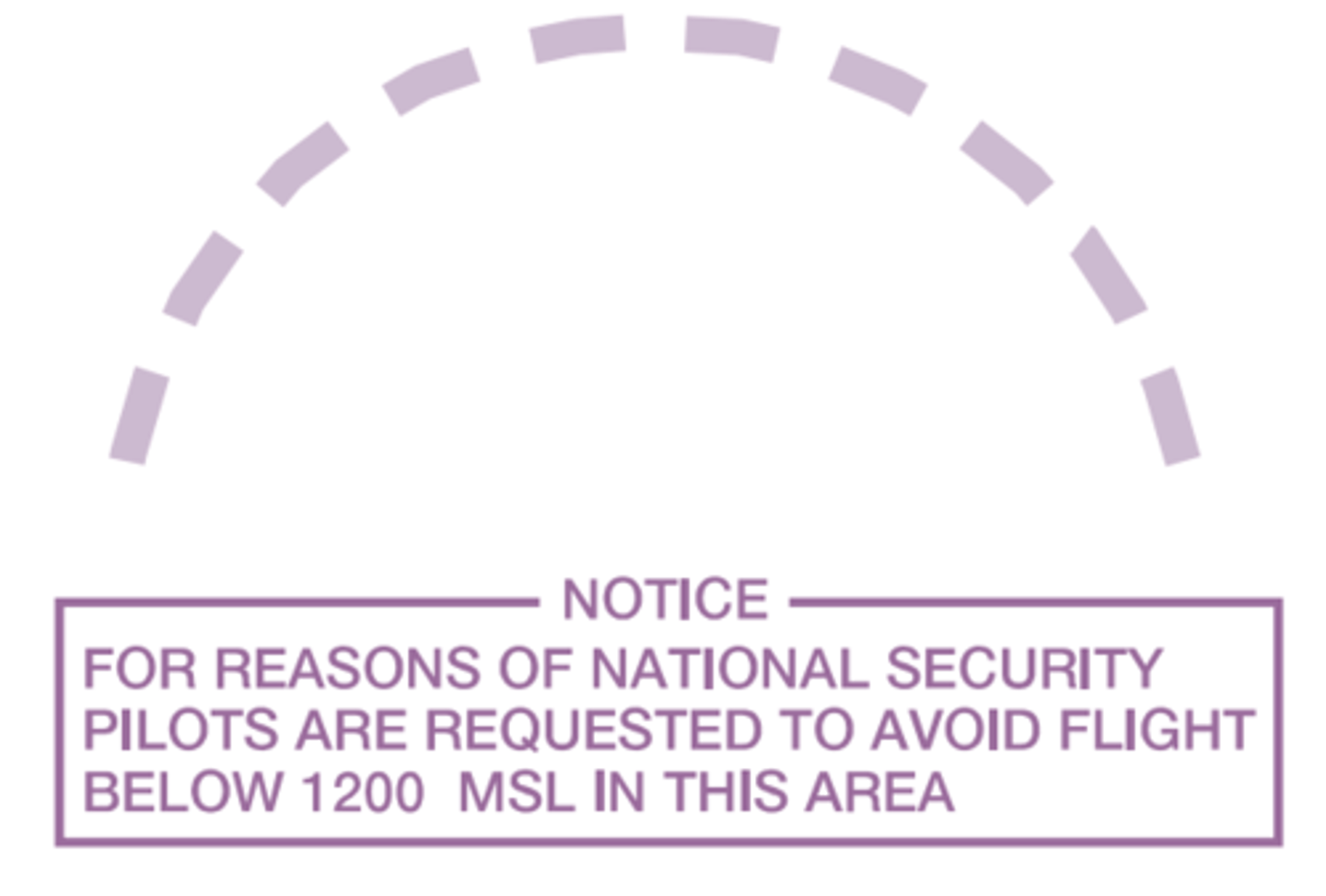

National Security Area

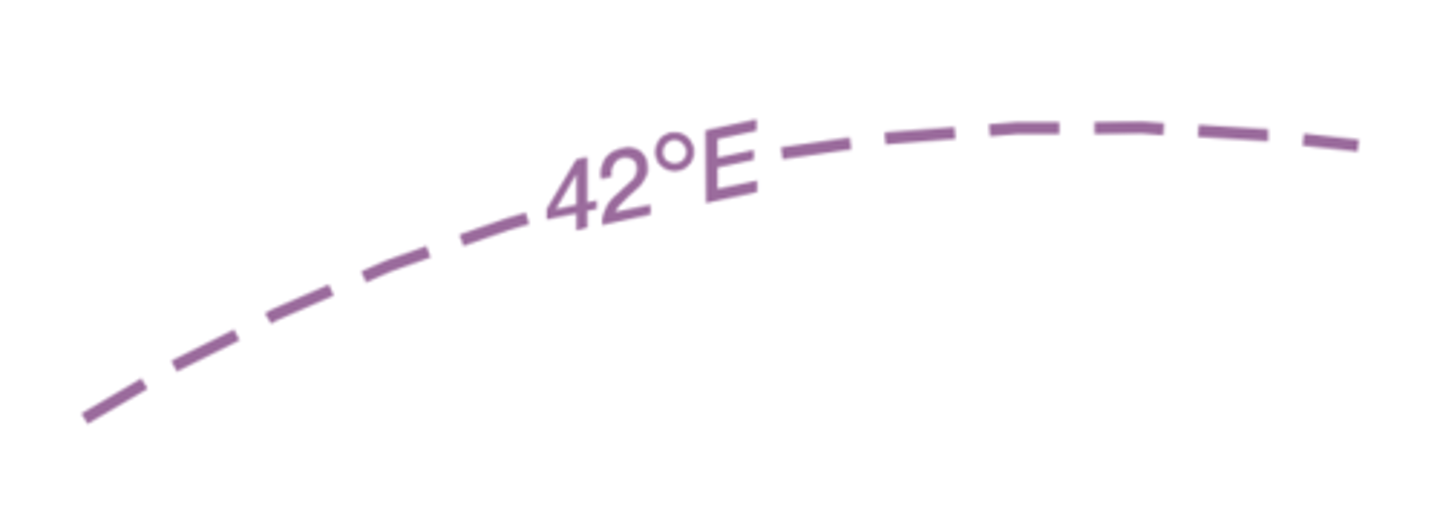

Isogonic Line & Value

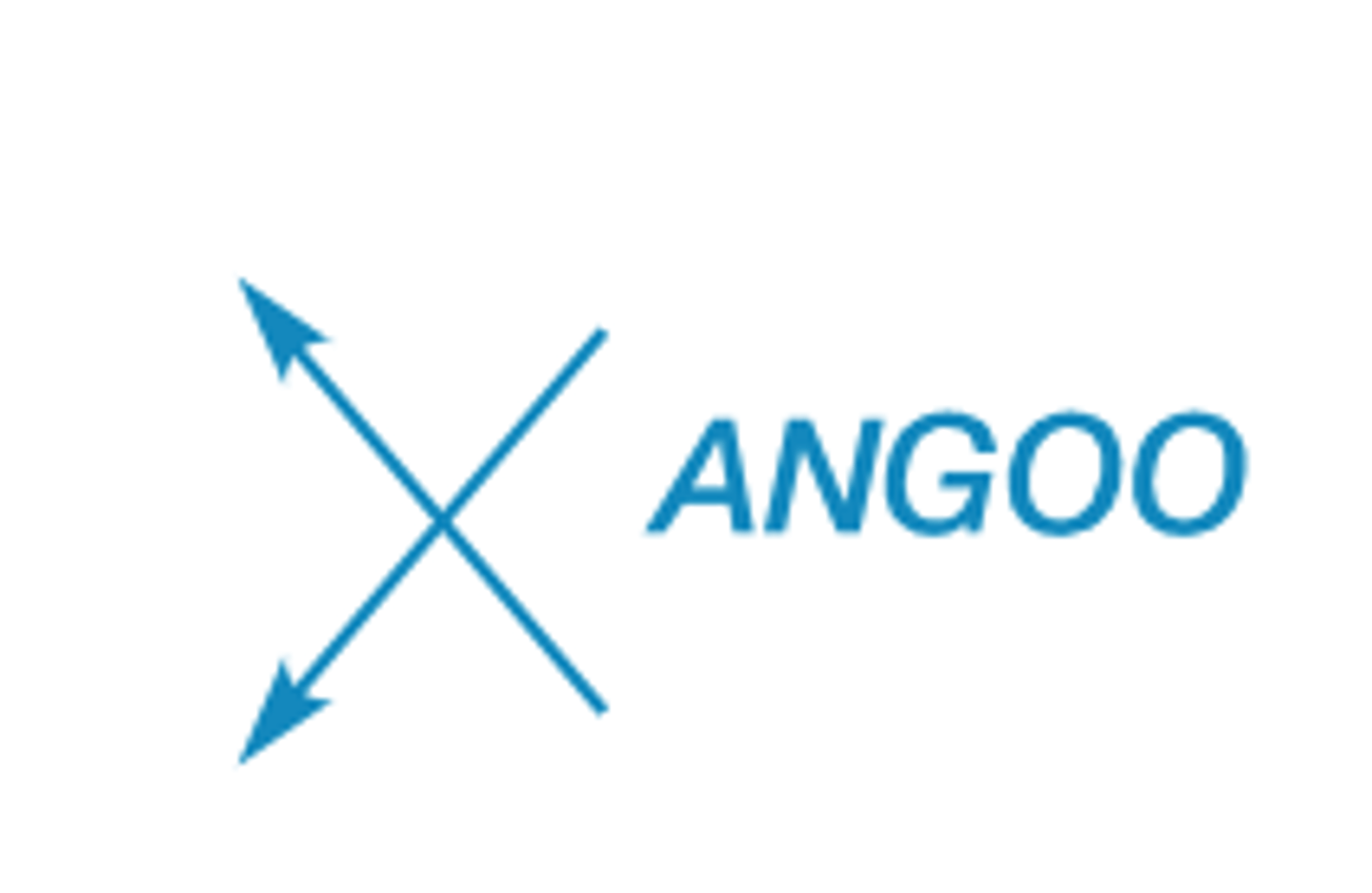

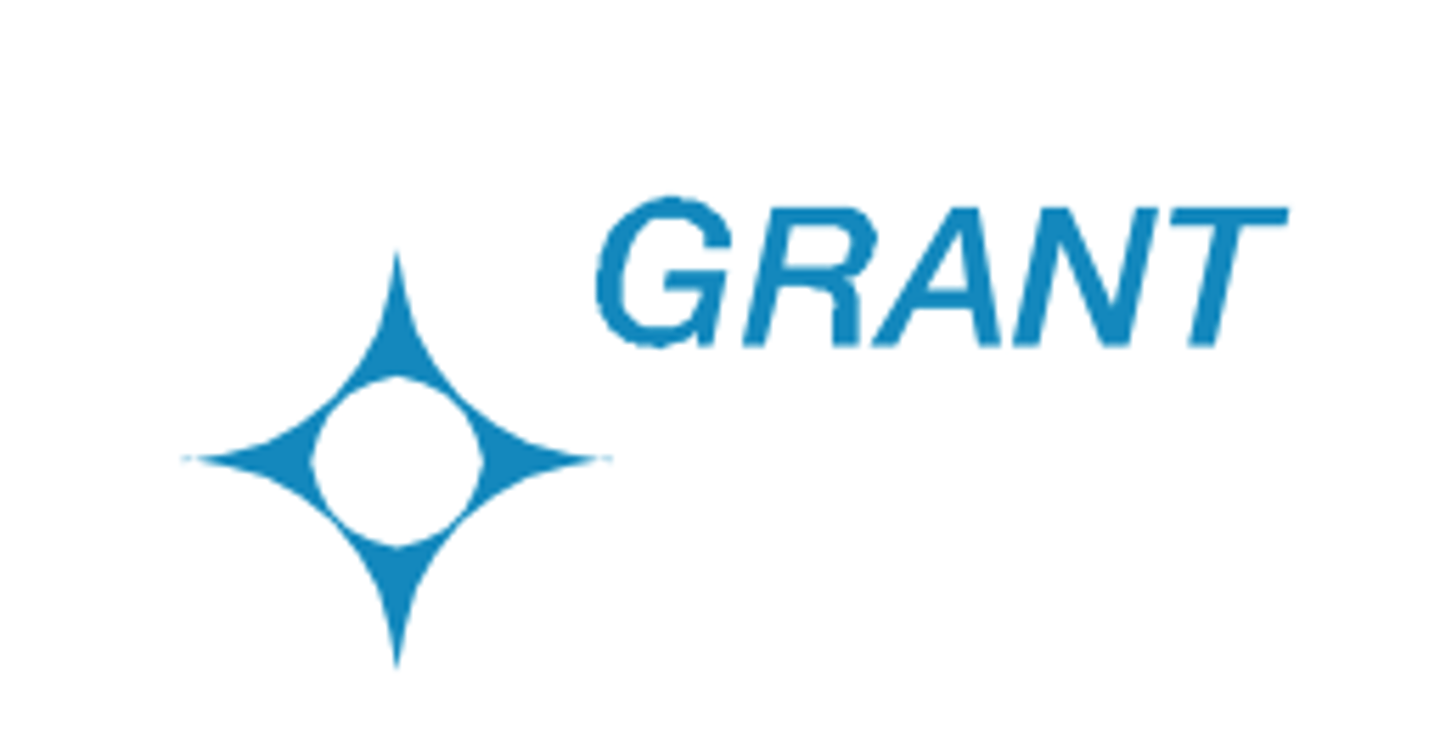

Named Intersection (for reporting)

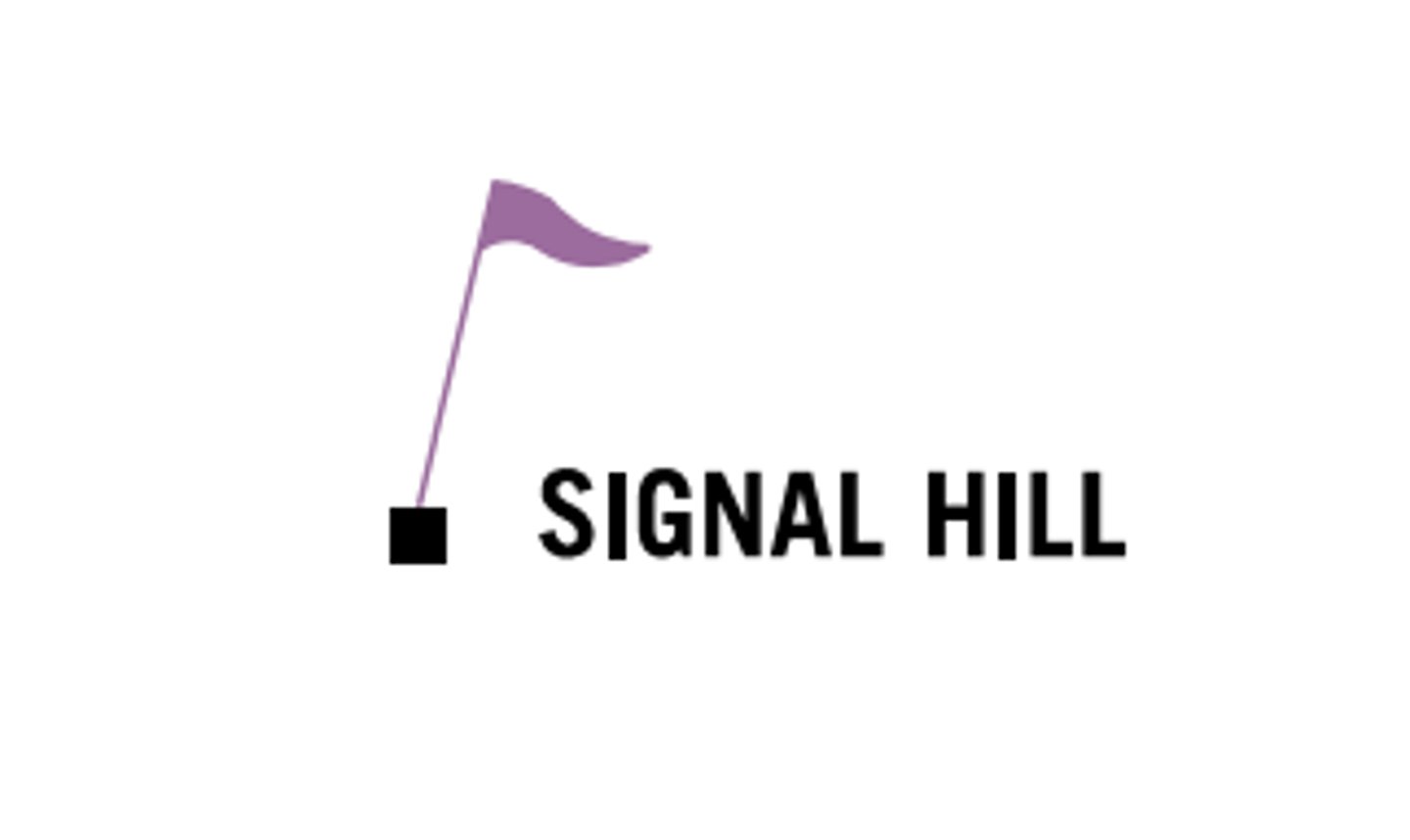

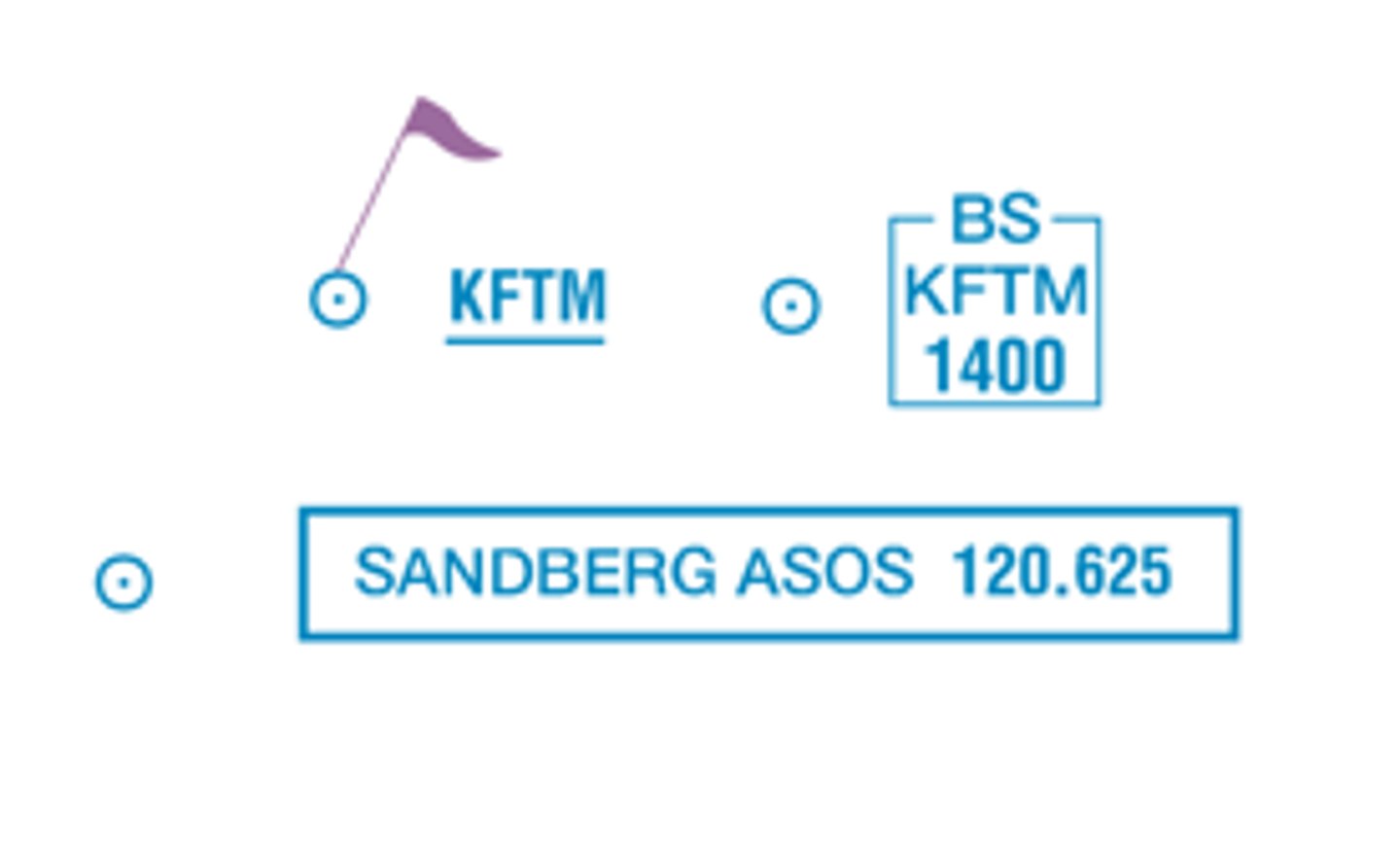

VFR Checkpoint

VFR waypoint

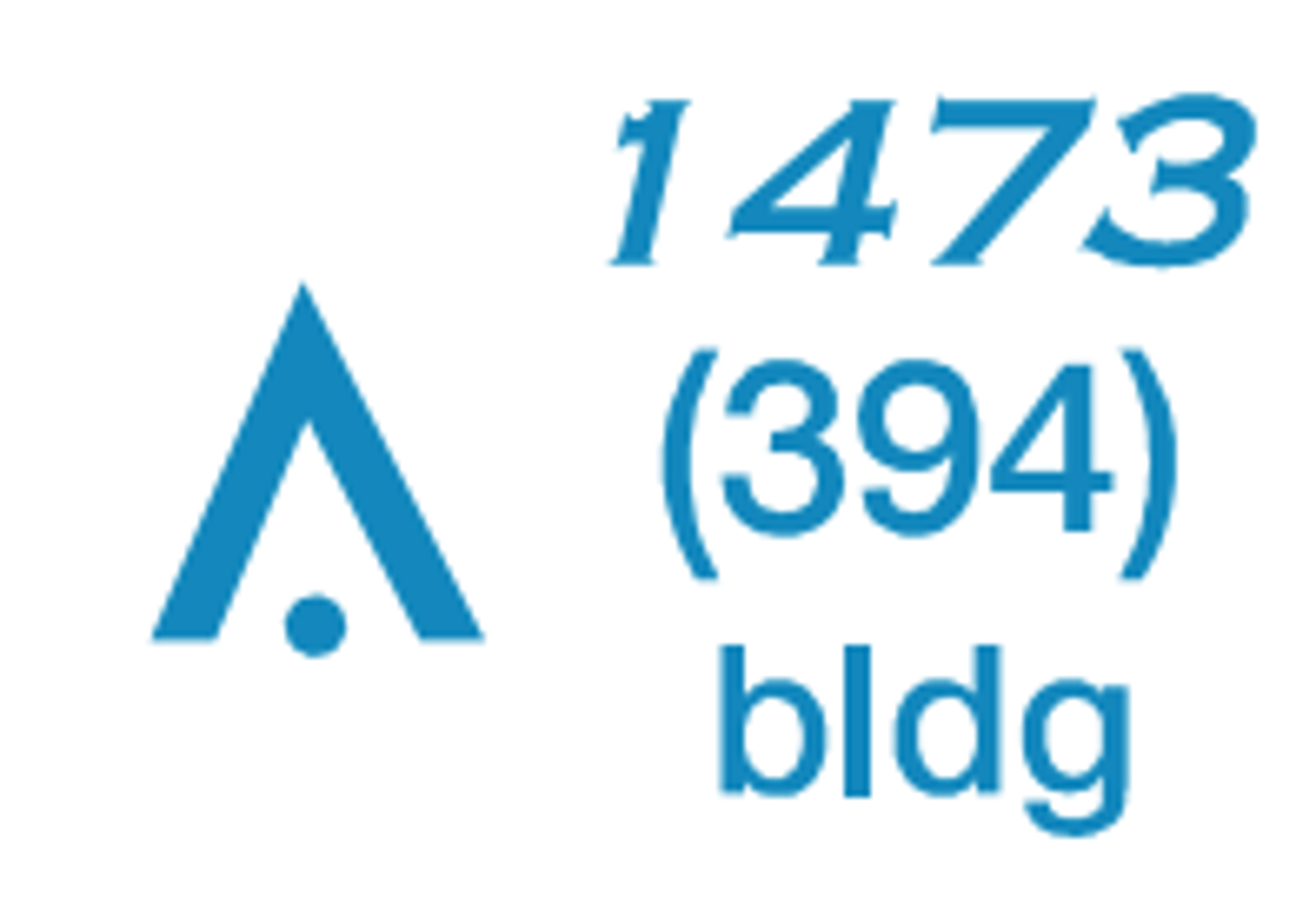

Obstruction less than 1,000' AGL

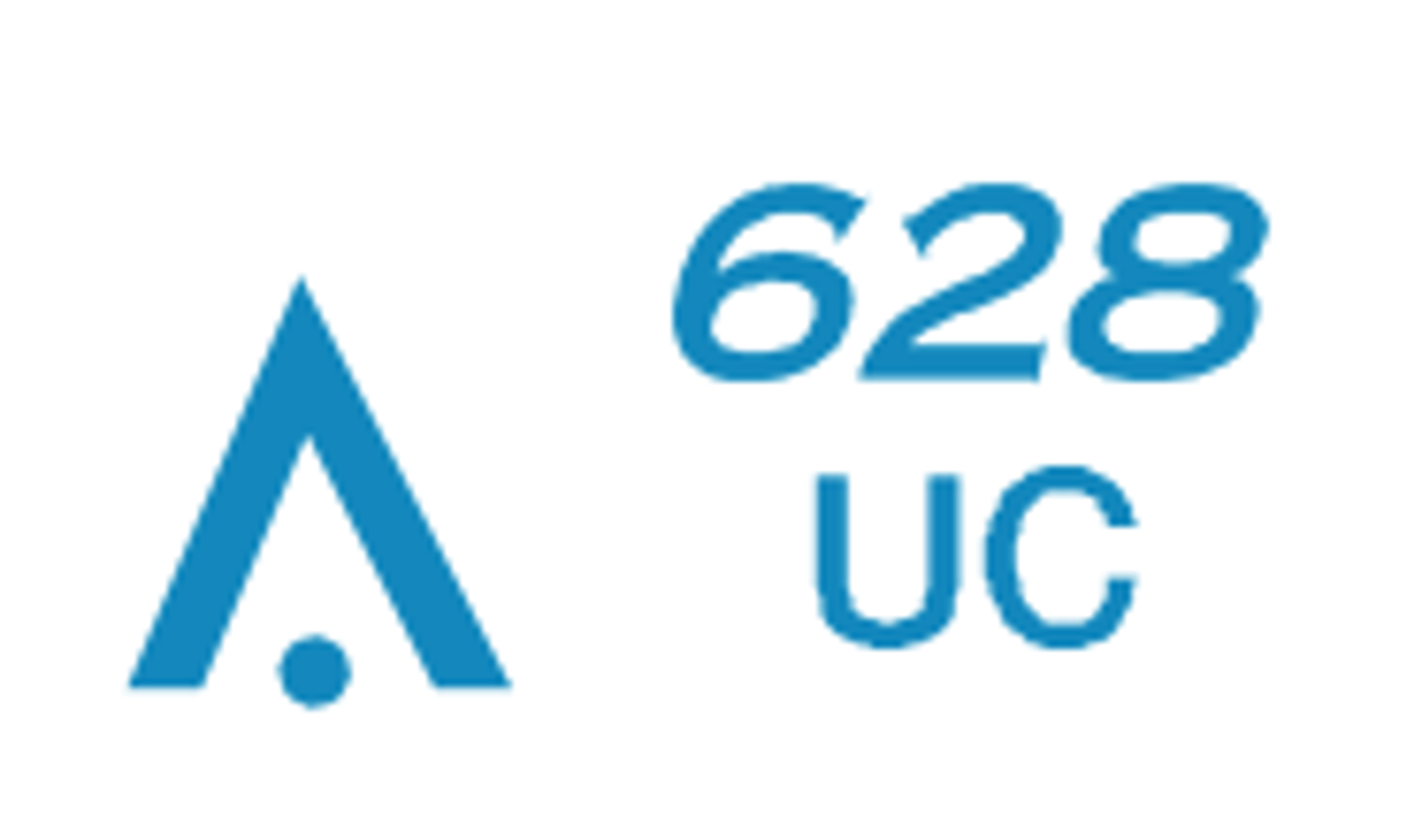

Obstruction under construction (unconfirmed elevation)

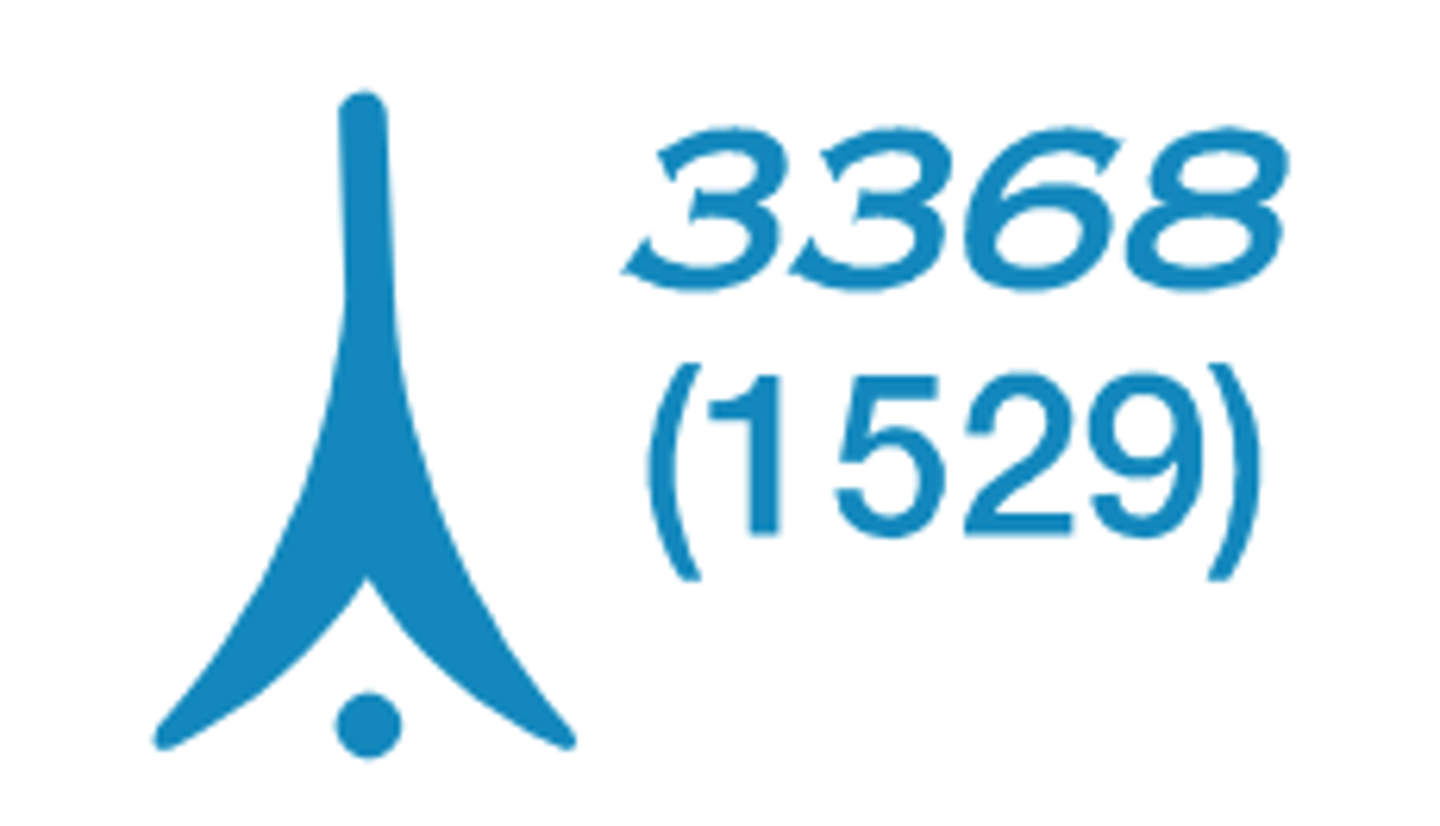

Obstruction 1,000' AGL and higher

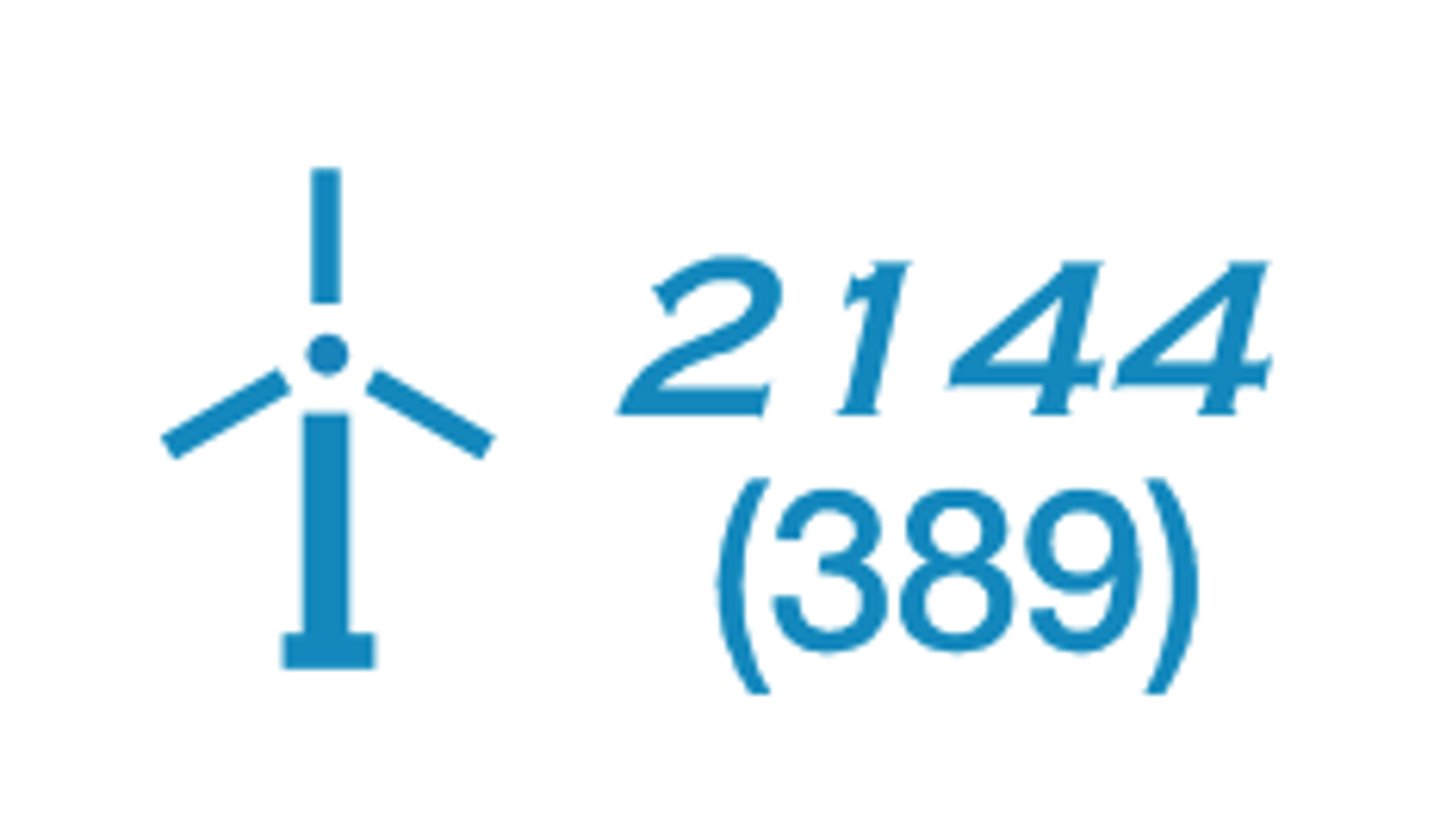

Wind Turbine

Obstruction with high-intensity lights

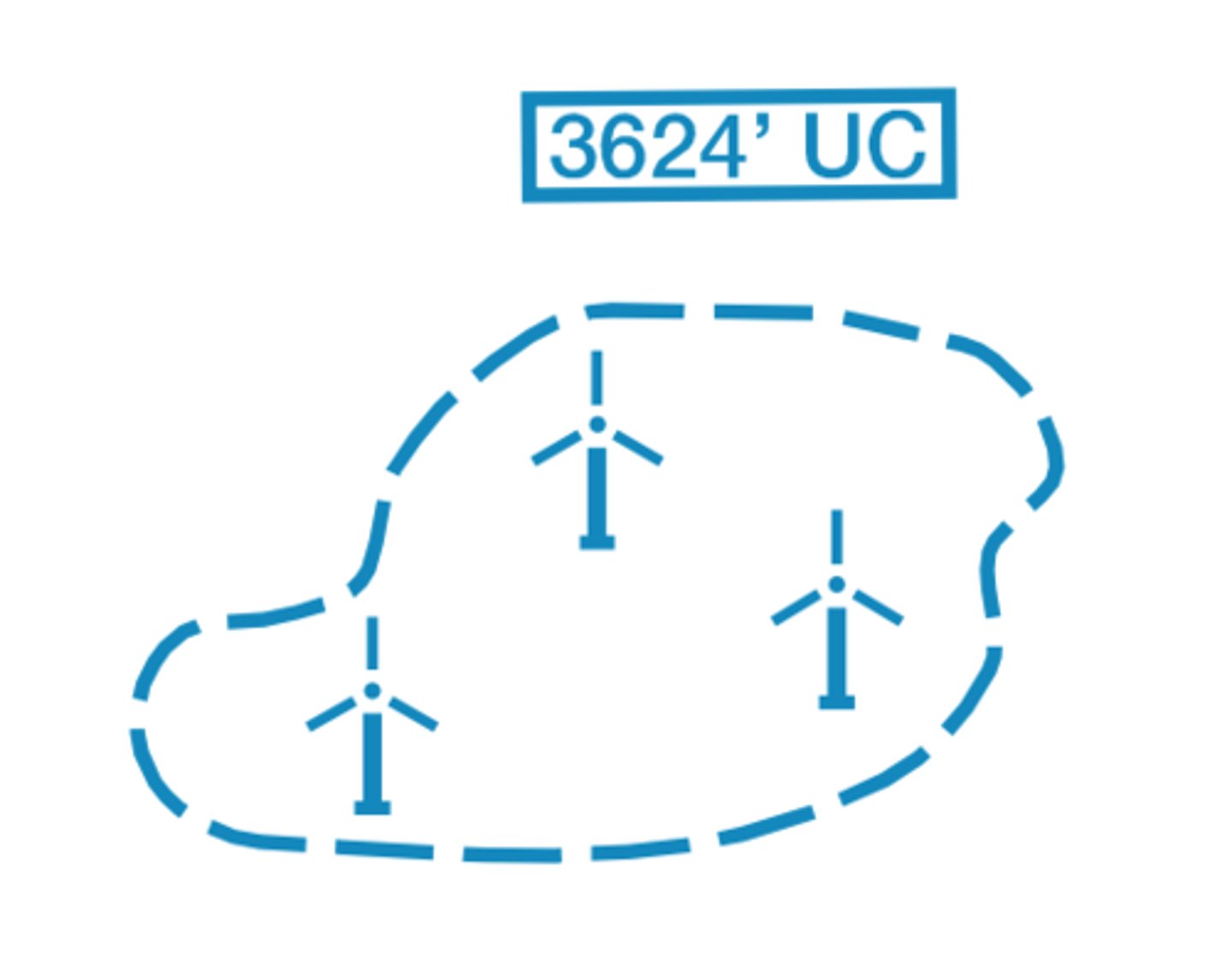

Wind Turbine Farm

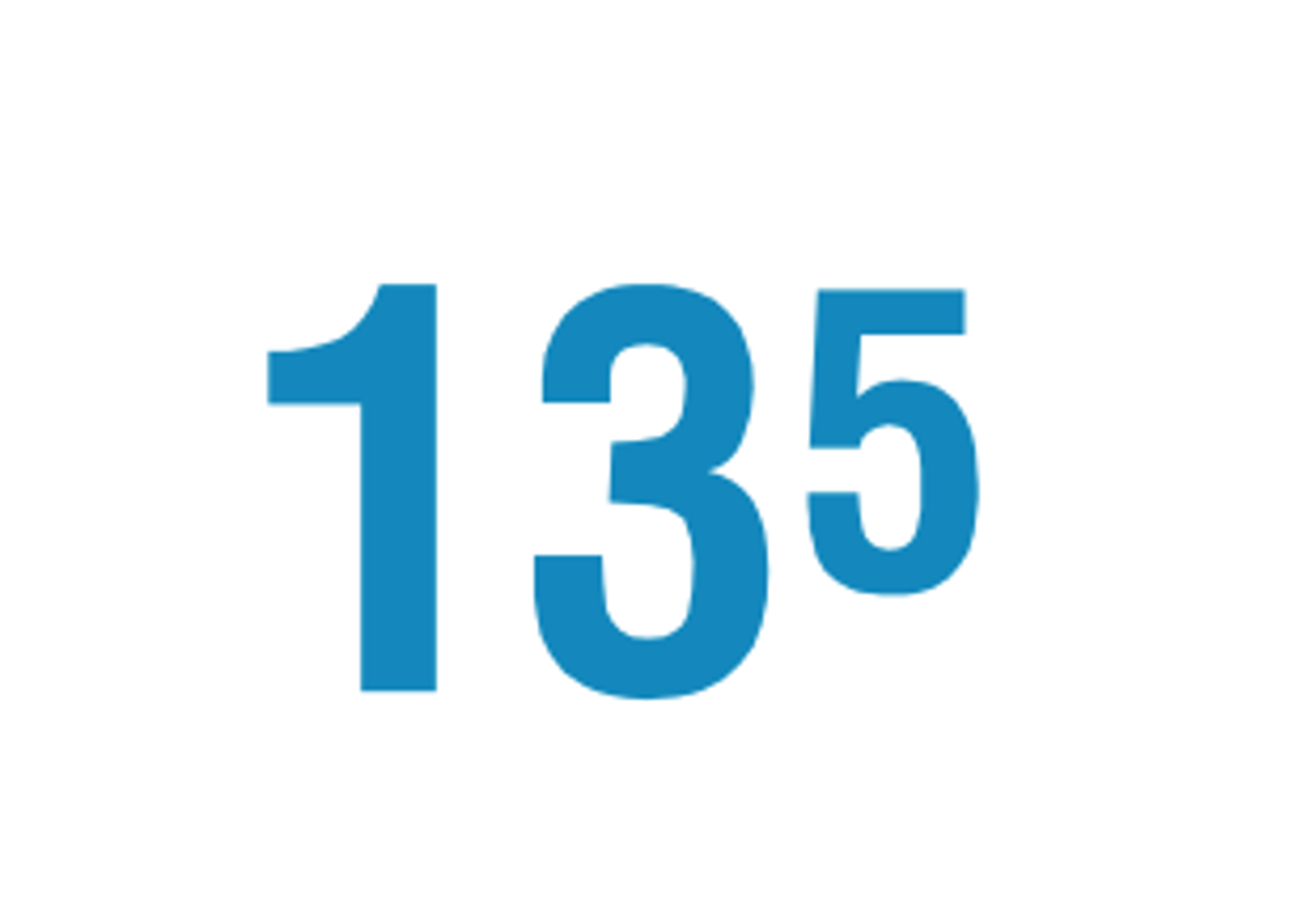

Maximum Elevation Figure (MEF)

Shows clearance over the highest object in the quadrant

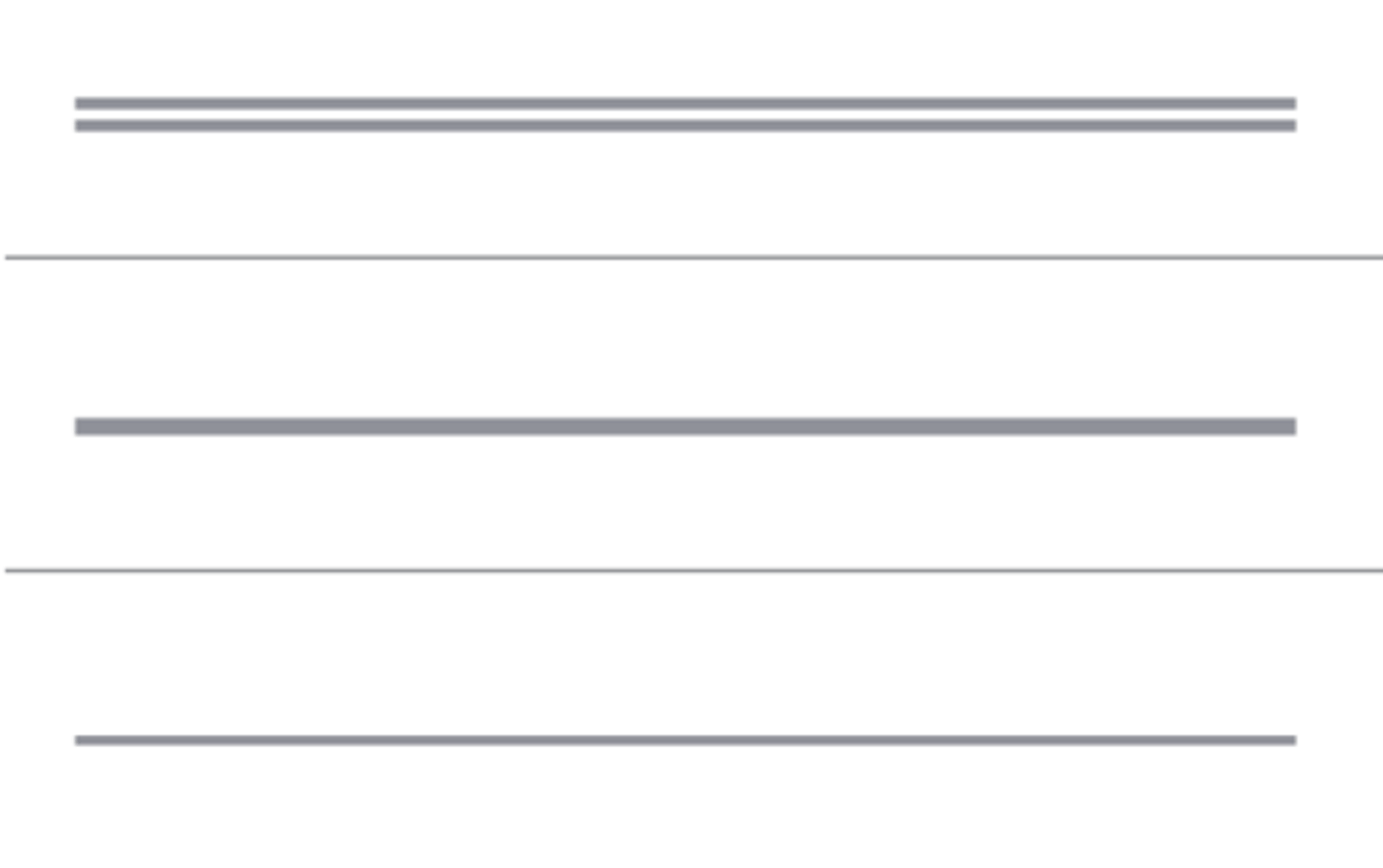

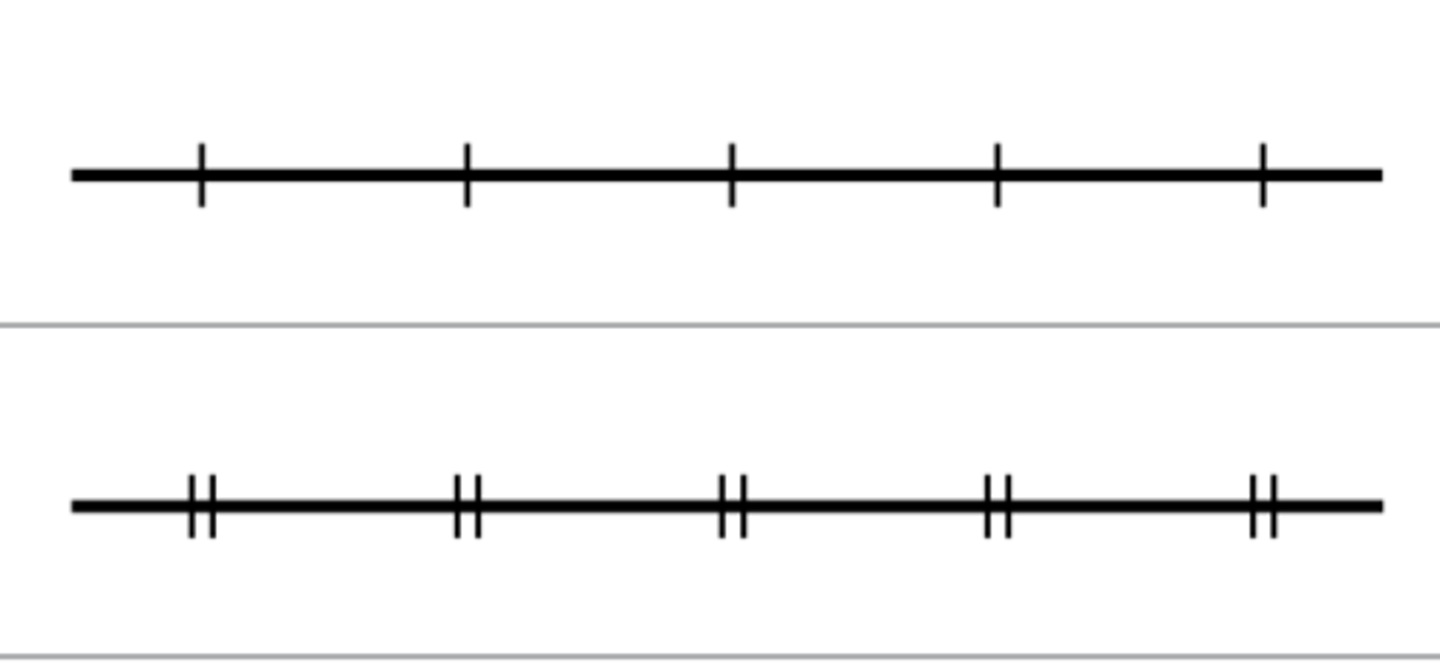

Railroads

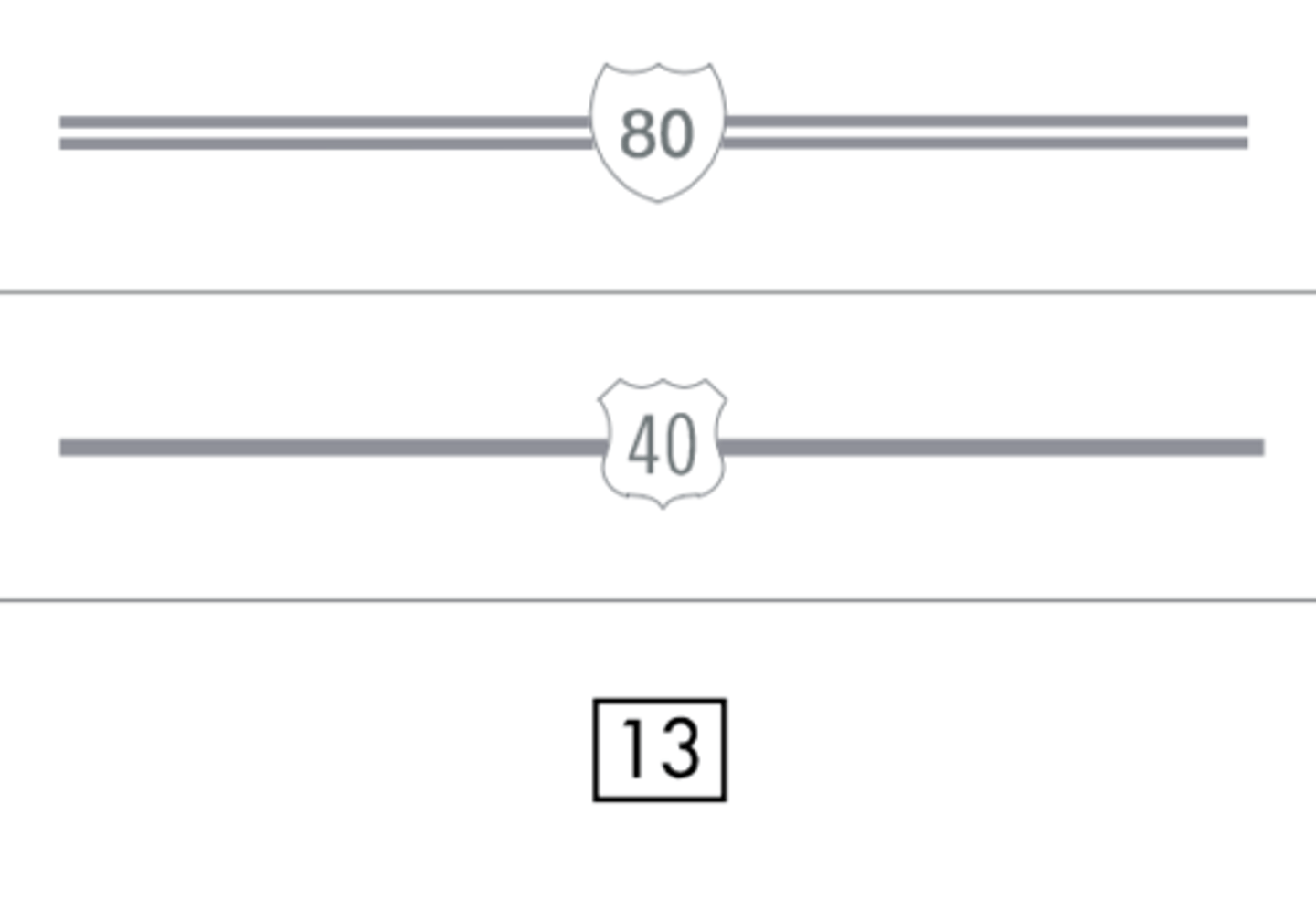

Roads

Trail

Road Marker

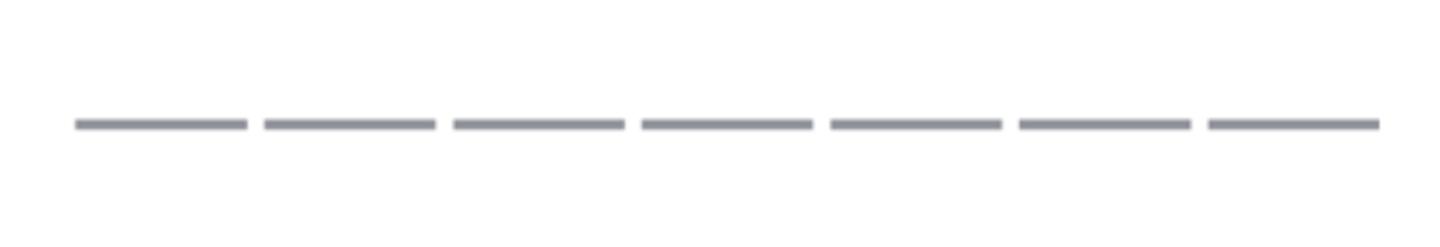

Roads under construction

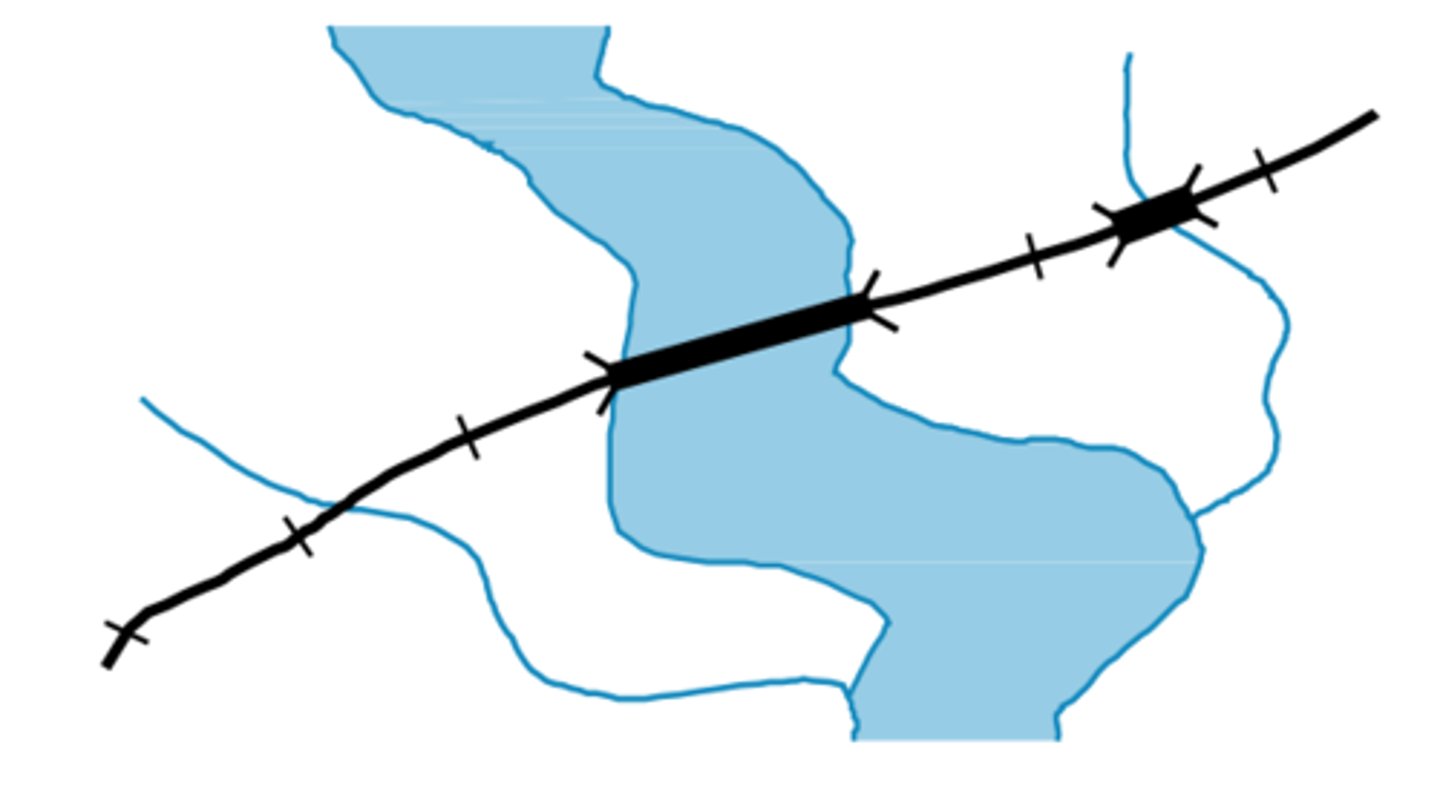

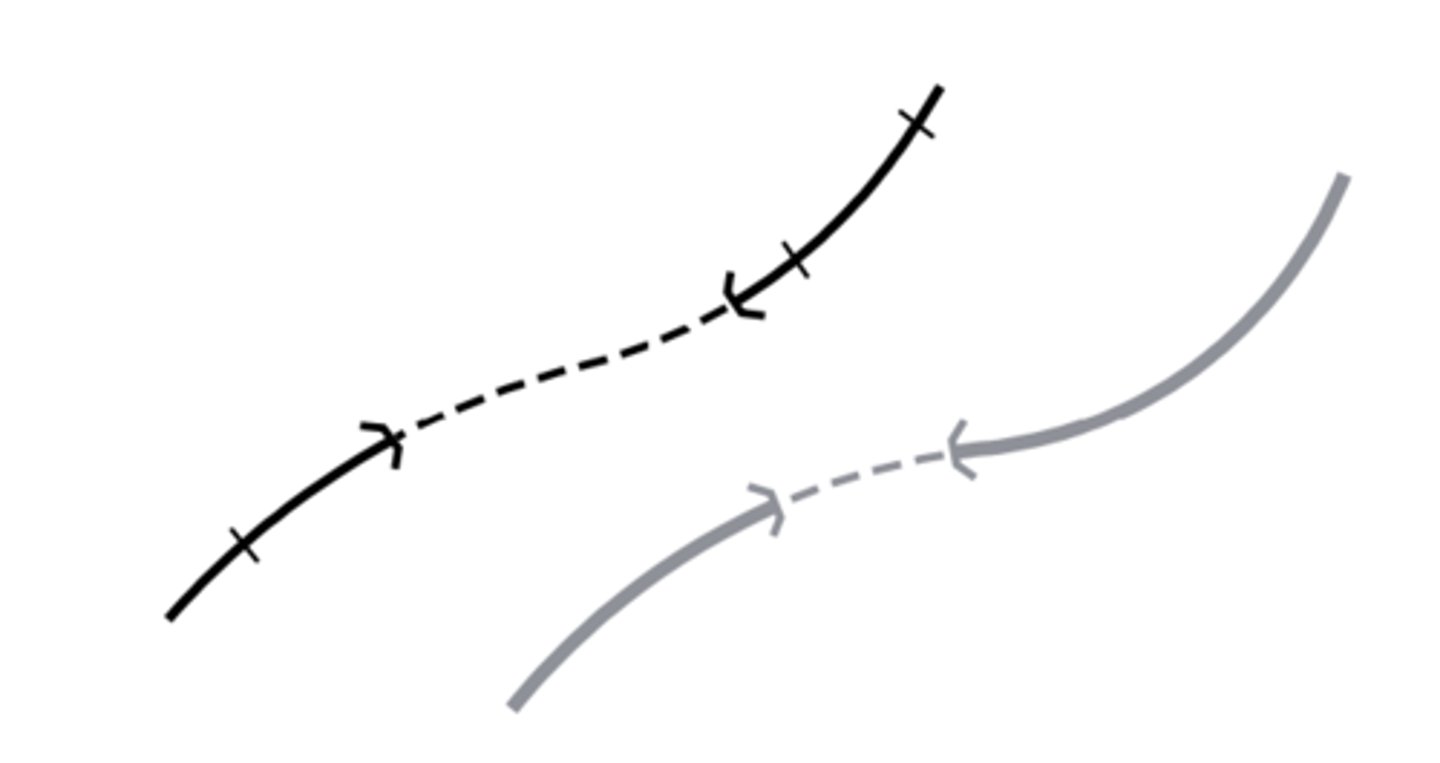

Tunnels-Road & Railroad

Bridges & Viaducts

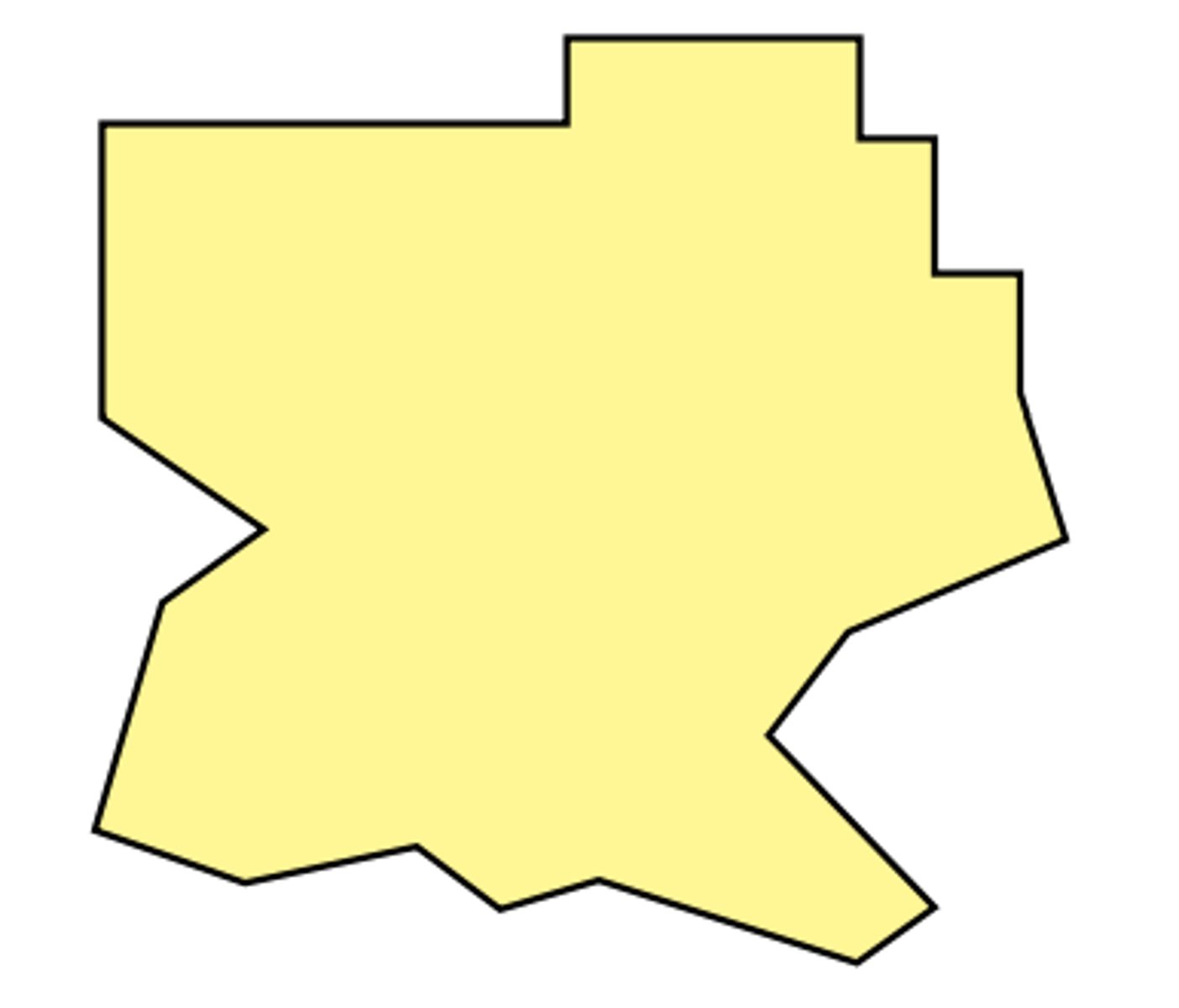

Large Cities

International Boundary

State Boundary

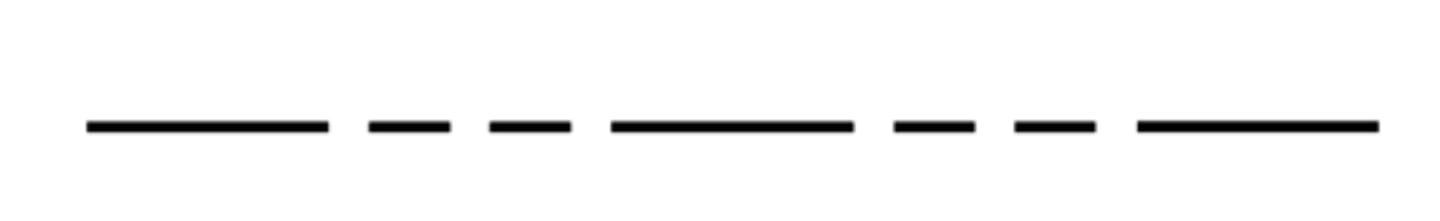

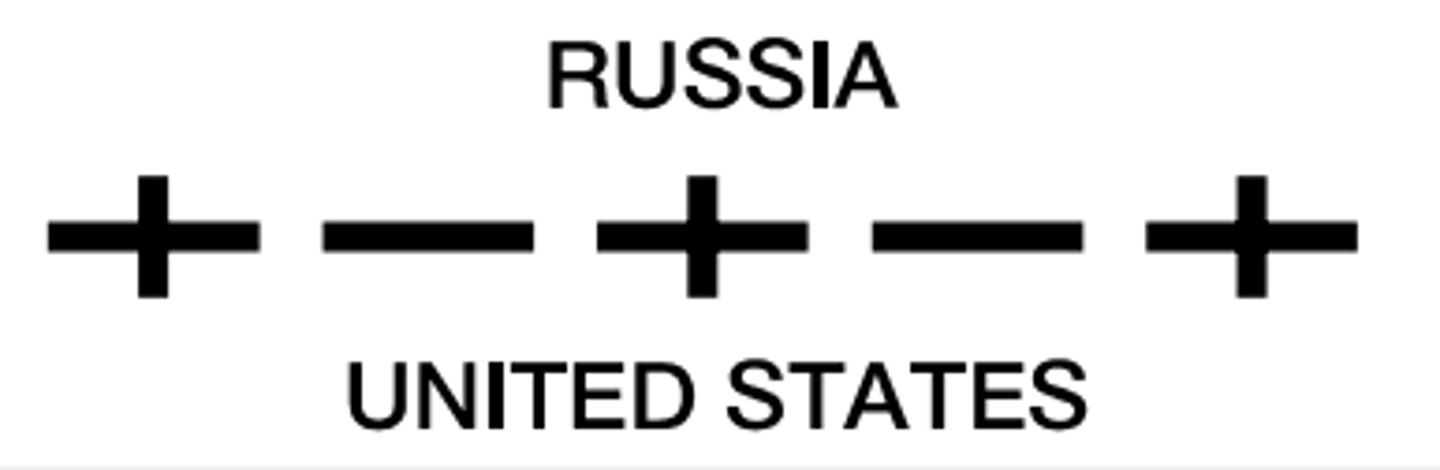

Convention or Mandate Line

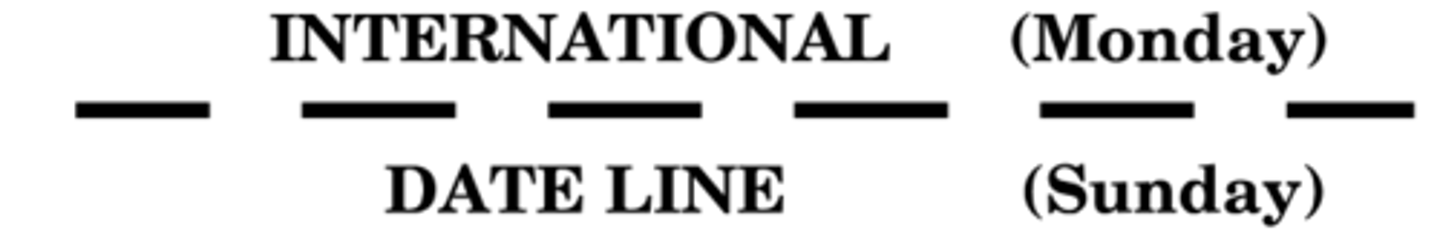

International Date Line

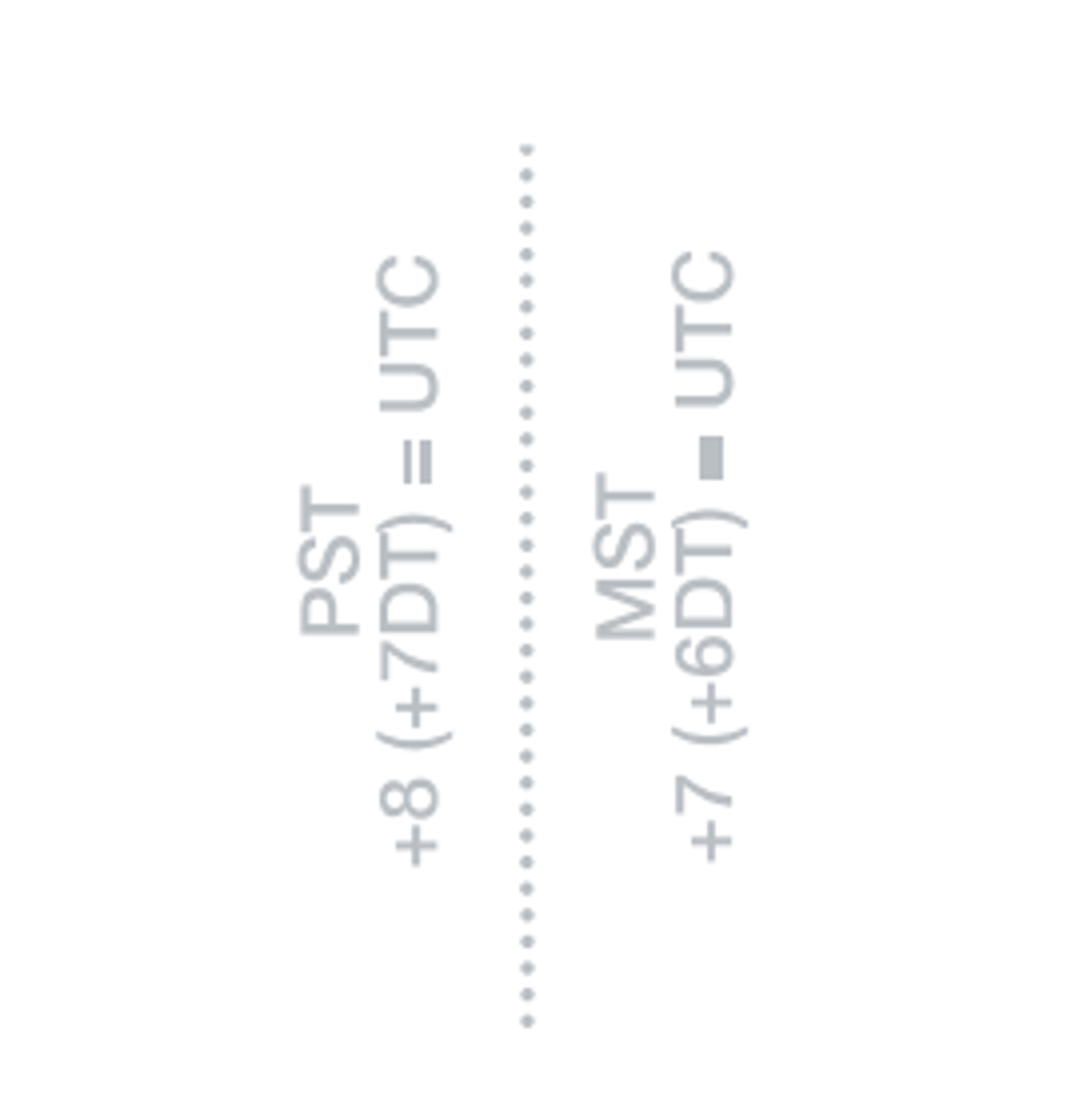

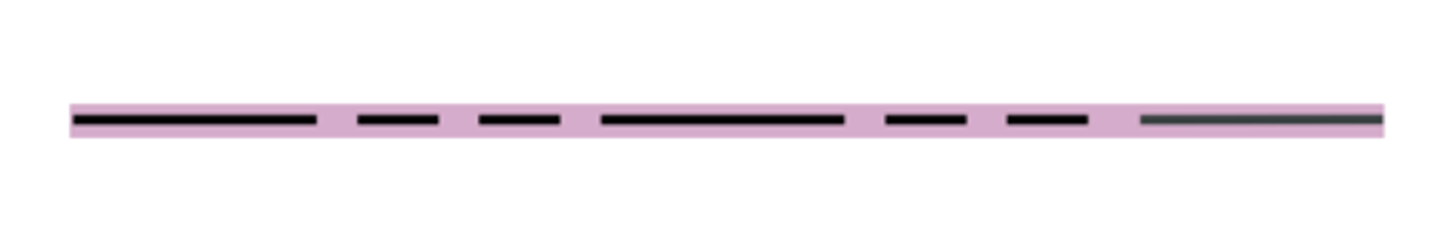

Time Zones

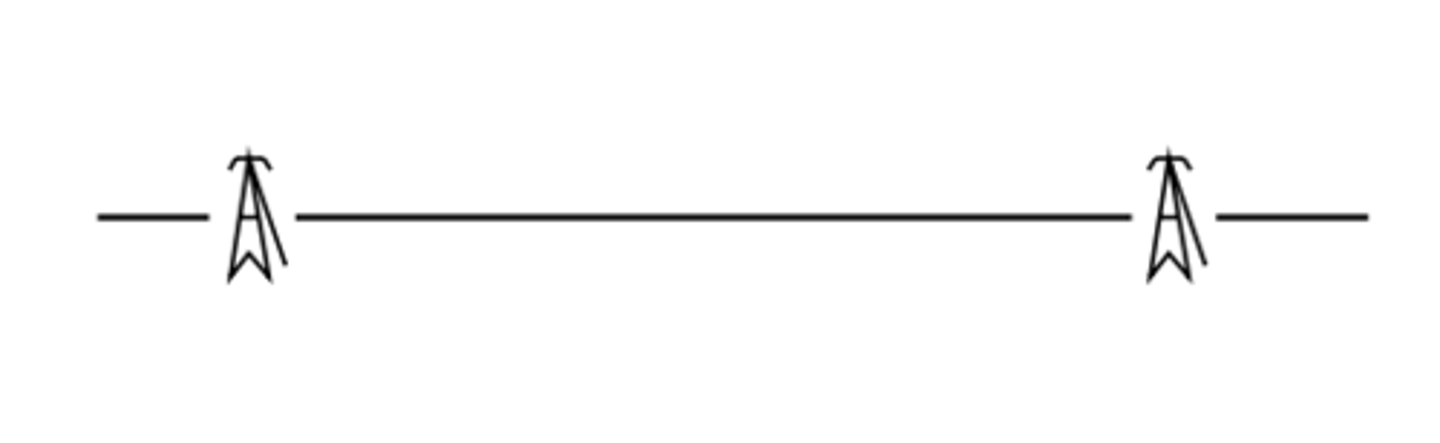

Power Transmission & Telecommunication Lines

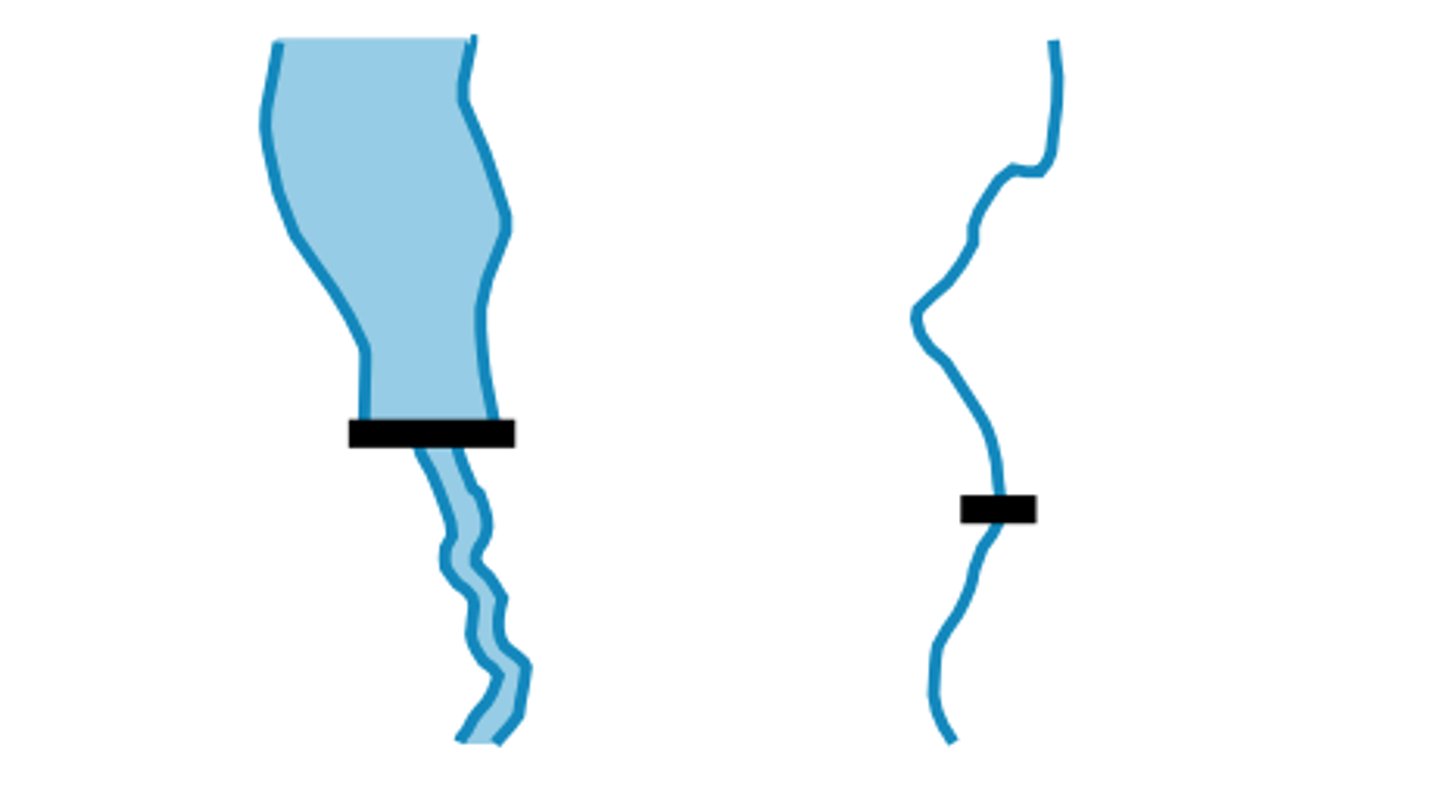

Dam

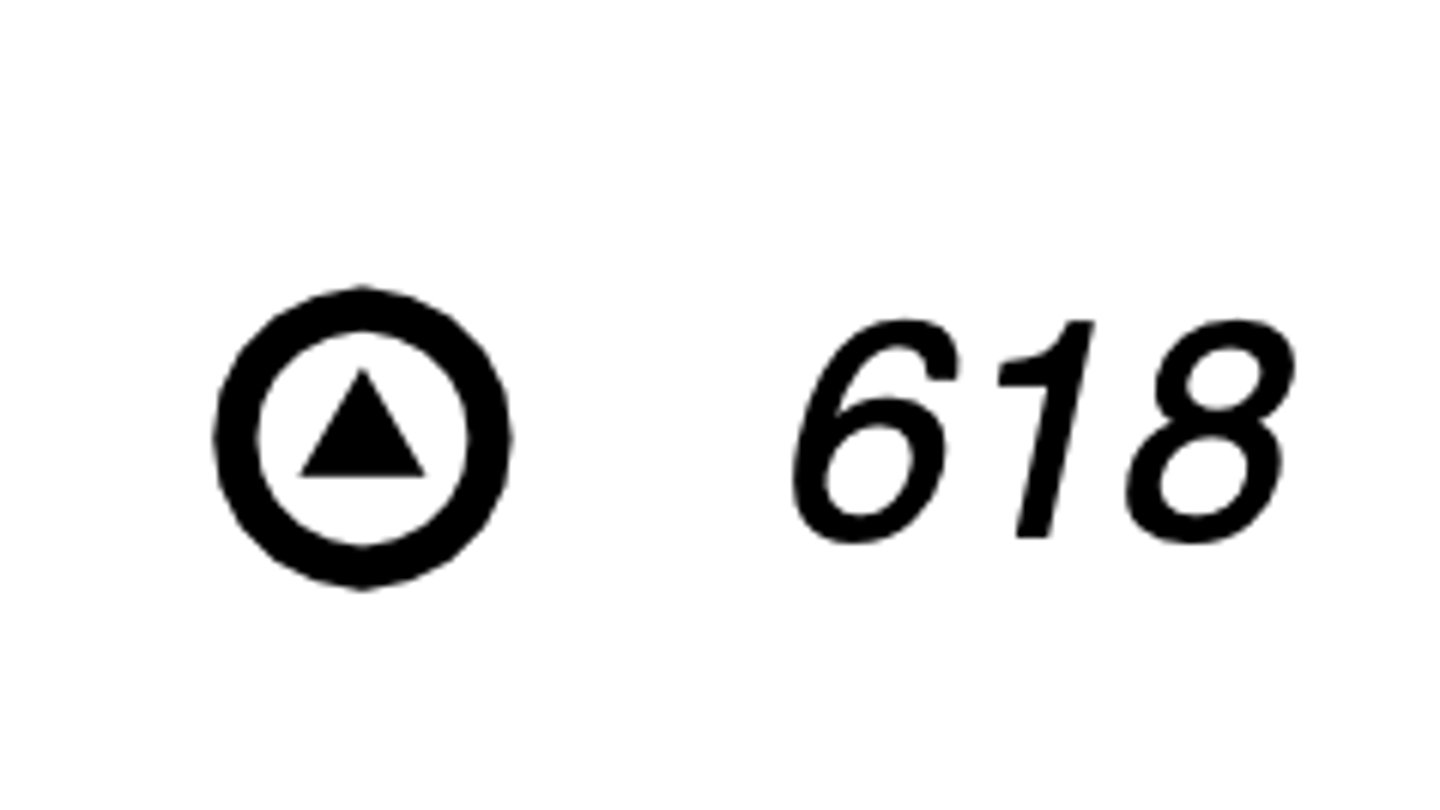

Lookout Tower

Coast Guard Station

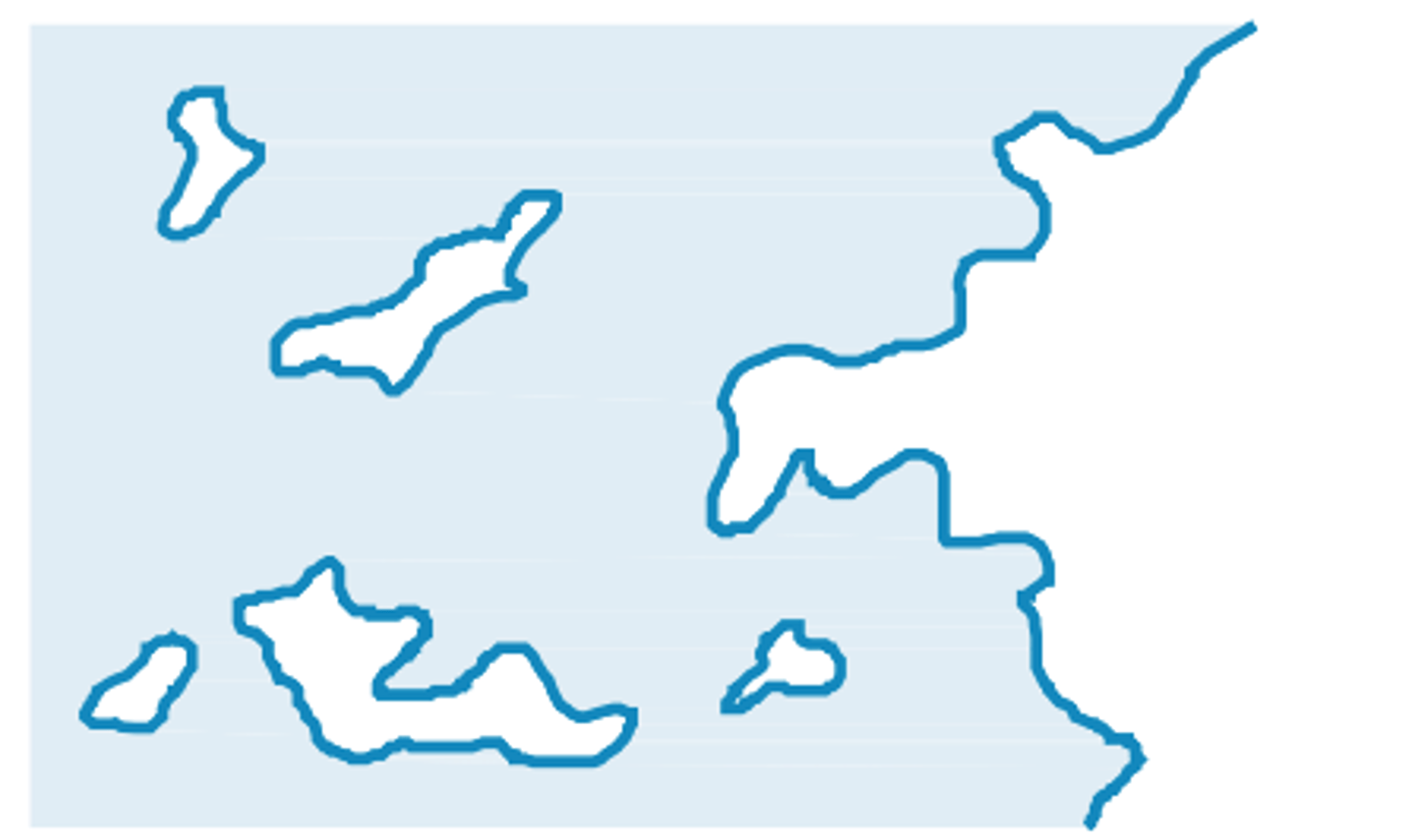

Open Water

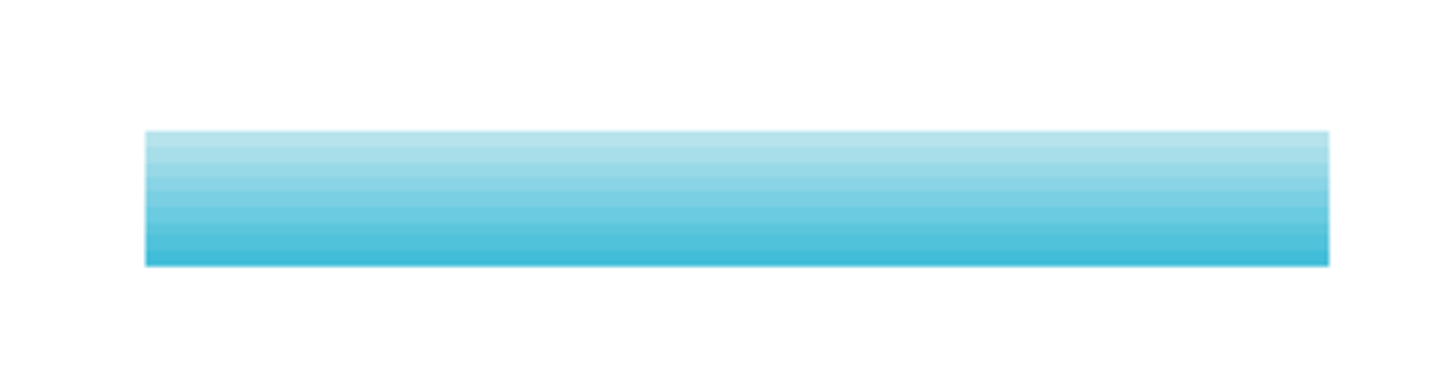

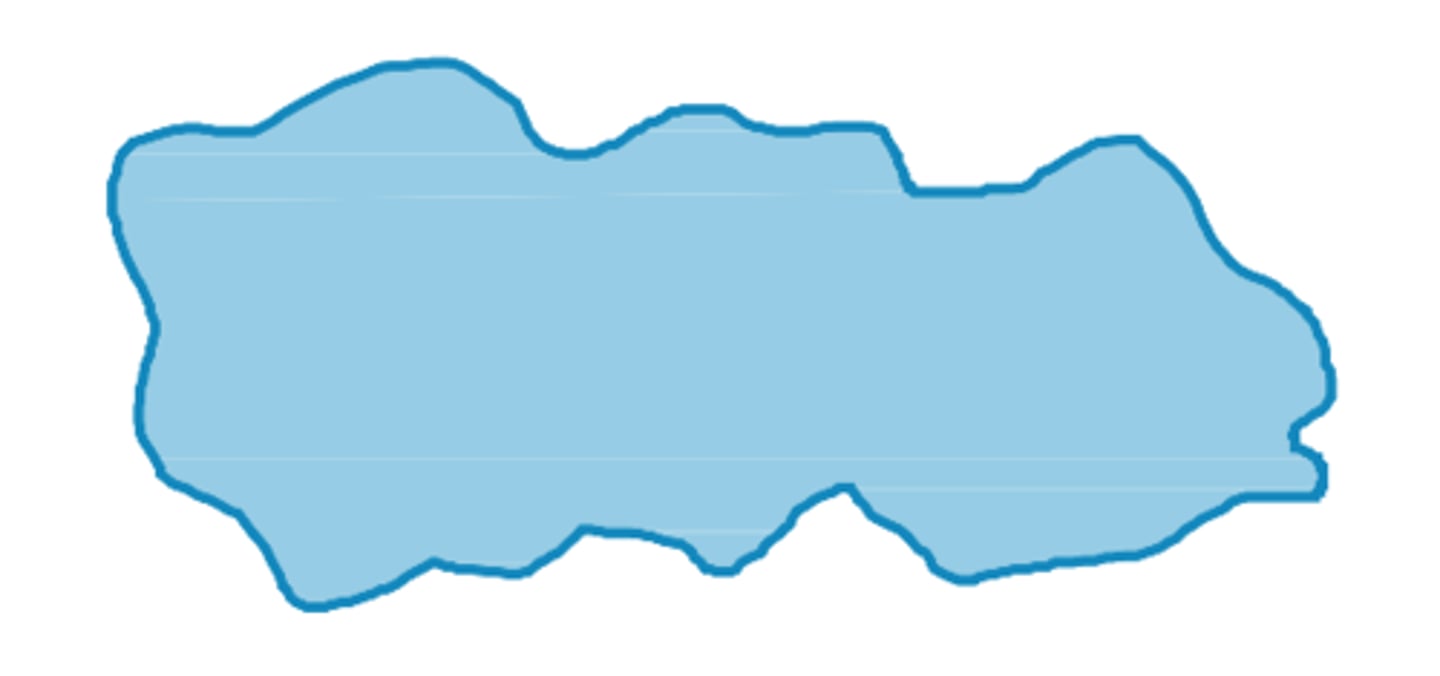

Inland Water
