Bones of the Cranium and Face Diagram Guide

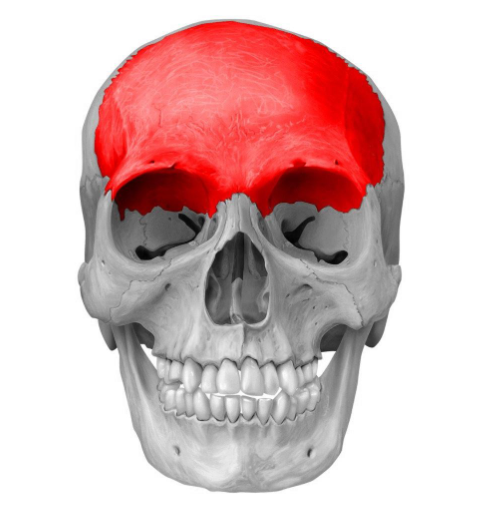

Which cranial bone is this? (1)

Frontal bone

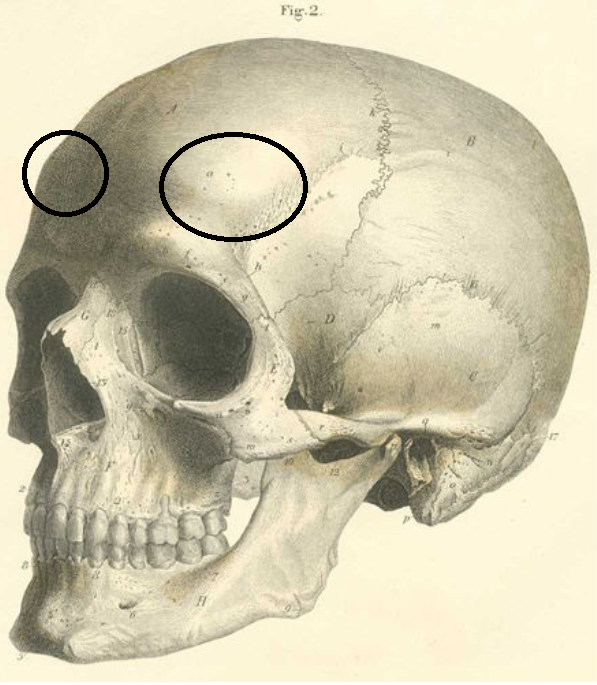

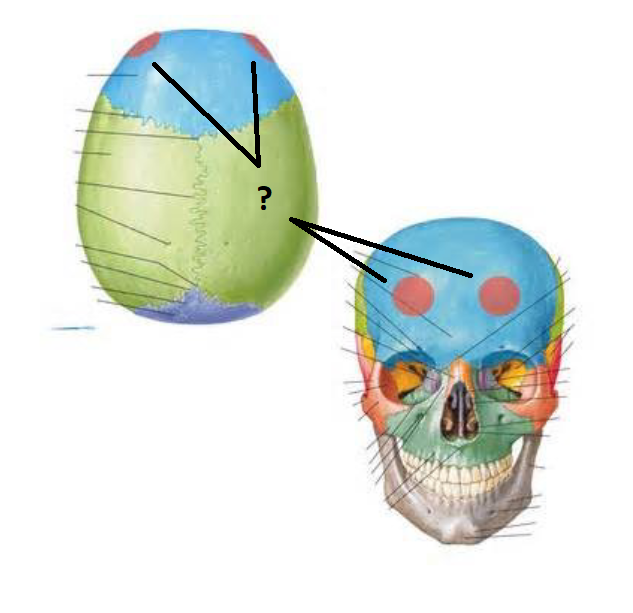

Which frontal bone marking is this? (2)

Frontal eminences

Which frontal bone marking is this? (2)

Frontal eminences

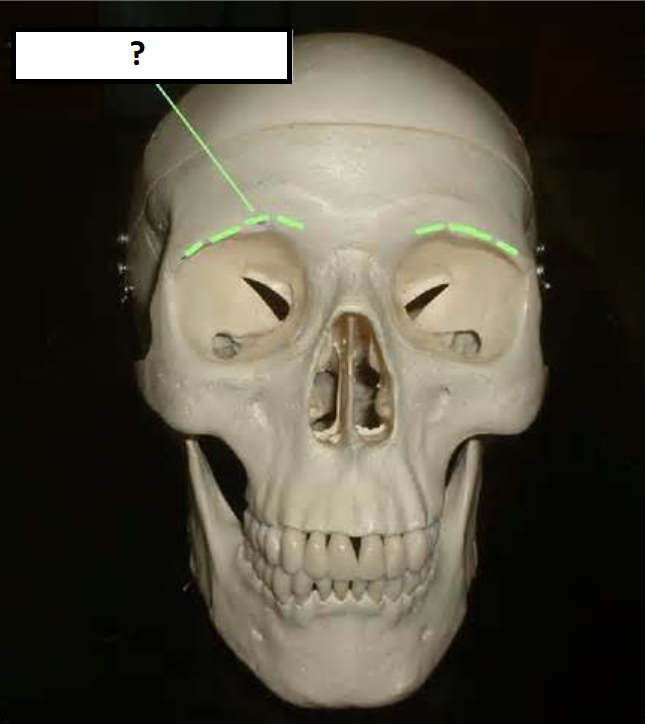

Which frontal bone marking is this? (2)

Supraorbital margin

Which frontal bone marking is this? (2)

Supraorbital margin

Which frontal bone marking is this? (2)

Supraorbital margin

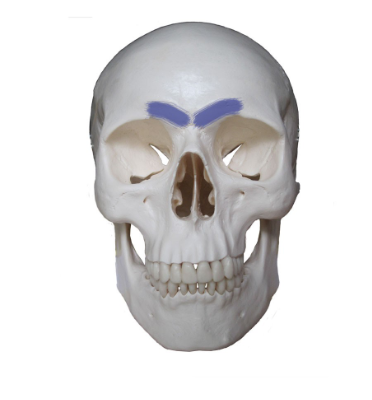

Which frontal bone marking is this? (2)

Superciliary arches

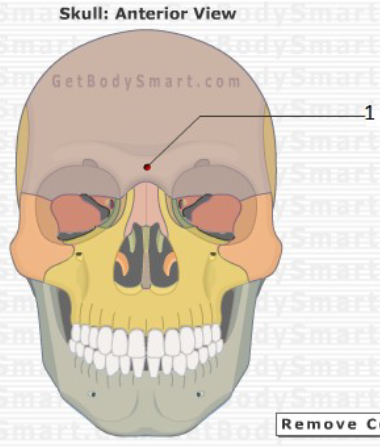

Which frontal bone marking is this? (1)

Glabella

Which frontal bone marking is this? (1)

Glabella

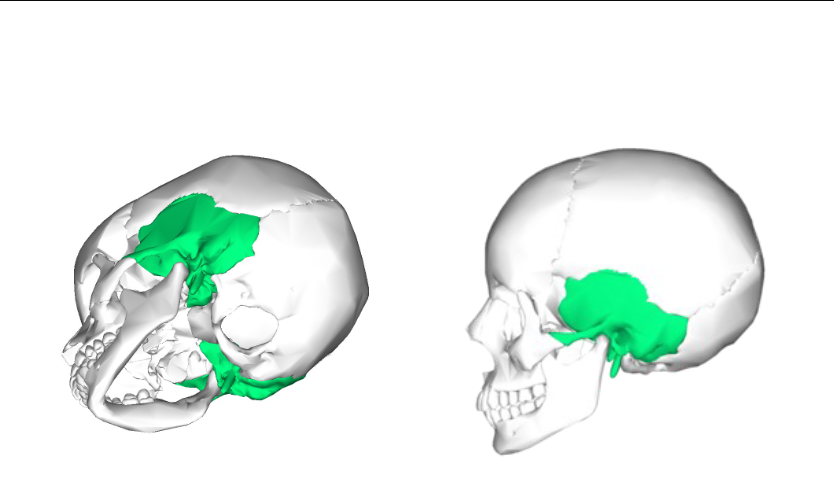

Which cranial bone is this? (2)

Temporal bones

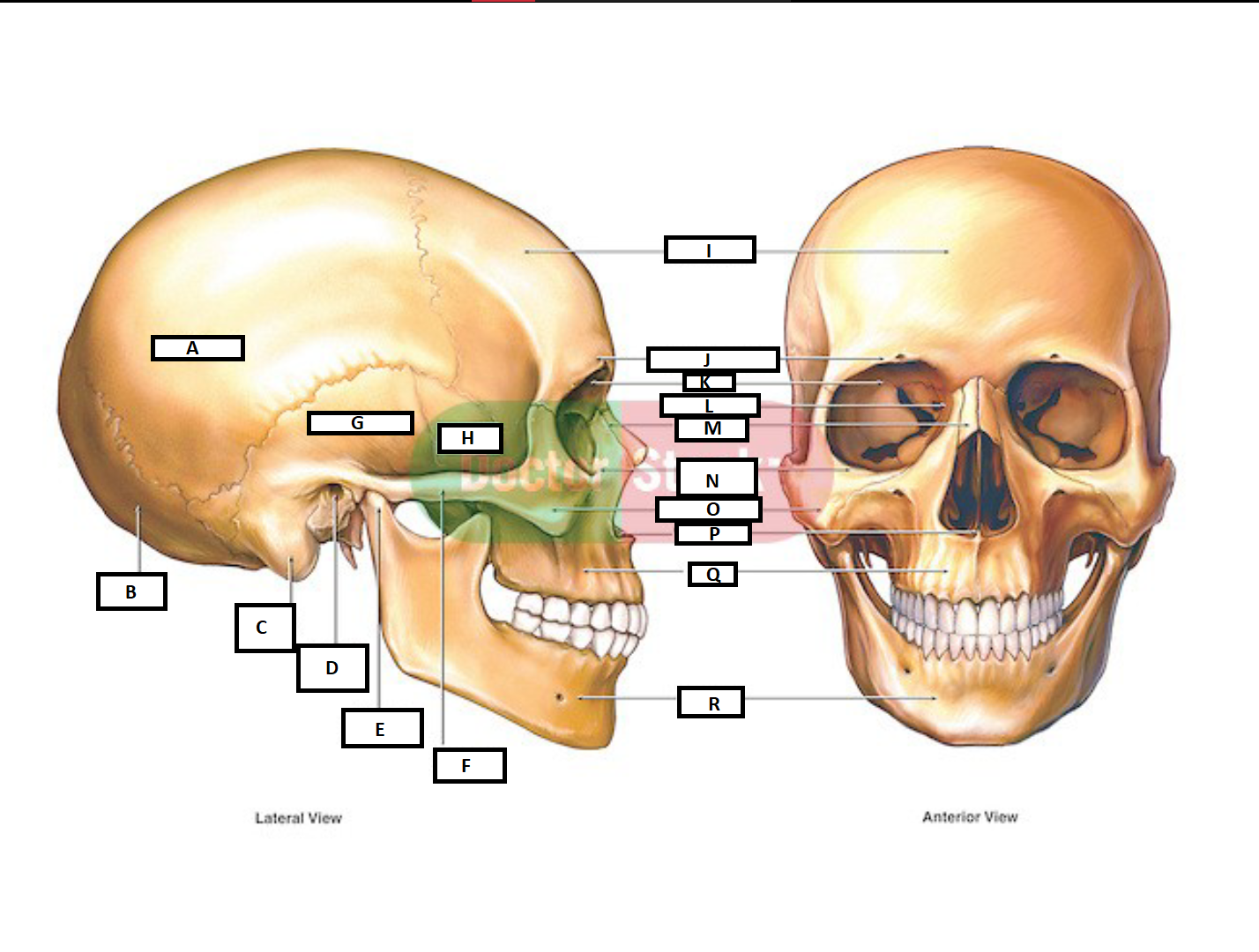

A. Which cranial bone is this? (2)

Parietal bones

B. Which cranial bone is this? (1)

Occipital bone

C. Which temporal bone marking is this? (2)

Mastoid process

D. Which temporal bone marking is this? (2)

External acoustic meatus

E. Which facial bone marking is this? (2)

Condyle of mandible

F. Which temporal bone marking is this? (2)

Zygomatic arch

G. Which cranial bone is this? (2)

Temporal bone

H. Which cranial bone is this? (1)

Sphenoid bone

I. Which cranial bone is this? (1)

Frontal bone

J. What frontal bone marking is this? (2)

Supraorbital margin

L. What cranial bone is this? (1)

Ethmoid bone

M. Which facial bone is this? (2)

Nasal bone

N. What frontal bone marking is this? (2)

Supraorbital margin

O. Which facial bone is this? (2)

Zygomatic bone

P. Which facial bone is this? (1)

Vomer bone

Q. Which facial bone is this? (2)

Maxilla

R. Which facial bone is this? (1)

Mandible

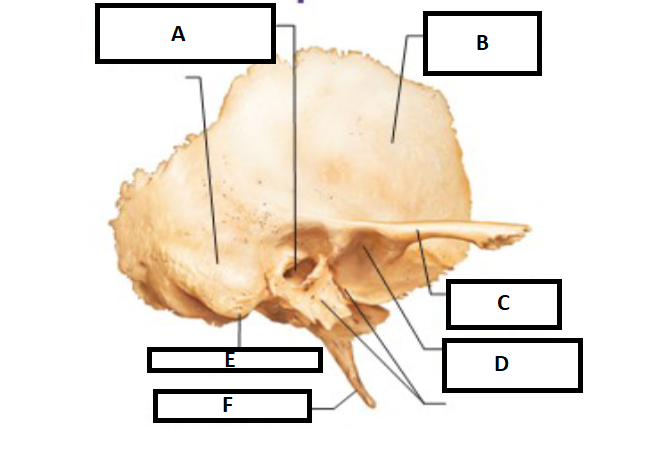

A. Which temporal bone marking is this? (2)

External acoustic meatus

B. Which temporal bone marking is this? (2)

Squamous region

C. Which temporal bone marking is this? (2)

Zygomatic process

D. Which temporal bone marking is this? (2)

Mandibular fossa

E. Which temporal bone marking is this? (2)

Mastoid process

F. Which temporal bone marking is this? (2)

Styloid process

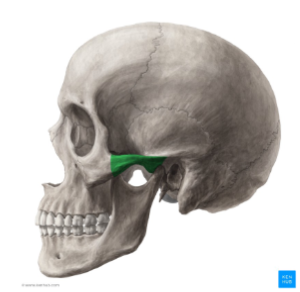

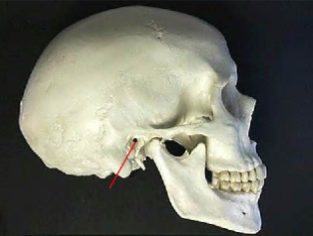

Which temporal bone marking is this? (2)

Zygomatic arch

Which temporal bone marking is this? (2)

Mandibular fossa

Which temporal bone marking is this? (2)

External auditory meatus

Which temporal bone marking is this? (2)

Mastoid process

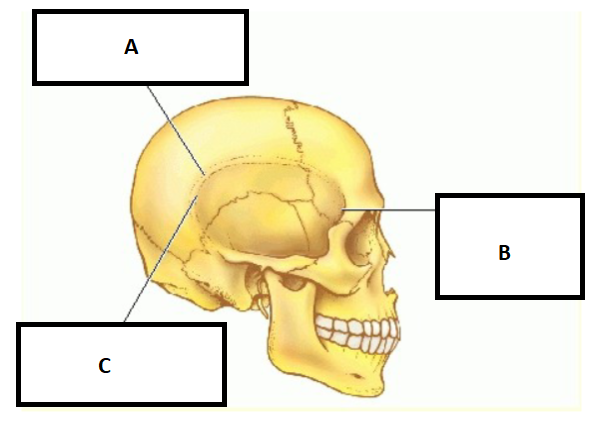

A. Which temporal bone marking is this? (2)

Superior temporal line

B. Which temporal bone marking is this? (2)

Inferior temporal line

C. Which frontal bone marking is this? (2)

Temporal line of frontal bone

A. Which cranial bone is this? (1)

Frontal bone

B. Which cranial bone is this? (2)

Parietal bone

C. Which cranial bone is this? (1)

Occipital bone

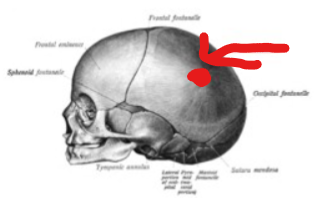

Which parietal bone marking is this? (2)

Parietal eminence

Which parietal bone marking is this? (2)

Parietal eminence

A. Which cranial bone is this? (1)

Occipital bone

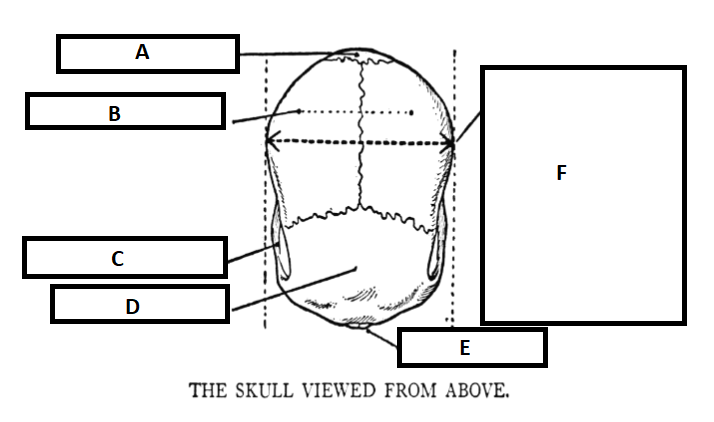

B. Which cranial bone is this? (2)

Parietal bone

C. Which zygomatic bone marking is this? (2)

Zygomatic arch

D. Which cranial bone is this? (1)

Frontal bone

E. Which facial bones are these? (2)

Nasal bones

F. Which parietal bone marking are these? (2)

Parietal eminences

Which occipital bone marking is this? (1)

Foramen magnum

Which cranial bone is this? (1)

Occipital bone

Which cranial bone is this? (1)

Ethmoid bone

Which cranial bone is this? (1)

Ethmoid bone

Which cranial bone is this? (1)

Sphenoid bone

Which cranial bone is this? (1)

Sphenoid bone

Which cranial bone is this? (1)

Sphenoid bone

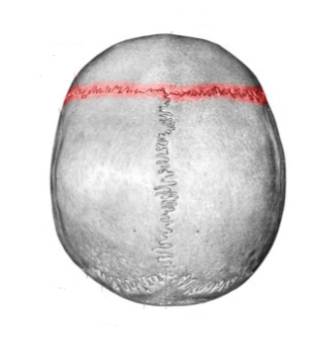

Which cranial suture is this? (1)

Coronal suture

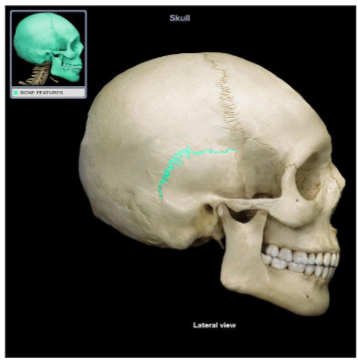

Which cranial suture is this? (2)

Squamous suture

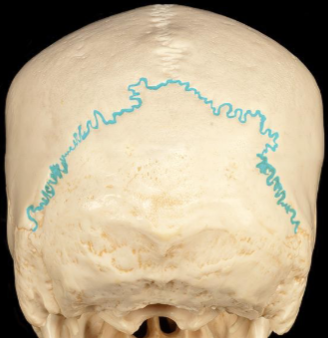

Which cranial suture is this? (1)

Lambdoid suture

Which cranial suture is this? (2)

Occipitomastoid suture

Which cranial suture is this? (2)

Occipitomastoid suture

Which cranial suture is this? (1)

Sagittal suture

Which facial bone is this? (2)

Nasal bone

Which facial bone is this? (2)

Nasal bone

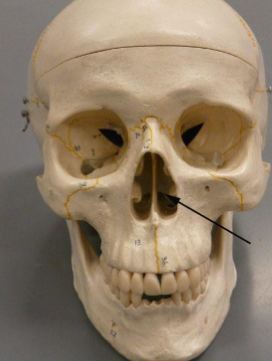

Which cavity is this?

Nasal cavity

Which facial bone is this? (2)

Zygomatic bone

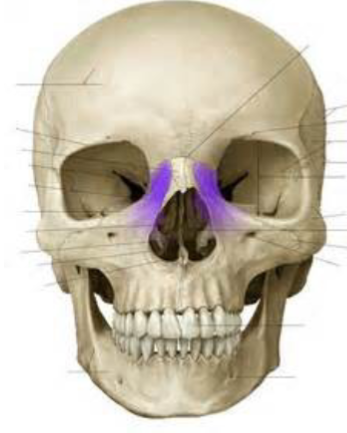

Which maxilla bone marking is this? (2)

Frontal process

Which maxilla bone marking is this? (2)

Frontal process

Which facial bone is this? (2)

Maxilla

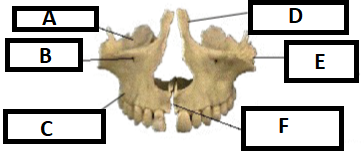

A. Which maxilla marking is this? (2)

Orbital plate

B. Which maxilla marking is this?

Infraorbial foramen

C. Which maxilla marking is this? (2)

Alveolar process

D. Which maxilla marking is this? (2)

Frontal process

E. Which maxilla marking is this? (2)

Zygomatic process

F. Which maxilla marking is this? (1)

Intermaxillary suture

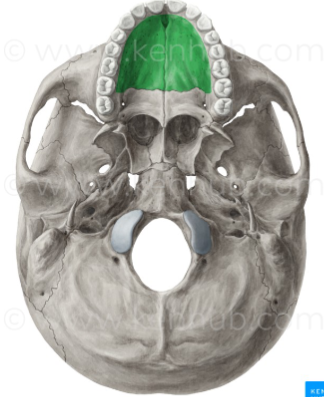

Which maxilla marking is this? (1)

Palatine process

Which maxilla marking is this? (1)

Palatine process

Which maxilla marking is this? (2)

Zygomatic process

Which maxilla marking is this? (2)

Zygomatic process

Which maxilla marking is this? (1)

Nasal spine

Which maxilla marking is this? (1)

Nasal spine

Which maxilla marking is this? (1)

Nasal spine

Which mandibular marking is this? (1)

Alveolar process

Which mandibular marking is this? (1)

Mental eminence

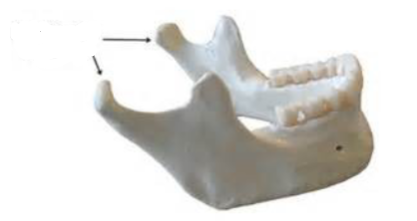

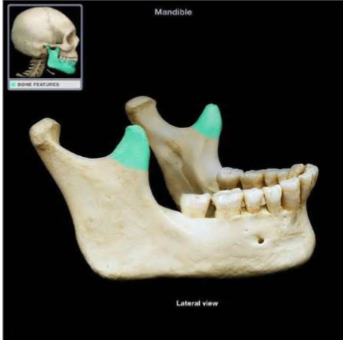

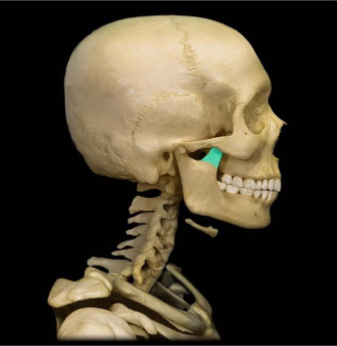

Which mandibular marking is this? (2)

Coronoid process

Which mandibular marking is this? (2)

Coronoid process

Which mandibular marking is this? (2)

Mandibular condyle

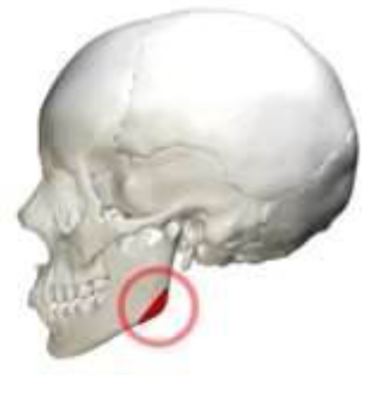

Which mandibular marking is this? (2)

Angle of mandible

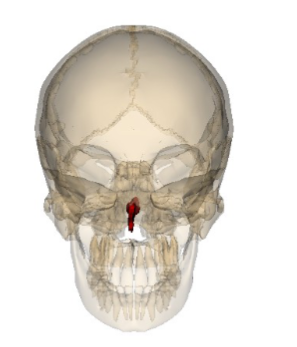

Which facial bone is this? (1)

Vomer bone

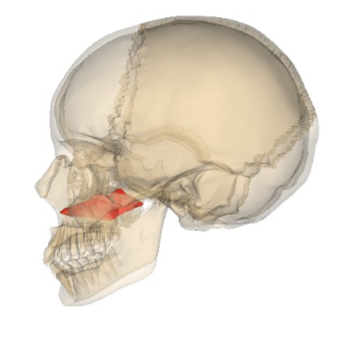

Which facial bone is this? (1)

Vomer bone

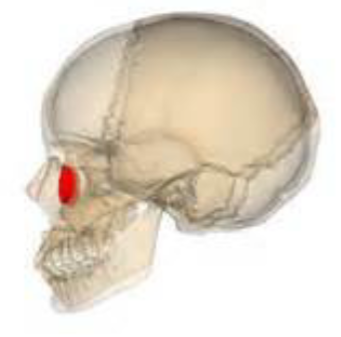

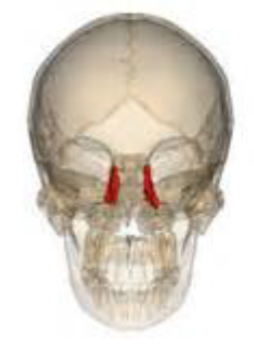

Which facial bone is this? (2)

Lacrimal bone

Which facial bone is this? (2)

Lacrimal bone

Which facial bone is this? (2)

Palatine bone

Which facial bone is this? (2)

Palatine bone

Which facial bone is this? (2)

Inferior nasal conchae
