Anatomy Practical #1

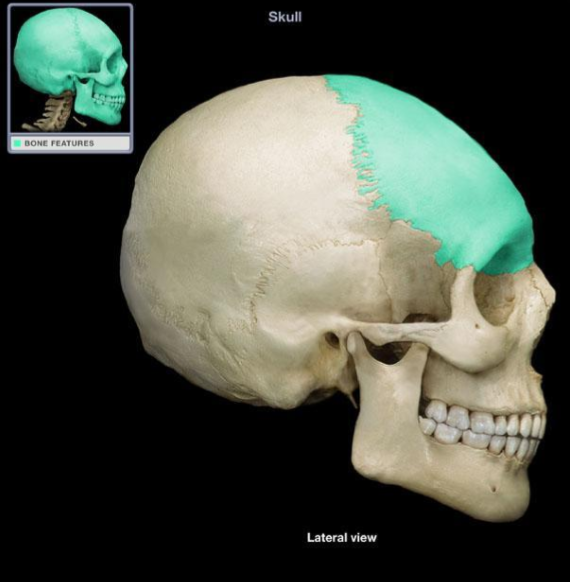

What bone is highlighted?

Frontal bone

What structure is being pointed at?

Supraorbital notch/foramen

What bone is this?

Temporal bone

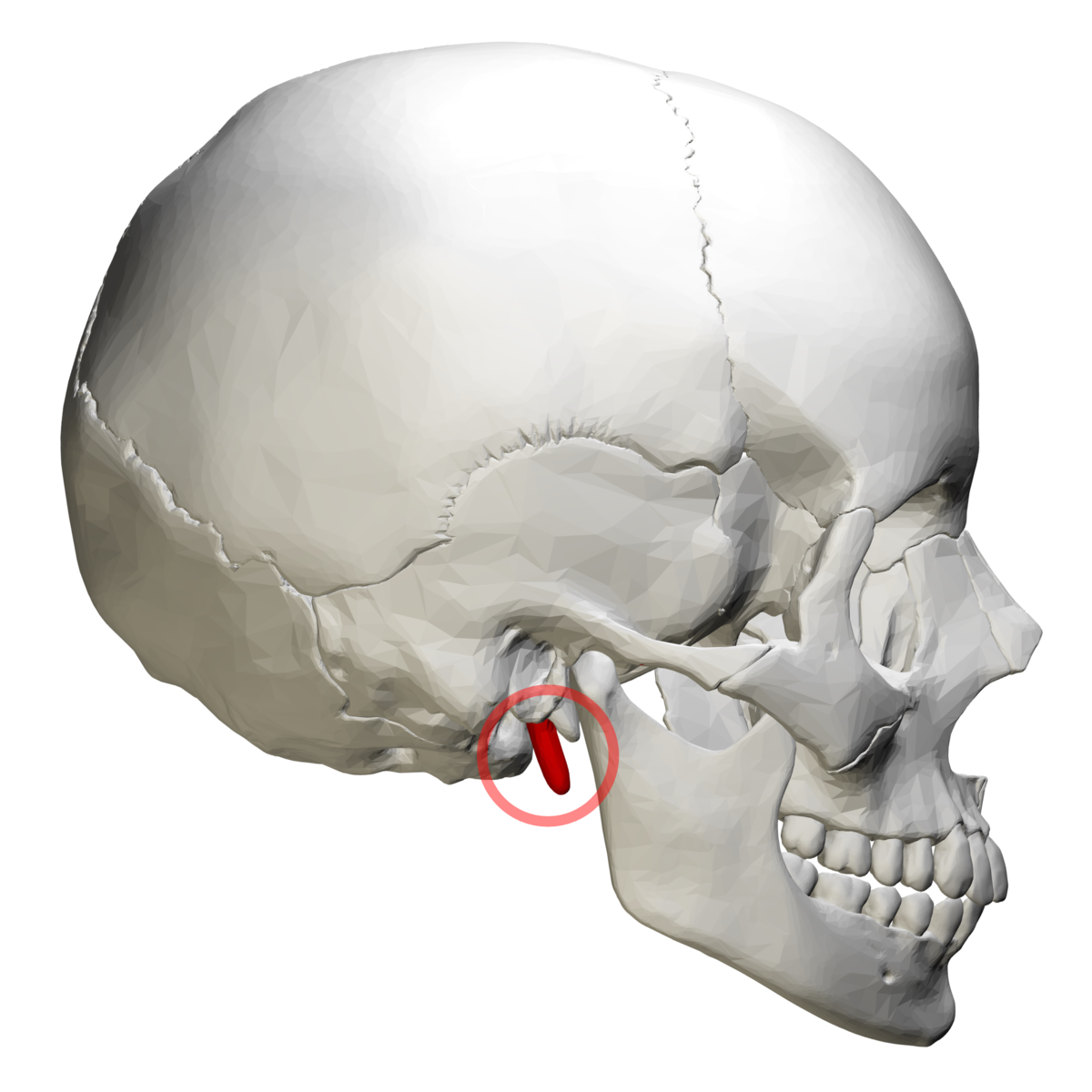

What structure is this?

Styloid process

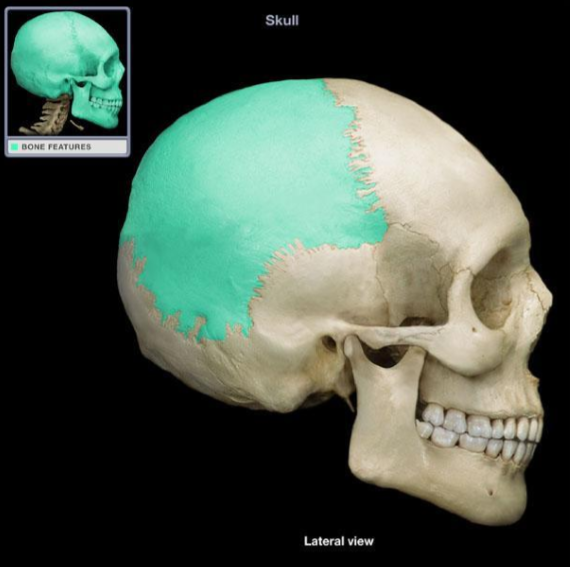

What bone is this?

Parietal bone

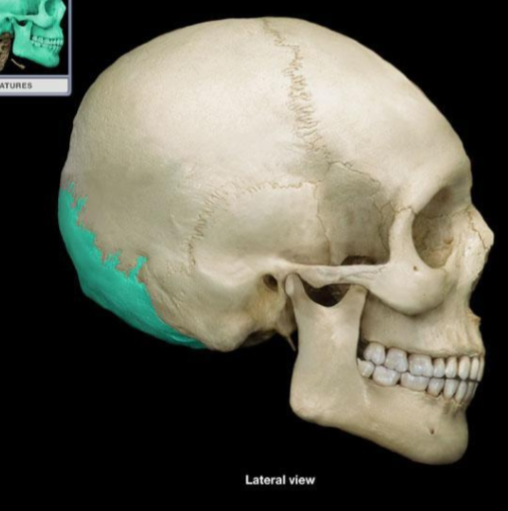

What bone is this?

Occipital bone

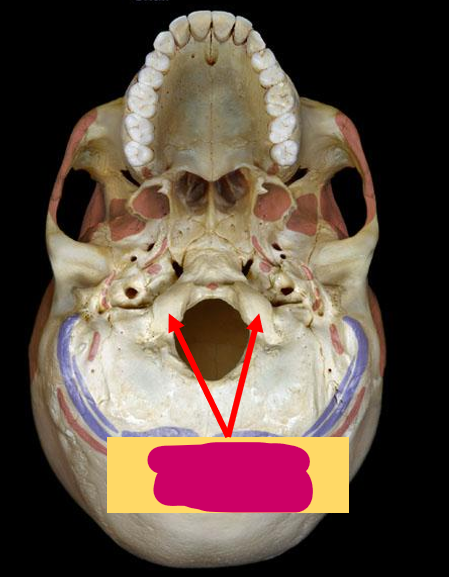

What structure is being pointed at?

Occipital condyles

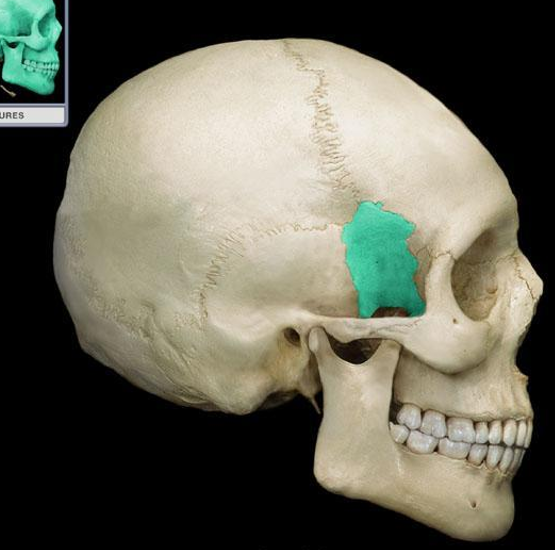

What bone is this?

Sphenoid bone

What structure is this?

Hypophyseal fossa

What bone is this?

Zygomatic bone

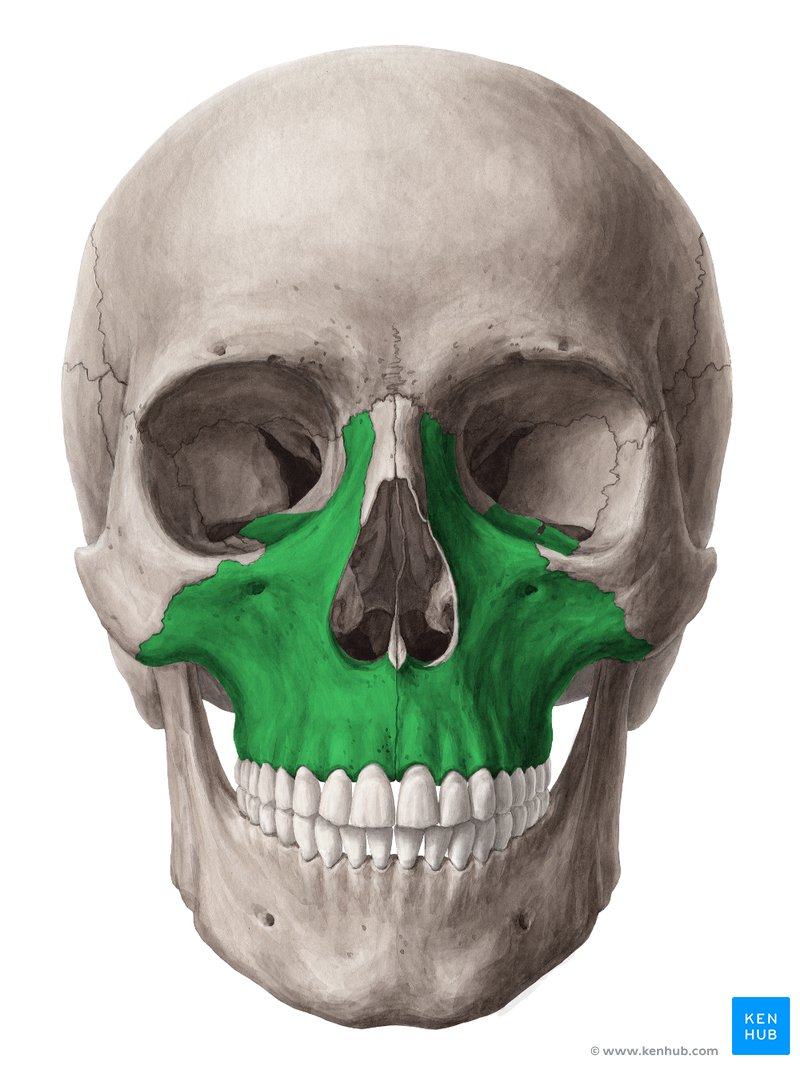

What bone is this?

Maxillary

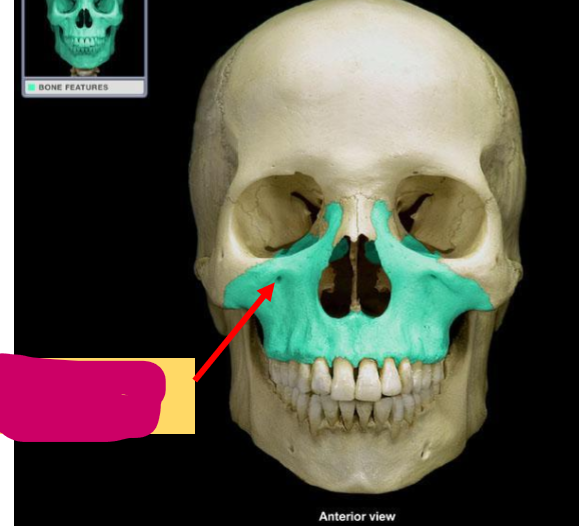

What structure is this?

Infraorbital foramen

What structure is this?

Crista galli

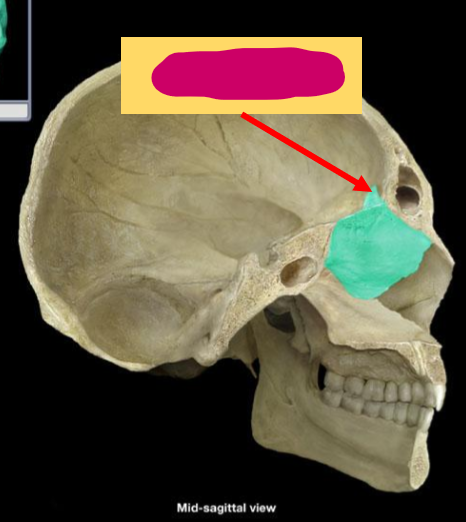

What bone is this?

Lacrimal

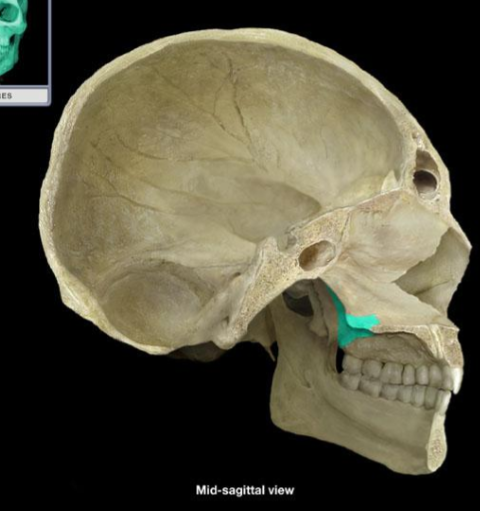

What bone is this?

Palatine

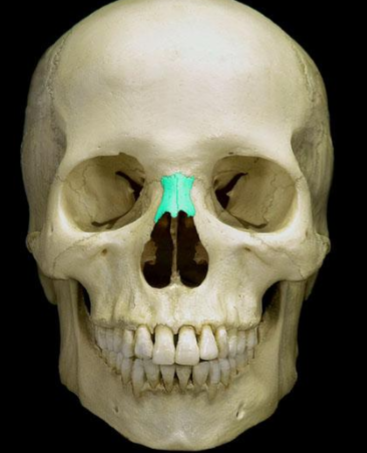

What bone is this?

Nasal

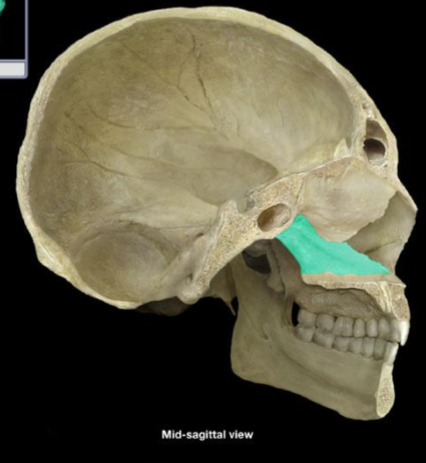

What bone is this?

Vomer

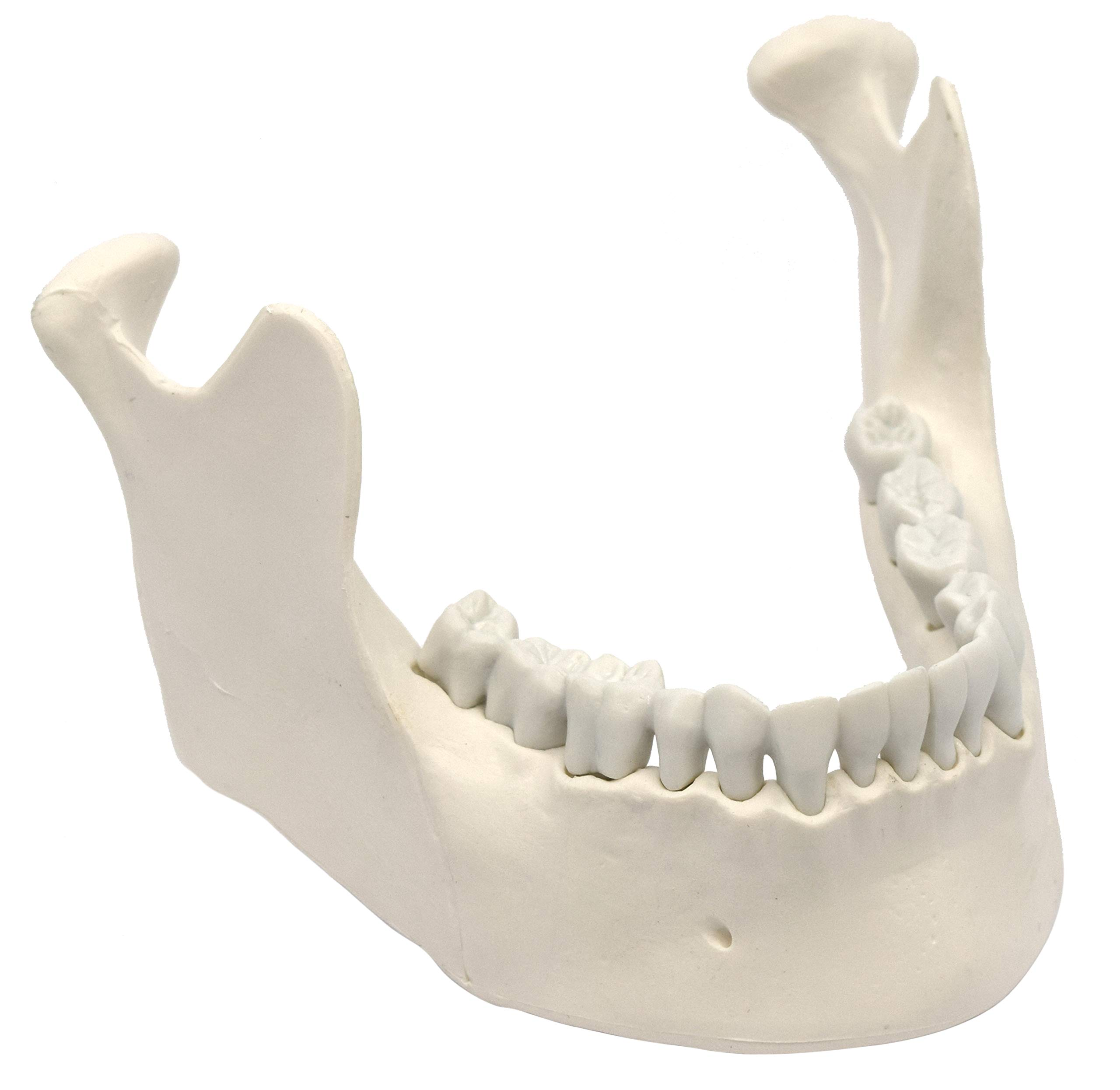

What bone is this?

Mandible

What part of the bone is this?

Body of the mandible

What part of the bone is this?

Ramus of the mandible

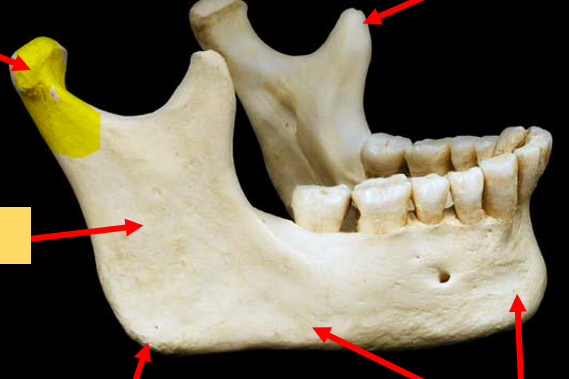

What part of the bone is this?

Condyle (head) of the mandible

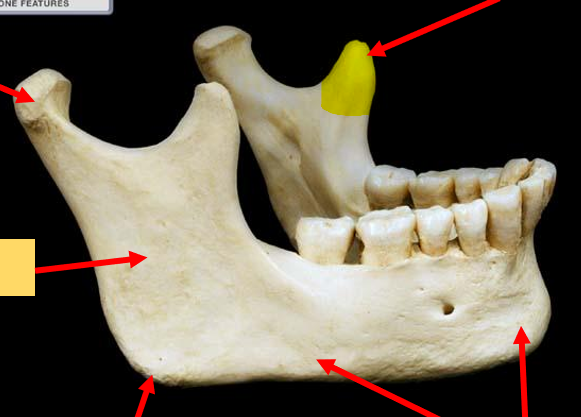

What part of the bone is this?

Coronoid process

What feature of the skull is this?

Sagittal suture

What feature of the skull is this?

Coronal suture

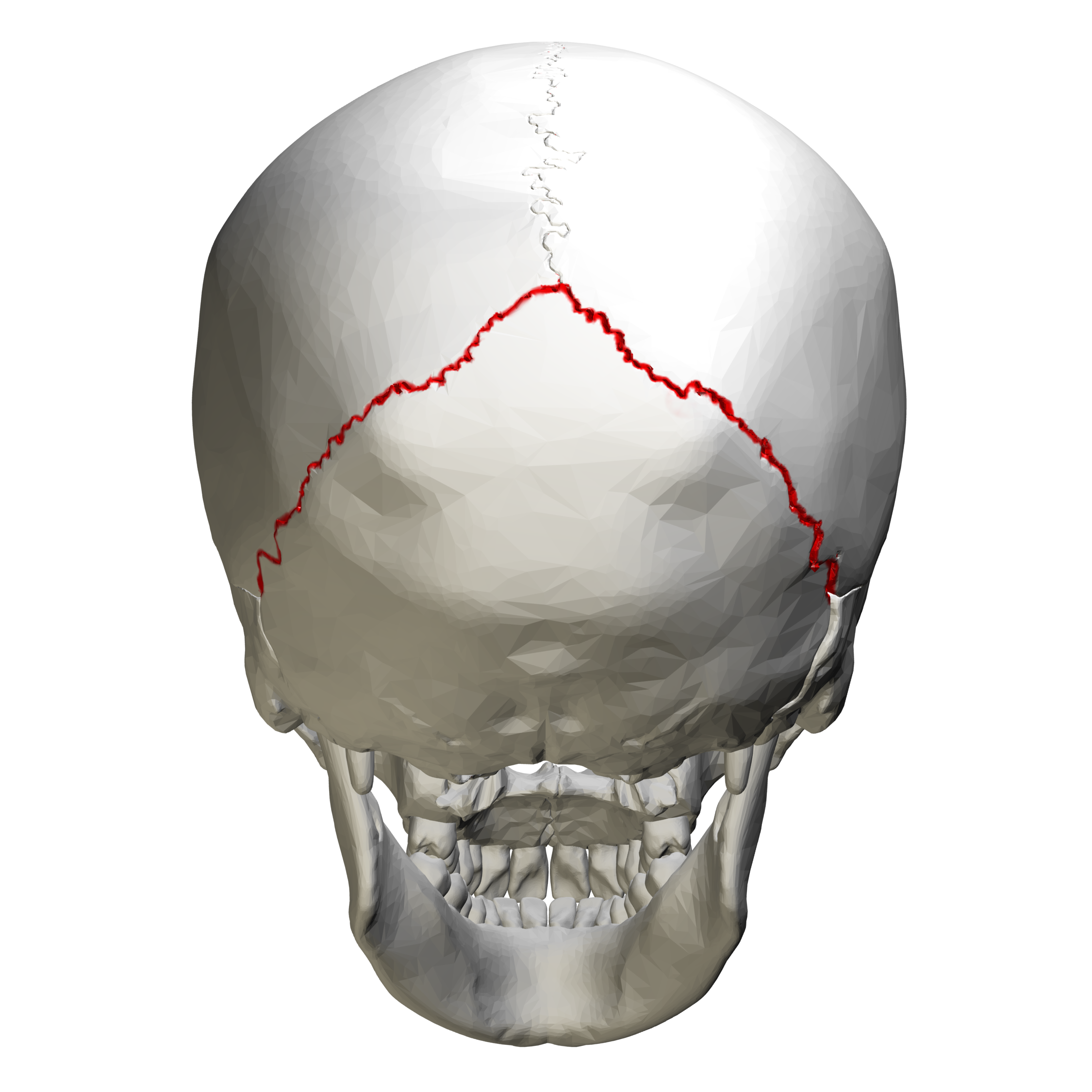

What feature of the skull is this?

Lambdoid suture

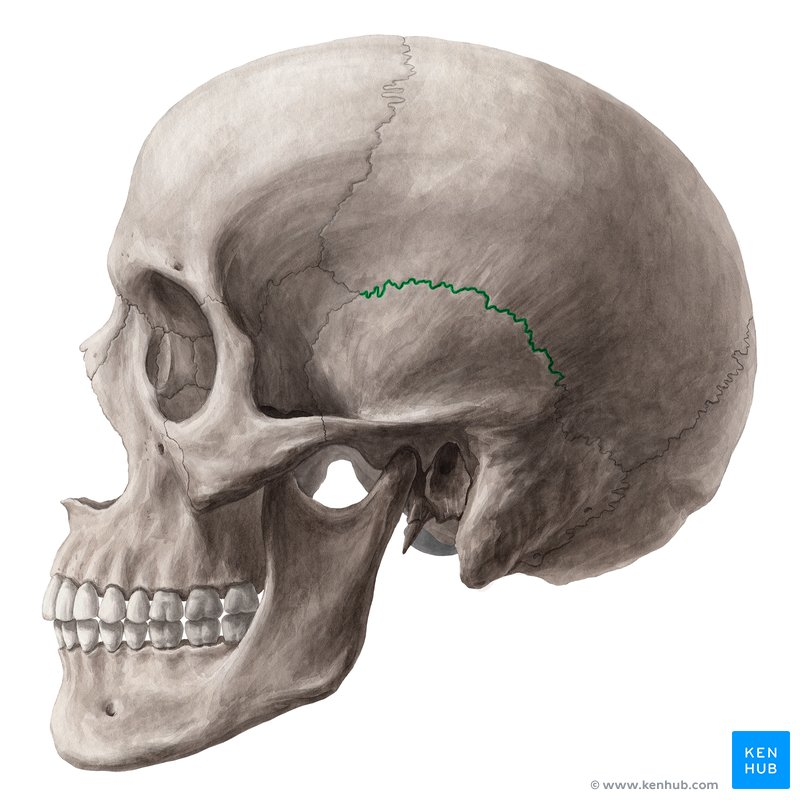

What feature of the skull is this?

Squamous suture

What part of the bone is pointed at?

Zygomatic arch

What feature of the skull is this?

Superior orbital fissure

What feature of the skull is this?

Inferior orbital fissure

What feature of the skull is this?

Optic canal

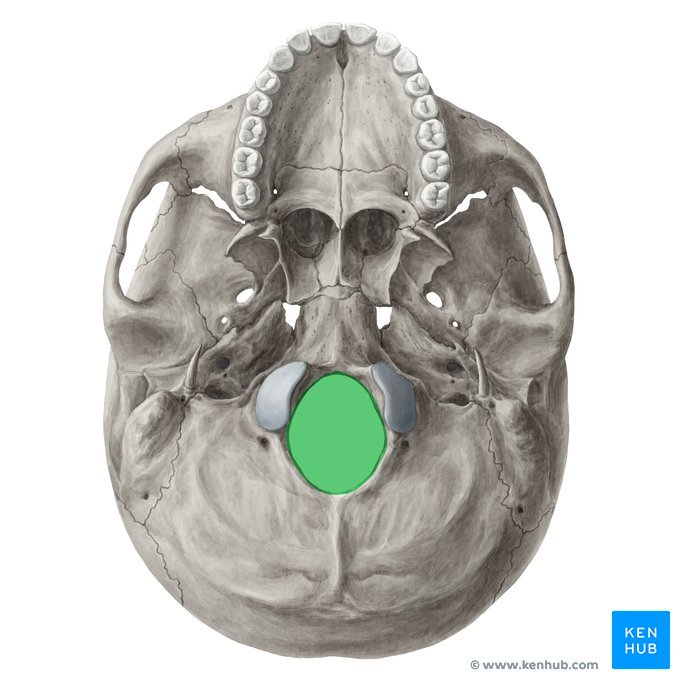

What feature of the skull is this?

Foramen magnum

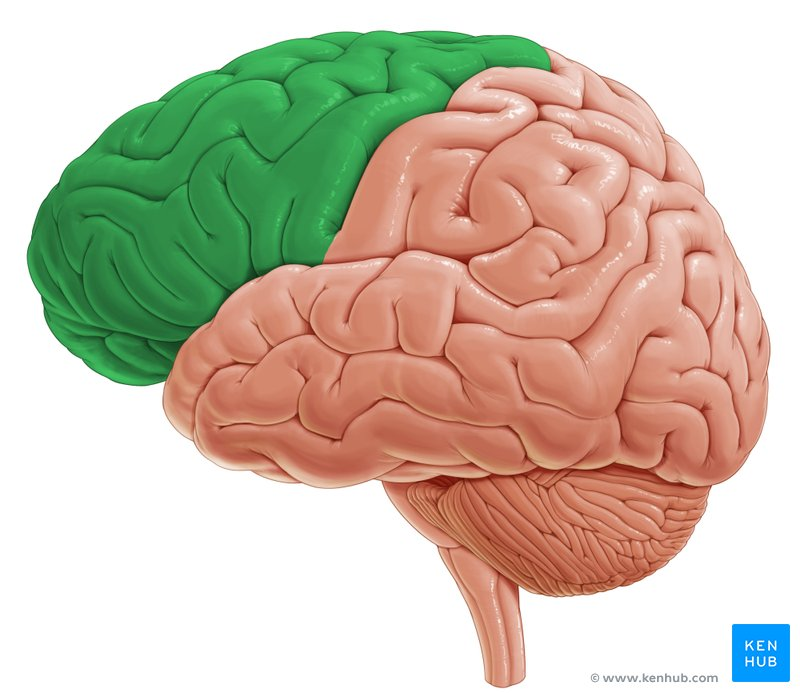

What lobe is this?

Frontal lobe

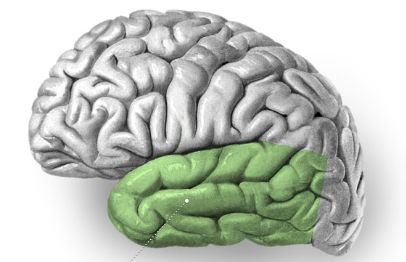

What lobe is this?

Temporal lobe

What lobe is this?

Occipital lobe

What lobe is this

Parietal lobe

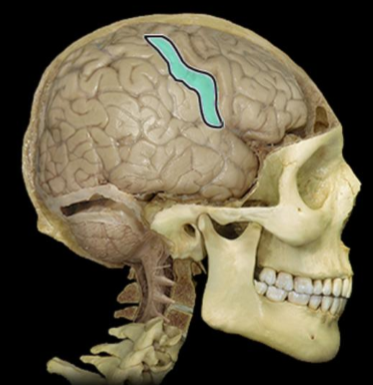

What structure is this?

Percental gyrus

What structure is this?

Postcentral gyrus

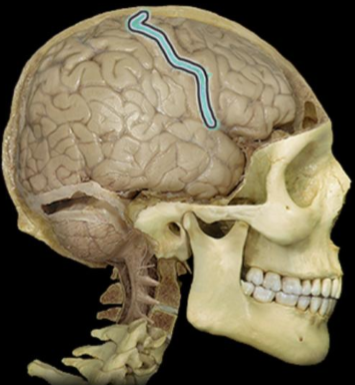

What structure is this?

Central suclus

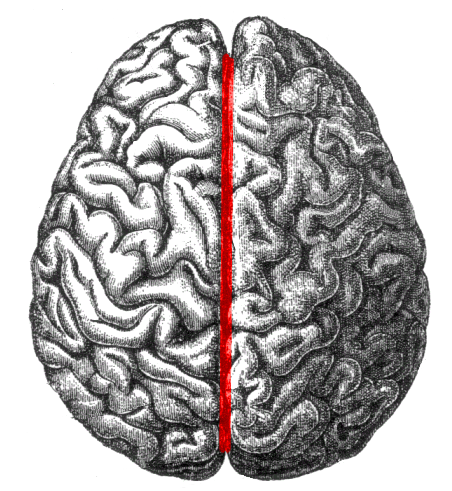

What structure is this?

Longitudinal fissure

What structure is this?

Lateral sulcus

What structure is this?

Broca’s area

What structure is this?

Wernicke’s area

What structure is this?

Corpus callosum

What structure is this?

Thalamus

What structure is in orange?

Hypothalamus

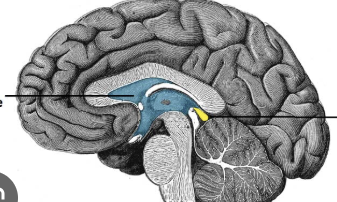

What structure is this in yellow?

Pineal gland

What structure is this?

Pituitary gland

What structure is highlighted?

Midbrain

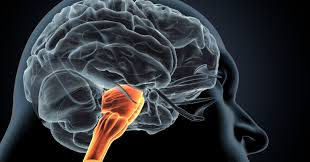

What structure is highlighted?

Pons

What structure is this?

Medulla oblongata

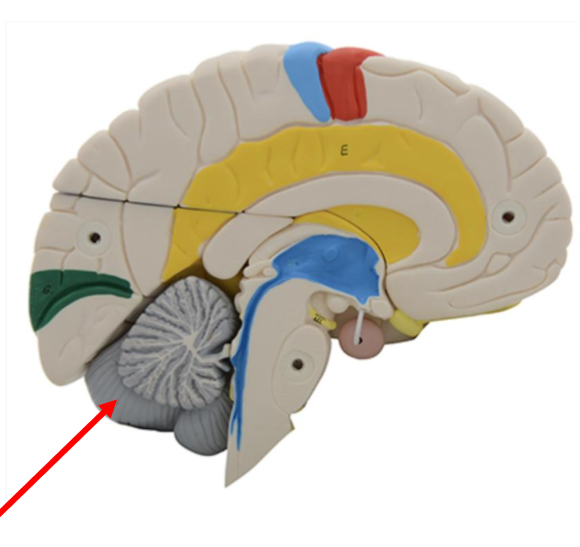

What structure is this?

Cerebellum

List the nerve name, roman numeral, and function.

CN I, olfactory, smell

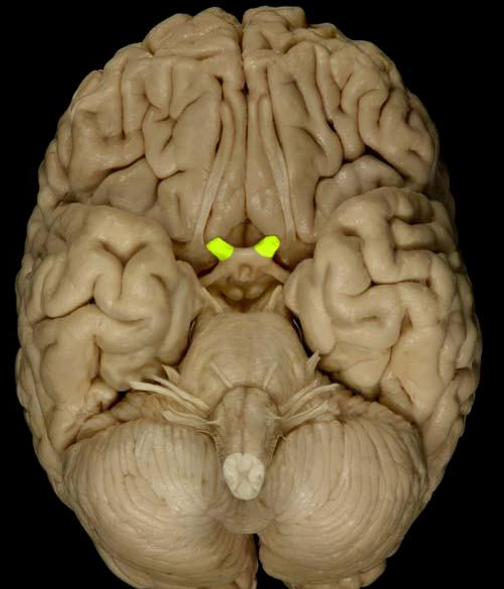

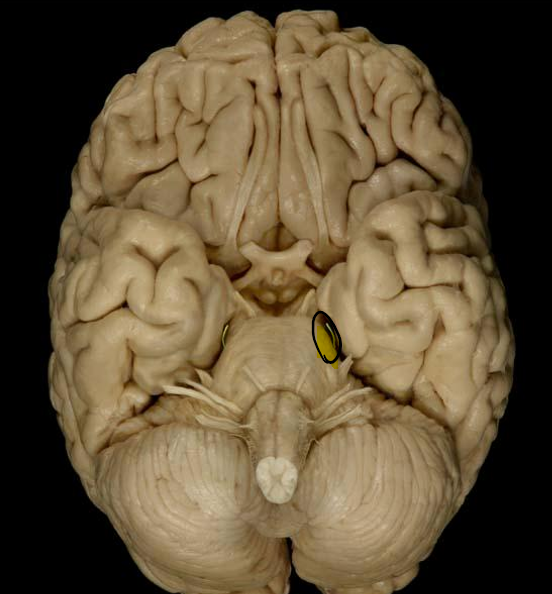

List the nerve name, roman numeral, and function.

CN II, optic, sight

List the nerve name, roman numeral, and function.

CN III, oculomotor, eye and pupil movement

List the nerve name, roman numeral, and function.

CN IV, trochlear, eye movement of downward roll

List the nerve name, roman numeral, and function.

CN V, trigeminal, touch sensation in the face & chewing

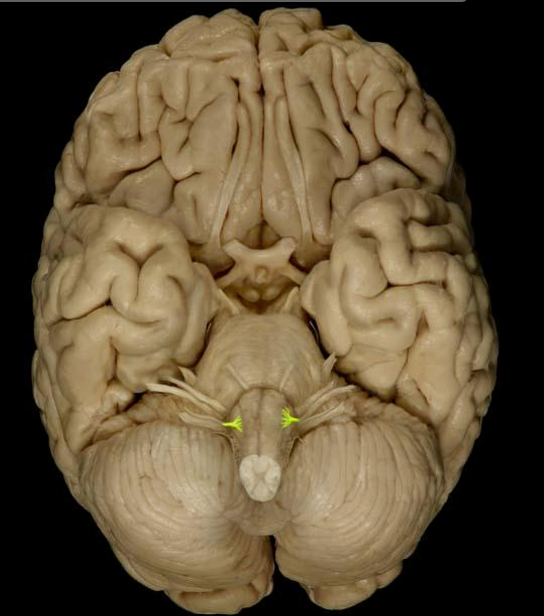

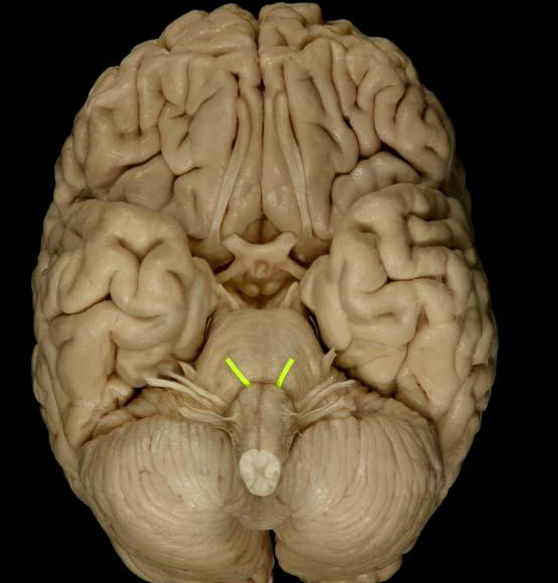

List the nerve name, roman numeral, and function.

CN VI, abducens, lateral eye movement

List the nerve name, roman numeral, and function.

CN VII, facial, facial expression (smile) & taste

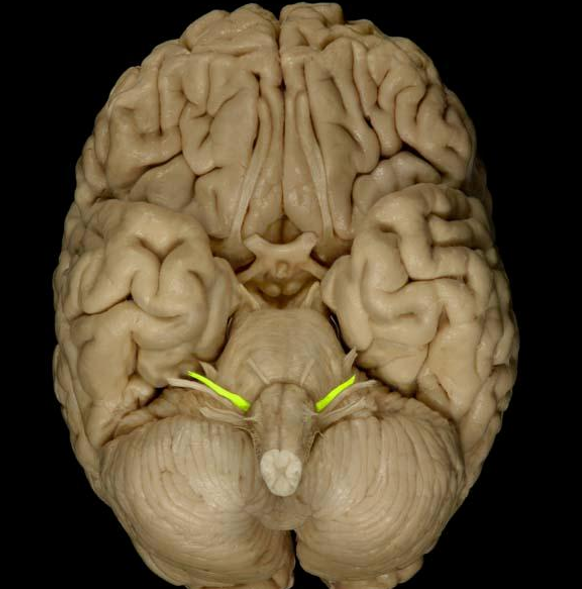

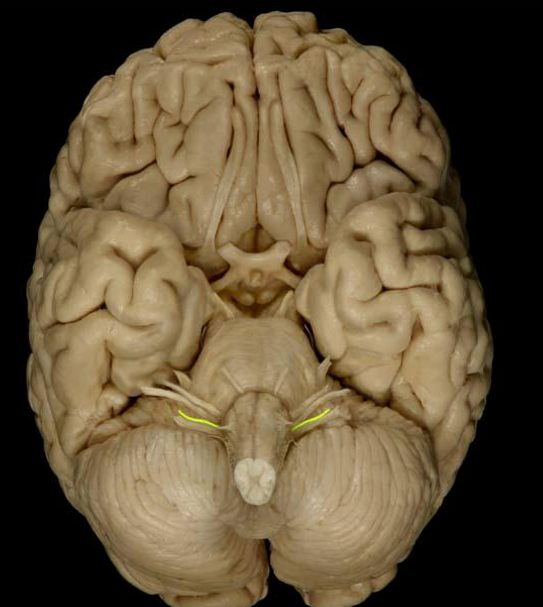

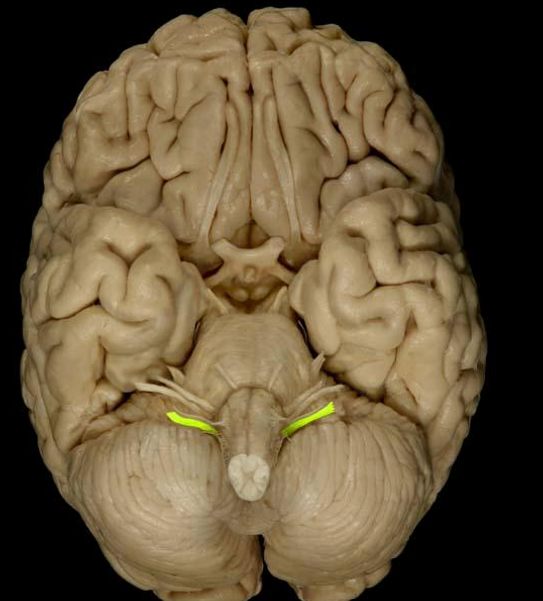

List the nerve name, roman numeral, and function.

CN VIII, vestibulocochlear, hearing and balance

List the nerve name, roman numeral, and function.

CN IX, glossopharyngeal, taste, swallowing, & salivation

List the nerve name, roman numeral, and function.

CN X, vagus, speaking/voice

List the nerve name, roman numeral, and function.

CN XI, accessory, shoulder shrug

List the nerve name, roman numeral, and function.

CN XII, hypoglossal, stick out tongue.

What part of the spinal cord is this?

Conus medullaris

What part of the spinal cord is this?

Cauda equina

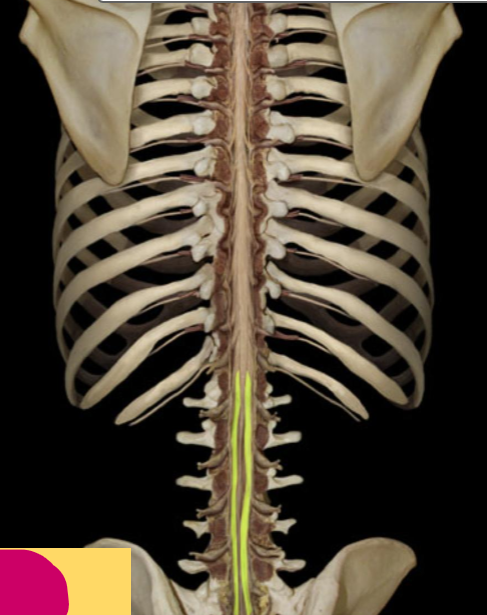

What part of the spinal cord is this?

Filum terminale

What is the deep orange part?

Pia mater

What is the dark brown part?

Dura matter

What part of the spinal cord is this?

Central canal/spinal fluid space

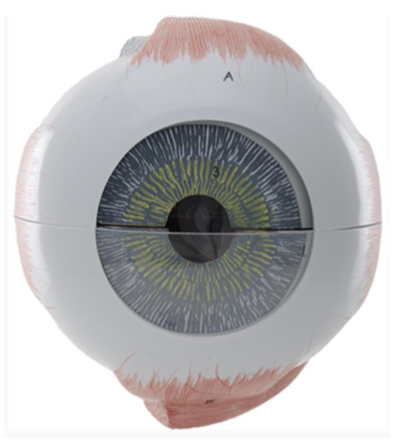

What is the dome-like structure?

Cornea

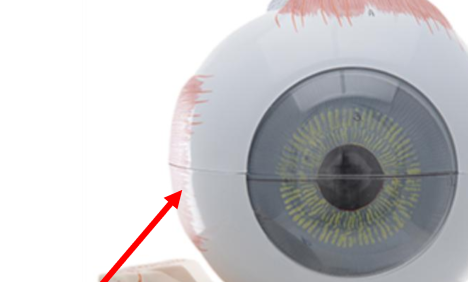

What layer is this?

Sclera

What is this part of the eye?

Iris

What is this part of the eye?

Pupil

What is this structure called?

Lens

What are these called?

Ciliary body

What is this structure called?

Fovea centralis

What is this layer?

Choroid

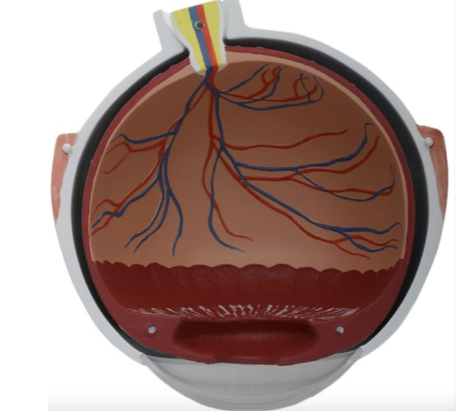

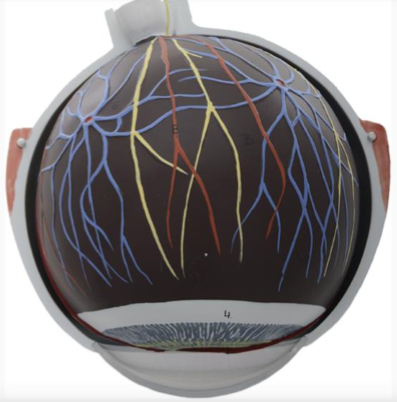

What is this layer?

Retina

What is this gland?

Lacrimal gland

What is this top muscle called?

Superior rectus m.

What is this bottom muscle called?

Inferior rectus m.

What is this muscle called?

Lateral rectus m.

What is this side muscle called?

Medial rectus m.

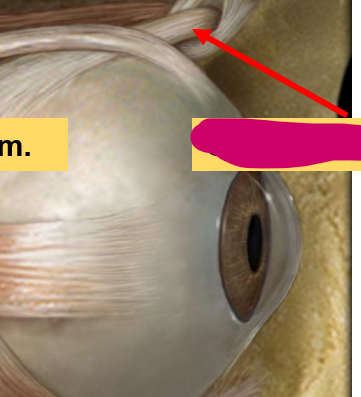

What is this muscle called?

Superior oblique m.

What is this muscle called?

Inferior oblique m.

Auricle

External ear

What is this top part of the ear?

Helix

What is this?

Lobule

What is this circled part?

External acoustic meatus

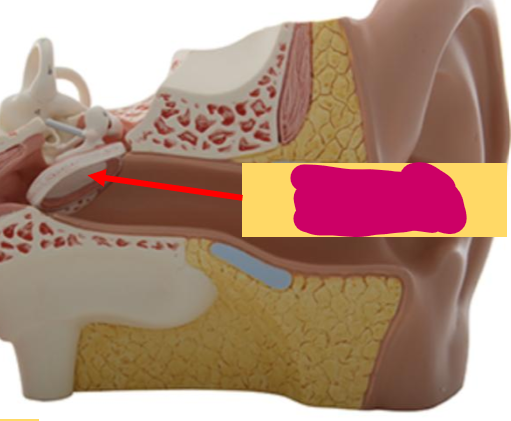

What is this part?

Tympanic membrane

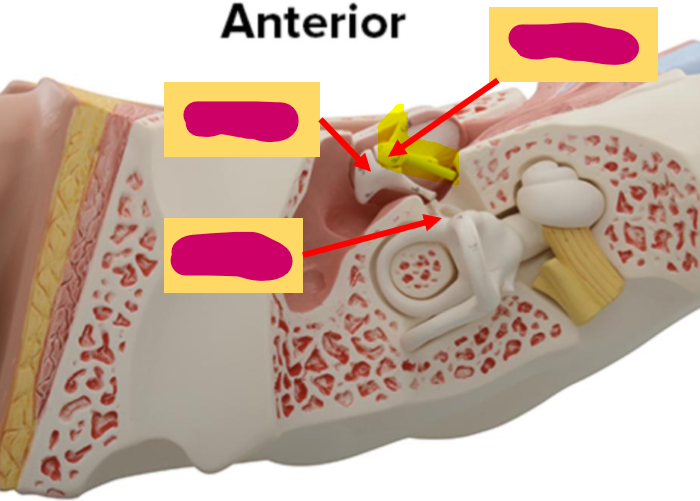

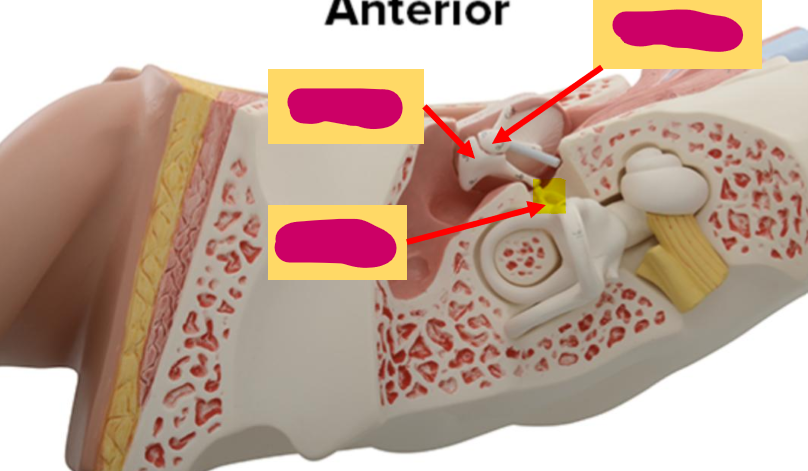

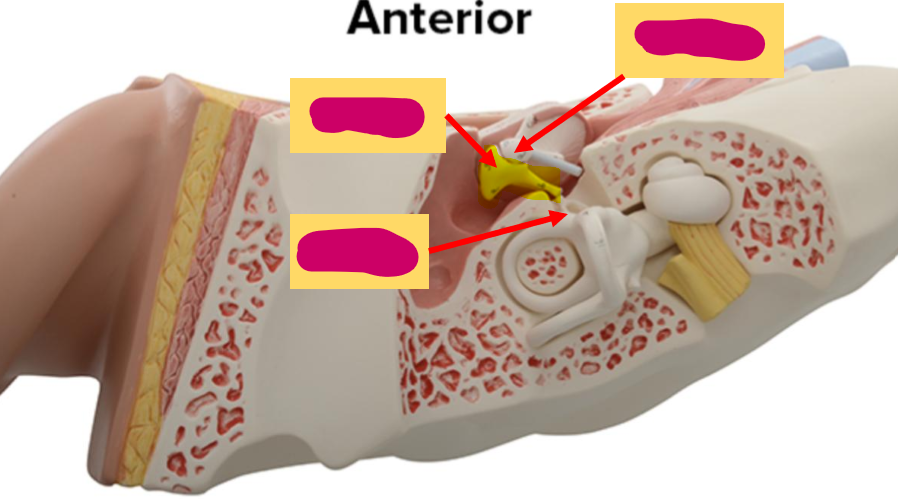

What is the highlighted structure?

Malleus

What is the highlighted structure?

Incus

What is the highlighted structure?

Stapes

What is the highlighted structure?

Body of a vertebrae

What is the highlighted structure?

Lamina

What is the highlighted structure?

Pedicle

What is the highlighted structure?

Spinous process

What is the highlighted structure?

Transverse process

What is the highlighted structure?

Vertebral foramen

What is the highlighted structure?

Inferior vertebral notch/arch
