Lighting Tech Theater

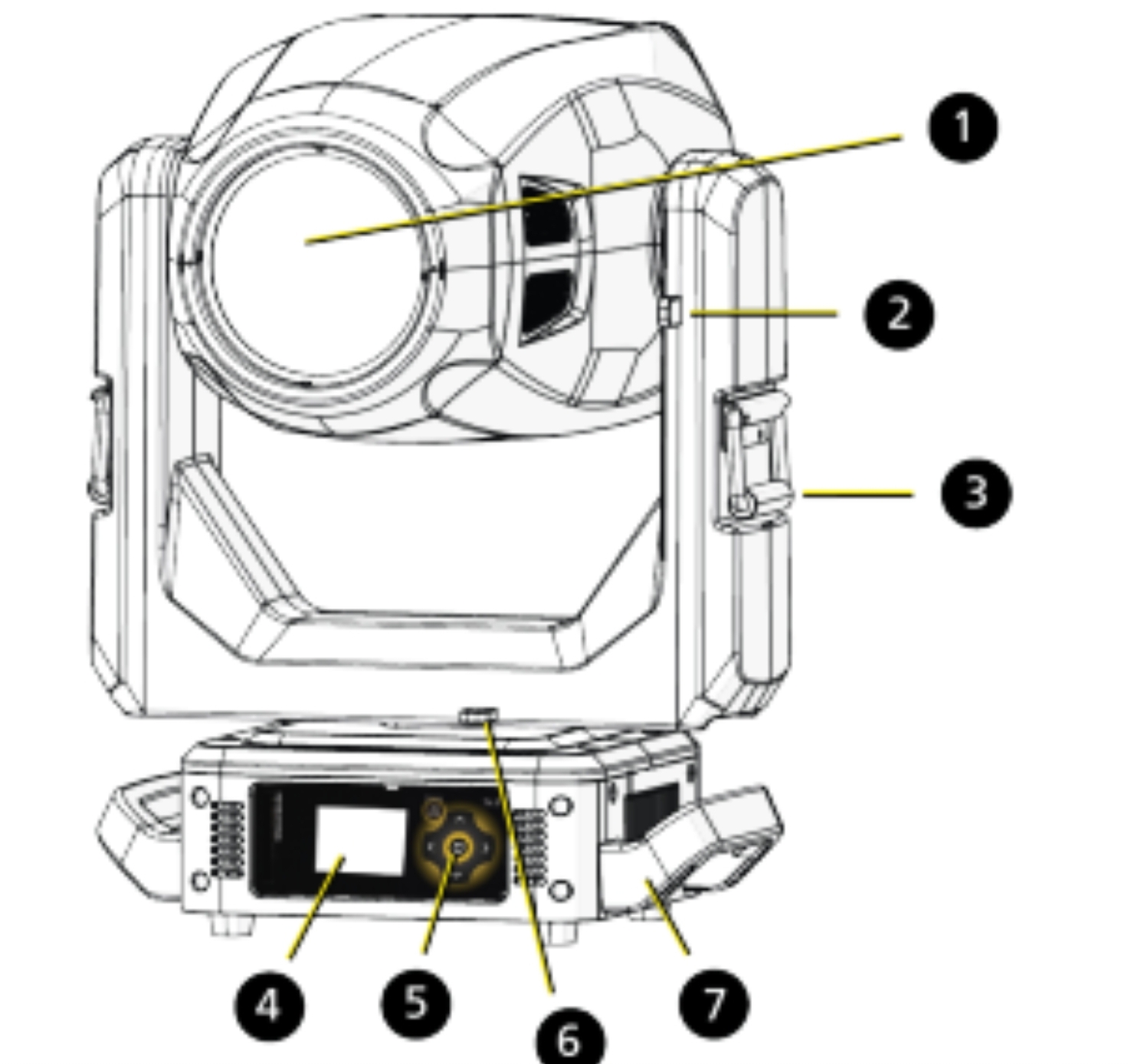

#1

Lense

#2

Tilt Lock

#3

Yoke handle

#4

Display

#5

Navigation controls

#6

Pan lock

#7

Handle

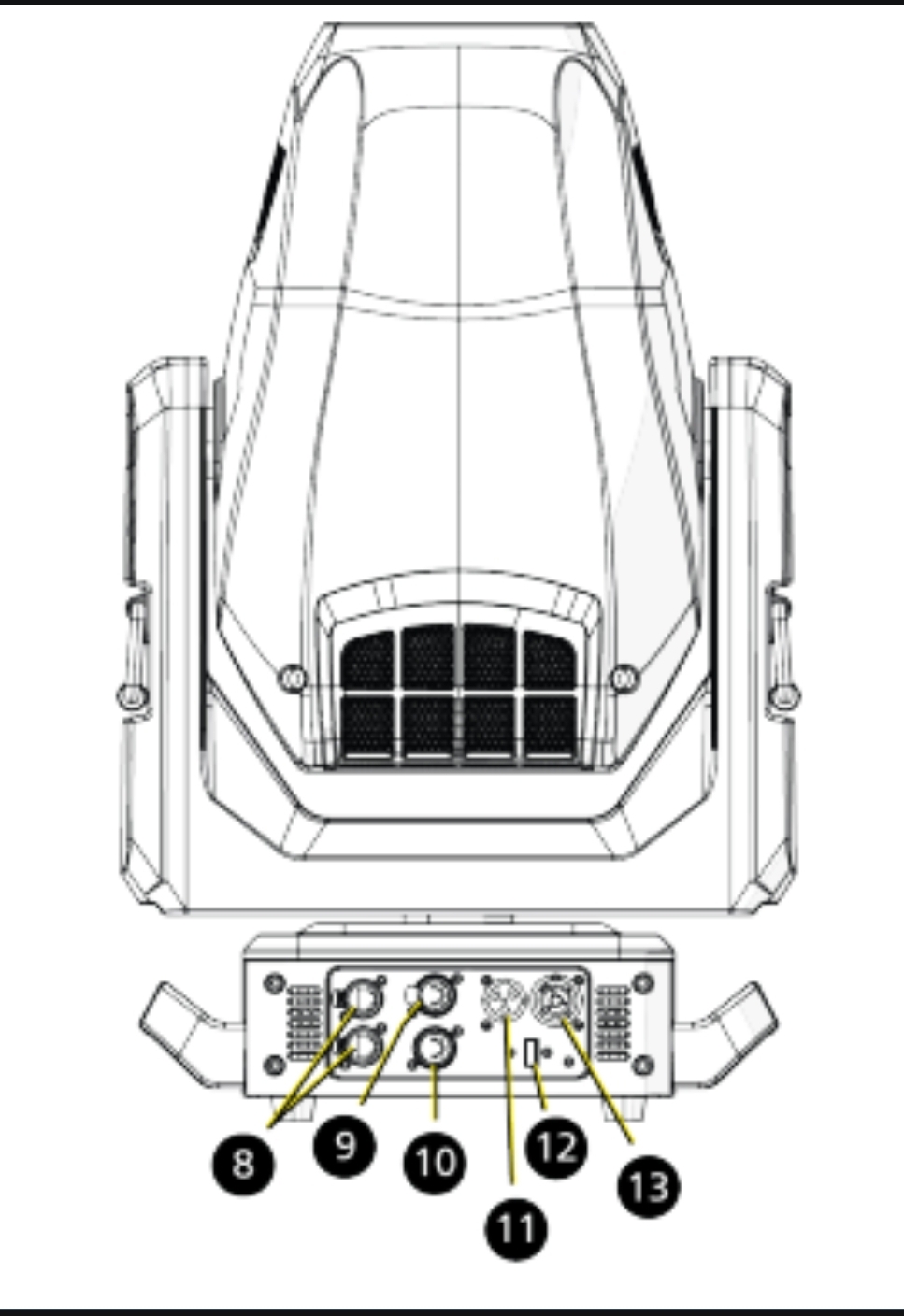

#8

Ethernet port X2

#9

DMX thru

#10

DMX in

#11

Power in

#12

USB

#13

Power out

What is the name of this instrument?

Standard ellipsoidal

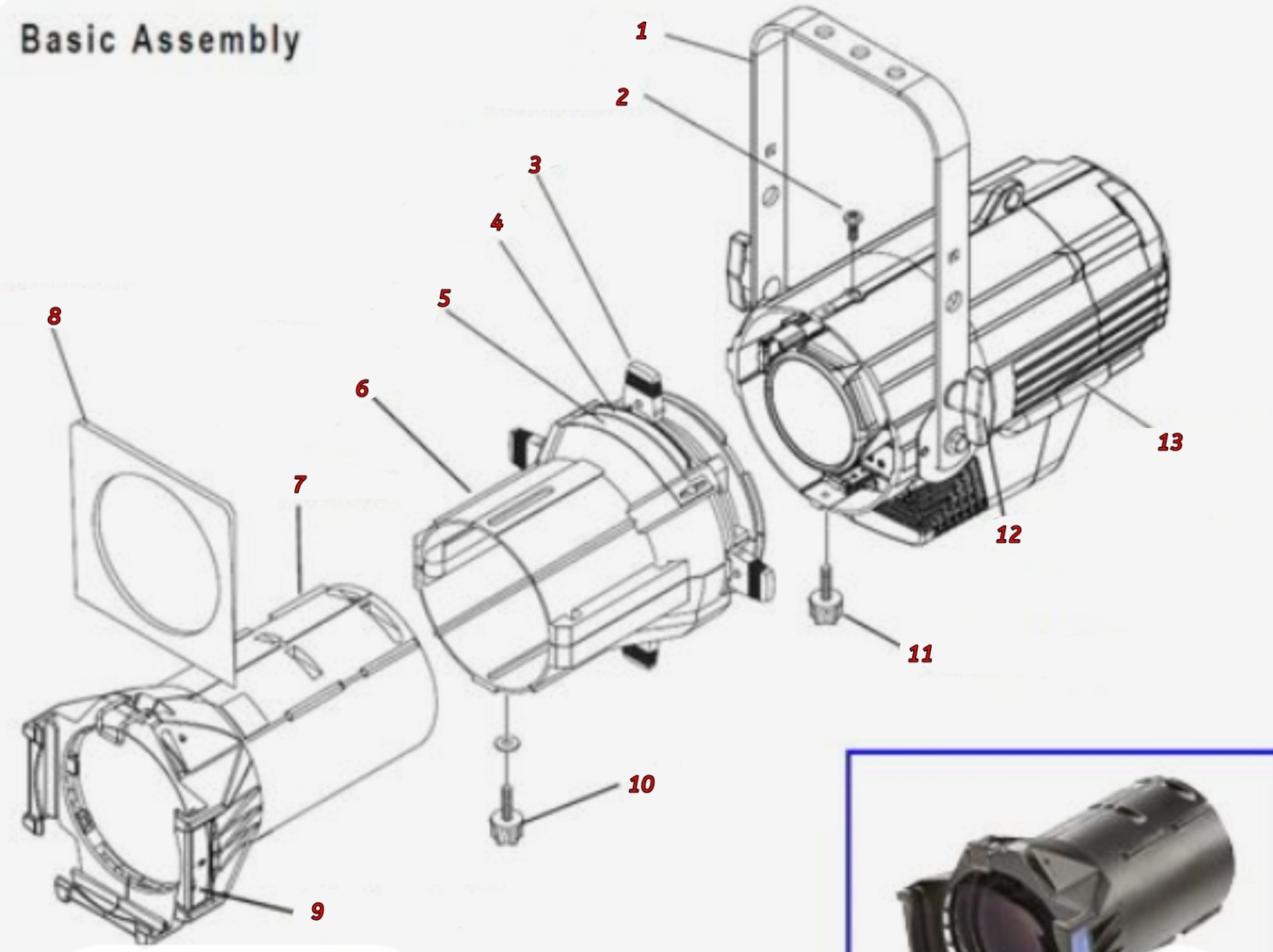

#1

Yoke

#2

Retainer bolt

#3

Shutters

#4

Pattern holder slot

#5

Drop in Iris slot

#6

Shutter barrel assembly

#7

Lens tube

#8

Color frame

#9

Color frame holder

#10

Beam focus knob

#11

Barrel rotation knob

#12

Yoke locking knob

#13

Light engine body

What light is this?

Source 4 Luster 3 Ellipsoidal

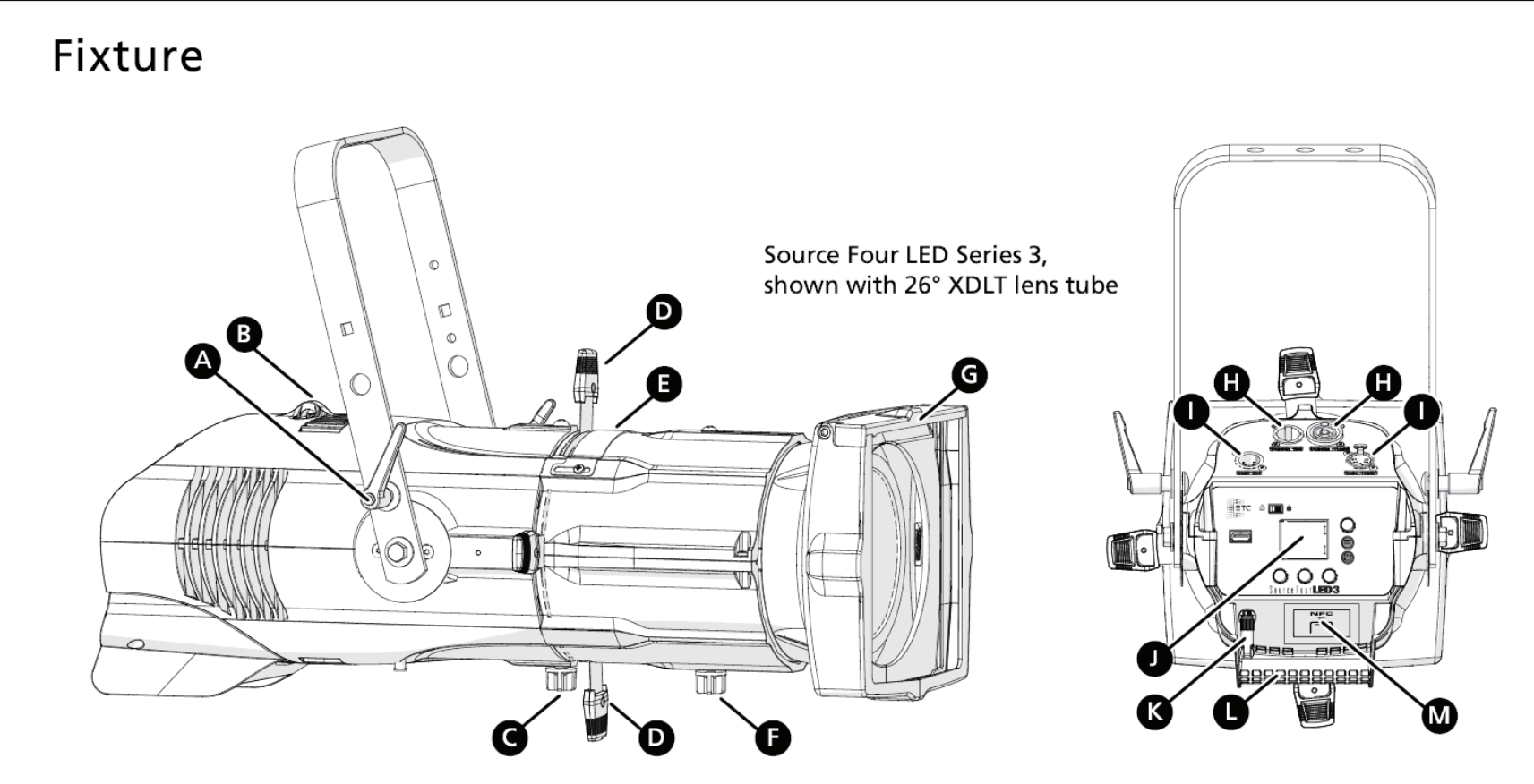

A

Yoke tilt lock

B

Safety cable attachment point

C

Barrel rotation knob

D

Shutters

E

Pattern holder slot and accessory slot

F

Beam focus knob

G

Accessory knob

H

Power in power thru connectors

I

Power in power thru connectors

J

User interface

K

Antenna

L

Handle

M

NFC (Near field communication) tag

What instrument is this

Color source CYC

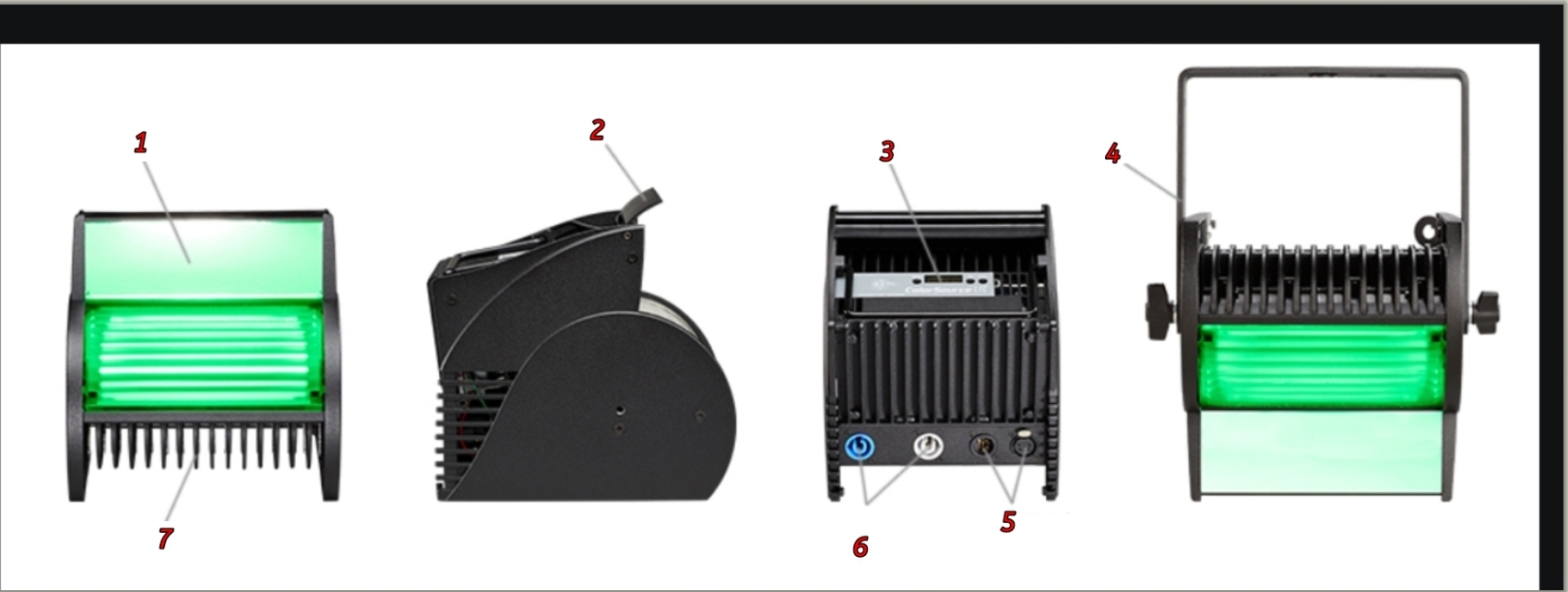

#1

Bounce mirror

#2

Spill control flap

#3

User interface

#4

Hanging yoke

#5

DMX/RDM in/thru

#6

PowerCON in/thru

#7

Convection-cooling
