Number systems

What is a bit

A binary digit.

What is a byte?

A group of 8 bits

What is binary?

Number system that uses 0 and 1

What is the general notation to represent a number in a specific number system

Nᵣ = number N using radix r (aka base r - the number of possible digit values).

Give an algorithm to convert binary to decimal

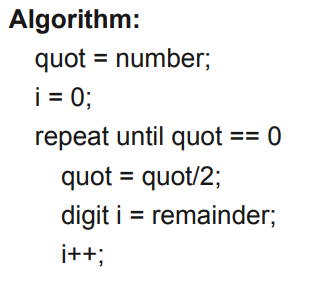

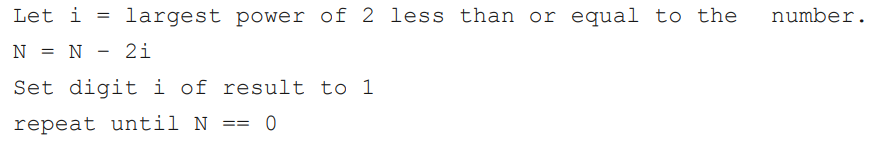

Give an algorithm to convert to decimal to binary

Give an algorithm to convert binary fractional number to decimal

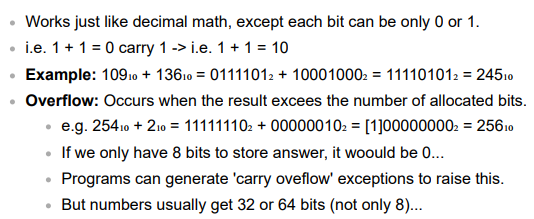

How to add in binary?

What are the 3 ways to represents negative number

• Sign/magnitude: invert just the sign bit.

• 1's complement: invert all bits.

• 2's complement: invert all bits, then add one.

(The left most bit still indicates sign)

What advantage does 2’s complement have over 1’s complement?

Easy to do arithmetic with it

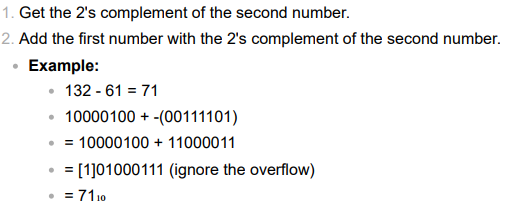

How to do binary substraction?

Who introduced the system to allocate a certain amount of memory to represent floating point number?

IEEE 754

What is the issue with fixed point numbers?

Fixed point numbers have very limited range (determined by bit length)

What are the two parts of a floating point number?

• Mantissa: the number multiplying the base

• Exponent: the power

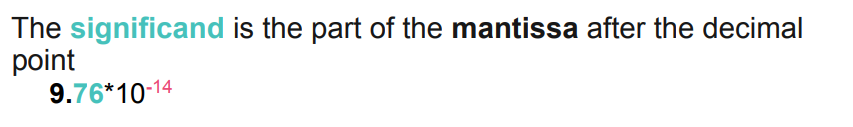

What is a significand?

The significand is the part of the mantissa after the decimal point

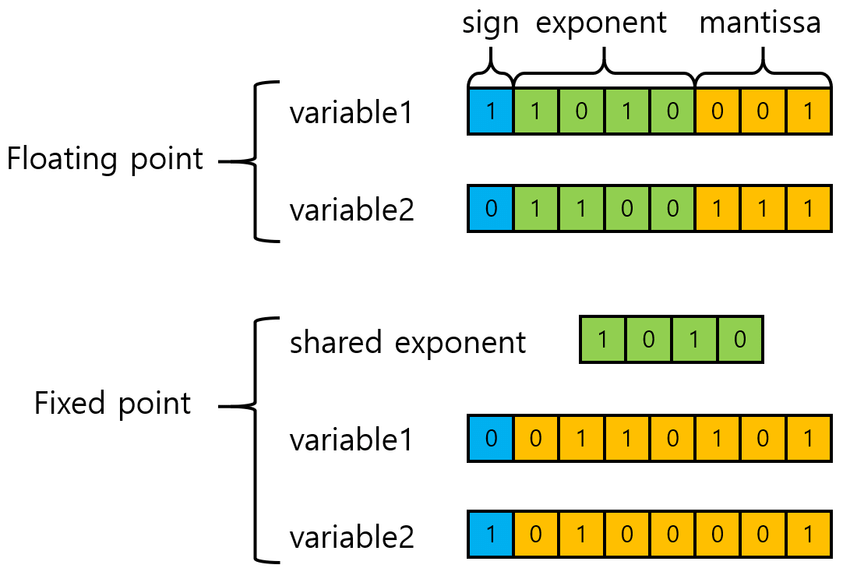

What is the difference between fixed point number and floating point number

What is the issue with Floating Point Range?

Large range, but limited accuracy (truncation errors)

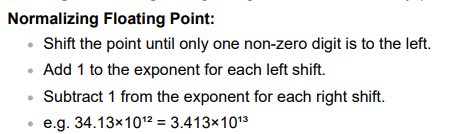

How to normalise a floating point?

What you have to do before storing a floating point number?

Normalise it

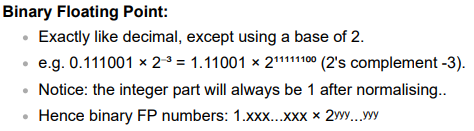

How to represent a binary floating point number?

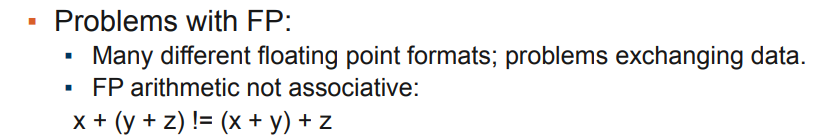

What are the issues that IEEE 754 standard format solved?

What is the standard format for single and double floating point formats

• Sign bit (1 bit)

• Exponent (8 bits for single, 11 bits for double)

• Significand (23 bits for single, 52 bits for double)

• The leading 1 is implied so not stored.

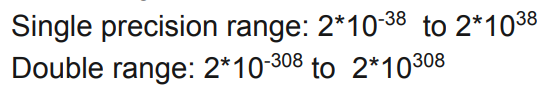

What are the ranges for single and double floating point numbers?

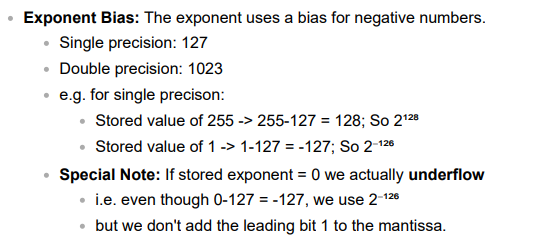

What is the exponent is biased

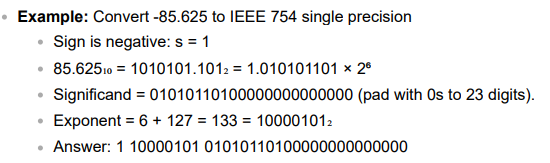

How to represent a binary floating point number in IEEE 754 format

(-1)S (1 + significand) * 2exponent - bias

What are the exponent and significant of 0?

Exponent and significand are 0 (exponent is 0, we underflow)

What are the exponent and significant of infinity?

• Exponent 1111...1111 & significand = 0.

• The above also have -ve variants (e.g. -∞ < -0 == 0 < ∞).

What are the exponent and significant of NaN (Not a number)?

• Exponent 1111...1111 & significand != 0.

• NaN is not equal to any other number, not even itself (ie. NaN == NaN -> False).

What is overflow?

Overflow means that values have grown too large for the representation, much in the same way that you can overflow integers

What is underflow?

Underflow is a less serious problem because is just denotes a loss of precision, which is guaranteed to be closely approximated by zero.

What is exponent overflow?

Exponent Overflow Exponent bigger than max permissible size; may be set to “infinity”

How to do addition/subtraction with floating point number

• Normalise

• Match to larger exponent

• Add

• Normalise

What is exponent underflow?

Exponent Underflow → Negative exponent, smaller than minimum size; may be set to zero.

What is significand underflow?

Significand Underflow → Alignment may cause loss of significant digits

What is significant overflow?

Significand Overflow → Addition may cause carry overflow; realign significands.

How does ASCII store characters?

7 bits for standard characters, but stored in a byte (8 bits). [First]

How does Unicode store characters?

21 bits with variable length encoding between 1 and 4 bytes

How does EBCDIC store characters?

(9-bit)

How are characters represented?

Characters are represented as "character sets."

What are different protocols that represents characters?

• ASCII

• Unicode

• EBCDIC

What is Boolean Algebra?

Boolean Algebra: Algebra with operations that use and yield only two discrete states ( True and False )

What is the symbol logic gate symbol for and?

What is the symbol logic gate symbol for or?

What is the symbol logic gate symbol for NAND?

What is the symbol logic gate symbol for NOR?

What is the symbol logic gate symbol for NOT?

What is the symbol logic gate symbol for XOR?

Who formalized the Boolean Algebra?

George Boole

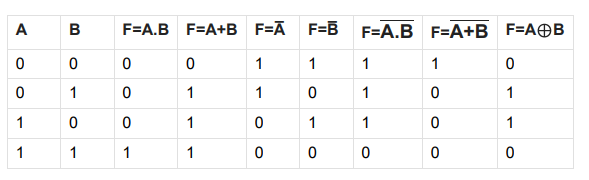

Give truth table for AND, OR, Not A, Not B, NAND, NOR and XOR

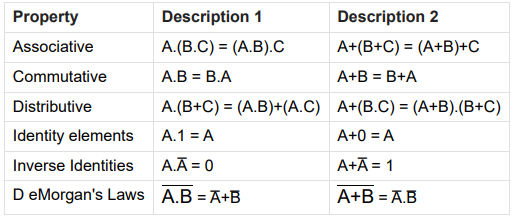

What are the Algebraic Identities

What is NOT known as?

Unary operator
