Velocity Profile Lab

Static pressure

the potential energy or force exerted by a fluid (liquid or gas) at rest, acting equally in all directions against container walls

Stagnation Pressure

what the pressure would be if all the kinetic energy of the fluid were to be converted into pressure in a reversible manner

What is used to control the flowrate through the pipe?

a rotary sleeve damper

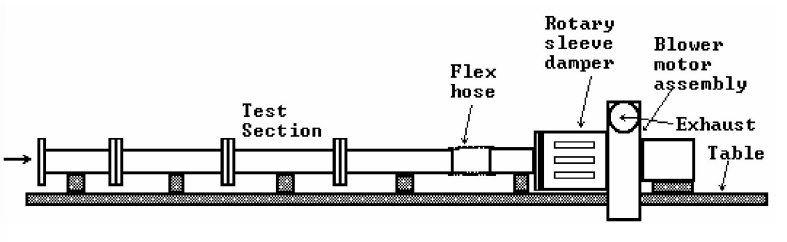

Schematic diagram of the pipe flow apparatus

What is used to measure total stagnation pressure

pitot tube

What is used to measure static pressure?

static pressure tap

What is the reading of the incline manometer?

reads the vertical pressure head directly in inches of water, despite being inclined and using a lower density a fluid

What does the piezoelectric pressure transducer do?

provides a voltage output that is proportional to the pressure difference

Equation for Reynolds number

What Reynolds number is considered laminar?

< 2300

What Reynolds number is considered turbulent?

> 4000

What is the velocity profile of a laminar flow?

parabolic

What is the normalized equation for a laminar velocity profile of a circular pipe?

What are some characteristics of a turbulent flow

time dependent, chaotic, three-dimensional, have numerous eddies

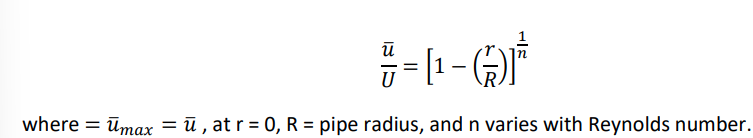

What is the normalized equation for a turbulent velocity profile of a circular pipe?

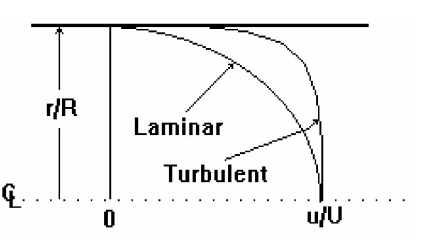

Graph of laminar vs turbulent flow

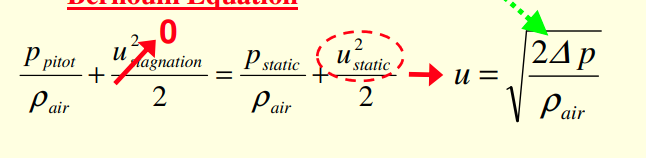

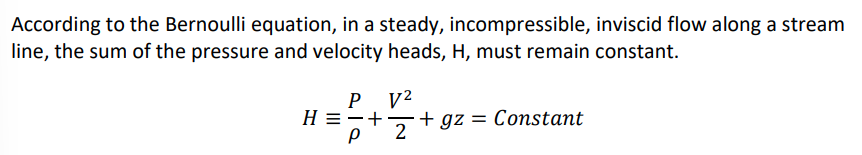

Bernoulli Equation

Equation for dynamic head pressure

Or more generally: delta P = (P_total - P_static) = (P_Pitot - P_static)

Equation for local flow velocity

Equation for mass flow rate

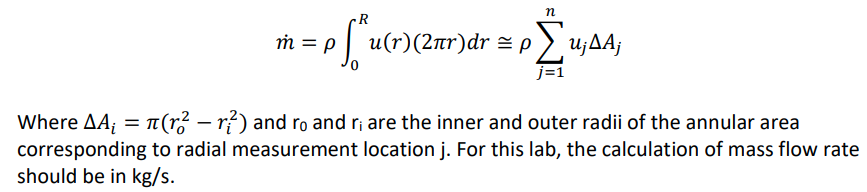

Or m_dot = (rho)*(Average velocity)*(Area of the pipe)
