Logic Gates

Logic Gates symbols, logic tables, and descriptions testing

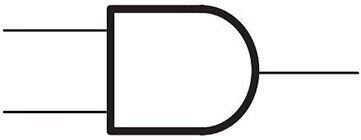

• AND Gate

• Outputs true only when all its inputs are true. It performs the logical conjunction operation.

• NAND Gate

• Outputs a false only if all inputs are true; otherwise, it outputs true.

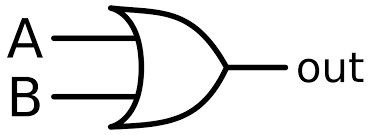

• OR Gate

• Outputs true if at least one input is true. It performs the logical disjunction operation.

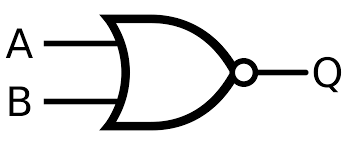

• NOR Gate

• Outputs true only if all inputs are false. It performs the logical negation of the OR operation.

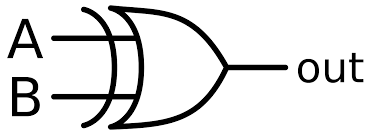

• XOR

• Gate outputs true if an odd number of inputs are true; otherwise, it outputs false.

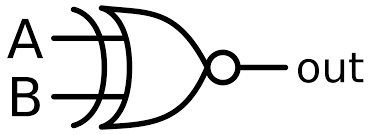

• XNOR Gate

• Gate outputs true if an even number of inputs are true, effectively performing the logical negation of the XOR operation.

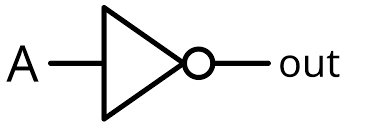

• NOT Gate

• Outputs true only if the input is false; performs logical negation.
