The gross anatomy of the brain

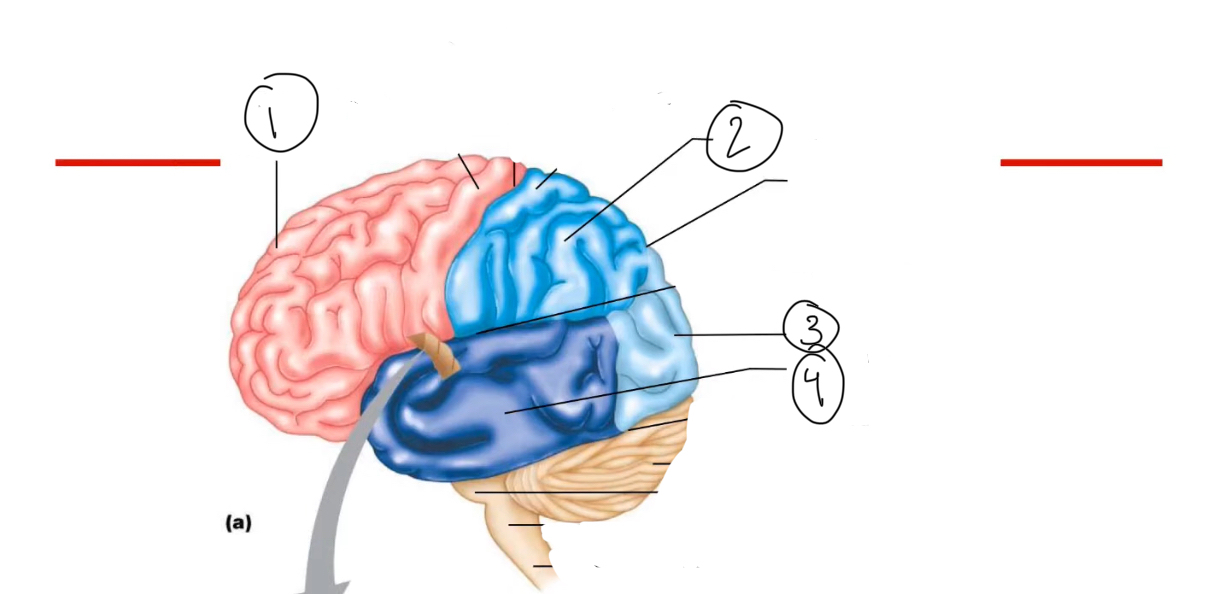

Name the lobe of 1

Frontal lobe

Name lobe 2

Parietal lobe

Name lobe 3

Occipital lobe

Name lobe 4

Temporal lobe

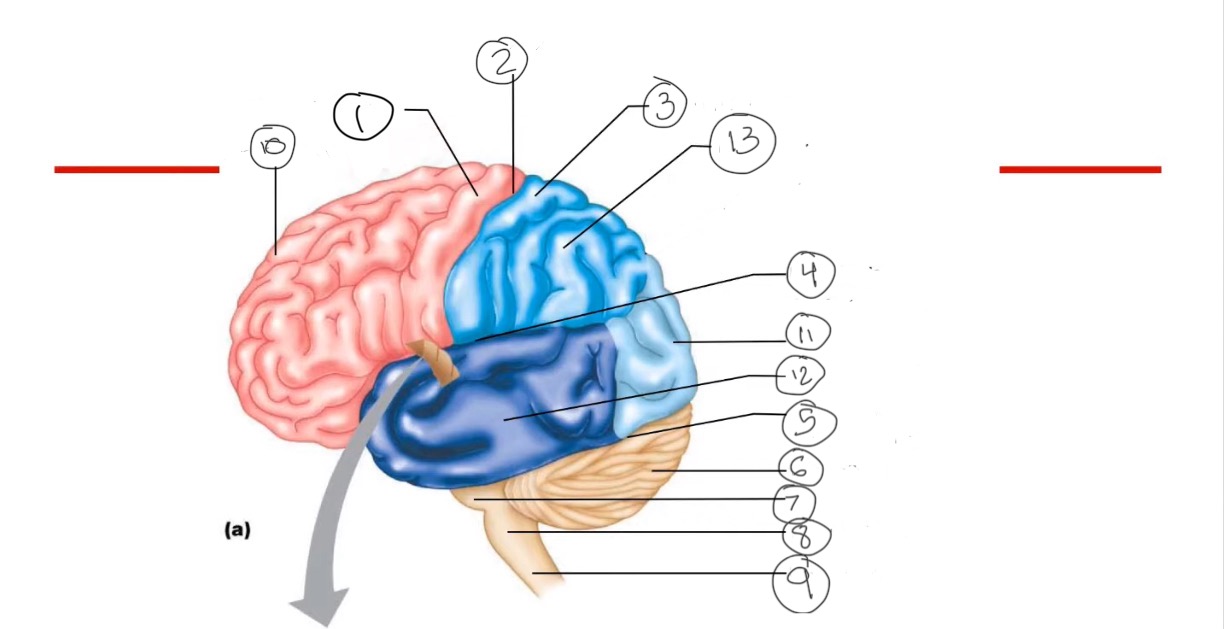

Name 1

Precentral gyrus

Name 2

Central sulcus

Name 3

Postcentral gyrus

Name 4

Lateral sulcus

Name 5

Transverse cerebral fissure

Name 6

Cerebellum

Name 7

Pons

Name 8

Medulla oblongata

Name 9

Spinal cord

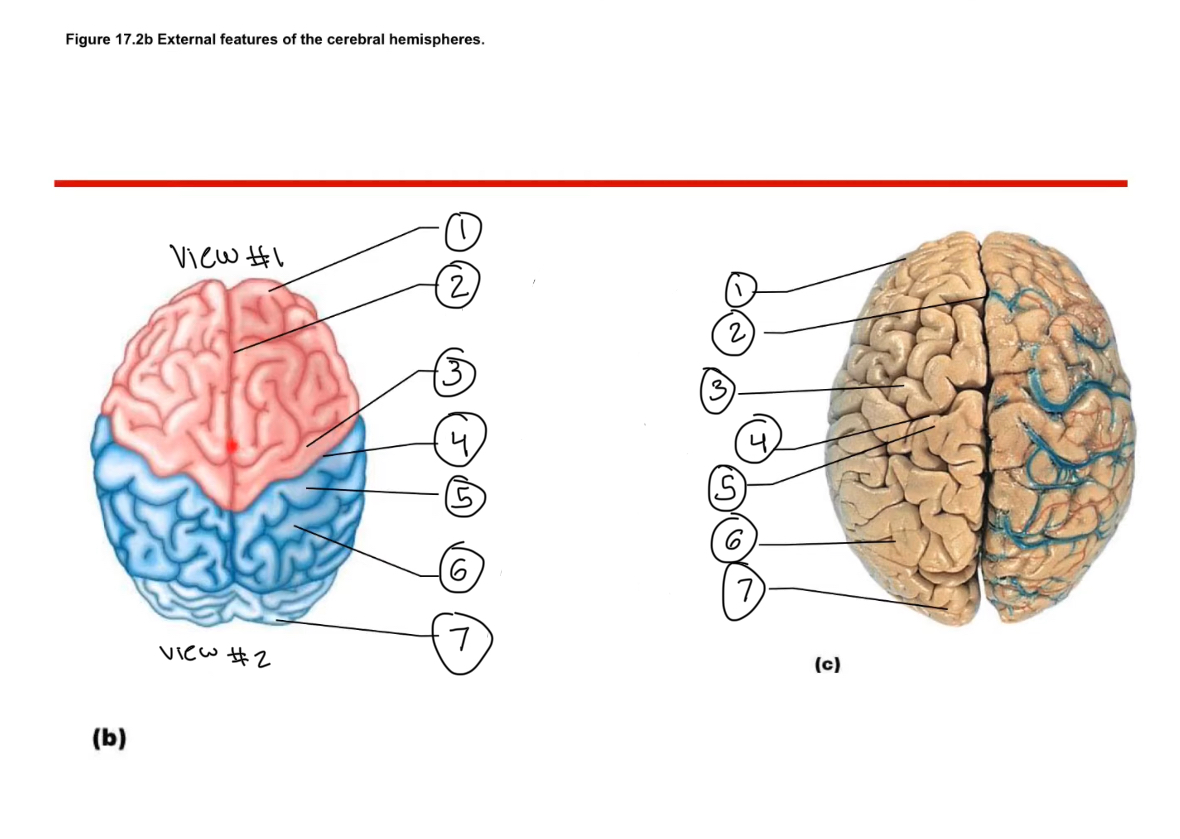

Name view 1

Anterior view

Name view 2

Posterior view

Name 1

Frontal lobe

Name 2

Longitudinal fissure

Name 3

Precentral gyrus

Name 4

Central sulcus

Name 5

Postcentral gyrus

Name 6

Parietal lobe

Name 7

Occipital lobe

Name 1

Frontal lobe

Name 2

Olfactory bulb

Name 3

Olfactory tract

Name 4

Olfactory chiasma

Name 5

Optic nerve

Name 6

Optic tract

Name 7

Mammillary body

Name 8

Midbrain

Name 9

Pons

Name 10

Temporal lobe

Name 11

Medulla oblongata

Name 12

Cerebellum

Name 13

Spinal cord

Name 1

Thalamus

Name 2

Pineal gland

Name 3

Corpora quadrigemina

Name 4

Superior colluculi

Name 5

Inferior colliculi

Name 6

Arbor vitae

Name 7

Cerebellum

Name 8

Fourth ventricle

Name 9

Medulla oblongata

Name 10

Pons

Name 11

Uncus

Name 12

Mammillary body

Name 13

Optic chiasma

Name 14

Hypothalamus

Name 15

Anterior commissure

Name 16

Corpus collosum

Name 17

Lateral ventricle

Name 18

Fornix

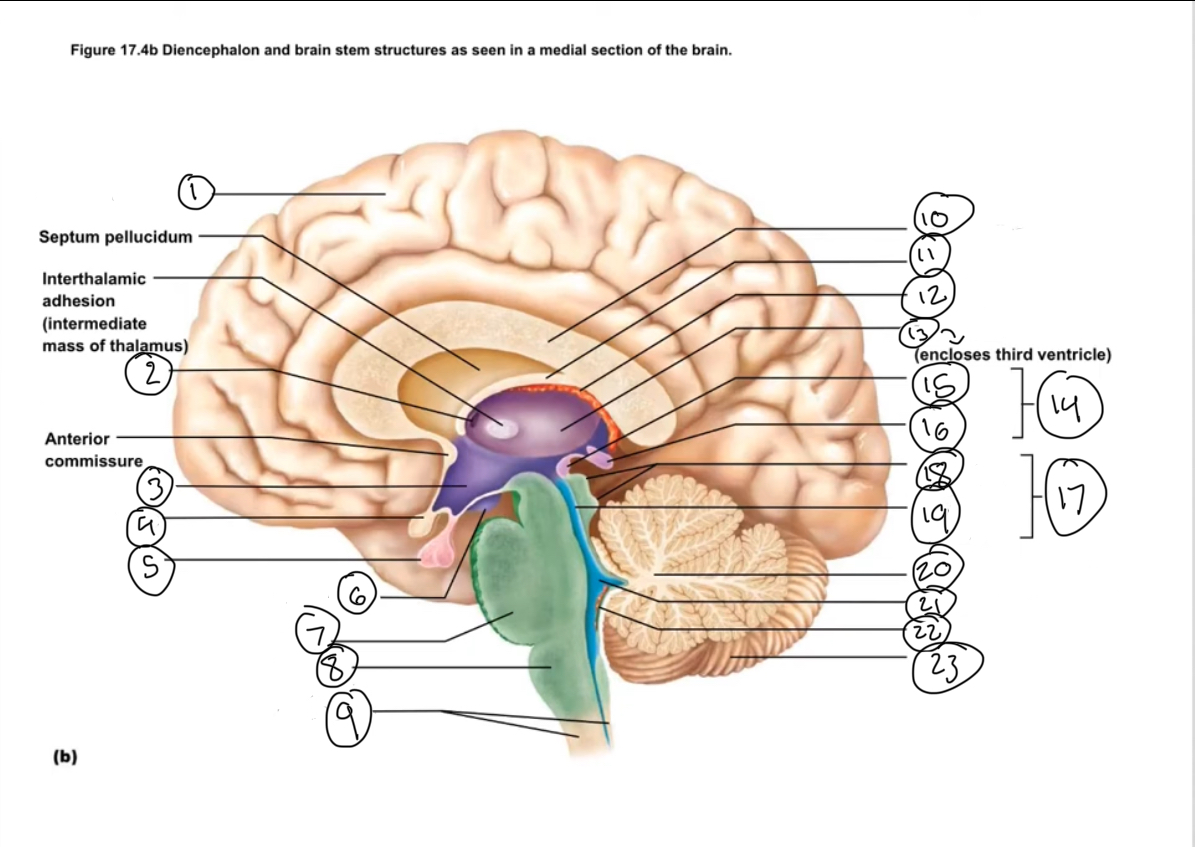

Name 1

Cerebral hemisphere

Name 2

Interventricular foremen

Name 3

Hypothalamus

Name 4

Optic chiasma

Name 5

Pituitary gland

Name 6

Mammillary body

Name 7

Pons

Name 8

Medulla oblongata

Name 9

Spinal cord

Name 10

Corpus collasum

Name 11

Fornix

Name 12

Choroid plexus

Name 13

Thalamus

Name 14

Epithalamus

Name 15

Posterior commisure

Name 16

Pineal gland

Name 17

Midbrain

Name 18

Corpora quadrigemina

Name 19

Cerebral aqueduct

Name 20

Arbor vitae of cerebellum

Name 21

Fourth ventricle

Name 22

Choroid plexus

Name 23

Cerebellum
