Experiment to Demonstrate the Effect of Inductors on a.c. & d.c.

0.0(0)
studied byStudied by 0 people
0.0(0)
full-widthCall Kai
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
GameKnowt Play
Card Sorting

1/9

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced
Call with Kai

No study sessions yet.

10 Terms

1
New cards

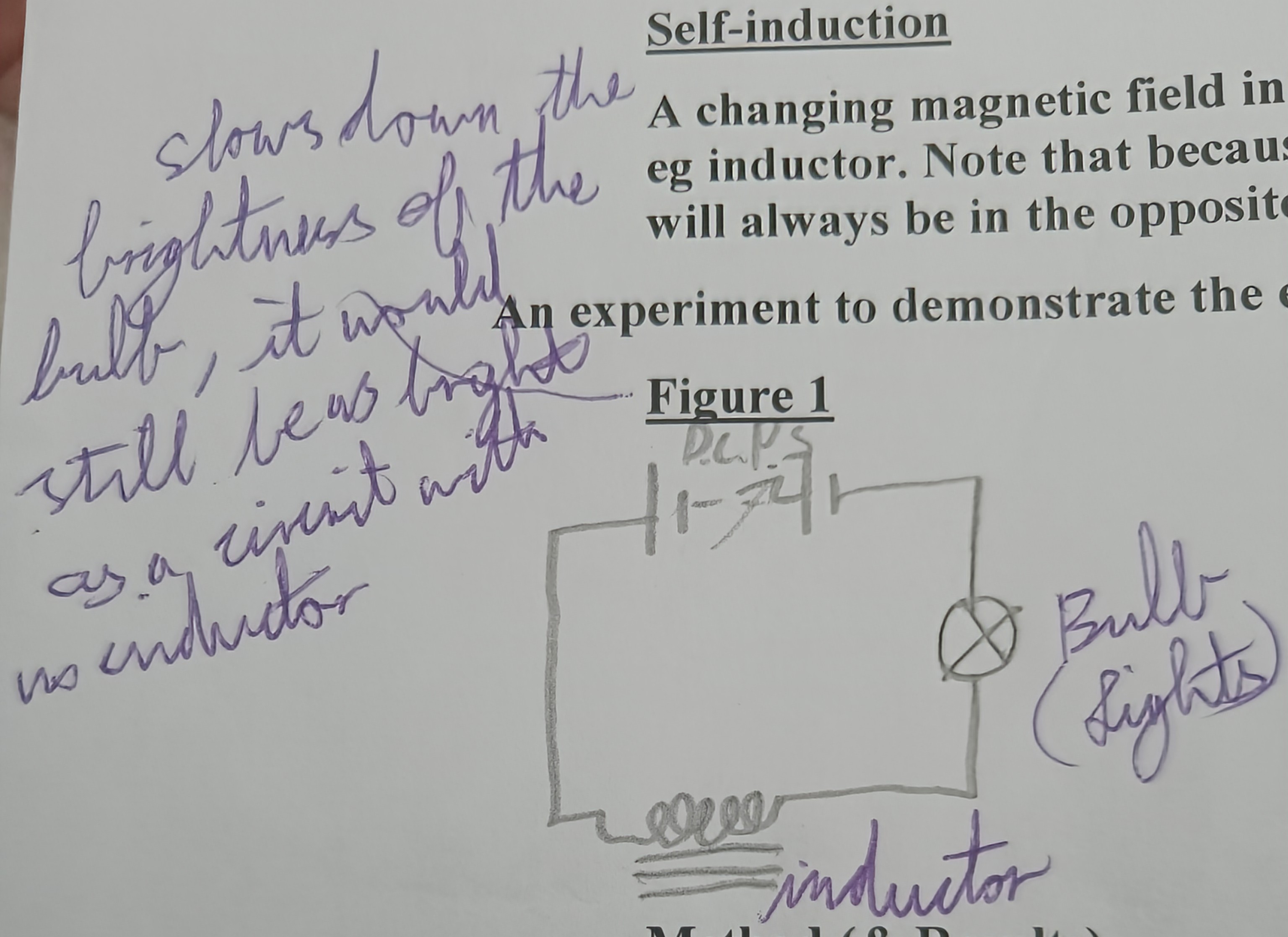

Draw a diagram of this experiment (DCPS)

knowt flashcard image
2
New cards

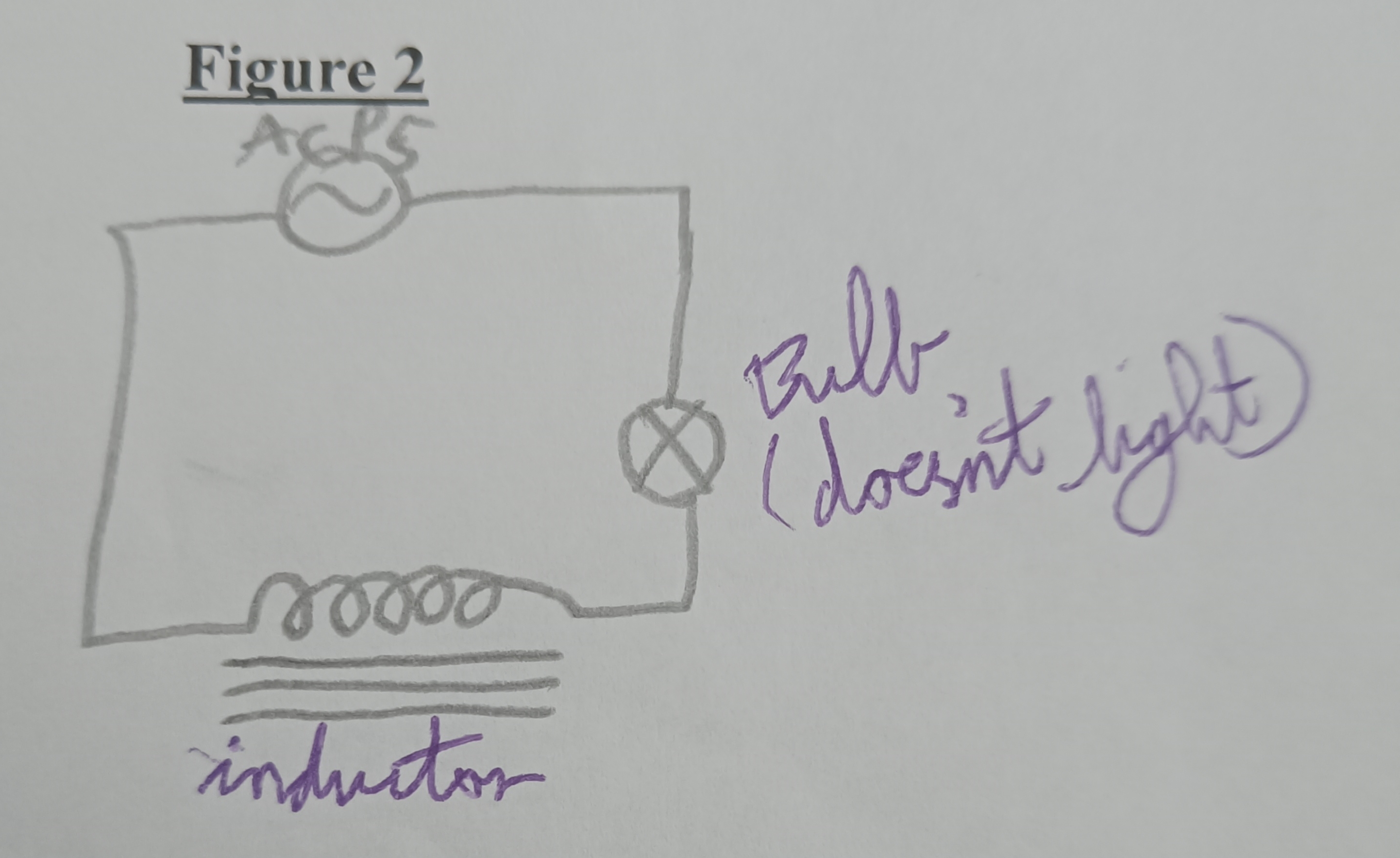

Draw a diagram of this experiment (ACPS)

knowt flashcard image
3
New cards

Method

Set up apparatus as shown in both diagrams

4
New cards

Results (DCPS)

Bulb lights

5
New cards

Results (ACPS)

Bulb doesn't light

6
New cards

Conclusion

Inductors block a.c. but pass d.c.

7
New cards

What is self-induction?

A changing magnetic field in a coil induces an emf in the coil itself e.g. inductor

8
New cards

How does Lenz's law affect self-induction?

Induced current will always be in the opposite direction to the applied current

9
New cards

Explain what happens in the d.c. circuit

Electromagnetic self-induction takes place for a short period of time only delaying the lightening of the bulb briefly

10
New cards

Explain what happens in the a.c. circuit

Electromagnetic self-induction takes place continuously because the current is constantly changing. This drastically reduces the total current flowing through the circuit
