CCNA 3 Module (3-5) Part 2

Which two packet filters could a network administrator use on an IPv4 extended ACL? (Choose two.)

destination UDP port number

ICMP message type

What type of ACL offers greater flexibility and control over network access?

extended

What is the quickest way to remove a single ACE from a named ACL?

Use the no keyword and the sequence number of the ACE to be removed.

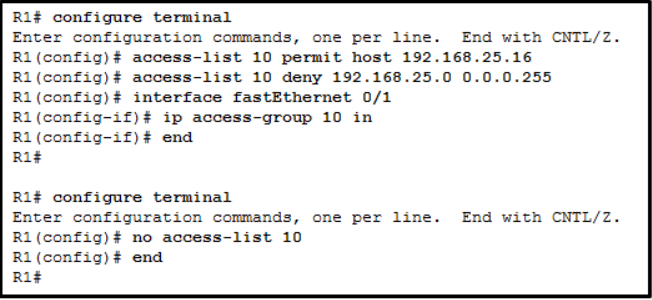

Refer to the exhibit. A network administrator is configuring a standard IPv4 ACL. What is the effect after the command no access-list 10 is entered?

ACL 10 is removed from the running configuration.

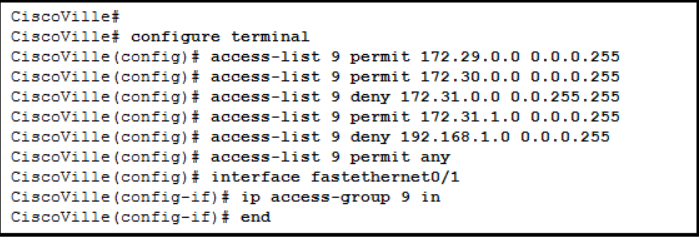

Refer to the exhibit. A network administrator has configured ACL 9 as shown. Users on the 172.31.1.0 /24 network cannot forward traffic through router CiscoVille. What is the most likely cause of the traffic failure?

The sequence of the ACEs is incorrect.

A network administrator needs to configure a standard ACL so that only the workstation of the administrator with the IP address 192.168.15.23 can access the virtual terminal of the main router. Which two configuration commands can achieve the task? (Choose two.)

Router1(config)# access-list 10 permit 192.168.15.23 0.0.0.0

Router1(config)# access-list 10 permit host 192.168.15.23

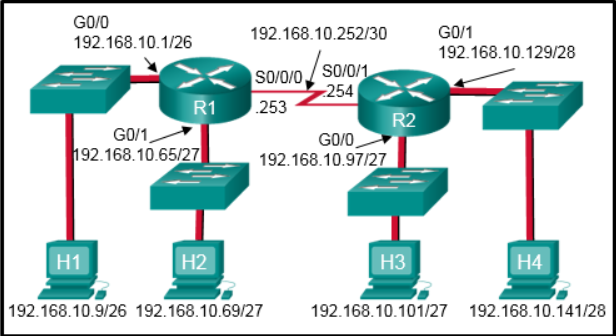

Refer to the exhibit. Which command would be used in a standard ACL to allow only devices on the network attached to R2 G0/0 interface to access the networks attached to R1?

access-list 1 permit 192.168.10.96 0.0.0.31

A network administrator is writing a standard ACL that will deny any traffic from the 172.16.0.0/16 network, but permit all other traffic. Which two commands should be used? (Choose two.)

Router(config)# access-list 95 permit any

Router(config)# access-list 95 deny 172.16.0.0 0.0.255.255

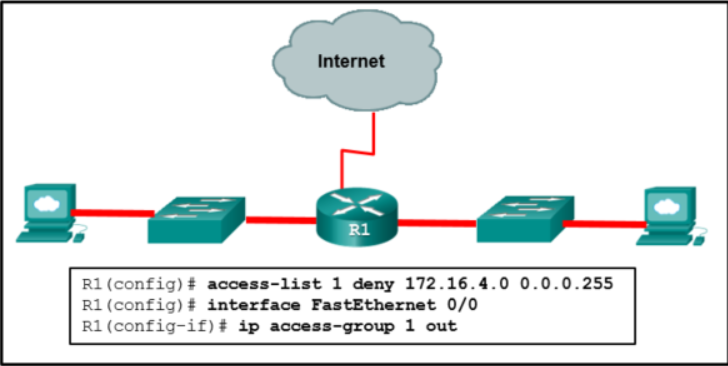

Refer to the exhibit. An ACL was configured on R1 with the intention of denying traffic from subnet 172.16.4.0/24 into subnet 172.16.3.0/24. All other traffic into subnet 172.16.3.0/24 should be permitted. This standard ACL was then applied outbound on interface Fa0/0. Which conclusion can be drawn from this configuration?​

All traffic will be blocked, not just traffic from the 172.16.4.0/24 subnet.

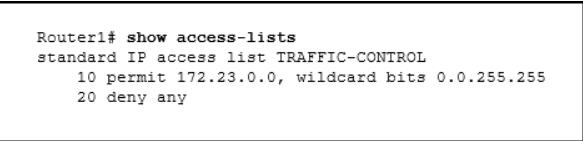

Refer to the exhibit. A network administrator needs to add an ACE to the TRAFFIC-CONTROL ACL that will deny IP traffic from the subnet 172.23.16.0/20. Which ACE will meet this requirement?

5 deny 172.23.16.0 0.0.15.255

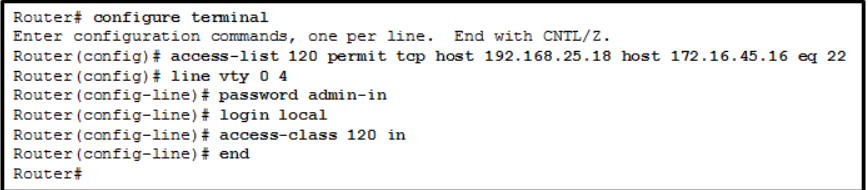

Refer to the exhibit. A network administrator configures an ACL on the router. Which statement describes the result of the configuration?

An SSH connection is allowed from a workstation with IP 192.168.25.18 to a device with IP 172.16.45.16.
