Clinical Significance of Incomplete Segmentation of Transitional Vertebrae

— MAY be associated with back pain

— MAY be associated with disc herniation at the adjacent superior segment

— accessory articulation degeneration may occur

Sacralization vs Lumbarization

Sacralization = L5 doesn't fully segment from the sacrum (looks S1-like)

Lumbarization = S1 does not fully segment from L5 (looks L6-like)

What are some variable features associated with incomplete segmentation?

— hyperplasia of the transverse process

— non-segmentation or partial segmentation (MC)

— accessory joint formation

Imaging Findings of Incomplete Segmentation

— Hyperplastic transverse process ("batwing" appearance)

— Hypoplastic disc

— Possible accesory joint formation

— Occasional accessory joint degeneration

If you cannot use T1 for an accurate assessment of the transitional segment, what do you name it?

Generic term = lumbosacral transitional segment

COMPLETE lumbarization vs sacralization

Complete lumbarization = 6 lumbar segments (S1 separated from sacrum)

Complete sacralization = only 4 lumbars (L5 fused with sacrum)

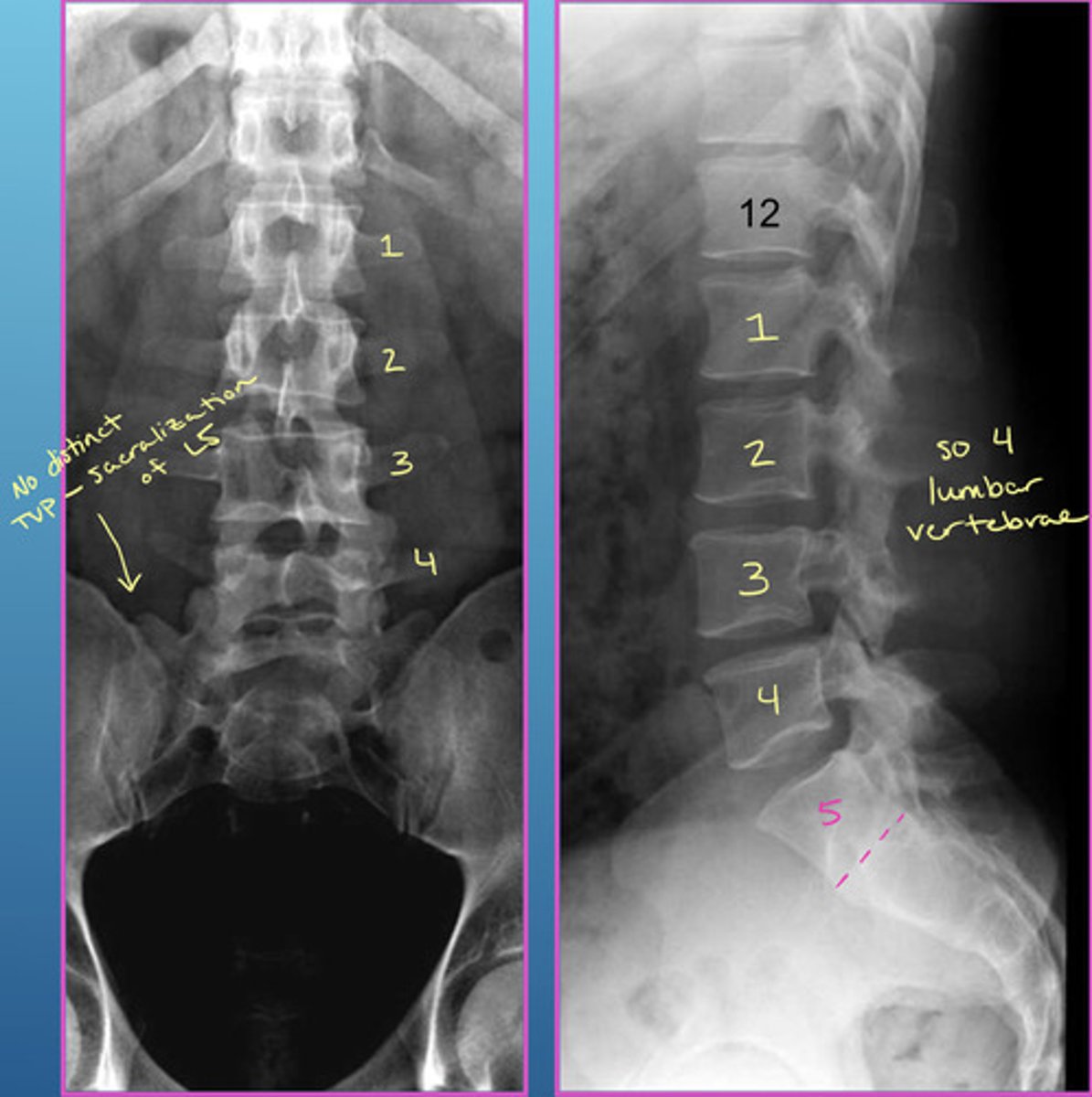

Image example of sacralization of L5

What is Bertolotti Syndrome?

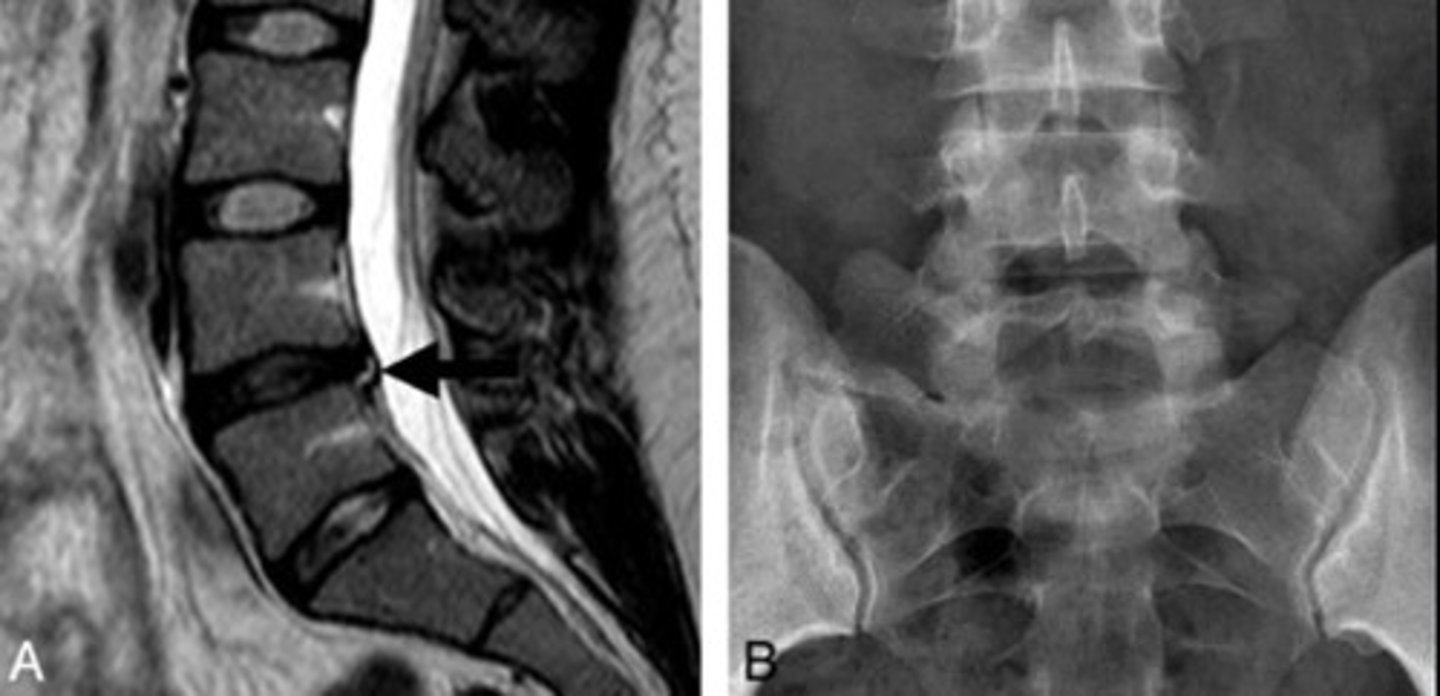

Disc herniation with sacralization

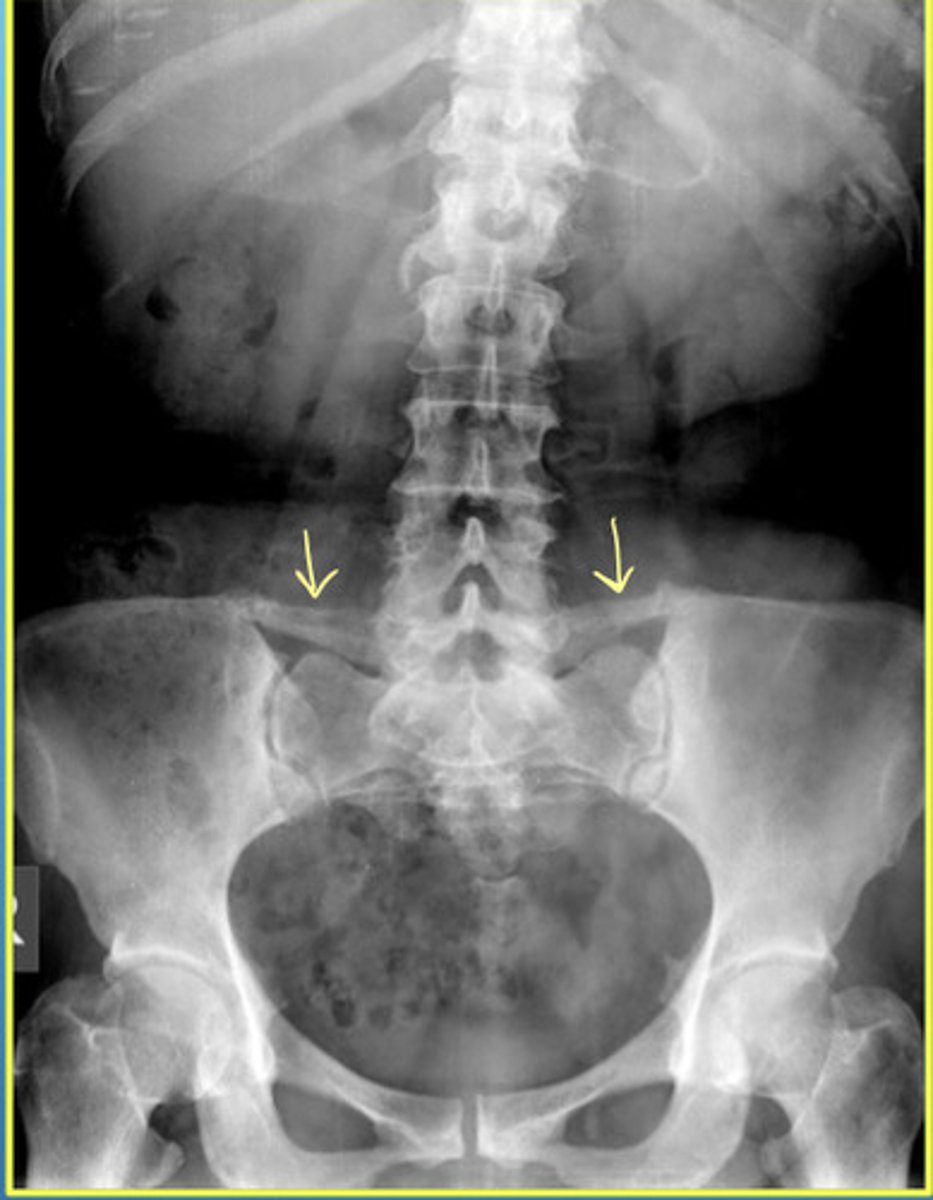

Iliolumbar Ligament Calcification

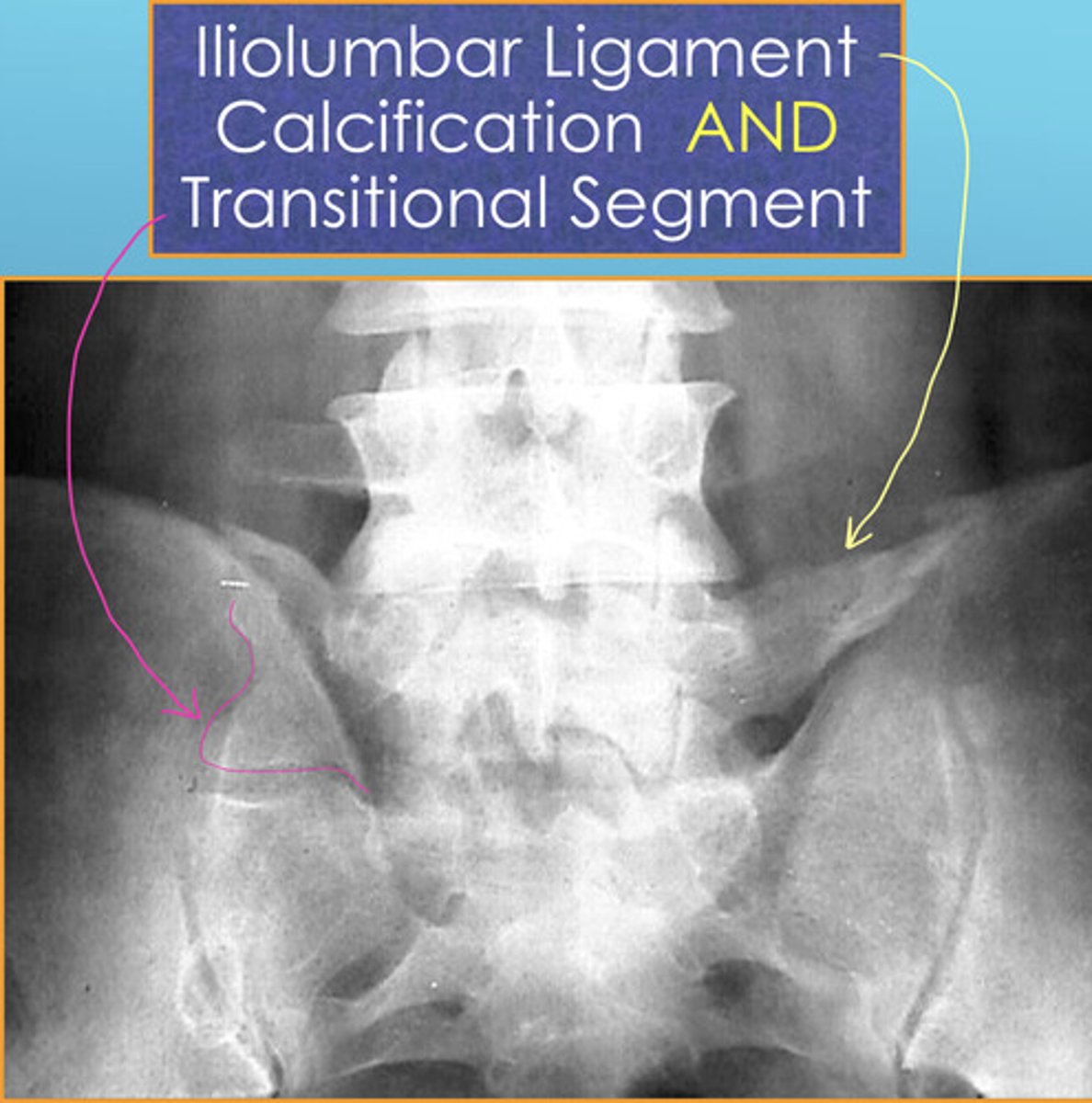

Iliolumbar Ligament Calcification AND a Transitional Segment

Facet Tropism

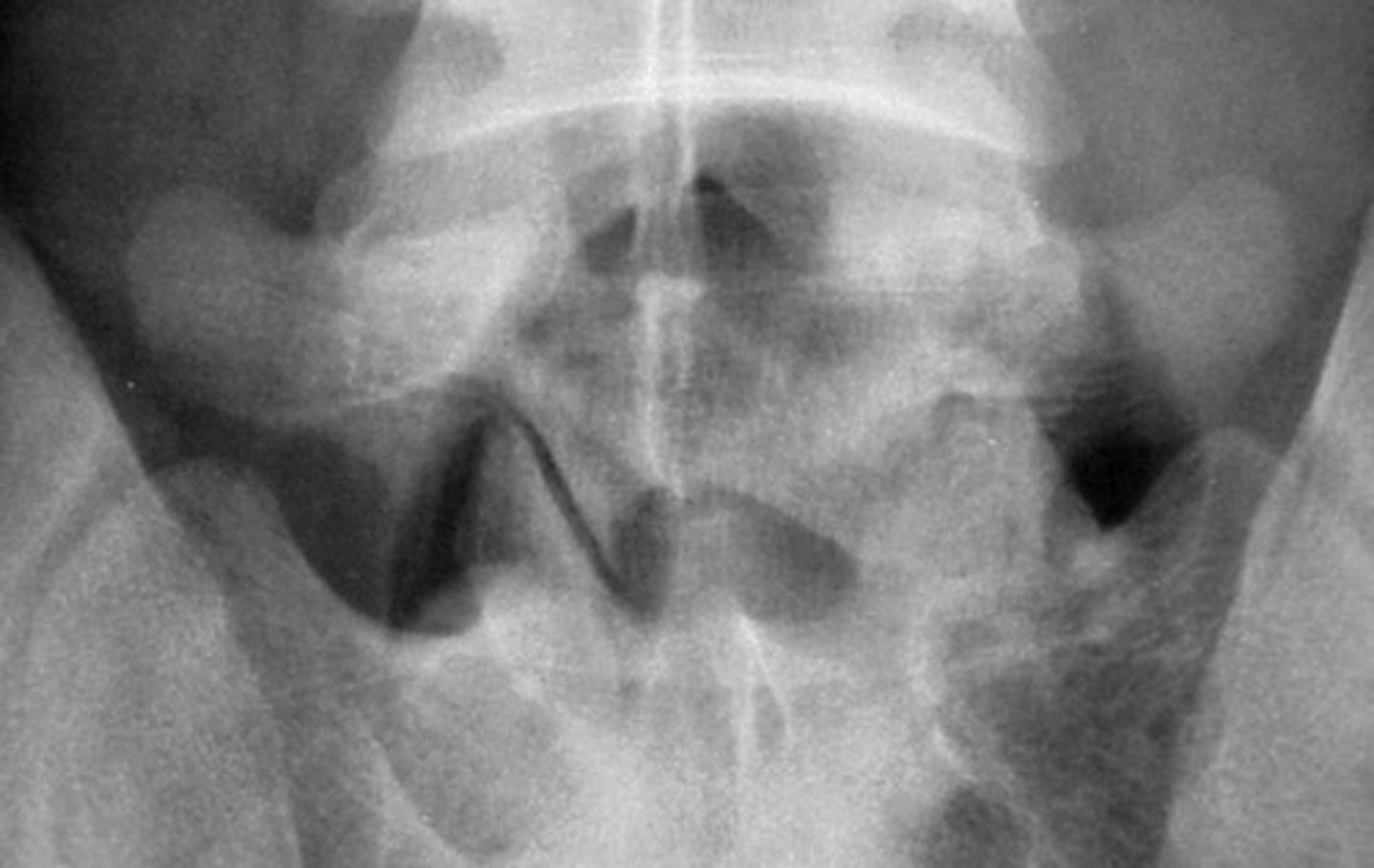

"Trop" = to turn

Asymmetric orientation of the facets = coronal AND sagittal facets at one level

Clinical Significance of Facet Tropism

Usually NOT clinically significant for most BUT may affect your adjustment

COULD be a predisposing factor for some pathological changes in the lumbar spine (disc degeneration, facet degeneration, and degenerative spondylolisthesis)

What is the most sensitive study to see facet tropism? What is the necessary difference in angulation of the facet joints to be considered facet tropism?

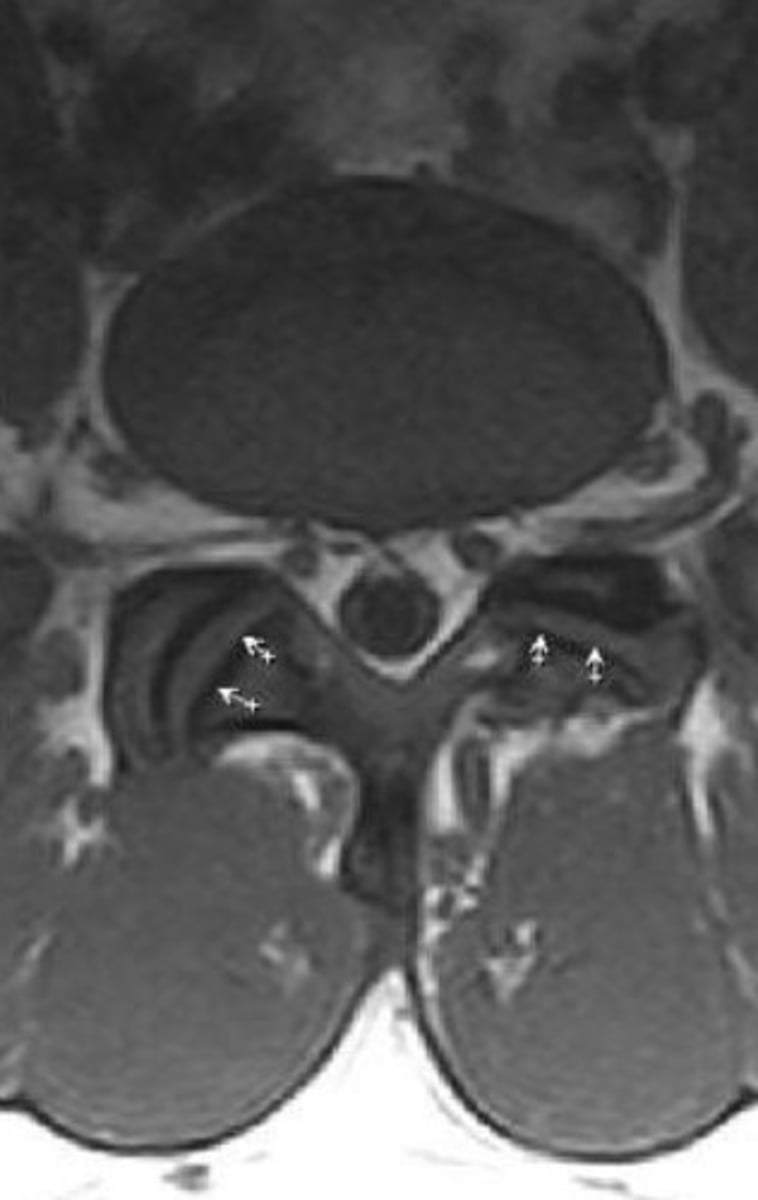

CT studies

8 degrees or more difference = facet tropism

Accessory Articulation at the Transverse Process

What is the clinical significance of an accessory articulation at the transverse process?

No clinical association known (rare finding)

How does an accessory articulation at the transverse process occur?

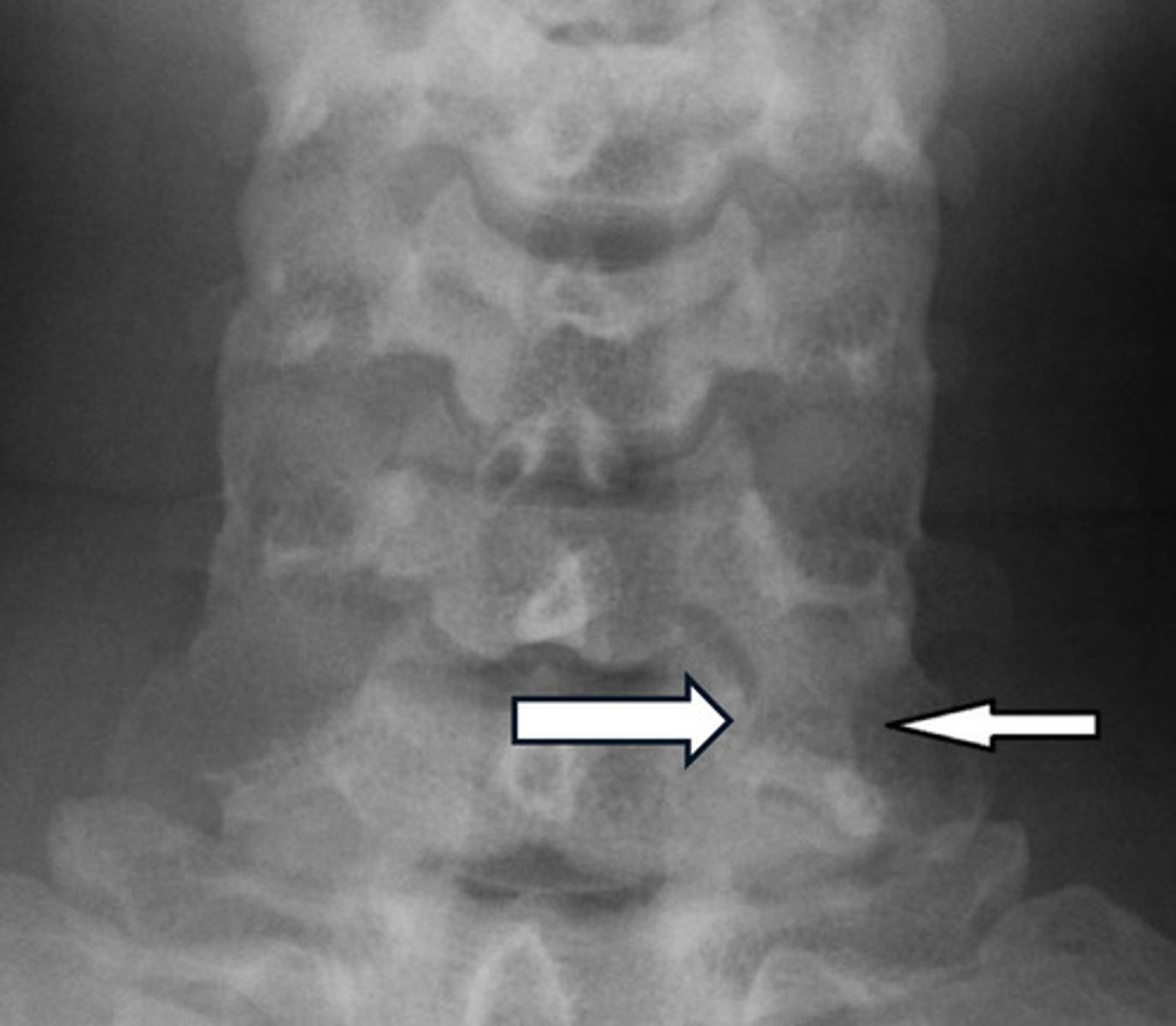

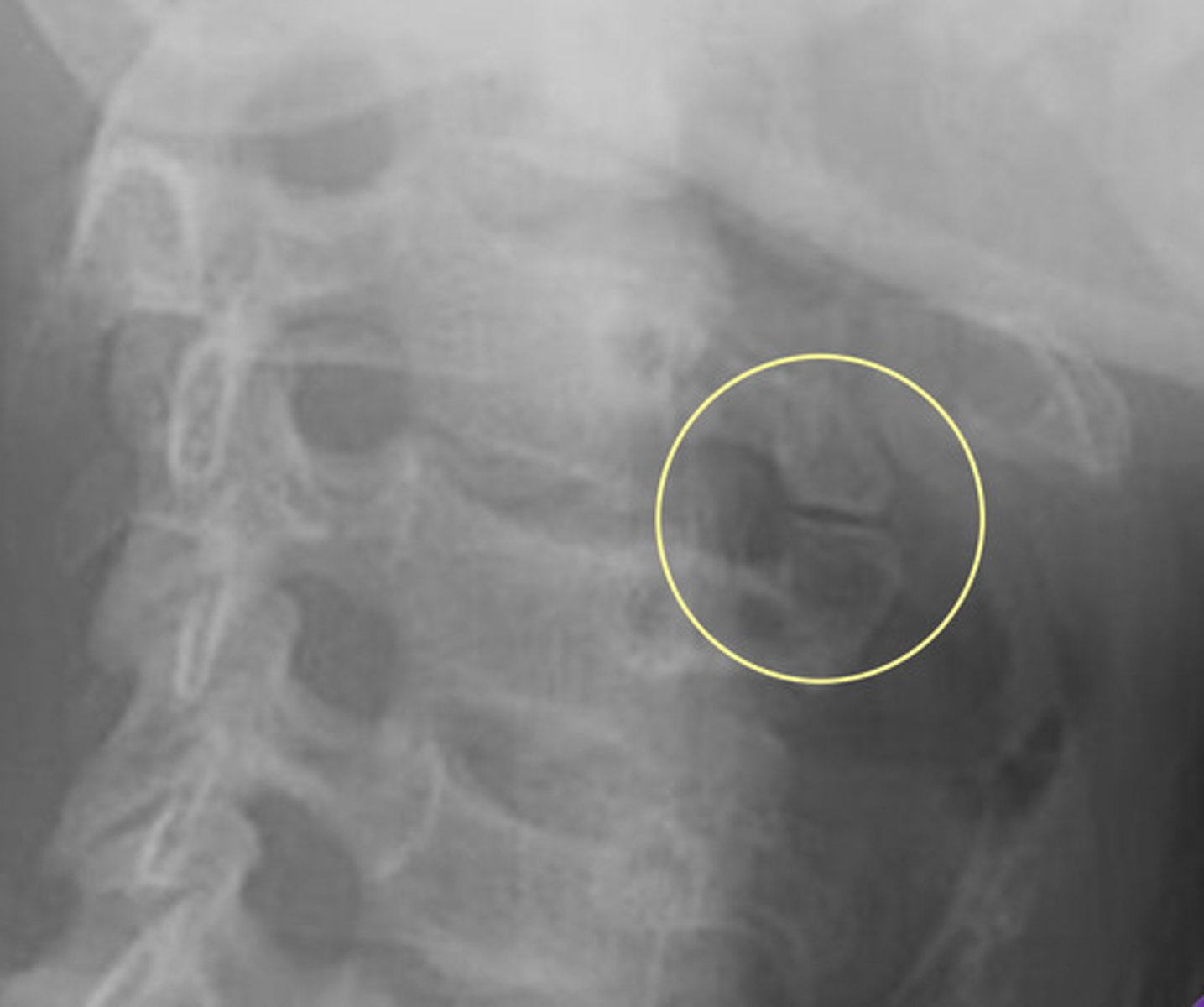

Each cervical vertebrae transverse processes are formed by the lateral extension of the center of the neural arches

The costal portion of the transverse process may enlarge and elongate the anterior tubercle to articulate with the vertebrae below, giving rise to an unusual variant that could simulate a fracture

Persistent Apophysis

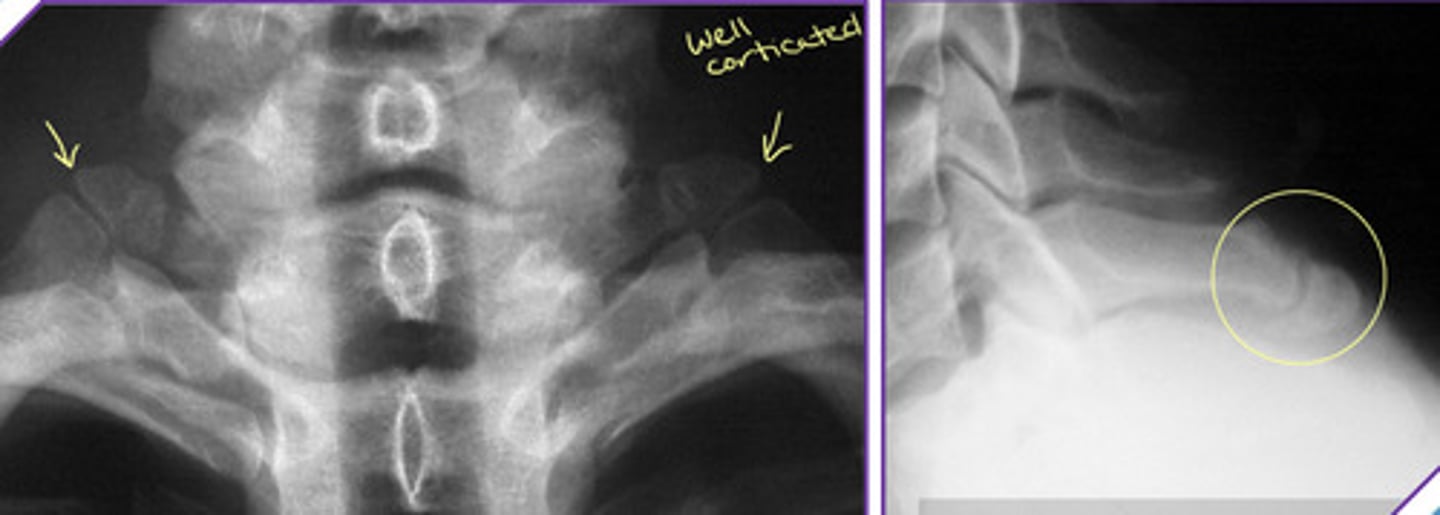

Reminder: apophysis = normal secondary ossification center that is located in the non-weight bearing part of the bone and eventually fuses over time

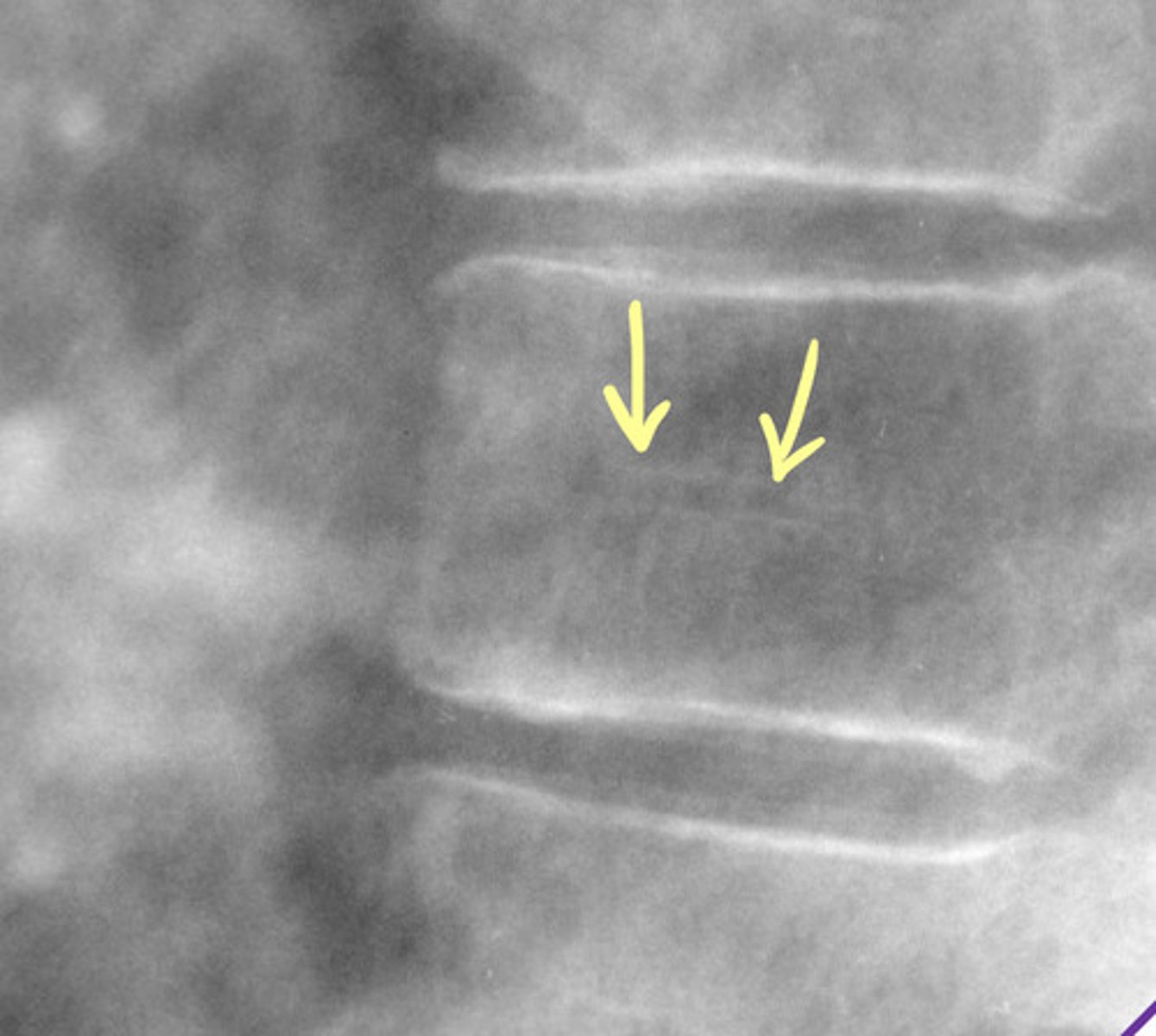

Hahn Vascular Cleft/Groove/Canal

Embryonic vascular channel = vertebral vascular foramina (Hahn Canal)

Do not mistake for a fracture

NO clinical significance

What does the Hahn Canal transmit?

— basivertebral veins

— intraosseous nutrient arteries

— basivertebral nerve

Developmental Dysplasia of the Hip (DDH)

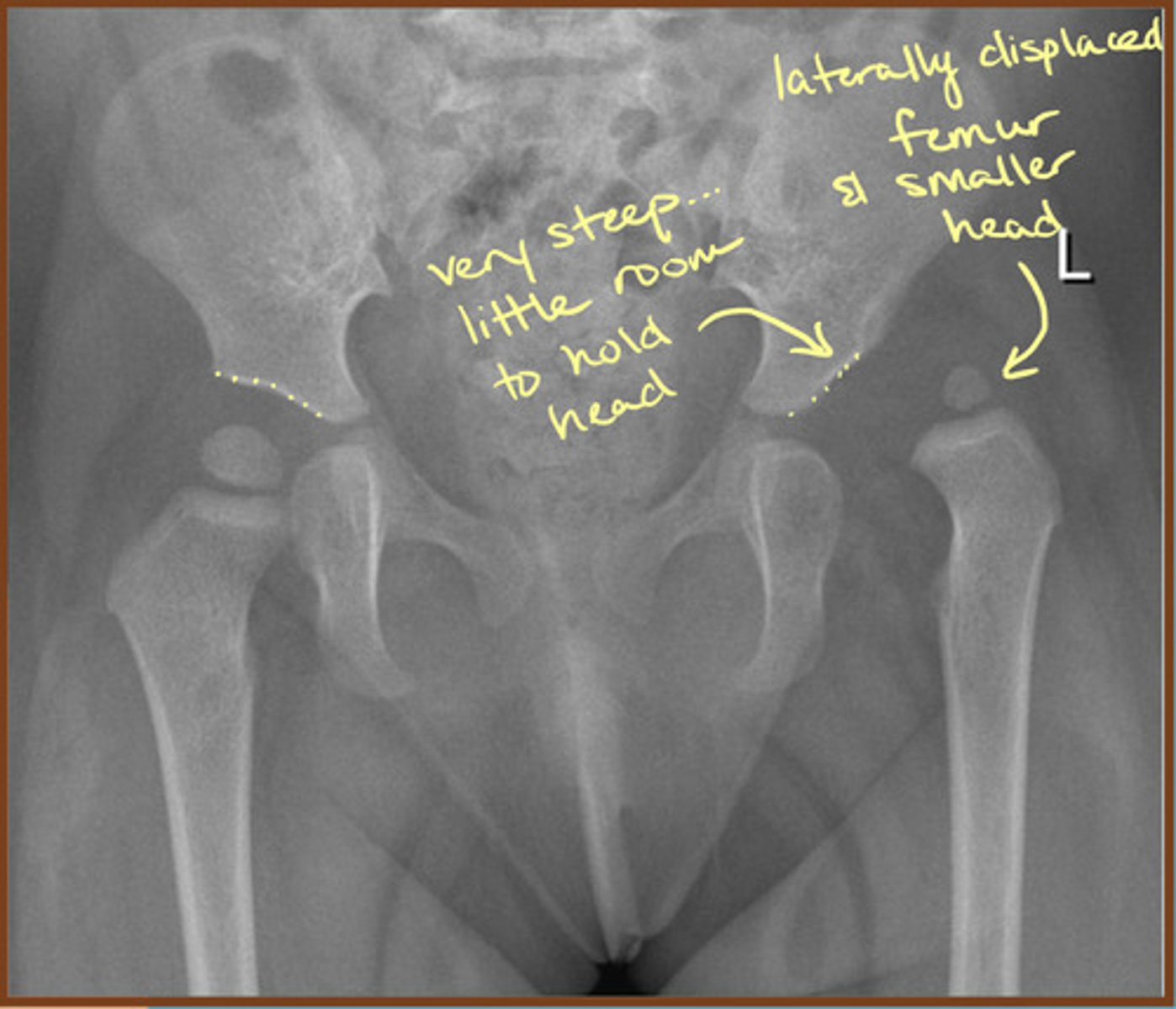

Aberrant development of the hip joint, resulting from an abnormal relationship of the femoral head to the acetabulum

Usually occurs from ligamentous laxity and abnormal position in utero

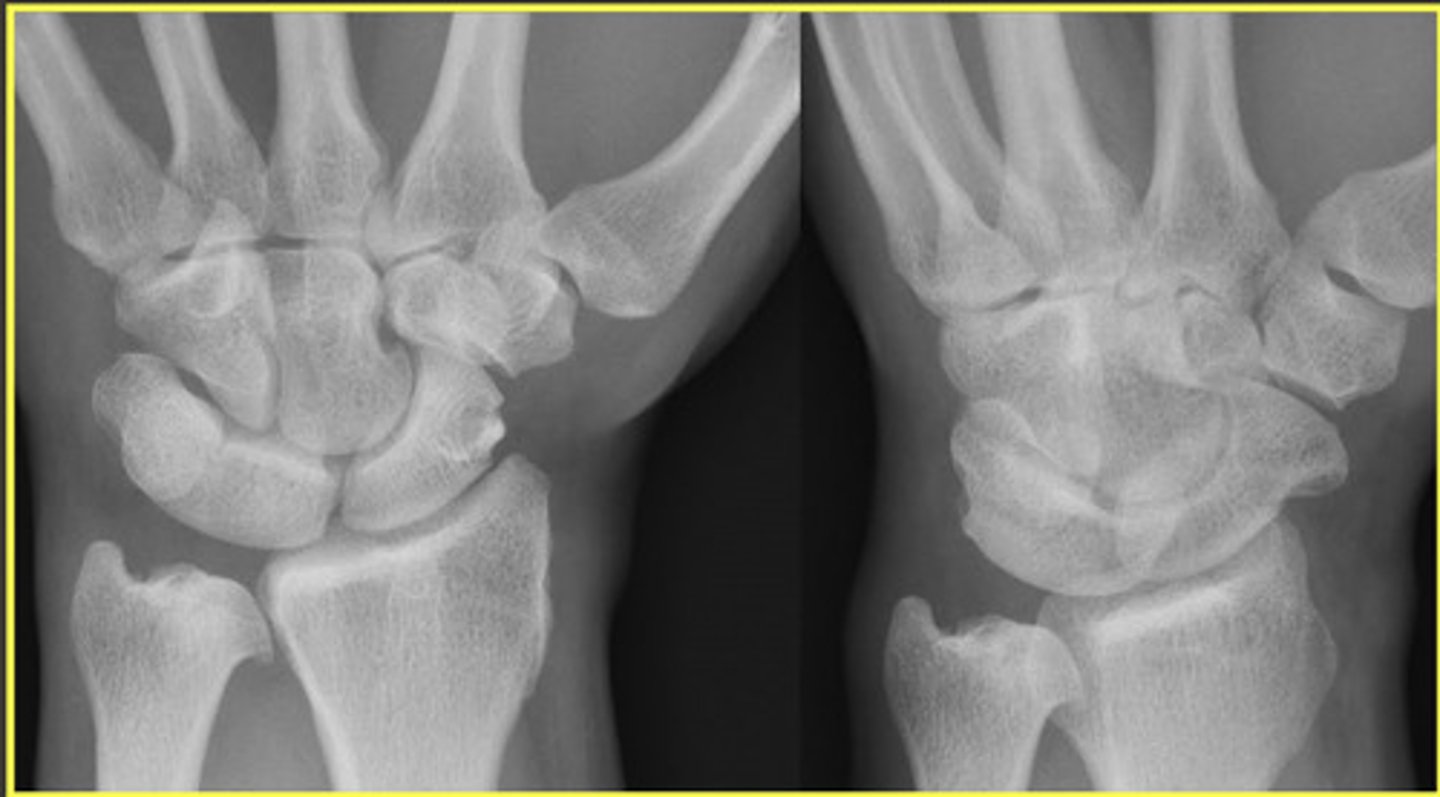

Negative Ulnar Variance

Relative shortness of the ulna compared to the radius

Measured by comparing the distal ends of each bone

DDH Risk Factors

— females

— firstborn baby

— family history

— breech position

— oligohydramnios

— metatarsus adductus

— spina bifida

DDH commonly causes early onset of what?

Osteoarthrosis of the hip joint (sometimes even in the teens)

Orthopedic exams for DDH

Ortolani and Barlow

DDH more frequently affects which hip?

Left hip is more frequently affected

1/3 of cases are bilateral

Imaging Modality for DDH

Ultrasound is the modality of choice prior to ossification

Once significant ossification (>6 months) = X-ray is appropriate

What is the alpha angle on ultrasound to classify DDH?

Greater than or equal to 60 degrees

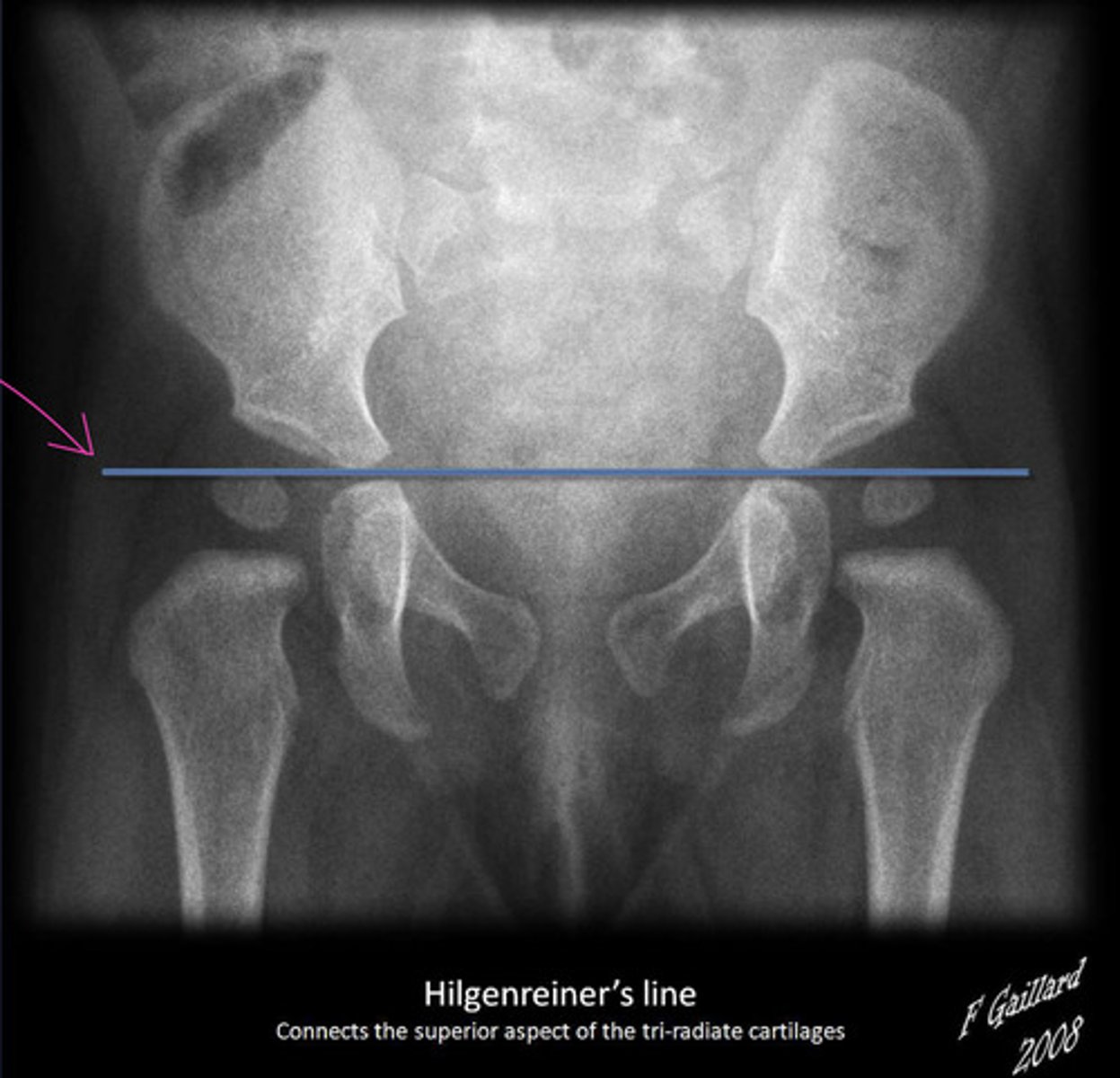

Hilgenreiner's Line

Used for assessment of DDH

Line drawn horizontally, connecting the inferior aspect of the tri-radiate cartilages bilaterally >> femoral head should be below this line

Perkin's Line

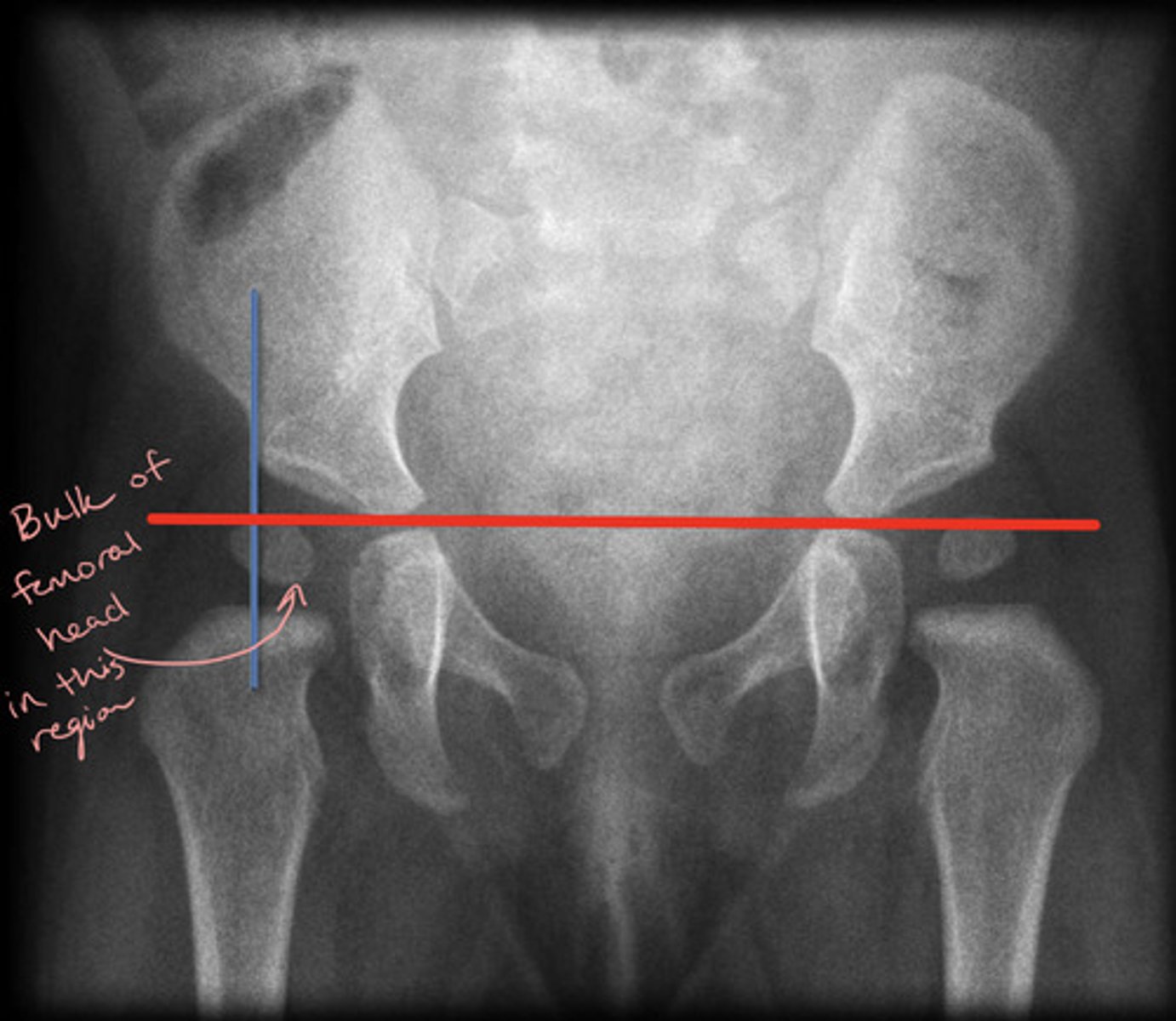

Line drawn vertically through the lateral most aspect of the acetabular roof perpendicular to Hilgenreiner's line

The ossified femoral head should be located in the inferomedial quadrant created

Acetabular Angle

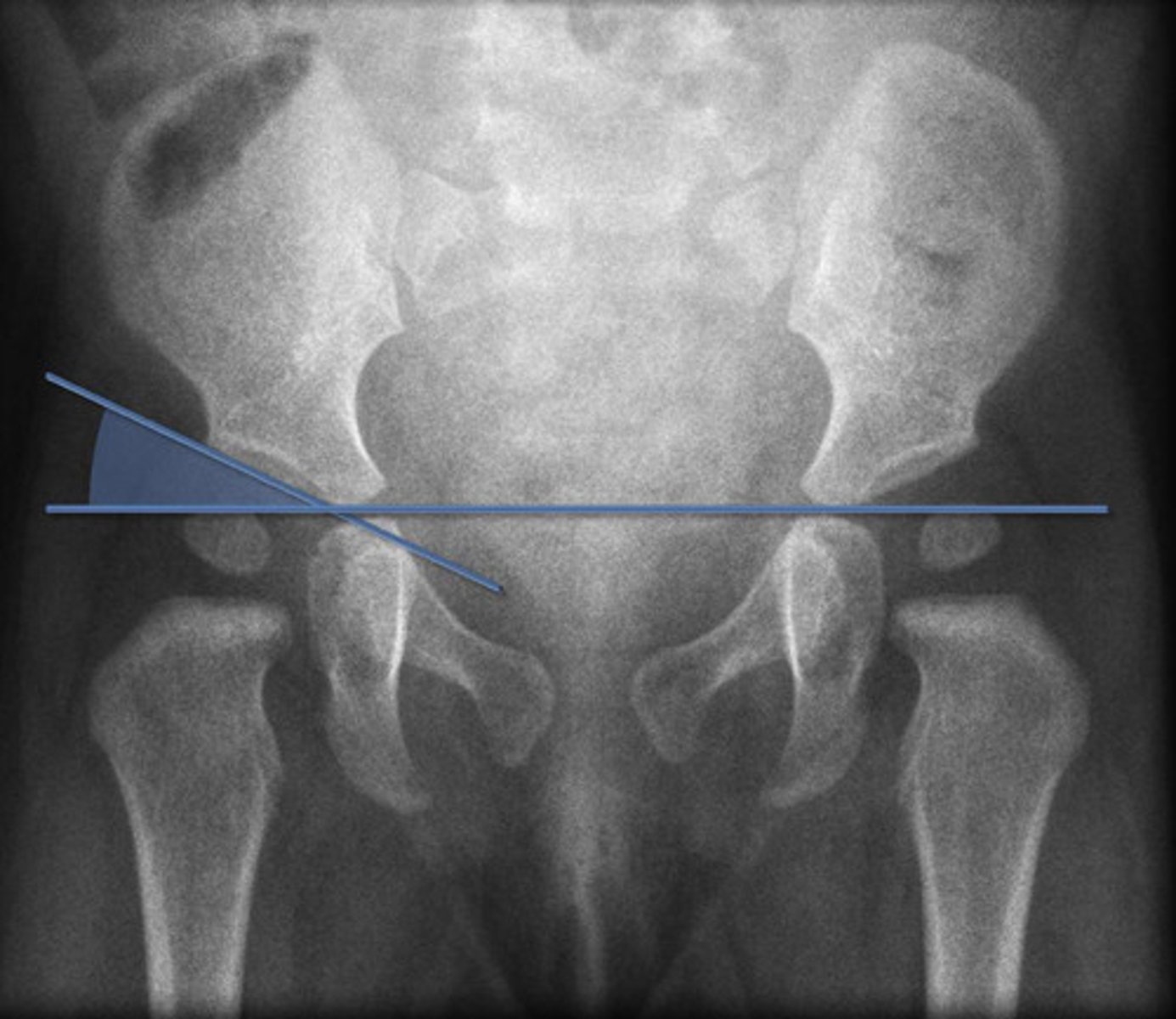

Angle measured between Hilgenreiner's line and a line parallel to the acetabular roof

What is the normal bony coverage of the femoral epiphysis by the acetabular roof?

Greater than or equal to 50% coverage

What is the clinical significance of ulnar variance?

May lead to lunate avascular necrosis

Lunate avascular necrosis = Keinbock Disease

Positive Ulnar Variance

Relative lengthening of the ulna compared to the radius

Measured by comparing the distal ends of each bone

Clinical significance of positive ulnar variance

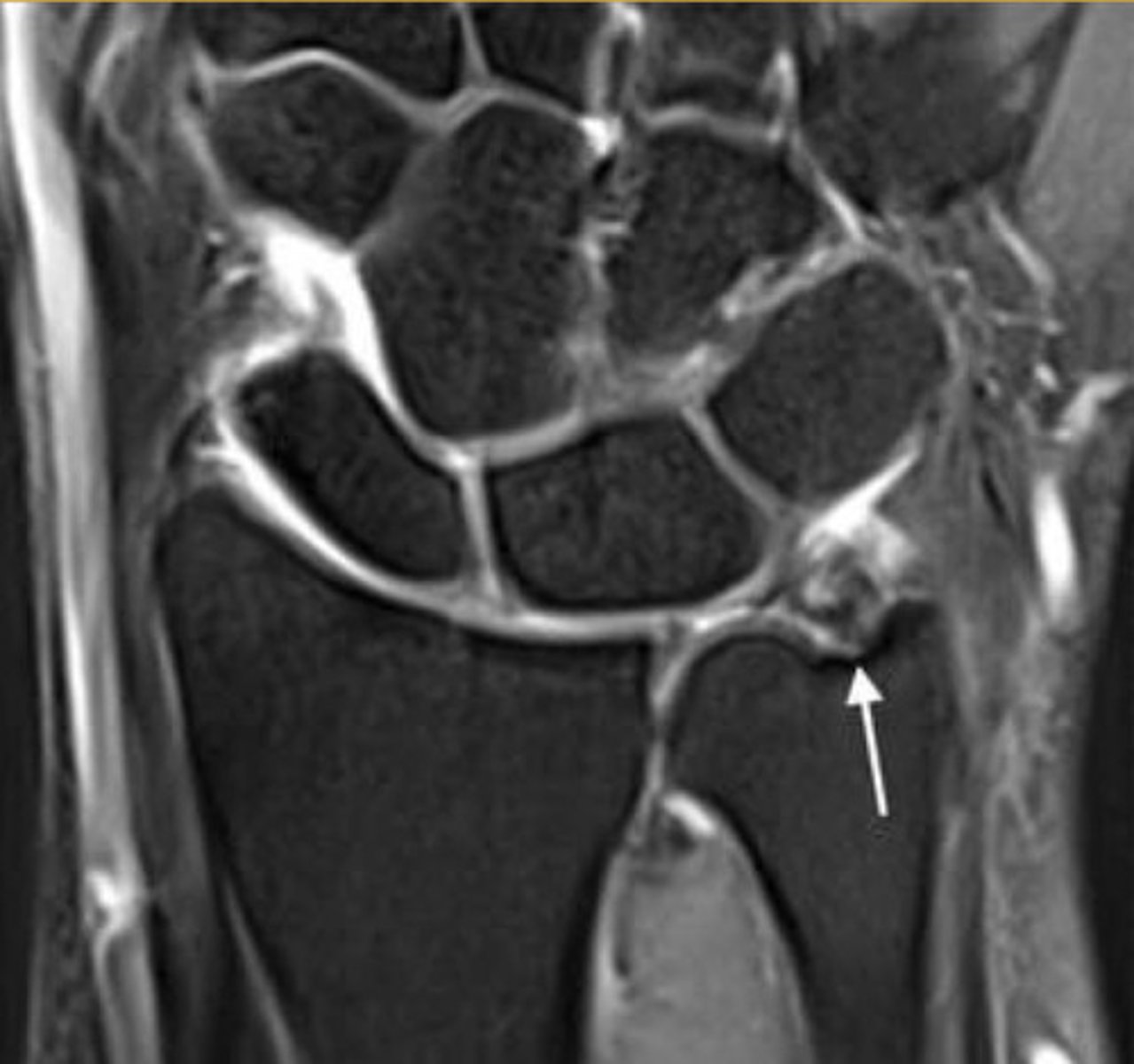

May lead to ulnar abutment (impaction) of the lunate and TFCC (triangular fibrocartilage complex) degeneration

May be associated with triangular fibrocartilage tear

What is the normal value for the acetabular angle at birth? What should it be later in life?

At birth should be less than 28 degrees

Should progressively reduce with maturation of the hip to less than 22 degrees after the age of 1

Adults = between 33 and 38

Imaging findings of Acetabular Protrusion

— Center-edge angle (Wiberg Angle) greater than 40 degrees and medialization of the medial wall of the acetabulum past the ilioischial line (Kohler's Line)

— Acetabular fossa greater than 3 mm beyond the ilioischial line in men and 6 mm in women

— Projection of the femoral head medial to the ilioischial line

Femoral Herniation Pits

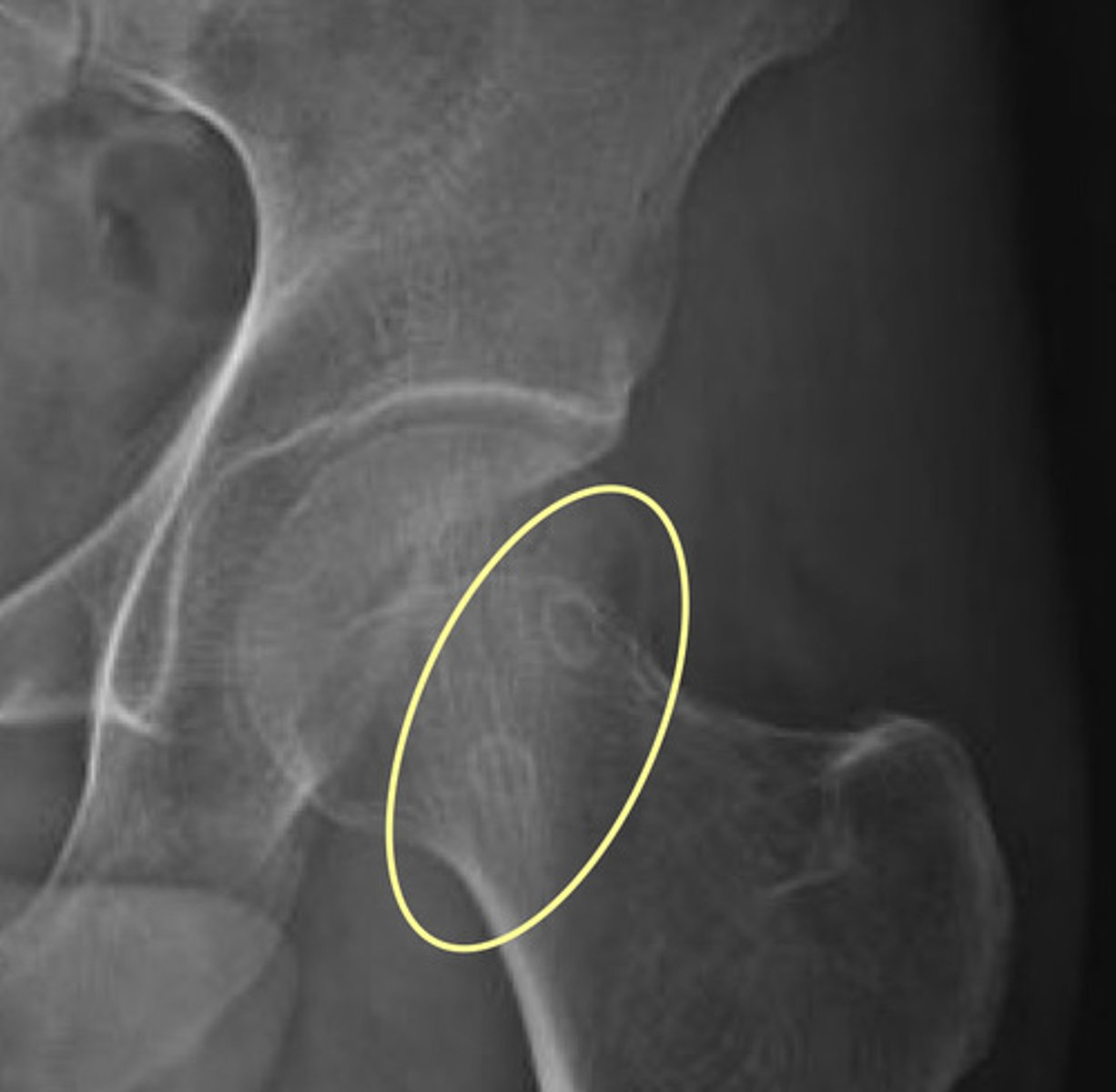

Notice denser, cortical bone around the pit

Clinical Significance of Femoral Herniation Pits

Incidental findings with no clinical significance = "leave it alone lesion"

Pits may enlarge over time

Femoral Acetabular Impingement (FAI)

Condition that characteristically presents with hip pain secondary to mechanical impingement from abnormal hip morphology involving the proximal femur and/or acetabulum

2 Types of FAI Joint Deformities

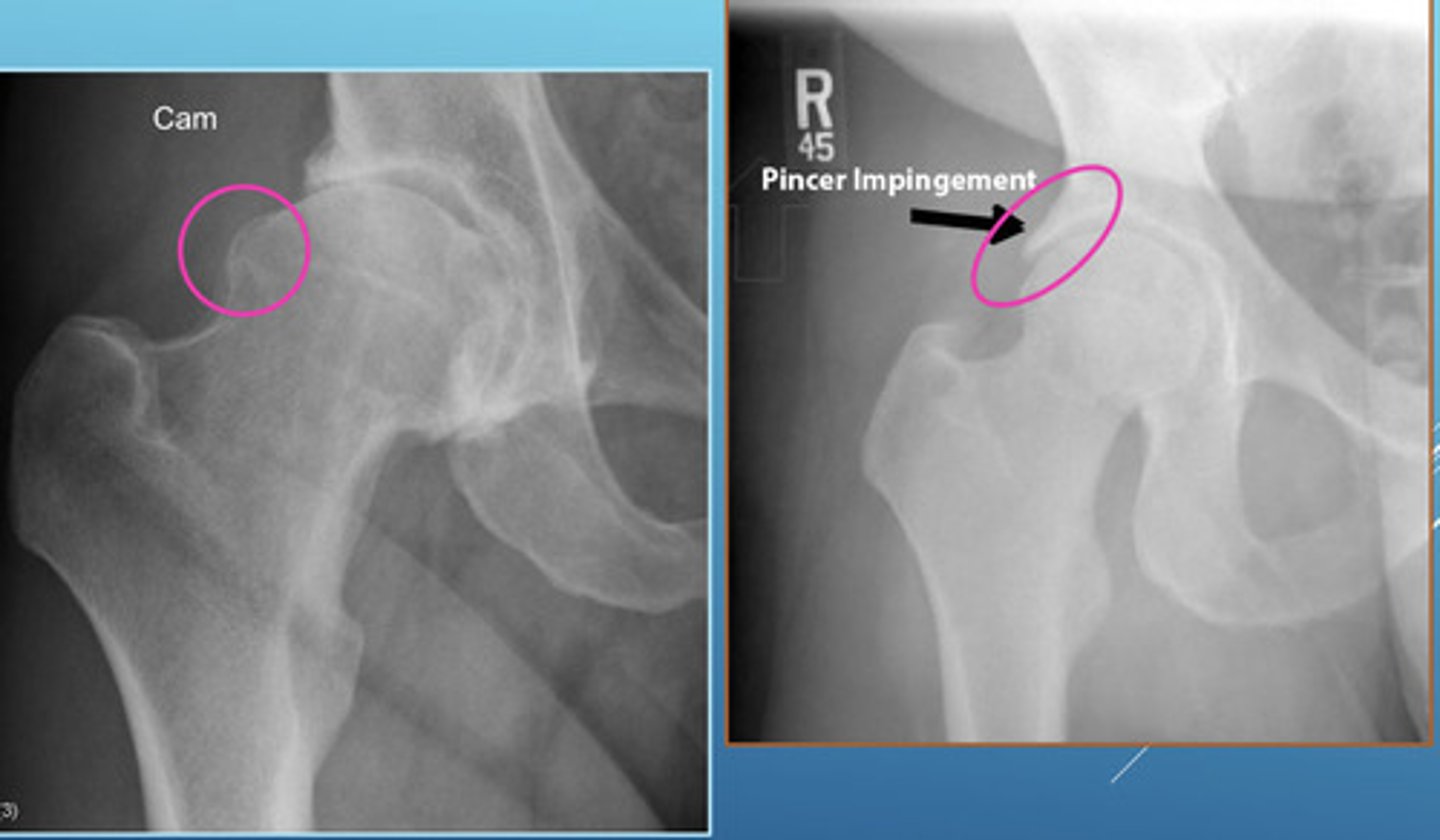

(1) Pincer Morphology = overcoverage of the femoral head

(2) Cam Morphology = bump formation at the femoral neck and asphericity

Both can co-occur and can lead to FAI and predispose to early OA

What is the acetabular angle that defines acetabular dysplasia?

Greater than 42 or 45 degrees (varies between authors)

Alpha Angle

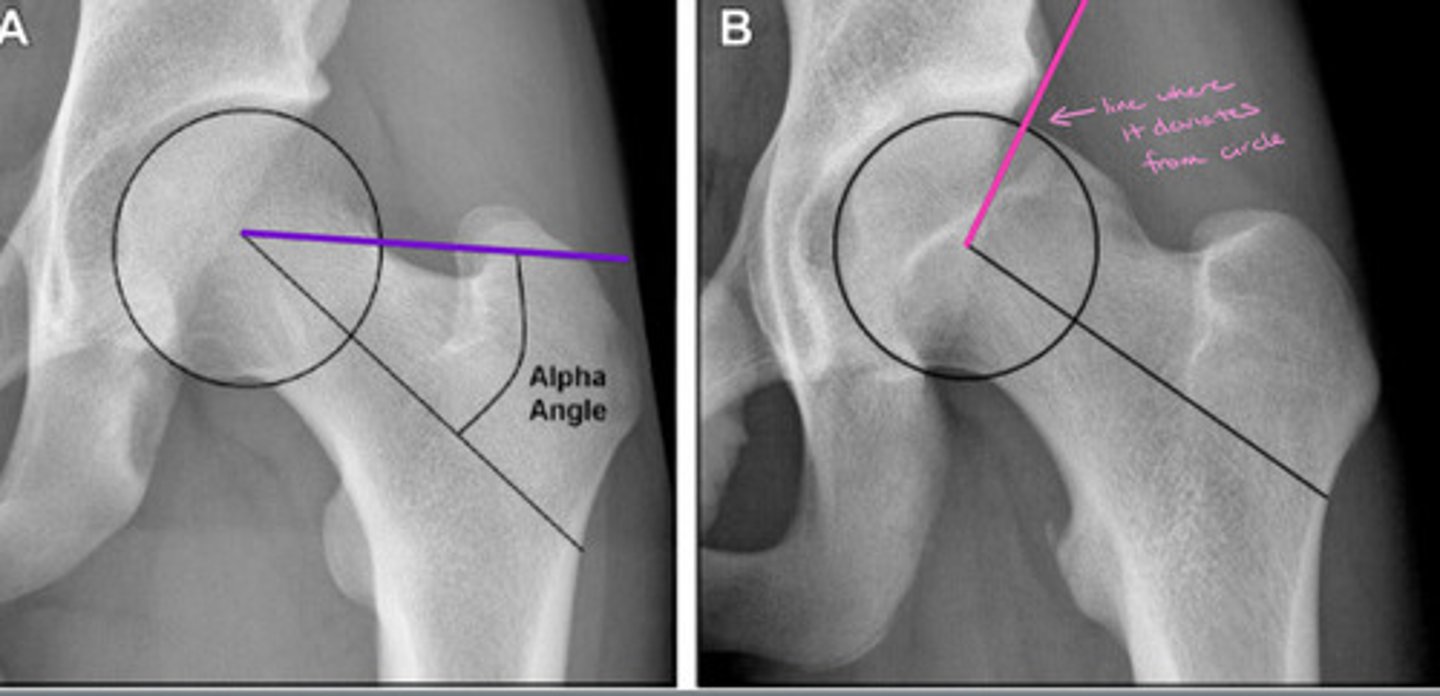

Measures the extent to which the femoral head deviates from spherical

Normal = <50 degrees

FAI = >50 degrees

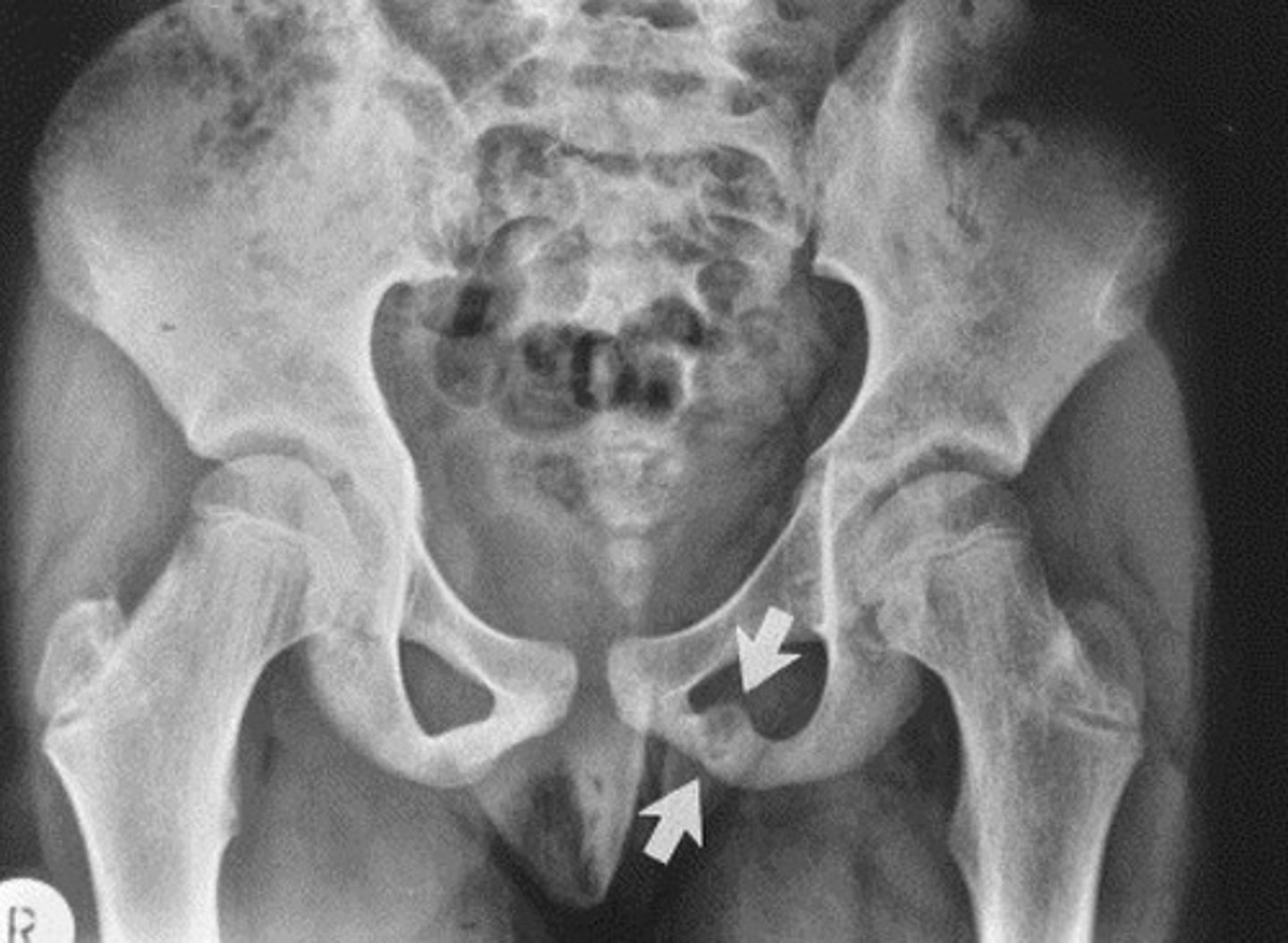

Ischiopubic Synchondrosis

Paraglenoid Sulcus/Sulci

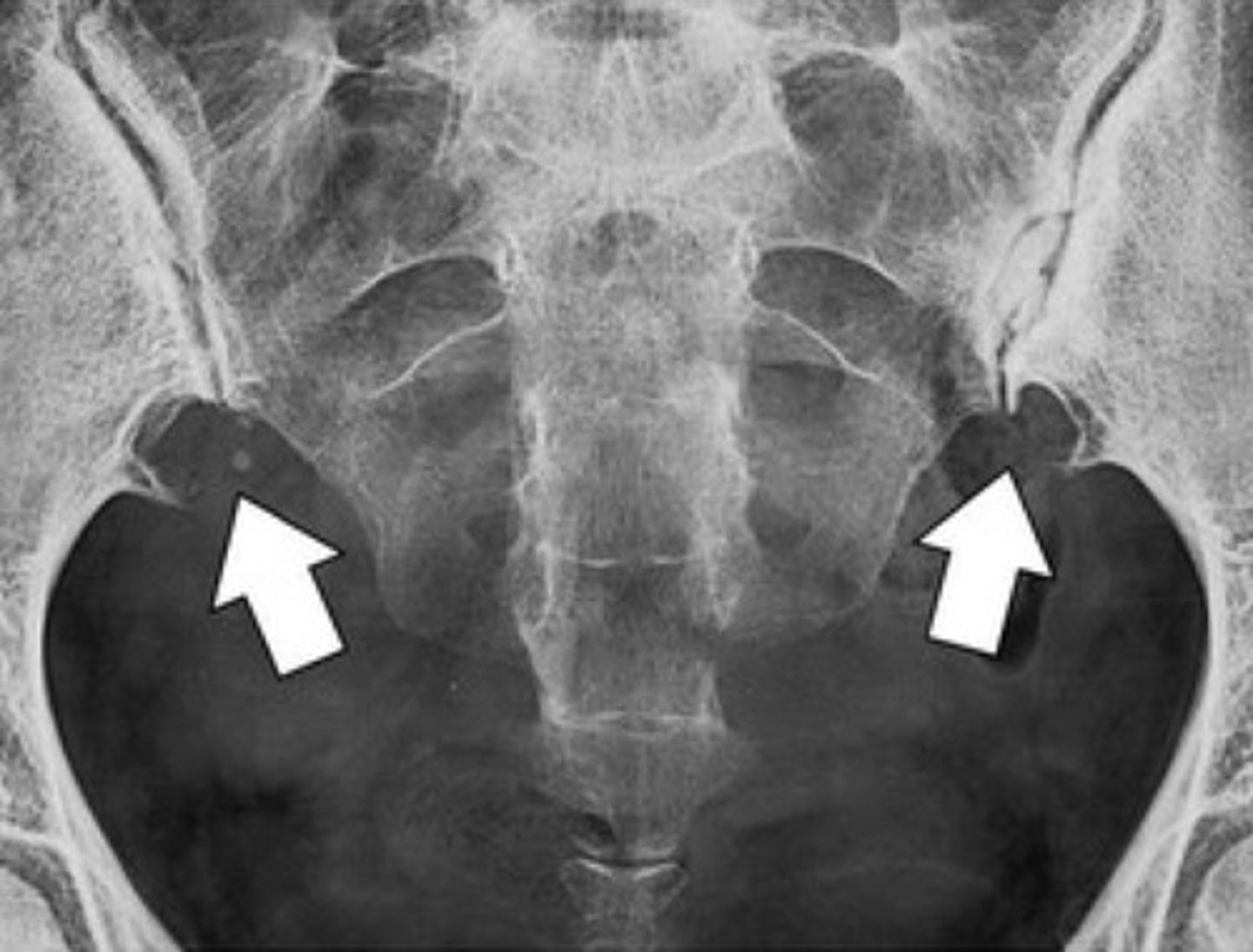

Note: nearly exclusively seen in females

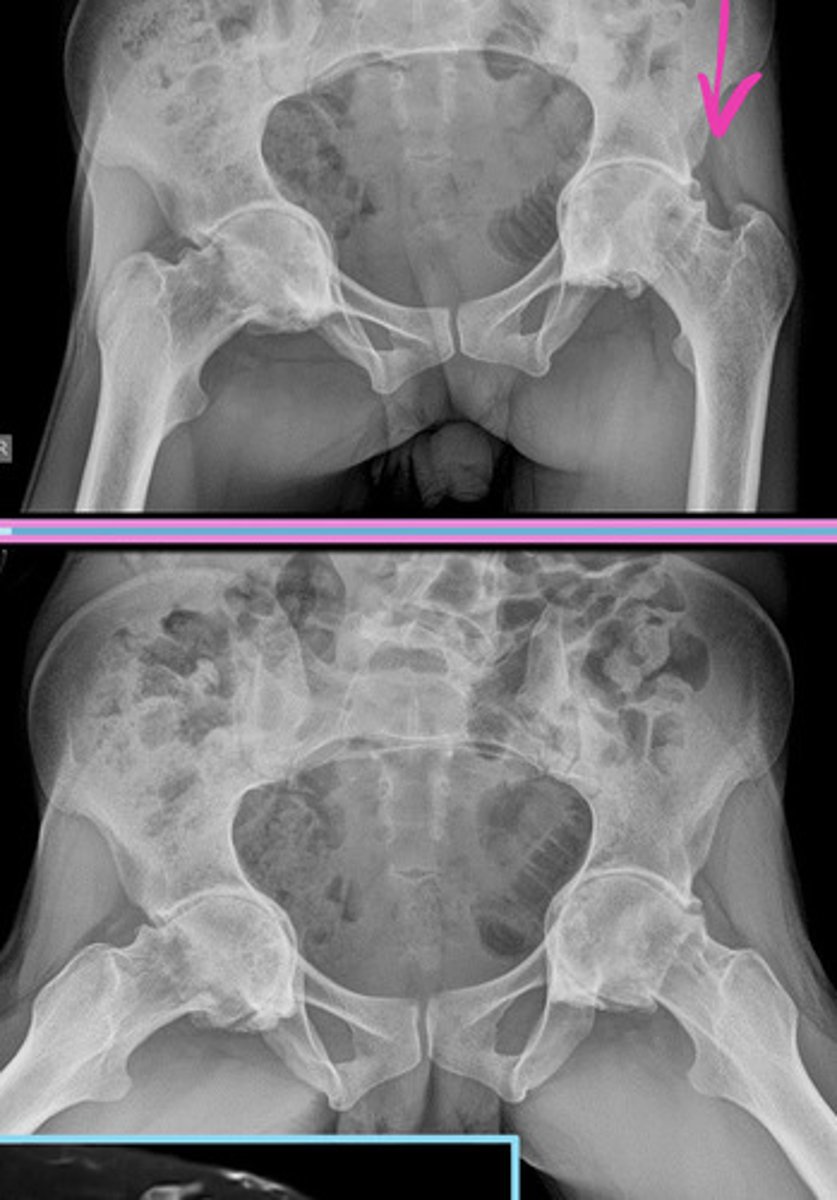

Imaging Findings of FAI

— Cam or Pincer morphology

— Pistol grip deformity (Cam)

— Acetabular overcoverage (Pincer)

— Ilioischial line violation (protrusio acetabuli)

Putti's Triad

Sign of DDH

(1) Absent or small proximal femoral epiphysis

(2) Superolateral or lateral displacement of the femur

(3) Increased acetabular angle

What is the term for when there is stylohyoideus ossification with clinical symptoms like neck pain?

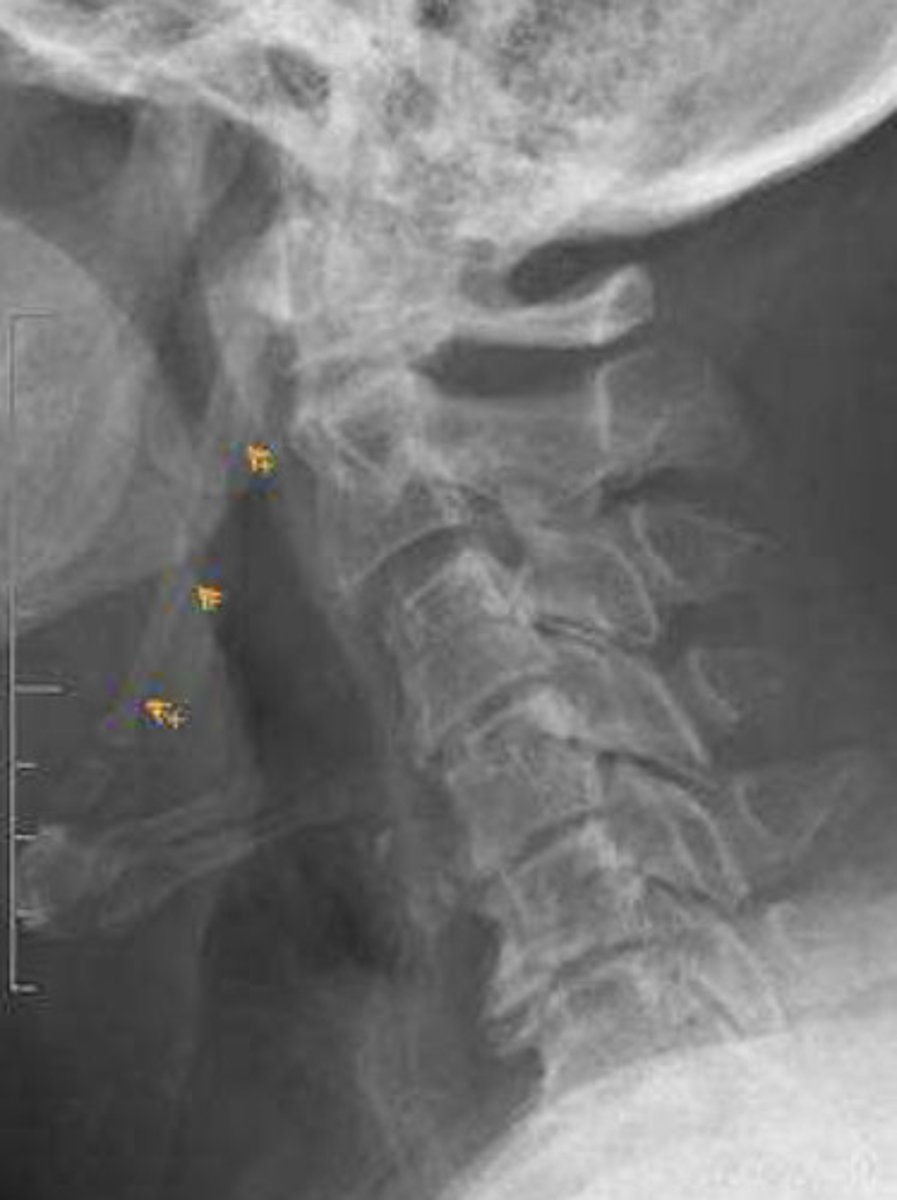

Eagle Syndrome (rare to have clinical symptoms)

Costal Cartilage Calcification

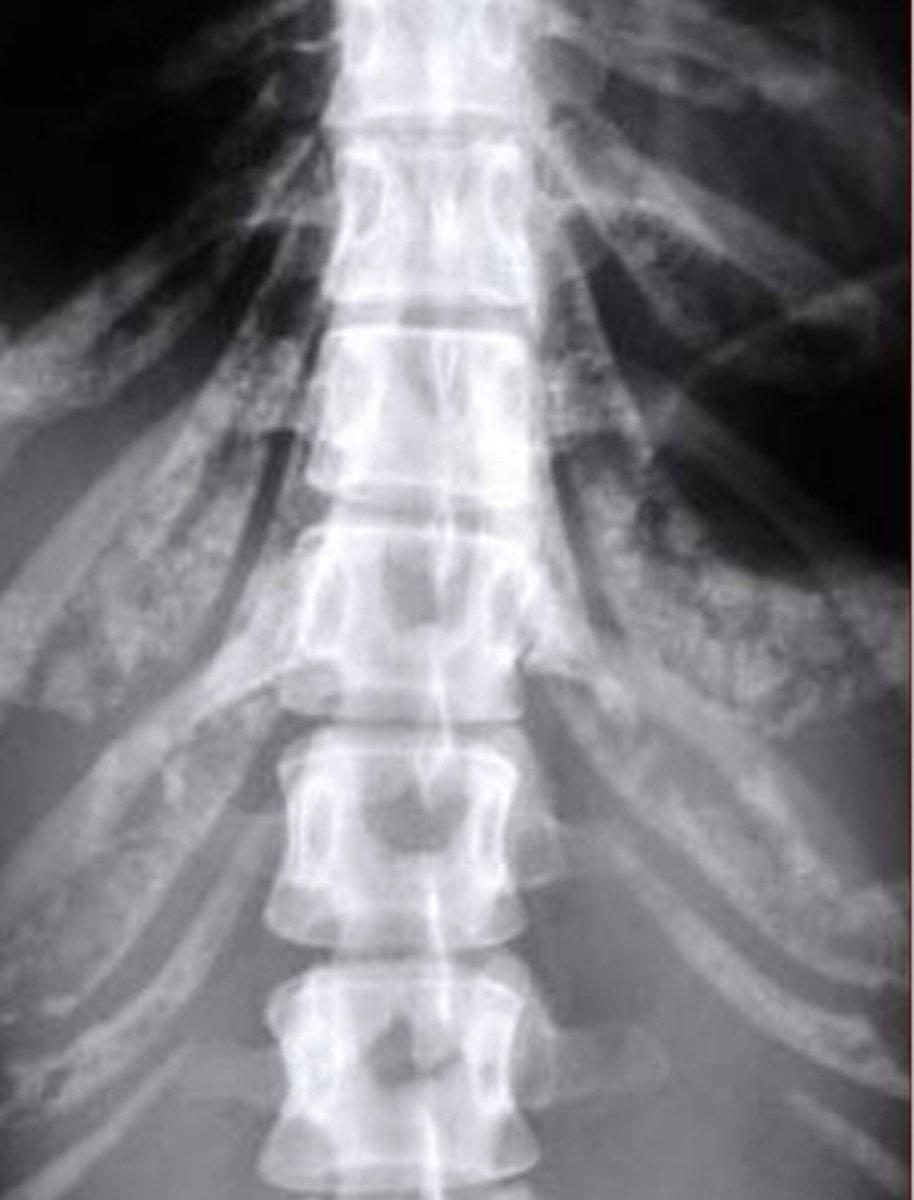

More common in lower ribs

Falx Cerebri Calcification

Physiological calcification of the dura at the frontal bone

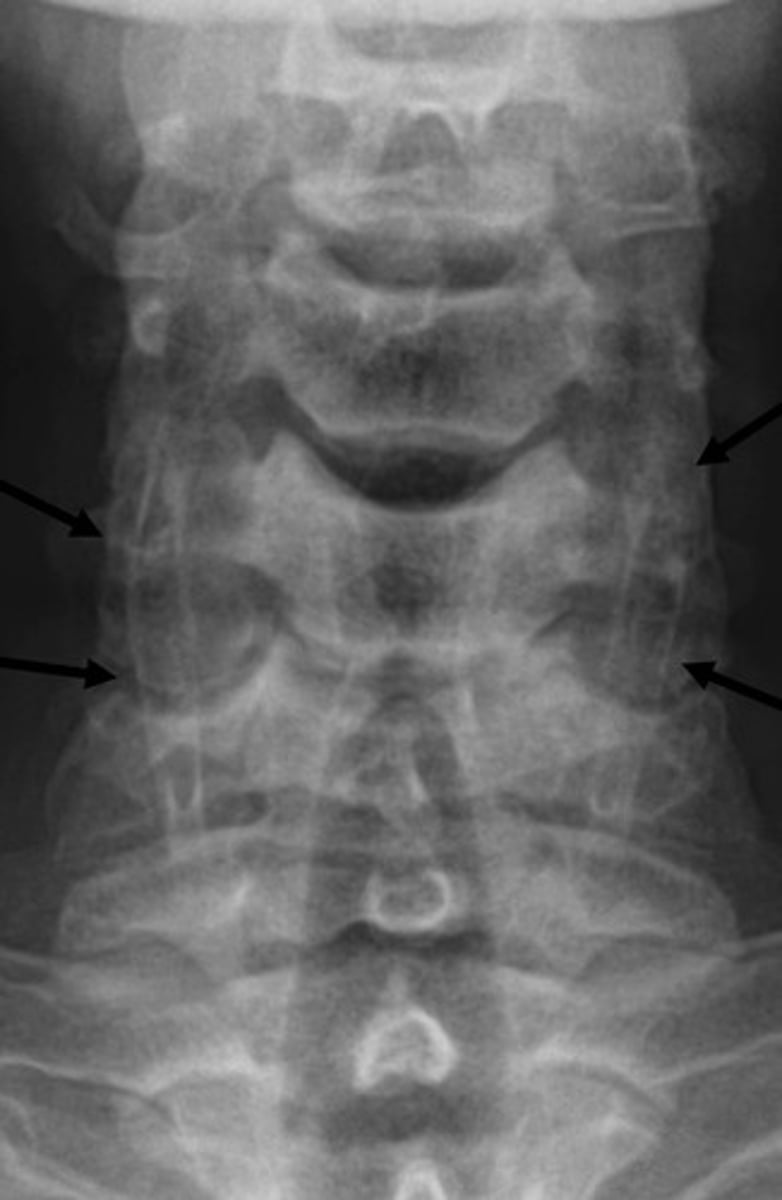

no clinical significance

Petroclinoid Ligament Calcification

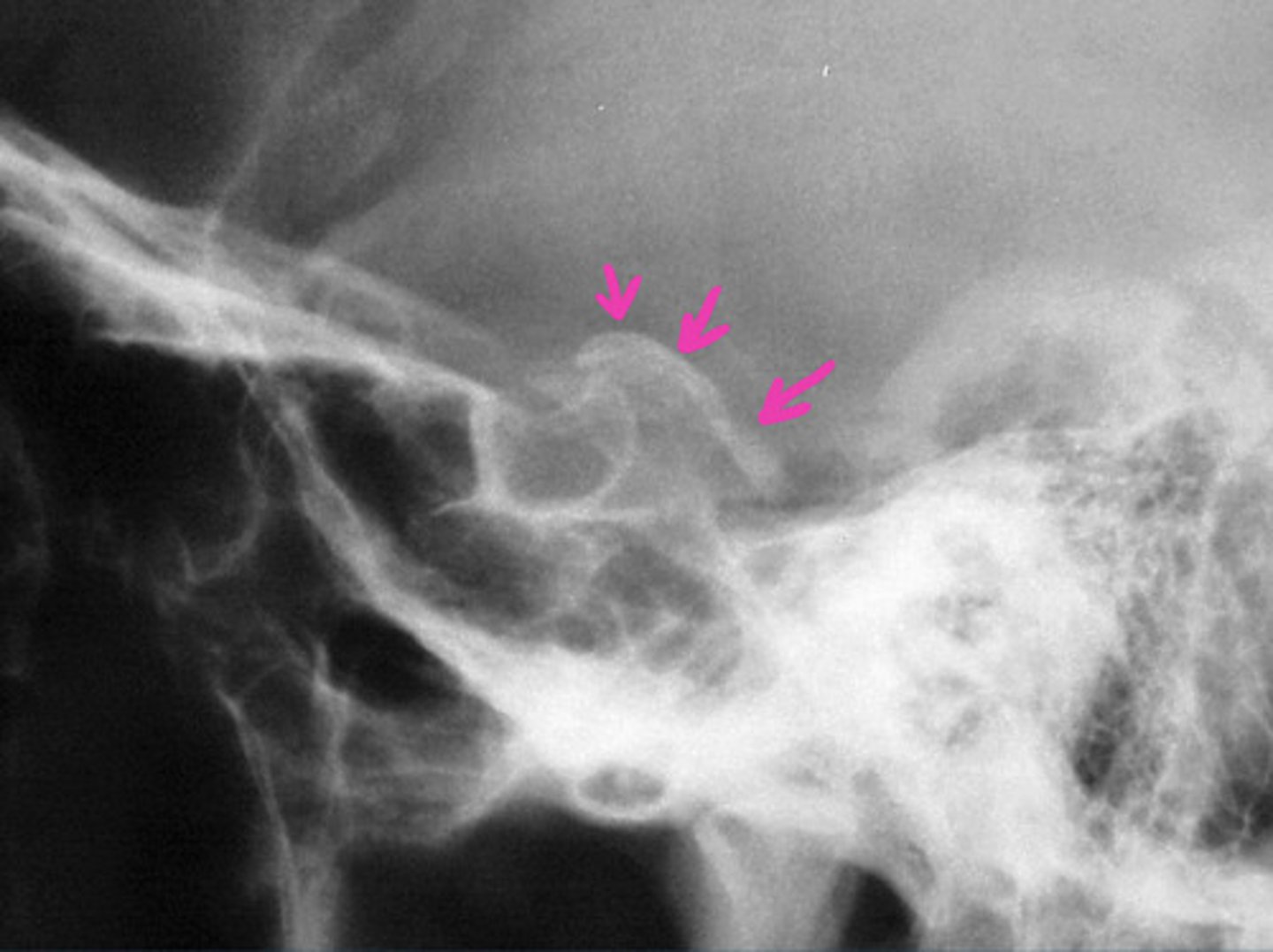

Physiological calcification of the dura

No clinical significance

Pineal Gland Calcification

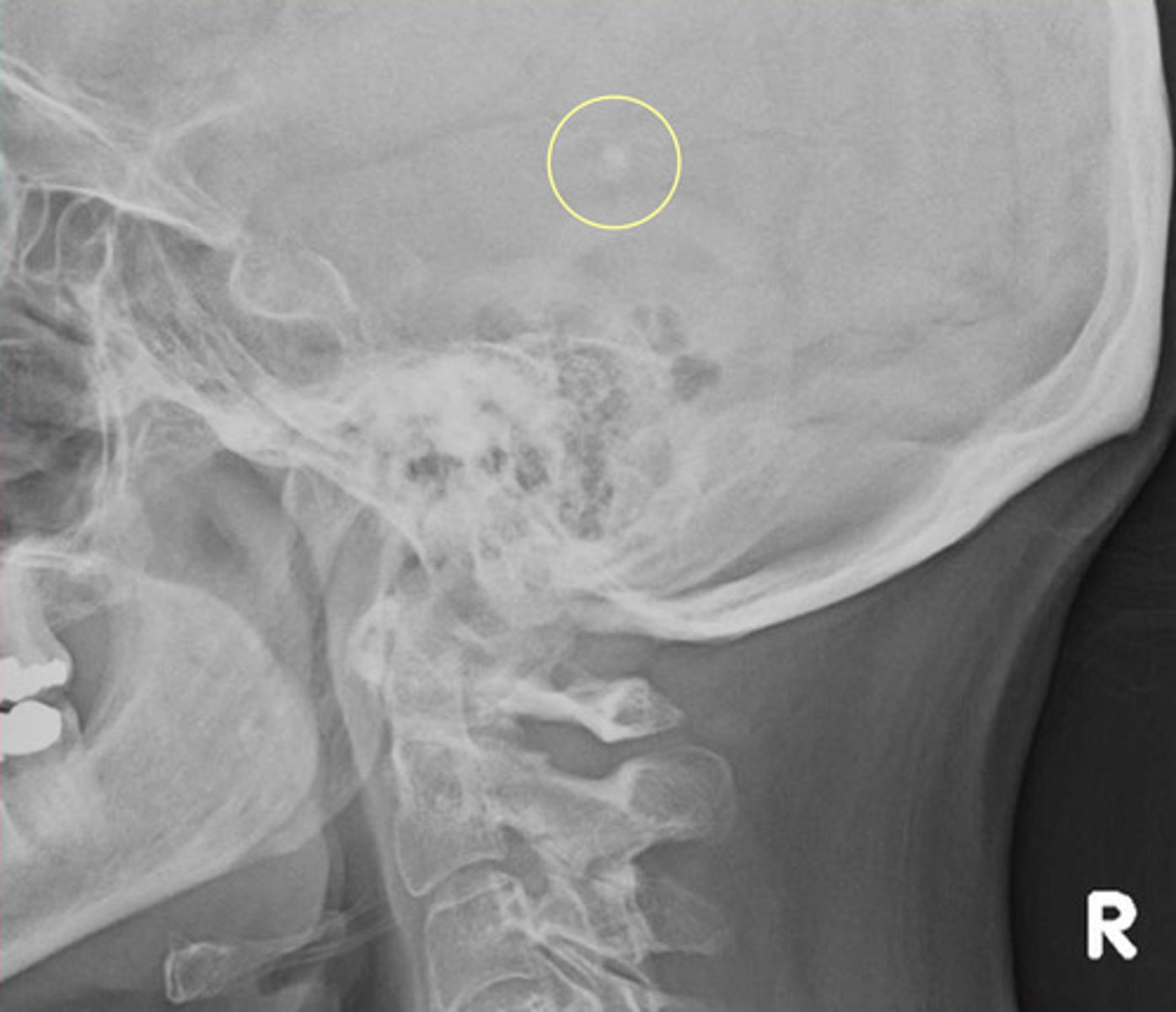

Physiological calcification in about 50% of the population

Acetabular Protrusion (aka Protrusio Acetabuli)

Intrapelvic displacement of the acetabulum and femoral head, resulting in the femoral head projecting medial to the ilioischial line

What age should we suspect a neoplasm instead of pineal gland calcification?

< 6 years it is very rare so suspect a neoplasm (pinealoma)

Calcification of the thyroid cartilage

No clinical significance

Phleboliths

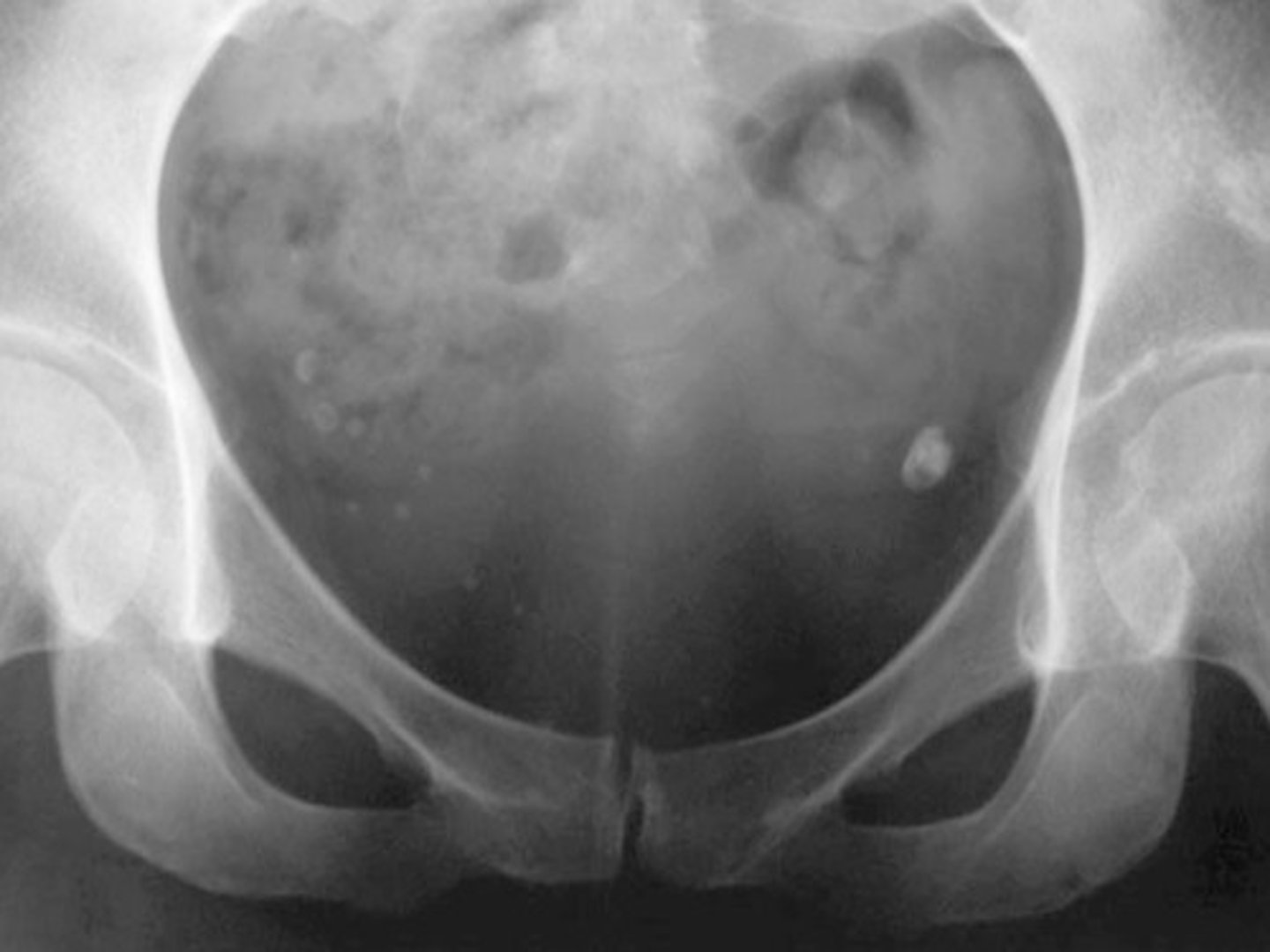

Calcified venous thrombi

Perirectal veins (not midline)

Causes of Acetabular Protrusion

Primary (developmental)

Secondary (pretty much anything that soften's bones)

— Paget's

— Psoriatic arthropathy

— RA

— osteomalacia and Rickett's

— Marfan Syndrome

— Osteogenesis imperfecta

— Hemophilia

Categories of Soft Tissue Calcifications

(1) Dystrophic (trauma, including infection)

(2) Metabolic/metastatic

(3) Physiological (normal, usually cartilaginous tissue)

Stylohyoideus Ossification

Physiological calcification with minimal clinical impact

Clinical Significance of Scoliosis

— cardiopulmonary complications

— altered biomechanics

— degenerative changes

— curvature progression

— cosmetic concerns

What is scoliosis defined as?

Coronal curvature(s)/lateral deviation(s) greater than or equal to 15 degrees

May include rotation at one or more segments

Note: less than 15 degrees is a “curve”

How to measure scoliosis on AP Film

(1) Draw a line along the endplates of the uppermost and lowermost involved vertebrae that tilt significantly toward the concavity

(2) Draw perpendicular lines through those two lines

(3) Measure the resulting intersecting angle

What is the apex of a scoliosis?

The "peak" of curvature = the vertebra furthest from midline

Persistent ulnar styloid process

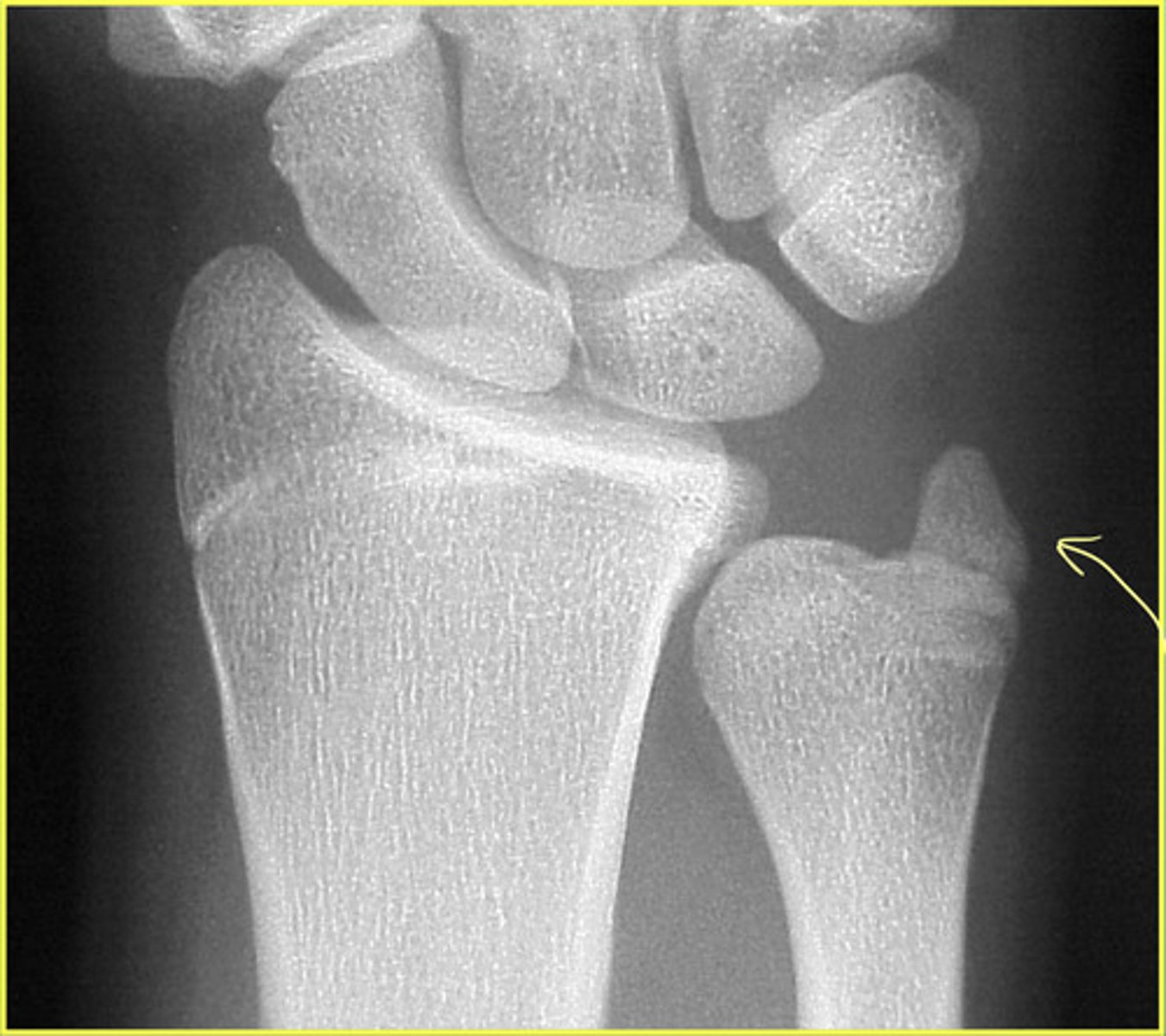

Another persistent apophysis

Os Acetabuli

Another persistent apophysis

Oppenheimer Ossicles

Accessory ossicles of the facet joints (another example of a persistent apophysis)

Mainly in the lumbar spine (rarely in T or C spine) — about 4% of lumbar spines

Predominately a single, unilateral ossicle of the inferior articular process (but can occur at superior process too)

What is believed to be the cause of Oppenheimer Ossicles?

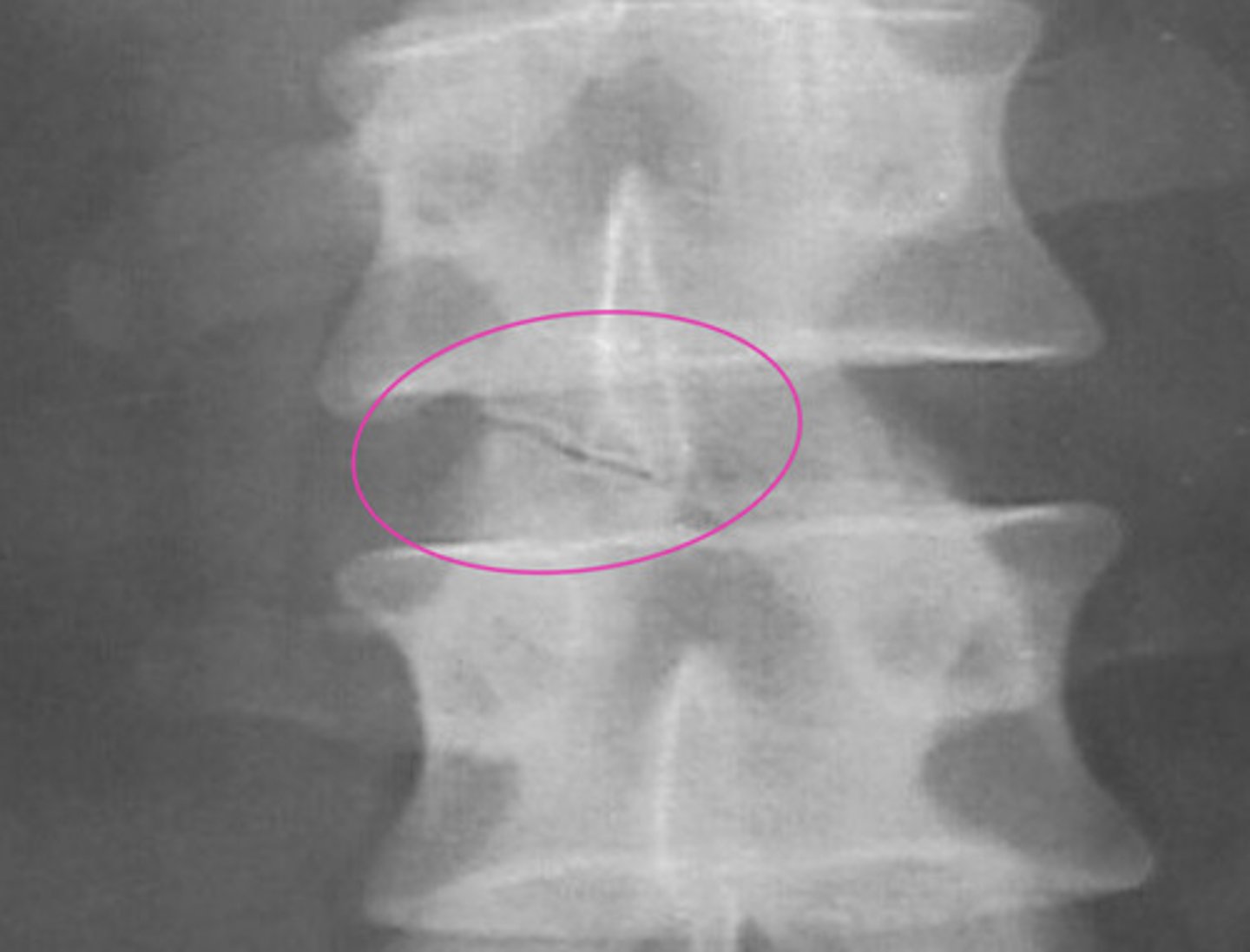

Thought to arise as a result of the non-union of an articular process secondary ossification center (typically fuses between ages 17 and 25)

Age Classifications of scoliosis

Infantile = 1-3 years

Juvenile = 3-10 years (more common in females)

Adolescent = > 10 years (more common in females)

Absent Pedicle and its clinical significance

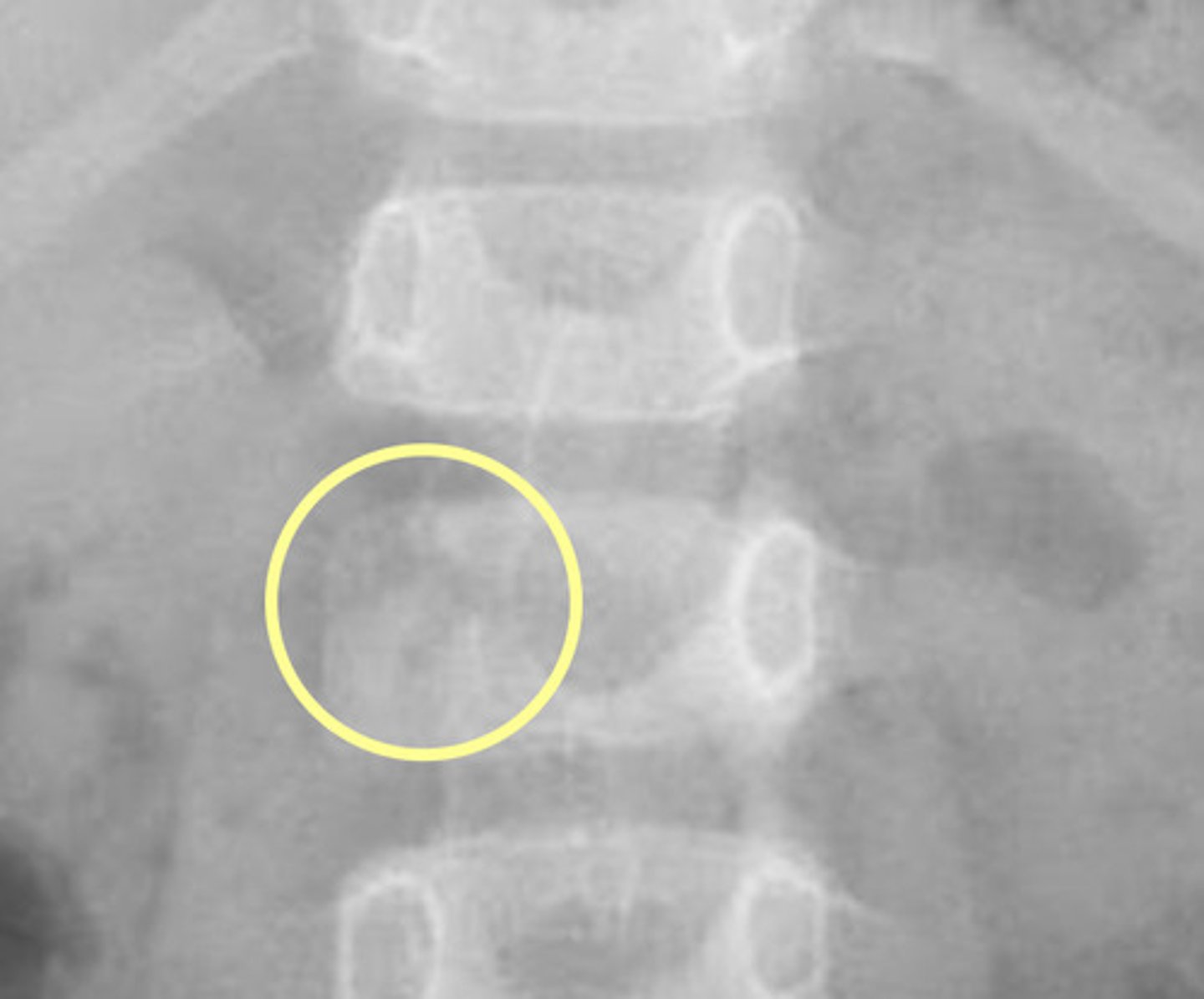

Congenital Absence of a spine pedicle is rare, but important to avoid misdiagnosis >> if not congenital, could be an osteolytic pathology

"Winking Owl Sign"

Imaging Findings of an Absent Pedicle

— MAY have stress hypertrophy (enlargement, cortical thickening, and sclerosis) of the contralateral pedicle)

— MAY have accessory transverse process sign (small inferiorly directed transverse process with a small joint space separating it from pedicle or vertebral body)

— MAY have spinous deviation towards the contralateral side (away from the side of pedicle missing

Absent Pedicle Etiologies

(1) Congenital

(2) Destructive (tumor or infection)

(3) Surgical

What does coalition mean?

A joining together

A connection between two bones without indicating etiology

What are the most common carpal bones involved in carpal coalition?

(1) Lunotriquetral coalition (more common in females)

(2) Capitohamate coalition (~5%)

Less common = hamate-pisiform coalition

But many other reported combinations

Carpal Coalition etiology

(1) Congenital (Mendelian inheritance)

(2) Acquired (inflammatory arthropathy or due to intentional surgical arthrodesis)

Lunotriquetral Coalition

De Villier's Lunotriquetral Coalition Classification

(1) Incomplete (or fibrocartilaginous) fusion

(2) Incomplete osseous fusion

(3) Complete osseous fusion

(4) Complete osseous fusion with other carpal abnormalities

Lunotriquetral Coalition management and prognosis

Most commonly an incidental finding and does not require treatment if not symptomatic

May occasionally cause chronic wrist pain and can be fractured

What must be determined in EVERY case of scoliosis?

Etiology (cause)

Prognosis ands management are highly dependent on the cause

What are the two types of scoliosis?

(1) Functional

(2) Structural

What is the maximum size of pineal gland calcification?

Should not exceed 10 mm

What is the measurement to consider positive or negative ulnar variance?

Positive = level of the ulna is > 2.5 mm beyond the radius margin

Negative = ulna is less than or equal to 2.5 mm than the radius margin

What are the features of a functional scoliosis?

Curve is sufficiently mobile to resolve with a change in posture

— non-progressive

— leg length discrepancy

— asymmetrical activities

— pain/antalgia

What is structural scoliosis? What is a good indicator of this?

Fixed and nonflexible curve that fails to correct on recumbent lateral bending radiographs

If laterally bends to the convex side, you would expect that curve angle to open BUT...if structural, that would not happen and the curve would not change with lateral bending

What is the most common cause of scoliosis? (Overwhelmingly)

Idiopathic

Other causes of scoliosis

(1) Arthritic

(2) Congenital

(3) Neuromuscular

(4) Tumors

(5) Post-irradiation

Idiopathic Scoliosis

By far the most common form

— thought to be related to defects in proprioception and vibratory sense

— girls are more frequently affected than boys (7:1) and they are more likely to progress and require treatment

— patterns may be thoracic (usually convex to the right), thoraco-lumbar, lumbar, or double major

Degenerative Scoliosis

Scoliosis is secondary to degeneration of the ligaments (like the IVD!)

Congenital Scoliosis

Secondary to hemivertebra(e) or congenital non-segmentation

— the curvatures are usually seen in short segments

— bracing is ineffective

— high risk for progressive curves (usually surgically fused early in life to limit progression)

What is the most common tumor causing painful scoliosis?

Osteoid osteoma (usually located in the posterior elements)

Characteristics of scoliosis caused by a tumor

— scoliosis is usually long with concavity on the side of the lesion

— tumor is best detected and evaluated with a bone scan and CT

What neuromuscular conditions can cause scoliosis?

(1) Cerebral palsy

(2) Syrinx

(3) Poliomyelitis

(4) Muscular dystrophy

(5) Spinal cord tumor

What are the usual characteristics of scoliosis caused by a neuromuscular condition?

Curves are often long, single, LEFT C curves

"Wrong way scoliosis"

Note: not required to be left curve, but most common

Idiopathic scoliosis with early onset should cause suspicion of which other etiology?

Neuromuscular etiology

Scoliosis is commonly associated with what other condition?

Neurofibromatosis (NF) I and II = autosomal dominant disorder with skin, endocrine, nervous system, and bone manifestations

What are some clinical signs of NF I and II?

— cafe au lait spots that appear prior to age 3

— skin nodules that occur in late adolescents

What is a common sign of NF in the spine on an X-ray?

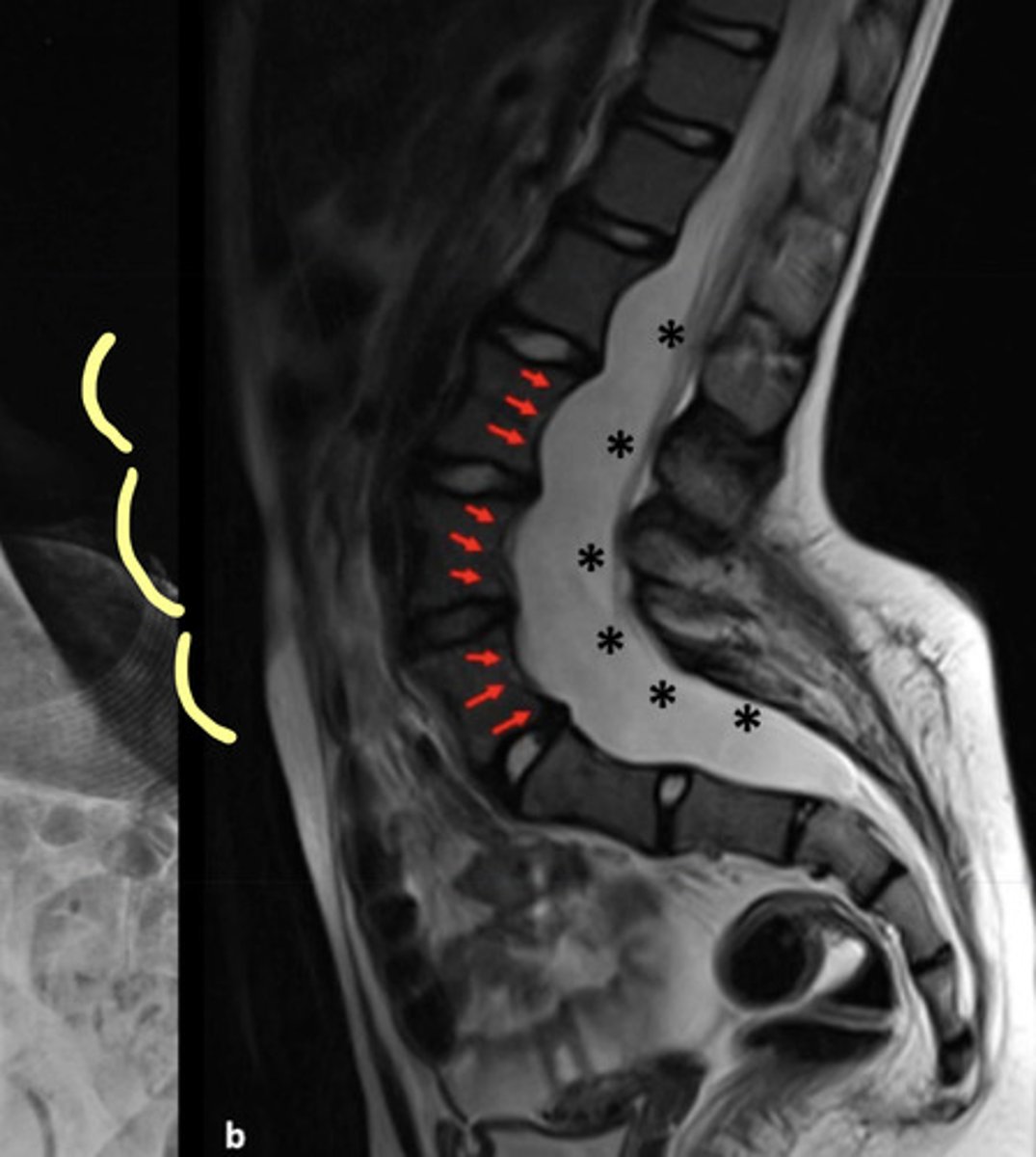

Ribbon-shaped ribs and posterior vertebral body scalloping

Curves must be monitored carefully since they can collapse and rapidly produce paralysis

Radiation Etiology of Scoliosis

Exposure of the skeletally immature spine within the radiation port will delay or stop growth of the spine, potentially resulting in scoliosis

Note: today radiation is delivered more precisely with small radiation ports

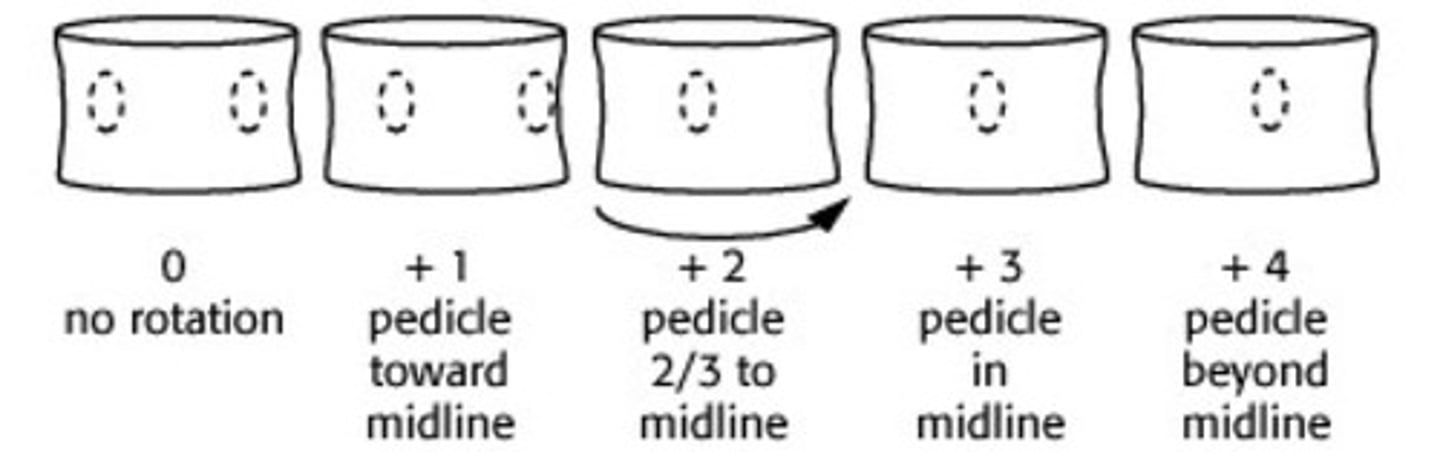

Pedicle Rotation: Nash-Moe Method

Pedicle movement on the CONVEX side

Graded 0-4 at the apex of the curve

What is an imaging technique to help analyze the curve flexibility of a spine with scoliosis?

Lateral Bending Radiographs

How do lateral bending radiographs help you analyze a curve?

If not much change with lateral bending = structural scoliosis

If the curve changes with lateral bending = non-structural

Who is at risk for curve progression?

A spine that is still growing!!
