E. ANTERIOR PELVIC BONE & F. ILIUM

ANTERIOR PELVIC BONE PROJECTIONS

1.      PA PROJECTION

2.      AP AXIAL “OUTLET” PROJECTION: TAYLOR METHOD

3.      SUPEROINFERIOR AXIAL “INLET” PROJECTION: BRIDGEMAN METHOD

4.      SUPEROINFERIOR AXIAL PROJECTION: LILIENFELD METHOD

PA AXIAL INLET PROJECTION: STAUNIG METHOD

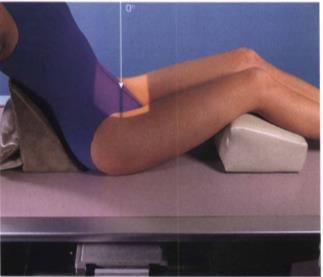

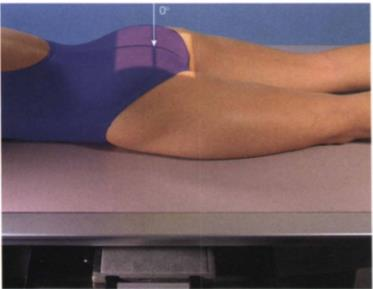

PA PROJECTION

PP: Prone; IR center to greater trochanter (level of pubic symphysis)

RP: Distal coccyx

CR: ┴

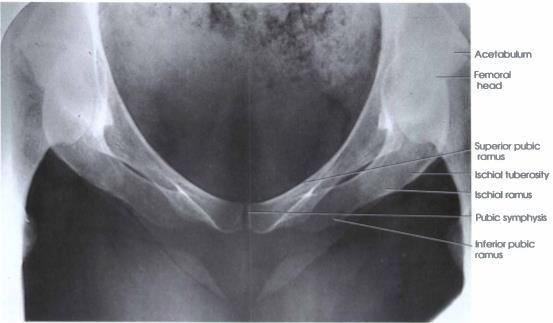

SS: Pubic symphysis & ischia; obturator foramina

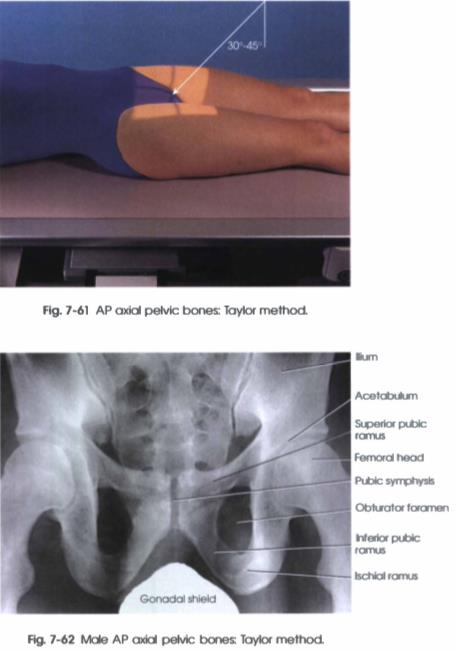

AP AXIAL “OUTLET” PROJECTION: TAYLOR METHOD

PP: Supine; ASISs equidistant from table; knee flexed slightly

RP: 2 in. distal to superior border of pubic symphysis

CR: 20-35o cephalad (males); 30-45o (females)

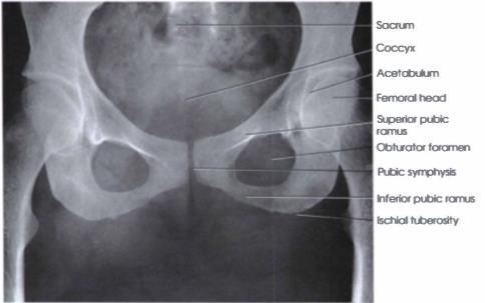

SS: Pelvic outlet
• Superior & inferior rami without foreshortening

SUPEROINFERIOR AXIAL “INLET” PROJECTION: BRIDGEMAN METHOD

PP: Supine; ASISs equidistant from table; knee flexed slightly; IR center at level of greater trochanters

RP: level of ASISs

CR: 40o caudad

SS: Pelvic ring/inlet

SUPEROINFERIOR AXIAL PROJECTION: LILIENFELD METHOD

PP: Seated-erect; knees slightly flexed; patient lean backward 45-50o ; arch the back (places pubic arch in vertical position)

RP: 1.5 in. superior to symphysis pubis

CR: ┴

SS: Pelvic ring/inlet
• Anterior pubic & ischial bones
• Symphysis pubis

Alternative Position:
→ Supine
→ CR: 40 degrees caudad.

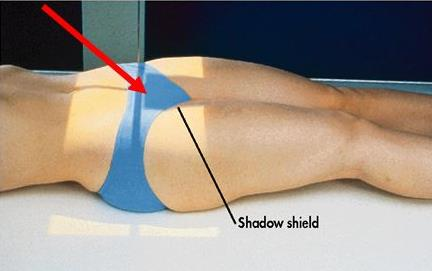

PA AXIAL “INLET” PROJECTION: STAUNIG METHOD

PP: Prone

RP: Symphysis pubis

CR: 35o cephalad

SS: Pelvic ring/inlet
• Anterior pubic & ischial bones
• Symphysis pubis

ILIUM PROJECTIONS

1. AP OBLIQUE PROJECTION

2. PA OBLIQUE PROJECTION

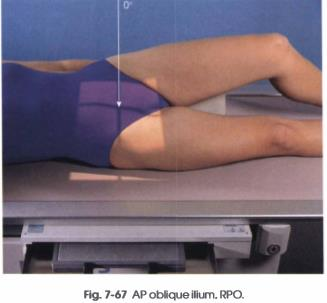

AP OBLIQUE PROJECTION

PP: Supine; RPO/LPO; unaffected side elevated 40o (places broad surface of the wing of affected ilium // to IR); shoulder, hip & knee elevated

RP: Level of ASIS

CR: ┴

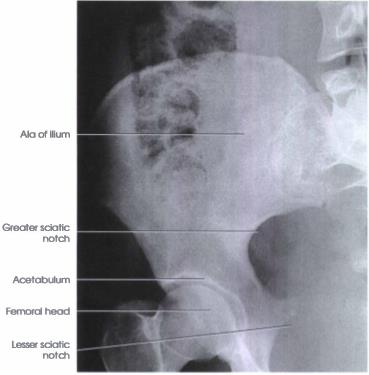

SS:
• Unobstructed projection of ala & sciatic notches
• Profile image of acetabulum
• Broad surface of the iliac wing without rotation

PA OBLIQUE PROJECTION

PP: Prone; RAO/LAO; unaffected side elevated 40o (places affected ilium ┴ to IR); patient rested on forearm; knee of elevated side flexed

RP: Level of ASIS

CR: ┴

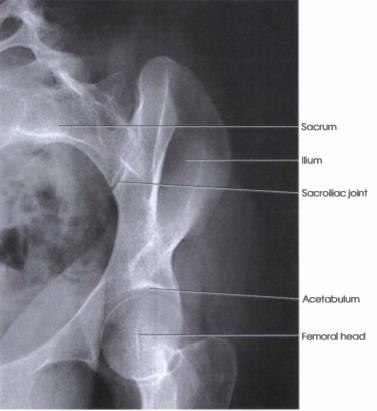

SS: Ilium in profile
• Femoral head within acetabulum
