Welding symbols and abbreviations

A welding symbol refers to?

total symbol, including all information added to it to specify the weld(s) required

A weld symbol refers to?

the symbol for a specific type of weld

The lower side of the reference line is termed to the _ side?

Arrow

The upper side of the reference line is termed the ___ side?

Other

Square groove

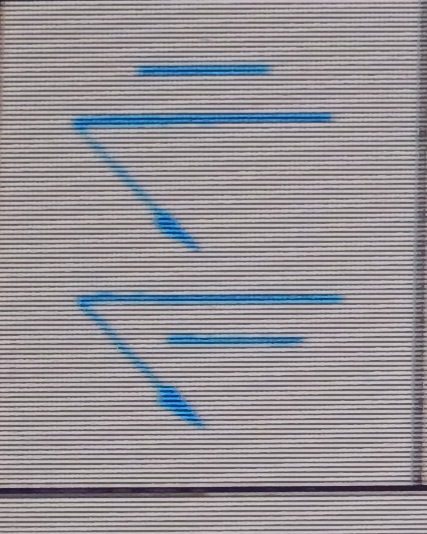

Scarf groove

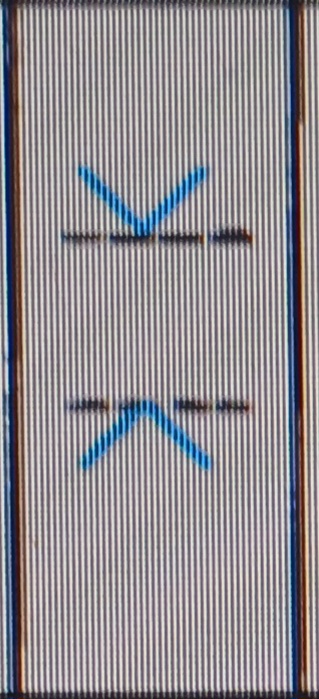

V groove

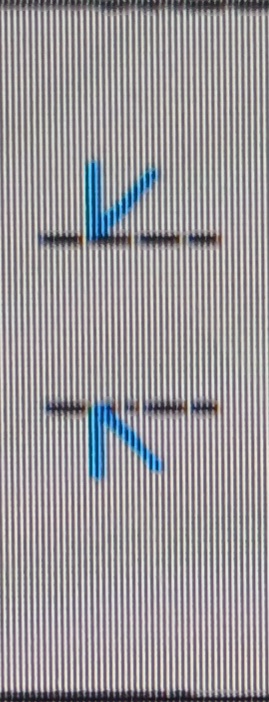

Bevel

U groove

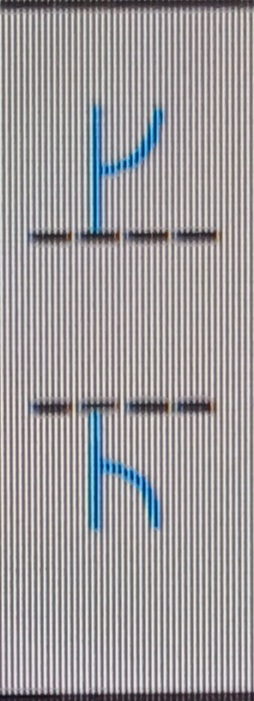

J groove

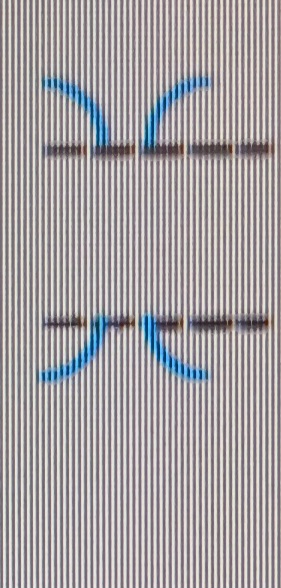

Flare Groove

Flare bevel

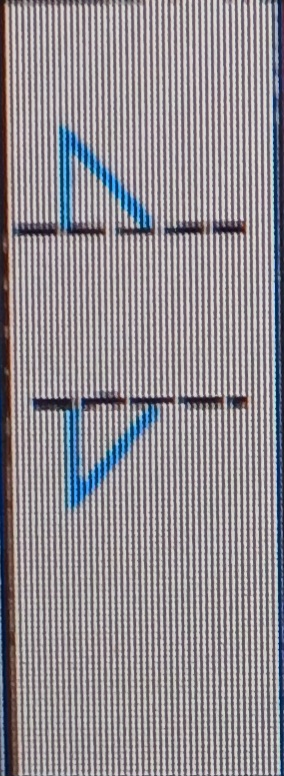

Fillet weld

Plug weld

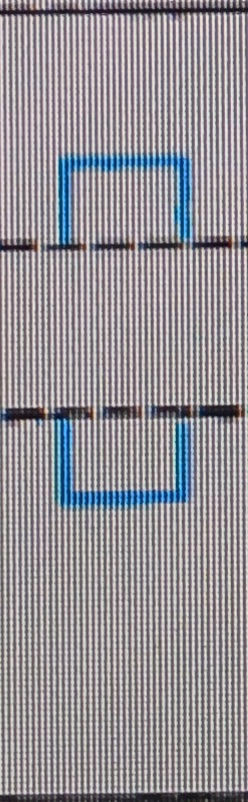

Slot weld

Stud weld

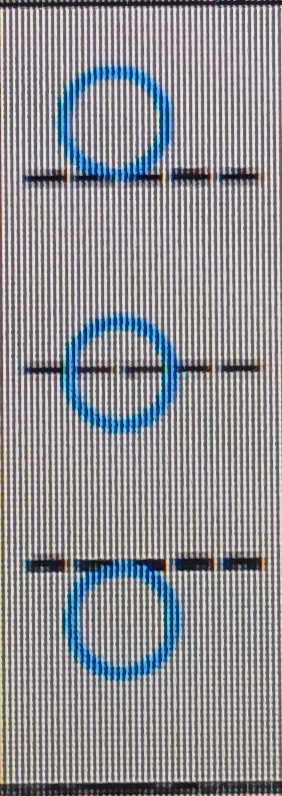

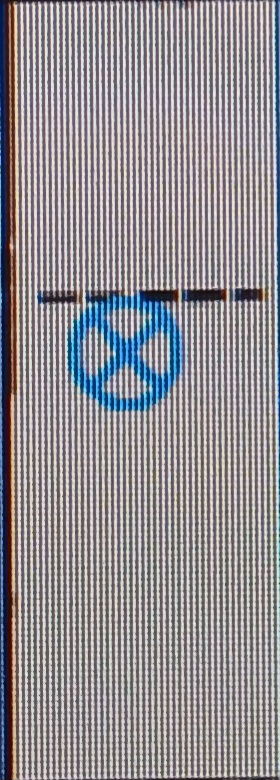

Spot or Projection weld

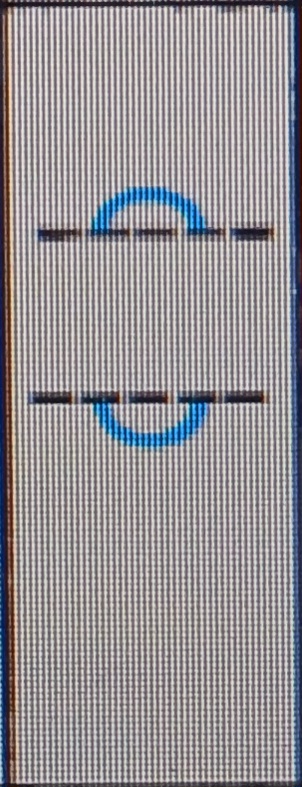

Seam weld

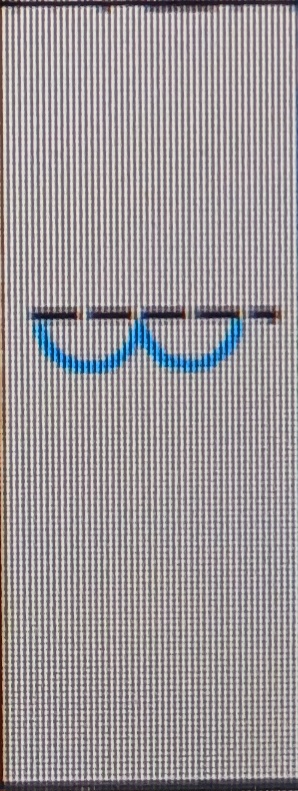

Back or Backing weld

Surfacing weld

Edge weld

Flush

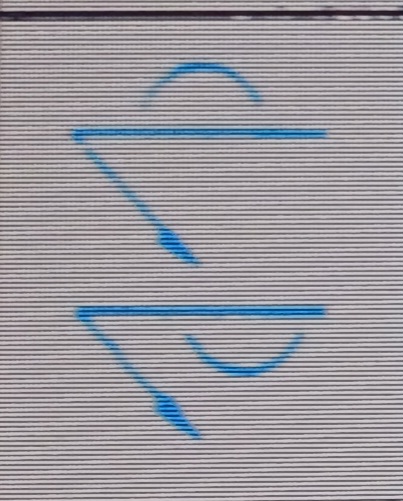

Convexed

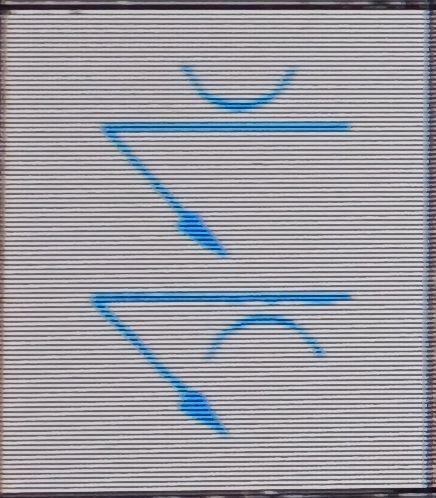

Concave

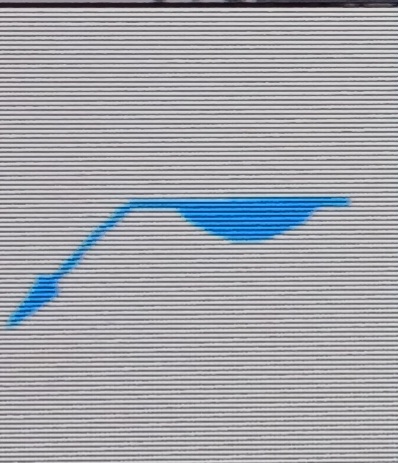

Melt thru

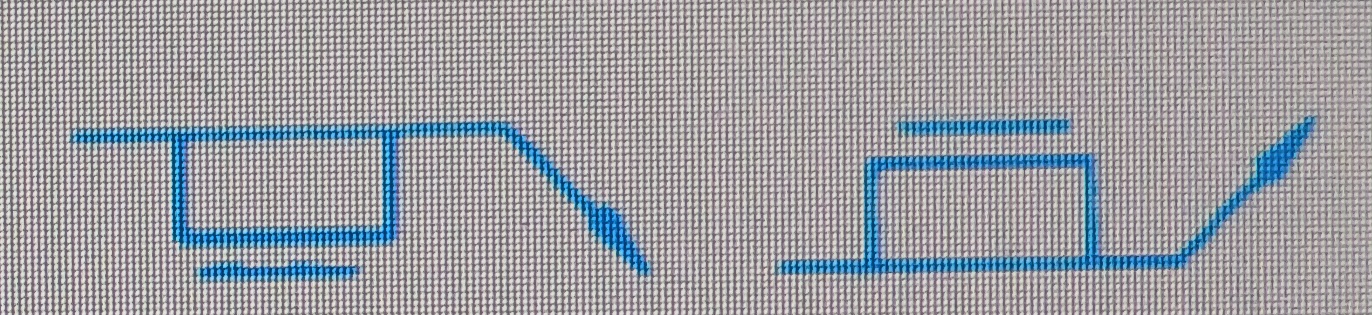

Consumable Insert

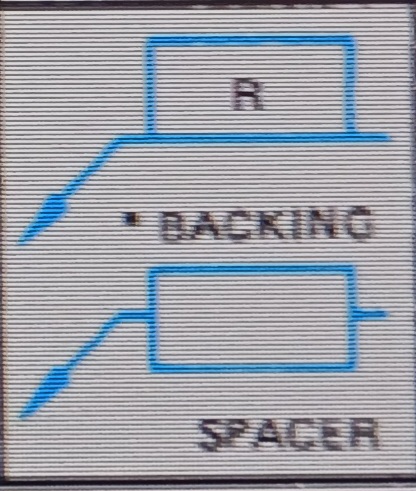

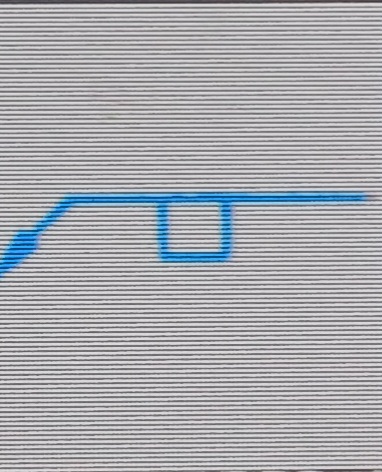

Backing Or Spacer

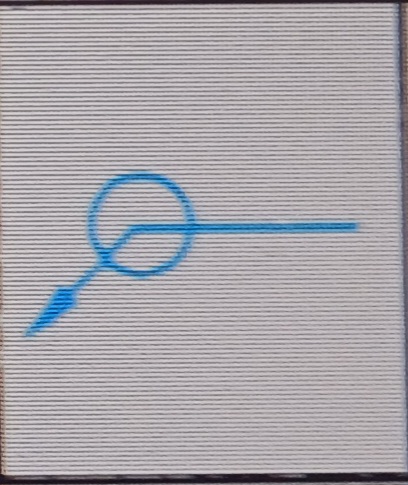

Weld all around

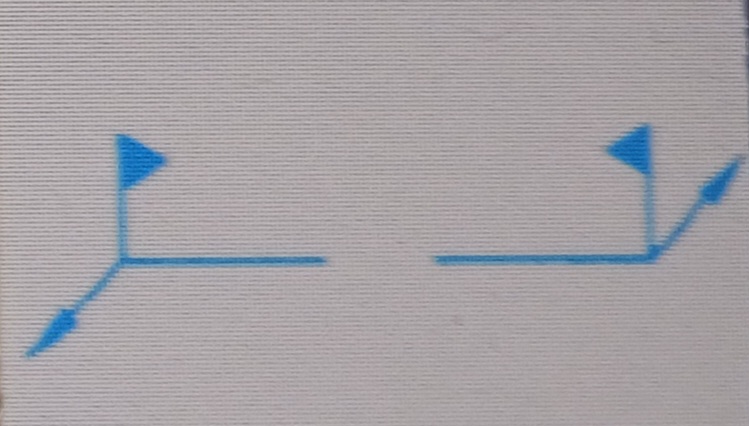

Field weld

flush contour

Flat contour

C method of finishing

Chipping

G method of finishing

Grinding

M method of finishing

Machining

R method of finishing

Rolling

H method of finishing

Hammering

P method of finishing

Planishing

U method of finishing

Unspecified
